Patterns System for the Design of Partial Reconfigurable

Applications on FPGA

Nissaf Fredj

Mhamed Saidane

, Yessine Hadj Kacem

and Mohamed Abid

ISITCOM,

CES Laboratory, ENIS, Sfax, Tunisia

TIM Laboratory, Monastir, Tunisia

College of Computer Science, King Khalid University Abha, Saudi Arabia

Keywords: DPR, Patterns System, Behavioral Pattern, Architectural Pattern, DP-RTE Systems.

Abstract: During the last few years, the Dynamic Partial Reconfiguration (DPR) has been introduced to the embedded

systems as a key technique that aims at improving the flexibility of Field-Programmable Gate Array

(FPGA)-based system reconfiguration. However, the design of these systems is a hard task using low-level

functions where the design of the hardware side precedes that of the software. Recently, Model-Driven

Engineering (MDE) based approaches have emerged. They aim at simplifying the modeling of the

dynamically set systems and keep a design flow where DPR application and architecture are designed in

parallel. In fact, there is a lack of reusable and generic models that allow the improvement of the designers’

task and the decrease of the development costs. In order to overcome these issues we propose in this paper

an additional featuring or abstraction level in the DPR design flow introduced by these approaches. Our aim

is to suggest for designers a method (process and models) which allows reusing recurrent application

models and sharing experience-owned knowledge. The proposed method is a patterns system which is a

combination of architectural and behavioral patterns dedicated to the Dynamic Partial reconfigurable Real-

Time Embedded (DP-RTE) systems.

1 INTRODUCTION

The real-time embedded systems have become so

useful in our life. They are mainly related to the

image and signal processing applications in which a

significant quantity of data is regularly processed

through repetitive calculations. Embedded systems,

and particularly DP-RTE systems, are more complex

and challenging to develop compared to software

systems. In addition to requiring high computing

power at considerable speeds, they are subject to a

multitude of constraints such as resource limitations

and execution time (Henzinger et al., 2007). The

growing complexity and the high design costs of

these systems pushed the designers to apply the DPR

technique. Indeed, a DP-RTE system offers a high

functional flexibility while maintaining good

performance (Marques, 2012). These systems can be

reconfigured for an unlimited number of times. They

offer the ability to add new features and make

changes to the system after its creation. However,

the design of such systems has become an expensive

task in terms of time. It also requires a broad

knowledge of the technical details of the target

platforms. Facilitating the work of DP-RTE systems

designers and reducing the development costs and

time, is a major challenge in this field. In response to

these issues, several high-level design approaches

(Beux, 2007) (Ochoa-Ruiz et al., 2012) have been

emerged: It is a high-level co-design under the Y-

model where the application and the architecture are

designed in a parallel way. The development offers

for designer’s flexibility, reusability and automation

as well as it hide technical details. It is based on

MDE (Schmidt, 2006) and MARTE (OMG, 2011)

(Modeling and Analysis of Real-Time and

Embedded Systems) profile. Nevertheless, there is a

lack of reusable and generic models that speeding

and facilitating the reuse of these complex systems.

A pattern presents an applied solution to share

experience owned knowledge and generic terms to

obtain fast and widely used designs (Gamma et al.,

1995). However, most of the research studies based

on pattern solution are oriented towards software

systems. Furthermore, they do not deal with DP-

RTE system development and ignore important

Fredj, N., Saidane, M., Kacem, Y. and Abid, M.

Patterns System for the Design of Partial Reconﬁgurable Applications on FPGA.

DOI: 10.5220/0006383503250335

In Proceedings of the 12th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2017), pages 325-335

ISBN: 978-989-758-250-9

325

adaptation proprieties of these systems.

In this paper, we propose a new method for the

DP-RTE systems design under the Y-model. Our

contribution is formalized as a patterns system

formed with process patterns that present fragments

of demarches based on proposed criteria to assist

and guide the designer to product patterns. Our

objective allows DPR designers to reuse recurrent

solutions that have been validated by experience and

handle the real-time features of the DPR process.

This work is characterized by a new novelty which

is the description of the proposed patterns using

MARTE profile. Using a rich terminology for the

specification and analysis of embedded systems,

MARTE enables a joint design of the hardware and

software parts of embedded systems.

This paper is organized as follows: the second

section summarizes the work on the high-level

design of dynamically reconfigurable systems and

the pattern-based adaptation. The proposed patterns

system is presented in the third section and it will be

illustrated by a case study in the fourth section.

Finally, the last section is dedicated to conclude the

paper and present our future work.

2 RELATED WORKS

2.1 High Level Design of DPR

Several approaches have investigated the design of

DPR process such as the design of the

reconfigurable application. This design has been

evolved from one work to another through the

tagged design flow. Previously proposed solutions

were mainly based on the MDE approach. The main

contributions in (Cherif, 2013) are the modeling of a

deployment level, a physical platform and a control

level. The design flow is inspired by GASPARD’s

work (Gamatie et al., 2008). This flow begins with a

joint modeling of the application and the architecture

as well as the mapping between them. Next, the

authors in (Cherif, 2013) proposed an

UML/MARTE design flow for the automatic

generation of RTL code to be implemented on

dynamically reconfigurable FPGAs. They added to

the MARTE profile a set of stereotypes such as the

ReconfigurableRtUnit stereotype to model the

reconfigurable tasks of applications in the DPR

process on Xilinx FPGAs. Other approaches, which

have addressed the modeling of reconfiguration

control, have been integrated into GASPARD

project. First results in (Cherif et al., 2011) proposed

a high level modeling of a distributed modular

controller to manage the reconfiguration in FPGAs.

The MARTE profile- based approach was improved

by (Chiraz, 2012) to model the semi-distributed

control as a set of distributed modular controllers

which performs the observation, decision-making,

reconfiguration tasks and coordination between

distributed controller-made decisions. This

Modeling aims at respecting global constraints and

system objectives. Moreover, the authors in (Quadri,

et al., 2010) developed a co-design approach for Soc

(System on chips), in the GASPARD framework.

The work made the automation of code generation

from high-level MARTE models. Indeed, they use

an intermediate level which provides different

mechanisms to link the low level of implementation

with high-level models. Furthermore, the authors

extended the MARTE profile with a set of concepts

to specify the DPR in modern FPGAs.

All the approaches described above are

beneficial because they facilitate and fix the

development of dynamically reconfigurable systems.

However, they have some deficiencies. First,

proposed solutions depend on the hardware platform

as they are based on specific concepts and low-level

models that describe the Xilinx design methodology.

These approaches are only interested in the

modeling without addressing the actual DPR process

behind monitoring features, reconfiguration

decisions and system features management. Then,

these studies do not provide support for the

evaluation and validation of real-time constraints

and resources. Finally, they are not generic enough

because they handle specific reconfiguration

problems which prevent their reusability from being

adapted to the new requirements and constraints of

the system. The development of design patterns is a

promising alternative approach to deal with the latest

problem. A pattern favors the extensibility and reuse

of design and gives an abstraction view of a

recurring problem.

2.2 Patterns based Adaptation

In literature, there are few works that have presented

patterns for the adaptation of embedded systems.

Regarding the software architecture design, Gamma

and al in (Gamma et al., 1995) proposed a design

patterns that define the running of application and

aim at specifying a dynamic behavior for predefined

types of software architectures which are the

master/slave, centralized, decentralized, client/server

architectures. The contributions of (Schmidt et al.,

2000) are the basis of a pattern language that handles

problems related to concurrency and networking.

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

326

The proposed patterns consist in defining a service

provided by a middleware and then specifying a

generic implementation of this service. In (Corsaro

et al., 2002), the author proposed a Virtual

component pattern that allows the developers of

middleware to have a large set of functionalities to

their users. The suggested pattern, which permits the

adaptation of a distributed application to the

embedded systems’ memory constraints, has been

applied in a variety of middleware, such as the JVM

(Java virtual machines).

Most of the previously described works proposed

pattern solutions that are oriented software system

design. Some of these works describe the embedded

systems design but they ignored the hardware side

which is as essential as the software. Furthermore,

these latter didn’t deal with real time characteristics

of the system adaptation. In (Said et al., 2014), the

authors proposed a pattern-based specification for

adaptive embedded systems. They have developed

patterns for the MAPE (Monitor, Analyzer, Plan and

Execute) adaptation (Chess, 2003) loop which

consists of four adaptation modules. Separately in

other contexts, these modules allow the promotion

of their reuse. They also promote reusability and

modularity designs. The patterns take into account

the management of adaptation performance as well

as the evaluation of real time characteristics of

adaptation modules which are important in the

modeling the embedded systems. This work

proposed behavior patterns of the adaptation

process; however, it is not concerned with the

architecture of adaptation process which is hidden

behind the adaptable components and the

communication activity between them.

In this state of the art, we are discussing the

studies that present approaches to DPR process

design and the modeling of adaptation process using

patterns. The main contribution of these studies is a

high-level modeling of DPR using MDE based

approach under MARTE profile to both guarantee

abstraction and automation. In the following, we

present our contribution which is built on a new

pattern-based design flow that will be the subject of

the next section.

3 THE PROPOSED PATTERNS

SYSTEM

Before going on to explain the contributions of our

method, we begin by presenting the pattern concept:

According to (Buschmann et al., 1996), it is a

template which is seen as a normative model to be

copied or used. There are dependency relationships

between patterns. These relations form a system that

connects the different consecutive patterns. As

reported by (Buschmann et al., 1996), a patterns

system is a collection of patterns accompanied by a

guide for their implementation, use and

combination. The patterns must be weaving together

in a cohesive whole that shows the inherent

structures and relationships in each of its

components to achieve a common goal. In the case

of a complex system with tens patterns, it is

necessary to have classification criteria.

Our approach focuses on the application part in

the DPR design flow (Cherif, 2013). The method is

formalized as a patterns system called PDPR

(Patterns for Dynamic Partial Reconfiguration)

dedicated to the DP-RTE systems; it is illustrated in

figure 1. Our goal is to provide the designers with a

method (process and models) to reuse recurrent

application models and share experience-owned

Knowledge. The system is composed of process

patterns (step 2 in figure 1) and product patterns

(step 3 in figure 1).

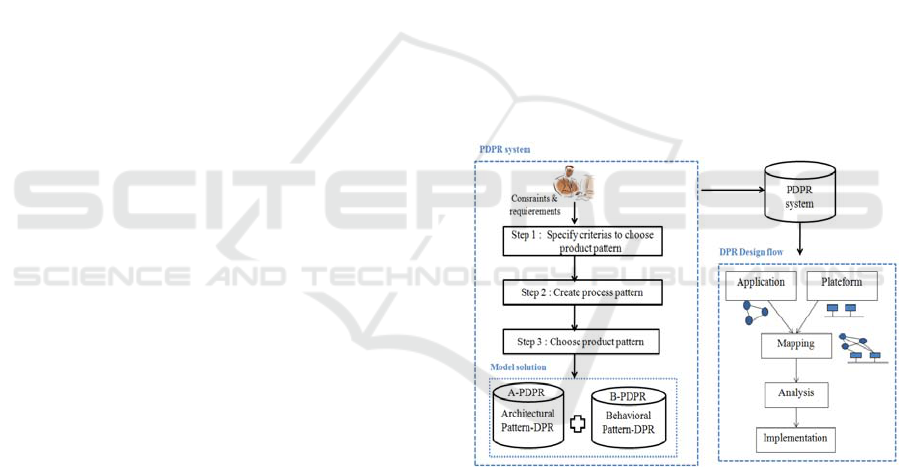

Figure 1: The Proposed PDPR system for DPR design

flow.

The process pattern proposes to the designer a

demarche to navigate the collection of the proposed

product patterns and choose the best one that meets

his needs through classification criteria (step 1 in

figure 1). The product patterns allow the

capitalization and reuse of model solutions.

Absolutely, the model solution is composed of two

types of product patterns: First, the patterns for DPR

architecture (A-PDPR: Architectural Pattern for

Dynamic Partial Reconfiguration) which represent

the components of the system to be reconfigured as

well as the communication between them. Second,

Patterns System for the Design of Partial Reconﬁgurable Applications on FPGA

327

the patterns for the behavior of DPR (B-PDPR:

Behavioral Pattern for Dynamic Partial

Reconfiguration) that describe the reconfiguration

engine process of these components. In what

follows, we will present the three steps of our

method: we begin by listing the proposed

classification criteria. In step 2 (see Section 3.2) and

step 3 (see Section 3.3), we present the different

patterns of the PDPR system under the P-sigma

formalism (Schmidt et al., 2000).

The main rubrics used are identifier, problem,

solution, application, use, require. The rubric use

and require expresses the dependency relationship

between the different patterns of the PDPR system.

3.1 Step 1: Classification Criteria

In a DP-RTE system, an application is a set of tasks

communicating with one other. We define an initial

list of criteria to characterize tasks and

communication between them. These criteria

subsequently facilitate the search and selection of

the product pattern that meets the designer’s needs.

These criteria are the synthesis of our study of the

art.

 Action type: We can distinguish three types of

actions (see figure 2) sent by a task: (1) Signal

send: The signals are equivalent to global

variables ensuring communication between the

real-time units. (2) Function call: Functions are

blocks of instructions that return a value. (3)

Data exchange: A task can communicate with

another to send or receive data. These three types

of actions can invoke a DPR process (Marques,

2012) in the system.

 Task State: In a DP-RTE system and during a

DPR process, we distinguish two kinds (Cherif,

2013) of tasks under their states. A static task

always handles the same algorithm and sends the

resulting data to the same task with which it

communicates. For some input data, the

calculation to be carried out is always the same

regardless of the previous data or the change of

environment. A dynamic task is characterized by

a behavior that varies due to external factors. In

other words, it is adapted to the environment.

 Synchronization: Communication between two

real-time units (tasks) can be carried out in

different modes: (1) the synchronous mode

where the task waits for the end of the client

task’s execution before proceeding. (2) The

asynchronous mode where the task does not wait

for the execution of the client task.

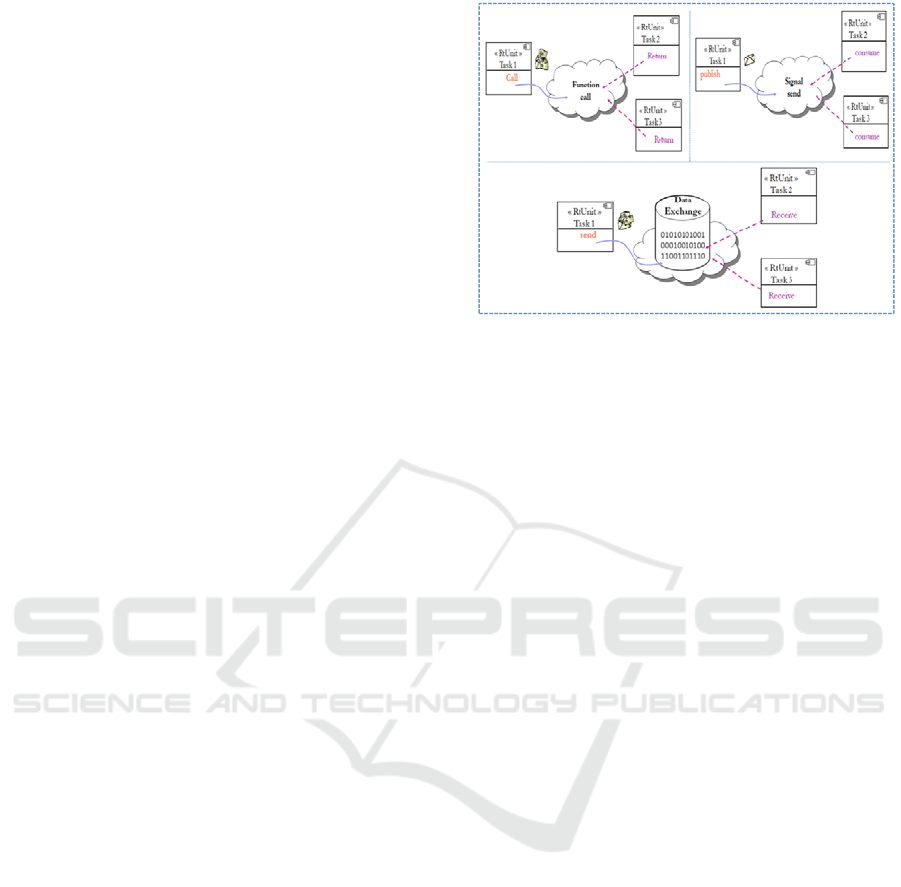

Figure 2: Action type criteria.

 Type of communication (exchange): We present

three types (Marques, 2012) of communication.

(1) A point-to-point communication between

only two tasks at the same time. (2) A multipoint

exchange, where the sender task sends the

message simultaneously to a limited number of

tasks that requested an exchange. (3) A broadcast

(diffusion) communication, where the sender

task sends the message simultaneously to all the

tasks participating in the communication whereas

those that are not concerned with ignore it.

 Direction of Communication: The exchange

between two tasks can be unidirectional or

bidirectional.

In our patterns system, the values of such previously

presented criteria change from one product pattern to

another like a set of constraints which are expressed

using OCL Language (Group, 2003). The

corresponding constraints are shown in see table 2

and table 5.

3.2 Step 2: Process Patterns

As already mentioned, the PDPR system consists of

a set of process patterns that guide the designer to

search and select one of the proposed product

patterns. The entry process pattern to the PDPR

system is named Input-PDPR which coordinates the

use of other process patterns. The navigation in the

different process patterns is carried out using the

previously described criteria. Each process pattern

proposes a fragment of demarche and orients the

designer to a process or product pattern in the

patterns system. The different process patterns are

represented as an activity diagram. In what follows,

one example of process patterns will be presented in

table 1.

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

328

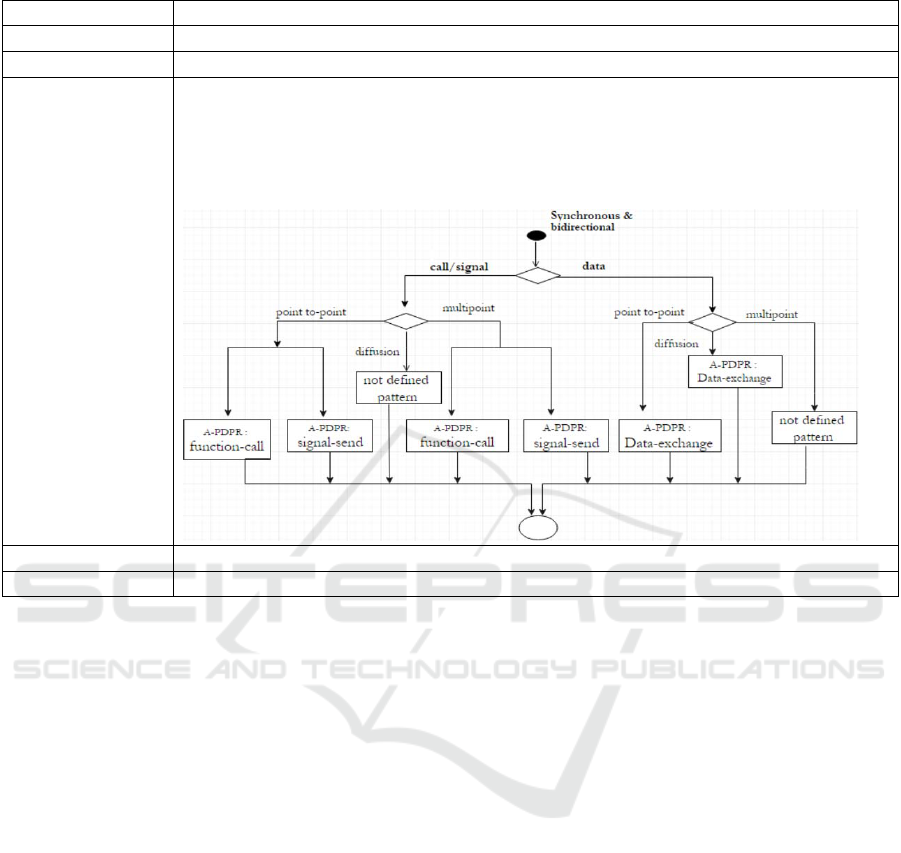

Table 1: "PDPR: Exchange-Synchronous" process pattern.

Identifier PDPR: Exchange-synchronous

Context This pattern requires the use of the Input-PDPR pattern.

Problem Orients the designer when the type of synchronization between tasks is synchronous.

Demarche Solution A simultaneous connection can only be bidirectional. This connection leads to two types of

patterns, depending on the action type criteria: When the action type is a call/signal exchange.

The designer is oriented towards two types of product patterns: The "A-PDPR: Signal-send"

pattern or the "A-PDPR: Function-call" pattern. When the action type is a data exchange, the

designer is oriented to the "A-PDPR: Data-exchange" pattern.

Such patterns are not defined at this level.

Use A-PDPR:Signal-send, A-PDPR:Function-call and A-PDPR:Data-exchange pattern.

Require Input-PDPR pattern.

3.3 Step 3: Product Patterns

The product patterns of the PDPR system provide a

level of abstraction that allows the DPR designers to

reason about the general behavior of an application

without giving the details of implementation. They

propose a double description: An architectural

description that describes the structure of the

application, which includes the tasks and

interactions between them, and a behavioral

description that follows and organizes the behavior

of the tasks in collaboration. The patterns of the

PDPR system are based on the combination of

formal and semi-formal languages. The joint use of

UML/MARTE and OCL to specify the model

solution of the product patterns makes it possible to:

increase the reuse of the proposed patterns, facilitate

the understanding of the overall architecture and

specify the constraints that allow controlling its

reuse and its adaptation. The five proposed product

patterns are illustrated respectively by table 2, table

3, table 4, table 5 and table 6.

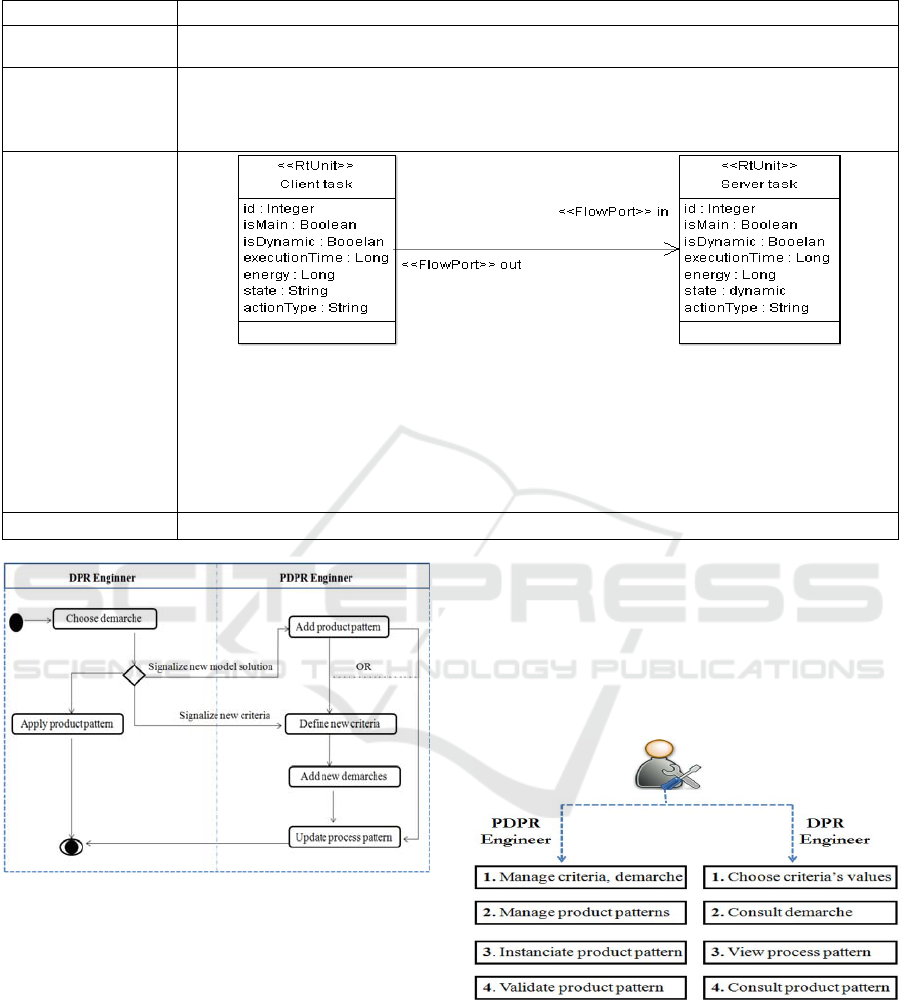

3.4 Extensible Patterns System

The classification criteria and the demarches allow

guiding the designer (DPR engineer) in his choice of

the most appropriate model solution. Once he has

chosen his demarche, the designer may be

confronted with two situations (see figure 3) : (1)

The configuration demarche leads to various models

(product pattern): In this case, the reconfiguration

(DPR) engineer can suggest to the patterns system

(PDPR) engineer the addition of one or several

criteria in order to distinguish between two

neighboring demarches. This implies the addition of

new demarches and the update of the different

process patterns constituting it.

(2) The product pattern is not adequate to the

engineer application’s needs: It is necessary to

elaborate a new product pattern representing the

expected model solution. The application engineer

can also propose new criteria to differentiate his

architecture from that proposed to him. The figure

illustrates the set of steps that the reconfiguration

engineer and the patterns engineer must follow.

The next section is devoted to the instrumentation

and the validation of the proposed PDPR system in a

concrete example.

Patterns System for the Design of Partial Reconﬁgurable Applications on FPGA

329

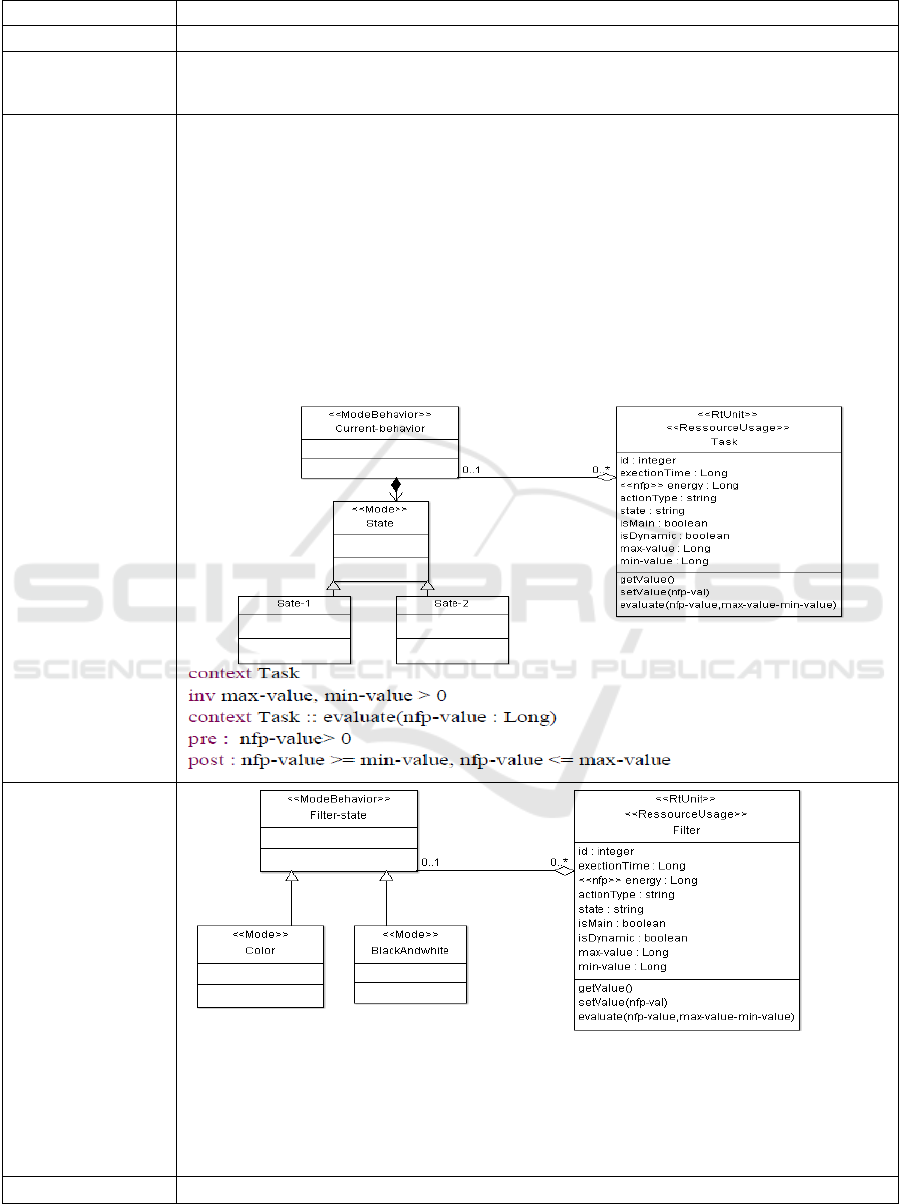

Table 2: "B-PDPR:Follow-behavior" product pattern.

Identifier B-PDPR:Follow-behavior

Context If the task state is dynamic.

Problem The pattern is applied when the designer wants to change the behavior of a dynamic task in the

DPR process. It intercepts his behavior over the time and informs the rest of the application

about his new state.

Model Solution Compared to the patterns presented by the research studies [(Buschmann et al., 1996), (Schmidt

et al., 2000), (Corsaro et al., 2002)], this pattern is dedicated the DP-RTE systems adaptation

behavior and deals with real-time proprieties of these systems. A task is stereotyped with

MARTE:RtUnit and MARTE:ResourceUsage concepts. The ResourceUsage provides a set of

non-functional properties representing the consumed values of the resources. A task class

defines a method evaluate () that checks whether a non-functional property has been optimized

during a DPR process, the evaluation is based on minimum and maximum values. A non-

functional property to be evaluated by this pattern is the consumed energy which is stereotyped

with MARTE:NFP concept.

The pattern is based on: (1) State interface which is stereotyped with MARTE:Mode

concept, defines the behavior that specifies a set of mutually exclusive modes. (2) Concrete

states (state-1, state-2) which implement the behaviors. (3) Context (Current-behavior) which is

stereotyped with MARTE:ModeBehavior concept, stores the current state and calls the

corresponding behavior.

Application example

A filter task can be in two different states: color or black and white. When a filter task receives

requests from other tasks, it responds differently according to his current state. The pattern

describes how the filter task behaves differently in each state. The key idea of this pattern is to

introduce a Filter-state abstract class to represent the states of the filter. It declares a common

interface to all the classes representing the different operating states. The sub-classes of Filtre-

state implement specific behaviors. For example, the Color and BlackAndWhite classes

implement a particular behavior for the color and the black and white states of the filter task.

Use A-PDPR:Signal-send, A-PDPR:Function-call and A-PDPR:Data-exchange pattern.

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

330

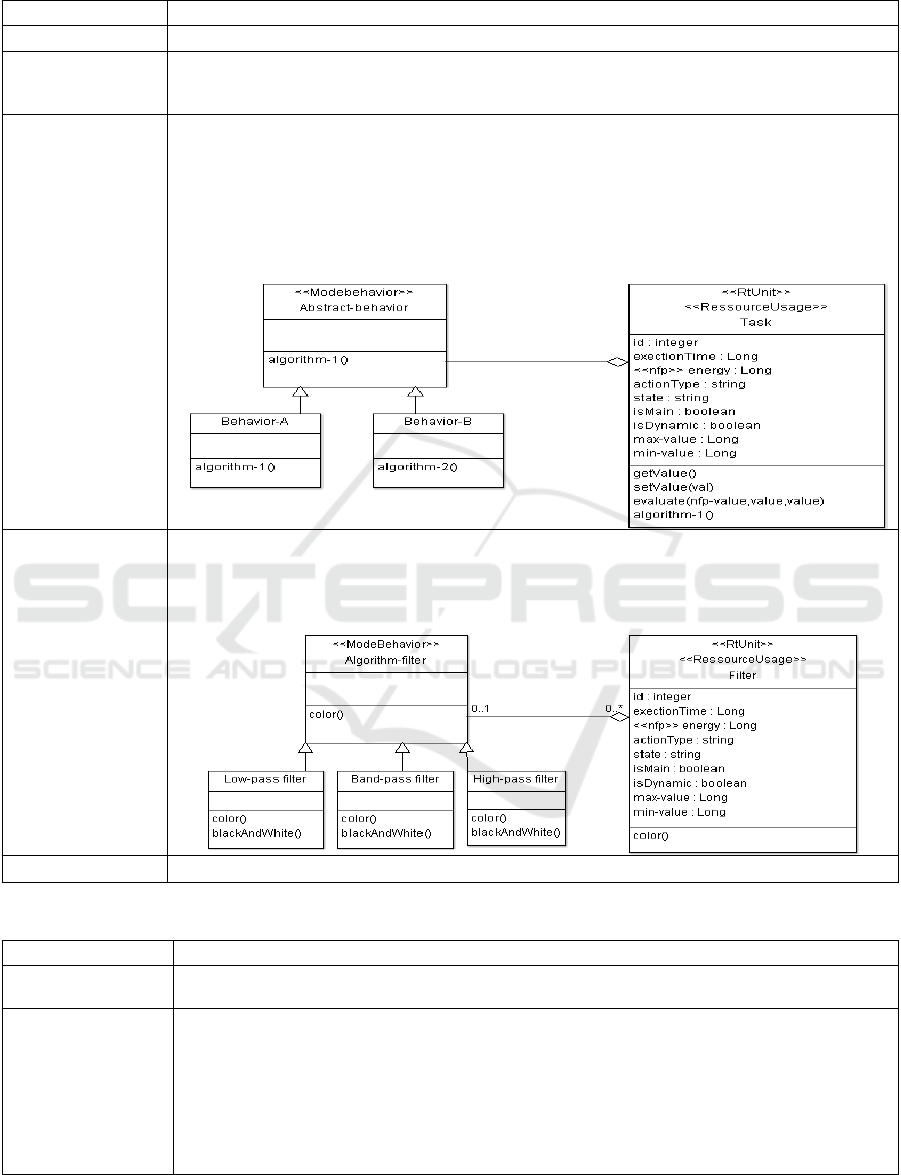

Table 3: "B-PDPR:Abstract-behavior" product pattern.

Identifier B-PDPR:Abstract-behavior

Context If the task state is dynamic.

Problem The pattern is applied to a dynamic task in the DPR process, is used when a task has different

behaviors. The pattern mainly seeks to separate the main class from its behaviors (algorithms) by

encapsulating them into different classes.

Model Solution This pattern which is dedicated to the DP-RTE system adaptation behavior, deals with the real

time proprieties of these systems. A task is stereotyped with MARTE:RtUnit and

MARTE:ResourceUsage concepts. It may have one or more behaviors. The class task maintains a

reference to abstract behavior. It is configured with a concrete algorithm. A behavior is

stereotyped with MARTE:ModeBehavior concept. A non-functional property to be evaluated by

this pattern is the consumed energy which is stereotyped with MARTE:NFP concept. The class

Abstract-behavior which is the standard interface of all algorithms is used by a task to call a

particular algorithm. The classes Behavior-A, Behavior-B are specific algorithms.

Application

example

Filtering strategies are not implemented by the Filter class but by the subclasses of the Algorithm-

filter abstract class. The subclasses use different algorithms: Low-pass filter, High-pass filter and

Band-pass filter. A Filter task preserves a reference to an Algorithm-filter object. When a filter

task is executed, it passes the responsibility to its Algorithm-filter object which specifies the

algorithm that must be used.

Use A-PDPR:Signal-send, A-PDPR:Function-call and A-PDPR:Data-exchange pattern.

Table 4: "A-PDPR:Function-call" product pattern.

Identifier A-PDPR:Function-call

Classification call/signal AND (synchronous OR asynchronous) AND bidirectional AND (point-to-point OR

multipoint)

Problem Compared to the patterns presented by the research studies [(Buschmann et al., 1996), (Schmidt

et al., 2000)] which are software-oriented systems design, this pattern is dedicated to the DP-RTE

systems adaptation architecture. In these systems, a function call can trigger a DPR process. This

pattern is dedicated to the communication between tasks by calling functions. The sender task

may or may not wait for the response of the receiver before continuing its execution. However, it

must receive a response; hence the sense of communication is necessarily bidirectional. The

communication is either synchronous or asynchronous. A component can call one component or

several; so the type of communication is either point-to-point or multipoint.

Patterns System for the Design of Partial Reconﬁgurable Applications on FPGA

331

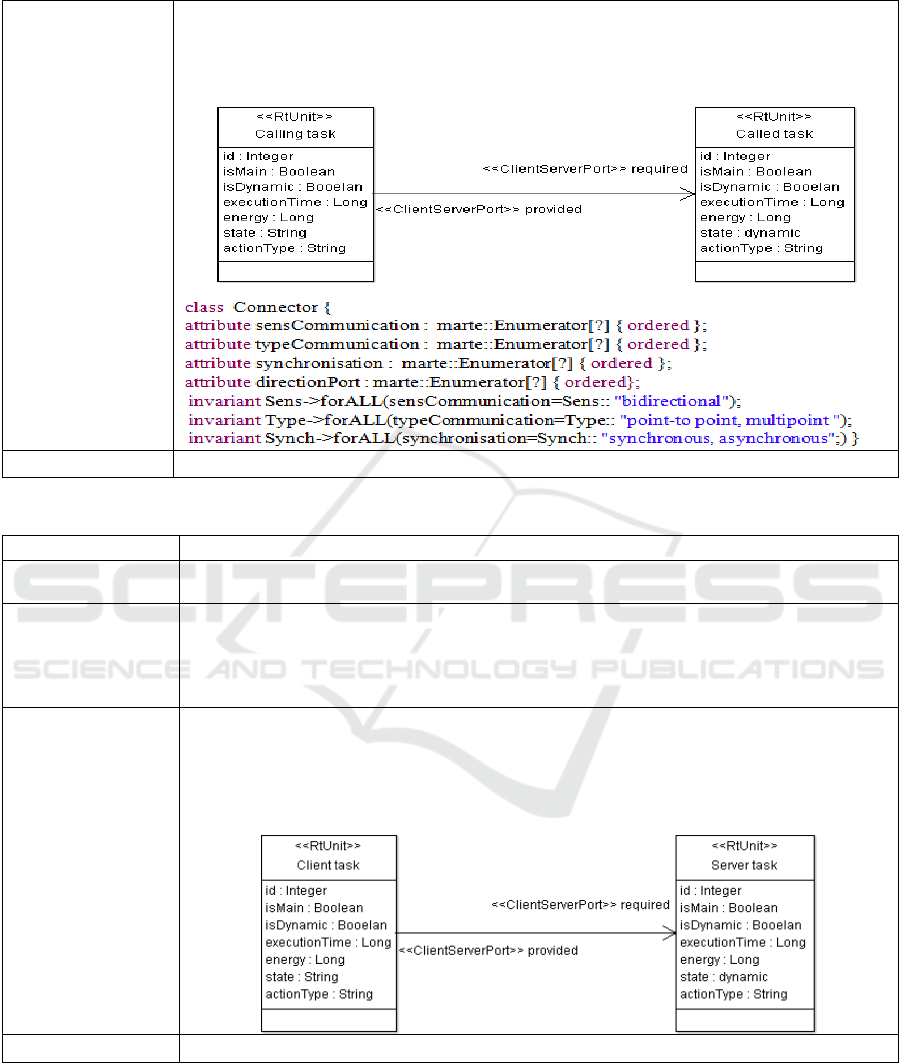

Table 4: "A-PDPR:Function-call" product pattern (cont.).

Model Solution A task is stereotyped with MARTE:RtUnit. The calling task sends a call via a connector through

a specific required port which is stereotyped with MARTE:ClientServerPort. This port allows

passing a call that is forwarded to the other task that responds via the provided port kind. A

calling task can be modified or removed from the configuration after completing the request it

initiated. A called task can be modified or deleted after processing the query.

Use B-PDPR:Follow-behavior, B-PDPR:Abstract-behavior patterns

Table 5: "A-PDPR:Signal-send" product pattern.

Identifier A-PDPR: Signal-send

Classification call/signal AND (synchronous OR asynchronous) AND (bidirectional OR unidirectional) AND

(point-to-point OR multipoint OR diffusion)

Problem This pattern is dedicated to the design of DPR process architecture which is based on sending

signals. A signal can trigger a DPR process. The components of this pattern are the client that

publishes a signal and the server that consumes it. The type of communication is multipoint,

diffusion or point-to-point. The communication between the tasks can be synchronous or

asynchronous. The direction of communication is bidirectional, but it can also be unidirectional.

Model Solution The signal exchange is passed via a connector port. The client issues a signal via the required

port kind. The server consumes the signal via the provided port. A task is stereotyped with

MARTE:RtUnit and the port with MARTE:ClientServerPort which allows passing a signal. A

client task can be modified or removed from the configuration after completing the request it

initiated. A server task can be modified or deleted after processing the query. The basis of this

pattern is to delete, add or modify a task.

Use B-PDPR:Follow-behavior and B-PDPR:Abstract-behavior pattern

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

332

Table 6: "A-PDPR:Data-exchange" product pattern.

Identifier A-PDPR: Data-exchange

Classification Data AND (synchronous OR asynchronous) AND bidirectional AND(point to point OR

multipoint)

Problem This pattern is used to allow tasks accessing a storage system. Access is managed by a server

task. This pattern is similar to the "client/server" architecture except that the client requests a

server task for a query. The latter has the client role for the storage system. Communication is

processed either in a synchronous or an asynchronous mode, but it is always bidirectional.

Model Solution

Compared to the patterns presented by the research studies [(Buschmann et al., 1996), (Schmidt

et al., 2000)] which are software-oriented systems design, this pattern is dedicated to the DP-

RTE systems adaptation architecture. The principle of this pattern is to delete, add or modify a

task; it is used when sending data between client and server task which can be modified, deleted

or added. Communication is carried out according to a communication protocol via a connector

port. The client invokes the server through its out port. The server receives the request through

it’s IN port. A task is stereotyped with MARTE:RtUnit and the port with MARTE:FlowPort

which allows passing the data.

Use B-PDPR:Follow-behavior and B-PDPR:Abstract-behavior pattern

Figure 3: Actors features of PDPR-Tool

4 CASE STUDY

All the engineering systems are based on several

methods. C. Rolland (Roland et al., 1988) describes

one of them by defining three corresponding

components: models, demarches and tools (or

techniques). At this stage, we have addressed the

first two components, the demarche which is the

process patterns of our patterns system and the

models that are the product patterns. In this section,

we briefly present the last component, namely, the

PDPR-tool. Then, we proceed to illustrate the

proposed method (PDPR system, PDPR-tool)

through a case study of a dynamically adaptive

image processing application. The features of the

PDPR-Tool are intended to the DPR engineer

(reconfiguration engineer) and the PDPR system

engineer. The features are illustrated in figure 4.

Figure 4: Actors features of PDPR-Tool.

The demonstration is based on a dynamically

reconfigurable FPGA and an input/output video. We

present the PDPR-Tool through a video streaming

consisting of two tasks, executed in sequence. The

first task is named Binarization, which is used to

binarize the values of an image and produce a binary

image. The second task named Inversion is used to

Patterns System for the Design of Partial Reconﬁgurable Applications on FPGA

333

invert the resulting binary image of the binarization

task. The example is illustrated in figure 5.

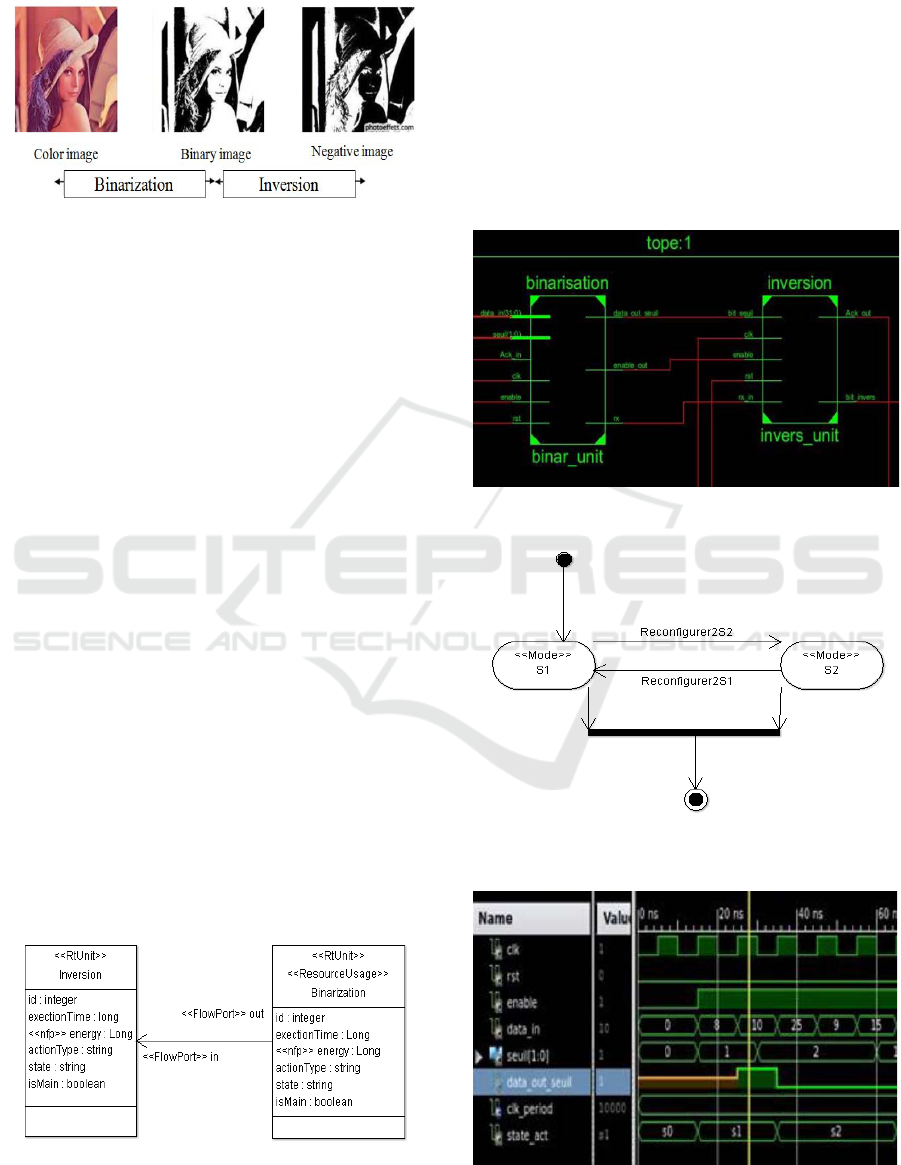

Figure 5: Demonstration Example.

The DPR engineer begins by specifying some values

of the criteria according to his needs. The PDPR-

Tool automatically combines the selected values of

the tests with the values of the unspecified one.

Therefore, we obtain the possible demarches that

will be saved in a database and displayed on the

interface of the PDPR-Tool. The designer, then,

chooses the right demarche from the interface. The

PDPR-Tool generates the corresponding process

pattern (s). The designer (DPR engineer) can view

them as an activity diagrams form. The process

pattern leads to the product pattern (s). The obtained

product patterns for our example are "APDPR: Data-

exchange" and "B-PDPR:Follow-behavior". The

next step is the instantiation of the model solution.

Figure 6 and figure 7 show the instantiation and

the validation of the "APDPR:Data-exchange"

pattern : The Inversion task launches the

communication and requests bitstreams for its

execution. It sends a request via its output port (out)

and receives a response via its input port (in). The

Binarization task receives the request through its

input port (in), handle the request and returns the

result to the client task via its out port. The

Binarization task is responsible for providing the

necessary data that the client task needs. The

communication connectors receive requests from the

client task via the input port (in) and return the

request to the server task via the out port.

Figure 6: Instanciation of "A-PDPR: Data-exchange"

pattern.

Figure 8 and figure 9 show the instantiation and the

validation of the "B-PDPR:Follow-behavior" pattern

for our example. Only one ModeBehavior is defined

and dedicated to the behavior of the Binarization

task which is the reconfigurable task (task state

criteria = dynamic.), in our example. Transitions that

make the passage from one mode to another are

stereotyped with the MARTE:ModeTransitions. The

events are Reconfigure2S1 and Reconfigure2S2. We

have defined two implementations (Threshold 1,

Threshold 2) for the Binarization task. Each defined

implementation is attached to one mode (S1, S2).

Figure 7: Validation of "A-PDPR: Data-exchange" pattern.

Figure 8: Instanciation of "B-PDPR: Follow-behavior"

pattern.

Figure 9: Validation "B-PDPR: Follow-behavior" pattern.

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

334

5 CONCLUSIONS AND FUTURE

WORK

This paper deals with the high abstraction level

design of the DP-RTE systems using a patterns

system that allows generating model solutions. Our

method focuses on the application part in the DPR

design flow. It allows reusing recurrent application

models and sharing experience-owned knowledge.

We have proposed patterns that limit the vocabulary

of the UML/MARTE and identify the essential

concepts for the specification of the model solutions.

Our method enables the DPR to be processed very

early in the design flow, in contrast to the Xilinx

flow that only offers it during the phase of

placement of the reconfigurable zones on FPGA.

Indeed, since the creation of the application model,

the concepts of MARTE have enabled to define

what the reconfigurable tasks are. Our method was

illustrated on a concrete example of an image

processing application, starting with the modeling of

the patterns system until the instantiation and the

implementation of the patterns.

In our future works, we plan to complete and

validate the specifications of the patterns system.

This refers to the refinement of the classification

criteria as well as the proposed product and the

process patterns. Then, we intend to integrate the

proposed patterns in an MDE-based approach for the

automatic generation of DP-RTE systems. Similarly,

we seek in our future work, to apply the models

@runtime (Thomas

et al., 2011) on the adaptation

process design of the DP-RTE systems to solve a

particular problem related to the complexity and the

wealth of the information associated with the

execution. This is useful to check the designer’s

needs and the non-functional properties, support

dynamic behavior monitoring and fix the errors

during the execution.

REFERENCES

Beux, S. L. (2007). Un flot de conception pour les

applications de traitement du signal systematique

implementees sur fpga a base d ingenierie dirigee par

les modeles. Universite des Sciences et Technologie

de Lille.

Buschmann, F., Meunier, R., Rohnert, H., Sommerlad, P.,

and Stal, M. (1996). Pattern- oriented software

architecture. Wiley.

Cherif, S. (2013). Approche basee sur les modeles pour la

conception des systèmes dynamiquement

reconfigurables: de MARTE vers RecoMARTE.

University of Science and Technology of Lille.

Cherif, S. Chiraz, T., Samy, M., and Dekeyser, J. (nov

2011). High level design of adaptive distributed

controller for partial dynamic reconfiguration in fpga.

Conference on Design Architectures for Signal Image

Processing: DASIP, pages 308–315.

Chiraz, T. (2012). Controle materiel des systemes

partiellement reconfigurables sur fpga: de la

modelisation a l implementation.

Corsaro, A., Schmidt, D. C., Klefstad, R., and ORyan, C.

(2002). Design pattern for memory-constrained

embedded applications. Proceedings of the 9

Conference on Pattern Language of Programs.

Gamatie, A., Beux, S. L., Piel, E., Etien, A., Atitallah, R.

B., Marquet, P., and Dekeyse, J.-L. (aout 2008). A

model driven design framework for high performance

embedded systems. INRIA Journal.

Gamma, E., Helm, R., and Johnson, R. (1995). Design

patterns: Elements of reusable object-oriented

software. Addison Wesley. .

Group, O. M. (2003). UML 2.0 OCL Specification. OMG

Adopted Specification ptc/03-10-14. Object

Management Group.

Group, O. O. M. (June 2011). A UML Profile for

MARTE: Modeling and Analysis of Real-Time

Embedded systems, ptc/2011-06-02. Object

Management Group.

Henzinger, T. A. and Sifakis, J. (2007). The discipline of

embedded systems design. IEEE Society Computer.

Imran Rafiq Quadri, Abdoulaye Gamatie, S. M. J.-L. D.

H. Y. E. R. (jan 2010). Targeting reconfigurable fpga

based socs using the uml marte profile: from high

abstraction levels to code generation. INRIA Journal,

pages 308–315.

Marques, N. (2012). Methodologie et architecture

adaptative pour le placement efficace de taches

materielles de tailles variables sur des partitions

reconfigurables.

M. Chess, J. O. K. D. (2003). The vision of autonomic

computing. IEEE Computer Society. Ochoa-Ruiz, G.,

Labbani, O., Bourennane, E.-B., Soulard.

Ochoa-Ruiz G, Ouassila L, El-Bay B, Philippe S and Sana

C. (2012) A High-level Methodology for Automatically

Generating. Springer Verlag (Germany).

Rolland, C. Foucault, O. and Guillaume, B. (1988).

Conception des Systèmes d’Information – la méthode

REMORA. Editions Eyrolles.

Said, M. B., Kacem, Y. H., Kerboeuf, M., Amor, N. B.,

and Abid, M. (July 2014). Design patterns for

selfadaptive systems specification. International

Journal of Reconfigurable Computing.

Schmidt, D., Stal, M., Rohnert, H., and Buschmann, F.

(2000). Pattern-oriented software architecture, patterns

for concurrent and networked objects, volume 2.

Wiley.

Schmidt, D. C. (2006). Model-driven engineering. IEEE

Computer, 39(2). Vogel, T., Seibel, A., and Giese, H.

(2011). The role of models and megamodels at

runtime. Springer.

Thomas V., Andreas S and Holger G. (2011). The Role of

Models and Megamodels at Runtime. Springer.

Patterns System for the Design of Partial Reconﬁgurable Applications on FPGA

335
