Studying Complex Interactions in Real Time: an XMPP-based

Framework for Behavioral Experiments

Dan Mønster

1,2,3

Interacting Minds Centre, Aarhus University, DK-8000 Aarhus C, Denmark

Cognition and Behavior Lab, Aarhus University, DK-8210 Aarhus V, Denmark

Department of Economics and Business Economics, Aarhus University, DK-8210 Aarhus V, Denmark

Keywords:

Real-time, Behavioral Experiment, XMPP, Python, Social Network, Complexity.

Abstract:

The study of human behavior must take into account the social context, and real-time, networked experiments

with multiple participants is one increasingly popular way to achieve this. In this paper a framework based on

Python and XMPP is presented that aims to make it easy to develop such behavioral experiments. An illustrative

example of how the framework can be used is also presented. This example is a real experiment, which is

currently gathering data in the lab.

1 INTRODUCTION

Humans are social beings that are connected to each

other in ties of kinship, friendship, and other afﬁlia-

tions in groups, organizations and societies at different

scales, ranging from families and friendship groups to

workplaces, cities, nation states and global communi-

ties. These groups are mediated by both physical and

symbolic interactions in real and virtual environments,

and are often represented as social networks.

Using social networks to describe interactions be-

tween humans is a long tradition in sociology (Gra-

novetter, 1973), and in recent years it has also been

used in cognitive science (Baronchelli et al., 2013) to

study, e.g., the emergence of social linguistic conven-

tions (Centola and Baronchelli, 2015). Social network

structure may inﬂuence many other areas of our lives,

for example, recent simulation studies indicate that the

structure of the social network and the kind of social

learning that takes place play a combined role in de-

termining team performance (Barkoczi and Galesic,

2016).

Interconnected networks are relevant not only for

the study of complex interactions between humans,

but also in complex coordinated activities between hu-

mans and machines, e.g., when humans interact with

cloud services or IoT devices (Dustdar et al., 2016). It

is therefore important to be able to study these inter-

actions both in the ﬁeld and in the lab. In economics

there is a long tradition of using lab experiments based

on game theory to study human behavior and deci-

sion making. Several tools exist for running such ex-

periments (see section 1.1), but few of them enable

researchers to connect participants in experiments in

arbitrary network structures and to dynamically change

these structures.

Recent studies of interacting groups suggest that

part of the key to understanding successful collab-

oration is connected to the dynamics of how group

members interact in real time (Mønster et al., 2016;

Wallot et al., 2016; Fusaroli and Tyl

en, 2016). An-

other recent study indicates that real-time interaction

inﬂuences the efﬁciency and fairness of collective out-

comes (Hawkins and Goldstone, 2016).

To facilitate and expand these kinds of studies there

is a need for an easy way for researchers to design,

build and deploy real-time networked experiments

both on the web and in the lab. This paper presents a

solution to this challenge for lab-based experiments,

and although the solution can also be extended to the

web, other existing solutions are better suited for this

purpose. There are differences between lab-based and

web-based experiments, and both approaches have dis-

tinct advantages and challenges (Woods et al., 2015).

The solution described in the present paper aims to

satisfy the need for an easy way to develop software

for lab experiments where participants interact in real

time. The approach is to provide a minimal framework

that can be integrated with researchers own code on the

client side (e.g., existing GUI or peripheral equipment)

and on the server side (computations, game logic) as

well as allowing for computer-based agents to interact

130

Mønster, D.

Studying Complex Interactions in Real Time: an XMPP-based Framework for Behavioral Experiments.

DOI: 10.5220/0006375201300138

In Proceedings of the 2nd International Conference on Complexity, Future Information Systems and Risk (COMPLEXIS 2017), pages 130-138

ISBN: 978-989-758-244-8

with human participants.

1.1 Related Works

PsychoPy (Peirce, 2007; Peirce, 2009) is a Python

based open source software tool to build experiments

with frame accurate timing for psychophysics type ex-

periments. PsychoPy is cross platform and runs on

Windows, Mac OS and Linux. It uses OpenGL for

fast 2D graphics, supports multiple monitors, moni-

tor calibration and includes many standard visual and

auditory stimuli. PsychoPy also supports many exter-

nal devices such as response boxes, parallel and serial

ports, eye trackers, and more.

PsychoJS is a recent initiative to bring PsychoPy

functionality to the web browser using JavaScript and

pixi.js and WebGL for high-performance 2D rendering

in the browser.

One of the most used tools for this type of exper-

iments has been the Z

urich Toolkit for Readymade

Economic Experiments: z-Tree (Fischbacher, 2007).

z-Tree runs on Windows computers and employs a

client-server architecture, with a client application

called z-Leaf and a server application called z-Tree.

The programming model of z-Tree is somewhat id-

iosyncratic, using a spreadsheet like construct called

tables which holds most variables and where scoping

rules and the scoping operator controls referencing

variables from other tables.

A recent alternative is oTree (Chen et al., 2016)

which is an open source Python based solution, which

like z-Tree is a client-server architecture, that uses a

web browser as the client through Django. This has the

advantage that experiments can run on most platforms

in the lab, online and in the ﬁeld.

Experimental Tribe, or XTribe (Caminiti et al.,

2013) is a web platform for programming and advertis-

ing so-called games with a purpose or citizen science

games, through the Xtribe web site. Xtribe function-

ality is similar to oTree, but is tied to the Xtribe plat-

form, which also serves to recruit participants. Game

backends (called game managers) in Xtribe can be

programmed in PHP, JavaScript (node.js), Python or

JSP.

The most recent addition to the family of

browser-based multi-participant experiment platforms

is nodeGame (Balietti, 2016), which uses JavaScript

for both client and server. nodeGame has many of

the same features as oTree and XTribe and is built on

node.js.

A system for real-time multiplayer experiments on

the web including a physics engine (Hawkins, 2015)

has also been developed. The system, called MWERT,

is also based on node.js, and uses the HTML 5 can-

vas to display client-side graphics. It also includes a

physics engine, so that players position in a virtual

world can be used in experiments.

The solution described in the present paper gives

researchers a way to develop real-time multi partici-

pant experiments using a widely used programming

language (Python) in a ﬂexible manner. In this regard

it is similar to oTree, nodeGame, Xtribe and MWERT,

although unlike these solutions it is not web based.

This is a deliberate design, although when develop-

ment of the present solution was started the author had

no knowledge of these other solutions, most of which

have only recently been published. It seems that most

of these related works were developed in parallel with

little or no knowledge of the other solutions.

2 SOLUTION

This paper describes a solution that was needed for

several novel experiment designs at Cognition and Be-

havior Lab at Aarhus University in late 2014. At the

time, no existing solution was found to satisfy all the

requirements needed for these designs, which included

the ability to embed players in different (social) net-

work topologies, real-time interaction between players,

interactive graphics and use of audio, use of server-side

calculations, and the ability to mix human participants

and software agents.

Since multiple projects had similar requirements,

and in the interest of being able re-use the solution for

future projects, a general solution was sought. Cog-

nition and Behavior Lab is an interdisciplinary lab

used by researchers from several disciplines at Aarhus

University, including, but not limited to psychology,

economics, cognitive science, marketing, political sci-

ence, neuroscience, and linguistics. As a consequence

many different platforms for developing behavioral

experiments are used, but open source platforms have

become increasingly popular – chieﬂy among these is

PsychoPy (Peirce, 2007). Part of the infrastructure at

Cognition and Behavior Lab is the Computer-based

Interaction Lab, with 33 computers. These computers

have PsychoPy installed, and many of the researchers

using the lab and programming their own experiments

are well versed in Python. A wide variety of experi-

ments have used PsychoPy

in a range of different dis-

ciplines. For this reason it was decided to implement

the initial solution in Python. With a local user-base

of lab researchers and research assistants who could

At the time of writing the two main PsychoPy pub-

lications (Peirce, 2007; Peirce, 2009) had 1130 citations,

according to Google Scholar.

Studying Complex Interactions in Real Time: an XMPP-based Framework for Behavioral Experiments

131

already develop for PsychoPy, the crucial missing in-

gredient was an easy-to-use networking component

that would allow communication between several com-

puters, each running an application that a human par-

ticipant can interact with. Such an application will be

denoted a client application or simply a client.

2.1 Design Objectives

Based on the speciﬁc projects and with an aim to sup-

port experiments involving interaction between partic-

ipants in general, the following design objectives were

developed:

Simple Interface.

The user should not be required to

understand object oriented programming, or deal

with concurrency and multi-threading issues.

High Performance.

Since one of the original objec-

tives was to enable game-like real-time interac-

tions, low latency is needed. A latency below

100 ms is generally needed in ﬁrst-person-shooter

games (Claypool and Claypool, 2006) and for VoIP

(Markopoulou et al., 2002), so delays should be

kept below this level. For larger experiments in-

volving hundreds of participants, scalability and

high throughput is also required.

Network Protocol Agnostic.

The solution should be

able to work in a wide range of network environ-

ments, i.e., in other labs, over the general Internet,

and behind ﬁrewalls and NAT devices. Hence it

is desirable to be able to use, e.g., both TCP and

HTTP as transport protocols.

Open.

Since researchers use a range of different tools

and technologies, an open standard, preferably

with open source implementations, is preferred

over closed and commercial alternatives.

After evaluating several alternative technologies,

it was decided to develop a solution based on the The

eXtensible Messaging and Presence Protocol (XMPP)

(Saint-Andre, 2011a; Saint-Andre, 2011b). XMPP

was originally designed for instant messaging (IM),

but has been used as a core enabling technology for

multi-player games (Lee, 2004), Internet of Things

(IoT) (Schuster et al., 2014), as well as cloud com-

puting (Bernstein et al., 2009) and grid computing

(Albano et al., 2015) (see (Hornsby and Walsh, 2010)

for an overview). It has thus been demonstrated that

the XMPP protocol can be used in a wide variety of

applications where the common denominator is con-

necting humans and/or systems, often with real-time

constraints and on a massive scale. Furthermore, the

XMPP protocol is open, extensible and with a wide

variety of server, client and library implementations

See, e.g., https://xmpp.org/software for a list.

many of which are open source. XMPP libraries ex-

ist for every major programming language, and for

Python there are around 10 different libraries to choose

from.

2.2 The XMPP Protocol

XMPP is a protocol for exchanging messages over a

network in eXtensible Markup Language (XML) be-

tween two entities in a client-server architecture. En-

tities are XMPP clients or the XMPP server to which

the clients are connected. Only the simple example of

one server with several clients will be considered here,

but it is noted that XMPP is a decentralized protocol

and it is possible to set up server-to-server connections

and gateways to other protocols.

Entities in XMPP are identiﬁed by a unique iden-

tiﬁer, and since XMPP is the standardization of the

original Jabber protocol, this identiﬁer is referred to

as the Jabber ID (JID). The JID is modeled after the

syntax used for Internet e-mail addresses, and have

the general form

user@domain/resource

, where the

resource identiﬁer is optional, but may, e.g., be used

to identify different devices held by the same user.

XMPP exchanges XML elements, called stanzas, be-

tween entities, and there are three stanzas deﬁned in

the XMPP core protocol (Saint-Andre, 2011a), viz.

the

stanza used to indicate availability

of the entity, the

stanza used to send a

message from one entity to another, and the

<iq/>

stanza used to send information and queries between

entities.

An XMPP session is initiated by the client and a

element is negotiated and set up between

the client and the server. This

is the root

to which all of the XML stanzas in the stream belong.

When the session is established and the client is authen-

ticated further stanzas can be exchanged. When XMPP

is used for IM, the client retrieves the roster (contact

list) associated with the JID of the client, using an

<iq/>

stanza, and then sends a

stanza

to indicate that the user is online and available. Com-

munication between two clients can now commence,

and is achieved by sending and receiving

stanzas over the established XML stream.

2.2.1 XMPP Server

The XMPP server is a key element in setting up the so-

lution, since the server is responsible for client authen-

tication and routing of messages. Since all messages

pass through the server, it is also a crucial element in

ensuring low latency and scalability — two of the key

objectives. For distributed experiments, where some

COMPLEXIS 2017 - 2nd International Conference on Complexity, Future Information Systems and Risk

132

clients may be behind NAT devices and ﬁrewalls, end-

to-end communication can still be guaranteed as long

as the clients can connect to the server and establish

an XMPP stream.

Many different XMPP server implementations ex-

ist that can be deployed locally or as hosted solutions

by commercial providers. In addition there are many

public XMPP servers, where anyone can set up ac-

counts. For the solution described in this paper a lo-

cally deployed XMPP server was the best choice, since

it guarantees lower network propagation latency than

a remotely hosted solution, and provides a more sta-

ble environment for testing and experimenting under

controlled conditions.

An ejabberd Community Server

was installed on

a virtual server running Ubuntu Linux hosted by the

IT Department at Aarhus University. The command

line control interface to ejabberd provided an easy way

to create identities in the form of JIDs through a script.

In this way it was easy to create an arbitrary number

of unique JIDs and passwords that are private to a

particular research project.

2.2.2 XMPP Library

There are several XMPP libraries implemented in

Python or with Python bindings, which could be used

for the solution. An early version of the solution was

implemented using xmpp.py (Nezhdanov and Ras-

mussen, 2013), but this library was later replaced by

SleekXMPP (Fritz and Stout, 2016) which proved to

be more stable, better documented and with a larger

community.

2.3 Simple Interface to XMPP

Most researchers (in ﬁelds other than computer sci-

ence) who develop their own software are self-taught.

A recent study among scientists showed that over 95%

are self-taught (Hannay et al., 2009), and Greg Wil-

son, who has taught software development to scientists

over the past two decades, came to the conclusion that

more ‘advanced’ topics such as object-oriented pro-

gramming, XML, and Make had to be dropped from

the curriculum (Wilson, 2016). Hence, for the solution

to be adopted by the intended user base, it must present

researchers with a simple interface to XMPP, that does

not require them to understand the intricacies of the

XMPP protocol or XML, and does not require them to

deal with issues of multithreading and asynchronous

calls.

Consequently, a simple Python class called Net-

workingClient was developed to encapsulate all XMPP

https://www.ejabberd.im/

details except the client’s JID and password, which are

passed to the

__init__()

method upon instantiation

of an object of the NetworkingClient class. The follow-

ing code shows how the class can be used in Python

code to create a new variable that holds an instance of

the class:

from NetworkingClient import NetworkingClient

jid = ’client_001_exp_008@my.local.server’

secret = ’V1nxtEcixj1TcYRS’

network = NetworkingClient(jid, secret)

A client only needs to know its own JID and pass-

word. The XMPP server address is encoded in the

JID (in the example:

my.local.server

). The Net-

workingClient class also contains methods for sending

messages to other XMPP entities identiﬁed by a JID,

as in this example:

receiver = ’client_002_exp_008@my.local.server’

network.send_message(to = receiver,

sender = jid,

message=’Hello!’,

subject=’’)

In this example the message subject has been left

empty, but it can conveniently be used to indicate the

kind of message sent (see section 3). The ability to

connect to and authenticate with an XMPP server, and

to send messages provide sufﬁcient capabilities to im-

plement all the experimental designs for which the

solution was primarily developed. The Networking-

Client class also contains methods to manage presence

and roster, but these additional methods will not be

discussed here.

2.3.1 Message Handling

The core functionality needed for the solution is the

ability to send and receive messages between any two

entities, and if two clients know each others’ JIDs,

then this functionality is accomplished. Knowledge

of other clients’ JIDs can be obtained using XMPP’s

presence and roster functionalities, or JIDs can be

known in advance, or controlled by a special client. In

the example presented in section 3 the latter method

is used, and this special client is called the experiment

server (not to be confused with the XMPP server).

The NetworkingClient class has a listener running

in a separate thread and uses a queue to store messages

in the order they are received. The calling code can

poll to check for messages and then invoke a function

to handle the messages:

if network.check_for_messages():

msg = network.pop_message()

message_handler(msg)

This design means that the calling code does not

need to take concurrency issues into account.

Studying Complex Interactions in Real Time: an XMPP-based Framework for Behavioral Experiments

133

3 RESULTS

The NetworkingClient class has been used to imple-

ment several experiments where real-time interaction

between participants was needed. In the following,

one of these, called networked problem solving will

be described in detail. The purpose of the ‘network-

ing problem solving’ experiment is to study how the

network topology inﬂuences how people solve a joint

problem, and how solutions to the problem propagate

in the network. At the time of writing, data is still

being gathered in the experiment, and the results of the

experiment will be published elsewhere. Here the fo-

cus will be on how the solution described in the present

paper was used to facilitate the experiment. The prob-

lem to be solved by the participants in the experiment

was framed as a collaborative game in which pairs of

participants together had to create a four-tone melody

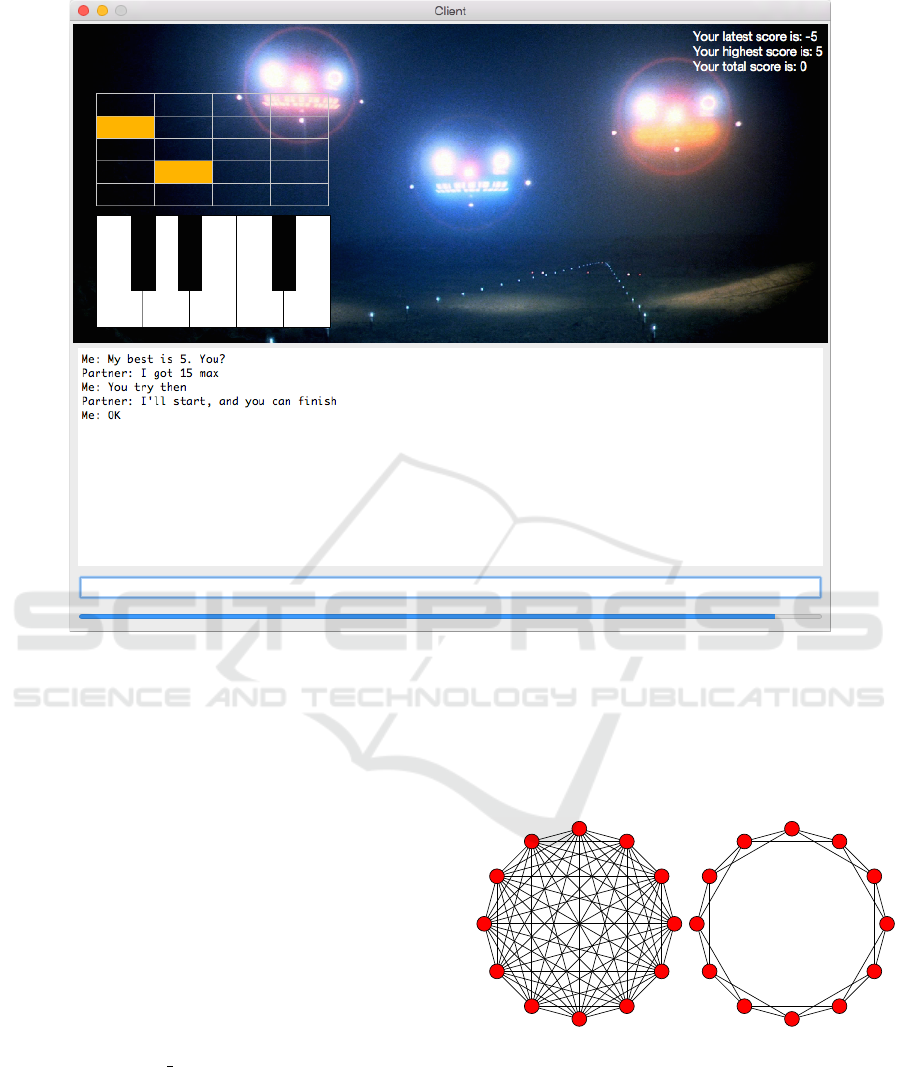

on a shared keyboard with ﬁve tones (see Figure 1).

The terms player and participant will be used inter-

changeably to refer to the human participants, while

the term game client refers to the software that the

players use.

3.1 Experimental Session

The game is played by an even number of players, each

using a game client, and the gameplay is controlled

by an experiment server (or game server). Both the

game client and game server use instances of the de-

veloped NetworkingClient to send and receive XMPP

messages.

In an experimental session the game server applica-

tion is started before the clients, and it uses Network-

ingClient to connect to the XMPP server and authenti-

cate, after which it starts listening for messages. When

a game client is started it also connects to the XMPP

server and authenticates with a matching (JID, pass-

word) combination. Since the experiment is conducted

in a lab, the JID is found by matching the computer’s

MAC address to a JID. The game client then sends a

version = 0.5

server_jid = ’server_exp_008@my.local.server’

network.send_message(to=server_jid,

sender=jid,

subject=’register’,

message=str(version))

In the example code the game client’s JID and the

game server’s JID are hardcoded. The XMPP mes-

sage’s subject is used to indicate the type of message

that is sent, in this case a ‘register’ message. The

message body contains a string, which for the register

message is the game client’s version number.

3.2 Message Passing

Once the game client has sent a register message to

the game server, the server can communicate with

the client and all other clients that have registered.

The game server maintains a list of registered clients,

and when a sufﬁcient number of game clients have

registered, it can start the game. In the ‘networked

problem solving’ experiment described here, the game

is started by an experimenter who runs and supervises

the experimental session, but it could equally well

happen automatically.

Before the game is started the experimenter can

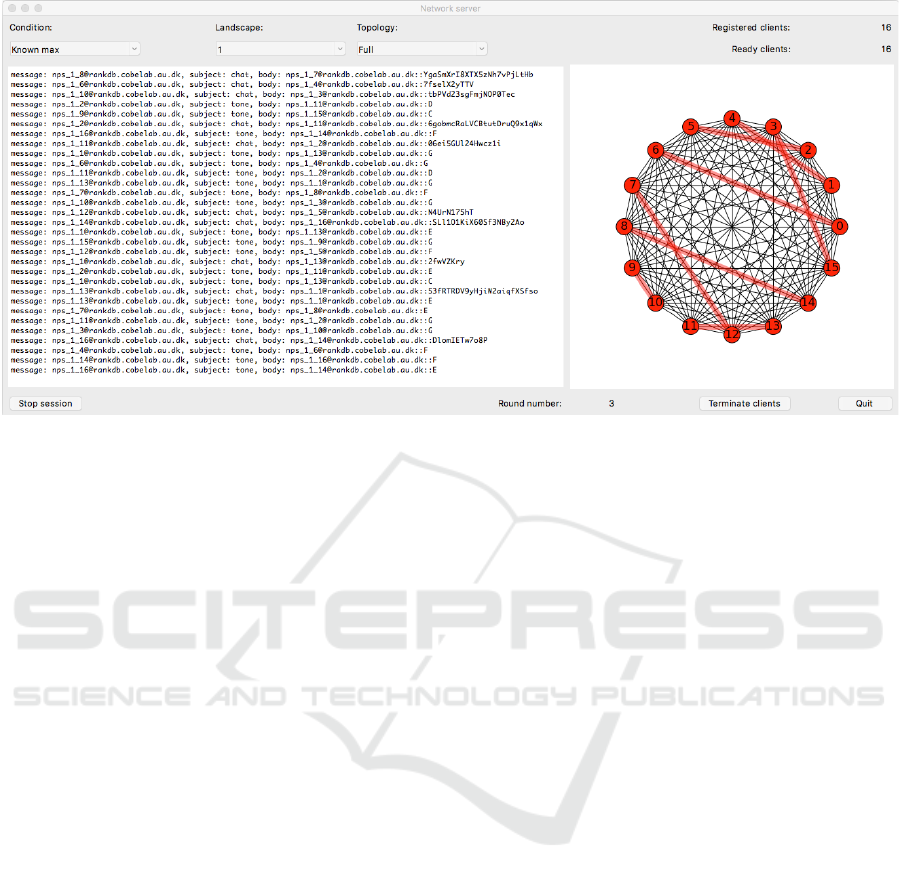

set a number of parameters in the game server GUI

(see Figure 4), most importantly for the description

here is the network topology which determines how

game clients are connected to each other. The op-

tions here are ‘fully connected’, where any two game

clients are connected, and ‘ring structure’, where each

game client is connected to its nearest and next nearest

neighbors in a ring (see Figure 2).

In each round of the experiment a participant is

paired with another participant, that is a neighbor in

the chosen network topology. This pairing is directed

by the game server, which sends each game client the

JID of its partner. This is implemented by sending an

XMPP message with

subject = ’new round’

and

with a message body that is the JID of the partner (see

Figure 3).

In principle the two partners can now exchange

messages directly through the XMPP server, but since

some messages have relevance for the gameplay’s

logic they must also be sent to the game server. Thus,

these messages must either be sent both to the part-

ner’s game client and to the game server, or simply be

routed through the game server. The latter method was

chosen, and is illustrated by the call diagram in Fig-

ure 3, which shows some of the messages exchanged

between two game clients

and

via the game

server, within a single round of the game. The round

is started when the game server sends the

new round

message to all clients. Chat messages are sent by a call

to the

send message()

method in NetworkingClient

with

subject = ’chat’

and the chat message as the

body of the message. When a player clicks the key-

board a message with

subject = ’tone’

is sent to

the game server which replies back to the originating

game client with a

’tone ack’

message and sends a

subject = ’tone’

message to the game client of

the partner. This causes the clicked key on both part-

ners’ game clients to brieﬂy change color to indicate

that the key (identiﬁed in the body of the message)

was pressed (yellow if the player pressed, and red if

the partner pressed).

COMPLEXIS 2017 - 2nd International Conference on Complexity, Future Information Systems and Risk

134

Figure 1: Screenshot of the game client from a test session. In the actual experiment the client application runs in full screen

mode. The upper half contains the shared keyboard and some graphics that relates to the story behind the game. When one

player presses a key, that key is brieﬂy highlighted on the player’s own and the partner’s keyboard, the tone is played as audio

on both client computers, and the corresponding cell in the solution grid above the keyboard is ﬁlled to give the players a visual

representation of their shared melody. The lower half of the screen is a chat interface, where the two players can communicate.

Below the chat input box a progress bar serves as a timer that indicates how much of the current round has passed. When a new

round starts, players will be paired with a partner anew and the timer restarts, while the solution grid and the chat are cleared,

so only the latest score, highest score and total (cumulative) score in the upper right corner are preserved.

Routing all messages through the game server also

makes it easy to resolve contention issues. An example

of this is shown in the lower part of Figure 3, where

the two partners have played three of the four tones

required for a melody, and they both press a fourth

tone on the keyboard. In this case only one of the

tones can be played and added to the melody. Since

both messages (with

subject = ’tone’

) are sent

to the game server, the server replies to the message

it ﬁrst receives (from

) with an acknowledgement

(

subject = ’tone ack’

) and relays this ‘tone’ mes-

sage to the other partner (

). This partner’s ‘tone’

message which is received by the game server after the

ﬁrst ‘tone’ message is simply ignored. When a pair of

players have constructed a melody of four tones, the

game server sends the score obtained with the melody

to the game clients, and when the round ends the score

will be displayed to the players.

Routing all messages through the game server has

Figure 2: Examples of the two network topologies used in

the experiment, for

N = 12

. To the left is the fully connected

topology, where all clients are connected; and to the right

the ring topology, where each client has four neighbors.

the additional advantage that all messages can be time-

stamped and logged centrally on the server. This

makes it easy to record all the relevant data from an

experimental session for later analysis. On the other

hand this also puts a greater load on the game server,

Studying Complex Interactions in Real Time: an XMPP-based Framework for Behavioral Experiments

135

Game server

new_round

chat

tone

tone_ack

tone

tone_acktone

score

Figure 3: Call diagram illustrating the communication be-

tween two game clients,

and

, and the game server. All

messages represent calls to the

send message()

method in

NetworkingClient, and are routed through the XMPP server

which is not shown. The last

tone

message from

is ig-

nored, because the pair have no more tones left to play. See

main text for further details.

which may result in increased latency and jitter of the

messages.

3.3 Tests and data acquisition

The solution, i.e. the NetworkingClient class, and the

applications built using it can, to a large extent, be

tested using unit testing. With an XMPP server on the

same computer where the solution is developed the

loopback interface can be used to test the exchange of

messages. But an integrated test of the software for

running a networked behavioral experiment ultimately

has to be performed with several client computers, run-

ning on a real physical network. Testing with multiple

game clients requires several people, and is an impor-

tant step before running the experiment with actual

participants. But this type of test is expensive in terms

of people-hours, and during the early stages of the

development process it may slow down development

if a test requires several persons to. For this reason a

stripped down game client without the need for user

input is an ideal test tool. Such a ‘robot client’ can

emulate a player using the real game client.

For the networked problem solving experiment de-

scribed here, such a robot client was developed, which

simply ‘clicked’ a random key on the keyboard at

random intervals and sent chat messages of random

strings with differing lengths at random intervals. Both

the intervals and the string lengths were drawn from

uniform distributions on an interval. The intervals

lengths are parameters that can be tuned either to re-

semble real users, or to provide different levels of

message trafﬁc and hence load on the network, on the

XMPP server, and on the game server. A screenshot of

the game server during testing with 16 robot clients is

shown in Figure 4. These tests showed that the game

server message handler could be a bottleneck, which

under sufﬁciently high load resulted in an increase in

reply times from the server logic that affected game-

play.

Several errors were found using robot client test-

ing, which included load tests with high message rate

and stability tests with long duration. Some errors,

however, were only provoked when the game client

was used, and pilot experiments with human partici-

pants also resulted in new issues. After several rounds

of testing using this hierarchy—unit tests, integration

tests with robot clients, integration tests with human

assistants, and pilot tests with human participants—the

solution and the application using it are stable enough

that data acquisition has started and at the time of writ-

ing data are being gathered in the lab with groups of

16 participants per experimental session.

4 CONCLUSIONS AND FUTURE

WORK

In this paper a Python interface to XMPP called Net-

workingClient was presented, and it was described

how the class can be used to develop a real-time multi-

player experiment, only requiring access to an XMPP

server, where a number of accounts can be created.

An illustrative example of an actual experiment

was given, and performance was found to be satisfac-

tory under normal conditions, although a load test with

robot clients showed that the game server could cause

unacceptable delays under high load, indicating that

the present version will not scale to a large number of

users.

In view of recently developed solutions described

in section 1.1 it is clear that other mature alternatives

exist, that would achieve most of the design goals

listed for the solution presented here. The present

solution has an advantage in cases where an existing

Python implementation of the client interface exists.

For example the example experiment presented here

already existed in a single-player version implemented

for PsychoPy and large pars of the code could there-

fore be reused, although the multiplayer version was

written using the TkInter GUI library instead of Psy-

choPy. Another instance where the present solution

is more appropriate than the alternatives, is when the

client has to interface with peripheral equipment. This

COMPLEXIS 2017 - 2nd International Conference on Complexity, Future Information Systems and Risk

136

Figure 4: Screenshot of the game server from a test session with 16 robot clients. Messages from the clients are shown

continuously in the left side of the window. In each game round a the game server constructs a new set of pairs drawn at

random. This is shown on the right side of the window, where red lines indicate the clients that are paired in the current game

round, and black lines indicate which clients are neighbors. The example illustrated here is for the fully connected topology,

where all clients are connected to each other.

is an area where PsychoPy excels, and where Network-

ingClient can be used to connect several PsychoPy

clients through a game server.

4.1 Future work

The NetworkingClient solution has so far only been

used for research projects at Cognition and Behav-

ior Lab. Continued development will be needed to

optimize performance. The game server message han-

dler was identiﬁed as a potential bottleneck, and this

can possibly be alleviated by providing a method to

SleekXMPP library rather than creating a message

queue.

Another topic for future work is to integrate Net-

workingClient with PsychoPy to make it as easy as

possible to create real-time multiuser experiments with

PsychoPy.

ACKNOWLEDGEMENTS

This project has been supported by seed funding 2016

from the Interacting Minds Centre, Aarhus Univer-

sity. The author wishes to thank Ren

e Frederiksen for

working on the initial implementation of one of the

experiments and the XMPP client code. The game

client described in the example application was based

on a single-player version programmed in PsychoPy

by Kristian Tyl

en.

REFERENCES

Albano, M., Ferreira, L. L., Pinho, L. M., and Alkhawaja,

A. R. (2015). Message-oriented middleware for smart

grids. Computer Standards & Interfaces, 38:133–143.

Balietti, S. (2016). nodeGame: Real-time, synchronous,

online experiments in the browser. Behavior Research

Methods, pages 1–20.

Barkoczi, D. and Galesic, M. (2016). Social learning strate-

gies modify the effect of network structure on group

performance. Nature Communications, 7:13109.

Baronchelli, A., Ferrer-i Cancho, R., Pastor-Satorras, R.,

Chater, N., and Christiansen, M. H. (2013). Networks

in Cognitive Science. Trends in Cognitive Sciences,

17(7):348–360.

Bernstein, D., Ludvigson, E., Sankar, K., Diamond, S., and

Morrow, M. (2009). Blueprint for the Intercloud -

Protocols and Formats for Cloud Computing Interop-

erability. In 2009 Fourth International Conference

on Internet and Web Applications and Services, pages

328–336.

Caminiti, S., Cicali, C., Gravino, P., Loreto, V., Servedio,

V. D. P., Sirbu, A., and Tria, F. (2013). XTribe: A

Web-Based Social Computation Platform. In 2013

International Conference on Cloud and Green Com-

puting, pages 397–403.

Centola, D. and Baronchelli, A. (2015). The spontaneous

emergence of conventions: An experimental study

of cultural evolution. Proceedings of the National

Academy of Sciences, 112(7):1989–1994.

Studying Complex Interactions in Real Time: an XMPP-based Framework for Behavioral Experiments

137

Chen, D. L., Schonger, M., and Wickens, C. (2016).

oTree—An open-source platform for laboratory, on-

line, and ﬁeld experiments. Journal of Behavioral and

Experimental Finance, 9:88–97.

Claypool, M. and Claypool, K. (2006). Latency and Player

Actions in Online Games. Commun. ACM, 49(11):40–

45.

Dustdar, S., Nastic, S., and Scekic, O. (2016). A Novel

Vision of Cyber-Human Smart City. In 2016 Fourth

IEEE Workshop on Hot Topics in Web Systems and

Technologies (HotWeb), pages 42–47.

Fischbacher, U. (2007). z-Tree: Zurich toolbox for ready-

made economic experiments. Experimental Economics,

10(2):171–178.

Fritz, N. and Stout, L. (2016). SleekXMPP

(https://github.com/fritzy/SleekXMPP).

Fusaroli, R. and Tyl

en, K. (2016). Investigating Conversa-

tional Dynamics: Interactive Alignment, Interpersonal

Synergy, and Collective Task Performance. Cognitive

Science, 40(1):145–171.

Granovetter, M. S. (1973). The Strength of Weak Ties. Amer-

ican Journal of Sociology, 78(6):1360–1380.

Hannay, J. E., MacLeod, C., Singer, J., Langtangen, H. P.,

Pfahl, D., and Wilson, G. (2009). How do scientists

develop and use scientiﬁc software? In 2009 ICSE

Workshop on Software Engineering for Computational

Science and Engineering, pages 1–8.

Hawkins, R. X. D. (2015). Conducting real-time multiplayer

experiments on the web. Behavior Research Methods,

47(4):966–976.

Hawkins, R. X. D. and Goldstone, R. L. (2016). The Forma-

tion of Social Conventions in Real-Time Environments.

PLOS ONE, 11(3):e0151670.

Hornsby, A. and Walsh, R. (2010). From instant messaging

to cloud computing, an XMPP review. In IEEE Inter-

national Symposium on Consumer Electronics (ISCE

2010), pages 1–6.

Lee, N. (2004). Jabber for Multiplayer Flash Games. Com-

put. Entertain., 2(4):13–13.

Markopoulou, A. P., Tobagi, F. A., and Karam, M. J. (2002).

Assessment of VoIP quality over Internet backbones.

In Proceedings.Twenty-First Annual Joint Conference

of the IEEE Computer and Communications Societies,

volume 1, pages 150–159 vol.1.

Mønster, D., H

akonsson, D. D., Eskildsen, J. K., and Wallot,

S. (2016). Physiological evidence of interpersonal

dynamics in a cooperative production task. Physiology

& Behavior, 156:24–34.

Nezhdanov, A. and Rasmussen, N. (2013).

xmpppy: the jabber python project

(https://sourceforge.net/projects/xmpppy/).

Peirce, J. W. (2007). PsychoPy—Psychophysics software in

Python. Journal of Neuroscience Methods, 162(1–2):8–

13.

Peirce, J. W. (2009). Generating stimuli for neuroscience

using PsychoPy. Frontiers in Neuroinformatics, 2.

Saint-Andre, P. (2011a). Extensible Messaging and Presence

Protocol (XMPP): Core (IETF RFC 6120).

Saint-Andre, P. (2011b). Extensible Messaging and Presence

Protocol (XMPP): Instant Messaging and Presence

(IETF RFC 6121).

Schuster, D., Grubitzsch, P., Renzel, D., Koren, I., Klauck,

R., and Kirsche, M. (2014). Global-Scale Feder-

ated Access to Smart Objects Using XMPP. In 2014

IEEE International Conference on Internet of Things

(iThings), and IEEE Green Computing and Commu-

nications (GreenCom) and IEEE Cyber, Physical and

Social Computing (CPSCom), pages 185–192.

Wallot, S., Mitkidis, P., McGraw, J. J., and Roepstorff,

A. (2016). Beyond Synchrony: Joint Action in a

Complex Production Task Reveals Beneﬁcial Effects

of Decreased Interpersonal Synchrony. PLOS ONE,

11(12):e0168306.

Wilson, G. (2016). Software Carpentry: lessons learned.

F1000Research, 3(62).

Woods, A. T., Velasco, C., Levitan, C. A., Wan, X., and

Spence, C. (2015). Conducting perception research

over the internet: a tutorial review. PeerJ, 3:e1058.

COMPLEXIS 2017 - 2nd International Conference on Complexity, Future Information Systems and Risk

138
