A Case-based Approach for Reusing Decisions

in the Software Development Process

Hércules Antonio do Prado

1,2

, Edilson Ferneda

, Aluizio Haendchen Filho

and Sandra Silva de Alvarenga

MGCTI, Catholic University of Brasilia, Brasília, Brazil

Brazilian Agricultural Research Corporation, Brasília, Brazil

UNIFEBE, Brusque, Brazil

UniCEUB, Brasília, Brazil

Keywords: Software Engineering, Design Rationale, Case-Based Reasoning, Knowledge Management.

Abstract: This paper proposes a process for supporting reuse of decisions during the software development process,

involving architectural, technological, or management issues, in order to help reducing time and costs in

process. A survey with software engineering professionals was performed aiming at identifying a set of

decision-making cases that could be applied to design the process. From the result of this survey, a process

was implemented, including related software and procedures that eases the reuse of decisions made during

software development projects. Design Rationale techniques were applied to structure the cases that were

represented and recovered by means of a Case-Based Reasoning approach. The applicability of this

approach was evaluated by means of a two-phase case study. The first one encompassed the construction of

the case base using the cases identified previously and the second was focused in the application of the

system and its evaluation by means of group dynamics. The focal group was chosen among a set of software

engineering experts from companies and universities located in Brasília, the Brazilian capital. Satisfactory

results were found with respect to the usefulness of the model to improve the performance of software

development when past cases are available.

1 INTRODUCTION

The software development process involves the use

of highly specialized and expensive technical

knowledge. This knowledge can represent important

asset if properly registered and made available for

reuse. Usually, the development of an activity can

benefit from the experience of past decisions,

avoiding the re-work or even the adoption of

solutions that are not the best for the same class of

problems.

However, it is not usual to adopt a systematic

approach for this purpose. Usually, these activities

are carried out occasionally and without reference to

the context of the problem. Indeed, documenting

decision making throughout the software lifecycle

can be costly or have limited success chances if

adequate support is not available for the

management of the involved knowledge.

Although the widely recognized importance of

reuse in Software Engineering (SE)

(Gopalakrishnan, 2015, Moaven et al., 2008), the

available solutions do not retain the context of the

design decisions or even the course taken by the

software engineer in the formulation of solutions.

Usually, the approach is to design components with

broad spectrum of application that are difficult to

apply to specific problems. The treatment of the

knowledge involved in the construction of

components for reuse is still a problem without a

largely accepted solution.

Misleading and re-working should be mitigated

to the maximum, and successful solutions should

serve as the basis for new problems solving. An

aggravating factor is that in general, the knowledge

involved is dispersed, large and very dynamic

(Parreiras e Bax, 2003).

During the software development process, many

solutions can be devised for a given problem

situation. Many are the arguments involved in the

discussions for the definition of an alternative. What

is sought is a narrative based on well-defined criteria

Prado, H., Ferneda, E., Filho, A. and Alvarenga, S.

A Case-based Approach for Reusing Decisions in the Software Development Process.

DOI: 10.5220/0006356606250631

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 1, pages 625-631

ISBN: 978-989-758-247-9

625

as a rationale for the choice of a way forward. There

are many risk situations for these knowledge assets.

Explanations offered by users to understand a

demand and the knowledge that is lost by employee

turnover can be cited as examples. All this

knowledge asset can be lost by failing in

documenting the solutions to the problems. (Burge,

Brown, 2000).

Despite the many facilities provided in the realm

of SE to document information related to software

projects, the non explicitation of tacit knowledge

involved in decision-making weakens the overall

process. In addition, companies are increasingly

concerned with reaching higher levels of capacity

maturity models, spending much more time with

documentation, metrics, and indicators than simply

writing and debugging codes (Burge, 2008).

This paper proposes an environment for

representation, storage and retrieval of the

knowledge involved in the software development

process, in order to: (i) avoid the repetition of past

errors and (ii) evolve products based on previous

successful decisions.

2 RELATED WORKS

Considering the literature regarding to concrete

technological solutions for decision reuse in SE,

Conklin and Begeman (1988) presented gIBIS

(Graphical Issue-Based Information System),

proposal to capture design deliberations in their

early stages. The system uses IBIS notation for

argumentation, focusing on the collaborative

working context. Afterwards, a graphical

representation was incorporated into the IBIS

vocabulary by means of a directional graph that

shows the contents nodes. It allows a hierarchical

view of the information, being able to represent

problems, answers and arguments.

Rus, Lindvall, and Sinha (2001) take as start

point the fact that the software development process

involves several profiles of professionals that need

to interact and decide on a variety of options. In this

process, timely and quality solutions must be sought,

while keeping a good tradeoff between the cost-time

to obtain a solution.

DocRationale (Francisco, 2004) is a tool for

supporting the capture, representation, and retrieval

of software artifacts based on Design Rationale (DR)

(Shum, 1991). The idea is the collaboration among

members of development teams, that register

solutions for later consultation in different projects.

DocRationale promotes the many forms of digital

communication (audio, video and e-mail files,

among others) in order to complement rationale

documentation, all of which are captured

hierarchically and chronologically ordered. In order

to provide DR support for software artifacts,

DocRationale is process-oriented, enabling the

maintenance of phases, activities, and artifacts of a

project.

InfoRat (Inference Over Rationale) also uses DR

for knowledge representation and is able to make

inferences on a particular design, to detect

inconsistencies and estimate the impact of changes

(Burge, Brown, 2000). The tool is designed to be

used along with the Eclipse development

environment. It provides an ontology criteria

visualization for evaluation and selection of

alternatives. The capture is performed manually and

separately from the design process, adding a high

cost to the software process.

Based on the Decision Rationale Language

(DRL), which allows the representation of rationale

decisions, SYBIL (Lee, 1990) is a system that aims

to assist users in the management and representation

of the qualitative aspects involved in the decision-

making process. The decision-making tasks are

supported by graphs that allow the visualization of

different alternatives involved and their respective

evaluations. SYBIL eases the user interaction with

the environment by means of a visual user interface.

It enables the management of dependency,

precedence, and evaluation, supporting decision-

making based on information quality.

SEURAT (Software Engineering Using

RATionale) (Burge, Brown, 2004) supports the use

of DR in software maintenance. It provides an

overview of the rationale and possible inferences

pointing to unresolved or inconsistent issues

resulting from software modifications. This system

adopts RATSpeak, a DRL-based representation,

which allows the generation of an arguments´

ontology, organized in a hierarchy of constraints that

can be applied to a software. SEURAT is integrated

with the Eclipse development environment.

Aiming to assist the teaching of fresh students in

the software development field, Analogus (Santos

Jr., 2009) was developed in a virtual environment

that acts in the resolution of programming problems.

This environment applies the case-based framework

jColibri to suggest programming problems similar to

the current one. In addition, to simulate a virtual

teacher an intelligent dialogue agent was embodied

in the solution. Departing from a set of information

about a programming problem reported by a student,

the system searches the case base for similar

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

626

problems already solved. This set of cases is made

available to the intelligent agent that presents similar

aspects of the cases to the student. The student

solves the new problem by reusing the knowledge

presented by the agent. A teacher checks the

resolution proposed by the student and verifies the

need for adjustments. A problem is considered

solved and made available when all of the teacher's

considerations are met by student.

ECoCADe (Evidence, Context, and Decision

Support Cases) is a framework to support evidence-

based decision making, mainly by assisting

developers in modeling evidence and case

representation. ModECoCa (Context Evidence

Modeling and Case Representation) is an

instantiation of ECoCADe. Its involves the Case-

Based Reasoning (CBR) cycle with evidence-based

practice procedures, considering the diversity of

contexts (problem actor, evidence generation and

decision making), supported by the decision-making

model of Simon et al. (1987).

Kruchten et al. (2006) propose an ontology to

organize different types of decisions, as well as an

extensive list of attributes focused on the

documentation and evolution of each decision. An

information retrieval technique gathers the traces of

the information collected using data mining.

3 FOUNDATIONS

Two basic techniques are involved in this proposal:

DR and CBR. Toulmin (1958) can be considered the

precursor of semiformal graphical representation

schemes for visualization of arguments based on

DR. An argument consists of a fact or observation, a

logical step, and an assertion. The rationale is based

on a reference or an explanation. The most relevant

features of DR are: (i) ease of explicit

documentation (Tyree, Akeman, 2005); (ii) retention

of context so that the suitability of solutions can be

verified (Rittel, 1973); (iii) ease solutions obtained

from the discussion on alternatives in groups; (iv)

avoidance of conflicts between restructuring of a

solution with the rest of the project (Burge and

Brown, 2000); (v) capture of knowledge related to

intellectual capital, collaboration and knowledge

sharing and (vi) visibility of all ideas that have

helped to guide the project, facilitating continuity in

the same chain of reasoning or the integration of

new participants.

Rittel (1973) found in DR a response to the

complexity involved in a project. For him, the real

problems in design situations were not well

described and associated with a set of possible

solutions, precluding a clear view of the problem

from the outset.

Souza et al. (1998) emphasize that DR helps: (i)

solving similar problems; (ii) understanding the

design of a product; (iii) maintenance of a product,

avoiding the forgetfulness of the reason for the

adoption of certain solutions; (iv) impact assessment

of changes; (v) communication between teams; (vi)

monitoring and finding errors; and (vii) reduction of

arbitrariness in the decision-making process, since it

is based on the justification of a choice.

The literature considers DR as an interesting

alternative to represent problematic situations and

associated solutions, along with the respective

justifications. Despite the relative consensus on this

advantage, there have been few advances in the

adoption of tools based on DR. It follows three

perspectives: argumentation, communication, and

documentation (Shipman, McCall, 1997).

Argumentation and documentation focus on project

decisions and the reasons behind them. The first one

structures how the decision maker addressed the

problem and the second one provides knowledge

about the project to external people. The

communication perspective is an attempt to preserve

the information interchange among the team (Burge,

Brown, 2000).

Although Shipman and McCall (1997) have

considered communication as the strongest

motivation for capturing a DR, they points the

difficulty involved for indexing it. Francisco (2004)

argues on the usefulness of argumentation recovery,

but emphasizes the existence of problems related to

the capture in this perspective.

The DR power is that it ensures the preservation

of information related to important decision-making

in a project. However, to enable this ability it is

necessary to develop a representation that addresses:

What is appropriate to represent? How could this

representation be used? What alternatives are

designed to solve an issue? Why a solution was

adopted? What feedbacks were offered over the time

that a particular solution was used?

In addition, it is important to ensure that the

essential issues will be clear to others that will need

to deal with them later. It is essential to promote the

visibility of all ideas that have helped to guide the

project up to the present, facilitating the continuity

in the same chain of reasoning or even the

integration of new participants.

However, Horner and Attwood (2006) pointed

the following restrictions to DR: (i) limitation of

human information processing, (ii) difficulties in

A Case-based Approach for Reusing Decisions in the Software Development Process

627

eliciting tacit knowledge; (iii) lack of incentives to

capture; (iv) difficulty in perceiving probable

benefits; (v) costs; (vi) risk of exposing an employee

if his decision was not satisfactory; (vi) identifying

what rationale should be stored and what methods

are used for recovery; and (vii) applicability of the

reasoning.

The basic idea of CBR is to keep the information

related to the alternatives considered for solving a

problem and their justifications. Amodt (1994)

proposed the following steps for the knowledge

representation:

 Case representation: structure of cases for

representation, indexing and recovering;

 Cases recovery: it requires a clear definition

of the criteria that best represent a problem

and what kind of similarity will be considered.

The data retrieval process should be able to

discard the insignificant cases showing only

those that offer an adequate proximity to the

solution;

 Cases reuse: there are two possibilities in this

step: a complete copy of the recovered

solution or its adaptation to the new problem;

 Cases review: both the success and failure of

an adopted solution must be stored in the case

base; in cases of failure, it is necessary to

identify the reasons for this result,

contributing in the future for avoiding the

occurrence of similar faults;



Cases retention: learning process of the CBR,

the appropriation of results from both reused

cases and those that were not useful.

CBR was developed under the necessity to

mitigate the dependency of specialist for problem

resolution. To make CBR feasible, the problem

knowledge must be represented by a contextualized

case, registering an episode in which a problematic

situation has been solved. A case is characterized by

a problem situation associated with its respective

solution. By means of similarities, old solutions can

be adapted to solve new problems.

A case can be considered as a basic structure of

knowledge encapsulation; an opportunity for

learning by experience. For Watson and Marir

(1994), a case is a contextualized piece of

knowledge, representing an experience that contains

past lessons and its context of use. A case is

represented by: (i) a problem (case scenario); (ii) a

solution (set of steps to solve the problem) and (iii) a

result (domain behavior after solution application).

Shiu and Pal (2004) consider that CBR should be

used in scenarios that include the following

characteristics: (i) when it is impossible to fully

understand the domain; (ii) there are exceptions in

new situations; (iii) the problem occurs recurrently;

(iv) it is advantageous to adapt a situation in order to

solve another problem; and (v) previous situations

provide significant inputs to new situations.

Watson (2003) states that, in general, the

representation of a case can be seen as a set of pairs

(attribute-value) indexed (information that helps to

reduce the search space of a case) or not indexed,

used for storing information about the case context

of the case context.

4 PROPOSED APPROACH

We propose DecisionMaker, an environment that

combines CBR and DR for reuse in SE. CBR were

adopted since a DR can be considered a case. The

work involves the proposition of procedures, roles

and activities that help the SE process.

4.1 Description

When facing a problem, the developer starts the

decision-making process supported by

DecisionMaker. As a first step, it makes the

representation of the case, which allows the tool to

suggest similar cases. The developer can now decide

on the reuse of a case (completely or even through

an adaptation). Then, the tool allows the refinement

of the designed solution, by means of review cycles,

providing feedback and adjustments to meet the

problem requirements. Finally, the case is evaluated

and retained in the memory of cases of the system,

being able to support the resolution of future

problems (Fig. 1).

The tools functionalities were defined on the

basis of four use cases:

 Problem register: consultation, inclusion,

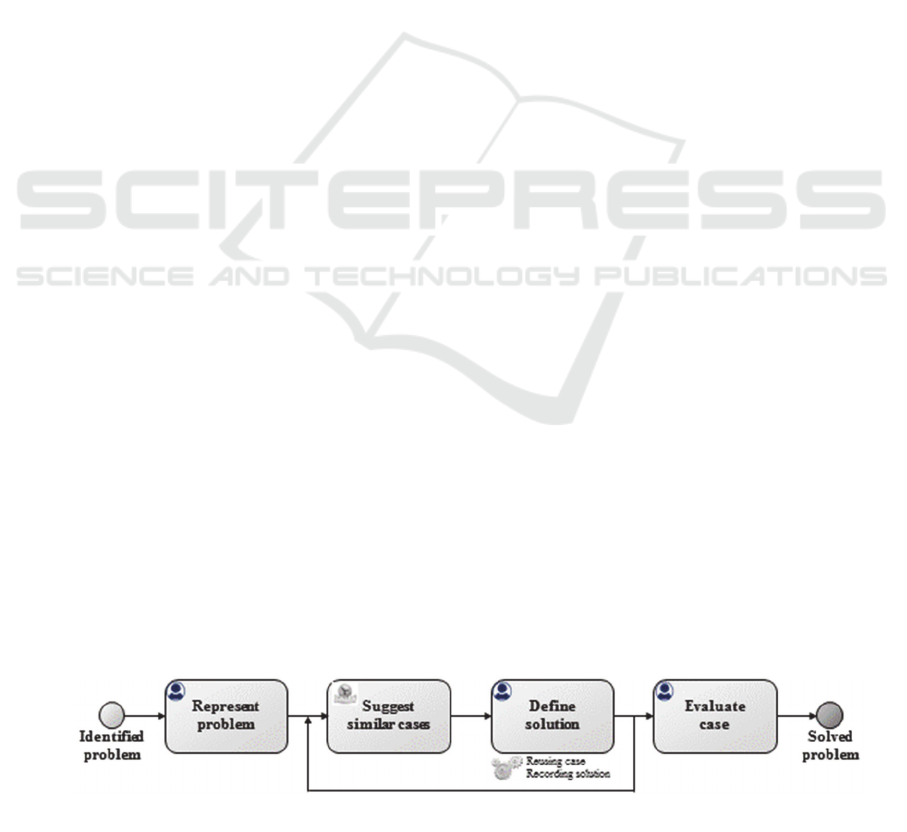

Figure 1: Decision Making Process – DecisionMaker.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

628

modification or even exclusion of a problem in

the system.

 Solution register: consultation, inclusion,

modification, exclusion or even evaluation of

alternatives to a problem.

 Search similar situations: suggest a group of

situations similar to the problem informed.

 Solution reuse: complete or partial use of a

solution attributed to a previous problem.

For the similarity calculation among cases, the

closest neighbor method was used by comparing the

corresponding vectors. The cases are also

characterized by the category and complexity of the

problem and the technology involved, according to

Tables 1, 2 and 3, defined from expert consultation.

After recording the problem, the system presents

a list of cases considered similar to the one

presented. The problem-solving features are

triggered in order to retrieve records that answer the

following questions: (i) what problems are similar to

the one registered? (ii) what is the level of similarity

for each attribute?

To help identifying these criteria, similarity

functions were defined (Table 4). Only those cases

that are considered Very Similar or even Similar are

presented to the user, ordered according their degree.

Given the suggestions presented, the system user

evaluates if some of them solve the presented

problem. If so, the decision maker selects the one

chosen for reuse in solving the problem. It is worth

to remember that a reused solution does not need to

solve a problem totally, as this can only serve as the

basis for the definition of a new solution. Thus,

cases presented as similar can assist the decision

maker in solving the problem by merely serving as

inspiration.

After choosing the solution, the decision maker

performs the implementation. However, just as it

does during software testing, the solution to the

problem can suffer many adjustments until it reaches

its correct format. In this activity, known as problem

review, the decision maker changes problem

information and alternatives as needed.

Next, the user evaluates the solution. For this,

the decision maker assigns a score from 0 to 10

considering the degree of satisfaction experienced

with the resolution of the problem. This evaluation

will also serve to point out that the case has been

completed and can be made available as a

suggestion for new problems.

4.2 Case Study

In order to evaluate the environment, a controlled

experiment was carried out involving a group of

professionals working in the area of software

development. This experiment is divided into three

stages: (i) real data collection; (ii) use of

DecisionMaker, and (iii) evaluation of the

experience.

Table 1: Domain - Problem Category.

Category Description

Programming Problems related to coding.

Solution

Architecture

Problems related to the

architectural solution chosen to

the project or even to the pattern

adoption.

Realization

Problems related to the

realization of systems analysis

artifacts as sequence diagrams of

sequence, activities or classes.

Management

Management problems including

team atitude or strategy.

Business

Strategy

Problems involving actions that

an corporation needs to reach its

desired position in market.

Activity

Execution

Problems related to the effective

use of a resource.

Table 2: Domain - Complexity of Problem.

Complexity Description

Low

Problems that does not affect the

project cost and timetable.

Medium

Problems that affects or the cost

either the timetable of the project.

High

Problems that affects the cost and

the timetable of the project.

Table 3: Project Technology.

Technologies

BPM JSF PrimeFaces

DotNet MSProject RMC

Glassfish MySQL TomCat

Java Oracle

Jdeveloper PHP

Table 4: Similarity Degree.

Degree Similarity

Very Similar 60% ≤ x < 100%

Similar 40% ≤ x < 60%

Low similarity 0% ≤ x < 40%

A Case-based Approach for Reusing Decisions in the Software Development Process

629

Stage 1

With the support of ten experts, a set of problem

situations was raised and recorded in

DecisionMaker. We have collected cases

experienced by those involved in order to represent

the most common situations, including the use of

tools, technologies, or even strategies of operation.

Such representation covered the description and

solution of the situation, including the criteria used

for choice adoption. The alternatives considered for

decision making was also recorded, even though

they were not adopted. Thus, it was identified a

problem and the considered alternatives, along with

their justifications for choice or disposal, after the

definition of the solution.

Seventy seven problem cases were surveyed,

from which 17% were considered highly complex,

73% medium complexity, and 10% low complexity.

Regarding the categories of problems, 39%

corresponded to the Programming category, 29% to

the Solution Architecture category, 17%

Management and the rest also distributed in

Realization, Business Strategy and Activity

Execution. Project Technologies focused on the use

of Java (32%), Oracle (23), MySQL (16) and

TomCat (11%), remembering that a case may

involve more than one technology.

Stage 2

In the second stage, a restricted set of 7 specialists

had access to the environment to carry out queries

based on the simulation of needs described

according to the characteristics of both the available

cases in the available collection and in totally

different cases. The group included professionals

with experience in software development in the

ranges 1 to 3 years, 3 to 5 years, 5 to 10 years, and

more than 10 years. Each participant was asked to

describe two cases, one similar to the content of the

collection and another totally different, registering in

a form the evaluation of the process. The form

included the following attributes to be evaluated

with respect to recovered cases: (i) relevance of

information about cases; (ii) relevance of the cases

for the solution of the problem; and (iii) potential

application. For each attribute of each case, the

specialist assigned a score from 1 to 5 on the likert

scale.

Stage 3

From the information obtained in the first two

stages, the results were processed and shown in

Table 5. The three issues considered were evaluated

above 3, denoting a trend toward the relevance of

the overall process. Globally, among the 21

evaluations, 66% are above 3 what can point the

proposal as promising.

Table 5: Evaluation of the Proposed Decision Support

Support Process.

Participants/Answers

1 2 3 4 5 6 7

Level of relevance

of cases information

5 3 3 3 4 2 5

Level of relevance

of suggested cases

4 3 1 2 4 2 5

Usefulness of the

information to solve

the problems

4 4 1 1 3 2 4

5 CONCLUSION AND FURTHER

WORKS

The results obtained in the expert evaluations

indicate that the DR-based software reuse process

implemented by the CBR technique is capable of

aiding professionals in the area of software

development. The deepening of the experience, with

a broader case base and evaluation in a real working

environment can strengthen this perception with

more emphatic results. In this case, similarity

functions should be calibrated due to the natural

adherence of the contents of the case base to specific

development environments.

Despite the gains provided by the flexibility of

the methodology used, it was found too much

resistance in obtaining answers from the participants

to the survey of problem situations. Corroborates to

this difficulty the subjective format of the

information needed to be raised (from the

application of the argument perspective to DR

representation) and the way in which the focal group

was performed, outside the work routine of the

participants. This only reinforces the need to test the

tool in a real-world environment.

It can be concluded that the combined use of DR

and CBR to support the decision-making process in

scenarios comprised by software development can

provide an improvement in the maturity of a new

decision, the adaptation of a case, the speed in

problems solving, influencing positively the final

result of a project.

The integration of the proposed tool into a

development suite can be an interesting research

effort, as mentioned by experiment participants. This

integration would collaborate with the

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

630

institutionalization and adherence of the necessary

procedures for the collection and representation of

problem situations, making the process involved to

capture and recover a case, as part of the

collaborator's work environment.

Finally, the association of artifacts related to the

problem or even alternatives, including text

documents, spreadsheets, emails or even videos and

audios, that collaborate to the understanding of the

explicit case could be included as a functionality to

the proposed platform.

REFERENCES

Aamodt, A., Plaza, E., 1994. Case-based reasoning:

foundational issues, methodological variations, and

system approaches. AI Communications. 7(1): 39–59.

Burge, J.E., 2008. Design rationale: Researching under

uncertainty. Artificial Intelligence for Engineering

Design, Analysis and Manufacturing, 22(4):311-324.

Burge, J., Brown, D.C., 2000. Reasoning with design

rationale. In Proceedings of the Artificial Intelligence

Design Conference.

Burge, J., Brown, D.C., 2004. An integrated approach for

software sedign checking using rationale. In J. Gero

(Ed.), Design computing and cognition ’04, Kluwer

Academic, p. 557-576..

Conklin, J., Begeman, M.L., 1988. gIBIS: a hypertext tool

for exploratory policy discussion. ACM Transactions

on Information Systems, 6(4):303-331.

Fischer, A., Greiff, S., Funke J., 2012. The Process of

Solving Complex Problems. The Journal of Problem

Solving, 4(1):19-42

Francisco, S. D., 2004. DocRationale - uma ferramenta

para suporte a Design Rationale de artefatos de

Software. Master Dissertation. Instituto de Ciências

Matemáticas e de Computação de São Carlos,

Universidade de São Paulo, Brazil.

Gopalakrishnan, A., 2015. Improving decision making and

reuse in software systems using domain specific

reference architectures. In IEEE International

Conference on Electronics, Computing and

Communication Technologies (CONECCT).

Horner, J., Atwood, M.E., 2006. Effective Design

Rationale: Understanding the Barriers, In Dutoit, A.H.

et al., Rationale Management in Software

Engineering, Springer, p. 73-90.

Kolodner, J.L., 1993 Case-Based Reasoning. Morgan

Kaufmann.

Kruchten, P., Lago, P., van Vliet, H., 2006. Building up

and Reasoning about Architectural Knowledge. In

Hofmeinster et al (Eds.) 2nd International. Conference

on the Quality of Software Architectures, LNCS 4214,

Springer Verlag.

Lee, J., 1990. SYBIL: a tool for managing a group

decision rational. In Proceedings of the 1990 ACM

Conference on Computer-Suppoerted Cooperative

Work, p. 79-92

Moaven, S., Habibi, J., Ahmadi, H., Kamandi, A., 2008. A

Decision Support System for Software Architecture-

Style Selection. In Sixth International Conference on

Software Engineering Research, Management and

Applications, SERA '08.

Parreiras, F.S., Bax, M.P., 2003. A gestão de conteúdos no

apoio à engenharia de software. In: KMBrasil, São

Paulo, Brazil.

Rittel, H.W.J., Webber, M.M., 1973. Dilemmas in a

general theory of planning. Policy Sciences,

4(2):155-169.

Rus, I., Lindvall, M., Sinha, S.S., 2001 Knowledge

Management in Software Engineering. Nova York:

The Data and Analysis Center for Software.

Santos Jr, G.P. dos, 2009. Integração de um Sistema de

Raciocínio Baseado em casos e um Agente Inteligente

de Diálogo para Resolução de Problemas de

Programação. Master Dissertation. Universidade

Federal de Campina Grande, Brazil.

Shipman, F., McCall, R., 1997. Integrating Different

Perspectives on Design Rationale: Supporting the

Emergence of Design Rationale from Design

Communication. Artificial Intelligence in Engineering

Design, Analysis, and Manufacturing, 11(2):141-154.

Shiu, S., Pal, S.K., 2004. Foundations of Soft Case-Based

Reasoning. Wiley-Interscience.

Shum, S., 1991. Cognitive Dimensions of Design

Rationale. In D Diaper and N V Hammond (Ed.)

People and Computers VI: Proceedings of HCI’91,

Cambridge University Press: Cambridge., p. 331-344.

Simon, H. A., et al., 1987. Decision making and problem

solving. Interfaces, 17(5):11-31.

Souza, C.R.B, et al., 1998. A Model Tool for Semi-

Automatic Recording of Design Rationale in software

Diagrams. In Proceedings of the Strict Processing and

Information Retrieval Symposium, p. 306-313.

Toulmin, S. The Uses of Argument. Cambridge:

Cambridge University Press, 1958.

Tyree, J., Akerman, A., 2005. Architecture Decisions:

Demystifying Architecture. IEEE Software, 22(2):19-

27.

Watson, I., Marir, F., 1994. Case-based reasoning: a

review. Knowledge Engineering Review, 9(4):327-

354.

Watson, I., 2003. Applying Knowledge Management:

Techniques for Building Corporate Memories, Morgan

Kaufmann.

A Case-based Approach for Reusing Decisions in the Software Development Process

631
