Prodeling with the Action Language for Foundational UML

Thomas Buchmann

Chair of Applied Computer Science I, University of Bayreuth, Universit

atsstrasse 30, 95440 Bayreuth, Germany

Keywords:

UML, Java, Model-driven Development, Behavioral Modeling, Code Generation.

Abstract:

Model-driven software development (MDSD) – a software engineering discipline, which gained more and

more attention during the last few years – aims at increasing the level of abstraction when developing a soft-

ware system. The current state of the art in MDSD allows software engineers to capture the static structure in

a model, e.g., by using class diagrams provided by the Uniﬁed Modeling Language (UML), and to generate

source code from it. However, when it comes to expressing the behavior, i.e., method bodies, the UML offers

a set of diagrams, which may be used for this purpose. Unfortunately, not all UML diagrams come with a

precisely deﬁned execution semantics and thus, code generation is hindered. Recently, the OMG issued the

standard for an Action Language for Foundational UML (Alf), which allows for textual modeling of software

system and which provides a precise execution semantics. In this paper, an integrator between an UML-based

CASE tool and a tool for Alf is presented, which empowers the modeler to work on the desired level of ab-

straction. The static structure may be speciﬁed graphically with the help of package or class diagrams, and the

behavior may be added using the textual syntax of Alf. This helps to blur the boundaries between modeling

and programming. Executable Java code may be generated from the resulting Alf speciﬁcation.

1 INTRODUCTION

Model-driven software development (MDSD) (V

olter

et al., 2006) is a software engineering discipline

which receives increasing attention in both research

and practice. MDSD intends to reduce the develop-

ment effort and to increase the productivity of soft-

ware engineers by generating code from high-level

models. To this end, MDSD puts strong emphasis on

the development of high-level models rather than on

the source code. Models are not considered as doc-

umentation or as informal guidelines on how to pro-

gram the actual system. In contrast, models have a

well-deﬁned syntax and semantics. Moreover, MDSE

aims at the development of executable models.

Throughout the years, UML (OMG, 2015b) has

been established as the standard modeling language

for model-driven development. It provides a wide

range of diagrams to support both structural and be-

havioral modeling. To support model-driven develop-

ment in a full-ﬂedged way, it is crucial to derive exe-

cutable code from executable models. However, gen-

erating executable code requires a precise and well-

deﬁned execution semantics for behavioral models.

Unfortunately, not all behavioral diagrams provided

by the UML are equipped with such a well-deﬁned se-

mantics. As a consequence, software engineers nowa-

days need to manually supply method bodies in the

code generated from structural models.

This leads to what used to be called “the code gen-

eration dilemma” (Buchmann and Schw

agerl, 2015):

Generated code from higher-level models is extended

with hand-written code. Often, these different frag-

ments of the software system evolve separately, which

may lead to inconsistencies. Round-trip engineering

(Buchmann and Westfechtel, 2013) may help to keep

the structural parts consistent, but the problem is the

lack of an adequate representation of behavioral frag-

ments.

Over the years, the Eclipse Modeling Framework

(EMF) (Steinberg et al., 2009) has been established as

an extensible platform for the development of MDSE

applications, both in the academic community and in

industrial projects. It is based on the Ecore meta-

model, which is compatible with the Object Man-

agement Group (OMG) Meta Object Facility (MOF)

speciﬁcation (OMG, 2015a). Ideally, software en-

gineers operate only on the level of models such

that there is no need to inspect or edit the actual

source code, which is generated from the models au-

tomatically. However, language-speciﬁc adaptations

to the generated source code are frequently neces-

sary. In EMF, for instance, only structure is modeled

by means of class diagrams, whereas behavior is de-

Buchmann, T.

Prodeling with the Action Language for Foundational UML.

DOI: 10.5220/0006353602630270

In Proceedings of the 12th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2017), pages 263-270

ISBN: 978-989-758-250-9

263

scribed by modiﬁcations to the generated source code.

The standard for the Action Language for Foun-

dational UML (Alf) (OMG, 2013a), issued by the Ob-

ject Management Group (OMG), provides the deﬁni-

tion of a textual concrete syntax for a foundational

subset of UML models (fUML) (OMG, 2013b). In

the fUML standard, a precise deﬁnition of an execu-

tion semantics for a subset of UML is described. The

subset includes UML class diagrams to describe the

structural aspects of a software system.

In this paper, an integration of our Alf editor and

code generator (Buchmann and Rimer, 2016) into the

UML-based CASE tool Valkyrie (Buchmann, 2012)

is presented. The resulting toolchain allows for seam-

less integration of UML modeling and Alf program-

ming (“Prodeling”) by using bidirectional and incre-

mental model transformations which operate on the

abstract syntaxes of both tools. In the integrated en-

vironment, Valkyrie may be used for structural mod-

eling and behavior may be speciﬁed using Alf. Fully

executable Java code may then be generated from the

resulting Alf model.

The paper is structured as follows: Related work

is discussed in Section 2. In Section 3, a brief

overview of Alf is presented. The integration of Alf

into our UML-based modeling environment Valkyrie

is described in Section 4. Furthermore, an example

demonstrating the use of the integrated tool is pre-

sented in Section 5. Section 6 concludes the paper.

2 RELATED WORK

Many different tools and approaches have been pub-

lished in the last few years, which address model-

driven development and especially modeling behav-

ior. The resulting tools rely on textual or graphical

syntaxes, or a combination thereof. While some tools

come with code generation capabilities, others only

allow to create models and thus only serve as a visu-

alization tool.

The graphical UML modeling tool Papyrus

(Guermazi et al., 2015) allows to create UML, SysML

and MARTE models using various diagram editors.

Additionally, Papyrus offers dedicated support for

UML proﬁles, which includes customizing the Pa-

pyrus UI to get a DSL-like look and feel. Papyrus is

equipped with a code generation engine allowing for

producing source code from class diagrams (currently

Java and C++ is supported). Future versions of Pa-

pyrus will also come with an Alf editor. A preliminary

version of the editor is available and allows a glimpse

on its provided features. The textual Alf editor is inte-

grated as a property view and may be used to textually

describe elements of package or class diagrams. Fur-

thermore, it allows to describe the behavior of activi-

ties. The primary goal of the Papyrus Alf integration

is round-tripping between the textual and the graphi-

cal syntax and not executing behavioral speciﬁcations

by generating source code. While Papyrus strictly fo-

cuses on a forward engineering process (from model

to source code), the approach presented in this paper

explicitly addresses round-trip engineering.

Xcore

recently gained more and more attention

in the modeling community. It provides a textual con-

crete syntax for Ecore models allowing to express the

structure as well as the behavior of the system. In con-

trast to Alf, the textual concrete syntax is not based

on an ofﬁcial standard. Xcore relies on Xbase - a

statically typed expression language built on Java -

to model behavior. Executable Java code may be gen-

erated from Xcore models. Just like the realization

of Alf presented in this paper, Xcore blurs the gap

between Ecore modeling and Java programming. In

contrast to Alf, the behavioral modeling part of Xcore

has a strongly procedural character. As a consequence

an object-oriented way of modeling is only possible to

a limited extent. E.g. there is no way to deﬁne object

constructors to describe the instantiation of objects of

a class. Since Xcore reuses the EMF code genera-

tion mechanism (Steinberg et al., 2009), the factory

pattern is used for object creation. Furthermore, Alf

provides more expressive power, since it is based on

fUML, while Xcore only addresses Ecore.

Another textual modeling language, designed for

model-oriented programming is provided by Umple

The language has been developed independently from

the EMF context and may be used as an Eclipse plu-

gin or via an online service. In its current state, Umple

allows for structural modeling with UML class dia-

grams and describing behavior using state machines.

A code generation engine allows to translate Umple

speciﬁcations into Java, Ruby or PHP code. Umple

scripts may also be visualized using a graphical no-

tation. Unfortunately, the Eclipse based editor only

offers basic functions like syntax highlighting and a

simple validation of the parsed Umple model. Umple

offers an interesting approach, which aims at assisting

developers in rasing the level of abstraction (“umpli-

ﬁcation”) in their programs (Lethbridge et al., 2010).

Using this approach, a Java program may be stepwise

translated into an Umple script. The level of abstrac-

tion is raised by using Umple syntax for associations.

PlantUML

is another tool, which offers a textual

concrete syntax for models. It allows to specify class

http://wiki.eclipse.org/Xcore

http://cruise.site.uottawa.ca/umple

http://plantuml.com

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

264

diagrams, use case diagrams, activity diagrams and

state charts. Unfortunately, a code generation engine,

which allows to transform the PlantUML speciﬁca-

tions into executable code is missing. PlantUML uses

Graphviz

to generate a graphical representation of a

PlantUML script.

Fujaba (The Fujaba Developer Teams from

Paderborn, Kassel, Darmstadt, Siegen and Bayreuth,

2005) is a graphical modeling language based on

graph transformations, which allows to express both

the structural and the behavioral part of a software

system on the modeling level. Furthermore, Fujaba

provides a code generation engine that is able to trans-

form the Fujaba speciﬁcations into executable Java

code. Behavior is speciﬁed using Story Diagrams.

A story diagram resembles UML activity diagrams,

where the activities are described using Story Pat-

terns. A story pattern speciﬁes a graph transformation

rule where both the left hand side and the right hand

side of the rule are displayed in a single graphical no-

tation. While story patterns provide a declarative way

to describe manipulations of the runtime object graph

on a high level of abstraction, the control ﬂow of a

method is on a rather basic level as the control ﬂow

in activity diagrams is on the same level as data ﬂow

diagrams. As a case study (Buchmann et al., 2011) re-

vealed, software systems only contain a low number

of problems, which require complex story patterns.

The resulting story diagrams nevertheless are big and

look complex because of the limited capabilities to

express the control ﬂow.

3 THE ACTION LANGUAGE FOR

FOUNDATIONAL UML

3.1 Overview

Alf (OMG, 2013a) is an OMG standard, which ad-

dresses a textual surface representation for UML

modeling elements. It provides an execution seman-

tics by mapping the Alf concrete syntax to the abstract

syntax of the OMG standard of Foundational Subset

for Executable UML Models also known as Founda-

tional UML or just fUML (OMG, 2013b).

The primary goal is to provide a concrete textual

syntax allowing software engineers to specify exe-

cutable behavior within a wider model, which is rep-

resented using the usual graphical notations of UML.

A simple use case is the speciﬁcation of method bod-

ies for operations contained in class diagrams. To this

http://www.graphviz.org

end, it provides a procedural language, whose under-

lying data model is UML. However, Alf also provides

a concrete syntax for structural modeling within the

limits of the fUML subset. Please note that in case the

execution semantics are not required, Alf is also us-

able in the context of models, which are not restricted

to the fUML subset. The Alf speciﬁcation comprises

both the deﬁnition of a concrete and an abstract syn-

tax, which are brieﬂy presented in the subsequent sub-

sections.

3.2 Concrete Syntax

The concrete syntax speciﬁcation of the Alf stan-

dard is described using a context-free grammar in

Enhanced-Backus-Naur-Form (EBNF)-like notation.

In order to indicate how the abstract syntax tree is

constructed from this context-free grammar during

parsing, elements of the productions are further an-

notated.

1 ClassDeclaration(d: ClassDefinition) = [ "

abstract" (d.isAbstract=true) ] "class"

ClassifierSignature(d)

Listing 1: Alf production rule for a class (OMG, 2013a).

Listing 3.2 shows an example for an EBNF-like

production rule, annotated with additional informa-

tion. The rule produces an instance d of the class

ClassDeﬁnition. The production body (the right

hand side of the rule) further details the ClassDeﬁni-

tion object: It consists of a ClassiﬁerSignature and

it may be abstract (indicated by the optional keyword

“abstract”).

3.3 Abstract Syntax

Alf’s abstract syntax is represented by an UML class

model of the tree of objects obtained from parsing an

Alf text. The Alf grammar is context-free and thus,

parsing results in a strictly hierarchical parse tree,

from which the so called abstract syntax tree (AST)

is derived. Figure 1 gives an overview of the top-

level syntax element classes of the Alf abstract syn-

tax. Each syntax element class inherits (in)directly

from the abstract base class SyntaxElement. Simi-

lar to other textual languages, the Alf abstract syntax

tree contains important non-hierarchical relationships

and constraints between Alf elements, even if the tree

obtained from parsing still is strictly hierarchical with

respect to containment relations. These cross-tree re-

lationships may be solely determined from static anal-

ysis of the AST. Static semantic analysis is a common

procedure in typical programming languages and it is

used, e.g., for name resolving and type checking.

Prodeling with the Action Language for Foundational UML

265

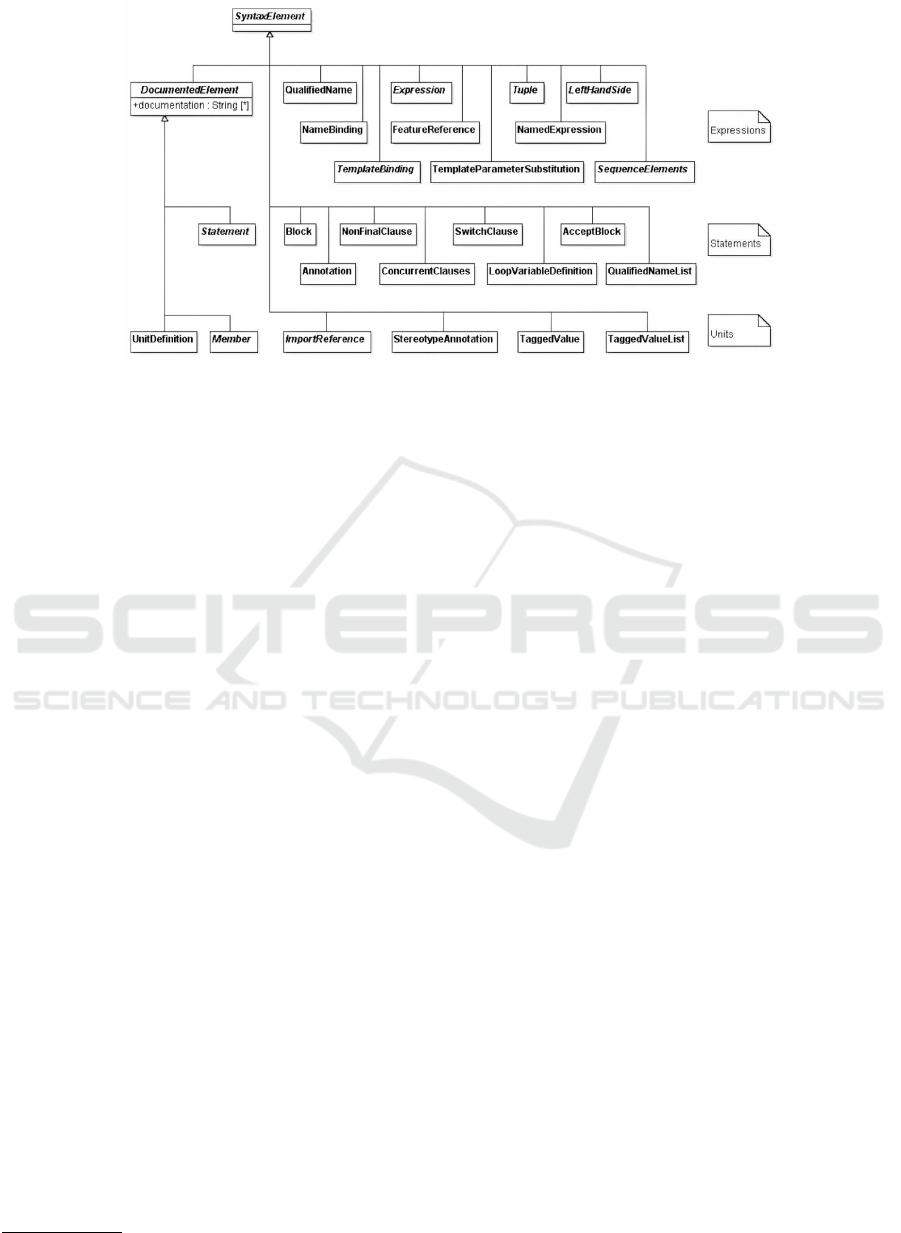

Figure 1: Cutout of the abstract syntax deﬁnition of Alf (OMG, 2013a).

4 PRODELING WITH Alf

Figure 2 depicts our approach of integrating UML

and Alf models. In the context of the Valkyrie

project (Buchmann, 2012), we developed a UML-

based CASE tool, which puts special emphasis on

code generation. Recently, a stand-alone Alf pro-

gramming environment was added (Buchmann and

Rimer, 2016). This paper describes the integration of

both tools.

The UML-based CASE tool Valkyrie provides

graphical editors for the following kinds of UML dia-

grams: package diagrams, class diagrams, object dia-

grams, use case diagrams, activity diagrams and state

machine diagrams. The Graphical Modeling Frame-

work (GMF) (Steinberg et al., 2009) was used to im-

plement the editors. User interactions with the di-

agram editor are automatically translated into com-

mands which modify the abstract UML syntax by the

GMF runtime.

On the other hand, the editor for the textual con-

crete syntax of Alf was implemented using the Xtext

framework, which aids the development of program-

ming languages and domain-speciﬁc languages. All

aspects of a complete language infrastructure are cov-

ered by Xtext including parsing, scoping, linking, val-

idation and code generation. It is tightly integrated

into the Eclipse IDE, providing features like syntax

highlighting, code completion, quick ﬁxes, and many

more. The user interacts with the text-based editor for

Alf code. The generated parser creates an in-memory

Ecore-based representation of the abstract syntax of

the Alf language.

As stated above, Alf primarily was designed to

http://www.eclipse.org/Xtext

provide means of specifying behavior in UML mod-

els. The current state of our Alf editor allows for the

textual speciﬁcation of both structural and behavioral

models. I.e., the user may specify the static structure

of a software system using packages, classes and as-

sociations as well as the behavior which is expressed

in method bodies. However, textually specifying the

structure of a software system may be odd, especially,

when UML-based CASE tools are available, which

are optimized for graphical modeling of package and

class diagrams.

To this end, our integrator, which is presented in

this paper, allows for getting the best out of both

worlds. The user may specify package and class di-

agrams in Valkyrie (as long as they comply to the

fUML (OMG, 2013b) subset) and then transform the

(f)UML model to a corresponding Alf representation.

In the Alf editor, the user may supply the method bod-

ies to implement the desired behavior of the software

system. The transformation works in an incremen-

tal way of operation. I.e., once structural elements

are added or changed in the Alf model, these changes

may be propagated back to the (f)UML model. Please

note that the user supplied method bodies are retained

on subsequent transformations. To this end, the corre-

sponding textual Alf fragments of the method bodies

are added as comments to the respective UML oper-

ations. This allows for preserving the method imple-

mentations, even if methods are moved to different

classiﬁers. In order to generate executable Java source

code, the Alf code generator is used, which is brieﬂy

introduced in (Buchmann and Rimer, 2016).

The bidirectional transformation between the

(f)UML model and the Alf model is achieved by

a hand-crafted triple graph transformation system

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

266

UML

Diagram

Editors

(GMF-

based)

ALF Code

(Xtext-

based

Editor)

User Interaction

Integration of UML and ALF

ALF

Abstract

Syntax

(Ecore-based)

Bidirectional

Transformation

Parser

edit edit

UML Model

(Ecore-based)

GMF

Runtime

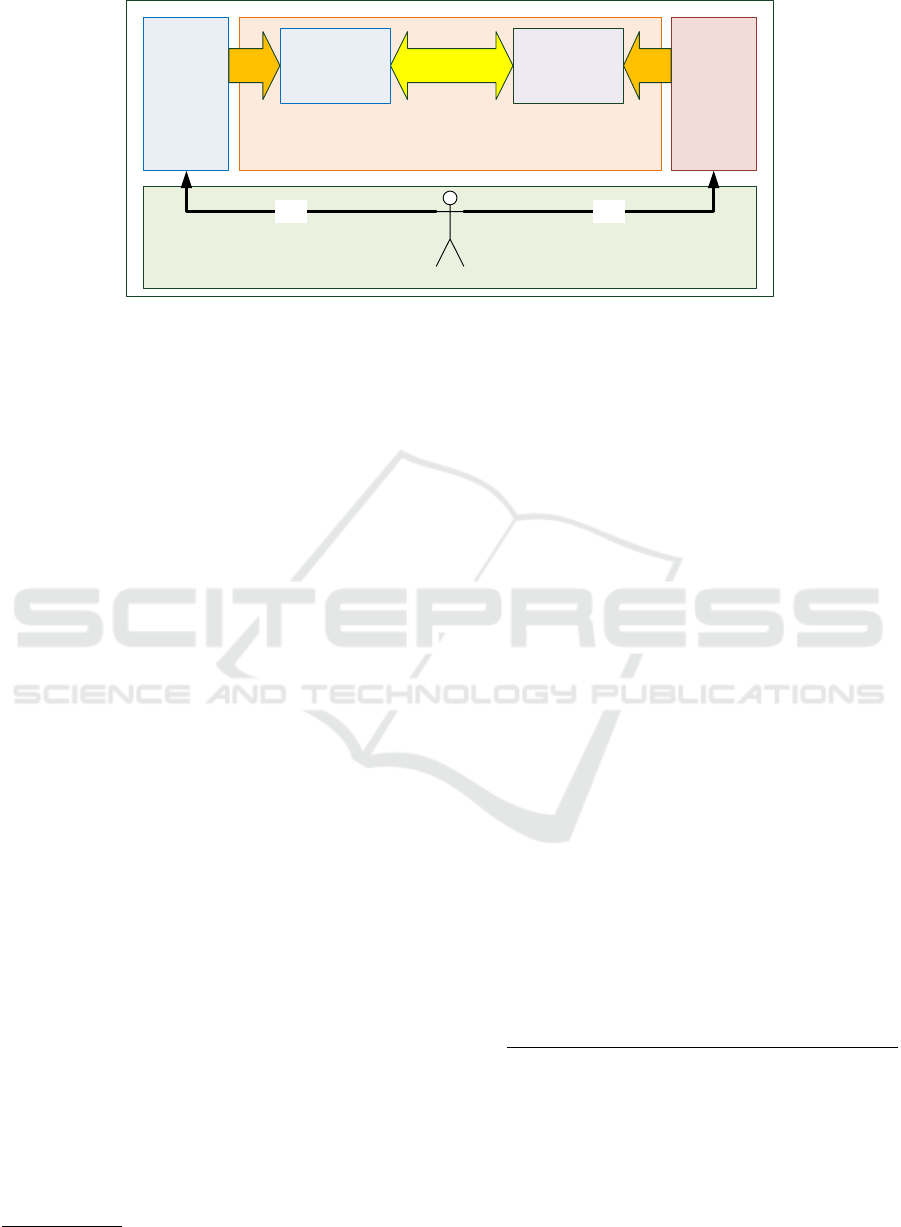

Figure 2: Integration of UML and Alf models.

(TGTS). The TGTS is written in the Xtend

program-

ming language. Implementation details of the TGTS

are given in (Buchmann and Greiner, 2016), where

it was used in a different application scenario. For

the integration of (f)UML and Alf, the rules for for-

ward and backward transformations had to be ad-

justed. The correspondence model and the code re-

sponsible for the incremental way of operation could

be reused without modiﬁcations. In its current state,

the following restrictions for the integrator hold:

• Only package and class diagrams are allowed on

the UML side

• Class diagrams must conform to the fUML re-

strictions. In particular, the usage of interfaces

and derived attributes is forbidden

• When transforming from (f)UML to Alf, the text

formatting information is lost.

While the latter one is a technical issue related to

Xtext, the second issue may be tackled by transform-

ing interfaces to abstract classes and by generating

getter methods for derived attributes without adding

a ﬁeld in the Alf model.

5 EXAMPLE

In this section, we brieﬂy show a workﬂow of creat-

ing an executable software system, starting with struc-

tural modeling in Valkyrie and supplying behavior in

form of method bodies in Alf. Finally, executable

code is generated from the resulting Alf speciﬁcation.

As an example, we use a mobile banking applica-

tion in this section. The static structure of the system

is modeled using package and class diagrams. The

package diagram is shown in Figure 3, and one of the

class diagrams is depicted in Figure 4.

http://www.eclipse.org/xtend

The integrator presented in this paper is used to

transform the static structure modeled with UML into

a corresponding Alf document which is enriched with

method bodies specifying the desired behavior of the

mobile banking app.

The mobile banking system allows to perform var-

ious actions on bank accounts. The execution of

these actions is realized using the Command-pattern

(Gamma et al., 1994). The usage of this pattern al-

lows for decoupling between the caller (an instance

of the class BankingAndroidApp, c.f., Figure 3) and

the actual execution of the command.

Different types of commands within the mobile

banking system are encapsulated in different classes

which are specializations of the abstract base class

BankingTransactionCommand (c.f., Figure 3). The

actual execution of the commands is delegated to an

instance of the class BankingPortalHandler. The

handler manages a set of bank accounts and executes

commands on the proper account taking into account

the supplied bank account number.

Listing 5 depicts a cutout of the Alf pro-

gram that is used to implement the mobile bank-

ing system. The class declarations for Bank, Cus-

tomer, and BankingAccount belonging to the pack-

age bankModel are shown, as well as the associ-

ations BankHasCustomer and CustomerHasAc-

count. The code shown in Listing 5 is created after

executing the transformation provided by our integra-

tor starting with the UML model as input.

1 package mbs{

2 package bankModel {

3 public class Bank { ... }

5 public class Customer { ... }

7 public class BankingAccount {

... }

9 public assoc BankHasCustomer {

Prodeling with the Action Language for Foundational UML

267

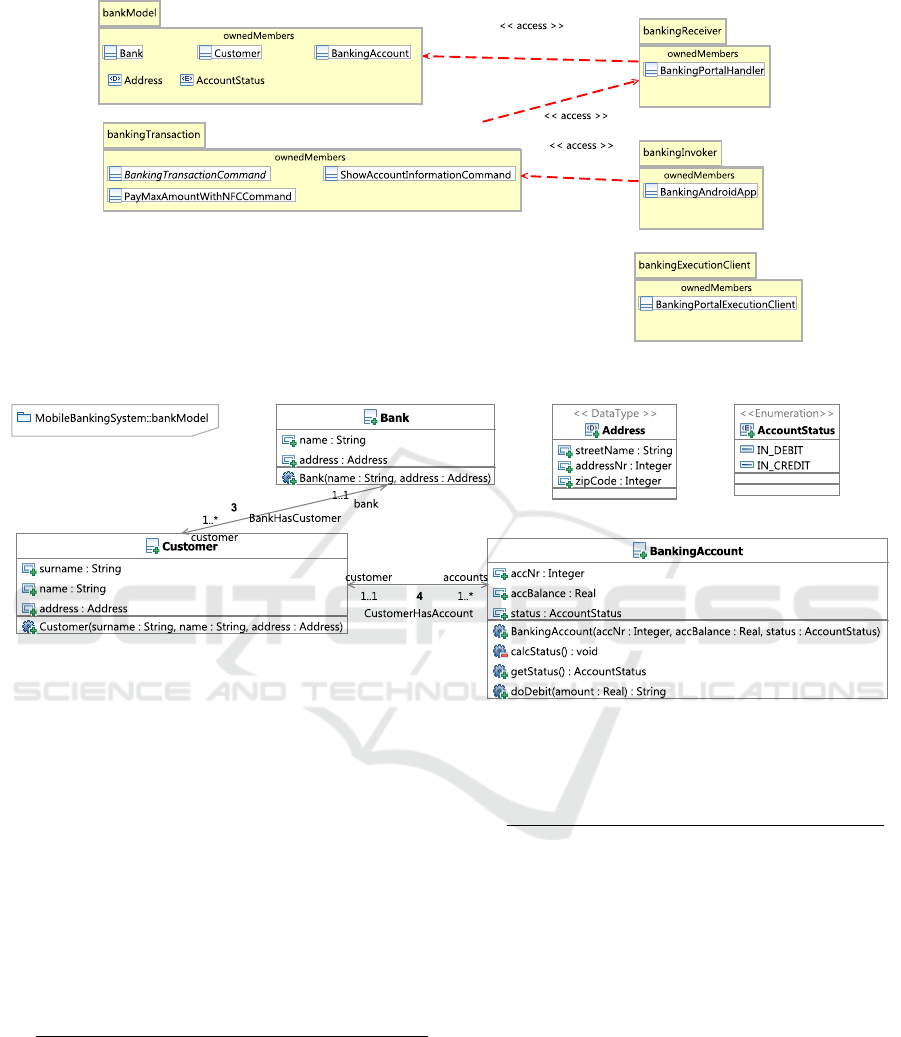

Figure 3: Package diagram of the mobile banking system example.

Figure 4: Cutout of the class diagram of the mobile banking system example.

10 public bank : Bank[1];

11 public customer : Customer

[1..

];

12 }

14 public assoc CustomerHasAccount

{

15 public customer : Customer[1];

16 public accounts :

BankingAccount[1..

];

17 }

18 }

19 }

Listing 2: Cutout of the Alf program after the transforma-

tion from (fUML) to Alf.

Listing 5 depicts the implementation of the oper-

ation responsible for creating the information associ-

ated with a certain account in the class BankingPor-

talHandler. The information is retrieved based on the

account number which is passed as an input parameter

in the method head. The implementation uses control

structures like loops (c.f., line 8 in Listing 5) or con-

ditional statements (c.f., line 9). The Alf code was

supplied with the corresponding Alf editor.

1 public createAccountInformation(in

passedAccNr:Integer):String {

2 let result:String = "Account: ";

3 let ownerName:String = "";

4 let ownerSurname:String = "";

5 let balance:Double = 0.0;

6 let accNr:Integer = 0;

8 for (BankingAccount acc: this.

accs) {

9 if (acc != null && acc.accNr ==

passedAccNr) {

10 balance = acc.accBalance;

11 accNr = acc.accNr;

12 let accOwner:Customer =

CustomerHasAccount::

customer(acc);

13 if (accOwner != null) {

14 ownerName = accOwner.name;

15 ownerSurname = accOwner.

surname;

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

268

16 }

17 }

18 }

20 result += accNr + ":\n";

21 result += ownerName + " " +

ownerSurname + "\n";

22 result += "Balance:" + balance;

23 return result;

24 }

Listing 3: Example of a supplied method body in Alf.

In case structural modiﬁcations are required while

supplying the method bodies, the user has the choice

of performing these changes in the UML model or in

the Alf code. In case the user decides for the ﬁrst

option, the backward transformation supplied with

our integrator needs to be invoked. The execution of

the transformation results in an update of the UML

model, where the user supplied method bodies of the

Alf speciﬁcation are added to comments of the corre-

sponding operations in the UML model. Afterwards,

the user may perform the structural changes in the re-

spective diagram editors of the Valkyrie tool. Once

he ﬁnished this task, the forward transformation of

our integrator may be invoked and the Alf model gets

updated accordingly.

After all method bodies have been supplied, the

user may invoke the code generator of our Alf editor

in order to generate fully executable Java code. The

resulting Java source code is not shown in this paper

due to space restrictions.

6 CONCLUSION AND FUTURE

WORK

In this paper, an approach to providing tool support

for unifying modeling and programming has been

presented. The OMG Alf speciﬁcation (OMG, 2013a)

describes a textual concrete syntax for a subset of

UML (fUML) (OMG, 2013b). In previous projects,

a UML-based CASE tool (Buchmann, 2012) and an

implementation of the Alf speciﬁcation (Buchmann

and Rimer, 2016) have been created. The work pre-

sented in this paper integrates both tools by means of

a bidirectional and incremental transformation, which

allows for seamless integration where the user may

work either with graphical diagrams or textual code

to specify the static structure of the system. Behavior

may only be supplied in the textual syntax. In order

to execute the resulting software systems, a Java code

generator from the Alf editor may be used, which

allows for the creation of fully executable Java pro-

grams.

Future work comprises case studies in order to

evaluate our approach. Furthermore, we are aiming

at a tighter integration of Valkyrie and Alf, where the

user of the Alf editor is working in a local context, i.e.

directly on the method without having to deal with the

complete Alf code resulting from the UML model. In

addition, we are investigating fall-back mechanisms,

which will be applied in case the UML model does

not conform to the fUML subset.

ACKNOWLEDGMENTS

The author wants to thank Johannes Schr

opfer for im-

plementing parts of the Alf integrator in his Bache-

lor thesis. Further acknowledgments go to Bernhard

Westfechtel for his valuable and much appreciated

comments on the draft of this paper.

REFERENCES

Buchmann, T. (2012). Valkyrie: A UML-Based Model-

Driven Environment for Model-Driven Software En-

gineering. In Proceedings of the 7th International

Conference on Software Paradigm Trends (ICSOFT

2012), pages 147–157, Rome, Italy. SciTePress.

Buchmann, T. and Greiner, S. (2016). Handcrafting a triple

graph transformation system to realize round-trip en-

gineering between UML class models and java source

code. In Maciaszek, L. A., Cardoso, J. S., Ludwig,

A., van Sinderen, M., and Cabello, E., editors, Pro-

ceedings of the 11th International Joint Conference

on Software Technologies (ICSOFT 2016) - Volume

2: ICSOFT-PT, Lisbon, Portugal, July 24 - 26, 2016.,

pages 27–38. SciTePress.

Buchmann, T. and Rimer, A. (2016). Unifying Modeling

and Programming with ALF. In Kaindl, H. and Meli,

R., editors, Proceedings of the 2nd International Con-

ference on Advances and Trends in Software Engi-

neering (SOFTENG 2016), page 6. IARIA.

Buchmann, T. and Schw

agerl, F. (2015). On A-posteriori

Integration of Ecore Models and Hand-written Java

Code. In Pascal Lorenz, M. v. S. and Cardoso, J.,

editors, Proceedings of the 10th International Con-

ference on Software Paradigm Trends, pages 95–102.

SciTePress.

Buchmann, T. and Westfechtel, B. (2013). Towards Incre-

mental Round-Trip Engineering Using Model Trans-

formations. In Demirors, O. and Turetken, O., edi-

tors, Proceedings of the 39th Euromicro Conference

on Software Engineering and Advanced Applications

(SEAA 2013), pages 130–133. IEEE Conference Pub-

lishing Service.

Buchmann, T., Westfechtel, B., and Winetzhammer, S.

(2011). The added value of programmed graph trans-

formations - A case study from software conﬁgura-

tion management. In Sch

urr, A., Varr

o, D., and Varr

Prodeling with the Action Language for Foundational UML

269

G., editors, Applications of Graph Transformations

with Industrial Relevance - 4th International Sympo-

sium, AGTIVE 2011, Budapest, Hungary, October 4-

7, 2011, Revised Selected and Invited Papers, volume

7233 of Lecture Notes in Computer Science, pages

198–209. Springer.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J.

(1994). Design Patterns - Elements of Reusable

Object-Oriented Software. Addison-Wesley, Upper

Saddle River, NJ.

Guermazi, S., Tatibouet, J., Cuccuru, A., Seidewitz, E.,

Dhouib, S., and G

erard, S. (2015). Executable mod-

eling with fuml and alf in papyrus: Tooling and ex-

periments. In Mayerhofer, T., Langer, P., Seide-

witz, E., and Gray, J., editors, Proceedings of the 1st

International Workshop on Executable Modeling co-

located with ACM/IEEE 18th International Confer-

ence on Model Driven Engineering Languages and

Systems (MODELS 2015), Ottawa, Canada, Septem-

ber 27, 2015., volume 1560 of CEUR Workshop Pro-

ceedings, pages 3–8. CEUR-WS.org.

Lethbridge, T. C., Forward, A., and Badreddin, O. (2010).

Umpliﬁcation: Refactoring to incrementally add ab-

straction to a program. In Reverse Engineering

(WCRE), 2010 17th Working Conference on, pages

220–224. IEEE.

OMG (2013a). Action Language for Foundational UML

(ALF). Object Management Group, Needham, MA,

formal/2013-09-01 edition.

OMG (2013b). Semantics of a Foundational Subset for Ex-

ecutable UML Models (fUML). Object Management

Group, Needham, MA, formal/2013-08-06 edition.

OMG (2015a). Meta Object Facility (MOF) Version 2.5.

OMG, Needham, MA, formal/2015-06-05 edition.

OMG (2015b). Uniﬁed Modeling Language (UML). Object

Management Group, Needham, MA, formal/15-03-01

edition.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF Eclipse Modeling Framework. The

Eclipse Series. Addison-Wesley, Boston, MA, 2nd

edition.

The Fujaba Developer Teams from Paderborn, Kassel,

Darmstadt, Siegen and Bayreuth (2005). The Fujaba

Tool Suite 2005: An Overview About the Develop-

ment Efforts in Paderborn, Kassel, Darmstadt, Siegen

and Bayreuth. In Giese, H. and Z

undorf, A., editors,

Proceedings of the 3rd international Fujaba Days,

pages 1–13.

olter, M., Stahl, T., Bettin, J., Haase, A., and Helsen, S.

(2006). Model-Driven Software Development: Tech-

nology, Engineering, Management. John Wiley &

Sons.

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

270
