Towards Model-driven Hypermedia Testing for RESTful Systems

Henry Vu, Tobias Fertig and Peter Braun

Faculty of Computer Science, University of Applied Science W

urzburg-Schweinfurt,

Sanderheinrichsleitenweg 20, 97074 W

urzburg, Germany

Keywords:

REST, Hypermedia, RESTful, MDSD, MDT, Model-driven Testing, Hypermedia Testing.

Abstract:

Testing RESTful systems is a missing topic within literature. Especially hypermedia testing is not mentioned

at all. We discuss the challenges of hypermedia testing that were discovered within our research. We will

differ between client-side and server-side challenges since REpresentational State Transfer (REST) describes

a client-server system. Therefore, both sides have to be considered. Hypermedia tests for the server have

to ensure that there is no response without hypermedia links. However, the client also has to be hypermedia

compliant. Thus, we propose to simulate a server update to check whether the client breaks. Since we use

Model-driven Software Development (MDSD) to generate RESTful systems we also propose a model-driven

approach for hypermedia testing. This allows us to generate tests for a server based on its underlying model.

Moreover, we can build a crawler to verify our generated servers and to test all hypermedia links for different

user roles. Any modiﬁcation to the model can result in a server update, which can be used to test hypermedia

clients.

1 INTRODUCTION

In 2015 we presented our project Generating Mobile

Application with RESTful Architecture (GeMARA)

(Schreibmann and Braun, 2015) in which we pro-

posed a model-driven approach for creating REST-

ful APIs. As this project matures, we also explored

the possibility of Model-driven Testing (MDT) (Fer-

tig and Braun, 2015) and realized the lack of informa-

tion about quality assurance for RESTful Systems.

However, the situation has not changed. Informa-

tion about quality assurance of hypermedia systems is

still missing. Therefore, we propose different challen-

ges of hypermedia testing and possible approaches to

overcome them. Since REpresentational State Trans-

fer (REST) is an architectural style for client-server

applications, it is important to cover both: the server-

side as well as the client-side. Manual hypermedia

testing is time-consuming and hard to maintain. Tes-

ting hypermedia APIs requires many similar structure

like test cases, especially when different user roles

and error cases are considered. Therefore, MDT is

a helpful tool.

Due to our Model-driven Software Development

(MDSD) approach we have an existing meta model

that can be used for MDT. We already support functi-

onal testing via MDT (Fertig and Braun, 2015) and

thus, we want to extend our approach to also support

hypermedia testing. Until this point, our project (Ge-

MARA) allows us to generate fully functional REST-

ful systems with functional test cases.

Some may argue that testing generated code does

not make sense. Their main argument is that if the

generators are correct, the produced code will also be

correct. However, MDT is a possible way to achieve

correctness within generators. The test cases will de-

tect possible bugs within the generators that can then

be ﬁxed. Moreover, test cases can verify third-party

components used by our platform code within the

MDSD approach. Third-party libraries or frameworks

can change over time. This requires much effort to

check all dependencies manually. The generated tests

can detect wrong behavior of the system after depen-

dency updates. Finally, performance testing is an ad-

ditional reason why testing generated code does make

sense.

First, we will summarize related work and prove

that there is a lack of information about testing hyper-

media. Afterwards, we will discuss challenges for tes-

ting both: the server-side and the client-side. Further-

more, we will propose our approaches to solve these

challenges. Finally, we will give a short outlook and

discuss our future work.

340

Vu, H., Fertig, T. and Braun, P.

Towards Model-driven Hypermedia Testing for RESTful Systems.

DOI: 10.5220/0006353403400343

In Proceedings of the 13th International Conference on Web Information Systems and Technologies (WEBIST 2017), pages 340-343

ISBN: 978-989-758-246-2

2 RELATED WORK

Fielding criticizes in his blog (Fielding, 2008) that

many existing APIs are called RESTful even though

they do not adhere to the hypermedia constraint. Furt-

hermore, development of RESTful APIs is difﬁcult

due to a lack of software frameworks which guide

their implementation (Vinoski, 2008). This circum-

stance leads to a widely-held misconception of RE-

STful API design among the developer community,

subsequently there is a lack of existing RESTful APIs

that adhere to the hypermedia constraint. Since hy-

permedia is not present there is no awareness for tes-

ting it. The common procedure of REST API testing

simply consists of sending an HTTP-request and veri-

fying an expected response (Webber et al., 2010). To

the best of our knowledge, there is a lack of informa-

tion about generating or testing hypermedia systems.

RESTful API Modeling Language (RAML) (He-

very et al., 2017) is also pushing the idea of MDSD.

They offer a formal model based on their Domain-

Speciﬁc Language (DSL) for deﬁning RESTful APIs.

The DSL is designed to describe the full API life cy-

cle in a human readable format, which incorporates

many RESTful speciﬁcations, such as URIs, autho-

rizations, namespaces, media types and HTTP verbs.

Based on their model a fully functional RESTful API

can be generated and tested. However, their model

does not support the hypermedia aspect, such as na-

vigating the client through the application via hyper-

links. This is why their approach violates Fielding’s

hypermedia constraint.

Choi, Necula and Sen propose a method to trans-

form manual testing into automated testing. (Choi

et al., 2013). The user has to walk through the appli-

cation manually in order to train their machine lear-

ning algorithm. Once the machine learning algorithm

has a slight representation of the application model, it

starts to generate user inputs to visit unexplored states

of the application. The key feature of this algorithm is

to avoid restarting the application. Nevertheless, this

approach is a black-box testing method, since a tester

and later-on the machine learning algorithm have to

navigate exploratively through an application without

any knowledge of the underlying model. Since our

model-driven approach allows white-box testing, this

approach does not meet our requirements.

3 SERVER-SIDE TESTING

According to Fielding (Fielding, 2008) RESTful sy-

stems must be hypertext-driven, in other words these

systems are to be designed as Finite-State Machines

(FSMs). In (Zuzak et al., 2011) and (Hern

andez and

Garc

ıa, 2010) the authors also present their formal

models for specifying RESTful APIs as FSMs based

on their understanding. Our main goal for the server-

side testing is to ensure that any RESTful API that is

generated by our model (GeMARA) is a FSM. Our

model has one dispatcher state and multiple applica-

tion states. The dispatcher state represents the initial

state of the FSM. Every application state is deﬁned by

an HTTP verb and a resource. A client can navigate

from one application state to another via transitions.

A transition is deﬁned by an hyperlink, a mediatype

and a rel type. A rel type is akin to the rel attribute of

HTML link tags. The ﬁrst challenge is to check whet-

her our generated RESTful API is FSM-compliant.

This allows a client to start from the dispatcher state,

visit every application state and go back to the dispat-

cher state without getting stuck in a dead-end. Figure

1 shows an example FSM with possible states for the

user resource. For the sake of clarity we did not il-

lustrate transitions from states back to the dispatcher

state.

Responses of application states must contain a ﬁ-

nite set of hyperlinks through which the user or au-

tomaton can obtain choices and select actions (Fiel-

ding, 2008). Another challenge of server-side testing

is to check whether the generated RESTful API is de-

livering appropriate hyperlinks based on the client’s

active user role. Assuming our application is an

ecommerce platform: A customer role is allowed to

view items in a shop, whereas a shop admin role can

create, update or delete items in his shop. Each role

is only permitted to see its designated hyperlinks to

navigate through the application, otherwise the aut-

horization concept would be corrupt. This would re-

quire enormous effort if implemented manually for a

system with a dozen roles and hundreds of application

states. However, we can already generate test cases

based on user roles and authorization headers (Fertig

and Braun, 2015), for this purpose we only have to

extend our previous generators.

Since our model already provides concrete infor-

mation about every application state and its possi-

ble transitions, we could perform a static analysis

as a ﬁrst step to check whether the model is FSM-

compliant. We check whether every application state

has at least one incoming and one outgoing transition.

This ensures that every state is reachable and there

are no dead-ends. The goal of the static analysis is

to identify any error at the highest level of abstraction

before triggering any source code generation. At the

same time the static analysis would make the API

designer aware of any missing transition in his mo-

del. For example the dead-end of the application state

Towards Model-driven Hypermedia Testing for RESTful Systems

341

Dispatcher s

GET

Users

GET

User

POST

User

DELETE

User

PUT

User

POST


GET


PUT

Password

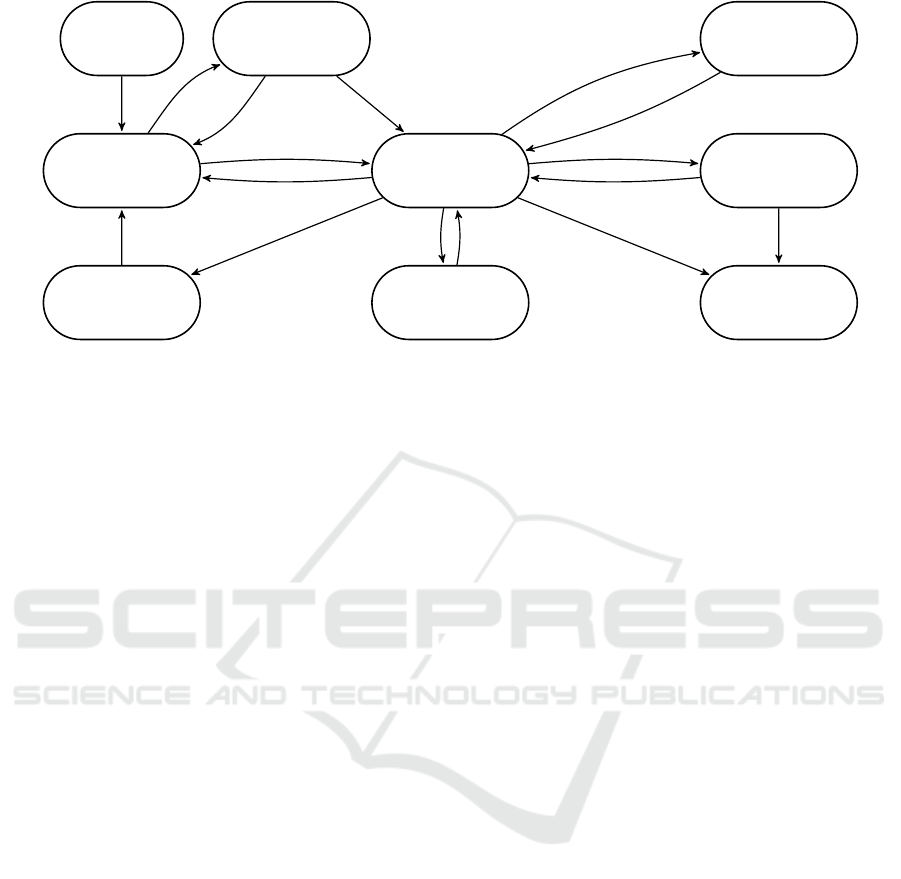

Figure 1: The ﬁnite-state machine for our example user resource. Error cases are not visualized.

GET Image in Figure 1 would be detected.

Once the static analysis is successfully carried out,

the system will generate a functional server. Follo-

wing this, we continue with a dynamical analysis with

an HTTP-crawler. The goal of this step is to guaran-

tee the correct functionality of the generated API. In

addition we also have to ensure that whenever the re-

quest leads to an error the client will be redirected to

its previous state or at least to the dispatcher state.

Moreover, the HTTP-crawler will verify the behavior

for different user roles. The HTTP-crawler will pass

itself off as one of predeﬁned user roles and follows

any given hyperlink and expects only hyperlinks that

are designated to its current user role.

The dynamical analysis is considered successful

when every user role is able to travel and perform all

its permissions by generating at least one proper re-

quest for each permission. This again can be veriﬁed

by the underlying model. Furthermore any undesired

behavior can reveal bugs within the generators.

4 CLIENT-SIDE TESTING

Real-world businesses change and so must their un-

derlying systems (Josuttis, 2007). Fielding describes

evolvability as the degree to which a component can

be changed without negatively impacting other com-

ponents (Fielding, 2000). Our server is a component

that will evolve through time which means it is ex-

posed to updates and changes depending on its real-

world needs. These changes will affect its clients and

thus, client-side testing has to ensure that clients are

hypermedia-driven. Hypermedia clients should still

work after a server update. Therefore, clients are not

allowed to make any assumption about URIs (Pres-

cod, 2002). As a result, hypermedia clients are more

robust, adaptable and resilient to server updates which

will reduce the need to versioning and repeated rede-

ployment (Amundsen, 2015).

APIs can be consumed by third-party clients.

Clients that make proper use of hypermedia would

require less manual adaption to server updates than

those that do not. Our motivation is to ﬁnd out whet-

her a client is hypermedia-driven. If a running client

can handle a simulated server update, then we assume

this client as hypermedia-driven.

In the following we will discuss a few example

changes that have to be considered in order to simu-

late a server update:

First, we take a look at changes concerning URIs.

In case of updating or deleting URIs the client should

still work because hyperlinks are not hard coded. If

new functionalities are added, the client should be

able to work with old functionalities. We assume that

the client cannot deal with new rel types. However,

Amundsen presents another approach for this issue in

his talk (Amundsen, 2015). He proposes that servers

should emit templates in order to enable clients to deal

with new functionalities.

Secondly, changes concerning rel types should be

considered. The client has knowledge about rel ty-

pes within our approach, therefore, renaming rel ty-

pes is not supported without client update. However

other approaches may support renaming (Amundsen,

2015). Clients can not deal with new rel types but

should be able to work with old functionalities. De-

leting rel types causes no problem to the client since

hyperlinks, which contain rel types, are not hard co-

ded.

Lastly, resource representations could change due

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

342

to server updates. There is no general solution to this

issue. Hypermedia clients following Amundsen’s ap-

proach (Amundsen, 2015) can easily adapt to chan-

ges within resource representations due to the emitted

templates. However, other approaches may need ad-

ditional investigation.

The manual effort to simulate a server update

would not be worthwhile. Nevertheless, our model-

driven approach allows us to generate test servers wit-

hout additional effort. The ﬁrst step of our current

workﬂow is to deﬁne a RESTful API model. After

that our generators use this model to generate a wor-

king server. To simulate a server update we take the

same model and apply server update changes to it. For

this purpose, we need to build a generator that can ap-

ply random changes to an existing model for example

adding, updating and removing URIs. Afterwards, the

modiﬁed model will be passed through the generator

again. As a result, the generator will produce a fully

functional updated test server. If the client does not

break after redirecting it to the test server, we assume

the client as hypermedia-driven.

5 CONCLUSION

Our vision is to generate robust RESTful APIs along

with tests to assure Fielding’s hypermedia constraint.

Once the proposed steps above are carried out, we will

gain deeper understanding of generating and testing

hypermedia systems.

This knowledge will be the foundation for us to

start working on test generation at a higher level of ab-

straction. For example, we can generate tests based on

user acceptance criteria. User Acceptance Test (UAT)

is an expensive and time-consuming task (Hambling

and van Goethem, 2013). Our crawler can generate

sequences of inputs to imitate the behavior of a user

to perform general use case scenarios. This would re-

duce the amount of work signiﬁcantly.

Based on the client-side testing we can derive tes-

ting guidelines for hypermedia clients. Any front-end

developer can follow these guidelines to implement

robust hypermedia clients.

REFERENCES

Amundsen, M. (2015). Learning Client Hypermedia from

the Ground Up. http://amundsen.com/talks/2015-06-

ndcoslo/2015-06-ndcoslo-slides.pdf. Last accessed on

Mar 17, 2017.

Choi, W., Necula, G., and Sen, K. (2013). Guided GUI Tes-

ting of Android Apps with Minimal Restart and Ap-

proximate Learning. In Proceedings of the 2013 ACM

SIGPLAN International Conference on Object Orien-

ted Programming Systems Languages & Applica-

tions, OOPSLA ’13, pages 623–640, New York, NY,

USA. ACM.

Fertig, T. and Braun, P. (2015). Model-driven Testing

of RESTful APIs. In Proceedings of the 24th In-

ternational Conference on World Wide Web Compa-

nion, WWW ’15 Companion, pages 1497–1502, Re-

public and Canton of Geneva, Switzerland. Internati-

onal World Wide Web Conferences Steering Commit-

tee.

Fielding, R. (2000). REST: Architectural Styles and the De-

sign of Network-based Software Architectures. Doc-

toral dissertation, University of California, Irvine.

Fielding, R. (2008). REST APIs must be hyper-text

driven. http://roy.gbiv.com/untangled/2008/rest-apis-

must-be-hypertext-driven. Last accessed on Mar 17,

2017.

Hambling, B. and van Goethem, P. (2013). User Accep-

tance Testing: A Step-by-step Guide. BCS Learning

& Development Limited.

Hern

andez, A. G. and Garc

ıa, M. N. M. (2010). A For-

mal Deﬁnition of RESTful Semantic Web Services.

In Proceedings of the First International Workshop on

RESTful Design, WS-REST ’10, pages 39–45, New

York, NY, USA. ACM.

Hevery, M., Musser, J., Rexer, P., Sarid, U., and Lazarov,

I. (2017). RAML. http://raml.org/. Last accessed on

Mar 17, 2017.

Josuttis, N. M. (2007). SOA in Practice - The Art of Distri-

buted System Design. ”O’Reilly Media, Inc.”, Sebas-

topol, 1. auﬂ. edition.

Prescod, P. (2002). REST and the Real World.

http://www.xml.com/pub/a/ws/2002/02/20/rest.html.

Last accessed on Mar 17, 2017.

Schreibmann, V. and Braun, P. (2015). Model-Driven Deve-

lopment of RESTful APIs. In Proceedings of the 11th

International Conference of Web Information Systems

and Technologies, pages 5–14. INSTICC, SciTePress.

Vinoski, S. (2008). RESTful Web Services Development

Checklist. IEEE Internet Computing, 12(6):96–95.

Webber, J., Parastatidis, S., and Robinson, I. (2010). REST

in Practice - Hypermedia and Systems Architecture.

”O’Reilly Media, Inc.”, Sebastopol.

Zuzak, I., Budiselic, I., and Delac, G. (2011). Web Engi-

neering: 11th International Conference, ICWE 2011,

Paphos, Cyprus, June 20-24, 2011, chapter Formal

Modeling of RESTful Systems Using Finite-State Ma-

chines, pages 346–360. Springer Berlin Heidelberg.

Towards Model-driven Hypermedia Testing for RESTful Systems

343
