Building a Formative Assessment System That is Easy to Adopt Yet

Supports Long-term Improvement: A Review of the Literature and

Design Recommendations

Ellis Solaiman, Joshua Barney and Martin Smith

School of Computing Science, Newcastle University, Newcastle upon Tyne, U.K.

Keywords:

Formative Assessment, Assessment Design, Review, Feedback Automation, Education Technology.

Abstract:

Formative assessment has been shown to be an effective teaching tool, yet is infrequently used in practice.

With the intent of building a formative e-assessment platform, we examine research on formative practices

and supporting computer-based systems with a focus on: institutional barriers to adoption of previous systems;

senses in which students and teachers can improve their practices across varying timescales; and collectible

data (self-reported or otherwise) necessary or advantageous in supporting these processes. From this research

we identify the minimal set of data which adequately supports these processes of improvement, arrive at a set

of requirements and recommendations for an innovative system which collects, processes, and presents this

data appropriately, and from these requirements design the architecture of an extensible electronic formative

assessment system which balances the need for complex long-term analytics with that of accessibility.

1 INTRODUCTION

Formative assessment refers to the use of testing to

allow both students to reﬂect on their own learning

and teachers to determine the needs of individual stu-

dents, or groups of students. This can also be des-

cribed as assessment for learning. Formative as-

sessment is often contrasted with summative asses-

sment, described as assessment of learning, which

uses testing as a means for summarizing the perfor-

mance of students and their level of knowledge at the

end of a course (Looney, 2011) (Black and Wiliam,

2009). Despite the clear beneﬁts of formative asses-

sment as an effective teaching tool, it is infrequently

used in practice. Also whilst VLEs (Virtual Learning

Environments) are widespread in higher education,

their formative abilities are often severely underuti-

lized (Blin and Munro, 2008). Even when change is

not resisted by faculty staff, adoption of educational

technology tends to proceed at a slow pace, and often

innovation is driven by lone individuals deciding to

use technologies without backing from above (Rus-

sell, 2009). Although perception of student expec-

tation can provide positive incentive, technical bar-

riers along with a lack of institutional support are key

suppressing factors (King and Boyatt, 2015). Cur-

rently available Education technologies are hampe-

red by technical problems such as lack of integra-

tion with systems in use within institutions, and edu-

cational data-mining efforts fail due to the absence

of tools which are easy for non-experts to use (Ro-

mero and Ventura, 2010). A key factor inhibiting the

adoption of formative assessment technologies is staff

time. Teacher time is an especially scarce resource

– those who see the value of educational technology

may still avoid full utilization for this reason; ”These

are all great initiatives, but I’m running out of hours

in a day ... I’m in overload!” (Hall and Hall, 2010).

Research by (Macfadyen and Dawson, 2012) highlig-

hts that in order to overcome individual and group re-

sistance to innovation and change, planning processes

must create conditions that allow participants to both

think and feel positively about change; ”conditions

that appeal to both the heart and the head”. Without

investing resources for effective automated data ana-

lysis and visualization, large quantities of data will

not compel social or cultural change (Kotter and Co-

hen, 2002); ”increasing observability of change is an

effective strategy for reducing resistance” (Rogers,

1995).

This paper builds upon and complements previous

work and literature reviews such as (Gikandi et al.,

2011), by taking a more integrative approach. We

attempt through the development a holistic theoretic

framework,to arrive at the design of a system suitable

for active use both as a tool for student and teacher

442

Solaiman, E., Barney, J. and Smith, M.

Building a Formative Assessment System That is Easy to Adopt Yet Supports Long-term Improvement: A Review of the Literature and Design Recommendations.

DOI: 10.5220/0006339404420449

In Proceedings of the 9th International Conference on Computer Supported Education (CSEDU 2017) - Volume 1, pages 442-449

ISBN: 978-989-758-239-4

improvement, and as a platform for further empirical

research about the impact of various formative stra-

tegies. Initially, multiple high impact journals in the

ﬁeld of educational technology were identiﬁed, and

the titles and abstract of all publications from the the

last 5 years were manually examined. A number of

potentially relevant papers were identiﬁed and scruti-

nized in further detail, and common subjects and re-

ferences were noted. Keywords related to these sub-

jects were used to ﬁnd further papers using academic

search engines. The process of reading papers, disco-

vered through references or search, continued recur-

sively until a clear picture of a range of formative and

learning practices emerged. A conceptual framework

was developed to organize these practices by time and

individual, and the body of collected papers was re-

examined in the context of this framework to explore

the data-collection requirements of each of the iden-

tiﬁed practices. Recommendations are made for im-

plementation, and from these recommendations, the

design of an extensible system to collect this data is

presented.

2 CLASSIFICATION OF

FEEDBACK BY USER AND

DURATION

Multiple researchers distinguish types of formative

assessment based on their duration. Allal and

Schwartz (Allal and Schwartz, 1996) use the termi-

nology of “Level 1” and “Level 2’ formative asses-

sments, which directly beneﬁt students who are asses-

sed as or use data gathered to beneﬁt future instructi-

onal activities or new groups of students respecti-

vely. Alternatively, (Wiliam, 2006) distinguishes be-

tween short-, medium-, and long-cycle formative as-

sessment, which operate within and between lessons,

within and between teaching units, and across mar-

king periods, semesters or even years. In addition to

acting as a helpful framework within which to clas-

sify and organize research, this viewpoint is useful

as a design tool – collecting data required for longer-

term formative processes requires action over a sus-

tained period of time, and this affects the short-term

experience of new users. As discussed below, a sy-

stem must show immediate value in order to have

the best chance at being widely adopted, and balan-

cing the conﬂict between supporting longer-term go-

als and maintaining accessibility is a design challenge

that deserves thinking about explicitly. In addition to

distinguishing processes by time we also do so by the

agents involved (See Figure 1). Our framework dif-

fers from previous formulations like that of (Wiliam

and Thompson, 2007) in that we conceive of teachers

not just in terms of the role they can play in providing

feedback to students but also as individuals who can

beneﬁt from feedback themselves.

3 FEEDBACK PROCESSES AND

THEIR DATA COLLECTION

REQUIREMENTS

We examine the speciﬁcs of feedback processes be-

low, considering issues related by their similar data-

requirements together. This view allows us to move

closer to the design of a real system.

3.1 Formative Feedback Principles

Synthesizing research literature, (Nicol and

Macfarlane-Dick, 2006) present seven princi-

ples, reordered for clarity here, arguing effective

formative feedback practice:

1. delivers high quality information to students

about their learning. 2. helps clarify what good

performance is (goals, criteria, expected standards).

3. provides opportunities to close the gap between

current and desired performance. 4. facilitates the

development of self-assessment (reﬂection) in lear-

ning. 5. encourages positive motivational beliefs and

self-esteem. 6. encourages teacher and peer dialogue

around learning. 7. provides information to teachers

that can be used to help shape teaching.

The ﬁrst three principles mirror (Wiliam and

Thompson, 2007)’s theory of formative assessment,

which emphasizes establishing where the learners are

in their learning, where they are going, and what

needs to be done to get them there. Black and Wil-

liam, (Black and Wiliam, 1998) warn that classroom

cultures focused on rewards or grades encourage stu-

dents to game the system, avoid difﬁcult tasks, and

where difﬁculties or poor results are encountered,

”retire hurt”. By 2004, this had been strengthened

in (Black et al., 2004) into an explicit recommenda-

tion to adopt comment-only marking practices; ”Stu-

dents given marks are likely to see it as a way to com-

pare themselves with others; those given only com-

ments see it as helping them to improve. The latter

group outperforms the former.” A literature review by

(Gikandi et al., 2011) provides supporting studies and

explicitly reafﬁrms the above seven principles as ”an

essential condition for effective formative feedback”.

Whilst the above principles may be sufﬁcient to

guide the behavior of teachers in conversation with

Building a Formative Assessment System That is Easy to Adopt Yet Supports Long-term Improvement: A Review of the Literature and

Design Recommendations

443

Short-term Medium-term Long-term

Students Checking understanding of subject,

identifying own misconceptions.

Understanding progress and thinking

about own learning (meta-cognition).

Subject mastery, perhaps through spaced

repetition.

Teachers Identifying common misconceptions in

the student body, planning next lesson.

Understanding broad proficiencies of

class across the whole syllabus.

Constructing next year’s course materials, and

designing new summative assessments.

Figure 1: Conceptual framework of feedback for students and teachers in the short, medium, and long terms.

students in a physical classroom, there are pragma-

tic details to consider for their implementation within

computer-based systems. For example Hattie and

Timperley (Hattie and Timperley, 2007) distinguish

between task-orientated feedback such as knowledge

of correctness of response, and processes-orientated

feedback such as worked-out example answer, sta-

ting the latter is to be preferred. In the context of

technology-based instruction, learners elect to view

the minimum load of feedback required to achieve

closure (Lefevre and Cox, 2016), yet for some ques-

tion designs a correct answer may hide a multitude of

ﬂawed methods and misconceptions (Sepp

a et al.,

2006). Since students will not rigorously examine

worked solutions when they know their answer is cor-

rect, it may be that this can only be avoided by better

question design.

3.2 Identifying Misconceptions in

Student Understanding

Closed question types such as multiple-choice questi-

ons can be used powerfully, provided that they’re de-

signed with a clear set of educational principles and

goals in mind (Nicol, 2007). By analyzing incorrect

answers of students on longer-form written exams for

mathematics, (Albano and Pepkolaj, 2014) were able

to develop effective recovery learning path tests on

top of a fairly primitive Learning Management Sy-

stem quiz tool. Careful question design may be able

to detect and correct student misconceptions which

are understood in advance, but how can this prere-

quisite information for understanding be gathered? In

some subjects common misconceptions amongst stu-

dent bodies have already been identiﬁed through aca-

demic research initiatives, and the results compiled

into documents targeted at teaching staff (one such

example would be (Hestenes et al., 1992)), but what

if such documents are not readily available?

Interactive questions are capable of recording a

greater variety and density of information than tradi-

tional tests questions. Researchers in (Greiff et al.,

2015) present a computerized assessment question

where students are expected to optimize the out-

come of a simulation by varying input values through

graphical sliders. They show how time-series data

that records actions taken during the assessment can

be used to gain insight into the problem-solving pro-

cess, and from this go on to draw statistical inferen-

ces about the efﬁcacy of various solving strategies.

Similarly, (Sepp

a et al., 2006) presented an inte-

ractive system for examining Computer Science stu-

dent beliefs about algorithms for creating a heap data-

structure. The system required students to simulate

the working of given algorithms by manipulating the

visual representations of the corresponding data struc-

tures on a computer screen. By collecting data on

the sequence of actions taken as students progressed

towards this goal, it became possible to identify not

just one-off slips but systematic misconceptions about

the algorithms. These misconceived algorithm vari-

ants could then be simulated, and when a student’s

response matched the sequence generated by the si-

mulation, advanced feedback targeted at the speciﬁc

misconception could be delivered.

3.3 Self- and Peer-assessment

As class sizes increase, so does the cost of marking

student work in terms of teachers’ time and energy.

Computer-based marking is clearly sufﬁcient for clo-

sed, well-deﬁned questions, but free text-questions,

which are known to promote meta-cognition more ef-

fectively, pose technical challenges with respect to au-

tomated marking and feedback provision. Relevant

automated systems do exist, often utilizing a vector-

space model, however they may be overly harsh, fail

to recognize the breadth of valid responses, mark only

with respect to an example answer, and require the

teacher to manually resolve ambiguities (Rodrigues

and Oliveira, 2014). Progress has been made over

the years to the point where such systems are used in

practice, but using them to provide useful feedback to

a learner is still an ongoing area of research (Van La-

beke et al., 2013). Such a system also fails when

the subjective qualities being measured cannot be re-

duced to linguistic similarity, such as in evaluations

of long free-form essays or creative works. In con-

trast, self-assessment and peer-assessment have been

shown to be effective in a variety of contexts such as

CSEDU 2017 - 9th International Conference on Computer Supported Education

444

design, programming, art, and dance. Provided stu-

dents are happy with the initial workload, such a stra-

tegy scales indeﬁnitely, since the number of available

reviewers grows with the number of students, and au-

tomated systems can be used in hybrid with human

markers if necessary to detect unusual reviews or to

provide an additional source of information which can

be used to increase the quality of a ﬁnal overall review

(Luaces et al., 2015).

(Gehringer, 2014) examines multiple methods for

improving review quality, but most involve aggrega-

tion of reviews, implying each student would be bur-

dened with a large number of other student’s answers

to mark, an undesirable workload if formative asses-

sments are to be undertaken regularly. One method

of improving review quality which does not necessi-

tate aggregation, is calibration, whereby students are

presented with multiple example answers which have

previously been assigned a mark by the teacher, be-

fore they go on to mark a peer’s work.

Nicol and Macfarlane (Nicol and Macfarlane-

Dick, 2006) make the case that even ’at-risk’ stu-

dents can learn to be more self-regulating, that the

more learning becomes self-regulated the less stu-

dents depend on external teacher support, that such

students are more persistent, resourceful, conﬁdent

and higher achievers, and that the quality of self-

regulation can be developed by making learning

processes explicit, through meta-cognitive training,

through self-monitoring, and by providing opportu-

nities to practice self-regulation.

Although anonymous peer-assessment may not be

any more valid than named peer-assessment with re-

spect to construct validity, pupils self-report lower le-

vels of peer-pressure and feel more positive about the

process (Vanderhoven et al., 2015).

3.4 Understanding Progress, Measuring

Difﬁculty, and Assessment Design

Learning design typically starts by identifying the

core aims of learning or abilities of a student to be

developed based on the domain of the subject to be

taught, and structuring practical activities in such a

way as to develop these abilities (MacLean and Scott,

2011). Misconceptions, identiﬁed previously via em-

pirical measures and documented (for example, (Hes-

tenes et al., 1992)) may be explicitly addressed in

order to accelerate the pace of learning. Similarly,

hypothesized learning progressions that have been va-

lidated empirically may be used to scaffold the lear-

ning process more helpfully, and where appropriate,

help students evaluate their own progress. These may

be in the form of individual construct maps showing

distinct levels of progress in the understanding of a

concept, but they could also describe the relationship

between individual competencies in a syllabus (Wil-

son, 2009). Given a dataset of student performance

on topic-tagged questions over time, it is possible to

mechanically extract a concept map showing the de-

pendencies between topics, and in doing so identify

conceptual bottlenecks in learning (Lin et al., 2015).

(Lin et al., 2015) go on to show how such a genera-

ted map can be used to indicate a learner’s progress to

them, clearly showing how next to progress in terms

of student learning requirements. Also of interest is

the use of factor analysis to gain insight into core

competency areas within a curriculum. This is hardly

a new idea (Zou and Zhang, 2013), however accessi-

ble integration of it and other statistical tools of simi-

lar power into assessment systems that ensure resul-

tant inferences are valid is a open area of research.

3.5 Spaced Repetition and Subject

Mastery

The positive effects of spacing learning over time in

increasing retention of knowledge are well documen-

ted and researched. Examples include; early work

such as Ebbinghaus’s discovery that the forgetting

curve becomes shallower over time (and thus the op-

timal interval between learning repetitions increases

with time) (Ebbinghaus, 1885); Spitzer’s large scale

study on Iowan school children (Spitzer, 1939); and

a large body of studies and inquiry in the 1960s and

1970s including (Landauer and Bjork, 1978). Se-

veral businesses, some with equity of over 1 mil-

lion USD, currently offer products based partly or

wholly on a spaced repetition model – these include

Duolingo, Synap, Brainscape, and Lingvist. Mul-

tiple open-source ﬂash-card programs such as Anki

and Mnemosyne exist, often based on an algorithm

from the proprietary software SuperMemo, speciﬁ-

cally SM-2, which is described in (Wozniak, 1990)

and bears resemblance to the paper-based algorithm

described in (Leitner, 1974).

Although the algorithm currently employed by

SuperMemo at the time of writing (SM-17) is far

more complicated than that of Anki (SM-2), in that

it calculates intervals based on measures of stability,

retrievability, and item difﬁculty; the only input requi-

red from the user is a self-assessment of conﬁdence

with respect to the answer; the time taken to answer

the question is not used to measure information retrie-

vability from memory.

The ability to appropriately schedule speciﬁc test

questions at timely intervals, independent of larger

tests themselves, is a feature which is hard to build

Building a Formative Assessment System That is Easy to Adopt Yet Supports Long-term Improvement: A Review of the Literature and

Design Recommendations

445

on top of a system which does not natively support

it. For this reason, if spaced repetition functionality is

desired in a system it is strongly advisable that such

functionality be implemented explicitly at a fairly low

level of design.

4 RECOMMENDATIONS AND

REQUIREMENTS FOR A

FORMATIVE SYSTEM

For subjects with well-deﬁned domains (as deﬁned by

(Spiro et al., 1995)) it is clear that short term forma-

tive assessment and feedback can provide signiﬁcant

value, at the same time collecting sufﬁcient data to

adequately support various long-cycle improvement

strategies without overburdening students or teachers,

provided it is used appropriately. Ill-deﬁned domains

present more of a challenge for automated marking,

but work may still be marked scalably through self

and peer assessment. Identifying misconceptions re-

quires comparatively rich data – at a minimum the

content of student answers for detecting common in-

correct responses, but ideally some sort of record of

the process the student followed to solve the ques-

tion. Longer timescale processes targeted at students

like long-term adaptive testing and spaced repetition

may to an extent be driven with data collected for and

produced by short-term formative feedback. But the

majority of existing solutions and research makes use

of the student’s own evaluation of their conﬁdence

in answering a question. As a result of the above,

we hypothesize that an extensible and modular sy-

stem for formative assessment which initially provi-

des knowledge of correct response and optional ela-

borated feedback whilst collecting data about student

answers and conﬁdence, would be sufﬁcient as a plat-

form for a reasonably wide variety of long term im-

provement processes without over-burdening users in

the short-term. The small size and traditional nature

of this dataset is perhaps surprising in contrast with

research interest in using alternative sources of data

such as student blog frequency or conversations with

peers for learning analytic purposes (e.g. (Cerezo

et al., 2016)). Based on the above research, we pre-

sent the following recommendations for designers of

formative assessment systems.

Adoption:

1. Design for an initially low level of emotional in-

vestment and time commitment from users, pro-

ducing immediate and obvious value in such a ci-

rcumstance.

2. Whilst shaping institutional culture is not so-

mething a software tool can actively do, it is pos-

sible to lead towards institutional good practice

by reducing relevant technical barriers in advance.

This should be explicitly planned for and done.

3. Design data visualizations in such a way as to

be easily explorable for non-expert users. Where

trade-offs between power and accessibility are ne-

cessary, the editorial choices involved should be

shaped by the processes the system is designed to

support.

4. Allow users to easily export any visualizations

they create or modify for inclusion in reports, etc.,

but unobtrusively watermark them with the name

of the system used. In doing so, the analytical

power of the system used will be gradually adver-

tised throughout a faculty or institution.

5. Where teachers or other staff members are asses-

sed via external criteria, ensure that good forma-

tive practice using the system will be evaluated

positively against such criteria, by providing faci-

lities that aid in documenting relevant evidence.

Feedback:

1. Allow teachers to provide students with ”Know-

ledge of Correct Response”-style feedback auto-

matically. Teachers should be able to provide a

worked solution which can be shown upon re-

quest. Refraining from showing elaborated feed-

back unless desired avoids student fatigue.

2. Design the platform to make it easy for teachers to

link feedback with speciﬁc tasks they would have

to undertake in the future to perform desirably.

3. Provide statistical and visualization capabilities to

express student progress through the curriculum,

however that curriculum is currently conceived of.

4. Where it makes sense to do so, and is not dis-

couraging, make it easy for teachers to frame

feedback in terms of student’s previous perfor-

mances.

Self- and Peer- Assessment:

1. Support rich feedback types such as free text, pic-

tures, and video. Or at least enable students to

critique pictures and videos, if not produce them

from within the system.

2. Allow reconﬁgurability within the system with re-

spect to peer-review, especially with regards to

how students are assigned work to review, and

with regards to anonymisation.

CSEDU 2017 - 9th International Conference on Computer Supported Education

446

Assessment Design and Process:

1. Implement hardness measures within assessments

to automatically understand the relative difﬁcul-

ties students have with topics, and adjust teaching

time per topic accordingly.

2. Where proﬁciencies correlate across groups of

students and across time, use this information to

inform learning design, ensuring sufﬁcient time

is spent on bottleneck topics for learning, and re-

structure course content according to any depen-

dencies discovered empirically between topics.

3. Present teachers with reliability metrics of previ-

ously taken assessments, provided such automa-

ted statistics would not be misleading.

Spaced Repetition:

1. The platform must be capable (as an option to te-

achers since such a process may not always be de-

sired) of scheduling formative assessments based

on conﬁdence that is self-reported by students in

order to maximize their learning.

5 DESIGN OF AN EXTENSIBLE

FORMATIVE SYSTEM

A simple illustration of our proposed architecture can

be seen in Figure 2 The practicalities of question mar-

king may vary dramatically between more advanced

question types, and for this reason the responsibility

for marking student answers lies not with the core

back end server but with individual marking servers,

one for each question type, which communicate with

the core back end using standardized messages over

a message broker. The client, the core back end,

and the database are designed to be agnostic with re-

spect to the types of questions supported. The data-

base schema has a single table for all questions, with

schemaless content and markscheme columns (whose

structure is question type speciﬁc). All questions hold

a single reference to an entry in the question types ta-

ble, which holds the conﬁguration for accessing the

marking server for all questions of that type. In order

for an extension author to write a new question type,

ﬁrst the format of data expected to be received from

the student must be deﬁned, then a marking server

written that takes in this data via the message broker

and returns some speciﬁc feedback (the structure of

which must also be deﬁned) and a number between 0

and 1 (this is so statistical analysis across heteroge-

neous question types is possible). The front-end code

to produce this data must then be written, which con-

sists of the UI of the question itself along with the

business logic required to make it work. A UI com-

ponent that displays the feedback speciﬁc to the ques-

tion type should also be written, and it is advisable to

write a custom statistical view for teaching staff to use

for analyzing answers given to individual questions

of that question type (the default statistical tools will

no be able to understand the structure of student ans-

wers without help since that is speciﬁc to each que-

stion type). With the above completed, the relevant

ﬁles can be placed in their appropriate places, a new

question type created in the database with appropriate

marking server conﬁguration, and from that point on

questions of that new type may be created.

Much of the desired functionality can be accom-

plished with the system as described above – for ex-

ample, feedback is trivially possible, and collecting

data about student misconceptions can be accomplis-

hed by extending the system with complex question

types which can be built using web technologies. Self

assessment likewise can be accomplished via a dedi-

cated question type. However, some practices require

certain outcomes to occur as the result of previous

student performance and/or the time that has passed:

adaptive testing assigns students recovery tests as a

result of poor performance in previous tests; spaced

repetition involves reassigning previously seen ques-

tions to students after an interval calculated from past

conﬁdence in their answers; peer review needs stu-

dents to be assigned to review other student’s work

after they have submitted it. To provide sufﬁcient

functionality for these practices whilst keeping the

core application simple, we will implement a concep-

tually separate scheduler which runs both periodically

to ensure time-dependent rules are followed globally,

but also upon request. Whilst teachers assigning tests

and questions manually to students is handled directly

by the core application, any other assignment of ques-

tions (for any reason) is the responsibility of the sche-

duler. The rules of the scheduler are not designed to

be changed by extension authors, and will likely be

fairly opaque to users; instead of seeing the exact ru-

les that are going to be followed, teachers will be pre-

sented with a settings UI that allows them to enable,

for example, ”computer adaptive testing” at the press

of a button, and this will enable all of the relevant GUI

components as well as the back-end logic designed to

support such a work-ﬂow. With the above said, there

is no reason a particularly dedicated researcher could

not add new rules to the scheduler to support some

new process.

Building a Formative Assessment System That is Easy to Adopt Yet Supports Long-term Improvement: A Review of the Literature and

Design Recommendations

447

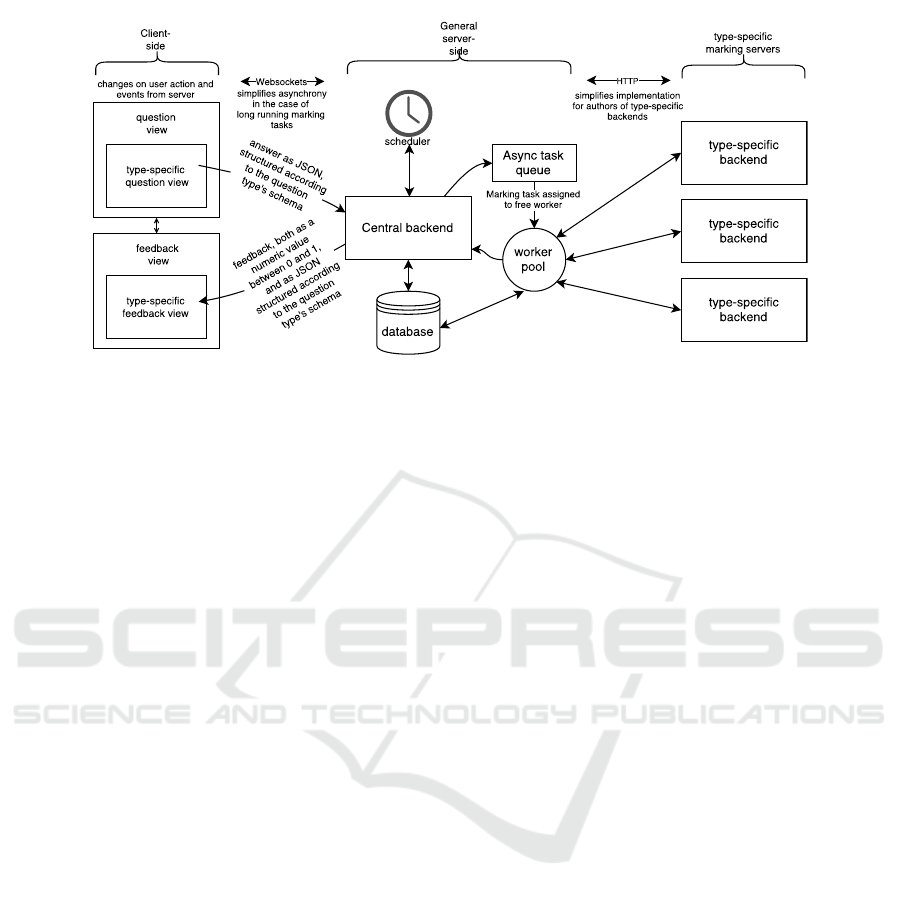

Figure 2: Design of a formative assessment system.

6 CONCLUSIONS AND AREAS

FOR FUTURE RESEARCH

By targeting a web platform, a medium ideally suited

for the development of interactive and visual tools,

we aim to enable learning experiences and questions

to be developed with relative ease and in a way that

remains coherent and integrated with the other for-

mative practices we hope to encourage. Novel inte-

ractive questions types are an area of research with

potentially rich rewards, as is applying what is known

currently about the computer-assisted identiﬁcation of

misconceptions to new subject domains. It is our in-

tention that our system serve as a platform for multi-

ple researchers looking to explore the effectiveness of

richly immersive web-based learning tools.

One of the largest barriers to effective use of data

in an educational setting is the lack of statistical tools

which are easy to use for non-experts. Because our

system aims to target practices that take place over a

variety of timescales whilst collecting data in a con-

sistent format we believe it to be suited for the pro-

totyping and subsequent empirical testing of a wide

range of graphical statistical tools. Of particular note

for researchers is the problem of conveying nuan-

ced statistical ideas which affect validity of inferences

made to staff who have not been statistically trained,

especially doing so visually.

Appropriate treatment of issues of reliability and

validity have been identiﬁed as key deﬁciencies in

existing research ((Gikandi et al., 2011), (Bennett,

2011)). A potential deﬁciency with the system de-

sign presented above is the lack of resistance to que-

stions being incorrectly labeled with the wrong to-

pics. Despite years of research, it remains unclear

how components of feedback such as timing affect

its overall efﬁcacy. It is our hope that a system such

as ours once developed, will permit long-term A/B

testing of variations to these components. Although

ethical and professional concerns related to delive-

ring a potentially sub-par educational experience to

a section of paying students will have to be addressed

in order to proceed.

REFERENCES

Albano, G. and Pepkolaj, L. (2014). Formative self-

assessment to support self-driven mathematics educa-

tion at university level. In International Conference

on Web-Based Learning, pages 82–91. Springer.

Allal, L. and Schwartz, G. (1996). Quelle place pour

l’

evaluation formative dans l’enseignement au cycle

d’orientation? CO Infos, 178:5–8.

Bennett, R. E. (2011). Formative assessment: A critical

review. Assessment in Education: Principles, Policy

& Practice, 18(1):5–25.

Black and Wiliam (1998). Inside the black box: Raising

standards through classroom assessment. Phi Delta

Kappan, 80(2):139–144, 146–148.

Black and Wiliam (2009). Developing the theory of forma-

tive assessment. Educational Assessment, Evaluation

and Accountability (formerly: Journal of Personnel

Evaluation in Education), 21(1):5–31.

Black, P., Harrison, C., Lee, C., Marshall, B., and William,

D. (2004). Working inside the black box: Assessment

for learning in the classroom. 86(1):8–21.

Blin, F. and Munro, M. (2008). Why hasn’t technology dis-

rupted academics’ teaching practices? understanding

resistance to change through the lens of activity the-

ory. Computers & Education, 50(2):475–490.

Cerezo, R., S

anchez-Santill

an, M., Paule-Ruiz, M. P., and

nez, J. C. (2016). Students’ lms interaction patterns

CSEDU 2017 - 9th International Conference on Computer Supported Education

448

and their relationship with achievement: A case study

in higher education. Computers & Education, 96:42–

54.

Ebbinghaus, H. (1885).

Uber das Ged

achtnis.

Gehringer, E. F. (2014). A survey of methods for improving

review quality. In International Conference on Web-

Based Learning, pages 92–97. Springer.

Gikandi, J. W., Morrow, D., and Davis, N. E. (2011). Online

formative assessment in higher education: A review of

the literature. Computers & education, 57(4):2333–

2351.

Greiff, S., W

ustenberg, S., and Avvisati, F. (2015).

Computer-generated log-ﬁle analyses as a window

into students’ minds? a showcase study based on the

pisa 2012 assessment of problem solving. Computers

& Education, 91:92–105.

Hall, R. and Hall, M. (2010). Scoping the pedagogic re-

lationship between self-efﬁcacy and web 2.0 techno-

logies. Learning, Media and Technology, 35(3):255–

273.

Hattie, J. and Timperley, H. (2007). The power of feedback.

Review of educational research, 77(1):81–112.

Hestenes, D., Wells, M., Swackhamer, G., et al. (1992).

Force concept inventory. The physics teacher,

30(3):141–158.

King, E. and Boyatt, R. (2015). Exploring factors that

inﬂuence adoption of e-learning within higher edu-

cation. British Journal of Educational Technology,

46(6):1272–1280.

Kotter, J. P. and Cohen, D. S. (2002). The heart of change:

Real-life stories of how people change their organiza-

tions. Harvard Business Press.

Landauer, T. K. and Bjork, R. A. (1978). Optimum rehe-

arsal patterns and name learning. Practical aspects of

memory, 1:625–632.

Lefevre, D. and Cox, B. (2016). Feedback in technology-

based instruction: Learner preferences. British Jour-

nal of Educational Technology, 47(2):248–256.

Leitner, S. (1974). So lernt man lernen. Herder.

Lin, Y.-S., Chang, Y.-C., Liew, K.-H., and Chu, C.-P.

(2015). Effects of concept map extraction and a

test-based diagnostic environment on learning achie-

vement and learners’ perceptions. British Journal of

Educational Technology.

Looney, J. (2011). Integrating formative and summative as-

sessment: Progress toward a seamless system? OECD

Working Paper.

Luaces, O., Alonso, A., Troncoso, A., Bahamonde, A., et al.

(2015). Including content-based methods in peer-

assessment of open-response questions. In 2015 IEEE

International Conference on Data Mining Workshop

(ICDMW), pages 273–279. IEEE.

Macfadyen, L. P. and Dawson, S. (2012). Numbers are not

enough. why e-learning analytics failed to inform an

institutional strategic plan. Educational Technology &

Society, 15(3):149–163.

MacLean, P. and Scott, B. (2011). Competencies for lear-

ning design: A review of the literature and a proposed

framework. British Journal of Educational Techno-

logy, 42(4):557–572.

Nicol, D. (2007). E-assessment by design: using multiple-

choice tests to good effect. Journal of Further and

higher Education, 31(1):53–64.

Nicol, D. J. and Macfarlane-Dick, D. (2006). Formative

assessment and self-regulated learning: A model and

seven principles of good feedback practice. Studies in

higher education, 31(2):199–218.

Rodrigues, F. and Oliveira, P. (2014). A system for forma-

tive assessment and monitoring of students’ progress.

Computers & Education, 76:30–41.

Rogers, E. M. (1995). Diffusion of Innovations: Modiﬁcati-

ons of a Model for Telecommunications, pages 25–38.

Springer Berlin Heidelberg, Berlin, Heidelberg.

Romero, C. and Ventura, S. (2010). Educational data mi-

ning: a review of the state of the art. IEEE Transacti-

ons on Systems, Man, and Cybernetics, Part C (Appli-

cations and Reviews), 40(6):601–618.

Russell, C. (2009). A systemic framework for managing

e-learning adoption in campus universities: individual

strategies in context. Research in learning technology,

17(1).

Sepp

a, O., Malmi, L., and Korhonen, A. (2006). Observa-

tions on student misconceptions: A case study of the

build–heap algorithm. Computer Science Education,

16(3):241–255.

Spiro, R. et al. (1995). Cognitive ﬂexibility, constructivism

and hypertext: Random acces instruction for advanced

knowledge acquisition. P. Steffe e J. Gale.

Spitzer, H. F. (1939). Studies in retention. Journal of Edu-

cational Psychology, 30(9):641.

Van Labeke, N., Whitelock, D., Field, D., Pulman, S., and

Richardson, J. T. (2013). Openessayist: extractive

summarisation and formative assessment of free-text

essays.

Vanderhoven, E., Raes, A., Montrieux, H., Rotsaert, T.,

and Schellens, T. (2015). What if pupils can assess

their peers anonymously? a quasi-experimental study.

Computers & Education, 81:123–132.

Wiliam, D. (2006). Formative assessment: Getting the fo-

cus right. Educational Assessment, 11(3-4):283–289.

Wiliam, D. and Thompson, M. (2007). Integrating as-

sessment with learning: What will it take to make it

work? Lawrence Erlbaum Associates.

Wilson, M. (2009). Measuring progressions: Assessment

structures underlying a learning progression. Journal

of Research in Science Teaching, 46(6):716–730.

Wozniak, P. A. (1990). Optimization of learning. Unpublis-

hed master’s thesis, Poznan University of Technology.

Poznan, Poland.

Zou, X. and Zhang, X. (2013). Effect of different score

reports of web-based formative test on students’ self-

regulated learning. Computers & Education, 66:54–

63.

Building a Formative Assessment System That is Easy to Adopt Yet Supports Long-term Improvement: A Review of the Literature and

Design Recommendations

449
