Unity Decision Guidance Management System:

Analytics Engine and Reusable Model Repository

Mohamad Omar Nachawati

, Alexander Brodsky

and Juan Luo

Department of Computer Science, George Mason University, 4400 University Drive, Fairfax, VA 22030, U.S.A.

Information Technology Unit, George Mason University, 4400 University Drive, Fairfax, VA 22030, U.S.A.

Keywords:

Advanced Analytics, Decision Guidance Management Systems, Decision Support Systems, Decision Man-

agement Systems, Knowledge Management, Modeling, Simulation, Optimization, Machine Learning.

Abstract:

Enterprises across all industries increasingly depend on decision guidance systems to facilitate decision-

making across all lines of business. Despite signiﬁcant technological advances, current paradigms for devel-

oping decision guidance systems lead to a tight-integration of the analytic models, algorithms and underlying

tools that comprise these systems, which inhibits both reusability and interoperability. To address these limi-

tations, this paper focuses on the development of the Unity analytics engine, which enables the construction of

decision guidance systems from a repository of reusable analytic models that are expressed in JSONiq. Unity

extends JSONiq with support for algebraic modeling using a symbolic computation-based technique and com-

piles reusable analytic models into lower-level, tool-speciﬁc representations for analysis. In this paper, we also

propose a conceptual architecture for a Decision Guidance Management System, based on Unity, to support

the rapid development of decision guidance systems. Finally, we conduct a preliminary experimental study

on the overhead introduced by automatically translating reusable analytic models into tool-speciﬁc representa-

tions for analysis. Initial results indicate that the execution times of optimization models that are automatically

generated by Unity from reusable analytic models are within a small constant factor of that of corresponding,

manually-crafted optimization models.

1 INTRODUCTION

Organizations increasingly use automated decision

support (ADS) systems to streamline and improve

decision-making across a variety of different do-

mains, including manufacturing, supply-chain man-

agement, health-care, government operations and

marketing (Meleanc

a, 2013; Taylor, 2015). This pa-

per is concerned with the rapid development of de-

cision guidance systems, a class of decision sup-

port systems (DSS) geared toward actionable recom-

mendations. These systems are often deployed in

a service-oriented architecture that encapsulate ex-

ecutable decision-making logic that can be invoked

by different decision-making clients, such as business

process management systems, as well as human an-

alysts through integrated and model-driven develop-

ment environments (Taylor, 2011).

However, despite signiﬁcant technological ad-

vances, current approaches for developing decision

guidance systems to automate decision-making lead

to a tight-integration between analytic models, algo-

rithms and underlying tools that comprise these sys-

tems. Such difﬁculties can be attributed to diverse and

low-level abstractions provided by current paradigms,

which preclude the reuse of analytic models across

different analytical tasks. Thus the same underlying

reality must often be modeled multiple times using

different mathematical abstractions, instead of being

modeled just once, uniformly (Brodsky et al., 2016a;

Brodsky and Luo, 2015). Also, the modeling pro-

ﬁciency required by these languages is typically not

within the realm of expertise of many business users,

such as executives, analysts and application devel-

opers. Consequently, development projects often re-

quire a team with diverse interdisciplinary expertise,

are prone to budget overruns and unexpected delays,

and often result in software that is non-reusable, non-

extensible, and locked-in to proprietary tool vendors

(Brodsky et al., 2016a; Brodsky and Luo, 2015).

To address this problem, earlier work (Brodsky

et al., 2016a; Brodsky and Luo, 2015) proposed the

Decision Guidance Analytics Language (DGAL) as

a solution for developing reusable analytic models in

312

Nachawati, M., Brodsky, A. and Luo, J.

Unity Decision Guidance Management System: Analytics Engine and Reusable Model Repository.

DOI: 10.5220/0006338703120323

In Proceedings of the 19th International Conference on Enterpr ise Information Systems (ICEIS 2017) - Volume 1, pages 312-323

ISBN: 978-989-758-247-9

JSONiq, a JSON-based query language itself an ex-

tension to XQuery. However, this work was concep-

tual in nature and did not focus on the problems of

compilation and execution of reusable analytic mod-

els. We further discuss related work in Section 2.

Addressing these issues is exactly the focus of

this paper. Speciﬁcally, the contributions of this pa-

per are as follows. First, we developed an analytics

engine, called Unity, to support the development of

decision guidance systems from a repository of ana-

lytic models, which can be reused for different ana-

lytical tasks. Unity’s uniqueness lies in its core deci-

sion guidance algorithms, including optimization and

learning, which do not require lower-level level mod-

els (e.g., in AMPL for optimization problems), but

rather automatically generate lower-level, task- and

tool-speciﬁc models from reusable analytic models,

which are task- and tool-independent. We developed

an algorithm to perform deterministic optimization

against such models, based on a reduction to stan-

dard optimization problem formulation in AMPL and

OPL, which can be solved using a variety existing

optimization solvers, such as CPLEX and MINOS.

To support the reduction, we developed algorithms

based on symbolic computation, which output mathe-

matical constraints encoded as a JSON object. These

symbolic computation algorithms are also suitable to

implement other decision guidance functionality, in-

cluding machine learning, through reduction to lower-

level models.

Second, we propose a conceptual architecture

for a NoSQL-based Decision Guidance Management

System (DGMS) that is built around Unity to sup-

port the seamless integration and interoperability of

decision guidance applications, analytic models, al-

gorithms and underlying tools. The uniqueness of

this architecture is that it centered around a knowl-

edge base of analytic models, which can be reused for

various analytical tasks such as prediction, optimiza-

tion and statistical learning without the need to man-

ually create lower-level task- and tool-speciﬁc mod-

els. Finally, we conduct an initial experimental study

on the overhead of compiled analytic models. Our

evaluation in this paper is limited to the execution

time overhead of optimization models generated au-

tomatically by Unity. Initial results indicate that the

execution times of optimization models that are auto-

matically generated from reusable analytic models are

within a small constant factor of that of correspond-

ing, manually-crafted optimization models.

The rest of this paper is organized as follows. In

the next section, we brieﬂy discuss some relevant

background and related work. In the following sec-

tion, we propose an architecture for a NoSQL-based

DGMS based around Unity, and describe each of its

major components. Then we provide an overview of

reusable analytic modeling, and show how to develop

a simple decision guidance system with Unity. Next,

we move on to describe the implementation of the

Unity analytics engine, to include the symbolic com-

putation approach, the intermediate representation,

and an algorithm for implementing the DGAL opera-

tor for deterministic optimization against reusable an-

alytic models. Finally, we present the experimental

study and then conclude the paper with some brief re-

marks on future work.

2 BACKGROUND AND RELATED

WORK

In this section, we further discuss related work. De-

spite its mixed reception and slow adoption due to,

among other reasons, unfavorable market conditions

and lack of integration and maturity, automated de-

cision system technology is now widely used across

many industries (Davenport and Harris, 2005; Patter-

son et al., 2005). These systems often depend on an-

alytic models to provide actionable recommendations

upon which decisions are made. In this paper, we use

the term decision guidance system to refer to an ad-

vanced class of decision support systems that are de-

signed to provide actionable recommendations using

a variety of different analytic models, algorithms and

data (Brodsky and Wang, 2008). While decision guid-

ance systems are not restricted to automated decision-

making, they often serve to support them. Also, as

a clariﬁcation, the term decision guidance is distinct

from decisional guidance, which is known in the lit-

erature as the degree to which a DSS inﬂuences user

decisions (Silver, 1991; Parikh et al., 2001).

Decision guidance systems are built on top of a va-

riety of lower-level tools that provide the full gamut of

business analytic capabilities, ranging from descrip-

tive to diagnostic to predictive to prescriptive analyt-

ics. There have been several attempts to classify DSSs

(Alter, 1980; Arnott, 1998; Hackathorn and Keen,

1981; Haettenschwiler, 2001), including one such

classiﬁcation, by Power, that classiﬁes these systems

into ﬁve different categories per underlying technol-

ogy, namely data-driven, model-driven, knowledge-

driven, document-driven and communications-driven

(Power, 2001). On the other hand, state-of-the-art de-

cision guidance systems often combine multiple ap-

proaches into one integrated system to solve complex

analytical problems (Brodsky et al., 2016b; Brodsky

and Luo, 2015; Luo et al., 2012).

Brodsky and Wang introduced a new type of plat-

Unity Decision Guidance Management System: Analytics Engine and Reusable Model Repository

313

form that they referred to as a Decision Guidance

Management System (DGMS), which was designed

to simplify the development of decision guidance sys-

tems by seamlessly integrating support for data ac-

quisition, learning, prediction, and optimization on

top of the data query and manipulation capabilities

typically provided by a DBMS (Brodsky and Wang,

2008). While this work laid the foundation for addi-

tional research, it did not address the technical chal-

lenges surrounding the development of a functional

system. Speciﬁcally, it did not develop any underly-

ing algorithms to support the decision guidance ca-

pabilities of the proposed system, such as simula-

tion, optimization and learning. The proposed ar-

chitecture was also limited to the relational model,

and lacked support for developing analytic models on

top of NoSQL data stores, which support more ﬂex-

ible, semi-structured data formats, such as XML and

JSON. Furthermore, due to the inherent limitations of

SQL, to re-purpose the language for decision guid-

ance modeling and analysis, a few non-standard syn-

tactic extensions were developed, which collectively

was called DG-SQL. Introducing new language di-

alects, however, can break the interoperability of ex-

isting development tools, reduce the reusability of ex-

isting code and inhibit wide-spread adoption (Lam-

mel and Verhoef, 2001; Shneiderman, 1975).

More recently, progress was made by Brodsky

et al. with the proposal of the Decision Guidance

Analytics Language (DGAL), which was designed

as an alternative to DG-SQL for developing deci-

sion guidance systems over NoSQL data stores (Brod-

sky et al., 2016a; Brodsky and Luo, 2015). In-

stead of SQL, DGAL is based on JSONiq, which is

a more expressive, NoSQL query language. JSONiq

was designed speciﬁcally for querying JSON docu-

ments and NoSQL data stores, and itself is based on

the XQuery language (Florescu and Fourny, 2013),

which provides highly-expressive querying capabili-

ties centered around the FLWOR construct (Cham-

berlin et al., 2003). Although this work focused on

proposing the DGAL language, it did not propose

an architecture for a NoSQL-based DGMS developed

around DGAL, nor did it address how to compile and

execute analytic models, both of which we cover in

this paper.

Rather than extending the syntax of an existing

language, as what was done in DG-SQL, DGAL is,

by design, syntactically equivalent to JSONiq. Un-

like purely library-based approaches for developing

analytic models such as the Concert API, the DGAL

language is designed to support algebraic modeling,

similar to SymPy and JuMP, which allow modelers to

specify equations directly using the native expression

operators of the host language. While SymPy is a full-

blown computer algebra system for Python (Joyner

et al., 2012), and JuMP is a domain speciﬁc mod-

eling language for optimization in Julia (Lubin and

Dunning, 2015), DGAL is a lighter-weight, algebraic

modeling language designed to speciﬁcally to sup-

port the development of reusable analytic models. To

support decision guidance, DGAL introduces a small

library of core decision guidance operators for dif-

ferent analytical tasks, such as optimization and ma-

chine learning, which are exposed as regular JSONiq

functions (Brodsky et al., 2016a; Brodsky and Luo,

2015). While these operators appear as regular func-

tions in JSONiq, they require a non-standard inter-

pretation of the language to implement. Thus, while

DGAL is syntactically equivalent to JSONiq, the de-

cision guidance operators have semantics that extend

that of the JSONiq language. Although the seman-

tics of these operators are intuitive, the underlying al-

gorithms needed to implement them are signiﬁcantly

more complex.

3 NOSQL-BASED DECISION

GUIDANCE MANAGEMENT

SYSTEM ARCHITECTURE

In this section, we present a conceptual system ar-

chitecture for decision guidance systems using the

proposed Decision Guidance Management System

(DGMS). The architecture we describe is illustrated

in Figure 1. The DGMS middleware, represented

by the empty black rectangle, is composed of three-

layers, namely the application management layer, the

decision guidance analytics management layer, and

the tool management layer. Within this middleware,

the Unity analytics engine, represented by the solid

black rectangle, is situated between the client layer

and external tool layer, and transparently connects

different clients to the lower-level, external tools that

support decision guidance. Keeping with the goals

that motivated the earlier DGMS proposal (Brodsky

and Wang, 2008), our proposed architecture is de-

signed to provide seamless support for data acquisi-

tion, learning, prediction, and optimization. How-

ever, unlike the former, which uses DG-SQL for

analytic modeling, we replace the role of DG-SQL

with DGAL. Speciﬁcally, in our proposed architec-

ture, DGAL serves as both a language for developing

reusable analytic models as well as for executing an-

alytical queries against those models.

The proposed architecture supports several differ-

ent user roles for interacting with the system, to in-

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

314

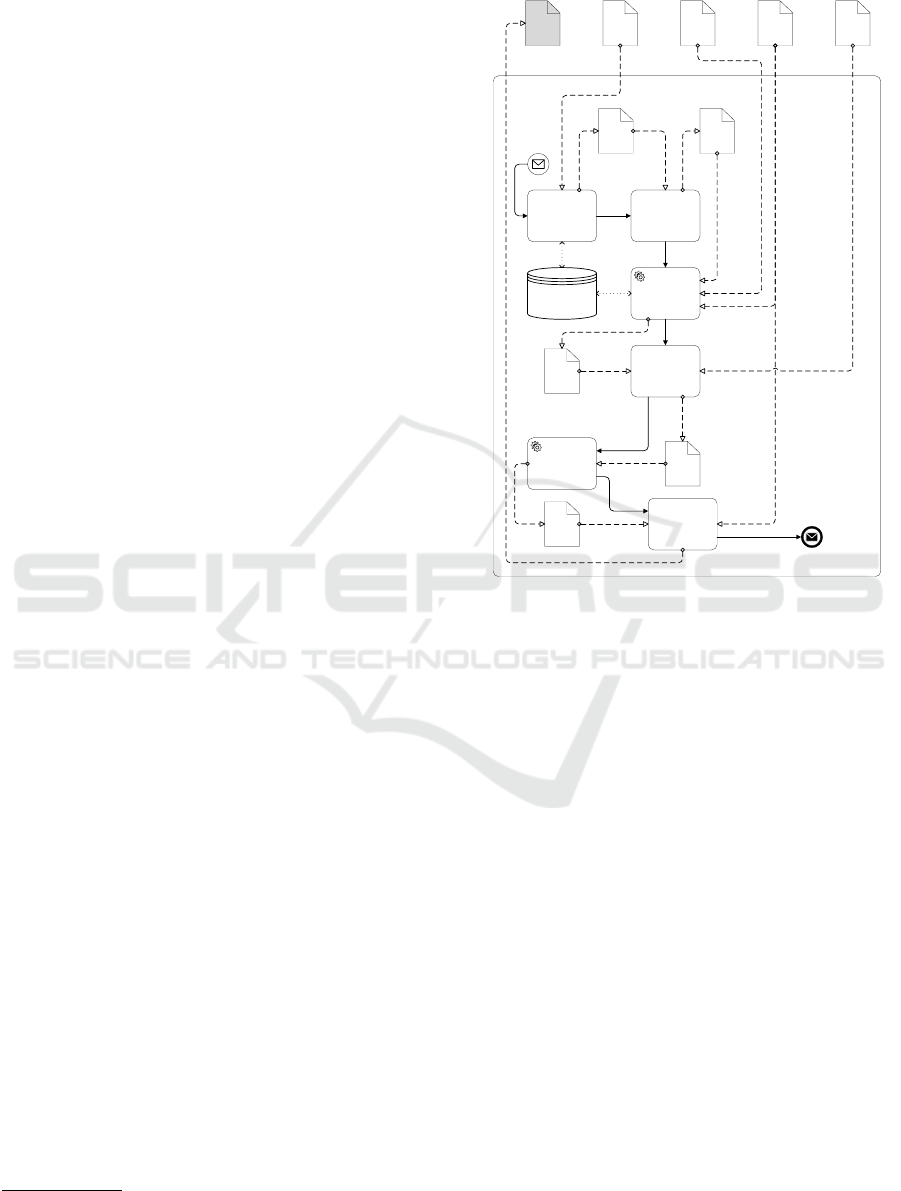

Figure 1: Proposed Architecture for a NoSQL-based Decision Guidance Management System.

clude decision makers, contributors, analysts, model-

ers, developers, and administrators. The roles are not

mutually exclusive and therefore a single user may

serve different roles, depending on their speciﬁc re-

quirements. Decision-makers are the end-users of de-

cision guidance, and can be either human operators

or a decision-guided applications or services, such as

business processes, workﬂows and intelligent agents.

Contributors are users that run ETL processes and

provide data-entry into the decision guidance repos-

itory. These users can also manage data models and

data sources. Analysts are technical users that man-

age the life-cycle of analytic models in the repository,

and can design new views, dashboards, forms and re-

ports. Analysts can also design workﬂows and busi-

ness rules for automating repetitive decisions based

on decision guidance provided by the system. Mod-

elers are technical users, typically with a data science

background, that devise mathematical representations

of metrics and constraints for new analytic models to

be published in the repository. If such a user does

not have the technical expertise to develop analytic

models from scratch, they can easily mash up new

models by composing and specializing existing ones

from the repository. Developers are technical users

with experience in software development that build

custom applications that provide extended function-

ality to meet domain-speciﬁc requirements. Finally,

administrators are users that have administrative ac-

cess to the system, to handle system conﬁguration,

user management and security.

The client layer includes diverse, domain-speciﬁc

applications that support the development and man-

agement of decision guidance systems. The archi-

tecture would provide an API for connecting to a va-

riety of third-party clients, including information vi-

sualization tools, model-driven engineering tools, in-

tegrated development environments and external sys-

tems, such as SCADA or IoT devices.

A primary objective of the proposed architecture

is to facilitate the development of decision guidance

systems by allowing users to work at different lev-

els of abstraction per their skills and expertise. For

example, modelers with expertise in operations re-

Unity Decision Guidance Management System: Analytics Engine and Reusable Model Repository

315

search can use the full power of mathematical con-

straints to create reusable analytic models directly in

JSONiq. Business analysts without an operations re-

search background could then graphically compose

and specialize these expertly crafted models to ad-

dress speciﬁc problems using a model-driven engi-

neering tool. They could also develop analytical

views and dashboards using a data visualization tool.

The application management layer provides sev-

eral services to support the rapid development of de-

cision guidance systems. Decision service manage-

ment supports the development and operation of de-

cision services based on analytic models contained

in the repository. View and dashboard management

provide tools to create analytical views and templates

for the rapid development of interactive dashboards.

Analytical views are like regular database views, ex-

cept that they are based on one or more analytic mod-

els and DGAL operators. Form and report manage-

ment supports the development and use of forms and

notebooks for data collection, reporting and publish-

ing. Workﬂow and rule management supports the de-

velopment and execution of workﬂows and business

rules for the rapid development of simple automated

decision systems. Finally, custom application man-

agement would provide an API for building domain-

speciﬁc, decision-guided applications.

The analytics management layer hides the com-

plexity of dealing with different external tools that

provide the essential analytical capabilities of a de-

cision guidance system. This layer is composed of

the Unity analytics engine, a decision guidance repos-

itory, and a variety of different decision guidance al-

gorithms. The decision guidance repository provides

uniform access to the different artifacts that together

constitute the business knowledge used to support de-

cision guidance. The different types of artifacts stored

in the decision guidance repository include, but are

not limited to data models, analytic models, business

rules, DMN-based decision models, data sources, and

ontologies. The Unity analytics engine serves as a

bridge between the analytic models in the reposi-

tory, decision guidance algorithms and the lower-level

tools used to implement them.

The proposed architecture is designed to support

three kinds of analytic models, namely white-box,

black-box and gray-box models. With white-box ana-

lytic models, the source code of the model is stored

in the decision guidance repository, and the execu-

tion of such models is performed locally by the an-

alytics engine. While white-box analytic models can

help decision-makers better understand the logic be-

hind the computation of metrics and constraints, they

would not be suitable for models containing propri-

etary knowledge. On the other hand, with black-box

analytic models the source code is not provided, and

instead what is stored in the decision guidance reposi-

tory is a description of a web service that provides re-

mote and opaque execution of the model. While this

method supports proprietary models, it does not pro-

vide a way for the client to reuse the models for dif-

ferent analytical tasks. It also requires users to send

possibly sensitive data to third parties for processing.

Finally, gray-box models are like black-box models in

that the execution occurs remotely, however gray-box

models return its results in symbolic form. While this

exposes part of the model’s logic, it allows clients to

easily reuse remote models for different types of ana-

lytical task.

Finally, the tool management layer serves to pro-

vide seamless access to the external tools that are

needed to implement decision guidance algorithms as

well as to provide additional capabilities. The types

of external tools that this layer would support in-

cludes packages for data storage and retrieval, data

analytics and manipulation, statistical and machine

learning, MP/CP optimization and business process

and rule execution and reasoning. Ideally, this layer

would also support big data analytics and deep learn-

ing frameworks such as Apache Spark’s Mllib (Meng

et al., 2016), Theano (Bergstra et al., 2010), Google

Tensorﬂow (Abadi et al., 2016).

4 REUSABLE ANALYTIC

MODELING

As mentioned before, current decision guidance sys-

tem development paradigms lead to a tight-integration

of the analytic models, algorithms and underlying

tools that make up these systems, which often in-

hibit integration and interoperability. This often ne-

cessitates the development of specialized models for

each analytic task, such as machine learning and opti-

mization, which makes it difﬁcult to reuse and extend

existing models via declarative composition and spe-

cialization constructs. In this section, we show how

Unity can be used to build a rudimentary decision

guidance system to support intelligent order manage-

ment based on a single reusable analytic model ex-

pressed directly in JSONiq. In the next section, we

describe the implementation of Unity, which uses a

symbolic computation-based approach to enable al-

gebraic modeling in JSONiq.

In our intelligent order management scenario, we

track suppliers that each supply zero or more items,

as well customers that each have a demand for zero

or more items. We also maintain a list of orders that

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

316

represent the ﬂow of items from suppliers to cus-

tomers. We can represent this information using a

simple JSON object that will serve as the input to our

analytic model. An example of this input object is

shown below:

let $ inp ut := { " su p plie r s ": [{

" sid ": " supp l ier1 " ,

" su ppl y ": [

{ " upc " : " 47520 - 814 52 " ,

" ppu ": 10.99 ,

" qty ": 500 } , ... ]

} ,{

" sid ": " supp l ier2 " ,

" su ppl y ": [

{ " upc " : " 47520 - 814 52 " ,

" ppu ": 11.99 ,

" qty ": 15 00 } , ... ]

}, ... ] ,

" cu s tome r s ": [{

" cid ": " cust o mer1 " ,

" de man d ": [

{ " upc " : " 47520 - 814 52 " , " qty ": 14 75 } , ... ]

} ,{

" cid ": " cust o mer2 " ,

" de man d ": [

{ " upc " : " 32400 - 247 85 " , " qty ": 874 } , ... ]

}, ... ] ,

" or der s ": [{

" sid ": " supp l ier1 " , " cid " : " c u stom e r1 " ,

" i tem s ": [

{ " upc " : " 47520 - 814 52 " , " qty ": 500 } , ... ]

}, ... ]

}

Based on the data model that one can derive from

the above example, we can now deﬁne the metrics and

constraints for our analytic model, which we will then

proceed to implement. While a single analytic model

can support multiple metrics, for the purposes of our

discussion we will limit our model to a single metric:

the computation of the total cost of all ordered items.

Assuming the variable $input holds the input for our

analytic model, the total cost metric can be expressed

in JSONiq as follows:

let $ orde rs := $in put . ord ers []

let $ ite ms := $in put . ite ms []

let $ s uppli e rs := $in put . supp l iers []

let $ cos t :=

for $ ord er in $ord ers , $ ite m in $it ems

return fn :su m ( $su p plier s [

$$ . si d eq $ord er . sid ]. s uppl y [][

$$ . up c eq $ite m . upc ]. ppu * $it em . qty )

We will now deﬁne supply and demand con-

straints for our order management analytic model.

First, we have a supply constraint on orders, which re-

quires that for each supplier, the quantity of each item

in stock is greater than or equal to the sum of the order

quantities of that particular item across all orders to

that supplier. This constraint ensures that an existing

order can be fulﬁlled per current supplier inventory

levels. Second, we have a demand constraint on or-

ders, which requires that for each customer, the quan-

tity of each item requested is equal to the sum of the

order quantities of that particular item across all or-

ders from that customer. This constraint ensures that

we only order items that are speciﬁcally requested by

customers. We can express both of these constraints

in JSONiq as follows:

let $ s uppli e rs := $in put . supp l iers []

let $ c ustom e rs := $in put . cust o mers []

let $ orde rs := $in put . ord ers []

let $ s u p p lyCon s t r a int : =

for $ s uppl i er in $suppliers ,

$i tem in $sup p lier . sup ply []

return $i tem . q ty ge fn:s um ( $ orde rs [

$$ . si d eq $s uppl i er . sid ]. i tem s [][

$$ . up c eq $ite m . upc ]. qty )

let $ d e m a ndCon s t r a int : =

for $ c usto m er in $c ust ome r ,

$i tem in $cus t omer . dem and []

return $i tem . q ty eq fn:s um ( $ orde rs [

$$ . ci d eq $c usto m er . cid ]. i tem s [][

$$ . up c eq $ite m . upc ]. qty )

We ﬁnish the JSONiq implementation of our an-

alytic model by wrapping the cost metric as well as

the supply and demand constraints inside a function

containing a single parameter corresponding to our

model’s input data and whose return value is the com-

puted metrics and constraints:

dec lare fu n ctio n scm : O r d e rAnalyt i c s M o del ( $i npu t )

{

let $ cos t := ...

let $ s u p p lyCon s t r a int : = ...

let $ d e m a ndCon s t r a int : = ...

let $ c o nstra i n ts : = $ supply C o n strain t and

$dem a n d C onstr a i n t

return {

" c ost ": $cost ,

" co n s trai n t s ": $cons t r aint s

}

};

With our reusable analytic model implemented in

JSONiq, we can now use different DGAL operators

to perform many analytic tasks, such as simulation,

optimization and machine learning, without having to

redevelop different versions of our model for each an-

alytic task that we want to perform. The work of com-

piling our reusable analytic model into task- and tool-

speciﬁc models for analysis is handled seamlessly by

the Unity analytics engine. For example, we can sim-

ulate our model on some order input using the deter-

ministic simulation operator in DGAL, which is im-

plicitly exposed as a regular JSONiq function invoca-

tion:

Unity Decision Guidance Management System: Analytics Engine and Reusable Model Repository

317

scm:O r d e r A nalytic s M o d e l ( $i nput )

In this case, the output object that is returned con-

tains the computed cost metric as a JSON number,

and a value of either true or false for the constraints

property, depending on if the supply and demand con-

straints were satisﬁed for the given input.

What if we wanted to ﬁnd the optimal item or-

der quantities, qty, for each supplier such that the

total cost is minimized? To do this, we can anno-

tate our original input object with decision variables

in the place of numeric values for each qty property.

This indicates to the Unity analytics engine that we

want to solve for the values of those properties. A de-

cision variable is represented as a simple object that

contains one of the following properties correspond-

ing to its type: integer?, decimal?, or logical?.

The corresponding value indicates the decision vari-

able’s identiﬁer, which if set to null will be automat-

ically replaced with a UUID. Two different decision

variables that contain the same identiﬁer refer to the

same decision variable in the underlying optimization

problem. An example of an input object with a deci-

sion variable annotation is shown below:

" or der s ": [{

" sid ": " supp l ier1 " ,

" cid ": " cust o mer1 " ,

" i tem s ": [{

" upc ": " 47520 -81 452 " ,

" qty ": { " i nte g er ? " : n ull }

}]

Invoking the scm:OrderAnalyticsModel func-

tion directly on the decision variable input would,

however, result in unexpected behavior. This is be-

cause the function that implements the analytic model

is expecting a numerically-typed value for the qty

property, but it will ﬁnd a decision variable object in-

stead. Rather, we need to use the dgal:argmin op-

erator to have Unity ﬁnd speciﬁc values for the qty

decision variables that minimize the cost objective:

let $ i n s t antiat e d I n put : = dgal: a rgmin ({

var I nput : $a nnot a ted I nput ,

ana l ytics : " s c m :OrderA n a l y t icsModel " ,

obj e ctive : " co st "

})

To maintain complete syntactic equivalence with

JSONiq, the DGAL operators provided by Unity

are exposed as regular JSONiq functions. As

shown above, the DGAL operator for optimization

is dgal:argmin, which serves as a tool-independent

wrapper over different underlying optimization al-

gorithms, all of which are seamlessly integrated by

Unity. For complex problems that require the nesting

of multiple optimization operators, Unity also pro-

vides seamless solver interoperability.

The dgal:argmin function takes a single object as

input, which contains at least three properties, specif-

ically: (1) varInput: the decision variable annotated

input, (2) analytics: the analytic model as a quali-

ﬁed name string or function pointer, and (3) objective:

the JSONiq path expression string to select the metric

property that will serve as the objective from the com-

puted output of the analytic model. If a solution to the

resulting optimization problem is feasible, the argmin

operator returns an instantiation of the annotated ob-

ject contained in the varInput property, where all de-

cision variable annotations are replaced with corre-

sponding solution values that together minimize the

objective. Finally, to compute the minimized value of

the objective metric, one simply invokes the analytic

model on the instantiated input object returned from

dgal:argmin:

return

scm:O r d e r A nalytic s M o d e l ( $inst a n t i atedIn p u t )

5 IMPLEMENTATION OF UNITY

In this section, we describe the design and imple-

mentation of the Unity analytics engine. Unity in-

tegrates several external tools into a seamless de-

cision guidance platform, such as Zorba, GitLab

, AMPL and OPL. Zorba is a NoSQL query en-

gine that supports both XQuery and JSONiq (Bam-

ford et al., 2009). AMPL is a mathematical pro-

gramming language that was originally developed

by Robert Fourer, David Gay, and Brian Kernighan

(Fourer et al., 1990). OPL is an newer mathematical

programming language that was developed by Pas-

cal Van Hentenryck (Hentenryck, 2002) and is cur-

rently maintained by IBM. The engine also includes

a compiler for translating reusable analytic models

into lower-level, tool-speciﬁc models for analysis. A

symbolic computation-based approach is used to sup-

port algebraic modeling without having to modify the

JSONiq query processor (Zorba) by ﬁrst lowering the

analytic model into a tool-independent intermediate

representation. We discuss the details of this repre-

sentation in Section 5.2.

Unity was developed using a combination of Java,

C++, JSONiq and XSLT and currently supports sim-

ulation, optimization and machine learning against

reusable analytic models. Unity is tightly integrated

https://about.gitlab.com/

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

318

with GitLab CE, which is used for storage, retrieval

and management of decision guidance repository ar-

tifacts, such as analytic models, views and datasets.

For this purpose, we implemented a custom Zorba

URI resolver, which also serves as a hook where the

Unity engine transparently transforms JSONiq mod-

ules to support algebraic modeling via symbolic com-

putation. To simplify the development of reusable an-

alytic models, we developed a prototype IDE based

on Eclipse, as well as an Atom

macro for execut-

ing DGAL queries remotely over a RESTful API from

within the IDE.

5.1 Symbolic Computation and Analysis

While JSONiq query processors support complex

data queries and even simple analytical operations

they do not directly support the advanced analytics

operators that DGAL provides, such as for optimiza-

tion and machine learn. Executing DGAL queries that

depend on such operators require the use of special-

ized algorithms, which are often readily available as

third-party tools. By utilizing a simpler intermedi-

ate representation, support for new third-party tools

can be developed without having to re-implement the

entire DGAL language. As explained before, while

syntactically DGAL is backwards compatible with

JSONiq, the execution of decision guidance algo-

rithms extends the semantics of JSONiq. Because of

this difference, decision guidance algorithms cannot

be directly executed on a standard JSONiq query pro-

cessor. One way to support the alternative execution

semantics of DGAL is to re-develop a new JSONiq

query processor that natively supports DGAL. How-

ever, as the objective of Unity is to promote interoper-

ability and reuse, we opted for a different approach. If

JSONiq supported operator overloading, like in C++,

another approach would be to overload the expres-

sion operators supported by DGAL to re-deﬁne their

execution semantics. For descriptive analytic tasks

that are supported directly in JSONiq, the execution

semantics would remain unchanged. For predictive

or prescriptive analytic tasks, however, the execution

of these overloaded operators would generate results

in the intermediate analytical representation Unfortu-

nately, however, JSONiq does not currently support

operator overloading.

The process to implement the optimization oper-

ator, dgal:argmin, consists of 6 steps, as shown in

Figure 2. The process begins with the analytic model

resolution step, wherein the fully qualiﬁed analytic

model name is resolved against the content repository

(GitLab), to retrieve its JSONiq source code. Next, in

https://atom.io/

Solver-Specific

Configuration

(JSON)

Analytical Model

Name and

Namespace URI

Objective

Expression

(JSONiq)

Partially Instantiated

Analytical Model

Input (JSON)

Content

Repository

Fully Instantiated

Analytical Model

Input (JSON)

argmin

invocation

Analytical

Model

Resolution

Source-to-

Source

Transformation

Solver-Specific

Model

Generation

Solver-Specific

Execution

Symbolic

Execution

Analytical

Model

Input

Instantiation

argmin

completion

Analytical Model

Implementation

(DGAL)

Symbolically Executable

Analytical Model (JSONiq)

Intermediate Analytical

Representation

(JSON)

Solver-Specific

Model and Data

(OPL / AMPL)

Solution (JSON)

Figure 2: Deterministic Optimization Process.

the source-to-source transformation step, the JSONiq

source code of the module is transformed into a sym-

bolically executable JSONiq module. Then in the

symbolic computation step, the transformed module

is executed as a regular JSONiq module using Zorba.

This generates output in the intermediate represen-

tation. Next in the solver-speciﬁc model generation

step, the intermediate representation output is used

to generate a solver-speciﬁc model along with asso-

ciated data. Currently, the prototype can generate op-

timization models in either OPL or AMPL. The gen-

erated model is then dispatched, in the solver speciﬁc

execution step, to the solver speciﬁed in the conﬁg-

uration object, such as CPLEX, MINOS or SNOPT.

Finally, in the analytic model input instantiation step,

the solution obtained from the solver is merged with

the annotated decision variable input to return a fully

instantiated input, where all decision variables are re-

placed with the resultant values in the solution.

5.2 Intermediate Representation

The analytics engine uses a common intermediate lan-

guage for representing symbolically computed ana-

lytic models in a way that is independent of both

the front-end modeling language and the tool-speciﬁc,

Unity Decision Guidance Management System: Analytics Engine and Reusable Model Repository

319

back-end language. For this purpose, we use a JSON-

based language that is largely compatible with PFA.

The Portable Format for Analytics (PFA) is a JSON-

based interchange format for deploying analytic mod-

els to production environments (Pivarski et al., 2016).

Using a common intermediate language allows us to

easily extend Unity to support both new modeling lan-

guage front-ends as well new tool-speciﬁc back-ends,

such as MPS and NL.

In the intermediate representation, mathematical

expressions whose values depend on decision vari-

ables or learning parameters are encoded as symbolic

expression objects, which are JSON objects that cap-

ture the abstract syntax tree of the expression to be

computed, rather than its computed result. Decision

variables are represented as simple JSON objects that

capture the variable’s name, type and optionally its

estimated value, which is often crucial for non-linear

optimization tasks. The property name of a decision

variable indicates its type and the property value is

its identiﬁer. Unlike in some optimization modeling

languages, decision variables in the intermediate rep-

resentation are not explicitly deﬁned, rather they are

implicitly deﬁned when they are used. For this reason,

care must be taken to ensure that if multiple decision

variable symbols with the same identiﬁer are used

within a single intermediate representation model, the

decision variable types must all be consistent. Just

like decision variables, learning parameters are rep-

resented in the intermediate representation as simple

JSON objects that capture the parameter’s name, type

and optionally its estimated value.

Expressions are encoded as single-property ob-

jects where the property name indicates the expres-

sion operator and the corresponding value is an array

containing the values of the operands. The interme-

diate representation supports many kinds of expres-

sion operators, including arithmetical, logical, con-

ditional, and quantiﬁcation operators. While user-

deﬁned functions are currently not supported, Unity

provides a few built-in functions, such as aggregation

and piecewise-linear. For instance, the JSONiq ex-

pression 100 + 250 eq 350 can be encoded in the

intermediate representation as follows:

{ " == " : [ { " + " : [ 100 , 2 50 ] }, 350 ] }

While the above expression is valid, Unity auto-

matically reduces expressions that do not depend on

any decision variables or learning parameters. For

this expression, the value can be reduced to simply

true.

5.3 Source-to-Source Transformation

To support algebraic modeling in JSONiq via sym-

bolic computation, Unity performs a source-to-source

transformation to redeﬁne the execution semantics of

expression operators. The main idea behind this ap-

proach is that for each operator in the analytic model,

a function call is substituted in its place that when

called returns its result as an expression tree in the in-

termediate representation. Unity attempts to simplify

this expression tree by performing constant-folding in

cases where the computation does not involve a deci-

sion variable or learning parameter.

Parse and

Generate AST

Validate and

Prune AST

Transform AST

Start

DGAL

Module

Transformed

DGAL Module

DGAL AST

Pruned

DGAL AST

Figure 3: Source-to-Source Transformation Process.

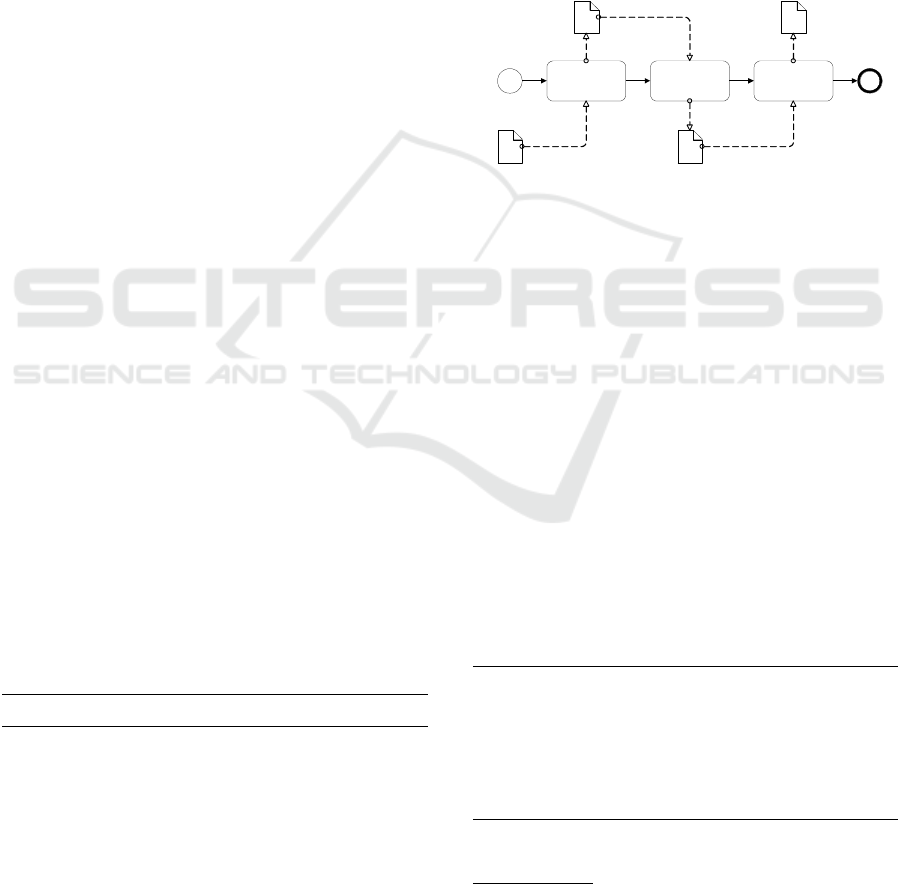

As shown in Figure 3, to perform the source-to-

source transformation Unity ﬁrst parses the source

code of the JSONiq+DGAL module to build an ab-

stract syntax tree that is serialized in XML. We used

the Rex

parser generator to generate a JSONiq parser

in Java from the EBNF grammar

that is provided in

the JSONiq language speciﬁcation. We then use an

XSLT transformation on the resulting XML tree to

replace each JSONiq expression operator with a cor-

responding function that returns its result in the inter-

mediate representation.

To illustrate how the transformation works, con-

sider the supplyConstraint expression from the or-

der analytics example from Section 4. After

performing the transformation, the sub-expression

$supplyItem.qty ge fn:sum(...) is replaced with

calls to the corresponding dg:ge and dg:sum functions

to enable symbolic computation, as shown below:

let $ s u p p lyCon s t r a int : =

for $ s uppl i er in $in put . supp l iers [] ,

$su p p lyIt e m in $su p plie r . sup ply []

return d g:g e ( $s u pplyI t em . qty ,

dg:sum ( $in put . ord ers []

[ d g:e q ( $$ . sid , $ supp l ier . si d ) ]. ite ms []

[ d g:e q ( $$ . upc , $ suppl y I tem . up c ) ]. qt y ) )

All such symbolic computation functions, like

dg:ge and dg:sum, are implemented completely in

http://www.bottlecaps.de/rex/

http://www.jsoniq.org/grammars/jq++.ebnf

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

320

JSONiq. For example, the complete JSONiq deﬁni-

tion of the dg:eq function is provided below:

dec lare f unct i on dg :eq ( $oper and 1 , $op e rand 2 )

{

if ( $o p eran d 1 inst a nce of obj ect

or $op e rand 2 i nsta n ce of obj ect ) then

{ " == " : [ $op era nd1 , $ o pera n d2 ] }

el se

$op e rand 1 eq $ope r and2

};

The function above takes two parameters,

$operand1 and $operand2, which correspond to the

left and right operands of the binary equality operator

in JSONiq. A simpliﬁcation is done if neither operand

depends on a decision variable or learning parameter,

whereby the fully computed result is returned, other-

wise an object of the expression tree is returned.

6 PERFORMANCE EVALUATION

In this section, we report on a preliminary experimen-

tal study that we conducted to investigate the over-

head introduced by automatically translating reusable

analytic models into task- and tool-speciﬁc models

for analysis. The question that we seek to answer is

whether our reusable analytic modeling approach is

inherently too computationally inefﬁcient to be used

for real-world, decision guidance systems. While the

amount of acceptable overhead is highly user depen-

dent, we hypothesize that for the case of determinis-

tic optimization, the execution time overhead of au-

tomatically generated models is within a small con-

stant factor of that of manually-crafted ones. While

our current evaluation is limited to a single compila-

tion target and solver, namely the OPL and CPLEX

respectively, we are working to develop a more com-

prehensive evaluation.

To test our hypothesis, we took the procure-

ment optimization model developed by (Brodsky

et al., 2012) and manually translated it into a DGAL

reusable analytic model. We also translated the orig-

inal AMPL model into OPL to serve as the control

model for our experiment. We then developed a script

to automatically generate isomorphic pairs of ran-

domized input data to feed into our DGAL and OPL

models. For our DGAL test model, the script gen-

erated input data in the JSON format, while for our

OPL control model the script generated input data in

the standard *.DAT ﬁle format that the OPL compiler

accepts.

Using this input data, we conducted a total of 205

trials, where for each trial we measured the wall-clock

y = 2.3148x + 1.7776

R² = 0.7644

0 2 4 6 8 10 12 14 16

CPLEX Solve Time for Automatically Generated OPL Models

CPLEX Solve Time for Manually Crafted OPL Model

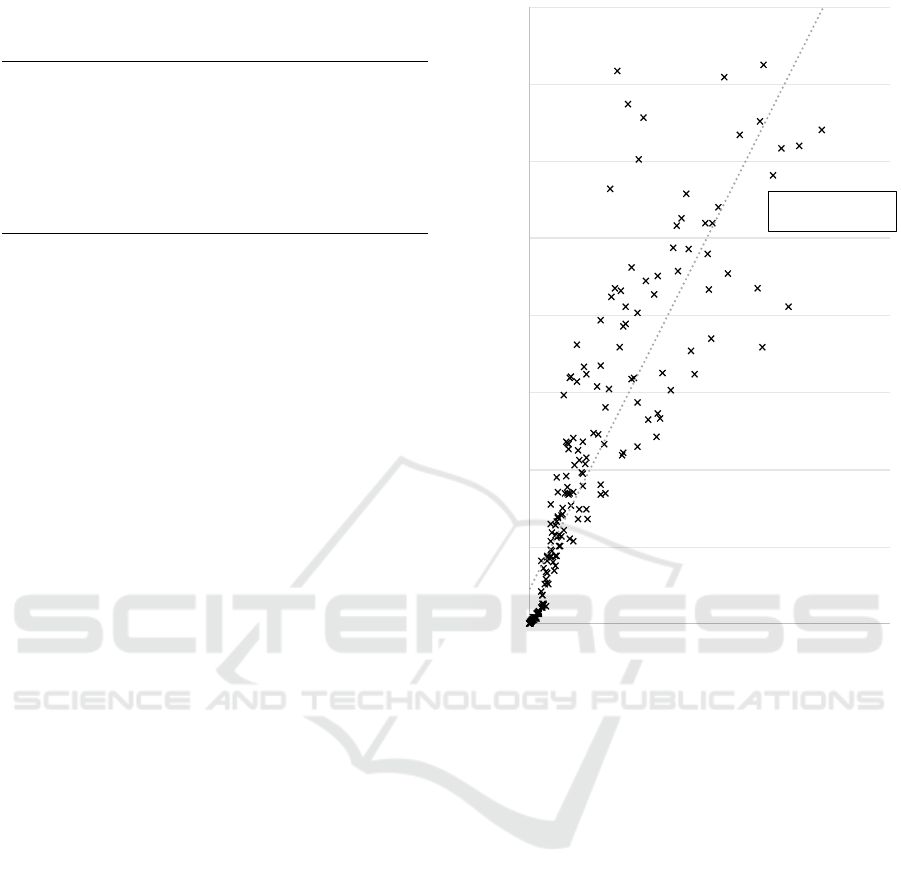

Figure 4: Execution Time Overhead of Automatically Gen-

erated OPL Models from DGAL (in seconds).

time that the CPLEX solver took to solve the DGAL-

based test optimization problem after being automat-

ically translated into OPL by Unity. For comparison,

we also measured the CPLEX execution time for solv-

ing the control OPL optimization problem. Because

we are only interested in measuring the time it took

CPLEX to solve the test and control problems, we ex-

cluded from our measurements time spent on other

peripheral tasks, such as compiling DGAL models

into OPL and loading data into memory. Across all

trials, the number of decision variables in the result-

ing optimization problems ranged from 72 to 16,800.

The trials were conducted on a laptop machine

equipped with an Intel Core i5-4210U processor and

16GB of RAM. We used the Java API exposed by

CPLEX to automate the execution and measurement

of each trial. Wall-clock time was measured by sub-

tracting the difference between the return values of

calls to the Java time function, currentTimeMillis(),

which was placed immediately before and after the

invocation of the CPLEX solve method. To reduce

measurement error, we closed extraneous applications

Unity Decision Guidance Management System: Analytics Engine and Reusable Model Repository

321

and services and ran all problems sequentially.

The results of this experiment are presented as a

scatter chart in Figure 4, where the horizontal axis

represents the wall-clock time, in seconds, that the

CPLEX solver took to solve the OPL control opti-

mization problem, and the vertical axis shows the

wall-clock time, in seconds, that the CPLEX solver

took to solve the DGAL-based test optimization prob-

lem. A linear trend line through the time measure-

ment points gives a slope of 2.3148, which indi-

cates that the execution time of overhead for com-

piled DGAL models is about 2.3 times that of man-

ually crafted OPL optimization models. Regarding

the value of the r-squared statistic, 0.7644, some error

is to be expected due to the behavior of underlying

algorithms used for MP-based optimization, such as

branch and bound, which are often sensitive to how

the problem is formulated.

While the purpose of our present research was to

develop an analytics engine for reusable models, the

current overhead introduced leaves signiﬁcant room

for improvement. There are many techniques that

could be used to decrease the overhead of our com-

piled optimization models. Many solvers provide

options to ﬁne-tune the optimization process, such

as preprocessing, which needs to be investigated in

the future. Also, utilizing a combination of domain-

speciﬁc decomposition and preprocessing techniques,

such as the one proposed by Egge et al. to gener-

ate efﬁcient, tool-speciﬁc models for certain classes

of problems could be fruitful (Egge et al., 2013).

However, with regards to our preliminary results, we

view the current execution time overhead as a stan-

dard trade-off between user productivity and compu-

tational efﬁciency. The current performance of Unity

could be acceptable in cases where computational ef-

ﬁciency can be sacriﬁced to avoid the costly redevel-

opment of specialized analytic models to support dif-

ferent analytical tasks. In fact, Unity has successfully

been used to support the development of reusable an-

alytic models for manufacturing processes (Brodsky

et al., 2016a).

7 CONCLUSION AND FUTURE

WORK

In this paper, we introduced the Unity analytics en-

gine to support the development of decision guid-

ance systems from a repository of reusable analytic

models. We proposed a conceptual architecture for a

NoSQL-based Decision Guidance Management Sys-

tem (DGMS) that is built around Unity to support the

seamless integration and interoperability of decision

guidance applications, analytic models, algorithms

and underlying tools. We also demonstrated the use

of our analytics engine by constructing a simple de-

cision guidance system for intelligent order manage-

ment. Finally, we investigated the overhead of our

reusable analytic modeling approach by conducting

an preliminary experimental study. Initial results in-

dicate that the execution times of optimization mod-

els that are automatically generated by Unity from

reusable analytic models are within a small constant

factor of that of corresponding, manually-crafted op-

timization models.

Our work opens new research questions that we

are currently working on addressing. Particularly, as

support for more algorithms against analytic models

is developed, the problem of choosing the most ap-

propriate algorithm and settings for a particular prob-

lem emerges. Further research is needed to investi-

gate how a meta-optimization solver can be devel-

oped and integrated with Unity, along the lines of

work on DrAmpl (Fourer and Orban, 2010). The ob-

jective here is to automatically determine the set of

feasible algorithms for a particular problem, as well

appropriate values for algorithm-speciﬁc parameters,

which is essential for many heuristic or partial-search

algorithms. Additionally, we are investigating ways to

generalize the work of Egge et al. on decomposition

and preprocessing to drastically reduce complexity on

a larger class of analytic models (Egge et al., 2013).

ACKNOWLEDGEMENTS

This work has been partially supported by the Na-

tional Institute of Standards and Technology (NIST),

award number 70NANB16H171.

REFERENCES

Abadi, M., Barham, P., Chen, J., Chen, Z., Davis, A., Dean,

J., Devin, M., Ghemawat, S., Irving, G., Isard, M.,

et al. (2016). Tensorﬂow: A system for large-scale

machine learning. In Proceedings of the 12th USENIX

Symposium on Operating Systems Design and Imple-

mentation (OSDI). Savannah, Georgia, USA.

Alter, S. (1980). Decision support systems: current prac-

tice and continuing challenges, volume 157. Addison-

Wesley Reading, MA.

Arnott, D. R. (1998). A framework for understanding deci-

sion support systems evolution. In 9th Australasian

Conference on Information Systems, Sydney, Aus-

tralia: University of New South Wales.

Bamford, R., Borkar, V., Brantner, M., Fischer, P. M., Flo-

rescu, D., Graf, D., Kossmann, D., Kraska, T., Mure-

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

322

san, D., Nasoi, S., et al. (2009). Xquery reloaded. Pro-

ceedings of the VLDB Endowment, 2(2):1342–1353.

Bergstra, J., Breuleux, O., Bastien, F., Lamblin, P., Pascanu,

R., Desjardins, G., Turian, J., Warde-Farley, D., and

Bengio, Y. (2010). Theano: A cpu and gpu math com-

piler in python. In Proc. 9th Python in Science Conf,

pages 1–7.

Brodsky, A., Egge, N. E., and Wang, X. S. (2012). Sup-

porting agile organizations with a decision guidance

query language. Journal of Management Information

Systems, 28(4):39–68.

Brodsky, A., Krishnamoorthy, M., Bernstein, W. Z., and

Nachawati, M. O. (2016a). A system and architec-

ture for reusable abstractions of manufacturing pro-

cesses. In Big Data (Big Data), 2016 IEEE Interna-

tional Conference on, pages 2004–2013. IEEE.

Brodsky, A. and Luo, J. (2015). Decision guidance analyt-

ics language (dgal)-toward reusable knowledge base

centric modeling. In ICEIS (1), pages 67–78.

Brodsky, A., Luo, J., and Nachawati, M. O. (2016b). To-

ward decision guidance management systems: An-

alytical language and knowledge base. Depart-

ment of Computer Science, George Mason University,

4400:22030–4444.

Brodsky, A. and Wang, X. S. (2008). Decision-guidance

management systems (dgms): Seamless integration of

data acquisition, learning, prediction and optimiza-

tion. In Hawaii International Conference on System

Sciences, Proceedings of the 41st Annual, pages 71–

71. IEEE.

Chamberlin, D., Florescu, D., Robie, J., Simeon, J., and

Stefanescu, M. (2003). Xquery: A query language for

xml. In SIGMOD Conference, volume 682.

Davenport, T. H. and Harris, J. G. (2005). Automated de-

cision making comes of age. MIT Sloan Management

Review, 46(4):83.

Egge, N., Brodsky, A., and Griva, I. (2013). An efﬁcient

preprocessing algorithm to speed-up multistage pro-

duction decision optimization problems. In System

Sciences (HICSS), 2013 46th Hawaii International

Conference on, pages 1124–1133. IEEE.

Florescu, D. and Fourny, G. (2013). Jsoniq: The history of a

query language. IEEE internet computing, 17(5):86–

90.

Fourer, R., Gay, D. M., and Kernighan, B. W. (1990). A

modeling language for mathematical programming.

Management Science, 36(5):519–554.

Fourer, R. and Orban, D. (2010). Drampl: a meta solver for

optimization problem analysis. Computational Man-

agement Science, 7(4):437–463.

Hackathorn, R. D. and Keen, P. G. (1981). Organizational

strategies for personal computing in decision support

systems. MIS quarterly, pages 21–27.

Haettenschwiler, P. (2001). Neues anwenderfreundliches

konzept der entscheidungsunterstützung. Gutes

entscheiden in wirtschaft, politik und gesellschaft,

pages 189–208.

Hentenryck, P. V. (2002). Constraint and integer pro-

gramming in opl. INFORMS Journal on Computing,

14(4):345–372.

Joyner, D.,

Certík, O., Meurer, A., and Granger, B. E.

(2012). Open source computer algebra systems:

Sympy. ACM Communications in Computer Algebra,

45(3/4):225–234.

Lammel, R. and Verhoef, C. (2001). Cracking the 500-

language problem. IEEE software, 18(6):78–88.

Lubin, M. and Dunning, I. (2015). Computing in operations

research using julia. INFORMS Journal on Comput-

ing, 27(2):238–248.

Luo, J., Brodsky, A., and Li, Y. (2012). An em-based en-

semble learning algorithm on piecewise surface re-

gression problem. International Journal of Applied

Mathematics and Statistics, 28(4):59–74.

Meleanc

a, R. (2013). Will decision management systems

revolutionize marketing? Procedia-Social and Behav-

ioral Sciences, 92:523–528.

Meng, X., Bradley, J., Yavuz, B., Sparks, E., Venkatara-

man, S., Liu, D., Freeman, J., Tsai, D., Amde, M.,

Owen, S., et al. (2016). Mllib: Machine learning in

apache spark. Journal of Machine Learning Research,

17(34):1–7.

Parikh, M., Fazlollahi, B., and Verma, S. (2001). The effec-

tiveness of decisional guidance: an empirical evalua-

tion. Decision Sciences, 32(2):303–332.

Patterson, A., Bonissone, P., and Pavese, M. (2005). Six

sigma applied throughout the lifecycle of an auto-

mated decision system. Quality and Reliability En-

gineering International, 21(3):275–292.

Pivarski, J., Bennett, C., and Grossman, R. L. (2016). De-

ploying analytics with the portable format for analyt-

ics (pfa). In Proceedings of the 22nd ACM SIGKDD

International Conference on Knowledge Discovery

and Data Mining, pages 579–588. ACM.

Power, D. J. (2001). Supporting decision-makers: An ex-

panded framework. Proceedings of Informing Science

and IT Education, pages 1901–1915.

Shneiderman, B. (1975). Experimental testing in program-

ming languages, stylistic considerations and design

techniques. In Proceedings of the May 19-22, 1975,

national computer conference and exposition, pages

653–656. ACM.

Silver, M. S. (1991). Decisional guidance for computer-

based decision support. MIS Quarterly, pages 105–

122.

Taylor, J. (2011). Decision management systems: a practi-

cal guide to using business rules and predictive ana-

lytics. Pearson Education.

Taylor, J. (2015). Analytics capability landscape.

Unity Decision Guidance Management System: Analytics Engine and Reusable Model Repository

323
