Client-oriented Architecture for e-Business

Jose Bernardo Neto and Celso Massaki Hirata

Technological Institute of Aeronautics, Department of Computer Science, Sao Jose dos Campos, SP, Brazil

Keywords:

e-Business, Architecture, Web Services, Client, e-Contract.

Abstract:

In general e-Business solutions focuses in the service provider, they do not consider companies or large client

interest. The current web service business models do not allow consumers either to request for unavailable

services nor allow to request their services needs met by a complex arrangement of providers. In this paper

we propose a novel approach for making service compositions based on customer demand to meet business

needs in an agile way. The business needs are related to the ﬂexibility of the client to express its needs. The

agility is related to the capability of the supplier to implement services in timely manner. To achieve the goal,

we use as support the business forms and the e-Contract lifecycle methodology to discipline and facilitate the

provider and client responsibilities.

1 INTRODUCTION

Most brick-and-mortar stores already have their e-

commerce versions, which in some cases offer better

prices coupled with incentives such as free shipping

and the fact that they are open 24 hours every day.

The strategy used for maintaining competitiveness is

to store data in the Cloud and use Web Services.Web

Services are the agents responsible for exchanging

data between the Cloud and the web clients. They

support the connection among different types of IT

systems, ensuring that the diverse requirements from

the clients are properly met. Also, new services can

be created by combining existing Web Service com-

ponents.

(Mitra et al., 2013) detail bureaucratic steps that

the customers need to follow in order to obtain the

best orders in the websites. The acquisition occurs via

intuitive features and options offered by web locals.

Regarding large clients, there are few channels for

this type of trade, and the typical searches do not guar-

antee that quality of service will be provided. In gen-

eral, work on service composition deals with services

managed by the same server or a SOAP solution.

Some problems for large clients, when they use

conventional e-commerce portals, are the following:

(i) Service provider cannot meet the high demand;

(ii) Their requirements for services are too speciﬁc or

unusual to be met; and

(iii) There are restrictions on quality, time, and quan-

tity for the existing services.

In general, large clients use standard business

forms as a tool to obtain information or to invite

providers to describe their services. The business

forms allow the participants to submit their requests

in a standard format. They can be designed, saved,

printed, shared, and signed online. They also can

be used to start an agreement in the proposal phase

through different sites. In many cases, the client ﬁlls

out the forms manually, prints them and sends them

by mail.

Current studies show the need for e-business to

focus more on customer interest. There is a grow-

ing number of publications focusing on the analysis

of the data exchanged by people who participate in

social networks. (Gong et al., 2013) analyze data ex-

changed to check the trend of consumption to direct

the availability of services.

Thus, there is a need better identify client inter-

est early to automate standard business forms such as

proposal documents and to make use of the informa-

tion exchanged to develop e-agreements. In this paper

we propose an innovative architectural model based

on the e-Contract lifecycle, respecting the client’s de-

mand and the web services characteristics. Our pro-

posal seeks to increase the dynamics, interactivity,

and effectiveness in the e-Contract lifecycle using the

standard business forms. The e-Contract makes a

bond between the parties and its lifecycle supports

the automation of the conﬁguration of web services

engines during the validation of the accord.

The rest of the paper is organized as follows. The-

Neto, J. and Hirata, C.

Client-oriented Architecture for e-Business.

DOI: 10.5220/0006285303910399

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 3, pages 391-399

ISBN: 978-989-758-249-3

391

oretical background is provided in Section 2. Then,

in Section 3 the formalization of the proposal, the ar-

chitectural model structure and the schema to link the

two different lifecycles. Section 4 focuses on case

study. Section 5 presents the conclusion in Section 6.

2 BACKGROUND

This section presents the basic concepts related to this

paper, including: e-Contract lifecyle, e-business and

TS2PC4RS.

2.1 e-Contract Lifecycle

A contract must clearly deﬁne the requirements and

terms that will be negotiated between the parties in-

volved. The deﬁnition under analysis aims: (1) iden-

tify the relationship between businesses and entities,

(2) the events and actions of the various parties in

the negotiation process and (3) exceptions and penal-

ties in the event of violations (Chiu et al., 2003).

The goal of e-Contract lifecycle enables the auto-

matic conﬁguration of the web services engines in

an e-commerce solution for distributed long-duration

transactions (Bernardo Neto and Hirata, 2015; Neto

and Hirata, 2013).

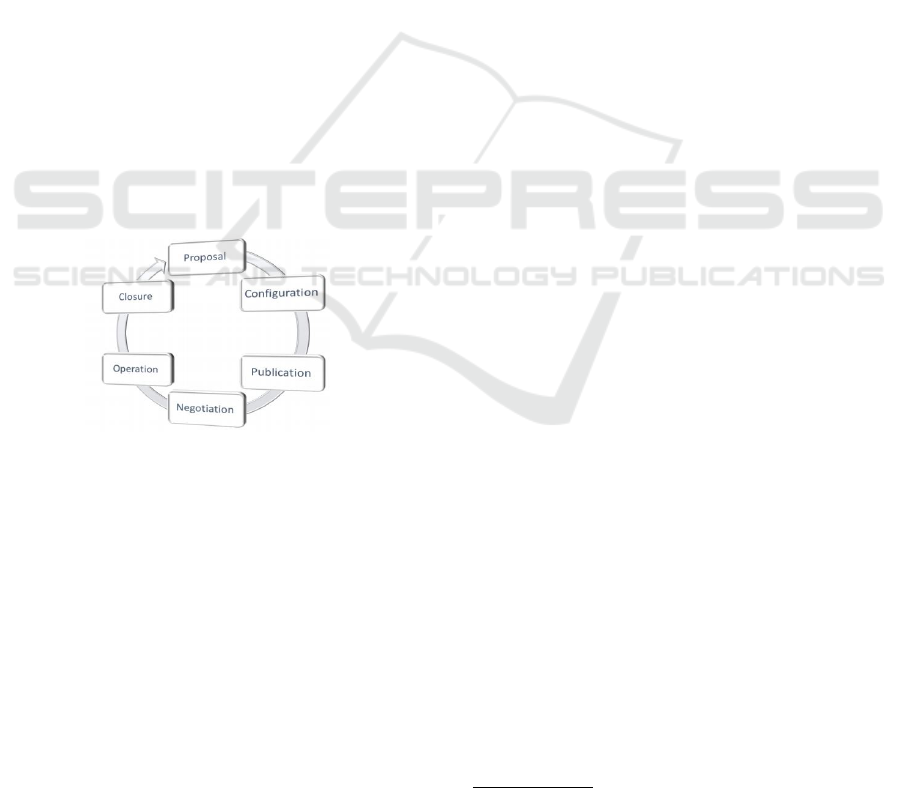

Figure 1: The six phases of the e-Contract Lifecycle.

The lifecycle is structured into six sequential

phases from proposal to closure as shown in Figure

1. The e-Contract, ﬁnal product of the lifecycle pro-

cess, goes through a series of activities that are orga-

nized in phases. The activities have inputs and at least

one output. The phases are (1) Proposal, (2) Conﬁg-

uration, (3) Publication, (4) Negotiation, (5) Opera-

tion, and (6) Closure. For each phase, there is at least

one product to ﬁnish the phase before starting the next

phase. The order must be kept due to the dependen-

cies between the activities of the phases in terms of

products. The activities were deﬁned based on the

standard in transaction rules for communication be-

tween Web Services: publishing of services, search

and message exchange. There is a product, output,

that identiﬁes the end of phase (Bernardo Neto and

Hirata, 2015). The e-Contract lifecycle employs the

template as the origin of the e-Contract with a static

structure. The template structure is a repository of

data during the lifecycle of e-Contract. The template

characterization is changed when a resource is added

on its structure.

2.2 B2B and B2C e-Contracts

In e-business relations, electronic contracts are used

to increase the level of trust among the participants.

Businesses have demanded more agility from service

providers, which creates a competition among them

that beneﬁts customers. Not surprisingly, the num-

ber of service contracts has grown signiﬁcantly (An-

gelov and Grefen, 2004), and companies usually have

to switch between different partners to leverage the

best trading opportunities at any given moment.

Business-to-business (B2B) negotiations are usu-

ally associated with chain-contracts and services, as

well as transactions involving sales of large quanti-

ties. In Business-to-consumer (B2C) cases, the focus

is on negotiation with the customer (Andrew Good-

child and Milosevic, 2004).

2.3 A Timestamp-based Two Phase

Commit Protocol for RESTful

Considering TS2PC4RS

, the client is allowed to

read, prewrite, write and update operations; and it

initially records to the List of buffered PreWrites us-

ing timestamp order (LPW). Clients can update their

prewrites in the course of transactions; and it is not re-

quired to start a new negotiation in order to implement

the desired updates. If one client aborts the trans-

action or decreases his contracted amount, he loses

his priority and other clients will be allowed to have

their prewrites accepted. The prewrite update sends

messages to all involved in the transaction based on

the existing requests. It is necessary to submit a

write message (in case of committing) to complete

the transaction. Some advantages of the approach are:

better support for long time transactions, relaxing of

the isolation and atomicity properties, and bringing

support to concurrency control (da Silva Maciel and

Hirata, 2010).

Timestamp-based Two Phase Commit Protocol for

RESTful Services

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

392

3 COAeB

Considering the ease coordination of decoupled com-

ponents that interact by service requests over the net-

work, it is decided to choose the broker architecture

pattern to design our solution. The proposed archi-

tectural model is based on three entities: Client (C),

Broker (B) and Provider (P). The client expresses its

needs; the broker adds value to the services; and the

provider offers the services.

3.1 Agents Interactions

The interactions are based on standard operations to

accomplish the interoperability by web service archi-

tecture: publish, ﬁnd and bind. An operation is a

set of request and response messages exchanged be-

tween two parties to complete an activity. Besides

decomposing the ﬁnd operation into rfp (request for

proposal) and search operations; COAeB changes the

original web service operations order, as shown in

Figure 2.

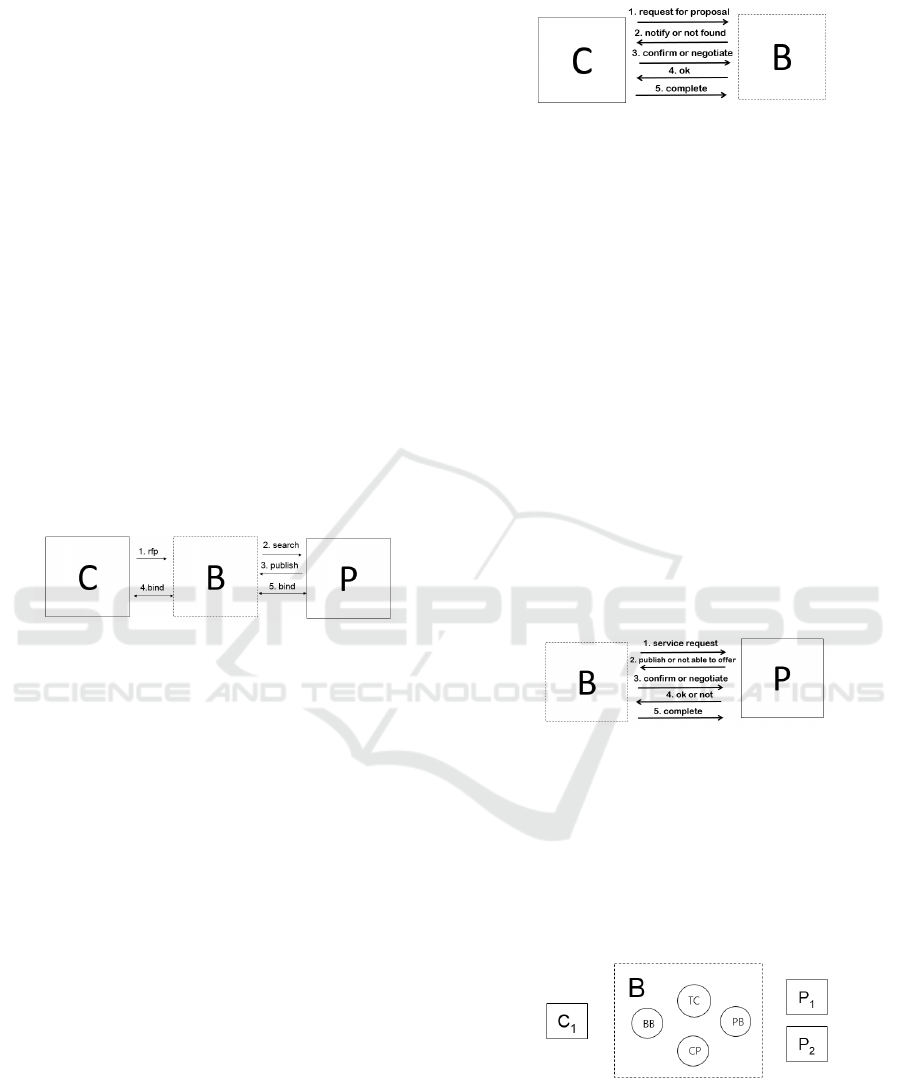

Figure 2: Entities perform the operations: rfp, search, pub-

lish, and bind.

To isolate and deﬁne the broker responsibilities,

we divide the interactions into two groups: (1) client

and broker, and (2) broker and providers. Figure

3 presents the sequence of messages exchanged in

group 1:

1. The client sends the request for proposal (rfp)

message to Broker to trigger the interactions.

2. The broker stores the rfp. The Broker is responsi-

ble to ﬁnding the resources.

3. The client conﬁrms its interest in the requested re-

sources or tries to change (negotiate) quality, cost,

or delivery date of the resources.

4. Therefore, the broker can decide not to agree on

the service if the time expires. The broker sends

an ok message when it is still able to meet the rfp

(or the negotiated rfp).

5. The client sends the complete message to order

and use the service.

Each rfp can require one or more services. Ser-

vices are offered by providers and published on the

Broker. If the Broker ﬁnds the service required, it

Figure 3: Sequence of messages exchanged in group (2).

sends the conﬁrm message as shown in step 3-5 be-

low. Otherwise, it invites the provider to offer the ser-

vice, step 1. The Figure 4 illustrates the messages

exchanged in group 2.

1. Through the service request, the broker invites the

provider to publish the described service.

2. The publish message means to registry a service

available to offer.

3. The broker sends the conﬁrm message to prepare

to commit the agreement or try to change (via a

negotiate message).

4. The broker can take some time to decide or ini-

tiate the negotiation. Therefore, the provider can

decide not to agree to the service if the time ex-

pires.

5. The broker sends the complete message to close

the agreement and imposes the service delivery

obligation on the provider side.

Figure 4: Illustrates the second group of interactions.

We designed a set of agents for the COAeB archi-

tecture that cooperate to perform the activities listed

above. Figure 5 illustrates the COAeB architecture.

The external agents are squares and internal agents are

circles: Client (C), Business Broker (BB), Transac-

tion Coordinator (TC), Composer (CP), Provider Bro-

ker (PB), and Provider (P).

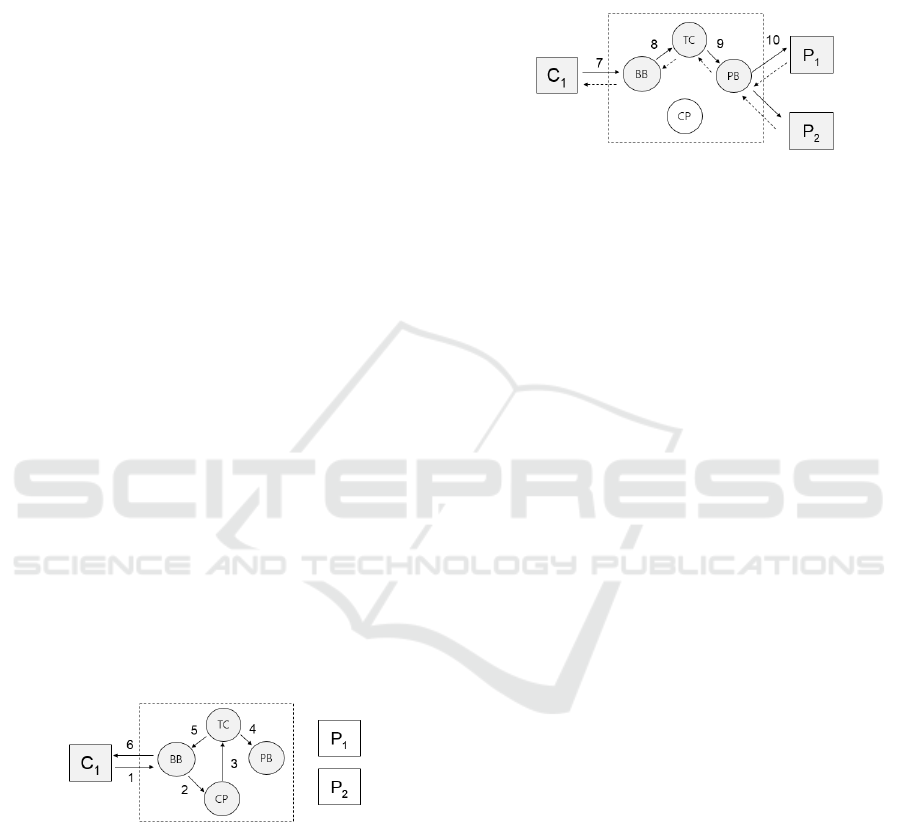

Figure 5: An overview of COAeB schema.

We assume that the client needs a complex service

that is composed of several basic services. It sends

the rfp. Business Broker (BB) works as Rfp Storage,

Agreement Manager, and Service Negotiator. It col-

lects the rfp information to prepare a draft. It sends

Client-oriented Architecture for e-Business

393

the service description to CP. It receives the result of

the composition transaction via TC to build the pre-

Contract with the client. The pre-Contract (with the

client) is the publication of the booked services. Com-

poser (CP) is responsible for the composition of ser-

vices based on the Try- Cancel/Conﬁrm (TCC) pat-

tern for web service (Pardon and Pautasso, 2014). It

receives a complex description of services from BB.

It divides a complex service into basic services. It re-

quests TC to book and acquire the resources. Trans-

action Coordinator (TC) works as a Service Coor-

dinator. It opens the atomic transactions with Try-

Cancel/Conﬁrm pattern to build the composition. In

the end, it handles commit or abort the transaction.

It receives the URL of the services via CP and or-

chestrates the operations to complete the transaction

of the composition. To improve the scalability of the

COAeB, we provide two scalable agents to interface

with clients and providers, BB and PB. In accordance

with the e-Contract lifecycle, they are also responsible

for preparing the agreements with client and provider

respectively.

3.2 Agents Relationship

Agents use operations to perform the activities. Oper-

ations follow request-response pattern in COAeB. An

operation is decomposed into sequences of more fun-

damental send-receive-reply messages. The agents’

relationship is characterized by exchanged messages

that are grouped as interactions. The interactions are

designed to perform an allowed sequence of business

activities. The main purpose is to deﬁne a workﬂow

and discipline the sequence of business activities to

respect the e-Contract lifecycle. Through allowed in-

teractions, the agents perform activities to match the

rfp with published services, producing an electronic

agreement. An agreement creates a binding between

the parties and provides a guarantee of service deliv-

ery.

Let us consider an operation as a subset of a trans-

action. A transaction is an atomic unit of database

access that is either completed or not executed at all

(Ceri and Pelagatti, 1984). In terms of a transaction’s

duration, it can be short or long. The short-running

transaction can be part of a long-running transac-

tion. The WS-Transaction speciﬁcation distinguishes

an atomic transaction from a Business Activity (BA)

(OASIS, 2012). BA is characterized for long-running

transactions. The atomic transaction is committed

and made visible before a long-running BA can be

completed. Our approach considers each e-Contract

lifecycle phase as a BA, and the operational request-

response pattern as a single Atomic Transaction to

perform the activities. As mentioned, the transac-

tions performed into BB and PB change their inter-

nal states to build the agreement. Both are an arti-

fact repository, BB supports the agreement structure

on the client side and PB supports the agreement on

the provider side. The rfp is used to build a draft on

the client side. In contrast, PB supports the publica-

tion of services, i.e., the draft is built from service de-

scriptions. Besides the activities association, PB and

BB are scalable agents. The internal states of BB and

PB are updated in their replicas to increase scalabil-

ity and availability within the architecture. It expands

services to client and providers avoiding the system

failure.

The service acquisition is performed in two phases

(2PC). In the ﬁrst phase a prewrite (pw) operation

holds the services. COAeB has a mechanism to

match the rfp with published services offered in a pre-

Contract format called matchmaking activity. If the

whole demand was matched, then the coordinator re-

ceives all conﬁrmations. Thus, the acquisition can be

completed in the second phase of the protocol.

The online requests (rﬁ and rfq) also are used in

the negotiation phase. The rﬁ is used to invite new

publications and rfq to modify some attributes of a

service that as previously published.

4 CASE STUDY

In this section, we present three possible ﬂows of mes-

sages exchanged by the agents considering the set of

services capabilities stored in the service registry. We

propose a hypothetical scenario to illustrate the inter-

actions in COAeB.

Supposing a client of the proposed application is

an engineer that works for a company located in Vir-

ginia, US. He receives the following task: train new

employees in a subsidiary located in California for

six months. The engineer, a client of our approach,

decides to buy several airline tickets to visit his fam-

ily in Virginia every weekend. For him to visit every

weekend, he will need 6x4, or 24 round trips in to-

tal. He includes the taxi service to-from airport in

(VA) and (CA). He will need 4 taxis per round trip

ﬂight. We can also include an economic hotel to stay

at weekdays. The RFP demand is a composition of

ﬂight ticket, taxi, and hotel service. The client can

use his mobile device to access the application and

send the rfp to start the proposal.

Based on the characteristics previously listed, we

design three possible ways, at different ﬂow of mes-

sages to reach the agreement that reﬂects the result of

the matchmaking activity:

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

394

i. Published service fully matches the rfp without

additional external requests.

ii. Published service can partially match the rfp. The

rﬁ is used to invite new publications.

iii. Published services fully match the rfp, but the

client can negotiate some attributes of service ex-

ploited in the pre-Contract. The rfq is used to start

the negotiation phase.

The next subsection details these three ways. The

sequence determines adjacent interactions. Interac-

tion n starts only if the interaction n-1 is completed.

4.0.1 The First Case: Previous Publications of

Services Fully Match the rfp

The sequence illustrated in Figure 6 (1 to 6) and Fig-

ure 7 (7 to 10) and described in the following steps::

1. The client sends a complex service description via

a rfp interaction.

2. BB receives the rfp, builds the draft, and forwards

a complex service description to CP.

3. CP splits the service description into basic ser-

vices. It uses the compose interaction to send re-

sulting set of the services to TC.

4. Prewrite operation starts 2PC. TC requests PB

to hold the appropriate resources held via a pre-

Contract publication with providers.

5. After receiving the conﬁrmations, TC orders t

BB to prepare the pre-Contract with the services

booked.

6. BB notiﬁes the client that the pre-Contract is pub-

lished and is ready to be signed.

Figure 6: Previous publications fully match the rfp.

7. The client uses sign to conﬁrm the agreement. It

waits for the conﬁrmation message from the BB.

8. The e-Contract with the client is stored in BB.

Then, BB notiﬁes TC that the agreement is estab-

lished.

9. Write operation starts the second phase of the

2PC, global commitment.

10. PB forwards the write message to all providers

to avoid the agreement’s cancellation. After the

providers’ conﬁrmation, PB builds the e-Contract

with providers and notiﬁes the providers that the

agreement has been reached.

Step 7 occurs only if all the sequential operations

1-6 are completed.

Figure 7: Previous publications fully match the rfp.

In our hypothetical scenario, previous publication

of services match the rfp with the hotel, ﬂight, and

taxi services. The complex service is divided in basic

services by CP.

4.0.2 The Second Case: Existing Previous

Publication Partially Match the rfp

1. Client sends the rfp to BB.

2. BB receives the client’s demands and forwards a

complex service description to CP.

3. CP splits the demand into basic services and sends

the request to TC via compose interaction.

4. TC starts 2PC. The composition result partially

contemplates the rfp. The result is obtained from

all responses in the ﬁrst phase of 2PC.

At this point, the ﬂow of messages can follow two

ways: PB sends the rﬁ to the providers and waits for

responses to fully match the rfp or BB publishes the

pre-Contract on the client side and after the client sig-

nature, PB sends the rﬁ.

5. PB uses rﬁ to elicit changes in P1’s.

6. P1 publishes new pre-Contract as well as, holds

the resources offered.

7. PB forwards the resources held to TC, as the re-

sponse of the ﬁrst phase of 2PC. At this moment,

all operations of the composition transaction are

ready to commit. Now, the rfp fully matches pub-

lished services.

8. TC forwards the result of the transaction to BB

(publish interaction) then it prepares the pre-

Contract for the client.

9. BB notiﬁes the client to sign the pre-Contract. The

approach solution includes a timeout as limitation

to conﬁrm the services acquisition.

Client-oriented Architecture for e-Business

395

With client signature, the sequence follows step 7

as presented in the ﬁrst scenario.

In this second scenario, the ﬂight ticket is not

available after step 4. PB sends the rﬁ to invite P1

to publish a pre-Contract for an airline ticket with the

attributes required on, step 5. After conﬁrmation, PB

sends the response to TC to continue with the primary

ﬂow. An alternative conﬁguration is detailed below:

4. TC uses composition and receives some ready re-

sponses that partially matches the rfp, the ﬁrst

phase of 2PC.

5. Even so, TC sends publish to BB.

6. BB prepares the pre-Contract with the client as if

it was a full match the rfp and notiﬁes the client.

7. The client signs to conﬁrm; BB holds the conﬁr-

mation to give PB time to obtain resources. This

time is determined by the timeout.

8. BB forwards the client conﬁrmation to PB.

9. PB uses rﬁ to invite new publications.

The conﬁrmation of step 7 is the agreement con-

ﬁrmation message. This message is sent only if newly

published services fully match the rfp. Otherwise, the

e-Contract is discarded.

4.0.3 Third Case: The Client Wants to Negotiate

a Service Attribute

The third case starts after the publication of the pre-

Contract on the client side, i.e., after notify between

BB and client (step 7 of in the ﬁrst case). The pub-

lished pre-Contract fully matches rfp, but some ser-

vices attributes do not satisfy the client. The approach

is designed to allow negotiation. The negotiation pe-

riod is set by a timeout in the pre-Contract.

The sequence described below begins with the

publication of the pre-Contract with client in BB:

1. The client uses negotiate to request some modiﬁ-

cation in the published pre-Contract.

2. BB receives the client demands and notiﬁes PB to

identify potential providers to forward the request

to them.

3. PB uses rfq to elicit pre-Contract updates by send-

ing the rfq to appropriate providers.

4. If P1 can meet the client’s demands it responds

by sending a new publication, otherwise remains

silent and the timeout is reached.

5. PB forwards the info to BB via publish interac-

tion.

6. BB notiﬁes C1 to sign the agreement.

If the provider agrees to the modiﬁcation, then it

needs to conﬁgure the service to be offered and lock

the resources negotiated. Two situations can occur at

this point. First, the provider updates the pre-Contract

according to client. PB notiﬁes the BB that some

modiﬁcation occurred after the negotiation. BB re-

quests the client signature. After that point, it fol-

lows the step 7 of the ﬁrst case. Another possibility

can occur because a new priority is given to a client’s

demand, i.e., its prewrite receives a new timestamp

order. Held resources are released and can be used

to match other incomplete agreements. In our engi-

neer’s case, it corresponds to the hotel, ﬂight and taxi

matching rfp services. At this point, client is be able

to start the negotiation of claims attributes.

4.0.4 The Operation Phase: Order, Consult or

Cancel

In all cases, once the agreement is reached, BB

and PB are responsible for receiving the client and

provider demands in terms of agreement use. The

agents can search the e-Contracts to control the rules

agreed upon after receiving any request from the par-

ties. In our approach, the operation phase represents

the use of the e-Contract such as a warranty period. In

this phase, the client can check the parameters agreed

upon. Penalties can be established if rules are not ful-

ﬁlled by the provider in terms of the service agreed

upon. The client uses the order interaction with BB

when the service can be delivery on demand.

1. BB veriﬁes the e-Contract clause and sends the

request to PB

2. PB stores the individual e-Contracts with

providers and sends the request to the respective

provider.

It is important to mention that the end of the ne-

gotiation phase allows the client to order the services.

Internal agents work as mediators between the parties

until the agreement’s validity ends.

Let us illustrate the operation phase of our practi-

cal example, now the client can update its package or

can order extra services always considering the agree-

ment terms.

4.0.5 Combining Services via COAeB

Before introducing the composition of service in

COAeB, it is necessary to describe the mechanism

to produce ﬁles, called artifacts during the phases of

the e-Contract lifecycle. First, the main ﬁle, that de-

ﬁnes the agreement structure, is the template. It is the

skeleton of the e-Contract. The different specializa-

tion of the agents BB and PB imposes the creation of

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

396

two types of template. Besides the template, the logi-

cal structure to support the building of the agreement

with the client is different from the providers.

Let us consider the agreement on the client side.

The e-Contract is built based on the rfp. The rfp is en-

capsulated within a template published in BB. Thus,

it becomes a draft. The draft is a service descrip-

tion without an owner or a set of services needed to

be matched with published services. Any client can

use the draft to publish its demand. To differ from an

agreement with providers, let us identify the agree-

ment on the client side with number one,”1x”.

To differentiate, the artifacts produced from tem-

plate number two are identiﬁed by the additional in-

formation 2y. Figure 8 illustrates the arrangement

of the e-Contract lifecycle for the COAeB architec-

ture. The agreements are created concurrently on the

client and provider sides to combines services. The e-

Contract lifecycle of Agreement 1 is in white and the

e-Contract lifecycle of Agreement 2 is in gray. The

rfp starts a lifecycle of Agreement 1, and the rﬁ starts

the lifecycle of Agreement 2. There is a mutual de-

pendency between Agreements 1 and 2. Acronyms

are used in the e-Contract lifecycle of Agreement 2.

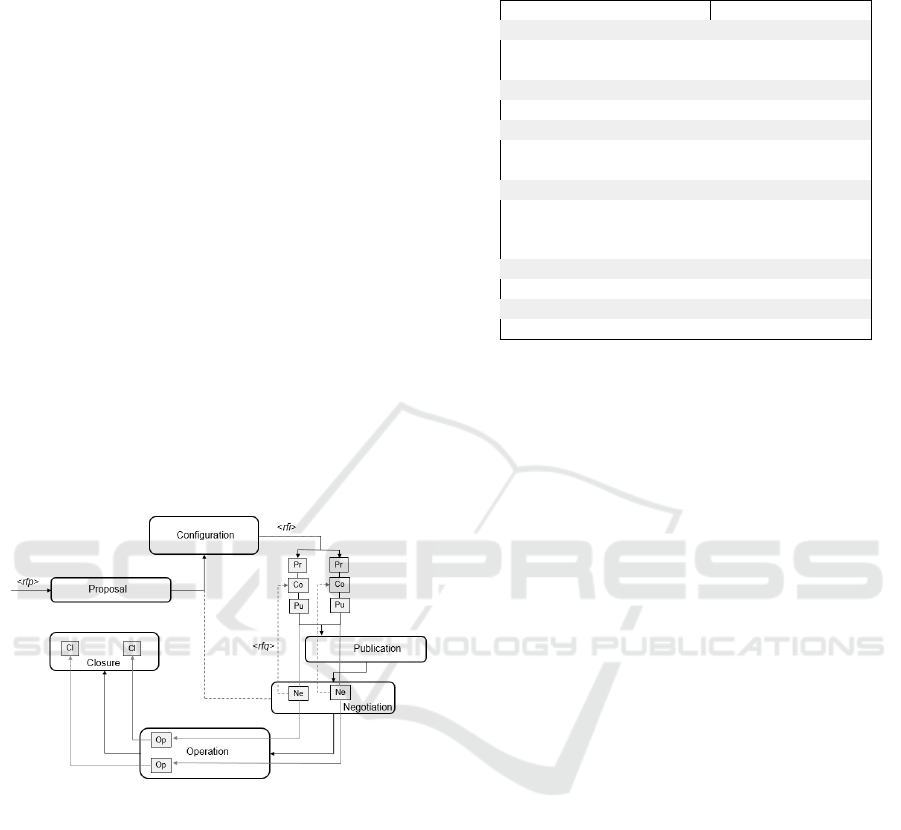

Figure 8: An arrangement of the e-Contract lifecycle that

produces concurrent agreements with clients and providers.

The artifacts are built concurrently until the ﬁrst

dependence appears in the publication phase of agree-

ment 1. Typically, draft 1x must be associated to

two or more pre-Contracts 2y to reach its publication

phase. If the requirements are met, draft 1x becomes

pre-Contract 1x, as shown in Figure 8. The conﬁgura-

tion phase of Agreement 1 is linked to its publication

phase through the ﬁrst phases of agreement 2.

The dependency creation is a part of the compo-

sition technique. Before completing the composition

of the service process, the negotiation phase of both

agreements occurs. The rfq (dotted lines from Ne to

Co) can be used for conclude Agreement 2y during its

negotiation phase, as shown in Figure 8.

Considering the ﬁrst dependency, the condition

Table 1: Combine services by arrangement of Agreements

on the client and provider side.

Lifecycle 1 Lifecycle 2

Proposal

1: template 1 template 2

2: draft 1x draft 2y,2t,2u,2v

Conﬁguration

3: pre-Contract 2y,2t,2u,2v

Publication

4: PSL={2y,2t,2u,2v}

5: pre-Contract 1x (p2y,p2u)

Negotiation

6: pre-Contract 1x (2y,2u)={e

7: e-Contract 2y(e

8: e-Contract 2u(e

Operation

9: PAL={e

x (e2y,e2u)}

Closure

10: PAL={ } PSL={2t,2v}

to start the publication phase of Agreement 1 is that

there is one or more type 2 agreements in publica-

tion phase as the reference. The second dependency

concludes the negotiation phase of Agreement 2. The

condition to start the operation phase of Agreement 2

is the signature of e-Contract 1x by the client. Arrows

link Ne to Op of the lifecycle to support the produc-

tion of Agreement 2 are inside the operation phase of

the lifecycle to produce Agreement 1.

Let us formalize a relationship of dependency be-

tween Agreements (1) and (2). The ﬁrst dependency

appears from Agreement (1) to Agreement (2). We

can illustrate P1x (P21, P22, P23,...,P2n) as the re-

lationship of dependency to reach the publication of

a Pre-Contract (1x). The second dependency can be

represented by E2y (E1x). To reach an e-Contract

(2y) it is necessary to match it to an e-Contract (1x).

The composition of service process starts at the ﬁrst

dependency and is completed when the e-Contract

(2y) is published. Each e-Contract (2y) matches just

one e-Contract (1x); on the other hand, a Pre-Contract

(1x) is matched to several Pre-Contract (2y). The

dependency creates a bond between two agreements

and, consequently links the client to providers. The

period in which there is a mutual dependency is used

to explore the negotiation of the attributes of the ser-

vice.

The Public Source List (PSL) is stored in PB. It

is a public list available for all thrust suppliers. It

stores pre-Contracts type 2. PSL is veriﬁed in the

matchmaking activity, and it is updated in two cases.

First, when a pre-Contract publication occurs, and

second, once the composition process is completed.

In terms of scalability, every time an update in PSL

is performed, all active PBs must be replicated. In

terms of scalability, every time an update in PSL is

performed, all active PBs must be replicated. There-

Client-oriented Architecture for e-Business

397

fore, PAL is a private list available only to the inter-

ested parties involved in the agreement. It saves (1)

e-Contracts. BB stores the Private Agreement List

(PAL). All (1) e-Contracts save (2) e-Contracts in-

formation. Thus, PAL is a repository of e-Contracts

while PSL is a repository of pre-Contracts. Both lists,

PSL and PAL, are veriﬁed during the composition

process. Tuples saved in the PSL are moved to PAL

after the matchmaking activity has been completed,

and an (1) Agreement has been reached.

The composition process consists of three activi-

ties listed below:

i. Service identiﬁcation breaks a complex service

described in rfp into basic services. It works when

the ﬁrst dependency appears; a draft 1 is produced

to be matched by published services stored in PB.

ii. Matchmaking receives the client demand,

searches for (2) pre-Contracts in PSL with related

requirements and creates the ﬁrst bond between

(1) and (2) agreements.

iii. Service composition is divided into two phases.

The composition uses 2PC protocol to complete

the (1) and (2) agreements efﬁciently. The ser-

vices held via pre-Contract publication need to be

booked during the ﬁrst phase of the composition.

The second phase completes the composition pro-

cess and stores the (1) e-Contracts in PAL.

Figure 9: Mutual dependency between agreement 1 and

agreement 2.

By following the steps 1-10 presented in Table 1,

it is possible to summarize the arrangement of life-

cycles from agreements 1 and 2, shown in Figure 8.

Starting in the proposal phase, steps 1-2, the drafts

type 1 and 2 are instantiated concurrently from their

templates. Step 3 illustrates the production a of a

set from the pre-Contracts type 2. Step 4 shows the

pre-Contracts as the elements of the PSL set. Note

that these pre-Contracts can be composed to attend

the requirement of the pre-Contract 1x. The negoti-

ation starts during the step 6, i.e., the client can pro-

pose changes in the pre-Contracts 2y and 2u, and after

that the e-Contract e1x is produced. The steps 7-8 il-

lustrate the dependency to reach the e-Contracts 2y

and 2u. The step 9 presents the PAL list updated and

step 10 the pre-Contracts available in the PSL, pre-

Contracts 2t and 2v.

5 CONCLUSIONS AND FUTURE

WORK

Based on e-Contract lifecycle, the Client-Oriented

Architecture uses broker mechanism to combine ser-

vices in the distributed environment. The goal of

the Client-Oriented approach is to combine services

to match client needs following e-Contract lifecycle

methodology. The architecture and logical design of

the approach propose a simple way to standardize and

meet the business rules focused on client needs. The

great advantage of the Client-Oriented architecture is

its capacity to adapt the usage patterns by extending

the capabilities of protocols and architectures.

The great limitation is the use of the Template.

The Template’s objective is include the semantic nec-

essary to express the agreement terms. The Template

structure limits the scope of the e-Contract and needs

to be produced and updated manually.

Future work includes server failures, network par-

titions or disconnected operations. About the evolu-

tion of the approach, enable the customers can pro-

pose a composition based in the historical cache.

REFERENCES

Andrew Goodchild, C. H. and Milosevic, Z. (2004). Busi-

ness contracts for b2b.

Angelov, S. and Grefen, P. (2004). The business case for

b2b e-contracting. In Proceedings of the 6th interna-

tional conference on Electronic commerce, ICEC ’04,

pages 31–40, New York, NY, USA. ACM.

Bernardo Neto, J. and Hirata, C. (2015). e-business ar-

chitecture for web service composition based on e-

contract lifecycle. In Proceedings of the 17th Inter-

national Conference on Enterprise Information Sys-

tems - Volume 3, ICEIS 2015, pages 276–283, Portu-

gal. SCITEPRESS - Science and Technology Publica-

tions, Lda.

Ceri, S. and Pelagatti, G. (1984). Distributed Databases

Principles and Systems. McGraw-Hill, Inc., New

York, NY, USA.

Chiu, D., Cheung, S., and Till, S. (2003). A three-layer

architecture for e-contract enforcement in an e-service

environment. In System Sciences, 2003. Proceedings

of the 36th Annual Hawaii International Conference

on, pages 10 pp.–.

da Silva Maciel, L. A. H. and Hirata, C. M. (2010). A

timestamp-based two phase commit protocol for web

services using rest architectural style. J. Web Eng.,

9(3):266–282.

Gong, M. et al. (2013). Recommending web service based

on user relationships and preferences. In Web Services

(ICWS), 2013 IEEE 20th International Conference on,

pages 380–386.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

398

Mitra, G. et al. (2013). A request oriented model for web

services. In Proceedings of the First Australasian Web

Conference - Volume 144, AWC ’13, pages 13–20,

Darlinghurst, Australia, Australia. Australian Com-

puter Society, Inc.

Neto, J. B. and Hirata, C. M. (2013). Lifecycle for man-

agement of e-contracts based on web service. In Pro-

ceedings of the World Congress on Engineering and

Computer Science, volume 1.

OASIS (2012). Oasis web services transaction (ws-tx) tc.

Pardon, G. and Pautasso, C. (2014). Atomic distributed

transactions: A restful design. In Proceedings of the

23rd International Conference on World Wide Web,

WWW ’14 Companion, pages 943–948, Republic and

Canton of Geneva, Switzerland. International World

Wide Web Conferences Steering Committee.

Client-oriented Architecture for e-Business

399
