Towards Effective SysML Model Reuse

Roy Mendieta, Jose Luis de la Vara, Juan Llorens and Jose María Álvarez-Rodríguez

Computer Science and Engineering Department, Carlos III University of Madrid, Madrid, Spain

Keywords: Systems Modeling Language, SysML, Model Reuse, Knowledge Reuse, RSHP, CAKE.

Abstract: The Systems Modeling Language (SysML) is spreading very fast. Most modelling tool vendors support it and

practitioners have adopted it for Systems Engineering. The number of SysML models is growing, increasing

the need for and the potential benefit from platforms that allow a user to reuse the knowledge represented in

the models. However, SysML model reuse remains challenging. Each tool has its own implementation of

SysML, hindering reuse between tools. The search capabilities of most tools are also very limited and finding

reusable models can be difficult. This paper presents our vision and initial work towards enabling an effective

reuse of the knowledge contained in SysML models. The proposed solution is based on a universal

information representation model called RSHP and on existing technology for indexing and retrieval. The

solution has been used to index models of all SysML diagram types and preliminary validated with

requirements diagrams. The results from the validation show that the solution has very high precision and

recall. This makes us confident that the solution can be a suitable means for effective SysML model reuse.

1 INTRODUCTION

Since the OMG (Object Management Group)

proposed SysML (Systems Modeling Language)

(OMG, 2016) to unify different ways of modelling

systems, it has been established as a recognized

standard. SysML is intended to facilitate the

application of Model-Based Systems Engineering, to

create a cohesive and consistent process (Friedenthal,

et al., 2014). The language includes nine types of

diagrams: block definition, internal block, package,

use case, requirements, activity, sequence, state

machine, and parametric diagram.

SysML supports the specification, analysis and

validation of a wide range of systems and systems-of-

systems (OMG, 2015). SysML can be used to model

different systems, both hardware and software ones,

at a high level of abstraction. In addition, SysML is

spreading very fast and most of the leading modelling

tool vendors such as IBM, No Magic, PTC, and Sparx

support it (Bombieri et al., 2013).

As a result, the amount of information represented

in SysML models is increasing, thus the amount of

knowledge that could be reused. This situation

increases the need for platforms that allow a user to

search for, select, and thus reuse models effectively

and efficiently, which is expected to lead to higher

productivity and quality in system modelling

(Marincic et al., 2013).

However, SysML model reuse still needs several

improvements in practice. Each tool vendor makes its

own implementation of SysML, thus reuse between

tools is hindered (IBM, 2013). The search capabilities

of most tools are also limited. For example, based on

our experience, MagicDraw does not support natural

language-based search within a model. Papyrus and

Rhapsody require the use of regular expressions so

that search results are not too imprecise. This impacts

usability. Finally, despite the widespread use of

SysML and that it already is nine years old, very few

publications have dealt with the reuse of the

knowledge represented in its models.

We aim to answer the following question: How

can the knowledge contained in SysML models be

reused effectively? We are working on a modelling

tool-independent solution that uses RSHP, a universal

information representation model (Llorens, et al.,

2004), and CAKE (Computer-Aided Knowledge

Environment) (Silva, 2005), an ontology-based

framework for information indexing and retrieval.

The solution is called SYSML2RSHP. We have

used it to index models from the literature (Holt, Jon

and Perry, 2008) for all the types of SysML diagrams.

Next, we have conducted a preliminary validation

with 44 SysML requirements diagrams and used 25

536

Mendieta R., de la Vara J., Llorens J. and Ã ˛Alvarez-RodrÃ guez J.

Towards Effective SysML Model Reuse.

DOI: 10.5220/0006267605360541

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 536-541

ISBN: 978-989-758-210-3

queries to study the effectiveness of the solution in

model finding, i.e., how well the solution is doing at

finding relevant items for a query (Croft et al., 2010).

All the models have been created with Papyrus.

The main contributions of this paper are: (1) the

definition of a conceptual architecture that allows

semantic interpretation of the information in SysML

models; (2) the presentation of an initial solution for

SysML model reuse based on RSHP and CAKE, and;

(3) the demonstration that the precision and recall of

the solution can be good or excellent.

The paper is organised as follows. Section 2

presents the background. Section 3 describes the

proposed solution and Section 4 its preliminary

validation. Section 5 summarises our conclusions.

2 BACKGROUND

This section describes the main basis for our work,

including a review of the related work.

2.1 RSHP

RSHP (Llorens, et al., 2004) is a universal

information representation model. It allows a user to

handle all kinds of artefacts (text, diagrams, etc.)

using the same schema. It is thus possible to

generalize the management of the different artefacts.

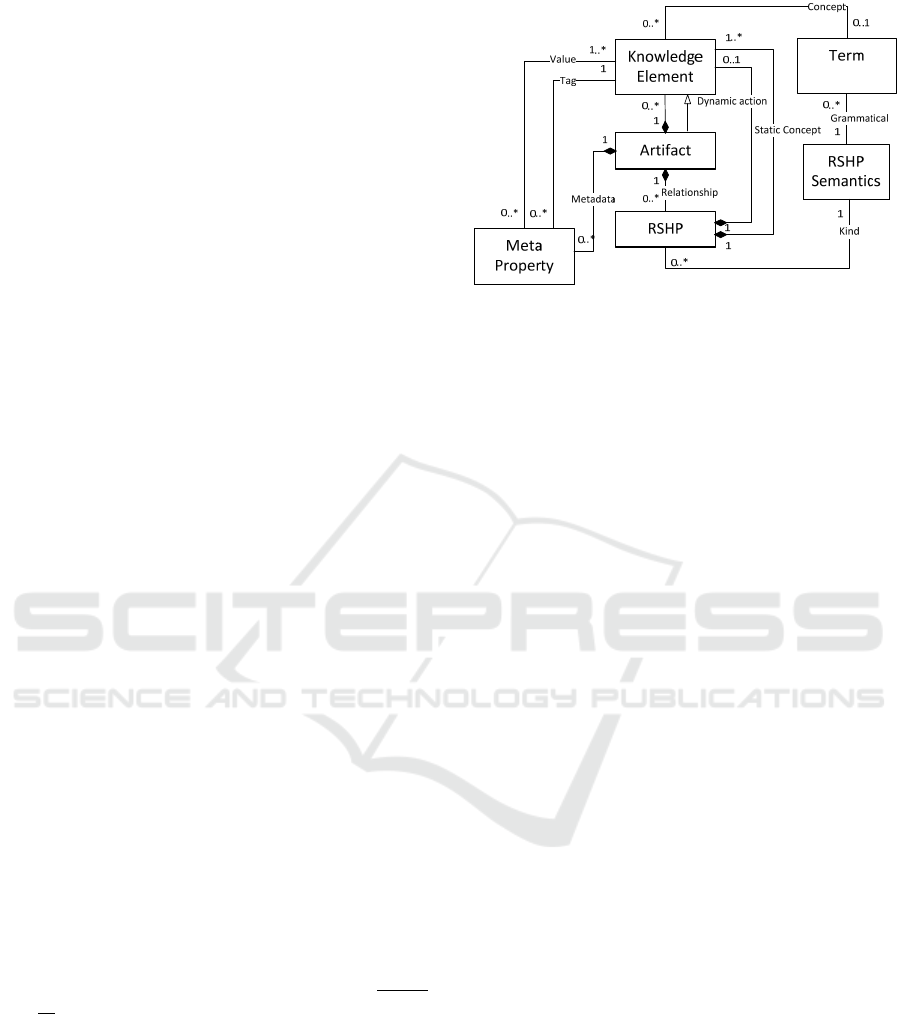

The main elements of the model (Figure 1) are:

1. Artifact is defined as a knowledge container and

described by Relationships, e.g. a diagram node;

an Artifact can be represented through only

Knowledge Elements or through other Artifacts.

2. Term represents a semantic concept in a natural

language, e.g. the terms “system” and “sensor”.

3. Knowledge Element is the smallest knowledge

unit and is related to the occurrence of a Term,

e.g. the Term “sensor” in an Artifact.

4. Relationship (RSHP) is the core component of a

model. It is used as a descriptor of all types of

Artifacts information and to connect Knowledge

Elements, e.g. to indicate that a “sensor” is part

of a “system”.

5. Metaproperty represents metadata about an

Artifact through key and value pairs, e.g.

“version” and “2.0” for a “system”.

6. RSHP Semantics depict the meaning of a Term

or Relationship, e.g. “component” for “sensor”.

2.2 CAKE

CAKE (Silva, 2005) is a framework of tools,

applications, and methodologies to identify, classify,

Figure 1: The RSHP representation model using UML.

organise, and reuse knowledge. The framework aims

to allow a user to manage any kind of “knowledge

assets”. It uses RSHP as base information

representation model.

Among its main functionalities, CAKE support

information indexing and retrieval. Indexing of an

artefact’s information (i.e., the knowledge

represented in it) is performed according to the

information types and structure in RSHP. CAKE also

uses ontologies as reference knowledge bases from

which further knowledge can be derived. This is

especially important for retrieval. The use ontologies

allow CAKE to e.g. exploit synonyms for information

search. The terms in a RSHP model are part of the

ontologies.

2.3 Related Work

Reuse has always been an important area amongst

system and software companies in order to increase

their productivity and the quality of their products

(Robles et al., 2012). Prior work includes approaches

for model reuse, e.g. for UML models ( Robles et al.,

2012) (Adamu and Zainoon, 2016)

Regarding publications that has dealt with SysML

model reuse, (Jobe and Johnson, 2008) propose the

reuse of engineering analysis models through a

specific framework. Unlike the solution proposed in

this paper, this framework requires the design of

SysML models under specific taxonomies, which

constrains how the models can be created. Therefore,

reuse becomes less flexible and less applicable, thus

not effective enough.

(Favaro et al., 2012) developed an approach based

on the use of semantic wiki technology to enable

users to specify structured, semantically-rich

requirements associated with canonical system

designs specified with SysML. This proposal is not

Towards Effective SysML Model Reuse

537

oriented to all kinds of SysML diagrams, thus its

reuse support is limited.

(Bombieri et al., 2013) propose an integrated

methodology to abstract already existing

heterogeneous information about chips into

equivalent SysML behavioural models. This work

strongly focused on chip information and cannot be

directly applied to domains.

Prior work has also presented approaches for

reuse based on RSHP. (Gallego et al., 2015)

addressed the storage and reuse of physical system

models represented with Modelica, whereas (Llorens

et al. , 2004) dealt with UML models represented with

XMI. In both cases, the authors propose a mapping

between the language under consideration and RSHP.

Although these publications are a basis for the

solution presented in this paper and made us

confident that a RSHP-based reuse solution for

SysML was feasible, their insights are not directly

applicable to SysML models because of SysML’s

different nature and specific reuse challenges.

In summary, none of the above publications

provides a general and thus fully effective solution to

SysML model reuse.

3 SYSML2RSHP: A TOOL FOR

INDEXING AND RETRIEVAL

OF SYSML MODELS

SYSML2RSHP can transform SysML models into

RSHP models. It has been developed in Visual Studio

2010 and uses the CAKE framework as supporting

technology. The tool performs the processes of

indexing and retrieval of information, which can be

used to analyse its reuse capabilities. Currently, the

solution can interpret SysML models created with

Papyrus. Nonetheless, it aims to be tool-independent

and thus support the interpretation of SysML models

created with any modelling tool.

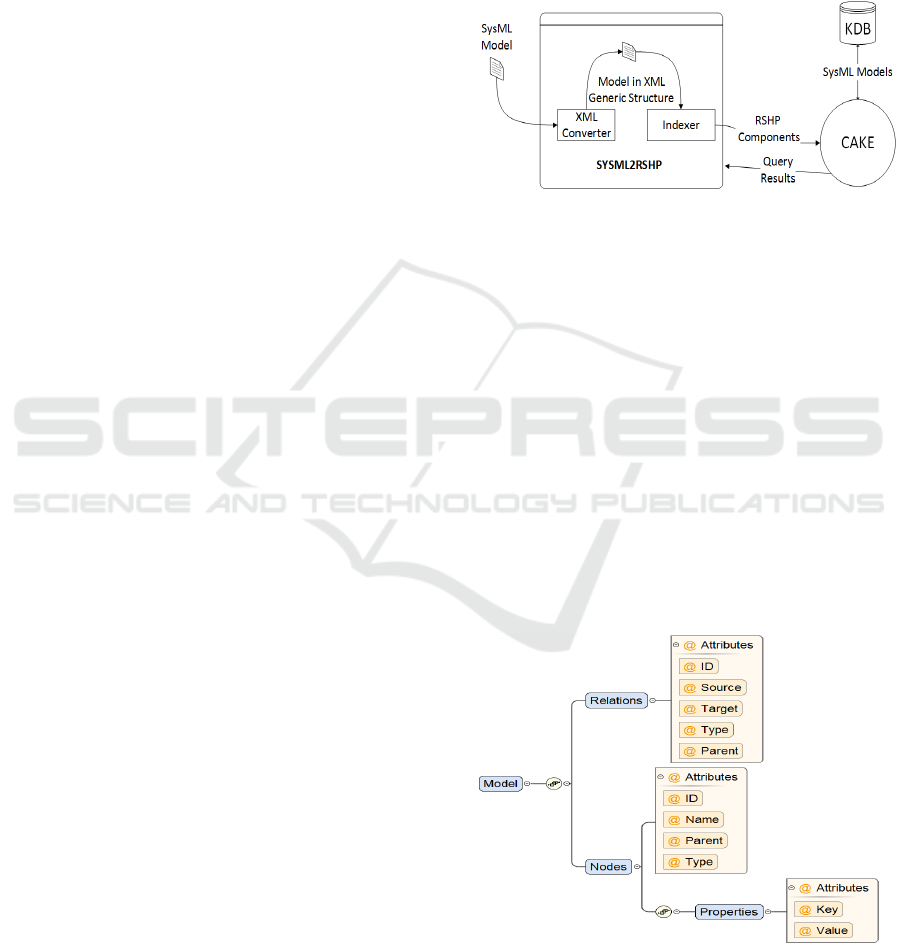

Figure 2 shows the conceptual architecture based

on which the technological solution for indexing and

retrieval of SysML models was developed. The

architecture has the following main elements:

 SysML Tool (Papyrus): tool with which a

SysML model is created.

 XML Converter: a component that interprets

the various implementations of the XMI

standard made by the developers of SysML

tools and convert them into a XML generic

structure.

 Indexer: Component that performs the

conversion of SysML model information in

the generic structure into RSHP.

 CAKE: the component that supports the

storage and retrieval of model information.

 SysML Models (Knowledge) Database:

repository where information about the

indexed SysML models is stored.

Figure 2: Conceptual architecture.

The solution was developed with the following

technologies: (1) XSLT platform for transformation

of the information in Papyrus SysML models into the

XML generic structure (see Figure 3); (2) a class

library developed in Visual Studio .Net 2010 to parse

the generic structure and map it to RSHP elements,

and; (3) the CAKE framework for RSHP model

storage and for retrieval.

SysML models are converted to the structure

shown in Figure 3. For Papyrus, the information is

interpreted directly from .uml files. These files

contain more detailed information than .xmi ones.

The same conversion process can be applied to

models created with other tools. A key aspect that

make SYSML2RSHP tool-independent is the use of

intermediate XML generic files.

Figure 3: XML generic schema structure based on model,

nodes and relationships.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

538

Once a SysML model is represented with the

XML generic format, the process of indexing the

SysML information as a RSHP model starts. It is a

transformation of the generic objects obtained from

the previous conversion process into a set of RSHP

artifacts, relationships and properties. The mapping

for the transformation is presented in Table 1.

SYSML2RSHP can index the nine types of SysML

diagrams. We confirmed it by indexing a model of

each SysML diagram type, selected from (Holt, Jon

and Perry, 2008).

Table 1: Equivalence between generic objects and elements

of the RSHP Model.

Generic Object RSHP Object

Model RSHP Artifact

Relation RSHP

Relation Type RSHP Semantics

Node RSHP Artifact

Node Property Attribute RSHP Metaproperty

Regarding the information retrieval process, it

can be defined as the process of returning SysML

models (or references to them) that present a

similarity with a query. The CAKE framework

contains information retrieval routines that use the

information stored in a knowledge repository in

Microsoft Access. This retrieval process is based on

graph pattern matching. To make use of these

routines, the queries must be represented in the form

of RSHP elements.

The retrieval process can be performed in two

different ways:

 Natural language query: a query in natural

language (e.g. a sentence) is indexed and then

related models are searched.

 Partial diagram query: instead of a query in

natural language, a model file is selected; this

model is then indexed with the SYSML2RHP

indexer and finally compared to others in the

knowledge database.

4 PRELIMINARY VALIDATION

The validation is presented using the schema

proposed by (Juristo and Moreno, 2001), where

experimentation is divided into four main activities:

definition of the objectives of the experimentation,

design of the experiment, execution of the

experiment, and analysis of the results.

4.1 Objectives

The following objective was defined for the

validation: To study the effectiveness of the proposed

solution in finding reusable SysML models (i.e.

suitable for reuse) from a model repository.

4.2 Design

The metrics used to validate the solution are:

 Precision: fraction of retrieved information that

is relevant.

 Recall: fraction of relevant information that is

retrieved.

 F1: a combination of precision and recall.

We also use the levels of "goodness" for precision

and recall defined in (Hayes et al., 2005) as a

reference to analyse these metrics. The levels are:

 Precision: above 20% it is acceptable, good

above 30%, and excellent above 50%.

 Recall: above 60% it is acceptable, good above

70%, and excellent above 80%.

We used the following data and formulas to

calculate the metrics (Croft et al., 2010):

 True Positives (TP), i.e. retrieved and relevant

items.

 False Positives (FP), i.e. retrieved but irrelevant

items.

 True Negatives (TN), i.e. not retrieved and

irrelevant items.

 False Negatives (FN), not retrieved but relevant

items.

Precision=



 + 

Recall=



 + 

F1=

2 ∗  ∗ 

 + 

We created 44 SysML models for validation.

They are based on existing requirements diagrams

from several sources (Friedenthal et al., 2014) (OMG,

2016). We selected 11 diagrams and made three

variations of each by removing elements, adding

elements, and changing terms for synonyms.

We also designed a set of 25 queries to evaluate

the retrieval capabilities of the solution. The queries

are listed in Table 2. These queries were designed

considering functional aspects common to several of

the models, the components of the models, and the

terminology of the models.

Towards Effective SysML Model Reuse

539

After creating the queries, the relevant items to be

retrieved were defined. This allowed us to calculate

the metrics.

Table 2: Queries for validation.

No Query Search String

Q1 System availability

Maximum rate of failure

Mana

e Traffic flow

stem to

urif

wate

stem usin

remote control com

onent

stem usin

cameras

stem with a statistical data com

onent

stem Performance Re

uirements

uirements of S

stem Usabilit

Q10

stem with Simulation Com

onent

Q11

Grou

Creation

Q12

stem Restrictions Re

uirements

Q13

stem that uses Sensors

Q14

Gather and Inter

ret Information Module

Q15

Ada

tive Control

Q16

Consistenc

in transaction

Q17

Manual Control

Q18

Intruders detection

Q19

Time Validation

Q20

Com

uter res

onse time

Q21

stem validation cards

Q22

Tasks and scenarios

Q23

Traffic mana

ement based on the re

ion

Q24

Sema

hores automatic o

eration

Q25 Control standard

4.3 Execution

We used models created with Papyrus for execution.

Table 3 presents the results. Out of the 25 queries:

 The precision and the recall are at least good

for all the queries, and excellent on average.

 The precision is good for 8 queries (32%), and

excellent for 17 (68%); it is perfect (1,00) for

13 queries (52%).

 The recall is good for 3 queries (12%) and

excellent for 22 (88%); it is perfect (1,00) for

20 queries (80%).

 F1 is perfect (1,00) for 10 queries (40%).

4.4 Analysis

It is clear to us that SYSML2RSHP can be a great

solution to make SysML reuse effective. The level of

precision and recall has been excellent for the vast

majority of the queries. This is especially important

for recall. The results suggest that a user would be

able to find almost all the models that could be reused

for a given purpose (query in the validation). We

consider that it is more important to find all the

reusable models that retrieving models that are not

reusable actually. A user could discard the non-

reusable models. The very promising percentage of

perfect F1 and its high average also suggest that

SYSML2RSHP can enable effective reuse with

reduced additional effort to discard models that are

not reusable actually.

We think that the good results of the validation

are, to a large extent, a consequence of CAKE

capabilities, e.g. to process and analyse natural

language. The framework performs an information

harmonisation process and can interpret synonyms

using an ontology. Nonetheless, a suitable indexing is

also necessary, and a specific indexing approach has

been defined for SYSML2RSHP. We conjecture that

the results might vary with different indexing

strategies, e.g. only transforming models into RSHP

Artifacts.

The current validation is preliminary and has

limitations. For example, only requirements diagrams

have been used. Nonetheless, we regard these

limitations as minor for the current, initial status of

our work. We will address them in future validations,

once the solution is also further developed.

Table 3: Precision, Recall and F1 for each query.

Precision Recall F1

Q1 0,45 0,94

0,61

Q2 1,00 0,83

0,91

Q3 0,67 1,00

0,80

Q4 1,00 1,00

1,00

Q5 1,00 0,75

0,86

Q6 0,36 1,00

0,53

Q7 1,00 1,00

1,00

Q8 0,33 1,00

0,50

Q9 0,38 1,00

0,55

Q10 1,00 1,00

1,00

Q11 0,50 1,00

0,67

Q12 0,50 1,00 0,67

Q13 0,36 1,00

0,53

Q14 1,00 0,73

0,84

Q15 0,75 1,00

0,86

Q16 1,00 1,00

1,00

Q17 1,00 1,00

1,00

Q18 1,00 1,00

1,00

Q19 0,70 1,00

0,82

Q20 1,00 1,00

1,00

Q21 1,00 1,00

1,00

Q22 1,00 1,00

1,00

Q23 0,78 1,00 0,88

Q24 1,00 1,00

1,00

Q25 0,43 0,75 0,55

Average 0,77 0,96 0,82

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

540

5 CONCLUSIONS

The state of the art and the state of the practice related

to knowledge reuse from SysML models reflect that

several issues have not been solved yet. Although

there are solutions that can support SysML model

reuse, the solutions can be ineffective, mostly as a

result of usability and applicability limitations.

We have introduced SYSML2RSHP, a new

solution for indexing and retrieval of SysML models.

The implementation of the solution is based on the

RSHP information representation model and the

CAKE framework. SysML models created with

Papyrus have been converted into a XML generic

structure, next indexed according to RSHP, and

finally stored through CAKE, which also supports

model retrieval.

We argue that the proposed solution is a very

promising alternative towards effective SysML

model reuse. In the preliminary validation, the level

of precision and recall of all the queries is good or

excellent. F1 is perfect for 40% of the queries and

above 0.8 on average. SYSML2RSHP is the first step

towards a mature platform for modelling tool-

independent SysML model reuse.

The most immediate pieces of future of work are

the improvement, further development, and further

validation of SYSML2RSHP. It must be shown that

it can index models created in modelling tools other

than Papyrus, e.g. MagicDraw and Rhapsody, and the

search capabilities of the different tools should be

compared. With the ability to index information from

SysML models, another possible line of future

research is the analysis of SysML model quality, e.g.

completeness and consistency. This would also allow

a user to select and reuse SysML models taking their

quality into account.

ACKNOWLEDGEMENTS

The research leading to this paper has received

funding from the AMASS project (H2020-ECSEL

grant agreement no 692474; Spain's MINECO ref.

PCIN-2015-262).

REFERENCES

Adamu, A., & Zainoon, W. M. N. W. (2016). A Framework

for Enhancing the Retrieval of UML Diagrams. In

International Conference on Software Reuse (pp. 384–

390).

Bombieri, N., Ebeid, E., & Fummi, F. (2013). On the Reuse

of Heterogeneous IPs into SysML Models for

Integration Validation, 647–667.

Croft, W. B., Metzler, D., & Strohman, T. (2010). Search

Engines: Information Retrieval in Practice. Pearson

Education. Retrieved from

http://comjnl.oxfordjournals.org/cgi/reprint/54/5/831\n

http://comjnl.oxfordjournals.org/cgi/doi/10.1093/comj

nl/bxq039.

Favaro, J., Schreiner, R., & Olive, X. (2012). Next

Generation Requirements Engineering. In INCOSE

International Symposium (pp. 461–474).

Friedenthal, S., Moore, A., & Steiner, R. (2014). A practical

guide to SysML: the systems modeling language.

Morgan Kaufmann.

Gallego, E., Álvarez-rodríguez, J. M., & Llorens, J. (2015).

Reuse of Physical System Models by means of

Semantic Knowledge Representation : A Case Study

applied to Modelica, 747–757.

Hayes, J. H., Dekhtyar, A., & Sundaram, S. K. (2005).

Improving after-the-fact tracing and mapping:

Supporting software quality predictions. IEEE

Software, 22, 30–37.

Holt, Jon and Perry, S. (2008). SysML for systems

engineering. IET.

IBM. (2013). Rhapsody and MagicDraw Integration.

Retrieved from

http://www.ibm.com/support/knowledgecenter/SSB2

MU_8.1.0/com.ibm.rhp.oem.pdf.doc/pdf/sodius/Rhaps

ody_MagicDraw_Integration.pdf.

Jobe, J. M., & Johnson, T. A. (2008). Multi-Aspect

Component Models: A Framework for Model Reuse in

SysML, 1–13.

Juristo, N., & Moreno, A. M. (2001). Basics of Software

Engineering Experimentation. Analysis (Vol. 5/6).

Springer Science & Business Media.

Llorens, J., Carlos, U., Madrid, I. I. I. De, Llorens, J.,

Morato, J., & Genova, G. (2004). RHSP : an

Information Representation Model Based on

Relationship on relationships, (January 2004).

Llorens, J., Fuentes, J. M., & Morato, J. (2004). Uml

retrieval and reuse using xmi. Proceedings of the

IASTED International Conference on Software

Engineering, 740–746.

Marincic, J., Mader, A., Wieringa, R., & Lucas, Y. (2013).

Reusing knowledge in embedded systems modelling.

Expert Systems, 30(3), 185–199.

http://doi.org/10.1111/j.1468-0394.2012.00631.x.

OMG. (2015). OMG Systems Modeling Language ( OMG

SysML

) v.1.4, 320. Retrieved from

http://www.omg.org/spec/SysML/1.4/

OMG. (2016). The Official OMG SysML site. Retrieved

from http://www.omgsysml.org/

Robles, K., Fraga, A., Morato, J., & Llorens, J. (2012).

Towards an ontology-based retrieval of UML Class

Diagrams. Information and Software Technology,

54(1), 72–86.

Silva, A. R. (2005). Tools Exhibits. In UML Modeling

Languages and Applications SE - 34 (Jardim Nun, Vol.

3297, pp. 281–291). Berlin, Heidelberg: Springer

Berlin Heidelberg.

Towards Effective SysML Model Reuse

541
