Consistent Projectional Text Editors

Stian M. Guttormsen

, Andreas Prinz

and Terje Gjøsæter

Department of ICT, University of Agder, Grimstad, Norway

Department of Computer Science, Oslo and Akershus University College of Applied Sciences, Oslo, Norway

Keywords:

Language Workbench, Projectional Editor, Grammar, Ambiguity, User Interface.

Abstract:

For modelling and domain-speciﬁc languages, projectional editors have become popular. These editors im-

plement the MVC pattern and provide a direct connection to the underlying model. In particular, projectional

editors allow much more freedom in deﬁning the concrete syntax than traditional grammars. The downside

is that it is possible to deﬁne presentations that are of bad quality, and that this is not easily visible. In this

article, we identify some of the problems with projectional editors and propose ways to resolve them. We also

demonstrate a proof-of-concept solution, showing how problematic editor presentations could be identiﬁed

automatically.

1 INTRODUCTION

Editing a program in a textual programming language

means editing text and making sure that it follows

the syntactical rules of the language. These rules are

speciﬁed by a formal grammar and form the concrete

syntax of the language. The program then gets parsed

and transformed into an abstract syntax tree: a rep-

resentation of the program in memory as a tree struc-

ture. This tree structure can then be analyzed or trans-

formed further.

Projectional editors (Völter et al., 2014) avoid the

parsing of concrete syntax and instead allow editing

the abstract syntax tree directly. This is enabled by

the model-view-controller pattern (MVC), where the

editor shows a view of the model and changes the

model based on user input. This way, the concrete

syntax is just a projection of an already-existing ab-

stract syntax tree. With access to the abstract syntax

tree, projectional editors can easily analyze programs

as they are written (similar to earlier syntax-directed

editors (Lunney and Perrott, 1988)). This type of edit-

ing is common in modelling and domain-speciﬁc lan-

guages (DSLs), where the model is an abstract struc-

ture that the user edits through a projection (Völter

et al., 2013). It is the method of choice when editing

graphical UML diagrams.

In projectional editors models are edited in their

internal representation and not as text, therefore they

are very ﬂexible in terms of how the concrete syn-

tax is deﬁned. Basically, only a pretty printing of the

underlying model is deﬁned. This is particularly use-

ful for graphical grammars. It is also true for tex-

tual projections because the text is also just a projec-

tion, and each text element is directly connected to

the model through the projection. The projection can

take on many forms and it is even possible to combine

different types of projections, such as including tables

inside a textual presentation. There is no room for am-

biguous or conﬂicting grammars because there is no

need for grammars or parsers at all. Deﬁning the con-

crete syntax of a language just means deﬁning how

the abstract syntax gets projected. However, a projec-

tion can still be ambiguous or confusing to the user.

Some projections are really bad and should be re-

jected, which this paper advocates. On a higher level,

this problem is discussed in (Karsai et al., 2014). Our

paper is a more concrete version of their Guideline

16: “Make elements distinguishable."

Meta Programming System (MPS) is a language

workbench that is built around projectional editing

(Toporov et al., 2013). It allows textual, tabular

and graphical projections. As a language workbench

it supports the development of DSLs and the tools

needed to use them. The projectional editor in MPS

plays a key role in allowing different DSLs to be com-

bined to form a single solution; language composition

is one of the beneﬁts that comes easy with projec-

tional editors (Völter, 2011; Völter and Solomatov,

2010).

Guttormsen S., Prinz A. and GjÃÿsÃ˛eter T.

Consistent Projectional Text Editors.

DOI: 10.5220/0006264505150522

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 515-522

ISBN: 978-989-758-210-3

515

Mixing multiple languages and notations in a sin-

gle program has traditionally been hard with textual

programming languages. It is a difﬁcult task to com-

pose textual syntaxes to form a well-deﬁned grammar.

On the other hand, with projectional editing it is natu-

ral to combine projections because there is no require-

ment stating that the syntax should be unambiguous.

Projectional editors offer a completely different

editing experience compared to traditional text edi-

tors, and this way of editing can be seen as difﬁcult

and cumbersome by developers. Research on current

limitations of projectional editors (as found in MPS)

shows that there are some real issues, and especially

(Völter et al., 2014) highlights many of them. How-

ever, current research seems to mostly focus on com-

paring features which are lacking or difﬁcult in pro-

jectional editors, but which are default or simple in

text editors (such as e.g. support for copy/paste). In

this paper we will look at it the other way; there are

a lot fewer restrictions on the concrete syntax with

projectional editors compared to textual ones and this

may cause problems. The freedom in deﬁning the

concrete syntax is not problematic for the computer,

but it can cause problems for the language user.

Not having to worry about unparseable programs

can be seen as a beneﬁt of projectional editing, but

we argue it is only beneﬁcial to the language designer

and that it can actually be a hinderance to the user.

Ambiguous syntax is not only a problem for parsers,

but a problem that affects humans as well. With pro-

jectional editors there are no sanity checks regarding

the concrete syntax. In this paper we present a solu-

tion to this problem that we developed in (Guttorm-

sen, 2016), showing how projectional editors can be

extended with sanity checks. These checks makes it

possible to automatically identify ambiguities in the

concrete syntax.

Surveying related work shows that there have

been similar experiments on automatic analysis and

model-checking. (Völter, 2014) discusses some dif-

ferent methods for analyzing and checking models,

but the methods discussed are aimed at analyzing pro-

grams—not languages. It differs from our work in

that we focus on analyzing the concrete syntax of lan-

guages.

So the novel contribution of this paper is its fo-

cus on the user when looking at the quality of a con-

crete syntax. This is opposed to the focus on machine

analyzability. The solution we implemented is built

around projectional editors, but the ideas are also ap-

plicable to non-projectional approaches like Xtext.

We continue by discussing text analysis from a

human-machine point of view in Section 2. After that,

we look into human-human communication in Sec-

tion 3, and ambiguity as a problem. We provide a so-

lution in Section 4, before summarizing in Section 5.

2 TEXT ANALYSIS AND

PROCESSING

In order to get a better understanding of the issues

related to projectional editors, we will look into the

handling of program texts and syntax in general.

Handling of syntax started with the advent of com-

pilers, which analyse the input text, make sense out

of it and generate some output text. As far as the in-

put text is concerned, grammars were found to be the

best theory to describe the structure of the input. Sev-

eral classes of grammars were identiﬁed. An example

is the Chomsky classiﬁcation, which was introduced

by Noam Chomsky. He divided grammars into four

classes: unrestricted, context-sensitive, context-free,

and regular grammars.

Finally, for most applications it turned out the con-

text free grammars would do the trick for deﬁning

the syntax, balancing expressivity and analyzability.

However, even those were not easily analyzable in all

cases, and for automatic generation of analysis tools

more restricted classes were introduced. LL(1) was

identiﬁed to ﬁt for top-down parsing, and LR(1) for

bottom-up parsing. Finally, analysis techniques be-

came more advanced and LL* tools appeared (e.g

ANTLR (Parr and Quong, 1995)).

At the same time, it turned out that the concrete

syntax was too detailed for efﬁcient analysis. This led

to the focus onto the deﬁnition of abstract syntax, in

order to capture the essential features of the language.

From there, the relation to the concrete syntax was

given by a mapping.

To handle graphical languages, meta-modelling

was introduced which started with the abstract syntax

(called meta-model), and attached the concrete syn-

tax to the abstract syntax. This way, the traditional

path from concrete syntax via abstract syntax and ab-

stract code to concrete code was reversed at the be-

ginning. Now, the abstract syntax was the central el-

ement. Thus, it was possible to deﬁne graphical lan-

guages, like UML. As an example we show the graph-

ical syntax for a simple class diagram modelling a li-

brary in Fig. 1, here deﬁned using EMF (which is es-

sentially a subset of UML class diagrams). The class

diagram is just the presentation of the abstract syntax,

whose structure is shown in Fig. 2.

Deﬁning a projectional editor involves specifying

how each element of the abstract syntax should be

presented. The editor deﬁnition speciﬁes how the user

input should be translated into changes in the abstract

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

516

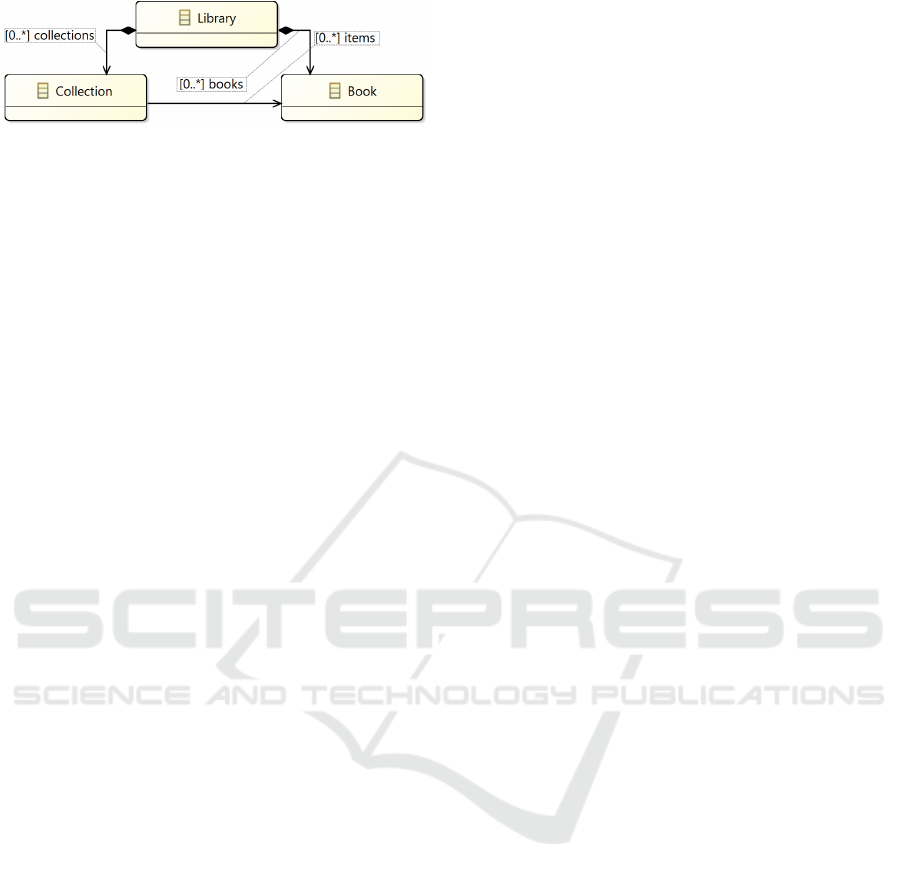

Figure 1: A graphical syntax projection in EMF of a lan-

guage for libraries. A library can here contain books and

collections of books.

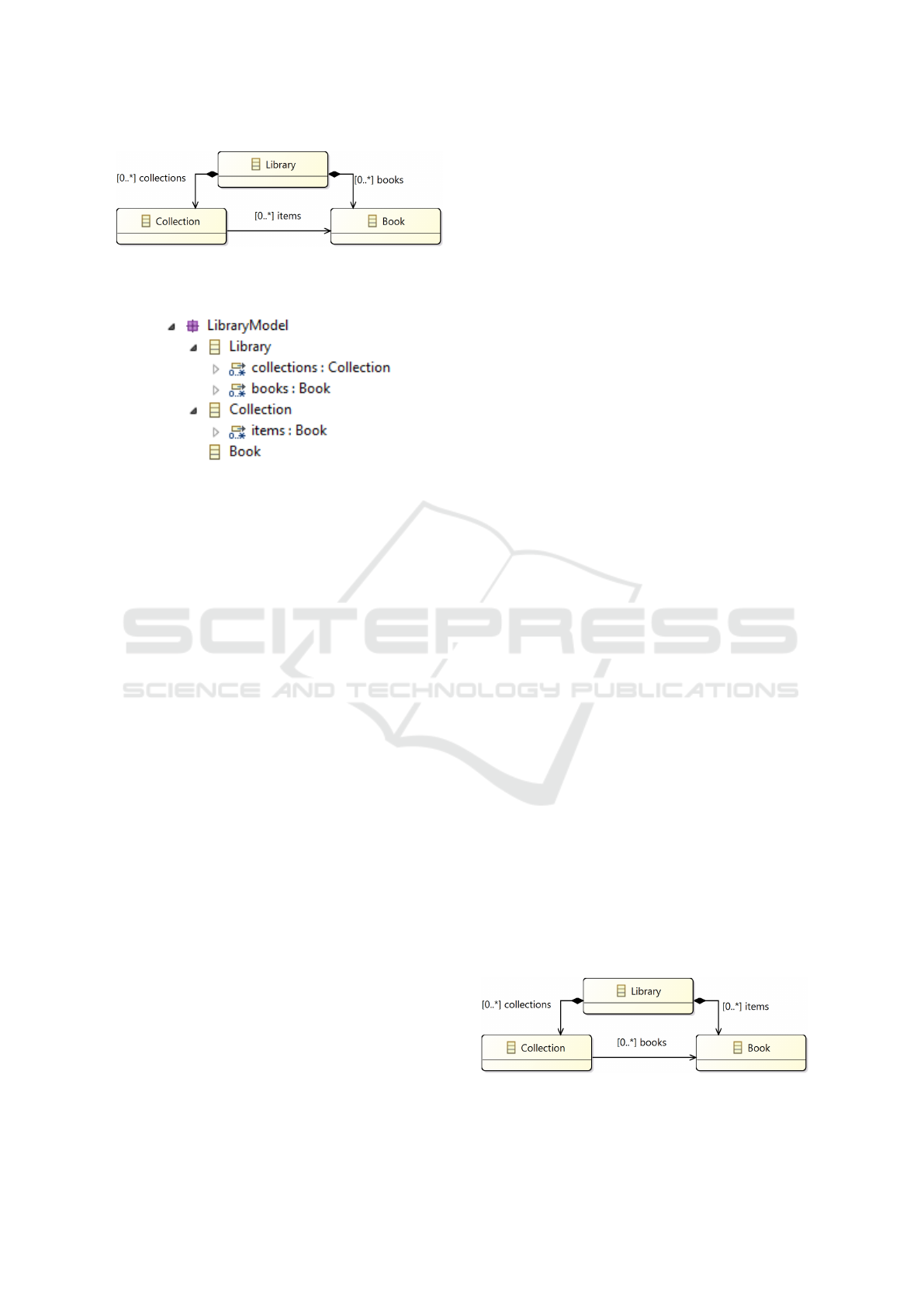

Figure 2: The abstract syntax in EMF of the library lan-

guage, presented in the tree view. (Bear in mind that the

EMF tree view representation is still just a projection of the

actual abstract syntax).

model, and also how the model should be viewed by

the user. In MPS, for instance, (textual) editor deﬁni-

tions of an element consist of a number of cells. Cells

can contain keywords, collections of cells, references

to properties of the element, etc. A cell that refer-

ences a property in the abstract syntax means that user

input on this cell is entered as the property value in

the model. These references ensure a direct connec-

tion between the concrete and abstract syntax, leaving

no room for ambiguity in parsing (from a machine’s

point of view). And so it is up to the language de-

signer to create reasonable editors so there is no doubt

about which element is edited.

So far, we have discussed abstract and concrete

syntax, but languages do not only have syntax, they

also have semantics. It is important that the semantics

is unambiguous as well, and sometimes an ambiguity

in syntax can be remedied by having the same seman-

tics for both cases. In this article, the semantics is

not considered, because it provides a link between the

abstract syntax and the semantic domain of the lan-

guage, hence coming after the problem discussed in

this article.

3 THE HUMAN ASPECT

As described in the previous section, the development

of grammar classes was geared by the need to facili-

tate the interaction between human and machine. The

programmer (human) has to be able to formulate the

tasks in a way that the computer (machine) is able

to understand. Advances in technology have led to

the situation that many earlier restrictions on the in-

put languages could be dropped. We are no longer

restricted to using LL(1) analysis, we can use LL(*)

or even LR(*). We might even consider the advances

in natural language processing as having even less re-

strictions.

However, there is a second side to program texts

and that is about communication between humans.

Modern development methods enable teams of de-

velopers to work together. That implies a far larger

amount of reading of programs than before, such that

reading and understanding and discussing programs

is the main activity. With the advent of (formal) mod-

elling in domain speciﬁc languages, this situation is

even more serious, since the people communicating

are not necessarily from the same background, but can

involve administrators, users, and project managers.

For this situation, it is important that programs and

speciﬁcations can be easily understood and discussed.

This means they have to be optimized for easy un-

derstanding by humans. A minimum requirement in

this context is the unambiguity of the concrete syntax,

without a need to rely on the abstract syntax. This re-

quirement is often not met by languages built on the

frameworks of projectional editing, since there is no

need to enforce it (for the human-computer interac-

tion).

Let us take a graphical language as an example.

We use a projection of our language for modelling li-

braries (see Fig. 3). It is based on the same abstract

syntax as shown in Fig. 2. The projection is very sim-

ilar to the one shown earlier in Fig. 1, but two of the

names of the associations have changed places.

If we write code based on this perception, we

might want to access the items reference in a library:

Library lib = new Library();

Collection<Book> items = lib.items;

However, this code will lead to a compiler error

“attribute not accessible”. Why is this the case? The

answer is obvious when we consider that the abstract

syntax of the diagram is the same as in Fig. 2.

Here, it becomes clear that the concrete syntax

is misleading; the items and books references have

Figure 3: A different graphical syntax projection in EMF

of the same language for library modelling. Note that the

names on the associations are changed.

Consistent Projectional Text Editors

517

Figure 4: Lay out the classes.

Figure 5: Add reference and adjust.

swapped places in the diagram compared to the ab-

stract syntax, but it is just the projection that is inac-

curate—it is still the same abstract syntax underneath.

Of course, this is an extreme example, but similar sit-

uations can easily appear in large diagrams where the

names are close to each other leading to ambiguities.

Can this realistically happen in the real world?

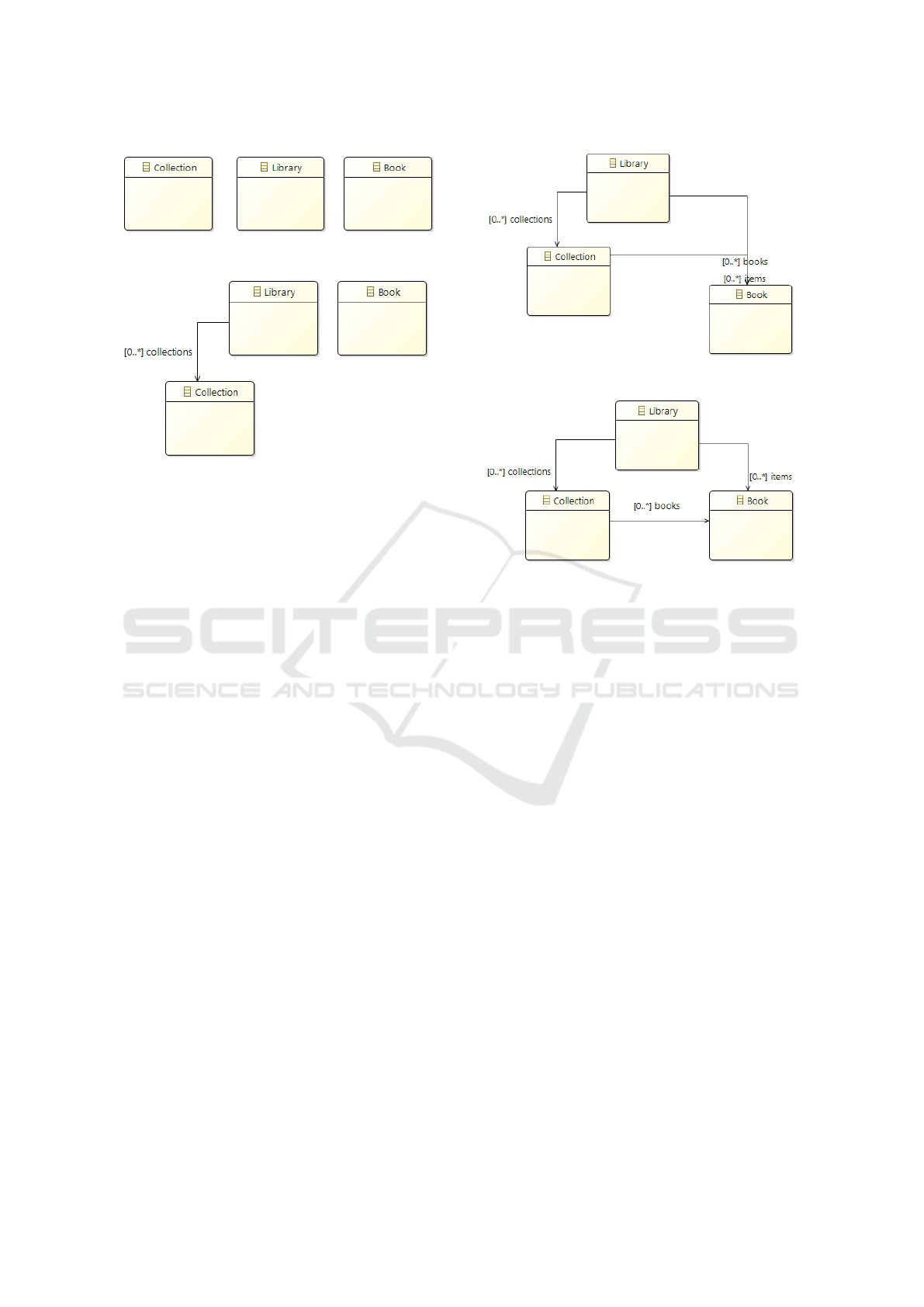

Fig. 4 to Fig. 7 show step by step how such a situa-

tion can occur while creating a model and moving the

labels around between the references to make them

more easily readable. In some situations it may be im-

possible to distinguish which name belongs to which

reference, and rearranging them may lead to acciden-

tally placing them wrongly. In Fig. 4, we lay out the

classes, in Fig. 5, we add the ﬁrst reference and suc-

cessfully and unambiguously lay out the classes and

labels for that part. The problems start as we see in

Fig. 6, when we add the two references to Book and

after moving around the labels and classes we reach

a situation where the references and labels are am-

biguous. In Fig. 7, we try to ﬁx it, but accidentally

place the labels wrongly. Some but not all model ed-

itors will show a connection between the label and

its reference when it is being moved, but confusion

can still occur, particularly in more complex models.

With complex models it is typical that the standard

layout is not sufﬁcient and the graphical elements are

moved on the screen. It can very well happen that

such a move leads to unintended results as shown in

Fig. 3. In a larger project, such errors are even more

difﬁcult to spot.

Similar situations can appear in textual projec-

tional editing (in MPS), where the editor does not al-

ways behave the way the user expects. The editing

in MPS can be made very text-like, and e.g. creat-

Figure 6: Add more references and adjust.

Figure 7: Sort out overlappings.

ing a new Java class in MPS is done in almost ex-

actly the same way and with the same keystrokes as

in the Eclipse Java IDE. After creating the ﬁle for the

new class you are left with a skeletal implementation

with no name, and the text cursor is at the position

for the class name. There you can enter a name for

the class and press enter; the text cursor then moves

to the body of the class. A ﬁeld can be created by

e.g. writing "public String name;", i.e. it is identi-

cal to Eclipse. Code-completion can also be used in

the same fashion as in Eclipse. The projectional ed-

itor in MPS imitates textual editors very accurately,

but there are things that are different. For instance,

pressing enter in a text editor would create a new line

at the current cursor position, but in MPS this is not

always the case; pressing enter with the cursor at the

class name would create a new line inside the class in-

stead of before the brackets surrounding the class (as

is normal in Eclipse).

To demonstrate how ambiguities can occur in

MPS we created a language in MPS for deﬁning con-

stants and variables. The language is very simple and

the syntax for the two concepts are similar to those

found in many other popular languages. A constant

is speciﬁed with a datatype, followed by the name of

the constant, then an equals-sign and the value of the

constant. The syntax for a variable is identical except

that only the datatype and name needs to be speciﬁed.

The following example shows a program written in

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

518

the language.

int x = 2

int y

It describes a constant, x, and a variable y. Open-

ing the inspector MPS allows us to see the nodes in

the abstract syntax tree. The above two lines are dis-

played as follows in the inspector.

[constants]

Constant "x"[6953060390811085594]

in Example.sandbox

[variables]

Variable "y"[6953060390811085603]

in Example.sandbox

Inspecting the program reveals that the ﬁrst part is

a Constant and that the second part is a Variable.

The editor for this language was deﬁned in MPS as

follows.

editor for concept Definitions

node cell layout:

(- % constants % /empty cell: -)

(- % variables % /empty cell: -)

This describes a collection of constants followed

by a list of variables. The only difference syntacti-

cally is that constants always come before variables.

The empty cell deﬁnes what will be shown if there

are no constants or variables, and in this case they are

shown as whitespace. The editor for constants is de-

ﬁned as:

editor for concept Constant

node cell layout:

[- {type} {name} = {value} -]

The constant node contains three properties: type,

name and value. The equals sign is just part of the

projection to make it look more like an assignment.

The editor for variables is identical except that the

value is set as optional. Furthermore, if the value is

empty then the equals sign is hidden as well, indicated

by the question mark in the following deﬁnition.

editor for concept Variable

node cell layout:

[- {type} {name} ?= {value} -]

The problem with these editor deﬁnitions is high-

lighted in the following example. Similarly to the pre-

vious example there are two deﬁnitions of what ap-

pears to be a constant and a variable:

int a = 24

int b

However, the MPS inspector shows that there are

two variables:

[variables]

Variable "a"[6953060390811111363]

in Example.sandbox

[variables]

Variable "b"[6953060390811085603]

in Example.sandbox

So far, we have argued that ambiguous presenta-

tions are not a good idea. However, even unambigu-

ous grammars can lead to problems in understand-

ing. The grammar for SDL-2000 (ITU-T, 1999) is

given in a projectional fashion, and it is intended to

be unambiguous. However, as it stands, the gram-

mar is ambiguous. Moreover, it has plenty of con-

ﬂicts for typical parser tools. There have been at-

tempts at solving these problems in the scope of other

projects (Prinz, 2000), but without success. Instead,

several severe problems have been identiﬁed and re-

ported to the standardization group. There are several

valid SDL speciﬁcations that have more than one in-

terpretation when LR(1) is used, even though there is

a unique correct solution.

A similar attempt was done using ANTLR (Parr

and Quong, 1995; Schmitt, 2003). Also in this at-

tempt, more than 20 inconsistencies are reported in

the comments to the grammar. Even with an inﬁnite

lookahead, it is not possible to parse all SDL speciﬁ-

cations correctly. In some cases analysis is only pos-

sible with prioritization of alternatives, which is not

faithful to the standard.

The task of disambiguation with a long lookahead

might be feasible for tools, and it is of course also

possible for humans. In some sense, it is done every

day. However, humans use context to aid in disam-

biguation, and the large amount of language-related

jokes proves that this is still difﬁcult and not always

successful.

We would therefore consider long lookahead as

bad style and advocate LR(1) as best practice. Typ-

ically, LR(1) languages sufﬁce for reasonable lan-

guages and in particular for most DSLs. Using a

long lookahead would not necessarily pose a prob-

lem for computers trying to parse the input text, but

it can make it difﬁcult for humans to understand. The

idea behind limiting ourselves to LR(1) languages is

to make it easier for humans to understand—not com-

puters. The problem might be that a grammar for a

language is not LR(1), while the language itself is

LR(1).

Consistent Projectional Text Editors

519

Figure 8: A graphical projection with explicit connections

between references and their labels.

4 SOLUTION

We will now present our ideas for solving some of the

problems related to projectional editors.

4.1 Graphical Languages

Graphical speciﬁcations are normally created using

graphical editors, which allow users to create graphi-

cal elements and present these elements in the graph-

ics. So they are all projectional editors and parsing of

graphical speciﬁcations is not an issue. Creating full

analyzability of graphical speciﬁcation is still a major

effort for the future. Even for the handling of projec-

tional editors, there are many open research questions

related to best ways to describe the relationship be-

tween concrete syntax and abstract syntax.

In this paper, we therefore only solve the sim-

pler problem of hidden items in the presentation as

also given in the problem example in Section 3. The

graphical syntax presented earlier showed how the

concrete syntax is not always an accurate presenta-

tion of the abstract syntax. Continuing with our ex-

ample we propose that all connections between ele-

ments should be presented explicitly. Fig. 8 shows

how this is done for the example we showed earlier

(Fig. 3). The labels are connected to their references

with a dashed line (similar to how EMF does when

you move the labels around).

Making explicit the implicit connections between

elements makes the graphical syntax less ambiguous.

However, this is only true if the syntax used to present

the implicit connections does not introduce other am-

biguities; ambiguous syntax that is explicitly deﬁned

is no better than ambiguous syntax that comes from

implicit connections.

The SDL graphical syntax is described using

graphical grammar constructors. It features the fol-

lowing spatial relationships: contains, is associated

with, is followed by, is connected to, is attached to. In

addition, there are graphical base symbols. We will

relate to these basic relationships and symbols in or-

der to present rules for unambiguity. The following

rules should allow basic unambiguity for such graph-

ical grammars.

• The graphical base symbols should be unambigu-

ous, i.e. no two of them should be equal.

• In order to have a proper presentation of contains,

it is important that symbols do not overlap other-

wise, only when they are contained.

• The two relationships is followed by and is con-

nected to are given by explicit connection sym-

bols, so they do not pose problems.

• The relationship is attached to is exactly the prob-

lematic implicit connection, and should be repre-

sented by an explicit connector.

4.2 Textual Grammar

Introducing explicit syntax does also ﬁx the issues

with the textual syntax shown earlier. By e.g. in-

troducing a keyword, const, for the constants in

the example, there would be no ambiguities between

variable- and constant-declarations. Such a solution is

often easy to implement, but it is more critical to ﬁnd

out when such a solution is needed in the ﬁrst place.

We have devised a way to ﬁnd problems. In or-

der to achieve a check of quality for the projectional

syntax, it is ﬁrst translated into a grammar. The pro-

jectional syntax is very similar to a grammar, so the

translation is not too difﬁcult. The grammar is then

checked according to the LR(1) criteria. The user is

warned when something bad is happening, allowing

him or her to ﬁx possible ambiguities.

We have developed a proof-of-concept solution

for MPS, demonstrating how a projectional editor

could be checked for possible inconsistencies. Our

solution is implemented in a series of steps, where

ﬁrst the editor deﬁnition is mapped into a textual lan-

guage for grammars. Then the generated grammar is

used as input to a parser generator. Finally, any output

from the parser generator will be reported back to the

user in MPS. In this way, the parser generator is re-

sponsible for detecting anything bad in the grammar

(and indirectly the projectional editor deﬁnition).

For the example, the following translations are

used. We start with the original syntax deﬁnitions as

follows.

editor for concept Definitions

node cell layout:

(- % constants % /empty cell: -)

(- % variables % /empty cell: -)

editor for concept Constant

node cell layout:

[- {type} {name} = {value} -]

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

520

editor for concept Variable

node cell layout:

[- {type} {name} ?= {value} -]

The above editor descriptions are automatically

translated into the following grammar rules.

Definitions ::= Constant* Variable*

NL ;

Constant ::= IDENTIFIER IDENTIFIER

EQUALS INTEGER NL ;

Variable ::= IDENTIFIER IDENTIFIER

(EQUALS INTEGER)? NL ;

In this grammar, IDENTIFIER, EQUALS, INTEGER,

and NL are terminal symbols for identiﬁers, equals

sign, integers, and newline, respectively. As it stands

now, it will lead to conﬂicts in the LR(1) analysis. The

problem is that variables and constants are overlap-

ping, which means the grammar is ambiguous; when

reading an identiﬁer, it is not clear if the constant part

should be ﬁnished or not.

Our addition to the editor language in MPS is

able to pick up on this type of error. When using

our checking tool on the above editor deﬁnition, the

parser generator reports the following back to us in

MPS.

Analyzing: definitions.editor.cup

Warning : *** Shift/Reduce conflict found

in state #3

between Constant_0_Arb ::= (*)

and Constant_0 ::= (*) IDENTIFIER

IDENTIFIER EQUALS STRING

under symbol IDENTIFIER

Resolved in favor of shifting.

Warning : *** Shift/Reduce conflict found

in state #4

between Constant_0_Arb ::= (*)

and Constant_0 ::= (*) IDENTIFIER

IDENTIFIER EQUALS STRING

under symbol IDENTIFIER

Resolved in favor of shifting.

Error : *** More conflicts encountered

than expected -- parser

generation aborted

------- CUP v0.11b 20150930 (SVN rev 66)

Parser Generation Summary

------- 1 error and 2 warnings

The errors reported above also give some indica-

tion as to where they come from. Constant_0 tells

us that it comes from the editor for constants, and the

zero means that it comes from that editor’s ﬁrst child-

node. So the tool cannot decide whether it should read

the line "int a = 10" as a Constant_0 (Shift), or ﬁnish

reading constants and read the line as variable (Re-

duce). At the moment, the error feedback to the user

still can be improved, but the principle stays the same.

The problem with the grammar given by the con-

ﬂicts can easily be resolved by e.g. introducing a

const keyword as mentioned earlier. The grammar

would then look like this.

Definitions ::= Constant* Variable*

NL ;

Constant ::= const IDENTIFIER

IDENTIFIER EQUALS INTEGER NL ;

Variable ::= IDENTIFIER IDENTIFIER

(EQUALS INTEGER)? NL ;

When we build the language again, we get a much

better output.

Analyzing: definitions.editor.cup

------- CUP v0.11b 20150930 (SVN rev 66)

Parser Generation Summary

------- 0 errors and 0 warnings

With the current implementation, MPS can have

several false positives, i.e. warnings that are not really

problems. However, most of them are easily solved,

and when the description does not have problems,

then it is good (no false negatives).

5 SUMMARY

In the past, the development of different grammar

classes was geared by the need to facilicate human-

machine interaction. Then along came graphical lan-

guages, and with them projectional editors. Projec-

tional editors avoid parsing concrete syntax and in-

stead work directly with the abstract syntax. The con-

crete syntax is deﬁned as projections of the abstract

syntax (like views from the MVC pattern). This al-

lows for much more ﬂexible concrete syntax deﬁni-

tions, but there are also downsides to this. Projec-

tional editors can handle programs that would be oth-

erwise difﬁcult to parse. This is positive because it

allows very ﬂexible language deﬁnition, but it is nega-

tive when trying to explain programs to other humans;

syntax ambiguities do not only affect parsers, but hu-

mans as well. The problem not only applies to projec-

tional editing, and we also consider textual grammars

with long lookahead (LL*) to be of bad style.

Advocating LR(1) as best practice, we outline

how to improve the concrete syntax deﬁnitions for

projectional editing. Avoiding implicit connections

between elements, and avoiding same syntax for

different elements are some measures that can be

Consistent Projectional Text Editors

521

taken. Furthermore, deriving LR(1) criteria for graph-

ical grammars (similar to how it is done with SDL-

2000) can make these grammars more easily analyz-

able. Textual syntaxes for projectional editors can be

checked similarly using LR(1) criteria. The problem

with this approach is that the syntax deﬁnitions are of-

ten not given as grammars in projectional editors. A

possible solution is to map the editor deﬁnitions into

textual grammars so that these in turn can be analyzed

for possible ambiguities. We have created a proof-of-

concept for the MPS language workbench using this

method. It proves to be a viable method for ambiguity

checking of projectional editors.

In the future, we want to extend the prototype

towards graphical languages. To help leverage the

tools used for analyzing textual grammars also for

the graphical case, we propose deriving LR(1) crite-

ria for graphical grammars. The graphical grammar

is mapped into an LR(1) grammar, which is then ana-

lyzed. This could be achieved similarly to how SDL-

2000 (ITU-T, 1999) uses an extended EBNF in order

to capture its graphical grammar. This way, spatial

relationships are mapped onto normal grammar se-

quence constructs, which would allow sanity checks

for graphics. This approach could be combined with

the sanity checks proposed in (Moody, 2009).

Before projectional editors, technology was the

limiting factor requiring unambiguous grammars.

Now, humans are more limiting, needing unambigu-

ous concrete syntax for communicating with other hu-

mans.

REFERENCES

Guttormsen, S. M. (2016). Changing meta-languages in

MPS. Master’s Thesis, University of Agder, Grim-

stad.

ITU-T (1999). SDL - ITU-T Speciﬁcation and Descrip-

tion Language (SDL-2000). ITU-T Recommendation

Z.100, ITU-T.

Karsai, G., Krahn, H., Pinkernell, C., Rumpe, B., Schindler,

M., and Völkel, S. (2014). Design guidelines for do-

main speciﬁc languages. Computing Research Repos-

itory.

Lunney, T. and Perrott, R. (1988). Syntax-directed editing.

Software Engineering Journal, 3:37–46(9).

Moody, D. (2009). The physics; of notations: Toward

a scientiﬁc basis for constructing visual notations

in software engineering. IEEE Trans. Softw. Eng.,

35(6):756–779.

Parr, T. J. and Quong, R. W. (1995). ANTLR: A predicated-

LL(k) parser generator. In Software – Practice and

Experience, Vol. 25(7), pages 789–810. ACM Press

New York.

Prinz, A. (2000). Formal Semantics for RSDL: Deﬁni-

tion and Implementation. PhD thesis, Humboldt-

Universität zu Berlin.

Schmitt, M. (2003). Parser for sdl-2000. URL:

http://patakino.web.elte.hu/SDL/Parser/SDLParser.g,

accessed 2015.

Toporov, E., Pech, V., and Shatalin, A.

(2013). MPS User Guide for Lan-

guage Designers. Conﬂuence - JetBrains.

https://conﬂuence.jetbrains.com/display/MPSD32/

MPS+User’s+Guide, accessed 2015-06-05.

Völter, M. (2011). Language and IDE modularization, ex-

tension and composition with MPS. Pre-proceedings

of Summer School on Generative and Transforma-

tional Techniques in Software Engineering (GTTSE),

pages 395–431.

Völter, M. (2014). Generic tools, speciﬁc languages. PhD

thesis, TU Delft, Delft University of Technology.

Völter, M., Benz, S., Dietrich, C., Engelmann, B., Helander,

M., Kats, L. C., Visser, E., and Wachsmuth, G. (2013).

DSL engineering: Designing, implementing and using

domain-speciﬁc languages. Implementing and Using

Domain-Speciﬁc Languages. dslbook. org.

Völter, M., Siegmund, J., Berger, T., and Kolb, B. (2014).

Towards user-friendly projectional editors. In Combe-

male, B., Pearce, D. J., Barais, O., and Vinju, J. J., ed-

itors, Software Language Engineering, volume 8706

of Lecture Notes in Computer Science, pages 41–61.

Springer International Publishing.

Völter, M. and Solomatov, K. (2010). Language modu-

larization and composition with projectional language

workbenches illustrated with MPS. Software Lan-

guage Engineering, SLE.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

522
