3D Video Multiple Description Coding Considering Region of Interest

Ehsan Rahimi and Chris Joslin

Department of Systems and Computer Engineering, Carleton University, 1125 Colonel By Dr., Ottawa, ON, Canada

{ehsan.rahimi, chris.joslin}@carleton.ca

Keywords:

Multimedia Communication, 3D Video, Colorful 2D Image, Gray Scale Depth Map Image, Multiple

Description Coding, Error Prone Environment, Packet Failure, Spatial Decimation, Compression Efﬁciency.

Abstract:

3D video is becoming a most favorable video and attracting researcher’s mind to provide robust methods of

streaming since packet failure has always been the inseparable characteristic of wired or wireless networks.

This paper aims to provide a new multiple description coding for 3D video considering objects existed in the

scene. To this end, a low complex algorithm for realizing objects in 3D scene will provided and then a non-

identical decimation method with respect to objects will be utilized to produce descriptions of MDC approach.

Also, in point of depth map image, a new non-identical MDC algorithm will be be introduced to stream depth

map image saving bandwidth without affecting the quality of decoded video in the receiver side.

1 INTRODUCTION

Todays, multimedia communication including broad-

cast TV, video conference, TV on demand, etc are

one of the most favorable methods of communica-

tion among public. Due to accessibility of the multi-

media communication ubiquitously, multimedia con-

sumers and consequently, demands for bandwidth in

the last 5 years have been increased dramatically so

that current communication technologies cannot keep

up with such huge demands. For example, accord-

ing to CBCnews (2015) downloading of video content

from Netﬂix in North America has been doubled in

ﬁve years (from 35% in 2010 to 70% in 2015)(CBC-

news, 2015); however the video trafﬁc is exponen-

tially increasing, the linear rate of the increment in

the video trafﬁc load (being twice in next ﬁve years)

is difﬁcult for operators to support due to physical re-

strictions of the communication systems. To make the

matter of insufﬁcient resource to stream video worse,

3D videos are now becoming more and more popu-

lar among public and video marketing. In addition,

according to CTVnews (2016), Cineplex , Canada’s

largest chain of movie theatres, has announced the

new multi screen service in Toronto, Edmonton, and

Vancouver (CTVnews, 2016). With the new type of

display observers are provided 270 degree of space by

one screen in the front and two side screens. To rep-

resent 3D video on client’s device, depth information

needs to be transmitted toward receivers in addition to

the color 2D video. Hence, need for higher bandwidth

to provide multimedia services are more highlighted

in near future.

Smolic and Kimata deﬁned 3D video as ”geomet-

rically calibrated and temporally synchronized video

data” (Smolic and Kimata, 2003a); Which means that

more memory and bandwidth are required to store or

stream 3D video, respectively. Even though, the tech-

nology for producing memory has been developed in

the last decade, it is still a challenge to save the enor-

mous volume of 3D video data effectively. More im-

portantly, There are some restrictions to stream im-

mersive videos. There are still quite a few challenges

to stream 2D HD, or Ultra HD video dynamically, ef-

ﬁciently, and reliably. Since, there is no 3D video

coding standard speciﬁcally and the main core of cur-

rent 3D video encoding methods relies on 2D video

coding standards highly, those 2D video challenges

can also be applicable for 3D video transmission.

As described by MPEG-3DAV (Hewage, 2014;

Smolic and Kimata, 2003b), 3D videos can be repre-

sented in three ways: panoramic video, stereoscopic

video, and multiview video. It can be said that stereo-

scopic videos are a subset of multiview videos as they

capture only two adjacent views just as human vision-

ary system. Therefore, stereoscopic video needs less

bandwidth, processing power and storage than mul-

tiview video and is more common compared to the

other two representations.

Stereoscopic video can be generated in three

ways: dual camera conﬁguration, 3D/Depth-range

cameras, 2D to 3D conversion algorithms (Hewage,

208

Rahimi E. and Joslin C.

3D Video Multiple Description Coding Considering Region of Interest.

DOI: 10.5220/0006151802080215

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 208-215

ISBN: 978-989-758-225-7

2014; Meesters et al., 2004). This paper mainly fo-

cuses on the color image plus depth map representa-

tion which can be derived from either left and right

views or depth cameras.

One of the major problems that occur when de-

livering videos to users is packet failure. This hap-

pens during video streaming in wired and wireless

networks. Basically, wireless networks suffer from

unreliability due to the noise and interference that ex-

ist in the environment. In wired networks error can

occur because of packet loss, corruption, and large

packet delay. Therefore, it can be said that packet fail-

ure is common for wired or wireless networks, how-

ever the variances of the error for various channels

are different. Such errors may generally produce un-

acceptable impacts on the delivered video and reduce

the quality of experience. To avoid such disappoint-

ment by users, error resilient methods of streaming

need to be applied by transmitters. In communica-

tion systems there are usually three methods to tackle

packet failure: Automatic Repeat reQuest (ARQ),

Forward Error Correction (FEC), Error Resilient Cod-

ing (ERC). The ARQ approach requires a network

with feedback capability, so it is not beneﬁcial for

real-time or broadcast applications. FEC methods are

designed to cope with a speciﬁc amount of error and

this makes them impractical in environments that the

variance of noise ﬂuctuates and exceed the accept-

able threshold. As can be understood from the term

”error resilient coding”, it produces an error robust

video stream which is done in the source layer. By

an ERC method, redundancy bits are added to the

stream to enhance its resistance against packetcorrup-

tion. There are quite a few methods that redundancy

can be introduced to the stream such as Reversible

Variable Length Coding (RVLC), Intra refreshment,

Flexible Macrobloc Ordering (FMO), layered Cod-

ing (LC), Multiple Description Coding (MDC), etc.

Among these methods, RVLC used in H.263 suffers

from the low coding efﬁciency and Intra refreshment

and FMO (used in H.264) are beneﬁcial for the chan-

nels with low variance of noise. In layered coding,

the layers are not separately decodable and the per-

formance depends on receiving the lower layers with-

out error. Therefore, this method is also less advan-

tageous for the error prone environment. For channel

with large noise power, multiple description coding

is more beneﬁcial. MDC avoids packet failure hap-

pens in the network by creating multiple complimen-

tary and separately-decodable descriptions.

Using MDC, a video stream is partitioned into

several separately decodable descriptions and trans-

mitted. In contrast to the error resiliency aspect

of the MDC technique, each description needs to

include header independently (in order to be sepa-

rately decodable) and this reduces coding efﬁciency.

MDC also affects performance of Differential Pulse

Code Modulation (DPCM) in the hybrid video encod-

ing algorithm used by all current video coding stan-

dards. DPCM in the hybrid video encoding algorithm

tends to eliminate neighbor pixels’ dependency, while

MDC deteriorate correlation of neighbor pixels. For

example, in a spatial MDC approach a frame is par-

titioned into distinct subimages so that two neighbor

pixels are not assigned to a same subimage necessar-

ily. Compared to its drawbacks, by the MDC tech-

nique if enough resource (such as bandwidth) is not

available, a subset of all descriptions can be received

and decoded; Also when an error occurs in a descrip-

tions, it may be ﬁxed using other error free descrip-

tions. For error prone environment, these two advan-

tages outweigh the disadvantages and make MDC a

powerful strategy of video streaming for peer to peer

communications, cooperative network, or heteroge-

neous network (Kazemi, 2012; Padmanabhan et al.,

2003).

DifferentMDC approachescan be classiﬁed based

on the type of data which is divided among descrip-

tions. It can be temporal, spatial, frequency, or com-

pressed type or it can be a hybrid approach. For exam-

ple, by a temporal MDC approach with two descrip-

tions, one description can include only odd frames

while the other description includes just even frames.

With a spatial MDC, each video frames is partitioned

into several subimages with lower resolution, brieﬂy.

Frequency MDC tends to divide frequency compo-

nents of video frames among descriptions.

However, multiple description coding approach

for 2D videos has been investigated throughly, more

investigation is required to apply MDC to 3D video

speciﬁcally. For 3D video, since there is one more di-

mension (depth) we have more degree of freedom in

order to partition video data. This paper aims to in-

troduce a new 3D spatial MDC considering objects of

the scene.

This paper is organized as follows: a background

of spatial multiple description coding is provided in

the Section 2 and challenge and opportunities will be

discussed. Afterward, the proposed system model de-

scribed in Section 3. Finally, some simulation result

will be provided and argued in Section 4.

2 STATE OF THE ART

The ﬁrst aspect of a single video description that can

be considered for the purpose of MDC can be the

spatial domain. This way, each video frame is parti-

3D Video Multiple Description Coding Considering Region of Interest

209

tioned by poly phase subsampling (PSS) into several

images with a lower resolution called subimages (Shi-

rani et al., 2001; Gallant et al., 2001; Kazemi, 2012).

Each description is encoded separately and sent to the

receiver. Two types of decoders, called the central de-

coder and the side decoder, are utilized by receiver to

decode the received data stream. Based on availability

of the descriptions in the receiver, the central or side

decoder decodes the received video descriptions. If

decoder receives all descriptions, the central decoder

decodes the received data stream; otherwise, the side

decoder will be used, however it may produce some

distortion. The central decoder combines all descrip-

tions and reconstructs original image but side decoder

tries to interpolate image using available descriptions.

Although, the central decoder provides a better qual-

ity of resolution, the side decoder can provide a bet-

ter quality of experience if current rate is not enough

to support all descriptions or transmission channel is

so noisy that some descriptions may receive unsuc-

cessfully. Such advantage is achieved at the expense

of compression efﬁciency because pixel subsampling

deteriorates pixel correlation and also each descrip-

tion must have its header data. This means some re-

dundancy can be added without any advantage to im-

prove side quality.

It is worth of mentioning that with a simple spa-

tial MDC, there is no precise adjustment tools over re-

dundancy to control side quality(Shirani et al., 2001;

Gallant et al., 2001; Kazemi, 2012). This means that

there is no way to increase redundancy speciﬁcally to

improve resistivity against noise. For example, it is

impossible to make three, six, or seven symmetric de-

scriptions.

To improve MDC performance, Tillo and Olmo

introduced a new MDC algorithm called ”least pre-

dictable vector directional multiple descriptions cod-

ing”(Tillo and Olmo, 2007). This approach basically

copies the least predictable part of the frame in all

descriptions. The simulation result shows that this

method improves side quality compared to previous

simple PSS approach although the new method pro-

vides more redundancy. They also argued that this

algorithm is more complex as it needs to detect least

predictable data.

In another work, Shirani presented a non-linear

PSS approach and analysed its performance in case of

missing one or more descriptions (Shirani, 2006). Ac-

cording to Shirani’s work, some pixels (called region

of interest (ROI)) are sampled with greater rate than

those are not important based on an exponential equa-

tion. On the other hand, descriptions include more

information regarding the ROI and this enhances the

side quality in the side decoder. Since the human vi-

sionary system is more sensitive to objects rather than

pixels, this method can provide better performance

in point of subjective assessment, signiﬁcantly. Al-

though, this method provides a better subjective eval-

uation, his paper hasnot discussed how to obtain the

ROI. This problem is more sensible for applications

involving with fast video content.

To extend the MDC algorithm for 3D video, it

also needs to apply MDC approach to the depth map

image. Clearly, the depth map image mainly con-

tains depth information of scene objects. Because of

the nature of real objects, depth information of 3D

scenes rarely contain high frequency contents. Hence

depth information can be compressed effectively and

consequently bandwidth and disk space will be saved

much more comparedto dual camera capturing (Fehn,

2004; Hewage, 2014). In another research done by

Karim et al. (Karim et al., 2008), a new MDC algo-

rithm has been introduced for 3D video. They carried

out their experiments using color plus depth map im-

age representation. To save bandwidth, they showed

that the down sampled version of depth map image

is enough for an acceptable reconstruction in the de-

coder. To this end, they used a down sampled version

of depth map image in their investigation on scalable

video coding. They compared the quality of the re-

constructed 3D videos using the original depth map

image and the down sampled version of the depth map

image and concluded that decimation of the depth

map image does not cause a considerable degrada-

tion in the decoded 3D video. They also checked the

result for a scalable multiple description coding ap-

proach and observe the same result. Therefore, down

sampling of the depth map image does not affect the

quality of reconstructed image and this is because, the

depth map image rarely includes high frequency con-

tents and also the depth values of adjacent pixels are

usually similar. This fact that the depth values of pix-

els for an object are very closed to each other has been

used in the research, done by Liu et al. (Liu et al.,

2015), and the variance of the depth values are uti-

lized to do ”texture block partitioning”.

This paper combines the facts used by Tillo

and Olmo (Tillo and Olmo, 2007), Shirani (Shirani,

2006), Karim et al. (Karim et al., 2008), and Liu et al.

(Liu et al., 2015) and introduce a new MDC method

for 3D videos. More explanation about the proposed

method will be provided in the next section.

3 PROPOSED METHOD

This section describes the proposed method for 3D

video multiple description coding. Figure 1 shows an

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

210

overview of this method. As can be seen in this ﬁg-

ure, ﬁrst 3D raw frames are split into 2D color frames

and gray scale depth map frames. Then the region

of interest is identiﬁed from the depth map image.

The process of extracting the ROI will be described

in the next part of this section. After detecting the

important pixels (ROI), both color and depth frames

are partitioned separately into four subimages using

poly phase subsampling. Afterward, two opposite al-

gorithms are used for color and depth map subim-

ages. For the color image, the whole resolution of

color pixel values for interesting components will be

added to the stream in order to increase the resolution

of the ROI; this helps to recover the ROI perfectly

in cased of missing descriptions. For the depth map

subimages, a contrary procedure is applied. As dis-

cussed earlier, depth values of pixels for an object are

very similar and there is no need to stream depth in-

formation of all pixels of an object. Since the ROI

identiﬁcation algorithm detects objects as the ROI,

a decimated version of the ROI in each depth map

subimage is enough to recover an acceptable recon-

struction of the original depth map image for the ROI.

Instead, as the non-important parts of the subimages

contain very different depth values, they need to be

streamed in original resolution to have a proper recon-

struction in case of packet loss. In other words, more

bits are assigned to those blocks of depth map image

that have diverse depth pixel values because pixels of

these blocks cannot be estimated from adjacent pixels

in the decoder.

As discussed in the previous section, Karim et al.

showed that the depth map image can be de decimated

without causing signiﬁcant distortion in the decoder

(Karim et al., 2008). It can be said that the proposed

method uses this (concluded from Karim et al. work)

and enhances its performance by changing the iden-

tical decimation to a non-identical decimation of the

depth map image. Since the depth values of important

pixels are very closed to each other compared to the

remainder of the depth map image, the non-identical

decimation algorithm would provide less error in the

decoder having only one description (with an objec-

tive assessment like PSNR or SSIM as can be seen

by simulation results). For the subjective assessment,

the proposed method can provide much better perfor-

mance since the human visionary system is more sen-

sitive to objects rather than pixels and also the fact

that the new method focus on objects.

One important issue in this process is its require-

ment to a low complexity operation to realize inter-

esting objects. In other words, it is very crucial to

ﬁnd ROI in real time as some applications dealing

with live video (such as video conferencing) and since

complex operations cause delay, a complicated al-

gorithm is impractical for the real time applications.

Therefore, the need for a low complexity ROI identiﬁ-

cation algorithm is highlighted in the new method. To

this end, we utilize the ratio of the standard deviation

σ to the mean µ, also knownas coefﬁcient of variation

(CoV), in a block wise manner:

, (1)

where c

is CoV. σ and µ are the standard deviation

and mean of a block in the depth map image. Indeed,

CoV shows the normalized variation of pixel values.

The CoV ratio is applied on depth map image in a

block wise manner and it can be argued that if the

CoV of a block is very big, the block is related to sev-

eral objects since depth values of pixels for an object

are usually similar. Also, if it is very small (close to

zero) it is related to an absolutely straight (vertically

ﬂat) objects (we are not looking for); If the CoV ra-

tio of a block is around 1, the block is probably re-

lated to an interesting object. It can be justiﬁed that in

terms of the depth values the important objects usu-

ally contain low frequency contents, neither zero nor

high frequency contents.

The algorithm identifying objects is as follows

(see Figure 2):for the ﬁrst step, the entire depth map

frame is considered as one block. The CoV ratio

of the block is calculated and checked to determine

whether it is around 1 or not. If not, the block is parti-

tioned into four equal-size blocks and then each block

is consider as a new block. This hierarchical process

continues until there are no more blocks with the CoV

ratio greater than 1 (3 is used for the simulation). In

this algorithm it is assumed that the minimum accept-

able size of a block is 2 × 2 pixels. As an example,

this process has been depicted in Figure 3. Numbers

inside blocks in this ﬁgure represent typical CoV val-

ues. For this ﬁgure, it also has been assumed that

the resolution of the depth map image is 16× 16 pix-

els and the highlighted blocks include the important

pixels that the proposed algorithm is looking for. As

can be seen in 3, CoV values of highlighted blocks

are around 1 while others are much larger than 1; but

since the minimum acceptable size of a block is 2×2,

the algorithm does not continues the hierarchical di-

vision algorithm for those blocks which have a large

CoV values.

As an example, Figure 4 shows the performance

of ROI identiﬁcation algorithm for the videos ”Inter-

view” and ”Orbi”. As can be seen in this image, inter-

esting objects have been identiﬁed very well. Further

performance evaluations are shown in the next sec-

tion.

3D Video Multiple Description Coding Considering Region of Interest

211

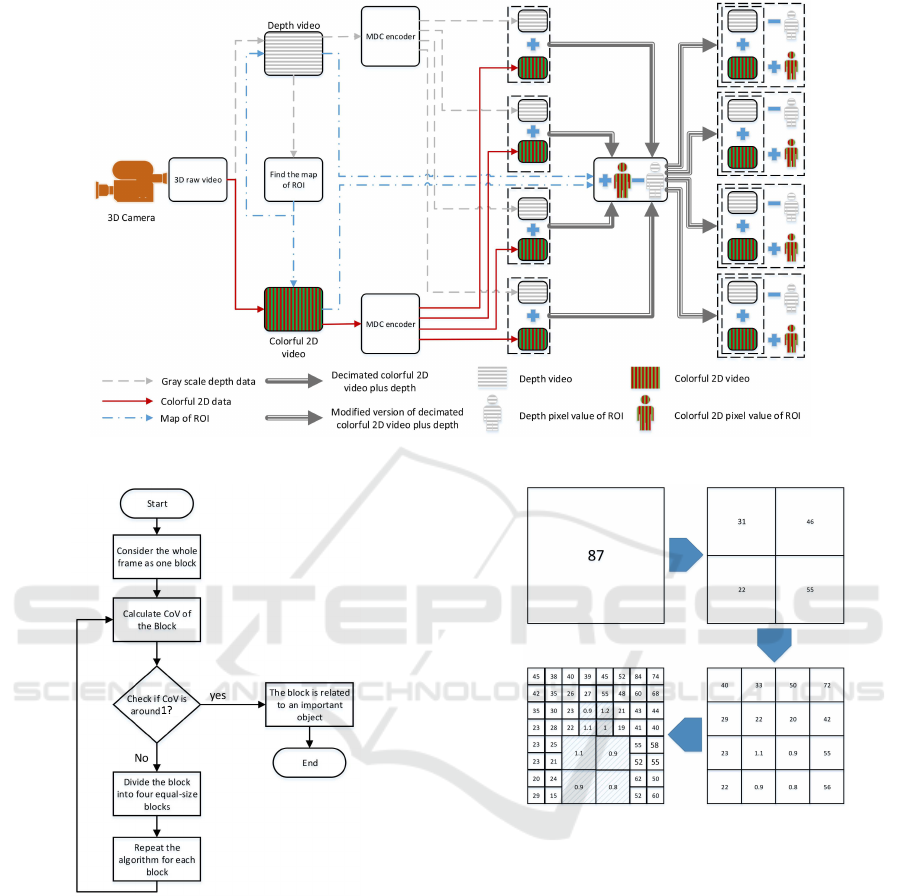

Figure 1: Block diagram of the proposed method.

Figure 2: The algorithm of identifying important pixels.

4 SIMULATION RESULT AND

DISCUSSION

For evaluation of the proposed method, this paper car-

ried out tests using two stereoscopic test sequences

with the format of DVD-Video PAL (720 × 576),

called ”Interview” and ”Orbi” videos. The chroma

and depth subsampling format is 4: 2: 2: 4 (the last

4 shows that the resolution of the depth map image

is the same as the Y image or in other words the to-

tal frame resolution is 1440 × 576 ). Each video is

Figure 3: Hierarchical division to identify ROI.

90 frames and the frame rate is 30 frames per second

(fps). I frames are repeated every 16 frames and only

P frames are used between I frames. The new method

is implemented using H.264/AVC reference software,

JM 19.0 (Institut, 2015). As described in the previ-

ous section, the hierarchical division ROI identiﬁca-

tion algorithm halves both width and height in each

iteration to make smaller blocks. Therefore, as the

width of the depth map frame (720 = 2

× 3

× 5) is

not dividable after the 4th iteration, to have better res-

olution we assumed that the width of depth map frame

for the ROI identiﬁcation algorithm is 768 (= 2

× 3)

(we add zeros to the left side of the depth map im-

age). With the same argument, the height of the depth

map frame has been assumed to be 512 (= 2

× 2).

Therefore, the acceptable minimum size of block in

the hierarchical division ROI identiﬁcation algorithm

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

212

Figure 4: A sample performance of ROI identiﬁcation: (a) Original 2D video (video ”Interview”). (b) Detected ROI (video

”Interview”). (c) Original 2D video (video ”Orbi”). (b) Detected ROI (video ”Orbi”).

after eight iterations is 2× 3 (this means that the min-

imum block size after 8th iteration in the hierarchical

division algorithm is 6 pixels (see Table 1)).

As mentioned earlier, Figure 4 shows the original

2D video frames (the 87th frame of video ”Interview”

and the 1st frame of video ”Orbi” ) and their identiﬁed

ROI. Detecting pixels related to the hands of objects

in the video ”Interview” during handshaking (moving

objects) can show acceptable performance of the al-

gorithm for realizing ROI. This ﬁgure also shows a

good performance for the second test sequence, i.e.

video ”Orbi”. As can be seen objects in this video has

been identiﬁed very well by the proposed algorithm.

Table 1 shows the number of blocks with differ-

ent sizes after hierarchical division algorithm. As can

be seen, there is one block with the size of 24576

(= 128 × 192). This means that about 6% of en-

tire depth map image is excluded of being partitioned

more and stopped after the second iteration. Consid-

Table 1: Number of block after hierarchical division algo-

rithm.

Blocks’ size Number of Blocks percent(%)

6 3188 4.86

24 1099 6.70

96 514 12.55

384 213 20.80

1536 49 19.14

6144 19 29.69

24576 1 6.25

ering the second large block size in Table 1, i.e. 6144

(= 64× 96), it can be said that the hierarchical divi-

sion process will be stopped for more than one third

of the entire depth map image after the third iteration.

This result can show that the algorithm does not have

high load of calculation and it is not so complex.

Table 2 shows the number of blocks with different

CoV values. As can be seen by this table, about 36%

of the depth map image have CoV values less than 1.

On the other hand, more than one third of the depth

map image have very closed depth values. This can

be the reason that decimation of the depth map image

does not affect its quality when it is reconstructed in

the decoder; as discussed earlier, Karim et al. showed

by simulation results that the decimation of depth map

image does not cause any considerable degradation in

the decoder (Karim et al., 2008). Table 2 also shows

that about 96% of the depth map image have the CoV

values less than 3. The fact that about 96% of the

depth map image have similar depth value and there

is no need to be sent with the original resolution, can

justify why the non-identical decimation is more ad-

vantageous than the identical decimation. This means

that only about 4% of the depth map image need to be

encoded with the original resolution and the remain-

der can be decimated to save bandwidth or storage.

In Figure 5 and 6, PSNR and SSIM measurements

of the color 2D video using the proposed method and

the basic Poly phase SubSampling MDC (PSS-MDC)

are compared. For both graphs, it has been assumed

that the decoder receives only one description among

3D Video Multiple Description Coding Considering Region of Interest

213

Table 2: Number of block with different Cov values after hierarchical division algorithm.

Blocks’ size Percent of blocks

6 24 96 384 1536 6144 24576 with speciﬁc CoV(%)

CoV

≤ 1 799 471 228 90 24 17 1 60.64

1 ∼ 3 833 627 286 123 25 2 0 36.98

3 ∼ 10 602 1 0 0 0 0 0 0.92

10 ∼ 20 276 0 0 0 0 0 0 0.42

20 ∼ 03 320 0 0 0 0 0 0 0.49

30 ∼ 40 171 0 0 0 0 0 0 0.26

40 ∼ 50 13 0 0 0 0 0 0 0.02

50 ∼ 60 2 0 0 0 0 0 0 0.003

60 ∼ 70 16 0 0 0 0 0 0 0.02

70 ∼ 80 46 0 0 0 0 0 0 0.07

80 ∼ 100 0 0 0 0 0 0 0 0

≥ 100 110 0 0 0 0 0 0 0.17

Percent of blocks

with speciﬁc size(%) 4.86 6.70 12.55 20.80 19.14 29.69 6.25

four descriptions. As can be seen by the ﬁrst ﬁg-

ure, more than 1 dB improvement for the video ”In-

terview” and more than 2 dB for the video ”Orbi”

with a same rate can be achieved by the proposed

MDC method. Regarding to SSIM, the proposed

method provides about 0.3 improvement for the high

rate streaming. It should be noted that since human

visionary system is more sensitive to objects rather

than pixels, subjective assessment can highlight more

the improved performance of the proposed algorithm

compared to the previous methods.

0 2 4 6 8 10 12 14 16

PSNR (dB)

Rate (Mb/s)

Proposed method-Interview Basic PSS-Interview

Proposed method-Orbi Basic PSS-Orbi

Figure 5: PSNR assessment of color image.

When it comes to the assessment of the proposed

method for the depth map image, it shows the better

performance more clearly. As can be seen in Figure 7

and 8, the improvementbetween the proposed method

and the PSS subsampling is larger than the improve-

ment achieved in the assessment of the color image.

For the PSNR evaluation of the depth map image, the

proposed method outperforms about 8 dB for the se-

quence ”interview” and about 9 dB for the sequence

0.75

0.8

0.85

0.9

0.95

0 2 4 6 8 10 12 14 16

SSIM

Rate (Mb/s)

Proposed method-Interview Basic PSS-Interview

Proposed method-Orbi Basic PSS-Orbi

Figure 6: SSIM evaluation of color image.

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2

PSNR (dB)

Rate (Mb/s)

Proposed method-Interview Basic PSS-Interview

Proposed method-Orbi Basic PSS-Orbi

Figure 7: PSNR evaluation of depth map image.

”Orbi”. About the SSIM assessment, the proposed

method outweighs about 0.01 compared to PSS sum-

sampling method.

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

214

0.93

0.94

0.95

0.96

0.97

0.98

0.99

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2

SSIM

Rate (Mb/s)

Proposed method-Interview Basic PSS-Interview

Proposed method-Orbi Basic PSS-Orbi

Figure 8: SSIM evaluation of depth map image.

5 CONCLUSION

Multimedia streaming suffers from packet failure in

the network due to the packet loss, packet corrup-

tion, and large packet delay. An appropriate solu-

tion against packet failure in the error prone envi-

ronment can be multiple description coding (MDC).

With MDC, one video description is partitioned into

several separately decodable descriptions. Missing a

descriptions during transmission, decoder is capable

to estimate the lost description from other error free

description. To improve the basic spatial partition-

ing MDC algorithm and also be applicable for 3D

videos, a non identical decimation algorithm for the

stereoscopic videos has been provided in this paper.

Such algorithm works based on objects existing in the

scene and assigns more bandwidth to those region of

interest. Since human eyes are more sensitive to ob-

jects rather than pixels, the proposed algorithm pro-

vides better performance than PSS MDC. In point of

depth map image, the proposed algorithm enhance the

current basic decimation to non identical decimation.

As shown earlier, most parts of the depth map have

similar depth value and therefore decimation in those

part can save bandwidth or storage without degrading

in quality considerably. Therefore, by the new algo-

rithm,those parts of the depth map image that have

large variances is encoded with the original resolu-

tion.

ACKNOWLEDGEMENT

The authors would like to acknowledge that this re-

search was supported by NSERC Strategic Project

Grant: ”Hi-Fit: High Fidelity Telepresence over Best-

Effort Networks”.

REFERENCES

CBCnews (2015). Netﬂix, youtube video streaming domi-

nate internet trafﬁc in north america.

CTVnews (2016). Cineplex to open panoramic theatres in

toronto, edmonton, vancouver.

Fehn, C. (2004). Depth-image-based rendering (dibr), com-

pression and transmission for a new approach on 3d-

tv. SPIE: Stereoscopic Displays and Virtual Reality

Systems, 5291:93– 104.

Gallant, M., Shirani, S., and Kossentini, F. (2001).

Standard-compliant multiple description video cod-

ing. In Image Processing, 2001. Proceedings. 2001

International Conference on, volume 1, pages 946–

949 vol.1.

Hewage, C. (2014). 3D Video Processing and Transmis-

sion Fundamentals. Chaminda Hewage and book-

boon.com.

Institut, H.-H. (2015). H.264/avc reference software.

Karim, H., Hewage, C., Worrall, S., and Kondoz, A. (2008).

Scalable multiple description video coding for stereo-

scopic 3d. Consumer Electronics, IEEE Transactions

on, 54(2):745–752.

Kazemi, M. (2012). Multiple description video coding

based on base and enhancement layers of SVC and

channel adaptive optimization. PhD thesis, Sharif

University of Technology, Tehran, Iran.

Liu, Z., Cheung, G., Chakareski, J., and Ji, Y. (2015). Multi-

ple description coding and recovery of free viewpoint

video for wireless multi-path streaming. IEEE Jour-

nal of Selected Topics in Signal Processing, 9(1):151–

164.

Meesters, L., IJsselsteijn, W., and Seuntiens, P. (2004). A

survey of perceptual evaluations and requirements of

three-dimensional tv. Circuits and Systems for Video

Technology, IEEE Transactions on, 14(3):381–391.

Padmanabhan, V., Wang, H., and Chou, P. (2003). Resilient

peer-to-peer streaming. In Network Protocols, 2003.

Proceedings. 11th IEEE International Conference on,

pages 16–27.

Shirani, S. (2006). Content-based multiple description

image coding. Multimedia, IEEE Transactions on,

8(2):411–419.

Shirani, S., Gallant, M., and Kossentini, F. (2001). Mul-

tiple description image coding using pre- and post-

processing. In Information Technology: Coding and

Computing, 2001. Proceedings. International Confer-

ence on, pages 35–39.

Smolic, A. and Kimata, H. (2003a). Report on status of

3dav exploration. Technical Report N5558, ISO/IEC

JTC1/SC29/WG11, Thailand.

Smolic, A. and Kimata, H. (2003b). Report on status of

3dav exploration. Technical Report W5877, ISO/IEC

JTC1/SC29/WG11, Norway.

Tillo, T. and Olmo, G. (2007). Data-dependent pre-

and postprocessing multiple description coding of

images. Image Processing, IEEE Transactions on,

16(5):1269–1280.

3D Video Multiple Description Coding Considering Region of Interest

215
