Using a Virtual Maze Task to Assess Spatial Short-term Memory in

Adults

Sonia C

ardenas-Delgado

, Magdalena M

endez-L

opez

, M.-Carmen Juan

, Elena P

erez-Hern

andez

Javier Lluch

and Roberto Viv

Instituto Universitario de Autom

atica e Inform

atica Industrial, Universitat Polit

ecnica de Val

encia, Camino de Vera, s/n,

46022 Val

encia, Spain

Departamento de Psicolog

ıa y Sociolog

ıa, Universidad de Zaragoza, Zaragoza, Spain

Departamento de Psicolog

ıa Evolutiva y de la Educaci

on, Universidad Aut

onoma de Madrid, Madrid, Spain

Keywords:

Short-term Memory, Spatial Memory, VR HMD, Virtual Reality, Interdisciplinary Projects.

Abstract:

In this paper, we present the Virtual Maze Task that assesses spatial short-term memory in adults involving

physical movement and immersion. For physical movement, we used a real bicycle. For immersion, we used

a VR HMD. We compared the exposure to the task using two different interaction types (physical active vs.

physical inactive conditions). The performance and sensations of the participants were compared in both

conditions. We also compared the performance on the virtual task with classical neuropsychological tests. A

total of 89 adults participated in our study. The participants’ ability to learn a route within the Virtual Maze

Task was tested. Then, the participants assessed their experience scoring the following aspects: interaction and

satisfaction. The data were analyzed and we found no differences in satisfaction and interaction scores between

the physical active and the physical inactive conditions. However, the condition used for interaction affected

the score obtained in the task. There were also signiﬁcant effects of gender and/or interaction used in other

measures of performance on the task. Finally, the performance on the task correlated with the performance on

other classical neuropsychological tests for the assessment of short-term memory and spatial memory.

1 INTRODUCTION

The evolution of technology has affected all ﬁelds, in-

cluding psychology. This evolution includes improve-

ments in hardware and software for the development

of more immersive experiences. According to several

experts, Virtual Reality (VR) has the potential to be-

come one of the top breakthrough technologies of the

next decade (The Farm 51, 2015).

Traditionally, paper and pencil tests and

computerized tests have been used for the assess-

ment of cognitive skills. However, computer-based

environments, especially VR systems for neuropsy-

chological assessment, represent a major advance for

the assessment of cognitive skills in a more ecological

way. Ecological validity refers to the degree to which

test results relate to real-life performance (Chaytor

and Schmitter-Edgecombe, 2003).

With regard to the use of VR applied to psycholo-

gy, some authors highlighted the possibility of using

VR measures for neuropsychological assessment in

research applications as well as in clinical practice

(Negut et al., 2016). The neuropsychological assess-

ment of individual cognitive skills improves our un-

derstanding of individual differences in behavior and

helps us to detect pathology (Lezak, 1995). The study

of Juan et al. (2014) showed the advantages of using

an Augmented Reality application for the assessment

of spatial memory in children. Spatial memory is an

important cognitive skill for survival because it allows

us to ﬁnd our way in environments and is related to

a wide range of cognitive abilities. Their study fo-

cused on the assessment of short-term memory like

ours, which can be deﬁned as the capacity for holding

a small amount of information in mind in an active

state for a short period of time. The children who

participated in the study were satisﬁed with the appli-

cation and considered that it was easy to use. In ad-

dition, the application developed by the study, was a

valid tool for assessing the spatial short-term memory

ecologically (Juan et al., 2014).

In real life, the vestibular and visual systems re-

ceive stimuli from the real environment. However,

in VR, vestibular information may not be present or

CÃ ˛ardenas-Delgado S., MÃl’ndez-LÃ¸spez M., Juan M., PÃl’rez-HernÃ ˛andez E., Lluch J. and VivÃ¸s R.

Using a Virtual Maze Task to Assess Spatial Short-term Memory in Adults.

DOI: 10.5220/0006093200460057

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 46-57

ISBN: 978-989-758-224-0

be inﬂuenced by optical ﬂow patterns that are charac-

teristic of self motion (Hettinger and Riccio, 1992).

In this work, we determine if physical movement (di-

rectly related to the vestibular system) has a signiﬁ-

cant inﬂuence on spatial memory.

In this paper, we present the Virtual Maze Task

that assesses spatial short-term memory in healthy

adults involving physical movement and immersion.

For movement, we used a real bicycle. For immer-

sion, we used a VR Head-Mounted Displays (HMD).

Speciﬁcally, we used the Oculus Rift DK2. However,

the task will work exactly the same with other brand

of HMD. The objective of the study was to test the

ability of the new task to assess spatial short-term

memory by comparing the participants’ performance

for the developed task with current approaches for

testing spatial short-term memory. Moreover, the new

task includes two types of interaction (physical active

vs. physical inactive). In the physical active condi-

tion, the participant rode a bicycle. In the physical

inactive condition, the participant used a gamepad.

Our VR task is based on egocentric orientation.

The user learns ones body position in space for orien-

tation (i.e., idiothetic information). Kelly et al. (Kelly

and Mcnamara, 2008) also studied how egocentric ex-

perience, intrinsic structure, and extrinsic structure in-

teract in a virtual environment. They found that the

acquisition of spatial knowledge is similar to using

virtual and real environments. In addition, the study

suggested that VR has advantages for studying spatial

memory and allows for the ease of creating different

environments.

The primary hypothesis of this work was that the

Virtual Maze Task could evaluate short-term spatial

memory and spatial orientation in adults like the tradi-

tional procedures applied in psychology. The second

hypothesis is that there would be no statistically sig-

niﬁcant difference in the score of the task between

genders. The third hypothesis is that there would be

no statistically signiﬁcant difference for the score of

the task between the two types of condition. The

fourth hypothesis is that there would be no statisti-

cally signiﬁcant differences in the satisfaction and in-

teraction of the task between the two types of interac-

tion.

This paper is structured as follows. Section 2 men-

tions related works. Section 3 focuses on the descrip-

tion of the virtual environment and the software and

hardware used. Section 4 presents the sample, the

measures considered, and the procedure of our study

in detail. Section 5 describes the results. Section 6

presents the discussion. Finally, Section 7 summa-

rizes the study and mentions future lines of work.

2 RELATED WORK

With regard to ecological validity, Canty et al. (Canty

et al., 2014) evaluated the sensitivity, convergent va-

lidity and ecological validity of a virtual reality task

for assessing prospective memory (i.e., the Virtual

Reality Shopping Task). The task was tested with

patients who have suffered a traumatic brain injury.

They developed a VR shopping center and used a lap-

top screen to visualize the environment. Their results

showed that the task was sensitive and ecologically

measured the time and events based on prospective

memory ability in patients with post-traumatic brain

injury. That work allowed them to prove the bene-

ﬁts of using VR in the assessment and rehabilitation

of memory in individuals with traumatic brain injury.

Plancher et al. (Plancher et al., 2012) used a laptop to

present a three-dimensional view of two urban envi-

ronments inspired by Paris. In addition, a soundtrack

of typical city noises (cars, people, etc.) were added

to give the participants the feeling of being immersed

in each environment. The participants were seated on

a chair, and the virtual environment was projected 150

cm in front of them. The environment was explored

by means of a virtual car using a real steering wheel, a

gas pedal and a brake pedal. The results demonstrated

that complex virtual environments may provide tools

to reﬂect subjective cognitive deﬁcits in pathological

aging. The study also demonstrated the feasibility of

using VR technology to study the episodic memory

deﬁcits of patients with amnesic mild cognitive im-

pairment and Alzheimer’s disease.

Although most studies use conventional moni-

tors for showing the virtual environment, Parsons and

Rizzo (Parsons and Rizzo, 2008) used a HMD eMagic

Z800 to assess and compare the psychometric proper-

ties between the virtual environment and paper-and-

pencil measures. They created a Virtual Reality Cog-

nitive Performance Assessment Test. Their test fo-

cused on neurocognitive testing using a virtual city

to assess recall of targets delivered within the city.

Their ﬁndings revealed that there were signiﬁcant cor-

relations between the total memory score of their test

and the classical learning and memory tests. In this

line, Nori et al. (Nori et al., 2015) developed a VR

test based on the WalCT, which is a test for assessing

memory for sequences of steps within a real setting

(Piccardi et al., 2008). That test aimed to assess hu-

man navigational ability. They used a HMD eMargin

z800, and a graphic Workstation HP. Participants had

to learn 8-step sequences, which were shown by an

avatar. Their results showed that there were no differ-

ences between the real version and the virtual version

of the same test. They also indicated that the virtual

test was a good tool for studying the brain networks

Using a Virtual Maze Task to Assess Spatial Short-term Memory in Adults

involved in sequential topographical learning.

Overall, most of the works have used simple and

static stimuli. In our study, we created a Virtual

Maze Task for assessing spatial short-term memory

in adults. The task includes two types of condi-

tions (physical active and physical inactive) to control

navigation while participants are immersed in the vir-

tual world. The Oculus Rift DK2 was used in our

task. The Oculus Rift has already been used as a

visualization device for different purposes. For exam-

ple, Space Rift that is a VR game, taught children

about the solar system by allowing them to explore

it in a virtual environment (Pe

na and Tobias, 2014).

Space Rift was tested with ﬁfth-grade students. The

students described the game as enjoyable and immer-

sive, although they had problems distinguishing some

of the images due to lack of sharpness.

Other works have compared different versions of

the same virtual environment using the Oculus Rift.

For example, two different virtual roller coasters were

compared, each with different levels of ﬁdelity (Davis

et al., 2015). They found that the more realistic roller

coaster with higher levels of visual ﬂow had a sig-

niﬁcantly greater chance of inducing cybersickness.

Oculus Rift DK2 was used for watching movies in

which two conditions were considered: the observer

condition, in which the participant was observing the

scene as in traditional movies; and the actor condi-

tion, in which the participant was observing from the

perspective of one of the actors and he/she became

part of the plot (Van den Boom et al., 2015). They

only found differences between the two conditions

with regard to spatial presence in favour of the actor

condition.

The Oculus Rift has also been compared with dif-

ferent visualization systems. For example, the Ocu-

lus Rift and a high-cost Nvis SX60 HMD were com-

pared, which differ in resolution, ﬁeld of view, and

inertial properties, among other factors (Young et al.,

2014). They also assessed simulator sickness and

presence. The ﬁndings showed that the Oculus Rift

consistently outperformed the Nvis SX60 HMD, but

some people were more subject to simulator sickness

with the Oculus Rift. A nVisor MH60V HMD, the

Oculus Rift DK1, and Samsung Gear VR were used

to learn anatomy with students of medical disciplines

(Bu

n et al., 2015). Twenty students from the Poz-

nan University of Technology participated in a study

concerning perception. The participants were asked

to select the preferred HMD and interaction method.

Most of them chose the Gear VR in combination

with Kinect and the gamepad as the preferred solu-

tion. Tan et al. (Tan et al., 2015) presented a study

involving 10 participants that played a ﬁrst-person

shooter game using the Oculus Rift and a traditional

desktop computer-monitor. They concluded that the

participants had heightened experiences, a richer en-

gagement with passive game elements, a higher de-

gree of ﬂow, and a deeper immersion with the Oculus

Rift than on a traditional desktop computer-monitor.

However, they also mentioned the problems of cyber-

sickness and lack of control. Guti

errez-Maldonado et

al. (Guti

errez-Maldonado et al., 2015) developed a

VR system to train diagnostic skills for eating disor-

ders and compared two visualization systems (Ocu-

lus Rift DK1 vs. a laptop with a stereoscopic 15.6-

inch screen). In this study, ﬁfty-two undergraduate

students participated. No differences were found in

either effectiveness or usability with regard to skills

training in psychopathological exploration of eating

disorders through virtual simulations.

3 VIRTUAL MAZE TASK

The Cincinnati water maze is a commonly accepted

tool for assessing the spatial memory in rodents (see

Figure 1) (Arias et al., 2014). The advantages of using

this maze to detect memory impairments in rodents

have been noted (Vorhees and Makris, 2015). We

created a virtual maze based on the Cincinnati water

maze to assess spatial memory in humans (see Figure

2). The original Cincinnati water maze has nine in-

tersections. Our maze also has nine intersections and

four of these intersections were modiﬁed to increase

complexity. The maze has a wall of hedges that are

two meters high and pathways of grass that are two

meters wide (see Figure 3). Different animals were

placed on the route (e.g., a butterﬂy, a tortoise, a snail

or a bird). These animals helped to learn the route

within the maze. Each animal is placed in different

positions and at different heights. All the animals are

located on the right side of the route. For example, the

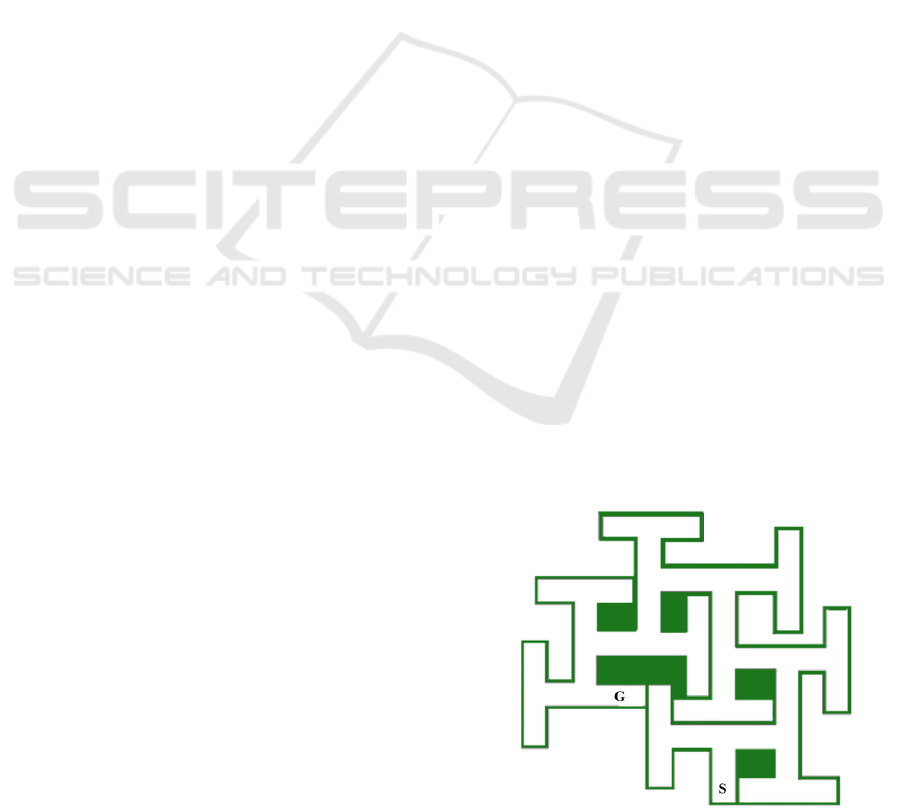

Figure 1: Schematic drawing of the Cincinnati Water Maze.

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

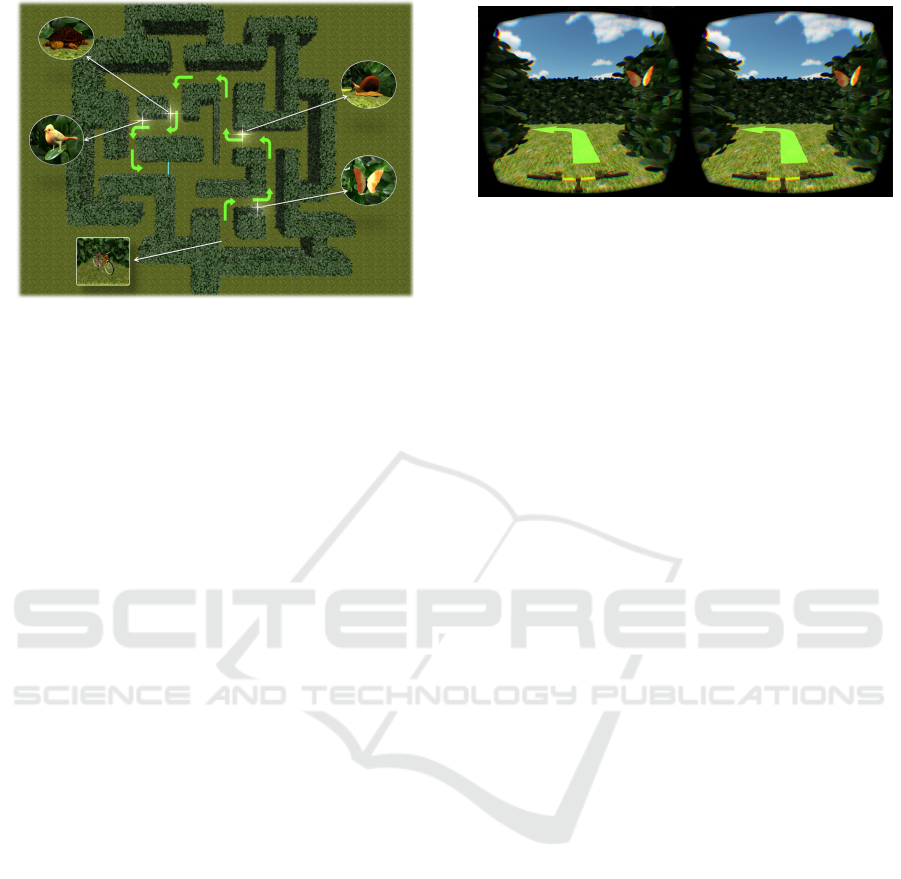

Figure 2: Virtual environment with the 3D animals. Maze

viewed from above.

butterﬂy is placed in the second intersection and at the

top of the wall; the snail is placed in the fourth inter-

section and on the route. The positions and heights of

the animals are always the same.

We included a 3D bicycle for the navigation in

the virtual maze. This bicycle is integrated in the

virtual environment as an avatar from a ﬁrst-person

perspective. The bicycle represents the participant’s

point of view and personiﬁes his/her movements in

the maze. The participant is able to move around

the virtual maze while he/she is observing the ani-

mals. The movements are controlled so that the par-

ticipant only goes forward. The participant can turn

right or left by using the handlebar of the 3D bicycle.

The route is indicated by using arrows. Two types of

arrows are used. The green arrows are used in the

learning stage. The yellow arrows are used in the

testing stage. Therefore, the green arrows are used

to guide the participant from the beginning to the end

of the maze. They show options at each intersection.

The goal of this stage is for the participant to learn

the route. In the testing stage, the yellow arrows only

appear to announce that the user is near an intersec-

tion. These arrows disappear when the participant has

chosen the correct path. The arrows appear again at

the next intersection. If the participant chooses the

wrong way, he/she is automatically placed back at the

starting point, and he/she has to start the testing stage

again.

For the interaction type, two different mechanisms

are integrated. The ﬁrst type of interaction uses

a gamepad and the participant is seated on a chair

(physical inactive condition). The participant is also

able to move forward and to turn right or left by using

the controller of the gamepad. The participant only

has to stop moving the controller of the gamepad to

stop the 3D bicycle. The second type of interaction

uses a physical bicycle (physical active condition).

Figure 3: View of the virtual maze.

The participant controls the navigation and the 3D

bicycle by using the physical bicycle. When he/she

pedals the physical bicycle, he/she moves forward in

the virtual maze. The participant is also able to con-

trol the turns by using the handlebar. When the par-

ticipant wants to stop the bicycle, he/she only has to

press the brake of the physical bicycle. All of these

effects are also reproduced in the 3D bicycle.

We integrated the Oculus Rift DK2 for the immer-

sion of the participant in our VR maze. The Oculus

Rift DK2 was used in the two conditions (physical ac-

tive and physical inactive). The features of this HMD

greatly contribute to the level of immersion.

3.1 Hardware and Software

The Virtual Maze Task ran on an Intel Core i7 com-

puter, 3.5 GHz processor with 16 GB RAM, an

NVIDIA GeForce GTX-970 with a video card of

4GB, and Windows 8 Operating System. For the

development of the virtual environment, we used

Unity Edition Professional (http://unity3d.com), ver-

sion 4.6.0f3, as the game engine. Blender, version

2.72, was used to create the 3D models of the animals

that were included in the environment.

The Virtual Maze Task has ﬁve scenes that were

created with Unity and programmed with C# and

Javascript. The ﬁrst scene is for the introduction of

the participant’s data. The person in charge of the ex-

posure introduces the participant’s date of birth and

gender and chooses the type of interaction. Then, the

system assigns a different code to each participant.

The second scene has an option menu for choosing

the stage of assessment and/or to return to the ﬁrst

scene. The third scene is the Habituation stage. The

fourth scene is the Learning stage. The ﬁfth scene

is the Testing stage. When the participant ﬁnishes

a stage, another menu is displayed allowing the par-

ticipant to continue to the next stage until the task is

complete. These stages are explained in Section 4.2.

Two loudspeakers are used to provide messages and

instructions to the participants.

The HMD for the visualization was an Oculus Rift

Using a Virtual Maze Task to Assess Spatial Short-term Memory in Adults

Figure 4: Mechanisms and devices of interaction.

DK2. This device has a resolution of 960 × 1080 per

eye, a ﬁeld-of-view of 100 nominal, a weight of 0.32

kg, an optical frame rate of 75 Hz, head tracking, and

positional tracking. This device also has an HDMI

connector that needs to be plugged into the HDMI

port of the graphics card of the computer. Video is

sent to the Oculus Rift by this cable. This device

also includes a USB, which carries data and power

to the device, and an audio jack 2.5 mm located on

the side. In addition, this version includes an external

IR camera that tracks the position of the participant’s

head in the 3D space. A detailed description can be

found in (Desai et al., 2014).

To integrate the Oculus Rift with the Virtual Maze

Task, we used the plugins provided by the manufac-

turer (Oculus SDK 0.4.2, Oculus Runtime, and Ocu-

lus Unity Integration Package). Once the OculusUni-

tyIntegration.unitypackage has been imported into

Unity, the following components are available: OVR-

MainMenu, OVRPlayerController, and OVRCamera-

Controller. The Unity MainCamera has to be re-

placed by OVRCamera. The scripts required for the

integration of the Oculus Rift DK2 with the virtual

environment were programmed with C#.

For the interaction type, two different mechanisms

are used. The ﬁrst mechanism is a Gamepad model

AB-Move BG Revenge (see Figure 4). We used the

functions of the Controller Input Manager of Unity in

order to integrate the gamepad with the Virtual Maze

Task.

For the second mechanism of interaction, a GT

mountain bike was used (see Figures 4 and 5). We use

a Bkool roller (http://www.bkool.com) with an ANT+

Bike Cadence Sensor. In fact, Bkool is a smart bicycle

trainer. The Bkool trainer features an advanced cy-

cling simulator and a powerful analysis platform. In

our case, we only use Bkool roller (classical model)

to obtain the cadence, and to ﬁx the rear wheel of

the bicycle (see Figure 5). The model of Bkool used

includes a base for the front tire and a black rubber

mat (1820 × 810 × 6 mm). The rubber mat has a gel

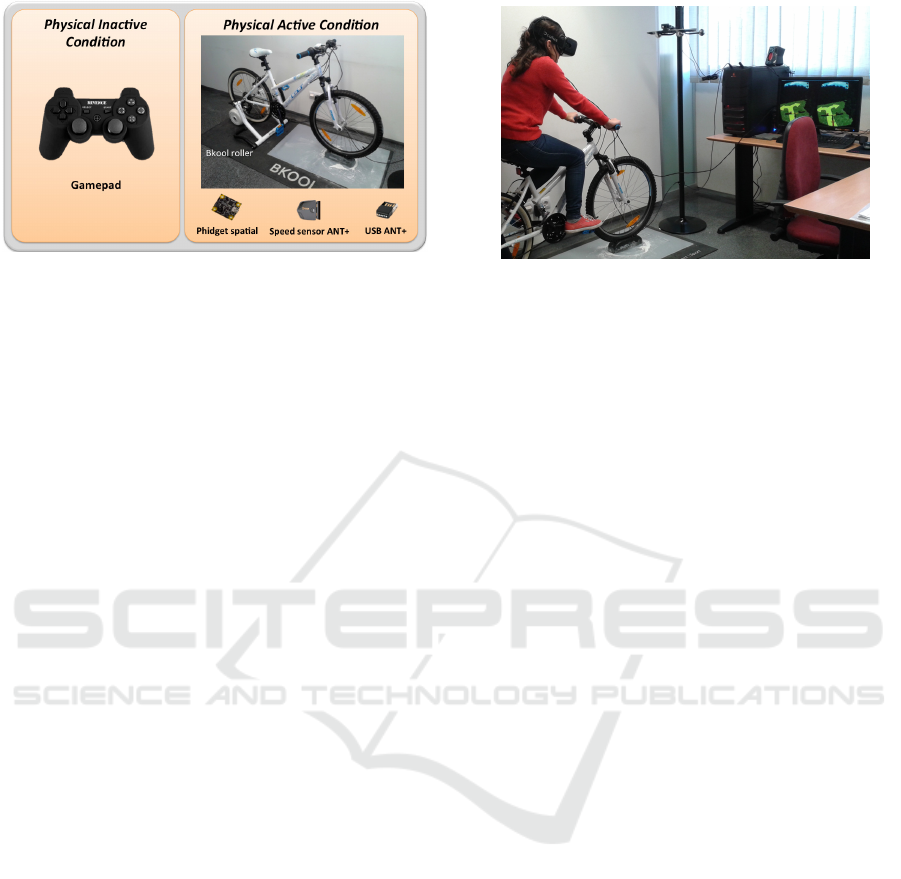

Figure 5: A participant carrying out the task with the bicy-

cle.

core that provides the elasticity needed to protect the

ﬂoor and ensure the stability of the roller and of the

bike. A ﬁber plate was placed on the rubber mat so

that the base can rotate easily. In addition, we used

a speed sensor for the bike (MyCiclo Speed Sensor

ANT+

). This speed sensor was attached to the

chain stay using plastic ties. It uses ANT+

wireless

transmission technology. The data received by the

speed sensor is transmitted to the antenna ANT+

wireless receiver (USB ANT+

) that connects to the

computer. The sensations are very real. It allows

real feelings of pedaling and offers high stability. The

noise emitted is low (about 76 dB).

A program with Visual C++ was developed to

manage the speed data received. This program de-

tects which device is connected to synchronize data

transmission between the receiving antenna and the

ANT+

sensor, and receives speed data.

The accelerometer board 1056 PhidgetSpatial

3/3/3 from Phidgets (http://www.phidgets.com) was

used to obtain the rotation of the handlebar of the bi-

cycle. It was connected to the computer via a USB

cable. The dimensions are 36 × 31 × 6 mm. The li-

braries (Phidget21 Libraries Setup) supplied by the

manufacturer were installed to set this accelerome-

ter. A program with Visual C++ was developed in

order to obtain the angles of rotation of the handlebar.

This program also checks that the device is connected,

sends error messages, initializes the accelerometer,

updates data, and obtains the position data in 3D and

the angle in radians.

A script was developed in C#, called Interac-

tion, to control the movement of the avatar from the

data obtained using the two mechanisms of interac-

tion. In the case of interaction using the bicycle, the

script uses information from the speed and rotation

of the handlebar to calculate the rotation angle of the

handlebar “n” degrees relative to the y-axis. It uses

the Quaternion.Euler method. The Transform.Rotate

method is used to activate the rotation of the virtual

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

Figure 6: Scheme of the Virtual Maze Task.

bicycle (avatar). The bicycle speed data are used by

the Controller.Move method to activate the forward

movement and displacement of the virtual bicycle in

the environment.

The Input.GetAxis method (“axisName”) was

used in the Interaction. The Input.GetAxis returns

values in the range [-1,+1]. The neutral position is

0. When axisName = “Horizontal” returns ]0,+1] for

the horizontal movement to the right and ]0,-1] for

the horizontal movement to the left. For the vertical

axis, the axisName = “Vertical” and the functionali-

ty is similar. A condition that disables the backward

movement was added so that the user cannot move

in reverse. The values of the horizontal movement of

the gamepad lever are used by the Quaternion.Euler

method to calculate the rotation of the handlebar. The

Transform.Rotate method is used to activate the ro-

tation of the virtual bike (avatar). The values of the

vertical movement of the gamepad lever are used by

the Controller.Move method to activate the forward

movement and the displacement of the virtual bicycle

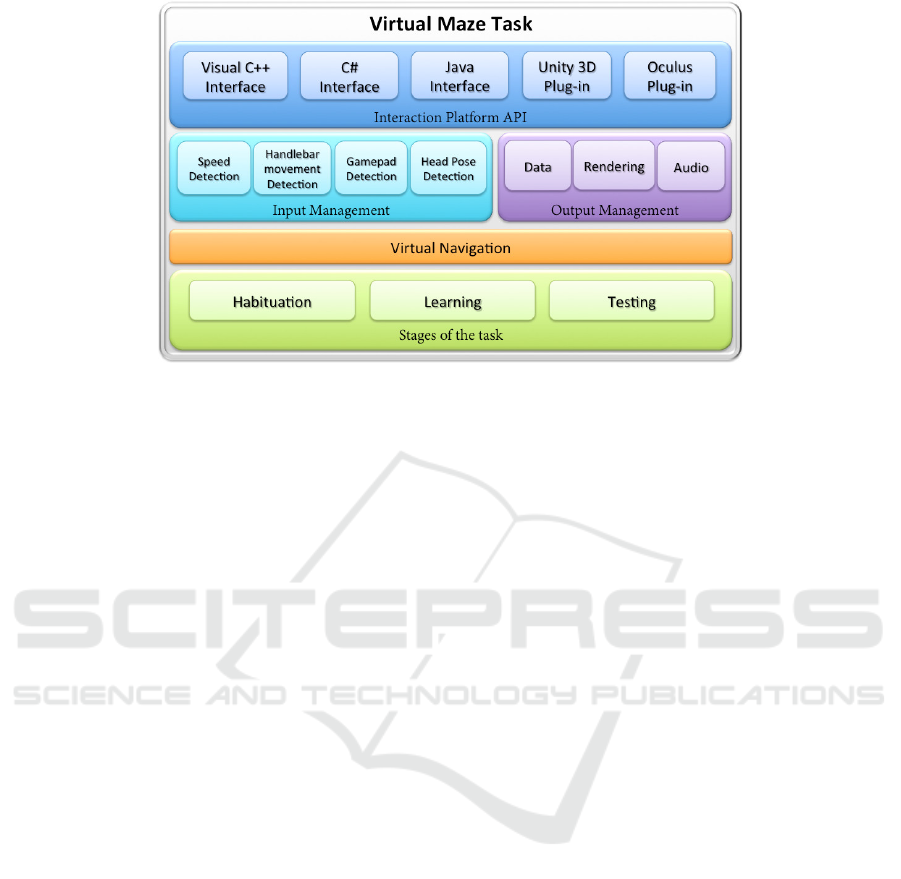

in the environment. A general scheme of the Virtual

Maze Task can be seen in Figure 6.

4 STUDY

All of the participants were informed in writing about

the aims and procedures of the study, and they signed

an informed consent form. They were fully free to

leave the study at any time, and the study was con-

ducted according to the principles stated in the Decla-

ration of Helsinki. The Ethics Committee of the Uni-

versitat Polit

ecnica de Val

encia (Spain) approved the

research protocol.

4.1 Participants

University students participated in this study (N=92).

A recruitment campaign was conducted to ﬁnd the

participants by advertising within the campus facili-

ties. The participants were randomly assigned to one

of the following conditions: physical active condi-

tion (N=47) and physical inactive condition (N=45).

Three participants did not ﬁnish the task due to that

they presented symptoms of cybersickness (in physi-

cal active condition were 2 women and physical inac-

tive condition was 1 men). These three participants

were excluded from the sample. Therefore, the to-

tal of participants considered for our study was 89:

physical active condition (N=45) and physical inac-

tive condition (N=44). The 89 participants completed

the task and ﬁlled out the questionnaires. The mean

age in the physical active condition was 26.38 ± 3.87

years old and the mean age in the physical inactive

condition was 25.38 ± 4.11 years old. There were

25 women and 20 men in the physical active con-

dition, and 21 women and 23 men in the physical

inactive condition. We determined the handedness

of the participants (Oldﬁeld, 1971). In the physical

active condition, 39 participants were right-handed,

1 participant was left-handed and 5 participants were

ambidextrous. In the physical inactive condition, 34

participants were right-handed, 7 participants were

left-handed, and 3 participants were ambidextrous.

The participants ﬁlled out a questionnaire, which pro-

vided information about habits with the aim of con-

trolling variables that could interfere in the interpre-

tation of the results. The participants did not have

habits (drugs and medications) that could inﬂuence

our study. Also, they did not have symptoms of sick-

ness before the task, based on the Simulator Sick-

ness Questionnaire (SSQ) (Kennedy and Lane, 1993).

Using a Virtual Maze Task to Assess Spatial Short-term Memory in Adults

The education levels of the participants in the physi-

cal active condition in percentages were the follow-

ing: undergraduate students (42.9%), graduate stu-

dents (23.8%), Master’s students (21.4%), and PhD

students (9.5%). In the physical inactive condi-

tion, the education levels of the participants were:

undergraduate students (27.9%), graduate students

(23.2%), Master’s students (34.9%), and PhD stu-

dents (7.0%).

4.2 Measures and Procedure

In our study, spatial short-term memory was assessed

by testing the participants’ ability to learn a route

within a maze. The virtual maze described in the Sec-

tion 3, was used for this purpose.

The Virtual Maze Task has three stages: habitua-

tion, learning, and testing (see Figure 6). The habitua-

tion stage has an environment with a short route for

approximately one minute. The path has four inter-

sections and a straight road at the end. This is a trial

stage to train participants to handle the system proper-

ly and to check that the Oculus Rift DK2 is properly

positioned on their heads. The learning stage consists

of an environment in which the participant follows

another route with nine intersections and is guided

by green arrows. The participant must learn the path.

The testing stage has yellow arrows that show options

at each intersection. The participant must remember

and follow the same route that was followed in the

learning stage. The participants were immersed in the

virtual maze as if they were riding a bicycle. They

could see the landscape and identify the animals to de-

termine their positions. When the participants make

a mistake in the choice of the direction, the system

shows a warning message and they are automatically

relocated back to the starting position. Each partici-

pant has ﬁve attempts to reach the end of the maze.

The time increases with the number of attempts. The

experience lasts around six minutes. The average time

for the interaction with the bike was 6.52 minutes, and

the average time for the interaction with the gamepad

was 5.27 minutes. However, the time could increase

based on the number of attempts.

As measures of performance on the Virtual Maze

Task, we calculated the following: the number of

attempts to successfully complete the path in the

testing stage (VMAttempts), the time for completion

of the testing stage in seconds (VMTime), the num-

ber of participant’s head turns performed at intersec-

tions in which he/she chose a correct direction during

the testing stage (VMHeading), and the score (VM-

Score). The VMScore was obtained by adding the

number of correct directions chosen in each of the

ﬁve attempts established to complete the path in the

testing stage. We deﬁned ten points per attempt and a

maximum VMScore of ﬁfty points.

Spatial ability was also assessed with classical

neuropsychological tests. We administered the Corsi

Blocks Task (CBT, forward (CBTF) and backward

(CBTB) versions), which assessed visuospatial short-

term working memory (Kessels et al., 2000). We

also assessed verbal short-term working memory. For

this purpose, we used two verbal span subtests of

the TOMAL battery: Digits Forward (DF) and Digits

Backward (DB) (Reynolds and Bigler, 1994). The

DF is a number recall task that measures low-level

rote recall of a sequence of numbers. The DB task

(a variation of the DF task) consists of a recall of a

sequence of numbers, but in reverse order. For the

assessment of left-right orientation ability, we used a

paper pencil adaptation of the computerized Random

Walker Test (RWT) (Uchiyama et al., 2009). We used

the verbal version of the RWT, which provides ver-

bal instructions, and the participants must judge the

spatially correct direction. The score and the time for

completion were used as measures of performance on

the RWT, we used the acronym RWTS and RWTT,

respectively. We considered the direct scores for the

CBTF, CBTB, the DF and the DB subtests.

The participants were tested individually in two

sessions, which took place on the same day. The

participants were randomly assigned to one of the

following experimental sessions: Session I and Ses-

sion II. In Session I, the participants were assessed

with the Virtual Maze Task, and they then were evalu-

ated with neuropsychological tests. In Session II, the

participants were evaluated with neuropsychological

tests, and they then were assessed with the Virtual

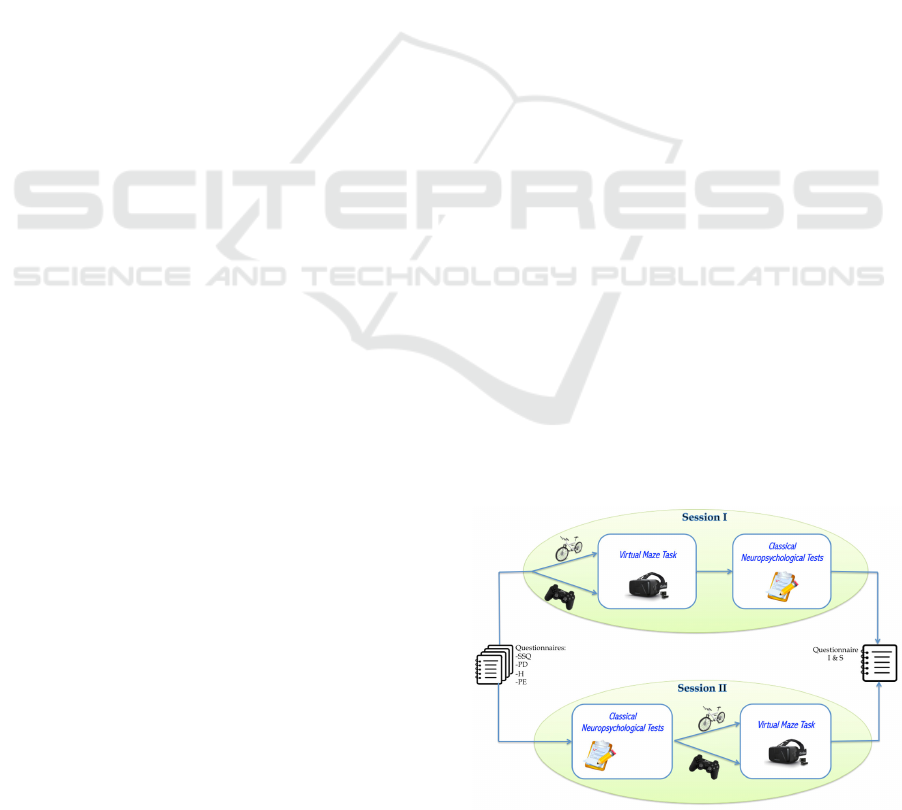

Maze Task. The different steps of the experimental

procedure are shown in Figure 7.

Before starting the testing sessions, each partici-

pant was verbally informed about the exposure ses-

sion, the virtual environment, the Oculus Rift DK2 as

Figure 7: Procedure of the Virtual Maze Task.

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

the visualization device, and the type of interaction

used. Also, each participant completed the handed-

ness questionnaire, the questionnaire about personal

data, and the SSQ. When he/she ﬁnished the virtual

task, he/she answered another questionnaire on the in-

teraction and satisfaction (Table 1). We also assessed

the previous experience of the participants with 3D

technology and other technological devices (Table 2).

Table 1: Questionnaire on interaction and satisfaction with

the environment. The questionnaire used a Likert scale

[from 1 to 5 (1 being ‘none’ or extremely low and 5 being

‘very high’)].

#QI Interaction

QI1 The environment was easy to use.

QI2 How natural was the mechanism that con-

trolled movement through the environment?

QI3 How responsive was the environment to ac-

tions that you initiated (or performed)?

QI4 How natural did your interactions with the

3D environment seem?

QI5 How closely were you able to examine ob-

jects?

QI6 How well could you examine objects from

multiple viewpoints?

QI7 In general, rate the experience of movement

and interaction with the virtual environment.

#QS Satisfaction

QS1 Would you use this environment another

time?

QS2 How much fun did you have?

QS3 Would you invite your friends to use the en-

vironment?

QS4 Score the game from 1 to 5.

QS5 My 3D experience compared to other pre-

vious 3D experiences has been ...

Table 2: Questionnaire on previous experiences with 3D

technology and other technological devices. The question-

naire used a Likert scale [from 1 to 5 (1 being ‘none’ or

extremely low and 5 being ‘very high’)].

#QPE Previous experiences

QPE1 I play video games on computer, mobile

phone, ...

QPE2 I perform activities in 3D.

QPE3 I play 3D games.

5 RESULTS

This section presents the analysis of the data collected

from this study. The statistical program SPSS, ver-

sion 20 (SPSS Inc., USA, 2011) was used to con-

duct all statistical analyses. In order to explore means

and standard deviation, an initial descriptive analysis

was carried out. First, data normality was checked.

Our data ﬁt the normal distribution. Therefore, the

tests used were parametric. A one-way analysis of

variance (ANOVA) was performed to analyze ques-

tionnaire responses regarding interaction and satisfac-

tion outcomes. A two-way ANOVA was conducted

which examined the effect of gender and interaction

on the Virtual Maze Task results. Pearson’s corre-

lations were carried out to explore the relationship

between Virtual Maze Task measures and neuropsy-

chological tests. For all of the tests, a p < .05 deter-

mined signiﬁcance.

5.1 Interaction and Satisfaction

Outcomes

The responses to each question about interaction (QI)

were averaged to yield a composite score for interac-

tion (7 items, α = .693). We did the same for the ques-

tions about satisfaction (QS) (5 questions, α = .789)

and the questions about previous experiences with 3D

technology and other technological devices (QPE) (3

items, α = .530). As Table 3 shows, no statistically

signiﬁcant differences were found for any of the in-

teraction and satisfaction questions. Similarly, there

were no differences between the two groups con-

sidering previous experiences.

Table 3: Mean ± Standard Deviation for the composite

score about interaction (QI), satisfaction (QS), and previous

experiences (QPE). One-way ANOVA between the physical

active condition (Bike) and the physical inactive condition

(Gamepad) and r effect size.

Bike Gamepad

(F)

p-value

QI1-QI7 3.87 ± 0.49 4.08 ± 0.52

(3.85)

.053

0.042

QS1-QS5 4.05 ± 0.61 4.12 ± 0.69

(0.28)

.595

0.003

QPE1-QPE3 1.74 ± 0.67 1.98 ± 0.72

(2.75)

.101

0.031

5.2 Virtual Maze Task Outcomes and

Correlations with

Neuropsychological Tests

A two-way ANOVA (Gender × Interaction) was used

to analyze the measures obtained in the Virtual Maze

Task. The results are shown in Table 4. Men per-

formed a higher number of attempts to complete the

testing stage than women. Also, the participants

who used the bike made more attempts than those

who used the gamepad. There were no differences

between men and women or between conditions as-

signed for the time spent to complete the testing

Using a Virtual Maze Task to Assess Spatial Short-term Memory in Adults

Table 4: Mean ± Standard Deviation for measures obtained in the Virtual Maze Task by men and women in the physical

active condition (Bike) and physical inactive condition (Gamepad). Two-way ANOVA (Gender × Condition). The asterisk

(*) indicates signiﬁcant differences.

Condition Effect

Bike GamePad Gender Condition Interaction

Measures Men Women Men Women

(F)

p-value

(F)

p-value

(F)

p-value

VMAttempts 2.25 ± 1.74 0.80 ± 1.22 0.78 ± 1.24 0.95 ± 0.74

(5.55)

.02*

(5.85)

.02*

(8.88)

.004*

VMTime 382 ± 136 328 ± 179 290 ± 167 379 ± 130

(0.26)

.61*

(0.39)

.53

(4.66)

.034*

VMHeading 2.45 ± 1.93 1.08 ± 0.91 0.87 ± 0.92 1.38 ± 1.11

(2.57)

.11

(5.72)

.02*

(12.37)

.001*

VMScore 44.75 ± 5.68 46.64± 4.34 48.26 ± 2.86 47.00 ± 3.25

(0.13)

.72

(4.82)

.03*

(3.19)

.080

stage. The men who used the physical active con-

dition made more head turns. Finally, the participants

who used the physical inactive condition scored better

than those who performed in the physical active con-

dition.

The results of the correlations found between

the Virtual Maze Task measures and the perfor-

mance scores on classical neuropsychological tests

are shown in Table 5. There are signiﬁcant correla-

tions between our task and classical tests.

6 DISCUSSION

In our work, the capability of our Virtual Maze Task

was tested to assess spatial short-term memory in

adults. Some applications for assessing spatial memo-

ry in humans have been developed previously (Koen-

ing et al., 2011; C

anovas et al., 2011). These appli-

cations used basic methods of human computer inter-

action. A review of the literature indicates that a task

that incorporates stereoscopy (VR HMD) and physi-

cal movement (ride a bike) for the assessment of spa-

tial short-term memory has not yet been developed.

The signiﬁcant correlations found between the

performance on our virtual task and classical neu-

ropsychological tests suggest that our task involved

sustained attentional demands and higher working

memory capacity. These results also corroborate our

primary hypothesis. Based on the correlation with the

RWT, egocentric orientation also played a signiﬁcant

role in the performance of this VR task (Uchiyama

et al., 2009). The positive relation with the DF and

DB could suggest that verbal strategies contributed

to solving the task, helping to verbally memorize

the body turns associated with choice points and the

landmarks (Spiers and Maguire, 2008). The nega-

tive correlation found between the head turns made

at intersections and the score on the task was inter-

esting. This result reinforces the possibility of the ver-

bal strategy being a better strategy than other types,

such as memorizing the body turns. In line with this,

it should be pointed out that the Oculus Rift was a

good tool for the assessment of the position of the

participant’s head in the 3D space, providing us with

valuable information that has not been considered in

other studies with virtual mazes (Werkhoven et al.,

2014; Zancada-Menendez et al., 2015). This informa-

tion helps us to understand the factors that contribute

to learning in complex spatial environments.

Differences in the Virtual Maze Task score were

not statistically signiﬁcant for gender. This result cor-

roborates our second hypothesis. However, the Vir-

tual Maze Task score showed statistically signiﬁcant

differences between the two types of conditions, in

favour of the physical inactive condition. This re-

sult does not corroborate the third hypothesis. We

expected that there would be no differences and that

if they had been, they were in favor of the physi-

cal active condition. As mentioned in the introduc-

tion section, the physical movement is directly related

to the vestibular system and we hypothesized that it

would have a positive inﬂuence on spatial memory.

However, this inﬂuence has not been reﬂected in the

results. Although unexpected, this result in favour of

the physical inactive condition is in line with the study

of Cutmore et al. (Cutmore et al., 2000), which found

that spatial learning in virtual environments with an

active exposure was not more advantageous than a

passive exposure. Also, the differences for type of in-

teraction show the importance of methodological fac-

tors in the study of spatial memory in humans (An-

dreano and Cahill, 2009). Moreover, our physical

inactive condition can also be performed by people

with reduced mobility (Hill-Briggs et al., 2007).

The participants did not differ in their opinions

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

Table 5: The correlation matrix of the Virtual Maze Task and classical neuropsychological test performance scores. The

correlation coefﬁcients (r) that reached signiﬁcance (p: p-value) are displayed in bold type.

VMTime VMHeading VMScore CBTF CBTB DF DB RWTS RWTT

VMAttempts

.59

<.0001

.62

<.0001

-.48

<.0001

-.21

.04

-.25

.02

-.17

.11

-.24

.02

-.29

.005

.17

.11

VMTime

.59

<.0001

-.33

.002

-.19

.07

-.16

.13

-.26

.01

-.21

.04

-.17

.11

.19

.07

VMHeading

-.51

<.0001

.01

.92

-.02

.87

-.16

.14

-.19

.09

-.12

.28

-.01

.92

VMScore

.18

.08

.28

.008

.40

<.0001

.38

<.0001

.31

.003

-.30

.003

CBTF

.73

<.0001

.36

<.0001

.23

.03

.10

.36

-.53

<.0001

CBTB

.35

.001

.31

.003

.26

.02

-.60

<.0001

.61

<.0001

.09

.39

-.41

<.0001

.16

.12

-.33

.001

RWTS

-.17

.11

about interaction and satisfaction with the experience

in the Virtual Maze Task. These results corroborate

our fourth hypothesis.

From our point of view, the current HMDs (e.g.,

Oculus Rift) have many possibilities. As men-

tioned in the introduction section, the Oculus Rift

has already been used in psychology. For example,

Guti

errez-Maldonado et al. (Guti

errez-Maldonado

et al., 2015) used it for training diagnostic skills in

eating disorders. Based on the results obtained, we

believe that the Oculus Rift and other HMDs have

great potential for psychology, especially for the as-

sessment of spatial short-term memory.

Even though the Oculus Rift has several beneﬁts,

it also has some drawbacks. One of the drawbacks

to our proposal is that the Oculus Rift DK2 needs

a computer connection by wire. The use of a wire-

less VR HMD with the same or greater immersion

features would make a freer system that would allow

the user freedom of movement without fear of stum-

bling upon or becoming tangled in cables. According

to some predictions (The Farm 51, 2015), half a bil-

lion VR headsets will be sold per year by 2025, and

more than 400 hundred million will be wireless VR

HMD. In these predictions, the number of wireless

VR HMD sold in 2016 is more or less the same as the

wired VR HMD. However, this trend is not predicted

to continue. It has been predicted that a hundred mil-

lion of VR HMDs will be sold by 2020. Of these,

less than 20% will be wired VR HMDs. We share

this opinion and think that the wireless VR HMD

would be decisive in the future for many applications.

Another drawback of the Oculus Rift (in general of

the HMDs) is the cybersickness that the HMDs may

induce. As Davis et al. (Davis et al., 2015) indicated,

the more realistic the environment with higher levels

of visual ﬂow, the greater the chance of inducing cy-

bersickness. It would be very interesting to determine

whether the Oculus Rift induces more cybersickness

than other HMDs. Cybersickness is a limitation in

our task. In fact, 3 out of 92 participants in our study

did not ﬁnish the task. Therefore, people prone to cy-

bersickness could not use this type of tasks. Another

limitation of our physical active condition is for peo-

ple with mobility problems.

Initially, we used the Wii Remote controller to

obtain the turns of the handlebar of the bicycle.

However, since the Oculus Rift DK2 is used for vi-

sualization, there was a conﬂict between the two de-

vices that made their simultaneous use impossible due

to that both use infrared sensor. This must be taken

into account in future developments.

7 CONCLUSIONS

We have developed a new Virtual Maze Task to as-

sess spatial short-term memory in adults. We com-

pared the performance of the new task with traditional

neuropsychological procedures, and we measured the

usability and satisfaction of the participants for the

new task. The performance in the Virtual Maze Task

was compared to other tests of spatial and memory

skills. According to a measure of overall execution,

the performance on the new task was better in the

participants who used in the physical inactive condi-

Using a Virtual Maze Task to Assess Spatial Short-term Memory in Adults

tion than in the physical active condition. However,

the usability and satisfaction did not differ between

conditions. These results showed that the type of in-

teraction used is a relevant methodological issue in

studies about cognition that are based on VR tech-

nologies. The Virtual Maze Task could be used as an

entertaining method to assess or train adults in spatial

short-term memory skills.

The Cincinnati water maze has commonly been

used in studies with rodents. In our task, the Cincin-

nati water maze has been visualized using the Ocu-

lus Rift and tested with human adults. Our study and

other previous works (e.g., C

anovas et al., 2011) sup-

port the potential of VR for adapting tasks developed

for animals to humans.

For future work, a study to compare HMDs of

others models and brands, taking into account their

features such as resolution, ﬁeld-of-view, and latency

can be considered. We would also like to study the

capability of the Virtual Maze Task to detect learning

difﬁculties in samples of people with academic prob-

lems or neurological disorders. The possibilities of

our task for children could also be studied. In fact,

we are currently testing a different virtual environ-

ment using a large stereo screen with polarization

glasses for the assessment of spatial memory in chil-

dren. However, other devices could also be used, pay-

ing special attention to wireless HMDs, such as Sam-

sung Gear VR. Other types of interaction could be

studied (e.g., gesture interaction).

ACKNOWLEDGEMENTS

• This work was mainly funded by the Spanish

Ministry of Economy and Competitiveness

(MINECO) through the CHILDMNEMOS

project (TIN2012-37381-C02-01) and co-

ﬁnanced by the European Regional Development

Fund (FEDER).

• Other ﬁnancial support was received from the

Government of Aragon (Department of Industry

and Innovation), the European Social Fund for

Aragon, and the Government of the Republic of

Ecuador through the Scholarship Program of the

Secretary of Higher Education, Science, Tech-

nology and Innovation (SENESCYT).

• We would like to thank the following for their

contributions:

– BKOOL for lending us the Bkool roller.

– This work would not have been possible with-

out their collaboration: Mauricio Loacham

ın

Valencia, David Rodr

ıguez Andr

es, and Juan

Fernando Mart

ın.

– DSIC and ASIC for allowing us to use its fa-

cilities during the testing phase, especially to

Vicente Blasco and Manuel Jim

enez.

– The users who participated in the study.

– The reviewers for their valuable comments.

REFERENCES

Andreano, J. M. and Cahill, L. (2009). Sex inﬂuences on

the neurobiology of learning and memory. Learning

and Memory, 16:248–266.

Arias, N., M

endez, M., and Arias, J. L. (2014). Brain net-

works underlying navigation in the Cincinnati water

maze with external and internal cues. Neuroscience

Letters, 576:68–72.

n, P., G

orski, F., Wichniarek, R., Kuczko, W., Hamrol,

A., and Zawadzki, P. (2015). Application of profes-

sional and low-cost head mounted devices in immer-

sive educational application. In Procedia Computer

Science, pages 173–181.

anovas, R., Garc

ıa, R. F., and Cimadevilla, J. M. (2011).

Effect of reference frames and number of cues avail-

able on the spatial orientation of males and females in

a virtual memory task. Behavioural Brain Research,

216(1):116–121.

Canty, A. L., Fleming, J., Patterson, F., Green, H. J., Man,

D., and Shum, D. H. (2014). Evaluation of a virtual re-

ality prospective memory task for use with individuals

with severe traumatic brain injury. Neuropsychologi-

cal Rehabilitation, 24(2):238–265.

Chaytor, N. and Schmitter-Edgecombe, M. (2003). The

ecological validity of neuropsychological tests: A re-

view of the literature on everyday cognitive skills.

Neuropsychology Review, 13:181–197.

Cutmore, T. R. H., Hine, T. J., Maberly, K. J., Langford,

N. M., and Hawgood, G. (2000). Cognitive and gen-

der factors inﬂuencing navigation in a virtual envi-

ronment. International Journal of Human-Computer

Studies, 53(2):223–249.

Davis, S., Nesbitt, K., and Nalivaiko, E. (2015). Compar-

ing the onset of cybersickness using the Oculus Rift

and two virtual roller coasters. 11th Australasian Con-

ference on Interactive Entertainment (IE 2015), pages

27–30.

Desai, P. R., Desai, P. N., Ajmera, K. D., and Mehta, K.

(2014). A review paper on Oculus Rift-A virtual re-

ality headset. International Journal of Engineering

Trends and Technology, 13(4):175–179.

Guti

errez-Maldonado, J., Ferrer-Garc

ıa, M., Pla-

Sanjuanelo, J., Andr

es-Pueyo, A., and Talarn-

Caparr

os, A. (2015). Virtual Reality to train

diagnostic skills in eating disorders. Comparison of

two low cost systems. Studies in Health Technology

and Informatics, 219:75–81.

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

Hettinger, L. J. and Riccio, G. E. (1992). Visually induced

motion sickness in virtual environments. Presence:

Teleoperators & Virtual Environments, 1(3):306–310.

Hill-Briggs, F., Dial, J. G., Morere, D. A., and Joyce, A.

(2007). Neuropsychological assessment of persons

with physical disability, visual impairment or blind-

ness, and hearing impairment or deafness. Archives of

Clinical Neuropsychology, 22(3):389–404.

Juan, M. C., Mendez-Lopez, M., Perez-Hernandez, E., and

Albiol-Perez, S. (2014). Augmented reality for the as-

sessment of children’s spatial memory in seal settings.

PLoS ONE, 9(12):e113751.

Kelly, J. W. and Mcnamara, T. P. (2008). Spatial memo-

ries of virtual environments: How egocentric experi-

ence, intrinsic structure, and extrinsic structure inter-

act. Psychonomic Bulletin & Review, 15(2):322–327.

Kennedy, R. and Lane, N. (1993). Simulator sickness ques-

tionnaire: An enhanced method for quantifying simu-

lator sickness. The International Journal of Aviation

Psychology, 3(3):203–220.

Kessels, R. P. C., van Zandvoort, M. J. E., Postma, A., Kap-

pelle, L. J., and de Haan, E. H. F. (2000). The Corsi

Block-Tapping Task: Standardization and normative

data. Applied Neuropsychology, 7(4):252–258.

Koening, S., Crucian, G., D

unser, A., Bartneck, C., and

Dalrymple-Alford, J. (2011). Validity evaluation of

a spatial memory task in virtual environments. Inter-

national Journal of Design and Innovation Research,

6:1–13.

Lezak, M. D. (1995). Neuropsychological assessment. 3rd

ed., Oxford University Press, New York, NY.

Negut, A., Matu, S. A., Sava, F. A., and David, D. (2016).

Virtual reality measures in neuropsychological assess-

ment: A meta-analytic review. Clinical Neuropsychol-

ogy, 30(2):165–184.

Nori, R., Piccardi, L., Migliori, M., Guidazzoli, A., Frasca,

F., De Luca, D., and Giusberti, F. (2015). The vir-

tual reality walking Corsi test. Computers in Human

Behavior, 48:72–77.

Oldﬁeld, R. C. (1971). The assessment and analysis of

handedness: The Edinburgh inventory. Neuropsy-

chologia, 9(1):97–113.

Parsons, T. D. and Rizzo, A. A. (2008). Initial validation of

a virtual environment for assessment of memory func-

tioning: Virtual reality cognitive performance assess-

ment test. CyberPsychology & Behavior, 11(1):17–

25.

na, J. G. V. and Tobias, G. P. A. R. (2014). Space Rift: An

Oculus Rift solar system exploration game. Philippine

IT Journal, 7(1):55–60.

Piccardi, L., Iaria, G., Ricci, M., Bianchini, F., Zompanti,

L., and Guariglia, C. (2008). Walking in the Corsi test:

Which type of memory do you need?. Neuroscience

Letters, 432(2):127–131.

Plancher, G., Tirard, A., Gyselinck, V., Nicolas, S., and Pi-

olino, P. (2012). Using virtual reality to character-

ize episodic memory proﬁles in amnestic mild cogni-

tive impairment and Alzheimer’s disease: Inﬂuence

of active and passive encoding. Neuropsychologia,

50(5):592–602.

Reynolds, C. R. and Bigler, E. D. (1994). TOMAL Test of

memory and learning: Examiner’s manual. Austin,

TX Pro-Ed [In TOMAL Test de memoria y apren-

dizaje. Manual de interpretaci

on (E. Goikoetxea &

Departamento I+D de TEA Ediciones, Adapters),

2001, Madrid, Spain: TEA Ediciones].

Spiers, H. J. and Maguire, E. A. (2008). The dynamic nature

of cognition during wayﬁnding. Journal of Environ-

mental Psychology, 28:232–249.

Tan, C. T., Leong, T. W., Shen, S., Dubravs, C., and Si, C.

(2015). Exploring gameplay experiences on the Ocu-

lus Rift. In Proceedings of CHI Play ’15, pages 253–

263.

The Farm 51 (2015). Report on the current state of

the VR market. In The Farm 51. Group S.A.,

http://thefarm51.com/ripress/VR market report

2015 The Farm51.pdf. Accessed 2016 December 06.

Uchiyama, H., Mitsuishi, K., and Ohno, H. (2009). Random

Walker Test: A computerized alternative to the Road-

Map Test. Behavior Research Methods, 41(4):1242–

53.

Van den Boom, A. A., Stupar-Rutenfrans, S., Bastiaens,

O. S. P., and Van Gisbergen, M. M. S. (2015).

Observe or participate: The effect of point-of-view

on presence and enjoyment in 360 degree movies

for head mounted displays. http://ceur-ws.org/Vol-

1528/paper13.pdf. Accessed 2016 December 06.

Vorhees, C. V. and Makris, S. L. (2015). Assessment

of learning, memory, and attention in developmental

neurotoxicity regulatory studies: Synthesis, commen-

tary, and recommendations. Neurotoxicology and Ter-

atology, 52:109–115.

Werkhoven, P., van Erp, J. B. F., and Philippi, T. G. (2014).

Navigating virtual mazes: The beneﬁts of audiovisual

landmarks. Displays, 35(3):110–117.

Young, M. K., Gaylor, G. B., Andrus, S. M., and Bo-

denheimer, B. (2014). A comparison of two cost-

differentiated virtual reality systems for perception

and action tasks. In Proceedings of the ACM Sym-

posium on Applied Perception, pages 83–90.

Zancada-Menendez, C., Sampedro-Piquero, P., Meneghetti,

C., Labate, E., Begega, A., and Lopez, L. (2015). Age

differences in path learning: The role of interference

in updating spatial information. Learning and Individ-

ual Differences, 38:83–89.

Using a Virtual Maze Task to Assess Spatial Short-term Memory in Adults
