Reactive Collision Avoidance using Evolutionary Neural Networks
Hesham M. Eraqi
1
, Youssef Emad Eldin
2
and Mohamed N. Moustafa
1
1
Department of Computer Science and Engineering, The American University in Cairo, New Cairo 11835, Egypt
2
Department of Computer and Systems Engineering, Ain Shams University, Cairo, Egypt
Keywords: Collision Avoidance, Evolutionary Neural Networks, Genetic Algorithm, Lane Keeping.
Abstract: Collision avoidance systems can play a vital role in reducing the number of accidents and saving human lives.
In this paper, we introduce and validate a novel method for vehicles reactive collision avoidance using
evolutionary neural networks (ENN). A single front-facing rangefinder sensor is the only input required by
our method. The training process and the proposed method analysis and validation are carried out using
simulation. Extensive experiments are conducted to analyse the proposed method and evaluate its
performance. Firstly, we experiment the ability to learn collision avoidance in a static free track. Secondly,
we analyse the effect of the rangefinder sensor resolution on the learning process. Thirdly, we experiment the
ability of a vehicle to individually and simultaneously learn collision avoidance. Finally, we test the generality
of the proposed method. We used a more realistic and powerful simulation environment (CarMaker), a camera
as an alternative input sensor, and lane keeping as an extra feature to learn. The results are encouraging; the
proposed method successfully allows vehicles to learn collision avoidance in different scenarios that are
unseen during training. It also generalizes well if any of the input sensor, the simulator, or the task to be
learned is changed.
1 INTRODUCTION
The task of designing control software for a self-
driving car is a complex task. The software should
concurrently tolerate (model) infinite number of
scenarios and special cases, and maintain and meet
reasonable software complexity and resources
constrains. Evolutionary algorithms can be a good
alternate to abstraction from such control challenges
(Sipper, 2006).
Collision avoidance is a feature that allows a
vehicle to move without colliding with other vehicles.
Vehicles can be cars, trains, ships, airplanes,
Unmanned Aerial Vehicles (UAV), or various smart
robots that have been generally applied in modern
laboratories nowadays (Liu et al., 2013). In many
applications, collision avoidance systems play a vital
role in reducing the number of accidents and saving
human lives. Reactive collision avoidance controls
the motion of the vehicle directly based on the current
sensor data to react to unforeseen changes in
unknown and dynamic environments. The dynamic
objects and the static environment do not cooperate
with the ego-vehicle (vehicle that learns) to achieve
collision avoidance. Hence, reactive collision
avoidance has a good performance in real-time (Fu et
al., 2013).
We introduce a novel method for vehicles reactive
collision avoidance using evolutionary neural
networks (ENN). A single front-facing
rangefinder sensor is the only input required by our
method. The sensor provides the neural network with
spatial proximity readings measured at multiple
horizontal angles. The neural network learns how to
control the vehicle steering wheel angle by directing
the vehicle such that it does not collide with the
dynamic environment. The neural network guides the
vehicle around the environment and a genetic
algorithm is used to pick and breed generations of
more intelligent vehicles. The training process and
the proposed method analysis and validation are
carried out using simulation.
We conducted six experiments to validate the
proposed method, analyse evaluate its performance.
The results are encouraging; the proposed method
successfully allows vehicles to learn collision
avoidance in different scenarios that are unseen
during training. The scenarios include a vehicle that
learns how to safely navigate (without doing
collision) through a free static track and to achieve
collision avoidance among independent dynamic
vehicles. Also, a group of randomly moving vehicles
successfully learns how to achieve collision
avoidance simultaneously. Also, our method is
Eraqi, H., Eldin, Y. and Moustafa, M.
Reactive Collision Avoidance using Evolutionary Neural Networks.
DOI: 10.5220/0006084902510257
In Proceedings of the 8th International Joint Conference on Computational Intelligence (IJCCI 2016) - Volume 1: ECTA, pages 251-257
ISBN: 978-989-758-201-1
Copyright
c
2016 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
251
proven to generalize well, it successfully allows
vehicle to also learn lane keeping, and using different
simulation environment which is more realistic and
powerful: CarMaker (CarMaker open test platform
for virtual test driving website).
The disadvantage of traditional methods over our
method are mainly: 1) they either depend on defined
set of scenarios, which are not adapted to new
conditions not programmed in the algorithm or 2)
they rely on handcrafted features that do not well
represent the real scenarios where the vehicle is
deployed. This creates the need to new AI systems
that learn from data, and in the same time
automatically identify the best representations of this
environmental data. Neural networks are well known
for their ability to learn representations of the data.
2 RELATED WORK
(Shaffer et al.,1992) in “Combinations of Genetic
Algorithms and Neural Networks: A Survey of Art”
provided an overview of the literature of combining
Neural Networks and genetic Algorithms drawing out
the common themes and the emerging wisdom about
what seems to work and what does not.
(Montana and L. Davis, 1989) in “Training
feedforward neural networks using genetic
algorithms” has explained that multilayered
feedforward neural networks possess a number of
properties which make them particularly suited to
complex pattern classification problems and showed
that Genetic Algorithms are well suited to the
problem of training feedforward networks as they are
good at exploring a large and complex space in an
intelligent way to find values close to the global
optimum.
(Durand et al, 1996) in “collision avoidance using
neural networks learned by genetic algorithms”
handled the collision avoidance problem between two
aircrafts with reactive techniques using neural
networks which was built by genetic algorithms.
(Togelius and Lucas, 2006) in “Evolving robust
and specialized car racing skills” presented using
evolutionary algorithms how to create neural network
controllers for simulated car. They evolved
controllers that have robust performance over
different tracks and can be specialized to work better
on particular tracks.
(Mahajan and Kaur, 2013) in “Neural Networks
using Genetic Algorithms introduced flexible
method for solving the travelling salesman problem
using genetic algorithms as they can be used to train
neural networks producing evolutionary artificial
neural networks.
(Fardin Ahmadizar et al, 2014) in “Artificial
neural network development by means of a novel
combination” developed a new evolutionary-based
algorithm to simultaneously evolve the topology and
the Connection weights of ANNs by means of a new
combination of grammatical evolution (GE) and
genetic algorithm (GA). GE is adopted to design the
network topology while GA is incorporated for better
weight adaptation.
3 SYSTEM OVERVIEW
A genetic algorithm (GA) (Vose, 1999) is an
evolutionnary algorithm that can solve optimization
problems. It starts from a pool of randomly chosen
candidate solutions of the optimization problem
called a “population”. Usually, a pre-knowledge
about the problem constrains the randomness of these
solutions. Each candidate solution is called a
“chromosome”. The algorithm repeatedly (over
generations) modifies the population hoping for a
new generation with a better population. For that, the
algorithm uses an application-dependant “fitness
function” that estimates the goodness of each
chromosome. At each step, the genetic algorithm
randomly selects individuals from the previous
generation’s population and uses them as parents to
produce the children for the new generation. The
concept of producing children from a set of selected
parents is based on a natural selection process that
mimics biological evolution. Hence, over successive
generations, the population "evolves" toward an
optimal solution.
Artificial neural networks can be looked at as an
optimization problem looking for the best weights
achieving some task. This is why a genetic algorithm
can be used to train a neural network (Schaffer et al.,
1992). Evolutionary Neural Networks,
Neuroevolution, or neuro-evolution, is a form of
machine learning that uses evolutionary algorithms to
train artificial neural networks, in other words,
estimating the weights of the neural network. It is
most commonly applied in the areas of artificial life
and intelligent computer games, and hence, has
potential contributions towards self-driving vehicles.
The chromosome format is chosen to be the vector of
real numbers with a sequence of all of the neural
network weights. The sequence is sorted layer by
layer. The weights of each layer are sorted such that
all of the weights coming out of a neuron are
consecutive. The bias node is considered the last node
ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications
252

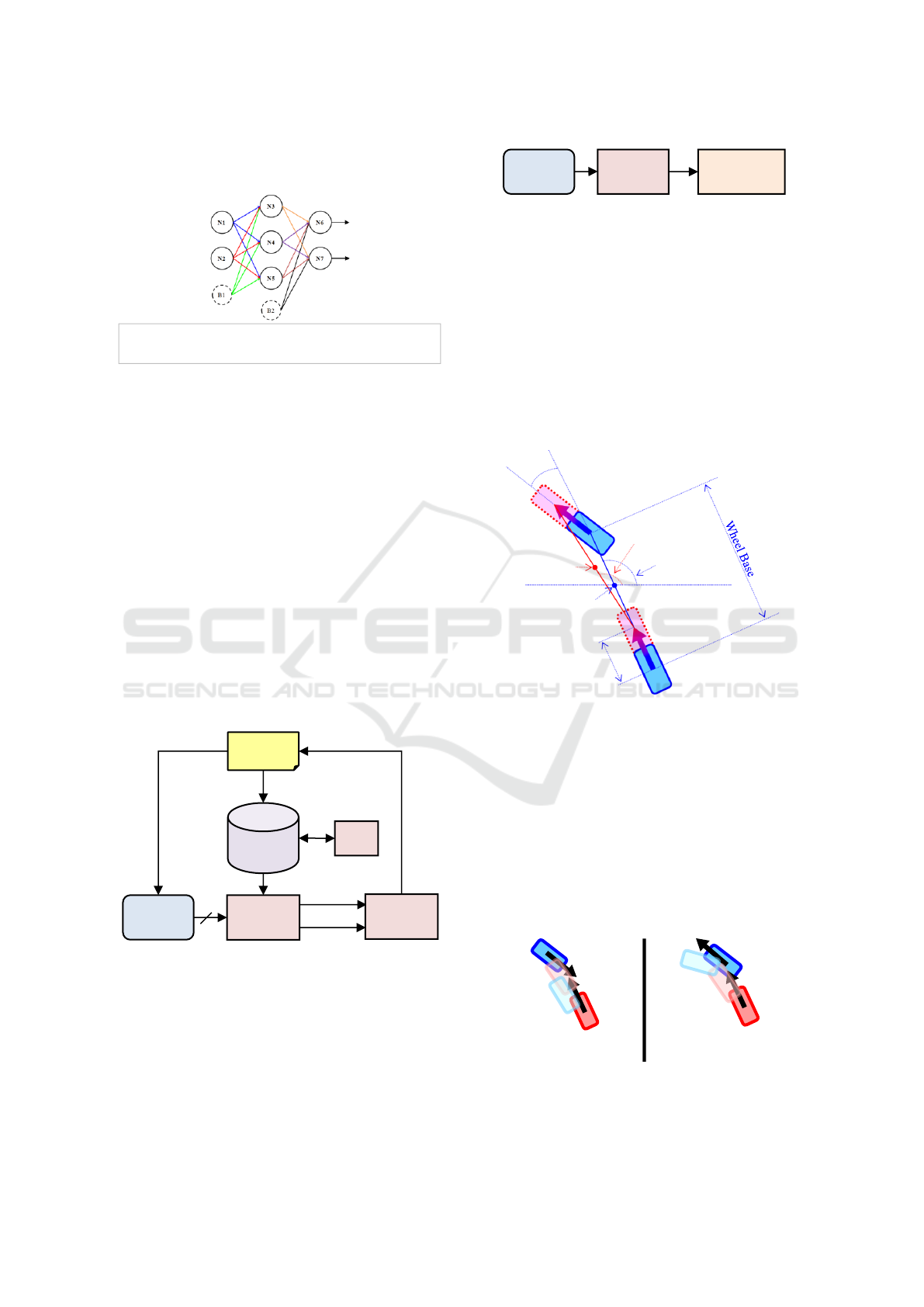

in each layer. Figure 1 shows an example for a 2×3×2
neural network and its chromosome.
Figure 1: Example of a 2×3×2 neural network and its
chromosome. B1 and B2 represent the network biases.
We developed a simulation setup to evaluate the
fitness of each chromosome in a generation. For most
of experiments related to collision avoidance, the
vehicle lifetime before its first collision is a
reasonable metric for the fitness. Genetic algorithm is
used to pick and breed generations of more intelligent
vehicles. The vehicle uses a rangefinder sensor that
calculates N intersections depths with the
environment and then feeds these N values as inputs
to the neural network. The inputs are then passed
through a multi-layered neural network and finally to
an output layer of 2 neurons: a left and right steering
force. These forces are used to turn the vehicle by
deciding the vehicle steering angle. Figure 2 shows
the proposed system overview for our method during
the system training phase.
Figure 2: System overview during training phase.
Once trained, the neural network is able to
generate steering commands from the input
rangefinder sensor readings. Figure 3 shows this
configuration.
Figure 3: The trained network is used to generate steering
commands from a single front-facing proximity sensor.
4 SIMULATION SETUP
For all vehicles in our simulation environment, we
use a bicycle model as shown in figure 4. Given the
vehicle speed and simulation time tick Δt, the
travelled distance L per a time step is calculated.
Given wheel base, vehicle position P, heading θ, and
distance travelled per time step L, the new vehicle
position P
new
and heading θ
new
are calculated.
Figure 4: Simple 2D vehicle steering physics.
For simplicity, vehicles are chosen to move with
fixed speed and sensor noise is neglected. At
simulation start, the vehicles are positioned
equidistant from each other. At each collision
detected by the simulator, it’s important to identify
the vehicle responsible for the collision as shown in
figure 5. When a collision happens, the simulator tries
to answer the question: Would crash still happen if a
vehicle X is the only vehicle that moved at collision
time step? If the answer is yes, vehicle X is
determined as responsible for that collision.
Figure 5: Determining which vehicle caused collision to
happen. Two examples with two vehicles before and after
the collision time step.
Chromosome:
W
13
W
14
W
15
W
23
W
24
W
25
W
B1_3
W
B1_4
W
B2_5
W
36
W
37
W
46
W
47
W
56
W
57
W
B2_6
W
B2_7
Rangefinder
Sensor
Force to left
Force to right
Population
Simulator
GA
Update Fitness
N
Neural
Network
Rangefinder
Sensor
ENN
Drive by wire
interface
Travelled Distance in Δt
Steering
Angle
P
P
new
θ
θ
new
Both vehicles are identified
as collision cause
Red vehicle is identified as
collision cause
Reactive Collision Avoidance using Evolutionary Neural Networks
253
5 EXPERIMENTAL WORK
Several experiments are conducted to evaluate our
learning method. The main objective is to inspect the
feasibility of achieving a reactive collision avoidance
system using our proposed method. Initially, an
elementary, and relatively easier, experiment is
conducted. The objective of this experiment is to
examine the capability of a vehicle to learn the task
of self-navigation through a static environment that
does not include any dynamic objects. We believe
that this task is less hard than the collision avoidance
task because the ego-vehicle does not have to deal
with the unknown movement of dynamic objects.
A three layer ANN, with sigmoid activations for
all neurons, is empirically chosen to be used for all of
our experiments. It’s noted that the experiments
results don’t change if the number of layers is
changed, but sometimes you obtain the same result
faster. The higher the number of hidden layers, the
better representation of the data the network can
achieve. But at the same time, this leads to a more
complex optimization problem that is harder and
slower for GA to solve. Our GA uses a population of
200 chromosomes where mutation probability is 0.1,
crossover probability is 1 and the crossover site
follows a normal distribution with a mean of 0.95 and
a standard deviation of 0.05. The selection is based on
tournaments of size 10 candidates and children of
next generations always replace their parents. The
fitness function is chosen to be the vehicle lifetime
navigating the environment (in time steps) before its
first collision with the static environment boundaries
or other dynamic vehicles.
The experimental work results are encouraging
and validate the effectiveness of the proposed
method.
5.1 Learning Navigation
The objective of this experiment is to validate the
ability of our method to achieve self-navigation. The
vehicle should learn how to travel from one position
to another without colliding with a static environment
that does not include any dynamic objects. The
environment is represented by a track that is formed
by horizontal and vertical edges. Figure 6 shows the
experiment track.
Our experimental results show that navigation is
learnt in less than 50 generations. One interesting
observation is that the vehicle took 12 generations to
learn how to successfully turn in the first critical
location A circled in red in figure 6. Once the vehicle
learns this manoeuvre, it achieves huge learning
progress represented by a significant increase in best
chromosome’s fitness. The vehicle implicitly learns
how to drive through all the following tricky turns in
the track. This fact is demonstrated in figure 7.

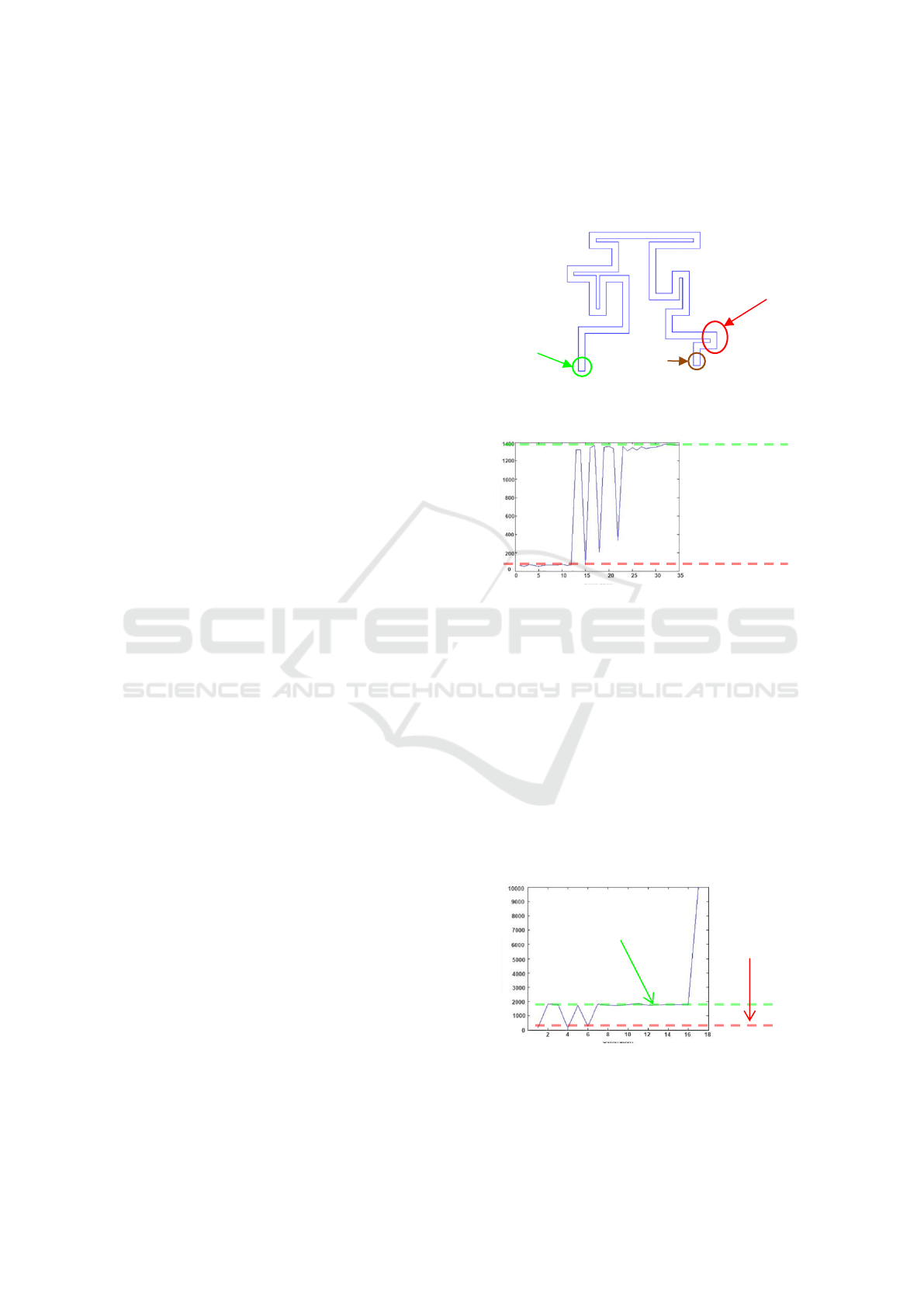

Figure 6: Experiment track.
Figure 7: Self-navigation learning curve in a narrow track.
We can observe that the fitness diminishes when
reaching critical location B circled in green in figure
6, the reason is that the vehicle modifies its behaviour
in order to learn the 180° turn (location B) but what it
learns negatively affect its ability to pass the previous
critical location A, so the fitness oscillates until the
vehicle learns to avoid such behaviour but it still
unable to make the 180° turn. In that experiment, the
track is too narrow, relative to the vehicle dimensions,
which makes such move very hard to learn. Widening
the track enables the vehicle learn how to turn by 180°
and still be able to pass critical location A at the same
time as demonstrated in figure 8.
Figure 8: Self-navigation learning curve in a wide track.
As shown in figure 8, a very high fitness is
reached as the vehicle learns to navigate back and
Vehicle start
location
Critical
Location A
Critical
Location B
Critical Location A
Critical Location B
Generation
Fitness [timestamps]
Critical Location A
Critical Location B
Generation
Fitness [timestamps]
ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications
254
forth through the track without any collisions for
hours. The vehicle also is able to navigate
successfully through other different tracks that are
unseen during training.
5.2 Sensor Resolution
The objective of this experiment is to inspect the
influence of the input rangefinder sensor resolution
on the learning process. The same previous
experiment is performed five times with different
numbers number of sensor beams. The angle between
adjacent beams is equal. The sensor horizontal range
is chosen 180° in our experiment.
As shown in figure 9, using a sensor of a single
front-facing beam prevents the vehicle from learning
and reaching an accepted fitness as the input data is
insufficient for learning. On the contrary, a higher
sensor resolution (three beams or more) enables the
vehicles to evolve and reach a satisfying fitness.

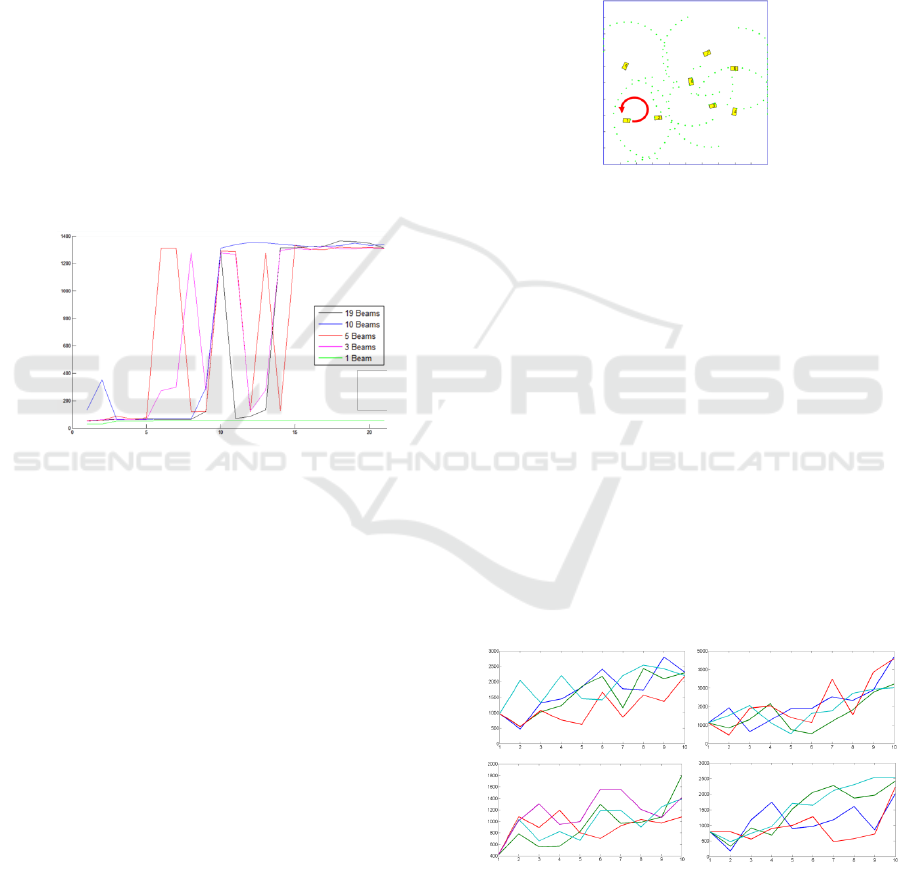

Figure 9: Self-navigation learning curve for different
number of sensor beams.
It’s observed that using a moderate number of
beams achieved almost the same fitness as when
using a larger number of beams but in a fewer number
of generations. As in figure 9, the five beams’
experiment is the fastest to reach an accepted fitness.
This occurred because reducing the number of
sensors produces shorter chromosomes and hence
having a fewer number of parameters and a less
complex optimization problem to solve.
5.3 Individual Collision Avoidance
among Dynamic Vehicles
In this experiment, we inspect the feasibility of our
method in enabling a vehicle to navigate collision-
freely among multiple different dynamic vehicles.
The environment is represented by a rectangular free
space area containing eight different vehicles moving
freely as shown in figure 10.
Each vehicle is initialized with random weights
for their ANN and random starting headings then the
learning process is applied on only a single vehicle to
learn avoiding collisions with the environment
boundaries and the other randomly moving vehicles.
We found that the learning vehicle (ego-vehicle)
has learned a deceptive behaviour for survival by
rotating around itself to avoid interactions with the
other vehicles. In order to learn a proper collision
avoidance behaviour, such rotation is detected by the
simulator and the responsible chromosome is
penalized by a zero fitness.
Figure 10: Ego-vehicle survives by rotating around itself.
After each collision occurs by the ego-vehicle, the
fitness of the chromosome driving the neural network
is estimated and a new chromosome is set to be
evaluated. In order to achieve fair evaluation for each
chromosome, not only the ego-vehicle should be reset
but the whole simulation. Ignoring the reset of the
simulation may position the ego-vehicle in tough
scenario for collision avoidance at the beginning of
evaluation. This may cause a good chromosome to be
assigned a low fitness.
Each plot in figure 11 shows the learning curve of
the ego-vehicle among uncontrolled dynamic
vehicles. In each figure, a different movement
strategy for the uncontrolled dynamic vehicles is
adopted, and four runs of the same experiment are
conducted. The x-axis represents the number of the
generation and the y-axis represents the fitness
achieved at each generation.
Figure 11: Each plot of the four represents a different
strategy. In each strategy, the same experiment is conducted
4 times starting from different random initial neural
network weights, each run is in a different color.
Generation
Fitness [timestamps]
Fitness
Generation
Generation
Fitness
Fitness
Generation
Generation
Fitness
Reactive Collision Avoidance using Evolutionary Neural Networks
255
The learning curves demonstrate the ability of our
method to enable the vehicle to learn collision
avoidance individually among dynamic vehicles.
5.4 Individual Collision Avoidance
Knowledge Accumulation
The objective of the experiment is to examine the
knowledge accumulation ability of our method. In
other words, the capability of the ego-vehicle to learn
avoiding collisions in new strategies without
negatively affecting the performance achieved in
previously-learned strategies.
Firstly, as shown in Table 1, the ego-vehicle
doesn’t achieve efficient collision avoidance when
tested on an unseen strategy. Learning on a single
strategy is not sufficient for the ego-vehicle to learn
general collision avoidance behaviour.

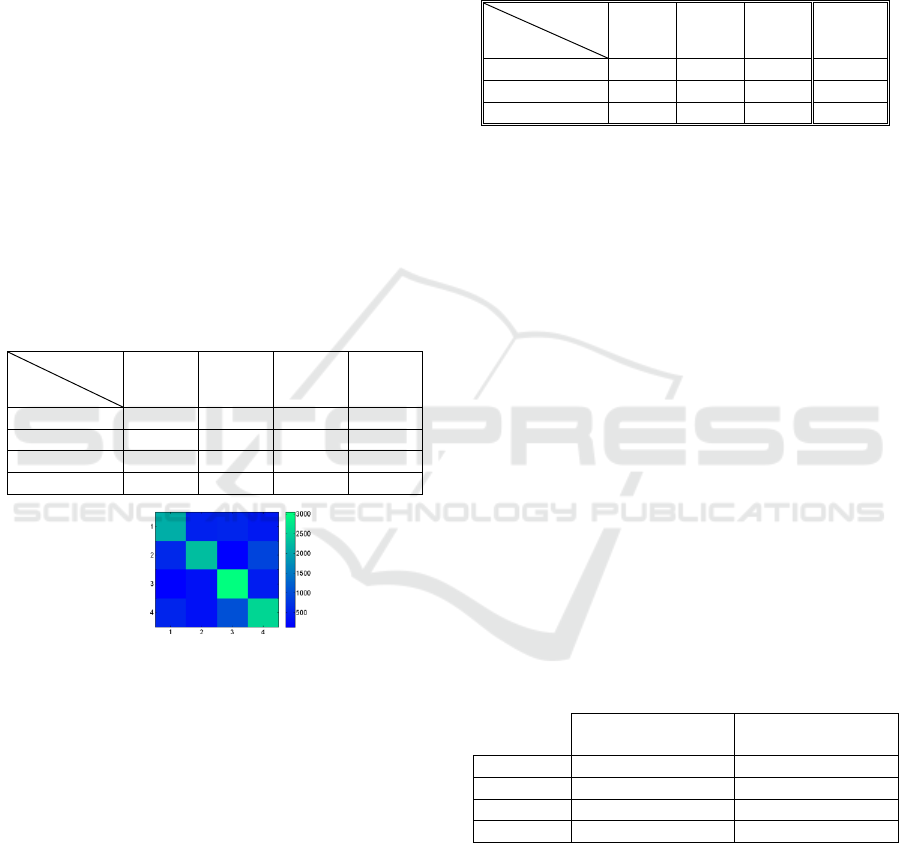

Table 1: Individual collision avoidance performance tested
on unknown strategies compared to the performance tested
on the strategy seen during training. The numbers in the
table represents the best chromosome fitness.
Deployment
Strategy
Training
Strategy
1
2
3
4
1
2115
544
558
432
2
595
2305
136
931
3
159
351
3050
460
4
559
334
1080
2560
Figure 12: Color map visualization for fitness achieved in
different strategies.
5.4.1 Incremental Evolution
As a step towards achieving general collision
avoidance behaviour, the ego-vehicle should be
trained on more than one strategy. Learning in a new
strategy should not negatively affect the perfor-
mance achieved in previously-learned strategies.
In order to achieve this objective, incremental
evolution (Togelius and Lucas, 2006) is used. A
vehicle learns to avoid collisions in one strategy and
when it reaches an accepted fitness, a new strategy is
added to the learning process so that the proposed
solution is now evaluated on both strategies, then the
fitness is averaged. This process is then repeated with
new strategies added until the vehicle learns to
survive in all introduced strategies. Table 2 shows the
results of this experiment. The training stopping
criteria for each strategy is when its fitness exceeds
80% of a predefined threshold for accepted fitness.
Table 2: Fitness achieved by the ego-vehicle during
different incremental evolution iterations. A new strategy is
added to the learning process at each iteration.
Deployment
Strategies
Learning
Iteration
1
2
3
Average
Fitness
1
1936
-
-
1936
2
2380
1452
-
1916
3
1970
2123
1467
1853.3
5.5 Simultaneous Collision Avoidance
The objective of this experiment is to achieve a
collision free environment, where all moving vehicles
simultaneously learn to avoid collisions with each
other and with static environment. An evolved
vehicle, that learned to navigate collision-freely, is
used to boost the behaviour of the other vehicles
through two different approaches as detailed in the
coming two subsections. The results are obtained by
running the simulator to train for 100 seconds in four
different strategies.
5.5.1 Broadcasting the Winning
Chromosome
In this approach, the evolved solution represented by
the winning chromosome is broadcasted to all the
vehicles to use. Table 3 compares the average number
of collisions per second for all the vehicles before
versus after learning.
Table 3: Comparison between the number of collisions per
second before versus after learning.
Initial Behaviour
[collisions/sec]
After Learning
[collisions/sec]
Strategy 1
16.33
3.90
Strategy 2
20.05
4.59
Strategy 3
16.82
8.00
Strategy 4
13.49
12.27
In reasonable simulation time, the collision avoidance
performance highly increases, but not for all the
strategies.
5.5.2 Broadcasting the Most Evolved
Generation
In order to achieve better collision avoidance
performance, learning process should not only be
Training Strategy
Deployment Strategy
ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications
256
applied on a single vehicle, but all vehicles should
simultaneously learn. Instead of assigning the
winning chromosome directly to each vehicle, we can
assign the evolved population to each vehicle to start
learning using it. This approach results in a
customized solution for each different vehicle and our
results are promising as the number of collisions is
reduced by around 90% on the average.
Table 4: Comparison between the number of collisions per
second before versus after learning.
Initial Behaviour
[collisions/sec]
After Learning
[collisions/sec]
Strategy 1
16.33
2.11
Strategy 2
20.05
1.58
Strategy 3
16.82
1.76
Strategy 4
13.49
1.90
5.6 Lane Keeping
The main objective of this experiment is to validate
the generality of our method. A more realistic
simulation environment is used. As shown in figure
13, the input is no longer readings from a proximity
sensor, but lane markings from a camera. The
objective is to achieve the lane keeping active safety
feature given the detected driving lanes.

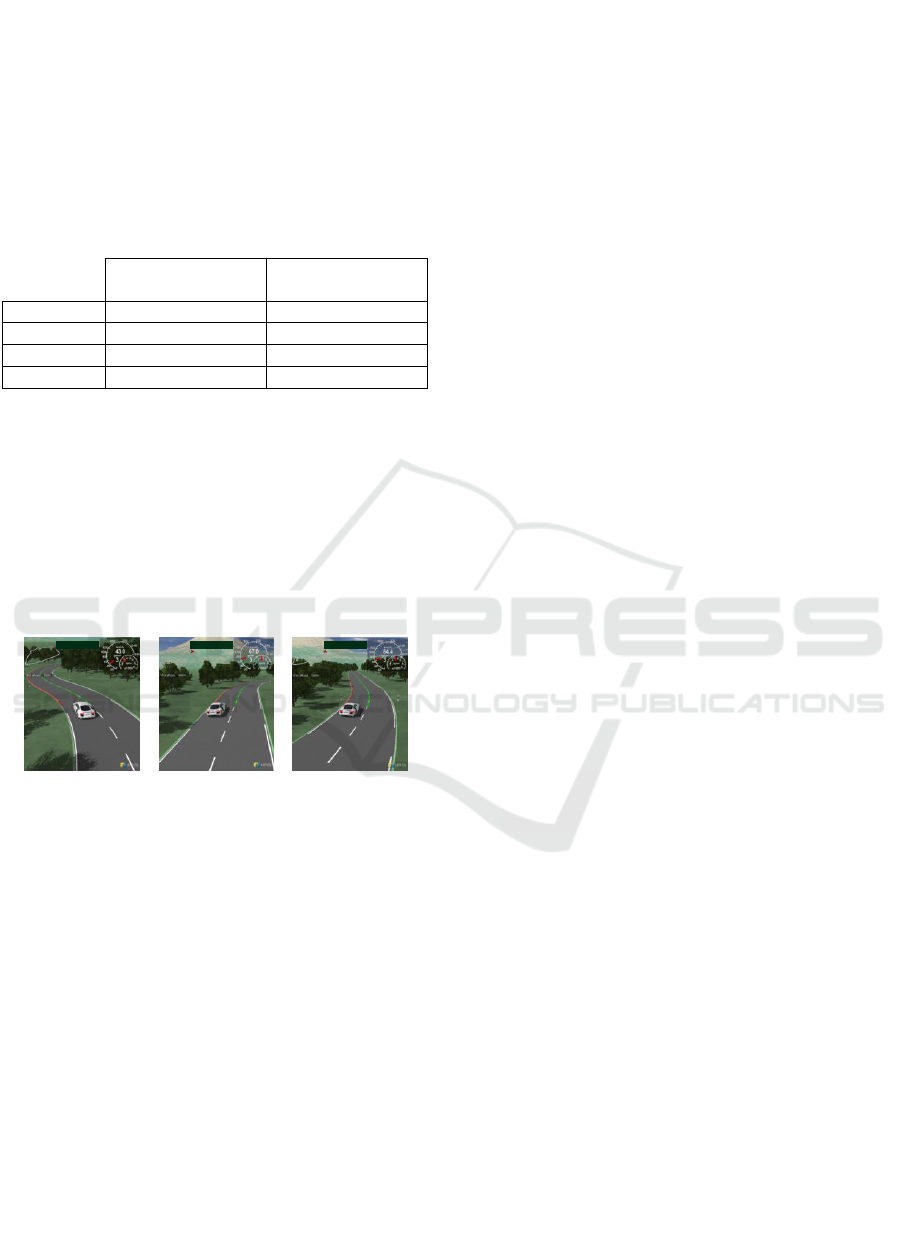

Figure 13: CarMaker simulation for lane keeping
experiment.
The results prove that our method generalizes
well. The vehicle is left to learn on simulated roads
for around 10 hours before it successfully learns to
keep in a lane for many hours. It implicitly learnt
many lane shape cases instead of memorizing a set of
hardcoded scenarios. Our method successfully allows
vehicle to learn different features other than collision
avoidance like lane keeping, and using more realistic
simulation environment.
6 CONCLUSIONS
This paper proposes and validates a novel method for
vehicles reactive collision avoidance using ENN. To
evaluate the proposed method, extensive experiments
of varying conditions and objectives are conducted.
The results demonstrated in the paper reflect the
potential for our proposed method. The vehicle learns
to drive collision freely in a static environment and
among dynamic objects. Promising progress is
achieved in developing general collision avoidance
behaviour. Moreover, our lane keeping experiment
shows the capability of our method to operate
efficiently in realistic simulation environments. The
future work should focus on deploying the conducted
experiments in more realistic and complex simulation
environments and to upgrade the GA operators to
further improve our method’s performance.
REFERENCES
Ahmadizar, Fardin, Soltanian, Khabat, AkhlaghianTab,
Fardin, Tsoulos, Loannis. 2015. Artificial neural
network development by means of a novel combination
of grammatical evolution and genetic algorithm. In
Engineering Applications of Artificial Intelligence 39.
CarMaker open test platform for virtual test driving
website: http://ipg.de/no_cache/simulation-software/
carmaker/
Durand, N., Alliot, J.M., Noailles, J., 1996. Collision
avoidance using neural networks learned by genetic
algorithms. In Ninth International Conference on
Industrial and Engineering Applications of Artificial
Intelligence and Expert Systems, Fukuoka.
Fu, W., Hadj-Abdelkader, H., Colle, E., 2013. Reactive
collision avoidance using B-spline representation:
Application for mobile robot navigation. In Mobile
Robots (ECMR), European Conference on, Barcelona.
Liu, H., Stoll, N., Junginger, S., Thurow, K., 2013. Mobile
robot for life science automation, In Int. J. Adv. Robot.
Syst., vol. 10, pp. 1-14.
Mahajan, Richa, Gaganpreet, Kaur, 2013. Neural networks
using genetic algorithms. In International Journal of
Computer Applications.
Montana, D., Davis, L., 1989. Training feedforward neural
networks using genetic algorithms. In IJCAI'89
Proceedings of the 11th international joint conference
on Artificial intelligence.
Schaffer, J. David, Whitley, Darrell, Eshelman, Larry J.,
1992. Combinations of genetic algorithms and neural
networks: A survey of the state of the art. In IEEE
Conference Proceedings.
Sipper, M., Azaria, Y., Hauptman, A., Shichel, Y, 2006.
Designing an evolutionary strategizing machine for
game playing and beyond. IEEE
Togelius, J., Lucas, S. M., 2006. Evolving robust and
specialized car racing skills in Proceedings of the IEEE
Congress on Evolutionary Computation.
Vose, M. D., 1999. The Simple Genetic Algorithm:
Foundations and Theory. In IEEE Transactions on
Systems, Man, and Cybernetics, Part C: Applications
and Reviews.
Speed: 67.0 km/h
Speed: 43.0 km/h
Speed: 64.4 km/h
Reactive Collision Avoidance using Evolutionary Neural Networks
257
