Combining Bayesian Approaches and Evolutionary Techniques for the

Inference of Breast Cancer Networks

Stefano Beretta

, Mauro Castelli

, Ivo Gonc¸alves

, Ivan Merelli

and Daniele Ramazzotti

DISCo, Universit

a degli Studi di Milano Bicocca, 20126 Milano, Italy

NOVA IMS, Universidade Nova de Lisboa, 1070-312 Lisboa, Portugal

Ist. di Tecnologie Biomediche, Consiglio Nazionale delle Ricerche, Segrate, Italy

Department of Pathology, Stanford University, Stanford, U.S.A.

Keywords:

Bayesian Graphical Models, Breast Cancer, Genetic Algorithms, Network Inference.

Abstract:

Gene and protein networks are very important to model complex large-scale systems in molecular biology.

Inferring or reverseengineering such networks can be deﬁned as the process of identifying gene/protein inter-

actions from experimental data through computational analysis. However, this task is typically complicated

by the enormously large scale of the unknowns in a rather small sample size. Furthermore, when the goal is

to study causal relationships within the network, tools capable of overcoming the limitations of correlation

networks are required. In this work, we make use of Bayesian Graphical Models to attach this problem and,

speciﬁcally, we perform a comparative study of different state-of-the-art heuristics, analyzing their perfor-

mance in inferring the structure of the Bayesian Network from breast cancer data.

1 INTRODUCTION

Molecular networks are essential for every biologi-

cal process, since genes and proteins are able to carry

out their function only in precisely regulated path-

ways. For this reason, data-driven learning of regula-

tory connections in molecular networks has long been

a key topic in computational biology (Bansal et al.,

2007). The general problem is to infer, or reverse-

engineer, from gene or protein expression data, the

regulatory interactions among these biological enti-

ties using computational algorithms.

In this context, despite correlation networks are

widely used for gene expression and proteomic data

analysis, it is known that correlations not only con-

found direct and indirect associations, but also pro-

vide no means to distinguish between cause and ef-

fect. For causal analysis the inference of a directed

graphical model is typically required. However, this

task is rather difﬁcult due to multiple theoretical and

practical reasons, among which, but not limited to, the

course of dimensionality (Pearl, 2003).

Therefore, causal analysis requires tools capable

of overcoming the limitations of correlation networks:

much of the work in this area has focused on Bayesian

Networks (Pearl, 2003) or related regression models,

such as systems of recursive equations or inﬂuence di-

agrams. All these models describe causal relations by

an underlying directed acyclic graph (DAG). Never-

theless, it remains unclear whether causal, rather than

merely correlational, relationships in molecular net-

works can be inferred in complex biological settings.

Moreover, the problem is typically complicated by

the enormously large scale of the unknowns in a rather

small sample size. Furthermore, data is prone to ex-

perimental defects and noisy readings, while many

other biases can compromise the quality of the results.

These complexities call for a heavy involvement of

powerful mathematical models which play an in-

creasingly important role in this research area (Kabir

et al., 2010). In order to assess the ability of dif-

ferent tools to learn causal networks, the Dialogue

for Reverse Engineering Assessment and Methods

(DREAM) project has run several challenges focused

on network inferences (Stolovitzky et al., 2007). In

particular, we focused on (sub)-challenge 8.1 con-

cerning Human Protein Networks (HPN) in cancer

cell lines, which is about the inference of causal sig-

nalling pathways using time-course data with pertur-

bations on network nodes. This sub-challenge was

split into two independent parts, concerning Breast

Cancer proteomic data and in silico data.

Beretta, S., Castelli, M., Gonçalves, I., Merelli, I. and Ramazzotti, D.

Combining Bayesian Approaches and Evolutionary Techniques for the Inference of Breast Cancer Networks.

DOI: 10.5220/0006064102170224

In Proceedings of the 8th International Joint Conference on Computational Intelligence (IJCCI 2016) - Volume 1: ECTA, pages 217-224

ISBN: 978-989-758-201-1

217

Different types of models, such as directed graphs,

Boolean networks (Akutsu et al., 1999), Bayesian

Graphical Models (Zou and Conzen, 2005), and var-

ious differential models have been used to describe

gene regulations at various levels of detail and com-

plexity. The choice of the model is often determined

by how much information it tries to capture, taking

into account that the more information a model at-

tempts to infer, the more parameters are needed to

learn it, and the more complex the overall approach

becomes. Speciﬁcally, researchers have paid great at-

tention to Bayesian Networks, which can compactly

model dependency relationships between variables

relying on probabilistic measures. Since gene expres-

sion experiments are subject to many measurement er-

rors, the use of statistical methods is expected to be

effective for extracting useful information from such

noisy data. Friedman et al. (Friedman et al., 2000)

proposed both discrete and continuous Bayesian net-

work models relying on linear regression for infer-

ring gene networks. Imoto et al. (Imoto et al., 2001)

succeeded in employing non-parametric regressions

for capturing even non-linear relationships between

genes.

In this work, we perform a comparative study of

different heuristics at the state-of-the-art to perform

the task of inferring the structure of a Bayesian net-

work from breast cancer data. The paper is struc-

tured as follows: Section 2 provides a background of

the biological problem under exam; Section 3 gives

a formal deﬁnition of the problem addressed in this

study, along with a description of the different compu-

tational and statistical machineries that we are adopt-

ing, and of the input data. Afterwards, the results of

the described methods on real and simulated data are

presented and discussed in Section 4. Section 5 con-

cludes the paper and suggests avenues for future re-

search.

2 BIOLOGICAL BACKGROUND

Many biological processes are carried out by inter-

actions between proteins, RNA, and DNA. Cells re-

spond to their environment by activating signalling

networks that trigger processes such as growth, sur-

vival, apoptosis (programmed cell death), and migra-

tion. Post-translational modiﬁcations, notably phos-

phorylation, play a key role in these signalling events.

In cancer cells, signalling networks frequently be-

come compromised, leading to abnormal behaviours

and responses to external stimuli. Endogenous sig-

nal transduction in cancer cells is systematically dis-

turbed to redirect the cellular decisions from differen-

tiation and apoptosis to proliferation and, later, inva-

sion. Cancer cells acquire their malignancy through

accumulation of advantageous gene mutations by

which the necessary steps to malignancy are obtained.

These selﬁsh adaptations to independence can be de-

scribed as a result from an evolutionary process of di-

versity and selection (Schramm et al., 2010).

Many current and emerging cancer treatments

are designed to block nodes in signalling networks,

thereby altering signalling cascades. Although there

is a wealth of literature describing canonical cell sig-

nalling networks, little is known about exactly how

these networks operate in different cancer cells. Ad-

vancing our understanding of how these networks are

deregulated across cancer cells will ultimately lead to

more effective treatment strategies for patients.

Recently, high-throughput analysis enabled the

possibility to obtain genome-wide information, such

as mRNA expressions, protein-protein interactions,

protein localizations and so on. A lot of attention has

been dedicated on developing computational methods

for extracting valuable information of molecular net-

works from such various types of genomic data.

Currently, statistical models for estimating gene

regulatory networks from genomic data are mainly

based on expression data from DNA microarrays or

RNA-seq experiments. However, since information

from these approaches is limited by their quality,

noise and experimental errors, sophisticated mathe-

matical approaches are necessary for estimating gene

regulatory networks accurately.

On the other hand, protein-protein interaction net-

works are mainly constructed relying on observed

protein-protein interaction data, using approaches

such the two hybrid assays, tandem afﬁnity puriﬁca-

tion experiments and, more recently, protein arrays.

However, protein-protein interaction data often con-

tains some errors, making even more difﬁcult to con-

struct comprehensive protein-protein interaction net-

works from these interaction data alone.

3 METHODS

A Bayesian Network (BN) is a statistical graphical

model that represents a joint distribution over n ran-

dom variables and encodes it by means of a direct

acyclic graph (DAG) depicting the n nodes referring

to the variables. More formally, we deﬁne a BN as a

direct acyclic graph G = (V,E), where V is the set

containing the n random variables and E is the set

of the directed arcs over them, representing any con-

ditional dependence among the variables (Parsons,

2011).

ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications

218

In this work, we make use of such graphical tool

to model a protein network G

(being a direct acyclic

graph), whose structure (i.e., the nodes and arcs in

the model) maximizes the likelihood, given the ob-

served data on which we make the inference. More-

over, we deﬁne this task as an optimization problem

where, for a set of observations D, we aim at max-

imizing the likelihood of observing the data given a

speciﬁc model G

, which we deﬁne as

L L (G

,D) =

∏

d∈D

P(d|G

that is the product of the conditional probabilities

given each observation d ∈ D.

Practically, however, there is a well-known issue

when learning the network structure by maximizing

the likelihood function. In fact, for any arbitrary set of

data, the most likely graph is usually very connected,

since adding an edge typically can only increase the

likelihood of the data, hence leading to overﬁtting. To

try to reduce this problem, the likelihood is almost

always adjusted by means of a regularization term

that penalizes the complexity of the model (Parsons,

2011).

We also observe that, regardless of the adopted ap-

proach and likelihood score, the main issue to infer

the structure of a BN is the huge search space of the

valid solutions, which makes this a well known NP-

hard problem and, therefore, one will need to make

use of heuristics to perform such inference (Parsons,

2011).

In this work, we compare different heuristics

search algorithms along with various regularizations

for the likelihood score. In Table 1 we present a list

of combinations of the adopted techniques, which are

described in details in the subsequent sections.

Table 1: Combinations of the different heuristics and regu-

larization approaches used in this work.

Heuristic Search Algorithm Regularizators

Hill Climbing (HC) loglik AIC BIC

Tabu Search (TB) loglik AIC BIC

Genetic Algoritms (GA) loglik AIC BIC

Here we employ three different and well-known

evolutionary methods to solve the previously men-

tioned optimization problem, that is to reconstruct the

Bayesian network w.r.t. to a speciﬁc regularization

score. In the rest of this section we brieﬂy describe

each method and also the considered regularizators.

3.1 Hill Climbing

Hill Climbing (HC) is one of the simplest iterative

techniques that have been proposed for solving op-

timization problems. While HC consists of a simple

and intuitive sequence of steps, it is a good search

technique to be used as a baseline for comparing

the performance of more advanced optimization tech-

niques.

Hill climbing shares with other techniques

(like simulated annealing (Hwang, 1988) and tabu

search (Glover, 1989)) the concept of neighbourhood.

Search methods based on this latter concept are itera-

tive procedures in which a neighbourhood N(i) is de-

ﬁned for each feasible solution i, and the next solution

j is searched among the solutions in N(i). Hence, the

neighbourhood is a function N : S → 2

that assigns

at each solution in the search space S a (non-empty)

subset of S. In our case, every solution is modelled as

an adjacency matrix, where an entry [i, j] is 1 if in the

current solution an arc is present from node i to node

j, and is 0 otherwise.

The sequence of steps of the hill climbing algo-

rithm, for a minimization problem w.r.t. a given ob-

jective function f , are the following:

1. choose an initial solution i in S;

2. ﬁnd the best solution j in N(i) (i.e., the solution j

such that f ( j) ≤ f (k) for every k in N(i);

3. if f ( j) > f (i), then stop; else set i = j and go to

Step 2.

To counteract the main limitation of hill climbing

(i.e., getting trapped in a local optimum), more ad-

vanced neighbourhood search methods have been de-

ﬁned. The following section presents the Tabu Search

method, a popular and effective optimization tech-

nique that uses the concept of “memory”.

3.2 Tabu Search

As described in the original work of Glover (Glover,

1989), Tabu Search (TS) is a meta-heuristic that

guides a local heuristic search procedure to explore

the solution space beyond local optimality. One of the

main components of this method is the use of an adap-

tive memory, which creates a more ﬂexible search be-

haviour. Memory-based strategies are therefore the

main feature of TS approaches, founded on a quest for

“integrating principles”, by which alternative forms

of memory are appropriately combined with effective

strategies for exploiting them.

Tabus are one of the distinctive elements of TS

when compared to hill climbing or other local search

methods. The main idea in considering tabus is to

prevent cycling when moving away from local optima

through non-improving moves. When this situation

occurs, something needs to be done to prevent the

search from tracing back its steps to where it came

Combining Bayesian Approaches and Evolutionary Techniques for the Inference of Breast Cancer Networks

219

from. This is achieved by declaring tabu (disallow-

ing) moves that reverse the effect of recent moves.

For instance, let us consider a problem where solu-

tions are binary strings of a preﬁxed length and the

neighbourhood of a solution i consists of the solutions

that can be obtained from i by ﬂipping only one of its

bits. In this scenario, if a solution j has been obtained

from a solution i by changing one bit b, it is possible

to declare a tabu to avoid to ﬂip back the same bit b of

j for some number of iterations (this number is called

the tabu tenure of the move). Tabus are also useful

to help the search move away from previously visited

portions of the search space and, thus, perform more

extensive exploration.

The basic TS algorithm is reported, considering

the minimization of the objective function f , as fol-

lows:

1. randomly select an initial solution i in the search

space S, and set i

∗

= i and k = 0, where i

∗

is the

best solution so far and k the iteration counter;

2. set k = k + 1 and generate the subset V of the ad-

missible neighbourhood solutions of i (i.e., non-

tabu or allowed by aspiration);

3. choose the best j in V and set i = j;

4. if f (i) < f (i

∗

), then set i

∗

= i;

5. update tabu and aspiration conditions;

6. if a stopping condition is met then stop; else go to

Step 2.

Commonly used conditions to end the algorithm

are when the number of iterations (K) is larger than

the maximum number of allowed iterations, or if no

changes to the best solution have been performed in

the last N iterations (as in our tests).

3.3 Genetic Algorithm

Genetic Algorithms (GAs) are a class of computa-

tional models that mimic the process of natural evo-

lution (Goldberg and Holland, 1988). GAs are often

considered as function optimizers although the range

of problems to which genetic algorithms have been

applied is quite broad. Although different variants ex-

ist, most of the methods called “GAs” have at least

the following elements in common: populations of

chromosomes, selection according to a ﬁtness func-

tion, crossover to produce new offspring, and random

mutation of new offspring.

One of the most important issues when using the

GAs to solve an optimization problem is the way to

encode the candidate solutions, that is the individu-

als in the population, and also the genetic operators

(crossover and mutation). Since, this aspect strongly

depends on the speciﬁc problem, here we describe

how GAs have been used to build a Bayesian Net-

work. A candidate solution is represented as a string

s of length equal to n

, being n the number of nodes

of the network. Each position s[i] can be either 0 or

1, and the information represents the existence of a

connection among node i/n and node i%n, where the

/ operator denotes the integer division, while the %

operators denotes the rest of the division between i

and n. As an example, s[12] = 1 in a network with

10 nodes means that there is a node between node 1

(12/10) and node 2 (12%10). Nodes are numbered

from 0 to n − 1.

To produce admissible solutions (i.e., in our do-

main a network without loops), it is fundamental to

redeﬁne the classical crossover and mutation opera-

tors. More precisely, we developed a simple but efﬁ-

cient method that guarantees that crossover and muta-

tion will produce Bayesian Networks without loops.

To achieve this goal we associated to each solution

two lists, called forward list and backward list. The

two lists maintain, for each node k, the forward links

(i.e., the set of nodes

k for which a connection from

k to

k exists) and the backward links (i.e., the set of

nodes

k for which a connection from

k to k exists). By

using these two linked lists it is simple to assess if a

new connection between two nodes can be created. In

detail, let us assume that the algorithm needs to evalu-

ate whether it is possible to add a connection between

nodes k

and k

(with k

being the origin and k

the

destination node of the connection). In this scenario,

it is necessary to iteratively scan all the elements in

the backward list of k

and check if in their backward

lists k

is present. In this case it would be impossi-

ble to create a connection between k

and k

without

entering a loop in the structure of the network. In the

same way, it is necessary to iteratively scan all the el-

ements in the forward list of k

and check if in their

forward lists k

is present. Also in this case, the cre-

ation of the connection from k

to k

will introduce a

loop in the network.

Hence, the proposed crossover operator works as

follows:

1. choose two individuals p

and p

as parents,

based on tournament selection;

2. select a single crossover point for both the parents;

3. for every locus i before that point set child

[i] =

[i] and child

[i] = p

[i];

4. for every locus i beyond that point for which

[i] is equal to p

[i], set child

[i] = p

[i] and

child

[i] = p

[i];

5. for every locus i beyond that point for which p

[i]

is different from p

[i], do the following:

ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications

220

• if p

[i] = 0, then set child

[i] = 0 and set

child

[i] = 1 if and only if it is possible to create

a connection between node i/n and node i%n

(set child

[i] = 0 in the opposite case);

• if p

[i] = 0, then set child

[i] = 0 and set

child

[i] = 1 if and only if it is possible to create

a connection between node i/n and node i%n

(set child

[i] = 0 in the opposite case);

• update the forward and the backward lists.

The mutation operator we proposed works as fol-

lows:

1. for each locus i of an individual p generate a ran-

dom number r from a uniform distribution. If

r ≤ p

(where p

is the mutation probability) then

select the locus i for mutation;

2. if p[i] = 1, then set p[i] = 0 and update the forward

and backward lists;

3. in the opposite case (p[i] = 0), check if it is pos-

sible to create a connection between node i/n and

node i%n. If the connection does not introduce a

loop set p[i] = 1 and update the data structures,

else p[i] will remain equal to 0.

The genetic operators described above ensure that

the constraint related to the absence of loops is always

satisﬁed. Moreover, this allows the GA to avoid to

reject a high number of individuals that do not respect

the constraint. This will result in a beneﬁcial effect on

the execution time of the algorithm.

3.4 Regularizators

As already mentioned, we make use of various like-

lihood scores as ﬁtness functions for the inference of

the network. Such scores, namely loglik, AIC, and

BIC, are implemented by using the bnlearn R pack-

age (Scutari, 2009).

Speciﬁcally, we ﬁrst considered the log-likelihood

score (loglik), that is the logarithm of the previously

mentioned likelihood score. Then, as regularized log-

likelihood scores, we used the Akaike Information

Criterion (AIC) (Akaike, 1992) and the Bayesian In-

formation Criterion (BIC) (Schwarz et al., 1978).

To extend this scores in order to model continuous

random variables, we adopt the multivariate Gaussian

implementation of the log-likelihood score (see (Par-

sons, 2011) for a formal deﬁnition of the scores and

(Scutari, 2009) for the adopted implementation).

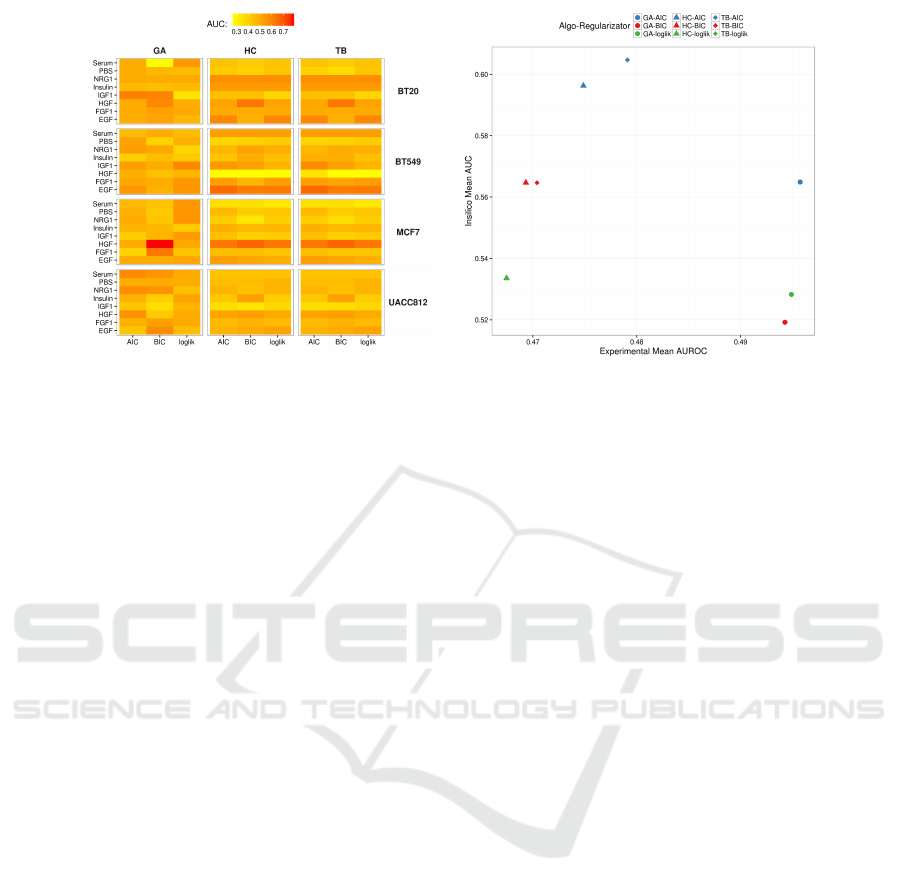

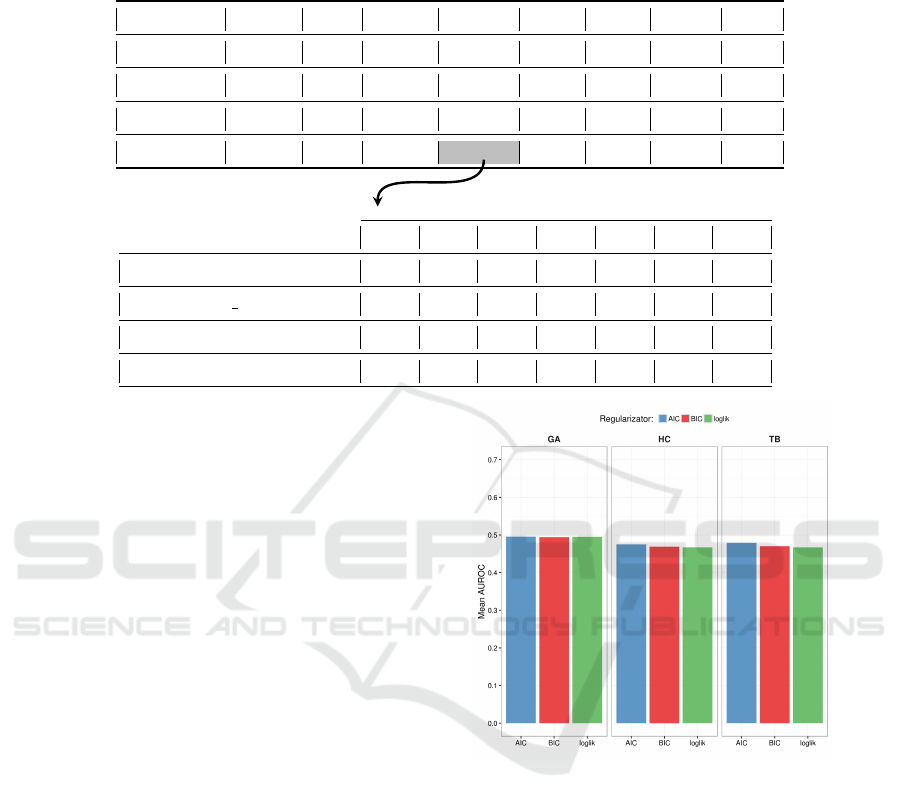

4 RESULTS

To assess the performance of the different approaches

and regularizators, we have considered the HPN-

DREAM breast cancer network inference challenge.

This challenge comprises three sub-challenges, and

we focused on the ﬁrst one (Sub-challenge 1). This

sub-challenge consists of two distinct parts: the ﬁrst

one (Sub-challenge 1A) aims at inferring causal sig-

nalling networks using protein time-course data. The

task spanned 32 different contexts, each deﬁned by a

combination of 4 cell lines and 8 stimuli, which fo-

cus on networks with speciﬁc genetic and epigenetic

background. Since for these datasets the real net-

work is unknown, beside training data, further data

(not used during the inference) are available to assess

the causal validity of the inferred networks. The sec-

ond part (Sub-challenge 1B) comprises in silico data

task and also focused on causal networks. Anyway,

differently from the former one, the use of a-priori

biology knowledge to design the network is not al-

lowed. Since for this sub-challenge the protein net-

work is known, the evaluation of the achieved results

can be performed by directly comparing the computed

network with the original one.

More in details, the datasets of Sub-challenge 1A

(“real data”) were generated using Reverse Phase Pro-

tein Array (RPPA) quantitative proteomics technol-

ogy. RPPA is a protein array designed as a micro- or

nano-scaled dot-blot platform that allows the simul-

taneous measurement of protein expression levels in

a large number of biological samples in a quantita-

tive manner, when high-quality antibodies are avail-

able (Spurrier et al., 2008). This challenge focuses

on about 45 phosphoproteins (proteins phosphory-

lated at speciﬁc sites). Protein abundance may be in-

ﬂuenced by multiple dynamical processes operating

over multiple time-scales. This challenge does not

focus on long-term changes over days (e.g. rewiring

of networks due to epigenetic changes brought about

by perturbation), hence data comprises protein time-

course data up to 4 hours after ligand stimulation.

Time-course data were acquired under 8 ligand stim-

uli and inhibition of network nodes by one of 3 in-

hibitors plus the vehicle control (cells were serum-

starved and pre-treated with inhibitor prior to lig-

and stimulation). The experiment was carried out

on 4 breast cancer cell lines (namely, BT20, BT549,

MCF7, and UACC812), with abundance of the ∼

45 phosphoproteins measured at 7 time points post-

stimulus. Data are normalized protein abundance

measurements on a linear scale. Table 2 shows the 32

different processed datasets, obtained by each combi-

nation of cell/stimulus, and their compositions, which

are the expression levels of the considered phospho-

proteins with 4 different inhibitors at 7 consecutive

time points.

On the other hand, the in silico challenge aims

Combining Bayesian Approaches and Evolutionary Techniques for the Inference of Breast Cancer Networks

221

Table 2: The upper table highlights the 32 combinations of cells/stimuli which constitute the processed “real datasets”. The

lower table represents the composition of a single dataset (UACC812/Insulin in the example), which contains the expression

levels of the phosphoproteins with 4 inhibitors at 7 different time points.

Serum PBS NRG1 Insulin IGF1 HGF FGF1 EGF

BT20

BT549

MCF7

UACC812

0m 5m 15m 30m 1h 2h 4h

GSK690693

GSK690693 GSK1120212

PD173074

DMSO

to mimic the key aspects of the RPPA experimental

set up and the characteristics of the proteomic data,

but using a state-of-the-art dynamical model of sig-

nalling. This allows the assessment of inferred net-

works and predicted trajectories against a true gold

standard. A computational signalling model was used

to generate time-courses of phosphoprotein abun-

dance levels. The model describes the biochemistry

underlying a realistic signalling network. Data were

generated for combinations of 2 ligand stimuli (each

one at 2 concentrations, denoted to as “lo” and “hi”)

and 3 inhibitors, or no inhibitor (as for the experi-

mental data described above, cells were pre-incubated

with the inhibitor prior to ligand stimulation). For

each condition, a time-course of 20 phosphoprotein

levels is provided at 10 time points post-stimulus. It

must be noticed that phosphoprotein names have been

anonymized so that detailed prior information from

canonical signalling pathways cannot be used. Efforts

have been made to model the antibody-based readout

of the RPPA platform and its technical variability in

a faithful manner. Three technical replicates are pro-

vided per condition. Data provided to participants are

protein abundance measurements on a linear scale. In

this task, a single network should be inferred in con-

trast to the proteomic data challenge that requires 32

networks.

Following the approach used to evaluate the re-

sults submitted to the challenge, we have considered

the same method to assess the performance of our

predictions. More precisely, in real data, for any

given context, the set of nodes that showed salient

changes under a test inhibitor (here an mTOR in-

hibitor) relative to the control was identiﬁed. These

Figure 1: Mean results on the 32 experimental datasets for

the considered approaches.

“gold-standard” sets are derived from (held-out) ex-

perimental data and should not be regarded as repre-

senting a fully deﬁnitive ground truth. For each pre-

dicted network, the set of mTOR descendants is pre-

dicted and compared against the experimental one to

obtain the area under the receiver operating charac-

teristic curve (AUROC) score (Hill et al., 2016). Re-

sults are ranked in each of the 32 contexts by AUROC

score, and the mean rank across contexts was used to

provide an overall score and a ﬁnal ranking. For the

in silico data task, the true causal network was known

and it was used to obtain an AUROC score for each

predicted network. This score has been considered to

determine the ﬁnal ranking.

By analysing the mean AUROC values computed

on the predictions on the 32 real datasets, which are

ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications

222

(a) (b)

Figure 2: (a)Heatmap showing the AUC values obtained with each combination of heuristic search method and regulariza-

tor on the 32 experimental datasets. (b) Scores in experimental and in silico data tasks. Each combination of shape/color

corresponds to a speciﬁc algorithm/regularizator pair.

reported as bars in the plots in Figure 1, it is possible

to observe that all the tested approaches have similar

performance, with mean values around 0.5.

Anyway, when looking more in details on each

of the 32 datasets, we can draw more accurate con-

siderations about the behaviour of the tested tech-

niques. In particular, as showed in the heatmap in

Figure 2(a), on the processed datasets we have ob-

tained AUROC values ranging from 0.3 to 0.7. As

corroborated by several studies present in literature,

these results highlight the fact that HC (hill climbing)

and TB (tabu search) have almost the same behaviour,

also, w.r.t. the considered regularizator, on the major-

ity of the datasets. On the other hand, GA (genetic al-

gorithm) presents slightly different results than those

obtained by the other two methods and, moreover, it

seems that the results are affected by the considered

regularizator. Interestingly, when looking at the in sil-

ico AUC values, we can observe that, for each reg-

ularizator, HC and TB perform better on the in sil-

ico dataset, while GA is slightly worse; the opposite

situation is observed in the real datasets, where the

latter method (i.e. genetic algorithms) achieves bet-

ter results with respect to the two former techniques

(i.e., hill climbing and tabu search). The scatter plot

in Figure 2(b) shows a comparison of the mean AUC

results on the in silico dataset against the AUROC

mean values on the real datasets obtained with all the

employed approaches.

To assess the quality of the obtained results, we

performed a comparison with those obtained by the

participants of the challenge. More precisely, as re-

ported in (Hill et al., 2016), several different tech-

niques have been used to reconstruct the network pro-

posed in this challenge, which can be distinguished

based on the fact that a prior knowledge has been em-

ployed in order to improve the predictions, and also

based on the reconstruction method (Bayesian net-

works in our case). From the results on the in sil-

ico dataset, ranked by the mean AUC, we observed

that our best performer (TB with AIC) obtained a

value of 0.6, which is better than all the other meth-

ods based on Bayesian networks and ranks in the top

15% of the overall evaluated techniques. On the other

hand, on the 32 real datasets our results are similar

to those obtained by methods based on Bayesian net-

works, which present values around 0.5. Both these

results are not surprising, since we do not use any

prior knowledge on the input data (resulting in good

performance on the in silico dataset), and also the

number of observations in each of the 32 real datasets

is quite low compared to the number of nodes (phos-

phoprotein) of the networks to reconstruct, hence pe-

nalizing Bayesian approaches, making the inference

task difﬁcult.

5 CONCLUSIONS

In this work, we studied the inference of causal

molecular networks, speciﬁcally focusing on signal-

ing downstream of receptor tyrosine kinases. We

modeled relationships (edges) in causal molecular

networks (’causal edges’) as directed links between

nodes, in which inhibition of the parent node can lead

to a change in the abundance of the child node, either

by direct interaction or via unmeasured intermediate

nodes.

Combining Bayesian Approaches and Evolutionary Techniques for the Inference of Breast Cancer Networks

223

To this extent, we have tested different methods

to reconstruct (Bayesian) networks on real and in sil-

ico datasets proposed in the HPN-DREAM challenge.

Speciﬁcally, we analyzed the performance of different

optimization search schemes, i.e., Hill climbing (HC),

Tabu seach (TS) and Genetic algorithms (GA), and

various likelihood scores, i.e., loglik, AIC and BIC.

This analysis seems to show a better performance of

more sophisticated search strategies like GA on real

datasets, even if on in silico data it is shown that eas-

ier search schemes as HC and TS also prove to be very

effective.

Furthermore, we ﬁnd the obtained results to be en-

couraging, especially considering the fact the we have

employed “standard” versions of the algorithms for

the reconstruction of the network without making use

of any biological prior.

REFERENCES

Akaike, H. (1992). Information theory and an extension of

the maximum likelihood principle. In Breakthroughs

in statistics, pages 610–624. Springer.

Akutsu, T., Miyano, S., Kuhara, S., et al. (1999). Identi-

ﬁcation of genetic networks from a small number of

gene expression patterns under the boolean network

model. In Paciﬁc symposium on biocomputing, vol-

ume 4, pages 17–28. Citeseer.

Bansal, M., Belcastro, V., Ambesi-Impiombato, A., and

Di Bernardo, D. (2007). How to infer gene networks

from expression proﬁles. Molecular systems biology,

3(1):78.

Friedman, N., Linial, M., Nachman, I., and Pe’er, D. (2000).

Using bayesian networks to analyze expression data.

Journal of computational biology, 7(3-4):601–620.

Glover, F. (1989). Tabu search-part i. ORSA Journal on

computing, 1(3):190–206.

Goldberg, D. E. and Holland, J. H. (1988). Genetic al-

gorithms and machine learning. Machine learning,

3(2):95–99.

Hill, S. M., Heiser, L. M., Cokelaer, T., Unger, M., Nesser,

N. K., Carlin, D. E., Zhang, Y., Sokolov, A., Paull,

E. O., Wong, C. K., et al. (2016). Inferring causal

molecular networks: empirical assessment through a

community-based effort. Nature methods, 13(4):310–

318.

Hwang, C.-R. (1988). Simulated annealing: theory

and applications. Acta Applicandae Mathematicae,

12(1):108–111.

Imoto, S., Goto, T., Miyano, S., et al. (2001). Estimation

of genetic networks and functional structures between

genes by using bayesian networks and nonparametric

regression. In Paciﬁc symposium on Biocomputing,

volume 7, pages 175–186.

Kabir, M., Noman, N., and Iba, H. (2010). Reverse engi-

neering gene regulatory network from microarray data

using linear time-variant model. BMC bioinformatics,

11(1):1.

Parsons, S. (2011). Probabilistic graphical models: Prin-

ciples and techniques. The Knowledge Engineering

Review, 26(02):237–238.

Pearl, J. (2003). Causality: models, reasoning and infer-

ence. Econometric Theory, 19:675–685.

Schramm, G., Kannabiran, N., and K

onig, R. (2010). Reg-

ulation patterns in signaling networks of cancer. BMC

systems biology, 4(1):1.

Schwarz, G. et al. (1978). Estimating the dimension of a

model. The annals of statistics, 6(2):461–464.

Scutari, M. (2009). Learning bayesian networks with the

bnlearn r package. arXiv preprint arXiv:0908.3817.

Spurrier, B., Ramalingam, S., and Nishizuka, S. (2008).

Reverse-phase protein lysate microarrays for cell sig-

naling analysis. Nature protocols, 3(11):1796–1808.

Stolovitzky, G., Monroe, D., and Califano, A. (2007). Di-

alogue on reverse-engineering assessment and meth-

ods. Annals of the New York Academy of Sciences,

1115(1):1–22.

Zou, M. and Conzen, S. D. (2005). A new dynamic

bayesian network (dbn) approach for identifying gene

regulatory networks from time course microarray

data. Bioinformatics, 21(1):71–79.

ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications

224
