Bridging the Reality Gap — A Dual Simulator Approach to the

Evolution of Whole-Body Motion for the Nao Humanoid Robot

Malachy Eaton

Dept. Computer Science and Information Systems, University of Limerick, Limerick, Ireland

Keywords: Evolutionary Algorithms, Humanoid Robotics, Ball Kicking, Evolutionary Robotics, Evolutionary Humanoid

Robotics, Whole-Body-Motion.

Abstract: We describe a novel approach to the evolution of whole-body behaviours in the Nao humanoid robot using a

multi-simulator approach to the alleviation of the reality gap issue. The initial evolutionary process takes

place in the V-REP simulator. Once a viable whole-body motion has been evolved, this evolved motion is

subsequently transferred for testing onto another simulation platform – Webots. Only when the evolved

kicking behaviour has been demonstrated to also be viable on the Webots platform is this behaviour then

transferred onto the real Nao robot for testing. This eliminates the time-consuming process of transferring

behaviours onto the real robot which have little chance of successfully crossing the reality gap, and also

minimises the potential for damage to the real Nao robot and/or it’s environment. By using this novel

approach of employing two different simulators, each with its own individual strengths and weaknesses, we

reduce the likelihood that any individual behaviour will be able to exploit individual simulators’ weaknesses,

as the other simulator should pick up on this weak point. Using this procedure we have successfully evolved

ball kicking behaviour in simulation, which has transferred with reasonable fidelity onto to the real Nao

humanoid.

1 INTRODUCTION

The field of humanoid robotics addresses the creation

of mobile robots that are broadly humanlike in their

gross anatomy and/or aspects of their behaviour.

Humanoid robots have several advantages, not least

of which is their potential ability to operate in

environments designed for humans, thus potentially

having the ability to handle tasks that may be time-

consuming, distasteful, or even dangerous for humans

to perform (Eaton, 2015).

A robot in common use today by researchers into

human-like behaviours is the Nao humanoid robot

from Aldebaran Robotics (Gouaillier et al., 2009).

This robot has up to 25 degrees of freedom and stands

58cm tall. A version of this robot is used in the

RoboCup Standard Platform League (SPL), with the

eventual avowed aim of producing, by the year 2050

a humanoid robot team that will be able to take on

(and beat) the current human World Cup champions

(Kitano and Asada, 1998) (Kitano et al., 1998).

Central, of course, to being able to take up this

challenge is the development of an effective kicking

action, which is the area we address in this paper.

While some work has been done to date on the

automatic generation of kicking motions through

parameter optimisation or other means (e.g.

(Jouandeau and Hugel, 2014) ,(Li et al., 2015)), little

work has been done on the direct evolution of

individual joint motions for the robot, which is the

approach we take. In general the field of evolutionary

robotics seeks to evolve some, or all aspects of a

robots controller and/or morphology (Nolfi and

Floreano, 2000), (Bongard, 2013).

Much of the work in the area of generating soccer-

centric skills has involved simulated robots for the

RoboCup3D simulation league (Depinet et al., 2014),

however our emphasis is on the evolution of

behaviours which can be transferred effectively onto

the real robot.

1.1 The “Reality Gap” Issue

A major issue that arises in this regard is the so-called

“reality gap”; that is the potential disparity between

evolved (or otherwise generated) behaviours in

simulation, and their actual implementation on the

real robot. This can be of particular importance in the

186

Eaton, M.

Bridging the Reality Gap — A Dual Simulator Approach to the Evolution of Whole-Body Motion for the Nao Humanoid Robot.

DOI: 10.5220/0006052301860192

In Proceedings of the 8th International Joint Conference on Computational Intelligence (IJCCI 2016) - Volume 1: ECTA, pages 186-192

ISBN: 978-989-758-201-1

evolution of behaviours for multi-jointed robots with

many degrees of freedom, as in the case discussed in

this paper. Various approaches have been taken to

alleviate this issue, including the transferability

approach (Koos et al., 2013), the grounded simulated

learning approach (Farchy et al., 2013), the

leveraging multiple simulators approach (Boeing and

Bräunl, 2012), combining evolution in simulation

with pre-programmed behaviours (Duarte et al.,

2012), using an EA to tune the parameters of a

simulator (Laue and Hebbel, 2009), fitness function

correction interleaving simulated and real data

(Iocchi et al., 2007), coevolution of controller and

simulator (Lipson et al., 2006), (Bongard and Lipson,

2004), the “back to reality approach” (Zagal and

Ruiz-Del-Solar, 2007), (Zagal et al., 2004), the online

adaptation approach (Floreano and Urzelai, 2001),

the envelope of noise approach (Jakobi, 1997a),

(Jakobi, 1997b), and scaled experimentation (Eaton,

2015).

Although there has been work done to date on

leveraging the effects of multiple physics simulators

(Boeing and Bräunl, 2012), (Boeing, 2009) for

evolutionary robotics experiments, to our knowledge

this is one of the few, if any, which utilises the

advantages of using multiple simulation packages,

rather than just the core physics engines.

1.2 Simulators used — Webots and

V-REP

The two simulation packages we use are Webots

(Michel, 2004) and the Virtual Robot

Experimentation Platform (V-REP) (Freese, 2010).

Both of these packages have been used extensively in

the simulation of a wide variety of robots including

wheeled and legged robots of a variety of types, and

also for the simulation of humanoid robots. Webots,

which in original form dates from 1996, is one of the

longest running simulators in continuous

development suited for the detailed simulation of

complex robotic environments. V-REP is a more

recent arrival dating from around the start of this

decade, and which describes itself as the Swiss army

knife among robot simulators; an example scene from

the V-REP simulator is given in Fig. 1. Regarding

physics engines Webots relies on the Open Dynamics

Engine (ODE), while V-REP provides a choice of 4

engines, ODE, the Bullet physics library, the Vortex

Dynamics Engine and the Newton Dynamics engine.

For the work described here we utilise the Bullet

physics engine.

1.3 Overall Approach

Our approach, then, is to run the evolutionary

experiments on a simulated Nao robot in the V-REP

package, and then to transfer successfully evolved

controllers into the Webots environment for further

testing and validation of their overall performance.

One advantage of our approach is that it is

unlikely that simulation weaknesses that would

manifest themselves on one simulator would occur on

the other , and vice versa. Another advantage of our

approach is that while Webots is a proprietary

simulation package, a fully functional version of V-

REP is freely available for non-commercial use. We

have observed through experimentation that a

significant proportion of behaviours evolved using

the V-REP platform do not transfer successfully to

the real Nao robot. As the process of transferral to the

real robot can be quite time-consuming , and as the

potential for damage to the robot and/or its

environment on execution of an incorrectly evolved

motion involving quite rapid whole-body motion

such as kicking is nontrivial, it is highly desirable

only to transfer motions to the real Nao robot which

have a high probability of success.

We have observed that it is very unlikely that a

behaviour evolved in V-REP, but that fails to operate

successfully in Webots will transfer onto the real

robot with any degree of fidelity, however if validated

in the Webots simulator a high percentage should

transfer with reasonable accuracy. Preliminary

experimental verification of this observation is

discussed in section 3.

Another advantage is that while similar models of

the Nao robot are used in each simulator, there are

certain differences. For example, it is known that

certain problems exist in the precise positioning of the

centre of mass (COM) of some parts of the simulated

Nao in V-REP. Again, by using multiple simulators

the expectation is that exactly similar problems will

not exist in all simulators.

While the work in (Boeing and Bräunl, 2012),

(Boeing, 2009) involved a parallel evolutionary

process, with each individual being tested in parallel

on several physics simulators, and the results

obtained from the evaluations being combined to

generate an overall fitness for the individual, we

employ a serial evolutionary process, with each

individual in a generation being evaluated initially on

the V-REP simulator as part of the evolutionary

process. Only successful individuals are then

transferred to the Webots simulator for validation of

their performance before being then transferred to the

real robot.

Bridging the Reality Gap — A Dual Simulator Approach to the Evolution of Whole-Body Motion for the Nao Humanoid Robot

187

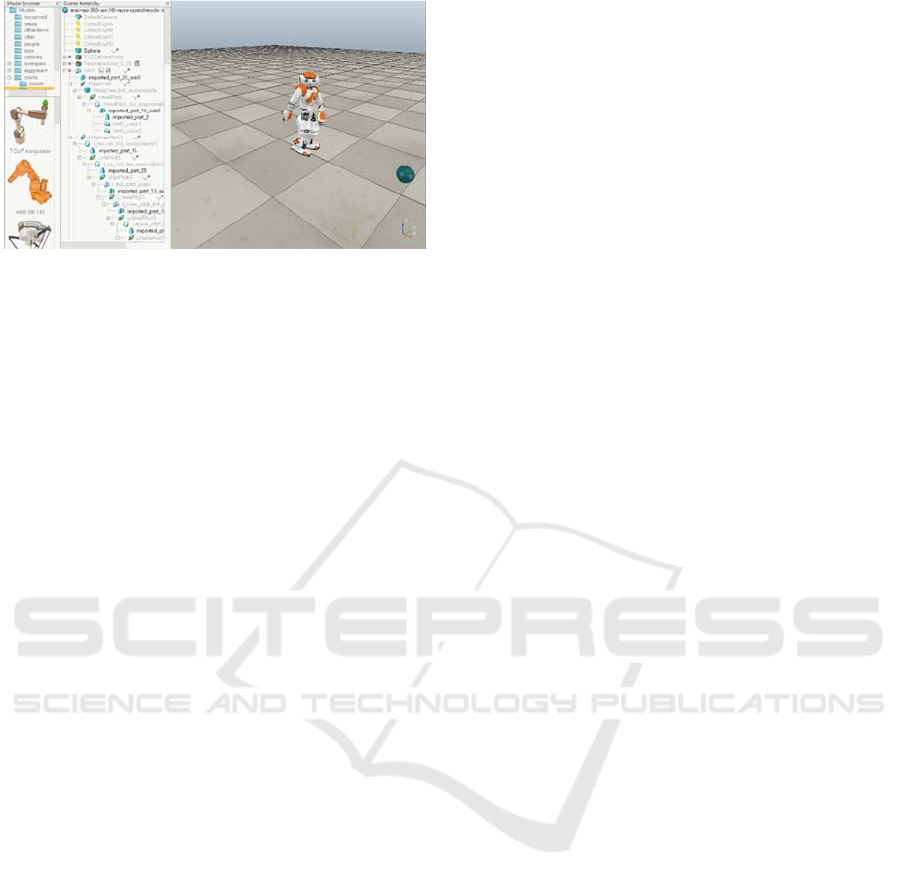

Figure 1: An example scene from the V-REP simulator. On

the far left are examples of some of the robots that can be

simulated, next to this is the scene hierarchy for the current

scene, on the right is an example of an evolved kick.

2 FITNESS FUNCTION

For the evolution of ball-kicking behaviour we base

our fitness function f on the distance travelled by the

ball in the forward direction in the time allowed for

each evaluation cycle. If the robot falls over mid-

cycle we base the fitness on the distance travelled by

the ball until the robot falls. This is to encourage

stable and replicable kicking motions which should

not cause undue strain to the real robot when

transferred from simulation. So, if the robot fails to

move the ball in the forward direction in the period in

which it remains upright, or the time limit (T) expires,

the fitness function is simply

f=100*t (1)

where t is the time that the robot remains upright

(t=T if the robot does not fall in the experimentation

period). T is set at 5 seconds for all the experiments

described here. If the robot does manage to move the

ball some distance in the forward direction the fitness

is then given by

f=(1+d)*100*t (2)

where d is the distance travelled by the ball. This

fitness function is designed in order to reward both

the robot remaining upright, and the ball being moved

in the forward direction. We note, of course, that no

constraint of remaining upright is placed on human

soccer players, it may indeed even be advantageous

to a player to conclude a kicking motion on the

ground in certain circumstances. The ball used in

these experiments was of roughly similar diameter to

that used in the RoboCup Standard Platform League

(SPL).

3 EXPERIMENTAL DETAILS

3.1 Genome Composition

The genome length is 416 bits in total. This comprises

4 bits per joint angle (allowing for a total of 16

different angle positions per joint) for each of the 24

modelled joints of the robot, for each of 4 keyframe

values. 4 keyframes were chosen as it was considered

that this would be a sufficient number to characterise

a complete kicking motion. While a certain amount

of a-priori knowledge was involved in this decision,

very little was specified about the joint values

associated with each keyframe, apart from the fact

that each joint has to keep within the maximum and

minimum ranges as given by the specifications for the

physical Nao robot. These maximum and minimum

ranges are then modified by the joint restriction

values evolved in each individual robots’ genome as

discussed below. Lower values of this 16-bit

parameter correspond to higher joint ranges.

Typically this parameter starts at quite a low value

early in the evolutionary process as the robot tends to

move in a “thrashing” fashion, which may, or may

not, cause ball movement. This value then increases

as the robot restricts its joint movement range in order

to increase the probability of not falling over due to

“thrashing” motions. As the evolution progresses this

value typically decreases gradually as the robot “frees

up” its joints in order to more effectively perform the

actions required (Eaton, 2007), (Eaton, 2013). As an

example of this progression, for the experiment

detailed in the next section the average value of this

parameter for the best genome of generation 1 was

2.41, rising to a maximum value of 3.91 in generation

124, and reducing gradually to a value of 3 in

generation 500.

A final 16 bits encodes movement durations for

each of the 4 keyframes.

3.2 Keyframe Interpolation

The interpolation between the keyframe values is

carried out by the V-REP and the Webots simulators

themselves using inbuilt functions within each

simulator. Once a sequence of 4 keyframes is

completed the process cycles over until the time limit

is exceeded or the run terminates for some other

reason (the robot falling over).

ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications

188

3.3 Evolutionary Algorithm and Robot

Control

The code for the evolutionary algorithm and robot

control software in the V-REP simulator is written in

the Lua programming language, while the

corresponding controller for the Webots simulator

and subsequent transfer to the real robot is written in

Python. This transferral is semi-automated at present,

however it is planned to fully automate this process

in the future.

A population size of 120 was used using a

mutation rate of 0.01 and a crossover probability of

0.2. These values were arrived at after some

experimentation. The genetic algorithm employs

tournament selection, and single-point crossover. It

also employs elitism, where the best individual of

each generation is guaranteed safe passage to the next

generation.

4 EXPERIMENTAL RESULTS

4.1 Evolution of Kicking Behaviour

Three runs over 500 generations were performed,

each taking about a day to complete on a 64-bit Dell

2.3GHz XPS 15 computer with an Intel i7 quad-core

CPU and 16GB of RAM. The results obtained were

then averaged to produce the fitness graph as shown

in Fig.2.

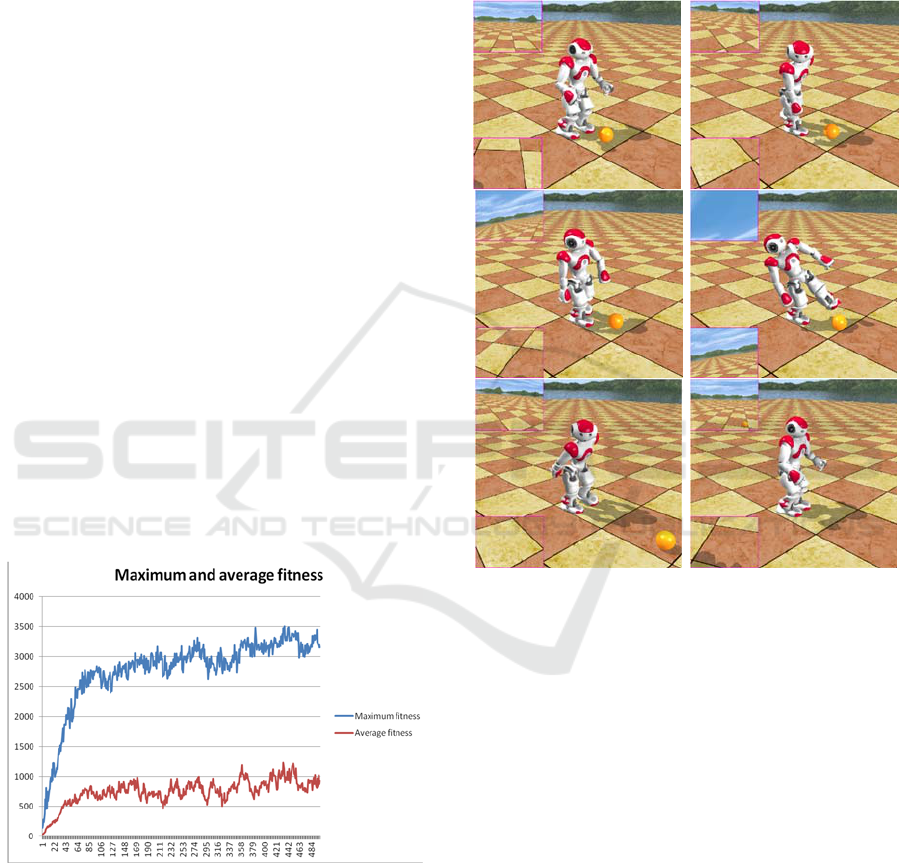

Figure 2: Maximum and average fitness, averaged over

three runs for 500 generations for the evolution of ball

kicking behaviour.

An effective kicking behaviour involves learning

to stand on one foot, and the maintenance of balance

on this foot while delivering a substantial blow to the

ball with the other foot. For our work we also wish

to maintain this balance (i.e. the robot does not fall

over on completion of the kicking motion), if

possible. Once the robot has learned to maintain its

balance its kicking efficiency (as measured by the

distance travelled by the ball) increases quite rapidly

up to about generation 100, with more modest gains

thereafter. Fig. 3 gives an example of an evolved kick

as modelled in the Webots simulator.

Figure 3: An example of an evolved kick, as transferred

from V-REP to the Webots simulator; read from top left to

bottom right.

Fig. 4 then shows this kick as transferred to the

Nao humanoid robot using the procedure outlined

earlier. The main portion of this kicking motion

transfers directly onto the robot without need for

human intervention. The only minor point of

instability occurs in the final steadying motion before

the robot comes to rest on completion of the kick, we

conjecture that this is due to a friction mismatch

between the surface the real robot rests on, and the

values used in the V-REP and Webots simulators.

However the majority of the kicking behaviour

transferred directly to the robot resulting in an

effective and quite human-like striking action. The

entire behaviour sequence depicted in Fig.4 took

place without the need for human intervention.

Effective kicking behaviour evolved in all three

runs. In one of the runs predominately right-footed

kicks were evolved, whereas a left-footed kick, as

Bridging the Reality Gap — A Dual Simulator Approach to the Evolution of Whole-Body Motion for the Nao Humanoid Robot

189

demonstrated in Fig. 3 and Fig. 4, was evolved in the

other two runs, thus demonstrating the robustness and

flexibility of our approach.

It should be noted that tests conducted on the real

Nao robot were conducted at a reduced speed than the

V-REP and Webots environments to reduce the

likelihood of damage to the robot; it was also found

that a behaviour was more likely to transfer

successfully from simulated to real robot if conducted

at a lower speed. However this reduction of speed

was not, in general, found to cause a major diminution

in the effectiveness of the behaviours evolved.

4.2 Validation of Our Approach

As an additional preliminary test of the effectiveness

of our approach we chose 10 genomes at random from

the first of the 3 runs. All of the fitness’s of the

evolved behaviours were the best of their generation

and were around the 3000 mark, corresponding to an

effective kick as evolved in the V-REP simulator.

Of these 10 behaviours two resulted in

consistently unstable behaviour over several

evaluations in the Webots environment. When

transferred to the real Nao humanoid unstable

motions also resulted, with the robot falling over and

having to be manually restrained to avoid damage to

the robot.

Of the remaining 8 motions three resulted in

motions in which the either the robot either fell over

in one of the Webots test evaluations, or, while not

falling over exhibited significant instability at some

point in the sequence. Of these three test runs, when

transferred to the real Nao robot, two resulted

instability (robot falling over), and one corresponded

to an effective kicking motion, however exhibiting

significant instability towards the end of the motion

sequence.

Five of the 10 motions tested in the Webots

simulator resulted in effective stable kicking motions.

Of these 5 motions when transferred to the real Nao,

all but one resulted in successful stable kicks.

Based on the results of these initial experiments

we would not now generally consider testing any

evolved motion on the real Nao robot that had not

been successful in both the V-REP and Webots

environments, to avoid potential strain on the Nao

robots’ actuators and/or actual damage to the robot or

its environs.

5 CONCLUSIONS

In this paper we have demonstrated the evolution of

kicking behaviour in the Nao humanoid robot. Using

a novel dual-simulator approach with a fitness

function based solely on the stability of the robot and

the distance travelled by the ball, effective kicking

behaviours were developed which were demonstrated

to transfer, with reasonable fidelity, to the real Nao

robot.

To our knowledge this is the first time a multi-

simulator approach to the evolution of robot

behaviours in the manner described in this paper.

Also to our knowledge this is one of the few, if not

the only, work which involves the evolution of

kicking behaviours for direct transferral to the real

Nao humanoid, rather than for use in the RoboCup

simulation environment.

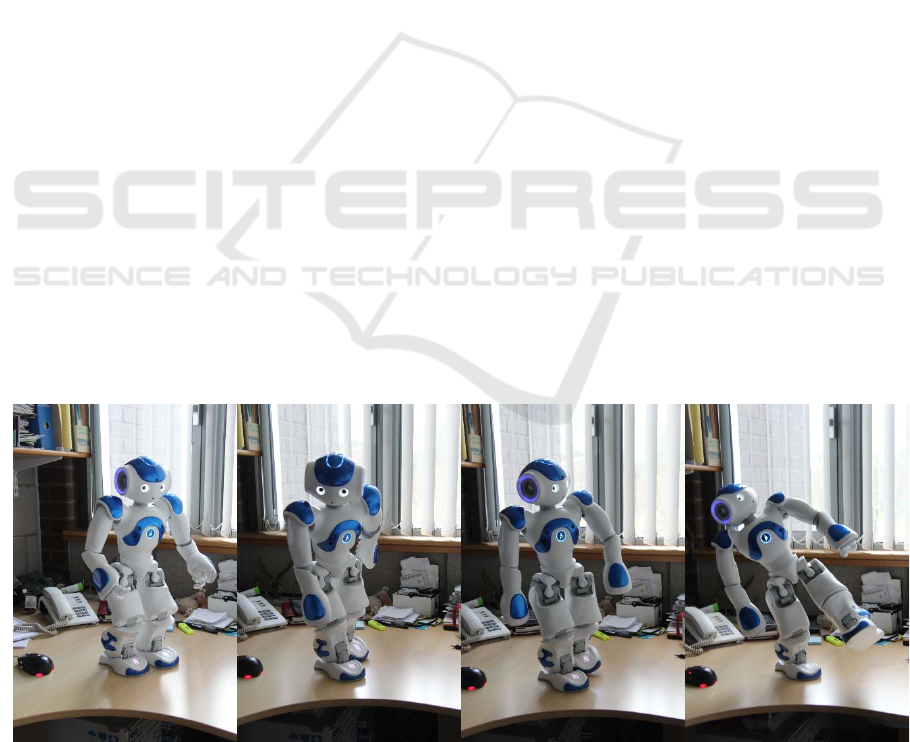

Figure 4: The evolved kick from Fig.3 as transferred to the real Nao robot. Compare these whole-body motions with the first

four frames of Fig. 3.

ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications

190

We intend to extend the approach presented in this

paper to the evolution of further behaviours of a more

complex nature, including involving multiple robots.

ACKNOWLEDGEMENTS

My thanks to Jason Brownlee for his Lua GA

implementation which provided the inspiration for

our GA coding. My appreciation also to Norah Power

for her assistance in the experimental phase of this

work. Finally, also thanks to the reviewers of this

paper for their helpful and constructive comments.

REFERENCES

Boeing, A., 2009. Design of a Physics Abstraction Layer

for Improving the Validity of Evolved Robot Control

Simulations. Ph.D Dissertation, School of Electrical,

Electronic and Computer Engineering, The University

of Western Australia, WA, 2009.

Boeing, A., and Bräunl, T., 2012. Leveraging multiple

simulators for crossing the reality gap. In: Control

Automation Robotics and Vision (ICARCV), 2012 12th

International Conference on (pp. 1113–1119). IEEE.

Bongard, J. C. , 2013. Evolutionary robotics.

Communications of the ACM, 56(8), 74–83.

Bongard, J. C., and Lipson, H., 2004. Once more unto the

breach: Co-evolving a robot and its simulator. In:

Proceedings of the Ninth International Conference on

the Simulation and Synthesis of Living Systems

(ALIFE9) (pp. 57–62).

Depinet, M., MacAlpine, P., & Stone, P. ,2014. Keyframe

sampling, optimization, and behavior integration:

Towards long-distance kicking in the robocup 3d

simulation league. In RoboCup 2014: Robot World Cup

XVIII (pp. 571-582). Springer International Publishing.

Duarte, M., Oliveira, S., and Christensen, A. L., 2012.

Automatic synthesis of controllers for real robots based

on preprogrammed behaviors. In: From Animals to

Animats 12 (pp. 249–258). Springer Berlin Heidelberg.

Eaton, M., 2007. Evolutionary humanoid robotics: past,

present and future, In: 50 Years of Artificial

Intelligence: Essays Dedicated to the 50th Anniversary

of Artificial Intelligence LNAI 4850, Springer, pp. 42–

53.

Eaton, M., 2013. An Approach to the Synthesis of

Humanoid Robot Dance Using Non-interactive

Evolutionary Techniques. In: Systems, Man, and

Cybernetics (SMC), 2013 IEEE International

Conference on (pp. 3305–3309). IEEE.

Eaton, M., 2015. Evolutionary Humanoid Robotics.

Springer Berlin Heidelberg.

Farchy, A., Barrett, S., MacAlpine, P., and Stone, P., 2013.

Humanoid robots learning to walk faster: From the real

world to simulation and back. In: Proceedings of the

2013 international conference on Autonomous agents

and multi-agent systems (pp. 39–46). International

Foundation for Autonomous Agents and Multiagent

Systems.

Floreano, D., and Urzelai, J., 2001. Evolution of plastic

control networks. Autonomous robots, 11(3), 311–317.

Freese, M.S., Singh, S, Ozaki, F, and Matsuhira N., 2010.

Virtual robot experimentation platform v-rep: a

versatile 3d robot simulator. In Simulation, Modeling,

and Programming for Autonomous Robots, pages 51–

62. Springer, 2010.

Gouaillier, D., Hugel, V., Blazevic, P., Kilner, C.,

Monceaux, J., Lafourcade, P., Mariner, B., Serre, J., and

Maisonnier, B.,2009 . Mechatronic design of NAO

humanoid. In: Robotics and Automation, 2009. ICR’09.

IEEE International Conference on (pp. 769–774).

IEEE.

Iocchi, L., Libera, F. D., and Menegatti, E. , 2007. Learning

Humanoid soccer actions interleaving simul ated and

real data, in: Proc. of The Second Workshop on

Humanoid Soccer Robots, IEEE-RAS 7th International

Conference on Humanoid Robots, Pittsburgh, 2007

Jakobi, N. , 1997b. Half-baked, ad-hoc and noisy: minimal

simulations for evolutionary robotics. In: P. Husbands

and I. Harvey, Proceedings of the Fourth European

Conference on Artificial Life. Cambridge, MA: MIT

Press.

Jakobi, N., 1997a. Evolutionary robotics and the radical

envelope-of-noise hypothesis. Adaptive Behavior, 6(2),

325–368.

Jouandeau, N., & Hugel, V. ,2014. Optimization of

parametrised kicking motion for humanoid soccer

player. In Autonomous Robot Systems and

Competitions (ICARSC), 2014 IEEE International

Conference on (pp. 241-246). IEEE.

Kitano, H., and Asada, M.,1998. RoboCup humanoid

challenge: That's one small step for a robot, one giant

leap for mankind. In: Intelligent Robots and Systems,

1998. Proceedings, 1998 IEEE/RSJ International

Conference on (Vol. 1, pp. 419–424). IEEE.

Kitano, H., Asada, M., Kuniyoshi, Y., Noda, I., Osawai, E.,

and Matsubara, H., 1998. Robocup: A challenge

problem for AI and robotics. In: RoboCup-97: Robot

Soccer World Cup I (pp. 1–19). Springer Berlin

Heidelberg.

Koos, S., Mouret, J. B., and Doncieux, S..,2013. The

transferability approach: Crossing the reality gap in

evolutionary robotics. Evolutionary Computation,

IEEE Transactions on, 17(1), 122–145.

Laue, T., and Hebbel, M., 2009. Automatic parameter

optimization for a dynamic robot simulation. In:

RoboCup 2008: Robot Soccer World Cup XII (pp. 121–

132). Springer Berlin Heidelberg.

Li, X., Liang, Z., & Feng, H. ,2015. Kicking motion

planning of Nao robots based on CMA-ES. In Control

and Decision Conference (CCDC), 2015 27th Chinese

(pp. 6158-6161). IEEE.

Lipson, H., Bongard, J. C., Zykov, V., and Malone, E.,

2006. Evolutionary Robotics for Legged Machines:

From Simulation to Physical Reality. In: Arai, T. et al

Bridging the Reality Gap — A Dual Simulator Approach to the Evolution of Whole-Body Motion for the Nao Humanoid Robot

191

(eds.), Intelligent Autonomous Systems 9(IAS-9),

pp.11–18.

Michel, O., 2004. Webots: Professional Mobile Robot

Simulation. International Journal of Advanced Robotic

Systems, Vol. 1, No. 1, 39–42.

Nolfi, S., and Floreano, D.,2000. Evolutionary robotics.

The biology, intelligence, and technology of self-

organizing machines. MIT Press.

Zagal, J. C., and Ruiz-Del-Solar, J., 2007. Combining

simulation and reality in evolutionary robotics. Journal

of Intelligent and Robotic Systems, 50(1), 19–39.

Zagal, J. C., Ruiz-del-Solar, J., and Vallejos, P., 2004. Back

to reality: Crossing the reality gap in evolutionary

robotics. In: IAV 2004 the 5th IFAC Symposium on

Intelligent Autonomous Vehicles, Lisbon, Portugal.

ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications

192
