Implementation of a Low Cost IaaS using Openstack
Tiago Rosado
1
and Jorge Bernardino
1,2
1
ISEC – Superior Institute of Engineering of Coimbra, Polytechnic of Coimbra, 3030-190 Coimbra, Portugal
2
CISUC – Centre of Informatics and Systems of the University of Coimbra,
University of Coimbra, 3030-290 Coimbra, Portugal
Keywords: Openstack, IaaS, Cloud Computing, Open Source, Low Cost.
Abstract: Cloud computing has emerged as an important paradigm enabling software, infrastructure, and information
to be used as services over the network in an on-demand manner. Cloud computing infrastructures can
provide adaptive resource provisioning with very little initial investment while scaling to a large number of
commodity computing nodes. In this paper, we present Openstack, a modular and highly adaptive open
source architecture for both public and private cloud solutions. It is shown an experimental implementation
of an IaaS, built on entry-level hardware, demonstrating the hardware, and most important, the basic
software components needed to set the foundation for a solid entry-point to setup a low-cost Openstack
cloud infrastructure.
1 INTRODUCTION
Cloud computing has emerged as a cost-effective
and elastic computing paradigm for massively
scalable, fault-tolerant, and adaptive computation.
Cloud computing architectures scale to large
numbers of commodity computers and adapt to
changing hardware availability and requirements by
dynamically allocating virtualized computing nodes.
One of the main advantages of the cloud computing
paradigm is that it simplifies the time-consuming
processes of hardware provisioning, hardware
purchasing and software deployment. For example,
by decoupling the management of the infrastructure
(cloud providers) from its use (cloud tenants), and
by allowing the sharing of massive infrastructures,
cloud computing delivers unprecedented economical
and scalability benefits for existing applications and
enables new scenarios. This comes at the cost of
increased complexity in managing a highly multi-
tenant infrastructure and posing new questions on
attribution, pricing, isolation, scalability, fault-
tolerance, load balancing, etc.
Cloud infrastructures can provide adaptive
resource provisioning with very little initial
investment while scaling to massive amounts of
commodity computing nodes. Enterprise IT
Organizations focused on the cutting edge of
technology, developing new business solutions and
platforms, have a constant need of resources for
supporting their activity. Those resources could be
storage, quality assurance servers or test beds and
will imply different and specific configurations
according to each project, development team or
department. Rely on the IT department for delivery
and the provisioning of such variety, changes in
configurations for each server or infrastructure,
consumes much time and human resources.
On the premise that improvement comes from
inside, this work aims to deliver an open source
private cloud computing implementation in order to
respond IT Organizations demands regarding cost
control issues, rapid and highly customizable
infrastructure, maintaining high standards of quality,
security and robustness. Implementing an open
source private cloud computing solution avoids
vendor lock-in and will provide resources on-
demand to research and development departments
well as independence to manage them without
jeopardizes the enterprises critical IT infrastructure.
There are different offerings of cloud solutions
like Infrastructure as a Service (IaaS), Platform as a
Service (PaaS) and Software as a Service (SaaS).
There are many studies about Infrastructure as a
Service (IaaS) solutions focused on the study of
middleware platforms and on comparative studies
(Laszewski et al., 2012), (Bist et al., 2013) of the
different open source solutions like Openstack;
298
Rosado, T. and Bernardino, J.
Implementation of a Low Cost IaaS using Openstack.
DOI: 10.5220/0006004402980303
In Proceedings of the 11th International Joint Conference on Software Technologies (ICSOFT 2016) - Volume 1: ICSOFT-EA, pages 298-303
ISBN: 978-989-758-194-6
Copyright
c
2016 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
(Sefraoui., 2012), Eucalyptus or OpenNebula,
providing users a good basis in order to achieve
freedom of choice. Studies on Openstack have
shown major qualities focusing scalability and
modularity (Castillo et al., 2013), security (Chen et
al., 2010), (TaheriMonfared and Jaatun, 2011) and
good performance in high demands (Steinmetz et al.,
2012). However Openstack evolved since then
having grown the partnership of big enterprises on
the support and development, requiring an updated
study. In this paper our focus is in the
infrastructures, addressing a suitability of such
implementation using the open source cloud
provider solution from Openstack for maximizing
existing in-house resources.
The remainder of this paper is organized as
follows. Section 2 presents Openstack architecture
and service followed by the object model. Section 3
presents a use case of how to design and implement
an IaaS using Openstack. Finally, conclusions and
future work are given in Section 4.
2 OPENSTACK ARCHITECTURE
Openstack is a fully open sourced cloud solution,
released under the terms of the Apache license, for
delivering and managing Cloud IaaS originally
developed by NASA and Rackspace (Castillo et al.,
2013). At this time is governed by The Openstack
Foundation having as supporter’s companies like
Canonical, Suse, Red Hat, Nebula, HP, IBM,
Rackspace, Intel, AMD, Cisco, among others. By
being open source and free to download gives to
small players the possibility to deploying small
cloud infrastructures. Openstack is a combination of
software projects considered one of the most
complete solutions with great potential due to its
architecture, community and partner’s support
having gained so far such reliability robustness and
availability as an IaaS solution for both public and
private cloud infrastructures (Castillo et al., 2013).
2.1 Conceptual Architecture
The modular and highly configurable architecture of
Openstack enables this solution to be conceived and
tailored to fit available hardware resources. It can be
used by professional or entry level users, with small
or large number of computer nodes. This allows
enterprises to choose from a variety of
complementary services in order to meet different
needs, regarding computing, networking and storage

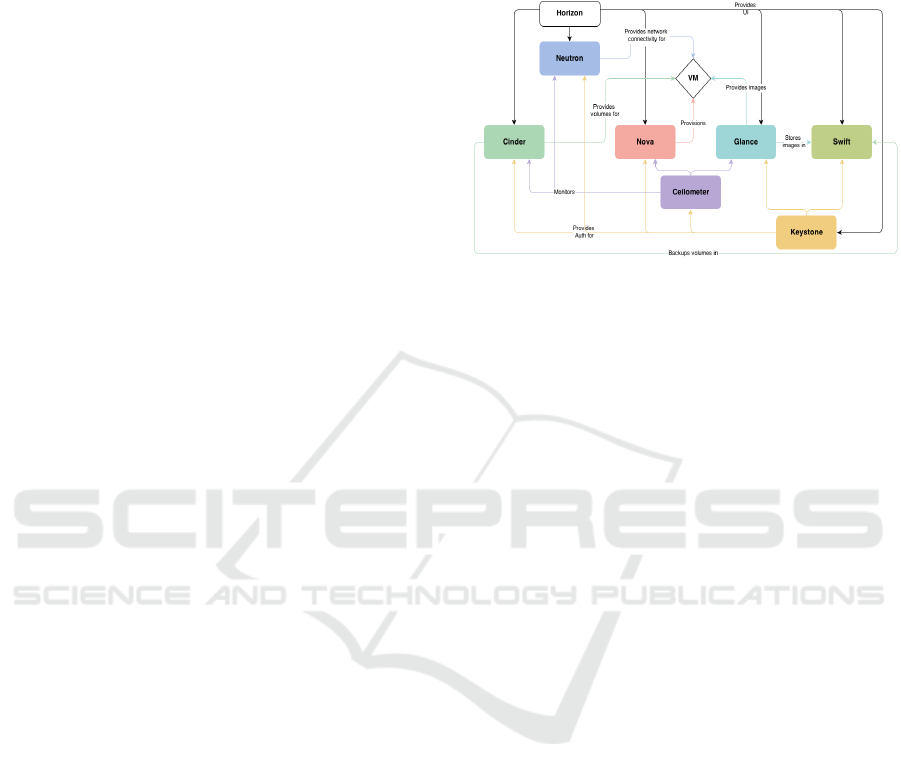

(Pepple, 2013). Figure 1 represents the Openstack
conceptual architecture with all native software
components, developed by companies and individual
supporters, depicting how they interact with each
other.
Figure 1: Openstack conceptual architecture.
Following, we describe those components
dividing them into five groups due to their
characteristics: Computing, Networking, Storing,
Shared, and Supporting services. Although the
supporting services are not native from Openstack’s
core, they are essential for its operation (Pepple,
2013).
2.1.1 Computing
The Nova Compute is the core software component
of Openstack solution dictating services organization
and interactions. Its own major components serve as
basis for the cloud infrastructure, relying on Glance
for Image services.
Nova: Also known as Openstack Compute or
Nova Compute, it provides virtual servers
upon demand interacting with the hypervisors,
supporting several kinds such as KVM, Xen,
VMware or Hyper-V. It's an array of software
that provides services for cloud resource
management through its application
programming interfaces (APIs), capable of
orchestrating running instances, networks and
access control. It’s an essential service for a
basic cloud architecture implementation.
Glance: It’s the Openstack Image service, a
lookup and retrieval system for virtual
machine (VM) images. It provides services for
discovering, registering and retrieving virtual
images through an API that allows querying of
VM image metadata, catalog and manage
large libraries of server images. It’s an
essential service for a basic cloud architecture
implementation.
Implementation of a Low Cost IaaS using Openstack
299
2.1.2 Networking
Openstack has recently gained a new component for
networking control and management, the Neutron.
Neutron: It is a project to provide network
connectivity as a service between devices
managed by other Openstack services (e.g.
Nova). It provides capabilities for managing
dynamic host configuration protocol (DHCP),
static protocols (IP’s), or virtual networks
(VLAN’s) along with other advanced policies
and topologies. Due to its architecture, it
allows users to take advantage of frameworks
(e.g. intrusion detection systems, load
balancing, virtual private networks) from
supported vendors.
2.1.3 Storing
When moving into a larger infrastructure for a wider
service it could be an option to have dedicated
servers for storage management. In this case
Openstack offers the Swift and Cinder.
Swift: Also known as Openstack Object
Storage, Swift is a highly available,
distributed object/blob store. Allows users to
store or retrieve files. It can be used by Cinder
component to back up the VMs volumes.
Cinder: It is known as Openstack Block
Storage or Cinder Volumes and provides
persistent block storage (or volumes) to guest
virtual machines. By working with Swift,
Cinder can use it to backup the VMs volumes.
In earlier releases of Openstack this service
was an integral part of Nova in the form of
nova-volume. Cinder will mainly interact with
Nova, providing volumes for its instances,
allowing through its API the manipulation of
volumes, volume types and volume snapshots.
2.1.4 Shared Services
These are services transversal to all infrastructures,
needed in order to put the solution in functioning.
The available services are: Keystone, Horizon, and
Ceilometer.
Keystone: The Openstack identity is a single
point of integration for Openstack policy,
catalog, token and authentication, applying
them to users and services interactions.
Without Keystone there is no compliance
between services consequently the cloud
solutions will not be available for end users. It
is an essential service for a basic cloud
architecture implementation.
Horizon: The Openstack dashboard is a
modular web application that provides a user
interface for cloud infrastructure management
by interacting with the public APIs off all
other services.
Ceilometer: A new component that provides a
configurable collection of metering data in
terms of CPU and network costs available
from all other services in the platform,
delivering a unique point of contact for billing
systems.
2.1.5 Supporting Services
The supporting services are crucial for Openstack to
run, but are not part of the core components or
developed for the solution, instead they are software
from external vendors to provide internal support.
Then, we briefly describe the Database and
Advanced Message Queue Protocol (AMQP).
Database: By default Openstack uses MySQL
as its RDBMS for core services to store
configurations and management information.
Typically MySQL database is installed on the
main node of the infrastructure, the controller
node. It’s an essential service for a basic cloud
architecture implementation.
Advanced Message Queue Protocol: AMQP is
the messaging technology used in Openstack
for inter-process communication. It uses by
default RabbitMQ and supports others such as
Qpid or ZeroMQ. The broker gives a common
platform for processes to send and receive
messages between them making use of little or
no knowledge of each other’s component
definitions. It’s an essential service for a basic
cloud architecture implementation.
2.2 Service Architecture
The Nova Compute is the core software component
of Openstack solution dictating services organization
and interactions, as shown in Figure 2.
This component has as major components the
API Server, Message Queue, Compute Worker or
Compute Node, Network Controller, Volume
Controller, Scheduler and Image Store.
This API Server makes available to users the
command and control of the hypervisor, storage and
networking configurations through the API
dashboard via basic http web services. A typical
ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications
300

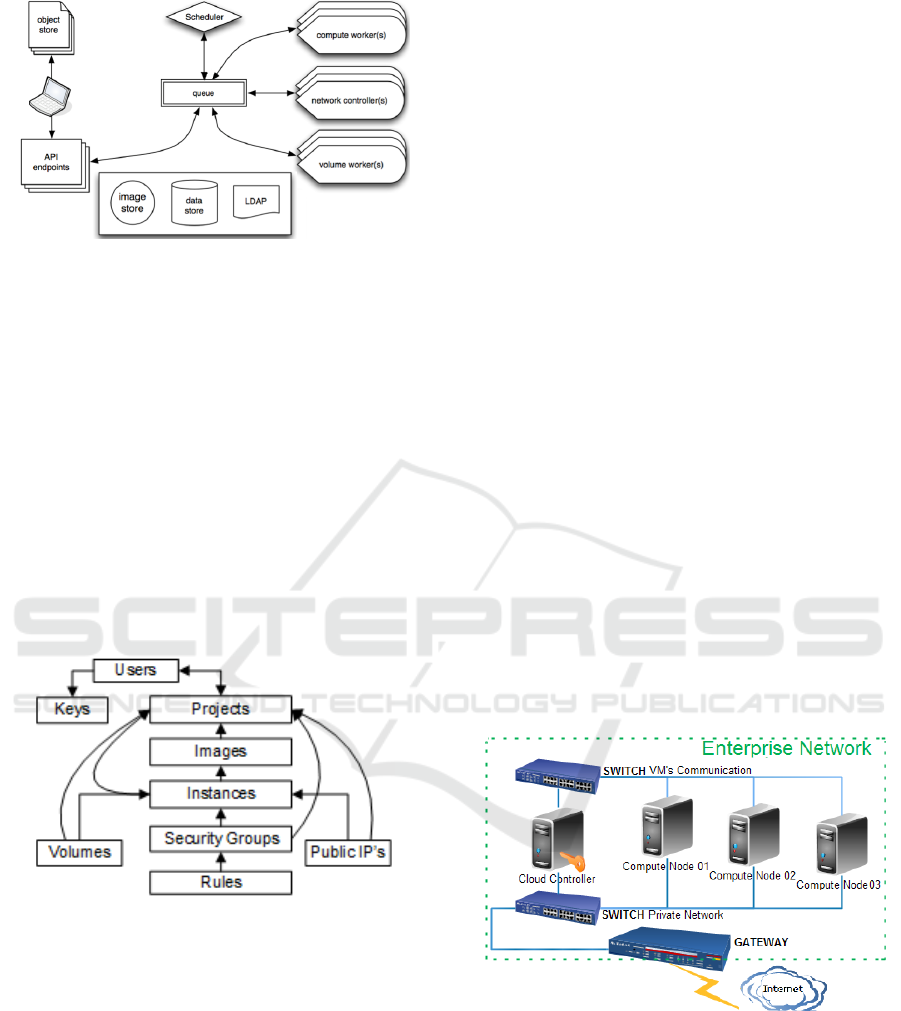

Figure 2: Openstack service architecture.
exchange of messages for an event request begins
with the API server receiving user request, which
authenticates and warrants that the user is permitted
to do so. Is then evaluated the availability of
resources requested by the user and, if available, the
request is delivered to the queuing engine where
services are listening to take action. When the work
is done, a message is dispatched again into the queue
for API server respond to the client.
2.3 Object Model
The object model represents the Openstack objects
and how they stand before each other, showing how
they relate, as depicted in Figure 3.
Figure 3: Openstack Object model.
We have Users to access the cloud environment,
Keys for authentication and security purposes and
then Projects. Projects are private areas created inside
cloud computing infrastructure by the administrator.
We can have one single project with the total amount
of resources of the infrastructure or create more than
one configured individually for different purposes
with different rules, policies, and virtual machines.
Projects can be seen as smaller private clouds within
enterprise's private cloud, a unique space tailored on
demand for different departments with different needs
giving them privacy and freedom without jeopardize
other’s work.
3 IMPLEMENTATION OF AN
IAAS IN OPENSTACK
In this use case implementation we used Ubuntu
Server 12.04 Long Term Support (LTS) for its
reliability regarding longer support and maintenance
and Havana has the last stable release of Openstack.
In order to provide a clear insight that is feasible
implement a robust, modular, scalable and yet still
performant low cost cloud solution we used
commercial range hardware.
3.1 Hardware Configuration
For easier understanding, Openstack uses the term
Cloud Controller to identify the main node in the
infrastructure and Compute Nodes for all the others.
The technical main characteristics are the following:
Cloud controller: Intel® Core™ i3-3220 CPU
@ 3.30GHz, 8 GB DDR3 / 1067 MHz, 250Gb
Hard Disc Drive. Added one extra Gigabit
Ethernet controller.
Compute Node: Intel® Core™ i3-3220 CPU @
3.30GHz, 16 GB DDR3 / 1067 MHz, 250Gb
Hard Disc Drive. Added one extra Gigabit
Ethernet controller
Networking: Two eight port Gigabit Ethernet
switches
The network layout and the physical connections for
the cloud implementation are described in Figure 4.
Figure 4: Cloud network topology.
All the nodes in the infrastructure communicate
via two Gigabit private switches, one for VM’s
internal communications and another to ensure a
connection to the enterprise internal network. The
controller node is configured to do all the backend
processes via Nova, image management via Glance,
hosting the website via Horizon and dealing with
user identification via Keystone. All the Compute
Implementation of a Low Cost IaaS using Openstack
301
Nodes are configured with the Nova compute
services and the KVM hypervisor.
Cloud architectures exploit virtualization
techniques to provision multiple VM’s on the same
physical host so as to more efficiently use available
resources.. With this basic configuration, built on
entry level hardware, we aim to provide IT
departments of companies’ the guidelines for future
implementations and exploitation of cloud
computing technology based on Openstack modular
architecture.
3.2 Software Configuration
Having chosen and implemented this basic
architecture with legacy networking, in order to
deliver an infrastructure as a service based on
Openstack, there is no need to install all software
components described for the architecture in order
the cloud-computing environment to work.
Following we describe the software components
to be installed on each machine, the main one who
detains all the management activities for the
environment, known as Cloud Controller, and
remaining nodes or satellites named Compute
Nodes, the machines that support all the available
resources to be delivered.
3.2.1 Cloud Controller
The Cloud Controller is the core node in this
environment. Following, we describe the services to
be installed in order to provide such management
capabilities that makes this the principal machine.
Nova is the core software component and is
intended to be modular and easy to extend and adapt
having the nova-api as a broker to its services in
addition to native API Horizon. The nova-cert does
all the certificate management for the platform for
users and service’s request flow. The nova-
novncproxy is the software component that allows
the access to instances through VNC clients bridging
between public network and private network
mediating token authentication and hypervisor-
specific connections details. The connections are
authorized by the validation of user’s token provided
by nova-consoleauth. The nova-scheduler manages
users’ requests for resources selecting the most
suitable compute node for instances to run. The host
selection criteria for dispatching requests considers
factors like available physical memory, storage,
processor or network load in a two-step process,
which can be managed by the system administrator.
The nodes in the system are filtered then weighted
and sorted according to match those configured
criteria. Glance is the image service for Openstack;
it provides discovery, registration and delivery
services for disk and server images, capable to copy
or snapshot a server image to store it promptly or
use them later as a template for new servers’
creation. These capabilities are provided by glance-
api, the focal point for image requests and glance-
registry for processing images metadata like size, or
type.
In this configuration, as in all others, shared
services provided by horizon and keystone are
needed in order to ease users' requests by being a
single point of interaction between those requests
and all the services responsible for delivering them
and ensure identity among services, authentication
and system policy, respectively.
Similar to Horizon and Keystone every
Openstack implementation needs a database and a
message queue. By default and here, we use MySQL
for database management and RabbitMQ as the

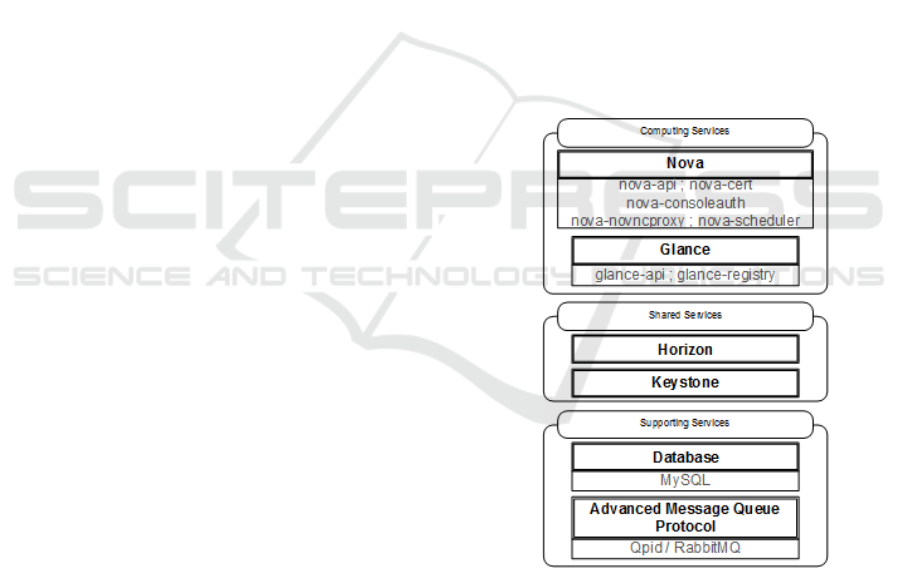

message broker for services. Figure 5 below,
illustrates those services.
Figure 5: Cloud Controller software modules.
3.2.2 Compute Nodes
The compute nodes are the machines responsible for
delivering to end users the resources available in the
cloud platform under the form of virtual machines or
storage. It runs the hypervisor portion of Compute,
using KVM by default as a virtualization
infrastructure, which operates tenant virtual
machines, as well as provisioning network services
ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications
302
and implementing security groups using nova-
compute and nova-network for that.
Nova has no specific hypervisor implemented.
Instead, it has an abstraction layer for compute
drivers that allow users to choose one from some

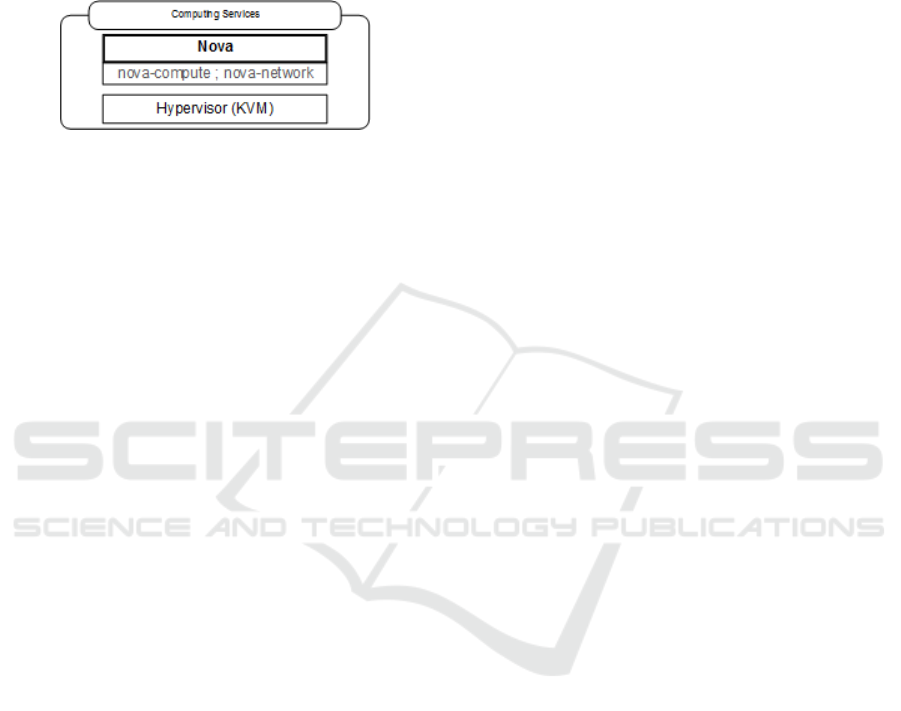

other known vendors. Figure 6 shows the Compute
Nodes software modules.
Figure 6: Compute Nodes software modules.
4 CONCLUSIONS
Cloud architectures exploit virtualization techniques
to provision multiple Virtual Machines (VMs) on the
same physical host, so as to efficiently use available
resources. The cloud computing paradigm and
available solutions in the market, regarding to
Openstack, have been implemented and explored in
various case scenarios, with major tests in academy
and industry, presenting good results for
performance, reliability and final user acceptance.
Openstack leverages due to its modular architecture
and simplicity to implement. It can be adopted into
major datacentres but also to entry-level hardware
providing enterprises a massively scalable cloud
infrastructure. Allied to the fact of being open
source, it helps on cost control, enables to deliver
rapidly on-demand resources to final users.
This work has presented an overview of
Openstack architecture, services available and how
they work and adapt into any hardware infrastructure
providing a sustainable and robust private cloud
solution.
Based on this study, future work will involve an
investigation on how to improve final user
experience with the platform and administration
activities regarding to measures and monitoring the
cloud environment.
REFERENCES
Bist, M. Wariya, M. Agarwal, A. 2013. Comparing Delta,
Open Stack and Xen Cloud Platforms: A Survey on
Open Source IaaS. In 2013 3rd IEEE International
Advance Computing Conference, 2013.
Castillo, J. A. L. Mallichan, K. Al-Hazmi, Y. 2013.
Openstack federation in experimentation multi-cloud
testbeds. In 2013 IEEE International Conference on
Cloud Computing Technology and Science. 2013.
Chen, Y. Paxson, V. Katz, R. H. 2010. What’s New About
Cloud Computing Security? Electrical Engineering
Computer Sciences, University of California at
Berkeley, Technical Report No. UCB/EECS-2010-5.
Jan. 2010.
Dargha, R. 2012. Cloud computing: from hype to reality.
Fast tracking cloud adoption in International
Conference on Advances. In computing,
Communications and Informatics 2012, Aug 2012.
Eucalyptus – [online] https://www.eucalyptus.com
(Accessed March 2015).
Infrastructure as a Service – [online]
http://www.gartner.com/it-glossary/infrastructure-as-a-
service-iaas (Accessed February 2015).
Kostanos, K. Kapsalis, A. Kyriazis, D. Themistocleous,
M. Cunha, P. 2013. Open-source IaaS Fit for Purpose:
A Comparison between Opennebula and Openstack.
Int. Journ.. of Electronic Business Manag., Vol.11,
Nº3, pp. 191-201, 2013.
Laszewski, G. Diaz, J. Wang, F. Fox, G. C. 2012.
Comparison of multiple cloud frameworks. Pervasive
Technology Institute, Indiana University, 2012.
OpenNebula – [online] http://opennebula.org/ (Accessed
March 2015).
Openstack – [online] http://www.openstack.org/
(Accessed March 2015).
Pepple, K. 2013. Deploying Openstack, Creating
opensource clouds, 2nd Edition, O’Reilly Media.
Platform as a Service – [online] http://www.gartner.com/
it-glossary/platform-as-a-service-paas/ (Accessed
February 2015).
Sefraoui, O. Aissaoui, M. Eleuldj, M. 2012. OpenStack:
Toward an Open-Source Solution for Cloud
Computing. In International Journal of Computer
Applications, Vol. 55 Nº3, October 2012.
Software as a Service – [online] http://www.techterms.
com/definition/saas (Accessed February 2015).
Steinmetz, D. Perrault, B. Nordeen, R. Wilson, J. Wang,
X. 2012. Cloud Computing Performance
Benchmarking and Virtual Machine Launch Time. In
SIGITE’12 Calgary, Alberta, Canada. 2012.
TaheriMonfared, A. Jaatun, M. G. 2011. As strong as the
weakest link: Handling compromised components in
OpenStack. In 3rd IEEE International Conference on
Cloud Computing Technology and Science. 2011.
Openstack object model – [online] http://docs.
openstack.org/developer/nova/object.model.html
Openstack conceptual architecture – [online]
http://docs.openstack.org/juno/install-guide/install/apt/
content/ch_overview.html
Openstack service architecture – [online] http://docs.
openstack.org/developer/nova/service.architecture.html
Implementation of a Low Cost IaaS using Openstack
303
