A Novel Approach for Real-time Extracting Data From NoSQL

Embedded Data Bases

Afef Gueidi

1,2

, Hamza Gharsellaoui

1,3,4

and Samir Ben Ahmed

1,2

LISI Laboratory, National Institute of Applied Sciences and Technology (INSAT), Carthage University, Tunis, Tunisia

Faculty of Mathematical, Physical and Natural Sciences of Tunis (FST), Tunis El Manar University, Tunis, Tunisia

National Engineering School of Carthage (ENIC), Carthage University, Tunis, Tunisia

Al Jouf College of Technology, TVTC, Sakaka, K.S.A.

Keywords:

A NoSQL Database, Embedded Databases, Optimization Problems, Real-time Interrogation.

Abstract:

In nowadays industry, embedded databases which display a mixture of multimedia signals and big data with

modal interfaces need to be highly reconﬁgurable to meet real-time constraints, data stores optimization prob-

lems and to solve requirements problem in order to achieve high scalability and availability. This paper deals

with a multi-objective extracting, managing and interrogating problem for a reconﬁgurable real-time embed-

ded databases. In this case, new methods are required and NoSQL database created for solving the mentioned

sub-problems and to be able to store big data effectively, demand for high performance when extracting, man-

aging and interrogating these embedded databases. We also discuss the advantages and disadvantages of a

NoSQL approach.

1 INTRODUCTION

Nowadays, due to the growing class of portable sys-

tems, such as personal computing and communica-

tion devices, embedded and real-time systems contain

new complex software which are increasing by the

time. This complexity is growingbecause many avail-

able software development models don’t take into ac-

count the speciﬁc needs of embedded and systems de-

velopment. The software engineering principles for

embedded system should address speciﬁc constraints

such as hard timing constraints, limited memory and

power use, predeﬁned hardware platform technology,

and hardware costs. On the other hand, the new gen-

erations of embedded control systems are addressing

new criteria such as ﬂexibility and agility (Gharsel-

laoui, 2012). For these reasons, there is a need to de-

velop tools, methodologies in embedded software en-

gineering and dynamic reconﬁgurable embedded con-

trol systems as an independent discipline. Each sys-

tem is a subset of tasks. Each task is characterized

by its worst case execution times (WCETs) C

p,ψ

, an

offset (release time) a

p,ψ

, a period T

p,ψ

and a dead-

line D

p,ψ

for each reconﬁguration scenario ψ

, (h ∈

1..M, we assume that we have M reconﬁguration sce-

narios) and on each processor p, (p ∈ 1..K, we as-

sume that we have K identical processors numbered

from 1 to K), and n real-time tasks numbered from 1

to n that composed a feasible subset of tasks entitled

old

and need to be scheduled (Gharsellaoui, 2012).

The general goal is to be reassured that any reconﬁg-

uration scenario ψ

changing the implementation of

the embedded system does not violate real-time con-

straints: i.e. the system is feasible and meets real-

time constraints even if we change its implementation

after any reconﬁguration scenario. In (Gharsellaoui,

2013) and in order to obtain this optimization, the au-

thors propose an intelligent agent-based architecture

in which a software agent is deployed to dynamically

adapt the system to its environment by applying re-

conﬁguration scenarios. A reconﬁguration scenario

means the addition, removal or update of tasks in

order to save the whole system on the occurrence of

hardware/software faults, or also to improve its per-

formance when random disturbances happen at run-

time. In this paper, a software agent in the intelligent

agent-based architecture interrogates NoSQL embed-

ded database which ensures predictive and organized

software reuse to achieve high scalability and avail-

ability and to optimize response time. This process

for solving the mentioned sub-problems and to be

able to store big data effectively, demand for high per-

formance when extracting, managing and interrogat-

ing these embedded databases is proven. Our study

226

Gueidi, A., Gharsellaoui, H. and Ahmed, S.

A Novel Approach for Real-time Extracting Data From NoSQL Embedded Data Bases.

DOI: 10.5220/0005987502260231

In Proceedings of the 11th International Joint Conference on Software Technologies (ICSOFT 2016) - Volume 1: ICSOFT-EA, pages 226-231

ISBN: 978-989-758-194-6

concerns embedded databases which display a mix-

ture of multimedia signals and big data with modal in-

terfaces need to be highly reconﬁgurable to meet real-

time constraints, data stores optimization problems

and to solve requirements problem in order to achieve

high scalability and availability. Indeed, currently,

embedded databases are omnipresent electronic de-

vices and embedded technologies presented in all in-

dustrial areas like telecommunication, avionic, auto-

motive, medicine, etc,. On one hand, the volume of

data is increasing at an enormous rate in these em-

bedded technologies and on the other hand, the cost

associated with scaling of the relational RDBMs is

began also very expensive. Also, nowadays, industry

and especially embedded systems have now to deal

with faster and faster evolutions of their users require-

ments and must be able to adapt their behavior system

and to meet real-time constraints. As a consequence,

embedded databases have to evolve in order to be-

come more reconﬁgurable which satisfy embedded

systems needs and has very speed response time and

low-power cost at the same time (Gajendran, 2012).

In contrast, NoSQL data stores are designed to scale

well horizontally and run on commodity hardware.

The term ”NoSQL” was ﬁrst coined in 1998 by Carlo

Strozzi to distinguish his solution from other RDMBS

solutions which utilize SQL (Strozzis NoSQL still

adheres to the relational model). He used the term

NoSQL just for the reason that his database did not

expose a SQL interface. Recently, the term NoSQL

(meaning ”not only SQL”) has come to describe a

large class of databases which do not have proper-

ties of traditional relational databases and which are

generally not queried with SQL (structured query lan-

guage) (Gajendran, 2012). The term revived in the re-

cent times with big companies like Google/Amazon

using their own data stores to store and process huge

amounts of data as they appear in their applications

and inspiring other vendors as well on these terms

(Gajendran, 2012).

The ability of optimizing the resource allocation in a

distributed environment through the management of

expansion and contraction of available tasks is an im-

portant feature in NoSQL DBMS. With the changes in

available embedded systems, it is possible to automat-

ically redistribute the data or to have different shards

of data. This ability is important to the performance

of the database because it inﬂuences the latency of

the system. NoSQL database was designed to over-

come limitations of relational database in supporting

distributed processing of data. For this reason and

in order to optimize the whole reconﬁgurable real-

time embedded systems, we will adopt in our present

and original work the NoSQL database for the opti-

mization of multi-objective extracting, managing and

interrogating of a reconﬁgurable real-time embedded

databases to meet real-time constraints and to reduce

storage memory and response time in some critical

applications.

The paper is organized as follows. In the next sec-

tion, we describe the NoSQL database statement and

its four categories. In section 3, we present the liter-

ature review study and given the advantages and dis-

advantages of NoSQL database. We give in section 4,

a our original proposed NoSQL-based approach for

real-time managing of embedded databases to high-

light our study. Finally, we present conclusions and

perspectives to our work in section 5.

2 NoSQL DATABASES

Generally, NoSQL isn’t relational, and it is designed

for distributed data stores for very large scale data

needs (e.g. Facebook or Twitter accumulate Ter-

abits of data every day for millions of its users),

there is no ﬁxed schema and no joins. Meanwhile,

relational database management systems (RDBMS)

”scale up” by getting faster and faster hardware and

adding memory. NoSQL, on the other hand, can take

advantage of ”scaling out” - which means spreading

the load over many commodity systems (Mikayel,

2011). The acronym NoSQL was coined in 1998,

and while many think NoSQL is a derogatory term

created to poke fun at SQL, in reality it means ”Not

Only SQL” rather than ”No SQL at all.” The idea is

that both technologies (NoSQL and RDBMSs) can

co-exist and each has its place. Companies like Face-

book, Twitter, Digg, Amazon, LinkedIn and Google

all use NoSQL in some way - so the term has been in

the current news often over the past few years.

2.1 Services Model

The processing to be performed as part of activi-

ties management can be grouped into ﬁve broad cat-

egories: computing services, analysis, archive ser-

vices, display and CRUD services. The CRUD ser-

vices (Create, Read, Update and Delete) are low-level

services that enable document management. Indeed,

RDBMSs have their limitations like these three fol-

lowing problems:

1. RDBMSs use a table-based normalization ap-

proach to data, and that’s a limited model. Cer-

tain data structures cannot be represented without

tampering with the data, programs, or both.

2. They allow versioning or activities like: Create,

Read, Update and Delete. For databases, up-

A Novel Approach for Real-time Extracting Data From NoSQL Embedded Data Bases

227

dates should never be allowed, because they de-

stroy information. Rather, when data changes, the

database should just add another record and note

duly the previous value for that record.

3. Performance falls off as RDBMSs normalize data.

The reason: Normalization requires more tables,

table joins, keys and indexes and thus more in-

ternal database operations for implement queries.

Pretty soon, the database starts to grow into

the terabytes, and that’s when things slow down

(Mikayel, 2011).

2.2 The Four Categories of NoSQL

In this subsection, we will describe the four categories

of NoSQL databases.

2.2.1 Key-values Stores

The main idea here is using a hash table where there

is a unique key and a pointer to a particular item of

data. The Key/value model is the simplest and eas-

iest to implement. But it is inefﬁcient when you are

only interested in querying or updating part of a value,

among other disadvantages (Mikayel, 2011).

2.2.2 Column Family Stores

These were created to store and process very large

amounts of data distributed over many machines.

There are still keys but they point to multiple

columns. The columns are arranged by column fam-

ily (Mikayel, 2011).

2.2.3 Document Databases

These were inspired by Lotus Notes and are similar

to key-value stores. The model is basically versioned

documents that are collections of other key-value col-

lections. The semi-structured documents are stored

in formats like JSON. Document databases are essen-

tially the next level of Key/value, allowing nested val-

ues associated with each key. Document databases

support querying more efﬁciently (Mikayel, 2011).

2.2.4 Graph Databases

Instead of tables of rows and columns and the rigid

structure of SQL, a ﬂexible graph model is used

which, again, can scale across multiple machines.

NoSQL databases do not provide a high-level declar-

ative query language like SQL to avoid overtime in

processing. Rather, querying these databases is data-

model speciﬁc. Many of the NoSQL platforms allow

for RESTful interfaces to the data, while other offer

query APIs. Generally, the best places to use NoSQL

technology is where the data model is simple; where

ﬂexibility is more important than strict control over

deﬁned data structures; where high performance is

a must; strict data consistency is not required; and

where it is easy to map complex values to known keys

(Mikayel, 2011).

2.3 Some Examples of When to Use

NoSQL

The following are some examples when to use

NoSQL database:

Logging/Archiving.

Log-mining tools are handy because they can access

logs across servers, relate them and analyze them.

Social Computing Insight.

Many enterprises today have provided their users

with the ability to do social computing through

message forums, blogs etc.

External Data Feed Integration.

Many companies need to integrate data coming from

business partners. Even if the two parties conduct

numerous discussions and negotiations, enterprises

have little control over the format of the data coming

to them. Also, there are many situations where

those formats change very frequently - based on the

changes in the business needs of partners.

Front-end Order Processing Systems.

Today, the volume of orders, applications and ser-

vice requests ﬂowing through different channels to

retailers, bankers and Insurance providers, enter-

tainment service providers, logistic providers, etc.

is enormous. These requests need to be captured

without any interruption whenever an end user makes

a transaction from anywhere in the world. After,

a reconciliation system typically updates them to

back-end systems as well as updates the end user on

his/her order status.

Real-time Stats/Analytics.

Sometimes, it is necessary to use the database as

a way to track real-time performance metrics for

websites (page views, unique visits, etc.). Tools

like Google Analytics are great but not real-time -

sometimes it is useful to build a secondary system

that provides basic real-time stats. Other alternatives,

such as 24/7 monitoring of web trafﬁc, are a good

way to go, too.

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

228

3 LITERATURE REVIEW

In the last days, there are so many NoSQL systems

that it’s hard to get a quick overview of the ma-

jor trade-offs involved when evaluating relational and

non-relational systems in non-single-server environ-

ments. We will give in this section some preliminaries

about NoSQL database and its characteristics.

3.1 Background

NoSQL databases are ﬁnding signiﬁcance in bigdata

analytics, real time applications and Online Transac-

tion Processing (OLTP). Also, most RDBMSs guar-

antee so called ACID transactions. ACID is an

acronym of four properties. These are, in order (Ull-

man, 2008):

• Atomicity: Transactions are atomic. That is, a

transaction is executed either in its entirety or not

at all.

• Consistency: Every transaction takes the

database from one valid state to another.

• Isolation: A running transaction will not interfere

with another transaction.

• Durability: The effect of a transaction must per-

sist and thus never be lost.

Most NoSQL databases share a common set of char-

acteristics (Strauch, 2012). Naturally, since NoSQL

is a broad concept, more or less all of these character-

istics have exceptions. Still, they can serve to give a

general idea about what NoSQL databases are:

• Distributed: NoSQL databases are often dis-

tributed systems where several machines cooper-

ate in clusters to provide clients with data. Each

piece of data is commonly replicated over several

machines for redundancy and high availability.

• Horizontal Scalability: Nodes can often be dy-

namically added to (or removed from) a cluster

without any downtime, giving linear effects on

storage and overall processing capacities. Usu-

ally, there is no (realistic) upper bound on the

number of machines that can be added.

• Built for Large Volumes: Many NoSQL systems

were built to be able to store and process enor-

mous amounts of data quickly.

• BASE instead of ACID: Brewer’s CAP theorem

(Brewer., 2012) states that a distributed system

can have at most two of the three properties

Consistency, Availability and Partition tolerance.

For a growing number of applications, having the

last two are most important. Building a database

with these while providing ACID properties is

difﬁcult, which is why Consistency and Isolation

often are forfeited, resulting in the so called

BASE approach (Brewer., 2012).

• SQL is unsupported: While most RDBMSs sup-

port some dialect of SQL, NoSQL variants gener-

ally do not. Instead, each individual system has

its own query interface. Recently, the Unstruc-

tured Data Query Language 6 was proposed as an

attempt to unify the query interfaces of NoSQL

databases (Jackson., 2012).

3.2 CAP theorem and NoSQL Database

Classiﬁcation

In 2000, Professor Eric Brewer put forward the fa-

mous CAP theorem. That is, Consistency, Availabil-

ity, tolerance of network Partition. CAP theorem’s

core idea is a distributed system cannot meet the three

district needs simultaneously, but can only meet two.

According to CAP theorem and different concerns

of NoSQL database, a preliminary classiﬁcation of

NOSQL databases is as follows (Nathan, 2010):

• Concerned about Consistency and Availability

(CA): Part of the database is not concerned about

the partition tolerance, and mainly use of Repli-

cation approach to ensure data consistency and

availability. Systems concern the CA are: the

traditional relational database, Vertica (Column-

oriented), Aster Data (Relational), Greenplum

(Relational) and so on.

• Concerned about Consistency and Partition

Tolerance (CP): Such a database system stores

data in the distributed nodes, but also ensure

the consistency of these data, but support not

good enough for the availability. The main CP

system: BigTable (Column-oriented), Hypertable

(Column-oriented), HBase (Column-oriented),

MongoDB (Document), Terrastore (Document),

Redis (Key-value), Scalaris (Key-value), Mem-

cacheDB (Key-value), Berkeley DB (Key-value).

• Concerned about Availability and Partition

Tolerance (AP): Such systems ensure availabil-

ity and partition tolerance primarily by achiev-

ing consistency, AP’s system: Voldemort (Key-

value), Tokyo Cabinet (Keyvalue), KAI (Key-

value), CouchDB (Documentoriented), Sim-

pleDB (Document-oriented), Riak (Document-

oriented).

In our work, we will adopt the last one (the avail-

ability and partition tolerance (AP)) in order to solve

A Novel Approach for Real-time Extracting Data From NoSQL Embedded Data Bases

229

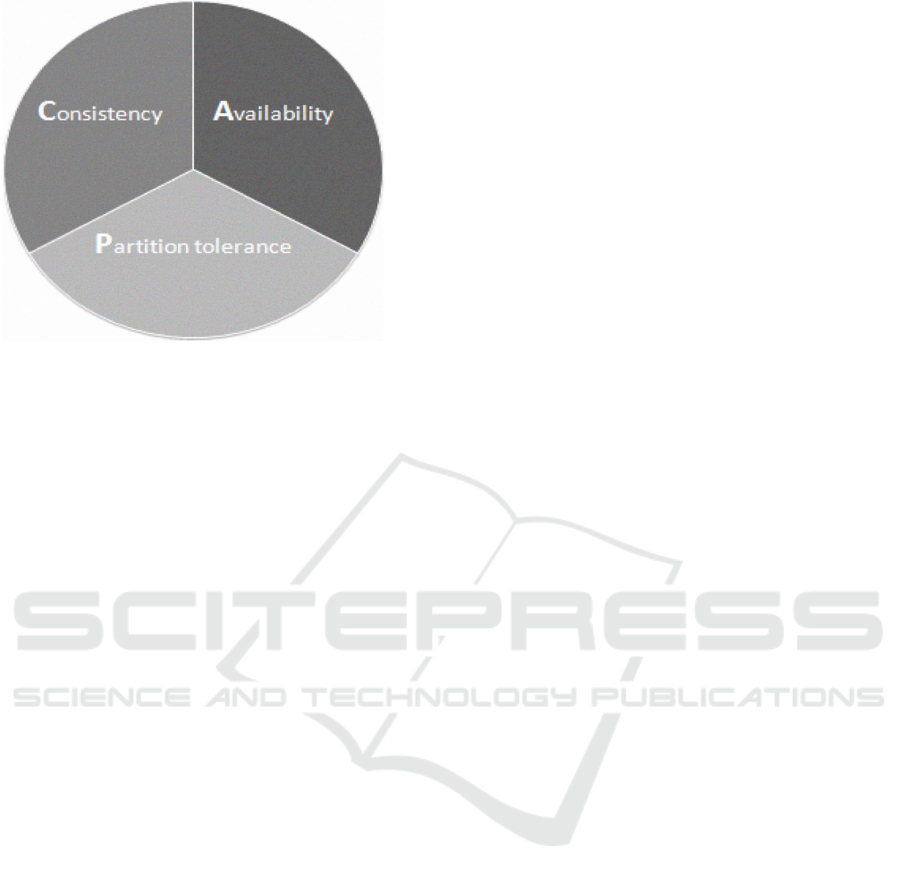

Figure 1: Figure 2: CAP Theorem.

a multi-objective extracting, managing and interrogat-

ing problem for a reconﬁgurable real-time embedded

databases and to achieve high scalability and avail-

ability. In this case, NoSQL database created for solv-

ing the mentioned problem and to be able to store big

data effectively, demand for high performance when

extracting, managing and interrogating these embed-

ded databases.

4 PROPOSED APPROACH

In this section and in order to solve the described

problem and to achieve the objective, in the follow-

ing we will provide an optimization algorithm that

takes smaller interrogation response time and big data

store in embedded data bases using NoSQL. NoSQL

database was designed to handle large volumes of

data processing by removing some supports that ex-

isted in RDBMS. One of these supports is ad-hoc

query. Our proposed algorithm is described like the

following:

4.1 Proposed Algorithm

The dynamic based NoSQL database guarantee test in

terms of residual time, which is a convenient parame-

ter to deal with both normal and overload conditions

in embedded databases is presented here.

Algorithm GUARANTEE(ξ; σ

)

begin t = get current time();

= 0;

= t;

Insert σ

in the ordered task linked list;

ξ`= ξ

;

k = position of σ

in the task set ξ`;

for each task σ

`such that i ≥ k do {

= R

i−1

+ (d

- d

i−1

) - c

;

if (R

< 0) then return (”Not Guaranteed”);

}

return (”Guaranteed”);

end

4.2 Design Elements Extraction and

SPL Design Extraction

In order to position our proposed approach in a uni-

ﬁed framework that fulﬁlls the real-time constraints,

we propose some characteristics to be respected.

The organization and structure of the uniﬁed frame-

work that fulﬁlls the real-time constraints is retrieved

based on the following construct rules:

• R1: Each real-time embedded system is geo-

localized, either to an industry or to mobile de-

vices. thus, it is necessary to physically move re-

sources around to perform the real-time embed-

ded systems.

• R2: A real-time embedded system is composed of

tasks. A task is characterized by its worst case ex-

ecution times (WCETs) C

p,ψ

, an offset (release

time) a

p,ψ

, a period T

p,ψ

and a deadline D

p,ψ

The task must respect these temporal characteris-

tics with more or less regular repetitions.

• R3: The tasks to be scheduled are predeﬁned and

listed in a NoSQL database ordered by such cri-

teria. For each task, we must deﬁne the types of

parameters. This NoSQL database must be avail-

able and regularly maintained and updated in or-

der to be ready for anyembedded system reconﬁg-

uration, interrogation, tasks modiﬁcations or data

extraction.

• R4: Continually assess tasks and allow for modi-

ﬁcations concerning the evolution of the real-time

system at run-time providing intervention and re-

conﬁguration in order to save the whole system

on the occurrence of hardware/software faults, or

also to improve its performance when random dis-

turbances happen at run-time.

• R5: A random disturbance is deﬁned as any ex-

ternal event like adding, removal of tasks or just

modiﬁcation of task parameters in order to opti-

mize the response time and the storage capacity

of the embedded system database.

4.3 Discussion of NoSQL Proposed

Approach

This proposed process permits us, ﬁrst, to derive de-

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

230

sign enriched with optional and mandatory real-time

constraints to be highly reconﬁgurable to meet real-

time constraints, data stores optimization problems

and to solve requirements problem in order to achieve

high scalability and availability.

To the authors knowledge, no uniﬁed approach ex-

ists to handle similar situations for different real-time

embedded systems. This paper work allows service

providers to manage geo-localized (distributed) tasks

based on the NoSQL database regardless of the na-

ture of their services. Finally, we propose to imple-

ment the design of our proposed NoSQL database us-

ing MongoDB and UML Marte proﬁle for the con-

ception model enriched with the information and real-

time constraints in order to re-obtain the feasibility of

the embedded systems under study. This NoSQL ap-

proach presents several advantages over other tech-

nologies in the sense that is easier to structure the

data to speciﬁc real-time needs; the design is closer

to the implementation and development is very sim-

ple and it is easier to modify processing and evolve

data structures. Nonetheless, our proposed approach

suffers from some drawbacks, including difﬁculty ex-

pressing integrity real-time constraints in embedded

databases, installation difﬁculty and lack of the real-

time control of the transactions. We will work hardly

in the next issues in order to handle these difﬁculties.

5 CONCLUSION

This paper describes the background of NoSQL, after

understand the four categories of NoSQL, then the ad-

vantages and disadvantages of NoSQL database were

analyzed. After a brief introduction of the CAP theo-

rem, classiﬁcation of NoSQL database was proposed.

Finally, our proposed approach based on the NoSQL

approach, was presented in such away that will help

user to choose NoSQL database in practice. How-

ever, NoSQL database still have various limitations,

like using NoSQL in cloud computing and internet of

things which is not clear enough and we will be to

strengthen our future research work in these two ar-

eas.

REFERENCES

Brewer., E. (2012). Towards robust distributed systems. Ac-

cessed January 25, 2012. July 2000.

url: http://www.cs.berkeley.edu/brewer/cs262b-2004/

PODC-keynote.pdf.

Gajendran, S. K. (2012). A survey on nosql databases. mas-

ters.dgtu.donetsk.ua.

Jackson., J. (2012). Couchbase, sqlite launch uni-

ﬁed nosql query language. Accessed January 25,

2012. July 2011. url: http://www.arnnet.com.au/ ar-

ticle/395469/couchbase sqlite launch uniﬁed nosql

query language., pages 395–469.

Strauch, C. (2012). NoSQL Databases. Accessed Jan-

uary 25, 2012. Feb. 2011. url: http://www.christof-

strauch.de/nosqldbs.pdf.

Nathan H. (2010). Visual Guide to NoSQL Systems.

http://blog.nahurst.comlvisual-guide-to-NoSQL-

systems.

Ullman J.D., Garcia-Molina H., and Widom J.,. (2008).

Database Systems: The Complete Book. Prentice Hall.

Mikayel V.,. (2011). Picking the Right NoSQL Database

Tool. http://www.monitis.com/blog/2011/05/22/pick

ing-the-right-nosql-database-tool/.

Gharsellaoui H., Khalgui M., and Ben Ahmed S.,.

(2012). New Optimal Solutions for Real-Time Re-

conﬁgurable Periodic Asynchronous Operating Sys-

tem Tasks with Minimizations of Response Time.

IJSDA 1.4 (2012): 88-131. Web. 2 Feb. 2016.

doi:10.4018/ijsda.2012100105.

Gharsellaoui H., Khalgui M., and Ben Ahmed S.,. (2013).

An EDF-based Scheduling Algorithm for Real-time

Reconﬁgurable Sporadic Tasks. Proceedings of

the 8th International Joint Conference on Software

Technologies, ”ICSOFT” 2013: 377-388, Reykjavik,

Iceland.

A Novel Approach for Real-time Extracting Data From NoSQL Embedded Data Bases

231
