Business Process Aware Identification of Reusable Software

Components

Lerina Aversano, Marco Di Brino and Maria Tortorella

Department of Engineering, University of Sannio, p.za Roma 21, Benevento, Italy

Keywords: Business Process Modelling, Software Modelling, Impact Analysis, Software Reuse, Similarity Analysis.

Abstract: Enterprises need to follow the rapid evolution of their business processes and promptly adapt the existing

software systems. A preliminary requirement is that the software components are available, working and

interoperable. A widely diffused solution is moving the adopted software solution toward an evolving

architecture, such as the services-based one. The objective of this paper is to propose an approach for

supporting the identification of reusable components in software systems by analyzing the business process

using them. The proposed solution is based on the idea that a Service Oriented Architecture can be obtained

by using a wide range of existing pieces of code. Such code components can be extracted from the existing

software systems by identifying those ones supporting the business activities. Then, the paper proposes an

approach for identifying the software components supporting a business process activity and candidate them

for implementing a service. With this purpose, the recovery of the links existing between the business

process model and the supporting software systems is exploited. An impact analysis activity is also

performed starting from the initial traced components.

1 INTRODUCTION

Software systems are subject to a continuous

evolution due to the frequent changes of business

requirements. Actually, operative business processes

can change because the implementation rules change

and/or new laws are introduced. This evolution

forces to keep aligned software systems with the

business processes they support. This implies the

execution of maintenance activities for adapting the

software systems to the business process changes.

In order to facilitate the maintenance activities, a

widely diffused strategy is moving the adopted

software solutions toward an evolving architecture,

such as the services-based one. Indeed, the detection

of components impacted by the business change

requirements is not obvious to the maintainers and

they could be more easily identified in a service-

oriented architecture.

In this direction, to support the migration of a

software solution towards a service-oriented

architecture, a crucial aspect is the appropriate

identification and comprehension of the relations

existing between business process activities and

software system components. Such a kind of

knowledge represents a great help to detect the

software components candidate to be moved towards

services.

The identification of candidate services in a

structured legacy system during a migration process

is a challenging task (Khadka et al., 2013a;

Kontogiannis et al., 2008; Zillmann et al., 2011). In

fact, the lack of updated documentation and

resources makes very hard the code comprehension.

This paper proposes an approach based on the

analysis of the business process using the software

systems to be migrated. Indeed, a requirement

change is often expressed with reference to the

business activities it supports. In particular, the

proposed approach identifies the links between a

business process description with the components of

a software systems that could be used for the service

oriented architecture migration (Aversano et al.,

2015). It exploits a formal description of the

business process based on BPEL language and

identifies the software components of the examined

software system that are connectable to the business

activities. The application of an impact analysis

process completes the definition of all the software

components that could implement a service.

The following of the paper is structured as

follows: Section 2 discusses the related works

Aversano, L., Brino, M. and Tortorella, M.

Business Process Aware Identiﬁcation of Reusable Software Components.

DOI: 10.5220/0005985700590068

In Proceedings of the 11th International Joint Conference on Software Technologies (ICSOFT 2016) - Volume 1: ICSOFT-EA, pages 59-68

ISBN: 978-989-758-194-6

regarding the identification and evaluation of

services; Section 3 describes the proposed approach

and supporting tool; Section 4 presents the

application of the approach to a case study; and

concluding remarks and future works are discussed

in the last section.

2 RELATED WORKS

In the literature there are several approaches

suggesting useful guidelines to identify services

during the legacy systems migration toward a

service-based architecture.

In (Khadka et al., 2013b), the authors proposes

two current practices for a correct candidate services

identification: top-down, where a business process is

initially modeled based on the requirements and then

it is subdivided into sub-processes until these can be

mapped to legacy functions; and bottom-up, utilizing

the legacy code to identify services by using various

techniques, such as information retrieval, concept

analysis (Zhang et al., 2006), business rule recovery

(Marchetto and Ricca, 2008) and source code

visualization (Van Geet and Demeyer, 2008).

In (Cetin et al., 2007), the authors describe a

mash-up based strategy to be applied during a legacy

system migration process. In this strategy, system

components might be reusable legacy components or

new developed ones, depending on if there is a gap

exiting between the existing legacy component and

the requirements.

In (Balasubramaniam et al., 2008) the authors

discusses an architecture-based and requirement-

driven service-oriented re-engineering method. This

method entails the availability of architectural and

requirement information. The services identification

is performed by the domain analysis and business

function identification.

There are also other approaches that can be used

to evaluate services. One of them is the one

proposed in (Matos and Heckel, 2008) that performs

either code pattern matching and graph

transformation. The approach is based on source

code analysis for identifying the contribution of code

fragments to architectural elements and graph

transformation for architectural migration, allowing

for a high degree of automation.

Another approach proposes to evaluate services

by feature location (Chen et al., 2005). The more

practical definition of a feature is used as a coherent

and identifiable bundle of system functionality that

is visible to the user via the user interface

(Eisenbarth et al., 2003; Turner et al., 1999). Then,

to discover feature implementation, feature location

is applied. It is a re-engineering technology used to

locate a particular feature in the most relevant code,

understand it and make the change so as to minimize

unwanted side effects (Turner et al., 1999). After

identifying the source code which is involved in the

implementation of a particular feature, the

implementation modules are aggregated into one

module. Therefore, the core source code of the

service operations can be extracted and the service

identification is achieved.

Another approach proposes to evaluate services

by formal concept analysis (Chen et al., 2009). The

identification process of service candidate is based

on the mapping between Functionality Ontology and

Software Component Ontology and adopts relational

concept analysis.

In (Sneed, 2006), an automatic approach to

evaluate candidate services in a migration process

from legacy system to SOA is proposed. Groups of

object-oriented classes are considered as candidate

services and evaluated in terms of development,

maintenance and estimated replacement costs. If

user organizations want to move toward a service

oriented architecture, it must make a portfolio

analysis of their existing applications and to list out

the essential business rules.

In (Sneed et al., 2012), the authors proposes a

tool for assisting the reuse of existing software

systems in a service oriented architecture by linking

the description of existing COBOL programs to the

overlying business processes. For linking models of

existing code to a business process model, this

approach applies the interpretation of the code

interfaces as separate service subjects. The approach

fits better to the concept of a service-oriented

architecture and is also more intuitive, as it is

possible to generate a service layer within a BPM

suite that links it to the underlying code. The actual

business process events take place above this layer.

They guide the human users through their tasks,

telling them what to do next. These higher level

control subjects are equivalent to work flow control

procedures written in a job control language (JCL).

In this way, a mixture of bottom-up and top-down

approach to SOA design is supported. First, access

subjects are created bottom-up to link the business

model to the underlying code base, then process

control subjects are defined top-down to depict the

actual business work flows, but based on the lower

level of BPM service layer.

Also the approch proposed in this paper exploits

the business knowledge derivig from the business

process using the software systems considered for

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

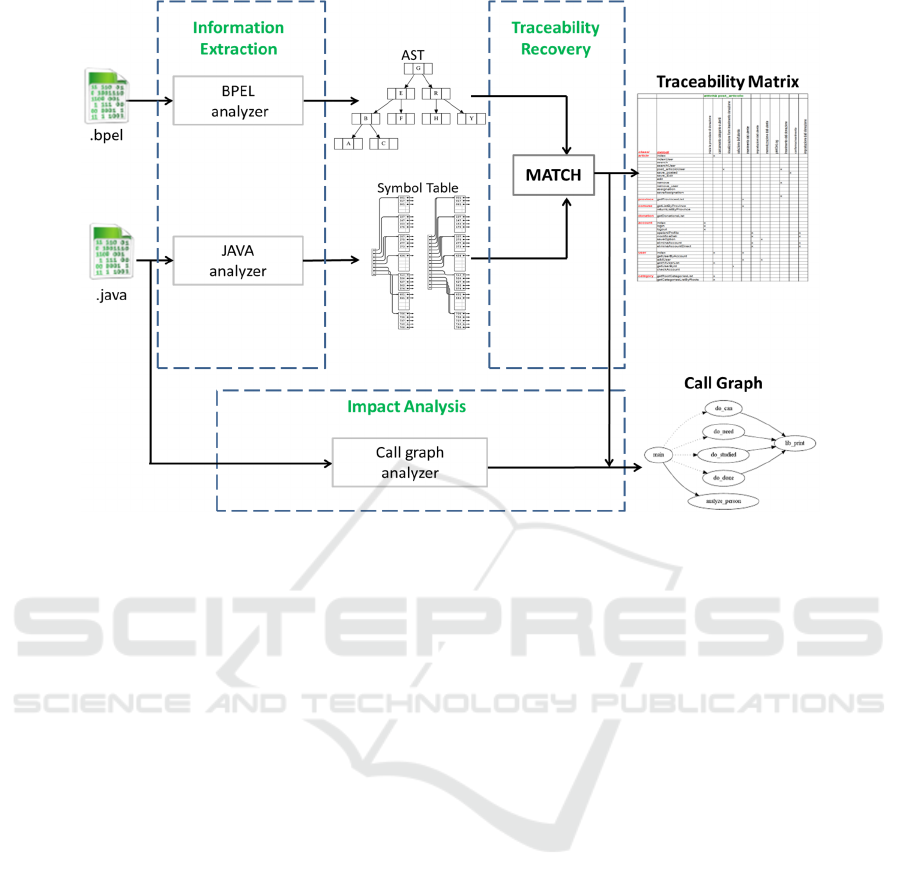

Figure 1: Overview of the approach for detecting candidate services.

identifying reusable components. As the approach

works on business and software models, it is

independent from the specific programming langage

and if the business process and software systems are

adequately modelled, it can be applied for

identifying reusable components of different

programming languages.

3 APPROACH FOR CANDIDATE

SERVICES DETECTION

The proposed approach aims at identifying the

traceability links between business process activities

and supporting software system components. It is

based on the analysis of the business process entities

and software components models. The software

components linked to the business process entities

represent the initial components for identifying

candidate pieces of software to be migrated toward

services.

The proposed approach is illustrated in Figure 1

and entails three processing phases described in the

following: Information extraction, Traceability

recovery and Impact analysis.

3.1 Information Extraction

The information extraction phase regards the

extraction of semantic information from both

business process and software system source code.

Figure1 shows that this phase in based on the use of

two parsers for analyzing Java code and BPEL files,

and obtaining all the needed information for

performing the next traceability recovery. The Java

and BPEL parsers used were implemented by using

the JavaCC (Java Compiler Compiler) parser

generator, after having defined the appropriate

grammars.

With reference to the business process, the BPEL

parser allowed the construction of the model

description syntax tree. This Abstract Syntax Tree

depicts the hierarchical relation existing between

business activities, composing sub-activities and

artefacts needed for executing them.

After obtaining the syntax tree, it was enriched with

additional nodes for inserting comments, and

identifying the associations existing between them

and code representing activities. Therefore, the

analysis of the BPEL AST allowed the identification

of the identifiers for describing the analysed

business process.

With reference to the software system, the Java

parser constructed a symbol table used to keep track

of the source program constructs and, in particular,

the semantics of the identifiers concerning the

packages, classes, methods, instance variables and

local method variable declarations.

Business Process Aware Identiﬁcation of Reusable Software Components

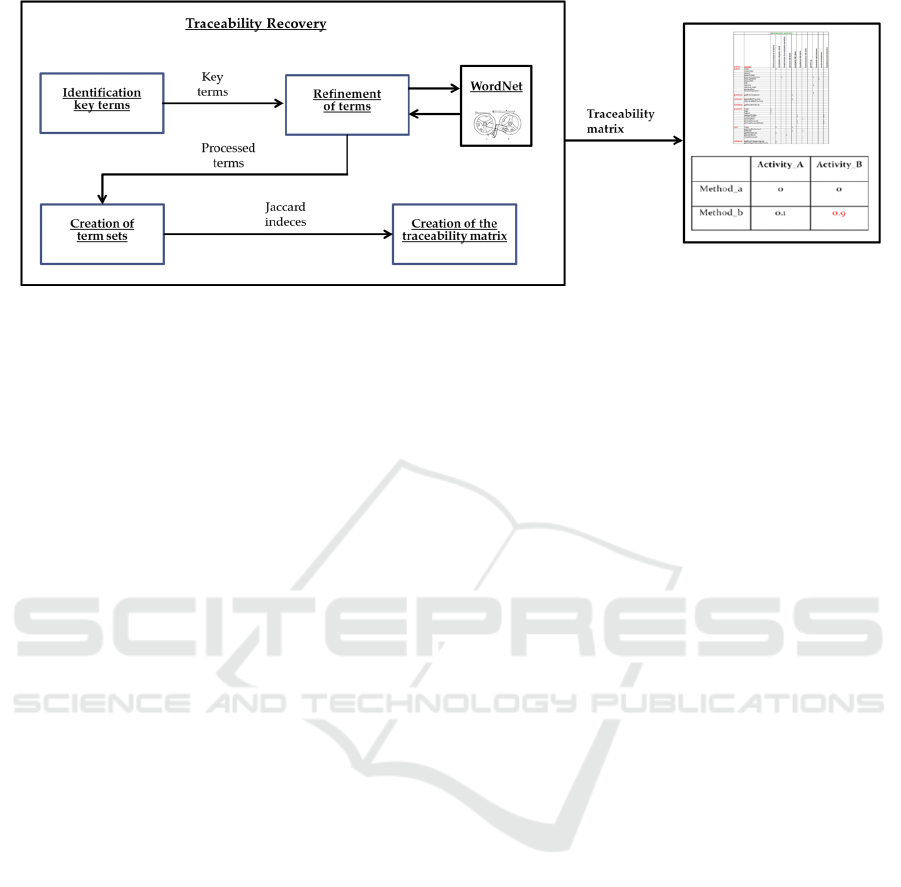

Figure 2: Traceability recovery phase.

The produced symbol table structure is also

hierarchical. The first layer contains a list of all

packages declared in the considered project. Each

record of this first layer contains a reference to

another list, regarding the classes defined in the

considered package. The set of all classes is included

in the second layer of the symbol table. Therefore,

each class contains a references to the members it

declares, such as methods and instance variables,

and inner class. Each method could have another

layer representing the set of local variables it

declares. Each inner class may refer to other layers

grouping its methods and variables.

The comments are analysed in the pre-processing

phase. Once a comment is identified, it is saved into

a map, which also stores the appearance order of the

various comments.

When the pre-processing phase is completed, the

parser considers the comments for identifying

additional semantic information contained in the

code.

3.2 Traceability Recovery

The traceability recovery aims at discovering the

connections existing between the business activities

and software system components.

Once obtained the syntax tree for the BPEL

business description and the symbol table for the

Java software system, they are visited in a post-order

manner for collecting the information required for

continuing the analysis.

This processing phase was divided into 4

different steps, summarized in the chart drawn in

Figure 2.

Identification of Key Terms. This is the first step

of the traceability recovery phase. It requires the

visits of the BPEL syntax tree and the creation of an

array of BPEL activities, called Activity. Each

Activity objects includes the BPEL file name, the

task name and the set of related terms. As an

example, for every single invoke activity,

information is collected regarding its parameters,

like name and operations, while for every reply and

receive activities information is collected regarding

portType and partnerLink parameters. Similarly, the

visit of the Java symbols table permits to identify all

the key terms related to the methods. Once identified

one of the keys, a string set containing the method

name, any local variables name and inner classes, is

created.

Refinement of Terms. The second step of

traceability recovery phase entails 3 tasks. The first

task regards the tokenization of the selected terms.

Then, every composed term is split into two or more

words and each term is normalized. As an example,

for a method called GetCustomerName(), the terms

GetCustomerName, get, customer and name are

obtained and included in the collection. The second

task makes it possible a refinement of the terms,

eliminating the stopwords, that are the most

common words included in the English grammar,

and the Java and BPEL keywords, as they do not add

any additional information regarding Java methods

or BPEL process content. The third step aims at

collecting a set of synonyms for each term obtained

from the previous tasks. This operation is made by

using the WordNet library, which is a lexical-

semantic database for the English language,

developed from Princeton University. Therefore, a

vector of synonyms is generated for each term

within the set of created words, which is added to

the starting sets of terms.

Creation of Term Sets. The third step of

traceability recovery phase regards the creation of

different subsets of terms obtained by the previous

steps. Specifically, for the invoke activity of the

BPEL model, the following sets are obtained:

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

 a set of the terms included in the string

associated to the operation argument;

 a set of the terms included in the string

associated to the name argument;

 a complete set of the terms contained in strings

associated to the following arguments: operation,

name, partnerLink, inputVariabile and

outputVariable.

The created sets for the reply and/or receive

activities are the following:

 a set of the terms contained in the string

associated to portType argument;

 a set of the terms contained in the in the string

associated to partnerLink argument;

 a complete set including the terms contained in

the strings associated to the portType and

partnerLink arguments..

With reference to the Java methods, the following

sets are defined:

 a set with the terms of the considered method

identifier;

 a complete set including the method name, its

local variable names and inner classes.

Creation of the Traceability Matrix. Once

completed the terms preprocessing, it is possible to

continue computing the similarity between the

identified terms, in order to obtain the traceability

matrix. The adopted similarity coefficient is the

Jaccard index that is a statistical index used to

compare the similarity and diversity of sample sets.

The value of this coefficient is defined in a range of

values going from 0 to 1 and it is defined as the size

of the intersection of the sets of samples divided by

the size of their union:

In the proposed approach, the sets of terms used for

applying the Jaccard index are those described in the

previous section. Using the Jaccard similarity the

traceability matrix is produced. It is organized so

that the rows contain the method of the analysed

software system, and the columns regard the BPEL

activities extracted by the parser. Therefore, cell i,j

of the matrix contains the value of Jaccard index of

the terms regarding method i and those ones

concerning activity j.

A preliminary investigation suggested to

consider as relevant values of the traceability matrix,

those ones greater of 0.85. Then, whenever there is a

correspondence involving a Java method and a

BPEL activity with the relative Jaccard index higher

than 0.85, it is marked as meaningful and it is

indicated with a different colour.

3.3 Impact Analysis

Once the traceability matrix is obtained, it is

possible to make a further analysis of the software

components, focusing on the identification of the

software system classes connected to classes

identified in traceability recovery phase. This phase

is divided into 2 different steps as indicated in

Figure 3.

Creation of Call Graphs. Analysing from the

source code of Java software system, a call graph is

obtained representing the call relationship existing

between the methods of a software system.

Specifically, each node represents a class or a

method and each edge (a,b) indicates that method a

or a method included in class a calls method b or

one included in a class b. The Doxygen tool

(www.doxygen.org) was used for generating the call

relationship. In particular, Doxygen can produce

different outputs from a set of documented source

files. In the proposed approach, the considered

output was represented by files .dot, which contain

the call graph definition. Doxygen creates a .dot file

for each method of the analyzed software system

that calls at least another method of the software

system itself. Every single call graph starts from the

method node that is being analyzed and browse the

entire chain of calls it triggers.

Call Graphs Analysis. The second step of the

impact analysis phase visits the obtained call graphs

for identifying the impacted software components.

For improving the readability of this new graph and

performing a high-level analysis, each of its nodes

represents a single class of the software system,

rather than a class method. Furthermore, a numeric

label is associated to each edge for counting the

number of calls occurring between the two involved

classes. Furthermore, the various nodes have been

grouped into subgraphs, each of which represents a

package of the analyzed software product and

contains the nodes representing its classes.

The information obtained by analysing the

traceability recovery phase and regarding a

candidate method for a future migration to service

oriented architecture, is particularly relevant also in

the impact analysis step. Actually, it represents the

triggering software component that permits to obtain

the set of components it impacts and that can be

clustered together for being migrated to a service.

Business Process Aware Identiﬁcation of Reusable Software Components

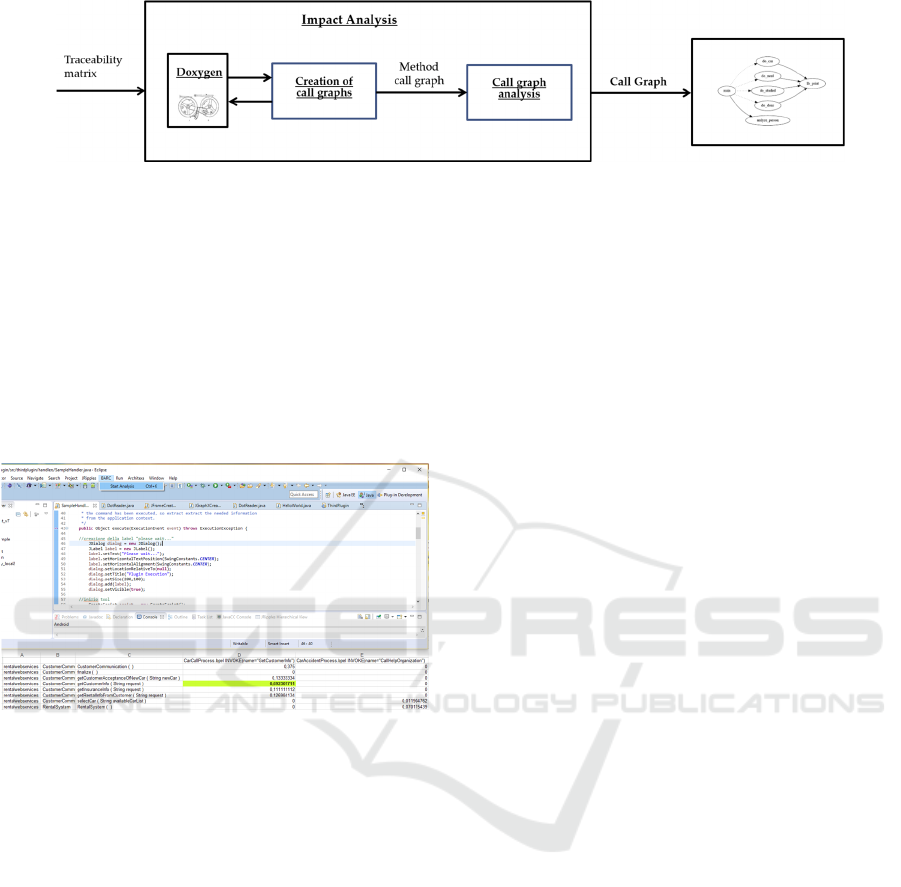

Figure 3: Impact Analysis phase.

BARC Plugin. A prototype tool has been

implemented for supporting the application of the

proposed approach. It is an Eclipse plugin named

BARC, that is an acronym for Business process

Aware identification of Reusable software

Components. The plugin requires the project path of

the various Java and BPEL files, through message

dialog, at runtime. After entering the path, the plugin

will analyses the source code and produces 2

outputs.

Figure 4: Screen shot of the implemented Eclipse plugin.

The first output is the traceability matrix, created

by Traceability recovery phase. While, the second

output is the result of the Impact analysis step, that is

a class call graph. In this graph, the nodes represent

Java classes and each edge represents a link between

two classes. The construction of this graph was

made by using JGraphX: it is a Java library that

allows the creation of the call graph and represents it

through a JFrame window.

4 VALIDATION

The effectiveness of the presented approach has

been validated using a case study regarding a web

Java project, dealing with the management of a

dealership. It consist of 1066 Java files (code lines

124459) and 33 BPEL files. The project provides

functionalities such as: user registration, access to

the services, browse the offered catalogue, add or

remove a product to the cart, confirm the purchase.

The BPEL model of the business process has

been obtained analyzing the executed processes and

using the available knowledge, without considering

the source code of the used software system. The

obtained model was also manually verified.

It follows a description of the application of the

approach, and the obtained results. This project

entails the execution of 3 macro operations:

 Sales: including the functionality allowing the

management of some services concerning the car

selling for both new and used cars, such as: Car

Selling (information service, choosing car,

providing price, negotiating and making contract

details, payment style etc.), Car Return (car

checking, invoke approvement etc.), Customer

Service (car cancellation, car fuelling, car

cleaning, car checking, car accident etc.),

Choosing Car and Customer Reception;

 Rental: including the operations allowing the

management of some services relating to the car

rental, such as: Car Renting (input customer and

car information, input pick-up/drop-off location

and date, price offer, rental acceptance, payment),

Car Reservation (reservation of a favourite car

model in a preferred date and location), Car

Insurance (Insurance to the rental car), Car Service

(car checking, car cleaning, car fuelling),

Reminder (reminding customer to pay, warning

payment expiry, arranging collection company),

etc.;

 Customer Communications: including the

operations concerning the communication form/to

a user, such as: get the information about a user, a

rental or an insurance.

The verification and interpretation of the results

required the selection of just five interesting Java

classes. Each of them contributes to implement the

previously described macro functionality, and

includes the needed methods. Each BPEL file

represents one of the macro service operations. They

are:

NewCarSellingProcess.bpel, SaleInformation.bpel,

CheckDrivingLicenseProcess.bpel

and so on.

In the following, the application of the steps

described in the previous section is discussed.

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

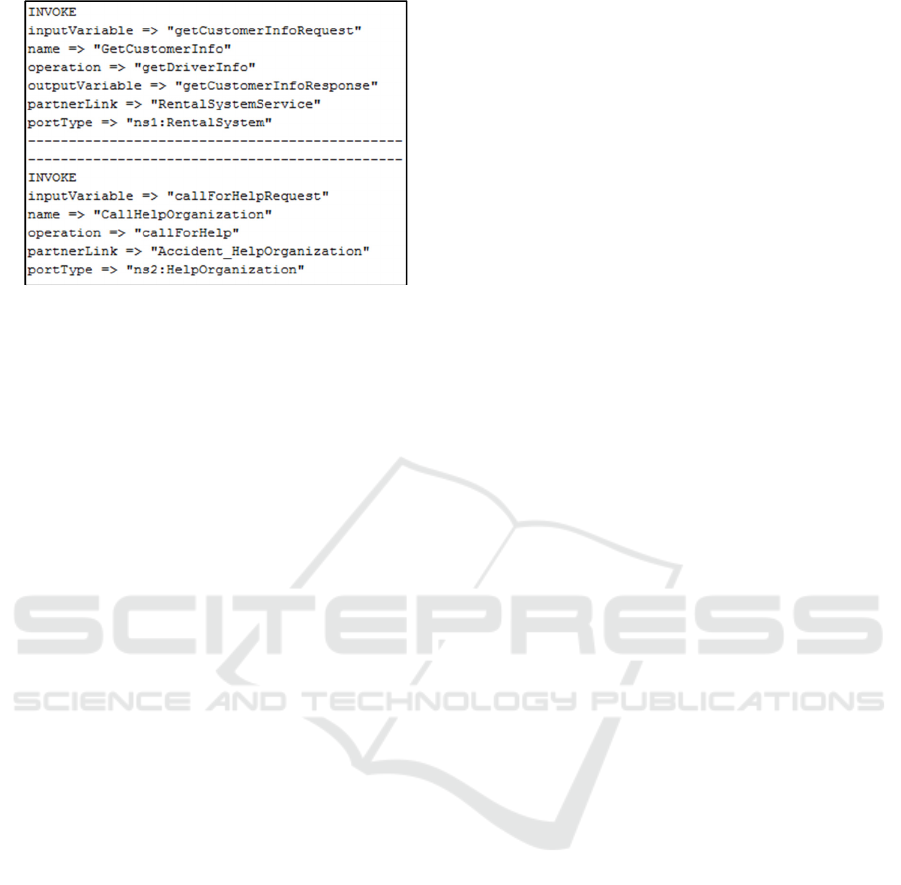

Figure 5: Information extraction about an invoke activity.

Identification of Key Terms

The information regarding the activities are selected

by analyzing the BPEL AST. Figure 5 shows an

example of an invoke activity, which is called

getCustomerInfo, that is contained in the BPEL file

called CarAccidentCallProcess.bpel. This file

handles the calls arriving in dealer after a car

accident. The activities the figure shows are used for

getting personal information about the car driver.

Afterwards, all the information of interest is

extracted from the activity shown in Figure 5. The

values of the specific example are the following:

 inputVariable (getCustomerInfoRequest);

 operation (getDriverInfo);

 outputVariable (getCustomerInfoResponse);

 partnerLink (RentalSystemService);

 portType (ns1: RentalSystem).

The information regarding each method is extracted

from the Java symbol table, including the method

name and all the identifiers linked to it.

Figure 6 shows an example of a method, called

initialize, contained in a Java file called

RentalSystem.java, which is the Java class that deals

with the management of some services relating the

car rental. The figure highlights all the identifiers

that are caught in this step. They regard the name of:

the step that is equal to the method name (initialize),

local variables (maxX, maxY, minX, minY), and the

method inner class (initializeVector).

Refinement of Terms

All of attributes of the selected BPEL activity have a

compound name that can be split. For example, the

name of its operation attribute (getDriverInfo) can

be split into 3 different words: get, driver and info.

Similarly, the name of a Java method can be split

into different words without considering the list of

arguments.

The obtained set of words is then refined going

to remove the terms included in the list of English

stopwords, such as get. Then, the Java identifier

getDriverInfo provides just the two terms driver and

info for the next phase.

The synonyms of each identified single word are

searched by using the WordNet library. For

example, WordNet provides information

synonym of info, and device driver and number one

wood for the term driver.

Creation of the Term Sets

With reference to the used invoke activity, three sets

of terms are created. For example, the following sets

are defined for activity getDriverInfo:

 a set containing the words: getDriverInfo, that is

the complete name of the operation attribute, and

driver and info, which are the words obtained by

the splitting;

 a set containing the words: getCustomerName,

that is the complete name of the name attribute,

and customer and name;

 a set containing the words: driver, info,

customer, rental, system (from its attributes),

information, client, lease, letting, renting,

scheme, organization, organisation, arrangement

(from WordNet).

In the same way, for each Java method, two set of

terms are created. For example, if method

getDriverInfo is considered, the first sets of terms

includes the words deriving from the method name,

while the second set contains the words driver, info,

information (obtained from its name), sql, stm, rset,

e, which are the names of the method local variables.

Creating Traceability Matrix

For calculating the Jaccard index for the set of

terms, the first sets that must be compared are the

BPEL set that includes information regarding

operation attribute (e.g., words:

getDriverInfo,

driver, info) and the Java set that includes

information regarding the related method (e.g., the

words: getDriverInfo, driver, info). As it is possible

to see in the example, these sets contains the same

words, and, then, the Jaccard index resulting from

their comparison will be equal to 1, which indicates

a full matching.

If the match between the BPEL activity and Java

method has already been found, it is useless to make

comparisons with other sets of terms, and this step

may end with the setting of the obtained values

within the traceability matrix.

Business Process Aware Identiﬁcation of Reusable Software Components

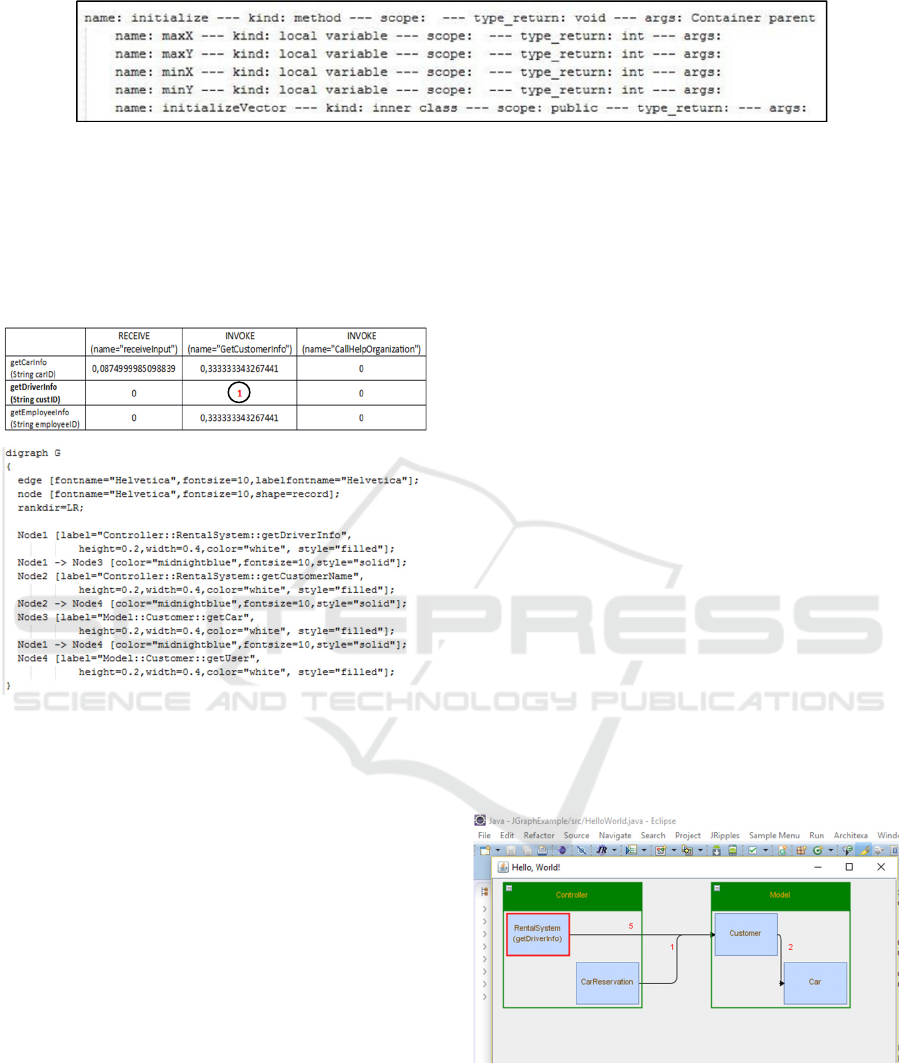

Figure 6: Information extraction about a Java method example.

Table 1 shows the Jaccard values of the method

and activity considered in the example, and

highlights the correspondence found between the

BPEL business process and Java system software.

Table 1: Example of matrix produced by prototype tool.

Figure 7: Information obtained from the Doxygen

analysis.

If the match between the BPEL activity and Java

method has already been found, it is useless to make

comparisons with other sets of terms, and this step

may end with the setting of the obtained values

within the traceability matrix. Table 1 shows the

Jaccard values of the method and activity considered

in the example, and highlights the correspondence

found between the BPEL business process and Java

system software.

Call Graphs Creation

This new processing phase required the analysis of

the Java source files and the information obtained in

the extraction phase.

Every single Java file in the analyzed software

product will examined by using Doxygen. A correct

use of this tool required the configuration of the file

including all information regarding the examined

software product.

The execution of Doxygen produced a temporary

folder with all the files created by the tool, such as

files with .dot extension.

Figure 7 include an example of a .dot file. Each

node is represented by a unique identifier (e.g.,

Node1) and some parameters, enclosed in square

brackets. In addition, for purely graphic purposes,

parameter label also defines the node name,

composed of the union of the package name, class

name and referenced method name. For example,

information relating method getDriverInfo are

contained in the label of a node called Node1. In the

same file, the various edges connecting two nodes

are also defined; in Figure 7, Node1 is connected

with Node3 (getCustomerInfo) and Node4 (getUser).

Call Graphs Analysis

Once the call graph of software system has been

obtained, it is possible to create a call graph at the

class level that includes all the obtained information.

For example, the nodes related to methods

getCustomerName and getDriverInfo can be grouped

into a new single node, that is RentalSystem. In the

same example, method getDriverInfo is one of those

methods identified in the Traceability recovery

phase as a possible candidate to be turned into a

service. This information is also saved into the new

call graph. Actually, in the label parameter of its

class, the candidate method name itself is added.

Figure 8: Classes call graph produced by prototype tool.

The final result regarding a call graph at the class

level, is shown in Figure 8. The figure includes a

screen shot of the Eclipse plugin that has been

implemented for supporting the application of the

approach. In the figure, there are 2 packages, called

Controller and Model, that enclose some nodes,

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

including node RentalSystem. The edge that

connects this node with the Customer class node has

a weight (in this case is equal to 5), which indicates

that RentalSystem class and its methods, interacts

with the Customer class and its methods for 5 times.

Table 2 contains a summary of the results

obtained for the case study in terms of identified

interactions in the traceability matrix between

business activities and software components. This

analysis has been performed by comparing the

automatically obtained results with those ones

attained through a manually investigation of the

software system. Table 2 includes indications of: the

false positives, indicating the detected but not real

correspondences; true positives, regarding detected

and real correspondences; false negatives,

concerning no found but actually present

correspondences; and true negatives indicating not

found and not really present correspondences. It can

be observed that the value of the false negatives is

very low, just 1, and this indicates that the proposed

approach detects the correspondence correctly, when

it exists. The number of false positives, 15, are due

to correspondences that do not exist, but they have

been detected because the analyzed activity has a

nomenclature similar to the one of a Java method,

but there is no real correspondence between them.

Tables 3 contains the results obtained by the

evaluation of the Precision, Recall and F-Measure in

the dealer project. It is possible to observe that the

obtained results are enough high, indicating the

goodness of the results regarding the obtained

correspondence among business and software terms.

This results have been achieved also thanks to the

meaninglessness of the used terms.

Table 2: Experimental results for dealership project.

Case study

False

Positives

False

Negatives

True

Positives

True

Negatives

Dealership 15 1 60 13769

Table 3: Precision, Recall, F-Measure for dealership

project.

Precision Recall F-Measure

0.8 0.98 0.88

Additional results can be obtained by considering

the comments in both BPEL and Java files. In this

case, the association of a single comment to the

BPEL activity requires the addition of further

comments nodes to the AST, including the detected

comments and relative source code.

The comment-based approach was also analysed

on the same software system and the new Jaccard

index values were compared with the previous ones.

Different results were obtained mainly due to the

considerable increase of terms to be considered in

the business and software term sets. Thus, because

of the considerable decrease of common terms

compared to the total number of terms, many of the

real correspondence existing between Java methods

and BPEL activities (i.e. true positives) were not

found. This experience indicated that considering

comments does not contribute to improve the results

but it just increases the number of terms to be

considered for identifying the correct

correspondence between BPEL and Java terms.

5 CONCLUSIONS

The paper presented an approach aiming at

supporting the reuse of the existing software systems

components connected to a business process. In

particular, this facilitation is provided through the

possibility of detecting the correspondences existing

between source code components and business

activities of a process modelled by using the BPEL

language.

The approach execution entailed the use of two

parsers. The information extracted by using the

parsers have been expanded and refined for being

used in the traceability link recovery. The evaluation

and selection of such correspondences have been

performed by using a similarity measure defined in

the paper. Each identified software component was

considered in an impact factor activity aimed at

searching all the software components it called for

encapsulating all of them in a service.

The BARC eclipse plug-in was implemented for

automatically supporting the application of the

approach.

The comments in the code were also initially

analysed, but successively discarded as it was

observed that their use leads to worse results.

The preliminary results obtained by the

application of the proposed approach are

encouraging and represent a starting point, for the

identification of parts of the code from an existing

software system with the aim of defining new

services to be used in a service oriented architecture.

The values of precision, recall, f-measure show the

potentiality of the proposed approach.

The future work will concern the refinement of

the selection of the correspondences in the matrix

(refining the values in the range used for the analysis

of Jaccard indexes), expanding test cases and

extending the analysis also to WSDL files.

Business Process Aware Identiﬁcation of Reusable Software Components

REFERENCES

Aversano, L., Di Brino, M., Di Notte, P., Martino, D.,

Tortorella, M., 2015. Linking Business Process and

Software Syste. In BMSD 2015, 5

International

Symposium on Business Modeling and Software

Design. SCITEPRESS.

Balasubramaniam, S., Lewis, G. A., Morris, E. J.,

Simanta, S., Smith, D. B., 2008. SMART: application

of a method for migration of legacy systems to SOA

environments. In ICSOC'08, 6th International

Conference on Service-Oriented Computing. Springer-

Verlag.

Cetin, S., Altintas, N. I., Oguztuzun, H., Dogru, A. H.,

Tufekci, O., Suloglu, S., 2007. A mashup-based

strategy for migration to service-oriented computing.

In ICPS'07, International Conference on Pervasive

Services. IEEE Comp.Soc. Press.

Chen, F., Li, S., Chu, W. C., 2005. Feature analysis for

service-oriented reengineering. In APSEC'05, 12th

Asia-Pacific Software Engineering Conference. IEEE

Comp.Soc. Press.

Chen, F., Zhang, Z., Li, J., Kang, J., Yang, H., 2009.

Service identification via ontology mapping. In

COMPSAC'09, 33th Annual International Computer

Software and Applications Conference. IEEE

Comp.Soc. Press.

Eisenbarth, T., Koschke, R., Simon, D., 2003. Locating

features in source code. In IEEE Transaction on

Software Engineering, Vol. 29, No. 3.

Ganter, B., Wille, R., 1999. Formal Concept Analysis:

Mathematical Foundations, Springer-Verlag.

Khadka, R., Saeidi, A., Idu, A., Hage, J., Jansen, S.,

2013a. Legacy to SOA evolution: a systematic

literature review. In Migrating Legacy Applications:

Challenges in Service Oriented Architecture and

Cloud Computing Environments. A. D. Ionita, M.

Litoiu, G. Lewis Editions. IGI Global.

Khadka, R., Saeidi, A., Jansen, S., Hage, J., 2013b. A

structured legacy to SOA migration process and its

evaluation in practice. In MESOCA'13, 7th

International Symposium on the Maintenance and

Evolution of Service-Oriented and Cloud-Based

Systems. IEEE Comp.Soc. Press.

Kontogiannis, K., Lewis, G., Smith, D., 2008. A research

agenda for service-oriented architecture. In SDSOA'08,

2nd international workshop on Systems development

in SOA environments. ACM press.

Marchetto, A., Ricca, F., 2008. Transforming a Java

application in an equivalent Web-services based

application: toward a tool supported stepwise

approach. In WSE'08, 10th International Symposium

on Web Site Evolution. IEEE Comp. Soc. press.

Matos, C. M. P., Heckel, R., 2008. Migrating legacy

systems to service-oriented architectures. In ICGT

2008, Doctoral Symposium at the International

Conference on Graph Transformation. Electronic

Communications of the EASST.

Sneed, H. M., 2006. Integrating legacy software into a

service oriented architecture. In CSMR'06, 10th

European Conference on Software Maintenance and

Reengineering. IEEE Comp. Soc. press.

Sneed, H. M., Schedl, M., Sneed, S. H., 2012. Linking

legacy services to the business process model. In

MESOCA'12, 6th IEEE International Workshop on the

Maintenance and Evolution of Service-Oriented and

Cloud-Based Systems. IEEE Comp. Soc. press.

Turner, C. R., Fuggetta, A., Lavazza, L., Wolf, A. L.,

1999. A conceptual basis for feature engineering.

Journal of System and Software, Vol. 49, Issue 1.

Elsevier press.

Van Geet, J., Demeyer, S., 2008. Lightweight

visualisations of COBOL code for supporting

migration to SOA. In Evol’07, 3

International

ERCIM Symposium on Software Evolution. Electronic

Communications of the EASST.

Zhang, Z., Yang, H., Chu, W., 2006. Extracting reusable

object-oriented legacy code segments with combined

formal concept analysis and slicing techniques for

service integration. In QSIC'06, 6

International

Conference on Quality Software. IEEE Comp. Soc.

press.

Zillmann, C., Winter, A., Herget, A., Teppe, W., Theurer,

M., Fuhr, A., Horn, T., Riediger, V., Erdmenger, U.,

Kaiser, U., et al., 2011. The SOAMIG Process Model

in Industrial Applications. In CMSR'11, 15

European

Conference on Software Maintenance and

Reengineering. IEEE Comp. Soc. press.

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications
