A Practical Encrypted Microprocessor

Peter T. Breuer

, Jonathan P. Bowen

, Esther Palomar

and Zhiming Liu

4∗

Hecusys LLC, Atlanta, GA, U.S.A.

Faculty of Engineering, London South Bank University, London, U.K.

Faculty of Computing, Engineering & The Built Environment, Birmingham City University, Birmingham, U.K.

Centre for Research and Innovation in Software Engineering, Southwest University, Chongqing, China

Keywords:

Computer Security, Encrypted Computing, Computer Architecture, Applied Cryptography.

Abstract:

This paper explores a new approach to encrypted microprocessing, potentiating new trade-offs in security

versus performance engineering. The coprocessor prototype described runs standard machine code (32-bit

OpenRISC v1.1) with encrypted data in registers, on buses, and in memory. The architecture is ‘superscalar’,

executing multiple instructions simultaneously, and is sophisticated enough that it achieves speeds approaching

that of contemporary off-the-shelf processor cores.

The aim of the design is to protect user data against the operator or owner of the processor, and so-called

‘Iago’ attacks in general, for those paradigms that require trust in data-heavy computations in remote locations

and/or overseen by untrusted operators. A single idea underlies the architecture, its performance and security

properties: it is that a modiﬁed arithmetic is enough to cause all program execution to be encrypted. The

privileged operator, running unencrypted with the standard arithmetic, can see and try their luck at modifying

encrypted data, but has no special access to the information in it, as proven here. We test the issues, reporting

performance in particular for 64-bit Rijndael and 72-bit Paillier encryptions, the latter running keylessly.

1 INTRODUCTION

If the arithmetic in a conventional processor is mod-

iﬁed appropriately, then, given three provisos (sum-

marised in Section 3), the processor operates cor-

rectly, but all the states obtained in registers and mem-

ory and on buses are one-to-many encryptions of the

states obtained in an unmodiﬁed processor running

the same program (Breuer and Bowen, 2013). That

opens a path to a new kind of processor that, operat-

ing encrypted, is a priori more secure from prying and

interference than current processors are, yet it should

in principle be as fast, because only one piece of state-

less internal logic – the arithmetic unit – has changed.

This paper reports on prototyping that tests the

idea to a pre-production level, just before the point

of gate synthesis and layout. The object is

(a) to protect user data (not code) from the operating

system and operator;

(b) to run fast enough for users wanting ofﬂine work

∗

Correspondence to: Z. Liu, RISE, Southwest Univer-

sity, 2 Tiansheng Rd, Beibei, Chongqing 400715, China.

to be performed remotely and securely.

A typical use case would be image-processing.

The prototype is sophisticated enough to bear

comparison with off-the-shelf processors: it is su-

perscalar (it executes multiple instructions at a time),

with a pipeline in which full ‘forwarding’ has been

embedded (pipeline stalls in which an instruction be-

hind waits for data from an instruction ahead have

been eliminated as far as is logically possible), along

with branch prediction, instruction and data caching,

speculative execution, etc.

The prototype in its present form is intended to

run as a coprocessor, executing ‘somewhat’ encrypted

machine code (data ﬁelds are encrypted, not opcodes).

That is set up in practice with interrupt handlers and

a few system calls in memory, never a full multiuser

multitasking operating system, and libraries and other

support would be compiled-in to encrypted code.

An encrypted processor provides the lowest level

kind of security possible and we recognise that not

many security engineers are familiar with this level

of working. To answer some basic questions imme-

diately: while encrypted and unencrypted code run in

the same core, they remain apart because they do not

Breuer, P., Bowen, J., Palomar, E. and Liu, Z.

A Practical Encrypted Microprocessor.

DOI: 10.5220/0005955902390250

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 4: SECRYPT, pages 239-250

ISBN: 978-989-758-196-0

239

run at the same time. The problem is they might see

remnants of the other’s data, but from both points of

view the other’s data is encrypted. Yes, a user’s pro-

gram code is visible to the system operator, and that is

as designed. The program’s control ﬂow would in any

case become visible to an operator single-stepping the

machine or running a debugger, but the operator can-

not tell if that is an encrypted image of a mountain or

a lake being processed.

Note that if a user is determined to hide control

ﬂow, at the expense of slower running they may sup-

ply a virtual machine to run encrypted on the plat-

form. Then both code and control ﬂow constitute a

block of encrypted data that is repeatedly transformed

in the same way every cycle by a virtual machine’s

state transition function.

But between theory and an encrypted processor

that people might want to use lies much practical

work. Here are three questions that a sceptical tech-

nologist could ask:

1. Can an architecture based on a changed arithmetic

really approach the performance of modern pro-

cessors? Demonstrate it!

That means ‘superscalar’ (multiple instructions exe-

cuted piecewise simultaneously) and multicore tech-

nologies – we are way past the days when the In-

tel 8088 would ﬁrst execute one instruction, then the

next. Modern processors break instructions up into

small operations and execute the parts simultaneously

along one or more pipelines. Some of the execution

is speculative – liable to be discarded and/or reversed

– and instructions and their component parts may be

accelerated or delayed according to a complex sys-

tem of dependencies and constraints. A processor is

not purely numerical – it is supposed to react to arith-

metic overﬂows and a host of exception conditions

and ﬂags that might not be compatible with a mod-

iﬁed arithmetic and encrypted execution. It is not a

priori clear that any of that will be sustainable.

The prototype is a platform on which to test these

issues. Broadly speaking, we do have the perfor-

mance required, reaching 70% of the speed of unen-

crypted running as of the date of this paper submis-

sion

(Section 6), and we do have the correct instruc-

tion semantics in all aspects with respect to a recog-

nised standard, as discussed.

2. Will the production machine be compatible with

existing soft- and hardware technologies?

After all, in terms of software, nobody today is gen-

erating encrypted machine code and nobody has an

operating system for it, and it is not clear if we know

80% has been reached at camera-ready copy date.

how to make user code run under an operating sys-

tem that effectively runs blind to it. How would the

two communicate? Should they? Do they? There

is no future in a hardware technology, no matter how

good it is in security terms, that requires us to discard

our software and start again. Hopefully that will not

be the case, but perhaps the machine will require too

much memory, or too wide buses, or impossibly fast

logic. A technologist needs convincing that these are

not issues. Against that, we can say that we do have

an assembler and compiler and a minimal operating

system, and we are able to run standard test codes.

3. Will a working product adapted to the realities be

as secure as the idea promises?

Here the answers are harder to specify and we

will supply data in this paper. Both encrypted

and unencrypted bits pass through common elements

in the processor in close proximity in time and

space, which is inherently dangerous. Perhaps side-

channels and attack vectors will side-step the en-

crypted/unencrypted security barrier: the system op-

erator can measure power drain and see when mem-

ory areas are used repeatedly via cache statistics, for

example. Perhaps the operator can set the machine’s

control registers to break the barrier.

One answer that does not need a paper to discuss

it is that a manufacturer may apply existing protec-

tion technology on top of this design. Technologies

make no issue about whether 1 mod 0 = 1 or not,

merely on there being details to be masked. Mask-

ing power drain is known ‘moat’ electronic technol-

ogy (e.g., (Kissell, 2006)). Randomising memory

addressing has a long history too (‘oblivious RAM’

(Ostrovsky, 1990) and its recent developments (Maas

et al., 2013; Liu et al., 2015)). Moreover, a natu-

ral masking is already present, because many differ-

ent encrypted numbers will be passed to the mem-

ory bus for what was meant by the programmer to be

the same address under the (one-to-many) encryption

(Section 3 describes how software may be compiled

to deal with this). At any rate, the situation is not

worse than for conventional processors, and the pro-

tections developed for them are admissible.

A criterion for success is that an operator, despite

their privileges, cannot access unencrypted user data,

or interfere meaningfully with it. What can a hostile

operator do then? Still everything, but not undetected,

if some simple ﬁnesses are built in: a computation

trace hash under the encryption ﬂags up interference;

encrypted data in memory containing a hash of its ad-

dress makes copying for replay use difﬁcult, etc.

In this paper, we report on what the pre-production

prototype tells us, running in simulation, explaining

the design’s solutions for the questions raised above.

SECRYPT 2016 - International Conference on Security and Cryptography

240

After discussing related work and other context in

Section 2, we lay out in Section 3 hardware and soft-

ware provisos, as mentioned in the ﬁrst paragraph of

this section, required for the design to work. A deﬁni-

tive account of the processor architecture is given in

Section 4. Section 5 gives answers to security ques-

tions, and Section 6 discusses performance, setting

out the numerical evidence.

2 OVERVIEW & RELATED WORK

Firstly, here are some statements to set the ground for

the reader and summarise the situation before entering

into technical details:

Standards. Our processor covers the Open-

RISC version 1.1 rev. 0 instruction set and register-

level speciﬁcation (opencores.org/or1k/Architecture\

Speciﬁcation). There is an answer in that to the scep-

tical technologist’s point #2, because the expertise of

existing manufacturers may be leveraged for produc-

tion and there is no doubt as to the suitability as a plat-

form for general purpose computing. We are not start-

ing from nothing. The OpenRISC speciﬁcation de-

tails hundreds of conditions for the 220 machine code

instructions, and our prototype passes the Or1ksim

test suite (opencores.org/or1k/Or1ksim) in encrypted

and unencrypted running.

Sizes. Data words are 32 bits long under the en-

cryption, but they physically occupy an encryption

block, 64 or 128 bits, etc., depending on the encryp-

tion. The register size and memory word size is the

encryption block size, not 32 bits. Buses are also cor-

respondingly wider.

Instructions. Instructions are 32 bits in length,

conforming to OpenRISC. Data embedded as part of

an instruction is encrypted (see Section 4), but the rest

of the instruction is ‘in the clear’ and can be read or

rewritten by anyone. The kind of instruction is not

secret – data, not code, is protected here.

Memory. Storage in RAM is not different from

normal, and ordinary RAM sticks are to be used with

this processor. Memory access occurs at the same

points and slightly greater spacings (because of ex-

tra instructions needed to carry encrypted immedi-

ate data) in an encrypted program, but the access is

always 64 bits, or 128 bits, matching the encrypted

word size, not 32 bits. A program’s memory foot-

print is ×2 or ×4 the unencrypted size, depending on

the encryption, which has no real impact nowadays.

Cache similarly needs to be double or quadruple size

and caching is less effective than usual, overall, but

the focus of memory and cache stress lies elsewhere,

in remapping at the ﬁne granularity required for en-

crypted addressing (see Section 4).

There is no particular stress on the widened mem-

ory bus otherwise. Fast load/store cycling stresses the

bus as much as it does in a standard processor, for

example, no more and no less. There is no extra en-

cryption/decryption on the way to memory from the

encrypted processor in our design, so no extra delays

occur there.

Software. An existing OpenRISC toolchain port

has been modiﬁed for use, the GNU ‘gcc’ version

4.9.1 compiler and ‘gas’ version 2.24.51 assembler

(the modiﬁed source is at sf.net/p/or1k64kpu-gcc and

sf.net/p/or1k64kpu-binutils respectively). Encryption

is conﬁned to the instruction assembler, which moves

machine code around to make room for embedded

encrypted data, while compilation focuses on higher

level strategies. A standard executable ﬁle (‘ELF’ for-

mat) encapsulates the encrypted machine code in its

‘.text’ section and read-only encrypted constants are

put in subsections containing an encrypted word each,

specifying the (encrypted) address.

Encryptions. We have run the same experiments

with two different encryptions in the processor. The

ﬁrst is a symmetric 64-bit encryption, Rijndael-64

(Daemen and Rijmen, 2002). Registers and words are

physically 64 bits wide (note that 64, 72, 128, etc., are

in no way design limits).

We have also tried a Paillier encryption (Paillier,

1999). That is an additively homomorphic encryp-

tion, in which addition under the encryption corre-

sponds to multiplication (modulo some m) on the en-

crypted data. The experiment embedded only 72-bit

Paillier where 512–1024 bits would be comparable to

64-bit Rijndael, but it is sufﬁcient to draw conclu-

sions. The encrypted word takes the left 72 bits of

128, encrypting 32-bit data, and registers and words

are 128 bits wide.

Independence. It is to be emphasised that the ap-

proach here is not dependent on Rijndael or Paillier,

or 64 or 72 bits etc. Any symmetric encryption works,

Rijndael or not, provided it ﬁts in the registers and on

buses (and their size may be designed to match the

requirement), but a key is always needed. More bits

(e.g. 128) is reasonable today, but there is a penalty

in that machine code instructions that contain embed-

ded data become correspondingly larger, such that it is

hard to contemplate from the point of view of perfor-

mance. Programs would have to be compiled to avoid

embedded data, choosing memory load and store in-

stead, or the memory and cache pathway would have

to be made wider (e.g., 8 consecutive instructions read

at a time, instead of 4). Further architectural proto-

typing than that reported here is needed to map the

trade-offs comprehensively.

A Practical Encrypted Microprocessor

241

Any additively homomorphic encryption works,

Paillier or not, provided it ﬁts, etc., and no key is re-

quired. But Paillier needs a ‘table of signs’, discussed

below, that effectively limits its applicability to 32-

bit computing at present, no matter what block or key

size is used. An additive homomorphic encryption in

which the sign were also obtained homomorphically

would remove that limit, and we hope for one in the

near future. However, known homomorphic encryp-

tions are very ‘wide’ for the same level of security

as symmetric encryptions and that will always give a

performance hit in comparison.

Vulnerabilities. If an attacker has a scanning

electron microscope or similar advanced physical

probes, then a Rijndael encryption is vulnerable to it

because there is a codec (encryption/decryption de-

vice) forming part of the processor pipeline, as de-

scribed in Section 4. However, vulnerable areas will

normally be buried deep inside the chip in a produc-

tion model, as in the ubiquitous modern smartcard

technology (K

ommerling and Kuhn, 1999). The ar-

rangement here is not less secure. Keys for the codec

may be built in at manufacture, as in a smartcard, or

managed via an established key management technol-

ogy. But key management for symmetric encryptions

is emphatically not relevant for this paper’s aims.

That is partly an issue for a business model and partly

for future research directions and we do not want to

gainsay the eventual answer here. The CIA (US Cen-

tral Intelligence Agency) is not going to want to share

their computers, for example, so one key per proces-

sor might be ﬁne for them. If a key is to be lodged

in the codec just before use, that may be handled by

a Difﬁe-Hellman circuit, such as (Buer, 2006), that

can secretly transfer the key while never exposing it

in registers or memory or on buses. It does not matter

in principle if the wrong user runs when that key is

installed, as the user cannot read the results or enter

data that makes sense, nor compile a nontrivial pro-

gram that will run. Whether that user can somehow

devise programmed experiments that reveal the key is

the same question as whether the operator can, so key

management is in that sense an orthogonal issue.

Notably, there are no codecs or keys involved with

the Paillier encryption in the processor. In principle

our simulations might be run in full public view. The

parts of the processor taken up by the codec for Ri-

jndael are occupied instead by the Paillier ‘addition’

on encrypted data. That is 72-bit multiplication mod-

ulo m, with no encryption or decryption. That can

be done in hardware in one or two stages, but we en-

visage a production machine using 512- to 1024-bit

Paillier, which would require many more stages, so

our simulation pretends 10 of 15 pipeline stages are

required even for lowly 72-bit Paillier addition.

Exceptional Stresses with Paillier. In using

the Paillier encryption we follow (Tsoutsos and Ma-

niatakos, 2013; Tsoutsos and Maniatakos, 2015),

where a ‘one instruction’ stack machine architec-

ture (‘HEROIC’) for encrypted computing embed-

ding a 16-bit Paillier encryption is prototyped. In

conjunction with a lookup table for the signs (posi-

tive/negative) of encrypted data, the Paillier addition

is computationally complete (any computable func-

tion can be implemented using addition, the table, an

encrypted 1, and recursion), and addition, subtrac-

tion, and comparison machine code instructions suf-

ﬁce to write software routines for the rest. The 72

bits is the most that is convenient without alterations

to our compile strategy to place encrypted constants

in memory rather than inline in the machine code,

and is not a hard limit. The problem is that 72 bits

does not ﬁt in 32-bit instructions, and the sequence

is already ‘preﬁx; preﬁx; instruction’ for each inline

constant used, so increasing the number of bits would

further reduce the proportion of ‘real’ instructions in

code, affecting performance.

However, we believe the table of signs is a vul-

nerability in practice (see Section 5). It is also

very large, consisting of 2

× x rows of 72 bits,

where x is the number of different encryptions of

each (negative) number. That is hundreds of GBytes,

perhaps TBytes, and it is a concern with present

technology. Still, motherboards are available now

with TBytes of RAM (see for example the Super-

micro Xeon 7000 range at supermicro.com/products/

motherboard/Xeon7000/), so we expect that concern

to diminish in the future. We have ‘cheated’ in our

simulation by computing rows of the table externally

on demand and caching them locally to the processor.

Software Engineering. OpenRISC’s ‘or1ksim’

simulator project has been modiﬁed to run the pro-

cessor prototype. It is now a cycle-accurate simu-

lator, 800,000 lines of ﬁnished C code having been

added through a sequence of seven successive mod-

els. The code archive and history is available at

sf.net/p/or1ksim64kpu.

Historical use of Encryption in Computing. At-

tempts at creating a processor that works with greater

security against observation and tampering have reg-

ularly been made in the past. One of the earliest land-

marks is a US Patent “Tamper Resistant Microproces-

sor” (Hashimoto et al., 2001) which states “it should

be apparent to those skilled in the art that it is possi-

ble to add [a] data encryption function to the micro-

processor . . . ”, meaning that codecs could be placed

between processor and encrypted content in memory.

However, a codec on the memory path, adding la-

SECRYPT 2016 - International Conference on Security and Cryptography

242

tency, forms no part of our design. Data is already

encrypted by the time it leaves the processor pipeline,

so there is nothing more to do. Extra overhead is in-

curred instead by remapping for encrypted addresses,

as discussed in Section 4, which entails an extra cache

retrieval (for the mapping) for each load/store and a

minor fault handler call on a cache miss.

Keyed Access to Memory. Hashimoto et al. also

aimed to segregate memory via access keys, and that

aspect of their proposal has echoes in recent ap-

proaches such as Schuster et al.’s implementation of

MapReduce for cloud-based query processing (Schus-

ter et al., 2015) on Intel

 SGX

machines, which

employs the machine’s built-in hardware (Anati et al.,

2013) to isolate the memory regions involved to well-

deﬁned ‘enclaves’, and encryption may also feature.

Encrypted Memory. In Hashimoto et al. and oth-

ers’ proposals the basis is that encrypted content is

kept in memory and decrypted en route. That means

that in case of a process crash and a dump of the

memory region, the ﬁle will record encrypted mem-

ory content. Thus a malicious user cannot obtain the

decryption of an encrypted CD by inducing through

some ingenious means the reading process to crash

and dump. Nor can ‘cold boot’ techniques (Halder-

man et al., 2009) recover information, as memory

contents are encrypted. But memory is only one pe-

ripheral device of many (disk, keyboard, USB, etc).

Intel SGX is competition here, but we can-

not compete with Intel’s design and implementation

teams. All we can show is that our approach is an al-

ternative, and if Intel were to apply their resources to

it they may do better yet. In principle, our approach

of embedding a codec in the processor pipeline is far

faster than encryption on the way to/from memory

can ever be, even in burst mode, because pipelining

achieves an average throughput of one encryption per

cycle though each encryption takes 20× that time.

Security Basics. The working of the encrypted

processor described in this paper is intended to be

simple enough that its security is analysable by se-

curity not hardware experts:

(I) in user mode, data circulates encrypted in the

processor, and

(II) in supervisor mode it circulates unencrypted.

If that claim is true, then a system operator may give

up on snooping an unencrypted form of user data,

and can only meaningfully move encrypted data from

place to place. Altering it is possible, but not mean-

ingful unless the operator already knows something

about the encryption.

That puts the focus on whether a system opera-

tor can determine information from the patterns of

encrypted data observed, or achieved by experiment

(submitting a known ciphertext for encrypted process-

ing, for example), essentially the position of an un-

privileged adversary who may obtain the same ends

by social engineering, e.g., by tricking debug syscalls

into submitted code.

3 THREE CONDITIONS

To make a conventional processor architecture work

encrypted by virtue of a modiﬁed arithmetic, certain

conditions must be met.

(A) The arithmetic must be ‘homomorphic’ with re-

spect to ordinary computer arithmetic.

That does not imply merely a one-to-one rearrange-

ment of the conventional (2s complement) encoding

of numbers in 32-bit binary. The constraint is

E (x+y)= f (E (x),E (y)), specifying the encrypted

output f (a, b) from the modiﬁed ALU in the proces-

sor when encrypted inputs a=E (x) and b=E (y) are

presented to it, so a designer chooses an encryption

E that achieves a trade-off between security and the

feasibility of an appropriate function f in hardware.

The encryption E is one-to-many, when random

padding or blinding is taken into account.

The requirement is formally weaker than classical

homomorphism in encryption, which has E (x+y) =

E (x)+E (y). That is not a question of ‘what is in a

name’ as to whether the function is called ‘ f ’ or ‘+’;

the designer is not obliged to co-opt the familiar ‘+’

for f . For the Paillier encryption, the ALU operation

f (a,b) is multiplication ab mod m, where m is the

Paillier modulus (m = n

, n = pq, p, q 36-bit primes

such that lcm{p−1,q−1} has at least one small fac-

tor, in order to allow a blinding factor of low multi-

plicative order to exist). For the Rijndael encryption

f (a,b) is E (D (a) + D(b)), invoking a codec three

times, where D is the decryption function. Clever

hardware improves that ‘dumb’ solution to work fast

and securely in the prototype (Section 4).

The detailed conditions on the changed ALU

functionality ALU

for every operation may be de-

rived from the rendering in Fig. 1 (Breuer and Bowen,

2013). There are three equations, corresponding to

the three kinds of arithmetic operations in the ALU:

unary operations u such as bit-ﬂipping x → ˆx; binary

operations b such as addition (x,y) → x+y; compar-

isons r such as less than, (x,y) → (x<y). In terms of

the relation between encrypted data e and decrypted

data d, such that d = D (e), the equations are

ALU

(d) = D (ALU

(e)) (1)

A Practical Encrypted Microprocessor

243

ALU

ALU’

1(compare)

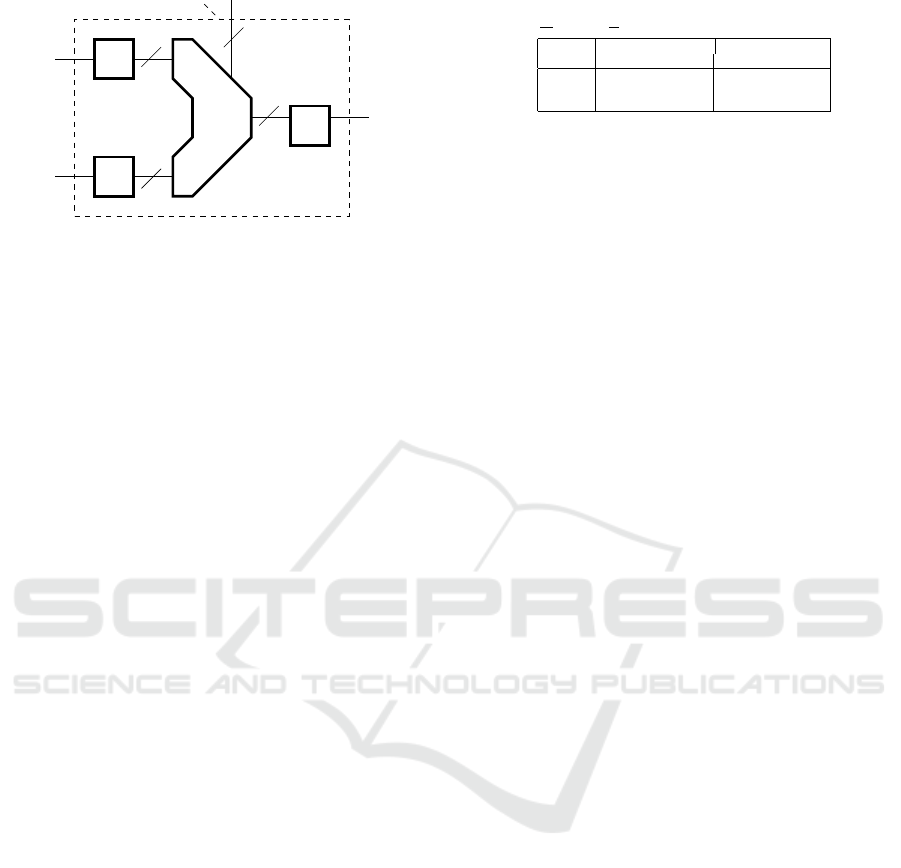

Figure 1: Idealised modiﬁed arithmetic logic unit (ALU)

for encrypted operation (ALU

), with decryption units (D)

and encryption unit (E).

ALU

) = D (ALU

)) (2)

ALU

) = ALU

) (3)

The ﬁrst two constrain the encrypted data output of

the modiﬁed ALU, and the third constrains the 1-bit

comparator output. For the addition operator, the as-

sertion (2) is

+ d

mod 2

= D ( f (e

))

where f is the modiﬁed ALU’s operation. If f is mul-

tiplication on the encrypted values, as in the Paillier

encryption, then (2) is

+ d

mod 2

= D (e

mod m)

but more solutions are possible in general.

Because they look no different and are produced

dynamically in the course of a program, for example

by adding an offset to a base address, data addresses

must be encrypted just like other data. However, pro-

gram addresses (the addresses of machine code in-

structions in memory) are not encrypted, the rationale

being that the program counter is usually advanced by

a constant at each tick of the clock, and that potenti-

ates an attack against the encryption. The solution

adopted is not to encrypt program addresses at all. So:

(B) Encrypted programs must never arithmetically

mix program addresses and ordinary data.

A conforming program may not jump to an ad-

dress given by the square root of Elvis’s birthdate.

That is easy to arrange via compilation from

source, and can be checked automatically at the ma-

chine code level (Breuer and Bowen, 2012). Dynamic

loaders and linkers are not restricted by this condition

because they run in supervisor mode, although late

linking is not recommended for a program intended

to run securely.

The third condition on correct running on the en-

crypted platform is due to the fact that many differ-

ent runtime encodings may be generated for what the

Table 1: OpenRISC instruction set coverage in the proto-

type, per User and Supervisor mode.

kind\mode

32-bit 64-bit

Encrypted Unencrypted Encrypted Unencrypted

Integer U S - S

Float U S - S

Vector - - - -

programmer intended to be the same memory address,

as a consequence of the one-to-many nature of good

encryption. That gives rise to hardware aliasing, in

that the same address (as seen by a program running

under the encryption) sporadically accesses different

data. To avoid it:

dresses for reuse, or recalculate them exactly the

same way the next time.

Stepping up then down a string is affected, for ex-

ample. In truth, (C) only need hold over the reads fol-

lowing a write, which is an opportunity to change the

address mapping at each write, achieving what clas-

sical ‘oblivious RAM’ does. The second option de-

pends on the processor being deterministic at bottom,

including generation of padding under the encryption.

4 ARCHITECTURE

The processor runs in two modes, user mode (32-bit

data encrypted in 64 or more bits, OpenRISC 32-

bit instructions) and supervisor mode (64-bit unen-

crypted data, 32/64-bit instructions). User mode in-

structions access 32 general purpose registers (GPRs)

and a few permitted special purpose registers (SPRs,

available in supervisor mode). Attempts to write

‘out of bounds’ SPRs are silently ignored in user

mode and a random value is read. The instruction set

coverage across modes is summarised in Table 1.

In accord with the OpenRISC speciﬁcation, there

is no grand separation of memory into ‘supervisor’

and ‘user’ parts except that user mode is restricted

to 32-bit addresses in a fundamentally 64-bit archi-

tecture. A supervisor mode process can always read

user data in memory, but the data will be in encrypted

form. The other way round, (user) access is guided by

the memory mapping, which can only be programmed

in supervisor mode, via the memory management unit

(MMU). That is all quite conventional.

Unconventionally, however, in user mode, a spe-

cial ‘translation lookaside buffer’ (TLB) in the MMU

is active. It remaps encrypted addresses, which are

scattered all over the cipherspace, to a contiguous lin-

ear sequence of unencrypted addresses in a designated

region on a ﬁrst-come, ﬁrst-served basis. The map-

SECRYPT 2016 - International Conference on Security and Cryptography

244

5678 021 20 16 15252631

code

func

2−bit

021 20 16 15252631 11 10

fill

2−bit

31 26 25 024 23

opcode 24−bit fragment of 64−bit encrypted word

opcode

8−bit fill

021 20 16 15252631

opcode

dest.

source

dest.

shift

move to

spr

immediate

load/store

source

16−bit fragment of 64−bit encrypted word

6−bit shift

16−bit offset (ignored)

prefix

(new)

fill (ignored)

5−bit zero

5 bits of

SPR index

11 bits of SPR index

Figure 2: Modiﬁcations to OpenRISC instructions. An ex-

tra ‘preﬁx’ instruction carries part of an encrypted immedi-

ate, and the shift immediate instruction has been respeciﬁed

to contain 16 bits of a 64-bit encrypted (6-bit) shift value,

including the subfunction speciﬁer. The displacement ﬁeld

in a load/store instruction is ignored, as is the alternative

designator register in a move to/from SPR instruction.

ping database is stored in memory and cached and

the TLB hardware does the lookup and assignment.

The upshot is that every encrypted memory address

is blindly remapped to a contiguous region in user

mode. Temporal locality of mappings gives rise to

spatial locality in the cache, which is effective. Ev-

ery word in memory is addressed via this TLB map-

ping database but the mapping is cached so the effect

is usually not two memory accesses but one and one

TLB cache access. On the other hand, a TLB cache

miss is costly, invoking the minor TLB fault handler.

Every encrypted word in memory (64 or 128 bits) also

costs one new TLB entry (128 bits) in memory. Mem-

ory access is slower on average on that account, and

more is used. There are already separate paths for

data and program memory (‘Harvard’ layout), and we

are considering introducing a path for TLB too.

Looking beyond the relatively mundane address

engineering discussed above, the major modiﬁcations

in the processor are associated with the Rijndael im-

plementation of changed arithmetic, as illustrated in

Fig. 1. In order to reduce the frequency with which

a codec is brought into action for user mode instruc-

tions, ALU operation is extended in the time dimen-

sion, so it covers consecutive (encrypted) arithmetic

operations in user mode. Only the beginning of the

series is associated with a decryption event, when en-

crypted data from memory or registers is converted,

and only the end of the series is associated with an en-

cryption event. In between, arithmetic is carried out

unencrypted in user mode, in a set of ‘shadow regis-

ters’, unavailable in supervisor mode. An instruction

in user mode sees the shadow registers and an instruc-

tion in supervisor mode sees the ‘real’ registers. The

aliases are ﬂipped per instruction mode per stage of

the processor pipeline, so there is no possibility of an

instruction seeing the wrong set (see Section 5).

The Rijndael codec is embedded across multiple

stages of the processor instruction pipeline. Hav-

ing it there is hugely effective, because it lets en-

cryption/decryption beneﬁt from the ‘pipeline speed-

up’ effect largely responsible for modern processor

speeds. A 15-stage pipeline can work on 15 in-

structions at a time in parallel, completing up to 15

times as many instructions per cycle as it would other-

wise, making the processor 15 times as fast as a non-

pipelined processor. One encryption/decryption can

complete per cycle, even if each takes 10 cycles. The

upshot should be that encryption/decryption is largely

inconsequential, slowing nothing down during pro-

cessing of linear code, and contributing signiﬁcantly

only on pipeline reﬁlls at jumps and branches.

That is the theory, but putting it into practice re-

quires some minor adjustments to the instruction set.

The instruction pipeline in (unencrypted) supervisor

mode is the standard short 5-stage fetch, decode, read,

execute, write pipeline of a RISC processor (Patter-

son, 1985), and it is embedded in the codec-extended

pipeline traversed by the (encrypted) user mode in-

structions. To keep the pipeline short, there should

be only one codec, yet Fig. 1 shows three around the

ALU. To solve that we slightly modify OpenRISC in-

structions so they need at most one use of the codec

in user mode (see Fig. 2). That creates two kinds of

instruction: type ‘A’ need codec use after ALU use,

and type ‘B’ need the codec before. The pipeline is

conﬁgured differently for the two as shown in Fig. 4

(hardware for those stages that adopt two different

conﬁgurations is duplicated).

The ‘A’ conﬁguration triggers when a store in-

struction encrypts a register for memory, or a load

instruction decrypts data from memory for registers.

The ‘B’ conﬁguration is used when encrypted imme-

diate data in an ‘add immediate’ instruction is read in

and decrypted prior to use. Instructions that do not

use the codec go through as type ‘A’, because the ear-

lier execution stage makes results available earlier for

‘forwarding’ to instructions behind.

The assembler emits, in place of what might have

been a single ‘load at offset 8’ instruction in standard

OpenRISC, the sequence shown in Fig. 3. The modi-

ﬁed machine code does not allow nonzero load offset,

and that sequence is the result. Register 31 is treated

specially as target: no arithmetic overﬂow is set or ex-

ception raised. The problem is that OpenRISC does

not contain an unsigned addition and one is needed

there, else overﬂow might accidentally be signalled.

The codec covers 10 stages in the Rijndael imple-

A Practical Encrypted Microprocessor

245

lws r1 8(r2) −











preﬁx [E (8)]

63−40

preﬁx [E (8)]

39−16

addi r31 r2 [E(8)]

15−0

lws r1 0(r31)

Figure 3: Assembling a load signed word instruction for

encrypted execution.

ALU

Fetch Decode Read Write

codec

Fetch Decode

codec

Read WriteExecute

Execute

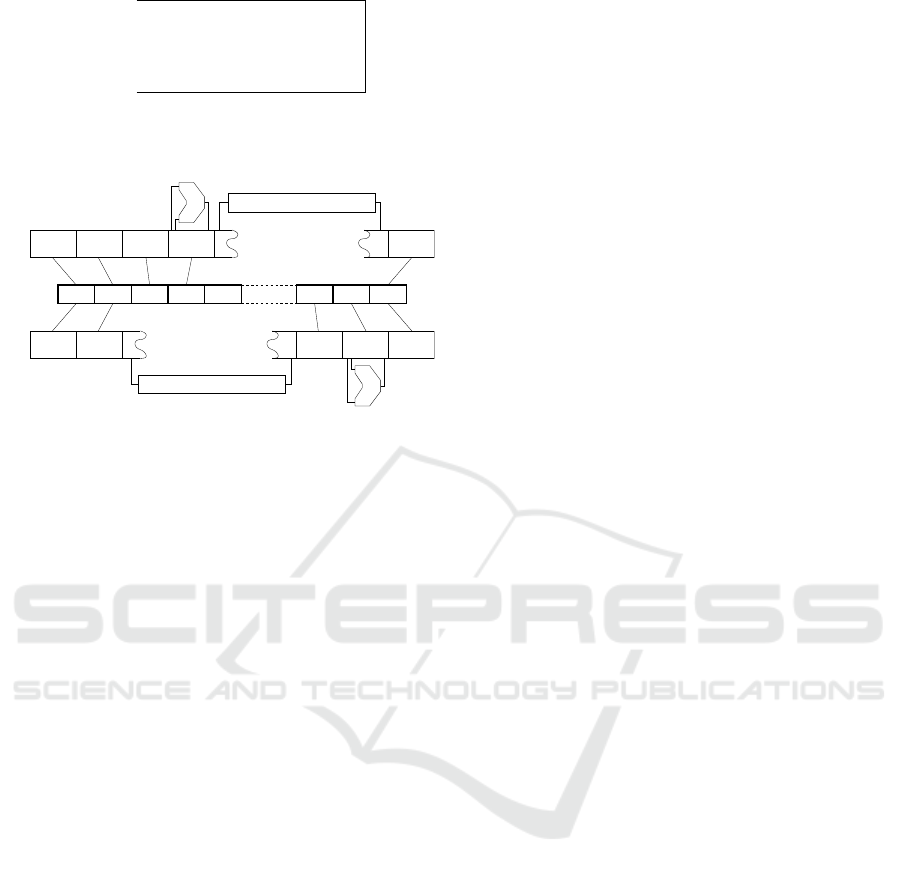

Figure 4: The Rijndael pipeline is conﬁgured in two differ-

ent ways, ‘A’ and ‘B’, for two different kinds of user mode

instructions during encrypted working.

mentation, corresponding to 10 clock cycles per en-

cryption/decryption, but that may be varied to suit the

encryption, and the effect is detailed in Section 6.

To further reduce codec use, a small user-mode-

only instruction cache retains instructions with their

immediate data replaced by the decrypted value

((Hampson, 1989) works the same trick). The cached

copy of the preﬁx instructions carrying the encrypted

constant is converted to a no-op to ensure this is done

once only. Replacement is not done if the sequence

spans cache-lines, to avoid later only half-ﬂushing the

altered copy.

The caches lie within the security boundary of the

processor package. Fig. 5 shows the arrangement of

functional units.

It has turned out to be possible with Rijndael to

pass the unencrypted data address to the memory unit

during the processing of load and store instructions.

We do not suggest that! But the address could be

hashed or encrypted in a different way. The hardware

aliasing effect discussed in Section 3 then does not

occur (it still occurs for Paillier, as there the address

is never decrypted).

The implementation for Paillier has the same ar-

chitecture (Fig. 5) but all the instructions are of ‘A’

type and the codec stages are devoted to the Paillier

addition/subtraction operation on encrypted data. All

the data passes through in encrypted form in what are

the ‘shadow’ registers in user mode (‘real’ registers

to supervisor mode). Instructions other than addi-

tion/subtraction and comparison are implemented as

software routines.

Context switches (such as when an interrupt han-

dler is triggered) are in principle an opportunity for

system code to see unencrypted data being worked on

by the user in shadow registers in the Rijndael imple-

mentation, but the swap of ‘shadow’ for ‘real’ regis-

ters on change of mode foils that. Instructions that

copy from one register to another copy both real and

shadow values, which means that handler code can

save the user’s GPR data in the shadow registers, un-

seen, by copying GPRs to SPRs on entry and copying

them back on exit. The protocol is explained further

in Section 5, where its security is proved.

The Rijndael implementation of the processor is

not suitable for multiuser operation in its current

form, as shadow registers hold previous data in the

clear through context switches. Paillier has no such

problem as its data is never in the clear.

5 SECURITY

As discussed in Section 1, our aim is to protect

user information (keys, cookies, passwords, lists of

weapon parts, etc.) being processed in encrypted

mode on our processor against the privileged opera-

tor or operating system as adversary.

The Paillier Implementation. This appears suit-

able, because no decryption ever takes place, so unen-

crypted information ought never to be revealed. But

the ‘table of signs’ required for general computation

may give away too much. It shows the 31st bit (the

most signiﬁcant) of a 32-bit 2s complement number

under the additively homomorphic encryption. Read

sign(x) for the 31st bit, then sign(x+x) for the 30th,

and so on, giving the decryption in 32 steps.

Concretely, the operator can embed a ‘sub r1 r1 r1’

(subtract in place in register r1) instruction in the

user’s program to generate an encrypted zero in gen-

eral register r1, from any encrypted datum originally

there. For any encrypted value in register r2, the oper-

ator can run ‘sﬂt r2 r1’ (set ﬂag if the value in r2 is less

than the zero in r1) to get the sign bit (#31) ﬂagged.

The operator can run ‘add r2 r2 r2’ to double the con-

tent of r2 in place, and work the same trick again to

get its next bit. That decodes r2.

(Tsoutsos and Maniatakos, 2015) avoids the prob-

lem by providing only the x+k operation, for con-

stants k, not x+y (hence not x+x or x−x), so we might

declare all two-operand OpenRISC instructions off-

limits, leaving only the one-operand ones: x+k and

x<k are formally safe because x→x+K is an automor-

phism that turns y=x+k into y+K=(x+K)+k, and

x<k into x+K<k

where k

=k+K, so there will be

self-consistent readings x+K, y+K, etc. for any

SECRYPT 2016 - International Conference on Security and Cryptography

246

User

Mode

Insn.

Cache

User

Mode

Data

Cache

User

Mode

TLB

Hash

Data Memory

Registers

Shadow

Registers

Instruction

Memory

Instruction

Cache

Fetch Decode Read Write

TLB

Execute

Data Cache

FeALU

ALU

Rijndael codec/Paillier add

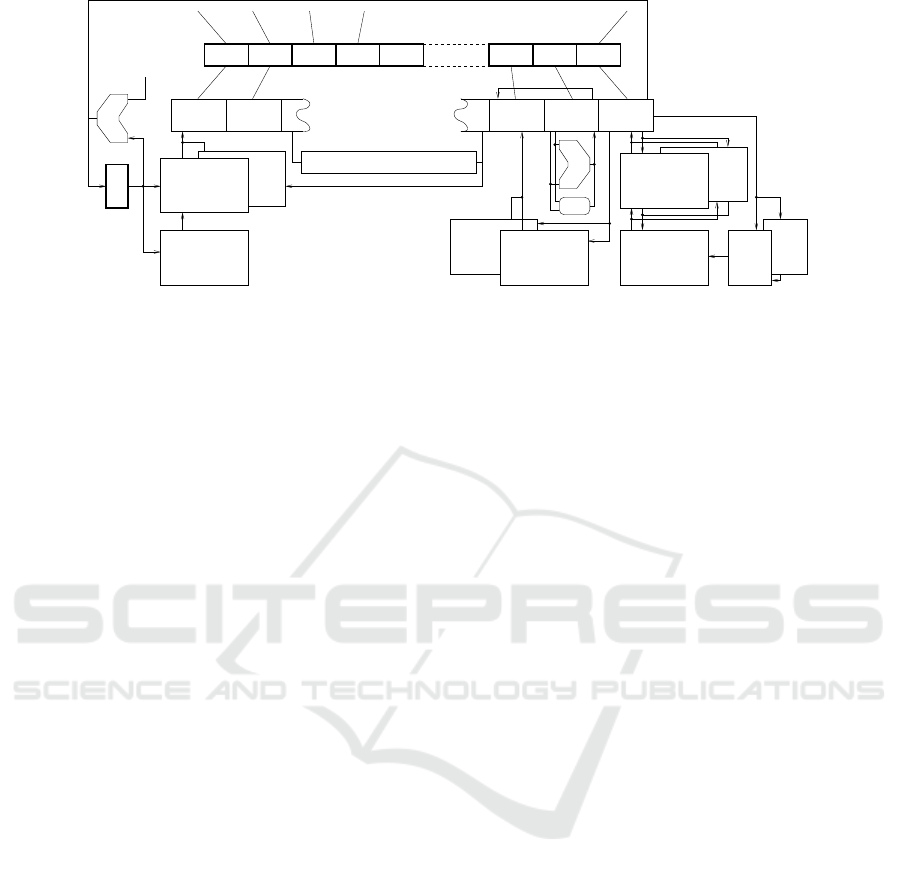

Figure 5: Pipeline integration with other functional units.

choice of K, for any guess by the operator at a con-

sistent assignment of decrypted values x, y, etc. to

encrypted values x

, y

, etc. that makes sense of the

user’s (or operator’s) program.

However, it is easy to identify the encrypted con-

stant 1 in the software routines for division and mul-

tiplication. With it, an adversary can calculate 2 =

1+1, etc., producing any message. Addition and sub-

traction give 0 when both inputs are 0, so any combi-

nation of them has that property. That is a limited set

of functions (1−x is not among them). So a Paillier-

based implementation for general computation must

secrete some encrypted nonzero constant for use, 1 or

some other (the same reasoning holds of fully homo-

morphic encryptions such as (Gentry, 2009)). That is

as vulnerable as a key for Rijndael is.

A remedy for both 1+1=2 and sign(x) vulnerabil-

ities is suggested in Section 7, but we have not yet tri-

alled it in prototyping. That ‘ABC’ solution (Breuer

and Bowen, 2014) does not restrict instructions, but

relies on a further arrangement of the arithmetic of the

processor’s arithmetic logic unit according to a typing

system, so that it produces nonsense from x+x, but

compiled code can easily produce intended results.

The Rijndael Implementation. This does de-

cryption internally, but only in user mode, and secu-

rity relies on never revealing the decrypted informa-

tion to supervisor mode code. That can be expressed

formally. There are ﬁve data types:

i 32-bit unencrypted data that originated as en-

crypted user data;

ê encrypted user data occupying 64+ bits;

$ 32-bit data in the clear that originated in supervi-

sor mode;

% notionally ‘decrypted’ data that originated in su-

pervisor mode as 32-bit data and has been marked

by a 0x7fff in the top 16 bits of 64;

* a ‘placeholder’, used to indicate a pending de-

cryption (i) or encryption (ê) that looks like the

‘decrypted’ zero datum (%).

In supervisor mode, real/shadow registers will con-

tain types ê/i or ê/* or */i or $/%. None of those

expose type i unencrypted user data.

In user mode, real/shadow registers will contain

types i/ê, or */ê or i/* or %/$. Swapping

real/shadow registers on mode change maintains the

invariant. Memory contains ê or $or *.

To maintain those invariants, every instruction

must preserve them and they must hold at start-up.

The prototype does that. User mode addition, for ex-

ample, does i/?+i/?=i/*, requiring type i in both

addend registers, otherwise it raises a ‘range’ excep-

tion (if enabled) and leaves registers as they are (we

may allow user mode arithmetic on %/$ in future).

Load from memory in user mode produces either

i/ê, decrypting encrypted data of type ê in mem-

ory via the codec, or %/$, reading plain unencrypted

supervisor mode data of type $ from memory and

marking it to type %, or it produces %/$ reading the

* value in memory as a ‘decrypted’ zero and storing

it as the */0 pair.

Store to memory in user mode takes type i/ê or

i/* or */ê and either stores the ê value or encrypts

the i value for memory via the codec. Type %/$ if

seen causes the $ value to be stored in memory.

Store in supervisor mode cannot use the codec,

and the register types ê/i, ê/*, */i, $/% result in

types ê, * and $ in memory respectively. Load from

memory in supervisor mode also cannot use the codec

and ê, $ in memory produce register content ê/*,

$/% respectively. The * value in memory is read as

zero and stored as the 0/* pair, of type $/%.

That establishes that the operator can never see the

unencrypted value, so the question of whether the Ri-

jndael implementation is secure reduces to the ques-

tion for Paillier, and the same arguments apply.

Overall, given the size of the Paillier ‘table of

A Practical Encrypted Microprocessor

247

Table 2: Rijndael performance data, or1ksim test suite in-

struction set add test.

@exit : cycles 315640, instructions 222006

mode user super

immediate instructions 7.3% 9.2%

load instructions 0.9% 2.8%

(cached) ( 0.9%)

store instructions 0.9% 0.0%

(cached) ( 0.9%)

branch instructions 1.0% 4.9%

jump instructions 1.1% 4.8%

no-op instructions 6.4% 15.8%

preﬁx instructions 11.5% 0.0%

move from/to SPR instructions 0.1% 2.7%

sys/trap instructions 0.5% 0.0%

wait states 24.7% 4.9%

(stalls) (22.1%) ( 3.8%)

(reﬁlls) ( 2.7%) ( 1.1%)

total 54.8% 45.2%

Branch Prediction Buffer

hits 10328 ( 55%) misses 8219 ( 44%)

right 8335 ( 44%) right 6495 ( 35%)

wrong 1993 ( 10%) wrong 1724 ( 9%)

User Data Cache

read hits 2942 (99%) misses 0 ( 0%)

write hits 2933 (99%) misses 9 ( 0%)

Pipeline Hazards (22.1%+3.8%)

to\ from lwz lws lbz

andi 3.3% - -

sfeqi - - 16.9%

sw - - -

signs’, as well as performance considerations (Sec-

tion 6), the Rijndael or similar symmetric encryptions

seem the better option.

6 PERFORMANCE

The Or1ksim OpenRISC test suite codes have been

modiﬁed to run encrypted in the prototype. For the

measurements, cache latency is 3 cycles and memory

latency 15 cycles, realistic for a nominal 1GHz clock.

Table 2 shows the performance summary from the

suite’s instruction set add test (‘is-add-test’). The stat-

ically compiled executable contains 185628 machine

code instructions, occupying 742512 bytes. Table 2

shows that when the test was run (successfully) to

completion in the Rijndael implementation, 222006

instructions were executed, so there are few loops and

subroutines (the code is largely built using assem-

bler macros) in 315640 cycles. If one reckons with

a 1GHz clock, then the speed was just over 700Kips

(instructions per second) overall.

In supervisor mode, pipeline occupation is just un-

der 90%, at 892Kips for a 1GHz clock (wait states,

cycles in which the pipeline fails to complete an in-

struction, comprise 4.9% of the 45.2% total), which

one may take as a baseline for a single pipeline su-

perscalar design. In user mode, pipeline occupation

is only 54.9%, as measured by numbers of non-wait

states, for 549Kips with a 1GHz clock. Measured

against supervisor mode, that is 61.6% of the unen-

crypted speed.

The wait states are caused by real pipeline data

hazards, as enumerated at bottom in Table 2. Most

are due to a load from memory instruction (lwz, lws,

lbz) feeding directly to an arithmetic instruction (andi,

sfeqi). The matrix is 64 × 64, only entries over 0.1%

being shown.

Over the whole test suite, the Rijndael imple-

mentation’s performance in encrypted mode varies

between 61.4% and 67.2% of unencrypted running

speed

, over many different tests running for be-

tween 12329 and 811871 cycles (respectively, 9495

and 562200 instructions) each.

The majority (13425; 82.0%) of codec uses in the

add test were decryptions of immediate data in in-

structions. Load from memory always encountered

the data already decrypted in the user-mode only data

cache, rather than having to decrypt it from memory.

Memory was not stressed at all, cache being perfectly

effective in the test.

Running the same addition test in the Paillier im-

plementation shows worse performance:

add test cycles instructions

Rijndael 315640 222006

Paillier 445099 222489

The difference is because Paillier arithmetic needs the

full length of the pipeline to complete in, stalling fol-

lowing instructions that need the result in read stage,

as far as 11 stages behind. The Rijndael implementa-

tion’s arithmetic is performed on unencrypted values

in shadow registers and completes in just one stage,

resulting in no stalls.

The disparity is more marked on other tests as

the Paillier implementation does arithmetic other than

add, subtract and compare in software:

mul. test cycles instructions

Rijndael 235037 141854

Paillier 457825 193887

To improve Paillier, several threads would have to run

SECRYPT 2016 - International Conference on Security and Cryptography

248

50000

100000

150000

200000

250000

300000

350000

400000

0 5 10 15 20

Cycles

Codec stages

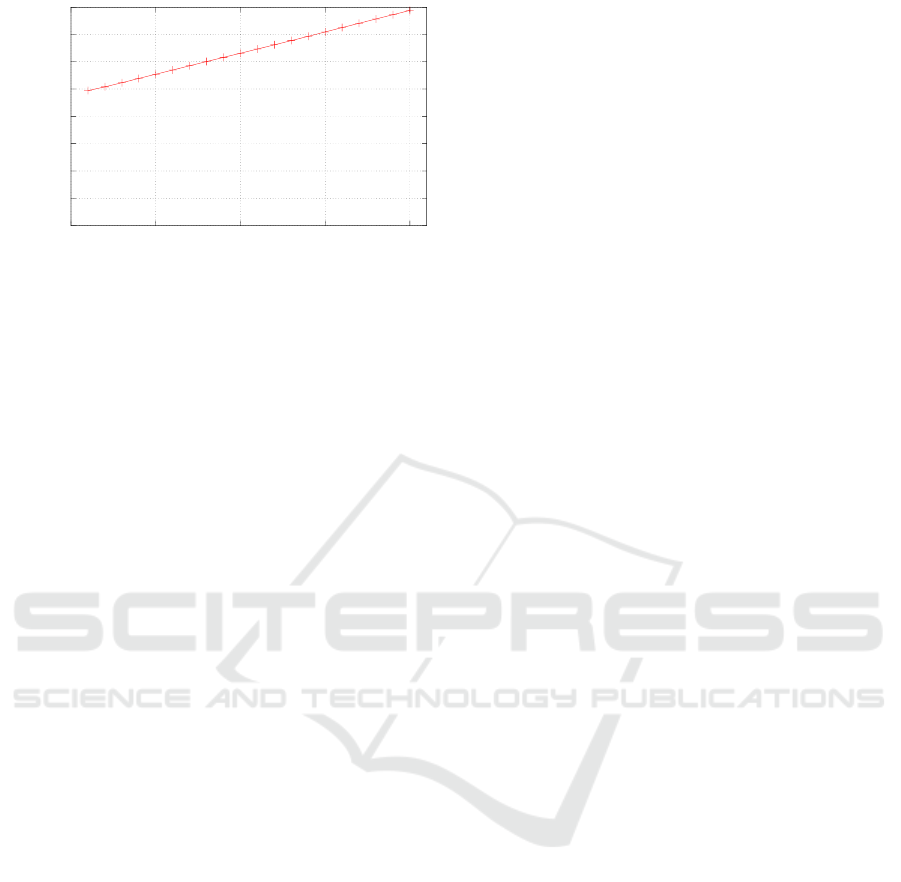

Figure 6: Number of cycles taken to execute the 222006

instructions of the test program of Table 2 against number of

stages (cycles) taken up by the codec. Table 2 is constructed

with a 10-stage codec.

in the same pipeline. The lack of dependencies be-

tween instructions from different threads would allow

them to pass each other when the other was blocked

waiting for an instruction ahead to pass back data.

Results may be extrapolated for encryptions that

take a different number of cycles/pipeline stages than

the prototype’s default (10, for the Rijndael). Fig. 6

shows how long the test of Table 2 takes when the

Rijndael implementation does encryption in from 1 to

20 cycles/stages. It is 2.5% slower per extra stage.

7 FUTURE WORK

We plan to model memory bus interactions more

closely in order to optimise cache positioning. An

‘administrator’ mode will be added between supervi-

sor and user mode to run encrypted with privileges for

an encrypted operating system.

We are concerned by the weaknesses of homo-

morphic encryption in this setting and will investi-

gate a scheme described in (Breuer and Bowen, 2014)

in which the x, y, z in x+y=z (i.e., in two operand

instructions) are required to be in slightly different

encryptions, respectively A, B and C. The A+B=C

arrangement is allowed, as is B+C=A and C+A=B,

but anything else silently produces nonsense from the

arithmetic unit in the processor. Thus the operator

commanding x+x or x−x or x/x using an encrypted x

observed in a user process as argument for one of the

two-operand machine code instructions (which con-

tain no encrypted ﬁelds and hence can be assembled

without knowing any secret), receives a nonsense re-

sult. But the legitimate user’s compiler can perfectly

well generate code that satisﬁes the ABC constraints.

For Paillier, powers of different blinding multipliers

might be used for A, B, C.

8 CONCLUSION

The organisation of a sophisticated standards-

compliant superscalar processor that ‘works en-

crypted’ for remote use has been described. It is

based on the principle that a modiﬁed arithmetic au-

tomatically produces encrypted states and I/O. Data

in memory, data in registers, and data and addresses

on buses always exist in encrypted form, protecting

against the privileges of the local administrator and

operating system, who run unencrypted. The advance

reported here is in how to turn the principle into a

full-speed machine. Rijndael encryption (one codec

embedded in the processor pipeline, not on the mem-

ory pathway) and Paillier partially homomorphic en-

cryption (no codecs, no keys) have been tested. The

Rijndael implementation is 60–70% as fast as unen-

crypted running

and is secured by guarantees in the

hardware protocols that the administrator cannot see

unencrypted user data, which renders it exactly as safe

(or unsafe) as Paillier.

Conventional protections such as moat electron-

ics, oblivious RAM, encrypting the memory address

together with data, hashed program trace under the

encryption, etc., may be added.

ACKNOWLEDGMENTS

Zhiming Liu’s work has been funded by research

grant SWU116007 from Southwest University. Pe-

ter Breuer’s work is supported by Hecusys LLC

(www.hecusys.com), and by a visiting fellowship at

Birmingham City University in 2015.

REFERENCES

Anati, I., Gueron, S., Johnson, S. P., and Scarlata, V. R.

(2013). Innovative technology for CPU based attes-

tation and sealing. In Proc. 2nd Intl. Workshop on

Hardware and Architectural Support for Security &

Privacy (HASP ’13). ACM.

Breuer, P. and Bowen, J. (2012). Typed assembler for

a RISC crypto-processor. In Barthe, G., Livshits,

B., and Scandariato, R., editors, Proc. 4th Intl.

Symp. on Engineering Secure Software & Systems

(ESSoS ’12), number 7159 in LNCS, pages 22–29,

Berlin/Heidelberg. Springer.

Breuer, P. and Bowen, J. (2013). A fully homomorphic

crypto-processor design: Correctness of a secret com-

puter. In J

urjens, J., Livshits, B., and Scandariato,

R., editors, Proc. 5th Intl. Symp. on Engineering Se-

cure Software & Systems (ESSoS ’13), number 7781 in

LNCS, pages 123–138, Berlin/Heidelberg. Springer.

Breuer, P. and Bowen, J. (2014). Towards a working fully

A Practical Encrypted Microprocessor

249

homomorphic crypto-processor: Practice and the se-

cret computer. In J

orjens, J., Pressens, F., and Bielova,

N., editors, Proc. Intl. Symp. on Engineering Secure

Software & Systems (ESSoS ’14), volume 8364 of

LNCS, pages 131–140, Berlin/Heidelberg. Springer.

Buer, M. (2006). CMOS-based stateless hardware security

module. US Pat. App. 11/159,669.

Daemen, J. and Rijmen, V. (2002). The Design of Rijndael:

AES – The Advanced Encryption Standard. Springer,

Berlin/Heidelberg.

Gentry, C. (2009). Fully homomorphic encryption using

ideal lattices. In Proc. 41st Ann. ACM Symp. on The-

ory of Computing (STOC ’09), pages 169–178, New

York, NY.

Halderman, J., Schoen, S., Heninger, N., Clarkson, W.,

Paul, W., Calandrino, J., Feldman, A., Appelbaum, J.,

and Felten, E. (2009). Lest we remember: cold-boot

attacks on encryption keys. Commun. ACM, 52(5):91–

98.

Hampson, B. (1989). Digital computer system for executing

encrypted programs. US Pat. 4,847,902.

Hashimoto, M., Teramoto, K., Saito, T., Shirakawa, K., and

Fujimoto, K. (2001). Tamper resistant microproces-

sor. US Pat. 2001/0018736.

Kissell, K. (2006). Method and apparatus for disassociat-

ing power consumed within a processing system with

instructions it is executing. US Pat. App. 11/257,381.

ommerling, O. and Kuhn, M. (1999). Design principles

for tamper-resistant smartcard processors. In Proc.

USENIX Workshop on Smartcard Technology (Smart-

card ’99), pages 9–20.

Liu, C., Harris, A., Maas, M., Hicks, M., Tiwari, M., and

Shi, E. (2015). Ghostrider: A hardware-software sys-

tem for memory trace oblivious computation. In Proc.

Intl. Conf. on Architectural Support for Programming

Languages and Operating Systems (ASPLOS’15).

Maas, M., Love, E., Stefanov, E., Tiwari, M., Shi, E.,

Asanovic, K., Kubiatowicz, J., and Song, D. (2013).

Phantom: Practical oblivious computation in a secure

processor. In Proc. ACM Conf. on Computer & Com-

munications Security (SIGSAC’13), pages 311–324.

Ostrovsky, R. (1990). Efﬁcient computation on oblivious

RAMs. In Proc. 22nd Ann. ACM Symp. on Theory of

Computing, pages 514–523.

Paillier, P. (1999). Public-key cryptosystems based on com-

posite degree residuosity classes. In Advances in cryp-

tology – EUROCRYPT’99, pages 223–238. Springer.

Patterson, D. (1985). Reduced instruction set computers.

Commun. ACM, 28(1):8–21.

Schuster, F., Costa, M., Fournet, C., Gkantsidis, C.,

Peinado, M., Mainar-Ruiz, G., and Russinovich, M.

(2015). VC3: Trustworthy data analytics in the cloud

using SGX. In IEEE Symp. on Security & Privacy,

pages 38–54.

Tsoutsos, N. and Maniatakos, M. (2013). Investigating the

application of one instruction set computing for en-

crypted data computation. In Gierlichs, B., Guilley, S.,

and Mukhopadhyay, D., editors, Proc. Security, Pri-

vacy and Applied Cryptography Engineering (SPACE

’13), pages 21–37. Springer, Berlin/Heidelberg.

Tsoutsos, N. and Maniatakos, M. (2015). The HEROIC

framework: Encrypted computation without shared

keys. IEEE Trans. on CAD of Integrated Circuits and

Systems, 34(6):875–888.

SECRYPT 2016 - International Conference on Security and Cryptography

250
