I’ll Trust You – for Now

Martin Gilje Jaatun

Department of Software Engineering, Safety and Security, SINTEF ICT, Trondheim, Norway

Keywords:

Cloud, Security, Privacy, Trust.

Abstract:

The pervasiveness of cloud computing paired with big data analytics is fueling privacy fears among the more

paranoid users. Cryptography-based solutions such as fully homomorphic encryption and secure multiparty

computation are trying to address these fears, but still do not seem to be ready for prime time. This pa-

per presents an alternative approach using encrypted cloud storage by one provider, supplemented by cloud

processing of cleartext data on one or more different cloud providers.

1 INTRODUCTION

Cloud computing is everywhere, and more and more

users are putting their data into the cloud, often with-

out knowing it (Rong et al., 2013). With all this

data in the hands of one of the big cloud providers,

the emergence of big data analytics (Jaatun et al.,

2014) are raising new privacy fears among the more

concerned members of the public. According to

the privacy paradox, even users who claim to be

privacy-conscious frequently behave in a counter-

privacy manner (Jaatun et al., 2012a), but there will

still be a certain number of users who are paranoid

enough to demand a better way.

If we assume the threat model of an honest-but-

curious cloud provider (Jaatun et al., 2012b), we have

to expect that the provider will index the information

we store, and may use this information for various

purposes, such as targeted marketing (Vivian, 2015).

How can we keep using the cloud without surrender-

ing to privacy invasion? This paper will present a

scheme that addresses this challenge.

The remainder of this paper is organized as fol-

lows: Section 2 presents relevant background infor-

mation. The scheme is presented in Section 3, and

discussed in Section 4. Section 5 concludes the paper

and outlines further work.

2 BACKGROUND

The literature documents numerous approaches to

deal with honest-but-curious providers. Fully homo-

morphic encryption (Gentry, 2009) allows performing

computations on encrypted data, in such a manner that

the result is the same as the encrypted version of the

result from the same operation performed on the cor-

responding unencrypted input. The main drawback of

fully homomorphic encryption has thus far been that

it is too processor intensive.

Another variant is Secure Multiparty Computa-

tion (Bogetoft et al., 2009; Bogdanov et al., 2008),

where multiple providers are involved in the compu-

tation of a result, but no one provider has access to

cleartext data. A trivial example of SMC is a scheme

to calculate the average salary of Alice, Bob, Charlie

and Debbie. Alice takes her salary, and adds a ran-

dom number R to it. She then sends the result to Bob,

who adds his salary, and sends the result to Charlie.

Charlie add his salary and sends the result to Debbie,

who adds here salary and sends the result back to Al-

ice. Alice then subtracts R, and gets the average salary

by dividing by four, but none of the four participants

have learned the value of anybody else’s salary.

Splitting data and dispersing it among multiple

providers is an approach that has been used in sev-

eral contexts (Storer et al., 2009; Adya et al., 2002;

Rhea et al., 2003; Jaatun et al., 2012b), where the idea

is that no single provider has enough information to

make sense of it. The technique has seen application

in some special cases, but seems too complicated for

widespread use.

Trusted cloud computing (Santos et al., 2009) is

another approach where trusted computing principles

based on a Trusted Platform Module (TPM) on the

physical cloud servers are used to ensure that the

provider ”stays honest”, also to the extent of denying

the provider access to cleartext data within users’ vir-

Jaatun, M.

I’ll Trust You – for Now.

DOI: 10.5220/0005953903990402

In Proceedings of the International Conference on Internet of Things and Big Data (IoTBD 2016), pages 399-402

ISBN: 978-989-758-183-0

399

tual machines. However, the caveat of this approach

is that it moved the single point of trust from the

provider to the hardware chip manufacturer, which

the PRISM revelations indicate is not necessarily any

better.

A totally different approach is using accountabil-

ity (Pearson, 2011; Pearson and Charlesworth, 2009;

Jaatun et al., 2014) to entice the provider to do the

right thing, making it a business advantage to offer

accountable service. The main disadvantage with this

approach is that it depends on the cooperation of the

provider.

3 SCHEME DESCRIPTION

The proposed scheme is inspired by RAIN (Jaatun

et al., 2012b), but is much simpler.

First, choose any reputable cloud provider of-

fering cloud storage, putting highest emphasis on

availability of your information. We will call this

“Provider A”. Choose a symmetric key k of appropri-

ate key length

. Select which ﬁles are to be uploaded,

and encrypt these using key k. Upload the encrypted

ﬁles to A.

Encrypted cloud storage is of course not novel,

and the next step is therefore essential. A second

cloud provider (“Provider B”) which offers cloud pro-

cessing services is chosen. The simplest case would

be a Software-as-a-Service (SaaS) document editing

application. When documents are to be transferred to

provider B, they are decrypted using key k and placed

in (temporary) storage associated with provider B’s

editing application. The plaintext version of the ﬁle

can then be viewed and (if desired edited).

If the ﬁle has been changed, it must be re-

encrypted before being transferred back to provider

A. After the user is ﬁnished interacting with the ﬁle,

it is deleted from provider B. The scheme is illustrated

in Figure 1.

3.1 Custom VM Image

The main ﬂaw with the scheme described thus far is

that commodity SaaS applications do not incorporate

a decryption function. This would seem to require the

user to ﬁrst download the encrypted ﬁle from provider

A, decrypt it locally, and then upload the plaintext ver-

sion to provider B. However, this would pretty much

Minimum key lengths (Dent, 2010) keep growing as

processing power of commodity computers keeps increas-

ing. Current conventional wisdom is that a 128 bit AES key

offers sufﬁcient protection, but your mileage may vary.

!%!I©ÊQL¡

âa¶ÁÂ±#Û

Tðï;³†Ð¨iKyªj

kµÇÌÎáÙo-

5pÐ¬

The quick

brown fox

jumps over

the lazy dog

(P)

(Z)

(P')

Figure 1: Scheme illustration.

invalidate the whole point of a cloud solution, in ad-

dition to requiring lots of unnecessary ﬁle transfers

to the edge network (which presumably has lower ca-

pacity and higher costs).

A solution to this problem could be to create a cus-

tom Virtual Machine (VM) image, complete with de-

cryption software and information viewing/process-

ing/modiﬁcation software. A practical choice would

be an OpenStack (TaheriMonfared and Jaatun, 2012)

Linux image with (e.g.) OpenOfﬁce

as document

editing software. The encryption/decryption software

must be custom built, based on proven cryptographic

components

When a ﬁle from provider A needs to be accessed,

a custom VM at provider B is launched, and the en-

crypted ﬁle is transferred to the VM instance. At the

same time, the user security transfers the required de-

cryption key k to the VM instance. The encrypted ﬁle

is then decrypted, and further processed by the utili-

ties that is already provided in the VM image.

For the highest level of security, the VM instance

can be destroyed right after use, but could for conve-

nience also be kept running. In the latter case, the

mechanism presented in the next subsection comes

into relevance.

3.2 Chaff

Many years ago, Rivest (Rivest, 1998) proposed

chafﬁng (padding sensitive information with irrele-

vant nonsense) as an approach to improved conﬁden-

tiality, in his case without using cryptography due

to the then draconian export restrictions on crypto-

graphic hardware and software from the US.

Chafﬁng can be used as an alternative to deleting

ﬁles from provider B after use, or possibly in addi-

tion to it. In the simplest case, the user could make

http://www.openofﬁce.org

E.g., AES. Under no circumstances should you ever

consider creating a new cryptographic algorithm (Ferguson

and Schneier, 2003)

IoTBD 2016 - International Conference on Internet of Things and Big Data

400

!%!I©ÊQL¡â

a¶ÁÂ±#ÛTðï

;³†Ð¨iKyªjkµ

ÇÌÎáÙo5pÐ¬

(P)

(Z)

Kn+1

(P')

Chaff

, K

n+1

Key

A,B,

The quick

brown fox

jumps

over the

lazy dog

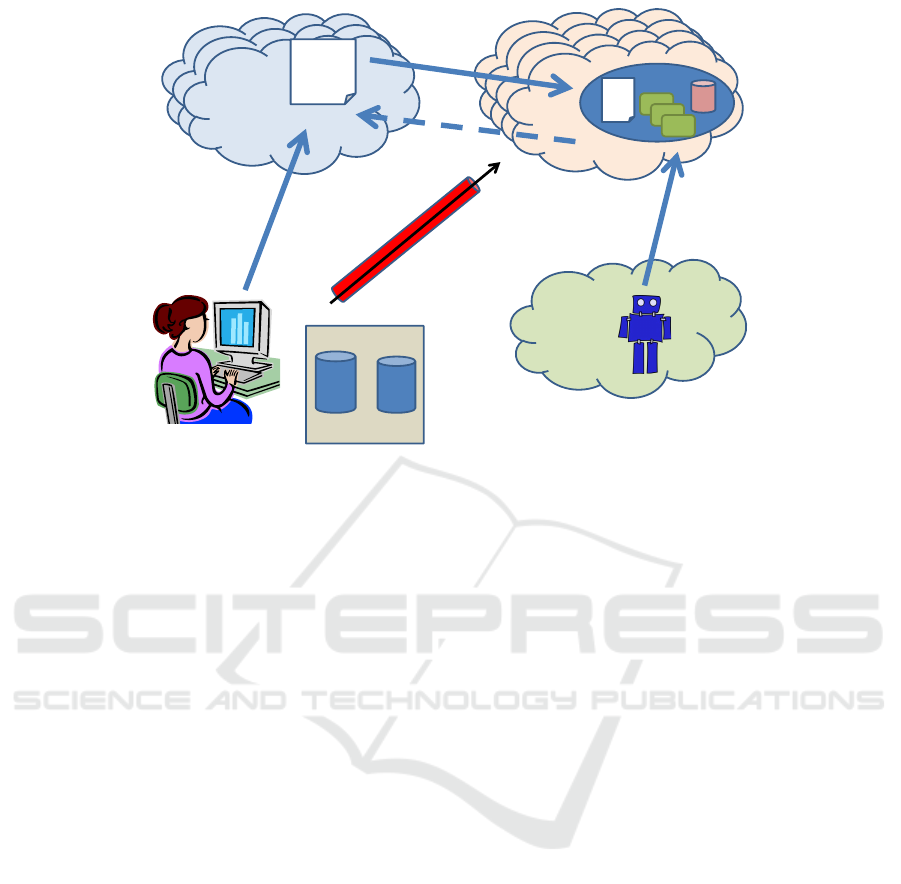

Figure 2: Expanded scheme.

irrelevant changes to the plaintext after an updated

document has been returned to encrypted to provider

A, and then delete it. This could also be done in the

case the document has not been edited, thus keeping

Provider B in the dark regarding which edits are real,

and which are not. To make this deception complete,

it would be necessary to also make a dummy transfer

of an encrypted ﬁle as well. If, on the other hand, the

document is not deleted, a process could periodically

add random garbage from various sources to the docu-

ment, further obscuring or even replacing the original

content, such that any indexing performed by provider

B is worthless.

By employing yet another cloud service (provider

C), it would be possible to create a bot (Chu et al.,

2010) to edit your chaff documents, further confusing

the curious provider B.

3.3 Improved Key Management

Relying on a single key to protect all documents is

not satisfactory in the long run, also because provider

B necessarily will have access to the key when de-

crypting ﬁles. A better solution would be if the user

is able to run a key management application locally,

and create session keys for each ﬁle. For further se-

curity, each key should only be used for encryption

once; when a ﬁle is re-encrypted after modiﬁcation, it

is assigned a new session key, which must be trans-

ferred security back to the user.

A variant could be to introduce another cloud

provider to store the key management database, but

this does of course place a lot of trust on that provider,

and may not be acceptable to the most paranoid users.

4 DISCUSSION

The threat model of an honest-but-curious provider

implies that it should be sufﬁcient to make it difﬁcult

enough for a provider to aggregate the user’s informa-

tion. This means that we accept to trust the provider

“for the moment”, but make sure to remove any ac-

cessible information at the ﬁrst opportunity, and also

muddy the waters by introducing chaff in such a man-

ner that the provider cannot discern it from wheat.

The security of the scheme presented in this paper

relies on providers being less interested in IaaS data

(“bag of bits” (Jaatun et al., 2014)) than structured

ﬁles (information) at the SaaS level. It is true that Vir-

tual Machine Introspection (VMI) techniques (More

and Tapaswi, 2014) makes it possible for a provider to

eavesdrop on users’ VMs, but it is debatable whether

a provider by doing so crosses the boundary between

being an honest-but-curious provider and being a dis-

honest provider.

This scheme is vulnerable to collusion between

the different providers; in particular, if only “real”

data is stored by provider A, provider A would be

able to inform provider B which ﬁles are genuine, and

which are chaff. Collusion could be made more dif-

ﬁcult by increasing the number of cloud providers in

use, e.g., introduce a set of providers {A

, A

, . . . , A

}

for storing encrypted data, and a different set of

providers {B

, B

, . . . , B

} to run the VMs that pro-

I’ll Trust You – for Now

401

cess plaintext data. At a certain point, however, it

will be difﬁcult for the user to manage all the different

providers, and an intelligent (non-cloud) client will be

needed to use the system.

Note that the sets of providers A and B should be

disjoint, and could also be quite different; if provider

B is chosen to be “throwaway”, i.e., the VM is de-

stroyed after each use, reliability and availability of

any given provider is less of an issue. If a given

provider B

is unavailable, the user can simply con-

jure up a new provider B

i+1

The expanded scheme is illustrated in Figure 2.

5 CONCLUSION AND FURTHER

WORK

It is important to acknowledge that just because you

are paranoid, that does not mean that they are not out

to get you (Heller, 1961). Like many security solu-

tions, the one presented in this paper may seem cum-

bersome and possibly unnecessary, but it could still

be useful for some users in the right circumstances.

The next phase of this project is to implement a

demonstrator for ﬁeld testing, and perform a formal

security analysis of the resulting system.

ACKNOWLEDGMENT

The research reported in this paper has been sup-

ported in part by the European Commission through

the EU FP7 project A4Cloud, grant nr. 317550.

REFERENCES

Adya, A., Bolosky, W. J., Castro, M., Cermak, G., Chaiken,

R., Douceur, J. R., Jon, Howell, J., Lorch, J. R.,

Theimer, M., and Wattenhofer, R. P. (2002). FAR-

SITE: Federated, Available, and Reliable Storage for

an Incompletely Trusted Environment. In In Proceed-

ings of the 5th Symposium on Operating Systems De-

sign and Implementation (OSDI, pages 1–14.

Bogdanov, D., Laur, S., and Willemson, J. (2008).

Sharemind: a framework for fast privacy-preserving

computations. Cryptology ePrint Archive, Report

2008/289. http://eprint.iacr.org/.

Bogetoft, P., Christensen, D., Damg

ard, I., Geisler, M.,

Jakobsen, T., Krøigaard, M., Nielsen, J., Nielsen, J.,

Nielsen, K., Pagter, J., Schwartzbach, M., and Toft, T.

(2009). Secure multiparty computation goes live. In

Dingledine, R. and Golle, P., editors, Financial Cryp-

tography and Data Security, volume 5628 of Lecture

Notes in Computer Science, pages 325–343. Springer

Berlin / Heidelberg. 10.1007/978-3-642-03549-4 20.

Chu, Z., Gianvecchio, S., Wang, H., and Jajodia, S. (2010).

Who is tweeting on twitter: Human, bot, or cyborg?

In Proceedings of the 26th Annual Computer Security

Applications Conference, ACSAC ’10, pages 21–30,

New York, NY, USA. ACM.

Dent, A. W. (2010). Choosing key sizes for cryptography.

Inf. Secur. Tech. Rep., 15(1):21–27.

Ferguson, N. and Schneier, B. (2003). Practical Cryptogra-

phy. John Wiley & Sons, Inc., New York, NY, USA,

1 edition.

Gentry, C. (2009). Fully homomorphic encryption using

ideal lattices. In Proceedings of the 41st annual ACM

symposium on Theory of computing, pages 169–178.

ACM.

Heller, J. (1961). Catch-22. Simon & Schuster.

Jaatun, M. G., Nyre,

A. A., Tøndel, I. A., and Bernsmed, K.

(2012a). Privacy Enhancing Technologies for Infor-

mation Control. In Yee, G. M., editor, Privacy Pro-

tection Measures and Technologies in Business Orga-

nizations: Aspects and Standards.

Jaatun, M. G., Pearson, S., Gittler, F., and Leenes, R.

(2014). Towards strong accountability for cloud ser-

vice providers. In Cloud Computing Technology and

Science (CloudCom), 2014 IEEE 6th International

Conference on, pages 1001–1006.

Jaatun, M. G., Zhao, G., Vasilakos, A., Nyre,

A. A., Alap-

nes, S., and Tang, Y. (2012b). The design of a

redundant array of independent net-storages for im-

proved conﬁdentiality in cloud computing. Journal of

Cloud Computing: Advances, Systems and Applica-

tions, 1(1):13.

More, A. and Tapaswi, S. (2014). Virtual machine intro-

spection: towards bridging the semantic gap. Journal

of Cloud Computing, 3(1).

Pearson, S. (2011). Toward accountability in the cloud. In-

ternet Computing, IEEE, 15(4):64–69.

Pearson, S. and Charlesworth, A. (2009). Accountability as

a way forward for privacy protection in the cloud. In

Cloud Computing, pages 131–144.

Rhea, S., Eaton, P., Geels, D., Weatherspoon, H., Zhao, B.,

and Kubiatowicz, J. (2003). Pond: the OceanStore

Prototype. In Proceedings of the 2nd USENIX Con-

ference on File and Storage Technologies (FAST ’03).

Rivest, R. L. (1998). Chafﬁng and winnowing: Conﬁden-

tiality without encryption. CryptoBytes (RSA labora-

tories), 4(1):12–17.

Rong, C., Nguyen, S. T., and Jaatun, M. G. (2013). Be-

yond lightning: A survey on security challenges in

cloud computing. Computers & Electrical Engineer-

ing, 39(1).

Santos, N., Gummadi, K. P., and Rodrigues, R. (2009).

Towards trusted cloud computing. In HOTCLOUD.

USENIX.

Storer, M. W., Greenan, K. M., Miller, E. L., and Voruganti,

K. (2009). Potshards a secure, recoverable, long-term

archival storage system. Trans. Storage, 5:5:1–5:35.

TaheriMonfared, A. and Jaatun, M. G. (2012). Handling

compromised components in an iaas cloud installa-

tion. Journal of Cloud Computing, 1(1).

Vivian (2015). Ads in gmail. https://support.google .com/-

mail/answer/6603?hl=en.

IoTBD 2016 - International Conference on Internet of Things and Big Data

402
