Automatic Detection and Recognition of Human Movement Patterns in

Manipulation Tasks

Lisa Gutzeit

and Elsa Andrea Kirchner

2,1

AG Robotik, Universit

at Bremen, Robert-Hooke-Str.1, 28359 Bremen, Germany

German Research Center for Artiﬁcial Intelligence (DFKI), Robotics Innovation Center,

Robert-Hooke-Str.1, 28359 Bremen, Germany

Keywords:

Human Movement Analysis, Behavior Segmentation, Behavior Recognition, Manipulation, Motion Tracking.

Abstract:

Understanding human behavior is an active research area which plays an important role in robotic learning

and human-computer interaction. The identiﬁcation and recognition of behaviors is important in learning from

demonstration scenarios to determine behavior sequences that should be learned by the system. Furthermore,

behaviors need to be identiﬁed which are already available to the system and therefore do not need to be

learned. Beside this, the determination of the current state of a human is needed in interaction tasks in order

that a system can react to the human in an appropriate way. In this paper, characteristic movement patterns

in human manipulation behavior are identiﬁed by decomposing the movement into its elementary building

blocks using a fully automatic segmentation algorithm. Afterwards, the identiﬁed movement segments are

assigned to known behaviors using k-Nearest Neighbor classiﬁcation. The proposed approach is applied to

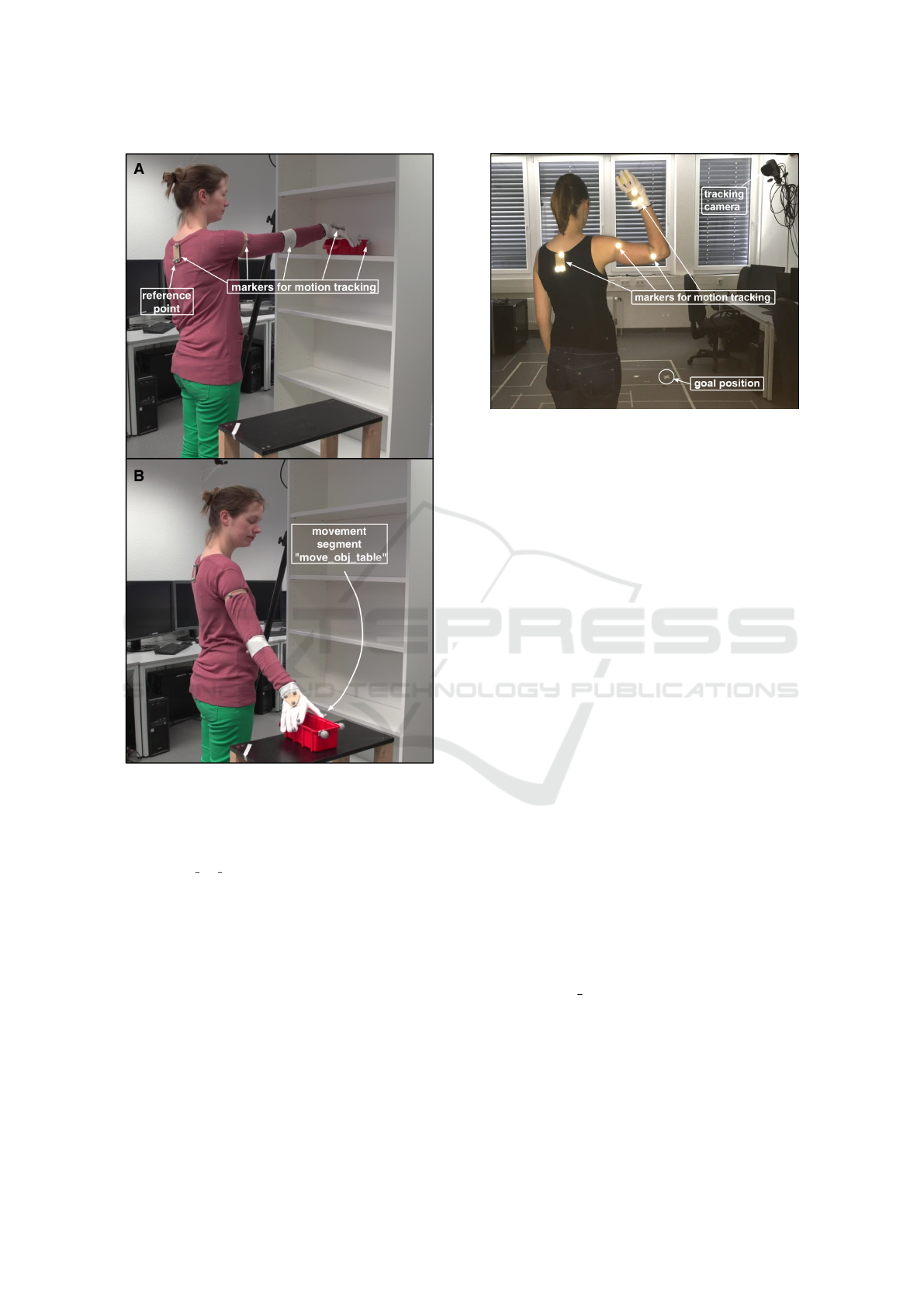

pick-and-place and ball-throwing movements recorded by using a motion tracking system. It is shown that the

proposed classiﬁcation method outperforms the widely used Hidden Markov Model-based approaches in case

of a small number of labeled training examples which considerably minimizes manual efforts.

1 INTRODUCTION

In future, robots and humans must interact very

closely and even physically to satisfy the require-

ments of novel approaches in industry, production,

personal services, health care, or medical applica-

tions. To facilitate this, not only the robotic systems

must be equipped with enlarged dexterities and mech-

anisms that allow intuitive and safe interaction, but

also the human intention, behavior and habits have to

be better understood (Kirchner et al., 2015). To allow

this, novel methods have to be developed which are

easy to apply.

One highly relevant factor in human-computer in-

teraction is an understanding of human behaviors. For

example, the knowledge of the current state of the hu-

man is necessary to realize an intuitive interaction.

Based on this knowledge, systems can interact with

humans in an appropriate manner. To obtain this

knowledge, the identiﬁcation of the important parts of

the human behavior and the assignment of the identi-

ﬁed behaviors into categories which induce different

reactions of the system are necessary. Only if the state

of the human and the context which is described by

this state are known, the system can follow the work-

ing steps that are required in this situation or can sup-

port the human if desired.

Another example is imitation of human behaviors

by a robotic system which is a current issue in robot

learning approaches and has intensively been investi-

gated, see for example (Metzen et al., 2013; M

ulling

et al., 2013; Pastor et al., 2009). Especially, Learn-

ing from Demonstration (LfD) is a relevant issue in

this research area, in which learning algorithms are

used to transfer human demonstrations of behavior to

a robot (Argall et al., 2009). Because learning of com-

plex behavior can be very time-consuming or even

impossible, the behavior should be segmented into its

main building blocks to be learned more efﬁciently.

By grouping segments that belong to the same behav-

ior and by recognizing these behaviors, it can be de-

termined which segments are needed to be learned for

a certain situation. Beyond that, movements can be

identiﬁed that can already be executed by the system

and thus do not need to be learned.

The hypothesis of the composition of human

movement into building blocks is shown in several

behavioral studies, e.g., in a study on infants (Adi-

Gutzeit, L. and Kirchner, E.

Automatic Detection and Recognition of Human Movement Patterns in Manipulation Tasks.

DOI: 10.5220/0005946500540063

In Proceedings of the 3rd International Conference on Physiological Computing Systems (PhyCS 2016), pages 54-63

ISBN: 978-989-758-197-7

Japha et al., 2008). These studies show that complex

human behaviors are learned incrementally, starting

with simple individual building blocks that are chun-

ked together to a more complex behavior (Graybiel,

1998). If these building blocks should be detected

by an artiﬁcial system, characteristics in the move-

ment patterns have to be identiﬁed. In manipulation

behaviors, bell-shaped velocity proﬁles have found to

be a suitable pattern (Morasso, 1981). In this work, a

velocity-based behavior segmentation algorithm pre-

sented by Senger et al. (Senger et al., 2014) is used

to segment recorded human movement. The applied

algorithm detects reliably and fully automatic move-

ment sequences that show a bell-shaped velocity pro-

ﬁle and are therefore assumed to be building blocks

of human behavior.

As stated above, identiﬁed building blocks of hu-

man movement have also to be classiﬁed according to

the actual behavior they belong to. By assigning suit-

able annotations to the recognized movement classes,

the selection as well as the detection of the required

behavior becomes intuitive and easy to use in different

interaction scenarios. For supervised movement clas-

siﬁcation approaches, training data is needed that has

to be manually pre-labeled. To keep the manual input

low, it is desirable that the classiﬁcation works with

small sets of training data. We propose to classify

detected building blocks by using simple k-Nearest

Neighbor (kNN) classiﬁcation. With suitable features

extracted from the movements, kNN satisﬁes this con-

dition.

This paper is organized as follows: In Section 2,

different state-of-the-art approaches for segmentation

and recognition of human movements are summa-

rized. Our approach is described in Section 3. Af-

terwards in Section 4, the approach is evaluated on

real human manipulation movements and compared

to Hidden Markov Model (HMM)-based approaches

which are widely used in the literature to represent

and recognize movements. At the end of this paper, a

conclusion is given.

2 RELATED WORK

Action recognition is an active research area which

plays an important role in many applications. One

main focus lies in the automatic annotation of hu-

man movements in videos, which can be used, e.g.,

to ﬁnd tackles in soccer games, to support elderly in

their homes or for gesture recognition in, e.g. video

games (Poppe, 2010). Besides the detection of hu-

mans in video sequences, the classiﬁcation of their

movements is an important part in video-based ac-

tion recognition. Algorithms like Support Vector Ma-

chines, or their probabilistic variant the Relevance

Vector Machines, Hidden Markov Models, k-Nearest

Neighbors or Dynamic Time Warping-based classiﬁ-

cation are used to classify the observed actions. A

more detailed overview is given in (Poppe, 2010).

But also in other areas, where the human is not

observed by a camera but recorded with other modal-

ities like markers ﬁxed on the body, human action

recognition is tackled. In this non-image-based move-

ment recordings, the segmentation of the recorded

movements is next to the classiﬁcation of high in-

terest. For example in (Fod et al., 2002), human

arm movements were tracked and segmented into so-

called movement primitives at time points where the

angular velocity of a certain number of degrees of

freedom crosses zero. After a PCA-based dimension-

ality reduction, the identiﬁed movements were clus-

tered using k-Means. However, this approach is very

sensitive to noise in the input data which results in

over-segmentation of the data. Gong et al., on the

other hand, propose Kernelized Temporal Cut to seg-

ment full body motions, which is based on Hilbert

space embedding of distributions (Gong et al., 2013).

In their work, different actions are recognized using

Dynamic Manifold Warping as similarity measure. In

contrast to the analysis of full body motions, we focus

on the identiﬁcation and recognition of manipulation

movements which show special patterns in the veloc-

ity which should be considered for segmentation.

Beyond that, HMM-based approaches are often

used in the literature, both for movement segmenta-

tion as well as for movement recognition. For exam-

ple, Kulic et al. stochastically determine motion seg-

ments which are then represented using HMMs (Kuli

et al., 2012). The derived segments are incremen-

tally clustered using a tree structure and the Kullback-

Leibler distance as segment distance measure. In a

similar fashion, Gr

ave and Behnke represent proba-

bilistically derived segments with HMMs, where seg-

ments that belong to the same movement are simul-

taneously classiﬁed into the same class if they can be

represented by the same HMM (Gr

ave and Behnke,

2012). Besides these approaches, solely training-

based movement classiﬁcation with HMMs is widely

used, e.g. in (Stefanov et al., 2010; Aarno and Kragic,

2008). Because HMMs are expected to perform not

well when few training data is available, we propose

to use kNN instead and compare it with the HMM ap-

proach.

Automatic Detection and Recognition of Human Movement Patterns in Manipulation Tasks

3 METHODS

In this section we describe the velocity-based move-

ment segmentation algorithm to identify building

blocks in human manipulation behavior as well as

our approach to recognize different known movement

segments in an observed behavior.

3.1 Segmentation of Human Movement

into Building Blocks

We aim to ﬁnd sequences in human movement that

correspond to elementary building blocks charac-

terized by bell-shaped velocity proﬁles as shown

in (Morasso, 1981). Therefore, we need a segmenta-

tion algorithm that identiﬁes these building blocks. A

second important property of the algorithm should be

the ability to handle variations in the movements. Hu-

man movement shows a lot of variations both during

the execution by different persons as well as by the

same person. For this reason, it is important that the

algorithm for human movement segmentation ﬁnds

sequences that correspond to the same behavior de-

spite differences in their execution.

An algorithm that tackles these issues is the

velocity-based Multiple Change-point Inference

(vMCI) algorithm (Senger et al., 2014). This al-

gorithm fully automatically detects building blocks

in human manipulation movements. It is based on

the Multiple Change-point Inference (MCI) algo-

rithm (Fearnhead and Liu, 2007) in which segments

are found in time series data using Bayesian Infer-

ence. Each segment y

i+1: j

, starting at time point i and

ending at j, is represented with a linear regression

model (LRM) with q predeﬁned basis functions φ

i+1: j

∑

k=1

+ ε, (1)

where ε models the noise that is assumed in the data

and β = (β

, ..., β

) are the model parameters. It is

assumed that a new segment starts if the underlying

LRM changes. This modeling of the observed data

allows to handle technical noise in the data as well

as variation in the execution of the same movement.

To determine the segments online, the segmentation

points are modeled via a Markov process in order that

an online Viterbi algorithm can be used to determine

their positions (Fearnhead and Liu, 2007).

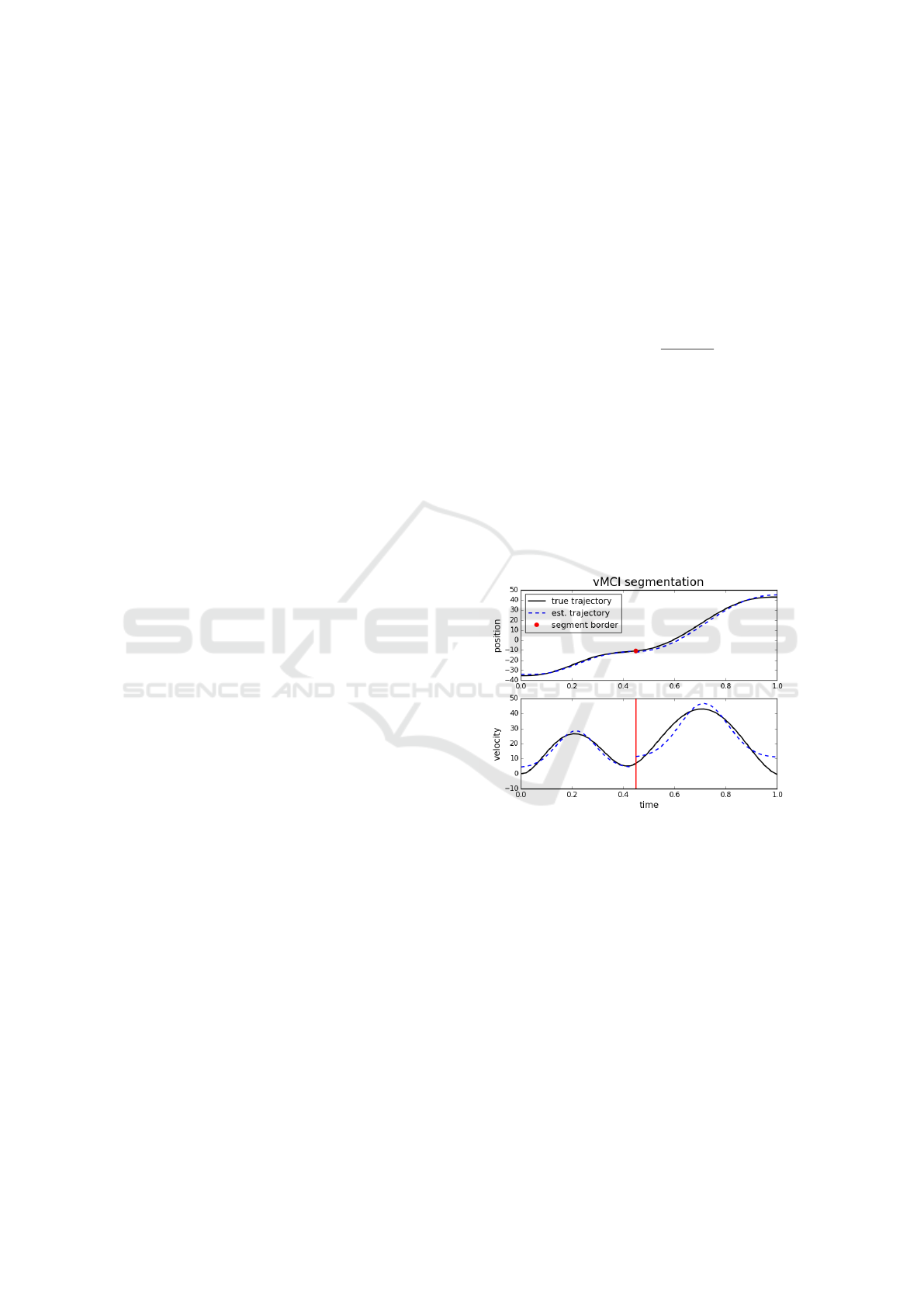

Senger et al. expanded the MCI algorithm for the

detection of movement sequences that correspond to

building blocks characterized by a bell-shaped veloc-

ity proﬁle. To realize this, the LRM of Equation 1

is split to model the velocity of the hand independent

from its position with different basis functions, where

the basis function for the velocity dimension is cho-

sen in a way that it has a bell-shaped proﬁle. In detail

this means that the velocity y

of the observed data

sequence is modeled by

= α

+ α

+ ε, (2)

with weights α = (α

, α

) and noise ε. The model has

two basis functions. First, the bell-shaped velocity

curve is modeled using a single radial basis function:

) = exp



−

(c − x

)



. (3)

In order that the basis function can cover the whole

segment, Senger et al. propose to choose half of the

segment length for the width parameter r. The center

c is determined automatically by the algorithm and

regulates the alignment to velocity curves with peaks

at different positions. Additionally, the basis function

1 weighted with α

accounts for velocities unequal to

zero at start or end of the segment. As in the original

MCI method, an online Viterbi algorithm can be used

to detect the segment borders.

Figure 1: VMCI segmentation result on artiﬁcial data.

An example segmentation using the vMCI algo-

rithm is shown in Figure 1. At the top, a one-

dimensional simulated movement can be seen. The

lower ﬁgure shows the corresponding velocity. To

simulate two different behavior segments, the move-

ment is slowed down at time point 0.4. For the po-

sition dimension, the algorithm ﬁts LRMs to the data

according to Equation 1 with pre-deﬁned basis func-

tions. In this case autoregressive basis functions are

chosen. The velocity dimension is simultaneously ﬁt

with a LRM as introduced in Equation 2. The algo-

rithm automatically selects the models which best ﬁts

parts of the data. In this case it is most likely that

the data arises from two different underlying models,

which results in a single segmentation point which

PhyCS 2016 - 3rd International Conference on Physiological Computing Systems

matches, within an acceptable margin, the true seg-

mentation point. In contrast to other segmentation

algorithms, as for example a segmentation based on

the detection of local minima, vMCI is very robust

against noise in the data, as shown in (Senger et al.,

2014).

3.2 Recognition of Human Movement

There are many different possibilities to classify hu-

man movements, as reviewed in Section 2. In general,

a movement classiﬁcation algorithm which works

with minimal need for parameter tuning is desirable

to make the classiﬁcation easily applicable on differ-

ent data. Furthermore, manual efforts can be mini-

mized if the algorithm reliably classiﬁes movement

segments in case that only a small training set is avail-

able. For this reasons we use the kNN classiﬁer for

movement recognition. It has only one parameter, k,

and is able to classify manipulation movements with

a high accuracy with a small training set, as shown in

our experiments.

3.2.1 Feature Extraction

To classify the obtained movement sequences, fea-

tures which reﬂect the differences between different

behaviors have to be calculated. We use movement

trajectories of certain positions on the demonstrator

as features for the classiﬁcation. The movements are

recorded in Cartesian coordinates which results in dif-

ferent time series if the same movement is executed

at a different position. Thus, we propose to transpose

the data into a coordinate system which is not global

but relative to the human demonstrator. As reference

point, we use the position of the back (see Figure

2A) at the ﬁrst time point of a segment, i.e. the data

is transformed into a coordinate system centered at

this point. Additionally, variances in the execution of

the same movement are reduced by normalizing each

movement segment to zero mean.

Next to the transformed and normalized tracking

points of the demonstrator, additional features may be

relevant to successfully classify movement segments.

For example in manipulation movements, such as

pick-and-place tasks, the involved objects and their

spatial reference to the demonstrator are important

features to distinguish between movement classes.

Thus, the distance of the human hand to the manipu-

lated object as well as the object speed are used in the

pick-and-place experiment described in section 4.2

to classify manipulation segments into distinct move-

ments. Depending on the recognition task additional

features, like the rotation of the hand to distinguish

between different grasping positions, can be relevant.

3.2.2 Movement Classiﬁcation

We propose to use a kNN classiﬁer to distinguish

between different movements. In the kNN classiﬁ-

cation, an observed movement sequence is assigned

to the movement class, which is the most common

among its k closest neighbors of the training exam-

ples. We use the Euclidean distance as distance metric

and account for segments of unequal length by apply-

ing an interpolation to bring all segments to the mean

segment length. Alternatively, dynamic time warp-

ing (DTW) could be used as distance measure. This

would have the beneﬁt that using DTW the segments

are additionally aligned to the same length. But in a

preliminary analysis of kNN classiﬁcation on manip-

ulation behaviors our approach outperformed a DTW-

based kNN. For the number of neighbors k, we take

k = 1. That means we consider just the closest neigh-

bor for classiﬁcation because we want to classify with

a small number of training examples. A bigger k

could result in more classiﬁcation errors due to the

very low number of examples of each class.

4 EXPERIMENTS

In this section, the proposed segmentation and clas-

siﬁcation methods are evaluated on real human ma-

nipulation movements tracked by using a motion cap-

turing system. First, the experimental setup including

the evaluation technique used in two different exper-

iments is described in section 4.1. Afterwards, the

presented approach is applied and evaluated on pick-

and-place movements. In a second experiment differ-

ent human demonstrations of a ball-throwing move-

ment are analyzed. For both experiments it is shown

that the vMCI algorithm correctly detects segments

in the recorded demonstrations which correspond to

behavior building blocks with a bell-shaped velocity

pattern. Furthermore, we evaluate the classiﬁcation

with kNN using small number of training data and

compare the results with an HMM-based classiﬁca-

tion approach.

4.1 Experimental Setup

In the experiments conducted for this paper, human

demonstrations of manipulation movements were

tracked using 7 motion capture cameras. The mo-

tion capturing system measures the 3D positions of

visual markers at a frequency of 500 Hz, which was

down-sampled to 25 Hz. The markers were placed

on the human demonstrator and in the pick-and-place

experiment additionally on the manipulated object.

Automatic Detection and Recognition of Human Movement Patterns in Manipulation Tasks

Figure 2: Snapshots of the pick-and-place task analyzed in

this work. A: Markers for movement tracking are placed at

the back, the arm and the hand of the demonstrator as well

as on the manipulated object. The images show the grasping

of the object from the shelf (A) which is then placed on

a table standing on the right hand side (B). B: Movement

segment move obj table is sketched.

The positions of the markers can be seen in Figure

2A and Figure 3. Three markers were placed on the

back of the demonstrator to determine the position of

the back and its orientation. This is used to trans-

form the recorded data into the coordinate system rel-

ative to the back, as described in Section 3.2. To

track the movement of the manipulating arm, mark-

ers were placed at the shoulder, the elbow, and the

back of the hand. The orientation of the hand is de-

termined by placing three markers instead of one on

it. Grasping movements in the pick-and-place demon-

strations were recorded by using additional markers

which were placed at thumb, index, and middle ﬁn-

Figure 3: Snapshot of the ball-throwing task.

ger. Furthermore, two more markers were placed on

the manipulated object in this experiment to deter-

mine its position and orientation. However, the tasks

in our experiments required only basic manipulation

movements (e.g., approaching the object or moving

the object). Thus, just the position of the hand and the

manipulated object were used for segmentation and

recognition, but not their orientation.

After data acquisition, the individual movement

parts of the demonstrations were identiﬁed using the

vMCI algorithm described in Section 3.1. The seg-

mentation algorithm was applied on the position and

the velocity of the recorded hand movements. For

this, the recorded positions of each demonstration

were pre-processed to a zero mean and such that the

variance of the ﬁrst order differences of each dimen-

sion is equal to one, as proposed in (Senger et al.,

2014).

The resulting movement segments were manually

labeled into one of the movement classes deﬁned for

each experiment. However, some of the obtained

segments could not be assigned to one of the move-

ment classes because they contain only parts of the

movement. This could result from errors in the seg-

mentation as well as from demonstrations where a

movement is slowed down before the movement class

ends, e.g. because the subject thought about the ex-

act position to grasp the object. An example can

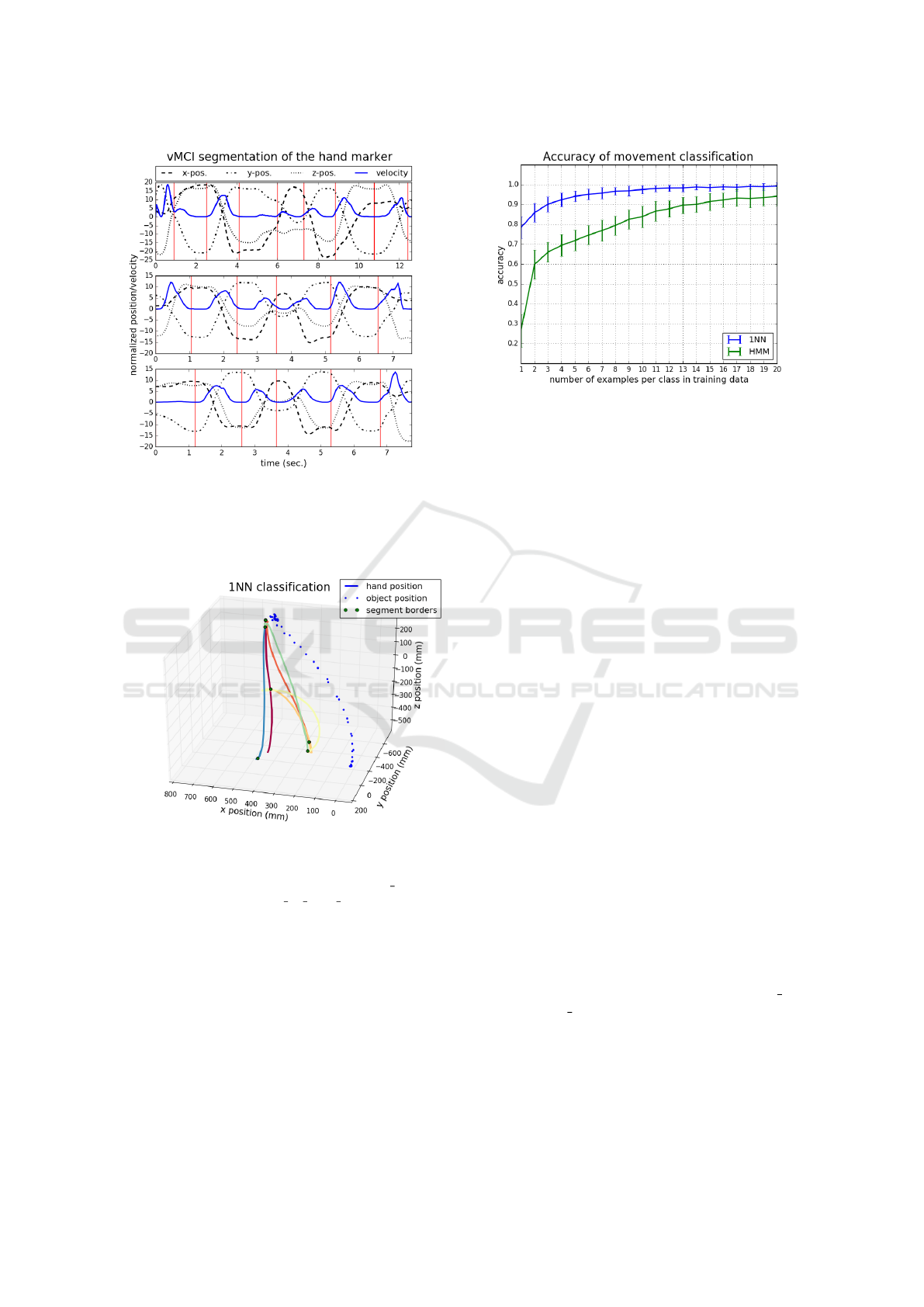

be seen in the top plot of Figure 4. The concatena-

tion of the ﬁrst two detected segments belong to the

class approach forward. Nonetheless, the vMCI al-

gorithm detected two segments because the subject

slowed down the movement right before reaching the

object. These incomplete movement segments were

discarded for the evaluation of the classiﬁcation ap-

proach. Furthermore, some of the identiﬁed move-

ment segments do not belong to one of the pre-deﬁned

movement classes of the experiment. Usually, these

PhyCS 2016 - 3rd International Conference on Physiological Computing Systems

nonassignable segments belong to small extra move-

ments, that are not part of the main movement task

and thus are not considered in the deﬁned movement

classes. These movement segment were as well not

used for the evaluation of the classiﬁcation.

Before classiﬁcation, the original recorded marker

positions of each obtained segment were pre-

processed as described in Section 3.2. Depending on

the manipulation task, additional features were calcu-

lated. As proposed in section 3.2, we classify the ob-

tained segments using the 1NN algorithm. For each

of the two experiments, we evaluate the accuracy of

the 1NN classiﬁcation using a stratiﬁed 2-fold cross-

validation with a ﬁxed number of examples per class

in the training data. The training set sizes are varied

from 1 example per class to 20 examples per class and

the remaining data is used for testing. Since we want

to show the performance of the classiﬁcation with

small training set sizes, the maximal number of train-

ing examples per class is kept low. For each number

of examples per class in the training data, the cross-

validation was performed with 100 iterations.

For comparison, the data was also classiﬁed us-

ing a HMM-based approach, which is a standard rep-

resentation method for movements in the literature,

see Section 2. In the HMM-based classiﬁcation, one

single HMM was trained for each movement class.

To classify a test segment, the probability of the seg-

ment to be generated by each of the trained HMMs

is calculated. The label of the most likely underly-

ing HMM is assigned to the segment. The number of

states in the HMMs was determined with a stratiﬁed

2-fold cross-validation repeated 50 times with equally

sized training and test sets. As a result, we trained

each HMM with one hidden state. The accuracy of

the HMM-based classiﬁcation with 1 hidden state per

trained HMM was evaluated like the 1NN classiﬁca-

tion with a stratiﬁed 2-fold cross-validation with ﬁxed

numbers of training examples for each class.

4.2 Segmentation and Recognition of

Pick-and-Place Movements

In our ﬁrst experiment, we evaluated the presented

approach on pick-and-place movements. The task

of the human demonstrator, partly shown in Fig-

ure 2, contained 6 different movements. First, a

box placed on a shelf should be grasped (movement

class: approach forward) and placed on a table

standing at the right hand side of the demonstrator

(move

obj table). After reaching a rest position of

the hand (move to rest right), the object had to be

grasped again from the table (approach right) to

move it back to the shelf (move obj shelf). At the

end, the arm should be moved into a ﬁnal position in

which it loosely hangs down (move to rest down).

Beyond that, short periods of time in which the

demonstrator did not move his arm can be assigned

to the class idle.

Overall, the pick-and-place task was performed

by three different subjects, repeated 6 times by each.

Two of these subjects performed the task again with

4 repetitions while their movements were recorded

with slightly different camera positions and a differ-

ent global coordinate system. This resulted in dif-

ferent positions of the person and the manipulating

object in the scene which should be handled by the

presented movement segmentation and recognition

methods. Thus, 26 different demonstrations from dif-

ferent subjects and with varying coordinate systems

were available to evaluate the proposed approaches.

4.2.1 Results

The vMCI algorithm successfully segmented the tra-

jectories of the pick-and-place demonstrations into

movement parts with a bell-shaped velocity proﬁle.

Three examples of the segmentation results can be

seen in Figure 4. The resulting movement segments

were manually labeled into one of the 7 movement

classes that are present in the pick-and-place task.

This resulted in 155 labeled movement segments with

different occurrences of each class, as summarized in

Table 1.

Table 1: Occurences of each class in the recorded pick-and-

place data.

movement class num. examples

approach forward 20

move obj table 26

move to rest right 25

approach right 23

move obj shelf 26

move to rest down 24

idle 11

As described in section 4.1, next to the positions

of the markers attached on the subject, the distance

from the hand to the object and the object velocity

were calculated as additional features in this experi-

ment. An example result of the classiﬁcation using

1NN is shown in Figure 5. For this example demon-

stration of the pick-and-place task, all segments have

been labeled with the correct annotation using a train-

ing set with 5 examples for each class.

The results of the cross-validation using 1NN and

HMM-based classiﬁcation are shown in Figure 6. Be-

cause the data contains 7 different classes, an accu-

racy of 14.3% can be achieved by guessing. The

Automatic Detection and Recognition of Human Movement Patterns in Manipulation Tasks

Figure 4: Segmentation results of three different demon-

strations. The black lines are the x-, y- and z-position of

the hand. The blue line corresponds to the velocity of the

hand and the red vertical lines are the segment borders de-

termined by the vMCI algorithm.

Figure 5: Classiﬁcation result of a demonstration of the

pick-and-place task with 1NN. The different movement

classes of the task are indicated with different colors along

the color spectrum starting with red for approach forward

and ending with blue for move to rest down.

1NN classiﬁcation clearly outperforms the HMM-

based classiﬁcation using training sets with occur-

rences of each class smaller or equal to 20. Already

with 1 example per class an accuracy of nearly 80%

can be achieved using 1NN. With 10 examples per

class, the accuracy is 97.5% and with 20 examples

per class 99.2%, which is very close to an error-less

classiﬁcation. In contrast, 14 examples per class are

needed in the HMM-based classiﬁcation to achieve

an accuracy of 90% in this evaluation. With not

more than 10 examples per class, the accuracy of the

Figure 6: Comparison of the accuracy of the classiﬁca-

tion of manipulation movement segments using 1NN and

HMM-based classiﬁcation.

HMM-based classiﬁcation is considerably below the

achieved accuracy using 1NN.

These results show that with the proposed 1NN

classiﬁcation, manipulation movements can be as-

signed to known movement classes with a very small

number of training examples. This means that with

minimal need for manual training data labeling and

no parameter tuning, very good classiﬁcation results

can be achieved using the proposed approach. Fur-

thermore, the 1NN classiﬁcation considerably outper-

forms the widely used HMM-based classiﬁcation in

case that only a small number of training examples is

available.

4.3 Segmentation and Recognition of

Ball-Throwing Movements

In a second experiment, the vMCI segmentation

and the 1NN classiﬁcation were evaluated on ball-

throwing demonstrations. The task of the subject was

to throw a ball to a goal position on the ground located

approximately 1.5 m away. The numerous possibili-

ties to throw the ball were limited by the restriction

that the ball should be thrown from above, i.e. the

hand has a position higher than the shoulder before

the ball leaves the hand, see Figure 3. Before and

after the throw, the subject had to move into a rest

position, in which the arm loosely hangs down. The

individual movement parts of each throw could be di-

vided into four different main classes: strike out,

throw, swing out and idle. In contrast to the pick-

and-place task, only the movement of the arm was

tracked in this task and not the position of the involved

object, the ball. This is because in this experiment, the

spatial distance of the ball to the demonstrator plays

only a minor role and the movement of the arm has a

much higher relevance to distinguish between move-

PhyCS 2016 - 3rd International Conference on Physiological Computing Systems

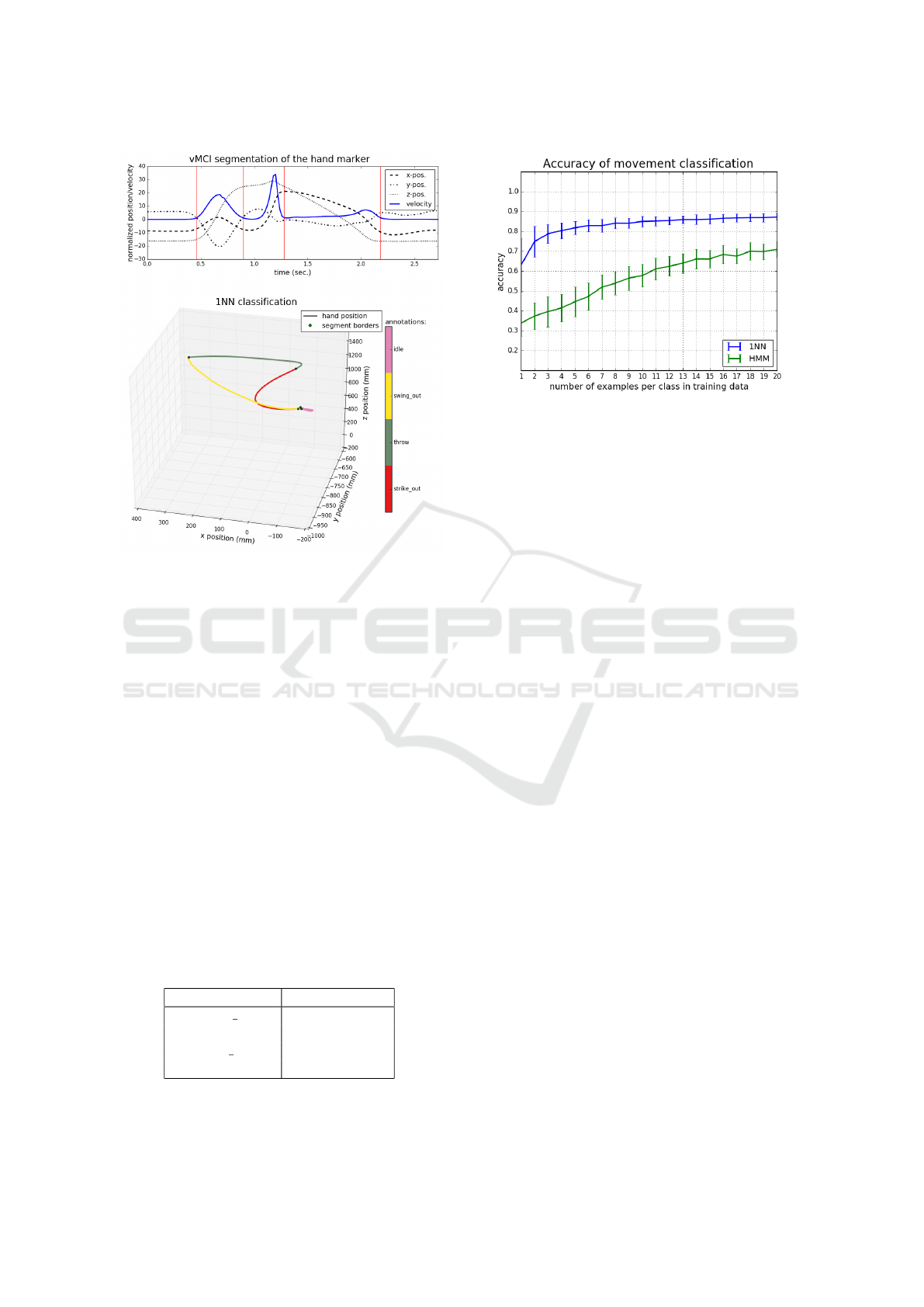

Figure 7: Segmentation and classiﬁcation result of one

demonstration of the ball-throwing task.

ment classes. Furthermore, it was not recorded if the

goal position was actually hit by the ball.

The ball-throwing task was demonstrated by 10

different subjects, each performing 24 throws.

4.3.1 Results

As already shown in a similar ball-throwing experi-

ment in (Senger et al., 2014), the vMCI algorithm is

able to identify the different movement parts in the

demonstrations based on the position and velocity of

the hand. In Figure 7 a representative example of the

segmentation result is shown.

To evaluate the classiﬁcation of the ball-throwing

movements, the resulting segments of all 240 demon-

stration were manually assigned to one of the four

movement classes. Again, each class had a different

occurrence in the available data, as summarized in Ta-

ble 2.

Table 2: Occurences of each class in the ball-throwing data.

movement class num. examples

strike out 221

throw 227

swing out 339

idle 208

In this experiment, only the positions of the mark-

ers attached to the subject, see Figure 3, were used

Figure 8: Comparison of the accuracy of the classiﬁcation

of ball throwing segments using 1NN and HMM-based clas-

siﬁcation.

as features for the automatic movement classiﬁcation.

Figure 7 shows an example classiﬁcation result using

1NN and 5 examples per class in the training data.

The 5 movement segments were correctly classiﬁed

into one of the predeﬁned classes.

The results of the cross-validation comparing

1NN with HMM-based classiﬁcation are visualized

in Figure 8. Like in the pick-and-place experiment,

1NN outperforms HMM-based classiﬁcation in the

case of small training data sets. In this experiment,

containing considerably more demonstrated move-

ments compared to the pick-and-place experiment,

the difference between the classiﬁcation algorithms is

even more clear. With one example per class in the

training data, an accuracy of 62.9% using 1NN can

be achieved and only 33.8% by using HMM-based

classiﬁcation. This experiment contains 4 different

classes, i.e. an accuracy of 25% can be achieved

by guessing. Using 1NN, a classiﬁcation accuracy

of 80% is accomplished using 4 examples per class

during training. In contrast to this, this accuracy is

not reached using HMM-based classiﬁcation in this

evaluation. For comparison, the evaluation was addi-

tionally conducted using 100 examples per class dur-

ing training. This resulted in an accuracy of 91.5%

using 1NN, and 77.8% using HMM-based classiﬁ-

cation. This shows that even if more training data

is available, the 1NN classiﬁcation outperforms the

HMM-based approach.

5 CONCLUSIONS

In this paper, we identiﬁed and recognized char-

acteristic movement patterns in human manipula-

tion behavior. We successfully segmented pick-and-

Automatic Detection and Recognition of Human Movement Patterns in Manipulation Tasks

place and ball-throwing data into movement build-

ing blocks with a bell-shaped velocity proﬁle using

a probabilistic algorithm formerly presented in (Sen-

ger et al., 2014). Furthermore, we showed that using

the simple 1NN classiﬁcation, the obtained segments

can be reliably classiﬁed into predeﬁned categories.

Especially, this can be done using a small set of train-

ing data. In comparison to HMM-based movement

classiﬁcation, a considerably higher accuracy can be

achieved with small training sets.

For future work, an integrated algorithm for seg-

mentation and classiﬁcation should be developed, in

which both motion analysis parts inﬂuence each other.

Such an approach becomes for example relevant when

extra segments are generated. Extra segments may be

caused from not ﬂuently executed movements of the

demonstrator in situations in which he slowed down

his movement to think about the exact position to

place an object. Such extra segments could be merged

by identifying that only their concatenation belongs to

one of the known movement classes.

To gain a higher classiﬁcation accuracy, more so-

phisticated feature extraction techniques may be of

high interest. Mainly in the analysis of manipulation

movements, features based on the joint angles should

be evaluated.

Furthermore, it is desirable that the manual ef-

fort needed for classiﬁcation is further minimized by

classifying the movement segments using an unsu-

pervised approach. Nonetheless, annotations, like

move object, are needed in many applications, e.g.

to select segments that should be imitated by a robot.

Ideally, this annotation is done without manual inter-

ference, e.g., by analyzing features of the movement

arising from different modalities. Besides the analysis

of motion data, psychological data like eye-tracking

or electroencephalographic-data could be used for

this annotation.

Simple approaches as the one presented here be-

come highly relevant for the development of embed-

ded multimodal interfaces. They allow to use minia-

turized processing units with relatively low process-

ing power and energy consumption. This is most

relevant since in many robotic applications extra re-

sources for interfacing are limited and will thus re-

strict the integration of interfaces into a robotic sys-

tem. On the other hand, wearable assisting devices

are also limited in size, energy and computing power.

Hence, future approaches must not only focus on ac-

curacy but also on simplicity. Apart from that, our

results show that both, accuracy and simplicity can be

accomplished.

REFERENCES

Aarno, D. and Kragic, D. (2008). Motion intention recog-

nition in robot assisted applications. Robotics and Au-

tonomous Systems, 56:692–705.

Adi-Japha, E., Karni, A., Parnes, A., Loewenschuss, I.,

and Vakil, E. (2008). A shift in task routines dur-

ing the learning of a motor skill: Group-averaged data

may mask critical phases in the individuals’ acquisi-

tion of skilled performance. Journal of Experimen-

tal Psychology: Learning, Memory, and Cognition,

24:1544–1551.

Argall, B. D., Chernova, S., Veloso, M., and Browning, B.

(2009). A survey of robot learning from demonstra-

tion. Robotics and Autonomous Systems, 57(5):469–

483.

Fearnhead, P. and Liu, Z. (2007). On-line inference for mul-

tiple change point models. Journal of the Royal Sta-

tistical Society: Series B (Statistical Methodology),

69:589–605.

Fod, A., Matri

c, M., and Jenkins, O. (2002). Automated

derivation of primitives for movement classiﬁcation.

Autonomous Robots, 12:39–54.

Gong, D., Medioni, G., and Zhao, X. (2013). Structured

time series analysis for human action segmentation

and recognition. IEEE Transactions on Pattern Anal-

ysis and Machine Intelligence, 36(7):1414–1427.

ave, K. and Behnke, S. (2012). Incremental action

recognition and generalizing motion generation based

on goal-directed features. In International Confer-

ence on Intelligent Robots and Systems (IROS), 2012

IEEE/RSJ, pages 751–757.

Graybiel, A. (1998). The basal ganglia and chunking of ac-

tion repertoires. Neurobiology of Learning and Mem-

ory, 70:119–136.

Kirchner, E. A., de Gea Fernand

ez, J., Kampmann, P.,

Schr

oer, M., Metzen, J. H., and Kirchner, F. (2015).

Intuitive Interaction with Robots - Technical Ap-

proaches and Challenges, pages 224–248. Springer

Verlag GmbH Heidelberg.

Kuli

c, D., Ott, C., Lee, D., Ishikawa, J., and Nakamura,

Y. (2012). Incremental learning of full body mo-

tion primitives and their sequencing through human

motion observation. The International Journal of

Robotics Research, 31(3):330–345.

Metzen, J. H., Fabisch, A., Senger, L., Gea Fern

andez,

J., and Kirchner, E. A. (2013). Towards learn-

ing of generic skills for robotic manipulation. KI -

unstliche Intelligenz, 28(1):15–20.

Morasso, P. (1981). Spatial control of arm movements. Ex-

perimental Brain Research, 42:223–227.

ulling, K., Kober, J., Koemer, O., and J.Peters (2013).

Learning to select and generalize striking movements

in robot table tennis. The International Journal of

Robotics Research, 32:263–279.

Pastor, P., Hoffmann, H., Asfour, T., and Schaal, S. (2009).

Learning and generalization of motor skills by learn-

ing from demonstration. In 2009 IEEE International

Conference on Robotics and Automation, pages 763–

768. Ieee.

PhyCS 2016 - 3rd International Conference on Physiological Computing Systems

Poppe, R. (2010). A survey on vision-based human action

recognition. Image and Vision Computing, 28(6):976–

990.

Senger, L., Schr

oer, M., Metzen, J. H., and Kirch-

ner, E. A. (2014). Velocity-based multiple change-

point inference for unsupervised segmentation of hu-

man movement behavior. In Proccedings of the

22th International Conference on Pattern Recognition

(ICPR2014), pages 4564–4569.

Stefanov, N., Peer, A., and Buss, M. (2010). Online in-

tention recognition in computer-assisted teleoperation

systems. In Haptics: Generating and Perceiving Tan-

gible ensations, pages 233–239. Springer Berlin Hei-

delberg.

Automatic Detection and Recognition of Human Movement Patterns in Manipulation Tasks
