A Spatio-temporal Approach for Video Caption Extraction

Liang-Hua Chen

, Meng-Chen Hsieh

and Chih-Wen Su

Department of Computer Science and Information Engineering, Fu Jen University, New Taipei, Taiwan

Department of Information and Computer Engineering, Chung Yuan University, Chung Li, Taiwan

Keywords: Video Content Analysis, Caption Detection, Spatio-temporal Slices.

Abstract: Captions in videos play an important role for video indexing and retrieval. In this paper, we propose a novel

algorithm to extract multilingual captions from video. Our approach is based on the analysis of spatio-

temporal slices of video. If the horizontal (or vertical) scan line contains some pixels of caption region then

the corresponding spatio-temporal slice will have bar-code like patterns. By integrating the structure

information of bar-code like patterns in horizontal and vertical slices, the spatial and temporal positions of

video captions can be located accurately. Experimental results show that the proposed algorithm is effective

and outperforms some existing techniques.

1 INTRODUCTION

The advances in low cost mass storage devices,

higher transmission rates and improved compression

techniques, have led to the widespread use and

availability of digital video. Video data offers users

of multimedia systems a wealth of information and

also serves as a data source in many applications

including digital libraries, publishing, entertainment,

broadcasting and education. The usefulness of these

applications depends largely on whether the video of

interest can be retrieved accurately within a

reasonable amount of time. Therefore, various video

content analysis techniques have been proposed to

index or retrieve the large amounts of video data.

These techniques are based on the analysis of visual,

audio and textual information in the videos. Among

them, text can provide concise and direct description

of video content. If textual part of the video can be

extracted and recognized automatically, it will be a

valuable source of high-level semantics for indexing

and retrieval. On the other hand, the current optical

character recognition (OCR) techniques are more

robust than speech recognition and visual object

recognition techniques. This facilitates the automatic

annotation of video content using the extracted text.

In general, there are two types of text in video:

scene text and caption text. The scene text is an

integral part of the scene captured by the camera

such as signpost, billboard, banner and so on. The

caption text is artificially embedded in video frame

during video editing. Usually, it is closely related to

the content of the video. For example, the captions

in newscast video summarize relevant names,

locations and times of the reported events. In

comparison to text segmentation for document

image, the problem of extracting caption from video

is more difficult. Some factors include (1) complex

background, (2) lower resolution (small size) of text,

(3) unknown text color and (4) degraded image

quality caused by lossy compression method.

Therefore, the quality of text in video is not suitable

to be processed by conventional document image

analysis technique.

Current techniques for video caption detection

can be broadly classified into three categories (Tang

et al., 2002). The first one is the connected

component based methods (Mariano and Kasturi,

2000; Ye et al., 2005; Liu et al., 2010; Gonzalez et

al., 2012). This category assumes that text regions

have uniform colors and satisfy certain size, shape

and spatial alignment. However, these methods are

not effective when text touches other graphical

objects or text is embedded in complex background.

The second category treats text as a type of texture

(Li et al., 2000; Zhong et al., 2000; Kim et al., 2001;

Wang and Chen, 2006; Qian et al., 2007; Pan et al.,

2011). Thus, the classic texture classification

algorithms are applied to detect text regions. These

methods are computationally expensive. Besides, it

is hard to find accurate boundaries of text regions

and false alarms often exist if the background

Chen, L-H., Hsieh, M-C. and Su, C-W.

A Spatio-temporal Approach for Video Caption Extraction.

DOI: 10.5220/0005939300830088

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 5: SIGMAP, pages 83-88

ISBN: 978-989-758-196-0

contains texture that display the similar structure as

text regions. The third category consists of edge

based methods which assume text regions have high

contrast against the background (Hua et al., 2001;

Lienhart and Wernicke, 2002; Chen et al., 2003;

Wang et al., 2004; Lyu et al., 2005; Tasi et al., 2006;

Shivakumara et al., 2008; Gui et al., 2012; Huang et

al., 2014). Therefore, those areas with dense edges

are detected as text regions. These methods are less

reliable for the detection of text with large font size.

In most of the above works, text in video is treated

mainly the same way as that in still image. Although

some works use the short duration of temporal

information (Tang et al., 2002; Wang et al., 2004;

Wang and Chen, 2006), they do not fully exploit the

spatio-temporal information in video. To utilize the

long duration of temporal information, in this paper,

we propose a caption extraction algorithm based on

the analysis of spatio-temporal slices of video.

2 BACKGROUND AND

MOTIVATION

A spatio-temporal slice is a collection of scans in the

same selected position of every frame of a video as a

function of time (Ngo et al., 2001). Two common

selection methods of scans are horizontal scan and

vertical scan. Assuming the content of a video is

represented by f (x,y,t), a horizontal spatio-temporal

slice is defined as

X −T (x, t) = f (x, y', t)

where y

is a constant, and a vertical spatio-temporal

slice is defined as

Y −T(t, y) = f (x

,y, t)

where x

is a constant.

Our approach to caption detection is based on the

following observation: If the horizontal (or vertical)

scan line contains some pixels of caption region then

the corresponding spatio-temporal slice will have

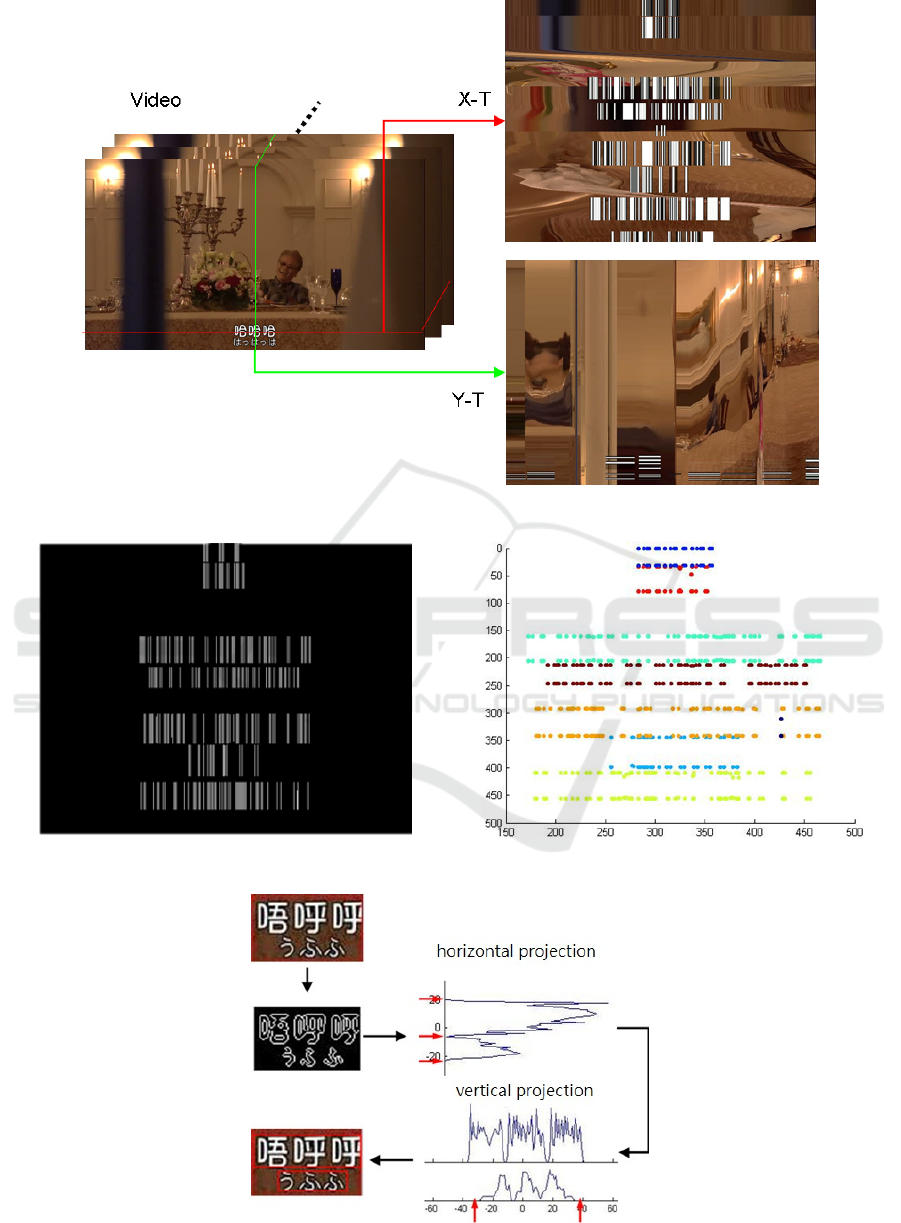

bar-code like patterns. Figure 1 illustrates this

phenomenon where X-T slice and Y-T slice has bar-

code like patterns in vertical direction and horizontal

direction respectively. In each slice, there are several

groups of patterns corresponding to different text

captions. It is also noted that the structure of bar-

code like patterns indicates the spatio-temporal

information of caption as follows.

• The length of a bar-code like pattern corresponds

to the duration time of a caption.

• In X-T slice, the length (in x-axis direction) of

each group of patterns corresponds to the width

of a caption.

• In Y-T slice, the length (in y-axis direction) of

each group of patterns corresponds to the height

of a caption.

Therefore, we may integrate the information in X-T

and Y-T slices to locate the captions in video. The

proposed algorithm is made up of two components:

caption localization and character extraction. Each is

described in the following two sections.

3 CAPTION LOCALIZATION

Since our caption localization algorithm is based on

the analysis of spatio-temporal slices, the main

issues are: (1) How to determine whether a

spatiotemporal slice contains bar-code like patterns

or not and (2) How to integrate the information in X-

T and Y-T slices to locate video caption. These two

issues are addressed as follows.

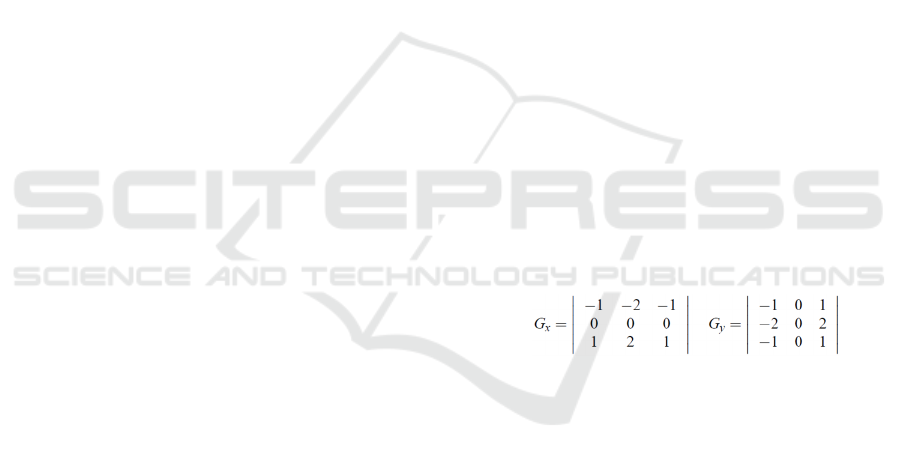

For a given X-T slice, we detect vertical edges

by Sobel operator G

and apply Hough transform to

detect straight lines. If 90% of the detected lines are

vertical (the orientation of line is between 85

and

), then this slice is identified as the one

containing bar-code patterns. In the similar way, we

may use Sobel operator G

and Hough transform to

determine whether a Y-T slice contains bar-code

like patterns or not.

Given a sequence of video frames, we sample

horizontal spatio-temporal (X-T) slices every 5

pixels along the y-axis (from bottom to top) until

detecting the one that contains bar-code like

patterns. A line tracing process is performed on the

edge image of this slice. Any line segment with

length less than a threshold is identified as noise and

removed from the edge image. Figure 2 shows the

filtered edge image. Meanwhile the starting point

and ending point of each line segment are recorded.

Then all starting points are clustered based on their

Y coordinates. Each ending point is assigned to the

same cluster as its corresponding starting point.

Figure 3 shows the clustering result of all starting

and ending points. By analyzing the points of the

same cluster, the width of its corresponding caption

can be estimated. Likewise, we sample vertical

spatio-temporal (Y-T) slices every 5 pixels along the

x-axis (from left to right) until detecting the one that

contains bar-code like patterns. Using the same

SIGMAP 2016 - International Conference on Signal Processing and Multimedia Applications

technique, the height of a caption can also be

estimated.

The objective of caption localization is to

determine a bounding box of each text caption.

Assuming the X-T slice (sampled at Y = y

) estimates

the width of a caption is W and the Y-T slice

(sampled at X =x

) estimates the height of a caption

is H, the lower left corner of bounding box is (x

−ε,

−ε) and the upper right corner of bounding box is

+W, y

+H). Currently, ε is set to be 7.

While the bounding box may contain multiple

text strings, a refinement process is needed. Sobel

edge detector is applied to the original image frame

inside the bounding box to obtain the contour map of

characters. Then, we accumulate the horizontal

projection of contour map. The valley of projection

profile indicates the position of separate line.

Finally, the vertical projection profiles of each

separated region are also constructed to get more

accurate bounding box. Figure 4 illustrates this

process.

4 CHARACTER EXTRACTION

The goal of character extraction is to convert the

color image inside the bounding box into the OCR-

ready binary image, where all pixels of the

characters are in black and others are in white. Our

approach is based on the observation that characters

embedded in video are mostly uniform in color.

Using the k-mean clustering algorithm, all the pixels

are classified based on their RGB values. In this

step, we get binary images B

, i= 1,···,k which

indicates the location of each cluster. Then a certain

binary image is selected as target image by

integrating character contour information. A

distance transform is applied to the edge image

(resulting from Sobel edge detector) to get a distance

map D. The value of distance map at each pixel is

the distance from that pixel to the nearest character

contour. Let











∑∑,   , 

where N

is the number of pixels belonging to cluster

i. If V

= min{V

,···,V

}, then binary image B

is the

target image for OCR.

5 EXPERIMENTAL RESULTS

The proposed algorithm is tested by five video

sequences whose durations vary from 4 minutes to

30 minutes. The resolutions of video frames are

480× 360 and 640 ×360. The video types include

movies, cartoons and newscasts. The languages are

multilingual, i.e., the character set in the videos

involves English, French, Italian, Chinese and

Japanese. The total number of captions is 1596.

Depending on the content of video, the duration time

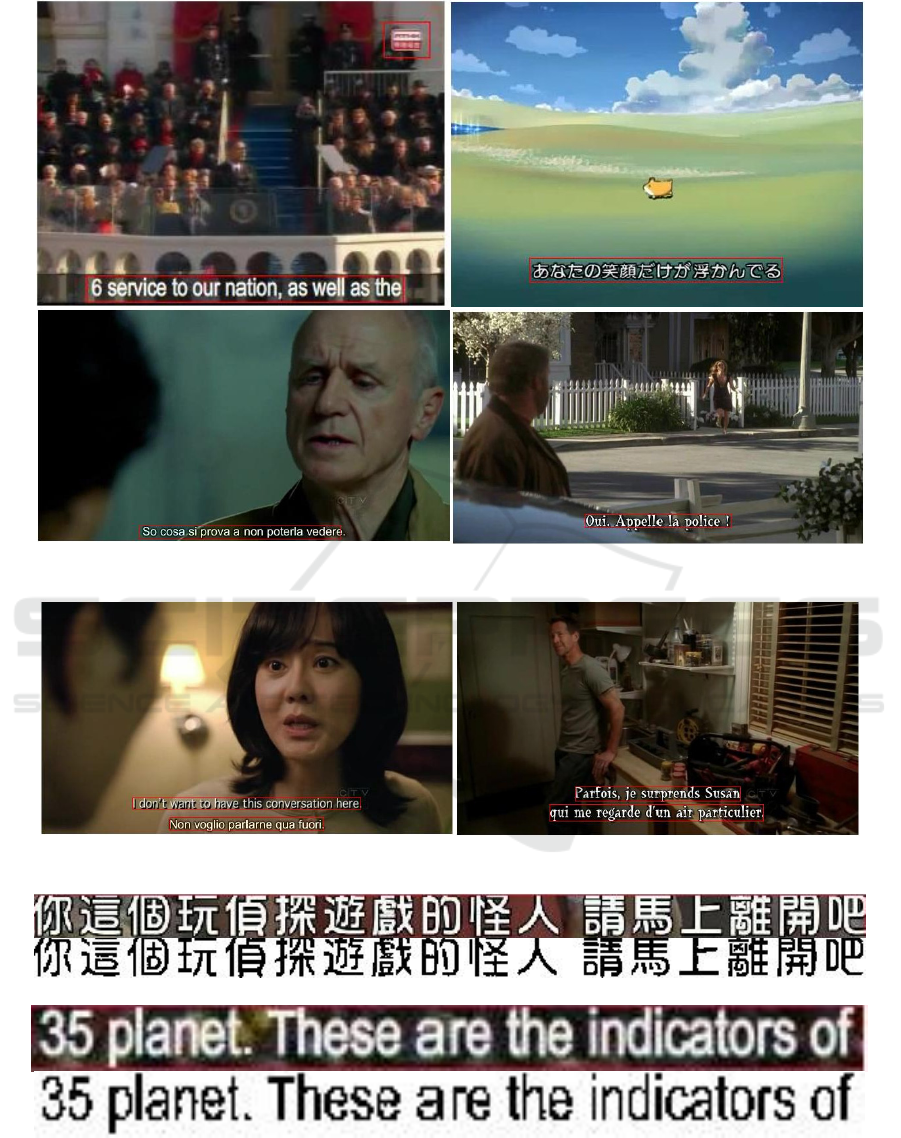

of each caption may last for 2-12 seconds. Figure 5

and 6 show some experimental results of caption

detection. However, there are some false detections

and missed detections. The missed detections are

due to two factors. One is that the colors of caption

and background are very similar. The other is that

the filtering process on the edge image degrades the

structure of bar-code like pattern. The false

detections are mainly caused by some high contrast

objects which remain in the same location of video

frames for a long duration. Finally, some

experimental results of character extraction are

shown in Figure 7.

The performance of caption detection is usually

measured by the following two metrics:

Recall 





Precision 





where D is the number of captions detected

correctly, MD is the number of missed detection and

FD is the number of false detection. For

performance comparison, we also implement the

connected components based algorithm (Gonzalez et

al., 2012), texture based algorithm (Pan et al., 2011)

and edge based algorithm (Huang et al., 2014). To

compare four approaches fairly, the parameters of

each algorithm are tuned to achieve the best

performance. As shown in Table 1, our approach is,

in overall, better than these conventional approaches

in term of recall and precision.

6 CONCLUSIONS

We have presented a novel algorithm to extract

captions from video. Our approach is based on the

analysis of spatio-temporal slices of video. Unlike

previous approaches which use the short duration of

temporal information, our approach fully exploits

the spatiotemporal information in video. Therefore,

the location and duration of captions can be

estimated accurately. Another advantage is that our

algorithm is multilingual, i.e., it does not depend on

the appearance and font of characters. Compared

with related works, our approach is simple yet

effective. Finally, our future work should also be

A Spatio-temporal Approach for Video Caption Extraction

directed towards the detection of special effect

captions which are moving texts or nonhorizontally

aligned texts.

REFERENCES

Chen, D., Odobez, J., and Bourlard, H. (2003).Text

detection and recognition in images and video

frames.Pattern Recognition, 37:595–607.

Gonzalez, A., Bergasa, L., Yebes, J., and Bronte, S.

(2012). Text location in complex images. In

Proceedings of International Conference on Pattern

Recognition, pages 617–620.

Gui, T., Sun, J., Naoi, S., and Katsuyama, Y. (2012). A

fast caption detection method for low quality video

images. In Proceedings of IAPR International

Workshop on Document Analysis Systems, pages 302–

306.

Hua, X., Chen, X., Liu, W., and Zhang, H.

(2001).Automatic location of text in video frame. In

Proceedings of ACM SIGMM International Workshop

on Multimedia Information Retrieval, pages 24–27.

Huang, H., Shi, P., and Yang, L. (2014).A method of

caption location and segmentation in news video. In

Proceedings of International Congress on Image and

Signal Processing, pages 365–369.

Kim, K., Jung, K., Park, S., and Kim, H. (2001). Support

vector machine-based text detection in digital video.

Pattern Recognition, 34(2):527–529.

Li, H., Doermann, D., and Kia, O. (2000). Automatic text

detection and tracking in digital video. IEEE

Transactions on Image Processing, 9(1):147–156.

Lienhart, R. and Wernicke, A. (2002). Localizing and

segmenting text in images and videos. IEEE

Transactions on Circuits and Systems for Video

Technology, 12(4):256–257.

Liu, X., Wang, W., and Zhu, T. (2010). Extracting

captions in complex background from video. In

Proceedings of International Conference on Pattern

Recognition , pages 3232–3235.

Lyu, M., Song, J., and Gai, M. (2005).A comprehensive

method for multilingual video text detection,

localization, and extraction.IEEE Transactions on

Circuits and Systems for Video Technology,

15(2):243–255.

Mariano, V. and Kasturi, R. (2000).Locating uniform

colored text in video frames. In Proceedings of

International Conference on Pattern Recognition,

pages 539–542.

Ngo, C., Pong, T., and Chin, R. (2001). Video partitioning

by temporal slice coherency.IEEE Transactions on

Circuits and Systems for Video Technology,

11(8):941–953.

Pan, Y., Hou, X., and Liu, C. (2011).A hybrid approach to

detect and localize texts in natural scene images. IEEE

Transactions on Image Processing, 20(3):800–813.

Qian, X., Liu, G., Wang, H., and Su, R. (2007). Text

detection, localization, and tracking in compressed

video. Signal Processing: Image Communication,

22:752– 768.

Shiva kumara, P., Huang, W., and Tan, C. (2008).

Efficient video text detection using edge features. In

Proceedings of International Conference on Pattern

Recognition.

Tang, X., Gao, X., Liu, J., and Zhang, H. (2002). A spatial

temporal approach for video caption detection and

recognition.IEEE Transactions on Neural Network,

13(4):961–971.

Tasi, T., Chen, Y., and Fang, C. (2006).A comprehensive

motion video text detection localization and extraction

method. In Proceedings of International Conference

on Communications, Circuits and Systems, pages 515–

519.

Wang, R., Jin, W., and Wu, L. (2004). A novel video

caption detection approach using multi-frame

integration. In Proceedings of International

Conference on Pattern Recognition, pages 449–452.

Wang, Y. and Chen, J. (2006). Detecting video text using

spatio-temporal wavelet transform. In Proceedings of

International Conference on Pattern Recognition,

pages 754–757.

Ye, Q., Gao, Q. H. W., and Zhao, D. (2005). Fast and

robust text detection in images and video frames.

Image and Vision Computing, 23:565–576.

Zhong, Y., Zhang, H., and Jain, A. (2000).Automatic

caption localization in compressed video.IEEE

Transactions on Pattern Analysis and Machine

Intelligence, 22(4):385–392.

APPENDIX

Table 1: Performance comparison for caption detection.

Test The Proposed Component Based

Video

Approach Approach

Recall Precision Recall Precision

(1) 93.07% 89.56% 86.35% 81.43%

(2) 94.92% 91.30% 88.53% 84.10%

(3) 88.24% 78.94% 83.89% 70.67%

(4) 90.44% 87.88% 83.07% 77.69%

(5) 91.38% 85.74% 87.42% 80.57%

Test

Texture Based

Approach

Edge Based

Approach

Video

Recall Precision Recall Precision

(1) 88.42% 84.71% 91.43% 86.36%

(2) 90.77% 88.42% 92.23% 87.10%

(3) 85.36% 75.31% 82.35% 77.06%

(4) 86.21% 81.35% 88.07% 83.64%

(5) 83.46% 77.74% 89.57% 83.33%

SIGMAP 2016 - International Conference on Signal Processing and Multimedia Applications

Figure 1: The horizonal and vertical slices containing captions.

Figure 2: The filtered edge map. Figure 3: The clustering result.

Figure 4: The process of partitioning caption that contains multiple text lines.

A Spatio-temporal Approach for Video Caption Extraction

Figure 5: Caption localization for different languages.

Figure 6: Caption localization for multiple text lines.

Figure 7: Some experimental results of character extraction.

SIGMAP 2016 - International Conference on Signal Processing and Multimedia Applications
