Easing Scientiﬁc Computing and Federated Management in the Cloud

with OCCI

Zden

Sustr

, Diego Scardaci

2,3

, Ji

ı Sitera

, Boris Par

and V

ıctor M

endez Mu

noz

Department of Distributed Computing, CESNET, Zikova 4, 160 00, Praha 6, Czech Republic

European Grid Initiative, Science Park 140, 1098 XG Amsterdam, Netherlands

INFN Sezione di Catania, Via S. Soﬁa 64, I-95123 Catania, Italy

Computer Architecture & Operating Systems Department (CAOS), Universitat Aut

onoma de Barcelona (UAB),

Bellaterra, Spain

Keywords:

Federated Cloud, Cloud Standards, Cloud Interoperability, Cloud Solution Design Patterns, Cloud Application

Architectures, Cloud Middleware Frameworks, Open Cloud Computing Interface.

Abstract:

One of the beneﬁts of OCCI stems from simplifying the life of developers aiming to integrate multiple cloud

managers. It provides them with a single protocol to abstract the differences between cloud service implemen-

tations used on sites run by different providers. This comes particularly handy in federated clouds, such as

the EGI Federated Cloud Platform, which bring together providers who run different cloud management plat-

forms on their sites: most notably OpenNebula, OpenStack, or Synnefo. Thanks to the wealth of approaches

and tools now available to developers of virtual resource management solutions, different paths may be cho-

sen, ranging from a small-scale use of an existing command line client or single-user graphical interface, to

libraries ready for integration with large workload management frameworks and job submission portals relied

on by large science communities across Europe. From lone wolves in the long-tail of science to virtual or-

ganizations counting thousands of users, OCCI simpliﬁes their life through standardization, uniﬁcation, and

simpliﬁcation. Hence cloud applications based on OCCI can focus on user speciﬁcations, saving cost and

reaching a robust development life-cycle. To demonstrate this, the paper shows several EGI Federated Cloud

experiences, demonstrating the possible approaches and design principles.

1 INTRODUCTION

OCCI, the Open Cloud Computing Interface (Nyr

et al., 2011; Nyr

en et al., 2011; Metsch and Ed-

monds, 2011b; Metsch and Edmonds, 2011a), is a

standard developed by the Open Grid Forum to stan-

dardize virtual resource management in a cloud site

(OGF, 2016). It was released in 2011 and several im-

plementations and real-world deployments followed.

Among others, OCCI also became the standard of

choice for the management of virtualized resources

in EGI’s Federated Cloud Platform (Wallom et al.,

2015).

The EGI Federated Cloud Platform has been con-

ceived as an alternative way to access EGI’s consid-

erable computing resources, which are primarily ac-

cessed through grid middleware. Cloud-ﬂavoured ser-

vices are meant to:

• Attract user communities relying on tools that are

not easily ported to grid but can scale well in the

cloud – for instance tools only available for oper-

ating systems not compatible with available grid

infrastructures, tools distributed by vendors in the

form of virtual machine images, etc.

• Lower the acceptance threshold for users trained

in using their existing environment without hav-

ing to change it or re-qualify for a different one.

On reﬂection, this suits the need of users in the “long

tail of science” who typically lack the resources to

have their solutions tailored or adjusted to the grid

and cannot invest in re-training for different tools or

environments. Even relatively small-scale resources,

available in the EGI Federated Cloud Platform at the

time of writing, can ﬁt the needs of these “long-tail”

communities.

Firstly, this article will introduce relevant imple-

mentations of OCCI, both on the server and client side

(Section 2). Secondly, Section 3 will introduce a scale

of cloud usage patterns relying on OCCI for interop-

Šustr, Z., Scardaci, D., Sitera, J., Parák, B. and Muñoz, V.

Easing Scientiﬁc Computing and Federated Management in the Cloud with OCCI.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 2, pages 347-354

ISBN: 978-989-758-182-3

347

erability and abstraction, and also brieﬂy expand on

other mechanisms users must ensure beyond the ba-

sic OCCI functionality for their solutions to be truly

productive. Finally, Section 4 will brieﬂy outline new

developments, and Section 5 will sum up the topic of

experience with OCCI in the area of scientiﬁc com-

puting.

2 OCCI IMPLEMENTATIONS

OCCI was gradually gaining support throughout its

lifetime and there are currently multiple implementa-

tions available on the server side as well as the client

side. At the time of writing, the version of OCCI

supported by most implementations mentioned below

is 1.1. They will all follow their own, independent

schedules to adopt OCCI 1.2, which is due to come

into effect shortly.

2.1 Server-side OCCI Support

Server-side OCCI implementations originate mostly

from service providers who wish to make their re-

sources available in a standardized way. Where appli-

cable, the OCCI interfaces are being pushed upstream

to Cloud Management Framework developers.

In the EGI Federated Cloud Platform, multiple

sites make their cloud resources available to users.

Although different contributing sites employ differ-

ent Cloud Management Frameworks (CMFs), OCCI

(plus an X.509-based authentication mechanism) is

the unifying factor, allowing users to access any site

in a uniform way, indeed, without actually know-

ing what ﬂavor of CMF is installed on the end-

Servers

Custom client app.

rOCCI-core

rOCCI-api

rOCCI-core

rOCCI-api

rOCCI-cli

# Shell script

Clients

Application or

script using

command-line

executables

Native Ruby

application

Independent

OCCI-compliant

client

http

occi

http

occi

http

occi

rOCCI-server

OpenNebula

MS Azure

Custom client app.

rOCCI-core

rOCCI-api

Native Ruby

application

Custom client app.

rOCCI-core

rOCCI-api

Native Ruby

application

http

occi

Custom client app.

jOCCI-core

jOCCI-api

Native Java

application

Synnefo

Figure 1: Ecosystem of OCCI implementations envisioned

for products relevant to EGI Federated Cloud and its user

communities.

point (Fig. 1). There are several of such server-side

frameworks whose resources can be managed through

OCCI:

• OpenStack, which comes with an OCCI interface

(occi-os) as part of the stack and is soon due to

receive an all-new implementation in the form

of OOI – the OpenStack OCCI Interface (Garc

ıa

et al., 2016).

• Synnefo with its own OCCI implementation (GR-

NET, 2016).

• OpenNebula, which is accessed through an OCCI

translation service – the rOCCI-server (Par

et al., 2014).

Although there is currently no such site participat-

ing in the Federated Cloud Platform, it is also techni-

cally possible to use OCCI to manage resources in a

fourth type of cloud management framework:

• Amazon Web Services (AWS), which can be ac-

cessed with OCCI through the rOCCI-server as

well (CESNET, 2016).

Aside from the aforementioned, there are other

cloud services which support OCCI or its subsets

(Fogbow, 2016), or which are going to be made

OCCI-capable in the foreseeable future. For instance,

the development work is underway to implement an

OCCI translation layer for Microsoft Azure.

For the sake of completeness, it is also worth

mentioning that there are OCCI implementations cur-

rently being used in existing solutions, but apparently

no longer maintained. They are:

• pyssf – the Service Sharing Facility (PySSF,

2016), which strives to provide building blocks

for grid, cloud, cluster or HPC services.

• occi-os – the original OpenStack OCCI interface

(occi os, 2016), which is gradually being replaced

with OOI, already mentioned above.

While the latter is scheduled to phase out in fa-

vor of OOI, the former – it must be acknowledged –

has never been declared as discontinued, and devel-

opment activity may resume; especially with the in-

troduction of OCCI 1.2 speciﬁcation.

2.2 Client-side Tools and Libraries

Available

OCCI is a text-based protocol. Although there are un-

ofﬁcial extensions to support OCCI transport through

message queues (Limmer et al., 2014), the only of-

ﬁcially standardized transport method for OCCI is

HTTP. Therefore it is technically possible to interact

with an OCCI-capable server through a generic HTTP

OCCI 2016 - Special Session on Experiences with OCCI

348

client, and implement at least a subset of OCCI func-

tionality with a few pre-formatted OCCI messages.

This approach is often used in interoperability test-

ing, where a ﬁxed set of actions is tested over and

over, but is highly unsuitable for real world applica-

tions wherein a general-purpose client is required.

At present, there are at least two independent

client-side stacks available: the rOCCI framework

and the jOCCI library (Kimle et al., 2015).

The rOCCI framework offers a set of Ruby li-

braries (rOCCI-core and rOCCI-api), wherein the

former implements the OCCI class structure, pars-

ing and rendering, while the latter implements HTTP

transport. Calls to these libraries may be used by na-

tive Ruby clients to interact with any OCCI-enabled

cloud site.

The rOCCI framework also comes with a general-

purpose command line client – the rOCCI-cli – which

can be used by end users to complete simple tasks, or

to wrap around with scripts. Some user communities

also choose to wrap around the command line inter-

face if the programming language of choice cannot

use Ruby or Java libraries directly.

Finally the jOCCI is an independent OCCI imple-

mentation in Java. Like rOCCI, it exposes the OCCI

class structure, parsing and rendering functions, plus

HTTP transport. It is intended primarily for use by

orchestration or submission frameworks implemented

in Java.

3 CLOUD USAGE PATTERNS

WITH OCCI

The ability to manage cloud resources in a stan-

dardized way is useful in many different scenarios.

Although the beneﬁts are greatest with automation,

OCCI can also be used by end users if necessary.

From the users’ perspective, the main advan-

tage of using OCCI is that a single client-side solu-

tion works with multiple server-side implementations.

That provides for better scaling across heterogeneous

resources and helps protect users’ investment into de-

veloping their client-side tools as it allows for seam-

less transition between providers. There are other

possible approaches, but the discussion of their rel-

ative merits is out of the scope of this article. A

comparison is made for instance in (Par

ak and

Sustr,

2014). The OCCI based approach was chosen as a

key part of the EGI Cloud Federation Platform archi-

tecture by the EGI Federated Cloud Task as described

in the EGI Federated Cloud Blueprint (EGI, 2014).

The following sections discuss distinct OCCI us-

age patterns as seen mainly in communities gathered

around the EGI Federated Cloud.

3.1 Science Gateways and Workload

Management Frameworks

The great potential offered by OCCI is evident when

high-level tools are built on or connected to its inter-

face. End users of PaaS and SaaS services that ex-

ploit cloud resources through OCCI can beneﬁt from

a large amount of resources belonging to heteroge-

neous cloud sites adopting different cloud manage-

ment frameworks.

In the context of the EGI Federated Cloud (Wal-

lom et al., 2015; del Castillo et al., 2015), this oppor-

tunity has been exploited by many technical providers

who have extended their platforms to support the

OCCI standard providing an alternative and auto-

mated way to access the Federated Cloud, hiding the

IaaS layer from their users.

This has greatly increased the added value that

the EGI Federated Cloud offers to its users, who can

choose to access its resources at IaaS level or via one

of the various OCCI-compliant tools now available.

Notable high-level tools currently available in the

EGI ecosystem supporting OCCI are:

• for PaaS: Vac/VCycle (VCycle, 2016), Slipstream

(Slipstream, 2016) and Infrastructure Manager

(IM) (IM, 2016)

• for SaaS development frameworks: VMDirac

(VMDirac, 2016) (also discussed in greater de-

tail in 3.1.1), COMPSs (Lezzi et al., 2014), the

Catania Science Gateway Framework (Ardizzone

et al., 2012) and WS-PGRADE (WS-PGRADE,

2016).

The Vac/VCycle cloud infrastructure broker has

been developed by the University of Manchester and

has been adopted by CERN, who have developed an

OCCI connector for their WLCG experiments. Slip-

stream (SixSq) is the central broker of the Helix-

Nebula infrastructure (Helix-Nebula, 2016). IM (by

Universitat Polit

ecnica de Val

encia) is a tool that de-

ploys complex and customized virtual infrastructures

on IaaS Cloud deployments, automating the VMI se-

lection, deployment, conﬁguration, software installa-

tion, monitoring and update of Virtual Appliances.

IM will be used to implement the broker features in

the EGI Cloud Marketplace (EGI-CM, 2016) hosted

by the AppDB (AppDB, 2016).

VMDirac, the Catania Science Gateway Frame-

work by INFN, and WS-PGRADE by SZTAKI are

well-known tools to develop Science Gateways in the

grid environment. These have been extended to ex-

ploit cloud resources, too. COMPSs by BSC is a pro-

gramming framework, composed of a programming

Easing Scientiﬁc Computing and Federated Management in the Cloud with OCCI

349

model and an execution runtime which supports it,

whose main objective is to ease the development of

applications for distributed environments keeping the

programmers unaware of the execution environment

and parallelization details.

Furthermore, the EGI Federated Cloud and its ac-

cess model based on OCCI has been envisioned as

the ideal infrastructure to host several community

platforms exposing services tailored for speciﬁc user

groups. Integration of several platforms into the in-

frastructure is currently underway; the most relevant

are listed below:

• The Geohazard and Hydrology Thematic Ex-

ploitation Platforms (TEPs) (ECEO, 2016) devel-

oped by the European Space Agency (ESA) (ESA,

2016);

• the D4Science infrastructure (D4Science, 2016)

that hosts more than 25 Virtual Research Environ-

ments to serve the biological, ecological, environ-

mental, and statistical communities world-wide;

• a uniform platform for international astronomy

research collaboration developed in collaboration

with the Canadian Advanced Network for Astro-

nomical Research (CANFAR) (CANFAR, 2016);

• selected EPOS thematic core services (TCS)

(EPOS, 2016);

3.1.1 dirac.egi.eu Case Study

Dirac is introduced in greater depth as an example of

a typical OCCI-enabled scientiﬁc gateway.

DIRAC platform eases scientiﬁc computing by

overlaying distributed computing resources in a trans-

parent manner to the end-user. DIRAC integrates the

principles of grid and cloud computing (Foster et al.,

2009) and its ecology for virtual organizations (VOs)

(Foster and Kesselman, 1999). Depending on context,

this category is commonly referred to as either Virtual

Research Environments (VREs) (Carusi and Reimer,

2010) or Scientiﬁc Gateways (SGs) (Wilkins-Diehr,

2007), among other terms. The dirac.egi.eu service is

a deployment of a DIRAC instance with a particular

setup for multiple communities in EGI, accessing the

resources on a per-VO basis, providing storage and

computing allocation, dealing with grid and cloud in

an interoperable manner from a single access point.

The interfaces to connect to dirac.egi.eu are (1)

a Web Portal serving as a generic human interface,

(2) a DIRAC client oriented to simplify bulk opera-

tions with the command line, and (3) a python API

and a REST interface to be used by VREs/SGs in or-

der to delegate resource and service management in

the DIRAC platform, thus focusing on the high level

requirements in their communities (Mendez et al.,

2014).

Hereby, dirac.egi.eu engages two roles: the one-

off user and the VRE/SG support. The former ac-

tually uses DIRAC Web portal as a basic VRE for

job submission, retrieval and data management oper-

ations, such as searching in a catalog, data transfers

or downloading results. The latter is disaggregating

the concept of VRE/SG in two levels, the back-end

is the DIRAC platform for all the resource manage-

ment and service science. The front-end, the spe-

ciﬁc VRE/SG providing a Web environment for hous-

ing, indexing, and retrieving speciﬁcs of large data

sets, as well as, eventually, suppling leverage Web 2.0

technologies and social networking solutions to give

researchers a collaboration environment for resource

discovery. This disaggregated VRE model eases the

social component of collaborations built in a walnut

shell of well-known technologies, which are dealing

with the increasing complexity of the interoperability

between different resources. Therefore, in the years

to follow, generic VRE from scratch will be avoided,

relaying infrastructure management in standard prac-

tices and tools such as the DIRAC platform.

So far, dirac.egi.eu is connecting several third

party infrastructures and services in a coherent man-

ner, accepting logical job and data management re-

quest, which are processed with the corresponding

computing and storage resources to obtain results. In

this sense, a central part of DIRAC framework is a

Workload Management System (WMS), based on the

pull job scheduling model, also known as the pilot job

model (Casajus et al., 2010). The pull model only

submits a pre-allocation container, which performs

basic sanity checks of the execution environment, in-

tegrates heterogeneous resources and pulls the job

from a central queue. Thus, proactive measures (be-

fore job matching) can be applied in case of problems,

and several transfers and platform issues are avoided.

The second asset is provided from the DIRAC WMS

service side, and the late binding of jobs to resources

allows further optimization by global load balancing.

Experience using dirac.egi.eu as a back-end ser-

vice for the WeNMR VRE (Bencivenni et al., 2014) in

structural biology and life science, and the VINA vir-

tual drug screening SG (Jaghoori et al., 2015), shows

an efﬁciency improvement up to 99%, saving on the

usage of important resources and alleviating daily op-

erations in comparison with the previous push job

model.

In the particular case of cloud computing, DIRAC

treats the virtual resources as standard worker nodes

and assigns work to them, following the same pull

job scheduling model. For this purpose, WMS is us-

OCCI 2016 - Special Session on Experiences with OCCI

350

ing the DIRAC cloud extension named VMDIRAC

endez et al., 2013) to pre-allocate virtual machine

resources. This VMDIRAC scheduler has ﬁnally con-

verged in a common cloud driver technology for most

of the IaaS – a rOCCI client wrapped in DIRAC

Python code.

There are certain historical highlights worth men-

tioning. Initially, VMDIRAC was designed for AWS

boto python library, then the pre-standard OCCI 0.8

for OpenNebula. VMDIRAC 1.0 was adopting a ﬂex-

ible architecture for federated hybrid cloud, also inte-

grating OpenStack by means of libcloud. This hetero-

geneous cloud driver ecosystem was lacking in soft-

ware convergence. Then, OCCI 1.1 became available,

with rOCCI on the client side and also as an OCCI

interface for OpenNebula, followed by more OCCI

implementations for OpenStack and other cloud man-

agement frameworks. Since OCCI APIs are in Ruby

or Java, and DIRAC is in Python, the decision was

made was to adopt the rOCCI-cli client. Among its

other traits, rOCCI-cli is the most frequently used in-

terface, thus, the best updated.

From dirac.egi.eu experience the main assets in

the rOCCI adoption are:

• The releasing convergence and updated features;

once a new feature is out, then it is ready for all

the underlying IaaS technologies.

• The alignment with EGI Federated cloud comput-

ing model, for example, the straightforward im-

plementation of the credentials based on X.509,

avoiding dealing with HTML text request to dif-

ferent native OCCI servers with their particular

details, as always devil is in the details.

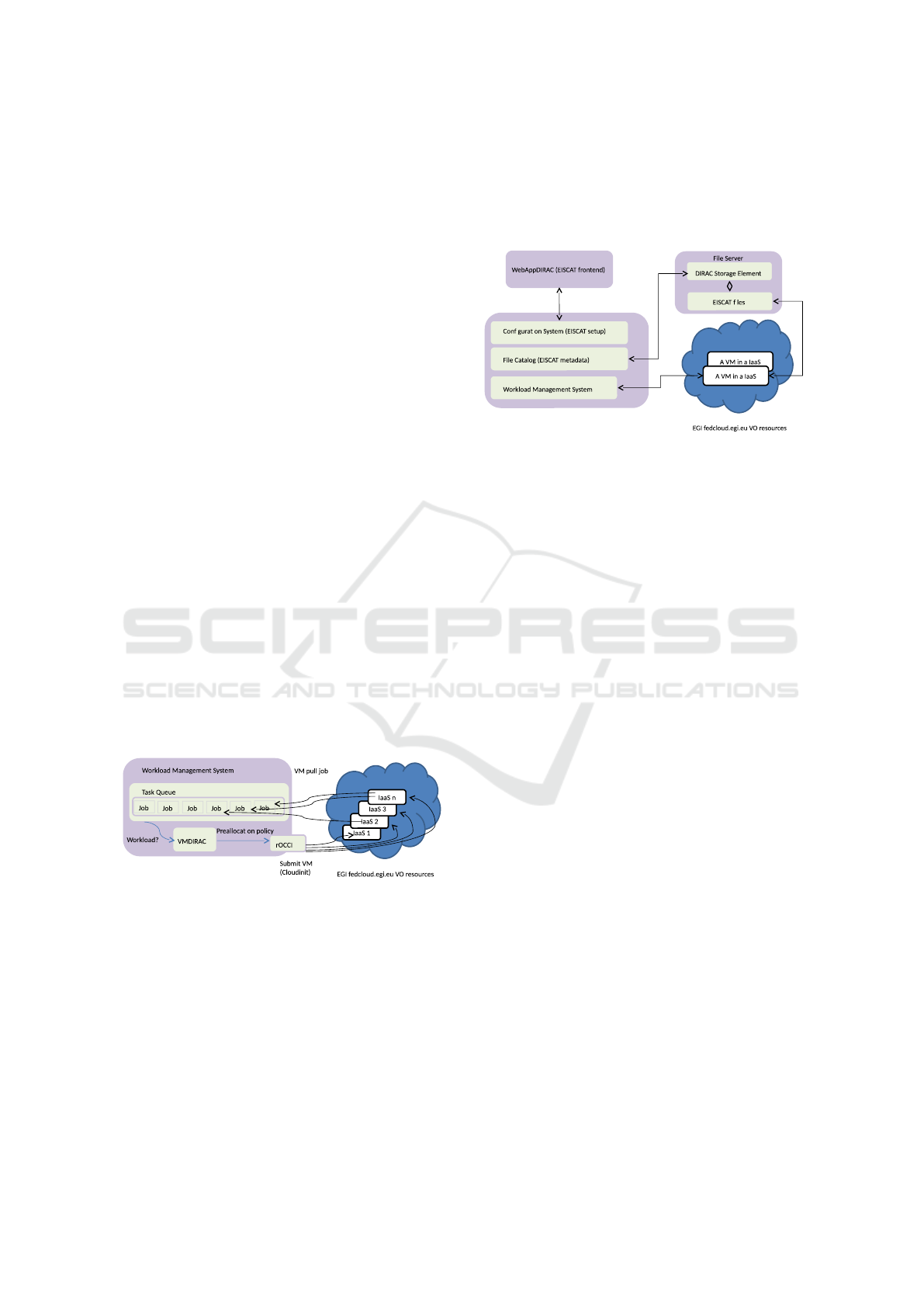

Figure 2: dirac.egi.eu stage with fedcloud.egi.eu.

Currently, dirac.egi.eu has two main stages sup-

ported by rOCCI client connecting EGI Federated

cloud resources. Figure 2 shows a ﬁrst stage with the

pull job scheduling model draw for the dirac.egi.eu

service and fedcloud.egi.eu VO resources. Any

user belonging to fedcloud.egi.eu is automatically in-

cluded in dirac.egi.eu by polling the VOMS server,

so that they can use the service through the Web por-

tal or through the other interfaces. VMDIRAC sub-

mits VMs to the IaaS endpoints of the EGI FedCloud,

with a credential of the VO proxy. VMs are contex-

tualized with cloud-init, which is supported by OCCI

implementations and at the same time it is required to

be supported by the cloud manager and the requested

image. It is a single method to dynamically contex-

tualize VMs for different IaaS endpoints and DIRAC

client install in VO basis.

Figure 3: EISCAT use case in dirac.egi.eu with fed-

cloud.egi.eu.

Figure 3 shows the EISCAT use case of the fed-

cloud.egi.eu stage of Figure 2. EISCAT is a work in

progress in dirac.egi.eu for the data processing of in-

coherent scatter radar systems to study the interac-

tion between the Sun and the Earth as revealed by

disturbances in the ionosphere and magnetosphere.

The overall architecture in Figure 3 is showing the

integration of storage and computing resources, with

the explained disaggregated VRE schema. In the top

left, the EISCAT user front-end is a web applica-

tion developed for the community data and metadata

management needs, using for this purpose the We-

bAppDIRAC framework, a tornado development kit

completely integrated in DIRAC engine, or alterna-

tively another VRE Portal accessing by APIs to the

dirac.egi.eu back-end service. An EISCAT File Cat-

alog contains all the metadata of the project. The

data are stored in an EISCAT ﬁlesystem, accessed

by a DIRAC Storage Element built on the top of

such ﬁlesystem, securing connection with VO creden-

tials. The data processing jobs are submitted from

the EISCAT front-end to dirac.egi.eu back-end to pre-

allocate VMs in EGI FedCloud, then matching jobs,

downloading input data from EISCAT ﬁle server, pro-

cessing the workload and uploading output ﬁles to the

EISCAT ﬁle server.

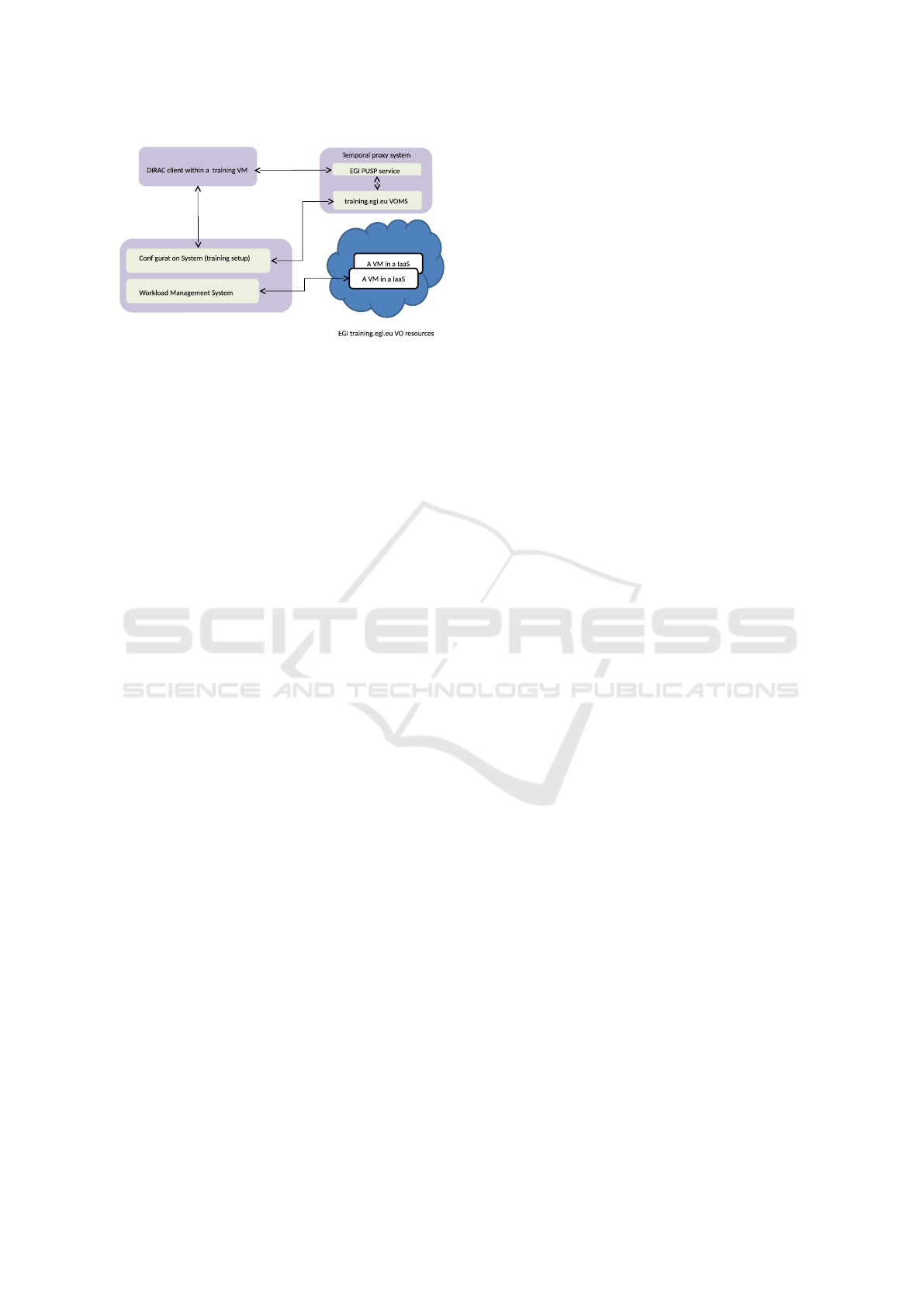

A second stage overall architecture is in Figure 4,

connecting dirac.egi.eu with cloud resources of the

training.egi.eu VO. This stage is used in EGI train-

ing sessions, starting with a pre-conﬁgured VM de-

ployment, including a DIRAC client and dynamically

requesting a temporal PUSP proxy to the EGI service

(Fernandez et al., 2015). DIRAC is matching the VM

user and the corresponding PUSP proxy with a pool

of generic DIRAC users. Then, following the same

pull job scheduling model preallocating VM train-

Easing Scientiﬁc Computing and Federated Management in the Cloud with OCCI

351

Figure 4: dirac.egi.eu stage with training.egi.eu.

ing.egi.eu resources to latter match the temporal user

jobs.

3.2 Processing in a Remote

Data-holding Domain

A standard-compliant management interface can be

exposed by a cloud site – regardless even of whether

it is part of a wider cloud federation or not – to allow

users to run prepared and pre-approved workload in

the provider’s domain. This may come particularly

useful in view of the needs of new communities.

An example of this is bioinformatics, where the

principal problem with speciﬁc and very strict data

policies, often subject to legal restrictions, can be

solved by moving the computation into the adminis-

trative domain holding the data. In other words: as

long as the data must not leave a certain domain, let

the computation follow that data into the domain and

run there.

Providing researchers with templates for virtual

compute resources to process those data gives, on one

hand, the providers a chance to precisely choose what

tools will be available and how the researcher will be

able to use them, while on the other hand it gives the

user more ﬂexibility and is easier to implement than

a full-featured interface that would have to assume all

possible methods of processing the data beforehand.

Offering an open standard-based interface to do

that is only logical, and becomes necessary if such site

wishes to be included in a heterogeneous federation.

3.3 Small-scale and One-off Use of the

Cloud

OCCI is primarily a machine-to-machine protocol

wherein the client side is expected to (and usually

does) expose a user-friendly front-end that hide the in-

ternals of OCCI-based communication behind a por-

tal. Additional scheduling and workload management

logic is also often hidden behind the scenes. Yet use

cases also exist with so little dynamism and so simple

requirements that users can easily set up their virtual

resources themselves, “by hand”.

This is most frequently done through the com-

mand line interface (rOCCI-cli), which makes it pos-

sible to set attributes for all common OCCI actions

as arguments in the command line, and send them to

a selected OCCI endpoint. Though somewhat crude,

this is sufﬁcient for use cases wherein a reasonably

low number of virtual machines – a few dozen at max-

imum – can be started and kept track of manually.

Such machines are then usually created at the same

time at the beginning of the experiment, not necessar-

ily at a single site within the federation, and disposed

of once the experiment ends.

This is a “poor-man’s” approach to cloud resource

provisioning and management, but it is fully sufﬁcient

for user groups or single users who require a ﬁxed

set of resources for batch processing over a limited

period of time – typical in the often cited “long tail

of science”. The advantage of using OCCI here is

the same as in use cases where OCCI is used by au-

tomated client-side tools – users do not need to care

about the ﬂavor of cloud management framework they

ﬁnd on the server side. The interaction is always the

same.

3.4 Beyond the Current Scope of OCCI

Although users can use OCCI to instantiate resources

on demand across large heterogeneous infrastruc-

tures, there are additional tasks they need to complete

before they can use their freshly spawned resources

efﬁciently, and which cannot be taken care of through

OCCI at the moment. The purpose of this section is

not a thorough overview, but rather a warning for po-

tential users to think about the missing pieces, and

also showing where future OCCI might be addressing

some of the areas that are currently out of its scope

First and foremost, one needs to realize that

procuring compute resources from an IaaS cloud

leaves the user with just that – a set of virtual ma-

chines. A tool to manage the workload is always

needed:

• One that runs outside the pool of cloud resources:

– either one that is aware of the nature of the re-

sources, having them possibly instantiated it-

self, (such as in use cases discussed in Sec-

tion 3.1) in which case all the components re-

quired are probably already in place for the user

and the infrastructure is complete.

– or such that treats the virtual resources as stan-

dard worker nodes and can assign work to

OCCI 2016 - Special Session on Experiences with OCCI

352

them. This can be a local resource manage-

ment system such as TORQUE, or even a sim-

ple script. It just needs to be made aware of

the resources, and then users can submit their

work. Here, OCCI could be of further use in

the future, when an intended OCCI Monitoring

extension is ﬁnished.

• One that runs inside the pool of cloud resources:

That borders, or even falls into the scope of PaaS

(Platform as a Service) cloud provisioning model.

As of the upcoming OCCI 1.2 speciﬁcation, an

OCCI PaaS extension will be available, applicable

exactly to these cases.

OCCI is going to gradually address these more

complex workﬂows, and provide extensions to cover

relevant areas for larger-scale computing. At the mo-

ment, service providers, integrators as well as users

must keep in mind that with OCCI, they are only man-

aging their resources while managing their workload

is up to them.

4 FUTURE WORK

There may be usage patterns as yet unexplored, but

there are also several patterns that are already known

and will be made possible with the OCCI 1.2 spec-

iﬁcation. Therefore much of the foreseeable future

work, both among cloud service developers and user

community specialists, is going to revolve around

OCCI 1.2 adoption.

One of the most visible new usage patterns will

be enabled by improved support for resource template

prototyping. That is, it will be possible to derive tem-

plates from existing virtual machines, and have them

instantiated multiple times not only on the local site,

but with sufﬁcient support also across the federation.

OCCI 1.2 will also introduce a JSON rendering

speciﬁcation, which will make it possible to describe

resource collections and other complicated concepts

with better precision, avoiding the possible ambiguity

of text/occi rendering used to-date.

Finally, OCCI 1.2 is ﬁrst OCCI release to intro-

duce a PaaS speciﬁcation. This will have to be care-

fully assessed, and candidates for adoption will have

to be selected from among the plethora of server-side

products ﬁrst. Then it will be possible for user com-

munities to experiment with the new model of cloud

service provisioning.

5 CONCLUSIONS

OCCI proves to be an invaluable binding compo-

nent in heterogeneous cloud federations. Although it

may require additional effort from service providers

to achieve and maintain standard compliance, it sim-

pliﬁes the life and work of user communities, espe-

cially the small-scale ones coming from the long tail

of science. Traditionally short on technical support

and development staff, or lacking it completely, an

interoperability standard such as OCCI helps them by

providing a single interface to interact with multiple

different cloud speciﬁcations, helping them protect

their investment into whatever workload management

solution they have developed, and avoid vendor lock-

in. With their client side being OCCI-capable, they

can simply move among provider sites, or scale across

multiple providers, without having to adjust their own

processes.

ACKNOWLEDGMENTS

This work is co-funded by the EGI-Engage project

(Horizon 2020) under Grant number 654142.

REFERENCES

AppDB (2016). [Online] https://appdb.egi.eu/. Accessed:

March, 2016

Ardizzone, V., Barbera, R., Calanducci, A., Fargetta, M.,

Ingr

a, E., Porro, I., La Rocca, G., Monforte, S., Ric-

ceri, R., Rotondo, R., Scardaci, D., and Schenone, A.

(2012). The decide science gateway. Journal of Grid

Computing, 10(4):689–707.

Bencivenni, M., Michelotto, D., Alﬁeri, R., Brunetti, R.,

Ceccanti, A., Cesini, D., Costantini, A., Fattibene, E.,

Gaido, L., Misurelli, G., Ronchieri, E., Salomoni, D.,

Veronesi, P., Venturi, V., and Vistoli, M. C. (2014).

Accessing grid and cloud services through a scientiﬁc

web portal. Journal of Grid Computing,13(2):159–

175

CANFAR (2016). [Online] http://www.canfar.phys.

uvic.ca/canfar/. Accessed: March, 2016

Carusi, A. and Reimer, T. (2010). Virtual research environ-

ment collaborative landscape study.

Casajus, A., Graciani, R., Paterson, S., Tsaregorodtsev,

A., and the Lhcb Dirac Team (2010). Dirac pi-

lot framework and the dirac workload management

system. Journal of Physics: Conference Series,

219(6):062049.

CESNET (2016). rOCCI ec2 backend documentation. [On-

line] https://wiki.egi.eu/ wiki/rOCCI:EC2 Backend.

Accessed: March, 2016

D4Science (2016). [Online] https://www.d4science.org/.

Accessed: March 10, 2016.

Easing Scientiﬁc Computing and Federated Management in the Cloud with OCCI

353

del Castillo, E. F., Scardaci, D., and

Alvaro Lop

ez Garc

ıa

(2015). The egi federated cloud e-infrastructure. Pro-

cedia Computer Sceince, (68):196–205.

ECEO (2016). [Online] http://www.ca3-uninova.org/

project eceo. Accessed: March, 2016

EGI (2014). Egi federated cloud blueprint. [Online] https://

documents.egi.eu/document/2091. Accessed: March,

2016

EGI-CM (2016). [Online] https://appdb.egi.eu/browse/

cloud. Accessed: March, 2016.

EPOS (2016). [Online] http://www.epos-eu.org/. Accessed:

March, 2016.

ESA (2016). [Online] http://www.esa.int/ESA. Accessed:

March, 2016.

Fernandez, E., Scardaci, D., Sipos, G., Chen, Y., and Wal-

lom, D. C. (2015). The user support programme and

the training infrastructure of the egi federated cloud.

In the 2015 International Conference on High Perfor-

mance Computing & Simulation (HPCS 2015). IEEE.

Fogbow (2016). [Online] http://www.fogbowcloud.org/.

Accessed: March, 2016.

Foster, I. and Kesselman, C., editors (1999). The Grid:

Blueprint for a New Computing Infrastructure. Mor-

gan Kaufmann Publishers Inc., San Francisco, CA,

USA.

Foster, I. T., Zhao, Y., Raicu, I., and Lu, S. (2009). Cloud

computing and grid computing 360-degree compared.

CoRR, abs/0901.0131.

Garc

ıa, A. L., del Castillo, E. F., and Fern

andez, P. O.

(2016). ooi: Openstack occi interface. In Soft-

wareX(2016). ScienceDirect.

GRNET (2016). Synnefo OCCI documentation. [Online]

https://www.synnefo.org/docs/snf-occi/latest/. Ac-

cessed: March, 2016.

Helix-Nebula (2016). [Online] http://www.helix-

nebula.eu/. Accessed: Helix-Nebula

IM (2016). [Online] http://www.grycap.upv.es/

im/index.php. Accessed: March, 2016.

Jaghoori, M. M., Altena, A. J. V., Bleijlevens, B.,

Ramezani, S., Font, J. L., and Olabarriaga, S. D.

(2015). A multi-infrastructure gateway for virtual

drug screening. Concurrency and Computation:

Practice and Experience, 27(16):4478–4490.

Kimle, M., Par

ak, B., and

Sustr, Z. (2015). jOCCI

– general-purpose OCCI client library in java. In

ISGC15, The International Symposium on Grids and

Clouds 2015. PoS.

Lezzi, D., Lordan, F., Rafanell, R., and Badia, R. M. (2014).

Euro-Par 2013: Parallel Processing Workshops: Big-

DataCloud, DIHC, FedICI, HeteroPar, HiBB, LS-

DVE, MHPC, OMHI, PADABS, PROPER, Resilience,

ROME, and UCHPC 2013, Aachen, Germany, August

26-27, 2013. Revised Selected Papers, chapter Execu-

tion of Scientiﬁc Workﬂows on Federated Multi-cloud

Infrastructures, pages 136–145. Springer Berlin Hei-

delberg, Berlin, Heidelberg.

Limmer, S., Srba, M., and Fey, D. (2014). Euro-Par 2014:

Parallel Processing Workshops: Euro-Par 2014 Inter-

national Workshops, Porto, Portugal, August 25-26,

2014, Revised Selected Papers, Part II, chapter Per-

formance Investigation and Tuning in the Interopera-

ble Cloud4E Platform, pages 85–96. Springer Inter-

national Publishing, Cham.

endez, V., Casaju’s, A., Graciani, R., and Fern

andez, V.

(2013). How to run scientiﬁc applications with dirac

in federated hybrid clouds. ADVCOMP.

Mendez, V., Casajus Ramo, A., Graciani Diaz, R., and

Tsaregorodstsev, A. (2014). Powering Distributed Ap-

plications with DIRAC Engine. In Proceedings of

the symposium ”International Symposium on Grids

and Clouds (ISGC) 2014”(ISGC2014). 23-28 March,

2014. Academia Sinica, Taipei, Taiwan, page 42.

Metsch, T. and Edmonds, A. (2011a). Open cloud

computing interface – http rendering. [Online]

http://ogf.org/documents/GFD.185.pdf. Accessed:

March 10, 2016.

Metsch, T. and Edmonds, A. (2011b). Open cloud

computing interface – infrastructure. [Online]

http://ogf.org/documents/GFD.184.pdf. Accessed:

March 10, 2016.

Nyr

en, R., Edmonds, A., Papaspyrou, A., and Metsch, T.

(2011). OCCI speciﬁcation. [Online] http://occi-

wg.org/about/speciﬁcation. Accessed: March, 2016.

Nyr

en, R., Edmonds, A., Papaspyrou, A., and Metsch,

T. (2011). Open cloud computing interface – core.

[Online] http://ogf.org/documents/GFD.183.pdf. Ac-

cessed: March, 2016.

occi os (2016). [Online] https://wiki.openstack.org/

wiki/Occi. Accessed: March, 2016.

OGF (2016). Open grid forum. [Online] http://www.

ogf.org. Accessed: March, 2016.

Par

ak, B.,

Sustr, Z., Feldhaus, F., Kasprzak, P., and Srba, M.

(2014). The rOCCI project – providing cloud interop-

erability with OCCI 1.1. In ISGC14, The International

Symposium on Grids and Clouds 2014. PoS.

Par

ak, B. and

Sustr, Z. (2014). Challenges in achieving

iaas cloud interoperability across multiple cloud man-

agement frameworks. In Utility and Cloud Comput-

ing (UCC), 2014 IEEE/ACM 7th International Con-

ference on, pages 404–411.

PySSF (2016). [Online] http://pyssf.sourceforge.net/. Ac-

cessed: March, 2016.

Slipstream (2016). [Online] http://sixsq.com/products/ slip-

stream/. Accessed: March, 2016.

VCycle (2016). [Online] https://www.gridpp.ac.uk/vcycle/.

Accessed: March, 2016.

VMDirac (2016). [Online] https://github.com/ DIRAC-

Grid/VMDIRAC/wiki. Accessed: March, 2016.

Wallom, D., Turilli, M., Drescher, M., Scardaci, D., and

Newhouse, S. (2015). Federating infrastructure as a

service cloud computing systems to create a uniform

e-infrastructure for research. In IEEE 11th Interna-

tional Conference on e-Science, 2015. IEEE.

Wilkins-Diehr, N. (2007). Special issue: Science gateways

- common community interfaces to grid resources.

Concurrency and Computation: Practice and Expe-

rience, 19(6):743–749.

WS-PGRADE (2016). [Online] https://guse-cloud-

gateway.sztaki.hu/. Accessed: March, 2016.

OCCI 2016 - Special Session on Experiences with OCCI

354
