Data Collection Framework

A Flexible and Efficient Tool for Heterogeneous Data Acquisition

Luigi Sgaglione

, Gaetano Papale

, Giovanni Mazzeo

, Gianfranco Cerullo

Pasquale Starace

and Ferninando Campanile

Department of Engineering, University of Naples “Parthenope”, Naples, Italy

Sync Lab S.r.l., Naples, Italy

Keywords: Big Data, Data Collection.

Abstract: The data collection for eventual analysis is an old concept that today receives a revisited interest due to the

emerging of new research trend such Big Data. Furthermore, considering that a current market trend is to

provide integrated solution to achieve multiple purposes (such as ISOC, SIEM, CEP, etc.), the data became

very heterogeneous. In this paper a flexible and efficient solution about the data collection of heterogeneous

data is presented, describing the approach used to collect heterogeneous data and the additional features (pre-

processing) provided with it.

1 INTRODUCTION

Current market shows a trend of the vendors to offer

integrated solution to their customers in the domain

of the Big Data. This is the case, for example, of the

Information Security Operations Center (ISOC)

where enterprise information systems (applications,

databases, web sites, networks, desktops, data

centers, servers, and other endpoints) are monitored,

assessed, and protected using advanced processing

techniques (Complex Event Processing CEP).

Another example is the new generation of Security

Information and Event Management (SIEM) systems

that combine Security Information Management

(SIM) and Security Event Management (SEM)

technologies (Coppolino et al., 2015). These

examples are characterized by the high heterogeneity

of the data produced by the sensors used to monitor

the infrastructure to be protected.

The Data Collection Framework that is presented

in this paper aims at mastering the data heterogeneity

by providing a flexible and efficient tool for gathering

and normalising security relevant information.

Furthermore, we believe that, in many cases the

possibility to perform a coarse-grain analysis of the

data at the edge of the domain to be monitored can

provide relevant advantages, such as an early

detection of particular conditions, a reduction of the

data stream volume that feeds the data and event

processing platform, and the anonymization of the

data with respect to privacy requirements.

This tool has been developed in the context of the

LeanBigData (LBD) EU project. LeanBigData

targets at building an ultra-scalable and ultra-efficient

integrated big data platform addressing important

open issues in big data analytics.

This paper is organized as follows. Section 2

describes the developed Data Collection Framework,

Section 2.1 provides global implementation details,

Section 2.2 describes the DCF Input Adapters,

Section 2.3 describes the DCF Output Adapters,

Section 2.4 describes the Processing At The Edge

Component, Section 2.5 describes the DCF

deployment schemas, and Section 3 provides some

concluding remarks.

2 DATA COLLECTION

FRAMEWORK

The main features of the Data Collection Framework

(DCF) are 1) effective (i.e. high throughput)

collection of data via a declarative approach and 2)

efficient inclusion of new data sources. The Data

Collection Framework enables the user to configure

data sensors via a declarative approach, and to

374

Sgaglione, L., Papale, G., Mazzeo, G., Cerullo, G., Starace, P. and Campanile, F.

Data Collection Framework - A Flexible and Efﬁcient Tool for Heterogeneous Data Acquisition.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 1, pages 374-379

ISBN: 978-989-758-182-3

transform data that can be described via EBNF

(Extended Backus-Naur Form) notation into

structured data, by leveraging a “compiler-compiler”

approach (Compiler-compiler, 2015).

The data collection framework allows users:

 to specify via a grammar the structure of the

data to be collected,

 to provide a bidirectional data collection layer,

with the capability to perform simple

operations on data, such as aggregation,

filtering, and pattern recognition, at the edge of

the domain,

 to provide sensors for a broad set of common

data sources, such as: operating system and

server logs, network and security device logs,

CPU information, VM information, IPMI, and

application level information.

The Data Collection Framework is able to

translate the format of virtually any data source into a

general format in a declarative manner, by providing

the translation scheme.

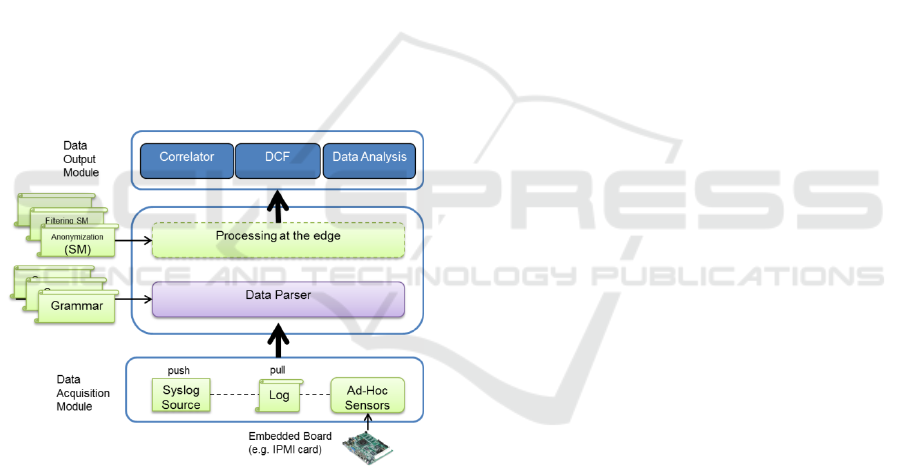

Figure 1 shows the global architecture of the Data

Collection Framework.

Figure 1: DCF architecture.

It is composed of three main building blocks, namely:

1. Data Acquisition module;

2. Data Parsing/Processing at the edge module;

3. Data Output module.

The Data Acquisition module is the part

responsible for acquiring data from the sources, and

of forwarding them to the Data Parsing/ Processing at

the edge module. The Data Acquisition module

provides many Agents in order to gather data from

different types of sources and uses two possible

collection modes:

1. Push - with this mechanism, the sources are

responsible for forwarding data to the

acquisition agent. The Syslog protocol (Syslog,

2015) is used to allow a simple integration of

systems that already use this protocol to log

their data.

2. Pull - with this mechanism, the agent reads data

directly from the source (log file).

The Data Parsing/Processing at the edge module

is in charge of transforming raw data to structured

data by leveraging a “compiler-compiler” approach.

Furthermore, each generated parser also converts raw

data to a format compatible with the one used by the

LeanBigData CEP and possibly pre-processes them

using a State Machine Approach (SMC, 2015)

depending on the requirements of the application

domain. The result of this module is passed to the

Data Output module.

The Data Output module is in charge of

forwarding parsed data to one or more components

responsible for attack detection.

2.1 DCF Implementation

The Data Collection Framework has been

implemented in Java for the following reasons:

 The APIs of the LeanBigData CEP are

provided for this language;

 The “write once, run anywhere (WORA)”

advantages of Java code allow to run an

application on different architectures without

rebuild it;

 Only the presence of a Java Virtual Machine

(JVM) is required.

The DCF is provided as a single runnable jar file that

can be executed by a user:

 to acquire raw data;

 to parse data;

 to format data;

 to pre-process data;

 to provide input to a correlator.

All these functionalities are fully integrated in a

single component to allow the execution on a single

machine (the host to monitor).

2.2 DCF Input Adapters

The DCF comes with a series of input adapters

already available to cover a high range of sources:

 Grammar Based

 Syslog source

 Log source

Data Collection Framework - A Flexible and Efﬁcient Tool for Heterogeneous Data Acquisition

375

 Ganglia source

 DB source

New input adapters can be added in a simple way

to allow future extensions. It is worth noting that at

runtime only a single type of input adapter can be

configured for each DCF instance (if more input

adapters are configured only one will be executed).

2.2.1 Grammar based Input Adapters

This class of adapters covers a high range of possible

sources. These adapters will be responsible for

transforming raw data (that can be described using an

EBNF notation) to structured data, leveraging a

“compiler-compiler” approach, that consists in the

generation of a data parser.

Since 1960, the tools that offer automatic

generation of parsers are increased in number and

sophistications. Today about one hundred different

parser generator tools, including commercial

products and open source software, are available. We

analysed such tools and compared them taking into

account the following requirements:

 Formal description of the target language in

EBNF or EBNF-like notation;

 Generated parser in Java programming

language;

 Optimized and high performance parsing;

 Low or no-runtime dependencies;

 BSD license;

 High quality error reporting;

 High availability of online/literature

documentation.

The result of the comparison is that JavaCC

(JAVACC, 2015) and ANTLR (ANTLR, 2015) are

both valuable solutions for generating a parser. We

selected them for the DCF implementation for the

following motivations:

 Input Grammar notation

Both JavaCC and ANTLR accept a formal

description of the language in EBNF notation. The

EBNF notation is the ISO standard, well-known by

developers and allows high flexibility.

 Type of parsers generated

JavaCC produces top-down parsers. ANTLR

generates top-down parsers as well. A top-down

parser is strongly customizable, simple to read and

understand. These advantages allow high

productivity and improve the debugging process.

 Output language

ANTLR, and in particular version 4, is able to

generate parsers in Java, C# , Python2 and 3. JavaCC

is strongly targeted to Java, but also supports C++ and

JavaScript. The main advantage of a parser in Java is

its high portability.

 Run-time dependencies

JavaCC generates a parser with no runtime

dependencies, while ANTLR needs external libraries.

 Performance

To test the performance of JavaCC and ANTLR

we have conducted many tests. One of the

performance indicator that has been evaluated is the

parsing time.

An example of the conducted tests (on the same

machine – Windows 7 - 64 bit - i7 - 6GB) is the

measurement of the time needed to parse the

following mathematical expression:

11+12*(24/8)+(1204*3)+12*(24/8)+(1204*3)

+12*(24/8)+(1204*3)+12*(24/8)+(1204*3)+1

1+12*(24/8)+(1204*3)+12*(24/8)+(1204*3)+

12*(24/8)+(1204*3)+12*(24/8)+(1204*3)+11

+12*(24/8)+(1204*3)+12*(24/8)+(1204*3)+1

2*(24/8)+(1204*3)+12*(24/8)+(1204*3)

(1)

The grammar files written for the two parser

generators are perfectly equivalent to have a common

starting point. JavaCC is faster than ANTLR, in fact

after repeated measures it is capable to parse the

expression in an average time less than 3ms, while

ANTLR(version 4) takes over 60ms.

 Generated code footprint

Starting from the same code used to evaluate the

performance, JavaCC and ANTLR require, for the

generated code, a comparable footprint (less than

20KB). ANTLR however, due to runtime

dependencies, requires adding into the project an

external library that takes about 1 MB.

 License

Both parser generators are under BSD license.

BSD provides high flexibility for the developers and

minimum restrictions for the redistribution of the

software.

From this analysis, even if the features of JavaCC

and ANTLR are comparable, the best performance in

parsing and generation of the output source code, the

smaller code footprint and the absence of runtime

dependencies, have led us to select JavaCC as the

parser generator to be used in the Data Collection

Framework.

The adoption of the JavaCC parser generator,

requires a declarative description of the data

structure.

The declarative description of the data structure is

provided via a grammar file (.jj) that describes the

tokens and the relative semantics of the data to parse

using an Extended-Backus-Naur Form (EBNF,

DataDiversityConvergence 2016 - Workshop on Towards Convergence of Big Data, SQL, NoSQL, NewSQL, Data streaming/CEP, OLTP

and OLAP

376

2015). The following classes have been used to

optimize the integration of the parser with the DCF:

 The TupleElement class, to represent a parsed

value in the paradigm (Name,Type,Value);

 The Tuple class, to represent a collection of

parsed events (TupleElement)

 The ConvertAndSend class, to format the data

in the DCF format and to forward them to the

data analysis module.

The push and the pull operation mode have been

implemented as shown in

Figure 2.

In the push mode, the DCF instantiates a SysLog

server to receive data using the SysLog protocol. In

this way a generic method is provided to receive data

from external sources and to integrate, with no

overhead, sources that already use the SysLog format

to log information.

In the pull mode data are retrieved from a log file.

This method is useful when the sources save

information in log files. The input adapters will be

responsible for gathering data from the log files. This

is implemented using a non-blocking (for the source)

piped mechanism. In particular, the log file is read as

a “RandomAccessFile” and, when it reaches the end

of file, the reader goes into sleep mode for a pre-

configured amount of time. On wakeup, it checks if

there have been any changes in the file. The raw data

is read and is pushed to an output pipe, which is

connected to an input pipe that is used as input by the

parsers during the parsing phase.

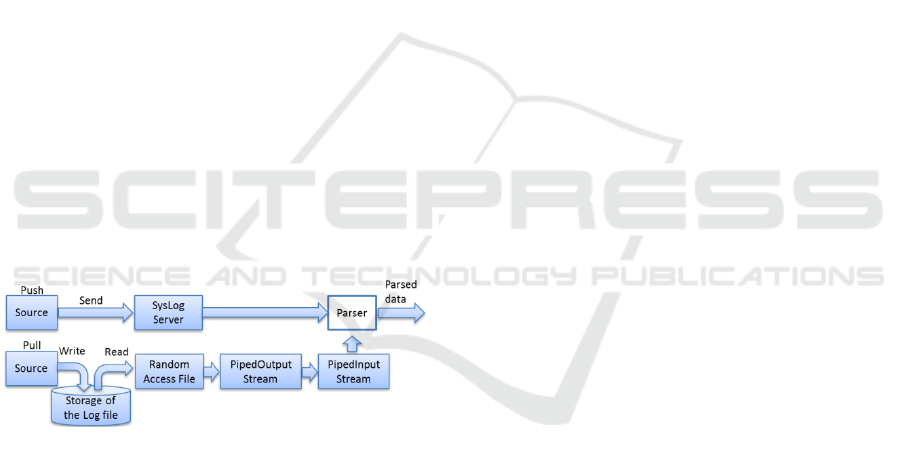

Figure 2: DCF push and pull mode.

2.2.2 Ganglia Source

This adapter has been implemented to retrieve data

from sources that already use the Ganglia monitoring

system (Ganglia, 2015). Ganglia is a scalable

distributed monitoring system for high-performance

computing systems, such as clusters and Grids.

Ganglia allows to monitor a lot of physical machine

parameters defined as metrics with very low per-node

overhead and high concurrency. The physical machine

metrics that are of interest to the application can be

measured by appropriately configuring Ganglia. This

input adapter uses a TCP server hosted by Ganglia to

retrieve all monitored data.

2.2.3 DB Source Input Adapter

This adapter has been implemented to retrieve data

from a specific table of a database. Typically, this

adapter requires a trigger enabled on the table to be

monitored in order to notify the adapter when a new

value is ready. This adapter requires the table be

ordered by means of an identifier of Integer type. This

is needed to retrieve only new rows of the table.

2.3 DCF Output Adapters

The DCF provides the following output adapters to

forward parsed data:

 Lean Big Data CEP Adapter

 Ganglia adapter

 TCP JSON adapter

New output adapter can be easily added to allow

future extensions. It is worth noting that at runtime

multiple types of output adapters can be configured

for each DCF instance.

2.3.1 LDB CEP Output Adapter

This adapter is used to forward data to the Lean Big

Data CEP using the LBD JCEPC driver. In particular,

data are forwarded to a specific stream of a topology

loaded into the LBD CEP.

2.3.2 Ganglia Output Adapter

This adapter is used to forward data to the Ganglia

monitoring system. It is useful to create specific

metrics using the DCF data. This adapter can be used

in a machine running Ganglia.

2.3.3 TCP JSON Output Adapter

This adapter provides a general output adapter. It

forwards data to a TCP server using the JSON format

(JSON, 2015). An example of the output format is

provided in the code below. This example is about the

output produced by a DCF configured with a Ganglia

input adapter and a TCP JSON output adapter. The

code shows that all metrics configured in Ganglia are

forwarded to the destination in a generic JSON

format.

{"Type":"Long",

"Attribute":"ganglia_timestamp",

"Value":"1449740799000"},

{"Type":"String",

"Attribute":"ganglia_IP",

"Value":"127.0.0.1"},

{"Type":"String",

"Attribute":"ganglia_location",

Data Collection Framework - A Flexible and Efﬁcient Tool for Heterogeneous Data Acquisition

377

"Value":"192.168.10.206"},

{"Type":"Double",

"Attribute":"cpu_user",

"Value":"6.4"},

{"Type":"Double",

"Attribute":"cpu_nice",

"Value":"0.0"},

{"Type":"Double",

"Attribute":"load_five",

"Value":"1.03"},

{"Type":"Double",

"Attribute":"cpu_system",

"Value":"5.6"},…

2.4 DCF Processing at the Edge

The “Processing At The Edge” (PATE) has been

implemented using the State Machine Compiler

technologies. This component is optional and can be

enabled via a configuration file.

The idea is that the user can perform simple

processing operation on the collected data before

forwarding them to the output adapter. This pre-

processing task allows for an early detection of

specific conditions end events, a reduction of the data

stream volume, and the anonymization of the data

with respect to privacy requirements.

Many technological solutions have been

evaluated, based on the following criteria:

 Simple processing operation definable by the

user

 Low dependences

 Low overhead

 Good performance

 JAVA support

Based on the results of the evaluation process we

adopted the Finite State Machine Approach. The user

specifies the operations to perform on the data using

a state machine description. Starting from the

declarative description of the state machine the DCF

generates and runs the corresponding finite state

machine using the State Machine Compiler (SMC,

2015). The template for writing a state machine is

provided in the following code excerpt.

%class Manager

%import com.parser.Tuple

%package com.stateMachine

%start StateMachineMap::State1

%fsmclass StateMachineName

%map StateMachineMap

State1 {

“transition(input:

Tuple)[condition] NextState

{ actions…}”

…

}

…

StateN {…}

In each state machine one or more states can be

defined and each state is characterized by one or more

transitions. Each transition has an input value of the

Tuple type (i.e. a collection of parsed values), an

activating condition (if the condition is true the

transition is activated), a next state to be reached

when the activating condition is satisfied, and a list of

actions to be performed during the transition

activation. The current implementation provides the

following list of possible actions that can be

performed while activating the transition:

 send(Tuple) to forward event to the DCF

Output Adapter;

 print(Object) for debug purpose;

 getIntField(Tuple, String) to retrieve an integer

field form the input Tuple;

 getStringField(Tuple, String);

 getDoubleField(Tuple, String);

 getTimestampField(Tuple, String);

 getLongField(Tuple, String);

 getFloatField(Tuple, String);

 addToAVG(int index, double value),

resetAVG(int index), getAVG(int index) a set

of functionalities to allow the computation of

average values. Many averages can be

managed, and each average is identified by a

numeric index;

 incCounter(int index, int x), decCounter(int

index, int x), getCounter(int index) a set of

functionalities to allow the counting operation.

Many counters can be managed, and each

counter is identified by a numeric index;

 anonymize(Tuple tuple, String... name) to

anonymize specific fields of the input tuple;

 addField(Tuple tuple, String name, types type,

Object value) to add a new field to the input

tuple;

 saveValue(String name, types type, Object

value ), sendSavedData(String id),

getIntSavedData(String name),

getDoubleSavedData(String name),

getLongSavedData(String name) to save and

retrieve data between states;

 sendValue(String id, String name, types type,

Object value) to forward specific value to the

DCF Output Adapter.

2.5 DCF Deployment Schemas

Thanks to the high modularity of the DCF

components three deployment schemas can be

DataDiversityConvergence 2016 - Workshop on Towards Convergence of Big Data, SQL, NoSQL, NewSQL, Data streaming/CEP, OLTP

and OLAP

378

adopted: Basic Schema, Thin Client Schema, and

Clustered Schema.

The Basic Schema represents the basic

configuration of the DCF where a full instance of the

DCF (including the PATE) is running on each data

source as described in Figure 3.

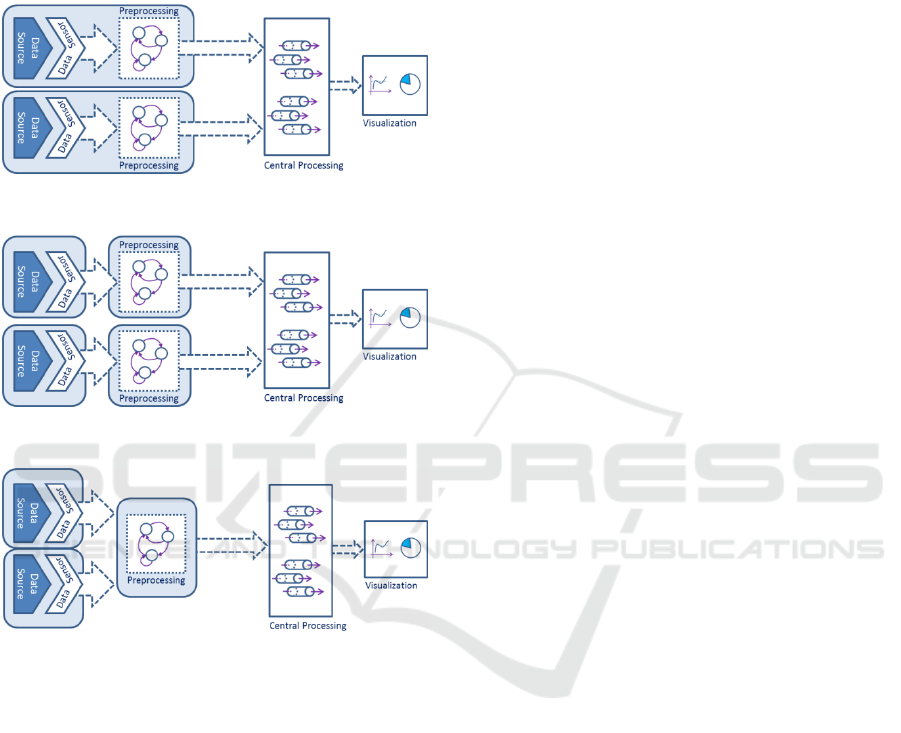

Figure 3: DCF Basic Schema.

Figure 4: DCF Thin Client Schema.

Figure 5: DCF Cluster Schema.

The Thin Client Schema (Figure 4) represents a

configuration where only the data acquisition agent is

deployed on the data source. The PATE component is

possibly deployed in a separate machine. This is

useful when the data source has low resources

available (ex. Raspberry).

The Clustered Schema (

Figure

5) represents a configuration where all the

gathered data are forwarded to a central PATE

component, thus achieving a clustered data

collection.

3 CONCLUSIONS

This paper presents the final implementation of a

Data Collection Framework. The proposed

framework provides an integrated and modular

framework for instrumentation and performance

analysis that has been explicitly designed to support

the LeanBigData project, but can be used also in

different context. The collection framework includes

a number of features for achieving high-throughput,

such as being able to handle thousands asynchronous

data streams as well as having processing capabilities

at the edge.

ACKNOWLEDGEMENTS

The research leading to these results has received

funding from European Commission within the

context of Seventh Framework Programme

(FP7/2007-2013) for research, technological

development and demonstration under Grant

Agreement No. 619606 (Ultra-Scalable and Ultra-

Efficient Integrated and Visual Big Data Analytics,

LeanBigData Project).

REFERENCES

Coppolino, L.; D'Antonio, S.; Formicola, V.; Romano, L.,

2014. "Real-time Security & Dependability monitoring:

Make it a bundle". In Security Technology (ICCST)

Compiler-compiler, 2015. Available from: princeton.edu:

https://www.princeton.edu/~achaney/tmve/wiki100k/d

ocs/Compiler-compiler.html

SMC, 2015. Available from Sourceforge: http://smc.

sourceforge.net/

Syslog, 2015. Wikipedia. Available from: https://en.

wikipedia.org/wiki/Syslog

EBNF. 2015. Available from www.iso.org: http://www.iso.

org/iso/catalogue_detail.htm?csnumber=26153

JAVACC, 2015. Available from https://javacc.java.net/

ANTLR, 2015. Available from http://www.antlr.org/

Ganglia, 2015. Ganglia. Available from Sourceforge:

http://ganglia.sourceforge.net

JSON, 2015. Available from JSON: http://www.json.org/

Data Collection Framework - A Flexible and Efﬁcient Tool for Heterogeneous Data Acquisition

379
