A Distributed and Cooperative Verification Mechanism to Defend

against DODAG Version Number Attack in RPL

Firoz Ahmed and Young-Bae Ko

Department of Computer Engineering, Ajou University, Suwon, Republic of Korea

Keywords: RPL, DODAG Version Number Attack, Security, Distributed, Cooperative.

Abstract: To design a routing protocol for Low-power and Lossy Networks (LLNs), the IETF developed RPL

(Routing Protocol for Low-power and lossy network) which is novel, standard and light weight routing

protocol standardized for constrained environment and does not have the functionality like of traditional

routing protocols. Providing security in RPL is still challenging as the devices are connected to the

vulnerable Internet, limited resources, and the communication links are lossy. Therefore, an attacker can

easily exploit the functionalities of RPL protocol. RPL exposed to a variety of attacks. One of the most

inconsistency topological attacks is DODAG version number attack. In this paper, we proposed a distributed

and cooperative verification mechanism to securely defend against the DODAG version number attack with

low control overhead and high reliability. Simulation results show that the proposed approach defends

DODAG version number attack reliably and reduces control overhead significantly.

1 INTRODUCTION

The emergence of embedded device capable of

wireless communication is leading to a

materialization of an Internet of Things (IoT).

Recently, IoT has increasingly become a hot topic in

wireless sensor network (WSN) area with a lot of

promising applications. One of the most challenging

issues for IoT is to the connectivity of smart objects

to the Internet. Most of the core technology solution

for this issue has been conducted by IETF working

group 6LoWPAN (IPv6 over Low power Wireless

Personal Area Network) (Kushalnagar et al. 2007).

As part of the 6LoWPAN, the Routing Protocol

Low-power and lossy network (RPL) (Winter et al.

2012) has recently been standardized by IETF to

efficiently handle the layer 3 functions when

providing Internet connectivity for WSN. RPL has

been designed for constrained device and networks.

Due to their constrained nature RPL-based networks

may be exposed to a large variety of security attacks

(Tsao et al. 2015). An adversary can intercept, forge,

modify, inject and create messages in order to

interface with the operation of entire network.

Though the security functionalities have been

considered in RPL, they are based on the traditional

cryptographic solutions which provides

authentication, confidentiality and integrity,

nevertheless, cannot protect the network from

internal attackers. Therefore, we consider the case

where the attacker is a compromised node.

In this paper, we address the security attack,

referred to as a DODAG version number attack,

when RPL is employed for routing in network. In

DODAG version number attack, a malicious node

modifies DODAG version number by illegitimately

increasing the version number of the corresponding

field in DIO message when it forwards them to its

neighbour. Once nodes receive the DIO message

with increased version number, they start the

formation of new DODAG tree. This formation can

cause increased overhead, depletion of energy

reserves, channel availability issue and even loops in

the routing topology.

The RPL attacks (e.g., rank attack, topological

attack, inconsistency attack, etc) have been tackled

in various ways. Some focused on preventing to

publish an illegitimate rank (Dvir et al., 2011) and

other focused on monitoring and intrusion detection

systems architecture (Le et al., 2011), (Mayzaud et

al., 2015). Meanwhile, only a few methods have

been proposed to tackle the DODAG version

number attack. Version number and rank

authentication (VeRA) has been proposed to prevent

version number attack and rank attack using digital

Ahmed, F. and Ko, Y-B.

A Distributed and Cooperative Veriﬁcation Mechanism to Defend against DODAG Version Number Attack in RPL.

DOI: 10.5220/0005930000550062

In Proceedings of the 6th International Joint Conference on Pervasive and Embedded Computing and Communication Systems (PECCS 2016), pages 55-62

ISBN: 978-989-758-195-3

signature and MAC mechanism in (Dvir et al.,

2011). However, the control overhead of this scheme

will be increased because of using digital signature

and MAC operation. On the other hand, the authors

of (Mayzaud et al., 2014) only describe the version

number attack. However, they did not provide any

kind of defending mechanism to defend the attack.

The approaches of the version number attack

discussed above incur high overhead as well as

failure to address the attack. Therefore, we propose a

distributed and cooperative verification mechanism

that can defend a DODAG version number attack

effectively and reliably with low control overhead

while preserving the integrity of the RPL operation.

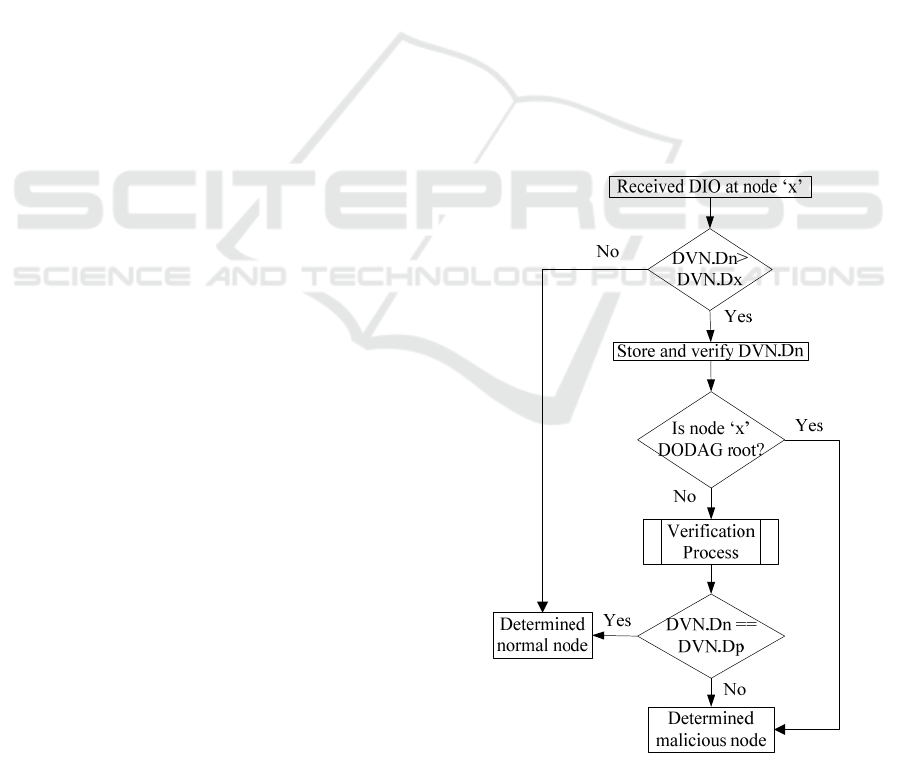

In this mechanism, when a node receives a DIO

message with increased DODAG version number

from its neighbour, instead of updating and sending

the DIO message, it rather verifies the neighbour's

identity whether or not the neighbour is malicious.

The node then initiates cooperative verification

process only if it receives increased version number

in DIO messages from its neighbours. Thus, it is of

great importance to devise an efficient and

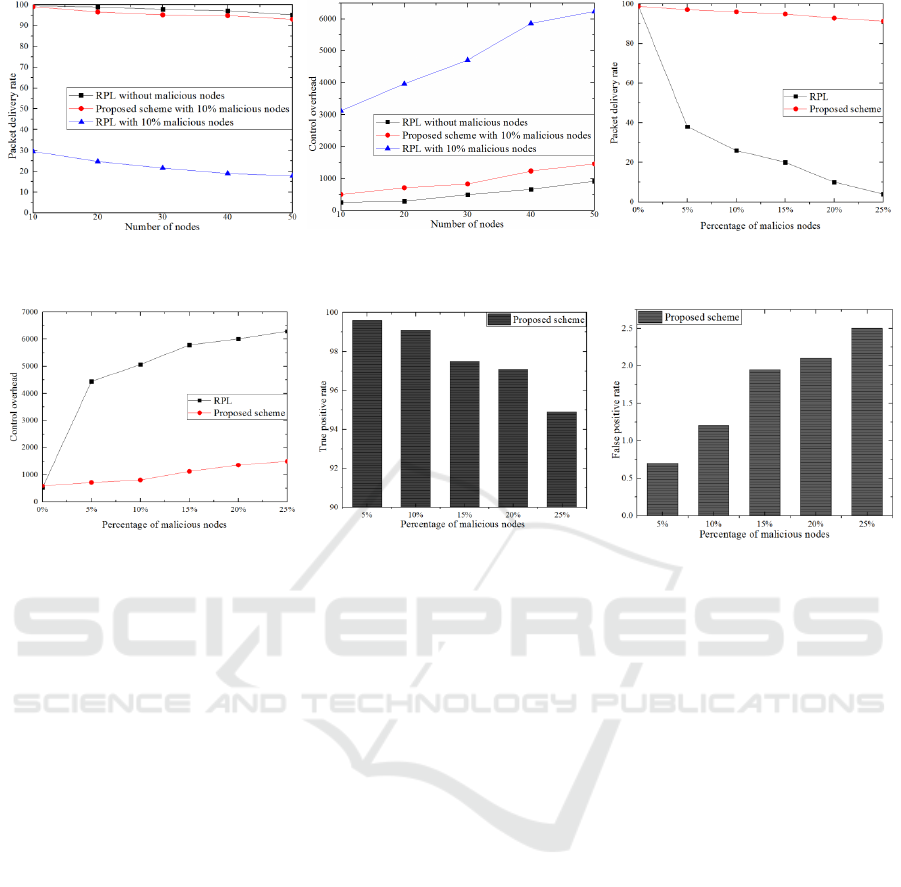

dependable verification process. Simulation results

show that our mechanism can reduce control

overhead and judgment error for a malicious node

and normal node significantly.

The paper is organized as follows. Section 2

provides the RPL protocol to describe the operation

of the protocol. Related works is provided in Section

3 and the proposed distributed and cooperative

verification mechanism is described formally in

Section 4. The performance evaluation with various

simulation scenarios is given in Section 5 and is

followed by the concluding remarks in Section 6.

2 THE RPL PROTOCOL

RPL is a standardized routing protocol for the IoT.

The design of RPL is a combination of multiple

DODAG networks, each of these consider many

wireless sensor devices connected to a DODAG

root. RPL instance ID; DODAG ID; DODAG

version number; and rank values can differentiate

each and every DODAG in the network. In order to

establish and maintain DODAG as well as routing,

RPL utilizes new ICMPv6 control messages: DIO

(DODAG Information Object), DAO (Destination

Advertisement Object), and DIS (DODAG

Information Solicitation). DODAG root starts the

establishment of the DODAG graph and the

construction of upward routes by broadcasting the

DIO messages. Upon receiving the DIO message,

nodes select the parent to sender. Receiving node then

needs to inform other neighbour nodes by forwarding

the updated information in the next DIO, if it updates

its rank or preferred parent. Each node in DODAG

has a rank that indicates the position of a node relative

to other nodes and with respect to the DODAG root.

Finally, the node selects a preferred parent based on

its parent list which becomes the default gateway.

When a node wants to forward a message towards the

DODAG root, it first tries to send the message to the

preferred parent. If the transmission is unsuccessful, it

tries to forward the message to any of the non-

preferred parents, one after the other.

To optimize the network resources, instead of

sending DIO frequently, RPL uses the trickle

algorithm (Levis et al., 2004) for sending it

periodically. RPL allows each node in the network to

determine whether packets are to be forwarded

upward routes or downward routes. In order to

support downward routing either non-storing mode or

storing mode are used. To prevent loop creation, RPL

uses the rank rule that a node in the parent should

always have lower rank than its children. DODAG

loops may also appear when DODAG is no longer

acyclic. To prevent this, a leaving node must poison

its sub-DODAG by advertising an infinite rank. When

inconsistencies are detected (e.g., nodes disappearing

from a network due to lack of battery power or poor

link conditions), the RPL nodes trigger repair

mechanisms. There are two kinds of repair

mechanism available in RPL; (i) Global and (ii) Local

repair mechanism. The local repair mechanism

consists in finding an alternative path to route the

packets when the preferred parent is not available.

When the local repair mechanisms fail due to multiple

inconsistencies, the DODAG root can initiate a global

repair to rebuild the entire DODAG by incrementing

the version number of the DODAG graph. The

version number is carried in the DIO message. When

a node receives a DIO from its parent compares its

existing version number against the one received. If

the received version is higher, it must ignore its

current rank information. The node then reset trickle

timer and initiate a new procedure to join the

DODAG. Amounting to a reform of a new DODAG,

this global repair mechanism guarantees a loop free

topology. The RPL protocol defines some security

mechanisms that contribute to its security.

3 RELATED WORK

The four categories threats authentication,

confidentiality, integrity, and availability are

PEC 2016 - International Conference on Pervasive and Embedded Computing

identified by Routing Over Low power and Lossy

network (ROLL) working group for potential

security issues in RPL networks and proposed their

countermeasures in (Tsao et al., 2015). To

overcome the attack from outsider, the above

security mechanisms work well. However, they are

not able to protect the network from insider.

There are several kinds of attacks in RPL

protocol and their defending mechanisms have been

carried out in recent years. Rank attack (Le et al.,

2013), (Dvir et al., 2011), and (Perrey et al., 2013),

which is specific RPL internal threat aiming at its

rank property. A malicious node advertises a higher

rank value than the one it is supposed to have. It

then tries to attract child node for selecting as parent,

and attracts large traffic going toward the root.

The survey of the attacks against RPL and

6LowPAN in IoT and their security mechanisms

using different types of intrusion detection system

have been proposed in (Pongle and Chavan, 2015).

A novel intrusion detection system for the IoT has

also been proposed in (Raza et al., 2013). Authors

targeted routing attack such as sinkhole attack,

selective forwarding attack and spoofed or altered

information. However, the authors of (T Matsunaga

and K Toyoda 2015) identified two problems in

(Raza et al., 2013). The problems brought about high

false alarm rate that the sink mistakenly judges

nodes as attackers and which are mitigated by (T

Matsunaga and K Toyoda, 2015).

The authors of (Mayzaud et al., 2015) describe

topological inconsistency attack, in which a

malicious node manipulates the IPv6 header option

of data packets and forwards it to next hop to drop

the modifies packet. As a result, increases control

message overhead and energy consumption, and

reduce channel availability. To mitigate the attack,

they provide an adaptive and dynamic threshold

mechanism.

Network monitoring architecture and RPL

specification-based IDS with a finite state machine

have been proposed for malicious checking in each

monitor node in (Le et al., 2011). The authors in

(Chugh et al., 2012) investigated consequences of

black hole attacks in RPL networks and highlighted

specific measurable parameters to detect such

threats. Defence techniques against sink hole in RPL

networks were explored by Weekly and Pister

(Weekly and Pister 2012).

4 DISTRIBUTED AND

COOPERATIVE

VERIFICATION MECHANISM

In this paper, we propose a distributed and

cooperative verification mechanism which aims to

increase the malicious node detection rate and

reduce the corresponding control overhead. The

proposed scheme is assumed that the network is

dense and it is formed by a numbers of constrained

network devices with limited processing, memory,

and energy when they are battery operated. A

number of malicious nodes with a malicious

intension can intrude the network. However, the

malicious node starts their malicious behaviour after

forming the initial DODAG graph. Each node in the

network is required to evaluate if there is any

malicious node in its neighbourhood. A routing

protocol is used to establish a path between sources

to sink that want to communicate. The routing

protocol is implemented in this network is the RPL

protocol.

4.1 System Model

Figure 1: Flow diagram of the proposed scheme.

A Distributed and Cooperative Veriﬁcation Mechanism to Defend against DODAG Version Number Attack in RPL

The proposed scheme consists of two

progressive steps, checking step and verification

step. As illustrate in Figure 1. In the first step, when

a node receives DIO messages from its neighbouring

nodes, the receiving node compares and checks

whether or not the DODAG version number in DIO

message (DVN.Dn) is higher than the version

number of the receiving node (DVN.Dx). If the

version number is higher in receiving DIO, the

system then invokes a cooperative verification

procedure to verify the identity of the neighbouring

node. For verification, a verification node obtains a

current DODAG version number from two-hop

neighbouring nodes (DVN.Dp) efficiently.

If a malicious node stays near (one-hop away)

DODAG root and tries to sends DIO messages with

increased version number to its neighbour, in this

case it is very easy to detect the malicious node by

DODAG root. Upon receiving fake DIO message

from malicious node, root node compares the

version number contains in receiving DIO message

with its own version number. It detects anomaly in

DODAG version number field of the incoming DIO

message because the intension of the malicious node

always sends DIO message with higher version

number to its neighbour to attract them. Upon

comparing the version number of malicious node,

the root node can easily determine the malicious

node. On the other hand, when a node (either

malicious node or normal node) stays far (at least

more than one-hop away) from DODAG root and

tries to send DIO messages with increased version

number to its neighbours, the neighbours then verify

the message to check whether or not the node is

malicious. We describe the verification procedure as

the section below.

4.2 Cooperative Verification Procedure

Even though any malicious node joins a network, if

a node sends DIOs without spoofing its version

number field or other malicious behaviour, the

network works safely. The way that a node

determines neighbour's reliability depends on the

behaviour of the neighbour. Every node observes the

communication behaviours of its neighbours by

checking the DODAG version number in DIO

message sent from its neighbours. One simple way

that decides the reliability of a node is to know

whether or not the node has sent the DIO message

with correct version number to its neighbours.

Initially, every node is reliable to each other. A node

is said to be reliable if previously it sent DIOs

without increasing its version number. Therefore, if

a node has received DIOs without spoofing version

number from its neighbour before, the neighbour is

reliable.

When a node receives DIO messages from its

neighbouring nodes it first checks the DODAG

version number field in the corresponding messages.

If the receiving DIO contains higher version number

than the receiving node has, the receiving node is

then becoming a verification node, would initiate the

verification procedure to analyze whether the

neighbouring node is a malicious node. In order to

verify the version number, the verification node

temporarily stores the version number instead of

updating and sending DIO message to its

neighbours. The cooperative verification procedure,

as presented in Figure 2 and its corresponding table

is shown in Table 1, starts with the verification node.

It selects two-hop neighbours as a destination

through the intermediate node of the verification

node such as parent, alternative parent and sib-link

as cooperative nodes to cooperatively participate in

the decision process confirming whether the

neighbour node in question is malicious one. It then

sends out a CVQReq (cooperative verification query

request) = (destination node address, verification

node address, timestamp) message to get their

current DODAG version number. Upon receiving a

CVQReq message, two-hop neighbours of the

verification node replies CVQRep (cooperative

verification query reply) = (verification node

address, destination node address, timestamp,

current DODAG version number) message via the

cooperative intermediate nodes to the verification

node. Accordingly the verification node may receive

the number of reply from two-hop neighbours.

Among the many received CVQRep message, the

verification node records the address of intermediate

node, destination node, and corresponding version

number into the storing table (ST) shown in Table 1.

The confirmation of a malicious node is then

determined by checking the version number of the

storing table with the temporarily stored version

number in verification node. In case, if the

verification node receives two different version

numbers from the same destination, it then checks

the two intermediate nodes from storing table. The

cooperative intermediate node is judged to be

malicious which forward the higher version number

than the other intermediate node. The detail

algorithm is giving in Algorithm 1.

Note that, it is possible any destination node

(two-hop destination) can be a malicious node and

can reply a fake CVQRep message with a higher

version number through the intermediate node to the

PEC 2016 - International Conference on Pervasive and Embedded Computing

verification node. The version number is either the

same as the neighbour of the verification node

(stored version number) or it is bigger than that. In

that case the initiation of a particular detection

process may fail. However, since our algorithm is

distributed in nature some other nodes may find the

anomaly behaviour of the same node and similar

process would be started with appropriate detection

node.

In the following we demonstrate how the

verification process works with an example. Refer to

the following Figure 2, suppose that node 5 receives

increased version number from node 2. Node 5 then

becomes a verification node and selects the

cooperative intermediate node 3 and 6 to reach the

two-hop destination node 1, 3, 4 and 6. Node 5 then

sends CVQReq message to all two-hop destination

node through the cooperative nodes 3 and 6. After a

while node 5 receives a numbers of reply from

destination node 1, 3, 4 and 6 via node 3 and 6 and

store them in storing table (ST) of node 5 as shown

in Table 1. Finally, node 5 compares the increased

version number received from node 2 with the

version number in ST.

Figure 2: Cooperative verification procedure.

Table 1: Storing table of node 5.

ntermediate node

estination node

ersion numbe

3 1 2

3 4 2

3 6 2

6 4 3

6 3 3

In order to reduce the impact of the bandwidth-

limited network, we use limited range of cooperative

verification query messages within two-hop. For

example, the cooperative detection procedure uses

cooperative verification query messages to two-hop

destination through cooperative intermediate node.

With this mechanism, the control overhead greatly

reduced.

4.3 Dropping of Verification Messages

Even though any malicious node (it can be either

cooperative intermediate nodes or two-hop

destination nodes) drops the verification messages

deliberately or fails to forward a verification

messages due to link failure or the hidden terminal

problem, the proposed scheme will work smoothly.

The reason is that the verification node will receive

other verification messages from the destination via

cooperative intermediate node other than the

malicious node. In order to dense network

alternative intermediate cooperative node may exist

in verification procedure. Every node on the path has

to take an explicit transmission action when it

receives a verification message. Thus, if any node

does not take any action, it can be determined to be

malicious. However, if a node on the path meets link

failure, it cannot take the transmission action. To

cope with this problem, it is required to send an error

message to the verification node.

Algorithm 1: Cooperative verification algorithm.

;upward(x) is the parent or alternative parent of x

;downward(x) is the child of x

;nigh(x) is the neighbors of x; VN = Verification node

;IN

= Intermediate node; INC = Increased

;DVN = DODAG version number; DST = Destination

At node x that receives DIO with INC version

number from node y:

1: if node y is DODAG root then

2: x performs normal operation;

3: else

4: x becomes VN, stores and verifies DVN;

5: end if

At node x that receives CVQReq from y:

6: if node x is two-hop DST then

7: x sends CVQRep towards the VN;

8: else

9: forwards CVQReq towards two-hop DST;

10: end if

At node x that receives CVQRep from y:

11: if node x is VN then

12: checks DVN according to the DST in ST

13: if (DST

.DVN.IN

> DST

.DVN.IN

) then

14: x determines IN

is malicious

15: end if

16: checks DVN in ST with INC DVN in nigh(x)

17: if (INC DVN in nigh(x) > DVN in ST) then

18: x determines neighboring node is malicious;

19: else

20: x determines neighboring node is normal;

21: end if

22: else

23: forwards CVQRep to downwards(x) toward VN

24: end if

A Distributed and Cooperative Veriﬁcation Mechanism to Defend against DODAG Version Number Attack in RPL

5 PERFORMANCE EVALUATION

5.1 Simulation Environment and

Performance Metrics

In this section, we present the simulation

environment and performance metrics for

experiment. The Contiki 2.7 (Dunkels et al., 2004)

operating system and its simulator Cooja (Österlind

et al., 2006) was chosen in order to perform an

evaluation of the proposed scheme against standard

RPL and RPL with malicious nodes. Contiki is open

source, multi-tasking operating system for wireless

sensor network, and its release 2.7 provide

contikiRPL, designed to connect contiki’s IPv6 stack

with underlying MAC and radio duty cycling

protocol (Dunkels 2011). Cooja is flexible simulator

designed for simulating networks of sensor running

the Contiki operating system.

Tmote sky nodes are deployed on a plane square

and are considered motionless. Each node has a

communication range of 50 meter and the

interference range is 100 meter. The topology is set

up so that every node can have (multi-hop)

communication with the sink. One sink is assumed

in these simulations. Each node periodically sends

data packets to the sink. The simulation for each

scenario was performed 15 times and then the

average value for each metric was presented. The

simulation parameters and their values are given in

Table 2.

In order to evaluate the performance of the

proposed scheme, we use some performance metrics

such as packet delivery rate (PDR), control overhead

(CO), true positive rate (TPR), and false positive

rate (FPR),

Table 2: Simulation parameters and its values.

Parameter Value

Radio medium model

Unit Disk Graph

Medium (UDGM):

Distance Loss

Size of deployment area 100m x 100m

Number of nodes 10 to 50

Number of malicious nodes Up to 25%

Physical layer IEEE 802.15.4

Objective function Hop count and ETX

5.2 Simulation Result and Discussion

Figure 3 and Figure 4 show packet delivery rate, and

control overhead with the varying number of nodes

while 10 percent of the total nodes are malicious

nodes. As shown in Figure 3, the packet delivery

rate of all schemes goes down when the number of

nodes increases. This is obvious because packets

drop in the dense network more than the sparse

network by various reasons such as packet collision,

link broken etc. The figure also shows that RPL has

better performance when there is no malicious node

in the network, however, effect of 10% malicious

node the packet delivery rate of RPL dramatically

drops since malicious node hinders data packets to

reach the destination. On the other hand, the

proposed scheme seems to be effective in reducing

the attack effect because it performs well in the

presence of malicious node. Referring to Figure 4,

the control overhead of all schemes increases when

the number of nodes increases since the more

number of nodes produce more control message to

make a path, thus increasing the control overhead.

However, the control overhead of RPL with 10%

malicious node increased more because of the

characteristics of version number attack. When the

attacker node produces DIOs with increased version

number and send it to its neighbours, neighbours

then broadcast DIOs to rebuild the DODAG graph.

As a result, in the presence of malicious node the

control overhead of RPL is increased more. On the

other hand, in the presence of malicious node the

proposed scheme hinders broadcasting the

suspicious DIOs to rebuild DODAG. Therefore, the

control overhead of proposed scheme is much lower

than the RPL with 10% malicious nodes. However,

the proposed scheme also increased control

overhead slightly than RPL without malicious nodes

because the scheme uses some kind of extra message

to identify malicious nodes.

Figure 5 and Figure 6 show packet delivery rate

and control overhead with the varying percentage of

malicious nodes. The packet delivery rate of the both

schemes performs well in case of no malicious node

(i.e., it is higher than 99 percent). A notable result is

that the delivery rate of RPL dramatically drops

from 99 percent to 38 percent while 5 percent of

total nodes are malicious node and it becomes worse

as the percentage of malicious node increases.

However, the proposed scheme seems to be effective

in reducing the version number attack effect. It

shows the packet delivery rate of the proposed

scheme is better than RPL in the presence of

malicious node because it can detect malicious node

more correctly by verifying the suspicious node. The

verification node does not make a valid path to the

root node via the suspicious node until the

suspicious node is judged to be a normal node. In the

later case, if the suspicious node is judged as a

PEC 2016 - International Conference on Pervasive and Embedded Computing

Figure 3: Packet delivery rate vs.

Number of nodes.

Figure 4: Control overhead vs. Number

of nodes.

Figure 5: Packet delivery rate vs.

Percentage of malicious nodes.

Figure 6: Control overhead vs.

Percentage of malicious nodes.

Figure 7: True positive rate vs.

Percentage of malicious nodes.

Figure 8: False positive rate vs.

Percentage of malicious nodes.

malicious then the verification node uses another

valid path to send the packet to the root node. Figure

6 shows that the control overhead of RPL sharply

increases while 5 percent of total nodes are

malicious and it becomes worse as the percentage of

malicious nodes increases. This is because the

characteristic of version number attack. However,

the control overhead of the proposed scheme is not

sensitive to the percentage of malicious nodes since

the proposed scheme hinders the DIOs broadcasting

operation that broadcast to rebuild the DODAG. As

a result, the control overhead is much lower than the

original RPL with malicious nodes.

Figure 7 and Figure 8 show true positive rate and

false positive rate with varying percentage of

malicious nodes. According to Figure 7, true

positive rate decreases when the percentage of

malicious nodes increase. This is because when the

percentage of malicious nodes increase they may

colluding each other, therefore, if a cooperative

intermediate node and two hop destination node both

are the malicious node then it can be given a wrong

judgment. The figure also shows that the proposed

scheme performs well and its true positive rate is

near about 95 percent while the percentage of

malicious node is 25. This is due to the fact that it

can determine a malicious node effectively by using

cooperative intermediate node. Even if a node fails

to determine the malicious node, the malicious node

can be determined by other nodes because the

algorithm is distributed. Figure 8 shows that the

false positive rate increases as the percentage of

malicious nodes increases. This is because if there is

no sufficient intermediate cooperative neighbour to

verify the verification process then the verification

node cannot judge properly whether the node is

malicious or normal. Therefore a normal node may

judge to be a malicious node and it increases when

the percentage of malicious node increases.

6 CONCLUSIONS

An efficient distributed and cooperative verification

mechanism is proposed to effectively and reliably

defend against DODAG version number attack in

routing protocol for low power and lossy networks.

It can pin down DODAG version number attack by

employing a distributed and cooperative verification

approach. The verification process is initiated

conditionally and the cooperative verification query

messages are routed to the maximum two-hop away

through parent, alternative parents and sib-link along

the path toward the DODAG root. The proposed

A Distributed and Cooperative Veriﬁcation Mechanism to Defend against DODAG Version Number Attack in RPL

approach not only reduces control overhead, but also

identify malicious node more reliable. Future work

includes modifying our verification approach for

colluding malicious node. To cope with colluding

malicious node, we will consider designing the new

verification method to accurately measure their

effects on overall performance.

ACKNOWLEDGEMENTS

This research was supported by Basic Science

Research Program through the National Research

Foundation of Korea (NRF) funded by the Ministry

of Education (NRF-2015R1D1A1A01059049)

REFERENCES

Chugh, K., Lasebae, A. and Loo, J., 2012. Case Study of a

Black Hole Attack on 6LoWPAN-RPL. SECURWARE

2012, The Sixth International Conference on

Emerging Security Information, Systems and

Technologies, (c), pp.157–162.

Dunkels, A., 2011. The ContikiMAC Radio Duty Cycling

Protocol. SICS Technical Report T2011:13 , ISSN

1100-3154, pp.1–11. Available at: http://dunkels.com

/adam/dunkels11contikimac.pdf.

Dunkels, A., Grönvall, B. and Voigt, T., 2004. Contiki - A

lightweight and flexible operating system for tiny

networked sensors. Proceedings - Conference on

Local Computer Networks, LCN, pp.455–462.

Dvir, A., Holczer, T´. and Buttyan, L., 2011. VeRA -

Version number and rank authentication in RPL. In

Proceedings - 8th IEEE International Conference on

Mobile Ad-hoc and Sensor Systems, MASS 2011.

IEEE, pp. 709–714. Available at: http://ieeexplore.ieee

.org/lpdocs/epic03/wrapper.htm?arnumber=6076674

[Accessed May 8, 2016].

Kushalnagar, N. C., Montenegro, G. (Microsoft C. and

Schumacher, C.A., 2007. RFC4919: IPv6 over Low-

Power Wireless Personal Area Networks

(6LoWPANs): Overview, Assumptions, Problem

Statement, and Goals. Request for Comments: 4919,

pp.1–12. Available at: https://tools.ietf.org/html/rfc

4919 [Accessed May 8, 2016].

Le, A. et al., 2011. Specification-based IDS for securing

RPL from topology attacks. In 2011 IFIP Wireless

Days (WD). IEEE, pp. 1–3. Available at:

http://ieeexplore.ieee.org/lpdocs/epic03/wrapper.htm?

arnumber=6098218 [Accessed May 8, 2016].

Le, A. et al., 2013. The impact of rank attack on network

topology of routing protocol for low-power and lossy

networks. IEEE Sensors Journal, 13(10), pp.3685–

3692. Available at: http://ieeexplore.ieee.org/lpdocs/ep

ic03/wrapper.htm?arnumber=6525333 [Accessed May

8, 2016].

Levis, P. et al., 2004. Trickle: a self-regulating algorithm

for code propagation and maintenance in wireless

sensor networks. Proceedings of the 1st conference on

Symposium on Networked Systems Design and

Implementation - Volume 1, pp.2–2.

Mayzaud, A. et al., 2014. A study of RPL DODAG

version attacks. In Lecture Notes in Computer Science

(including subseries Lecture Notes in Artificial

Intelligence and Lecture Notes in Bioinformatics).

Springer Berlin Heidelberg, pp. 92–104. Available at:

http://link.springer.com/10.1007/978-3-662-43862-6_

12 [Accessed May 8, 2016].

Mayzaud, A. et al., 2015. Mitigation of topological

inconsistency attacks in RPL-based low-power lossy

networks. International Journal of Network

Management, 25(5), pp.320–339. Available at:

http://doi.wiley.com/10.1002/nem.1898 [Accessed

May 8, 2016].

Österlind, F. et al., 2006. Cross-level sensor network

simulation with COOJA. In Proceedings - Conference

on Local Computer Networks, LCN. IEEE, pp. 641–

648. Available at: http://ieeexplore.ieee.org/lpdocs

/epic03/wrapper.htm?arnumber=4116633 [Accessed

May 8, 2016].

Perrey, H. et al., 2013. TRAIL: Topology Authentication

in RPL. 2013 IEEE Conference on Computer

Communications Workshops (INFOCOM WKSHPS),

pp.73–74. Available at: http://ieeexplore.ieee.org/lp

docs/epic03/wrapper.htm?arnumber=6970745

[Accessed May 8, 2016].

Pongle, P. and Chavan, G., 2015. A survey: Attacks on

RPL and 6LoWPAN in IoT. 2015 International

Conference on Pervasive Computing: Advance

Communication Technology and Application for

Society, ICPC 2015, 00(c), pp.0–5.

Raza, S., Wallgren, L. and Voigt, T., 2013. SVELTE:

Real-time intrusion detection in the Internet of Things.

Ad Hoc Networks, 11(8), pp.2661–2674. Available at:

http://linkinghub.elsevier.com/retrieve/pii/S15708705

13001005 [Accessed May 8, 2016].

T Matsunaga, K Toyoda, I.S., 2015. Low false alarm

attackers detection in RPL by considering timing

inconstancy between the rank measurements. IEICE

Communications Express, 4(2), pp.44–49.

Tsao, T. et al., 2015. A Security Threat Analysis for the

Routing Protocol for Low-Power and Lossy Networks

(RPLs). , (7416). Available at: http://www.ietf.org/r

fc/rfc7416.txt [Accessed May 8, 2016].

Weekly, K. and Pister, K., 2012. Evaluating sinkhole

defense techniques in RPL networks. In Proceedings -

International Conference on Network Protocols,

ICNP. IEEE, pp. 1–6. Available at: http://ieeexplore

.ieee.org/lpdocs/epic03/wrapper.htm?arnumber=64599

48 [Accessed May 8, 2016].

Winter, T. et al., 2012. 01 RFC6550 RPL: IPv6 Routing

Protocol for Low-Power and Lossy Networks. Internet

Engineering Task Force (IETF), Request for

Comments : 6550, ISSN:2070-1721, pp.1–157.

Available at: https://datatracker.ietf.org/doc/rfc6550/.

PEC 2016 - International Conference on Pervasive and Embedded Computing
