Managing Usability and Reliability Aspects in Cloud Computing

Maria Spichkova

, Heinz W. Schmidt

, Ian E. Thomas

, Iman I. Yusuf

Steve Androulakis

and Grischa R. Meyer

School of Science, RMIT University, 414-418 Swanston Street, 3001, Melbourne, Australia

eResearch, RMIT University, 17-23 Lygon Street, 3053, Carlton, Australia

eResearch, Monash University, Wellington Rd, 3800, Clayton, Australia

Keywords:

Usability, Reliability, Cloud Computing, Modelling, Visualisation.

Abstract:

Cloud computing provides a great opportunity for scientists, as it enables large-scale experiments that cannot

are too long to run on local desktop machines. Cloud-based computations can be highly parallel, long run-

ning and data-intensive, which is desirable for many kinds of scientiﬁc experiments. However, to unlock this

power, we need a user-friendly interface and an easy-to-use methodology for conducting these experiments.

For this reason, we introduce here a formal model of a cloud-based platform and the corresponding open-

source implementation. The proposed solution allows to conduct experiments without having a deep technical

understanding of cloud-computing, HPC, fault tolerance, or data management in order to leverage the beneﬁts

of cloud computing. In the current version, we have focused on biophysics and structural chemistry experi-

ments, based on the analysis of big data from synchrotrons and atomic force microscopy. The domain experts

noted the time savings for computing and data management, as well as user-friendly interface.

1 INTRODUCTION

Scientiﬁc experiments can be very challenging from

a domain point of view, even in the case the compu-

tation can be done on a local desktop machine. In-

struments such as synchrotrons and atomic force mi-

croscopy produce massive amounts of data. Methods

used by scientists are frequently implemented in soft-

ware. The combination of big data and complex com-

putational methods inevitably requires long running

computations and demand for high-performance com-

puting (HPC) using cluster or cloud computing (Arm-

brust et al., 2010; Buyya et al., 2009). HPC and

cloud computing marshal large storage resources ﬂex-

ibly and divide tasks and data up to huge numbers

of compute cores. For most users, both present new

technologies, either computationally and in data man-

agement, and both require learning non-standard data

management, programming languages and libraries.

In the case of cloud computing, the users have to

learn how to work within a cloud-based environment,

e.g., how to create and set up virtual machines (VMs),

how to collect the results of their experiments, and

ﬁnally destroy the VMs, etc. Thus, to unlock all the

capabilities of cloud computing the science users have

to obtain a new set of skills (e.g., knowledge of fault

tolerance), which might distract from focusing on the

domain speciﬁc problems of the experiment.

Cloud computing provides many beneﬁts, e.g., ac-

cess to online storage and computing resources at a

moment’s notice. Nevertheless, failure while setting

up a cloud-based execution environment or during the

execution itself is arguably inevitable: some or all

of the requested VMs may not be successfully cre-

ated/instantiated, or the communication with an exist-

ing VM may fail due to long-distance network fail-

ure – given clouds data centres are typically remote

and communication crosses many network bound-

aries. Also, one has to realise that all tasks of such

parallel computations are required to complete, there-

fore the failure of any one of them may corrupt the re-

sult in some way. Statistically this means that the reli-

ability of the overall task completion is the product of

that of the individual tasks – and with very many thou-

sands or millions of compute tasks this may quickly

become a vanishable number.

For these reasons, we propose a user-friendly

open-source platform that would hide the above prob-

lems from the user by incapsulating them in the plat-

form’s functionality. The feasibility of our platform is

288

Spichkova, M., Schmidt, H., Thomas, I., Yusuf, I., Androulakis, S. and Meyer, G.

Managing Usability and Reliability Aspects in Cloud Computing.

In Proceedings of the 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering (ENASE 2016), pages 288-295

ISBN: 978-989-758-189-2

shown using case studies across Theoretical Chemical

and Quantum Physics group at the RMIT university.

This paper presents a formal model of a cloud-based

platform for scalable and fault-tolerant cloud compu-

tations as well as its implementation. We focus on

scientiﬁc computations, i.e., we assume that the users

of the platform would be researchers working in the

ﬁelds of physics, chemistry, biology, etc.

Our solution enables researchers to focus on

domain-speciﬁc problems, and to delegate to the tool

to deal with the detail that comes with accessing high-

performance and cloud computing infrastructure, and

the data management challenges it poses. More-

over, the platform implements various fault tolerance

strategies to prevent the failed execution from causing

a system-wide failure, as well as to recover a failed

execution.

Outline: The rest of the paper is structured as

follows. Section 2 presents core features of the

proposed model and its implementation as an open-

source cloud-based platform, including the reliability

aspects. In Section 3, we discuss the usability features

of the platform and how they are reﬂected in the con-

ducted case studies. Section 4 overviews the related

work. Section 5 concludes the paper by highlighting

the main contributions, and introduces the future work

directions.

2 MODEL OF A CLOUD-BASED

PLATFORM

The proposed platform provides access to a dis-

tributed computing infrastructure. On the logical level

it is modelled as a dynamically built set of Smart Con-

nectors (SCs), which handle the provision of cloud-

based infrastructure. SCs vary from each other by the

type of computation to be supported and/or the spe-

ciﬁc computing infrastructure to be provisioned.

An SC interacts with a cloud service

(Infrastructure-as-a-Service) on behalf of the

user. Figure 1 presents the corresponding workﬂow.

With respect to the execution environment, the only

information that is expected from the user is to spec-

ify the number of computing resources she wishes to

use, credentials to access those resources, and the lo-

cation for transferring the output of the computation.

Thus, the user does not need to know about how the

execution environment is set up (i.e., how VMs are

created and conﬁgured for the upcoming simulation),

how a simulation is executed, how the ﬁnal output is

transferred and how the environment is cleaned up

after the computation completion (i.e., how the VMs

are destroyed).

Data$Analysis$

Execu0on$environment$set$up$

Computa0ons$

Output$transfer$

Execu0on$environment$clean$up$

Figure 1: Cloud service: Workﬂow.

Figure 2 shows the logical architecture of an SC. Each

SC consist of ﬁve logical components, which can

also be seen as processes within the framework work-

ﬂow, presented on Figure 1. The model is based on

our previous research on process analysis and spec-

iﬁcation (Spichkova and Schmidt, 2015; Spichkova,

2011). While developing the model we focused on the

understandability and readability aspects (Spichkova,

2013a; Spichkova et al., 2013).

We specify for any process P its entry and exit

points by Entry(P) and Exit(P) respectively, and

represent a process P (elementary or composed) by

the corresponding component speciﬁcation PComp.

All the control channels (representing entry and exit

points of a process) are drawn as orange dashed lines,

the corresponding auxiliary components over these

channels are also drawn in orange.

An execution of an SC is called a job. An SC ex-

ecutes a user requested process cP, which consists of

tasks Task

, . . . , Task

, which could be executed in

iterative manner. In the simplest case, cP consists of

a single task that should be executed once only.

A concrete SC is build from a general template by

conﬁguration its parameters:

• DataConstraints speciﬁes constraints on the user

provided input dataInput;

• ExecParamVM speciﬁes parameters of the job,

e.g., which compilers should be installed on the

generated VMs;

• ExecParamT is a list of the task execution param-

eters ExecParamT

, . . . , ExecParamT

. These

parameters specify for each task which data are

required for its execution, what is a convergence

criterion and whether there is any for that task,

which scheduling constrains are required, etc.;

• TCode presents an actual executable code for the

corresponding tasks, in general case it consists of

NT elements.

• Sweep is a list of values to sweep over: With re-

spect to conﬁguring and executing the simulation,

Managing Usability and Reliability Aspects in Cloud Computing

289

VMEnvironment

DataAnalysis (DataConstraints)

EnvSetUpVM

(ExecParamVM)

EnvCleanUp

SCExecution

(ExecParamT, TCode,

Sweep)

OutputTransfer

dataInput

scStart

dataCheckFailed

dataCheckOk

data

userReqVM

dataOutput

generatedVM

scReqVM

vmFailed

scCompleted

execStart

execFailed

transferCompleted

execCompleted

Fault-Tolerance

Strategies

Fault-Tolerance

Strategies

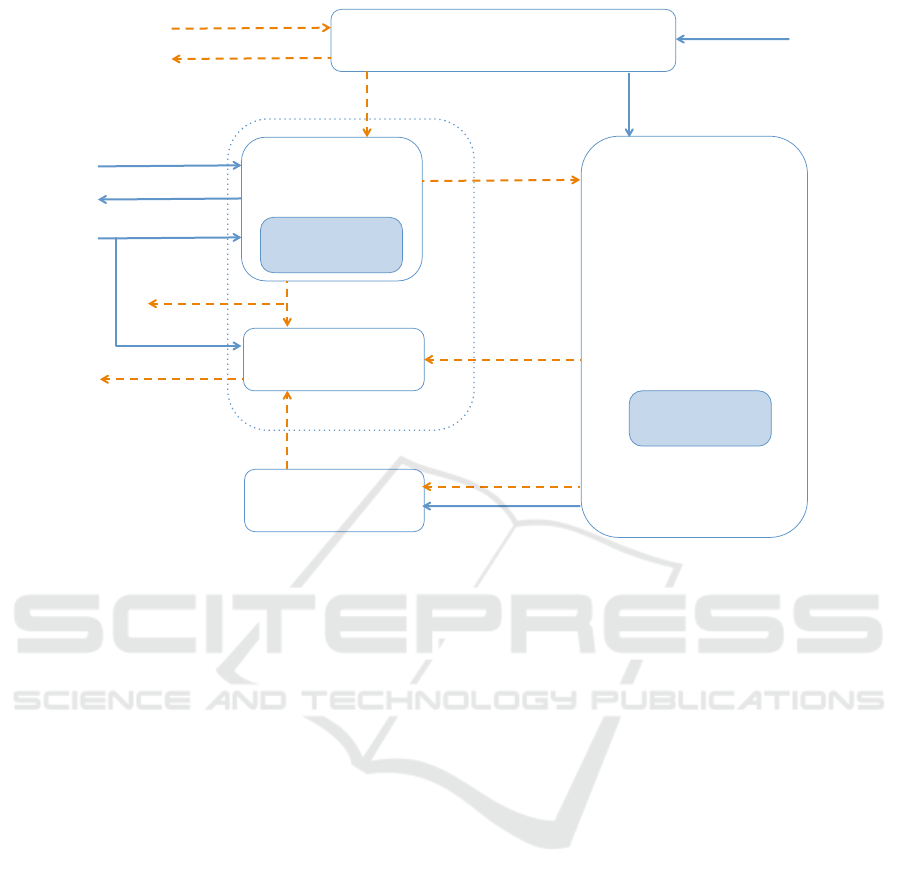

Figure 2: Logical architecture of a Smart Connector.

the user may set the value and/or ranges of domain

speciﬁc parameters, and subsequently automati-

cally creating and executing multiple instances of

the given SC to sweep across ranges of values.

The ﬁrst three parameters can be partially derived

from TCode on the development stage for a concrete

Smart Connector.

The DataAnalysis component is responsible for the

preliminary check whether the user dataInput satis-

ﬁes the corresponding DataConstraints, both on syn-

tactical and on semantical level. The DataAnalysis

process is started by receiving an scStart signal from

the user. If the data check was successful, the VMEnv

component is activated by signal dataCheckOk and

the data are forwarded to the SCExecution compo-

nent, otherwise the process is stopped and the user

receives an error message dataCheckFail.

The EnvSetUpVM component is responsible for the

communication with the cloud to obtain a number of

VMs that is enough for the task according to the user

requests userReqVM. The user request userReqVM is

a pair of numbers (iN, mN), where iN is an ideal and

mN is a minimal (from the user’s point of view) num-

ber of VMs required for the experiment. The EnvSe-

tUpVM component requests from the cloud iN VMs.

Fault-Tolerance Properties of EnvSetUpVM:

If some of the requested VMs are not cre-

ated/instantiated successfully (i.e. only j VMs are

successfully created, where 0 ≤ j < mN. The SC

will employ various strategies to create the remain-

ing VMs: it will retry to make either a block request

to create mN − j VMs at once or a single request at

a time. For these purposes, one of the parameters

within ExecParamVM have to be RetryLimit, which

limits the number of retries.

The number of VMs generated by cloud (the list

generatedVM represents the list of the corresponding

identiﬁers, e.g., IP addresses) has to fulﬁl the follow-

ing property

mN ≤ length(generatedVM) ≤ iN (1)

If Equation 1 is not fulﬁlled (more precisely, if

length(generatedVM) < mN, because the cloud never

provides a number of VMs larger than requested), or

the bootstrapping failed (e.g. due lost connection to

the cloud) the process is stopped and the user receives

an error message vmFail. The message vmFail is also

activates the EnvCleanUp component, which is re-

sponsible for ﬁnal clean up of the system and the de-

struction of corresponding VMs. When the clean up

is completed, the EnvCleanUp component generated

the message scCompleted, which also indicates that

the whole process chain is completed.

If Equation 1 is fulﬁlled, our platform preforms

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

290

TaskScheduler (ExecParamT)

data

dataOutput

execStart

execFailed

execCompleted

TaskIteration[k]

(ExecParamT[k],

TCode[k],

Sweep)

CheckConv[k]

schedulerFailed

cAck[k]

taskFailed[k]

taskExec[k]

taskCompleted[k]

k : [1, …, NT]

Figure 3: SCExecution subcomponent of Smart Connector.

bootstrapping of generated VMs, and the required

compilers are installed according to ExecParamVM.

If the bootstrapping was successful, the SCExecution

component is activated by the signal execStart. Then

we could have two cases:

• The smart connector execution was successful.

Then, the SCExecution component

– forwards the results of the computations

dataOutput to the OutputTransfer component;

– generates the signal transferStart that indicates

that the SCExecution process is completed, and

activates OutputTransfer.

The OutputTransfer component is responsible for

the transfer of the output data to the corresponding

server and to a data management system. When

the data transfer is completed, the message trans-

ferCompleted is generated to activate the Env-

CleanUp component.

• The smart connector execution failed on the stage

of scheduling or during execution of a task. Then,

the SCExecution component generates the signal

execFailed, to activate EnvCleanUp for the ﬁnal

clean up of the system and the destruction of cor-

responding VMs.

EnvSetUpVM and EnvCleanUp can also be logically

composed into a meta-component VMEnv, which is

responsible for any communication with the cloud

and the corresponding environment manipulations.

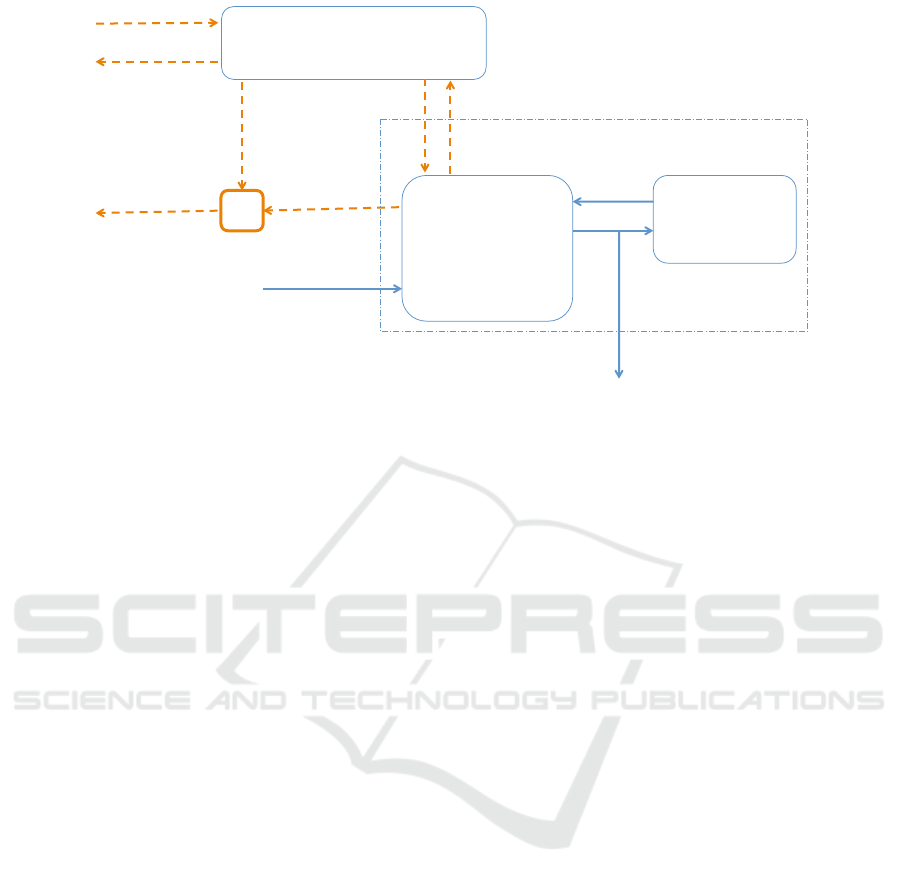

The SCExecution component (cf. Figure 3) is the

main part of a smart connector. It is responsible for

the actual execution of the task and provides a number

of the task execution options, deﬁned by parameters

ExecParamT.

Fault-Tolerance Properties of SCExecution:

The computation might fail due to network or VM

failure, i.e., the VM that hosts some of the processes

cannot be reached. To avoid an endless waiting on the

output from the processes on the unreachable VM, the

smart connector will identify the processes that are

hosted there, and then execute the appropriate fault

tolerance strategy, e.g., (i) marking the processes that

are hosted on the unreachable VM as failed beyond

recovery and then collecting the output of processes

from the other VMs, or (ii) re-running the failed pro-

cesses on a different VM until maximum re-run limit

is reached. However, we do not implement any strate-

gies to recover a failed process if the failure was due

to an internal bug within the task code. In this case, a

smart connector will notify the user about the detected

failure, as this provides an opportunity to correct the

bug.

SCExecution has the following subcomponents:

• TaskScheduler: responsible for scheduling of the

tasks and their execution in the right order;

• TaskIterarion: responsible for execution of task it-

erations according to the corresponding task code;

in general case we have NT tasks, where NT ≥ 1.

Thus, a connector has NT components TaskIterar-

ion, one for each task (which means that each task

should have at least one iteration of its execution);

• CheckConv is an optional component, to check

whether convergence criterion of a multi-

iterational execution is met.

Our model allows us not only to have a precise and

concise speciﬁcation of the cloud-based platform on

a logical level but also provides a basis for a formal

Managing Usability and Reliability Aspects in Cloud Computing

291

analysis of its properties, including security proper-

ties, as well as of the core computation properties.

For the formal analysis we suggest to use an inter-

active semi-automatic theorem prover Isabelle/HOL

(Nipkow et al., 2002; Blanchette et al., 2012) and

the corresponding methodologies (Spichkova, 2013b;

Spichkova, 2014a; Spichkova, 2014b), as the pro-

vided speciﬁcation is compatible to these methodolo-

gies. Moreover, the purposed representation gives a

basis for the resource management and performance

prediction, cf. (Aversa et al., 2011), as it allows a

straightforward analysis of the worst case execution

time (WCET) of the composed processes.

The early results on the platform open-source im-

plementation were presented in (Yusuf et al., 2015;

Spichkova et al., 2015a). The current version of the

platform provides a set of APIs to create new and

customise existing SCs. We do not restrict our sys-

tem to be build using a single programming language.

Python was chosen as the development language due

to its rapid prototyping features, integration with our

data curation system, and due to its increasing uptake

by researchers as a scientiﬁc software development

language. However, the domain-speciﬁc calculations

could be written in any language. The choice of the

language depends on the domain and the concrete re-

search task which should be solved.

3 USABILITY ASPECTS

The proposed open-source platform has been ap-

plied across two research disciplines, physics (ma-

terial characterisation) and structural biology (under-

standing materials at the atomic scale), to assess its

usability and practicality. The domain experts noted

the following advantages of the platform:

• time savings for computing and data management,

• user-friendly interface for the computation set up,

• visualisation of the calculation results as 2D or 3D

graphs.

The menu has the following sections: Logout, Create

Job, Jobs, Admin, Settings. After logging in, the users

are in the Jobs section, where they can see the sta-

tus of current and previous jobs (executions of SCs).

Some of the jobs may be processing, have been com-

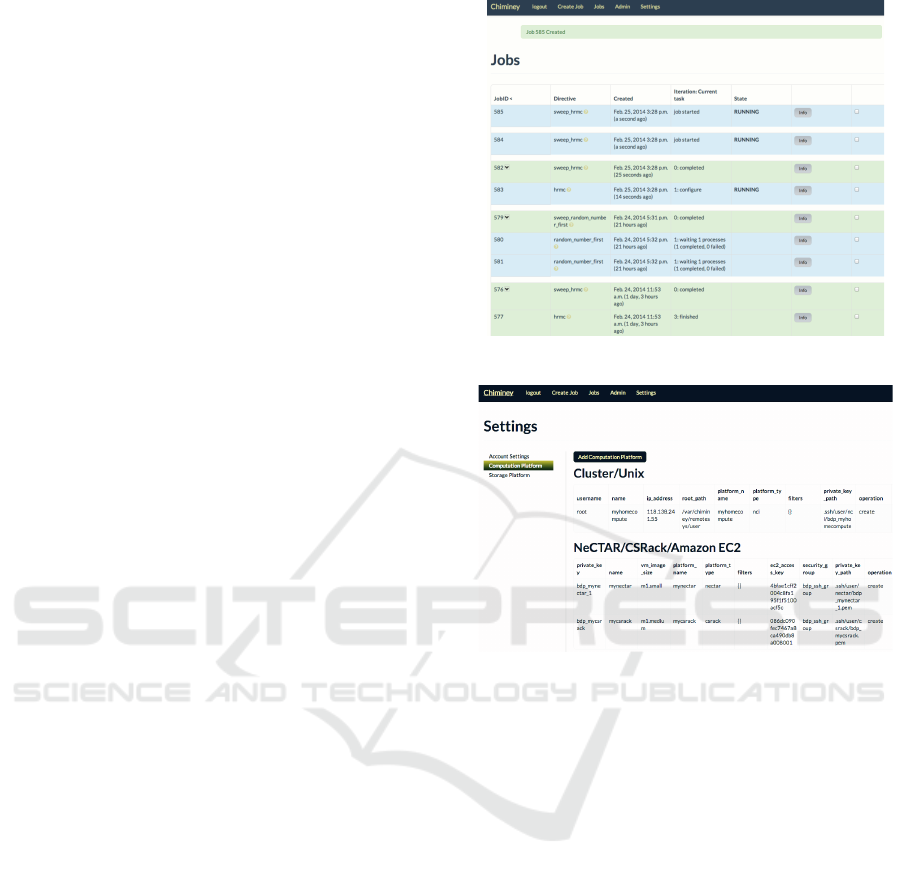

pleted or had errors (cf. Figure 4).

In the Settings section, we can set up general account

properties as well as change settings of computation

and storage platforms, cf. Figure 5.

When we select Create Job in the menu, we will see

Figure 4: Jobs section of the platform.

Figure 5: Settings section of the platform.

the job submission page, which has a set of available

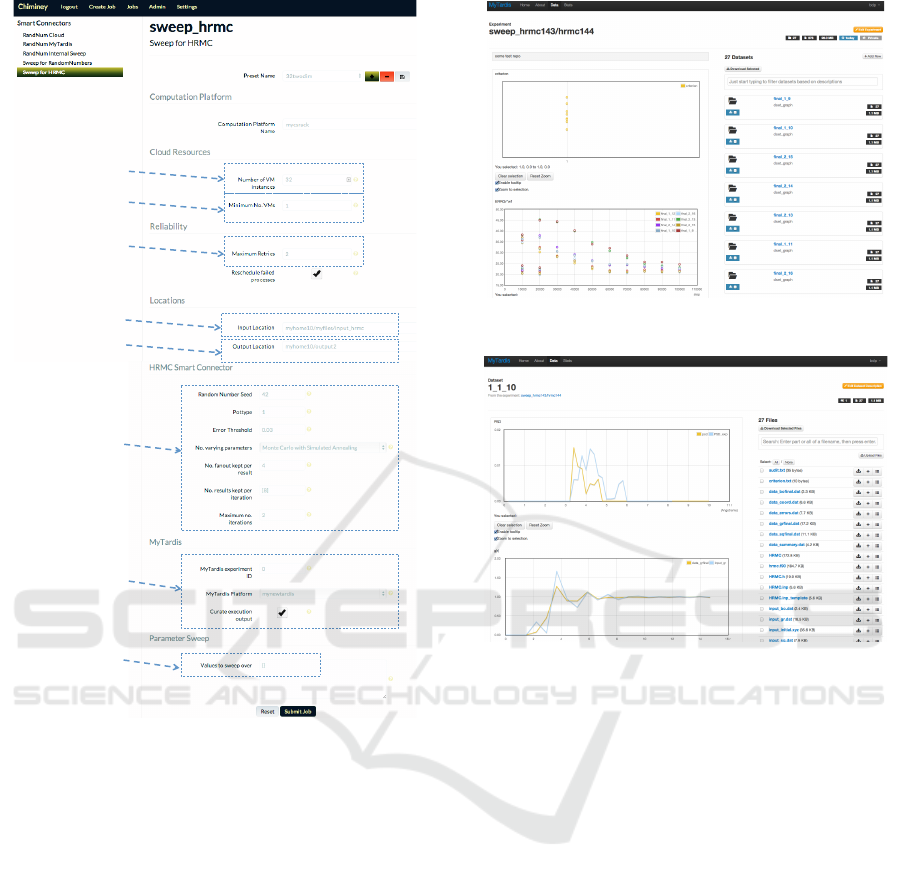

SCs currently registered. Figure 6 shows how to cre-

ate a job on example of execution of Monte Carlo sim-

ulations, which was a part of one of our case studies

(we extended the print screens with the comments to

show the match of these parameters to the model from

Section 2). In that case study, the Monte Carlo based

simulations were applied for modelling of a material’s

porosity and the size distribution of its pores (indus-

trial applications of these research are in diverse ar-

eas such as ﬁltration and gas adsorption). One such

modelling methodology is the Hybrid Reverse Monte

Carlo (HRMC), cf. (Opletal et al., 2008). HRMC

characterises a material’s microstructure by produc-

ing models consistent with experimental diffraction

data, while at the same time ensuring accurate local

bonding environments via energy minimisation.

The user interface, combined with the My-

Tardis (Androulakis et al., 2008) data curation mod-

ule, allows for ﬂexible handling of data according to

its completion and signiﬁcance. The results of the cal-

culation can be visualised as 2D or 3D graphs using

a plug-in developed to provide better readability of

the obtained data (cf. Figures 7 and 8 for examples).

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

292

RetryLimit

dataInput

dataOutput

This OutputTransfer

option allows to send

the calculation results

to a data management

system for further

curation.

ExecParamT

Sweep

Figure 6: Create Job section of the platform.

The curated datasets are fully accessible and share-

able online. The generated graphs can easily be used

for presentations or in written documents.

4 RELATED WORK

While developing the model, we focused on its under-

standability and readability aspects. There are sev-

eral approaches on model readability, cf. (Wimmer

and Kramler, 2006; Mendling et al., 2007; Zugal

et al., 2012; Spichkova et al., 2013; Spichkova et al.,

2015b).

The development of formal models and architec-

tures for system involved in cloud computing is a

more recent area of system engineering, cf. (Vaquero

et al., 2008), (Buyya and Sulistio, 2008), (Leavitt,

2009), (Zhang et al., 2010), (Ostermann et al., 2010),

(Cafaro and Aloisio, 2011).

Several approaches have proposed the data stream

Figure 7: Visualisation of calculation results.

Figure 8: Visualisation of calculation results as 2D graphs.

processing systems for clouds, e.g., (Martinaitis et al.,

2009) introduces an approach towards component-

based stream processing in clouds, (Kuntschke and

Kemper, 2006) presents a work on data stream shar-

ing. Yusuf and Schmidt have shown that the fault-

tolerance is best achieved by reﬂecting the computa-

tional ﬂow in such complex scientiﬁc system archi-

tectures, cf. (Yusuf and Schmidt, 2013).

There are different types of scientiﬁc workﬂow

systems such as Kepler (Ludscher et al., 2006), Tav-

erna (Oinn et al., 2006) and Galaxy (Afgan et al.,

2011), which are designed to allow researchers to

build their own workﬂows. The contribution of the

work presented in this paper is that our platform pro-

vides drop-in components, Smart Connectors, for ex-

isting workﬂow engines: (i) researchers can utilise

and adapt existing Smart Connectors; (ii) new types

of Smart Connectors would be developed within the

framework if necessary. From our best knowledge,

there is no other framework having this advantage.

SCs are geared toward providing power and ﬂexibility

over simplicity.

Nimrod (Buyya et al., 2000) is a set of software

infrastructure for executing large and complex com-

Managing Usability and Reliability Aspects in Cloud Computing

293

putational, contains a simple language for describing

sweeps over parameter space and the input and out-

put of data for processing. Nimrod is compatible with

the Kepler system (Ludscher et al., 2006), such that

users can set up complex computational workﬂows

and have them executed without having to interface

directly with a high-performance computing system.

One of the directions of our future work is in-

corporation Nimrod into our open-source platform

for the execution of its Smart Connectors. However,

Nimrod’s web API is currently in development, mak-

ing interfacing with its capabilities non-trivial in a

web-based cloud environment.

5 CONCLUSIONS

Cloud computing provides a great opportunity for sci-

entists, but to unlock all its beneﬁts, we require a plat-

form with a user-friendly interface and an easy-to-use

methodology for conducting the experiments. Usabil-

ity and reliability features are crucial for such sys-

tems. This paper presents a model of a cloud-based

platform and the latest version of its open-source im-

plementation, focusing on usability and reliability as-

pects. The proposed platform allows to conduct the

experiments without having a deep technical under-

standing of cloud-computing, HPC, fault tolerance, or

data management in order to leverage the beneﬁts of

cloud computing.

We believe that the proposed platform will have

a strong positive impact on the research community,

because it give an opportunity to focus on the main

research problems and takes upon itself solving of the

major part of the infrastructure problems.

Future Work: The main direction of our future work

is application of the platform for an efﬁcient testing

based on analysis of system architecture.

ACKNOWLEDGEMENTS

The Bioscience Data Platform project acknowledges

funding from the NeCTAR project No. 2179 (NeC-

TAR, 2015).

We also would like to thank our colleagues

Dr Daniel W. Drumm (School of Applied Sciences,

RMIT University), Dr George Opletal (School of Sci-

ence, RMIT University), Prof Salvy P. Russo (School

of Science, RMIT University), and Prof Ashley M.

Buckle (School of Biomedical Sciences, Monash

University) for the fruitful collaboration within the

Bioscience Data Platform project.

REFERENCES

Afgan, E., Baker, D., Coraor, N., et al. (2011). Harnessing

cloud computing with Galaxy Cloud. Nature Biotech-

nology, 29(11):972–974.

Androulakis, S., Schmidberger, J., Bate, M. A., et al.

(2008). Federated repositories of X-ray diffraction im-

ages. Acta Crystallographica, Section D, 64(7):810–

814.

Armbrust, M., Fox, A., Grifﬁth, R., et al. (2010). A view of

cloud computing. Commun. ACM, 53(4):50–58.

Aversa, R., Di Martino, B., Rak, M., Venticinque, S., and

Villano, U. (2011). Performance Prediction for HPC

on Clouds, pages 437–456. John Wiley & Sons, Inc.

Blanchette, J., Popescu, A., Wand, D., and Weidenbach, C.

(2012). More SPASS with Isabelle – Superposition

with hard sorts and conﬁgurable simpliﬁcation. In

Beringer, L. and Felty, A., editors, Interactive Theo-

rem Proving, volume 7406 of LNCS, pages 345–360.

Springer Berlin Heidelberg.

Buyya, R., Abramson, D., and Giddy, J. (2000). Nim-

rod/G: An Architecture for a Resource Management

and Scheduling System in a Global Computational

Grid.

Buyya, R. and Sulistio, A. (2008). Service and utility ori-

ented distributed computing systems: Challenges and

opportunities for modeling and simulation communi-

ties. In Proc. of the 41st Annual Simulation Sympo-

sium, ANSS-41 ’08, pages 68–81. IEEE Comp. Soci-

ety.

Buyya, R., Yeo, C. S., Venugopal, S., Broberg, J., and

Brandic, I. (2009). Cloud computing and emerging

IT platforms: Vision, hype, and reality for delivering

computing as the 5th utility. Future Generation Com-

puter Systems, 25(6):599 – 616.

Cafaro, M. and Aloisio, G. (2011). Grids, clouds, and vir-

tualization. In Cafaro, M. and Aloisio, G., editors,

Grids, Clouds and Virtualization, Computer Commu-

nications and Networks, pages 1–21. Springer Lon-

don.

Kuntschke, R. and Kemper, A. (2006). Data stream sharing.

In Grust, T., H

opfner, H., Illarramendi, A., Jablonski,

S., Mesiti, M., M

uller, S., Patranjan, P.-L., Sattler, K.-

U., Spiliopoulou, M., and Wijsen, J., editors, Current

Trends in Database Technology – EDBT 2006, volume

4254 of LNCS, pages 769–788. Springer.

Leavitt, N. (2009). Is cloud computing really ready for

prime time? Computer, 42(1):15–20.

Ludscher, B., Altintas, I., Berkley, C., et al. (2006). Sci-

entiﬁc workﬂow management and the Kepler system.

Concurrency and Computation: Practice and Experi-

ence, 18(10):1039–1065.

Martinaitis, P. N., Patten, C. J., and Wendelborn, A. L.

(2009). Component-based stream processing ”in

the cloud”. In Proceedings of the 2009 Workshop

on Component-Based High Performance Computing,

CBHPC ’09, pages 16:1–16:12. ACM.

Mendling, J., Reijers, H., and Cardoso, J. (2007). What

makes process models understandable? In Alonso,

G., Dadam, P., and Rosemann, M., editors, Business

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

294

Process Management, volume 4714 of LNCS, pages

48–63. Springer.

NeCTAR (2015). The National eResearch Collaboration

Tools and Resources. http://www.nectar.org.au/.

Nipkow, T., Paulson, L. C., and Wenzel, M. (2002). Is-

abelle/HOL – A Proof Assistant for Higher-Order

Logic, volume 2283 of LNCS. Springer.

Oinn, T., Greenwood, M., Addis, M., et al. (2006). Tav-

erna: Lessons in Creating a Workﬂow Environment

for the Life Sciences. Concurr. Comput. : Pract. Ex-

per., 18:1067–1100.

Opletal, G. et al. (2008). HRMC: Hybrid Reverse Monte

Carlo method with silicon and carbon potentials.

Computer Physics Communications, (178):777–787.

Ostermann, S., Iosup, A., Yigitbasi, N., Prodan, R.,

Fahringer, T., and Epema, D. (2010). A Performance

Analysis of EC2 Cloud Computing Services for Sci-

entiﬁc Computing. In Avresky, D., Diaz, M., Bode,

A., Ciciani, B., and Dekel, E., editors, Cloud Com-

puting, volume 34 of Lecture Notes of the Institute for

Computer Sciences, Social-Informatics and Telecom-

munications Engineering, pages 115–131. Springer

Berlin Heidelberg.

Spichkova, M. (2011). Focus on processes. Tech. Report

TUM-I1115, TU M

unchen.

Spichkova, M. (2013a). Design of formal languages and

interfaces: “formal” does not mean “unreadable”. In

Blashki, K. and Isaias, P., editors, Emerging Research

and Trends in Interactivity and the Human-Computer

Interface. IGI Global.

Spichkova, M. (2013b). Stream Processing Compo-

nents: Isabelle/HOL Formalisation and Case Studies.

Archive of Formal Proofs.

Spichkova, M. (2014a). Compositional properties of

crypto-based components. Archive of Formal Proofs.

Spichkova, M. (2014b). Formalisation and analysis of com-

ponent dependencies. Archive of Formal Proofs.

Spichkova, M. and Schmidt, H. (2015). Reconciling a com-

ponent and process view. 7th International Workshop

on Modeling in Software Engineering (MiSE) at ICSE

2015.

Spichkova, M., Thomas, I., Schmidt, H., Yusuf, I., Drumm,

D., Androulakis, S., Opletal, G., and Russo, S.

(2015a). Scalable and fault-tolerant cloud computa-

tions: Modelling and implementation. In Proc. of the

21st IEEE International Conference on Parallel and

Distributed Systems (ICPADS 2015).

Spichkova, M., Zamansky, A., and Farchi, E. (2015b). To-

wards a human-centred approach in modelling and

testing of cyber-physical systems. In Proc. of the

International Workshop on Automated Testing for

Cyber-Physical Systems in the Cloud.

Spichkova, M., Zhu, X., and Mou, D. (2013). Do we really

need to write documentation for a system? In Interna-

tional Conference on Model-Driven Engineering and

Software Development (MODELSWARD’13).

Vaquero, L. M., Rodero-Merino, L., Caceres, J., and Lind-

ner, M. (2008). A break in the clouds: towards a

cloud deﬁnition. SIGCOMM Comput. Commun. Rev.,

39(1):50–55.

Wimmer, M. and Kramler, G. (2006). Bridging grammar-

ware and modelware. In Bruel, J.-M., editor, Satel-

lite Events at the MoDELS 2005 Conference, volume

3844 of LNCS, pages 159–168. Springer.

Yusuf, I. and Schmidt, H. (2013). Parameterised architec-

tural patterns for providing cloud service fault toler-

ance with accurate costings. In Proc. of the 16th Int.

ACM Sigsoft symp. on Component-based software en-

gineering, pages 121–130.

Yusuf, I., Thomas, I., Spichkova, M., Androulakis, S.,

Meyer, G., Drumm, D., Opletal, G., Russo, S., Buckle,

A., and Schmidt, H. (2015). Chiminey: Reliable com-

puting and data management platform in the cloud. In

Proc. of the International Conference on Software En-

gineering (ICSE’15), pages 677–680.

Zhang, Q., Cheng, L., and Boutaba, R. (2010). Cloud com-

puting: state-of-the-art and research challenges. Jour-

nal of Internet Services and Applications, 1(1):7–18.

Zugal, S., Pinggera, J., Weber, B., Mendling, J., and Rei-

jers, H. (2012). Assessing the impact of hierarchy on

model understandability – a cognitive perspective. In

Kienzle, J., editor, Models in Software Engineering,

volume 7167 of Lecture Notes in Computer Science,

pages 123–133. Springer.

Managing Usability and Reliability Aspects in Cloud Computing

295
