Towards an Efﬁcient API for Optimisation Problems Data

Rodrigo Lankaites Pinheiro

, Dario Landa-Silva

, Rong Qu

, Edson Yanaga

and Ademir Aparecido Constantino

ASAP Research Group, School of Computer Science, University of Nottingham, Nottingham, U.K.

Unicesumar - Centro Universit

ario Cesumar, Maring

a, Brazil

Departamento de Inform

atica, Universidade Estadual de Maring

a, Maring

a, Brazil

Keywords:

Application Programming Interface, Workforce Scheduling and Routing Problems, Decision Support Sys-

tems, Research And Development.

Abstract:

The literature presents many application programming interfaces (APIs) and frameworks that provide state of

the art algorithms and techniques for solving optimisation problems. The same cannot be said about APIs

and frameworks focused on the problem data itself because with the peculiarities and details of each variant

of a problem, it is virtually impossible to provide general tools that are broad enough to be useful on a large

scale. However, there are beneﬁts of employing problem-centred APIs in a R&D environment: improving the

understanding of the problem, providing fairness on the results comparison, providing efﬁcient data structures

for different solving techniques, etc. Therefore, in this work we propose a novel design methodology for an

API focused on an optimisation problem. Our methodology relies on a data parser to handle the problem

speciﬁcation ﬁles and on a set of efﬁcient data structures to handle the information on memory, in an intuitive

fashion for researchers and efﬁcient for the solving algorithms. Also, we present the concepts of a solution

dispenser that can manage solutions objects in memory better than built-in garbage collectors. Finally, we

describe the positive results of employing a tailored API to a project involving the development of optimisation

solutions for workforce scheduling and routing problems.

1 INTRODUCTION

The literature presents many application program in-

terfaces (API) and frameworks to help researchers and

practitioners to apply state of the art solving tech-

niques to optimisation problems. Examples of such

APIs and frameworks are ParadisEO (Cahon et al.,

2004), jMetal (Durillo and Nebro, 2011) and Opt4J

(Lukasiewycz et al., 2011). These tools and APIs

have in common the fact that they provide ﬂexible im-

plementations of state of the art algorithms that can be

adapted to most optimisation problems, given that the

objective-function is known. However, on a research

and development (R&D) environment, understanding

the problem can be an important asset to solve it. With

a comprehensive understanding of the problem, one

can achieve improved tailored solutions. Thus, hav-

ing an API to handle the problem itself, including

data, features, constraints and objective-function can

be beneﬁcial to the project.

Few APIs with a stronger focus on the problem

were recently proposed, including an API to solve

nonlinear optimisation problems (Matias et al., 2010;

Mestre et al., 2010) and a new API for evaluating

functions and specifying optimisation problems at

runtime (Huang, 2012). Nonetheless, there is a rea-

son why APIs and frameworks focused on problems

are not common: they highly depend on the problem

being tackled and a single optimisation problem pos-

sesses many variants, making it impracticable to de-

ﬁne a uniﬁed model that covers all possible versions.

Therefore, in this work we present a set of guidelines

and recommendations to design a tailored API that

can be adapted to any optimisation problem emerging

from a R&D project.

Our design follows the framework proposed by

Pinheiro and Landa-Silva (2014), hence in the core

of the API is the data model represented by a set

of XML ﬁles. Our proposed design is composed of

three novel components. The ﬁrst is a parser for the

ﬁles that is able to read from and write to the mod-

elled format. The second are the data structures con-

taining the relevant optimisation data kept in mem-

ory. These data structures are designed to maximise

performance to access the data during the optimi-

sation process. Lastly, we propose a feature called

Pinheiro, R., Landa-Silva, D., Qu, R., Yanaga, E. and Constantino, A.

Towards an Efﬁcient API for Optimisation Problems Data.

In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 2, pages 89-98

ISBN: 978-989-758-187-8

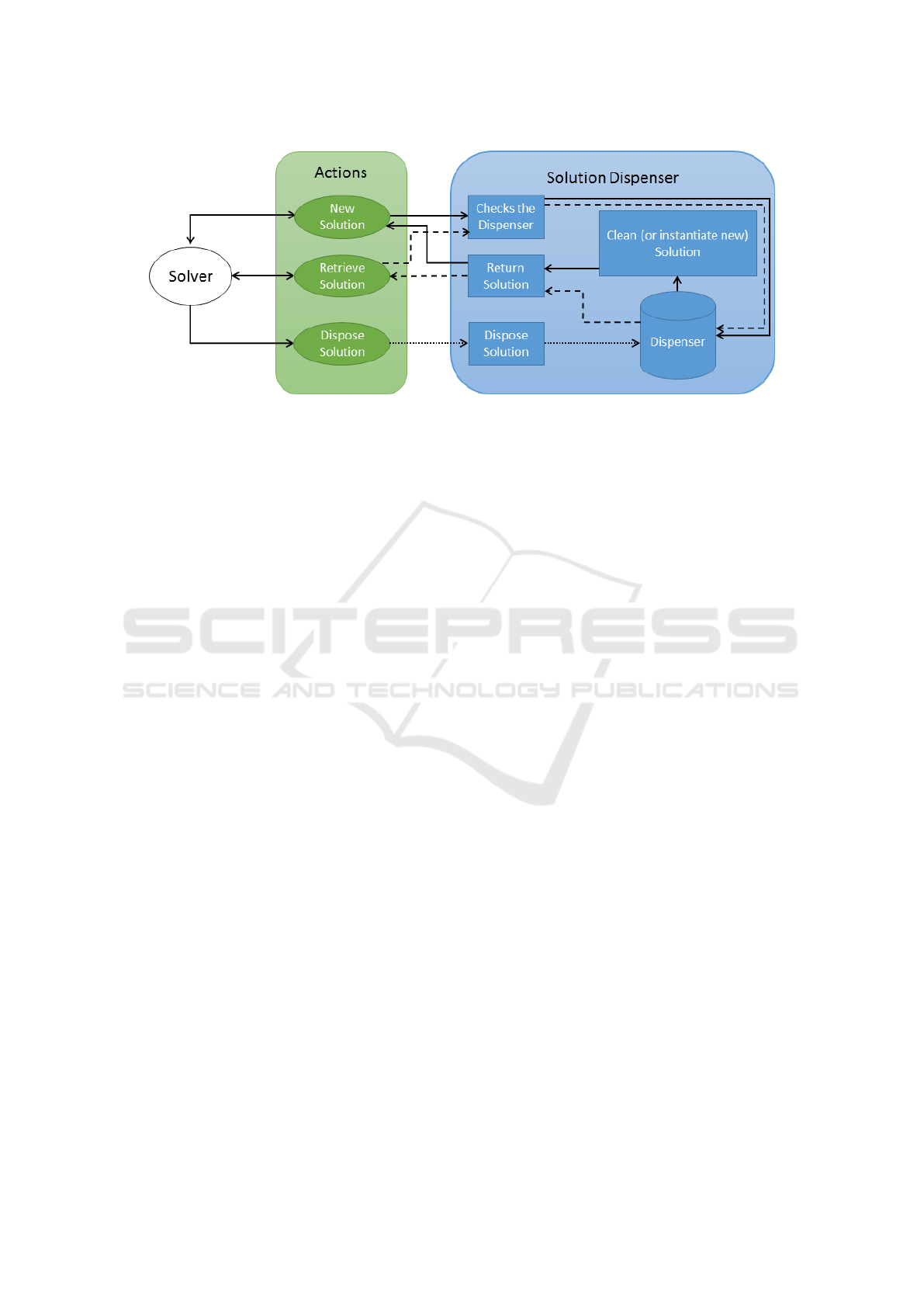

Solution Dispenser which centralises the objective-

function and provides a repository for solution ob-

jects that recycles solution objects and aims to min-

imise the interference of the built-in garbage collec-

tor and memory fragmentation, hence further increas-

ing computational performance. Although we use a

workforce scheduling and routing problem to illus-

trate the components, the concepts of the API can be

adapted to any optimisation problem because of the

data-driven approach employed.

Finally, we present the results of employing the

proposed API to an ongoing R&D project. By de-

signing a problem-centric API, the team can avoid re-

work, improve the quality of the software and pro-

mote fairness to compare different developed solving

techniques. We also present an empirical study of the

efﬁciency of applying the solution dispenser instead

of relying on the garbage collector of modern lan-

guages and we show that substantial computational

performance can be gained by employing them.

The main contributions of this work are twofold:

1. A development methodology for problem-driven

optimisation APIs that can be applied by both re-

searchers and practitioners to increase productiv-

ity, reliability and code efﬁciency.

2. An object-pool technique to store solution objects

to increase the performance of heuristic optimisa-

tion algorithms.

The remaining of this paper is structured as fol-

lows. Section 2 outlines the Workforce Scheduling

and Routing Problems Project, which is used to illus-

trate the application of the proposed API. Section 3

presents the guidelines and instructions on designing

the API. Section 4 presents the results obtained and

section 5 concludes this work.

2 THE WSRP PROJECT AND

RELATED WORK

In this work, we illustrate the design of the proposed

API using a Workforce Scheduling and Routing Prob-

lem (WSRP). In general terms, the WSRP is a class

of problems where a set of workers (nurses, doctors,

technicians, security personnel, etc.), each one pos-

sessing a set of skills, must perform a set of visits.

Each visit may be located in different geographical

locations, requires a set of skills and must be attended

at a speciﬁed time frame. Working regulations such as

maximum working hours and contractual limitations

must be attended. This deﬁnition is quite general and

many problems can be considered WSRPs.

This work considers a variant of this problem,

the home healthcare scheduling and routing problem.

Workers in this scenario are nurses, doctors and care

workers while the visits represent performing activi-

ties on patients who are in their houses. In this prob-

lem, the main objective of the optimisation is to min-

imise distances and costs while maximising worker

and client’s preference satisfaction and avoiding (if

possible) the violation of area and time availabilities.

For more information regarding the WSRP we rec-

ommend the works of Castillo-Salazar et al. (2012,

2014), Laesanklang et al. (2015a,b) and Pinheiro et al.

(2016).

We are engaged in a R&D project in collabora-

tion with an industrial partner in order to develop the

optimisation engine for tackling large WSRP scenar-

ios. The existing information system collects all the

problem-related data and provides an interface to as-

sist human decision makers in the process of assign-

ing workers to visits. We are responsible for de-

veloping the decision support module that couples

well with the information management system being

developed and maintained by the industrial partner.

Hence, the proposed API is being used by the research

team and later it integrates into the current system.

Many APIs and implementations available in the

literature focus on the solving techniques. We can

highlight the ParadisEO (Cahon et al., 2004), the

jMetal (Durillo and Nebro, 2011) and the Opt4J

(Lukasiewycz et al., 2011). They are all frameworks

that provide several solving algorithms for both sin-

gle and multiobjective problems. They all have in

common the fact that they are built around the solving

methods and they are ﬂexible enough to be applied to

many optimisation problems.

In the literature, we can also ﬁnd frameworks and

APIs with a stronger focus on the problems being

solved rather than on the solving techniques.

• Matias et al. (2010) and Mestre et al. (2010)

propose a web-based Java API to solve nonlin-

ear optimisation problems. The API incorpo-

rates a set of constrained and unconstrained prob-

lems and gives the user the possibility to de-

ﬁne his own problems with custom-made objec-

tive functions. However, deﬁning exclusively the

objective-function may be too restricting to the re-

search of the solver because solvers may require

access to individual features of the problem (con-

straints, objectives, etc.) or to partial evaluations.

Hence, our API could be integrated with this or

any framework focused on the solving algorithm

as we focus on how to efﬁciently access the data

and build solution objects.

• In his work, Huang (2012) proposes a new API

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

for evaluating functions and specifying optimisa-

tion problems at runtime. They propose a Fortran

interface FEFAR for the evaluation of objective

functions and a new deﬁnition language LEFAR

for the speciﬁcation of optimisation problems at

runtime. Conceptually, we differ from them as we

are not proposing an implemented tool applicable

to speciﬁc scenarios, but instead, we provide the

concepts of a tailored API that can help on the re-

search and development of optimisation solutions.

• Pinheiro and Landa-Silva (2014) propose a frame-

work to aid in the development and integration of

optimisation-based enterprise solutions in a col-

laborative R&D environment. The framework

is divided into three components, namely a data

model that serves as a layer between practition-

ers and researchers, a data extractor that can ﬁl-

ter and format the data contained in the informa-

tion management system to the modelled format

and a visualisation platform to help researchers

to fairly compare and visualise solutions coming

from different solving techniques. In their work,

they mention the importance of an API that ex-

tends the usefulness of the data model. In this

work, we extend that concept and describe how

to design and implement the key components of

a problem-oriented API. While that work focuses

on the research and development methodology,

here we focus on the design of an API that can

further facilitate the development of optimisation

solutions.

Although the aforementioned related works at-

tempt to provide problem-oriented tools, to the best

of our knowledge they are restrictive and possibly not

widely applicable due to their limitations. Therefore,

the design of a tailored API for an optimisation prob-

lem can be beneﬁcial to an R&D project as long as the

time spent on its development is justiﬁable. Hence,

we now present a set of guidelines to facilitate the de-

velopment of such tools.

3 API FOR OPTIMISATION

PROBLEMS DATA

The proposed API is composed of three main compo-

nents that allow the user to decode the data ﬁles of a

problem scenario, to load the data into efﬁcient and

easy-to-access data structures and to build and evalu-

ate solutions in a straightforward and efﬁcient way.

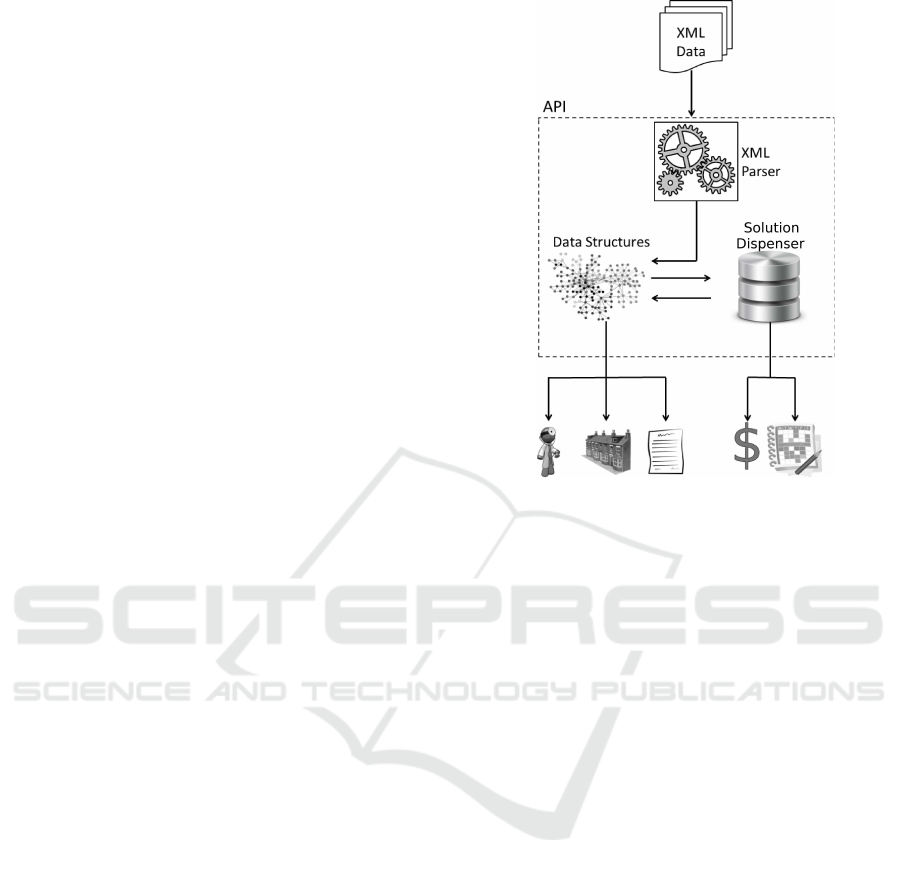

Figure 1 presents an overview of the API compo-

nents. On top, we have the XML Data (the ﬁles con-

taining a problem instance deﬁnition) as input for the

Figure 1: Overview of the API.

API. The XML Parser decodes the ﬁles and builds the

Data Structures that can be accessed by the user of the

API. The user can also access the Solution Dispenser

to instantiate and dispose of solution objects of the op-

timisation problem. The Solution Dispenser commu-

nicates with the Data Structures to evaluate and up-

date current solutions.

These features facilitate the development of both

experimental solving techniques and ﬁnal release ver-

sions. Additionally, they provide a reliable way for

the algorithms to query the data and to compare so-

lutions from different approaches. We describe next

how an algorithmic solver interacts with the API.

3.1 API Concept

Figure 2 present an overview of the API employed

in the WSRP project and how the developed solvers

interact with the API. Following, we describe each

feature numbered in the ﬁgure. Some features extend

to all problems and can potentially be employed by an

API tackling any problem.

1. Solver: the API facilitates the use of different

solving techniques (exact solvers, heuristic algo-

rithms, etc.) on the problem because it provides

a set of methods to easily access different fea-

tures of the problem, such as values, constraints

and basic operations on the data. Therefore, the

researchers can plug in existing solving APIs and

frameworks or new algorithms.

Towards an Efﬁcient API for Optimisation Problems Data

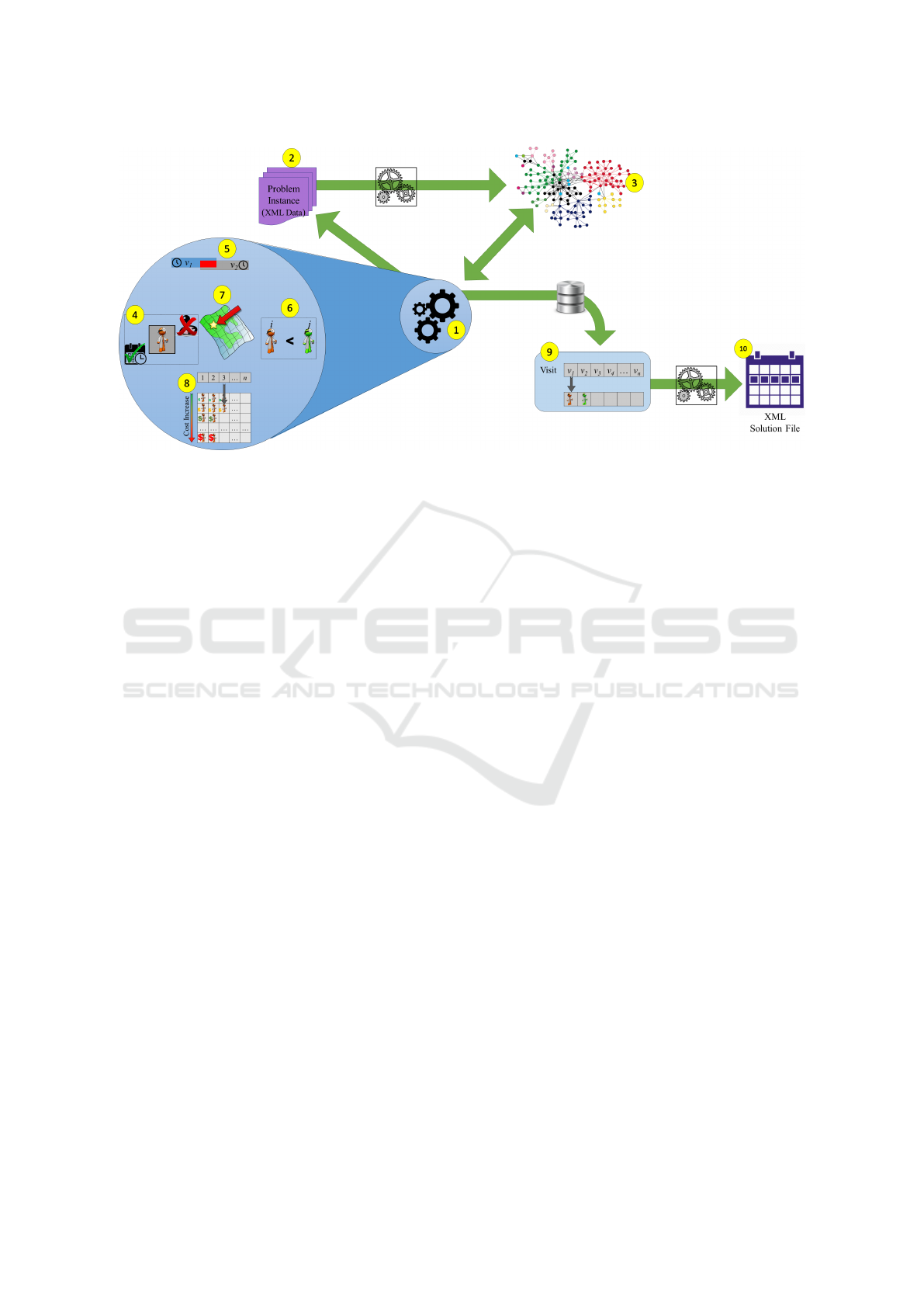

Figure 2: Main features of the WSRP API, where (1) refers to the optimisation solver (mathematical solver, heuristic algo-

rithms, etc.), (2) and (10) to the data parser, (3) to the internal memory structures, (4) to (8) to the operations and methods

supported by the API and (9) to the Solution Dispenser.

2. Problem Data: we consider that each problem

instance can be represented in a set of dataﬁles

(in this case we use XML ﬁles). These ﬁles must

contain all information related to a single instance

of the optimisation problem.

3. Internal Data Structures: one of the main func-

tionalities of the API is to provide a set of efﬁ-

cient data structures to hold the data in the mem-

ory. After the solver selects a problem instance

to load, the data parser reads the ﬁles and allocate

the problem data into memory. These structures

are designed to provide maximum access perfor-

mance to the solver.

Problem-speciﬁc features must be adapted to the

problem at hand. The API should provide easy ac-

cess to the internal data structures and methods for

easy and efﬁcient access. Following, we present what

we considered to be essential to be provided by the

WSRP API:

4. Constraints: the API provides several methods to

assess and evaluate the basic problem constraints

related to assignments. For example, given an as-

signment (a visit and a worker), the API provides

methods to:

– Check if the worker is skilled for the visit.

– Check if the worker possesses a valid contract

to perform that visit.

– Check if the worker is available at the time of

the visit.

– Check if the worker can commute to the place

of the visit.

5. Operations: the API also provides several op-

erations to be used by the solver. These oper-

ations can be simple checks and validations or

complex functionalities. Among the operations in

the WSRP we highlight:

– Check if two given visits are time conﬂicting.

– Check if a worker is qualiﬁed to perform two

given visits.

– Calculate the best contract for an assignment.

6. Preferences: in addition to constraint methods,

the WSRP API also provides methods for evalu-

ating preferences (worker, staff and patient’s pref-

erences):

– Retrieve the worker preferred to perform a

given visit based on historical data.

– Calculate the visits that a given worker prefers

to perform.

– Locate the worker that best matches a given pa-

tient preferences.

7. Geographical Methods: because the WSRP

combines scheduling and routing, we designed a

set of methods related to the geographical data,

including:

– Check if a given visit is within a given area.

– Given a transportation mode, calculate the time

to commute from a visit to another.

– Check which transportation modes can be used

within an area.

– Retrieve all visits within an area.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

8. Overall Data Access: it is important to notice

that although the provided methods and opera-

tions are extensive, speciﬁc solvers or techniques

may require a different way to access the data,

hence, the WSRP API also provides basic ’get’

methods for all information (Figure 3).

Finally, the API also provides functionalities re-

lated to building and maintaining solutions for the op-

timisation problem:

9. Solution Handling: the solver may deal with a

single or with multiple solutions simultaneously.

The Solution Dispenser provides an interface for

the solver to create and store solutions in the

memory. This component provides the following

methods:

– Create a new solution.

– Add assignment – given a visit, a worker, a con-

tract, start time and transportation mode, the

method uses this information and creates an as-

signment in a currently speciﬁed solution.

– Dispose of the solution.

10. Save Solution: ﬁnally, the data parser is able to

save a solution object to an XML ﬁle that can later

be retrieved and loaded back into memory.

Next, we detail each component of the proposed

methodology to build an API for optimisation prob-

lems data.

3.2 XML Data Parser

Pinheiro and Landa-Silva (2014) proposed the use of

a data model to represent the optimisation problem

features and data. In a collaborative environment,

where practitioners work with the academia to de-

velop a decision support system, it is common that

an information system already exists and that the de-

cision support system is a feature to be incorporated.

In this context, a data model to represent the problem

was proposed to improve the development of the def-

inition of the optimisation problem being tackled, the

independence between the development team and the

research team and to promote an easy integration of

the solver to the actual information system.

Extending the data modelling concept proposed

by Pinheiro and Landa-Silva (2014), the ﬁrst compo-

nent of the proposed API is a parser to read the in-

put ﬁles from the data model and build the data struc-

tures. Additionally, the parser is also responsible for

converting a solution of the optimisation problem into

the data ﬁle. Also, the parser must be implemented

in such a way to easily accommodate extensions or

updates in the data model. For that purpose, we em-

ployed a serialisation library to serialise the data to

and from an XML data format.

Since we are using Java, we employed the

XStream Java library (Walnes, 2016), however, most

high-level languages have XML serialisation mecha-

nisms available. The advantage of such approach is

that we can create a set of classes that corresponds

immediately to the modelled data, hence the seriali-

sation library can handle all the ﬁle parsing. This is

easy to develop and do not require much program-

ming time, however, it is likely that the objects in

memory are not best suited for performance or for

intuitive access because the serialisation mechanism

often requires intermediate classes and public access

to attributes. Hence, the parser is used exclusively to

translate the information from and to the ﬁles. For ef-

ﬁcient and easy access to the data, we need another

set of data structures.

3.3 Internal Data Structures

The second component of the API is composed of the

data structures to hold the problem-related data. It is

important to emphasise that while the aforementioned

data model is intended to be a clear representation of

the optimisation problem, the internal data structures

must be efﬁcient for access during the optimisation

process.

Therefore, we must ensure that the operations in-

voked during the optimisation are performed on con-

stant (O(1)) time when possible. Additionally, the

API should be ﬂexible enough to easily accommo-

date different solving techniques, as we are not only

concerned about the ﬁnal product but with the entire

process of developing the R&D project. Hence, in

our work, we divided the API into groups of objects,

following the data model orientation. Therefore, we

have in the WSRP API the following groups:

• Visits – containing information about the require-

ments of each visit, e.g. number of workers re-

quired, start time, duration, location, skills re-

quired, preferences, etc.

• Workers – containing information related to the

workers themselves, e.g. skills, availability, home

location, preferences.

• Areas and locations.

• Transportation modes.

• Contracts – containing information regarding

maximum and minimum working hours and costs.

To hold the objects, we ﬁrst use arrays. The ad-

vantage of using arrays is that the random access us-

ing indexes is very efﬁcient (O(1)). The disadvantage

Towards an Efﬁcient API for Optimisation Problems Data

is that to load the data we must ﬁrst assess its size

in order to allocate the right length for the arrays (or

use dynamic array structures which could also hinder

the performance if the pre-allocated size is not large

enough). To increase the loading performance, we

added a new XML ﬁle to the model, called ’meta-

data.xml’ that accommodates several information and

statistics of the problem instance, such as the number

of workers, tasks, the date format used in the ﬁles, etc.

Using arrays may be sufﬁcient for most solving

algorithms as it allows fast random access and quick

interaction through the elements. However, it may be

a problem with specialised heuristics or external soft-

ware that might have access to the API. Such systems

are often linked with a database, hence, they han-

dle elements using their own identiﬁcation number,

which is stored in the XML, but is not consistent with

the index of the arrays. To solve this matter, we em-

ploy a second data structure, a hash table, linking the

identiﬁcation numbers of the database entries to its

respective objects. In order to provide better usabil-

ity with both data structures, we encapsulated both the

hash table and the arrays, for each type of objects, into

a single class representing the set of elements.

Finally, to improve the usability of the API, we

deﬁne a naming convention to make it clear regard-

ing the performance of the operations. All methods

starting with the words ’get’, ’is’ and ’has’ are guar-

anteed to perform in O(1) time. All methods starting

with the word ’calculate’ are guaranteed to perform in

O(n

) time in the worst case.

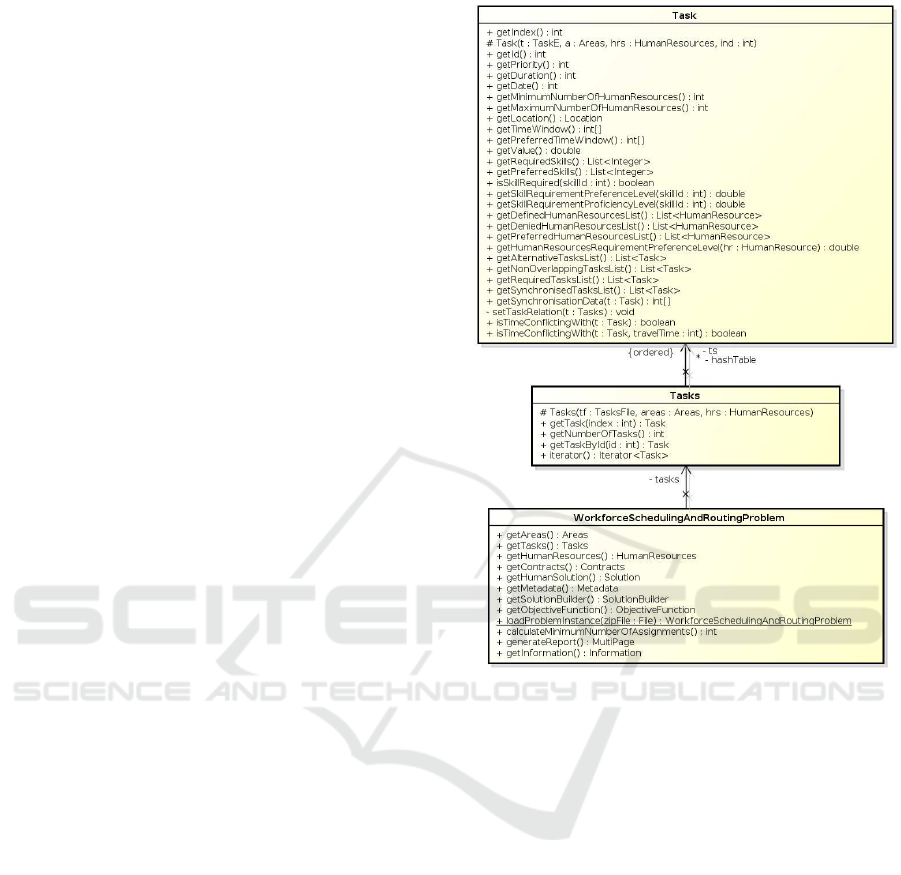

Figure 3 presents a class diagram of the data

structures. For simplicity, we included only the

main class that deﬁnes the optimisation problem

and the classes that deﬁne the tasks and the set of

tasks. The main class, WorkforceSchedulingAndRout-

ingProblem, is composed of sets of elements included

in a problem instance, namely areas, tasks, human re-

sources and contracts. This class provides an inter-

face such that the user can retrieve each set and its

elements. Also, this class allows the user to obtain

the Solution Dispenser, explained in the subsequent

section. Note that the calculateMinimumNumberO-

fAssignments method, as aforementioned, starts with

the ’calculate’ word, hence in the worst case it per-

forms in O(n), while all ’get’ methods performs with

O(1) time complexity.

The Tasks, Areas, HumanResources and Contracts

classes contain both the arrays of elements and the

hash table linked by each element’s identiﬁcation

number. Hence, when using these classes it is pos-

sible to interact through all elements or retrieve a spe-

ciﬁc one given its identiﬁcation number or index, as

we can ﬁnd in the Tasks class. We see that from this

Figure 3: Class diagram for the main problem class and the

tasks-related classes.

class it is possible to identify an ordered list of tasks

ls representing the array and the hash table hashTable

containing the mapping of identiﬁcation numbers. Fi-

nally, the class Task contains all the methods to access

the data from a single task plus some useful opera-

tions, such as isTimeConﬂictingWith which checks if

a second given task conﬂict in time with the current

task (hence they cannot be performed by the same

worker).

3.4 The Solution Dispenser

The last component of the API is the Solution Dis-

penser (SD). The SD provides an interface for the user

to build and assess a solution for a given problem in-

stance. Once the problem is loaded into an object, the

user can invoke the SD to create a new solution ob-

ject. A new empty solution is created and an identiﬁ-

cation number is returned to the user. He/she then can

use this number to access the solution and add new as-

signments and evaluate the solution according to mul-

tiple criteria (preferences, objectives or constraints).

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

Figure 4: Flow diagram for the Solution Dispenser. Solid lines represent the ﬂow for the ’New Solution’ action, dashed lines

for the ’Retrieve Solution’ action and dotted lines for the ’Dispose Solution’ action.

The user can also invoke the objective function to

evaluate the solution. Figure 4 presents a schematic

for the SD component.

Modern programming languages, such as Java and

C#, provide a convenient way to handle objects: a

garbage collector. When the user doesn’t need an

object anymore, all he has to do is to get rid of the

links and pointers to that object. At a given time, the

garbage collector starts processing, seeking objects

that are not linked by the user’s program and free-

ing the memory. That can lead to two problems: the

ﬁrst is the fragmentation of the memory, which is a

problem because the defragmentation process can be

slow; the second is the extra processing time to seek,

to free the memory and later to allocate new objects

(Siebert, 2000; Bacon et al., 2003).

Leaving the disposal of objects to the garbage col-

lector can lead to a decrease in performance that,

aside from being marginal for most applications, can

have an unacceptable impact on optimisation algo-

rithms. Hence, the SD internally implements an Ob-

ject Pool design pattern (Nystrom, 2014) to recycle

the objects. To do that we employ a factory object

implemented using the factory design pattern (Yener

et al., 2014) for easy creation of the objects. This fac-

tory is responsible for creating new solution objects.

When a new solution request is invoked (Figure

4), the factory seeks its internal solution repository

(a list of disposed solutions). If there is a solution

available in the repository, it retrieves it, clears the

solution and returns it to the solver. The solver now

has an empty solution that it can use. When the solver

does not need the solution anymore, it can dispose of

the solution by invoking the speciﬁc method in the

SD. The factory then receives the disposed solution

and stores it in the list.

Potentially, the use of the solution dispenser can

provide signiﬁcant performance gains. Take for in-

stance a population-based algorithm that processes

one generation per second with a population of 100

individuals. That means 100 solutions being disposed

of per second. After ten minutes running, the algo-

rithm will have disposed of 60000 solutions, which

potentially could fragment the memory and cause sev-

eral garbage collection calls. Now, when using the

dispenser, considering the worst case, when a new

population is created before disposing of the old one,

we need 100 active solutions per population, totalling

200 total solutions active that will be recycled dur-

ing the execution. Thus, in this hypothetical scenario,

we could have a decrease of 99.6% on the number

of objects used, which could represent a reduction of

97.5% on the processing time and memory consumed

by the garbage collector (see section 4.1).

4 EXPERIMENTS AND RESULTS

We now present the results of the use of the API in the

WSRP project. Having a centralised API containing

a parser and efﬁcient internal data structures helped

both teams to avoid performing rework. Also, the

company’s development team were able to easily han-

dle the data ﬁles by using the integrated parser, saving

time. The internal data structures allowed everyone

to feel conﬁdent that they were using an efﬁcient im-

plementation. Having the best-known data structures

available for everyone, helps to achieve improved efﬁ-

ciency in all solvers developed. Additionally, after the

release of the API, the use of the integrated Solution

Dispenser helped our team to assess and compare the

developed solvers because it guaranteed that both sin-

gle point algorithms and population-based were han-

dled efﬁciently. Finally, having multiple people work-

ing using a single API helps to spot code errors and

Towards an Efﬁcient API for Optimisation Problems Data

100

250

500

1000

2500

5000

10000

25000

Solution Size

Time(s)

SD - Total

SD - new

SD - dispose

GC - Total

GC - new

GC - dispose

Figure 5: Time comparison between the Solution Dispenser (SD) and the Java Garbage Collector (GC) to instantiate and

dispose new solutions.

bugs faster than having each researcher to ﬁnd errors

alone on his own code, ensuring higher quality on the

software developed.

4.1 Solution Dispenser

We now present an empirical analysis of the efﬁ-

ciency of the Solution Dispenser. The SD is respon-

sible for holding solution objects of given problem,

hence small problems using larger encoding consume

more memory than larger problems using smaller en-

coding. This is particularly true when comparing an

integer array representation (an array the size of the

number of tasks) and a binary array representation (a

matrix which is of size number of workers × num-

ber of tasks). Therefore, to test the solution dispenser

we used integer arrays varying from very small (25

elements) to very large (25000 elements) represent-

ing respectively a small problem using integer rep-

resentation and a large problem using binary repre-

sentation. Note that although the decision variables

may be binary, for several reasons it not uncommon

to ﬁnd these arrays implemented using complex ob-

jects (Durillo and Nebro, 2011), hence, it is reason-

able to use integer variables instead of binary ones in

our experiments.

We deﬁned our experiments as follows: for each

problem size, we sequentially created and disposed

of one million solution objects. For the experi-

ments using the garbage collector, the disposing pro-

cess merely unlinked the objects to free them to the

Garbage Collector (GC) while for the SD it called

the internal dispose process and cleared the object

data. We run each set-up for ﬁve times and computed

the average results. Additionally, to measure time

and memory we used the integrated proﬁler avail-

able on Netbeans which can accurately measure the

time spent on each method and the memory allocated

during the execution of the application. The exper-

iments were performed on a quad-core Intel i7 ma-

chine with 32GB memory on the Java platform. The

main reason for choosing Java is that is a mature lan-

guage, multi-platform and widely employed for opti-

misation problems with a large number of optimisa-

tion algorithms implemented and available for pub-

lic use (Cahon et al., 2004; Durillo and Nebro, 2011;

Lukasiewycz et al., 2011).

Figure 5 presents the results of the time computa-

tion. The red lines represent the time spent in seconds

on experiments using the Java garbage collector and

the blue lines represent the time spent on experiments

employing the solution dispenser. The solid lines rep-

resent the total time, the dashed lines represent the

time used by the ’new’ method, which allocates new

solution objects and the dotted lines represent the ’dis-

pose’ method. We can see that the time spent by the

SD follows a constant trend throughout all problem

sizes. This happens because both the ’new’ and ’dis-

pose’ operations of the solution dispenser perform in

constant time and since there are no objects freed in

the memory (they are being kept alive by the SD), the

garbage collector (automatically activated by the Java

virtual machine) just quickly checks for dead objects,

ﬁnds nothing, and is deactivated without any extra

processing.

Regarding the tests using the garbage collector,

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

100

250

500

1000

2500

5000

10000

25000

200

400

600

800

Problem Size

Memory Used (MB)

SD Maximum

SD Average

GC Maximum

GC Average

Figure 6: Memory comparison between the Solution Dispenser (SD) and the Java Garbage Collector (GC).

we see that the ’dispose’ operation is performed in

constant time, but the ’new’ method requires higher

time proportional to the size of the solutions. We can

clearly see how relying on the garbage collector to

dispose and allocate new objects can hinder the per-

formance of the application. Also, it is important to

notice that in our experiments we did not specify any

parameters for the Java virtual machine, hence the ex-

periments had as much memory as it was required.

In a real-world environment, that might not be the

case. Many processes may be active in the machine

and the memory might be limited, which would make

the garbage collector to be active more often than it

was on the presented tests, hence further decreasing

the performance.

In Figure 6 we have the results of the memory

allocation measurement. The red lines represent the

experiments using the garbage collector and the blue

lines the solution dispenser. Also, the solid lines rep-

resent the maximum memory allocated in MB and the

dashed lines the average memory allocated. Analo-

gously to the previous chart, we can clearly see that

the memory required by the SD, not surprisingly, is

constant throughout all experiments. Although the

size of the array changes on each experiment, only

one object is allocated in memory during the runtime.

However, when relying on the garbage collector, we

see that it makes use of much more memory, which

reinforces our previous statement that in a scenario

where the memory is limited the garbage collector re-

quires more frequent activation.

Thus, we can clearly see that by employing the so-

lution dispenser we can achieve substantial improve-

ments both in time and memory consumption, espe-

cially on larger problems or problems where the so-

lution representation is larger. Also, the idea of the

solution dispenser of recycling objects could be im-

plemented in the solver algorithms themselves, espe-

cially on population-based algorithms (because of the

high number of created and disposed solutions), to

maintain their individuals pool.

5 CONCLUSION

Because it is not possible to provide a general API that

suits all problems, we instead provided in this work a

set of guidelines and instructions to aid on the tailor-

ing of an API to efﬁciently handle the optimisation

problem data and to help to increase the performance

of solving techniques. We ﬁrst stipulated a ﬁle parser

that can read the modelled format and load all perti-

nent information into memory. Then we deﬁned an

intuitive and efﬁcient approach to storing this infor-

mation using efﬁcient data structures that are clear

and computationally efﬁcient, hence it can improve

the research process and be applied to a ﬁnal solver

algorithm. Finally, we proposed a component called

Solution Dispenser which provides a solution repos-

itory that handles the memory allocation of solution

objects in an improved way.

We discussed that having the API available for

academics and practitioners greatly helped us on our

project. We were able to minimise the rework done

by multiple researchers from different backgrounds,

to reduce the time spent on implementations and the

assessment of solving techniques started earlier. We

were also able to increase the solvers efﬁciencies and

Towards an Efﬁcient API for Optimisation Problems Data

to promote a consistent mean to compare solutions.

Also, we managed to improve the identiﬁcation of

glitches and bugs in the code, raising the reliability

of the software being developed from early stages of

the project. Moreover, we analysed the advantages of

using the Solution Dispenser and presented the com-

putational gains that can be obtained by employing

such technique and the design patterns presented.

In conclusion, the guidelines of the API design

proposed in this work can help academics and practi-

tioners to achieve improved results, both for research

or production purposes. While the API provides a

fair mechanism for researchers to develop and as-

sess their algorithms, it also provides a reliable frame-

work for practitioners to ground their solutions. Ad-

ditionally, the computational performance that can be

gained from applying the aforementioned techniques

can help researchers to develop their algorithms and

the industry to improve their solutions or reduce costs.

Finally, our reported experience, arising from a col-

laboration with an industrial partner, may be useful

for other researchers and practitioners in a similar po-

sition.

Our future work will further investigate the data

structures aiming to improve their efﬁciency. Also,

we will test the proposed dispenser on a real-world

environment, assessing it with optimisation algo-

rithms solving real-world problems.

REFERENCES

Bacon, D. F., Cheng, P., and Rajan, V. T. (2003). Con-

trolling fragmentation and space consumption in the

metronome, a real-time garbage collector for java.

SIGPLAN Not., 38(7):81–92.

Cahon, S., Melab, N., and Talbi, E. (2004). Paradiseo: a

framework for the reusable design of parallel and dis-

tributed metaheuristics. Journal of heuristics, 10:357–

380.

Castillo-Salazar, J. A., Landa-Silva, D., and Qu, R. (2012).

A survey on workforce scheduling and routing prob-

lems. In Proceedings of the 9th International Con-

ference on the Practice and Theory of Automated

Timetabling (PATAT 2012), pages 283–302, Son, Nor-

way.

Castillo-Salazar, J. A., Landa-Silva, D., and Qu, R. (2014).

Workforce scheduling and routing problems: litera-

ture survey and computational study. Annals of Oper-

ations Research.

Durillo, J. J. and Nebro, A. J. (2011). jMetal: A Java frame-

work for multi-objective optimization. Advances in

Engineering Software, 42:760–771.

Huang, F. (2012). A New Application Programming Inter-

face and a Fortran-like Modeling Language for Eval-

uating Functions and Specifying Optimization Prob-

lems at Runtime. International Journal of Advanced

Computer Science and Applications(IJACSA), 3(4).

Laesanklang, W., Landa-Silva, D., and Castillo-Salazar,

J. A. (2015a). Mixed integer programming with de-

composition to solve a workforce scheduling and rout-

ing problem. In ICORES 2015 - Proceedings of the

4rd International Conference on Operations Research

and Enterprise Systems, pages 283–293.

Laesanklang, W., Pinheiro, R., Algethami, H., and Landa-

Silva, D. (2015b). Extended decomposition for mixed

integer programming to solve a workforce scheduling

and routing problem. In Operations Research and En-

terprise Systems, volume 577 of Communications in

Computer and Information Science, pages 191–211.

Springer International Publishing.

Lukasiewycz, M., Glaß, M., Reimann, F., and Teich, J.

(2011). Opt4J - A Modular Framework for Meta-

heuristic Optimization. In Proceedings of the Genetic

and Evolutionary Computing Conference (GECCO

2011), pages 1723–1730, Dublin, Ireland.

Matias, J., Correia, A., Mestre, P. Graga, C., and Serodio,

C. (2010). Web-based application programming inter-

face to solve nonlinear optimization problems. In Pro-

ceedings of the World Congress on Engineering 2010,

Vol III.

Mestre, P., Matias, J., Correia, A., and S., C. (2010). Direct

search optimization application programming inter-

face with remote access. IAENG International Jour-

nal of Applied Mathematics, pages 251–261.

Nystrom, R. (2014). Game Programming Patterns. Genever

— Benning.

Pinheiro, R., Landa-Silva, D., and Atkin, J. (2016). A vari-

able neighbourhood search for the workforce schedul-

ing and routing problem. In Advances in Nature and

Biologically Inspired Computing, volume 419 of Ad-

vances in Intelligent Systems and Computing, pages

247–259. Springer International Publishing.

Pinheiro, R. L. and Landa-Silva, D. (2014). A development

and integration framework for optimisation-based en-

terprise solutions. In ICORES 2014 - Proceedings of

the 3rd International Conference on Operations Re-

search and Enterprise Systems, Angers, Loire Valley,

France, March 6-8, 2014., pages 233–240.

Siebert, F. (2000). Eliminating external fragmentation in a

non-moving garbage collector for java. In Proceed-

ings of the 2000 International Conference on Com-

pilers, Architecture, and Synthesis for Embedded Sys-

tems, CASES ’00, pages 9–17, New York, NY, USA.

ACM.

Walnes, J. (2016). Xstream. http://x-stream.github.io/.

Yener, M., Theedom, A., and Rahman, R. (2014). Profes-

sional Java EE Design Patterns. Wiley.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems
