Aligning Software Design with Development Team Expertise

Jānis Grabis

, Egils Meiers

, Inese Šūpulniece

, Solvita Bērziša

, Edgars Ozoliņš

and Ansis Svaža

Institute of Information Technology, Riga Technical University, Kalku 1, Riga, LV-1658, Latvia

Visma Enterprise, Kronvalda bulv.3/5, Riga, LV-1010, Latvia

Keywords: Enterprise Application, Refactoring, Development Reorganization, Team Expertise, Clustering.

Abstract: Large enterprise applications are developed by teams of developers specializing in particular functional or

technical areas. An overall application architecture is used to guide allocation of development tasks to the

development teams. However, quality of the architecture degrades over the application life-cycle and

manual refactoring is challenging due to the size and complexity of enterprise applications. This paper

proposes to use automated clustering of large enterprise applications, where clusters are built around

application business centers, as a means for refactoring the software design with an objective to improve

allocation of software modules to development teams. The paper outlines a module allocation process in the

framework of the overall enterprise application development process and reports an illustration of the

allocation process. The illustration is based on the case of refactoring of a large third tier ERP system.

1 INTRODUCTION

Development of large software applications such as

Enterprise Resource Planning (ERP) systems is a

complex task. These systems are constantly evolving

and huge efforts are devoted towards maintenance of

existing applications and developing new

functionality. Expertise of development team is a

crucial factor to ensure efficient maintenance and

software evolution (Bennett and Rajlich, 2000). That

is especially important for large multi-functional

applications because for their wide scope and long

life-cycles. Developers specialize in particular

functional and technical areas to ensure development

efficiency (Liang, 2010). This specialization is

enabled by having a modular system design

(Paulish, 2002). Unfortunately, the system design if

initially present tends to deteriorate during the life-

cycle for large complex applications (Cai et al.,

2009).

This paper investigates a problem of refactoring

the system design of long life-cycle packaged

applications with an objective to support

modularized development by dedicated teams. The

refactoring is achieved by automated clustering of

the system into self-contained modules. The

automated clustering is considered because manual

refactoring is prohibitive in the case of large

systems. It is assumed that development of the

modules requires specific development expertise and

teams are formed and the modules are assigned to

them to attain the best match between the required

competencies and the team’s expertise.

The objective of this paper is to propose a

method for aligning software design and team’s

expertise. The method is geared towards

development of packaged applications including

ERP systems. ERP development is investigated from

the vendor perspective (as opposed to the ERP

implementation perspective). Application of the

method is illustrated using an example of the third

tier ERP system undergoing a system’s redesign

project. The further research is intended to focus on

evaluation of actual benefits of redesigning of the

ERP systems from the vendor’s perspective what is

an insufficiently exposed research and practical

problem. The main expected contribution of the

proposed research is to determine suitability of

automated refactoring to guide development team

assignment and to facilitate inter-team collaboration

in the case of large-scale packaged applications.

The rest of the paper is organized as follows.

Section 2 describes the ERP development process

highlighting its modular nature and discusses the

role of development team’s composition. Section 3

introduces a process for allocating modules to

development teams. Section 4 describes preliminary

evaluation of the alignment process. Section 5

concludes.

560

Grabis, J., Meiers, E., Š ¯upulniece, I., B¯erziša, S., Ozolin¸š, E. and Svaža, A.

Aligning Software Design with Development Team Expertise.

In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 1, pages 560-565

ISBN: 978-989-758-187-8

2 ERP DEVELOPMENT

PROCESS

An ERP development process resembles the

traditional software development process. Two

distinguishing features of this process are specific

aspects of requirements management and wide scope

of the application resulting in functional and

technological complexities. Monnerat et al. (2008)

suggest to use enterprise modeling techniques to

establish a comprehensive set of requirements

covering all areas of application of ERP systems.

The incremental approach (Sommerville, 2010) to

evolving functionality of the ERP systems on the

basis of key requirements and overall architecture is

used to address the functional and technological

complexities. Figure 1 shows an overall ERP

development process.

An ERP system can be developed from scratch

or by evolving existing software. The latter case is

more common in practice since either the previous

version of the ERP system is available or the ERP

system development is a continuation of successful

custom software development. In this research, we

focus on maintenance and evolution of existing ERP

systems. The development process is driven by

feedback from customers, market trends, changes in

regulatory requirements and other factors (Xu and

Brinkkemper, 2007). The enterprise modeling

activity concerns scoping of ERP development and

identification of key requirements towards the ERP

system. ERP systems consist of functional modules,

which cover certain areas of enterprise activities.

Modules can be developed relatively independently

(modules from the development perspective are not

necessarily the same as modules from the functional

perspective). However, to ensure development and

usage efficiency and consistency, the functional

modules are developed following common

principles determined according to the base

requirements and operationalized in the overall

architecture or systems design. The individual

modules are integrated together in order to release a

new version of the ERP systems to customers. The

module development, integration and release are

continuous processes, especially, if agile techniques

are used in development (De Carvalho et al., 2010).

Enterprise modeling requires participation of

process owners and key users (Sandkuhl et al.,

2014). They specialize in different business areas of

the enterprise and possess limited knowledge and

understanding about specific aspects of other

business areas. Moreover, the research suggests that

cross-functional teams have negative impact on

implementation of ERP systems (Lui and Chan

2008). Similarly, agile development practices

suggest using vertical teams rather than horizontal

teams (Ratner and Harvey, 2011). Carmel and Bird

(1997) provide evidence that packaged systems are

usually developed by teams of up to five developers.

Therefore, it is often practical and advisable to

distribute ERP development activities among teams

specializing in particular business areas.

Software architecture plays a major role in

dividing software into manageable modules assigned

to individuals or small teams for development

(Unphon and Dittrich, 2010). However, that might

be hampered by intricacies of the ERP technical

design (Rettig, 2007), i.e. ERP systems consist of a

large number of components linked together in a

complex web of associations, which has evolved

during the life-cycle. The overall architecture can be

improved by refactoring although manual

refactoring of large enterprise applications is

challenging. This paper explores automated

decomposition of ERP systems as a part of software

design refactoring to improve allocation of modules

to development teams.

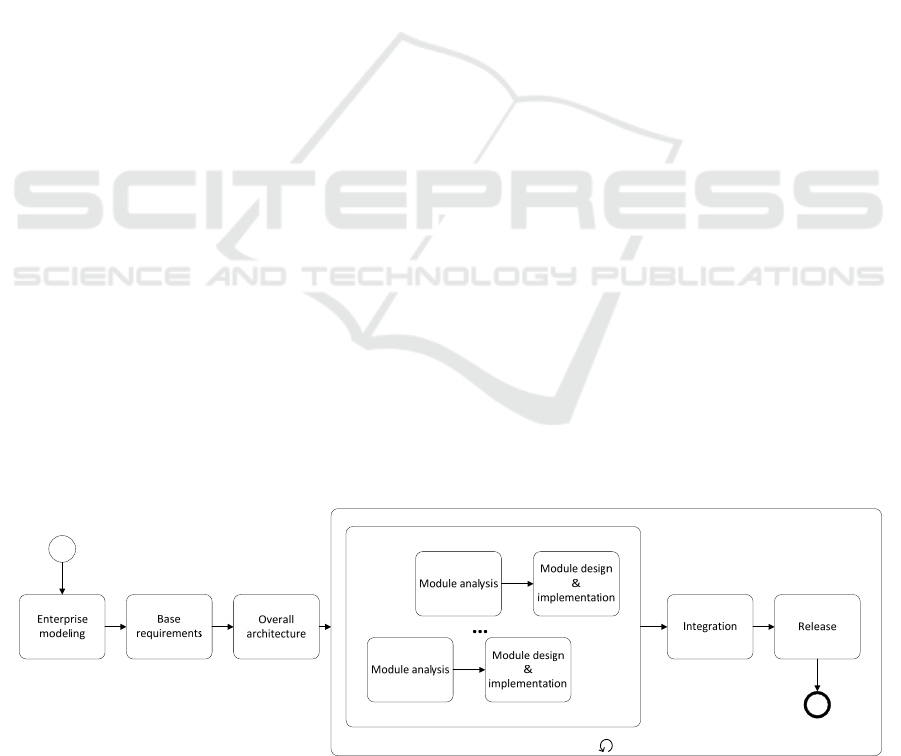

Figure 1: ERP systems development process.

Aligning Software Design with Development Team Expertise

561

3 ALIGNMENT APPROACH

The alignment approach is elaborated for an ERP

system which requires major architecture

refactoring. The refactored architecture will be used

to guide future software evolution processes

including project management and team assignment

processes.

System redesign and identification of modules

takes place at certain milestones of software

evolution. Development teams change more

frequently. However, it is assumed that once a

module has been assigned to team knowledge is

preserved in it even though team members change

occasionally. Alignment between team expertise and

design also needs to be periodically updated since

newly developed components are assigned to

modules and characteristics of modules might

change.

The system is divided in modules using clusters

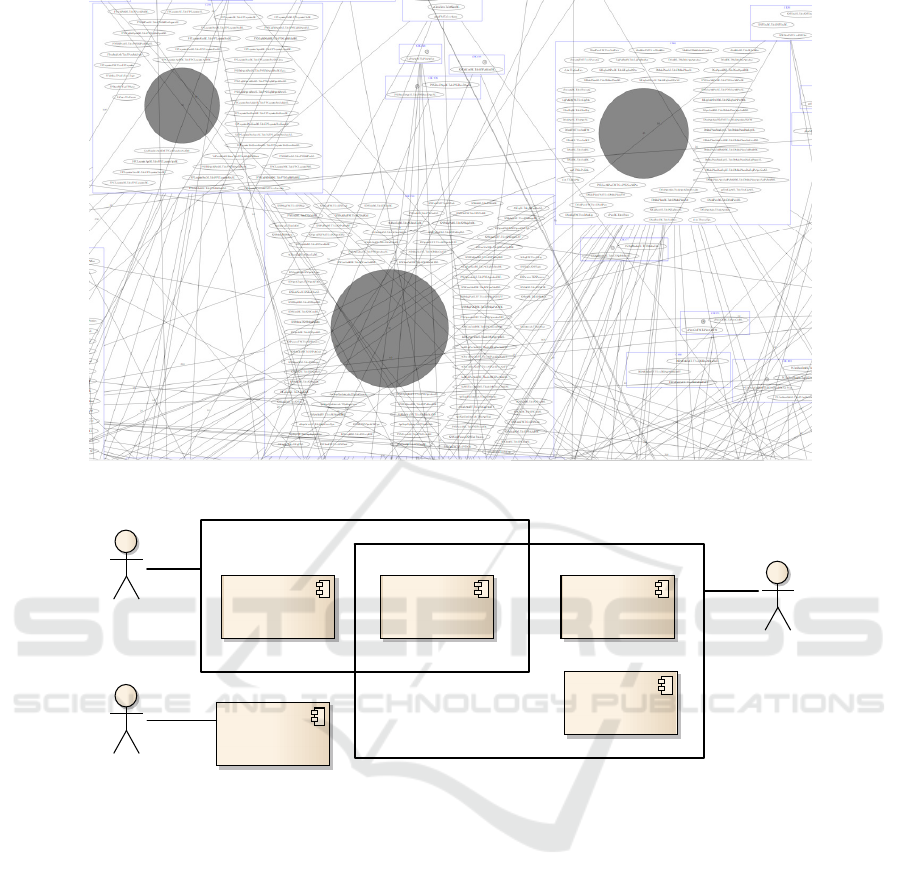

built around business centers (Figure 2). The

business centers are system’s design components

identified by a system architect as being central to

providing desired functionality. The clustering is

performed automatically and clusters consist of

closely related components as measured by strength

of associations among the components. There are

components having only internal associations within

a cluster and there are associations spanning

boundaries of the clusters. The latter associations are

particularly important to determine interfaces and to

set contracts among development teams. The

clustering addresses just some of the system’s

redesign concerns. It is used as an input to other

refactoring activities (e.g., Riva 2004), which yield

the final division of the systems into modules.

Competency requirements are identified for every

module. They concern knowledge of specific

functional or technical areas associated with a

particular module. For instance, ab absence

management module requires knowledge of human

resources management.

Development teams work continuously

throughout the system’s life-cycle and has certain

functional and technical competencies. The available

competencies concern knowledge possessed by team

members. Experience in a specific functional or

technical area plays a major importance in

determining team competencies. The modules are

assigned to the development teams by matching the

available competencies and the competency

requirements. Some changes in teams’ composition

can be introduced to achieve a better match.

4 PRELIMINARY RESULTS

Feasibility of the alignment approach is evaluated by

analyzing a third tier ERP system. This system is a

multi-module system developed by its vendor over

20 years using object-oriented development

techniques. The systems has about 4 million source

lines of code, 26,000 classes containing business

logics and about 160K associations. IT is a three-tier

client-server system though architectural principles,

system design and styles of programming as well as

functional requirements have experienced many

changes and maintenance and development of new

functionality have become increasingly complicated.

The company has initiated a system’s redesign

project. In order to simplify the system’s design it is

attempted to improve decomposition of the system

in modules. Given the size of the system, at least

initial decomposition is performed using automated

clustering techniques. The improved decomposition

is envisioned to facilitate assignment of

development teams to individual modules of the

systems.

The company has about 10 teams working on

system’s evolution. A team usually includes a

product owner, business expert, two to five

developers and a couple of tester depending on

workload. The business expert represents customer

needs and specializes in a particular technical or

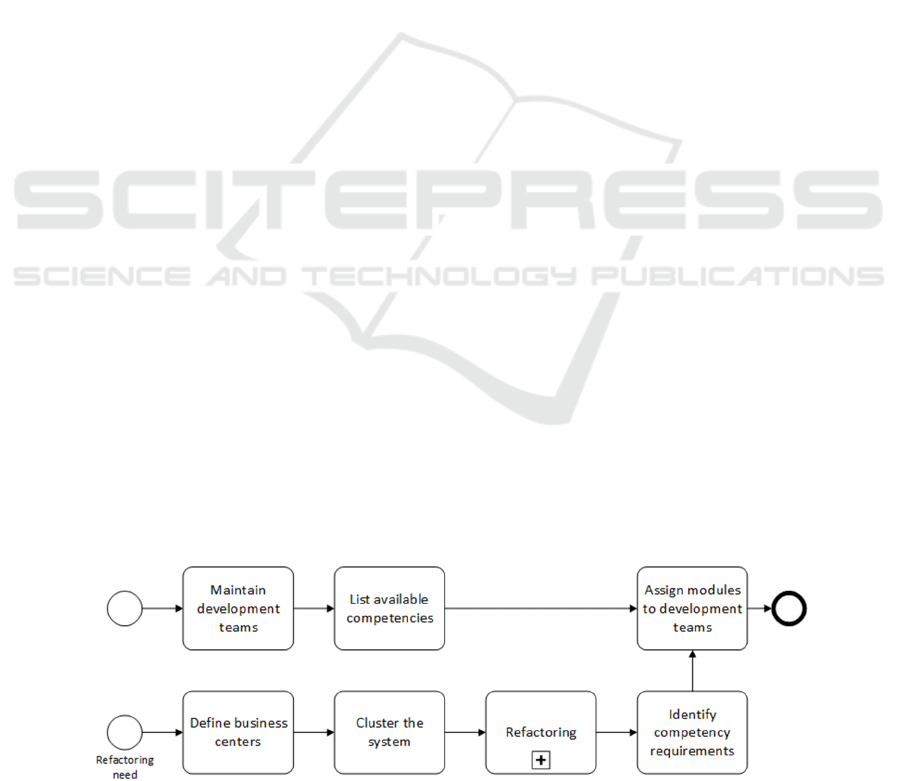

Figure 2: Alignment approach.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

562

functional area. The product owner creates

development tasks to implement the requirements.

Successful product owners have intimate

understanding of functional as well as technical

aspects of her modules. Developers and testers have

technical competencies and are more productive if

they have sufficient understanding and experience

about a given module.

45 to 50 tentative business centers are identified.

For example, there is an industry specific solution

for forest management, which has classes

implementing functionality for forest clearances

management, wood transportation and billing. Even

though clusters are built around the business centers,

new clusters also can emerge during the clustering

process.

The ERP system is clustered using a hierarchical

clustering algorithm (e.g., Cui and Chae 2011). The

clustering is performed using a systems

representation as a graph as an input. The graph’s

nodes are source code modules and classes. The

graph’s edges have several types including uses,

extends, implements and other associations. Nodes

are attached to clusters to maximize a similarity

measure calculated as a weighted sum of edges

connecting the node to candidate clusters. The

technical description of the clustering algorithm is

beyond the scope of this paper and additional details

are provided in (Šūpulniece et al., 2015).

The clustering yields around 100 clusters though

the right level of granularity is yet to be determined.

Figure 3 shows a fragment of high level clustering

results. Clusters are shown as bubbles and

associations connect interrelated clusters. It can be

observed that there is a relatively large number of

inter-cluster associations even after the clustering

and the clusters have varying degree of centrality.

Figure 4 zooms in on three clusters. The bubble

size represents the number of intra-cluster

components. Ovals surrounding a bubble and

enclosed within a square indicate components

having inter-cluster associations. These components

are of particular interest because they will serve as

interfaces among development teams. One of the

clusters identified is a cluster for processing

customer payments. This cluster has 229 intra-

cluster components and 86 components interfacing

with other clusters (there is more than a thousand

intra-cluster associations).

The clustering results do not represent a ready-

to-be-used new technical design of the system and

are not directly transferable to development. It is

possible that a single cluster might require different

competences due to inefficiency in the current

systems design. The clusters will be used by system

architects and other stakeholders for discussions on

redesigning the system. That will lead to a set of

software modules, which could be assigned to

individual development teams.

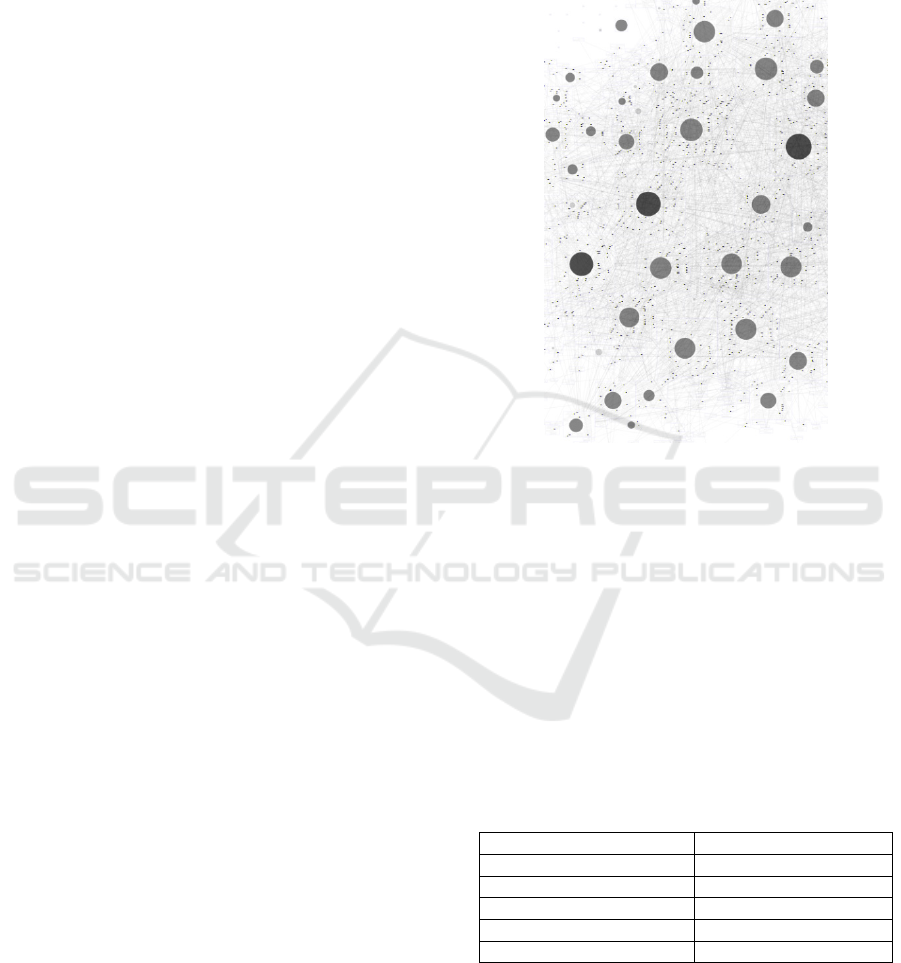

Figure 3: A fragment of clustering results.

Figure 5 illustrates allocation of modules to

development teams. This illustration focuses on five

tentative modules: 1) financial accounting (FA)

billing; 2) sales and distribution (SD) sales order

processing; 3) forest management (FM) billing; 4)

FM clearance; and 5) FM transportation. The former

modules are cross-sectional, while the latter three

modules belong to a horizontal solution developed

specifically for the forestry industry. The identified

competency requirements are given in Table 1 (the

knowledge of the base development technologies

applies to all modules.

Table 1: Competency requirements for tentative modules.

Module Required competencies

FA billing FA

SD sales order processing CRM

FM billing FA

FM clearance FM, GIS integration

FM transportation FA, GIS integration

Among the development teams, there are teams

FA, customer relationships management (CRM) and

forest management, respectively. Team FA has

expertise in functional aspects of financial

accounting what matches to the FA Billing module.

Similarly, Team CRM specializes in customer facing

Aligning Software Design with Development Team Expertise

563

Figure 4: Sample clusters showing intra-cluster and interface components.

Figure 5: An illustrative matching between teams and modules.

processes what matches to the SD Sales order

processing module. Team FM has experience in

working with forest management related functionality.

However, the FM Billing module also requires FA

competencies and there is a decision to be made about

allocating this module to one of the teams.

In many cases development teams can be

rearranged to find the best fit between modules and

teams. Otero et al. (2009) describes a formal

approach for assigning teams according to their

competencies. This method could be adopted for

purposes of this investigation. It also accounts for

varying degrees of competency and experience.

5 CONCLUSIONS

The paper proposes a method for automated

clustering of enterprise applications as a means for

allocating modules to development teams. It is

argued that ERP systems are best developed by

teams specializing in specific functional and

technical areas. The overall architecture is used to

allocate modules to these specialized development

teams. Clustering is used for automated

identification of the modules because manual

refactoring is prohibitive. Business centers are used

as a starting point of clustering to attain better

alignment between software design and expertise of

development teams.

The decomposition based allocation is expected

to bring the following benefits: 1) teams can

specialize in particular functional and technical areas

of application development; 2) clear separation of

responsibilities among the teams; and 3) faster

integration testing (i.e., teams are responsible for

FM BillingFA Billing FM Clearance

FM Transportation

SD Sales Order

Processing

Team FA

Team CRM

Team FM

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

564

intra-module testing and integration testing focuses

only on interface components). From the practical

perspective, research results will be used to find the

best allocation of modules to development teams and

to manage collaboration among the teams. From the

theoretical perspective, further research is expected

to provide insights in ERP development from the

vendor perspective and to evaluate actual benefits of

software design refactoring.

There are several challenges to be addressed.

The first challenge is finding the appropriate level of

granularity or cluster size. The second challenge is

definition of modules on the basis of clustering

results. A special attention should be devoted to

clusters mixing various expertise requirements and

to identification of competency requirements for the

modules. Finally, the module to team allocation

method should be formalized. The granularity level

will be determined in experimental studies and by

receiving feedback from the development team. The

modules will be developed by involving software

architecting experts. The evaluation will be

performed by means of the case study and

comparative analysis of software development

efficiency measures.

One of the main challenges is to convince

development teams that automated refactoring

suggests appropriate solutions for changing the long-

established way of working and collaborating among

the teams.

ACKNOWLEDGEMENTS

The research is funded by the ERDF project

“Information and communication technologies

competence center” Nr. KC/2.1.2.1.1/10/01/001

(Contract No. L-KC-11-0003, www.itkc.lv) activity

1.3. “The Method of Monolithic System

Decomposition According to SOA Principles.”

REFERENCES

Bennett, K.H., Rajlich, V.T., 2000. Software Maintenance

and Evolution: a Roadmap. Proceedings of the

Conference on The Future of Software Engineering,

pp. 75-87.

Cai, Z., Yang, X., Wang, X., Wang, Y., 2009. A

systematic approach for layered component

identification. In 2009 2nd IEEE International

Conference on Computer Science and Information

Technology, pp. 98–103.

Carmel, E., Bird, B., 1997. Small is beautiful: a study of

packaged software development teams, Journal of High

Technology Management Research, 8(1), 129-148.

Cui, J.F., Chae, H.S., 2011. Applying Agglomerative

Hierarchical Clustering Algorithms to Component

Identification for Legacy Systems. Information and

Software Technology, 53(6), 601-614.

De Carvalho, A., Johansson, B., Manhães, R.S., 2010.

Agile software development for customizing ERPs. In

Enterprise Information Systems and Implementing IT

Infrastructures: Challenges and Issues, pp. 20-39.

Liang, T.P., Jiang, J., Klein, G.S., Liu, J.Y.C., 2010.

Software Quality as Influenced by Informational

Diversity, Task Conflict, and Learning in Project

Teams, IEEE Transactions on Engineering

Management, 57(3), 477-487.

Lui, K.M., Chan, K.C.C., 2008. Rescuing Troubled

Software Projects by Team Transformation: A Case

Study with an ERP Project. IEEE Transactions on

Engineering Management, 55(1), 171-184.

Monnerat, R.M., De Carvalho, R.A., De Campos, R.,

2008. Enterprise systems modeling: The ERP5

development process, Proceedings of the ACM

Symposium on Applied Computing, pp. 1062.

Otero, L.D., Centeno, G., Ruiz-Torres, A.J., Otero C.E.,

2009. A systematic approach for resource allocation in

software projects. Computers & Industrial

Engineering 56, 4, 1333–1339.

Paulish, D., 2002. Architecture-Centric Software Project

Management. Addison-Wesley, Boston, MA, USA.

Ratner, I.M., Harvey, J., 2011. Vertical slicing: Smaller is

better. Proceedings - 2011 Agile Conference, Agile

2011, pp. 240-245.

Rettig, C., 2007. The trouble with enterprise software.

MIT Sloan Management Review 49(1), 21-27+90.

Riva, R., 2004. View-based Software Architecture

Reconstruction. PhD thesis, Technical University of

Vienna.

Sandkuhl, K., Stirna, J., Persson, A., Wisotzki, M., 2014.

Enterprise Modeling: Tackling Business Challenges

with the 4EM Method. Springer, Berlin.

Sommerville, I., 2010. Software Engineering. Person, 9th

Edition.

Šūpulniece, I., Polaka, I., Bērziša, S., Ozoliņš, E., Palacis,

E., Meiers, E., Grabis, J., 2015. Source Code Driven

Enterprise Application Decomposition: Preliminary

Evaluation. ICTE in Regional Development 2015

Valmiera, Latvia, Procedia Computer Science 77, pp.

167-175.

Xu, L., Brinkkemper, S., 2007. Concepts of product

software. European Journal of Information Systems.

16(5), pp. 531-541.

Unphon, H., Dittrich, Y., 2010. Software architecture

awareness in long-term software product evolution.

Journal of Systems and Software 83(11), 2211-2226.

Aligning Software Design with Development Team Expertise

565
