Secure Cloud Reference Architectures for Measuring Instruments under

Legal Control

Alexander Oppermann

, Jean-Pierre Seifert

and Florian Thiel

Physikalisch-Technische Bundesanstalt (PTB), Berlin, Germany

Security in Telecommunications, Technische Universit

at Berlin, Berlin, Germany

Keywords:

Cloud Computing, Trusted Cloud, Homomorphic Encryption, PKI, Veriﬁed Computing, Legal Metrology.

Abstract:

Cloud Computing has been a trending topic for years now and it seems it has ﬁnally become mature enough

for widespread commercial application. In this paper, the authors describe their approach to establish a secure

cloud architecture which conforms to the Measuring Instruments Directive of the European Union while keep-

ing the ﬂexibility and beneﬁts that cloud computing promises for companies and customers alike. The authors

introduce a modular concept of a secure cloud system architecture which will ensure cross-virtual machine

collaboration and a legitimate, secure and protected ﬂow of measurement data.

1 INTRODUCTION

Cloud computing is growing steadily in Europe from

17.2 billion Euros in 2015 to 44.8 billion Euros by

2020 (Bradshaw et al., 2014). In Germany its growth

amounted to around 46% from 2013 to 2014, which

correlates to a volume of 6.4 billion Euros (Bitkom,

2014). Bitkom further predicts that by 2018 the mar-

ket will grow to a total volume of 19.8 billion Euros

in Germany alone. This prediction and the actual de-

velopment seem to correlate with Gartner’s Hype Cy-

cle (Rivera and Van der Meulen, 2014) where Cloud

Computing has been placed in the trough of disillu-

sionment (see Figure 1). However, in 2015 the same

analysts concluded that Cloud Computing left the

Hype Cycle (Rivera and Van der Meulen, 2015) and

should be considered a widely accepted and adopted

technology.

The main reason for the success of Cloud Com-

puting is that the total up-front-investments needed to

run traditional IT infrastructure can be signiﬁcantly

reduced. In particular small and medium-size enter-

prises (SME) can proﬁt from more transparent cost-

schemes and cost-savings for maintaining up-to-date

and especially secure IT infrastructure.

The market under legal control, i.e. gas meters,

electricity meter, petrol pumps, etc., has an annual

turnover of 104 to 157 billion Euro in Germany (Lef-

ﬂer and Thiel, 2013). And, of course, the manufac-

turers of these measuring instruments also want to

present their customers with modern interconnected

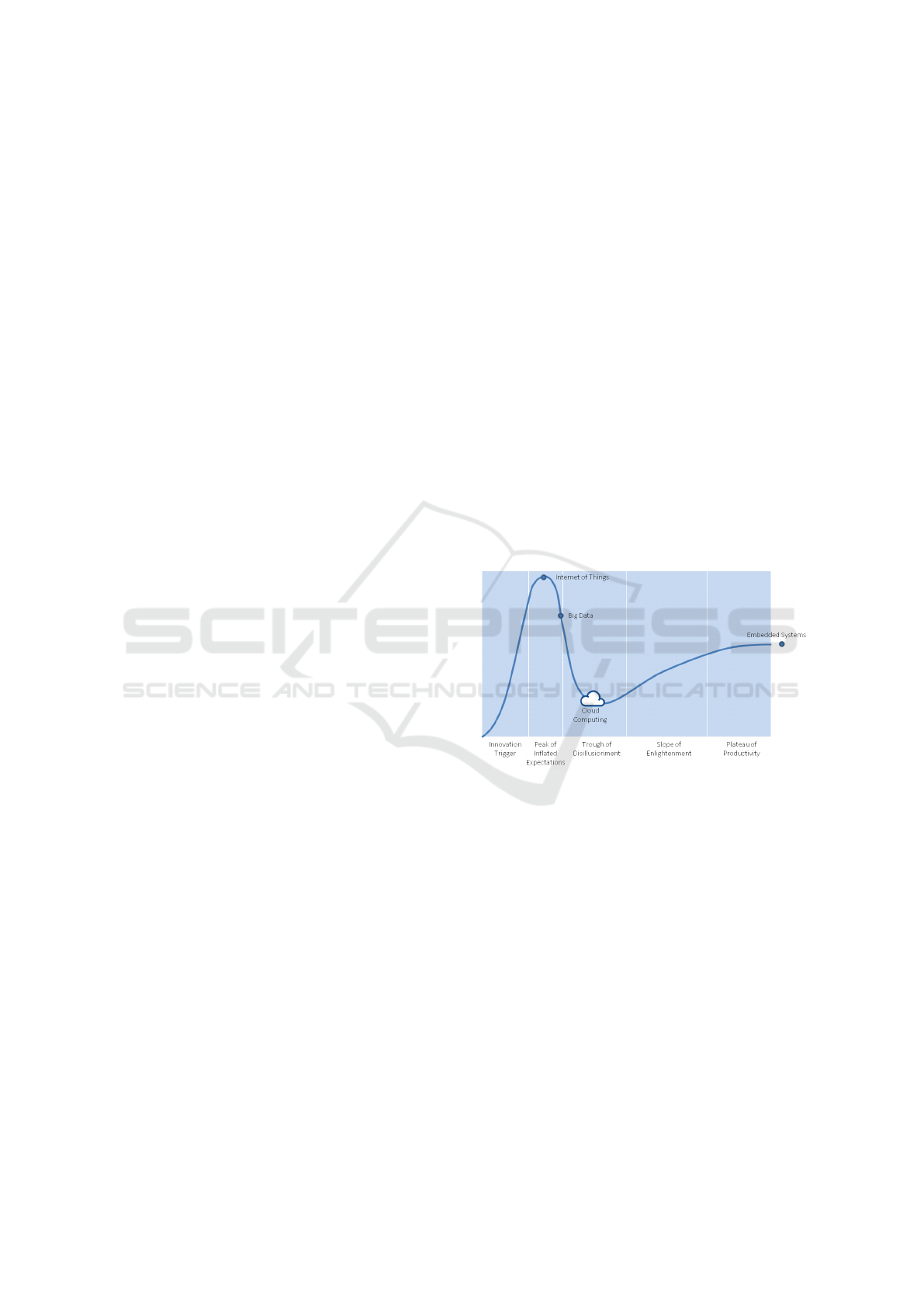

Figure 1: Gartners Hype Cycle from 2014 (Rivera and

Van der Meulen, 2014). Including embedded systems

which are already off the chart.

“cloud ready” devices, which will increase their com-

fort in dealing with them through e.g. new services

for mobile devices.

However, one has to make sure that these new type

of measuring instruments are as secure as their classi-

cal counterparts, since constructing a secure measur-

ing instrument which is always connected to an inse-

cure network is quite challenging and very complex.

Further with the use of cloud computing the aggrega-

tion of data is inevitable, but these huge amounts of

potentially proﬁtable data will attract new attackers.

The assurance of correct measurements and consumer

protection are the highest priorities when working in

the area of legal metrology. Each measuring instru-

ment has to fulﬁll the legal requirements and, in ad-

dition, has to be secure against tampering and inten-

Oppermann, A., Seifert, J-P. and Thiel, F.

Secure Cloud Reference Architectures for Measuring Instruments under Legal Control.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 1, pages 289-294

ISBN: 978-989-758-182-3

289

tional as well as unintentional manipulation.

The interfaces in classical measuring instruments

could be easily sealed and hence trust was easily es-

tablished. Nowadays, with cloud applications and

services, hardware-based seals are useless against

software-based interfaces. One has to ﬁnd new ways

to establish trust in such systems.

The remainder of this paper is organized as fol-

lows: Section 2 gives an overview on how legal

metrology is organized; Section 3 gives an outlook

of how a secure cloud architecture can be achieved

and describes homomorphic encryption; Section 4 de-

scribes related works; Section 5 gives a brief descrip-

tion of the research scenarios and its beneﬁts for legal

metrology.

2 LEGAL METROLOGY

Legal metrology covers a wide range of measuring

instruments from those with commercial or admin-

istrative purposes to those intended for public inter-

ests. In Germany over 100 million legally relevant

meters are in use (see (Lefﬂer and Thiel, 2013)). The

vast majority of them are employed for business pur-

poses, like commodity meters in the ﬁelds of water,

gas, electricity or heat. Furthermore, common appli-

cations for meters are petrol pumps or scales in e.g.

super markets. The trafﬁc system, for example, re-

quires large amounts of meters for speed and alcohol,

in order to guarantee safety. All of these applications

have in common the fact that neither the user nor the

affected person can check the validity of the deter-

mined result. Instead they rely on the accuracy of the

ofﬁcial measurement and calibration of these measur-

ing instruments. The key purpose of legal metrology

is to assure the correctness of measurements and fur-

ther to enhance public trust in them. Additionally,

legal metrology fulﬁlls the need to ensure the func-

tioning of the economic system while protecting the

consumer at the same time.

The International Organization of Legal Metrol-

ogy (OIML) was founded with the aim to harmonize

regulations across national boundaries worldwide and

to avoid trade barriers due to legal requirements. The

document OIML D 31 (de M

etrologie L

egale, 2008)

focuses especially on software requirements for le-

gal measuring instruments (cf. (Kochsiek and Odin,

2001)).

WELMEC is the European committee responsible

for harmonizing legal regulations in the area of legal

metrology. The committee publishes guides and sup-

ports notiﬁed bodies (public or private organized de-

partments to verify measurements devices) through-

out Europe and manufacturers alike, which imple-

ment the Measuring Instruments Directive (MID) (cf.

(Kochsiek and Odin, 2001), (Peters et al., 2014)).

2.1 Measuring Instrument Directive

The Measurement Instrument Directive (MID) is

based on two European directives (2014/32/EU,

2014) (2004/22/EC, 2004), the latter will be replaced

by the ﬁrst this year. These directives aim for the har-

monization and establishment of common European

standards for measuring instruments. Aside from this,

the MID is designed to enable fair trade and trust in

the public interest as well as to protect the consumer.

The MID comprises ten types of measuring instru-

ments that are of special interest and importance to

the economy due to their wide-spread or cross-border

use. These are: water meters, gas meters and vol-

ume conversion devices, active electrical energy me-

ters, heat meters, measuring systems for the continu-

ous and dynamic measurement of quantities of liquids

other than water, automatic weighing instruments,

taximeters, material measures, dimensional measur-

ing instruments, and exhaust gas analyzers. In the

annex of the directive there are deﬁnitions, fault toler-

ances and speciﬁc requirements outlined for each type

of the prior mentioned measurement instruments. The

speciﬁc requirements involve, e.g. basic tamper pro-

tection and a display for measurement data.

Before putting a new measuring instrument on the

market, the manufacturer has to declare the confor-

mity with the MID based on the assessment by a Noti-

ﬁed Body in Europe (cf. Figure 2). The Physikalisch-

Technische Bundesanstalt (PTB) is a Notiﬁed Body

in Germany. Aside from that role, the PTB is the

German national metrology institute and acts as an

interface between scientiﬁc research and economic

interests. Furthermore, the PTB is responsible for

technical expertise related to measuring instruments,

conformity assessment, monitoring of product related

quality assurance systems and advising with Euro-

pean regulations. Given the scope of these respon-

sibilities, it is crucial that the Notiﬁed Body be inde-

pendent and neutral in order to be able to fulﬁll its

duties impartially.

2.2 WELMEC

The European Free Trade Association (EFTA) and

European Cooperation in Legal Metrology are re-

sponsible for WELMEC. At the moment 37 coun-

tries are part of the WELMEC Committee. The

committee has established eight WELMEC Work-

ing Groups (WG) with WG7 in charge of software

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

290

matters and distributing the WELMEC 7.2 Software

Guide. The current version is WELMEC 7.2 Issue 5

(WG7, 2012). In the near future Issue 6 will be re-

leased.

The WELMEC 7.2 Software Guide gives an

overview of software security with a special focus on

measuring instruments. Furthermore, it helps manu-

facturers and Notiﬁed Bodies alike by providing ex-

amples and rules on how to achieve software security,

which guarantee compliance with the software related

part required by the MID, if followed.

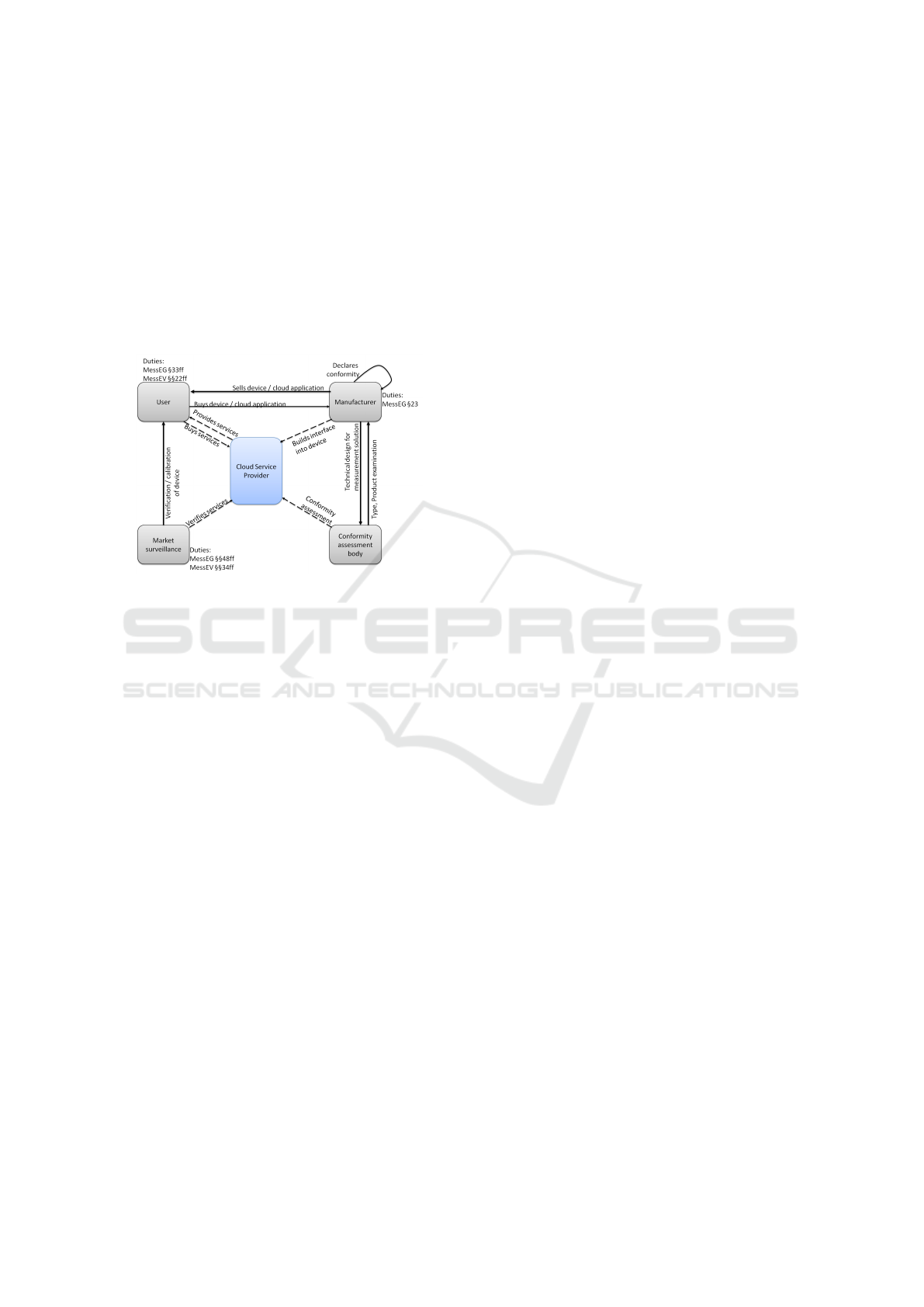

Figure 2: Overview of the different actors their roles, sched-

ule of responsibilities and duties in legal metrology. The

cloud service provider role has to be determined.

When designing software for secure measuring in-

struments it is advisable to isolate the legally relevant

part from the legally non-relevant one. Likewise, the

non-relevant part may not inﬂuence the legally rel-

evant one. This may be realized by means of pro-

tected interfaces. Moreover, if the software is mod-

ular it will ease the update process for manufacturers

and Notiﬁed Bodies. Legally relevant modules are de-

ﬁned by WELMEC 7.2 Software Guides as modules

that make contributions to or inﬂuence measurement

results. Examples include displaying data, protect-

ing data, saving data, identifying the software, exe-

cuting downloads, transferring data, and checking of

received or stored data (cf. (WG7, 2012).

3 SECURE CLOUD

ARCHITECTURE

Cloud Computing has its antecedents in several differ-

ent concepts like mainframes, client/server comput-

ing, peer-to-peer distributed computing, collaborative

computing and grid computing in general. In the end,

the essence of cloud computing can be summed up in

one slogan from Sun Microsystem “The network is

the computer” (c.f. (Miller, 2008)).

Thus, most security threats within cloud com-

puting are neither new nor unknown to security ex-

perts but can be dealt with through traditional se-

curity processes and mechanisms like security poli-

cies, identity management (IAM), intrusion detec-

tion/prevention systems, cryptography and vulnera-

bility analysis systems (e.g. OpenVAS) (cf. (Hogan

et al., 2011).).

When using a cloud computing solution one also

has to consider that large amounts of data will be ac-

cumulated in one place and thus become a more at-

tractive target for information retrieval be it legal or

non-legal. The robustness and redundancy of the in-

frastructure has to be one of the main aspects of a se-

cure reference architecture for cloud computing. It

is also important to match the threat model with the

real world while creating and determining the require-

ments for a cloud architecture.

In legal metrology the role of a benevolent system

administrator does not exist and therefore every party

has to be distrusted from the beginning. This fact

leads to interesting and challenging use cases which

make this ﬁeld exceptionally interesting from a secu-

rity point of view. If the service technician and ad-

ministrator of a cloud service provider are considered

untrustworthy, then data integrity, data security and

eventually data privacy are very difﬁcult to guaran-

tee. One can argue that with classical cryptography

all these issues can be solved. But instead of pre-

senting a solution one will avoid these problems. The

beneﬁts of using cloud computing will be invalid, be-

cause the user has to download the data and decrypt

them locally in order to be able to process the data.

The reason to store the data in the cloud in the ﬁrst

place would then be nulliﬁed. The authors plan to

counter this problem with fully homomorphic encryp-

tion (FHE).

3.1 Homomorphic Encryption

In 1978 Rivest, Adleman and Dertouzos introduced

along with the prior invented crypto system RSA

(Rivest et al., 1978b) the possibility of homomor-

phic encryption (Rivest et al., 1978a). Homomor-

phic Encryption allows operation on encrypted data

without decrypting it ﬁrst. In 2009 Gentry was able

to show that a crypto system exists which obtains

both properties. He introduced the ﬁrst fully homo-

morphic crypto system to the world based on ideal

lattices (Gentry et al., 2009). In 2010 Gentry pub-

lished an optimized version of this system using only

modular arithmetic to construct a fully homomor-

phic scheme from a “bootstrappable” somewhat ho-

momorphic scheme (c.f. (Van Dijk et al., 2010)).

Secure Cloud Reference Architectures for Measuring Instruments under Legal Control

291

3.1.1 Classiﬁcation of Homomorphic Schemes

Armknecht et al. presented some attributes (correct-

ness for decryption and evalution, compactness) of

homomorphic encryption schemes, in order to be able

to classify the different schemes correctly, since all

homomorphic schemes do not share the same proper-

ties. A scheme consists of generating the keys (Gen),

encryption (Enc), evaluation of the ciphertext (Eval)

and Decryption (Dec). They determined three classi-

ﬁcations, but this paper focus only on the main two:

A Somewhat Homomorphic scheme (Gen, Enc,

Eval, Dec) has to have correct decryption and correct

evaluation. For compactness no rule is set, so that the

ciphertext can increase in length with each homomor-

phic operation.

A Fully Homomorphic scheme (Gen, Enc, Eval,

Dec) has to be compact, correct and the scheme itself

is a set of all circuits. This leads to that the scheme

can evaluate any circuit of whichever size.

3.1.2 Approach using Fully Homomorphic

Encryption

The authors use fully homomorphic encryption within

the measuring instrument and send the encrypted

measuring data to the cloud, in order to be able to en-

sure data security and integrity (see Figure 3). Work-

ing on encrypted data reduces the attack vectors enor-

mously. A malicious insider cannot change the data

easily, nor can a VM spy on the processed data. Us-

ing this technology enables the platform to reduce the

biggest attack vectors for cloud computing. Further,

it avoids particular requirements for ”cloud ready”

measuring instruments and the need to deploy spe-

cial hardware for servers in order to enable trust and

security in a cloud computing platform.

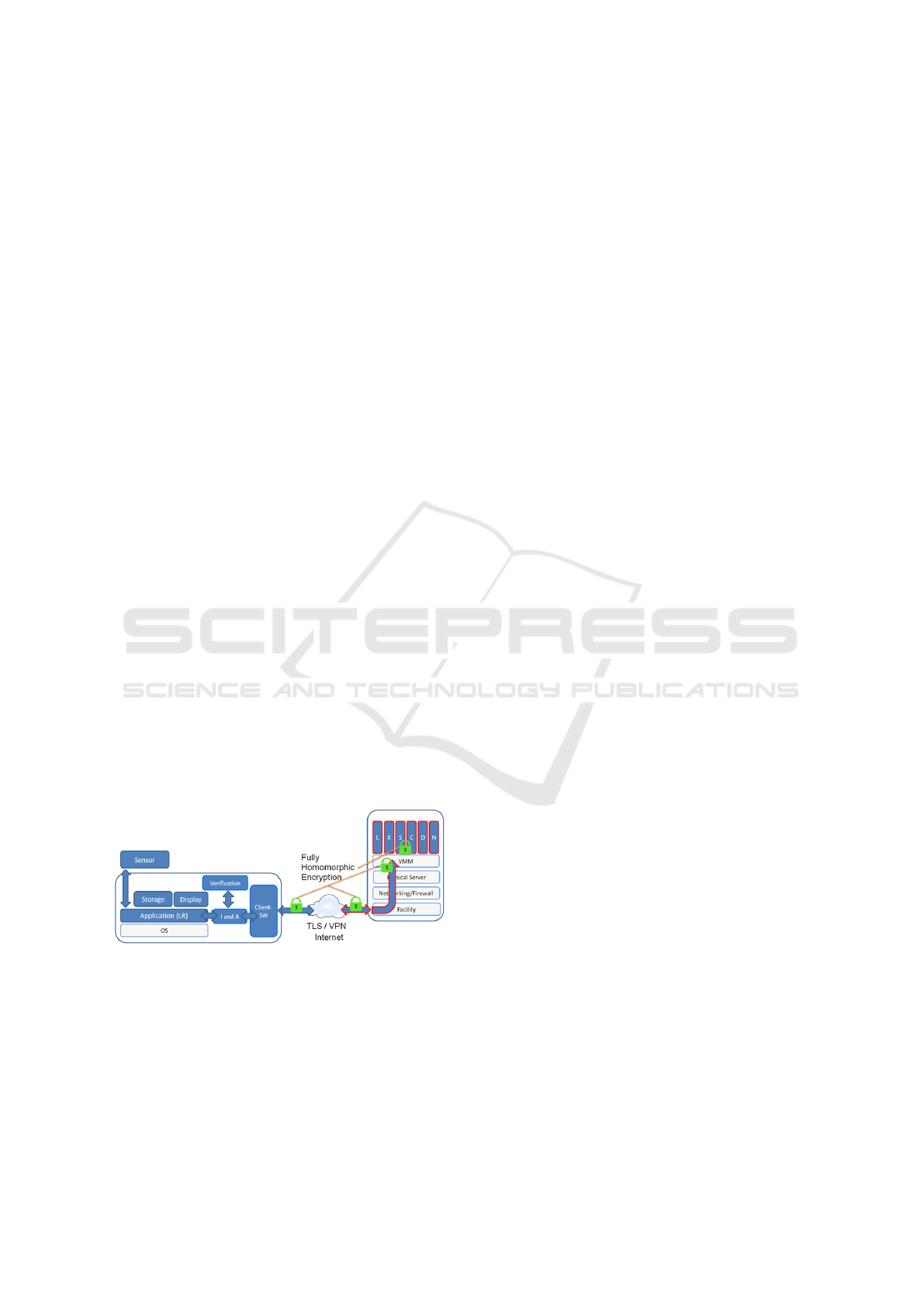

Figure 3: Legal Cloud Framework: Measurement Device

and Cloud Architecture secured via TLS and homomorphic

encryption. L: Legally relevant VM, K: Key & Signature

Manager, S: Storage Manager, C: Connection Manager, D:

Download Manager, N: legally non-relevant VM.

3.1.3 Problems with Homomorphic Encryption

Despite the popularity of homomorphic encryption,

most homomorphic encryption schemes exist on pa-

per (Armknecht et al., 2015) rather than as imple-

mented systems. Furthermore, the computation time

is still a big issue. Nevertheless some interesting im-

plementations are available and will be evaluated, like

HElib, FHEW, HomomorphicEncryption R Package

(Aslett et al., 2015) and NTRU based implementation

(see (Rohloff and Cousins, 2014)). Elaborating these

schemes will be part of the authors future research

work (see section 6).

4 RELATED WORK

This section gives a brief overview of recent related

work, which addresses similar challenges in different

domains.

4.1 SensorCloud

The project’s main objective is to guarantee user con-

trol of the data once submitted it into the cloud. The

focus thus lies on sensor data in general. The pro-

posed cloud architecture enforces end-to-end data ac-

cess control over a well-deﬁned entry-point which

provides end-to-end data protection, due to encryp-

tion and integrity protection (Catrein and QSC AG,

2013).

4.2 Sealed Cloud

This research project proposes an architecture which

will safeguard the data and meta-data within the cloud

and protect it against insider attacks by a system ad-

ministrator. If an administrator tries to access the

server physically, the system will shutdown ﬁrst and

delete all data, so that the administrator will not be

able to access the data or even data fragments in mem-

ory. In addition, a chain of trust via a hardware based

TPM-module will be built and thus can check the sys-

tem integrity from the beginning of the boot process

ager et al., 2013).

4.3 TRESOR

TRESOR is a cloud infrastructure research project

which is developed by TU Berlin and is dedicated to

secure electronic patient data (e-health) in a hospital,

which then can be accessed by various doctors for the

beneﬁt of the patient’s health. The project developed a

cloud platform which provides several cloud-services,

the most important of which are a cloud-broker to ac-

cess these services and a cloud-proxy to monitor the

control of cloud usage (c.f. (Slawik et al., 2012)).

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

292

5 RESEARCH SCENARIOS

This section discusses the research scenarios which

were developed and shaped by the needs of manufac-

turers and the requirements of legal metrology. The

focus of these scenarios are clearly on SME’s which

are planning to move their products into the cloud but

have to balance their openness with security risks and

innovation cycles. The drafted models may appear

conservative, but this is because they are the result of

a short term view to enable SME’s to take the leap

to the next level of computing and innovation. From

there the aim is to facilitate the whole spectrum of the

cloud possibilities, like using hybrid cloud, or elabo-

rating concepts like cloud bursting, and ﬁnally mov-

ing to public clouds in order to reduce costs signiﬁ-

cantly.

5.1 Virtualized Measuring instrument

This scenario is the most ambitious one, since there is

only the sensor and the data acquisition left with the

rest moved to the cloud. This means, of course, that

one has to sign the data securely, in order to guarantee

its integrity before it is sent to the cloud. The process-

ing, storage and the other services, legally relevant or

not, will be run separately from each other in virtual

machines. The display is detached from the measur-

ing instrument like in the following scenarios. Thus,

the data can be accessed by the permitted market par-

ticipants from everywhere. This scenario will reduce

the costs signiﬁcantly for measuring instruments, but

is the most challenging when trying to achieve con-

formity with the MID at the moment.

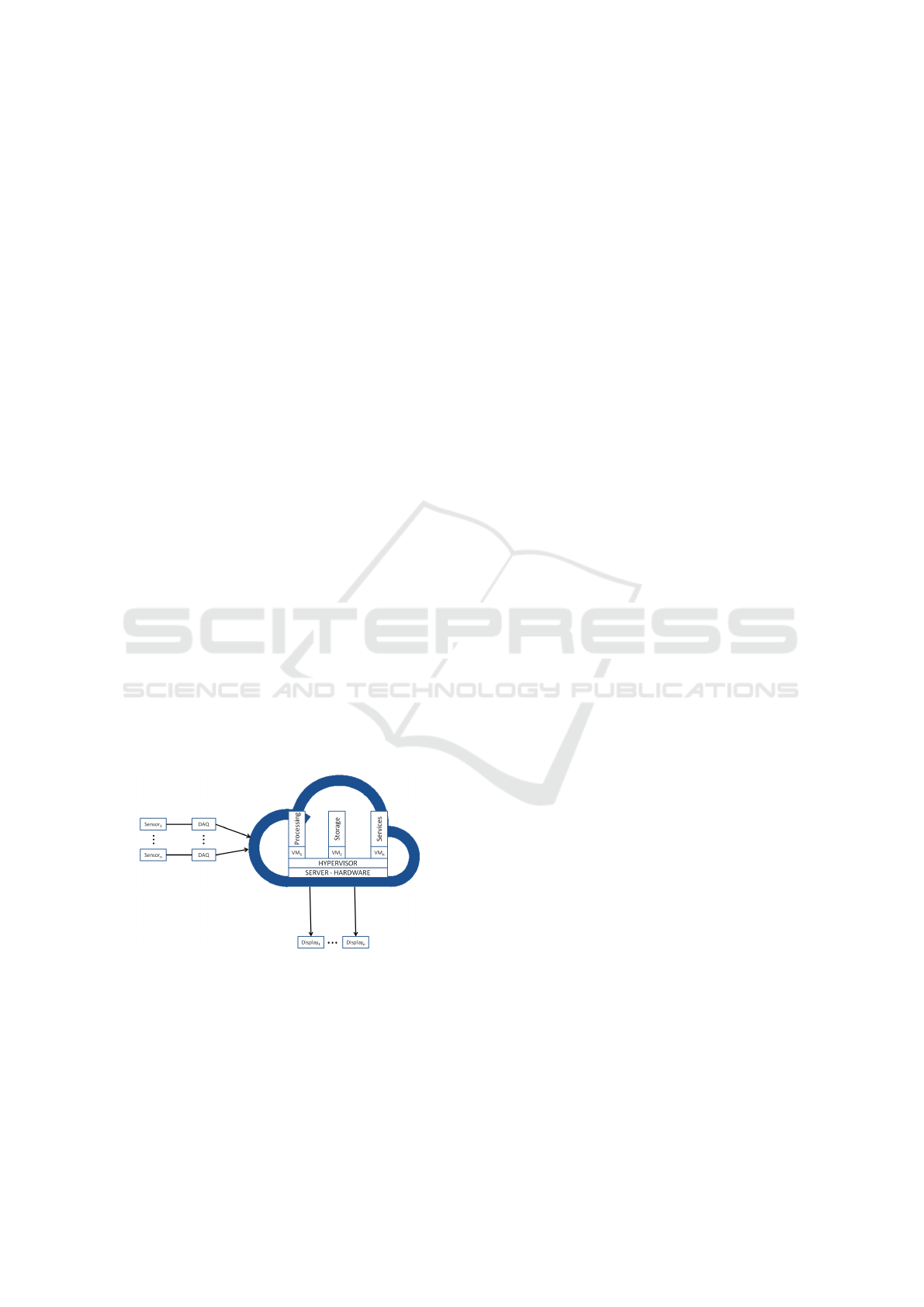

Figure 4: Research Scenario: Fully virtualised measuring

instrument moved to the cloud.

5.2 Data Export

The sensor measures the real-world data and the mea-

surement instrument acquires all the data produced by

the sensor. Then the acquired data will be processed

within the measuring instrument and the calculated

result will be signed cryptographically and sent to the

cloud, where it will be securely stored. Now only per-

mitted market participants are able to access the data

and can display them on their device. If a secure dis-

play is needed the integrity of the data can be assured

via the cryptographically secured hashes. This sce-

nario is in accordance with the German Veriﬁcation

Act (Mess- und Eichgesetz/Mess- und Eichverord-

nung (MessEG/EV)), since all the processing will be

done in a calibrated device. To assure the security of

the processed data against tampering, it will be signed

before leaving the secured environment.

5.3 Algorithm and Parameter Export

In this scenario the sensor measures the real-world

data and passes it to the measuring instrument, where

it will be acquired. Before processing the data, the

measuring instrument has to connect to the cloud and

will load the speciﬁc algorithm and necessary param-

eters, in order to execute the processing of the ac-

quired data locally. The result will be passed on to a

display. While designing this scenario, the goal was to

protect the intellectual property of the manufacturers,

who want to produce their hardware in non-secure en-

vironments and cannot protect themselves against im-

itations. So in short, the measuring instrument itself is

a dumb device and the intelligence is outsourced into

the network.

A slightly different approach for this scenario is to

divide the software modules into legally relevant and

non-legally relevant software. Now the processing of

the legally relevant part will be done locally in the

calibrated measuring instrument and then the result

will be pushed into the cloud, where the non-legally

relevant part of the software is stored. From the cloud

the processed data can be accessed together with the

non-legally relevant attributes.

6 CONCLUSIONS AND FUTURE

WORKS

In this paper a brief overview of the special ﬁeld of

legal metrology and its unique requirements for mea-

suring instruments were given. The authors took the

foundation of Daniel Peters’ previous work (Peters

et al., 2015) which already fulﬁlls most requirements

of the MID and the WELMEC 7.2 Software Guide. It

was the initial work in the ﬁeld of virtualization in le-

gal metrology. This research work identiﬁed different

needs of the cloud platform and will expand as well

as alter the framework to ﬁt legal requirements on its

Secure Cloud Reference Architectures for Measuring Instruments under Legal Control

293

highest protection level, in order to beneﬁt from the

technical advantages of the cloud computing solution.

The next steps will be to conﬁgure an Openstack

Cloud and to implement that framework. In addi-

tion, the feasibility of the proposed framework has to

be proven and its performance and robustness against

standard attack vectors has to be measured.

Furthermore, the prior mentioned different ho-

momorphic encryption schemes have to be elabo-

rated and practically implemented into the frame-

work. With the help of FHE, the authors will be able

to secure data and algorithms against manipulation

within the cloud. The performance for encryption,

decryption and function execution on encrypted data

have to be measured. Lastly, a risk analysis of the

platform will be performed, as it will be required by

the MID (Esche and Thiel, 2015).

REFERENCES

2004/22/EC, D. (2004). Directive 2004/22/EC of the Euro-

pean Parliament and of the Council. Ofﬁcial Journal

of the European Union.

2014/32/EU, D. (2014). Directive 2014/32/EU of the Euro-

pean Parliament and of the Council. Ofﬁcial Journal

of the European Union.

Armknecht, F., Boyd, C., Carr, C., Gjøsteen, K., J

aschke,

A., Reuter, C. A., and Strand, M. (2015). A guide to

fully homomorphic encryption.

Aslett, L. J. M., Esperanc¸a, P. M., and Holmes, C. C. (2015).

A review of homomorphic encryption and software

tools for encrypted statistical machine learning. Tech-

nical report, University of Oxford.

Bitkom (2014). Markt f

ur Cloud Computing w

achst unge-

brochen.

Bradshaw, D., Cattaneo, G., Lifonti, R., and Simcox, J.

(2014). Uptake of cloud in europe - follow-up of

idc study on quantitative estimates of the demand for

cloud computing in europe and the likely barriers to

take-up. Digital Agenda for Europe.

Catrein, D. and QSC AG, C. (2013). Maintaining user con-

trol while storing and processing sensor data in the

cloud. International Journal of Grid and High Perfor-

mance Computing, 5(4):97–112.

de M

etrologie L

egale, O. I. (2008). General requirements

for software controlled measuring instruments.

Esche, M. and Thiel, F. (2015). Software risk assess-

ment for measuring instruments in legal metrology.

In Computer Science and Information Systems (Fed-

CSIS), 2015 Federated Conference on, pages 1113–

1123. IEEE.

Gentry, C. et al. (2009). Fully homomorphic encryption

using ideal lattices. In STOC, volume 9, pages 169–

178.

Hogan, M., Liu, F., Sokol, A., and Tong, J. (2011). Nist

cloud computing standards roadmap. NIST Special

Publication, 35.

ager, H. A., Monitzer, A., Rieken, R. O., and Ernst,

E. (2013). A novel set of measures against insider

attacks-sealed cloud. page 187.

Kochsiek, M. and Odin, A. (2001). Towards a global mea-

surement system: Contributions of international orga-

nizations. OIML Bulletin, 42(2):14–19.

Lefﬂer, N. and Thiel, F. (2013). Im Gesch

aftsverkehr

das richtige Maß - Das neue Mess und Eichgesetz,

Schlaglichter der Wirtschaftspolitik. Monatsbericht;

Bundesministerium f

ur Wirtschaft und Technologie

(BMWi).

Miller, M. (2008). Cloud computing: Web-based applica-

tions that change the way you work and collaborate

online. Que publishing.

Peters, D., Grottker, U., Thiel, F., Peter, M., and Seifert, J.-

P. (2014). Achieving software security for measuring

instruments under legal control. In Federated Confer-

ence on Computer Science and Information Systems

pp. 123–130.

Peters, D., Peter, M., Seifert, J.-P., and Thiel, F. (2015). A

secure system architecture for measuring instruments

in legal metrology. Computers, 4(2):61–86.

Rivera, J. and Van der Meulen, R. (2014). Gartner’s 2014

hype cycle for emerging technologies maps the jour-

ney to digital business. Retrieved March, 31:2015.

Rivera, J. and Van der Meulen, R. (2015). Gartner’s 2015

hype cycle for emerging technologies maps the jour-

ney to digital business. Retrieved March.

Rivest, R. L., Adleman, L., and Dertouzos, M. L. (1978a).

On data banks and privacy homomorphisms. Founda-

tions of secure computation, 4(11):169–180.

Rivest, R. L., Shamir, A., and Adleman, L. (1978b). A

method for obtaining digital signatures and public-

key cryptosystems. Communications of the ACM,

21(2):120–126.

Rohloff, K. and Cousins, D. B. (2014). A scalable imple-

mentation of fully homomorphic encryption built on

ntru. In Financial Cryptography and Data Security,

pages 221–234. Springer.

Slawik, M., Zickau, S., Thatmann, D., Repschl

ager, J., Er-

makova, T., K

upper, A., and Zarnekow, R. (2012).

Innovative architektur fur sicheres cloud computing:

Beispiel eines cloud-ecosystems im gesundheitswe-

sen.

Van Dijk, M., Gentry, C., Halevi, S., and Vaikuntanathan, V.

(2010). Fully homomorphic encryption over the inte-

gers. In Advances in cryptology–EUROCRYPT 2010,

pages 24–43. Springer.

WG7 (2012). Welmec 7.2 issue 5 software guide. WELMEC

Euro- pean cooperation in legal metrology.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

294
