Analysis of Performance of the Routing Protocols Ad Hoc using

Random Waypoint Mobility Model Applied to an Urban Environment

Liliana Enciso, Pablo Quezada, José Fernandez, Byron Figueroa and Veronica Espinoza

Universidad Tecnica Particular de Loja, San Cayetano Alto, 1101608, Loja, Ecuador

Keywords: Ad-Hoc, AODV, DYMO, DSDV, DSR, MANET, NS2, OLSR, TraceGraph, ZRP.

Abstract: Mobile ad-Hoc Network (MANET) is a group of mobile nodes interconnected and dynamic. A routing

protocol is used to find the routes between the mobile nodes and facilitate the communication within the

network. The aim of the protocols is to establish a correct and efficient route between a pair of mobile nodes,

also it needs to be discovered and kept with a minimum consumption of bandwidth. This research work shows

the performance assessment of six routing protocols: Destination Sequenced Distance-Vector (DSDV),

Optimized Link State Routing (OLSR), Dynamic Source Routing Protocol (DSR), Ad Hoc On-Demand

Distance Vector (AODV), Zone Routing Protocol (ZRP), Dynamic MANET On-Demand (DYMO). The

evaluation was defined scenarios with 50, 90, 130, 170, 210 and 250 nodes and parameters such as: numbers

of generated packages , broadcast packages, delay of node to node. The simulations and visualization from

the results were executed in the network simulator NS2 version 2.34 and TraceGraph.

1 INTRODUCTION

Nowadays, the computer networks are within the

reach of all because of the Internet, it has generated

different types of networks within which are the

mobile networks Ad- Hoc o MANET (Mobile Ad-

Hoc Networks), which do not require a previous

infrastructure, it allows that two or more user have

mobile terminals that can make a network at any time

(Sangwan et al., 2013), (Anwar., 2008), (Sathish.,

2011).

A MANET network is a group of mobile nodes

that can communicate to each other through of

wireless, the nodes as are mobiles can move by a free

space, giving rise to different topologies in all

moment (Sangwan, Duhan and Dahiya, 2013),. It is

a dynamic topology due to outages in links, and to the

appearance of new links. This type of links has some

inconvenient than a conventional link does not show.

The topology of this type of links can change quickly

and unpredictably. Furthermore, it is possible to

occur variations in the nodes and links capabilities

such as: frequent errors in the transmission and lack

of safety due to the own features of the devices which

are part of this type of networks as restriction of

bandwidth and energy (by the use of batteries)

(Anwar et al., 2008). Finally, it is necessary to

emphasize that one of the main inconvenient of the

MANET network, is its security due to the different

features of this type of network, as wireless or the lack

of infrastructure that can control and handle the

network, which is susceptible to suffer attacks. For

this type of network, there are protocols of specific

routing because the existing ones for fixed networks

are no the adequate for them.

2 ROUTING PROTOCOL

The routing protocol are classified according their

features, the way more known is based in as a mobile

node process the information of control; for that

reason, there are two main types: the proactive

protocols which are basically an adaptation of the

vector distance protocols and link status of the wired

networks, and reactive protocols also called low

demand which were developed mainly for the

MANET networks. There are other type of protocols

which are called hybrids which keep a proactive

philosophy in local field and reactive at more global

level) (Vermani et al., 2012).

2.1 Proactive Protocols

The proactive protocols or the based in tables are

208

Enciso, L., Quezada, P., Fernandez, J., Figueroa, B. and Espinoza, V.

Analysis of Performance of the Routing Protocols Ad Hoc using Random Waypoint Mobility Model Applied to an Urban Environment.

In Proceedings of the 12th International Conference on Web Information Systems and Technologies (WEBIST 2016) - Volume 1, pages 208-213

ISBN: 978-989-758-186-1

those which keep the information about how to reach

at all destinations of the network (nodes) (Vermani,

Sharma and Yadav, 2012). This information is stored

in tables which are updated periodically when there

are modifications in the topology of the network

(Kumar and Kumar, 2012). The difference among the

protocols of this type is the way in the table are

updated, the quantity of tables used, the information

of each table and the way to find information. The

protocols more important in this type are:

DSDV (Destination Sequenced Distance-Vector)

It is a unicast proactive protocol adapted from the RIP

traditional, its main aim is to avoid the loops

problems in the update of the routing tables. For that

reason, it adds a new field in the tables, the sequence

number that allows distinguish between an old table

and a new one (Vermani, Sharma and Yadav, 2012),

(Jain, Gaur and Upadhyay, 2014). DSDV applies an

algorithm based in the distance vector, this means that

keep the tables with all its accessible destinations

together with the following leap, the metric and a

number of sequence of the input in the generated table

by the destination node. The tables are sent with

diffusion messages on a regular basis or when there is

a significant difference of the network topology. A

route is considered better than other if it has a

sequence number major or in case of a tie, if the

distance at the destination is minor. When a B node

detects that the route to certain destination D is lost,

overflow the networks with an updated of that input

in which is incremented the sequence number in one

and the distance is marked as infinite (Jain, Gaur and

Upadhyay, 2014). When an A node receive this

message, it incorporates to its table the updated of the

input into D through B always that there was not an

input better to reach D. To achieve certain

consistency in the routing table of each node by

changing the network topology, the updates must be

frequents and quick enough and therefore each node

can have a realistic vision of the network at a specific

time (Jain, Gaur and Upadhyay, 2014).

OLSR (Optimized Link State Routing)

This protocol is an optimizing algorithm of state of

adapted classic link to the requirements of a LAN

wireless. The key concept that is used in the protocol

is the MultiPoint Relays (MPR) (Ashish, Singh and

Kumar, 2010). MPR are nodes which send messages

into forward during the overflow process. This

technique substantively decrease the overload of

messages in comparison with a mechanism of classic

overflow, where each node retransmits every message

when is receipted the first copy of the message

(Kumar and Kumar, 2012). In OLSR, the information

of state link is generated only by the chosen nodes as

MPR (Ashish, Singh and Kumar, 2010). For that

reason, a second optimization is obtained decreasing

the minimum number of control messages

overflowed in the network. As third optimization, a

MPR node can opt only inform links between each

other and their selectors MPR. Therefore, as it is

contrary to the state algorithm of classic link, partial

information of state of link is distributed in the

network. This information is used to the calculus of

the route. OLSR offers optima routes (in terms of

number of leaps). The protocol is particularly

adequate to big and dense networks (Jain, Gaur and

Upadhyay, 2014).

2.2 Reactive Protocols

The routing reactive protocols are those that form the

routes on-demand that means in the moment that a

root node needs to send a message into a destination

node are created the routes from the origin to their

destination. With this type of protocols is optimized

the use of resources of bandwidth and the use of

battery and it is penalized the latency in finding the

route (Kumar and Kumar, 2012).

DSR (Dynamic Source Routing Protocol)

The reactive protocol DSR (Dynamic Source Routing

Protocol) is a protocol created especially for Ad-Hoc

networks, it only sends information when is

necessary, saving network energy, releasing

bandwidth and saving battery. Furthermore, DSR

incorporates a mechanism to avoid the creation of

loops. It is compatible with IPv6 (Kumar and Kumar,

2012). As counterpart, there is the initial latency at

discover a route, and it is a protocol based on the

source, the package header has increasing while it is

moving by the nodes; as a consequence, valuable

bandwidth is lost. This protocol can be structured in

two mechanics: of route discovery and the

maintenance of it. The first make the search of the

route and has the RREQ (Route Request) packages to

look for the route if it is not available in the routing

table and RREP (Route Reply) which answers at

RREQ on the discovery of a route. The second

mechanism has the RRER (Route Error), which show

a falling route and the ACK, which periodically make

the maintenance of the route (Ashish, Singh and

Kumar, 2010).

AODV (Ad Hoc On-Demand Distance Vector)

This protocol allows the dynamic routing multi-hop

among mobile nodes which take part in the setting

and maintenance of Ad-Hoc network (Jain, Gaur and

Upadhyay, 2014), (Kumar and Kumar, 2012). AODV

Analysis of Performance of the Routing Protocols Ad Hoc using Random Waypoint Mobility Model Applied to an Urban Environment

209

allows to the mobile nodes obtain quickly routes for

new destinations without require those routes be kept

in absence of active communication (Sangwan,

Duhan and Dahiya, 2013). Therefore, it makes

possible that the mobile nodes respond before the loss

of link and changes in the topology in a quick and

efficient way, invalidating the routes which use the

loss link in the affected nodes (Anwar, Azad, Rahman

and Moshee, 2008). The AODV operation creates a

free routing of hoops which avoid the problem of the

“account into infinity” from Bellman-Ford algorithm,

and offer a quick convergence before changes in the

network topology Ad-Hoc (Roberts, Rajeev and

Jaiswal, 2013).

An Ad-Hoc network (Mobile Ad-hoc Network o

MANET) is a group of nodes or host which

communicate between them through wireless links

without the necessity of an infrastructure of fixed

network. Each node works as router and it is routing

the different packages among the different terminals,

without the necessity of a direct reach between the

source and the destination. This type of network is

autonomous between terminals which can move

freely) (Vermani, Sharma and Yadav, 2012), (Enciso

and Mengual, 2014). The nodes use routing tables to

organize the leaps among the intermediate nodes so

they can send the packages. These routing tables must

be updated with frequency because the network is

mobile and changes of position are constant (Enciso

and Mengual, 2014).

DYMO (Dynamic MANET On-demand)

The routing protocol DYMO is designed for Ad-Hoc

mobile networks. It can be adapted at the changes of

the network topology and establish route unicast

between the destination node and the root node

(Kumar and Kumar, 2012). The basic operations of

the protocol DYMO are the discovery and

management of routes. During the discovery of route,

the root node begins with the diffusion of the route

request (RREQ) in the whole network to find the

destination node. During this diffusion process, each

intermediate node registers the route at root node.

When the destination node receives the RREQ, it

gives an answer of (RREP) unicast route into the

protocol of routing DYMO (Roberts, Rajeev and

Jaiswal, 2013), (Sivakumar and Kumar, 2009),

(Enciso and Mengual, 2014). The origin is designed

for Ad-Hoc mobile networks. It can adapted to the

changes of the network topology and establish unicast

route between the destination node and the root node.

The basic operations of DYMO protocol are the

discovery of routes and management of routes.

During the discovery of route, the root node begins

with the diffusion of the Route Request (RREQ) in

the whole network to find the destination node

(Sivakumar and Kumar, 2009).

2.3 Hybrids Protocols

ZRP (Zone Routing Protocol)

It is a hybrid routing protocol because it combines the

best properties of the proactive and reactive

protocols. ZRP is based in separation of the network

in zones. It differentiates a close or neighborhood

zone compose by the nodes that are at maximum of N

leaps and the rest of the network. In ZRP are used

two components for the routing (Sathish, Thangavel

and Boopathi, 2011). In the close zone is used the

component Intra Zone Routing Protocol (IARP)

which acts as a proactive protocol, keeping the routes

of the nodes which are to N leaps or less, being N

variable. The mechanism used to discover the

neighbour nodes is the regular exchange of messages

HELLO (Anwar, Azad, Rahman and Moshee, 2008),

(Sathish, Thangavel and Boopathi, 2011). For the

global routing into the nodes out of the interior or

close zone, ZRP has the Interzone component

Routing Protocol (IERP), which is as a reactive

protocol. When is necessary the route into a new

node, using the IERP is asking this route with the

mechanism Bordercast Resolution Protocol (BRP)

(Anwar, Azad, Rahman and Moshee, 2008). This

mechanism functions sending messages of

requirement of route to the nodes which belong to the

interior zone and which are in the border, which

means the maximum number of leaps to be

considered of the interior zone. If one of these border

nodes knows the route, it will send a message

indicating the node which begins the petition (Kumar

and Kumar, 2012). If this is not the case, the petition

will be forwarded by the whole network until it

arrives into a node which knows a route into the

destination. Then the answer will be sent back into

the origin, keeping the intermediate nodes

consequently the message passes to use as a route into

the desired destination. As, It was mentioned before,

the ratio (leaps number) of the interior zone is

adjustable according to the network necessities. As

extreme cases, if this ratio is small as minimum one,

ZRP will behave as protocol merely reactive.

Conversely, if the ratio is infinite, the behaviour will

be proactive (Kumar and Kumar, 2012), (Sivakumar

and Kumar, 2009).

3 SIMULATION ENVIRONMENT

The general aim of this research is to assess and

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

210

analyse the performance of six existing routing

protocols, which are: AODV, DSR, DYMO, DSDV,

OLSR and ZRP on an Ad-hoc mobile network

environment (MANET), which made different

simulations in the network among 50, 90, 130, 170,

210, 250 nodes (customers) on a specific area. In the

Table 1, shows the variables and parameters for the

network simulation.

Table 1: Variables and parameters for the simulation.

Variable Values

Set val (chan) Channel/WirelessChannel

Set val (prop) Propagation

Set val (netif) Phy/WirelessPhy

Set val (mac) Mac/80211

Set val (ifq) Queue/DropTail/PriQueue

Set val (ll) LL

Set val (ant) Antenna/ OmniAntenna

Set val (ifqlen) 100

Set val (nn) 50,90,130,170,210, 250

Set val (rp) AODV, DSR, DYMO

Set val (rp) DSDV, OLSR, ZRP

Set val (y) 1912.54

Set val (stop) 150

3.1 Selection of the Area for the

Simulation

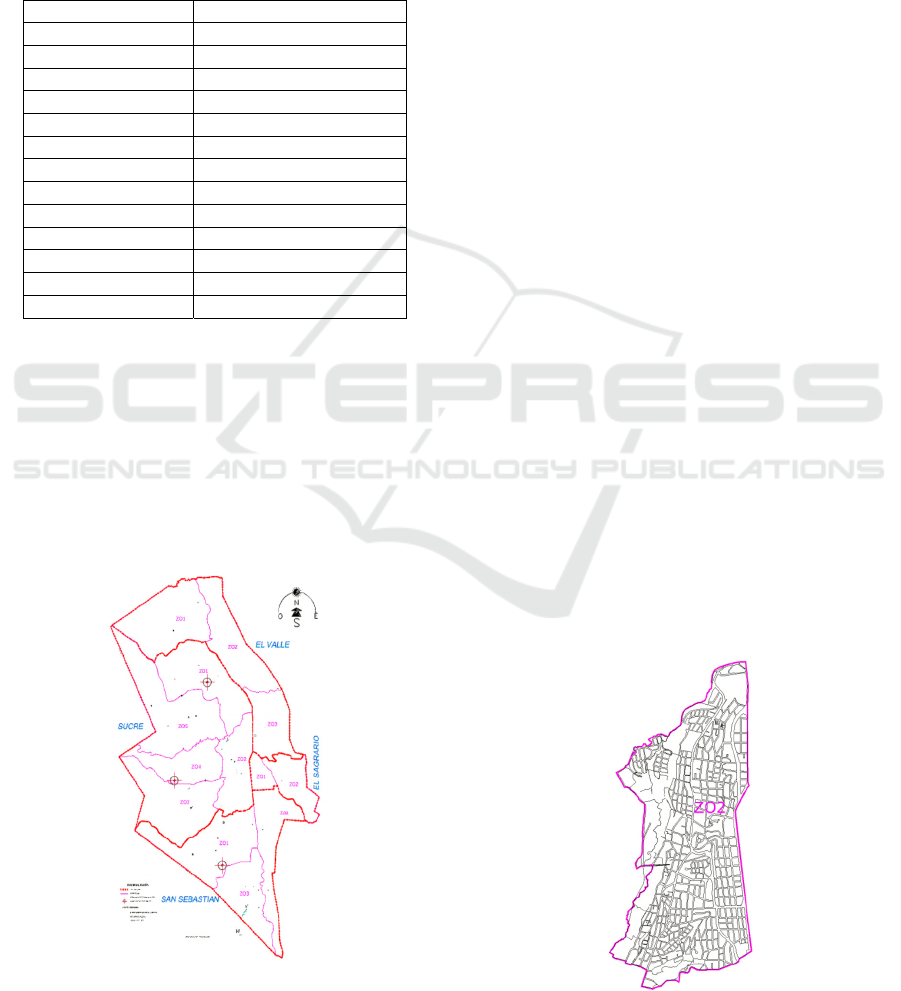

The area of the Loja city is divided by zones

according to the municipal regulations, the Fig. 1.

shows the total of urban area, the parishes and the

zones which take part of the urban perimeter. For the

present research was selected the zone 2,

denominated Z02 according to the map of the Fig. 2.

Figure 1: Map of the urban area selected for the simulation.

The selected zone has an area of 3657800.2365 and

perimeter of 10446.5313 m. This zone was selected

because it is placed in the downtown where is

concentrated most of the population. For the purposes

of the simulation, during the creation of the scenarios

was considered this area within a square, of equal side

to the square root of 3657800.2365 m2, with it was

obtained a square of equal side of 1912.5376 m; this

values will be used as parameter of x and y required by

NS-2.34 to determine the study area.

As additional date the selected street names are

the following: at north from the Turunuma avenue to

brazil street at south, by the east from the Gran

Colombia avenue to the Shushuguayco avenue in the

west.

3.2 Model of Mobility

In this research was simulated a network with mobile

nodes; for that reason, it is necessary to indicate a

pattern of mobility which will follow the same, the

election of the model of mobility will be essential

because it will have a significance impact in the

network features. There are some models of mobility

and in this research will be used the random

destination model Random Waypoint Model (RWP),

due to the NS2 has directly implemented in its

libraries. In general, it includes pauses between

changes of address and/or speed, a mobile node

begins in a place and period of time determined, that

means a pause, when the time expired, the mobile

node selects a random destination and speed

uniformly distributed, after the mobile node travels

into a new destination with the selected speed. When

the mobile node arrives, it makes a pause in a specific

period of time before beginning again. In the Table

2, is shown the configuration of the mobility

parameters for the simulation.

Figure 2: Selected zone for the simulation.

Analysis of Performance of the Routing Protocols Ad Hoc using Random Waypoint Mobility Model Applied to an Urban Environment

211

Table 2: Configuration of the mobility parameters.

Parameter Value

Min. speed 0 m/s

Max. speed 10 m/s

Pause time

0 seg

3.3 Tools

Network Simulator Version 2 (NS2) - It is a

simulator of discrete events available for Linux and

Windows (it is not recommendable the Windows

version). NS2 was initially created for fixed networks

and after was incorporated to the wireless model by

the Monarch group (Mobile Networking

Architectures). This simulation tool is very powerful

because it has two programing languages, C++ and

otcl, which interact to obtain a best performance.

TraceGraph - It is a free tool to draw and specially

to analyse the generated traces (*.tr) by the network

simulator NS2 version 2.34

4 METRICS FOR THE ANALYSIS

OF THE ROUTING

PROTOCOLS

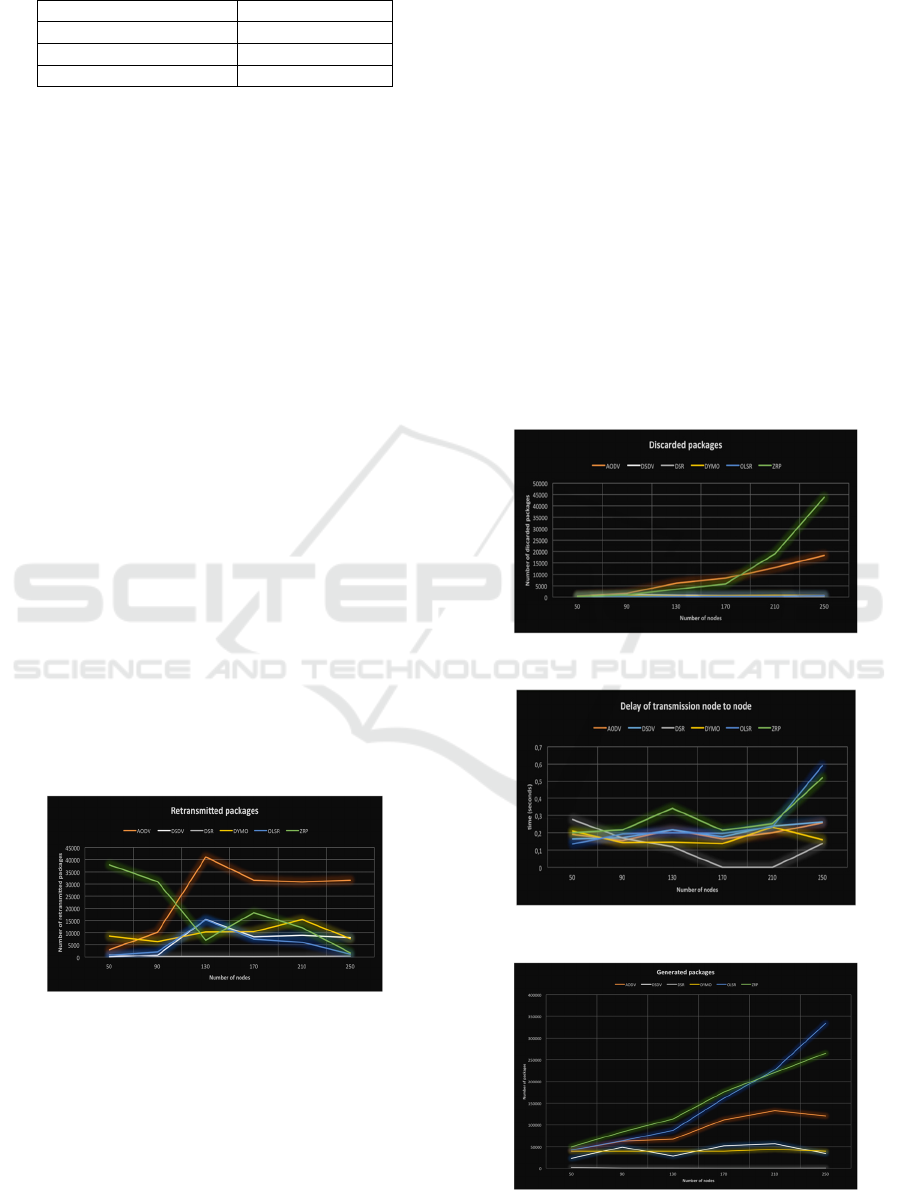

Retransmitted Packages - The Fig. 3 represents the

amount of retransmitted packages during the

simulation, for the following number of simulated

nodes 50, 90, 130, 170, 210 and 250 nodes. It is

possible to observe that the best performance of

retransmitted packages is given by the AODV

protocol. However, this metric is not enough to

determine the effectiveness of a protocol in particular.

Figure 3: Retransmitted packages.

Discarded Packages - The Fig. 4, represents the

amount of discarded nodes by every one of the

protocols for the amount of generated nodes during

the simulation. Up to 90 simulated nodes, all the

analysed protocols generate standard maximum of

discarded packages, but while it is increasing the

number of simulated nodes, the number of discarded

packages is increasing. The AODV and ZRP

protocols are which produce mayor number of

discarded packages during the simulation time.

Delay of Transmission Node to Node - The Fig. 5

represents the delay that there is in the transmission

between the nodes of every one of the protocols. For

smaller quantities or similar to 90 nodes, the delay of

programing of all protocols the behaviour is similar.

However, at increasing the number of nodes,

programming time is increased. The reactive

protocol DYMO is the best performance at increase

of simulated nodes.

(1)

Where: P

Rec -

Received packages, P

Gen -

Genera-ted

packages, P

Desc –

Discarded packages y P

Retrans –

Retransmited packages. The equation “(1)”, is part of

the analysis to determine the quality of service in the

reception of valid packages during the transmission.

Figure 4: Discarded Packages.

Figure 5: Delay of transmission Node to Node.

Figure 6: Generated packages.

Rec

Ge n

− P

Desc

Retrans

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

212

Packages Generated by Protocol - The Figure 6.,

shows the number of packages that every one of the

protocols has generated for the communication. The

hybrid protocols as ZRP and Proactive as OLSR are

the largest quantity of packages generated during the

simulation time.

5 CONCLUSION

This research, it was applied in an urban scenario in

case of emergency, where is required that a protocol

will be able to transmit the highest quantity of nodes of

the network in the less time possible; in consequence,

the best protocol of routing of the Ad Hoc networks is

DYMO because permit less quantity of retransmitted

packages, less number of packages of retransmitted

packages, less number of discarded packages, and the

less time of transmission node to node.

REFERENCES

Anwar, F., Md. Azad, S., Md. Rahman, A. and Moshee

Uddin, M., 2008. Performance Analysis of Ad hoc

Routing Protocols in Mobile WiMAX Environment,

IAENG International journal of Computer Science.

Ashish K. M, Singh, D., and Kumar, A., 2010. Performance

Comparison of DSR, OLSR and FSR Routing Protocols

in MANET Using Random Waypoint Mobility Model,

International Journal of Information and Electronics

Engineering.

Enciso Quispe, L. and Mengual Galan, L., 2014. Behavior

of Ad Hoc routing protocols, analyzed for emergency

and rescue scenarios, on a real urban area, Elsevier.

Jain, J., Gaur, N., Upadhyay, V., 2014. Comparison and

Analysis of AD-Hoc Routing Protocols (Proactive,

Reactive and Hybrid), International Journal of Applied

Engineering Research.

Kumar, S. and Kumar, J. 2012. Comparative Performance

Analysis of Routing Protocols in MANET using

Varying Pause Time, International Journal of

Computer Applications.

Roberts, A., Rajeev P. and Jaiswal, A.K. 2013. WSN

Performance Parameters of AODV, DYMO, OLSR and

IERP in RWP Mobility Model through Qualnet,

International Journal of Computer Applications.

Sangwan, R., Duhan, M. and Dahiya, S., 2013. Energy

Consumption Analysis of Ad hoc Routing Protocols for

Diferent Energy Models in MANET, IOSR Journal of

Electronics and Communication Engineering (IOSR-

JECE)

Sathish, S., Thangavel, K. and Boopathi, S., 2011.

Comparative Analysis of DSR, FSR and ZRP Routing

Protocols in MANET, IACSIT.

Sivakumar, N., Kumar, S., 2009. Comparison of DYMO

protocol with respect to various quantitative

performance metrics. International Journal of Science,

Engineering and Technology Research (IJSETR).

Vermani, B., Sharma, N., Yadav, B., 2012. Performance

Comparison of Wireless Mobile Ad-Hoc Networks on

the basis of Various Simulation Parameters,

International Journal of Latest trebds in Engineering

and technology.

Analysis of Performance of the Routing Protocols Ad Hoc using Random Waypoint Mobility Model Applied to an Urban Environment

213
