Performance Gains from Web Performance Optimization

Case Including the Optimization of Webpage Resources in a Comprehensive Way

Juha Vihervaara

, Pekka Loula

and Tommi Tuominen

Pori Campus, Tampere University of Technology, Pohjoisranta 11, 28100 Pori, Finland

Foredata Oy, Kässäläntie 30, 38200 Sastamala, Finland

Keywords: Website, Performance, Optimization.

Abstract: Web performance optimization tries to minimize the time in which web pages are downloaded and

displayed on the web browser. It also means that the sizes of website resources are usually minimized. By

optimizing their websites, organizations can verify the quality of response times on their websites. This

increases visitor loyalty and user satisfaction. A fast website is also important for search engine

optimization. Minimized resources also cut the energy consumption of the Internet. In spite of the

importance of optimization, there has not been so much research work to find out how much the

comprehensive optimization of a website can reduce load times and the sizes of web resources. This study

presents the results related to an optimization work where all the resources of the website were optimized.

The results obtained were very significant. The download size of the front page was reduced by a total of

about 80 percent and the downloading time about 60 percent. The server can now handle more than three

times as much concurrent users as earlier.

1 INTRODUCTION

Web performance optimization (WPO), or website

optimization, tries to minimize the time in which

web pages are downloaded and displayed on the

user's web browser. These are some reasons which

make it extremely important that organizations

verify the quality of response times on their

websites. Galletta (2004) and Fabian (2010) present

that the fast download speed of a website increases

visitor loyalty and user satisfaction. These studies

have also shown that delays have a negative impact

to a website. For example, milliseconds of increase

in load time can significantly reduce page views. A

fast website is also important for search engine

optimization. Google has included site speed as part

of its search ranking algorithm. It means that the fast

site gets a higher ranking in its search.

WPO also means that the sizes of website

resources are usually minimized. This leads to less

data travelling across the Internet. This cuts the

energy consumption of the Internet. So, WPO

promotes the Green Internet (Gupta 2003, Bianzino

2011). Minimized resources are also useful for users

with slow internet connections and those on mobile

devices.

In spite of the importance of WPO, there has not

been so much research work to find out how much

the comprehensive optimization of a website can

reduce load times and the sizes of web resources.

There have been few attempts to understand how

different aspects of website complexity impact the

time to load web pages (Butkiewicz 2011). Instead,

the published optimization results often concern

only the specific web resource (Abdullah 2010,

Ferragina 2010, Qian 2012, Spiesser 2004). This

study presents the results related to an optimization

work where all the resources of the website will be

optimized.

This project represents some kind of an extreme

case. In the past, not enough attention has been paid

to the optimization of this website. Originally, even

inefficient solutions were introduced partly because

of the novice software developers (Begel 2008).

Now four years later, the same developers will carry

out this optimization work. Because these

developers are now more experienced, and because

WPO methods and tools have evolved since the

original work, it is expected that optimization results

will be significant.

188

Vihervaara, J., Loula, P. and Tuominen, T.

Performance Gains from Web Performance Optimization - Case Including the Optimization of Webpage Resources in a Comprehensive Way.

In Proceedings of the 12th International Conference on Web Information Systems and Technologies (WEBIST 2016) - Volume 1, pages 188-193

ISBN: 978-989-758-186-1

2 BACKROUND

Over the years, the web has evolved from simple

text content from one server to a complex ecosystem

with different types of content from multiple servers

under different administrative domains (Butkiewicz

2011). Rendering a single web page involves

fetching several objects with varying file types. A

typical web page can include HTML, CSS, and

image files. JavaScript files can be used to provide

client-side functionality, such as functions, plug-ins,

applets, and so forth. These files can be called the

resources of a web page.

These resources can be optimized in many ways

(Hongkiat 2015, Rajeev 2015). This optimization

generally involves editing the resources to optimize

scripts, HTML or CSS codes for faster loading. The

optimization also tries to reduce the number of

resources for reducing the number of required HTTP

request and response messages. Also client side

caching can be used for performance optimization

(Ali 2011).

The performance of the website can be evaluated

in many ways (Soininen 2012). Performance can be

defined as the time within a certain operation is

executed. A common meter regarding to the

performance of a web page is the time it takes to

load a page. Page load speeds have been typically

measured as the time it takes for two events to occur

on the page. These events are DOMContentLoaded

and Load/Onload.

The DOMContentLoaded event fires after the

HTML code has been fully retrieved from the server

and the complete DOM tree has been created. This

event does not necessarily require that any images or

style sheets have been loaded. This means that the

render tree can now be built. Instead, the Load event

fires after the entire page has been fully downloaded,

processed, and rendered including all images,

stylesheets, and scripts. After the Load event, some

resources can still be loaded in an asynchronous

way. So, the unofficial term of Totally Loaded can

be used for a time unit, when all the resources are

totally loaded. Related to the load times, Butkiewicz

(2011) says that rather than the total number of bytes

fetched to render a website, the number of objects

fetched is the most dominant indicator of client-

perceived load times.

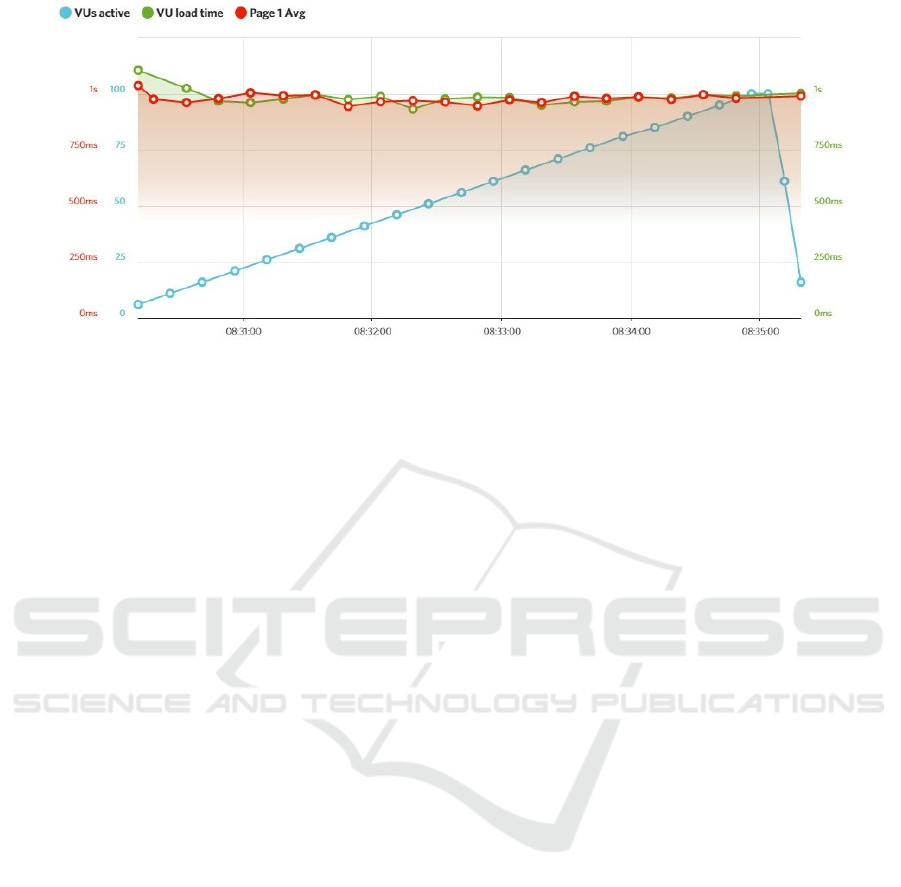

Performance can also be defined as the capability

of executing a number of operations within a unit of

time. With websites, this means that how many

concurrent users the website can serve. In general,

the performance of the system has to be good

enough during the peak time to satisfy user needs.

To figure out the moment of the top usage, the log

files of the web server have to be analysed.

3 OPTIMIZATION WORK

The optimized website is ForeAmmatti. It is a web

service which offers information in respect of the

labour market of Finland. Data content of the

ForeAmmatti information system had been

significantly increased during the last few years. The

dynamic production of the content in the HTML

pages had always been done with the fastest and

easiest way because of the very fast development

work. The new features and contents had been added

with speed. Therefore, the performance of the

solutions had not received major consideration.

There was a clear need for optimization because

most of HTML pages and their resources were

enormously big considering both the file sizes and

the amount of characters.

After the optimization, some JavaScript files are

still loaded in a synchronous way. Otherwise, the

optimization work was done almost in a perfect way.

So, the optimized result achieved was better than

only using the optimization tools offered by browser

developers. The next subsections presents the most

essential points related to this optimization work.

3.1 Occupation Selectors

The most beneficial modification was the redesign

of the occupation selectors. The text content of those

is actually static, but the amount of choices is user

dependent and the order is editable by a user. The

original method was not efficient enough. In the

server side, the java code ran a database query for

fetching the appropriate occupation list. After that,

these list items were put inside the HTML table

items. These table items also included JavaScript

code for fetching the occupation related information

from the database after the user click. A few

hundred occupations were typically included to the

front page. So, the solution was very simple, but

unfortunately inefficient.

In the optimization work, it was given up using

HTML tables with the occupation selectors. Using

the Ajax concept (Deitel 2012) there is no longer

any need to load the whole occupation list to the

client side. Ajax is a client-side script that

communicates to and from a server/database without

the need for a complete page refresh. Based on the

needs of a user, it is now possible to update only parts

of a web page without the need of reloading the entire

Performance Gains from Web Performance Optimization - Case Including the Optimization of Webpage Resources in a Comprehensive Way

189

page. Coding of the selectors in a new way reduced

the sizes of the front page resources about 30 percent.

3.2 Images

Images were optimized first by using TinyPNG

compression software (TinyPNG 2015). TinyPNG

uses smart lossy compression techniques to reduce

the file size of PNG and JPEG files. By selectively

decreasing the number of colours in the image,

fewer bytes are required to store the data. The effect

is nearly invisible but it makes a large difference in

file sizes. In this study, we discovered that the sizes

of large PNG-files decreased even 70 percent. The

sizes of small files decreased a few dozen percent.

In the second stage, small images were integrated

into the part of the CSS file. If an image is integrated

into the CSS file, it is retrieved by the same HTTP

message as the CSS file without a need for extra

HTTP headers. In this study, these image based

HTTP request and response messages together

included 825 bytes header information. Also, there

is no longer any need to open a new TCP connection

for image loading. On the other hand, it is needed

some more CSS code when an image is integrated

into CSS file. Also, the size of a CSS integrated

image increases because of the Base64-encoding of

this image. We calculated that if an image is bigger

than about 3000 bytes, it is clever to keep this image

in its own file. For example, the front page of

ForeAmmatti had six images. Five of them were

small enough to be integrated into the part of the

CSS file.

3.3 Crunching of the Text-based Files

An important part of the website build process is the

crunching of text-based resources to remove excess

characters (Spiesser 2004). This ensures that only

the smallest numbers of bytes are transmitted to the

browser for parsing. Crunching tools primarily

reduce white spaces and comments to ensuring that

the resulting code can still be executed without

problems. There are several free tools available for

crunching with varying compression rations. This

optimization project used three of them. Depending

on the formatting of the original, these tools reduced

file sizes 18-40 percent. The JavaScript files were

reduced 38 percent, and the CSS files 18 percent.

The XHTML file was reduced 40 percent.

3.4 GZIP Compression

Before the optimization ForeAmmtti web service

already loaded many files in a GZIP format from the

external servers. As part of the optimization project,

we modified the setup parameters of the own server

so that some file types will be delivered in the GZIP

format. By delivering HTML-, CSS-, and Java

Script files in the GZIP format, we could reduce

these file sizes from 63 to 76 percent. It is clever to

use compression only for text files because binary

files, for example images, have already been

compressed. It is worth to mention that GZIP

compression does not come without drawbacks

because processing power is needed for compression

and decompression on the server and client side.

3.5 Browser’s Cache

The ForeAmmatti web server adds the Expires and

Max-age header fields to HTTP response messages.

The Expires header field gives the date/time after

which the response is considered stale. The Max-age

field indicates that the response is to be considered

stale after its age is greater than the specified

number of seconds. With the help of these header

fields, it is possible to advertise long lifetime for

resources which are seldom updated. So, browsers

can use cached resources immediately without the

need for if-modified requests. To prevent the use of

modified resources, the ForeAmmatti web service

names all modified cacheable resources with the

unique file name. Thera was also a lot of Java Script

codes inside the XHTML-file. To make possible to

cache these Java Script codes, most of them were

moved to their own files.

4 OPTIMIZATION RESULTS

In this section it is presented the most significant

optimization results. The whole website was

optimized but we present here the results related

only to the front page. Load Impact-test loaded all

the pages of ForeAmmatti.

4.1 Front Page

The sizes of the resources and the load time of the

pages were examined by a browser developer tool

(Google 2015). Table 1 presents the resources of the

front page and their sizes before and after the

optimization. The numbers of these resources,

before and after optimization, are presented in the

first column. It can be seen that the resources of the

front page reduced from 947 905 to 190 333 bytes.

Most of this decreasing came from the smaller sizes

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

190

of the resource, but there were also some user

services that were moved away from the front page

to the other pages. The number of the front page

resources reduced from 29 to 15. Thera are still six

images on the front page but five of them reside

inside the CSS file. The fonts for CSS are loaded

from Google’s server. The size of these font files

also decreased during the optimization work. So, we

can suppose that Google is also doing optimization

work.

Table 1: Resources of the front page.

Resource (pieces) Bytes

before

Bytes

after

XHTML-file 1 -> 1 420 998 9 047

CSS 2 -> 2 30 162 11 009

Fonts for CSS 2 -> 2 43 400 35 088

JavaScript files 18 -> 9 444 216 134 626

Images 6 -> 1 9 129 563

Total 29 -> 15 947 905 190 333

Table 2 presents different load times of the front

page before and after optimization. In this case, the

browser and web server were located in the same

local area network, but some external resources had

to be downloaded over the Internet. The browser

cache was switched off. The presented averaged

results are based on ten measurements. The standard

deviation of these ten measurements is presented

inside the brackets. As can be seen, the optimization

has downgraded the load times remarkable.

Table 2: Load times of the front page.

Event Before

After

DOMContentLoaded 745 (75) 294 (11)

Loaded 806 (119) 303 (10)

Totally Loaded 837 (111) 328 (9)

4.2 Load Impact-test

The Load Impact service (Load Impact 2015) helps

determine the capability of handling a certain

amount of users on a website. In this study, we used

the free version of this test tool which makes

possible to test 100 concurrent users. The amount of

concurrent users increased evenly from 1 to 100

during the five-minute test. The test generator was

situated in USA. So, the test used long-distance

connections because the tested website resides in

Finland. This kind of long-distance test is typically

sensitive to Internet traffic, and therefore, two test

cases are never entirely similar.

The ForeAmmatti website was tested before and

after the optimization project. The test results are

presented in Figures 1 and 2. Figure 1 presents the

starting point. Figure 2 presents the situation after

the improvements. In these figures, the numbers of

concurrent users are presented by the blue colour.

The green colour presents delays experienced by the

users. The red colour presents the average load time

of the front page. Before the optimization,

ForeAmmatti was capable of serving only 30

concurrent users without that user delays and page

load times increased remarkable. After the

optimization work, at least 100 concurrent users can

Figure 1: Load Impact-test before the optimization.

Performance Gains from Web Performance Optimization - Case Including the Optimization of Webpage Resources in a Comprehensive Way

191

Figure 2: Load Impact-test after the optimization.

be served without problems.

In the test made before the optimization, 206

megabytes were transferred to the test generator.

The front page was loaded 206 times so that the

minimum loading time was 3.7 seconds. In the test

made after the optimization work, 78 megabytes

were transferred to the test generator. The front page

was loaded 561 times so that the minimum loading

time was 0.7 seconds.

5 CONCLUSIONS

This WPO project shows that WPO can have very

positive and noticeable effects to web services. The

ForeaAmmatti web service is now more efficient

and user friendly than before the optimization

project. It can now serve three times as much users

as before. The load times of resources have been

reduced over 50 percent. Thanks to this WPO

project, the ForeAmmatti web service can now enjoy

the advantages offered by WPO.

However, we have to remember that this project

represents some kind of extreme case. In the past,

not enough attention had been paid to the

optimization of ForeAmmatti. Especially, the

occupation and region selectors were originally

implemented in a very inefficient way. By recoding

these selectors in a clever way, we could reduce the

byte amount of the front page resources about 30

percent. In spite of the fact that the starting point of

this optimization work was

extraordinarily bad, we

can present a subjective estimate that WPO can

easily increase the performance of a website about

20-30 percent on condition that there has been only a

little WPO work before. The performance increase

of this magnitude often enhances the overall user

experience of the website. But above all, the energy

consumption of the Internet reduces because of

smaller resource files. We can be environmentally

friendly and energy efficient by doing WPO.

It is good to remember that WPO work is a

continuous process. There will be a need to

reoptimize the ForeAmmatti website when the use of

HTTP/2 becomes common. For example, HTTP/2

can concurrently download several resources by

using the same TCP connection.

REFERENCES

Abdullah M, Fararjeh A, Amany M, Jabal A. 2010.

Recommendations to Improve Performance of an

Enterprise Web-based Application. The Proceeding of

ISWSA 2010 conference. Pages 1-6.

Ali W, Shamsuddin S, Ismail A. 2011. A survey of Web

caching and prefetching. International Journal of

Advances in Soft Computing and Its Applications,

Vol. 3, No. 1, March 2011.

Begel A, Simon B. Struggles of New College Gra-duates

in their First Software Development Job. SIGCSE '08,

Proceedings of the 39th SIGCSE technical symposium

on Computer science education. Pages 226-230.

Bianzino A, Raju A, Rossi D. 2011. “Greening the

Internet: Measuring Web Power Consumption”. IT

Pro, Published by the IEEE Computer Society,

January/February 2011. Pages 48-53.

Butkiewicz M, Madhyastha H, Sekar V. 2011.

Understanding Website Complexity: Measurements,

Metrics, and Implications. IMC’11Proceedings of the

2011 ACM SIGCOMM conference on Internet

measurement conference. Pages 313-328.

Deitel P, Deitel H, Deitel A. 2012. Internet and World

Wide Web: How to Program. Fifth Edition, Pearson.

955 Pages.

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

192

Galletta D, Henry R, McCoy S, Polak P. 2004. Web Site

Delays: How Tolerant are Users?. Journal of the

Association for Information Systems. Pages 1-28.

Google. 2015. PageSpeed Tools. Retrieved 10.12.2015

from https://developers.google.com/speed/pagespeed/

Gupta M, Singh S. 2003. Greening of the Internet. ACM

SIGCOMM, Karlsruhe, Germany.

Fabian B, Goertz F, Kunz S, Muller S, Nitzsche M. 2010.

Privately waiting–a usability analysis of the tor

anonymity network. Sustainable e-Business

Management. Pages 63–75.

Ferragina P, Manzini, G. 2010. On compressing the

textual web. In: Proc. of Third ACM Conference on

Web Search and Data Mining (WSDM). Pages 391-

400.

Hongkiat. 2015. Ultimate Guide To Web Optimization

(Tips & Best Practices). Retrieved 9.12.2015 from

http://www.hongkiat.com/blog/ultimate-guide-to-web-

optimization-tips-best-practices/

Load Impact. 2015. On Demand Load Testing for

Developers & Testers. Retrieved 10.11.2015 from

https://loadimpact.com/

Qian F, Quah S, Huang J, Erman J, Gerber A, Mao Z, Sen

S, Spatscheck O. Web caching on smartphones: ideal

vs reality. In Proceedings of the 10th international

conference on Mobile systems, applications, and

services, MobiSys ’12. Pages 127–140.

Rajeev B, Bakula K. 2015. A developer's insights into

performance optimizations for mobile web apps.

Advance Computing Conference 2015 (IACC). Pages

671 - 675.

Soininen J. 2012. Website Performance Evaluation and

Estimation in an E-business Environment. Doctoral

dissertation, Tampere University of Technology. 188

Pages. Retrieved 12.11.2015 from

http://dspace.cc.tut.fi/dpub/handle/123456789/21230.

Spiesser J, Kitchen, L. 2004. Optimization of html

automatically generated by wysiwyg programs.

WWW 2004, Proceedings of the 13th international

conference on World Wide Web. Pages 355–364.

TinyPNG. 2015. Shrink PNG files. Retrieved 12.10.2015

from https://tinypng.com/

Performance Gains from Web Performance Optimization - Case Including the Optimization of Webpage Resources in a Comprehensive Way

193
