CURA: Complex-system Unified Reference Architecture

Position Paper: A Practitioner View

Ethan Hadar

and Irit Hadar

Communities Informatics, Zefat Academic College, Zefat, Israel

Department of Information Systems, University of Haifa, Haifa, Israel

Keywords: Solution Architecture, Reference Architecture, TOGAF, Enterprise IT.

Abstract: Constructing enterprise-level solution requires integration of existing, modified, and new modular

technologies. A customer specific solution is instantiated from a reference implementation owned by the

services organization, as a result of multiple products and their reference design created by the R&D

organization. Yet, the disciplines of R&D and enterprise architecture differ in their analysis and design

processes, artifacts, and semantics, leading to a mismatch in product design, knowledge and requirements

interpretation. The Complex-systems Unified Reference Architecture (CURA) was developed as a common

platform for both field and R&D practices. This methodology binds a 4-layered structure and a 4-phased

architecture process, controlling the solution architecture lifecycle from reference design to reference

implementation and solution instantiation, and fits both agile and DevOps methodologies. The presented

version of CURA was tested and implemented with several customers as a lean and minimal blueprinting

approach, serving as part of the architectural deliverables. CURA can be adjusted to other visual binding

notations such as UML and TOGAF modeling languages, and can scale up to system-of-systems design.

1 INTRODUCTION

Architecture-centric evolution (ACE) (Paris et al.,

2006) is aimed at supporting requirements that bind

product design constructed by R&D architects with

solution architecture constructed by field architects,

according to customers needs.

R&D architects are responsible for evolving

product architecture, and delivering reference

implementation to field architects. Field architects

combine several reference implementation

architectures into a reusable and replicable solution

of reference implementation, to be later configured

for a specific customer environment. Yet,

miscommunicated intention between R&D and field

architects can hamper project efficiency or generate

customer dissatisfaction. Moreover, such

miscommunications can lead to missed or

overlooked technical evolution opportunity.

In this position paper, we present CURA,

Complex-systems Unified Reference Architecture

methodology, as a common methodology that

unifies the discipline of architecture for both field

and R&D practices.

The methodology depicted in Figure 1 binds a 4-

layered architecture structure and a 4-phased

architecture process, controlling the solution

architecture lifecycle from reference design to

reference implementation and solution instantiation.

The CURA approach can be employed with any

architecture discipline, such as agile and DevOps.

CURA was implemented in several customers’

solutions, offering R&D and field architects:

• Unified Communication by means of common

views across architecture departments.

• A Single Architecture Discipline that provides

structured analysis of solutions from inception to

instantiation.

• Continuous Deliverables creation is accelerated

and allows for reusable and incremental analysis

and design.

This position paper provides motivation for a unified

architecture methodology presented in Section 2,

and details the methodology’ phases and

architectural layers and views in Section 3. Finally it

highlights the value proposition and differentiating

approach in Section 4.

216

Hadar, E. and Hadar, I.

CURA: Complex-system Uniﬁed Reference Architecture - Position Paper: A Practitioner View.

In Proceedings of the 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering (ENASE 2016), pages 216-221

ISBN: 978-989-758-189-2

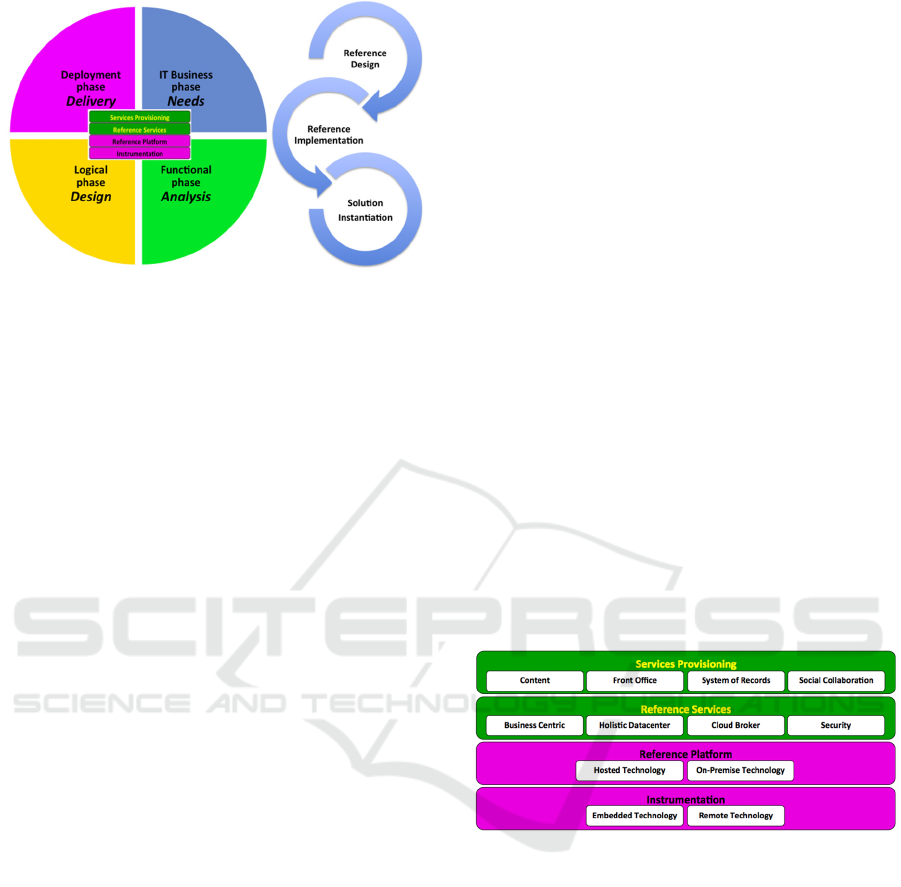

Figure 1: CURA 4x4: a methodology for Complex

systems Unified Reference Architecture with 4

architecture layers and 4-phased architecture process.

2 MOTIVATION

An IT solution involves combining several products

produced by teams with different development styles

and software engineering practices (Passos et al.,

2010). The products’ architecture varies in design

principles and utilizes a myriad of environments and

platforms. A field architect is required to add

business value as well as improve the quality of the

compound non-functional attributes. Architecture

quality improvements can include a reduction of the

solution’s footprint, removal of duplicated or

confusing capabilities, and maximization of cloud

services usage. Architecture requirements are

created by the development organization, and later

on by field architects. As such, a unified semantic

language used from architecture inception to

solution instantiation is required. The well-known

modeling approach of Kruchten’s 4+1 views

(Kruchten, 1995), addresses this need by advocating

the Use Case view as a binding one, catering for

business and product management. However, the

approach leads to architecture instructions that are

scattered across unrelated visual contexts. To

illustrate, consider how DevOps test automation and

deployment instructions over a cloud platform using

Kruchten 4+1 can be captured with use cases.

Specifically, on which blueprint and at what

development phase should an architect emphasize

the usage of integration and dependency on third

party cloud PaaS vendors?

CURA addresses the above problems and offers

a unified approach for creating visually connected

views alongside a well-defined architecture process,

adjusted to multi-products integration and solution

construction.

3 CURA BUILDING BLOCKS

This section details the CURA methodology

artifacts, binding a 4-layered structure and a 4-

phased architecture process, from reference design

to reference implementation and solution

instantiation.

3.1 CURA Architecture Layers

CURA architecture is structured as a 4-Layered

High Level template (4LHL). Within the domain of

enterprise IT, the four layers are services

provisioning, reference services, reference platform,

and instrumentation (depicted in Figure 2). Each

subsequent view uses the same 4LHL layout with

different type of CURA entities according to

TOGAF (The Open Group Architecture Forum)

semantics to bind the architecture perspectives

(TOGAF, 2015). CURA accounts for modifications

to the 4LHL elements (Amber, 2015), specifically

by adjusting the layers and inner sub-layers for a

specific solution domain.

Figure 2: CURA 4-Layered High Level (4LHL) template.

3.1.1 The Services Provisioning Layer

The Services Provisioning layer contains the

following components:

• Content – provides access to content that is

created by users of the solution within the

production environment, such as readymade

processes or configuration scripts; best practices

documents; templates; policies; and complex

events processing rules.

• Front Office – encapsulates presentation

elements with adjustable graphical interfaces

according to consumer’s devices. Examples are

CURA: Complex-system Uniﬁed Reference Architecture - Position Paper: A Practitioner View

217

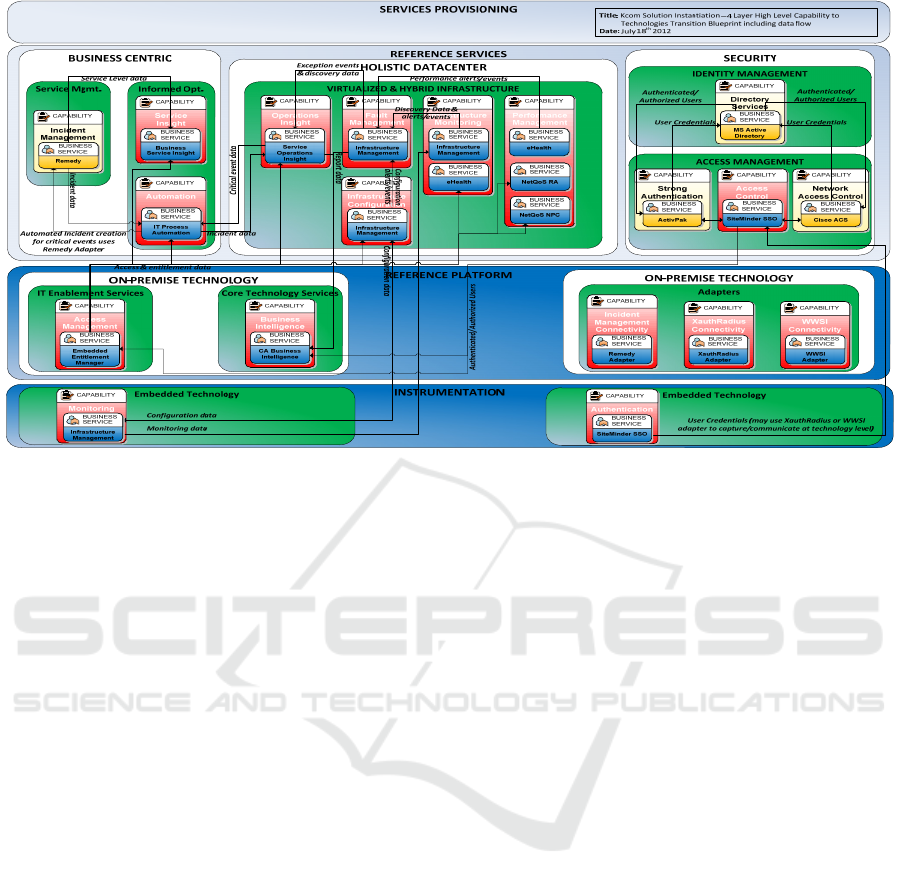

Figure 3: Example: A customer’s solution instantiation 4LHL capabilities to technologies blueprint (Created by Jason Davis

for a enterprise level telecommunication company).

code scripts for responsive web design (RWD);

deployable rich client executable; packaged

WAR code, HTML5 and CSS; etc.

• System of Records – exposes published

application programming interfaces (API).

Examples are the Web Services Description

Language (WSDL) or the Representational State

Transfer (REST) API, expressed in the solution’s

Domain Specific Language (DSL) semantics.

• Social Collaboration – securely provides

integration with third party social collaboration

tools, adhering to compliance and regulations,

such as blocking obscenity text.

3.1.2 The Reference Services Layer

The Reference Services layer contains the classical

business logic and data tiers of a compound solution.

Yet common components and remote platform

services are excluded and captured within the

reference platform and instrumentation layers. In

this paper we demonstrate the usage of CURA in the

domain of IT management. Consequently, architects

would be able to adjust these core components

according to their specific modeled domain.

In the IT management domain, the core

components are:

• Business Centric Module – contains ITIL’s

Project, Portfolio & Financial Management for

controlling and governing contractual service

level agreements, alongside financial aspects.

• Holistic Datacenter – focuses on IT system,

performance and operational management, such

as private cloud management and IT system

health.

• Cloud Broker – focuses on interacting with

remote cloud services. The goal of the gateway

broker is to encapsulate the aggregation,

intermediation, and arbitrage of external cloud

services.

• Heterogeneous Security – focuses on

authentication, authorization, and single-sign-on

of an enterprise IT solution, including

information fidelity concerns.

3.1.3 The Reference Platform Layer

The Reference Platform layer accesses IT platform

services or readymade IT components. The sub-layer

categories are:

• Hosted Component – contains commoditized IT

services, such as those offered by IBM’s

Bluemix PaaS, Softlayer or Amazon. These

services can be mobile push notification, NoSQL

DB, or even cognitive computing as offered by

IBM WATSON. IT readymade packages hosted

on a Managed Service Provider (MSP), can be

readymade bundles such as the combined

Node.Js container and CloudAnt database web

starter, or Python Flask starter kit.

•

On-Premises Component – contains shared

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

218

components installed at the customer datacenter.

It also contains managed connectivity to legacy

products within the customer Enterprise

Architecture (EA).

3.1.4 The Instrumentation and IoT Layer

The Instrumentation and IoT layer contains

interaction protocols with managed devices. Such

devices can be a server, network card, router, switch,

or an appliance such as a smart TV, media device, or

mobile device. Managed technologies can be agents,

probes, sensors (monitors), or actuators (modifiers

and controllers). Regardless of the managed target,

the embedded and remote technologies are separated

by ownership and location of the managed

technology.

The Embedded Technology provides access to

devices within the firewall (physical location) and

private virtual networks.

The Remote Technology accesses devices via

third party and public networks, with or without

encryption.

3.2 CURA 4 Process Phases

CURA 4-phases process separates mandatory and

optional views, structured on top of the 4LHL

template as described in Table 1. The blueprints

images were blurred to maintain confidentiality. The

mandatory blueprints are capability-to-architecture

roadmap; capability-to-technology as depicted in

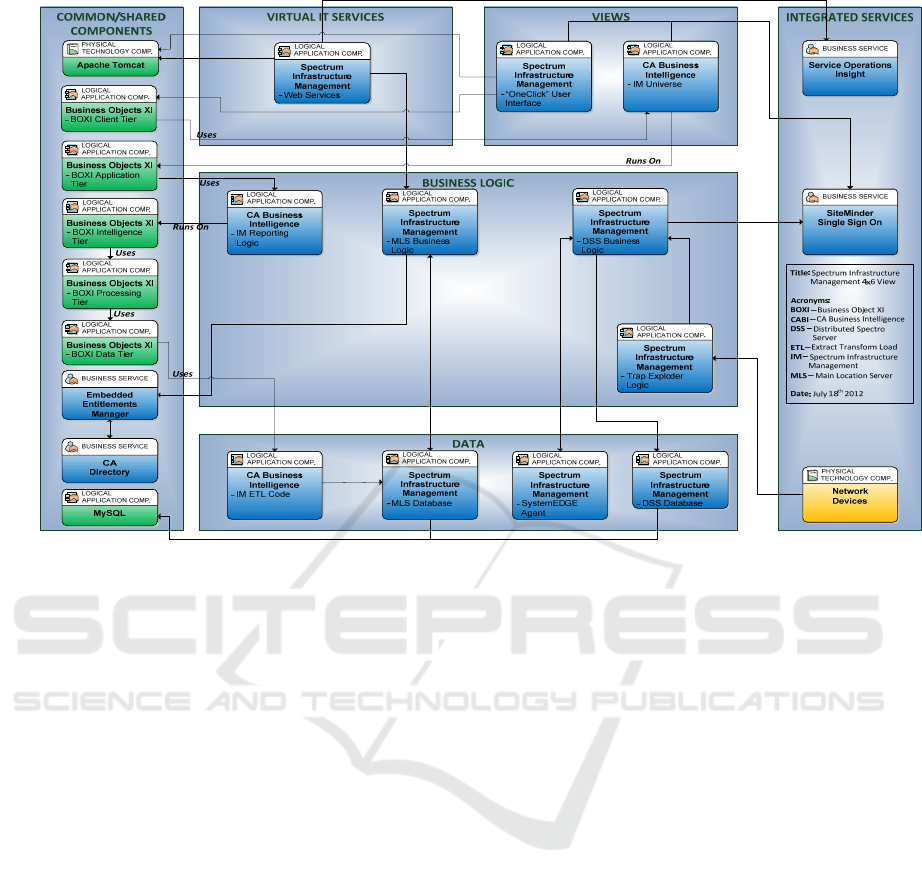

Figure 3; super-position logical 4x6 as depicted in

Figure 4 (Hadar et al., 2012b); and deployment. The

optional views are capability, security, and

capability-to-business.

• The Business Phase focuses on understanding

customer needs, and defines the required high-

level capabilities in conjunction with the existing

and needed technology. Aimed at detecting

dependency on previously delivered capabilities

as well as new evolving architecture

requirements, the result is a merged capabilities

and architecture value-roadmap.

•

The Functional Phase focuses on systematic

decomposition of capabilities into supporting

processes and functionalities, by detecting

explicit connectivity between technical

components or implicit dependencies of business

processes. Once the implementation technologies

for the Business-Service-Innovations steps are

detected (Hadar et al., 2012a), the technologies

are mapped onto the 4LHL Capabilities-to-

Technologies blueprint, exemplified in Figure 3.

• The Logical Phase binds 4×6 logical bricks

(Hadar et al., 2012b) of existing or planned

components of each participating product (see

Figure 4). The 4×6 blueprint depicts both the

underlying products and the solution glue-code.

This phase includes eliciting the evolution steps

required from both the products and solution

teams, as well as the customer’s enterprise

architecture (EA) configuration needs. This list

of evolution steps is merged with the combined

capability and architecture roadmap view. The

blueprint is based on aggregating a separate 4×6

logical product views, is a 6-tier architecture

containing a modified 3-tier architecture pattern

extended with three additional integration tiers

for the EA.

• The Deployment Phase aims at producing

instructions that can be automated by DevOps

scripts for staging and producing the IT

solution. The 4LHL Deployment Blueprint

depicts the installation dependency of packaged

application components on the required IT

infrastructure.

4 IMPLEMENTATION AND

CONCLUSION

The CURA solution approach was created to handle

three types of architecture needs: bundling unrelated

technologies, integration, and new processes across

products.

• Bundling unrelated technologies and co-locating

technologies reduces IT footprint and unifies

supporting infrastructure.

• Integrating technologies with a hub-and-spoke

pattern or a canonical-data-model pattern ensures

separation of concerns, where each product acts

on and reacts with the data. The goal is to reduce

integration points, standardize web service

protocols, and provide common taxonomy for

the integrated data.

• Creation of new processes provides a higher

business value from a collection of separate

products.

CURA targets complex system of systems solution

architectures, as well as basic software systems and

technologies. Instead of having different views

without a binding structural thread, the CURA

approach expands on top of a single structural

skeleton that bridges multiple architectural aspects.

CURA unifies both R&D and Services architec-

CURA: Complex-system Uniﬁed Reference Architecture - Position Paper: A Practitioner View

219

Table 1: CURA views according to the four phases. Images are blurred in order to maintain confidentiality.

Business

4LHL Capability Blueprint Capability and Architecture Roadmap

Functional

Capabilities to Business-Service-Innovations 4LHL Capability-to-Technologies and Data Flow

Logical

4×6 Logical Bricks Blueprints.

4LHL Solution Logical Super-Position

Deployment

4LHL Solution Security 4LHL Solution Deployment

ture discourse in terms of architecture notation,

semantics, analysis and design techniques, and

aligns the incremental deliverables within a single

methodology and framework. CURA definition of

DevOps expands from delivering a single cloud

automated product, into a compound solution.

CURA cultivates knowledge reuse, harvests

information, reduces erroneous interpretation, and

contributes to the cohesion of the professional

community.

Agile or waterfall, incremental or iterative,

DevOps or Continues Delivery, CURA is applicable

for any approach.

REFERENCES

Amber S, 2015. “Just Barely Good Enough” models and

documents: an agile best practice,

http://www.agilemodeling.com/essays/barelyGoodEno

ugh.html Retrieved 22 December 2015.

Avgeriou P. Zdun U., Borne I, 2006. Architecture-centric

evolution: new issues and trends. In Proceedings of

the ECOOP 2006 workshop reader (ECOOP'06).

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

220

Figure 4: Example of a 4x6 blueprint – CA Technologies, Spectrum IM product (Created by Jason Davis for a enterprise

level telecommunication company).

Hadar E., Davis J., Ferguson D. F., 2012a. “Proactive

Performance Optimization of IT Services Supply-

Chain Utilizing a Business Service Innovation Value

Roadmap”, The Third International Conference on

Cloud Computing, GRIDs, and Virtualization, Cloud

Computing 2012, July 22-27, 2012 - Nice, France.

Hadar, E., Hadar, I., Silberman G. M. and Harrison, J. M.,

2012b. The 4x6 Tiered Architecture Method: An

Approach to the Design of Enterprise Solutions,

CAiSE/IWSSA 2012 Workshops, LNBIP 112, pp. 180--

191. Springer, Heidelberg (2012), Gdansk, Poland,

2012.

Kruchten, P., 1995. Architectural Blueprints — The “4+1”

View Model of Software Architecture. IEEE Software

12 (6), pp. 42-50, (1995).

Passos, L., Terra, R., Valente, M. T., Diniz, R., Mendonça,

N., Buschmann, F., 2010. On Architecture Styles and

Paradigms, IEEE Software, Vol. 27, Issue 4, 2010.

TOGAF, 2015 http://www.opengroup.org/subjectareas/

enterprise/togaf, retrieved on December 22, 2015.

CURA: Complex-system Uniﬁed Reference Architecture - Position Paper: A Practitioner View

221
