Cybertrust in e-Learning Environment based on Network Time

Synchronization

Dmitriy Melnikov, Vladislav Petrov, Natalia Miloslavskaya, Anatoliy Durakovskiy

and Tatiana Kondratyeva

National Research Nuclear University MEPhI (Moscow Engineering Physics Institute),

31 Kashirskoye shosse, Moscow, Russia

Keywords: e-Learning, Information Security, Trusted Cyberspace, Trusted e-Learning Environment.

Abstract: The concept of cybertrust as a crucial aspect of cyber security for public electronic interactions and, in

particular, distance learning systems (DLSs), is introduced. This concept is the opposite of such well-known

terms as cyberattacks and/or cyberespionage and it supports cyber security issues by providing legal signifi-

cance of a public electronic document interchange. The possibility of cybertrust assurance in an e-Learning

environment (ELE) is shown using two proposed methods of network time synchronization.

1 INTRODUCTION

Any computer information system (as an integral

part or a degenerate case of cyberspace), even with

hardware and software protection of its information

resources, remains vulnerable not only to the tradi-

tional cybersecurity threats such as loss of connec-

tions (unavailability – A), interception (breach of

confidentiality – C) and modification (falsification,

integrity violation – I) of information circulating in

the system, but also to its legal value. The complex

nature of the cybersecurity assurance is reflected in

the acronym CIA and suggests that a compromise

provided by users' trust to the system as a whole is

needed for real interrelation between the purpose of

the integrated cybersecurity CIA and critical re-

sources (hardware, software and data). The issue of

universal trust problem resolution becomes one of

the priorities for integrated cybersecurity for all

common systems of public computer information

infrastructures, and, in particular, for distance learn-

ing systems (DLSs) (Pfleeger and Pfleeger, 2003).

Therefore, in our opinion, to highlight this issue as a

separate study subject it is necessary to introduce the

term "cybertrust" as one of the aspects of cybersecu-

rity in e-Learning Environments (ELE).

Thus the paper is organized as follows. Section 2

is devoted to the analysis of the current state of the

trust problem in respect of developing of a general-

ized cybertrust model. Section 3 discusses the main

characteristics of cybertrust assurance in ELE. Sec-

tion 4 shows the practical implementation of the

cybertrust through the usage of network time syn-

chronization that allows to increase the reliability

and quality of the various kinds of legally significant

electronic document interchange. In conclusion main

results of the work are outlined and future research

is specified.

2 RELATED WORKS

Let us define that any public cyberspace based on

the Internet technologies could be perceived as safe

and its results are recognized as legally significant

iff all its components (such as participants of the

information exchange process, communication

channels and software and hardware) meet the ob-

jectives and requirements of information security

(IS) properties (CIA properties).

The basic analysis of principles and public trust-

ed cyberspace organization assumptions, for exam-

ple, in DLSs based on the evaluation of protection

against IS threats (CIA violation threats), suggests

that IT does not guarantee the required security level

in many cases even by using the traditional infor-

mation protection tools (IPTs) (Petrov at all, 2015).

Thus, the task of cybertrust assurance in ELE con-

tinues to be relevant and requires special phrasing

(Benzel et al, 2005), (Gritzalis and Lopez, 2009),

402

Melnikov, D., Petrov, V., Miloslavskaya, N., Durakovskiy, A. and Kondratyeva, T.

Cybertrust in e-Learning Environment based on Network Time Synchronization.

In Proceedings of the 8th International Conference on Computer Supported Education (CSEDU 2016) - Volume 2, pages 402-407

ISBN: 978-989-758-179-3

(Gasiorowski-Denis, 2015).

In our opinion the expansion of the so-called

“Three trusts” criterion (Petrov at all, 2015), intro-

duced to confirm the required level of ELE’s securi-

ty (proxy) for any public cyberspace, is quite pro-

ductive. A generalized cybertrust model (Figure 1)

should contain three sub-models: 1) for presentation

of the trust interrelations among the objects of cy-

berspace integrally (considered as a whole), 2) for

the hardware and software components to ensure

trust associated with the reference medium, 3) for

the remote user's (participant of the distance interac-

tion process) trusted perception. The first sub-model

for presentation of the trust interrelations among the

objects of cyberspace integrally describes the rela-

tionship between hardware and software objects of

each of the systems participating in the cyberspace.

The second sub-model for the hardware and soft-

ware components shows the trusted characteristics

of the interaction between objects and trusted ELE.

The third sub-model for the remote users’ perception

is a set of conditions directly depending not only on

the characteristics of software and hardware but also

on the user that affect the trusted cyberspace.

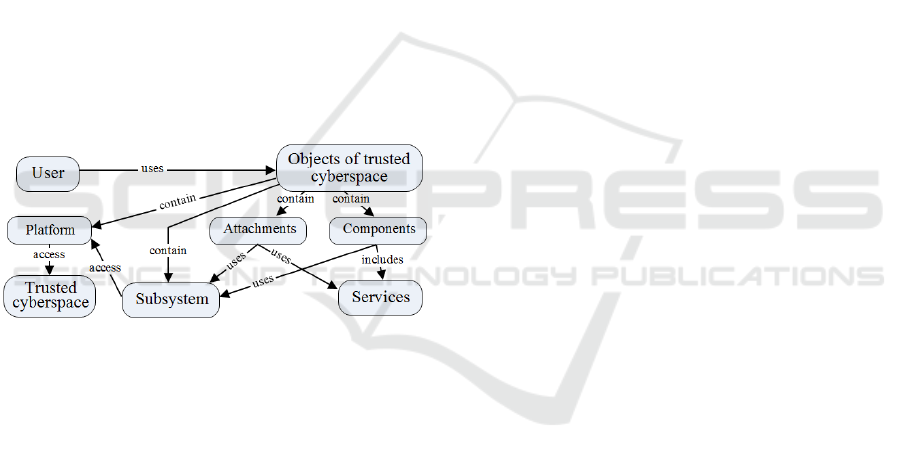

Figure 1: A generalized cybertrust model.

Additionally, a legal user’s model should be con-

structed. It is assumed that each response directly

affects the overall level of trust in the system. How-

ever, such a model can be regarded as sufficient for

ensuring information exchange’s security only when

it is initially supposed that its participant is not a

potential insider. To ensure cybertrust in ELE identi-

fication and authentication data (i.e. the attributes

that differentiate the participants from the others,

including the usage of removable media of key in-

formation) are supplemented with data related to the

continuous user’s presence verification being in a

certain place. Only the legal users are obliged to be

present at the legally valued electronic document

interchange (LVEDI). This can be guaranteed by the

continuity of the authentication procedures.

Thus, the cybertrust problem solution lies in the

development of generalized integrated requirements

establishing the procedures of legal users’ electronic

interaction and regulated requirements to their au-

tomated working stations (AWSs) as well as to all

members of the LVEDI.

3 CYBERTRUST KEY FEATURES

From all the variety of procedures in ELE it is pos-

sible to highlight the most critical for ensuring

cybertrust. So, it is obvious that identification and

authentication, access control and connection protec-

tion are such controls for the LVEDI (Miloslavskaya

et all, 2014). Most of the existing definitions of trust

are applicable to cybertrust. They can be used to

formulate the criterion of the trust building. The

characteristics of trust, which are important for the

formulation of the trust criterion in information

systems, are the following: 1) targeted trust: trust of

oriented relations between the process participants;

2) subjective trust: trust is in fact a personal opinion.

It is a personal and subjective phenomenon based on

various factors or evidence, some of which may

have more value than the others; 3) measurable

trust: the target trust values can be used to assess

different levels of trust that an object can have in

contact with another object. Therefore, such kind of

trust (measurable) provides a framework for trust

modeling and for its evaluation; 4) trust in the dy-

namics: trust usually varies nonmonotonically with

time. It can be updated periodically or canceled. It

should be able to adapt to the changing environmen-

tal conditions in which the first trust decision has

been made; 5) conditionally passed trust: infor-

mation on trust can be transmitted/received via the

interaction network; 6) trust as a composite proper-

ty: trust is a set of different attributes, which should

be considered depending on the environment in

which the trust is determined (Grandison and Slo-

man, 2000).

Therefore, we can say that compositionality (as a

value of a complex expression is a function of its

parts values and the relations between them) it is an

important feature for the trusted electronic interac-

tion creation.

Taking into consideration the outlined above, we

can assume that the creation of a trusted cyberspace

should be based on a combination of factors that

directly affect the level of trust, as it is shown in

Figure 2. It should be noted that all these factors

may be involved in the implementation of the above

mentioned criterion of “Three trusts” only in case of

network time synchronization. Then, in our opinion,

it is reasonable to ensure modular cybersecurity, for

example, in the devices of the LVEDI’s participants

Cybertrust in e-Learning Environment based on Network Time Synchronization

403

in order to carry out dynamic prevention, detection,

diagnosis, isolation and countermeasures against IS

properties violations.

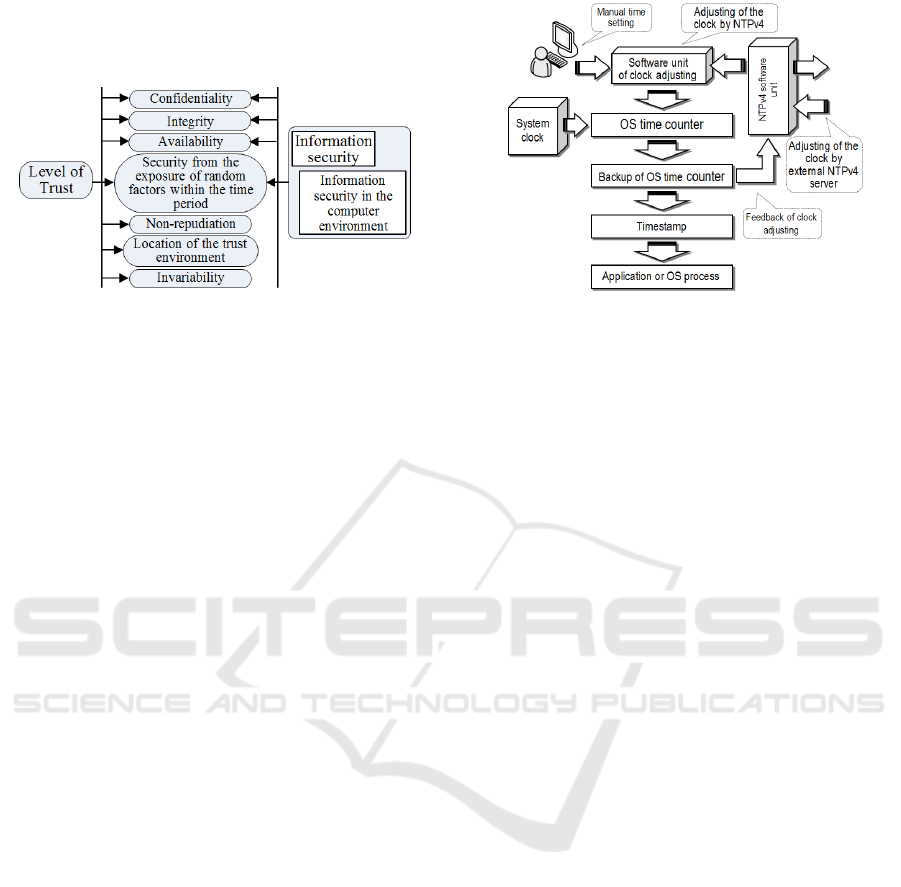

Figure 2: The combination of cybertrust factors for the

LVEDI.

4 TIME SYNCHRONIZATION AS

A CYBERTRUST ASSURANCE

METHOD

A time synchronization system in a cyber environ-

ment is an obligatory and extremely important sub-

system that affects the functioning of almost every

network component and resource. The accuracy of

the network time (of synchronization) is not only of

great technological importance, but it also becomes

a factor affecting the reliability and quality of cryp-

tographic functions and calculations as well as man-

aging the LVEDI based on the timestamps usage.

However, maintaining high quality network time

synchronization depends on reliability (correctness)

of the operation of the following: 1) software and

hardware time modules available in the operating

system (OS) of each computer, server and network

device. The last one depends on the reliability (cor-

rectness) of OS functioning; and 2) synchronization

subnet (network time infrastructure), which is im-

plemented on the basis of the Network Time Proto-

col (NTP version 4 – NTPv4) (Mills, 2010).

Compromise of at least one of these components

(time modules, OS and synchronization subnet or its

segments) may lead to the discrediting of entire

application systems and services, and as a result to

the loss of cybertrust.

4.1 Creating Timestamps in Software

and Hardware

There is a clock in any computing system (CS),

which is used for time and synchronization frequen-

cy generation. The flowchart of system time genera-

tion for timestamps is shown in Figure 3.

Figure 3: Cross-functioning flowchart of the system time

generation.

In the current CSs the system time is based on

the clock pulse generator and two seconds counters

(basic and back up). In other words, the date (day,

month and year) and time (hours, minutes and sec-

onds) are described by a certain number of seconds

(as a power of number 2). The accuracy of the cur-

rent time is determined by a fractional part, which

describes the fraction of a second (Mills, 2010). The

main time counter operates continuously, stopping

only at correcting the current time value, taking into

account the necessary amount of time spent on ad-

justments. The backup counter repeats the time val-

ue, shown by the main counter, and it is used to read

the current time for the system and application pro-

cesses as well as to generate a correction value by

NTPv4 (at regular intervals).

In some OSs the fractional seconds of the backup

counter is used as a random number generator. In

reality the reading of the current time value is a

random event, so the fractional part of a second can

be seen as a random binary number.

4.2 Cyberespionage Model for CS’s

Timestamps Modification

One of the requirements (conditions) to ensure a

high level of cybersecurity is reliability (warranty)

of CSs’ functioning, ensuring, in turn, the operation

of IPTs. As it was mentioned above, any procedure

directly providing the implementation of the security

mechanisms or access to security services should be

trustful. At present many OSs do not meet this re-

quirement and are untrusted (not reliable). It is very

difficult to verify the correct functioning of a certain

system and application processes.

We consider the following possible cyberattack

model for the current time generation system on the

CS (Figure 4).

CSEDU 2016 - 8th International Conference on Computer Supported Education

404

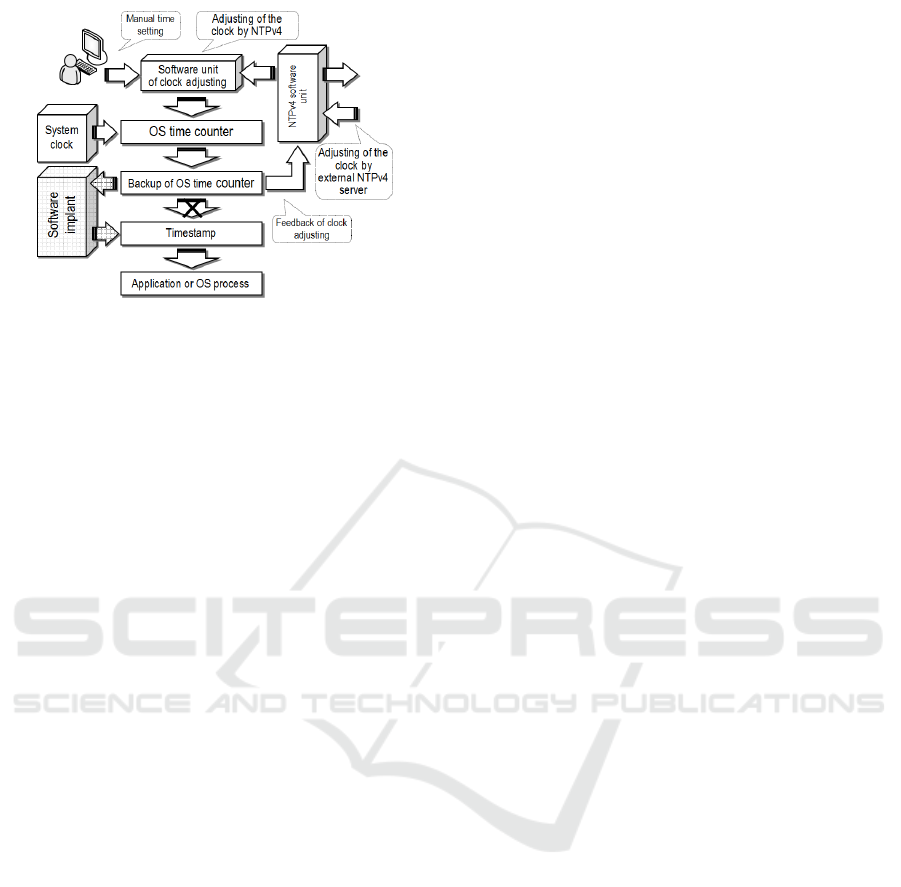

Figure 4: Model of cyberattacks using the IST insertion to

modify the current time value.

At the basis of this attack is the introduction of

an inset software tool (IST) in a non-trusted OS to

modify the current time value. IST functioning con-

tent is to change the pre-known algorithm for the

fractional part (of a second) of the system time. For

example, the algorithm of a fractional part forming

may be based on a specific procedure for the conver-

sion of the whole of the current time value. That is,

the fractional part of the current time (Ct) will di-

rectly depend on (is a function of) the integer part of

the Ct. The timestamp formed in this way will con-

sist of the real (true) integer part of Ct and of the

modified fractional part (not random and pseudo-

random).

An intruder inserting an IST in an untrusted OS

knows the algorithm for converting the integer part

of Ct into its fractional part. Consequently, s/he does

not have to know the geographical location of a

compromised CS. It is enough to know the time

zone for it. From the viewpoint of the IST detection,

it will be extremely difficult to identify a modifica-

tion of the fractional part of the current time for the

following reasons.

1. It is very difficult to distinguish random frac-

tional part of the current time values from the pseu-

dorandom by any external signs, taking into account

that the fractional part is composed of milliseconds,

microseconds or even nanoseconds, for example,

while using the fractional part as the basis for the

random numbers generation.

2. Even if one collects a certain statistics of the

generated current timestamps, it is unlikely to reveal

the algorithm for converting the integer part of Ct

into its fractional part, providing that the perpetrator

used a cryptographically complex function in his/her

IST.

3. If more than one timestamp is demanded for

one second, then it is possible to add some relevant

complication coefficients in the IST that will make

the difference between the timestamp’s fractional

parts in the modification of the same integer of sec-

onds. The number of these coefficients depends on

the execution speed of the compromised CS.

4. In this cyberattack model, the IST operation

does not affect the other components of the CS as

well as the procedures implemented by NTPv4-

module software. In other words, properly integrated

IST will not allow to detect itself via any system or

application process.

In implementing the cyberattack model consid-

ered (based on IST insertion) the following activity

of the intruder may result in very "severe" conse-

quences. The main purpose of modifying the system

time is a compromise of the secret (private) key of

the cyberattack target based on the knowledge of

timestamp and the interception of his/her digital

signature (DS) in the Public Key Infrastructure

(PKI) (Cooper, 2008). In terms of IS compromising

the IST insertion provides almost unlimited unau-

thorized access to the protected information.

The cyberattack essence after the IST insertion is

the following.

1. The compromised computer holder’s DS in-

terception.

2. The timestamp regeneration in DS. The

amount of timestamps options depends on the se-

lected analysis interval for time and the number of

complication coefficients. The total number of op-

tions will not exceed 3000.

3. Further the "plaintext selection" cryptanalytic

attack is implemented. The falsified timestamp ap-

pears as a "chosen plaintext" in this attack.

4. The secret (private) key of the cyberattack tar-

get can be compromised as a result of decryption (in

the event the IST was inserted in his computer).

5. If the cyberattack target exchanges infor-

mation with the owner of the compromised comput-

er, then it is possible to compromise the key of the

cyberattack target by using his/her uncovered secret

(private) key.

6. In the future, the secret keys of all users carry-

ing out a protected information exchange with the

owner of the compromised computer can be revealed

step-by-step.

A more detailed analysis shows that the number

of compromised CSs could compromise the entire

PKI. Naturally, the compromise will not happen in a

moment. It will be a number of targeted and serial

successive events as the steps of one cyberattack.

But the final result is obvious.

A similar situation may arise with the Kerberos

protocol (Kohl and Neuman, 2005), (McNamara,

Cybertrust in e-Learning Environment based on Network Time Synchronization

405

2003), which is vulnerable to attacks on the systems

of network synchronization and time stamping. The

one-time password systems are also "powerless"

against cyberattacks based on modifying a CS’s

system time (Haller, 1998).

4.3 Principles of Network Time

Reliability Insuring

We worked out the following principles of network

time reliability insuring.

The first and fundamental principle of reliable

and correct functioning of the network time system

(NTS) for modern networks and systems is to

achieve the given guarantees of such operation

(Mills, 2010). This principle implies the presence of

a trusted operating environment that provides ser-

vices to ensure cybersecurity as well as other soft-

ware components (modules) supporting NTS opera-

tion and provision of the required services.

The second principle is the creation of an internal

and independent time source that must operate in

stand-alone mode. This principle implies that the

time source should receive the original signal gener-

ated by a system process of a trusted OS. The output

internal clock’s signal can be such a signal. Other-

wise, the signal coming via a USB-interface may be

such a signal.

The third principle means that the whole conver-

sion of the input signal must be carried out only by

the time source. Any interference in the work of the

time source is not acceptable, since any exposure

could affect its reliability.

The fourth principle can be formulated as fol-

lows. If necessary (in case of the abnormal events),

any adjustment of the time source should be carried

out at the user's (client) demand and only in manual

mode via the GUI displayed on the computer screen.

This principle implies the transfer of a specialized

request for certified and protected timestamp from a

trusted time source, determined by the appropriate

security policy. The implementation of this principle

depends on the conditions of the NTS’s usage and

the corporate (specialized) applied cyberspace. In

other words, if such a system is able to provide the

timestamp transmission in protected mode (provid-

ing its confidentiality and/or integrity), then the

client can give a command to automatically update

the time. The need to deliver the timestamp in the

protected mode can be caused by certain statements

of the security policy, aimed at protecting the

LVEDI and this entire system against the insiders.

The fifth principle says that the launch of the

time source should be carried out only at the com-

mand of the NTS’s client and only once at the be-

ginning of its work. This principle implies the auto-

matic transfer of a specialized request for certified

and protected timestamp from a trusted time source,

determined by the appropriate security policy. Oth-

erwise, the initial (current) time value should be

entered by the user. The implementation of this

principle depends on the conditions of NTS’s usage

and the corporate (specialized) applied cyberspace.

In other words, if such a system is able to provide

the timestamp transmission in protected mode (en-

suring its confidentiality and/or integrity), then the

NTS can give a command to get an initial timestamp

during initialization of its work. The need to deliver

the timestamp in protected mode can be caused by

certain statements of the security policy, aimed at

protecting the LVEDI and this entire system against

the insiders.

The sixth principle is the two-module construc-

tion of the time source, including a main time coun-

ter and a back-up counter, wherein the main counter

should operate from the start to the end of the ses-

sion without any interruptions or stops.

The strict implementation of the given principles

will prevent any intentional and accidental actions to

modify and/or falsify the timestamps.

4.4 Reflection of Cyberattacks against

the NTS

The methods proposed (Figures 5 a, b) are actually

based on the principles of cyberattacks against the

NTS (synchronization) reflection (Melnikov and

Jones, 2004). In the first method of reflection of

cyberattacks against the NTS the start time is set

automatically, while in the second method this time

is set manually. The essence of both methods is that

the usage of an internal independent time source

allows to exclude any possibility of timestamps

unauthorized modification and/or tampering. This in

turn will considerably (more than twice) complicate

the task of cryptanalysis based on plaintext selec-

tion, being resolved by a potential intruder (Cooper,

2008), (Kohl and Neuman, 2005).

5 CONCLUSIONS

Thus, from our point of view, the expansion of the

“Three trusts” criterion to any public cyberspace

together with the usage of an independent source of

network time synchronization will allow to imple-

ment the standardized cybertrust assurance require-

ments (being of legal significance) for ELE. It can

CSEDU 2016 - 8th International Conference on Computer Supported Education

406

also become the basis of appropriate legislation,

regulations or standards.

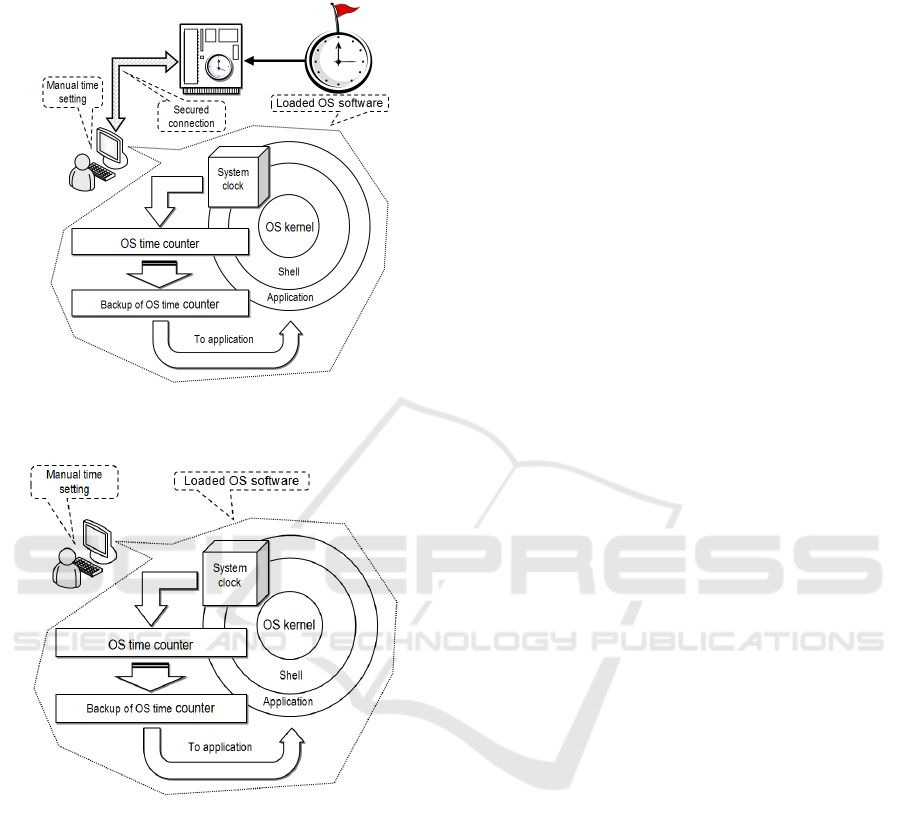

Figure 5a: The first method of reflection of cyberattacks

against the NTS with the automatic start time setting.

Figure 5b: The second method of reflection of cyberat-

tacks against the NTS with the manual start time setting.

ACKNOWLEDGEMENTS

This research has been performed with the financial

support of the Ministry of education and science of

the Russian Federation in the framework of the pro-

ject «Creation of the engineering and technical solu-

tions for high-tech production of innovative software

and hardware information protection tools on the

basis of perspective high-speed interfaces of infor-

mation interconnection», jointly with the LLC

«OKB SAPR» (the contract N 02.G25.31.0050).

REFERENCES

Benzel, T.V., Irvine, C.E., Levin, T.E., Bhaskara, G.,

Nguyen, T.D., Clark, P.C., 2005. Design principles for

security. Technical Report NPS-CS-05-010.

http://www.cisr.us/downloads/techpubs/nps_cs_05_01

0.pdf (access date 05.12.2015).

Cooper, D., 2008. Internet X.509 Public Key Infrastruc-

ture Certificate and Certificate Revocation List (CRL)

Profile. RFC-5280, May 2008.

Gasiorowski-Denis, E., 2015. Trust and confidence in

cloud privacy. http://www.iso.org/iso/news.htm?

refid=Ref1921 (access date 27.11.2015).

Grandison, T., Sloman, M., 2000. A survey of trust in

internet applications. IEEE Communications Surveys

and Tutorials, 3(4), pp. 2–16.

Gritzalis, D., Lopez, J., 2009. In Law We Trust? Trusted

Computing and Legal Responsibility for Internet Secu-

rity. Emerging Challenges for Security, Privacy and

Trust. 24th IFIP TC 11 International Information Se-

curity Conference, SEC 2009, Pafos, Cyprus, May 18–

20, 2009. Proceedings. 2009. Pp. 399-409.

Haller, N., ed. 1998. A One-Time Password System. RFC-

2289, February 1998.

Kohl, J., Neuman, C., 2005. The Kerberos Network Au-

thentication Service (V5). RFC-4120 (RFC-4537), July

2005.

McNamara, J., 2003. Secrets of Computer Espionage:

Tactics and Countermeasures. New York: John Wiley

& Sons, Inc.

Melnikov, D., Jones, A., 2004. “Masquerade” Attacks and

a Process for Their Detection. In Proceedings of the

3rd European Conference on Information Warfare

and Security. Royal Holloway University of London,

UK. 28-29 June 2004. p. 269.

Mills, D., 2010. Network Time Protocol Version 4: Proto-

col and Algorithms Specification. RFC-5905, June

2010.

Miloslavskaya, N., Petrov, V., Tolstoy, A., 2014. Security

Aspects for E-Learning Portals. In Proceedings of the

6th International Conference on Computer Supported

Education (CSEDU 2014). Spain, Barcelona. pp. 427–

432.

Petrov, V., Miloslavskaya, N., Gorbatov, V., Durakovskiy,

A., 2015. Problem of Trust in E-Learning Environ-

ment. In Proceedings of the 7th International Confer-

ence on Computer Supported Education (CSEDU

2015). Portugal, Lisbon. pp. 424-429.

Pfleeger, C.P., Pfleeger, S.L., 2003. Security in Compu-

ting. Upper Saddle River, Prentice Hall, NewJersey.

Cybertrust in e-Learning Environment based on Network Time Synchronization

407
