Self-Protection Mechanisms for Web Applications

A Case Study

Claudia Raibulet, Alberto Leporati and Andrea Metelli

Department of Informatics, Systems and Communication, University of Milano-Bicocca, Viale Sarca 336, Milan, Italy

Keywords: Self-protection, Security, Adaptive Systems, Home Banking Case Study.

Abstract: Self-protection mechanisms aim to improve security of software systems at runtime. They are able to

automatically prevent and/or react to security threats by observing the state of a system and its execution

environment, by reasoning on the observed state, and by applying enhanced security strategies appropriate

for the current threat. Self-protection mechanisms complement traditional security solutions which are

mostly static and focus on the boundaries of a system, missing in this way the overall picture of a system's

security. This paper presents several self-protection mechanisms which have been developed in the context

of a case study concerning a home banking system. Essentially, the mechanisms described in this paper aim

to improve the security of the system in the following two scenarios: users' login and bank operations.

Furthermore, the proposed self-protection mechanisms are presented through the taxonomy proposed in

(Yuan, 2014).

1 INTRODUCTION

Many modern software systems are delivered in the

form of Web applications, due to the many

advantages of such a solution in terms of using,

updating, and maintaining the applications. Also

some applications for mobile devices sometimes use

the so called Web views to connect to a Web site

and show relevant information to the user, thus

essentially behaving like a Web browser. It is thus

clear that ensuring a trusted and secure operation of

Web applications is of primary importance, and it is

even more relevant for Web applications dealing

with users' identities or with their money, such as a

home banking application.

Traditional security solutions (Anderson, 2008;

Peeger, 2006; Stallings, 2013) are mostly static, and

protect the system at its boundaries, usually by

means of appliances operating at the network level,

comprising firewalls, intrusion detection systems,

and multi-factor authentication servers. However,

these solutions cannot observe the behavior of the

application, and thus fail to recognize attacks

coming, for example, from attackers that succeed to

impersonate legitimate users.

Self-protecting software systems are a class of

autonomic systems capable of detecting and

mitigating security threats at runtime (Schmerl,

2014; Yuan, 2014; Yuan, 2013). They are able to

prevent and/or react to security threats by observing

the state of a system and its execution environment,

by reasoning on the observed state, and by applying

enhanced security strategies appropriate for the

current threat. All these steps are performed

automatically, without human intervention. Self-

protection mechanisms complement the traditional

security solutions which operate at the network

level, thus allowing to obtain a global protection of

the software system.

In this paper we present several self-protection

mechanisms which have been developed in the

context of a case study concerning a home banking

system, named U

NIBANK. In particular, the proposed

mechanisms aim to improve the security of the

system during the access (login) of users to the

application, and the execution of bank operations

(by authenticated users) involving the movement of

money to or from bank accounts.

The proposed self-protection solution follows the

MAPE-K (Monitor, Analyze, Plan, Execute,

Knowledge) control feedback loop (Cheng, 2009; de

Lemos, 2013), and it is composed of three main

parts: sensors (called Monitors), which observe the

behavior of the application and of its environment,

an analysis and planning module, which identifies

security issues and decides what security strategies

Raibulet, C., Leporati, A. and Metelli, A.

Self-Protection Mechanisms for Web Applications - A Case Study.

In Proceedings of the 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering (ENASE 2016), pages 181-188

ISBN: 978-989-758-189-2

181

to apply for the requested operation, and actuators

(coordinated by an Executor), which activate or

deactivate the security countermeasures as needed

and indicated by the analysis and planning module.

We tried to make our solution as general as

possible, so that it can be applied to other

application domains without modifications. Indeed,

the proposed solution can be applied not only to new

Web applications but also to already existing ones,

provided that some mechanisms are implemented to

allow the self-protection system observe the events

occurred and the operations performed at both the

application and the network level. Writing all

relevant events and operations on log files should

suffice; such files are then read in a continuous way

by the self-protection mechanisms. From the

architectural point of view, the Web application to

which the self-protection mechanisms is applied

should be written in a modular way, so that each

security countermeasure can be activated or

deactivated at runtime.

The remainder of this paper is structured as

follows. Section 2 introduces the architecture of our

solution and the main self-protection mechanisms.

Section 3 illustrates two of the self-protection

security scenarios implemented in our case study.

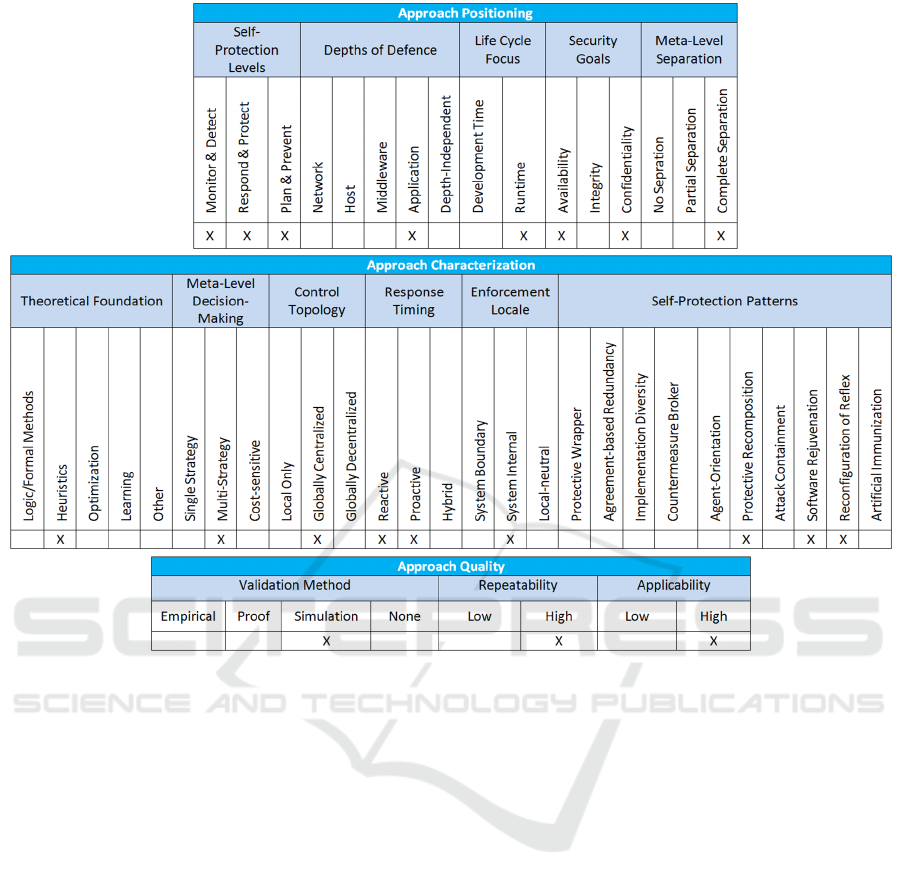

Section 4 presents the proposed self-protection

mechanisms in the context of the taxonomy

described in (Yuan, 2014; Yuan, 2012). Conclusions

and directions for future work are given in Section 5.

2 OUR SOLUTION

Fig. 1 provides a coarse grain view of the system's

architecture, and shows how the self-protection

mechanisms interface with the rest of the system.

We assume that the Web application has a client-

server architecture, and that it can be accessed

remotely through a Web browser. There are two

main locations where the self-protection

mechanisms may be exploited: (1) outside the

application, avoiding intruders to access it, through

firewall/network level self-protection, and (2) inside

the application, after an intruder managed to access

as an authorized user, through application-level self-

protection mechanisms.

2.1 MAPE-K Control Feedback Loop

The proposed solution is based on the MAPE-K

control feedback loop (Cheng, 2009; de Lemos,

2013), which is composed of five elements:

• M - Monitor, which gathers information from

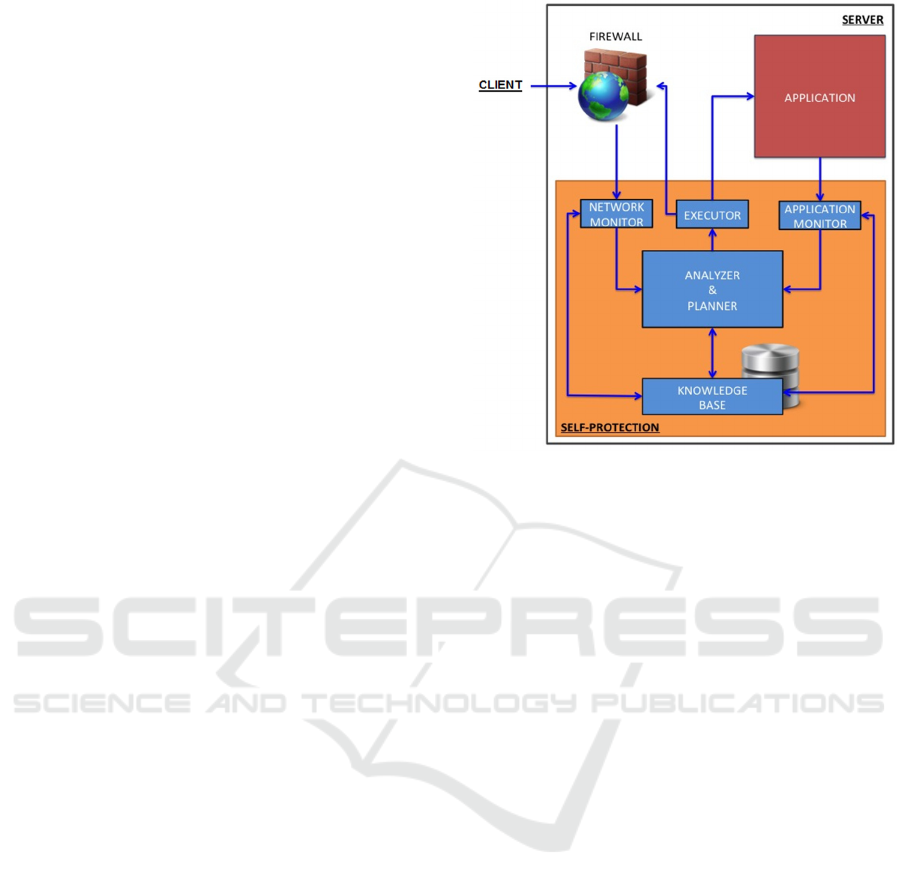

Figure 1: The Overall Architecture of our Solution.

the software system and its execution

environment (i.e., the network);

• A - Analyzer, which examines the information

gathered by the Monitor and identifies if

variations relevant for self-protection occurred;

• P - Planner, which establishes which changes

should be made in the system to address the

variations discovered by the Analyzer; it

identifies the set of operations, i.e., the

strategy, to be applied in the system;

• E - Executor, which applies the changes

identified by the Planner in the system (either

in the application or in the firewall

configuration, as shown in Fig. 1);

• K - Knowledge Base, which contains

information relevant for self-protection such as

filtered data coming from the Monitors,

statistical information, and self-protection

solutions adopted in previous cases.

Our solution considers two Monitors for gathering

information, one for the network (whose events are

observed by the "Firewall" in Fig. 1) and one for the

application (the "Application" in Fig. 1). This choice

has been made due to the different nature of the

observed data in the two cases, and to the different

mechanisms required to access them and to distill

the meaningful information.

The Analyzer and Planner work together closely

and need to rapidly exchange security-related

information; hence they can be merged together, as

shown in Fig. 1, to increase the overall performance

of the self-protection system. They implement the

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

182

intelligent behavior of the self-protection solution.

The Executor is in charge of applying the self-

protection strategies concerning both the firewall

and the application.

The Knowledge Base contains distilled

information, concerning both the network and the

application. The Analyzer and Planner module

exploits both types of information when identifying

the variations and the most appropriate self-

protection strategy to be applied. This is due to the

fact that the self-protection process exploits both

types of information to improve the security of the

system, as shown in Section 3 through examples.

2.2 Quality Attributes of our Solution

Fig. 1 shows that the application (the home banking

system, in this case study) is separate from the self-

protection mechanisms. This leads to several

advantages: first, the separation of concerns

principle is met because the business logic is

independent of the self-protection logic; second,

several aspects of our solution are reusable. The

design knowledge can be reused in other case

studies from different application domains. Further,

the solution may be applied either to a new or to an

existing Web application, provided that it can

communicate in real time (for example, through a

log file) to the application Monitor all the events and

the application-related operations that occur, and

that the security mechanisms already embedded in

the application are divided into modules, each of

which can be either activated or deactivated at

runtime. A third advantage of our solution is that the

modularity of the system is insured. Fourth, the

maintainability of the system is easier to perform, as

it is easier to identify whether a problem occurred in

the business logic or in the self-protection part.

2.3 Risk Levels

Our solution considers that one of three qualitative

levels of risk may be associated to each user as well

as to the overall system:

LOW

MEDIUM

, and

HIGH

. A

LOW

level of risk indicates that a basic self-

protection strategy suffices: for example, it is safe

enough to close and lock the door when a person is

at home. A

MEDIUM

level of risk indicates that

additional self-protection strategies are needed: for

example, a person may use the external alarm

system in addition to the closed and locked door

when at home. A

HIGH

level of risk indicates that

exceptional self-protection strategies should be

adopted: for example, use an alarm system directly

connected to a security company when at home, or

hire a guard.

In our solution each user, as well as the system,

has an associated risk level. The final risk level

associated to a given functionality delivered by the

system is computed from the risk level of the user

requiring such functionality and the current risk

level of the entire system. For example, the overall

risk level of a home is given by its owner risk level

and by the risk level of its building/neighborhood/

city/country.

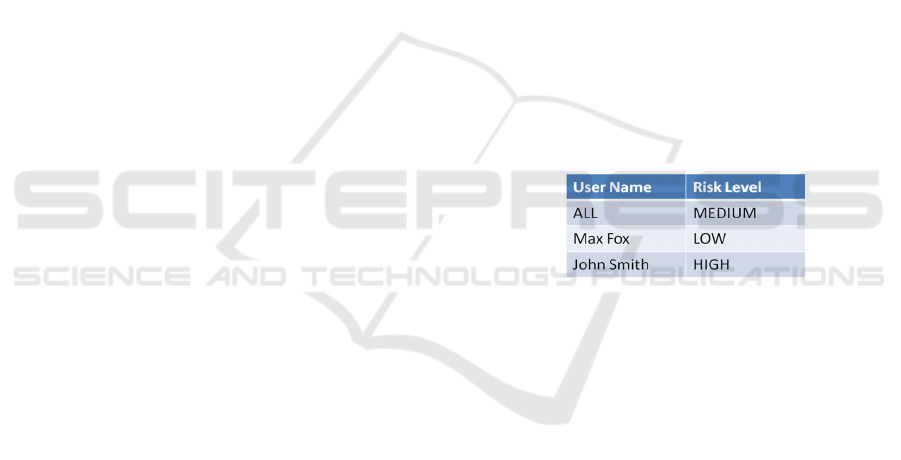

Table 1 shows an example of risk levels. The

user Max Fox has associated a

LOW

risk level, while

John Smith has a

HIGH

risk level. The current risk

level of the system, called

ALL

in the table, is

MEDIUM

. In our current implementation, we have

decided to compute the resulting risk level as the

maximum among the user and the system risk levels.

Based on this information, Fox's risk level for the

current bank operations is max{Max Fox's risk level;

ALL

risk level} =

MEDIUM

, whereas the risk level of

the operations performed by John Smith is

max{John Smith's risk level;

ALL

risk level} =

HIGH

Table 1: Examples of risk levels for the system (User

Name:

ALL

) and for users Max Fox and John Smith.

2.4 Security Map

The proposed solution uses a Security Map, which

indicates the security information required for each

risk level and for each functionality offered by the

application. The Security Map plays an important

role in the system because it constitutes a centralized

mechanism which indicates the security strategies to

be activated for the current functionality offered by

the application to a user. It is stored in the

Knowledge Base, and it is used by the Executor to

activate the various security strategies and modules.

This is made possible by the previous assumption

that the security mechanisms embedded in the

application are divided into modules, each of which

can be either activated or deactivated at runtime.

Table 2 shows an example of Security Map. For

example, for a login operation, a user having an

associated

LOW

risk is required to insert his user

name and password and the answer to a secret

question, while a

HIGH

risk level requires in addition

an OTP (One Time Password) generated by a

security token (a physical device provided by the

Self-Protection Mechanisms for Web Applications - A Case Study

183

bank to its users, that generates pseudo-random

numbers at a fixed rate, typically every 30 or 60

seconds), and a captcha.

The Security Map is an important element of the

system, also from the usability and user experience

point of view. In fact, a system which always

operates assuming a

HIGH

risk level will certainly be

secure, but in terms of usability it will be annoying

to use; as a consequence, the users will tend to leave

from it after a short time. The Security Map thus

provides a reasonable trade-off among security and

usability, configurable at runtime.

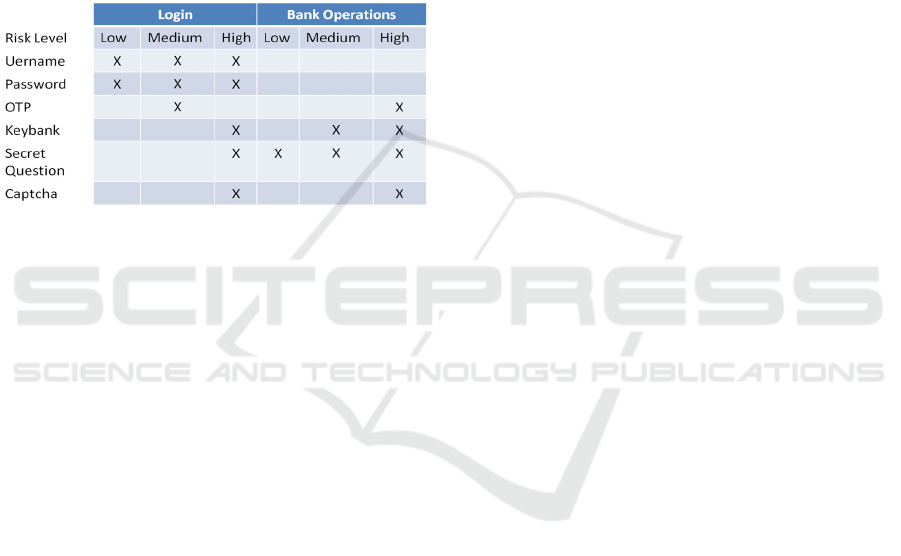

Table 2: An Example of a Security Map.

3 SECURITY SCENARIOUS

USING SELF-PROTECTION

This section presents two of the self-protection

scenarios we have currently implemented in our

home banking case study called U

NIBANK

. The first

scenario concerns the self-protection mechanisms

for the login of individual users to their home

banking account. The second concerns the protection

of bank operations involving money transfers. These

scenarios aim to improve the security of the overall

system by dynamically changing the security

strategies applied, based on the current risk level of

a user and of the system.

3.1 Premises

Before describing the above mentioned scenarios,

some premises should be introduced. Initially,

NIBANK

has been developed without self-

protection mechanisms, hence we have added the

self-protection mechanisms without significantly

changing the existing application. To enable the

activation and deactivation of security modules

dynamically at runtime, the security requirements

have been implemented in separate modules. Each

module has an attribute which indicates if it should

be currently active or not for the current user

request. This approach also enables us to easily

extend the solution with further security

mechanisms, if needed. Further, it allows us to apply

this solution both to existent and to new systems.

Another important aspect pertains the separation

of concerns. Ideally, self-adaptive systems aim to

maintain the functional part independent of the

adaptive part of a system. In other words, the

functional part should not be aware of the existence

of the adaptive part. Only the adaptive part should

monitor and apply the identified changes in the

functional part. To implement this communication

between U

NIBANK

and the self-protection

mechanisms we introduced two log files where

NIBANK

and the firewall trace all the events

occurred in the application and in the network,

respectively (in the following subsections we

mention only the trace of the failures; however, both

successes and failures are traced in the log files).

These log files are continuously parsed dynamically

by the self-protection part, which extracts only the

information which is relevant from the self-

protection point of view. The extracted information

is then stored in the Knowledge Base, and used at

runtime to dynamically change the security

strategies. Further, from this information the self-

protection part creates statistics about users' habits.

3.2 Self-protection for Users' Login

This scenario aims to protect the login to a user

account by changing the strategies for the access to

the application based on the current risk level of the

user and of the entire system (see Section 2).

The login to a user account is performed in two

steps, through a two-factor authentication. First, a

user is required to provide some basic authentication

information (e.g., the account number, a password,

the birth date of the user), which is always used at

each bank account access. The application retrieves

this information and verifies its correctness.

In the meantime, the Analyzer and Planner

module retrieves the risk level currently associated

to the user and to the system from the Security Map

available in the Knowledge Base, to establish the

risk level for the current access to the user's account.

In parallel, the Network Monitor retrieves the

Internet Protocol (IP) address of the device used by

the user to access the bank account. The Analyzer

and Planner module verifies if the IP address is not

one of the IPs usually used by the user (as these IPs

are available in the Knowledge Base) and, in the

affirmative case, it raises the risk level associated to

the user, meaning that a two-factor authentication is

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

184

required; the user is thus requested to provide

additional information to login to the bank account.

The rationale behind this behaviour is that usually,

when an attacker tries to access online bank

accounts, he uses services offered by proxy servers,

or makes IP spoofing operations, or uses some

anonymization network such as Tor (Tor Project,

2015) to continuously change the IP address, to

avoid being traced. Of course, it is possible that the

user is travelling and hence is using different IP

addresses; however, the self-protection system also

verifies this situation. In fact, the Analyzer and

Planner is able to identify the location of an IP

address; based on this information, it computes the

time needed to reach the current location starting

from the location of the previous user's login

attempt. If the location change is compatible with

the elapsed time, the risk level of the user becomes

MEDIUM

, otherwise it becomes

HIGH

(and the user

account is possibly blocked, depending on the

system's security configuration).

The Analyzer and Planner module considers the

two risk levels, i.e., the one retrieved from the

Security Map and the one influenced by the IP

address, and identifies the self-protection strategy to

be applied to the user for his current login operation.

The newly obtained risk level is also stored in the

Knowledge Base. If the new risk level is

LOW

, the

user should just provide the answer to a secret

question. Otherwise, if the new risk level is different

from

LOW

, further authentication information is

asked to the user to complete the login operation,

such as an OTP (One Time Password) generated by

a security token device or sent via an SMS (Keybank

and OTP in Table 2), and a captcha.

When the system retrieves the authentication

information provided by the user, it verifies its

correctness. If the information is correct, then the

system allows the user to access his bank account;

on the contrary, if the information is not correct then

access is denied and the system increments the

number of consecutive failed accesses for the current

user. When the number of failures becomes greater

than a predefined threshold (e.g., three attempts) the

user is notified that the access to the system has been

blocked, and that he should contact the bank to solve

the problem.

The risk level associated to a user decreases

when he performs a successful login. In addition, a

user may indicate if he wants to maintain a

MEDIUM

or a

HIGH

risk level for his account during a given

period of time (e.g., when abroad), after which the

risk level is (possibly) decreased. This change is

performed automatically and asynchronously from

Figure 2: The Activity Diagram for Bank Operations.

Self-Protection Mechanisms for Web Applications - A Case Study

185

other functionalities by the self-protection part.

3.3 Self-protection for Bank

Operations

This scenario aims to protect the bank operations

(e.g., wire transfers) performed by the users after

they have been authenticated, based on their risk

levels and on the risk level associated to the system.

Fig. 2 shows the activity diagram for this scenario.

In this case the self-protection part monitors over

time the users' habits, i.e., the number of bank

operations performed by a user each month, the

average amount of money transferred from each

account, and the average amount of money for each

wire transfer and each user. In addition, the self-

protection part computes statistics on the number of

the overall bank operations in a given time slot (e.g.,

each hour of a day for an entire week or month) and

the amount of money involved in the bank

operations (e.g., wire transfers) in a given time slot.

This information is exploited and updated during the

bank operations. For example, through this

information the self-protection part becomes aware

if a thief tries to withdraw from one or more

accounts an important amount of money (an

operation which is unusual for the owner), or if he

tries to withdraw a small amount of money from as

many accounts as possible (increasing significantly

the number of operations in a short time).

As in the previous scenario, also this one is based

on two steps. First, a user specifies all the required

information concerning the bank operation (e.g., in

case of a wire transfer, the receiver, the motivation

of the transfer, the receiver's bank account number)

and some basic security information (which should

be different from the one used to verify the user's

identity during authentication, e.g., an OTP sent by

the system to the user's mobile phone). The business

logic verifies the introduced information and the

availability of the money amount involved in the

operation in the bank account.

In the meantime, the self-protection part retrieves

the current user risk level and the system risk level

from the Knowledge Base. Further, it retrieves also

the information concerning the statistics on the user's

habits. It also increments the number of bank

operation requests. Based on this information, it

computes a new risk level for the current user and

identifies the bank operation strategy to be applied,

depending upon this new user risk level.

If the information concerning the bank operation

is correct and the money amount is available in the

bank account, the bank operation proceeds. If the

user risk level is

LOW then the business logic

executes the bank operation, updates the available

money in the bank account, and notifies the user that

the operation has been successfully performed. On

the other hand, if the user risk level is

MEDIUM or

HIGH, a second security step is executed, similar to

the two-factor authentication, and the system thus

requests additional security information to the user.

If the information provided by the user (e.g., an OTP

sent via SMS or the answer to a secret question) is

correct, then the business logic executes the bank

operation and updates the available amount of

money for the current user. In this case, the business

logic notifies the user of the successful operation.

On the other hand, if the user fails to provide

correct basic or additional security information, the

operation is denied and the business logic traces this

failure in the log file. The self-protection part

updates the information of the current user in the

Knowledge Base by incrementing the number of

consecutive failed operations, and possibly also the

user and system risk levels.

In this way the system allows bank operations

which are not usually performed by the users (e.g.,

payment of a new car). In case of a security issue

(e.g., an attacker who aims to withdraw an amount

of money from as many bank accounts as possible),

the first bank operation will succeed, but the system

will identify and stop the thief by raising the risk

level and changing the security information required.

4 A TAXONOMY FOR OUR

SOLUTION

Yuan et al. (Yuan, 2014; Yuan, 2012) propose a

taxonomy for self-protection systems. The taxonomy

contains 14 dimensions (see Fig. 3) grouped in 3

categories: approach positioning, focused on the

objectives and intent of the self-protection, approach

characterization, focused on how self-protection is

achieved, and approach quality, focused on the

evaluation of the self-protection.

This taxonomy is also presented through a home

banking motivating example, which supposes five

scenarios where self-protection can significantly

improve the security of the system (Yuan, 2012).

For example, one of the scenarios detects an

illegal access and automatically disables the

connection from the source IP address. Our first

scenario (see Section 3.2) also takes into

consideration the IP addresses from which users

usually access their accounts. If an unusual situation

is identified, the system raises the risk level and

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

186

Figure 3: Yuan et al.'s Taxonomy Applied to Our Solution.

changes the self-protection strategies dynamically. If

necessary, our solution denies the access.

Another example in (Yuan, 2012) considers a

built-in access control which may detect abnormal

usage patterns and disable users' accounts. Our 2nd

scenario (see Section 3.3) implements and extends

Yuan's et al.'s scenario with various risk levels and

dynamic strategies. Our solution can be considered

an enhanced solution of the ones in (Yuan, 2012).

Yuan and Malek have also collaborated with the

authors of the Rainbow framework to add self-

protection mechanisms (Yuan, 2013). Further,

Rainbow's authors have implemented denial-of-

service mechanisms in their framework (Schmerl,

2014). The Znn.com case study exploiting Rainbow

may be compared to our solution, being a Web

application which addresses security issues; the self-

protection scenarios we have considered are

complementary with respect to the ones

implemented in Znn.com.

In the rest of this section, the dimensions of the

three categories of the self-protection taxonomy are

applied to our case study (see Fig. 3). We present the

positioning and characterization together because, in

our opinion, there are dependencies between them.

The quality dimensions are separately addressed.

4.1 Approach Positioning and

Characterization

The Self-Protection Level dimension concerns the

sophistication level of the self-protection

mechanisms. In our case study all possible levels are

addressed. Our solution is able to Monitor the

system and Detect security issues. It implements

mechanisms to Respond and Protect the system

against the detected issues. It provides support to

Plan improvements and Prevent security problems,

because the system is able to exploit information

related to the current state of the system, as well as

previous information (e.g., statistics, historical data).

This leads to other two dimensions: Response

Timing and Theoretical Foundation. Response

Timing has as values Proactive, i.e., the system is

able to foresee and prevent problems based on

previous information, and Reactive, i.e., the system

is able to respond to occurred problems. Theoretical

Self-Protection Mechanisms for Web Applications - A Case Study

187

Foundation has the value Heuristic because our

home banking system exploits knowledge-based and

strategy-based mechanisms for self-protection.

The Depths-of-Defense dimension indicates the

layer where self-protection mechanisms operate. In

our case study, self-protection mechanisms are at the

Application layer. This dimension leads to the

Protection Goals, which in our case concern the

Confidentiality and Availability of the system: the

self-protection mechanisms aim to avoid illegal

access, impersonation, and Denial of Service.

Lifecycle Focus indicates whether the self-

protection mechanisms are used during the

development or the execution, at runtime. As most

of the self-protection mechanisms, security at

Runtime is exploited for our case study.

Meta-Level Separation focuses on the separation

of concern principle from the architectural point of

view: we have a Complete separation because the

self-protection mechanisms have been added to an

existing system, modifying it as few as possible.

Meta-Level Decision Making concerns the

decision making strategy. In our case it has a Multi-

Strategy value because we exploit information

coming from the firewall and the application, and we

exploit the overall information to adapt the system.

Control Topology is Global, because self-

protection concerns the entire application, and

Centralized, because one brain makes decisions.

The Enforcement Locale dimension indicates the

scope of the self-protection mechanisms, i.e., the

application, hence the System internal value.

Adaptation Patterns indicate the recurring

architectural patterns applied for the solution. We

have Protective Recomposition, to dynamically

change the security information needed for the

current functionality for a user, and Reconfiguration

on Reflex, to change the security level for a user and

for the entire system. We are currently implementing

the Software Rejuvenation pattern, which enables

the graceful termination of an application and

immediately restart it in a clean internal state.

4.2 Approach Quality

There are three dimensions for the evaluation of

self-protecting systems. The Validation Method

concerns the way in which the effectiveness of the

proposed approach is performed. We have simulated

a home banking system through a prototype.

From the Repeatability point of view, our home

banking is documented in a BsC thesis, available on

request. The software is available on GitHub at:

https://github.com/MetelliAndrea/Knabinu.

The Applicability dimension concerns the

specificity of the approach to an application domain

or case study. Our self-protection mechanisms can

be applied to other Web applications.

5 CONCLUSIONS

This paper has presented self-protection mechanisms

for new or existing Web applications which aim to

improve security at runtime. These mechanisms

exploit the users' and system's risk levels and

manage dynamically the security strategies.

Further work concerns the extension of the self-

protection mechanisms for further security issues

and case studies in different application domains.

We also plan to evaluate the efficiency overhead

introduced by the self-protection mechanisms in

NIBANK, by comparing the running times of the

two currently available versions of this case study:

with and without the self-protection mechanisms.

REFERENCES

Anderson, R.J., 2008. Security Engineering: A Guide to

Building Dependable Distributed Systems, 2nd

Edition. Wiley.

Cheng, B.H.C., de Lemos, R., Giese, H., Inverardi, P.,

Magee, J., 2009. Software Engineering or Self-

Adaptive Systems. LNCS 5525, Springer.

de Lemos, R., Giese, H., Muller, H., Shaw, M., 2013.

Software Engineering for Self-Adaptive Systems II.

LNCS 7475, Springer.

Pfleeger, C.P., Pfleeger, S.L, 2006. Security in Computing,

4th Edition Prentice Hall.

Schmerl, B., Camara, J., Gennari, J., Garlan, D.,

Casanova, P., Moreno, G. A., Glazier, T. J., Barnes, J.

M., 2014. Architecture-based self-protection:

composing and reasoning about denial-of-service

mitigations. In Proceedings of the 2014 Symposium

and Bootcamp on the Science of Security.

Stallings. W., 2013. Network Security Essentials:

Applications and Standards, 5th ed. Pearson, 2013.

Tor Project, 2015. www.torproject.org.

Yuan, E., Esfahani, N., Malek, S.,2014. A Systematic

Survey of Self-Protecting Software Systems. In ACM

Transactions on Autonomous and Adaptive Systems,

Vol. 8, Issue 4, Article No. 17.

Yuan, E., Malek, S., 2012. A Taxonomy and Survey of

Self-Protecting Software Systems. In Symposium on

Software Engineering for Adaptive and Self-Managing

Systems, pp. 109-118.

Yuan, E., Malek, S., Schmerl, B., Garlan, D., Gennari, J.,

2013. Architecture-based self-protecting software

systems. In 9th International ACM Sigsoft Conference

on Quality of Software Architectures, pp. 33-42.

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

188
