Dealing with the Complexity of Model Driven Development with Naked

Objects and Domain-Driven Design

Samuel Alves Soares, Mariela In

es Cort

es and Marcius Gomes Brand

State University of Cear

a, Dr. Silas Munguba Avenue, 1700, Fortaleza, Brazil

Keywords:

Model-Driven Development, Naked Objects, Domain-Driven Design, Domain Patterns, Design Patterns.

Abstract:

The Model-Driven Development aims to the implementation of systems from high-level modeling artifacts,

while maintaining the focus of the development team in the application domain. However, the required models

in this approach become very complex and, in many cases, the developer’s intervention can be required along

the application infrastructure construction, then failing to keep the focus on application domain and could also

be impaired synchronization between code and model. To solve this problem, we propose a tool where the

developer just models the business objects through the use of Domain Patterns and Software Design Patterns,

which is used to generate the application code. A naked object framework is responsible for the system

infrastructure code. The use of the tool beneﬁts the generation of functional applications, while maintaining

the synchronization between code and model along the development.

1 INTRODUCTION

Throughout its evolution, the software engineering

has looking for to abstracting increasingly the

developing work from the computing infrastructure

(Hailpern and Tarr, 2006; Thomas, 2004). The full

focus on the problem domain has been claimed as the

ideal model for the computer systems development

(Pawson, 2004; Budgen, 2003). In this sense, in

the Model-Driven Development (MDD), the design

models are used as primary artifacts in system

development, going beyond to the speciﬁcation and

design phases (Brambilla et al., 2012; Mohagheghi

and Aagedal, 2007).

However, the construction of a complete software

using the MDD approach requires the deﬁnition of

infrastructure aspects, such as user interface (UI) and

persistence technologies, both in the model or code

generated, by taking the focus of the application

domain (Hailpern and Tarr, 2006). As consequence,

it makes the modeling more complex and less

intelligible since several artifacts from a speciﬁc

platform must be included (Hailpern and Tarr, 2006;

Thomas, 2004). In addition, the ambiguous nature of

models and the redundancy of the information along

the different visions, makes it difﬁcult to maintenance

and impairs the adoption of MDD in the industry

(Haan, 2008; Hailpern and Tarr, 2006). In order

to solve these questions, complementary approaches

must be considered (Whittle et al., 2013).

In the context of object-oriented development,

the Naked Objects Pattern (NOP) (Pawson, 2004)

promotes focus on the implementation of the domain

objects. Meanwhile, a framework is responsible to

generate all the system infrastructure automatically.

Thus, is possible to create an application based only

on the implementation of the domain objects avoiding

redundancy and replicated information. In other hand,

objects in the domain model can be documented

on the basis of the Domain-Driven Design (DDD)

approach (Evans, 2003).

Considering solutions centered on the application

domain, research show the suitability of NOP in

the context of DDD approach for the development

of robust systems (Haywood, 2009; L

aufer, 2008).

Likewise, the utilization of design patterns in

association with DDD features can increase the

productivity of the application development and

maintenance (Nilsson, 2006; Fowler et al., 2003;

Gamma et al., 1995). This association contributes

in the identiﬁcation of the responsibility of each

class in the application model, in order to facilitate

understanding of the model and their corresponding

implementation code (Nilsson, 2006).

Thus, in view of the problematic of the model-

driven development and the solutions for code

generation and modeling centered on the application

domain we propose a MDD solution whose modeling

528

Soares, S., Cortés, M. and Brandão, M.

Dealing with the Complexity of Model Driven Development with Naked Objects and Domain-Driven Design.

In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 1, pages 528-535

ISBN: 978-989-758-187-8

is based on DDD and software patterns and the full

code of the application domain is generated based on

the NOP to run.

2 THEORETIC REFERENTIAL

2.1 Model-Driven Development

Model-Driven Development (MDD) is a development

methodology that foresees the generation of

executable code starting from high-level models,

or even model execution, enabling developers to

work in higher abstraction level. It promotes the

rapid development of applications and facilitates

the communication among the project members

(Hailpern and Tarr, 2006; Brambilla et al., 2012).

In the counterpart, a useful model artifact in MDD

must be sufﬁcient to execute or require a minimum

intervention to transform it into executable code.

Thus, a complete modeling of the system is required,

including details about the presentation technologies,

for example (Brambilla et al., 2012). It makes the

modeling laborious and result in large and more

complex designs (Hailpern and Tarr, 2006).

The utilization of standards languages such as

the Uniﬁed Modeling Language (UML), provides a

uniform notation and favors their utilization for a

wide range of activities. But in return, it becomes

huge, ambiguous semantic and unwieldy, with

redundant information along the diverse diagrams.

Thus, keeping the synchronization and consistency

between them, avoiding information loss, is hard and

hinder the use of MDD in the industry (Haan, 2008;

Hailpern and Tarr, 2006; Thomas, 2004).

In this sense, the use of patterns in the system

modeling enriches the semantics without increasing

complexity to the model, contributing with the

software maintenance (Evans, 2003).

2.2 Naked Objects Pattern

The Naked Objects Pattern (NOP) focuses on the

creation of domain objects to their direct presentation

to the user (Pawson, 2004). The pattern states

that the infrastructure aspects, such as presentation,

persistence and remote communication, must be

supplied by a framework (Haywood, 2009; Pawson,

2004). In this way the software developer is

responsible only for the creation of the domain classes

and their relationships, states and behaviors.

In practice, the creation of a new class in the NOP

presupposes its modeling in terms of attributes and

methods, for example using UML notation (Booch

et al., 2006). Using a suitable template for the code

generation, the application can be executed through

of framework based on NOP (L

aufer, 2008). In this

sense, this solution based on NOP becomes adequate

to the problematic pointed in MDD.

However, there are objects in the model need to be

identiﬁed as persistent objects or as simply attributes

of other objects, for example. In this sense, DDD

approach and design patterns can be useful.

2.3 Domain-Driven Design

The Domain-Driven Design (DDD) (Evans, 2003) is a

set of principles, techniques and patterns for software

development. The focus of the DDD is the domain,

abstracting infrastructure aspects.

In this context, Domain Patterns aims to identify

the characteristics and responsibilities of each domain

objects in the application in order to create the

Domain Model (Evans, 2003). This identiﬁcation

can be performed by UML stereotypes (Booch et al.,

2006) or colors (Coad et al., 1999). The main are:

• Entity: an object that maintains continuity, it has

an identity, and it has a life cycle;

• Value Object (VO): an object used to describe

other objects and has no identity concept;

• Service: a class that provides services to objects

and without keeping a state;

• Aggregate: it represents related Entities and VOs

that are treated as a unit. It has a root object;

• Repository: a mechanism to the insertion, removal

and queering of objects abstracting the database.

There are studies that show the usefulness of DDD

approach with NOP in the creation of robust systems

(Haywood, 2009; L

aufer, 2008). In this context, the

creation of an application requires the construction

of a Domain Model indicating the Domain Patterns

associated with the classes of the application. In

addition, design patterns (Gamma et al., 1995; Fowler

et al., 2003; Nilsson, 2006) can be used in association

with Domain Patterns in order to solve common

development problems (Nilsson, 2006).

2.4 Design Patterns

Design Patterns are reusable solutions to recurring

problems in the object-oriented software design

(Gamma et al., 1995), and they are an excellent tool to

express the concepts involved in a particular domain

(Buschmann et al., 2007). The design patterns are

divided into three categories: Creational, Structural

and Behavioral (Gamma et al., 1995).

Dealing with the Complexity of Model Driven Development with Naked Objects and Domain-Driven Design

529

Design patterns can be used together with Domain

Patterns to reﬁne the domain model (Nilsson, 2006)

and assist the identiﬁcation of the responsibility of

each class in the application, in order to facilitate

the model of understanding and generation of the

appropriated code (L

aufer, 2008). For example, the

State pattern can be useful to express the various

states associated with an Entity class.

2.5 Patterns of Enterprise Application

Architecture

The Patterns of Enterprise Application Architecture

(PoEAA) (Fowler et al., 2003) were caught along the

development of enterprise object-oriented systems.

These patterns are used to drive the code generation.

The Identity Field pattern, for example, is

associated with an Entity class to link the Entity to

a table in the database. Moreover, the Aggregate is

directly related to the Encapsulate Collection pattern

which ensures the control and consistency between

items and the root object. Thus the necessary methods

in the Encapsulate Collection pattern can be generated

automatically. The concurrency control is treated

with the Coarse-Grained Lock pattern. Finally,

the Business ID pattern (Nilsson, 2006) identiﬁes

properties that are business keys of object and that

ensure the uniqueness of object.

2.6 UI Conceptual Patterns

Despite the possibility of taking the whole application

just creating domain objects and be able to run the

application without to model the infrastructure code,

the NOP can generate only one UI (Pawson, 2004).

UI Conceptual Patterns (Molina et al., 2002b) can

be used to specify UI for independent devices. These

interfaces can be reﬁned using UI Design Patterns, as

well as be used to automatically obtain speciﬁc UI

prototypes for various devices. These patterns are

composed of simple patterns and they are categorized

into four types, namely: Service Presentation,

Instance Presentation, Population Presentation and

Master-Details Presentation (Molina et al., 2002a).

Through these patterns the developer can

customize the view of the objects to the user via

multiple visions without having to deal directly with

UI infrastructure code. The Naked Objects View

Language (NOVL) (Brand

ao et al., 2012a) allows the

framework based on NOP manages various visions

for the same object based on the UI Conceptual

Patterns.

3 RELATED WORK

In general, the modeling tools work with visual

modeling, such as UML, in order to help in

the software development activities. Many seek

to support MDA (Kleppe et al., 2003) as the

creation of platform independent models and

subsequent code generation in an object-oriented

programming language. Examples of tools with

these characteristics are: Enterprise Architect (EA)

Modelio

, Objecteering

, and objectiF

, Such

modeling tools support code generation, however

little or no support is provided for the generation of

infrastructure code.

Some of these tools support the creation of

templates to support the automatic generation of

the infrastructure code. However, synchronization

problems can arise and manual alterations can be

required. Another limitation relates to relationships

between diagrams, for example as denote the

association between a dynamic diagram that

modeling the behavior of a class’s operation.

The lack of a tool to support the development

of the application model infrastructure in integrated

way, turns the development using the MDD approach

complex, leading to possible incompatibilities

between the tools used in the process (Alford,

2013). On the other hand, MDD projects focused

on mechanisms to support model to model and

model to code transformations, considering as a

starting point models created from different modeling

tools. Examples of these projects are AndroMDA

BaseGen

, Jamda

and openMDX

With creation of the complete models, MDD

frameworks are able to create the business classes and

infrastructure of the complete system. However, after

that, any change in the model may need for manual

intervention to avoid the overwritten of existent code.

In addition, considering that the generation of the

application is often based on layered architecture,

changes to the domain layer can lead to alterations

in other layers (Pawson, 2004).

So, any of the tools or framework cited above

works in a satisfactory way in order to abstract

EA - http://www.sparxsystems.com.au/products/ea/

Modeliosoft - https://www.modelio.org/index.php

Objecteering - http://www.objecteering.com/

microTOOL objectiF - http://www.microtool.de/en/

objectif-model-driven-development/

AndroMDA.org - http://www.andromda.org/

BaseGen - http://sourceforge.net/projects/basegen/

Jamda Project - http://jamda.sourceforge.net/

openMDX - http://sourceforge.net/p/openmdx/wiki/

Introduction/

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

530

infrastructure aspects of the application without

generating models and redundant code and an

integrated manner.

4 THE Elihu MDD TOOL

Elihu is an MDD tool dedicated to the development

of enterprise applications through the implementation

of business domain objects. It is based on the

concepts and patterns of DDD, software design

patterns and NOP. Its aim is to create platform-

independent models that contain all the functionality

of the application on domain objects, and regardless

aspects of infrastructure. The generation of user

interfaces, persistence, security, among other things

are possible through the NOP.

In Elihu, as shown in Figure 1, the Domain

Model is created from the DDD Domain Patterns and

software patterns. The Domain Patterns represent

the application building blocks (Evans, 2003) and

they are associated with software patterns to allow

the representation of all the features, operations and

visions of domain objects (Nilsson, 2006). After

modeling the domain objects, templates are applied

to generate the source code according to the desired

language and platform. This source code is then

submitted to a framework based on NOP to run.

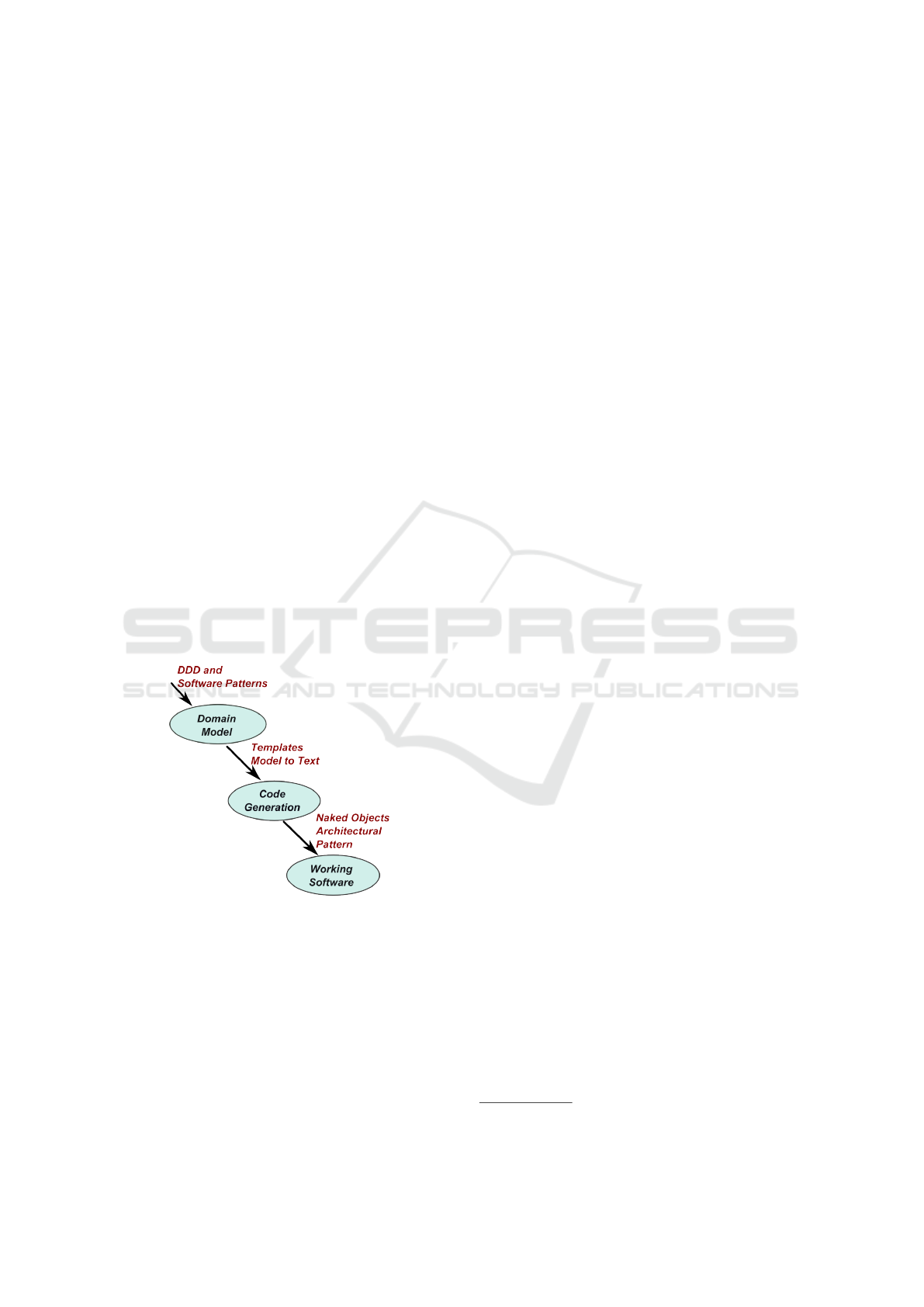

Figure 1: Development process using Elihu.

4.1 Elihu’s Metamodel

Elihu’s metamodel (Figure 2) deﬁnes the

DomainModel metaclass to represent the application

model. Domain Patterns are deﬁned by metaclasses,

i.e., Aggregate, Entity, Service and ValueObject.

The metaclasses are linked to the DomainModel

and used as the application modeling elements. The

relationships between model elements are deﬁned by

the Association metaclass.

The Classiﬁer metaclass is designed to deﬁne

the common characteristics of Entity and VO in an

inheritance relationship. Classiﬁers have properties,

operations, and may be part of associations.

The Aggregate metaclass deﬁnes a set of

Classiﬁers that behave as one logical unit. There is

a root, which is necessarily an Entity. The Service

metaclass deﬁnes an element that provides operations

and does not have state.

A Property metaclass needs to be properly

conﬁgured when added to a Classiﬁer, so it

can be interpreted correctly when the application

generating. The main Property’s attributes are: name,

type, scale, length, required, visibility, minValue,

maxValue, transient, mask, readOnly, lower and

upper. Regarding an Operation, its main attributes

are: name, return, body and visibility.

The value of the body attribute of the Operation

metaclass can be informed in textual form or through

behavioral diagrams. Operation may also have input

parameters, as normally happens in object-oriented

languages. Thus, Operation metaclass is associated

to Parameter metaclass in the metamodel, which in

turn inherits from Property metaclass. When the

developer deﬁnes an operation’s Parameter, he should

set of the Parameter properties, similarly as Property.

The metamodel also deﬁnes relationships between

Classiﬁer and Aggregate metaclasses and software

patterns. The main patterns supported are:

• Business ID (Nilsson, 2006) - it is the

identiﬁcation of properties that are Entity’s

business keys and that guarantee its uniqueness;

• Presentation (Molina et al., 2002a) - it is the

UI deﬁnition of Classiﬁer or Aggregate. It

is represented by metaclasses which contains

attributes corresponding to properties deﬁned to

generate UI, in this case using NOVL;

• Speciﬁcation (Evans, 2003) - it is the deﬁnition

of conceptual speciﬁcations of an object, such as

queries based on domain concepts, which can be

reused;

• State (Gamma et al., 1995) - it is the

representation of the states in which an object

goes through during its life cycle. In this case,

a state diagram binding to the Entity metaclass

deﬁnes the states and transitions of the object.

This metamodel has been implemented with the

Ecore metamodel language, which is part of Eclipse

Modeling Framework (EMF)

. It is used to create

model application and the modeling information are

used to generate a XMI ﬁle (Brambilla et al., 2012).

EMF - https://www.eclipse.org/modeling/emf/

Dealing with the Complexity of Model Driven Development with Naked Objects and Domain-Driven Design

531

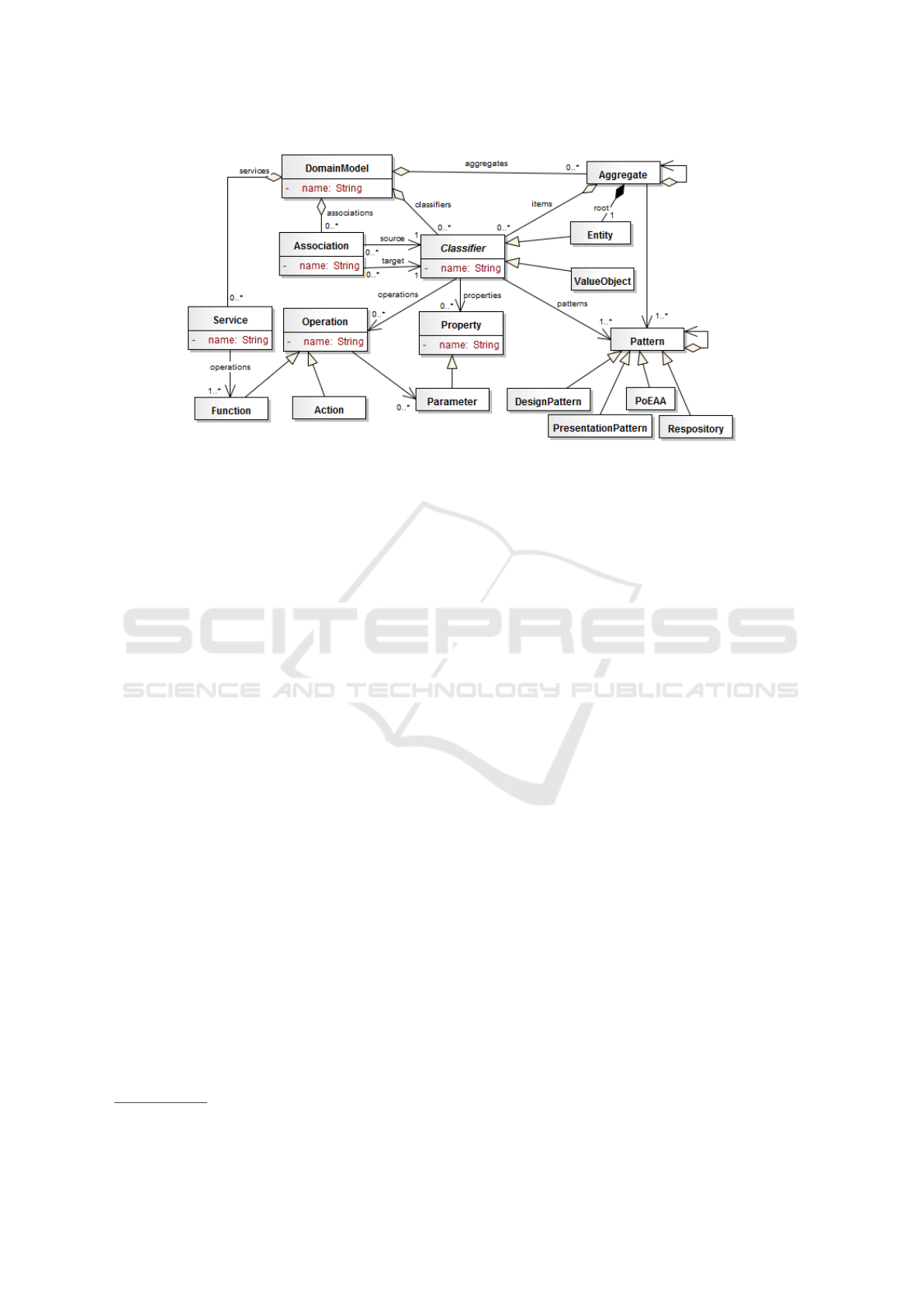

Figure 2: Elihu’s Metamodel.

This ﬁle is used in the process of code generation by

templates presented in the next section.

4.2 Elihu’s Code Generation Templates

The Elihu includes templates to support the code

generation of the modeled objects according to

the characteristics and composition of each pattern.

These templates have been created through the

Eclipse plugin Acceleo

. The code generation occurs

from XMI ﬁle of the model created by the developer.

The templates generate code in Java programming

language in the structure of Entities Framework that

implements the NOP (Brand

ao et al., 2012b). Other

templates can be created and added to Elihu to

generate code for other frameworks based on NOP.

The code snippet below refers to the

generateEntityPattern template. This template

deﬁnes the rules of code generation from a Entity:

[template public

generateEntityPattern(entity : Entity)]

[file (entity.name.toUpperFirst()

.concat(’.java’), false)]

... package and imports

@Entity

[if (not entity.businessId -> isEmpty())]

//Business ID Pattern

@Table(uniqueConstraints =

{@UniqueConstraint(columnNames =

{[writeUniqueConstraints(entity)/]})})

[/if]

[if (entity.presentations -> size() > 0)]

//Presentation Pattern

@Views({[for (s : Presentation |

entity.presentations) separator(’,\n’)]

Acceleo - https://eclipse.org/acceleo/

@View(name = "[s.name/]",

title = "[s.title/]",

//Filter Pattern

filters = "[s.filters/]",

//Display Set Pattern

members = "[s.displaySet/]",

//Specification Pattern

namedQuery=

"[s.specification.definition/]",

template="[s.template/]")[/for]})

[/if]

public class [entity.name.toUpperFirst()/]

implements Serializable {

...

[if(not entity.state.oclIsUndefined())]

//State Pattern

[for(t : StateTransition | entity.state

.transitions) separator(’\n’)]

public String [t.name/]() {

[entity.getStateEnum()

.toLowerFirst()/].[t.name/](this);

return "[t.target.name/][entity.name/]";

} [/for] [/if] ...

} [/file] [/template]

For each Entity in the model, the template above

creates a .java ﬁle for the class, checks which patterns

are linked to class, and creates the structure of a Java

class with the annotation @Entity of Java Persistence

API (JPA) (Jendrock et al., 2014) to ensure the

persistence of objects of that class.

If the Business ID pattern is linked to the

Entity the template adds the UniqueConstraints

annotation and conﬁgures class business keys and

it creates the hashCode and equals methods based

on these business keys (Jendrock et al., 2014).

If the Presentation pattern is linked, the template

adds @Views and @View annotations of Entities

Framework to deﬁne UIs with NOVL. Each item

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

532

in the presentations collection represents a UI. If

the Speciﬁcation pattern is linked, the template adds

@NamedQueries and @NamedQuery annotations of

JPA to query speciﬁcation of the class (Jendrock et al.,

2014). If the State pattern is linked, the template

creates the class structure for the possible states and

the methods that perform switching entity state in

accordance with the transition rules.

As shown in Section 2.5, there are other patterns

that may be related to the Domain Patterns as Identity

Field, Encapsulate Collection and Coarse-Grained

Lock (Fowler et al., 2003). These patterns do not need

to be added explicitly by the developer in modeling.

They can be automatically generated according to the

characteristic of the modeled object. The code snippet

below shows these cases:

[template public

generateEntityPattern(entity : Entity)]

...

public class [entity.name.toUpperFirst()/]

implements Serializable {

//Identity Field Pattern

@Id @GeneratedValue private Long id;

...

[if (entity.aggregateItem

.oclIsUndefined())]

//Coarse-Grained Lock Pattern

@Version private Timestamp version; [/if]

...

[if (not entity.aggregate

.oclIsUndefined())]

//Encapsulate Collection Pattern

[for (a : Association | entity.outgoing)]

public void add[a.target.name/]() {

[a.target.name/] item =

new [a.target.name/]();

item.set[entity.name/](this);

[a.targetDef.name/].add(item);

numberOf[a.targetDef.name/]++;

} [/if] [/for]

[/if]

[for (a : Association | entity.incoming)]

[if (not entity.aggregateItem

.oclIsUndefined() and entity

.aggregateItem.root = a.source)]

public void remove[a.target.name/]() {

[a.sourceDef.name/].get[a.targetDef

.name.toUpperFirst()/]().remove(this);

[a.sourceDef.name/].setNumberOf[a

.targetDef.name/]([a.sourceDef.name/]

.getNumberOf[a.targetDef.name/]()-1);

} [/if] [/for] ...

} ... [/template]

For all Entity a id property is created, to bind

the entity to a line in the corresponding table in the

database, and is created a property with the annotation

@Version for concurrency treatment (Jendrock et al.,

2014). If the entity is the root of a Aggregate, access

to other elements of aggregation should be controlled

by that entity by the add() and remove() methods and

other properties of control.

Finally, the template generates the properties,

associations and operations of the class. The template

checks the attributes conﬁgured by the developer to

the correct mapping of code. The generation of

operations sets the parameters set by the developer

and the method body.

4.3 Example of Operation

In this section, the Elihu metamodel is instantiated to

illustrate its operation.

This application consists of creating an order to

sell products to customers with available credit limit

in the company. The client must be registered with

the identiﬁcation number, the social identiﬁcation

number, name and address. The customer’s credit

limit should consider orders unpaid customer. Each

order, in turn, must have the date of creation,

a number and the items for sale with product

identiﬁcation, quantity of items and value. Must be

identiﬁed if a order has been accepted, canceled or

has been paid. It should also be possible to consult

all orders placed by the customer in a speciﬁc data.

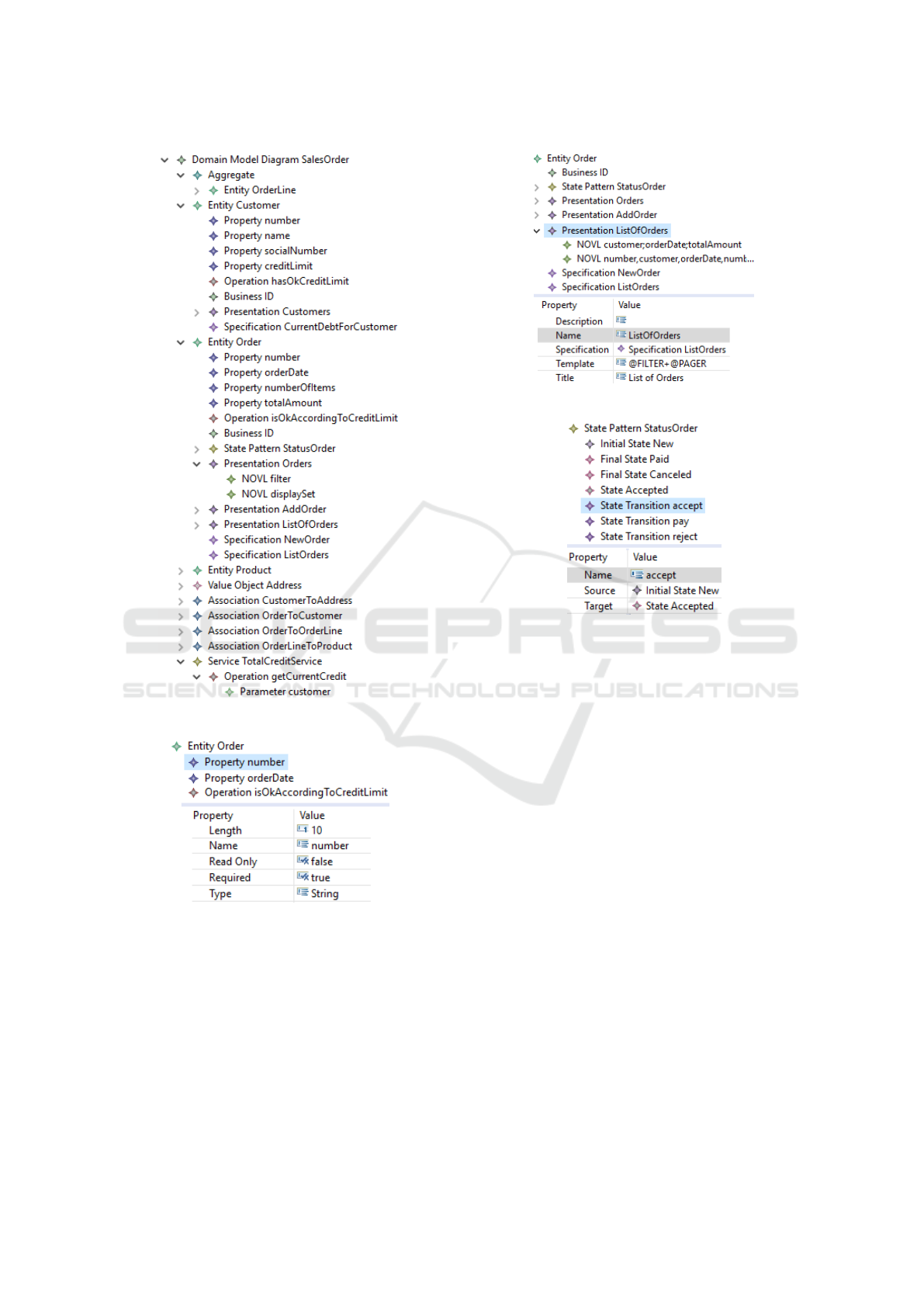

Figure 3 shows the model created based on these

requirements.

For the application has been created Customer,

Order, Product and OrderLine Entities, Address VO,

associations between Customer and Address, Order

and Customer, Order and OrderLine and OrderLine

and Product, and TotalCreditService Service with

getCurrentCredit method to provide total available

to a customer credit. Also added the properties of

the Entities and the methods of Customer and Order.

Order and OrderLine form an Aggregate where Order

is the root.

As example, Figure 4 shows the setting details of

the number property of Order. Number has been set

as String of ten characters, required and has only one

value. These characteristics are used to generate code,

database and UI, avoiding duplication of validations

and settings by the developer. The necessary changes

in properties are held only at this location and it is

reﬂected in other points where it is used without the

developer needs to do manual changes.

In the Order Entity has been also added three

Presentations to different user proﬁles. Figure 5

shows the details of the Presentation ListOfOrders,

which deﬁnes the UI regarding query and presentation

of orders. The Filter and Display Set have been

added under the rules of NOVL language, and set

Dealing with the Complexity of Model Driven Development with Naked Objects and Domain-Driven Design

533

Figure 3: Sales order application.

Figure 4: Order’s number property.

the Speciﬁcation of how the query will be held is the

ListOrders. Presentation Orders deﬁnes a UI where

the user can view and add orders and Presentation

AddOrder deﬁnes a UI to creating orders.

A state machine for the Order Entity called

StatusOrder has been also created. The states and

transitions are shown in Figure 6, being highlighted

the accept transition, as example, which deﬁnes New

state as source and Accepted state as target. The other

transitions are pay of Accepted to Paid and reject of

Figure 5: Presentations of Order Entity.

Figure 6: States of Order.

Accepted to Canceled.

With this complete model created, the application

code can be generated (with patterns, states,

bahaviors, and constraints) and executed. Figure

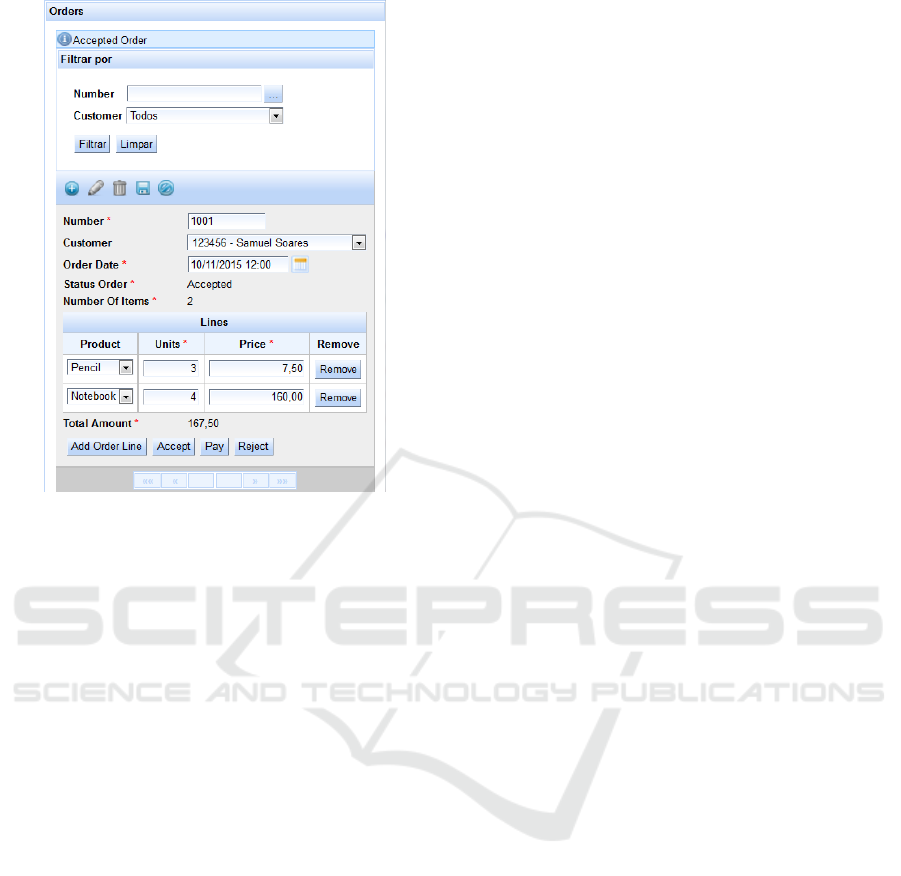

7 shows Presentation Orders presented to the user.

Figure 7 shows the UI after the user has added two

items to the order and has used the Accept operation.

Necessary changes in application because of

changing requirements or because maintenance must

be performed in the model.

5 CONCLUSION

The software modeling in the context of MDD need

to consider infrastructure aspects during the creation

of classes to generate complete models useful for

the generation of functional software. Consequently,

models became most complex and takes away the

developer’s focus of the application domain

This work presented Elihu, a MDD tool that

includes the utilization of NOP, Domain Patterns and

Design Patterns to create complete models abstracting

the application infrastructure. Thus, developers

can only be concerned to the application domain,

reducing the complexity in system modeling.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

534

Figure 7: Orders UI.

Elihu generates executable applications through

modeling of application domain objects. The model

presents clarity about the purpose of the system due

to the use of patterns. Additionally, the generated

code is also reliable to the system domain and the

developer does not need to change infrastructure

code. In addition, it can change the domain model,

due to changing requirements, and synchronize

automatically with code.

As future work, we propose the creation of

concrete notation to support the visual modeling;

creating of nested aggregates; automatic detection

of the structure of patterns State and Encapsulate

Collection; the inclusion of new patterns in the

metamodel, and the creation of templates to others

NOP frameworks that serve different platforms.

REFERENCES

Alford, R. (2013). An evaluation of model driven

architecture (mda) tools. Master’s thesis, University

of North Carolina Wilmington, Wilmington, NC.

Booch, G., Rumbaugh, J., and Jacobson, I. (2006). UML:

guia do usu

ario. Campus, Rio de Janeiro.

Brambilla, M., Cabot, J., and Wimmer, M. (2012). Model-

driven software engineering in practice. Morgan &

Claypool Publishers.

Brand

ao, M., Cort

es, M., and Gonc¸alves, E. J. T. (2012a).

Naked objects view language.

Brand

ao, M., Cort

es, M. I., and Gonc¸alves, E. J. T. (2012b).

Entities: A framework based on naked objects for

development of transient web transientes. In CLEI-

Latin American Symposium on Software Engineering

Technical, Medellim, volume 4.

Budgen, D. (2003). Software design. Pearson Education, 2

edition.

Buschmann, F., Henney, K., and Schmidt, D. C. (2007).

Pattern-Oriented Software Architecture: On Patterns

and Pattern Languages, volume 5. John Wiley &

Sons, Chichester.

Coad, P., Luca, J. d., and Lefebvre, E. (1999). Java

modeling in color with UML: Enterprise Components

and Process. Prentice Hall.

Evans, E. (2003). Domain-Driven Design: tackling

complexity in the heart of software. Addison Wesley,

Boston.

Fowler, M., Rice, D., Foemmel, M., Hieatt, E., Mee, R., and

Stafford, R. (2003). Patterns of enterprise application

architecture. Addison-Wesley Professional, Boston.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J. (1995).

Design patterns: elements of reusable object-oriented

software. Addison Wesley, Indianapolis.

Haan, J. D. (2008). 8 reasons why model-driven approaches

(will) fail.

Hailpern, B. and Tarr, P. (2006). Model-driven

development: The good, the bad, and the ugly. IBM

systems journal, 45(3):451–461.

Haywood, D. (2009). Domain-driven design using naked

objects. Pragmatic Bookshelf.

Jendrock, E., Cervera-Navarro, R., Evans, I., Haase, K.,

and Markito, W. (2014). The Java EE 7 tutorial.

ORACLE.

Kleppe, A. G., Warmer, J. B., and Bast, W. (2003). MDA

explained: the model driven architecture: practice

and promise. Addison-Wesley Professional.

aufer, K. (2008). A stroll through domain-driven

development with naked objects. Computing in

Science and Engineering, 10(3):76–83.

Mohagheghi, P. and Aagedal, J. (2007). Evaluating quality

in model-driven engineering. In Proceedings of

the International Workshop on Modeling in Software

Engineering, MISE ’07, pages 6–, Washington, DC,

USA. IEEE Computer Society.

Molina, P. J., Meli

a, S., and Pastor, O. (2002a). Just-ui: A

user interface speciﬁcation model. In Computer-Aided

Design of User Interfaces III, pages 63–74. Springer.

Molina, P. J., Meli

a, S., and Pastor, O. (2002b). User

interface conceptual patterns. In Interactive Systems:

Design, Speciﬁcation, and Veriﬁcation, pages 159–

172. Springer.

Nilsson, J. (2006). Applying Domain-Driven Design and

patterns - with examples in C# and .NET. Addison

Wesley Professional.

Pawson, R. (2004). Naked Objects. PhD thesis, Trinity

College, Dublin.

Thomas, D. (2004). Mda: Revenge of the modelers or uml

utopia? Software, IEEE, 21(3):15–17.

Whittle, J., Hutchinson, J., Rounceﬁeld, M., Burden,

H., and Heldal, R. (2013). Industrial adoption of

model-driven engineering: are the tools really the

problem? In Model-Driven Engineering Languages

and Systems, pages 1–17. Springer.

Dealing with the Complexity of Model Driven Development with Naked Objects and Domain-Driven Design

535
