A Morphological LiDAR Points Cloud Filtering Method based on

GPGPU

Shuo Li

, Hui Wang

, Qiuhe Ma

and Xuan Zha

Zhengzhou Institute of Surveying & Mapping, No.66, Longhai Middle Road, Zhengzhou, China

Tianjin Institute of Hydrographic Surveying and Charting, No.40, Youyi Road, Tianjin, China

Keywords: LiDAR, Morphology, Points Cloud Filtering, GPU, CUDA.

Abstract: Because of its large amount of data, airborne LiDAR points cloud filtering is often time-consuming. On the

basis of the traditional morphological LiDAR points cloud filtering, a method which adopted the parallel

technique based on GPU and assigned the massive operations to be parallel executed in many computing

unit to achieve the purpose of fast filtering was proposed. Through the corresponding experiments, the

validity and efficiency of the proposed LiDAR points cloud filtering method were verified.

1 INTRODUCTION

GPGPU (General Purpose Computing on Graphics

general Processing Units) is proposed by

SIGGRAPH (Special Interest Group for Computer

GRAPHICS) in 2003. GPGPU applies

heterogeneous computing resources for large-scale

parallel computing, rather than merely make use of

GPU for general computing (Qiu, 2011). NVIDA

launched a new general computing product of GPU

in 2007, CUDA (Compute Unified Device

Architecture), deeply influencing the development

of GPGPU and graphics.

The traditional serial algorithm is improved

based on CUDA C language, effectively reducing

the running time of the algorithm with the full use of

the powerful parallel computing capability and

floating point data processing speed of GPU.

LiDAR (Light Detection and Ranging) has a

broad development prospect in the field of remote

sensing, because it can obtain the 3D information of

the space surface rapidly. LiDAR is a remote

sensing technology that has developed rapidly in

recent years. It can realize the synchronous, rapid

and precise acquisition of the spatial 3D coordinates,

providing a simple and effective technique for the

rapid achievement of spatial information (Zhu,

2006).

LiDAR data filtering is a process of removing

non-ground points from laser points data and

extracting digital elevation model (DEM) (Zhang,

2007). Existing filtering algorithms can be divided

into four categories: slope-based, the smallest block,

surface-based and clustering/seg-mentation (Sithole,

2004). The morphology method belongs to the

surface-based methods. It was proposed by

Lindenberger of University of Stuttgart in 1993 and

was improved by many scholars subsequently.

Kilian (1996) added the weight factors in the method,

and Zhang (2003) proposed a progressive

morphological filtering method based on gradually

increasing the window size of the filtering and using

elevation difference thresholds. It is notable that

filtering and the corresponding quality control are

the most pivotal and time-consuming step in the

subsequent progress of LiDAR to generate DEM,

accounting for approximately 60% to 80% of the

processing time (Sithole, 2004). Therefore, rapid

implementation of LiDAR points cloud filtering

becomes an urgent problem to be solved, when the

amount of data is large.

To solve this problem, Sui (2010), Li (2011) and

Zhang (2009) improved the existing morphology

filtering methods to filter rapidly. However, the

improved algorithms and the original algorithms are

serial, of which calculation unit is CPU. A

morphology filtering method is proposed in this

paper based on GPGPU, effectively improving the

efficiency of the subsequent processing of LiDAR

data.

Li, S., Wang, H., Ma, Q. and Zha, X.

A Morphological LiDAR Points Cloud Filtering Method based on GPGPU.

In Proceedings of the 2nd International Conference on Geographical Information Systems Theor y, Applications and Management (GISTAM 2016), pages 80-84

ISBN: 978-989-758-188-5

2 MORPHOLOGY FILTERING

The proposed method mainly includes three key

steps: establishing the virtual grid based on the

original discrete points cloud, morphology filtering

based on virtual grid and judging the attributes of all

points. The specific principles are as follows.

2.1 Establishing the Virtual Grid

The establishment of virtual grid is not the

interpolation of the raw data, but building a virtual

grid capable of indexing to each discrete point. The

point is assigned to the corresponding grid according

to the plane coordinate. The calculation formula is as

follows:

min

()/

X-X c

Y-Y c

⎧

⎪

⎨

⎪

⎩

(1)

c: sampling interval; n: number of points; X

min

: the

minimum abscissa; Y

min

: the minimum ordinate;

(),XY

: coordinates of the discrete point.

2.2 Morphology Filtering

Mathematical morphology method for extracting

image information has mature theory basis. It is

based on two basic operations, dilation and erosion.

Open operation and close operation are two different

combinations of the two operations.

The digital surface model of airborne laser data

can also be processed based on mathematical

morphology. If the coordinate of a grid point p is

(, ,)

, the dilation of z is as follows:

(,)

max ( )

xy W

∈

(2)

W: window size;

(, ,)

ppp

: coordinates of a

point in the neighbourhood of point p.

The window of the method is a 2D square

window. The output of the dilation is the maximum

elevation.

Similarly, the formula of the erosion is as

follows:

(,)

min ( )

xy W

∈

(3)

The result of the erosion is the minimum elevation.

Open operation is the dilation after erosion, and

close operation is the erosion dilation.

Mathematical morphological filtering of laser

data is the opening operation in essence. Firstly, the

discrete points of trees and objects which are smaller

than the window size are removed based on erosion.

Secondly, the boundaries of the objects which are

bigger than window size are restored according to

dilation.

2.3 Judging the Attributes of All Points

The elevation difference between the point in the

virtual grid and the representative point is compared

with the threshold to determine whether the point

has the same attribute with the representative point.

All points are processed in this way to distinguish

the ground points from the non-ground points.

3 ACCELERATION STRATEGY

BASED ON GPGPU

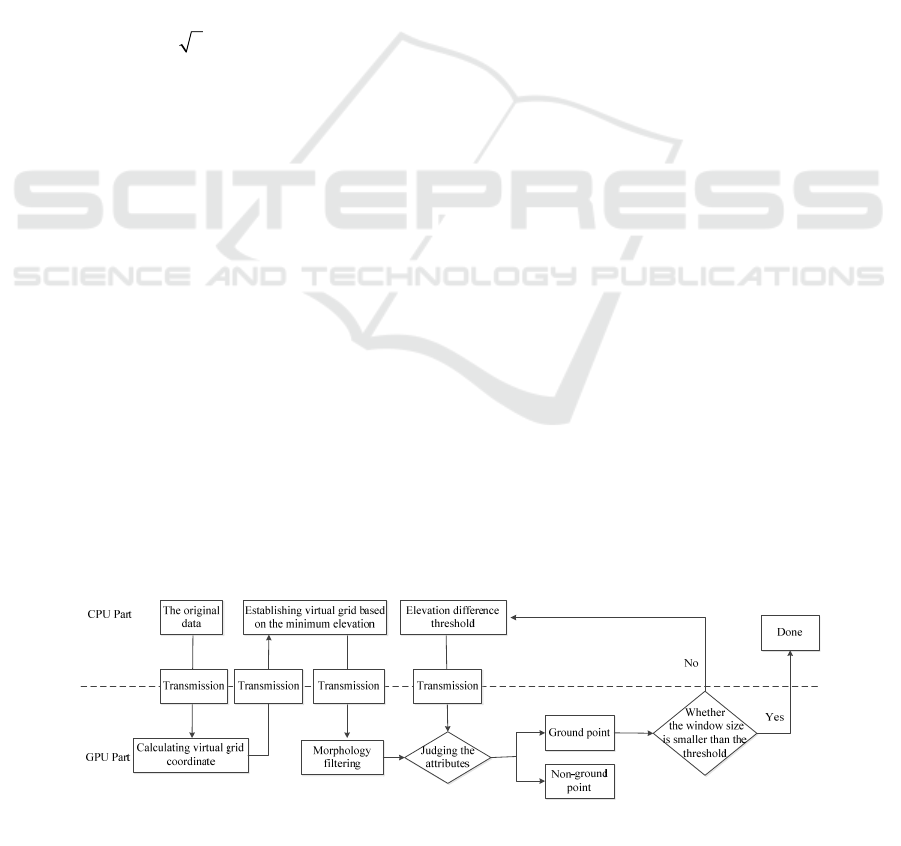

As is shown in Figure 1, the proposed algorithm is a

parallel improvement of the traditional serial LiDAR

points cloud filtering method. The figure is divided

into CPU part and GPU part by the dotted line. The

data processing steps above the dotted line are

executed in CPU and steps below the dotted line are

implemented in GPU. The transmission block

indicates the data transmission between the host

memory and the GPU video memory and the

corresponding arrow manifests the direction of data

transmission.

Figure 1: The flow of morphology filtering based on GPGPU.

A Morphological LiDAR Points Cloud Filtering Method based on GPGPU

3.1 Acceleration Strategies of

Establishing Virtual Grid and

Judging Attributes of All Points

The process to establish virtual grid has the

following characteristics:

 The processing flows of all points are the same.

The virtual grid coordinate of each point is

calculated as formula (1).

 The points are irrelevant. The calculation of one

point is independent of the results of other

points.

 The amount of data is large. The amount of

points cloud is generally millions or even more.

The above characteristics are in line with the SIMT

(Single Instruction Multiple Threads) model of

CUDA. The process can be improved to be parallel,

the specific strategy are as follows:

After the original points cloud is read in the

memory, the discrete points cloud data is copied to

the GPU video memory so that the calculation unit

of GPU can access the original data. The data is

assigned to different threads to be processed

respectively by the program based on SIMT model,

making use of multiple calculation units of GPU to

achieve the purpose of parallel calculation. In other

words, the gird coordinate of the point is calculated

in parallel by all calculation units of GPU.

The process of judging the attributes of all points

is similar to the above calculation, so it can be

accelerated in the same way.

3.2 Acceleration Strategy of

Morphology Filtering

The elapsed time of morphology calculation

accounts for more than 50 percent of all the filtering

time in traditional serial algorithm. The acceleration

of morphology calculation is a key step to the

implementation of rapid filtering. The improvement

strategies of morphology filtering are as follows:

 The virtual grid data is bound to texture memory

to accelerate the accessing in the GPU part. The

size of the whole virtual gird data is compared to

the maximum size of 2D texture to which GPU is

bound. If the size of the virtual grid data is

bigger than the maximum size, the virtual grid

data will be processed in the divided blocks. A

block data will be stored to the video memory

and bound to 2D texture in GPU part at a time.

And all results will be merged into a whole after

all the block data is calculated. If the size of the

virtual grid data is smaller than the maximum

size, all virtual grid data will be stored to the

video memory and bound to 2D texture.

 Erosion of data bound to texture memory is the

first step in the process of morphological

opening operation. The output is stored to the

global memory and bound to texture memory.

Then dilation is implemented to achieve the

result of the open operation.

 The erosion and dilation of points are assigned to

different threads to be processed for the purpose

of parallel calculation. Thread organization mode

should be set according to the actual hardware

environment to ensure the high utilization of

computing resources.

 The function "_syncthreads" provided by CUDA

is used to ensure thread synchronization, judging

whether all open operations in the area are

executed.

 The window size is increased in GPU part

according to the window size and elevation

difference threshold acquired from CPU part.

The process is iterated to judge the attributes of

the points until the parameters meet the stop

condition.

4 EXPERIMENTS

4.1 Experimental Environment

The experimental hardware environments are Intel

i5 dual core 2.9GHz CPU, 8G memory and 1G video

memory of ASUS GTX 570 graphics card. The

experimental software environments are Windows7

operating system, Microsoft Visual Studio 2010

development environment, C++ programming

language and CUDA 4 parallel development kit.

The experimental data is 15 sample data

provided by ISPRS. The statistic of error rate of

filtering algorithm is based on the referential

filtering result of the corresponding sample.

4.2 Results and Analysis

4.2.1 Evaluation of Filtering Results

The experimental data is points cloud data of

Vaihingen/Enz and Stuttgart captured by ALTM of

Optech, provided by the Commission

Ⅲ of ISPRS in

2003. The former nine samples (Sample11-

Sample42) are urban data, of which the point

distance is 1-1.5m. The latter six samples

(Sample51-Sample71) are mountain data, of which

GISTAM 2016 - 2nd International Conference on Geographical Information Systems Theory, Applications and Management

the point distance is 2-3.5m. The data is subdivided

into several types (Chen, 2007).

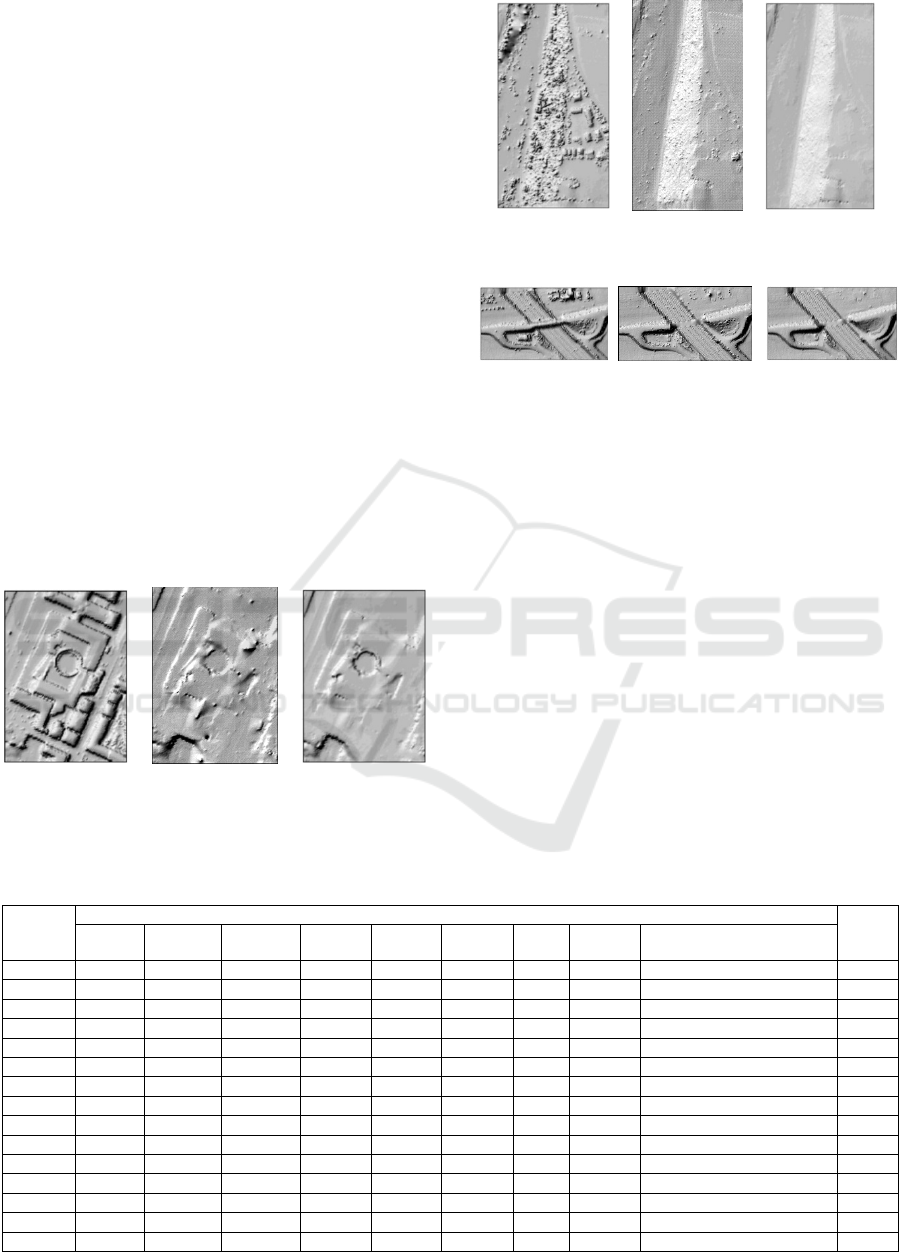

The results of three samples are shown in Figure

2, Figure 3 and Figure 4 respectively. Figure 2(a),

Figure 3(a) and Figure 4(a) are three terrain maps

based on the original data. Figure 2(b), Figure 3(b)

and Figure 4(b) are three terrain maps based on

filtering results of the proposed algorithm. Figure

2(c), Figure 3(c) and Figure 4(c) are three terrain

maps based on the referential filtering results. It is

obvious that the proposed algorithm is capable of

filtering the objects in the samples, such as houses,

plants, bridges and so on.

ISPRS group has adopted 8 filtering methods

based on 15 samples (Lee, 2003). The results and the

result of the proposed algorithm are shown in table 1.

The first row in the table 1 is the names of methods.

The error rates of the results are below the names

(Huang, 2009).

Compared with the 8 classical algorithms, the

total error rate of the proposed algorithm is stable on

the whole and ranks high. This fully shows that the

proposed algorithm can adapt to various terrain. The

reliable filtering proves the effectiveness of the

proposed algorithm.

(a): Sample23. (b): Sample23. (c): Sample23.

Figure 2: The filtering results of houses.

(a): Sample51. (b): Sample51. (c): Sample51.

Figure 3: The filtering results of plants.

(a): Sample71. (b): Sample71. (c): Sample71.

Figure 4: The filtering results of bridges.

4.2.2 Comparison of Filtering Efficiency

The elapsed time reflects the efficiency of filtering.

When processing the same data, the shorter the

elapsed time, the higher the efficiency.

In order to verify the efficiency of the proposed

algorithm, the proposed algorithm based on GPGPU

is compared with the traditional serial morphological

algorithm. The data is several LiDAR points cloud

data of different size. As shown in table 2, the ten

samples are sorted from small to large according to

the number of points. The statistical results are

shown in table 2 and the corresponding elapsed time

is shown in Figure 5.

As is shown in Table 2 and Figure 5, the elapsed

time of the traditional serial algorithm increases

linearly with the amount of the LiDAR points cloud

growing up and faster than that of the proposed

Table 1: Total Error Rates of Nine Algorithms.

Sample

Total Error Rate (%)

Rank

Elmvist Sohn Axelsson Pfeifer Brovelli Roggero Wack Sithole The Proposed Algorithm

Samp11 22.40 20.49 10.76 17.35 36.96 20.80 24.02 23.25 13.80 2

Samp12 8.18 8.39 3.25 4.50 16.28 6.61 6.61 10.21 6.77 5

Samp21 8.53 8.80 4.25 2.57 9.30 9.84 4.55 7.76 1.96 1

Samp22 8.93 7.54 3.63 6.71 22.28 23.78 7.51 20.86 6.81 3

Samp23 12.28 9.84 4.00 8.22 27.80 23.20 10.97 22.71 7.67 2

Samp24 13.83 13.33 4.42 8.64 36.06 23.25 11.53 25.28 10.23 3

Samp31 5.34 6.39 4.78 1.80 12.92 2.14 2.21 3.15 1.86 2

Samp41 8.76 11.27 13.91 10.75 17.03 12.21 9.01 23.67 9.42 3

Samp42 3.68 1.78 1.62 2.64 6.38 4.30 3.54 3.85 2.11 3

Samp51 23.31 9.31 2.72 3.71 22.81 3.01 11.45 7.02 6.89 4

Samp52 57.95 12.04 3.07 19.64 45.56 9.78 23.83 27.53 20.36 5

Samp53 48.45 20.19 8.91 12.60 52.81 17.29 27.24 37.07 14.14 3

Samp54 21.26 5.68 3.23 5.47 23.89 4.96 7.63 6.33 3.34 2

Samp61 35.87 2.99 2.08 6.91 21.68 18.99 13.47 21.63 4.26 3

Samp71 34.22 2.20 1.63 8.85 34.98 5.11 16.97 21.83 3.73 3

A Morphological LiDAR Points Cloud Filtering Method based on GPGPU

Table 2: Acceleration Rate.

Sample

Number of points (Thousand）

The elapsed time of the proposed parallel

algorithm(s)

The elapsed time of the serial

morphological algorithm(s)

Acceleration rate

1 100 0.078 0.109

1.4

2 200 0.094 0.203

2.2

3 300 0.109 0.297

2.7

4 500 0.156 0.500

3.2

5 1000 0.210 1.060

5.0

6 2000 0.390 2.100

5.4

7 3000 0.480 2.900

6.0

8 4140 0.630 4.493

7.1

algorithm. The acceleration rate stays stable after a

sharp climb. Two primary reasons are as follows:

 The traditional serial algorithm is implemented

in CPU. Since CPU has only one calculation

unit, so the elapsed time will be longer if the

amount of data increases. On contrary, GPU has

several calculation units so that the elapsed time

of the proposed algorithm increases more slowly

than that of the traditional serial algorithm.

 The computing resources are not used fully when

the amount of data is small. Thus, the

acceleration rate is low. The larger the amount of

data, the more the resources are used and the

higher the acceleration rate. The acceleration rate

stays stable when the resources are fully used.

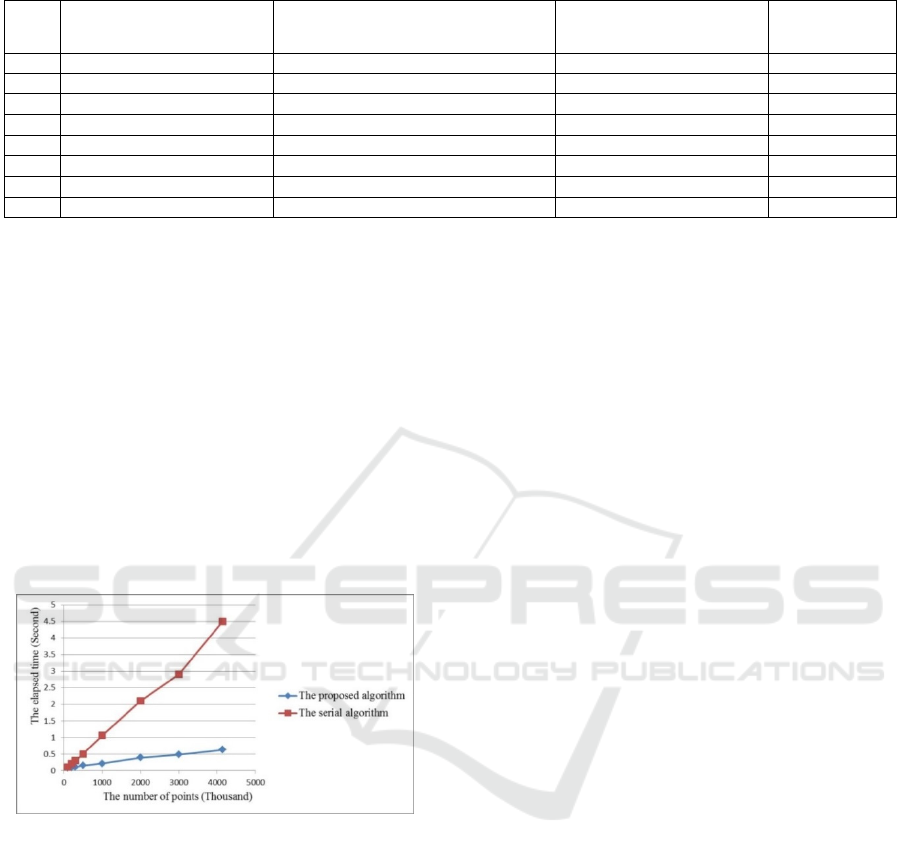

Figure 5: Comparison of the elapsed time.

5 CONCLUSIONS

GPGPU is applied in morphology filtering method

for the purpose of parallel filtering. The proposed

method of morphological LiDAR points cloud

filtering can remove non-ground points effectively

and better meet the filtering requirements. Moreover,

it is a reliable and efficient LiDAR point cloud

filtering method, which has certain practical value.

REFERENCES

Qiu, D., Y., 2011. GPGPU Programming. China Machine

Press，Beijing, China, pp. 9-10.

Zhu, S., C., 2006. The Technique Principle of LiDAR and

Its Application in Surveying and Mapping. Modern

Surveying and Mapping, 4(7), pp. 12-13.

Zhang, X., H., 2007. The Theory and Method of

Measuring Technology of Airborne Laser Radar.

Wuhan University press, Wuhan, China, pp. 42-43.

Sithole, G., Vosselman, G., 2004. Experimental

Comparison of Filter Algorithms for Bare Earth

Extraction from Airborne Laser Scanning Point

Clouds. ISPRS Journal of Photogrammetry and

Remote Sensing, 59(1), pp. 85-101.

Kilian, J., Haala, N., Englich, M., 1996. Capture and

Evaluation of Airborne Laser Scanner Data.

International Archives of Photogrammetry and

Remote Sensing, 31(B3), pp. 383-388.

Zhang, K., Q., Chen, S., C., Whitman, D., et al 2003. A

Progressive Morphological Filter for Removing

Nonground Measurements from Airborne LiDAR

Data. IEEE Transactions on Geoscience and Remote

Sensing, 41(4), pp. 872-882.

Sui, L., C., Zhang, Y., B., Liu, Y., et al, 2010. Filtering of

Airborne LiDAR Point Cloud Data Based on the

Adaptive Mathematical Morphology. Acta Geodaetica

et Cartographica Sinica, 4(39), pp. 390-395.

Li, P., C., Wang, H., Liu, Z., Q., et al, 2011. A

Morphological LiDAR Points Cloud Filtering Method

Based on Scan Lines. Journal of Geomatics Science

and Technology, 28(4), pp. 274-277.

Zhang, Y., B., Sui, L., C., Qu, J., et al, 2009. Fast Filtering

of Airborn LiDAR Point Cloud Data Based on

Mathematical Morphology. Bulletin of Surveying and

Mapping, 5, pp. 16-19.

Chen, Q., Gong, P., Baldocchi, D., et al, 2007. Filtering

Airborne Laser Scanning Data with Morphological

Methods. Photogrammetric Engineering and Remote

Sensing, 73(2), pp. 175-185.

Lee, H., S., Younan, N., H., 2003. DTM Extraction of

LiDAR Returns via Adaptive Processing. IEEE

Transactions on Geoscience and Remote Sensing,

41(9), pp. 2063-2069.

Huang, X., F., Li, H., Wang, X., et al, 2009. Filter

Algorithms of Airborne LiDAR Data: Review and

Prospects. Acta Geodaetica et Cartographica Sinica,

38(5), pp. 466-469.

GISTAM 2016 - 2nd International Conference on Geographical Information Systems Theory, Applications and Management
