The Spanning Tree based Approach for Solving the Shortest Path

Problem in Social Graphs

Andrei Eremeev

, Georgiy Korneev

, Alexander Semenov

and Jari Veijalainen

Department of Computer Technologies, ITMO University, Saint Petersburg, Russia

Department of Computer Science and Information Systems, University of Jyvaskyla, Jyvaskyla, Finland

Keywords: Social Graph, Social Network Analysis, Shortest Path Problem, Odnoklassniki, the Atlas Algorithm.

Abstract: Nowadays there are many social media sites with a very large number of users. Users of social media sites

and relationships between them can be modelled as a graph. Such graphs can be analysed using methods

from social network analysis (SNA). Many measures used in SNA rely on computation of shortest paths

between nodes of a graph. There are many shortest path algorithms, but the majority of them suits only for

small graphs, or work only with road network graphs that are fundamentally different from social graphs.

This paper describes an efficient shortest path searching algorithm suitable for large social graphs. The

described algorithm extends the Atlas algorithm. The proposed algorithm solves the shortest path problem

in social graphs modelling sites with over 100 million users with acceptable response time (50 ms per

query), memory usage (less than 15 GB of the primary memory) and applicable accuracy (higher than 90%

of the queries return exact result).

1 INTRODUCTION

The emergence of online social networking sites is

changing the way social scientists study the structure

of human relationships. Social network analysis has

gained a significant popularity in computer science,

political science, communication studies and

biology. Since individuals record many of their

social relationships at online social networking sites,

previously invisible social structures can be explored

to determine social processes. The overall modeling

framework we will apply in the sequel was

presented in our previous research (Semenov et al.,

2013). Accordingly, social networks modelled and

observable at the social media sites (1

level models,

or site ontologies) can be further modeled as graphs

level models); hence, the methods of graph

theory can be applied for analysis of the original

social networks. The methods can be used to

investigate kinship patterns, community structures,

information diffusion and many other problems

(Marcus et al., 2007).

Additionally, information left by users on social

networking sites can be used, for instance, in

predicting the results of elections (Wang et al., 2012;

Tumasjan et al., 2010). Also, social networks

analysis is used to identify money laundering and

terrorists (Zhang et al., 2003). Moreover, social

networks were broadly used in organizing mass riots

and violence during the Arab Spring (Semenov,

2013). The National Security Agency (NSA) has

been performing analysis of call records since the

September 11 attacks, and analysis of collected

Internet communications since 2007, known as

surveillance program PRISM (Greenwald et al.,

2013).

Some of the problems which need to be solved

during graph data aggregation and analysis require

large numbers of shortest path computations

between a pair of vertices in a graph. These

problems involve calculations of such metrics as

betweenness centrality, closeness centrality,

harmonic centrality and others. The shortest path

problem is defined as searching for such a path that

the sum of weights of edges that belong to the path

is minimized. Graphs that model social networking

sites are usually unweighted, i.e. all edges in the

graphs have weight one. Many shortest path

calculation algorithms have been developed,

however they do not perform well on large graphs

that contain hundreds of millions of nodes and

billions of edges – typical of graphs modeling major

social media sites.

Eremeev, A., Korneev, G., Semenov, A. and Veijalainen, J.

The Spanning Tree based Approach for Solving the Shortest Path Problem in Social Graphs.

In Proceedings of the 12th International Conference on Web Information Systems and Technologies (WEBIST 2016) - Volume 1, pages 42-53

ISBN: 978-989-758-186-1

 2016 by SCITEPRESS – Science and Technology Publications, Lda. All rights reser ved

The current paper suggests an algorithm based

on the Atlas algorithm (Cao et al., 2011) that solves

the single-pair shortest path problem in large

unweighted social graphs with acceptable accuracy

(91%), performance (50 ms per a query) and

memory usage. Also, if the Atlas+ algorithm makes

a mistake, then the length of the found result is not

longer than the length of a correct (shortest) path

plus one. These kinds of mistakes lead to incorrect

statistics if the algorithm is used in graph analysis.

Furthermore, the algorithm does not make mistakes

in the case of short paths (less than three edges). If a

shortest path algorithm is deployed as a standalone

service, its results can be easily checked by the users

for short paths. Hence, if a user realizes that the

algorithm returns wrong results, then it could lead to

lowering the prestige of the social networking site.

As for the Atlas algorithm, Atlas demonstrates

excellent performance (0.5 ms per query) and

performs well in such application as ranked social

search (searching for top k closest vertices from a set

of vertices) (Cao et al., 2011). Nevertheless, the

accuracy of the algorithm is not acceptable (25-

30%).

Social graphs are very dynamic (Wilson et al.,

2009). The proposed algorithm is also able to handle

dynamic social graphs.

2 DEFINITIONS

A graph  is an ordered pair



, 



comprising a

finite nonempty set of vertices (points) and

together with a set of edges (lines), which is a

subset of Cartesian product of the set of vertices, i.e.

⊂. Each pair of vertices 



, 



∈is

an edge and it is said that e connects  and . Hence,

vertices  and  are adjacent vertices. Vertex  and

edge  are incident with each other; as well as v and

e. Moreover, if two distinct edges  and ′ are

incident with a common vertex, then they are said to

be adjacent edges. A directed graph or digraph is a

graph which consists of a finite nonempty set V of

vertices and a set of ordered pairs which are named

directed edges or arcs. An undirected graph is a one

where for each edge



, 



in E it holds that there is

an edge



, 



in E.

A path (walk) in a graph can be defined as a

finite sequence of vertices and edges 







…



which each edge is incident with the preceding and

following vertices, so 











,





. The edges can

be omitted in the notation, so the path between two

vertices can be denoted as 







…



. The edges are

evident by context. If the first and last vertices are

the same, i.e. 







, then the path is called a

closed path in a directed graph. A closed path in a

undirected graph is a path in which the first and last

vertices are the same, and 













. A cycle

in a graph is an equivalence class of closed paths

with such equivalence relation as, two paths is

equivalent if and only if ∃∀ ∶ 















where 



are edges of the first path and ′



are edges

of the second one. In other words, this definition

means that there exists such a shift of indices that

there is the same number of edges in both paths and

the adjacent vertices are identically numbered.in

both paths.

The length of a path in an unweighted graph is

the number of edges which comprise the path. In a

weighted graph the length of a path is the sum of

weights of edges which belongs to the path. In other

words,









∑











. A shortest path between

two vertices is a path where the length of path

between these vertices is minimized. The diameter

of a graph is the longest shortest path between any

pair of vertices of the graph if the graph is

connected. Otherwise it is infinite.

If each pair of vertices of an undirected graph is

connected by a path, then this graph is called

connected. A connected component or simply a

component is a connected subgraph of an undirected

graph that is maximal with regards to inclusion.

Thus, the connected components of an undirected

graph are equivalence classes in which pair

connectivity induces an equivalence relation.

Relying on the definition of cycles and

connected components the terms tree and forest can

be defined. A graph is called acyclic if it does not

have cycles. A tree is a connected acyclic undirected

graph. Any graph without cycles is a forest. Thus,

the connected components of a forest are trees. A

subgraph ′ of a graph  is called a spanning tree if

and only if  is a tree and contains all vertices of the

graph .

The neighborhood graph of a vertex is a

subgraph which is comprised of the adjacent vertices

of the vertex and edges between them. The degree d

of vertex v is the number of edges where v occurs.

So local clustering coefficient lcc of vertex v is a

metric that equals to the number of edges in the

neighborhood graph divided by the degree d of

vertex v. Thus,   2#/  1.

3 BACKGROUND

The Atlas algorithm (Cao et al., 2011) is comprised

The Spanning Tree based Approach for Solving the Shortest Path Problem in Social Graphs

of two phases: building a search index (the pre-

computation step) and subsequent queries to the

built search index. The search index consists of a set

of spanning trees that are stored on the hard drive.

The tree construction algorithm takes the number of

spanning trees to be built as a parameter and builds

the specified number of trees. The strategies of the

selection of starting vertices and adding new edges

to the tree are described below.

To build a spanning tree, the strategy of selection

of the starting vertex and the strategy of selection of

the edges should be chosen. Cao et al. (2011) have

evaluated the following strategies for the selection of

the starting vertices:

 The top k-centrality strategy in which k most

popular vertices (k with the highest degree) are

chosen as the starting vertices;

 The scattered top k-centrality strategy in which

k most popular vertices are chosen in such a

way that distance between a pair of the chosen

vertices is at least two edges;

 The random selection strategy in which the

starting vertices are chosen randomly.

In Cao et al. (2011) the best characteristics had the

top k-centrality strategy.

At each step of the Atlas algorithm an edge is

probed and decided whether it can be added to the

spanning tree under construction. In the paper three

strategies of edge selection has been evaluated:

 Breadth-first search with random tie-break in

which a random edge among the possible edges

is added;

 Breadth-first search with complementary tie-

break in which the least used edge among the

possible edges is added;

 The least covered edge first strategy in which

the edge least used in the previous trees is

added to the tree under construction.

The best accuracy was demonstrated by the breadth-

first search with complementary tie-break.

Overall, the starting vertices of the trees are

chosen according to their popularity in a social

graph, i.e. based on the degree of vertices. To cover

as much edges as possible, at each step of the

algorithm the least used edge is added to the

building tree, but this strategy leads to use too much

memory for storing counters for each edge. Also if

trees are built concurrently, synchronization between

threads are needed that decreases the performance of

the tree construction.

Handling of dynamic graphs is done as follows.

Several old trees are replaced with new trees. Also,

it was shown that changes in social graphs do not

impact much the built spanning trees.

To find the shortest path between vertices s and t,

the Atlas algorithm finds the shortest path in each

spanning tree and selects the shortest path among the

found paths.

The Atlas algorithm demonstrates excellent

performance (0.5 ms per query). Nevertheless, the

accuracy of the algorithm is not acceptable

(25-30%) (Cao et al., 2011). Thus, it was decided to

improve its accuracy with regards to its performance

and memory usage.

4 Atlas+ ALGORITHM

DESCRIPTION

The following section describes the changes in the

Atlas algorithm that improve its accuracy. The

improvement is based on the large value of the local

clustering coefficient. After that, properties of the

new algorithm, Atlas+, are analyzed, and according

to them, two versions of Atlas+ are suggested.

The tree construction phase of Atlas+ is taken

from the Atlas algorithm as is. K most popular

vertices are selected as starting vertices, but the

breadth-first search with random tie-break is used as

edge selection strategy. BFS with random tie-break

has been selected because it allows isolated tree

construction.

4.1 The Proposed Algorithm

The modifications of Atlas+ attempt to improve the

efficiency of the second phase of Atlas. The local

clustering coefficient describes the neighborhood

graph of a vertex, the probability that a pair of

adjacent vertices of a vertex is connected by an

edge. The local clustering coefficient is large for

social graphs, for example, Facebook – 0.15

(Ugander, Karrer, Backstrom, & Marlow, 2011), a

subgraph of LiveJournal – 0.13 (Stanford Network

Analysis Project, 2015). It means that the probability

that adjacent vertices of a vertex are connected by an

edge was 15% for Facebook 5 years ago and 13%

for the subgraph of LiveJournal. Thus, a path

between a pair of vertices can be shortened. In Fig. 1

a path between vertices u and v is shown. The

dashed edge connects the adjacent vertices of vertex

w. Thus, the path between vertices u and v can be

shortened through the dashed edge. Hence, the result

of the Atlas algorithm can be improved with help of

some adjacent vertices of the vertices obtained by

the Atlas algorithm. The proposed algorithm looks

as in Listing 1.

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

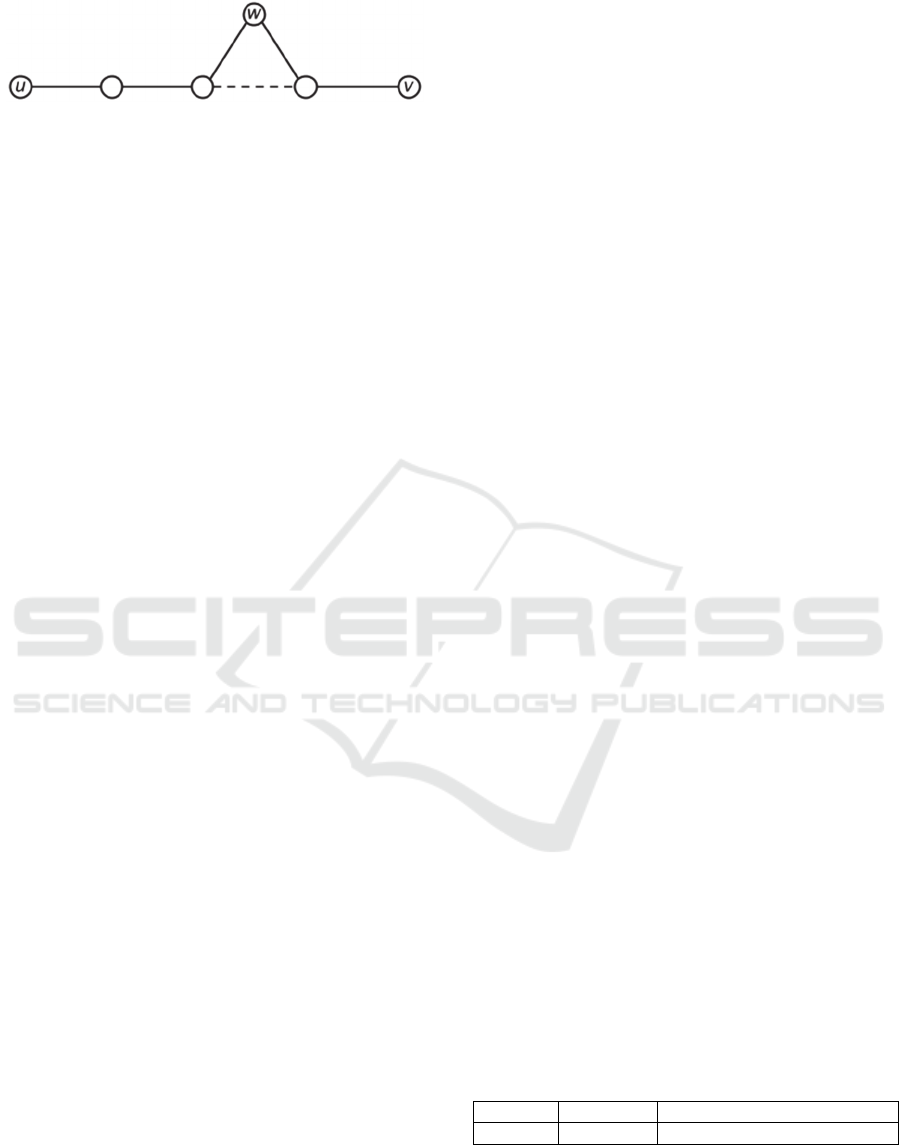

Figure 1: Shortening a path by bypassing node w.

Listing 1: Shortest path between s and t

1 long[] path(long s, long t)

2 paths = atlas(s, t)

3 adjLists = getAdjLists(paths)

4 graph = buildGraph(adjLists)

5 return bfs(graph)

The new algorithm, first, searches for the shortest

paths in the spanning trees (the atlas method, line 2).

Thereafter, the adjacent vertices of the vertices

obtained by Atlas are requested (the getAdjLists

method, line 3). Based on that, a graph is built (the

buildGraph method, line 4) in which BFS finds the

shortest path between the source and the destination

vertices (the bfs method, line 5). The found path is

the result of the algorithm. The building graph is

stored in a hash table in which keys are ids of

vertices and values are lists of adjacent vertices.

Let us call the vertices retrieved at the 4 line of

the algorithm new vertices. To analyze Atlas+, the

paths returned by the Atlas algorithm and the paths

obtained by the proposed algorithm have been

compared. From the comparison of the paths, it was

observed that the shortened path may be comprised

of pieces of the paths obtained by the Atlas

algorithm and no more than one vertex was added to

those returned by Atlas. Hence, the new algorithm

only needs to store two edges on which the shortest

distances to the source and the destination vertices

are reached for each vertex. For the analysis, 148789

pairs of vertices were selected randomly from the

Odnoklassniki social graph. Shortest paths between

each pair were calculated by BFS.

Thus, the second version looks as in Listing 2.

Listing 2: The enhanced algorithm

1 long[] path(long s, long t)

2 paths = atlas(s, t)

3 adjLists = getAdjLists(paths)

4 graph = buildGraph(paths, adjLists)

5 treeS = bfs(s, graph);

6 treeT = bfs(t, graph);

7 minV = findMinimum(s, t, tS, trT);

8 bfsPath = getPath(tS, t)

9 path = getPath(minV, tS, tT)

10 return shortestOf(bfsPath, path)

The new algorithm, first, searches for the shortest

paths in the spanning trees (the atlas method, line 2).

Thereafter, the adjacent vertices of the vertices

obtained by Atlas are requested (the getAdjLists

method, line 3), as in the first version. After that, a

graph comprised of the vertices obtained by the

Atlas algorithm and those edges obtained after the

request where vertices are among those obtained by

the Atlas algorithm (the buildGraph method, line 4).

In 5-6 lines two trees of shortest paths rooted at

vertex s and at vertex t are built by BFS. The

findMinimum method finds a vertex on which

minimum sum of distances from the vertex to s and t

is reached. The findMinimum method stores all new

vertices in a hash table in which keys are ids of the

new vertices and values are objects of the Vertex

type storing distances to vertices s and t. After that,

the shortest path is selected from the paths counted

by BFS (line 8) and the final path found on line 9.

The bfs method returns a tree of shortest paths. A

tree of shortest paths is comprised of a map in which

keys are ids of vertices and values are ids of parent

vertices; parents of root vertices are set to -1. Thus,

to find the shortest path between vertex s and

another vertex u, the algorithm iterates and queries

parents of the current vertex starting from u until a

root vertex (the getPath method, line 8). The Vertex

type is a type comprised of id of the vertex and two

other ids of adjacent vertices on which minimal

distances to vertices s and t are reached. The second

getPath method (line 9) is presented in Listing 3 and

works as follows. First, paths in the both BFS trees

are found. If one of them does not exist, then the

algorithm returns null, otherwise, the algorithm

returns the shortest path which goes through vertex

v.id.

Listing 3: Find the shortest path in the

trees

1 long[] getPath(Vertex v, Tree tS, Tree tT)

2 toS = getPath(tS, v.idToS);

3 toT = getPath(tT, v.idToT);

4 if (toS == null || toT == null)

5 return null;

6 return toS + v.id + toT.reverse();

Table 1 contains the number of vertices and edges

utilized in the first version of the Atlas+ algorithm

and the number of vertices the degree of which

equals to one among those vertices. According to

Table 1, 339859 of the new vertices (67%) cannot be

used in the improvement of paths, as their degree

equals to one.

Table 1: Analysis of the first version of the algorithm.

Vertices Edges Vertices with degree equal 1

501324 10524245 339859

Thus, the number of stored edges has decreased to

2N in the second version of Atlas+, where N is the

number of vertices in the built graph. For example,

in this case, N is 501324

the number of stored edges

The Spanning Tree based Approach for Solving the Shortest Path Problem in Social Graphs

is decreased in ten times (1002648 against

10524245).

The second version of Atlas+ is depicted in

Fig. 2-Fig. 5. Let the proposed algorithm search for

the shortest path between vertices 



and 



in the

unweighted social graph shown in Fig. 2.

First, the Atlas algorithm finds two paths

between the vertices, path 























is drawn

by dashes and path 























is drawn by dots.

Fig. 3 shows the two paths found by the Atlas

algorithm. Other vertices and edges of the original

graph are marked by gray color.

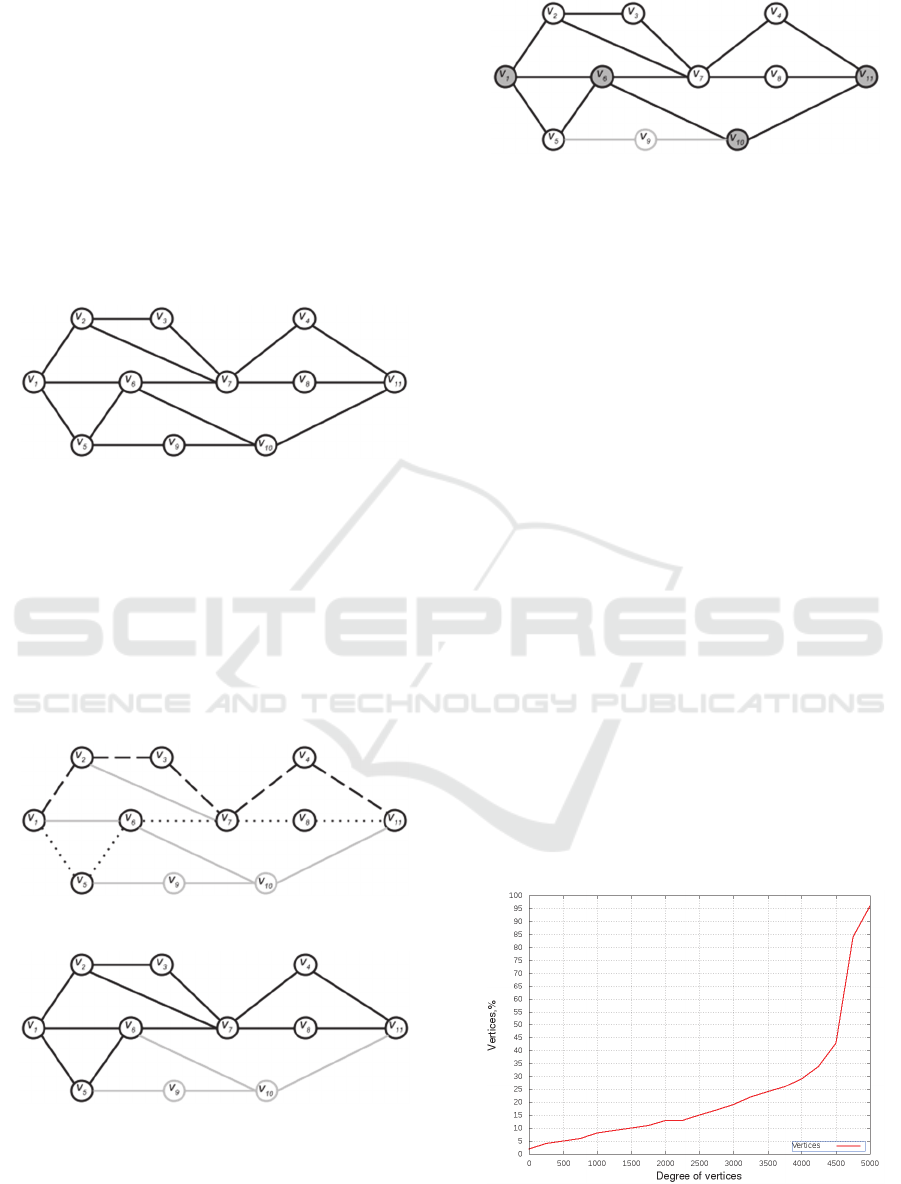

Figure 2: The original graph.

Fig. 4 depicts the graph that consists of the

previously obtained vertices and of the additional

edges queried from the original graph that connect

the vertices.

In Fig. 5 the algorithm looks for a new adjacent

vertex that is not in the built graph, on which the

shortest path between 



and 



is reached. The

shortest path, marked with gray vertices, between 



and 



is 















Figure 3: The two paths found by the Atlas algorithm.

Figure 4: The graph with adding edges queried from the

original graph.

According to the scale-freeness of social graphs, the

shortest paths between vertices have tendency to go

through popular vertices. Hence, the algorithm can

Figure 5: The found shortest path.

be accelerated if only a small portion of the adjacent

vertices are queried, not the whole adjacency list. It

also decreases the number of vertices stored in the

hash table. If a social graph is stored on another

machine, as is done in social networking sites, the

volume of data sent via a network decreases

(querying adjacent vertices). Thus, the heuristic may

improve performance of both the network query and

the processing of the responses.

Let a query “get at least k vertices or vertices

with degree more than some bound d” be named as a

query of the popular adjacent vertices. To find a

reasonable value for the degree d, the following plot

in Fig. 6 is utilized. The degrees of vertices queried

in the original graph that shorten the shortest path

obtained by the Atlas algorithm have been assessed.

If the proposed algorithm in Listing 2 is able to find

several shortest paths between a pair of vertices, the

path in which the degree of such vertex is largest is

selected. The plot in Fig. 6 shows the cumulative

normalized number of vertices that shortens the

paths with regards to their degree. According to the

diagram, the shortest path is shortened through very

popular vertices; only 2-3% of all paths are

improved through vertices with degrees circa

100 - 200 which are also rather popular vertices.

According to the analysis of degree distribution in

the Odnoklassniki social graph, only 7% of vertices

of the social graph have degree more than 200. Thus,

Figure 6: Cumulative share of vertices through which

paths are shortened depending on the degree of the

vertices.

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

if adjacent vertices the degree of which is more than

some fixed threshold are requested, the volume of

sent and processed data decreases essentially. As a

trade off the accuracy of the algorithm decreases by

1-2% which is still acceptable if the threshold is 200.

Thus, by setting the threshold d at 200, only 7% of

the vertices are returned to the query of the popular

adjacent vertices above, by among them are all those

that have up to 5000 adjacent vertices.

4.2 Handling of Dynamic Graphs

Social networking sites are very dynamic as

concerns the addition of new users and additions and

deletions of relationships between users. According

to the study even 50% of actions of users of social

networking site per day relates to changes in their

friend lists (Wilson et al., 2009). An algorithm for

searching the shortest path between two vertices

should always return the relevant path. Thus,

changes in the social graph have to be reflected the

graph model, in this case, in the spanning trees

impacted by them. Rebuilding all trees takes too

much resources and too much time. We have

observed that building a spanning tree takes for the

Odnoklassniki social networking site with the

current number of users 1 hour and 20 minutes on

average (O(|E|), as the spanning trees are built by

BFS). Hence, only a part of the built trees or a part

of a tree should be rebuilt per day. The current paper

utilizes the replacement strategy suggested in Cao et

al. (2011) and suggests local modifications of the

trees rather than complete rebuilding.

The replacement of trees is assumed to be done

once a day; and the task should take at most a couple

of hours for the graph of the Odnoklassniki social

networking site. Local modifications of a spanning

tree should be done if it is not a tree of the breadth-

first search. The impacted tree is modified in such a

way that it will become a breadth-first search tree

again. The following changes can occur in a network

at the site that are reflected into the modelling graph:

 adding a new friend: add an edge;

 adding a new user: add a vertex;

 removing a friend: remove an edge;

 removing a user: remove a vertex.

Let uv be a new edge between existing vertices u

and v. Adding a new edge does not impact the

functionality of the spanning trees before the

difference between the depth of the vertices is more

than one. If the difference is more than one, then the

highest vertex should become a child of the second

vertex. The needed tree modification is shown in

Fig. 7. In the picture vertex v is deeper than vertex u

in the tree; vertex w is a descendant of vertex u and

the shortest path between vertices u and v is of

length 2 or more in the tree. The modification needs

to calculate the depth of the vertices (from the root)

and change the parent pointer of the lowest vertex;

in the picture vertex u becomes the parent of vertex

v. Thus, time complexity of the modification is O(L

+ 1) = O(L) where L is the depth of the tree. In the

implementation of Atlas+ only the pointer to the

parent vertex of a vertex in a tree is needed. Thus,

edges in the spanning trees are directed from a child

to its parent.

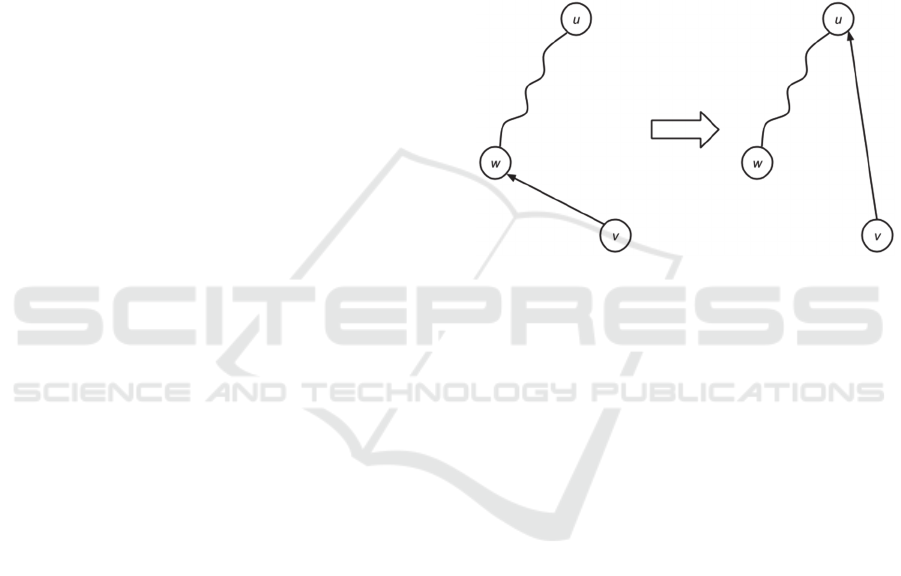

Figure 7: Modification when edge uv is added.

Adding a new vertex does not impact built trees until

an edge connecting the vertex and another

component of the social graph is added. This can

occur if, for instance, a new just registered user at a

social networking site connects with another user.

Removing an edge from the social graph may

split a tree into two unconnected components. Let a

vertex v be the parent of a vertex u in a spanning tree

and the edge uv has been removed. Then such a

vertex w should be found that vertex w should be an

adjacent vertex of vertex u, vertex w should be

connected in the modified tree, and after setting the

parent of u to w the tree should become a breadth-

first search tree. Since the depth of a tree should be

as small as possible, vertex w is sought in the

following groups of the vertices. The adjacent

vertices of vertex u are split into three groups:

vertices the depth of which equals to the depth of

vertex u minus one, the vertices the depth of which

equals to the depth of vertex u and the vertices the

depth of which equals to the depth of vertex u plus

one. If such a vertex w cannot be found, then such a

vertex y is found among the adjacent vertices of w

for which vertex y is not an ancestor of vertex w. If

such a vertex y exists, then vertex y becomes the

parent of w and edge vw is inverted. If vertex y does

not exist, then the algorithm is repeated recursively

The Spanning Tree based Approach for Solving the Shortest Path Problem in Social Graphs

for all adjacent vertices of vertex w until a suitable

vertex is found. A suitable vertex may not be found

if all vertices of the subtree rooted at vertex v do not

have adjacent vertices in the original graph from

another subtree of the spanning tree being modified.

This means that edge uv is a bridge edge (cut-edge),

an edge of a graph whose deletion from the graph

increases its number of connected components

(Harary, 1969). Thus, in this case, no modifications

are needed. Nevertheless, this scenario very rarely

occurs in practice, since the social networks tend not

to have just one connection two subgroups of users.

To perform the modification, calculating the

depth of some vertices is needed. Since the

modification algorithm has to process the whole

subtree rooted at vertex v and query the adjacent

vertices of all vertices of the subtree in the worst

case, the time complexity of modification is O(|E|).

The modification is depicted in Fig. 8-Fig. 9. In

the pictures edge between vertices u and v is removed

and the tree is modified as explained above.

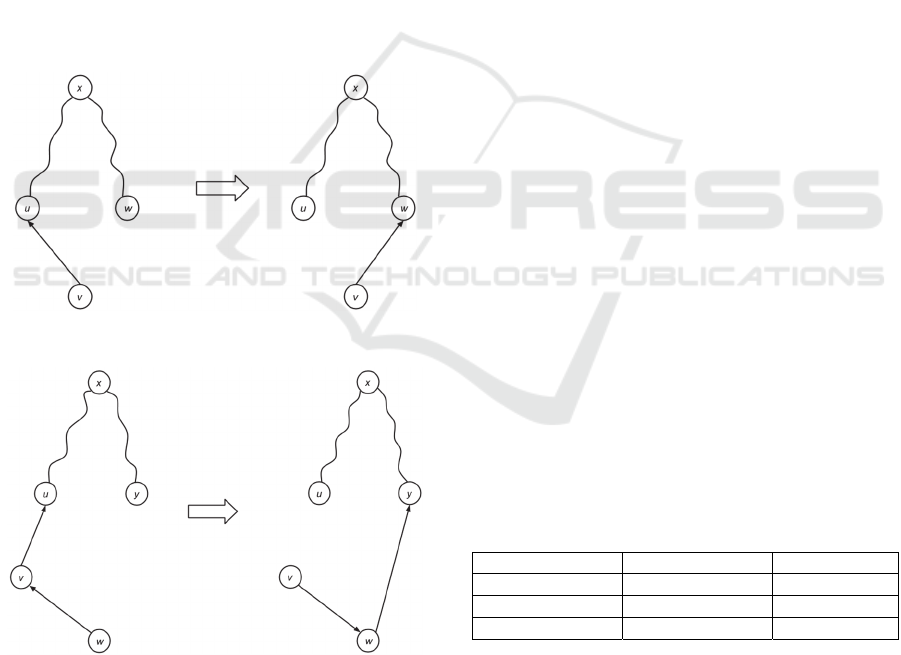

Figure 8: Modification when edge uv is removed.

Figure 9: Modification for removing edge uv (worst case).

Removing a vertex is similar to removing all edges

incident to the vertex. Thus, this case is covered by

the previous modification. It is implemented by

repeating the procedure above for every removed

edge the vertex.

4.3 Time and Space Complexity

To measure the time complexity of the Atlas+

algorithm, analysis of the each step is needed.

Finding of the shortest path in a tree takes time

linear with regards to the depth L of the tree O(L).

Search of k shortest paths in k trees takes time

O(kL). The number of edges queried by the Atlas+

algorithm is bounded by dkL, where d is the

maximal degree of vertices in the original social

graph. Thus, the breadth-first search algorithm

works in O(dkL) in the worst case. Thus, the

summarized time complexity of the proposed

shortest path searching algorithm depends on the

depth of trees, number of trees and the maximal

degree of vertices in the social graph and equals to

O(dkL). Also, some social networking sites limit the

maximal number of friends. Therefore, d is assumed

to be a constant.

The time complexity of Atlas algorithm is O(kL),

since the algorithm searches for shortest paths in k

spanning trees. Thus, the time complexity of Atlas+

is worse than the one of Atlas.

The number of edges queried by Atlas+ is

O(dkL), therefore, its space complexity is O(dkL).

While Atlas requires O(L) memory. Thus, Atlas+

requires more memory than Atlas.

5 EVALUATION

This section describes how the proposed algorithm

Atlas+ is evaluated and the results of the evaluation.

For the evaluation of Atlas+ LiveJournal and Orkut,

obtained from SNAP (Stanford Network Analysis

Project, 2015), and the real social graph of the

Odnoklassniki social networking site have been

utilized. Table 2 shows the size of the (social)

graphs used in evaluation.

Table 2: Graph data used in evaluation.

Graph Vertices Edges

Odnoklassniki 205M 25000M

LiveJournal 3997962 34681189

Orkut 3072441 117185083

5.1 Implementation Details

The algorithm has been implemented in the Java

programming language.

Spanning trees is stored as an array of integers

on the hard drive. All vertices of the initial social

graphs are fetched and are enumerated from 1 to N,

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

where N is the number of vertices in the graph. Let p

be an array of integers in which a tree is stored and i

be the id of a vertex. Thus, p[i] stores the id of the

parent of vertex i. Generated trees are too large to

be stored in the heap, circa 14-16 GB in total for the

graph of the Odnoklassniki social networking site.

Additionally, mapping from social graph ids, unique

8 bytes long integers, to tree ids should be stored in

the primary memory. To overcome the memory

problem, the files that contain the spanning trees, are

mapped to the virtual memory. Also, to store the

mapping of social graphs ids to tree ids in the

primary memory, the one-nio library of the

Odnoklassniki API is utilized (One-NIO, 2015).

The benefits of the suggested solution are (Bach,

1986):

 demand paging, i.e. files are loaded into

physical memory by pages, and only when that

page is referenced;

 page cache, i.e. several processes can share

memory mapped files between each other.

Hash tables are utilized in the first version and in the

second version of the algorithm. Standard Java

collections may only store objects. This means that

primitive types, like long, integer, have to be boxed

to class wrappers, e.g the Long class is for long

integer. Using the standard Java collections for

primitive types leads to the following problems with

performance and memory usage:

 more heap memory than necessary is used,

since the corresponding Java object contains

headers and other meta information in addition

to primitive types;

 objects need to be garbage collected, while

memory for primitive types can be allocated

directly in the stack memory;

 indirect access to primitive types which leads

to slowing down program execution;

 problems with caching: an array is supposed to

be stored contiguously; thus, arrays are easy to

be cached in order to decrease access time to

elements of the array, but as concerns the

boxed integers, the array is as an array of

pointers to objects randomly spread around the

heap. Thus, the data cannot be cached into a

contiguous memory area.

To eliminate the mentioned problems,

implementation of the hash table provided by Trove

is utilized (Trove, 2015). In the Trove library hash

tables are implemented as open-addressing hash

tables with double hashing. Nevertheless, the

performance of Trove's hash table does not fit the

requirements of the proposed algorithm. Thus, to

speed up the algorithm an open-addressing lock-free

hash table has been implemented. Since the

proposed algorithm only adds or makes queries to

the hash table, rehashings in the hash table can be

optimized. Let k be a maximal number of probes

done during insertion to the open-addressing hash

table. If elements are not removed, then the

searching element e cannot lie further than k

iterations from the h(e) cell, where h(e) is the hash

value of element e. Thus, the searching algorithm

does not need to make more than k rehashings. For

generation of probing sequences quadratic probing is

utilized (Cormen, Leiserson, Rivest, & Stein, 2001).

Moreover, the implementation of the hash is lock-

free.

5.2 Evaluation of Accuracy

To analyze the accuracy of the algorithm, pairs of

vertices from the above-mentioned social graphs

have been randomly selected. Table 3 shows the

number of paths grouped by the length of the paths.

Due to the properties of social networks, the shortest

paths with length more than five edges in the

modeling graphs are very rare. Thus, the selected

sets of paths are representative for the algorithm

evaluation.

Table 3: Paths grouped by the length of the paths.

Social graph 3 4 5 6 Total

Odnoklassniki

7439

(5%)

61004

(41%)

71419

(48%)

8927

(6%)

148789

LiveJournal

5151

(10%)

18484

(37%)

25061

(50%)

1304

(3%)

50000

Orkut

3121

(6%)

20531

(41%)

23482

(47%)

2866

(6%)

50000

The suggested algorithm has calculated a path

between each pair of the vertices; after that, the

result of the algorithm has been compared with the

actual shortest path. The correct shortest paths have

been computed by BFS. In addition, the accuracy of

the algorithm grouped by the length of paths has

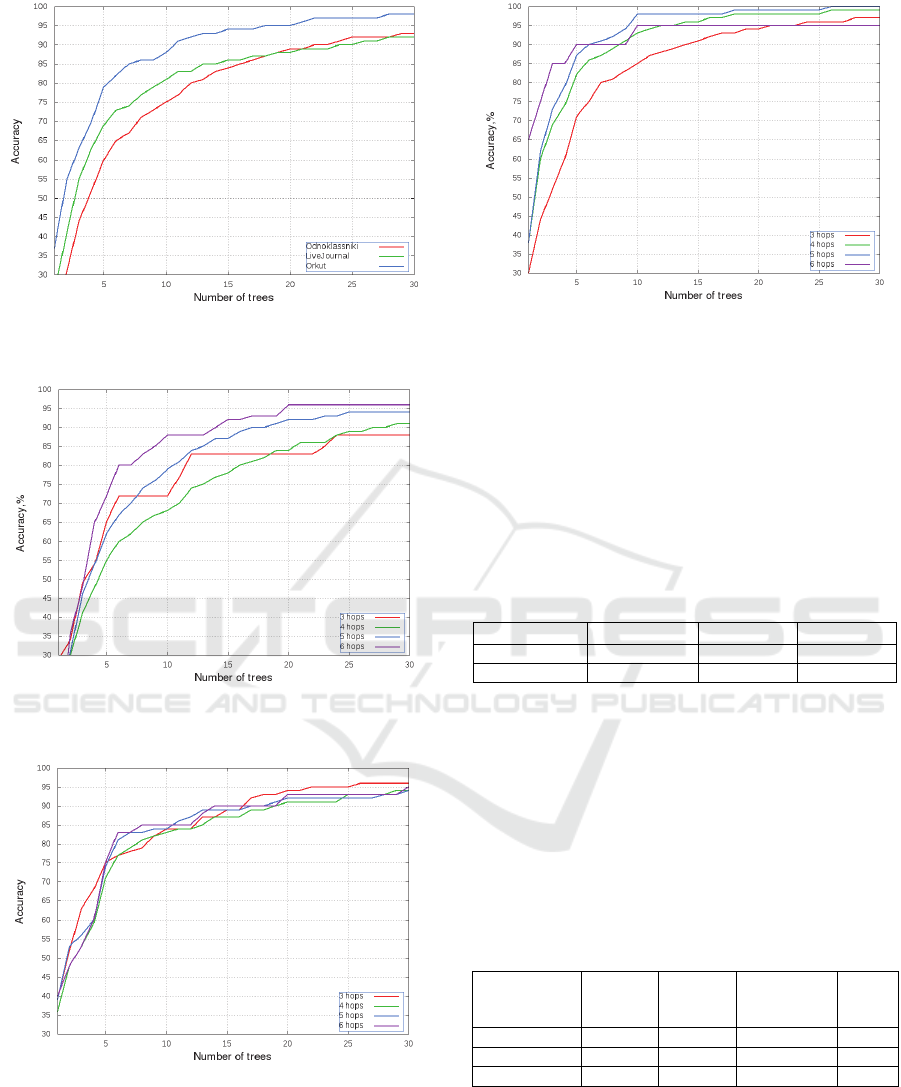

been calculated. Fig. 10-Fig. 13 show that the

accuracy of the algorithm depending on the number

of trees used in search. Hence, 25-30 spanning trees

are enough to obtain the desirable accuracy, more

than 90%, which is much better than the accuracy of

the Atlas algorithm (30 %), and desirable

performance (shown in Table 6). The accuracy is the

rate of that the found path is not the shortest one

normalized by the amount of the paths used in the

evaluation.

The Spanning Tree based Approach for Solving the Shortest Path Problem in Social Graphs

Figure 10: The accuracy of the proposed algorithm with

regards to the number of used spanning trees.

Figure 11: The accuracy grouped by the length of the

paths (Odnoklassniki).

Figure 12: The accuracy grouped by the length of the

paths (LiveJournal).

Additionally, according to Fig. 10-Fig. 13, the

accuracy of the algorithm for long paths (four-five

edges) is better than for shorter paths (two-three

edges), but the difference is insignificant. If the

algorithm makes a mistake, the difference in path

Figure 13: The accuracy grouped by the length of the

paths (Orkut).

length is not more than one edge. Overall, the

proposed algorithm has acceptable accuracy in the

intended environments.

Table 4 shows the comparison of the accuracy of

the Atlas and Atlas+ algorithms. In the accuracy

evaluation the same sets of paths were utilized.

According to the table, the Atlas+ has much better

accuracy.

Table 4: The accuracy of Atlas and Atlas+.

Algorithm Odnolassniki LiveJournal Orkut

Atlas 30% 40% 56%

Atlas+ 91% 90% 96%

5.3 Evaluation of Performance

This section is devoted to performance of the

algorithm depending on parameters and

modifications of the algorithm. Table 5 shows the

time required to build spanning tree for the selected

social media site data, as well as average query time

for shortest path query between two random

vertices.

Table 5: Performance of the algorithm.

Social graph Size of a

tree

Number

vertices

Tree

construction

time

Query

time

Odnoklassniki 572 MB 150M 80 minutes 51 ms

LiveJournal 15 MB 3997962 20 seconds 17 ms

Orkut 11 MB 3072441 83 seconds 21 ms

Table 6 contains the average time needed for

searching the shortest path between two vertices

using 25 spanning trees on Odnoklassniki. The

performance of each step of the algorithm has been

measured, as well. The measurement has been

performed on machine with Intel Core i7-4702MQ

CPU 64 GB of the primary memory and Linux

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

(Ubuntu 14.04). Requests of adjacent vertices is

done via a computer network, since the

Odnoklassniki social graph is stored on a machine

cluster. In the table row Tree query relates to Atlas.

Thus, Atlas is 100 times faster than the proposed

one.

Table 6: Performance of the steps of Atlas+.

Step of algorithm First

version

Second

version

Tree query (Atlas) 0.5 ms 0.5 ms

Request of adjacent vertices 32 ms 32 ms

Building of a hash table 61 ms 20 ms

BFS 33 ms 9 ms

Total 127 ms 51 ms

According to the table, despite of the suggested

modifications to improve the algorithm, the

performance of the algorithm is observed to be

unacceptable and can be improved. Indeed, the

average number of the vertices for which adjacency

lists are requested is circa 100. Since the spanning

trees are built around popular vertices, the responses

for the requests appear to be large (more than 2

MB). Additionally, as is shown in Section 4.2 the

most part of edges cannot be used in improving the

paths. Moreover, most part of the time for one

search is consumed by the network requests. Section

4.2 shows that the number of requested vertices can

be bounded without significant decreasing of the

accuracy of the algorithm.

Unfortunately, the API of the Odnoklassniki

social network site does not support the query of

popular adjacent vertices. That is why the

performance of using only popular adjacent vertices

has not been measured.

5.4 Evaluation on Dynamic Graphs

The current section analyzes accuracy of the

algorithm on dynamic graphs. The section also

analyzes the proposed modifications of the trees to

handle changes in the social network. To analyze

accuracy of the algorithm on dynamic graphs, a

subgraph of the graph modeling Odnoklassniki is

utilized. The subgraph consists of vertices for users

who mention Latvia as their country of origin in

their profile and ties between them induce the edges.

The subgraph contains 515000 vertices and 25

million edges. To emulate the dynamics of the

subgraph, a log of relevant changes that occurred at

the site during a week is utilized. The log only

includes adding and removing ties. Hence, two

versions of the graph are generated. The first is

modeling the state of the above subgraph at the

beginning of the week and the second at the end of

the week, after the tie changes recorded into the log

have been reflected into the edge set of the

subgraph.

As was mentioned above, spanning trees should

be changed in case of adding an edge for which the

difference in the depth of the vertices the edge

connects is more than one and in case of removing

an edge that occurs in the trees. Table 7 shows the

number of added edges grouped by difference in

depth. Thus, trees are impacted by adding of new

edges only in 0.03% of the additions. Concerning

dropping of edges, only 0.07% of removals of edges

impact the built trees. Thus, the built trees still are

able to approximate the modified graph rather well.

Table 7: Difference of depth of the vertices of edges.

Difference in depth Dist. Of adding an edge

0 54.17%

1 45.8%

2 0.03%

3 0%

Local modifications of trees are evaluated as

follows. First, 20000 of shortest paths have been

calculated in both the subgraph of Latvia and the

modified subgraph of Latvia. Thereafter, 30

spanning trees have been built for the subgraph.

Accuracy of the proposed algorithm has been

measured on the initial graph (97%) and on the

modified graph (95%). After that, the modifications

suggested in Section 5.4 have been applied to the

built spanning trees. Using the modified spanning

trees accuracy of the algorithm is 96%. Thus, the

local modifications increase accuracy of the

algorithm slightly.

The accuracy of the algorithm grouped by length

of shortest paths is depicted in Fig. 14. According to

the diagram, changes in the graph influence the

accuracy of the algorithm on short paths (3 edges),

while the accuracy on longer paths (more than 4

edges) does not change considerably. Local

modifications of trees increase accuracy of the

algorithm on short paths.

The replacement strategy is evaluated as follows.

As well as for local modifications, 20000 of shortest

paths have been calculated in the subgraph of Latvia

and in the modified graph of Latvia. Thereafter,

some number of old trees are replaced with new

ones. Fig. 15 demonstrates accuracy of the algorithm

depending on the number of replaced trees.

According to the picture, replacement of 14 trees

increases accuracy of the algorithm.

The Spanning Tree based Approach for Solving the Shortest Path Problem in Social Graphs

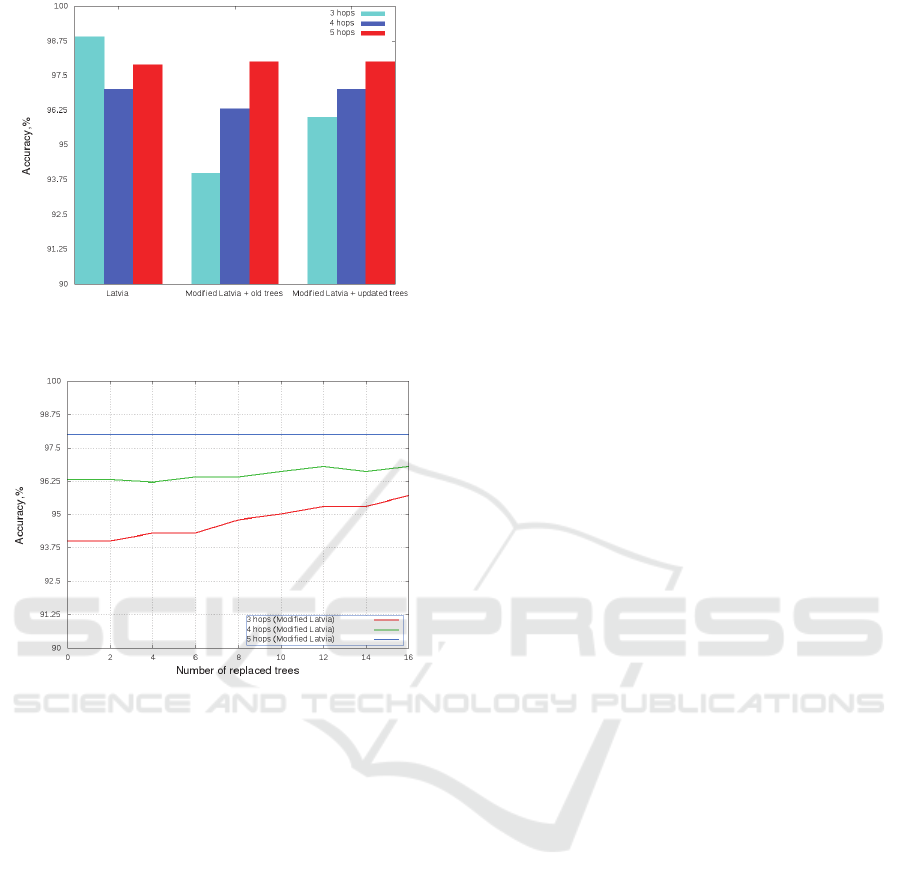

Figure 14: Accuracy of the algorithm (local modifications

of spanning trees).

Figure 15: Accuracy of the algorithm (replacement of

spanning trees).

6 RELATED RESEARCH

This section is devoted to other existing algorithms

using for solving the shortest path problem or for

distance estimation in social graphs.

Fu et al. (2013) suggest extracting the core-net

which is a subgraph consisting of popular vertices,

bridge vertices and edges that make it to form only

one connected component. Thereafter, distances

between all pairs of the core-net are calculated. The

shortest distance between a pair of vertices is found

as follows. First, the friend and friend-of-friends lists

of the two vertices are calculated, thereafter, they are

checked for intersection. If the lists have common

vertices, then distance is found. Otherwise, the lists

and the core-net are checked for intersection. If they

intersect, the distance is calculated, according to the

distance matrix. The time complexity of the

algorithm is|





||





|  ||, where 





and







are sets of friend-of-friends vertices and C is a

core-net of the graph. Also, researchers widely use

landmark-based approaches to estimate distances in

large graphs. These approaches select a subset of

nodes which are named landmark and pre-compute

the distances from each landmark to all other nodes

in the graph. The algorithm finds shortest paths

through the landmarks and returns the shortest one

as the answer to a query. Kleinberg et al. (2004)

show that landmarks can be picked randomly with

good theoretical results. Potamias et al. (2009) build

landmarks according to the basic metrics with better

result than in the previous work and also prove that

selecting the optimal landmark set belongs to the

class of NP-hard languages. All of the above

mentioned landmark-based approaches estimates the

lengths of the shortest path in ||, where L is a

set of landmarks. Finally, the Orion system, offered

in Zhao et al. (2010), embeds a graph into a

Euclidean space and distance between two vertices

is estimated according to Euclidean distance

between them. The time complexity time of Orion is

1, as calculation of the Euclidean distance

between a pair of vertices is needed. The main

disadvantage of the mentioned algorithms is that

they are only able to estimate distance between

vertices, not to calculate an actual path. Qi et al.

(2013) combine a landmark-based approach and an

embedding of vertices into a Euclidean space. Akiba

et al. (2015) propose the method that quickly

answers top k distance queries on large networks.

The method has been evaluated on real-world social

and web graphs. The Atlas algorithm (Cao et al.,

2011) reduces the shortest path problem in a graph

to the one in a tree.

According to the papers, it can be concluded that

researches mostly invest in algorithms which only

estimate the shortest distance between a pair of

vertices, not in the development of the shortest path

searching algorithm. For the most part of

applications, like ranked social search (find top k

closest vertices to a vertex from a set of vertices),

distance estimations are enough.

7 CONCLUSIONS

The Atlas algorithm builds a set of spanning trees

and reduces the shortest path problem to the least

common ancestor problem. The accuracy of the

Atlas algorithm is not acceptable for the envisioned

environment. The current paper has proposed a new

algorithm, Atlas+, based on the Atlas algorithm. The

proposed algorithm adopts the precomputation step,

i.e. the spanning tree construction of the Atlas

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

algorithm. The second part of Atlas, the path

searching is improved by the query to the entire

graph in order to find a vertex through which the

paths found by the original Atlas can be shortened.

Also, the paper has analysed several variations of the

proposed algorithm, as its initial version did not fit

the performance requirements. Some of the steps of

Atlas+ have been parallelized and a new lock-free

hash table has been suggested. The queries asking

for adjacent vertices on found paths are often done

via a communication network. Therefore, the paper

has discussed how the network time could be

reduced, but the suggested improvements would

require changes of the API at the server side and

they could not be tested. Finally, one has also

evaluated the proposed algorithm on dynamic

graphs. It is plausible to argue that the proposed

Atlas+ would exhibit high enough performance on a

real social network, as the evaluation against the

Odnoklassniki social network site demonstrated.

In the future work, the time of the network

queries can be investigated more precisely. In

addition, the algorithm is needed to be shipped with

the API of a social network site in order to

investigate the impact of the dynamics of social

networks on the algorithm. The proposed algorithm

might also be extended to answer top k shortest

paths between a pair of vertices.

REFERENCES

API OK. (2015, February 15). Retrieved from API OK:

https://apiok.ru/wiki/display/api/friends.get.

One-NIO. (2015). Retrieved from One-NIO:

https://github.com/odnoklassniki/one-nio.

Stanford Network Analysis Project. (2015, May 14).

Retrieved May 14, 2015, from

http://snap.stanford.edu.

Akiba, T., Hayashi, T., Nori, N., Iwata, Y., & Yoshida, Y.

(2015). Efficient Top-k Shortest-Path Distance

Queries on Large Networks by Pruned Landmark

Labeling. In 29th AAAI Conference on Artificial

Intelligence.

Bach, M. J. (1986). The design of the UNIX operating

system. Vol. 5. Englewood Cliffs: NJ: Prentice-Hall.

Cao, L., Zhao, X., Zheng, H., & Zhao, B. Y. (2011). Atlas:

Approximating shortest paths in social graphs. Santa

Barbara: Tech. rep. 2011-09, Department of Computer

Science, University of California.

Cormen, T. H., Leiserson, C. E., Rivest, R. L., & Stein, C.

(2001). Introduction to algorithms. Cambridge: MIT

press.

Faloutsos, M., Faloutsos, P., & Faloutsos, C. (1999). On

power-law relationships of the internet topology. In

ACM SIGCOMM Computer Communication Review

29, 4. ACM, 251–262.

Greenwald, G., & MacAskill, E. (2013). NSA Prism

program taps in to user data of Apple, Google and

others. The Guardian, 7(6), 1-43.

Harary, F. (1969). Graph theory. Reading, MA: Addison-

Wesley.

Marcus, S., Moy, M., & Coffman, T. (2007). Social

network analysis. Mining graph data, 443-467.

Qi, Z., Xiao, Y., Shao, B., & Wang, H. (2013). Toward a

distance oracle for billion-node graphs. Proceedings of

the VLDB Endowment, 7(1), 61-72.

Semenov, A. (2013). Principles of social media

monitoring and analysis software. Jyväskylä Studies in

Computing, 168.

Semenov, A., & Veijalainen, J. (2013). A modelling

framework for social media monitoring. International

Journal of Web Engineering and Technology 8.3, 217-

249.

Trove. (2015, February 13). Retrieved from High

Performance Collections for Java: http://

trove.starlight-systems.com/

Tumasjan, A., Sprenger, T. O., Sandner, P. G., & Welpe,

I. M. (2010). Election Forecasts With Twitter: How

140 Characters Reflect the Political Landscape. Social

Science Computer Review.

Ugander, J., Karrer, B., Backstrom, L., & Marlow, C.

(2011). The anatomy of the facebook social graph.

Wang, H., Can, D., Kazemzadeh, A., Bar, F., &

Narayanan, S. (2012). A system for real-time twitter

sentiment analysis of 2012 US presidential election

cycle. Proceedings of the ACL 2012 System

Demonstrations. Association for Computational

Linguistics.

Wilson, C., Boe, B., Sala, A., Puttaswamy, K. P., & Zhao,

B. Y. (2009). User interactions in social networks and

their implications. In Proceedings of the 4th ACM

European conference on Computer systems, 205–218.

Zhang, Z. M., Salerno, J. J., & Yu, P. S. (2003). Applying

data mining in investigating money laundering crimes.

9th ACM SIGKDD international conference on

Knowledge discovery and data mining, 747-752.

The Spanning Tree based Approach for Solving the Shortest Path Problem in Social Graphs
