Are Suggestions of Coupled File Changes Interesting?

Jasmin Ramadani and Stefan Wagner

University of Stuttgart, Stuttgart, Germany

Keywords:

Data Mining, Repository Mining, Coupled Changes, Interestingness.

Abstract:

Software repositories include information which can be made available for bug ﬁxing or maintenance using

repository mining. The identiﬁcation of coupled changes have been proposed several times. Yet, existing

studies focus on the found couplings and ignore feedback from developers. We investigate three development

projects and their repositories to ﬁnd ﬁles that frequently change together to support the software developers.

We complement the coupled ﬁles information with details from the issue tracking system and the project

documentation. We contrast our ﬁndings with feedback from the developers about how interesting our ﬁndings

are for them. We found that the small size of the repositories made an insightful analysis difﬁcult. The response

to coupled changes both from experienced and inexperienced developers was mostly neutral. They accepted

most of the additional attributes we presented. Furthermore, developers also suggested other additional issues

to be relevant, e.g. the context of the coupled changes and the way they are presented, which we did not

cover in this study. Therefore, coupled change analysis research will need to take the presentation and context

information into account.

1 INTRODUCTION

Software product development produces large

amounts of data which is stored in software repos-

itories. These repositories contain the artifacts

developed during software evolution. They include

different data sources like version control systems,

issue tracking systems and project documentation

archives. After some time, this data becomes a valu-

able information source for bug ﬁxing or maintenance

tasks.

To learn from it, we need a technique to ex-

tract relevant details from the source code history and

search for valuable information. One of the most used

techniques is data mining which has become popular

for analyzing software repositories. The term min-

ing software repositories (MSR) has been coined to

describe investigations of software repositories using

data mining (Kagdi et al., 2007).

To help the developers to identify the ﬁles to be

changed during bug ﬁxing or maintenance tasks, a

mining software repositories approach has been pro-

posed which ﬁnds ﬁles that have changed together fre-

quently (Ying et al., 2004). These ﬁles can be used to

recommend coupled ﬁle changes. Couplings are de-

ﬁned as “the measure of the strength of association

established by a connection from one module to an-

other” (Stevens et al., 1974). Change couplings are

described as ﬁles having the same commit time, au-

thor and modiﬁcation description (Gall et al., 2003).

Frequently changed ﬁles can support developers in

dealing with the large amount of information about

the software product, especially if the developer is

new on the project, the project started a long time ago

or if the developer does not have much experience in

software development.

1.1 Problem Statement

Several researchers have proposed approaches to

identify coupled ﬁles to give recommendations to de-

velopers during a change (Bavota et al., 2013). Exist-

ing studies, however, focus on the presentation of the

mining results and ignore the feedback of developers

on the ﬁndings.

1.2 Research Objectives

The overall aim of our research is to support the de-

velopers in common maintenance tasks. In this pa-

per, we concentrate on applying MSR to provide sug-

gestions for likely changes so that we can investigate

how interesting the suggestions are for the developers

and what further information besides version histories

might increase the interestingness.

Ramadani J. and Wagner S.

Are Suggestions of Coupled File Changes Interesting?.

DOI: 10.5220/0005854400150026

In Proceedings of the 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering (ENASE 2016), pages 15-26

ISBN: 978-989-758-189-2

We deﬁne interestingness as the subjective mea-

sure of the developers’ opinion on how useful ﬁnd-

ings (here: coupled change suggestions) are for bug

ﬁxing or maintenance tasks.

1.3 Contribution

We present an industrial case study on the interesting-

ness of coupled change suggestions. We identify fre-

quent couplings between ﬁle changes based on the in-

formation gathered from three software project repos-

itories and investigate the interestingness of these

couplings. We use the version control system, the

issue tracking system and the project documentation

archives as data sources for additional information.

We join this additional information to the coupled

changes we discover. In particular, we investigate the

feedback of the developers about the interestingness

of our ﬁndings by conducting a survey. We evaluate

the answers by performing additional interviews and

analyze them using the Grounded Theory method.

2 DATA MINING BACKGROUND

To be able to discover coupled ﬁle changes by using

data mining, we introduce the data technique that we

employ in our study. One of the most popular data

mining techniques is the discovery of frequent item-

sets. To identify sets of items which occur together

frequently in a given database is one of the most basic

tasks in data mining (Han, 2005). Coupled changes

describe a situation where someone changes a partic-

ular ﬁle and also changes another ﬁle afterwards. Let

us say that the developer changes ﬁle f

and then also

frequently changes ﬁle f

. By investigating the trans-

actions of changed ﬁles in the version control sys-

tem commits we identify a set of ﬁles that changed

together. Let us have the following three transac-

tions: T

{

, f

}

, T

{

, f

}

, T

{

, f

}

. From these three transactions, we iso-

late the rule that ﬁles f

and f

are found together:

and f

are coupled. This means that when the de-

velopers changed ﬁle f

, they also changed ﬁle f

. If

these ﬁles are found together frequently, it can help

other persons by suggesting that if they change f

they should also change f

. Let F =

{

, f

, ..., f

}

be the set of all items (ﬁles) f in a transaction and

T =

{

, t

, ..., t

}

be the set of all transactions t. As

transactions, we deﬁne the commits consisting of dif-

ferent ﬁles. Each transaction contains a subset of cho-

sen items from F called itemset. An important prop-

erty of an itemset is the support count δ which is the

number of transactions containing an item. We call

the itemsets frequent if they have a support threshold

min

sup

greater than a minimum speciﬁed by the user

with

0 ≤ min

sup

≤

(1)

3 RELATED WORK

There are many studies dedicated to investigat-

ing software repositories to ﬁnd logically coupled

changes, e.g. (Bieman et al., 2003; Gall et al., 2003;

Fluri et al., 2005). We identify two granularity lev-

els, the ﬁrst one investigates the couplings based on

the ﬁle level (Ying et al., 2004; Kagdi et al., 2006)

and the second one is a ﬁner granularity level where

the coupled changes are identiﬁed between parts of

ﬁles like classes, methods or modules (Zimmermann

et al., 2004; Zimmermann et al., 2006; Fluri et al.,

2005; Kagdi et al., 2007).

Most studies dealing with identifying coupled

changes use some kind of data mining for this pur-

pose (Zimmermann et al., 2004; Ying et al., 2004;

Kagdi et al., 2006; German, 2004; Hattori et al., 2008;

Shirabad et al., 2003; van Rysselberghe and Demeyer,

2004). Especially the association rules technique is

often used to identify frequent changes (Zimmermann

et al., 2004; Ying et al., 2004; Kagdi et al., 2006).

This data mining technique uses various algorithms to

determine the frequency of these changes. Most of the

studies employ the Apriori algorithm (Zimmermann

et al., 2004; Kagdi et al., 2006), however other algo-

rithms like the FP-Tree algorithm are also in use (Ying

et al., 2004).

Most of the studies use a single data source where

a kind of version control system is investigated, typ-

ically CVS or Subversion. To our knowledge there

are few studies which investigate a Git version con-

trol system (Bird et al., 2009; Hassan and Holt, 2004;

Carlsson, 2013). Other studies combine more than

one data source to be investigated, like a version con-

trol system and an issue tracking system (Fischer

et al., 2003; Canfora and Cerulo, 2005; Wu et al.,

2011; D’Ambros et al., 2009) where the data ex-

tracted from these two sources is analyzed and the

link between the changed ﬁles and issues is deter-

mined.

To the best of our knowledge, there are only three

studies investigating how couplings align with devel-

opers’ opinions or feedbacks. Coupling metrics on

the structural and the semantic level are investigated

in (Revelle et al., 2011). The developers are asked if

they ﬁnd these metrics to be useful. They show that

feature couplings on a higher level of abstraction than

classes are useful. The developers’ perceptions of

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

software couplings are investigated in (Bavota et al.,

2013). Here the authors examine how class couplings

captured by different coupling measures like seman-

tic, logical and others align with the developers per-

ception of couplings. The semantic couplings have

received the best rating of all types of couplings. The

interestingness of coupled changes is also studied in

(Ying et al., 2004). This study deﬁnes categorization

of coupled changes interestingness according to the

source code changes.

We focus on the interestingness of coupled ﬁle

changes and attributes involving the developers’ feed-

back on our ﬁndings using the following data sources:

Two of the projects use Git

and the third one uses

Mercurial.

The ﬁrst industrial project uses JIRA as

issue tracking system,

the open source project and

the second industrial project use Redmine.

We use

the available product documentation of the projects

as additional source of information.

4 CASE STUDY DESIGN

The structure of our case study is based on existing

guidelines (Runeson and H

ost, 2009).

4.1 Research Questions

Our case study addresses ﬁve research questions:

RQ1: How Many Coupled Changes Can We Ex-

tract from Software Repositories?

This research question provides the basis for our

research. It is relevant to investigate for the reason

that the number of coupled changes affects the out-

come of the repository data analysis.

RQ2: How Interesting Are Coupled Change Sug-

gestions for Developers?

This is the central question of this study which de-

cides if developers will use the suggested couplings.

RQ3: Does the Experience of Developers Inﬂu-

ences the Interestingness of Coupled Changes?

We expected that inexperienced developers would

be more interested in coupled ﬁle suggestions consid-

ering their possible problems understanding the sys-

tem (Sayles et al., 2011). Therefore, we investigate

the developer’s programming and project experience.

RQ4: How Interesting Is Additional Information

from Other Related Project Artifacts?

After we determine the interestingness of the cou-

plings, we will investigate if adding additional data

http://git-scm.com/

http://mercurial.selenic.com/

https://www.atlassian.com/software/jira

http://www.redmine.org/

sources inﬂuences the interestingness. First, we ex-

amine the version control system that is related to the

changes, e.g. commit ids where the couplings were

found, commit messages, commit dates and authors

of the commits. Second, the information stored in the

issue tracking system is investigated, attributes like is-

sue description, issue date and issue status. Third, we

look into the project documentation archive for infor-

mation about the project structure and naming con-

ventions.

RQ5: Does the Experience of Developers Inﬂu-

ences the Interestingness of Additional Informa-

tion from Other Related Project Artifacts?

We investigate if the choice of the attributes from

the version control system and the issue tracking sys-

tem depends on the developer’s programming experi-

ence.

4.2 Interestingness

In our study, we consider interestingness as a subjec-

tive measure which is derived from the user’s beliefs

or expectations (McGarry, 2005). Information is in-

teresting if it is novel, useful and nontrivial to com-

pute. Here, useful means that it can help to achieve a

goal of the system or the user (Frawley et al., 1992).

The interestingness of the information represents the

possibility that developers will use this information

during their maintenance or bug ﬁxing tasks.

We measure interestingness of couplings using

three levels: interesting, neutral and not interest-

ing. We identify two categories of interestingness.

The ﬁrst category is the interestingness of coupled

changes.

The second category is the interestingness of the ad-

ditional attributes we extract from the version control

system, the issue tracking system and the project doc-

umentation. We join this attributes to the coupled ﬁle

changes.

4.3 Case Selection

The case selection is based on their availability and

the suitability for our research. We select cases from

industry as a part of our cooperation with our indus-

trial partners as well as from the available open source

projects developed at the University of Stuttgart.

Hence, our subjects will be practitioners as well as

students.

4.4 Data Collection Procedure

The case study uses two main data sources to inves-

tigate the coupled ﬁle changes. As ﬁrst data source,

Are Suggestions of Coupled File Changes Interesting?

we use the artifacts from the software product devel-

opment archived in software repositories. We did not

have any direct contact with the development process

of the product. Instead, we examine the reposito-

ries of the software product being developed or main-

tained. The second data source consists of surveys

and interviews with the project stakeholders provid-

ing direct information. We divide the data collection

procedure into ﬁve parts.

4.4.1 Version Control System

The ﬁrst unit of data we use is the log data from the

version control system. Two software projects used

Git, while the third project uses Mercurial as a con-

trol management tool. Both are distributed version

control systems allowing the developers to maintain

their local versions of source code. The data collec-

tion from the version control system consists of four

steps which lead to the extraction of the information

we need.

• Log Extraction: We extract the information from

the log ﬁle containing the committed ﬁle changes

and the commit attributes. The log data is ex-

ported as text ﬁle.

• Data Preprocessing: After the text ﬁles with the

log data have been generated, we continue with

the preparation of the data for data mining. Var-

ious data mining frameworks use their own for-

mat, so the input for the data mining algorithm

and framework needs to be adjusted.

• Identifying Atomic Change Sets: We divide the

data into a collection of atomic change sets. Ver-

sion control systems deal with this issue differ-

ently. In our case, the version control systems

preserve the possibility to group changes into a

single change set or a so-called atomic commit. It

represents an atomic changeset regardless of the

number of directories, ﬁles or lines of code that

change. A commit snapshot represents the to-

tal set of modiﬁed ﬁles and directories (Loeliger,

2009). We organize the data in a transaction form

where every transaction represents the ﬁles which

changed together in a single commit.

• Data Filtering: We ﬁlter the ﬁle names and the

following commit attributes: commit id, commit

message, commit date and commit author. We

deal with empty entries and outliers and we pre-

pare the log entries for data mining.

• Change Grouping Heuristic: There are differ-

ent heuristics proposed for grouping ﬁle changes

(Kagdi et al., 2006). We use a heuristic consid-

ering the ﬁle changes done by a single commit-

ter are related. We group the transactions of ﬁles

committed only by a particular author. We do not

relate the changes done by other committers.

4.4.2 Issue Tracking System

In issue tracking systems, important information is

stored about the software changes or problems. In our

case, the companies chose to use JIRA and Redmine

as issue tracking systems. The students also track

their issues using Redmine. We investigate the foll-

wing issue attributes: issue titles, issue descriptions

and issue messages. The issue tracking systems sup-

port spreadsheet export containing the considered is-

sue attributes.

4.4.3 Project Documentation

The software documentation gathered during the de-

velopment process represents a rich source of data.

The documentation consists of ﬁle naming conven-

tions, directory paths and the project structure de-

scription. From these documents, we discover the

project structure. For example in the last project,

the subproject containing the ﬁles described by the

path astpa/controlstructure/figure/ contains

the Java classes responsible for the control diagram

ﬁgures of this software.

4.4.4 Joining Collected Data

After the mining process is ﬁnished and we have iden-

tiﬁed the coupled changes, we will join them with

the attributes from the version control system, the is-

sue tracker and the project documentation. In (Fis-

cher et al., 2003), the authors create a release history

database where they import the data from the version

control systems and the issue tracking systems. Simi-

larly, we create a database containing all ﬁle changes

and the corresponding attributes from the repositories.

Every commit has it own hash value which repre-

sents the commit id. It is a unique value which iden-

tiﬁes all the commits in the database. The issues are

identiﬁed by their keys. We use the issue keys to fol-

low down the commit where the change took place us-

ing the merge points of issues with the commit mes-

sages. We use the path information of the changed

ﬁles to enlist the subproject. As a result we have a

list of the most frequently changed ﬁles accompanied

by the information about the commit attributes, issue

attributes and the project structure.

4.4.5 Survey and Interviews

We investigate the developers’ feedback on the inter-

estingness of coupled changes and the additional at-

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

tributes by conducting a survey and performing inter-

views

with the developers.

Survey. The developers answer a list of multiple-

choice questions online. We investigate the back-

ground of the developers by asking their program-

ming and project experience. The developers give us

feedback on the concept of coupled changes, not on

particular couplings. We chose this setup as a ﬁrst

means to get as many opinions as possible. Only few

developers were available for in-depth interviews on

speciﬁc ﬁndings. The developer can choose between:

interesting, neutral and not interesting.

• What is your programming/project experience?

• How interesting are suggestions for coupled

changes for you?

• What commit/issue/documentation information

for bug ﬁxing or maintenance tasks is interesting

for you?

Interviews. We perform semi-structured interviews

to get more in-depth feedback from the developers.

This way, we ensure that the developers did not an-

swer the surveys by randomly choosing the options.

We ask the available developers who worked on the

projects and other uninvolved developers about the

interestingness of the ﬁle changes and the attributes.

We present them actual coupled ﬁle changes extracted

from the repositories.

4.5 Ethical Considerations

The data delivered by the companies is conﬁdential.

Therefore, we preserve the anonymity of the stake-

holders and the companies during this study. The con-

ﬁdentiality and the publication is regulated by a non-

disclosure agreement between the researchers and

the companies. All personal information extracted

from the repositories, the survey and the interviews

is anonymized and is not presented in the study.

4.6 Analysis Procedure

The data analysis is a combination of quantitative and

qualitative methods. We use quantitative methods to

ﬁnd the number of couplings. We augment the results

with a qualitative and quantitative analysis of the sur-

vey and the interviews with the developers.

All questions are available on http://dx.doi.org/10.5281

/zenodo.15065

4.6.1 Analysis of Repository Data

We analyze the repository data to answer RQ1. We

run the mining algorithm to discover frequently cou-

pled ﬁle changes. We investigate the additional at-

tributes we gather from the commit logs, the issue

tracking export and the project documentation.

Data Mining Algorithm. Various algorithms for

mining frequent itemsets and association rules have

been proposed in literature (Agrawal and Srikant,

1994; Han et al., 2004; Gy

odi and Gy

odi, 2004).

We use the FP-Tree-Growth algorithm to ﬁnd the fre-

quent change patterns. As opposed to the Apriori al-

gorithm (Agrawal and Srikant, 1994) which uses a

bottom up generation of frequent itemset combina-

tions, the FP-Tree algorithm uses partition and divide-

and-conquer methods (Gy

odi and Gy

odi, 2004).

This algorithm is faster and more memory efﬁcient

than the Apriori algorithm used in other studies. This

algorithm allows frequent itemset discovery without

candidate itemset generation.

We analyze the coupled changes by deﬁning the

threshold value of the support for the frequent itemset

algorithm. We use the thresholds that give us a fre-

quent yet still manageable number of couplings. This

threshold is normally deﬁned by the user. We use

the technique proposed by Fournier-Viger presented

in (Fournier-Viger, 2013) to identify the support level.

These values vary from developer to developer, so we

test the highest possible value that delivers frequent

itemsets. If for a particular developer, the support

value does not bring any useful results, we continue

dropping the value of the threshold. We did not con-

sider itemsets with a support below 0.2 for the ﬁrst

two projects and 0.1 for the third project.

There is a variety of commercial and open-source

products offering data mining techniques and algo-

rithms. For the analysis, we use an open-source

framework specialized on mining frequent itemsets

and association rules called the SPMF-Framework.

It consists of a large collection of algorithms sup-

ported by appropriate documentation.

4.6.2 Analysis of Questionnaires and Interviews

To answer RQ2–RQ5, we analyze the questionnaires

and the outcomes of the interviews.

Survey Analysis. We start by investigating the

background of the developers by checking their an-

swers about their programming and project experi-

http://www.philippe-fournier-viger.com/spmf

Are Suggestions of Coupled File Changes Interesting?

ence. We analyze the answers from the question-

naire by calculating the distribution of the frequency

of their answers. We put the main focus on the an-

swers of the participants about the interestingness of

coupled changes and the answers about the additional

attributes.

Interview Analysis. We examine the interviews

with the developers to validate the outcomes of

the questionnaires and to understand the context of

their answers. We analyze the interviews by using

Grounded Theory (Strauss and Corbin, 1998). The

goal is to generate a theory that emerges from the data

being comparatively analyzed. To analyze the data

and build the theory, we use the following types of

coding activities in sequence: open, axial and selec-

tive coding (Strauss and Corbin, 1998). After these

codings, we perform the theoretical coding and create

the conceptual model. We use the analysis software

Atlas.ti

to link the codes and create a network dia-

gram.

• Open Coding: In the open coding we have a line-

by-line examination of the interview transcripts to

identify the main concepts and categories together

with their dimensions and properties. We code the

data from interview answers with a set of open

codes derived from our research questions. Before

we continue, we write a memo consisting of the

hypotheses and ideas noted during the analysis.

• Axial Coding : After the open coding is performed,

we continue with the axial coding where we relate

the categories, concepts and codes by identify-

ing the relations among them. This is done using

the paradigm model (Strauss and Corbin, 1998)

and considering the relationships between con-

texts, interactions, conditions and consequences.

• Selective Coding: The selective coding formulates

a core category to which all other categories and

codes can be related and includes all of the data.

• Theoretical Coding: After ﬁnishing the open and

axial coding, this coding involves the relation-

ships between categories and subcategories and

gives meaning to the theory.

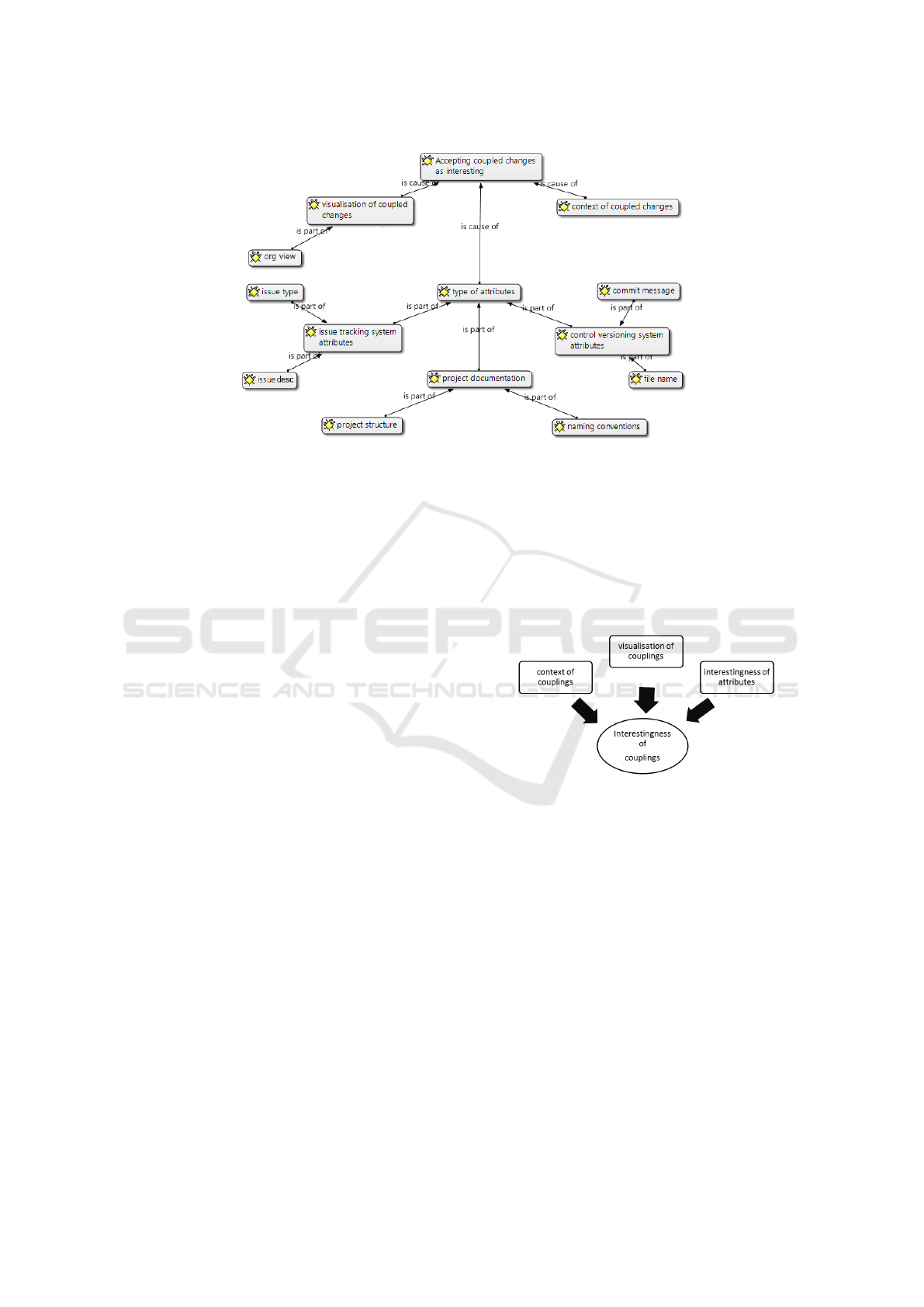

• Conceptual Mapping and Model: We express the

concepts of our theory and present their relations.

We draw a category map which emerges from the

analysis.

http://www.atlasti.com/index.html

4.7 Validity Procedure

4.7.1 Internal Validity

We use widely known techniques and algorithms for

repository mining. We extract data from a repository

systems used among a large number of companies.

We analyze the data from the software repository, per-

form a survey among the developers and we validate

the answers given in the questionnaires by interview-

ing developers. We analyze the answers and com-

pare the results related to the research questions to see

if these reﬂect the investigated information (Runeson

and H

ost, 2009). This way we avoid to rely on a pos-

sible lack of precision in the answers on the question-

naires by the developers concerning the interesting-

ness.

4.7.2 External Validity

We choose representative cases with high standards

considering software development and standardized

development techniques. We use an independent

party to record the memos for the interviews and code

the information to increase the objectivity of the anal-

ysis results.

5 CASE STUDY RESULTS

We report the results of the analysis of the software

repository data, the questionnaires and the interviews

in relation to the interestingness of coupled changes

and attributes.

We discuss the analysis outcomes and

evaluate the validity of our results by taking into ac-

count the feedback from the developers.

5.1 Case Description

The cases we investigate in this study represent three

software projects. Two projects were provided by IT

companies from the area of Stuttgart, Germany. The

third one is an open-source project developed at the

University of Stuttgart. The ﬁrst project under anal-

ysis is a web-based software written in Java and sup-

plied by an industrial partner. The project repository

contains 1,610 commits out of which we consider the

commits made by 26 developers during 2 years of de-

velopment. The commit messages are stored in Git

and the issues are tracked using JIRA. The second

project is a C# software supplied by another company.

The analysis results are available at http://dx.doi.org

/10.5281/zenodo.15065

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

It has 159 commits created by 5 developers during

1 year. The project used Mercurial as version con-

trol tool and Redmine for issues management. The

third project is a Java open source software supplied

by student developers. It contains 752 commits, com-

mitted by 9 developers during 1 year. It uses Git for

the versioning and Redmine as issue tracking system.

Certain project documentation archives were avail-

able from where we extract the information about the

software structure and the naming conventions for the

projects.

5.2 Findings

5.2.1 Number of Couplings (RQ1)

We summarize the analyzed information form the our

repository data. Referring to the ﬁrst project, we iden-

tify relevant data from 22 out of 26 developers. For

the second project, the data from 4 out of 5 develop-

ers is taken into account. For the third project, all 9

developers committed suitable data for analysis. The

rest of the developers reported a low number of com-

mits. We exclude their commits as unsuitable to suc-

cessfully perform the data mining analysis. Their data

did not reach the established minimum support we de-

ﬁned previously. These results are presented in Table

The number of commits shows the size of the

projects followed by the number of change couplings

found during the data mining process. The number

of coupled changes represents the basis of our anal-

ysis. The analysis of the data from the ﬁrst reposi-

tory delivers 205 couplings. The second, a very small

repository, reports only 13 coupled changes. The third

repository delivered 200 coupled changes.

Table 1: Results based on repository analysis.

Project 1 Project 2 Project 3

No. of relevant

developers 22 4 9

No. of commits

total 1,610 138 752

No. of couplings

found 205 13 200

Freq. items

support 0.2 0.2 0.1

The results report that larger or older projects de-

liver more data to analyze, delivering larger number

of couplings.

5.2.2 Interestingness of Coupled Changes (RQ2)

We asked the participants how interesting they ﬁnd

that coupled changes are for bug ﬁxing or mainte-

nance tasks. The results report that 19 of 23 devel-

opers had a neutral opinion for the concept of cou-

pled changes while 4 of the participants noted cou-

pled changes as interesting. None of the developers

reject the idea as not interesting (Table 2).

Table 2: Interestingness of coupled changes.

involved not involved all

interesting 2 2 4

neutral 9 10 19

not interesting 0 0 0

sum 11 12 23

The fact that the developers do not reject coupled

changes allows us to continue our analysis. This re-

search question is the basis for further interesting-

ness analysis. We proceed our analysis and investi-

gate how coupled changes depend on the developers

characteristics like their programming and project ex-

perience. Taking into account our small sample size,

we refrain from formal hypothesis testing.

5.2.3 Inﬂuence of Developer Experience on

Interestingness (RQ3)

The results in Table 2 show that there is no differ-

ence based on the involvement of the developers in

the projects. Both involved and uninvolved develop-

ers did not reject coupled changes. We group the de-

velopers answers based on their programming experi-

ence. Table 3 shows the distribution of the developers

by their programming experience. In contrast to our

expectations, both experienced and inexperienced de-

velopers are interested in coupled changes. In table

4 we present the distribution of the interestingness of

coupled changes related to the programming experi-

ence of the developers. None of the developers reject

the coupled changes. The sample size of the results

is not suitable to formally test a hypothesis for this

research question.

Table 3: Developers experience.

progr. experience frequency frequency [%]

<1 year 2 9

1–3 years 4 17

3–5 years 9 39

>5 years 8 35

Are Suggestions of Coupled File Changes Interesting?

Table 4: Couplings and developer’s experience.

programming not

experience interesting neutral interesting

<1 year 0 2 0

1–3 years 2 2 0

3–5 years 1 8 0

>5 years 1 7 0

5.2.4 Interestingness of Additional Information

(RQ4)

We investigate the interestingness of additional at-

tributes from the repository we have joined to the cou-

pled ﬁles. To support the coupled changes, we report

common meta-data attributes (Steven and Zach, 2013)

which allow us to ﬁnd more information about the

commits, the issues and the product itself. The reposi-

tories offer various attributes concerning the commits

performed, the issues found and the project structure.

We asked the participants to report which attributes

they ﬁnd interesting. The results show that most of

the offered attributes are rated by the developers as

interesting. From our commit attributes, most of the

developers ﬁnd the commit message to be the most in-

teresting attribute followed by the ﬁle name. The de-

velopers do not show much interest for the the commit

time, the commiter and the ﬁle type. The commit id

as attribute does not attract the developers’ attention.

From our issue attributes, most of the developers are

interested in the issue description. Some of the de-

velopers ﬁnd the issue status and type to be interest-

ing. The issue time does not interest the developers.

From our documentation, the naming convention and

the project structure information is more interesting

than the naming convention as shown in Table 5.

Table 5: Interesting attributes.

frequency

type question frequency [%]

commits attributes

commit message 22 95

ﬁle name 18 78

ﬁle type 9 39

commit time 8 34

commiter 6 26

commit id 2 9

issues

issue title 21 91

issue status 15 65

issue type 14 60

issue time 6 26

docu

project struct. 20 86

naming conv. 15 65

100

commit message commiter commit Time commit ID file Names file types

Developers %

Attributes

Distribution of commit attributes

>5 Years

<5 Years

Figure 1: Commit attributes distribution for high and low

experience.

100

issue author issue description issue type issue status issue time

Developers %

Attributes

Distribution of issue attributes

>5 Years

<5 Years

Figure 2: Issue attributes distribution for high and low ex-

perience.

5.2.5 Inﬂuence of Developer Experience on

Interestingness of Additional Information

(RQ5)

We examined the distribution of interestingness of

various commit, issue and project attributes according

to developers’ experience. We created two groups of

developers in this context: experienced, having more

than 5 years experience and inexperienced, having

less than 5 years of experience. We continue using

these two categories of developers. The results show

that the experienced developers have a more clear pic-

ture about which attributes are interesting for them.

They have chosen a lower number of attributes. The

inexperienced developers have marked many commit

and issue attributes being interesting for them.

The more experienced developers’ choice is more

narrow than the one for the inexperienced ones. The

distribution of commit attributes is shown in Figure 1.

The distribution of issue attributes is presented in Fig-

ure 2.

5.2.6 Validation and Theory

After the data mining analysis, we performed the

interviews with developers who were active on the

projects. For the ﬁrst project, we managed to enlist

2 of the developers for interviewing. For the second

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

Figure 3: Theoretical Framework.

project, we interviewed 2 developers and from the

third project, we interviewed 4 out of 9 developers.

They had been involved in the project from the begin-

ning and have the most knowledge about the software.

We also interviewed 4 developers not involved in any

of the projects.

Using Grounded Theory analysis on the interview

transcripts, we derived a corresponding theory. We

created the codes using an open coding procedure of

the memos we created. They represent the answers of

our participants to interview questions. We extracted

the codes by identifying common issues in their an-

swers.

We continued with the axial coding where we

identiﬁed several categories as presented in Figure 3.

The core category we identiﬁed after the selective

coding is Interestingness of couplings and software

repository information. The results from the theoret-

ical code show the core category, the subcategories

and the relationships presented as a diagram in Fig-

ure 3. We have categories covering the attributes we

found to be interesting: version control attributes, is-

sue attributes and project documentation. They are

respectively divided in these subcategories: commit

message, ﬁle names, issue titles, issue types, project

structure and naming conventions. They represent the

most interesting attributes which affect the interest-

ingness of coupled changes.

The next categories are the visualization of cou-

pled changes, consisting of the sub-category orga-

nized view, and the category context of coupled

changes. The last two categories represent an addi-

tional feedback given by the interviewed developers

where they would like to see an organized represen-

tation of changed ﬁles with a possibility to ﬁlter the

information about them. They would also like to have

information about the context of the changes.

We present the key concepts of the theory together

with their relations in Figure 4. We see that the in-

terestingness of the coupled changes also depends on

the chosen repository attributes. Furthermore, it is

also important to develop an organized presentation

of coupled changes to the developers and to describe

the context of these changes.

Figure 4: Conceptual Model from Grounded Theory.

5.3 Discussion

The results related to RQ1 show that large reposito-

ries deliver more couplings compared to the smaller

or younger repositories. Projects with a low number

of commits which lasted for a shorter time, do not pro-

vide enough data for a broader analysis. The number

of commits and their size limit the output of our anal-

ysis. Our results lead to the conclusion that we need

a relatively high number of couplings to be able to

present a more exhaustive support for the developers

in their tasks. Still, our analysis discovers that in our

projects we can identify frequent coupled ﬁle changes

using the proposed mining technique.

The results for RQ2 from the analysis of the ques-

tionnaires, weakly support that coupled changes are

Are Suggestions of Coupled File Changes Interesting?

interesting. The general concept of coupled changes

was received mostly as neutral. The fact that none of

the developers rejected the coupled changes, gives us

an impulse to investigate other attributes related to the

coupled changes. We proceeded with the analysis of

the interestingness based on the developers’ experi-

ence. During the interviews, the acceptance increased

when actual examples of coupled changes were pre-

sented to the developers.

For RQ3, we expected that the coupled changes

would be interesting for developers having a lack of

programming or experience on the project. Our re-

sults at contrary show that experienced developers are

also interested in coupled changes. Also the fact that

both involved and uninvolved developers gave simi-

lar results, makes the coupled changes attractive for a

broader audience. This encourage us that the coupled

changes should be part of an integrated tool support

for developers.

Answering RQ4, our results show that most of the

attributes we reported are considered interesting by

the developers. These results were also validated by

the interviews. From our commit attributes, the ques-

tionnaire and the interviews, we report that the com-

mit message and the ﬁle names are the most interest-

ing attributes. For the issue attributes, these are the

issue description and the issue type, and for the doc-

umentation the project structure and the naming con-

vention are most interesting for the developers. We re-

port a number of attributes used by the tools involved

in all three projects. The attributes we deﬁned are

known and common in software development. Dur-

ing the analysis of the interviews, however, we found

that the developers want a clear presentation of the

couplings. They also reported that they would like to

see the context of the coupled changes. This brings

additional aspects to be considered in further research

about coupled changes.

The results for RQ5 show that experienced devel-

opers know well what kind of attributes they want

to see. Their choice is more precise. In contrary,

the inexperienced developers do not have a clear pic-

ture what attributes they want to add to the coupled

changes. The fact that the developers consider various

attributes to be interesting brings us to the conclusion

that we do should not make a ﬁxed choice of attributes

for all developers. We can offer the possibility for the

developers to choose the attributes individually. This

way, we support the developers which are not sure

what attributes can be helpful to accomplish bug ﬁx-

ing or maintenance tasks.

5.4 Evaluation of Validity

We validated the results of our study by checking all

the steps in the procedure of gathering and transform-

ing the data from the repository, the analysis methods

and the results.

In our study, we use a single data mining tech-

nique for the reason that the frequent itemsets tech-

nique is most appropriate for investigating frequent

couplings. We investigated products built with com-

mon technologies and the repositories are maintained

by well known and commonly used products.

We tested different threshold values for the sup-

port and the conﬁdence of the algorithm to produce

a sufﬁcient number of frequent itemsets. The rela-

tively low support threshold signalizes that there is

not much space for a greater reduction of the value.

However, it also reports a relatively low number of

frequent couplings which reduces the possibility that

these couplings happened by chance.

We validated the outcomes of the questionnaire

answers by asking the developers again in the inter-

views about the interestingness of the couplings and

attributes. The interview transcript was coded by two

persons after we compared the notes. This way we

checked whether we understood the developer’s an-

swers correctly. We interviewed both involved and

not involved developers on the projects. We also per-

formed double checks of the coding and the outcomes

of the Grounded Theory analysis.

6 CONCLUSION AND FUTURE

WORK

We summarize the conclusions from the case study,

set them into relation with existing evidence, discuss

possible implications and limitations and describe fu-

ture research directions.

6.1 Summary of Conclusions

According to our results, we need relatively large

repositories to be able to perform a successful analy-

sis and report useful numbers of coupled changes. We

conclude that coupled changes are to some degree in-

teresting for the developers. The software repository

attributes we joined to the couplings were accepted by

the developers as interesting. Although we provided

a number of attributes and aspects following the cou-

pled changes, the developers suggested additional ac-

companying information. They would like to see the

context of the changes and they also care about that

how the suggestions should be presented to them.

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

Our results lead to the conclusion that the cou-

plings are also interesting for more experienced devel-

opers. Developers with various level of programming

experience ﬁnd different coupled change attributes as

interesting. We conclude that the list of attributes

to be presented should be individually adjusted by

the developers. The Grounded Theory shows that

these attributes affect the interestingness of coupled

changes.

6.2 Relation to Existing Evidence

The authors in (Revelle et al., 2011) investigate source

code features coupling using structured and textual

features where the developers are surveyed to deter-

mine if the metrics align with the developers’ opin-

ion. Their results show that the developers support the

feature coupling metrics they propose indicating that

the measures capture couplings between features. Our

results show that the developers accept the concept

of coupled changes and the corresponding attributes

from the repository.

We investigate the interestingness of coupled

changes as explained in (Ying et al., 2004), whereby

the authors use open-source projects and categorize

the interestingness of couplings according to their cri-

teria. We studied the coupled ﬁle changes in relatively

small projects: two industrial projects and one open

source project which reduces the number of couplings

found. We used the developer’s feedback to determine

the interestingness of coupled changes instead of stat-

ically deﬁning the interestingness of couplings.

6.3 Impact/Implications

This case study gives evidence that the analysis of

coupled changes is interesting to the developers dur-

ing bug ﬁx or maintenance tasks. Yet, the interest is

rather weak overall. Therefore, other contextual in-

formation should be investigated in future research to

increase the interestingness. This kind of suggestions

could be incorporated in a tool to support the devel-

opers during maintenance or bug ﬁxing tasks.

6.4 Limitations

As it is case study research, we cannot guarantee

the generalizability of the study. The data comes

from two software development companies and one

open-source project. However, the procedure should

be similar for other projects for the reason that we

use well deﬁned data mining algorithms, techniques

and commonly used data sources. We can perform

our analysis on similar projects or data sources using

these techniques. The number of coupled changes we

found is limited by the support value of the frequent

itemsets algorithm. We do not report a large number

of couplings. Our results preserve the most frequent

couplings, however, which are the most valid ones.

We have a small sample which is not suitable for a

deeper statistical analysis. Yet, our ﬁndings constitute

a ﬁrst insight about developers’ opinion on coupled

ﬁle changes.

6.5 Future Work

We plan to continue our research on coupled changes

by directly observing their use for a real bug ﬁx or

maintenance tasks. The next step is to perform an

experiment to investigate the usefulness of coupled

changes to and create a tool to present this changes to

the developers. Furthermore, based on our ﬁndings,

we believe more research should look into comple-

menting the reporting of coupled changes with infor-

mation from additional, related data sources.

ACKNOWLEDGMENT

The authors would like to thank Asim Abdulkhaleq

for his help in the interview transcripts and coding for

the Grounded Theory analysis.

REFERENCES

Agrawal, R. and Srikant, R. (1994). Fast algorithms for

mining association rules in large databases. In Pro-

ceedings of the 20th International Conference on Very

Large Data Bases, VLDB ’94, pages 487–499, San

Francisco, CA, USA. Morgan Kaufmann Publishers

Inc.

Bavota, G., Dit, B., Oliveto, R., Di Penta, M., Poshyvanyk,

D., and De Lucia, A. (2013). An empirical study on

the developers; perception of software coupling. In

Proceedings of the 2013 International Conference on

Software Engineering, ICSE ’13, pages 692–701, Pis-

cataway, NJ, USA. IEEE Press.

Bieman, J., Andrews, A., and Yang, H. (2003). Understand-

ing change-proneness in oo software through visual-

ization. In Program Comprehension, 2003. 11th IEEE

International Workshop on, pages 44–53.

Bird, C., Rigby, P. C., Barr, E. T., Hamilton, D. J., Germ

an,

D. M., and Devanbu, P. T. (2009). The promises and

perils of mining git. In MSR, pages 1–10.

Canfora, G. and Cerulo, L. (2005). Impact analysis by min-

ing software and change request repositories. In Soft-

ware Metrics, 2005. 11th IEEE International Sympo-

sium, pages 9 pp.–29.

Are Suggestions of Coupled File Changes Interesting?

Carlsson, E. (2013). Mining git repositories : An introduc-

tion to repository mining.

D’Ambros, M., Lanza, M., and Robbes, R. (2009). On the

relationship between change coupling and software

defects. In WCRE, pages 135–144.

Fischer, M., Pinzger, M., and Gall, H. (2003). Populating

a release history database from version control and

bug tracking systems. In Proceedings of the Inter-

national Conference on Software Maintenance, ICSM

’03, pages 23–, Washington, DC, USA. IEEE Com-

puter Society.

Fluri, B., Gall, H., and Pinzger, M. (2005). Fine-grained

analysis of change couplings. In Source Code Analy-

sis and Manipulation, 2005. Fifth IEEE International

Workshop on, pages 66–74.

Fournier-Viger, P. (2013). How to auto-adjust the min-

imum support threshold according to the data size.

http://data-mining.philippe-fournier-viger.com/.

Frawley, W. J., Piatetsky-shapiro, G., and Matheus, C. J.

(1992). Knowledge discovery in databases: an

overview.

Gall, H., Jazayeri, M., and Krajewski, J. (2003). Cvs re-

lease history data for detecting logical couplings. In

Software Evolution, 2003. Proceedings. Sixth Interna-

tional Workshop on Principles of, pages 13–23.

German, D. M. (2004). Mining cvs repositories, the

softchange experience. In 1st International Workshop

on Mining Software Repositories, pages 17–21.

odi, C. and Gy

odi, R. (2004). A comparative study

of association rules mining algorithms.

Han, J. (2005). Data Mining: Concepts and Techniques.

Morgan Kaufmann Publishers Inc., San Francisco,

CA, USA.

Han, J., Pei, J., Yin, Y., and Mao, R. (2004). Min-

ing frequent patterns without candidate generation: A

frequent-pattern tree approach. Data Min. Knowl. Dis-

cov., 8(1):53–87.

Hassan, A. E. and Holt, R. C. (2004). Predicting change

propagation in software systems. In Proceedings of

the 20th IEEE International Conference on Software

Maintenance, ICSM ’04, pages 284–293, Washing-

ton, DC, USA. IEEE Computer Society.

Hattori, L., dos Santos Jr, G., Cardoso, F., and Sam-

paio, M. (2008). Mining software repositories for

software change impact analysis: A case study. In

Proceedings of the 23rd Brazilian Symposium on

Databases, SBBD ’08, pages 210–223, Porto Ale-

gre, Brazil, Brazil. Sociedade Brasileira de Com-

putação.

Kagdi, H., Collard, M. L., and Maletic, J. I. (2007). A sur-

vey and taxonomy of approaches for mining software

repositories in the context of software evolution. J.

Softw. Maint. Evol., 19(2):77–131.

Kagdi, H., Yusuf, S., and Maletic, J. I. (2006). Mining se-

quences of changed-ﬁles from version histories. In

Proceedings of the 2006 International Workshop on

Mining Software Repositories, MSR ’06, pages 47–

53, New York, NY, USA. ACM.

Loeliger, J. (2009). Version Control with Git - Power-

ful techniques for centralized and distributed project

management. O’Reilly.

McGarry, K. (2005). A survey of interestingness measures

for knowledge discovery. Knowl. Eng. Rev., 20(1):39–

61.

Revelle, M., Gethers, M., and Poshyvanyk, D. (2011). Us-

ing structural and textual information to capture fea-

ture coupling in object-oriented software. Empirical

Softw. Engg., 16(6):773–811.

Runeson, P. and H

ost, M. (2009). Guidelines for conduct-

ing and reporting case study research in software en-

gineering. Empirical Softw. Engg., 14(2):131–164.

Sayles, J. et al. (2011). z/OS Traditional Application Main-

tenance and Support. IBM Redbooks.

Shirabad, J., Lethbridge, T., and Matwin, S. (2003). Mining

the maintenance history of a legacy software system.

In Software Maintenance, 2003. ICSM 2003. Proceed-

ings. International Conference on, pages 95–104.

Steven, J. and Zach, W. (2013). Bad commit smells.

http://pages.cs.wisc.edu/ sjj/docs/commits.pdf.

Stevens, W. P., Myers, G. J., and Constantine, L. L. (1974).

Structured design. IBM Syst. J., 13(2):115–139.

Strauss, A. and Corbin, J. M. (1998). Basics of Qualitative

Research : Techniques and Procedures for Developing

Grounded Theory. SAGE Publications.

van Rysselberghe, F. and Demeyer, S. (2004). Mining Ver-

sion Control Systems for FACs (frequently Applied

changes). In the International Workshop on Mining

Repositories, Edinburgh, Scotland, UK.

Wu, R., Zhang, H., Kim, S., and Cheung, S.-C. (2011). Re-

link: Recovering links between bugs and changes. In

Proceedings of the 19th ACM SIGSOFT Symposium

and the 13th European Conference on Foundations of

Software Engineering, ESEC/FSE ’11, pages 15–25,

New York, NY, USA. ACM.

Ying, A. T. T., Murphy, G. C., Ng, R. T., and Chu-Carroll,

M. (2004). Predicting source code changes by min-

ing change history. IEEE Transactions on Software

Engineering, 30(9):574–586.

Zimmermann, T., Kim, S., Zeller, A., and Whitehead, Jr.,

E. J. (2006). Mining version archives for co-changed

lines. In Proceedings of the 2006 International Work-

shop on Mining Software Repositories, MSR ’06,

pages 72–75, New York, NY, USA. ACM.

Zimmermann, T., Weisgerber, P., Diehl, S., and Zeller, A.

(2004). Mining version histories to guide software

changes. In Proceedings of the 26th International

Conference on Software Engineering, ICSE ’04, pages

563–572, Washington, DC, USA. IEEE Computer So-

ciety.

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering
