An Easy Approach for the Classiﬁcation of Children’s Voices based on

the Fundamental Frequency Estimation

Laura Verde, Giuseppe De Pietro and Giovanna Sannino

Institute of High Performance Computing and Networking (ICAR) - CNR, 80131 Naples, Italy

Keywords:

Dysphonia, Children Voice Disorders, m-health Application, Fundamental Frequency Estimation.

Abstract:

Voice disorders, also called dysphonia, are qualitative and quantitative alterations of the voice. These patholo-

gies, unfortunately, affect from 6% to 38% of children in the world. Voice disorders may have a negative

impact on communication effectiveness, social development and self-esteem. The ﬁrst weapon against the

diffusion and the worsening of these pathologies is prevention. Acoustic analysis is one of the most important

tools to appraise the state of health of a voice. It provides information about the possible presence of voice

disorders by evaluating speciﬁc parameters like the Fundamental Frequency. In this paper we present an easy

approach based on a mobile application for voice screening in children. The app provides a robust methodol-

ogy for the fundamental frequency estimation of the voice signal by analysing in real time a child’s signal. It

consists of a continuous vocalization of the vowel /a/ of ﬁve seconds in length. The methodology is also able

to evaluate undesired noise that can alter the Fundamental Frequency estimation and the correct classiﬁcation

of the evaluated voice signal as pathological or healthy.

1 INTRODUCTION

Dysphonia indicates a disturbance of the phonatory

apparatus, that can alter vocal quality, pitch, and loud-

ness. Such disorders can limit the conversations be-

tween people (Glaze, 1996) and social relationships

and reduce self-esteem.

Although people think that these disorders mainly

involve adults, particularly speciﬁc groups of profes-

sional voice users such as teachers or singers, dyspho-

nia also affects children. In fact, reports of childhood

voice disorders describe an incidence among school-

age children (5-18 years), with a percentage between

6% and 38%. Kahane and Mayo (Kahane and Mayo,

1989) concluded that very few children with voice

disorders, only between 2% and 4%, are ever seen

by a Speech-Language Pathologist (SLP) (Deal et al.,

1976; McNamara and Perry, 1994). Leeper (Leeper,

1992) estimates that 38% of elementary school chil-

dren present with chronic hoarseness. There is a wide

variety in the numbers relating to this incidence due

to: 1) a lack of consistent measurement techniques,

and 2) a variability in listener perceptual judgement.

In children dysphonia may have a multifactorial

origin: various causes, in fact, can be combined

with each other and contribute to the phenomenon.

Voice disorders can have an organic nature, resulting

from, for example, chromosomal defects, congenital

anomalies, lesions of the larynx, inﬂammatory reac-

tions of the laryngeal mucosae and deep tissues, en-

docrine disorders (errors of the metabolism whose in-

cidence on normal enzymatic sequences can cause an

abnormal inﬁltration or faulty nerve and muscle func-

tion) or gastroesophageal reﬂux (Dejonckere, 1999).

Generally, voice diseases in children can be associ-

ated with vocal abuse. Typical behaviours of children

such as talking too long, too loud and with too much

effort, can cause damage to the vocal folds. Often,

these behaviours are inﬂuenced by the environments

where the children spend signiﬁcant time, such as dry

or noisy rooms in schools, or by the environmental

background noise of loud television or music in their

rooms.

In detail, paediatric voice disorders can be classi-

ﬁed into two groups:

• Congenital: Vocal Fold Paralysis, Laryngeal

Stenosis, Laryngomalacia, Laryngocele, Web-

bing, and Anterior Laryngeal Cleft;

• Acquired: Chronic Laryngitis, Laryngeal

Trauma, Hyperfunction w/o Lesions, Vocal

Nodules, Vocal Polyps, Contact Ulcers, or Vocal

Fold Paralysis.

There is no doubt that prevention is the most im-

570

Verde, L., Pietro, G. and Sannino, G.

An Easy Approach for the Classiﬁcation of Children’s Voices based on the Fundamental Frequency Estimation.

DOI: 10.5220/0005849005700577

In Proceedings of the 9th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2016) - Volume 5: HEALTHINF, pages 570-577

ISBN: 978-989-758-170-0

portant weapon for the future. The increase of infor-

mation about these disorders, the abolition of negative

environmental factors and of unhealthy behavioural

habits, and the use of tools for voice analysis are the

main factors to avoid the contracting of any of these

pathologies and represent the prerequisite for a suc-

cessful application of the therapy.

In this paper we propose a methodology able to

estimate the presence of voice disorders in a non-

invasive way in order to provide an easy, fast and

entertaining tool, using a mobile health application.

This instrument can be useful to monitor the status

and progress throughout the treatment program, as

well as to provide useful advice on healthy lifestyle

behaviours to follow to prevent voice disorders.

2 BACKGROUND

The SIFEL protocol (Lucchini, 2002) indicates the

guidelines for evaluating the presence of voice dis-

orders. The Italian Society of Logopedics and Phoni-

atrics developed this protocol in accordance with the

directives of the Committee for Phoniatrics of the Eu-

ropean Society of Laryngology.

According to this protocol, the evaluation of dys-

phonia consists in a series of tests, such as an

anamnestic evaluation, a laryngo-video-stroboscopic

examination, a subjective self-assessment of the

voice and an acoustic analysis. A laryngo-video-

stroboscopic examination is necessary to identify

morphodynamic changes of the larynx. It is difﬁ-

cult to perform this invasive examination on children

due to the complaints and inconveniences that they

may cause. For this reason, acoustic analysis is the

most effective instrument to extract of the pathologi-

cal voice characteristics.

This analysis provides a view of some character-

istics of the speech signal, by calculating some pa-

rameters like the Fundamental Frequency (F

), jitter

or shimmer, parameters that can be quantiﬁed at that

speciﬁc time and whose evolution can be monitored

over time. In particular, the F

provides a measure

of the rate of vocal vibration, any lesions on the vo-

cal folds being able to alter the F

value (Casper and

Leonard, 2006).

A voice disorder is generally present if the F

value, as well as the other parameters calculated in

the analysis acoustic, is outside an appropriate healthy

range. Unfortunately, the F

is inﬂuenced by different

factors:

• anatomic factors: child, female and male voices

differ signiﬁcantly due to changes in the anatom-

ical structures of the larynx and especially of

the vocal folds during the years (Angelillo et al.,

2015; Hunter et al., 2011);

• the physical conformation of the user: the length,

tension, or mass of the vocal folds (Hunter et al.,

2011);

• the use of the voice: the pressure of the forced ex-

piration, or the sub-glottal pressure (Hunter et al.,

2011);

• the state of health of the person: the emotions and

state of health of people can determine changes

in the vibrations of vocal folds and so alter the

dynamics of pitch (Johnstone and Scherer, 1999;

Nerri

ere et al., 2009);

• lifestyle: incorrect lifestyle habits like smoking

(Gonzalez and Carpi, 2004), and alcohol intake

(Cooney, 1998), such bad habits unfortunately

increasing among boys and girls (Lorant et al.,

2015; Pinilla et al., 2002; Simons-Morton et al.,

2001) and so inﬂuencing the health of the voice.

Therefore, it is important to perform the F

esti-

mation as accurately as possible to obtain a reliable

acoustic analysis. The mobile application realized

provides the F

estimation, the ﬁrst and the most im-

portant parameter of the acoustic analysis.

We have aimed to develop a gamiﬁcation instru-

ment useful to perform an evaluation of the possible

presence of voice disorders, using a simple mobile de-

vice such as a smartphone or tablet. In this way, chil-

dren can independently assess the health of their own

voice. Several studies (King et al., 2013; Miller et al.,

2014) have reported, in fact, that mobile health ap-

plications can represent an effective way to promote

health interventions. The choice of using mobiles has

been dictated by the rapid spread of these devices

among boys and girls and the continued development

of m-Health systems. Given children’s propensity for

mobile apps, this approach may provide important op-

portunities to engage them and to help them follow

healthy lifestyles and adopt appropriate behaviours.

3 RELATED WORK

Several systems and apps have been found in litera-

ture, developed to promote the prevention of health

disorders and to educate towards a correct lifestyle.

There are commercial games, for example, aimed at

increasing physical ﬁtness or at counteracting depres-

sion in teenagers and social isolation in the elderly

(McCallum, 2012). Games have also been realized

for speciﬁc health conditions, such as Bant, a mobile

app useful to improve glucose monitoring among ado-

lescents with diabets (Cafazzo et al., 2012).

An Easy Approach for the Classiﬁcation of Children’s Voices based on the Fundamental Frequency Estimation

571

There are, moreover, several apps to help people

suffering from dementia, as reported by (Kong, 2015).

In (Kong, 2015)’s study the performance of several

appropriate apps, present on the iTunes market, has

been evaluated with people suffering from early stage

dementia. Different parameters were analyzed such

as the usability, price of the app, and the reactions of

clinicians and involved patients.

In this study, for the F

estimation, several sys-

tems and apps, based on different algorithms found

in literature, have been studied. Nevertheless, none

of these can be considered as a personal and portable

instrument that is reliable in terms of its results and

pathology classiﬁcation capability.

Opera Vox (Baki et al., 2013) is an example of

an app allowing people to perform acoustic measure-

ments. Unfortunately, it indicates to the user only the

values of the calculated parameters of the acoustic

analysis, these results not being easily interpretable

by users without the support of an expert. In Opera

Vox, the used algorithm to estimate the F

is based on

the autocorrelation function (ACF).

The ACF (Tan and Karnjanadecha, 2003) of the

speech signal is a traditional algorithm for the F

es-

timation. It is used to estimate the fundamental pe-

riod, selecting the maximum peak of this function.

The ACF is obtained by computing the correlation be-

tween a part of the windowed signal and its shifted

segment.

It is used also by PRAAT (Boersma, 1993) to esti-

mate the F

. PRAAT is a tool, distributed for free use,

commonly employed for acoustic analysis in clinical

and research settings. In the PRAAT F

estimation al-

gorithm, the speech signal is divided into frames us-

ing an appropriate window to minimize spectral leak-

age. The F

is estimated for each frame.

An alternative to the autocorrelation function

is the ”Average Magnitude Difference function

(AMDF)” (Ross et al., 1974), where the fundamental

period is estimated by calculating the local minima of

the difference function between the speech signal and

its shifted version of an appropriate period.

Another algorithm is the ”Dynamic Programming

Projected Phase-Slope Algorithm (DYPSA)”, able to

perform an automatic estimation of glottal closure in-

stants (GCIs) in voiced speech. It employs dynamic

programming to identify the best GCI candidates by

minimizing some cost functions (Naylor et al., 2007).

The ”Robust Algorithm for Pitch Tracking

(RAPT)” is a time-domain F

estimation algorithm

that uses the ”Normalized Cross-Correlation Func-

tion (NCCF)” (Talkin, 1995). It compares frames of

the original speech with sub-sampled frames of the

same signal and searches for the local maxima of the

NCCF to identify the peak locations and amplitude

estimates. On all frames of the speech signal the se-

ries of NCCF peaks and the F

candidates are selected

by using a dynamic programming. While RAPT esti-

mates F

in the time domain, an algorithm that works

in the frequency domain is SHRP (Sun, 2002), in

which the F

estimate is obtained through spectrum

shifting on a logarithmic frequency scale, calculating

the Subharmonic-to-Harmonic Ratio (SHR).

The ”Sawtooth Waveform Inspired Pitch Estima-

tor (SWIPE)” (Camacho and Harris, 2008), instead, is

an algorithm in which the fundamental frequency of

the sawtooth waveform whose best spectrum equals

the spectrum of the speech signal is adopted as the

pitch.

Even if there are many suitable algorithms for the

fundamental frequency estimation, most of these are

not runnable on mobile devices and are not easy to

use as prevention tools by non-experts.

4 THE MOBILE APPLICATION

The mobile application was developed in the Java

Programming Language using Eclipse IDE and the

Android Software Developer Kit (SDK). Several as-

pects were considered in the realization of the app.

We aimed to develop an app that boys and girls can

use easily, with a clear design and an intuitive inter-

face to perform several tasks.

The main objectives, on which the mobile appli-

cation was developed, are:

• to increase the user’s motivation for self-

improvement;

• to educate the user in the physical behaviours that

contribute to an inappropriate voice (e.g. posture,

breathing, and muscular tension);

• to inform the user about lifestyle factors that con-

tribute to an inappropriate voice (e.g. a noisy en-

vironment, sleeping or eating habits, and air pol-

lution);

• to inform the user about interpersonal behaviours

that contribute to an inappropriate voice (e.g. talk-

ing too much, ignoring feedback, and competing

for attention);

• to estimate and evaluate the fundamental fre-

quency of a voice signal;

• to discriminate a possible pathological voice from

a healthy one.

To achieve the latter two objectives, we optimized

a methodology for F

estimation, with a noise evalua-

SmartMedDev 2016 - Special Session on Smart Medical Devices - From Lab to Clinical Practice

572

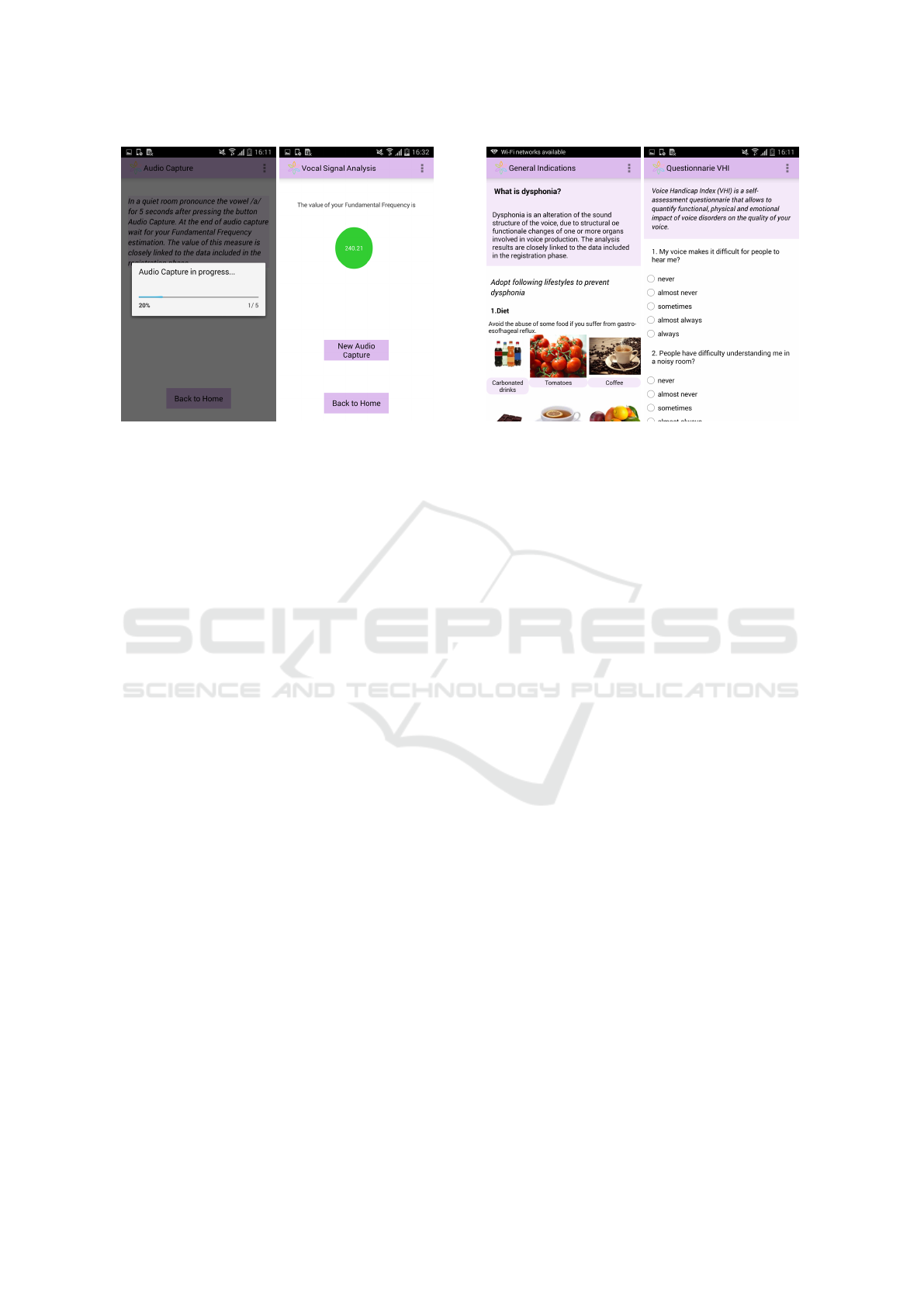

Figure 1: Screenshots of the audio capture phase and of the

vocal signal analysis report.

tion, using an appropriate methodology, described in

the following sections.

The realized app acquires the child’s vocalization.

It consists of recording of the vowel /a/ of ﬁve sec-

onds in length as required by the SIFEL protocol.

This speech signal is elaborated to estimate the F

by reducing the noise in real time, and to classify the

child’s voice as possibly pathological or healthy. The

procedures of audio capture and F

estimation are re-

ported in the screenshots of Figure 1.

Moreover, the realized app provides information

about dysphonia to explain to boys and girls its

causes and to suggest are suitable preventative healthy

life-style behaviours, e.g. avoiding certain kinds of

food, shouting, temperature changes, or noisy en-

vironments. Figure 2 reports the screen containing

information about dysphonia and some healthy life-

style behaviours.

Finally, the app allows the user to complete two

questionnaires useful for the self-evaluation of the

presence of a voice disorder, as required by the SIFEL

protocol: the Voice Handicap Index (VHI) (Forti

et al., 2014) and the Reﬂux Symptom Index (RSI)

(Belafsky et al., 2002). The ﬁrst questionnaire is a

correct and complete instrument to evaluate the pa-

tient’s self-perception of his her voice disorders. The

second questionnaire, instead, estimates if the patient

suffers from extra-esophageal reﬂux, a risk factor for

dysphonia. An example of the VHI questionnarie is

provided in the screenshot of Figure 2, each question

in the questionnaire including ﬁve possible answers

to to which a speciﬁc score corresponds depending

on the severity of the indicated symptom.

The user, to access the functionalities of the app

and perform the described procedures, must be au-

thenticated by the system, thanks the insertion of

Figure 2: Screenshots of the screen containing information

about voice disorders, e.g. about dysphonia and of the VHI

Questionnarie.

his/her credentials in the Login phase, shown in the

screenshot of the Figure 3. These credentials are

recorded and saved in the Registration phase with the

Wellness Server, an operation that the user must per-

form at his/her ﬁrst access to the app. The connection

with the Wellness Server is useful to collect the mon-

itored data of the user, to improve the his/her well-

being. The user, after being authenticated, can access

the homepage of the app where all the functionalities

are shown. A screenshot of the homepage of the app

is shown in Figure 3.

4.1 The Fundamental Frequency

Estimation Algorithm

The developed methodology for the F

estimation is

based on the algorithm reported in (De Cheveign

e and

Kawahara, 2002). By hypothesizing the periodicity

of the speech signal x

with a period T in each time-

segment of the signal, called the window (W), that in

our methodology is 10 ms long, we can deﬁne that the

speech signal does not vary for a time shift of T.

To ﬁnd the unknown fundamental period T of the

speech signal, τ values that minimize the difference

function d

(τ) are searched. The sum of the squared

differences between the speech signal and its shifted

version, in every window in which the speech signal

is divided, identiﬁes the difference function d

(τ), that

is:

(τ) =

∑

j=1

− x

j+τ

)

(1)

Due to the non perfect periodicity of the speech

signal, caused by to physiological and intentional

problems, this function is sensitive to amplitude

An Easy Approach for the Classiﬁcation of Children’s Voices based on the Fundamental Frequency Estimation

573

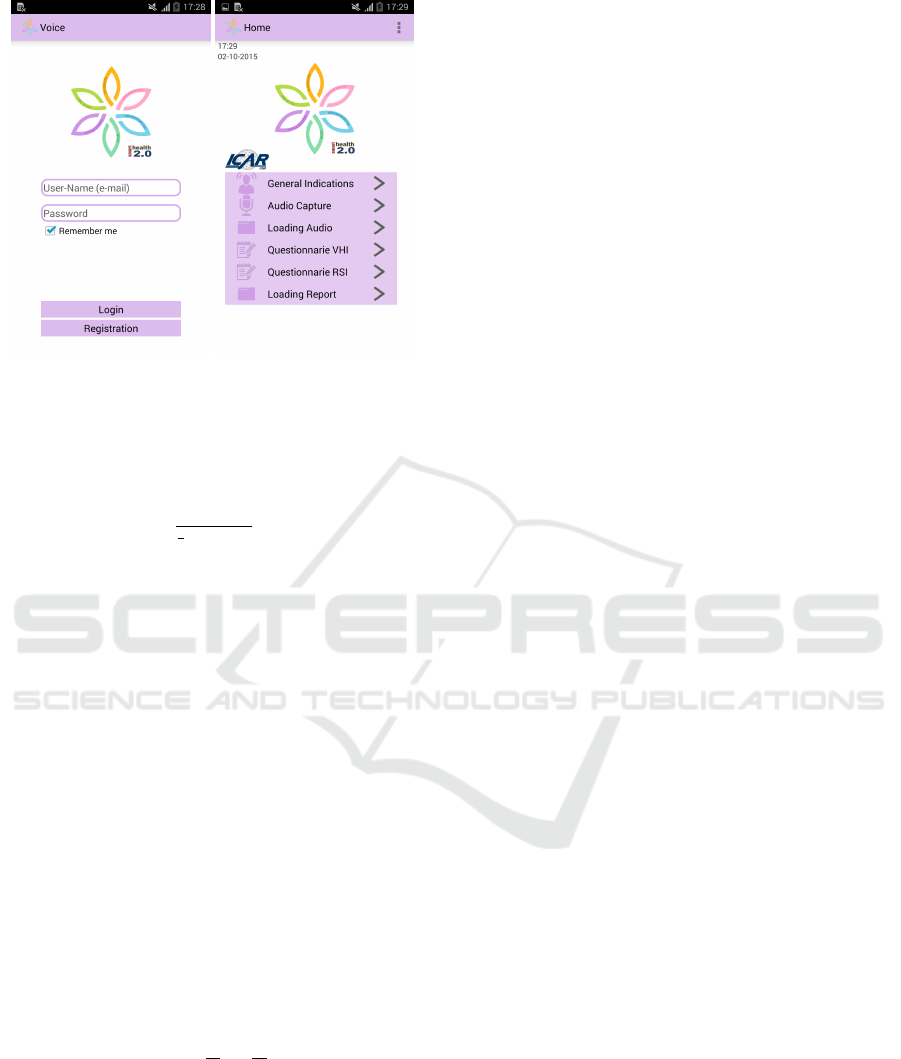

Figure 3: Screenshots of the log-in and of Homepage.

changes of the signal. A cumulative difference func-

tion is applied to reduce this effect and improve the

estimation, deﬁned as follows:

(τ) =

(

1 if τ = 0

(τ)

∑

j=1

( j)

else

(2)

Therefore, the values of τ that minimize this cu-

mulative difference function are searched and among

these those smaller than a threshold value are consid-

ered to calculate the unknown period. In our proposed

methodology, this threshold value was found empiri-

cally, a series of experimental tests have been carried

out to ﬁnd the value that gives the best estimation of

, also when the noise is inadvertently added to the

useful signal for the acoustic analysis. The thresh-

old value reported in (De Cheveign

e and Kawahara,

2002) is equal to 0.10, while the conducted experi-

mental tests have shown that the value that provides

the best estimation of the F

is equal to 0.40. To in-

crease the accuracy of the F

estimation, a parabolic

interpolation was used to reﬁne the local minima of

(τ) with their neighbouring values.

The F

is calculated as the average of the funda-

mental frequencies of all the windows into which the

speech signal has been divided, obtained as the in-

verse of T

on all the windows, that is:

∑

i=1

(3)

indicating N as the number of windows.

4.2 The Noise Evaluation

The F

estimation can be altered by the introduction

of noise during the speech signal acquisition. There-

fore, the acoustic analysis can be affected by possible

errors due to increase in the potential number of false-

positive diagnoses of voice disorders. Consequently,

we aimed to reduce the noise effects added during the

child’s vocal signal acquisition.

This objective was achieved using an FIR ﬁlter.

We have developed a causal linear-phase FIR ﬁlter

using the windowing technique, multiplying an ideal

ﬁlter with a ﬁnite-duration window function.

In practice, several types of windows are com-

monly used. To realize our ﬁlter we have used the

Hanning window, but there are other windows avail-

able, such as rectangular, Hamming or Blackmann.

The following equation describes the realized

Hanning ﬁlter in the time domain:

y(n) = d(x(n) + 2x(n − 1) + x(n − 2)) (4)

where the output signal is indicated as y(n) and

the input signal as x(n), while d is the normalization

factor. In this work, we have found the value of d em-

pirically. It is equal to 2 and it was discovered thanks

to experimental tests to identify the value that gives

the best noise evaluation.

5 EXPERIMENTS

The performance of the methodology for the F

esti-

mation was evaluated in a testing phase. This perfor-

mance was compared with other existing algorithms,

Praat (Boersma, 1993), the tool described in (Ross

et al., 1974), SWIPE (Camacho and Harris, 2008) and

Yin algorithms (De Cheveign

e and Kawahara, 2002).

The results are reported in terms of sensitivity,

speciﬁcity and accuracy, on the basis of these deﬁ-

nitions:

• True Positive (TP): the algorithm recognized the

pathology when the speech signal was pathologi-

cal;

• True Negative (TN): the algorithm recognized the

speech signal as healthy when it was healthy;

• False Positive (FP): the algorithm recognized the

pathology when the speech signal was healthy;

• False Negative (FN): the algorithm recognized the

speech signal as healthy when it was pathological.

In detail, the sensitivity measures the proportion

of true positive users (pathological voices) that are

correctly identiﬁed as positives by the evaluation of

the proposed methodology. Its value is evaluated as

TP/(TP+FN). The speciﬁcity, instead, is deﬁned as

the ratio of true negative users (healthy voices), users

that are correctly identiﬁed as negative, to the to-

tal unaffected patients tested. This value is equal to

SmartMedDev 2016 - Special Session on Smart Medical Devices - From Lab to Clinical Practice

574

TN/(TN+FP). Finally, the accuracy is the proportion

of the total number of correct predictions and it is

equal to (TP+TN)/(TP+TN+FP+FN).

The tests were performed on voices from an

available on-line database, the ”Saarbrucken Voice

Database” (SVD) (Mart

ınez et al., 2012), downloaded

from the URL [http://www.stimmdatenbank.coli.uni-

saarland.de].

The SVD database is a collection of recordings of

/a/ vowels. These recordings were made by the In-

stitute of Phonetics of Saarland University. The ﬁ-

delity of the signal was preserved by recording in a

mono-channel in the WAVE format and sampling the

recordings at 50 Hz with a resolution equal to 16-bit.

5.1 The Dataset

We have built a dataset composed of all the 22 chil-

dren’s voice samples of the SVD database, all the

available voices in the database used. It contains

the sustained phonation of the vowel sound /a/, the

phonation used in the acoustic analysis as required

by the SIFEL protocol. In detail the built dataset in-

cludes:

• 6 healthy voices, 5 voices of healthy male children

and 1 voice of a healthy female child;

• 16 pathological voices, 6 voices of pathological

male children and 10 of pathological female chil-

dren.

The selected children are aged between 9 and 16

years.

In particular, the pathologies included: psy-

chogenic aphonia, an inability to produce the voice,

laryngitis, an acute or chronic inﬂammation of the vo-

cal folds, and rhinolalia, an alteration of the voice tim-

bre, which acquires a nasal character.

5.2 Results

The selected voices are classiﬁed as healthy or patho-

logical considering a healthy range of values, the

range being reported in (Nicollas et al., 2008). In par-

ticular, we used the healthy range from 235 to 270 Hz

for male children and the range from 240 to 260 Hz

for female children.

Voices samples that fall within these ranges are

considered healthy. Those outside are considered as

possibly pathological.

The performance of the developed methodology is

reported in Table 1 in terms of sensitivity, speciﬁcity

and accuracy, in comparison with the performance

of other algorithms exiting in literature. The perfor-

mance of all algorithms have been evaluated on the

Table 1: Results.

Algorithm Sensitivity

(%)

Speciﬁcity

(%)

Accuracy

(%)

Proposed

Methodology

68.75 16.66 54.54

Praat

(Boersma,

1993)

50.00 16.66 40.90

AMDF (Ross

et al., 1974)

43.75 16.66 36.36

SWIPE (Ca-

macho and

Harris, 2008)

56.25 16.66 45.45

YIN

(De Cheveign

and Kawa-

hara, 2002)

50.00 16.66 40.90

same dataset, composed by the selected voices from

the SVD database, as indicated in the subsection 5.1.

The results reported in Table 1 indicate the

good accuracy of our methodology in discriminating

healthy voices from pathological ones compared to

Praat, to AMDF-based tool, to SWIPE and Yin al-

gorithm performances. Moreover, the table shows

the high sensitivity (the average sensitivity value is

equal to about 69%) of our methodology in compar-

ison with the other algorithms. This means that the

number of false negatives is lower, the algorithm gen-

erally recognizing the presence of a pathology when

the speech signal is indeed pathological.

It is important to note that this methodology was

embedded in a mobile application, usable and in-

terpretable by people without any medical support,

while the other algorithms are runnable only on Mat-

lab or are embedded in proprietary desktop applica-

tions, able to provide numerical results of the F

that

can be interpreted only by medical experts.

Although the proposed methodology performs an

accurate classiﬁcation of voice disorders in compari-

son with other algorithms, it does not consider differ-

ent factors that can alter voice production, such as the

anatomical conformation, state of health and lyfestyle

habits (smoking or alcohol intake). For this reason to

improve the classiﬁcation of voice disorders further

studies will be addressed at estimating other param-

eters like jitter and shimmer, in accordance with the

SIFEL protocol.

6 CONCLUSIONS

The diffusion of voice disorders at the paediatric age

has been increasing over the last few years. However,

fortunately, in contrast to past practice, a greater im-

portance has been given to voice screening in chil-

An Easy Approach for the Classiﬁcation of Children’s Voices based on the Fundamental Frequency Estimation

575

dren.

In most cases, voice disorders may impact on a

child’s state of health, and social and educational de-

velopment. Therefore, it is important to diagnose of

dysphonia early, without underestimating its symp-

toms and causes. In practice, many young people

turn to a speech specialist only belatedly to resolve

the pathology.

For this reason, in this paper we have presented

an easy approach based on a mobile application for

voice screening in children. The app provides a robust

methodology for the fundamental frequency estima-

tion of the speech signal on the recording of the vowel

/a/ of ﬁve seconds in length, as provided by the pro-

tocol, classifying a voice as healthy or pathological.

The methodology is also able to evaluate undesired

noise that can introduce errors in the F

estimation,

altering the classiﬁcation of state of the vocal health.

The results obtained with the proposed method-

ology have been compared with the performance of

other algorithms exiting in literature, Praat, a soft-

ware used in clinical practice, an AMDF-based tool,

SWIPE and Yin. The results of the testing phase have

demonstrated that the distinction between healthy

voices and pathological ones is performed with a good

accuracy using the proposed methodology.

The developed app does not provide a diagnosis,

our aim being provide an instrument for a ﬁrst screen-

ing test, an easy and gamiﬁed instrument that can be

used by children, suggesting a consultation with a

qualiﬁed speech therapist for an appropriate diagno-

sis.

As our future plans, we would like to investigate

gamiﬁcation techniques to motivate children in the

use of the mobile app. In detail, we aim to develop a

game-based educational app to facilitate the learning

phase with children, for example to distinguish be-

tween healthy and unhealthy foods. Moreover, gami-

ﬁcation techniques will also be adopted to encourage

children to complete the signal acquisition and, in the

case of a prescribed therapy, to improve the motiva-

tion of children to practise home-based exercises.

ACKNOWLEDGEMENTS

The authors would like to acknowledge the project

”Smart Health 2.0” PON04A2 C for their support

of this work. Additionally, the authors wish to thank

Prof. Pierangelo Veltri, University ”Magna Graecia”

of Catanzaro (Italy), and Prof.Nicola Lombardo, De-

partment of Otolaryngology-Head and Neck Surgery

of the University ”Magna Graecia” of Catanzaro

(Italy) involved in the SmartHealth 2.0 project, for his

useful contribution to the identiﬁcation of the healthy

range of values of F0 used in this study.

REFERENCES

Angelillo, I. F., Di Costanzo, B., Costa, G., Barillari, M.,

and Barillari, U. (2015). Epidemiological study on vo-

cal disorders in paediatric age. Journal of preventive

medicine and hygiene, 49(1).

Baki, M. M., Wood, G., Alston, M., Ratcliffe, P., Sandhu,

G., Rubin, J. S., and Birchall, M. A. (2013). Com-

parison between operavox and mdvp: Preliminary re-

sults. Otolaryngology–Head and Neck Surgery, 149(2

suppl):P203–P204.

Belafsky, P. C., Postma, G. N., and Koufman, J. A. (2002).

Validity and reliability of the reﬂux symptom index

(rsi). Journal of Voice, 16(2):274–277.

Boersma, P. (1993). Accurate short-term analysis of the fun-

damental frequency and the harmonics-to-noise ratio

of a sampled sound. In Proceedings of the institute of

phonetic sciences, volume 17, pages 97–110. Amster-

dam.

Cafazzo, J. A., Casselman, M., Katzman, D. K., and

Palmert, M. R. (2012). 133. bant: An mhealth app

for adolescent type i diabetes–a pilot study. Journal

of Adolescent Health, 50(2):S77–S78.

Camacho, A. and Harris, J. G. (2008). A sawtooth wave-

form inspired pitch estimator for speech and music.

The Journal of the Acoustical Society of America,

124(3):1638–1652.

Casper, J. K. and Leonard, R. (2006). Understanding voice

problems: A physiological perspective for diagnosis

and treatment. Lippincott Williams & Wilkins.

Cooney, O. (1998). Acoustic analysis of the effects of al-

cohol on the human voice. PhD thesis, Dublin City

University.

De Cheveign

e, A. and Kawahara, H. (2002). Yin, a fun-

damental frequency estimator for speech and music.

The Journal of the Acoustical Society of America,

111(4):1917–1930.

Deal, R. E., McClain, B., and Sudderth, J. F. (1976). Identi-

ﬁcation, evaluation, therapy, and follow-up for chil-

dren with vocal nodules in a public school setting.

Journal of speech and hearing disorders, 41(3):390–

397.

Dejonckere, P. (1999). Voice problems in children: patho-

genesis and diagnosis. International journal of pedi-

atric otorhinolaryngology, 49:S311–S314.

Forti, S., Amico, M., Zambarbieri, A., Ciabatta, A., Assi,

C., Pignataro, L., and Cantarella, G. (2014). Valida-

tion of the italian voice handicap index-10. Journal of

Voice, 28(2):263–e17.

Glaze, L. E. (1996). Treatment of voice hyperfunction in

the pre-adolescent. Language, Speech, and Hearing

services in schools, 27(3):244–250.

Gonzalez, J. and Carpi, A. (2004). Early effects of smok-

ing on the voice: A multidimensional study. Medical

Science Monitor, 10(12):CR649–CR656.

SmartMedDev 2016 - Special Session on Smart Medical Devices - From Lab to Clinical Practice

576

Hunter, E. J., Tanner, K., and Smith, M. E. (2011). Gen-

der differences affecting vocal health of women in vo-

cally demanding careers. Logopedics Phoniatrics Vo-

cology, 36(3):128–136.

Johnstone, T. and Scherer, K. R. (1999). The effects of emo-

tions on voice quality. In Proceedings of the XIVth

International Congress of Phonetic Sciences, pages

2029–2032. University of California, Berkeley San

Francisco.

Kahane, J. C. and Mayo, R. (1989). The need for aggres-

sive pursuit of healthy childhood voices. Language,

Speech, and Hearing Services in Schools, 20(1):102–

107.

King, D., Greaves, F., Exeter, C., and Darzi, A.

(2013). gamiﬁcation: Inﬂuencing health behaviours

with games. Journal of the Royal Society of Medicine,

106(3):76–78.

Kong, A. P.-H. (2015). Conducting cognitive exercises for

early dementia with the use of apps on ipads. Com-

munication Disorders Quarterly, 36(2):102–106.

Leeper, L. H. (1992). Diagnostic examination of children

with voice disordersa low-cost solution. Language,

Speech, and Hearing Services in Schools, 23(4):353–

360.

Lorant, V., Soto, V. E., Alves, J., Federico, B., Kinnunen,

J., Kuipers, M., Moor, I., Perelman, J., Richter, M.,

Rimpel

a, A., et al. (2015). Smoking in school-aged

adolescents: design of a social network survey in six

european countries. BMC research notes, 8(1):91.

Lucchini, A. R. M. . E. (2002). La valutazione soggettiva

ed oggettiva della disfonia: il protocollo sifel. In pre-

sented at the Relazione ufﬁciale al XXXVI Congresso

Nazionale della Societ Italiana di Foniatria e Logope-

dia.

Mart

ınez, D., Lleida, E., Ortega, A., Miguel, A., and Vil-

lalba, J. (2012). Voice pathology detection on the

saarbruecken voice database with calibration and fu-

sion of scores using multifocal toolkit. In Advances in

Speech and Language Technologies for Iberian Lan-

guages, pages 99–109. Springer.

McCallum, S. (2012). Gamiﬁcation and serious games

for personalized health. Stud Health Technol Inform,

177:85–96.

McNamara, A. P. and Perry, C. K. (1994). Vocal abuse

prevention practicesa national survey of school-based

speech-language pathologists. Language, Speech, and

Hearing services in schools, 25(2):105–111.

Miller, A. S., Cafazzo, J. A., and Seto, E. (2014). A game

plan: Gamiﬁcation design principles in mhealth appli-

cations for chronic disease management. Health infor-

matics journal, page 1460458214537511.

Naylor, P., Kounoudes, A., Gudnason, J., Brookes, M.,

et al. (2007). Estimation of glottal closure instants

in voiced speech using the dypsa algorithm. Audio,

Speech, and Language Processing, IEEE Transactions

on, 15(1):34–43.

Nerri

ere, E., Vercambre, M.-N., Gilbert, F., and Kovess-

Masf

ety, V. (2009). Voice disorders and mental health

in teachers: a cross-sectional nationwide study. BMC

Public Health, 9(1):370.

Nicollas, R., Garrel, R., Ouaknine, M., Giovanni, A.,

Nazarian, B., and Triglia, J.-M. (2008). Normal voice

in children between 6 and 12 years of age: database

and nonlinear analysis. Journal of voice, 22(6):671–

675.

Pinilla, J., Gonzalez, B., Barber, P., and Santana, Y. (2002).

Smoking in young adolescents: an approach with mul-

tilevel discrete choice models. Journal of epidemiol-

ogy and community health, 56(3):227–232.

Ross, M. J., Shaffer, H. L., Cohen, A., Freudberg, R., and

Manley, H. J. (1974). Average magnitude difference

function pitch extractor. Acoustics, Speech and Signal

Processing, IEEE Transactions on, 22(5):353–362.

Simons-Morton, B., Haynie, D. L., Crump, A. D., Eitel,

P., and Saylor, K. E. (2001). Peer and parent inﬂu-

ences on smoking and drinking among early adoles-

cents. Health Education & Behavior, 28(1):95–107.

Sun, X. (2002). Pitch determination and voice quality anal-

ysis using subharmonic-to-harmonic ratio. In Acous-

tics, Speech, and Signal Processing (ICASSP), 2002

IEEE International Conference on, volume 1, pages

I–333. IEEE.

Talkin, D. (1995). A robust algorithm for pitch tracking

(rapt). Speech coding and synthesis, 495:518.

Tan, L. and Karnjanadecha, M. (2003). Pitch detection al-

gorithm: autocorrelation method and amdf.

An Easy Approach for the Classiﬁcation of Children’s Voices based on the Fundamental Frequency Estimation

577
