Identification of Organization Name Variants in Large Databases

using Rule-based Scoring and Clustering

With a Case Study on the Web of Science Database

Emiel Caron

and Hennie Daniels

1,2

Erasmus Research Institute of Management, Erasmus University Rotterdam, P.O. Box 1738, Rotterdam, The Netherlands

Center for Economic Research, Tilburg University, P.O. Box 90153, Tilburg, The Netherlands

Keywords: Large Scale Databases, Data Warehousing, Database Integration, Data Cleaning, Data Mining, Clustering.

Abstract: This research describes a general method to automatically clean organizational and business names variants

within large databases, such as: patent databases, bibliographic databases, databases in business information

systems, or any other database containing organisational name variants. The method clusters name variants

of organizations based on similarities of their associated meta-data, like, for example, postal code and email

domain data. The method is divided into a rule-based scoring system and a clustering system. The method is

tested on the cleaning of research organisations in the Web of Science database for the purpose of bibliometric

analysis and scientific performance evaluation. The results of the clustering are evaluated with metrics such

as precision and recall analysis on a verified data set. The evaluation shows that our method performs well

and is conservative, it values precision over recall, with on average 95% precision and 80% recall for clusters.

1 INTRODUCTION

In many databases, one organisational entity is listed

in the records with many associated name variants.

For example, the Leiden University (2015) has many

name variants in the Web of Science (WoS) database,

like: University Leiden, Leiden Universiteit, Leiden

State University, State University Leiden, Leiden

University Hospital, State University Leiden

Hospital, Leiden Universitair Medisch Centrum,

LUMC, and so on. Large companies often have many

name variants, e.g. the technology company Royal

Philips has several hundreds of name variants in the

Patstat (2015) database, which is a statistical database

filled with patent information. Obviously, manual

normalisation of organisation names is not feasible in

large databases, which might list millions of

companies and organisations.

The research problem that is addressed here is:

“How can organization name variants be identified

automatically in large databases?”. The answer to this

problem is given by a general method for the

identification of organization name variants using

rule-based scoring and clustering proposed in this

paper. The method is able to cluster name variants in

large databases with millions of records in an efficient

way. The emphasis of the method is on the cleaning

of names not on unification. The results of this

method are useful for any analysis involving correct

and unified organisation names, such as: company

patent analysis, evaluative bibliometrics and the

ranking of scientific institutes, the assessment of

cooperation and communication between

organizations, and the creation of linkages, based on

company names, between Customer Relationship

Management databases.

Data cleaning is often the necessary step prior to

knowledge discovery and business analytics.

Automatic data cleaning methods can be categorised

in several groups (Maletic and Marcus, 2010):

transformational rules, statistical methods for

numeric data, and data mining methods, such as

cluster and pattern matching techniques (Cohen et al.,

2003, Koudas et al., 2004, Morillo et al., 2013), for

categorical data. Data mining methods for the

identification of organisation name variants and

person name disambiguation are divided into

supervised and unsupervised learning approaches. In

supervised learning approaches, a classifier is trained

on a data set with pairs of records, where organisation

with similar names are classified as being the same

entity or a different entity. The problem with

182

Caron, E. and Daniels, H.

Identiﬁcation of Organization Name Variants in Large Databases using Rule-based Scoring and Clustering - With a Case Study on the Web of Science Database.

In Proceedings of the 18th Inter national Conference on Enterprise Information Systems (ICEIS 2016) - Volume 1, pages 182-187

ISBN: 978-989-758-187-8

supervised approaches in this context, is that a large,

manually checked, representative, data set is required

for training. Such a data set is usually not available,

which makes supervised approaches for our problem

hard to use. In unsupervised learning, a metric of

similarity is defined between pairs of records, that

describe an organisational entity, and after that a

clustering algorithm is applied (Levin et al., 2012,

Song et al., 2007). The method described in this paper

is based on unsupervised rule-based clustering, in

combination with approximate string pattern

matching. A clear advantage of our method is that the

matching rules are easy to understand and combine.

The organization of this paper is as follows. In the

next section, the phases of the method for the

clustering of organisation names are explained in

detail. After that the method is evaluated, with

precision-recall analysis, on the WoS database for the

clustering of scientific organisation names. We close

the paper with some concluding remarks and

proposals for further research.

2 METHODOLOGY

A visual summary of the process for the identification

of organisation name variants is provided by Figure 1

in the Appendix. The method is composed out of

three stages:

1. Pre-processing;

2. Rule-based scoring and clustering;

3. Post-processing.

Organisational meta-data from a source database is

taken as input in the process and clusters of

organisation name variants are produced as output.

Typical examples of important meta-data available

for organisation name matching are: country, city,

postal code, street, organisation type, email domain,

etc. The method is designed to cluster all organisation

name variants in the whole database. In the case study

the method is applied on the WoS database (version

April 2013) with roughly 124 million publication

records. Moreover, the method is implemented with a

combination of Microsoft SQL Server and Visual

Studio, where SQL server is used for the data

handling and Visual Studio for the implementation of

the cluster algorithm.

2.1 Pre-processing

In the pre-processing stage the relevant meta-data

items are cleaned and harmonized to improve the data

quality, and helper tables are created for the

subsequent clustering stage.

Postal code data is cleaned an put into a consistent

format. Besides, postal codes are classified into

groups, indicating the number of different

organisations present in a postal code area. Groups

with a relative high number of organisations are

treated under a stricter regime, e.g. with a higher

threshold.

From the available data, the organisational types

are determined, such as ‘company’, ‘bank’,

‘university’, ‘hospital’, ‘institute’, etc., with string

extraction patterns and regular expressions.

An important data element for clustering, when it

is available, is the email domain address that is linked

with an organisation, because it is very

discriminative. Usually, multiple email domains are

connect to large organisations, e.g. Leiden University

uses ‘leidenuniv.nl’, but also ‘liacs.nl’ and ‘lumc.nl’.

In the pre-processing stage, the email domains are

replaced by their most popular or recent variant.

Email domains that cannot be directly linked to an

organisation, e.g. ‘gmail.com’ or ‘hotmail.com’, are

removed, because they cannot be used in an

meaningful way.

2.2 Rule-based Scoring and Clustering

In this stage, the clusters are created that identify

likely name variations of the same organization, in the

following steps (see Figure 1):

a. A set of rules is created that produces pairs of

organizational names with common

characteristics and string name similarity.

These rules target specific elements of the

organizations’ characteristics such as

combinations of the country, city, postal code,

email address, organisation type.

b. A scoring system is applied on the rules and

scores are computed for created record pairs.

c. Pairs above the threshold are clustered with an

algorithm, taking linear time, that searches for

connected components.

2.2.1 Apply Rules (Step 2a)

In step 2a, the objective is to create pairs of

organisation name variants by self-joining the tables

that result from the pre-processing stage. For this

purpose scoring rules are used that are depicted in

Table 1, where rules 1-4 are the basic rules and rules

5-9 are combinations of the basic elements. The score

for a rule increases when it contains more meta-data

elements, indicating that there is more proof that a

record pair is a name variant of each other. Therefore

Identiﬁcation of Organization Name Variants in Large Databases using Rule-based Scoring and Clustering - With a Case Study on the Web

of Science Database

183

rule 9 is considered a stronger rule than rule 1. The

number of rules and scores can easily be adapted if

more relevant meta-data is available. The rule score

values and the threshold values are based on domain

expert knowledge about the database under

consideration. The values are fine-tuned in the initial

evaluation of the method on a verified data set.

The scoring system assigns scores to record pairs

from the strongest to the weakest rules. If a record

pair is scored on a strong rule, the pair is not

considered for the weaker rules, to prevent additional

scoring. Not listed in Table 1, is that there are

additional constraints for each rule, like the size of the

city, the type of postal code (general or specific), and

so on, that are configured very strict for strong rules

but are given more degrees of freedom for weak rules.

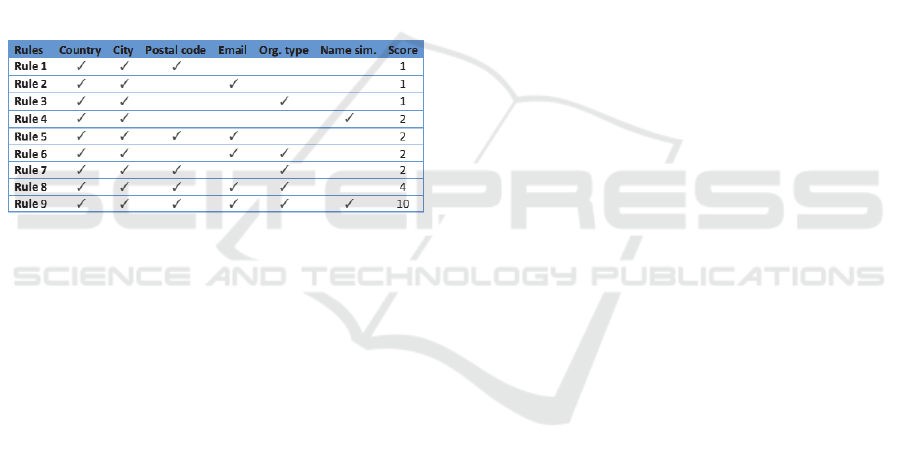

Table 1: Example rules with associated meta-data, organi-

sation name similarity, and rule scores. The threshold value

is 4 in the example.

Notice that rules always only hold in a specific

country and city, because organisation names might

not be unique in the whole world or even in a specific

country. The rules use the meta-date: postal code

information (rule 1), email domain (rule 2),

organisation type (rule 3), and organisation name

similarity (rule 4). For example, rule 1 matches

organisation names records in a specific postal code

area in The Netherlands for the city of Amsterdam.

Rule 1 specifies record pairs with postal codes that

match exactly within a country and city. In this rule,

the number of records an organizational name variant

has in correlation with a specific postal code, is taken

into account. This measure is important because an

organization with only a few records assigned to a

specific postal code area is suspected to be a false

positive result. Another measure in this rule, is the

percentage of records an organization name label has

in a specific postal code, in relation to the total

number of records associated with a certain

organisation name. This percentage is also used to

filter out organization name variants with low values

on this measure.

Rule 2 is defined as record pairs with email

domains that match exactly. The email domain labels

should have a minimum count in the database.

Records coupled by rule 3 share the same

organisation type in a city. Organisation names that

could not be typed in the pre-cleaning are excluded.

Rule 4 scores the level of string similarity of two

organisation names within a city with the Levenshtein

distance. The intuitive definition of Levenshtein

distance is the amount of edits one needs to perform

to change one organisation name into another

organisation name. The implementation of

Levenshtein distance described here uses the edit

distance to calculate (in %) how similar is one string

to another string. The use of the Levenshtein distance

is based on the premise that organisational names that

score above a certain threshold value, say 95% or so,

can be considered as similar, and are therefore paired.

Rules 5-9 are combinations of rules 1-4. The

combined rules have stricter thresholds than the basic

rules, so the rules could match on different records.

2.2.2 Score Record Pairs (Step 2b)

Pairs of records are scored in step 2b. A record pair is

described as two records that have scored on at least

one rule and therefore share meta-data. Records can

score on multiple rules, i.e. the scoring is additive.

Therefore, the total score for record pairs has to be

determined.

An example with 5 records, their active rules, and

their total scores is presented in Figure 2. A line

between two circles indicates a record pair. For

example, the two records for ‘Vrije Univ Amsterdam’

and ‘VU Amsterdam’ share the same postal code,

email domain, and organisation type, within the same

country and city. Rule 4 does not fire, the string

similarity is considered too low. Therefore, this

record pair receives 4 points (see Table 1). The other

records in the example are scored in the same way and

are represented with a connecting line.

In step 2c, record pairs above the threshold value,

total scores ≥ 4 in Figure 2, are included for the

clustering algorithm. The threshold value is increased

for geographical areas with a high number of

organisations, to prevent the potential erroneous

coupling of records pairs. The rules scores express the

strength of a certain rule. Furthermore, the more rules

that are active for a publication pair, the more

evidence there is that two different organisation

names are indeed variants of each other. In the

example scoring system, only rules 8 and 9 are strong

enough to solely pass the threshold value. However,

for a pair of records often combinations of rules are

required to exceed the threshold value., e.g. see the

link between ‘Univ Amsterdam’ and ‘Univ Hosp

Amsterdam’ in Figure 2.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

184

2.2.3 Cluster Records (Step 2c)

Matched records pairs, i.e. record pairs with a score

above the threshold, are clustered by means of single-

linkage, hierarchical, clustering in step 2c. In Figure

2, for example, the records ‘Univ Amsterdam’ and

‘Univ Hosp Amsterdam’ are a matched pair, and the

records ‘Univ Amsterdam’ and ‘Emma Childrens

Hosp’ are a matched pair. The clustering algorithm

makes a link between these two initial clusters via the

joint record ‘Univ Amsterdam’, by merging the two

clusters into a new cluster with three records,

depicted by ‘Cluster 2’ in Figure 2, and so on. The

final cluster will represent the (partial) history of

name variants of an organisation. In the figure, there

is not enough proof for the clustering of ‘VU

Amsterdam’ with ‘Univ Hosp Amsterdam’, this is

indicated by a dotted line. Therefore, two clusters are

created by the algorithm, representing the two

different universities in the city of Amsterdam.

Notice that, if the threshold is increased, e.g. more

clustering is induced, resulting in on average smaller

cluster sizes.

2.3 Post-processing

In the post-processing stage, non-clustered records

are labelled as separate clusters and added to the

results to give a complete overview. Finally, tables

are created that provide detailed summary

information about the clusters. An example of such a

table, which gives a cluster description, is given in

Table 2. A combination of relational support tables,

provide a good basis to work with the results of the

clustering in practical data analysis.

3 CASE STUDY

In this case study, the method is used for the cleaning

of scientific organizations present in the Web of

Science (2015) bibliographic database. Bibliometric

databases are large databases that are used to study

the growth of scientific publications, patterns of

collaboration, the impacts of science, and evidence-

based performance assessment. For most of these

analyses, it is necessary to increase the data quality

by cleaning the relevant tables.

Cleaned organizational names are important for

the Leiden Ranking (2015), produced by the Centre

for Science and Technology Studies (CWTS, 2015).

The CWTS Leiden Ranking 2015 offers insights into

the scientific performance of 750 major universities

worldwide, based on indexed research publications

obtained from the Web of Science. This university

name identification process is carried out manually

and is therefore time-consuming and cumbersome. In

the manual process, organizational labels are

clustered and after that unified. This method can be

trusted as very accurate because every organizational

label that is under investigation, is verified with the

help of the Internet and with other means, in order to

be concluded as a name affiliation of a certain

scientific organization. These cluster are a ‘golden

set’, and used as a benchmark for the clusters

produced by the automatic method in a precision-

recall analysis.

In Table 2, the partial cluster for Leiden

University in The Netherlands is depicted to show the

end product of the clustering method. Each cluster is

identified by a ‘cluster_id’ and is composed out of

one or more records, that show supportive meta-data.

Table 2: Example cluster with id ‘3717’ with name variants

for ‘Leiden University’, ordered by the number of scientific

publications, labelled by ‘n_pubs’.

The precision and recall performance values for

the best clusters per scientific organisation in the

golden set are depicted in Figure 3, where the

organisation names on the x-axis are ranked based on

precision-recall values. The cluster with the highest

value for the F1 measure, defined as the harmonic

mean of precision and recall, is taken as the best

cluster. In addition, the numbers in Table 3 show on

average a precision of 0.95 and a recall of 0.80 for the

best cluster.

Table 3: Average values of evaluation metrics for the best

cluster in the Leiden ranking data set.

Precision Recall F1

Best cluster (mean) 0.95 0.80 0.84

Best cluster (median) 1.00 0.89 0.98

Best 3 clusters (mean) 0.91 0.86 0.83

This shows that the clustering method is conservative,

it chooses precision above recall. If the 3 best clusters

for an organization are used in the evaluation the

average recall is pushed to 0.86, with a slightly lower

average precision. This indicated that for a number of

Identiﬁcation of Organization Name Variants in Large Databases using Rule-based Scoring and Clustering - With a Case Study on the Web

of Science Database

185

organisations the name variants are spread over a

number of accurate clusters. Clusters with a lower

precision are, in general, clusters belonging to very

large cities, where multiple research institutes can be

found in a relatively small area, which makes name

normalisation more difficult.

4 CONCLUSIONS

In this research we have presented an efficient general

rule-based scoring method for the clustering of name

variants of organizations in large databases. The rules

are based on organisation name similarity and meta

data in the context of the organisation, like: country,

postal code, email domains, organization type, etc.

Basically, the method can work with any piece of

relevant meta-data, as long as it is shared between

records. Multiple rules can be combined to link

organization names, because of the scoring system.

The more rules that hold for a pair of organisation

names, the more evidence there is that the

organisation names are indeed valid name variants of

each other. In other words, the rules in the system

strengthen each other. Moreover, the rules are easy to

understand and combine. Incorrect matching of

organisation names is partly prevented by lowering

the scores for certain sensitive rules and by increasing

the threshold values, for example, for geographic

locations with a high number of organisations.

Based on the results of the case study, it can be

stated that the clustering method is careful, it values

precision (on average 95%) over recall (on average

80%). In general, precision and recall are lower for

areas with a high number of scientific organisations.

Name variants of organizations might be split over

multiple clusters, if there is not enough evidence for

coupling names variants together. However, these

alternative clusters do have a high precision and are

therefore useful for analysis.

In conclusion, the method can be viewed as a

general method for data cleaning, because it can be

used to other types of data, e.g. person or author name

disambiguation (Caron and Van Eck, 2014), as long

as there is relevant meta data available. In future

research, the cleaning method should be tested on

multiple databases with name variants to find optimal

values for scores and thresholds, and to improve the

quality of the method for very large cities. In addition,

we want to push recall performance forwards by

further integrating string similarity measures (Cohen

et al., 2003) in the method.

ACKNOWLEDGEMENTS

I thank Vasileios Stathias and Nees Jan van Eck for

their contributions to this research. In this study I used

the database facilities of the Centre for Science and

Technology Studies (CWTS, 2015).

REFERENCES

Caron, E., van Eck, N.J., 2014. Large scale author name

disambiguation using rules-based scoring and

clustering, In Proceedings of the 19

International

Conference on Science and Technology Indicators,

pages 79-86, Leiden, The Netherlands.

Cohen, W., Ravikumar, P., & Fienberg, S., 2003. A

comparison of string metrics for matching names and

records. In KDD Workshop on Data Cleaning and

Object Consolidation, Vol. 3, pp. 73-78.

CWTS, 2015. Centre for Science and Technology Studies,

http://www.cwts.nl, Leiden, The Netherlands.

De Bruin, R., Moed, H., 1990. The unification of addresses

in scientific publications. Informetrics, 89/90, 65-78.

Koudas, Nick & Marathe, A. & Srivastava, D., 2004.

Flexible string matching against large databases in

practice. Proceedings of the 30th VLDB Conference.

Leiden Ranking, 2015. CWTS Leiden Ranking 2015,

http://www.leidenranking.nl, The Netherlands.

Leiden University, 2015. http://www.leidenuniv.nl,

Leiden, The Netherlands.

Levin, M., Krawczyk, S., Bethard, S., & Jurafsky, D., 2012.

Citation-based bootstrapping for large-scale author

disambiguation. Journal of the Association for

Information Science and Technology, 63(5), 1030-

1047.

Maletic, J. I., & Marcus, A., 2010. Data cleansing: A

prelude to knowledge discovery. In Data Mining and

Knowledge Discovery Handbook (pp. 19-36). Springer.

Morillo, F., Santabárbara, I., & Aparicio, J., 2013. The

automatic normalisation challenge: detailed addresses

identification. Scientometrics, 95(3), 953-966.

Patstat, 2015, EPO Worldwide Patent Statistical Database,

http://www.epo.org.

Song Y., Huang J., Councill I., Li J., & Giles C., 2007.

Efficient topic-based unsupervised name

disambiguation. In Proceedings of the 7th ACM/IEEE-

CS joint conference on Digital libraries (JCDL '07).

ACM, New York, NY, USA, 342-351.

Web of Science, 2015. Thomson Reuters, United States.

http://www.webofscience.com.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

186

APPENDIX

Figure 1: Stages in the identification process of organization name variants.

Figure 2: Scoring and clustering example for the city of Amsterdam (with threshold ≥ 4). Amsterdam has two universities the

Vrije University Amsterdam (Cluster 1) and the University of Amsterdam (Cluster 2).

Figure 3: Precision (upper line) and recall (lower line) analysis on the Leiden Ranking data set.

0,00

0,20

0,40

0,60

0,80

1,00

1,20

150

299

448

597

746

895

1044

1193

1342

1491

1640

1789

Precision

Recall

Identiﬁcation of Organization Name Variants in Large Databases using Rule-based Scoring and Clustering - With a Case Study on the Web

of Science Database

187
