Physical Data Warehouse Design on NoSQL Databases

OLAP Query Processing over HBase

Lucas C. Scabora

, Jaqueline J. Brito

, Ricardo Rodrigues Ciferri

and Cristina Dutra de Aguiar Ciferri

Department of Computer Science, University of Sao Paulo at Sao Carlos, 13.560-970, Sao Carlos, SP, Brazil

Department of Computer Science, Federal University of Sao Carlos, 13.565-905, Sao Carlos, SP, Brazil

Keywords:

Data Warehousing, Physical Design, NoSQL, OLAP Query Processing, HBase, Star Schema Benchmark.

Abstract:

Nowadays, data warehousing and online analytical processing (OLAP) are core technologies in business intel-

ligence and therefore have drawn much interest by researchers in the last decade. However, these technologies

have been mainly developed for relational database systems in centralized environments. In other words, these

technologies have not been designed to be applied in scalable systems such as NoSQL databases. Adapting

a data warehousing environment to NoSQL databases introduces several advantages, such as scalability and

ﬂexibility. This paper investigates three physical data warehouse designs to adapt the Star Schema Benchmark

for its use in NoSQL databases. In particular, our main investigation refers to the OLAP query processing

over column-oriented databases using the MapReduce framework. We analyze the impact of distributing at-

tributes among column-families in HBase on the OLAP query performance. Our experiments showed how

processing time of OLAP queries was impacted by a physical data warehouse design regarding the number of

dimensions accessed and the data volume. We conclude that using distinct distributions of attributes among

column-families can improve OLAP query performance in HBase and consequently make the benchmark

more suitable for OLAP over NoSQL databases.

1 INTRODUCTION

The comparison among different systems that manip-

ulate huge volumes of data is crucial for modern in-

formation systems. Performing analysis over mas-

sive volumes of data is a challenge for traditional

data warehousing approaches (Chevalier et al., 2015).

Data warehouses (DWs) are used for data analysis,

in which the data is modeled in a multidimensional

schema according to the cube metaphor and on-line

analytical processing (OLAP) queries are performed

to help the decision-making process. New solutions

for big data management are usually implemented on

distributed environments, which enables horizontal

scalability. Many enterprises use NoSQL (Not only

SQL) database systems to manage data split in de-

centralized environments. With the advent of NoSQL

systems to store and process data, there is a need to

apply systematic techniques for performance compar-

ison, usually conducted by benchmarks.

Benchmarks of DW are tools aimed at answer-

ing the question “Which is the best database system

for OLAP query processing?” (Folkerts et al., 2012).

These questions are answered by functional and per-

formance tests, based on properties of each evaluated

system. Its goal is to quantify the quality and the per-

formance of a system, in order to make a fair com-

parison. There are four main requisites of a bench-

mark (Bog, 2013): relevance, portability, scalability

and simplicity. In the context of DW and decision

support systems, there are three main benchmarks:

TPC-DS (Poess et al., 2002), TPC-H (Moussa, 2012)

and Star Schema Benchmark (SSB) (O’Neil et al.,

2009). However, they fail in, at least, two requi-

sites. First, they were planned to evaluate relational

databases, which can be very different from NoSQL

systems, failing on portability. Second, their data gen-

eration is centralized and limited, impacting the hori-

zontal scalability of huge data volumes.

There has been a signiﬁcant amount of work

on column-oriented database systems (Abadi et al.,

2008). Studies revealed that this type of data storage

could support analytical workloads with more than an

order of magnitude faster than row-oriented database

systems. The performance improvement is related

to read-only workload, which reduces the number

of I/O operations since most of the queries have to

read only the targeted attributes. Based on the as-

Scabora, L., Brito, J., Ciferri, R. and Ciferri, C.

Physical Data Warehouse Design on NoSQL Databases - OLAP Query Processing over HBase.

In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 1, pages 111-118

ISBN: 978-989-758-187-8

111

sumption that, for some speciﬁc queries, not all of

the values are required at the same time, the column-

oriented approach is appropriate for deploying a DW.

HBase (George, 2011) is a distributed, persistent and

strictly consistent column-oriented NoSQL database

system. All data stored in HBase is organized in

column-families, as described in Section 2.2. As pro-

posed by Cai et al. (2013), there are an important

feature that impact the performance of HBase’s read

and write operations: the attributes stored in the same

or among different column-families.

In this paper, we propose the analysis of OLAP

query performance over multiple data organization

strategies on HBase. These different strategies refer

to different physical DW designs. The present inves-

tigation consists in implementing and comparing the

performance of OLAP queries over different column-

families arrangements. We also highlight scenarios

based on different report requirements that could ben-

eﬁt from the designs investigated in the paper. Since

a benchmark encompasses the schema and workload

of a DW, we tackle the problem by exploring different

schemas and analyzing the effects on their workloads.

1.1 Motivating Scenarios

Let a DW storing data related to a shopping corpora-

tion represented by the multidimensional data cube.

This company is interested in reporting the quantity

sold per product per ﬁlial per day. OLAP queries is-

sued against this DW depend on the business perspec-

tives of interest. Therefore, we introduce two rep-

resentative scenarios that motivate the investigations

carried out in this paper, as follows:

Scenario 1: The shopping corporation is inter-

ested in reporting the daily proﬁt, based on the total

of products sold in that day. With this information,

the corporation can determine the total income of

each month. Other possibility is that the enterprise is

focused on the daily proﬁt to perform infrastructure

investments. In this scenario, the most frequent

OLAP queries access only one dimension of the

data cube. We call these queries as one-dimensional

queries.

Scenario 2: The corporation is interested in ana-

lyzing the amount of units sold of each product over

time. More speciﬁcally, it is focused on reporting the

quantity sold of each product in the last month, or the

quantity sold of each product in each ﬁlial. In this

scenario, the most used queries involve two or more

dimensions of the data cube. We call these queries as

two-dimensional and three-dimensional queries.

1.2 Contributions

The relevance of our paper is to point out appropriate

data organization designs to enhance the performance

of OLAP queries in a column-based NoSQL database

for different DW enterprise scenarios. We investigate

the inﬂuence of physical design of the DW schema

so that databases administrators can optimize the per-

formance of OLAP queries on distributed column-

oriented NoSQL database systems. This paper intro-

duces the contributions described as follows:

1. It proposes a new physical DW design, called

FactDate, aimed to improve the performance of

one-dimensional queries.

2. It analyses three physical DW designs, each one

providing better performance results according to

a given scenario. This analysis includes a scala-

bility performance evaluation.

3. It extends the SSB workload by proposing two

new OLAP queries, which are used to investigate

two-dimensional queries.

The remaining part of this paper is organized as fol-

lows. Section 2 summarizes the background, Sec-

tion 3 reviews related work, Section 4 describes the

physical DW designs, including the proposed Fact-

Date design, Section 5 details the queries proposed

for SSB, Section 6 addresses the experimental tests,

and Section 7 concludes the paper.

2 BACKGROUND

2.1 Data Warehouse and OLAP

Business Intelligence (BI) can be deﬁned as a set

of technologies and mechanisms to efﬁciently extract

useful business information from large volumes of

data. Nowadays, DWs are inserted in many business

information technology applications, enabling the ef-

fectively utilization and analysis of information for

business planning and decision making (Ciferri et al.,

2013). A DW stores data used for analytical tasks to

support decision making, such as information about

sales, customers and proﬁt. DWs are typically related

to the day-to-day company’s operations, and can con-

tain millions and even billions of business records.

Following the cube metaphor described in Sec-

tion 1.1, the DW provides a multidimensional orga-

nization of data. When a DW is implemented in re-

lational databases, this organization is usually struc-

tured as a star schema, where the fact table stores

the measures of the business events and the dimen-

sion tables, related to the fact tables, contain the con-

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

112

text of these measures (Kimball and Ross, 2013). Star

schemas provide better query performance by reduc-

ing the number of join operations.

While a DW is considered one of the most used in-

frastructure for BI systems, OLAP can be interpreted

as a front-end analyzing tool. OLAP encompasses

complex queries that frequently aggregate and con-

solidate measures of the fact table, including dimen-

sions perspectives. An example of an OLAP query is:

“How many products were sold by brand and by store

in the last year?”, where the measure is the quantity

of items sold and the dimensions are brand, stores and

date, respectively. In this context, the word analytical

refers to extracting information from the DW that is

useful to the decision making process, focusing on the

analyses of the day-to-day company’s operations.

2.2 Column-oriented NoSQL Databases

Column-oriented databases store their data grouped

by columns, where the values of each column are con-

tiguously stored on disk. This orientation differs from

the row-oriented databases, which store each row en-

tirely and contiguously on disk (George, 2011). As

stated in Section 1, an advantage of column-oriented

organization is the need of reading only the required

attributes of the query, which is the case for OLAP.

In a column-oriented database, inserting a tuple re-

quires to write each attribute value of the record sep-

arately, raising the number of I/O operations. How-

ever, column-oriented storage can improve the perfor-

mance of queries that access only a subset of columns

from a wide table. This occurs because unrequired at-

tributes are not read, reducing the I/O consumption of

read-intensive workloads, such as OLAP queries.

An example of column-oriented NoSQL database

is HBase, which provides access to each tuple using

unique keys called rownum. These keys are stored

lexicographically. For each attribute of each tuple,

HBase stores a cell structure with the following for-

mat: <rownum, cf, column, timestamp, value>. To

retrieve an attribute value, it is required to inform

the rownum, cf (column-family) and column ﬁelds.

Column-families group columns that are stored con-

tinuously on disk, in the same ﬁle, whose structure

is denominated HFile. If a query processes attributes

from different column-families, the needed HFiles are

joined to reconstruct the query result.

To perform OLAP queries over distributed data,

the HBase tables can be used as input to the MapRe-

duce or the Spark frameworks, which are designed

for parallel processing of massive datasets (Doulk-

eridis and Nørvåg, 2014). Companies can implement

their own queries using these frameworks, or can in-

tegrate HBase with some SQL layers, such as Hive

and Phoenix. Hive (Thusoo et al., 2010) is a SQL

layer that models an infrastructure of DW, allowing

queries to be expressed with a SQL-like language

called HiveQL. Phoenix, on the other hand, offers an-

other SQL interface, boosting HBase performance.

2.3 Benchmarking Technique

A benchmarking technique aims to measure perfor-

mance of an information system and compare it with

others. This evaluation consists of performing a set of

well-deﬁned tests in order to empirically measure the

system’s functionality and performance. Moreover,

the benchmark must contain a set of operations based

on the workload scenario that is going to be tested.

Regarding SQL statements, the OLAP query process-

ing can be classiﬁed as a read-only workload, focused

on select transactions (Bog, 2013).

Regarding benchmarks for DWs, they should en-

compass four main steps (Floratou et al., 2014): (i)

schema and workload; (ii) data generation; (iii) met-

rics; and (iv) validation. In step (i), two issues must be

tackled. First, a schema that models a typical applica-

tion in the domain area of the DW. For the workload,

it refers to operations on this schema, represented by

OLAP queries with respect to variations of the selec-

tivity. In step (ii), the benchmark deﬁnes rules to gen-

erate synthetic or real data for the schema, allowing

data volumes variations and respecting the selectiv-

ity of the workload. In step (iii), some quantitative

and qualitative metrics are deﬁned for the benchmark,

to report important aspects of the system. Finally, in

step (iv), metrics are collected after the workload is

applied on the generated data. These metrics are com-

pared to others reported by others databases systems.

3 RELATED WORK

The Star Schema Benchmark (SSB) (O’Neil et al.,

2009) is an extension of the TPC-H (Poess and Floyd,

2000), which is designed to measure the performance

of analytical queries over database products in sup-

port to typical data warehousing applications. SSB

implements a genuine star schema, which previous

work (Kimball and Ross, 2013; O’Neil et al., 2009)

argued that this kind of schema can better repre-

sent real-world scenarios. The central fact table of

SSB is LineOrder, which contains information about

sales transactions of a retailer, and this information is

stored as different types of measures, like proﬁt, units

sold and revenue. Also, SSB deﬁnes four dimension

tables: Date, Customer, Supplier and Part. The SSB

Physical Data Warehouse Design on NoSQL Databases - OLAP Query Processing over HBase

113

workload is composed of 13 OLAP queries organized

in four classes that provide not only functional cover-

age but also variations of selectivity and hierarchical

level used. The main limitation of SSB is the restric-

tion to relational OLAP environments. Further, it also

deﬁnes queries applied over one, three or four dimen-

sion tables, lacking of two-dimensional queries.

The Columnar NoSQL Star Schema Benchmark

(CNSSB) (Dehdouh et al., 2014) extends SSB by

proposing a benchmark adapted to measure the per-

formance of columnar NoSQL DWs. It deﬁnes a

schema composed of only one table with several

columns, i.e. it denormalizes the SBB’s star schema

by joining the fact table (LineOrder) with the dimen-

sions tables. The attributes of the schema are grouped

in column-families (CFs) related to their original di-

mension. Although this adaptation has an intuitive

semantic, the physical design of the schema can in-

ﬂuence query performance, and therefore this schema

may not be the only one recommended.

Related to the performance evaluation of colum-

nar NoSQL, the work of Cai et al. (2013) measures

the HBase performance by using two physical DW

designs: (i) only one column-family with multiple

columns; and (ii) multiple column-families, where

every column-family has only one column. In case

(i), reading one row means reading the data of all

columns, even if the user does not need them. As

a consequence, queries using only a few attributes

should consume more I/O and bandwidth. On the

other hand, in case (ii), the user needs to read the

data separately from each CF and combine them to

rebuild the row. When the user request data from a

ﬁxed set of columns, storing these speciﬁc columns

in the same CF should provide a better processing

performance than splitting them into several different

CFs. The experiments only performed generic read

and write operations, without evaluating any aspect

of query processing, selectivity, and DW schema.

Another extension of SSB to column-oriented

NoSQL databases is proposed by Dehdouh et al.

(2015). They introduce three approaches to adapt

SSB to HBase, called NLA-SSB, DLA-SSB, and

DLA-CF-SSB. NLA-SSB refers to the normalized ap-

proach of SSB, while DLA-SSB and DLA-CF-SSB

join the fact and the dimension tables. While DLA-

SSB groups all dimensions in the same CF, DLA-

CF-SSB stores each dimension in a distinct CF, such

as CNSSB (Dehdouh et al., 2014). They observed

that both DLA-SSB and DLA-CF-SSB did not impact

query performance when accessing attributes from

different dimensions. However, the experiments only

processed a ﬁxed data volume, not analyzing the be-

havior of query processing as data grow. They also

did not evaluate the performance of all SSB’s queries,

which vary the selectivity and perform aggregations

based on real-case enterprise scenarios.

In this section, we addressed the limitations of

SSB, and its adaptations, to analyze different physical

DW designs on NoSQL databases. In this paper, we

tackle these issues by measuring the impact of the CF

organization on OLAP queries, considering different

data volumes. Further, we propose two new types of

queries, which are very important because they allow

the investigation of two-dimensional queries.

4 PROPOSED INVESTIGATION

We propose an investigation of the physical DW de-

sign on HBase column-oriented NoSQL database, by

considering different strategies to arrange attributes

into column-families (CFs). Our investigation is mo-

tivated by the fact that, as presented in Section 2.2,

each CF on HBase is stored in a separated HFile,

such that when a query accesses data from two or

more CFs, it must read each HFile and join them by

the rownum ﬁeld to rebuild the tuple. However, rec-

ommendations of HBase state that joining more than

two CFs leads to a low performance. As a conse-

quence, it is important to analyze the attribute dis-

tribution over CFs regarding the OLAP query con-

text. Depending on the analysis, speciﬁcally the num-

ber of dimensions aggregated, distinct distributions

can beneﬁt or degenerate query performance. Fur-

ther, different enterprise scenarios may beneﬁt from

different physical DW designs. As described in Sec-

tion 1.1, our work focuses on two enterprise sce-

narios. Figure 1 depicts the three-level architecture

for NoSQL column-oriented databases adopted in our

work, showing the adaptations for the physical level

regarding distributed NoSQL systems.

By adopting this denormalization, we argue that,

at the physical level, the database administrator can

decide among three DW designs, as follows:

• Physically organize all attributes in the same CF,

as proposed by Cai et al. (2013) and presented as

DLA-SSB (Dehdouh et al., 2015). We call this

schema as SameCF.

• Store each dimension in different CFs, re-

garding CNSSB (Dehdouh et al., 2014) and

DLA-CF-SSB (Dehdouh et al., 2015). We call

this schema as CNSSB.

• Group some of the more frequently used dimen-

sions to the fact table, which represents the new

strategy proposed in this paper. We joined dimen-

sion Date and call this schema as FactDate.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

114

Conceptual

Level

Logical

Level

Physical

Level

Schema

data cube metaphor

Fact

Dim

denormalized

CNSSB design

(distinct CFs)

SameCF design

(only one CF)

Fact

Dim

...

Fact

Dim

FactDate design

(parcial distinct CFs)

Fact

Dim

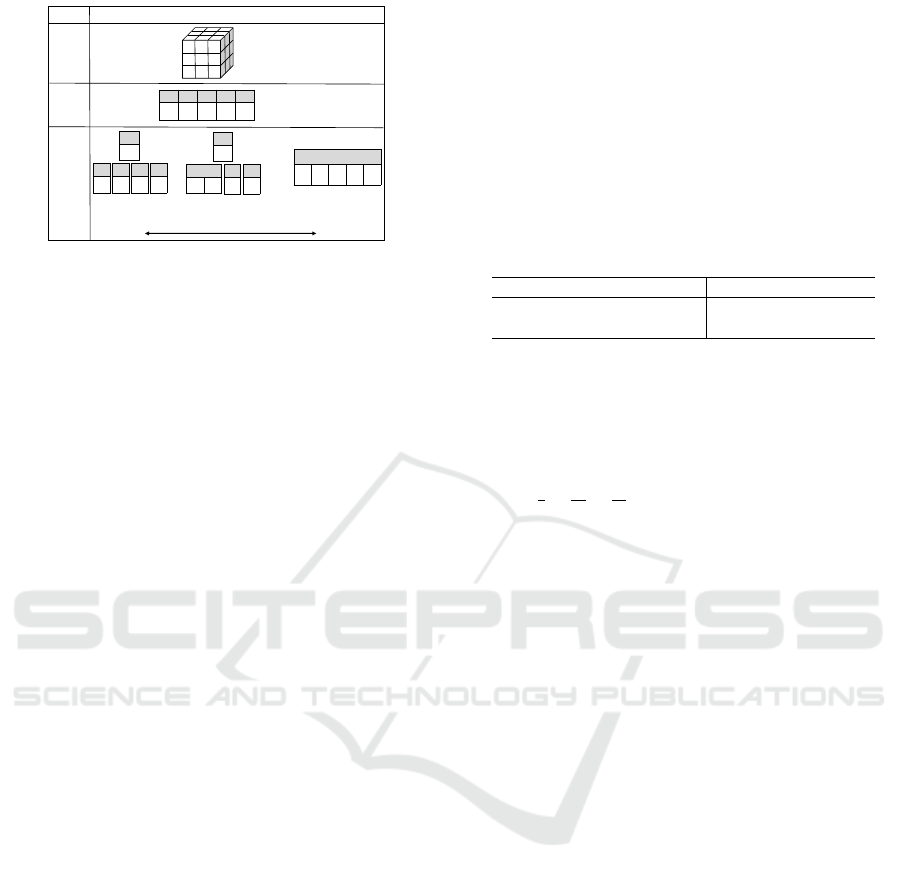

Figure 1: Three-level DW architecture for NoSQL column-

oriented databases, with speciﬁc adaptations on the physical

level that are analyzed in this paper.

First, we implement the CNSSB, which was pro-

posed by Dehdouh et al. (2014) and described in

Section 3. Despite the fact that CNSSB is a user un-

derstandable organization, any OLAP query that in-

volves at least one dimension of the DW will need

to process two CFs, one for the fact’s attributes and

one for the aggregated dimensions. Our second im-

plementation refers to the SameCF design and con-

sists in storing all the attributes in a single CF, based

on the DLA-CF-SSB (Dehdouh et al., 2015) and on

the work of Cai et al. (2013). This conﬁguration aims

to improve the performance of OLAP queries that an-

alyze a greater number of dimensions, such as Sce-

nario 2 (Section 1.1). Although minimizing the quan-

tity of CFs is a good approach, the organization may

decrease the performance of OLAP analysis that uses

just a small set of attributes and dimensions.

Finally, we propose a new physical DW imple-

mentation, called the FactDate design, which repre-

sents an intermediary solution between CNSSB and

SameCF, combining the LineOrder and Date tables.

This design is aimed at improving the performance

of OLAP queries that use both the fact table and the

dimension table Date, as most of analytical queries

relate their measures to time. This physical de-

sign can improve query performance for queries that

use both CFs as those described in Scenario 1, i.e.

one-dimensional queries. It can also beneﬁt two-

dimensional queries, where one of the dimensions

used is the dimension Date, by decreasing the total

number of CFs processed in the query.

5 PROPOSED QUERIES

Another contribution of this paper is the proposal of

two new queries to be added to the SSB workload.

The need for those queries is to test OLAP aggre-

gations over two dimensions since the SSB work-

load lacks this type of query. Therefore, the pro-

posed queries are two-dimensional queries. To elab-

orate queries for a data warehousing benchmark, ﬁrst

we need to determine and vary the selectivity of the

queries. The predicates used by OLAP queries de-

ﬁned in SSB have an uniform distribution. Through

the cardinality of the attributes, we can deﬁne new

queries with speciﬁc selectivities, similar to the other

queries deﬁned by SSB, however performing a two-

dimensional analysis. Table 1 deﬁnes the cardinality

of the predicates used in the proposed queries.

Table 1: Attribute’s cardinality of the proposed queries.

attribute value attribute value

d_year 7 l_quantity 50

d_yearmonthnum 84 p_category 25

The ﬁrst proposed query, named Qnew1 (Fig-

ure 2), calculates the maximum and minimum rev-

enue, for a given product’s category and year,

grouped by product’s brand. The predicates of

this query are deﬁned over the attributes d_year,

p_category and lo_quantity, whose combined selec-

tivity is

= 2.85 × 10

−3

. This value is sim-

ilar by the same order of magnitude to the queries

deﬁned by SSB using other quantities of dimensions,

like Q2.2 (1.60× 10

−3

) and Q3.2 (1.37 × 10

−3

SELECT p_brand1, max(lo_revenue),

min(lo_revenue)

FROM lineorder, dates, part

WHERE lo_orderdate = d_datekey

AND lo_partkey = p_partkey

AND d_year = 1993

AND p_category = 'MFGR#11'

AND lo_quantity < 25

GROUP BY p_brand1 ORDER BY p_brand1;

Figure 2: The two-dimensional proposed query Qnew1.

The second proposed query is based on a drill-

down operation over the date hierarchy, changing the

analysis from year to month (i.e. attributes d_year to

d_yearmonthnum). This new query, called Qnew2,

calculates the maximum and minimum revenue for

a given product’s category and a month of a year,

grouped by product’s brand. The selectivity of this

query is 2.38× 10

−4

, because of the cardinality of the

predicate over the attribute d_yearmonthnum. Also,

this query has the selectivity near to the SSB’s queries

Q1.2 (6.49 × 10

−4

) and Q2.3 (2 × 10

−4

The two new queries are used in the performance

evaluation to test the designs detailed in Section 4.

6 PERFORMANCE EVALUATION

In this section, we present the performance evaluation

for the three implemented physical designs, CNSSB,

Physical Data Warehouse Design on NoSQL Databases - OLAP Query Processing over HBase

115

SameCF and FactDate, regarding the execution of the

queries of the SSB workload and the queries proposed

in Section 5. We also investigate the impact of the

data volume scalability. The tests were performed us-

ing the following conﬁguration setup:

Hardware: A cluster composed of 4 nodes, each

node having a quad-core CPU at 3.0 Ghz (i5-3330),

16 GB RAM, 1 TB SATA disk (7200 RPM) and 1

Gb/s network. One node acts only as a dispatcher (na-

menode) and the other three as workers (datanodes).

Software: All machines run CentOS (version

7.0). Storage and query processing were performed

using HBase (version 0.98.13), Hadoop (version

2.4.1) and ZooKeeper for data partitioning in HBase.

We used the SSB’s data generator to generate the

dataset, in which the tables were joined into a sin-

gle denormalized CSV ﬁle. This ﬁle was ﬁrst loaded

in HBase through conversion to HFile format and

then equally distributed among the datanodes using

MapReduce jobs. Table 2 details, for each Scale Fac-

tor (SF), the size of the generated ﬁle and the size of

the same data after loading it in HBase. Because of

the HBase’s cell structure, the size of the database is

greater than the CSV ﬁle size. Each query was imple-

mented using Java (version 1.8) and executed at least

ﬁve times to collect the average elapsed time.

Table 2: Data volumes used in the experiments.

Scale Factor (SF)

10 20 40 80

CSV (GB) 28 55 109 218

FactDate (GB) 58.4 116.9 233.9 468.2

CNSSB (GB) 58.5 117 234.2 469.9

SameCF (GB) 57.9 115.8 231.8 464.0

6.1 Analyzing the Physical Designs

This experiment evaluates the query processing for

the three schemas described in Section 4 using SFs

with values of 10 and 20 (Table 2). We organize

our discussions considering two aspects: low-

dimensional analysis and high-dimensional analysis.

Analysis of Low-dimensional Queries

Regarding Scenario 1, we evaluated OLAP queries in-

volving a few number of dimensions, i.e. we eval-

uated one and two-dimensional queries. The one-

dimensional queries were adapted versions of the SSB

query workload. These queries, named Q1.1, Q1.2

and Q1.3, depend only on the dimension Date and

on the fact table. Their differences consist in the

predicates involved, which provided different values

of selectivity. The two-dimensional queries were the

Qnew1 and Qnew2 proposed in Section 5.

Figure 3 depicts the obtained performance re-

sults. Figures 3(a) and 3(c) show that the proposed

FactDate outperforms the other designs for one-

dimensional queries. FactDate improved the overall

performance from 25% to 33% regarding its best

competitor, CNSSB. This behavior is justiﬁed by

the fact that our proposed design processes only one

CF, while CNSSB processes two CFs to perform the

same query. When comparing the SameCF and the

FactDate designs, SameCF contains ﬂatter HFiles

because it stores attributes for all dimensions. As a

consequence, the one-dimensional query processing

requires more time due to larger HFiles. Figures 3(b)

and 3(d) illustrate that CNSSB demanded more

time to process queries Qnew1 and Qnew2, as it

requires accessing three CFs to process them. Also,

our proposed FactDate design still outperformed

the other designs because it uses only two CFs.

Compared to its best competitor, SameCF, FactDate

improved query performance from 6% to 14%.

Analysis of High-dimensional Queries

The second part of our analysis evaluated three and

four-dimensional queries, which were adapted ver-

sions of the SSB workload. These queries are re-

lated to Scenario 2, and adapted from SSB’s work-

load. The three-dimensional queries are named Q2.1

to Q3.4, and the four-dimensional queries, Q4.1, Q4.2

and Q4.3, accessed all four dimensions of the schema.

Figure 4 depicts the obtained processing elapsed

time. Here, we noticed that processing more than

two CFs in the same query provided signiﬁcant per-

formance losses regarding the FactDate and CNSSB

designs. When a query needs to process three or

more CFs, the overhead for rebuilding a tuple sharply

increased execution time. Figures 4(a) and 4(b)

illustrate that SameCF provided the better perfor-

mance results. They also show that this behavior was

maintained when the data volume was increased by

two times. Regarding the three-dimensional queries,

SameCF improved the overall performance from 14%

to 38% when compared to its best competitor, Fact-

Date. Furthermore, when we added more dimensions

to the query, the processing time for CNSSB and Fact-

Date increased. They become unsuitable for Scenario

2, as depicted in Figures 4(c) and 4(d). Regarding the

four-dimensional queries, the improvement provided

by SameCF over FactDate ranged from 47% to 54%.

Both analysis show strong indications about how

different enterprise scenarios can require distinct

physical DW designs to efﬁciently attend the most

frequent queries. On our next experiment, we analyze

how this behavior is related to data volume.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

116

100

150

200

250

300

Q1.1 Q1.2 Q1.3

Elapsed Time (in seconds)

(a) One-dimensional

queries with SF = 10.

100

150

200

250

300

350

Qnew1 Qnew2

Elapsed Time (in seconds)

(b) Two-dimensional

queries with SF = 10.

100

200

300

400

500

600

Q1.1 Q1.2 Q1.3

Elapsed Time (in seconds)

queries with SF = 20.

100

200

300

400

500

600

700

Qnew1 Qnew2

Elapsed Time (in seconds)

(d) Two-dimensional

queries with SF = 20.

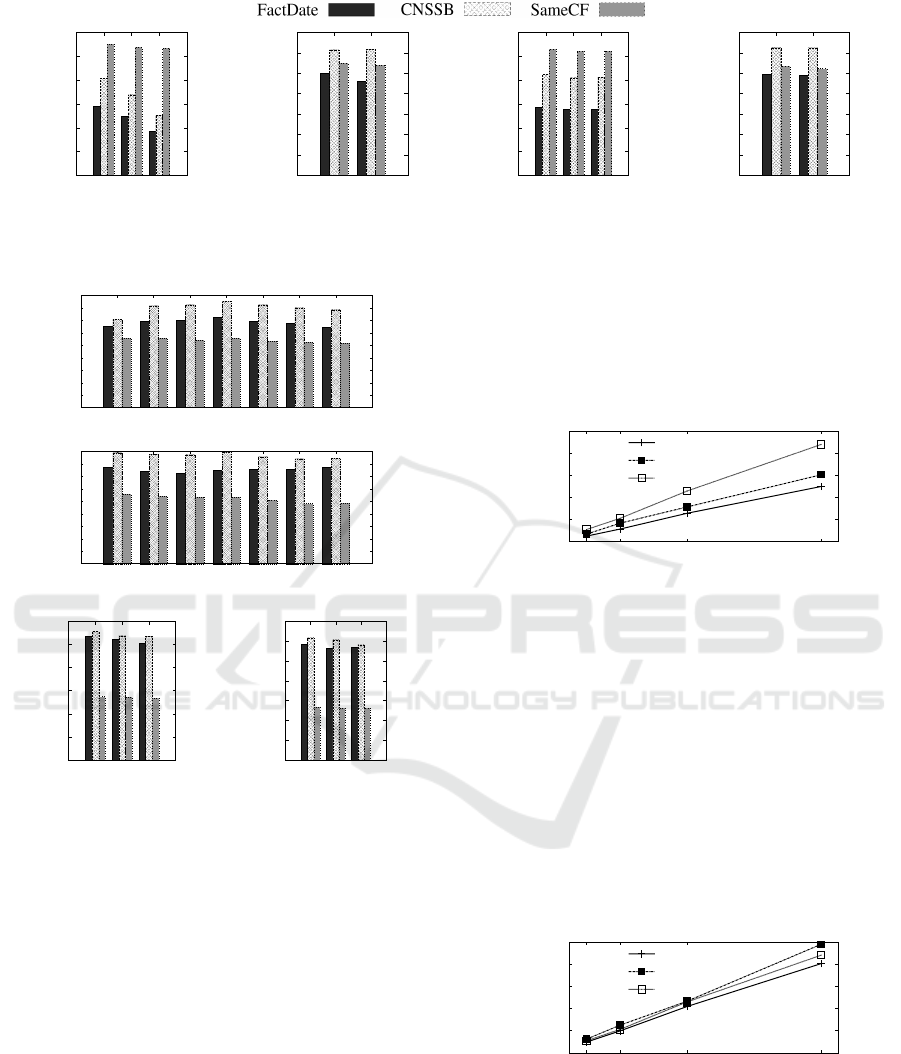

Figure 3: Processing elapsed time for low-dimensional queries, which are related to Scenario 1.

100

150

200

250

300

350

400

450

Q2.1 Q2.2 Q2.3 Q3.1 Q3.2 Q3.3 Q3.4

Elapsed Time (in seconds)

(a) Three-dimensional queries with SF = 10.

100

200

300

400

500

600

700

800

900

Q2.1 Q2.2 Q2.3 Q3.1 Q3.2 Q3.3 Q3.4

Elapsed Time (in seconds)

(b) Three-dimensional queries with SF = 20.

100

200

300

400

500

600

Q4.1 Q4.2 Q4.3

Elapsed Time (in seconds)

queries with SF = 10.

200

400

600

800

1000

1200

1400

Q4.1 Q4.2 Q4.3

Elapsed Time (in seconds)

(d) Four-dimensional

queries with SF = 20.

Figure 4: Processing elapsed time for high-dimensional

queries, which are related to Scenario 2.

6.2 Scalability Evaluation

Here, we evaluate query performance, according to

the designs described in Section 4, analyzing their be-

havior as the data volume increases. In this experi-

ment, we used SFs = 10, 20, 40 and 80 (Table 2).

Figure 5 depicts the average processing time for

the one-dimensional queries. We can observe that

the query performance against SameCF was highly

degenerated and produced higher processing times

when compared to the other designs. The main dif-

ference between FactDate and CNSSB was related to

the quantity of CFs, where the queries against Fact-

Date only accessed one CF while the queries against

CNSSB accessed two CFs. Regarding FactDate, we

observed that reducing the quantity and size of the

CFs related to the most frequent queries improved

query performance, but if all the dimensions were

joined in the same CF, the performance dropped sub-

stantially. Further, FactDate boosted the performance

by 20% on average when compared to CNSBB.

500

1000

1500

2000

2500

SF10 SF20 SF40 SF80

Elapsed Time (in seconds)

FactDate

CNSSB

SameCF

Figure 5: Processing time of one-dimensional queries.

Figure 6 depicts the average processing time for

the two-dimensional queries. The three designs

showed a similar behavior when processing these

queries. However, the proposed FactDate design

slightly outperformed the other designs as it pro-

cessed only two CFs for the two-dimensional queries,

while CNSSB design processed three CFs. Compar-

ing FactDate to SameCF, we observed that FactDate

deals with two small CFs while SameCF processes

only one large CF. Therefore, when two small CFs

were joined, FactDate still outperformed the overhead

of processing one ﬂatter HFile. This improvement

varied from 6% to 11% as the data volume increased.

500

1000

1500

2000

2500

SF10 SF20 SF40 SF80

Elapsed Time (in seconds)

FactDate

CNSSB

SameCF

Figure 6: Processing time of two-dimensional queries.

Figure 7(a) shows the average processing time

for the three-dimensional queries. For two or more

CFs, query performance presents an opposite behav-

ior when compared to the results depicted in Figures 5

and 6. We can observe that grouping all attributes

in the same CF boosted the performance of SameCF

Physical Data Warehouse Design on NoSQL Databases - OLAP Query Processing over HBase

117

over FactDate from 21% to 31% as the data volume

increased. Moreover, Figure 7(b) depicts that this

improvement, on four-dimensional queries, is up to

54%. We can conclude that, when it comes to pro-

cessing three or four CFs, FactDate and CNSSB are

not suitable for Scenario 2.

1000

2000

3000

4000

5000

10 20 40 80

Scale Factor (SF)

FactDate CNSSB SameCF

1000

2000

3000

4000

10 20 40 80

Elapsed Time (in seconds)

Scale Factor (SF)

(a) Three-dimensional.

1000

2000

3000

4000

5000

10 20 40 80

Scale Factor (SF)

(b) Four-dimensional.

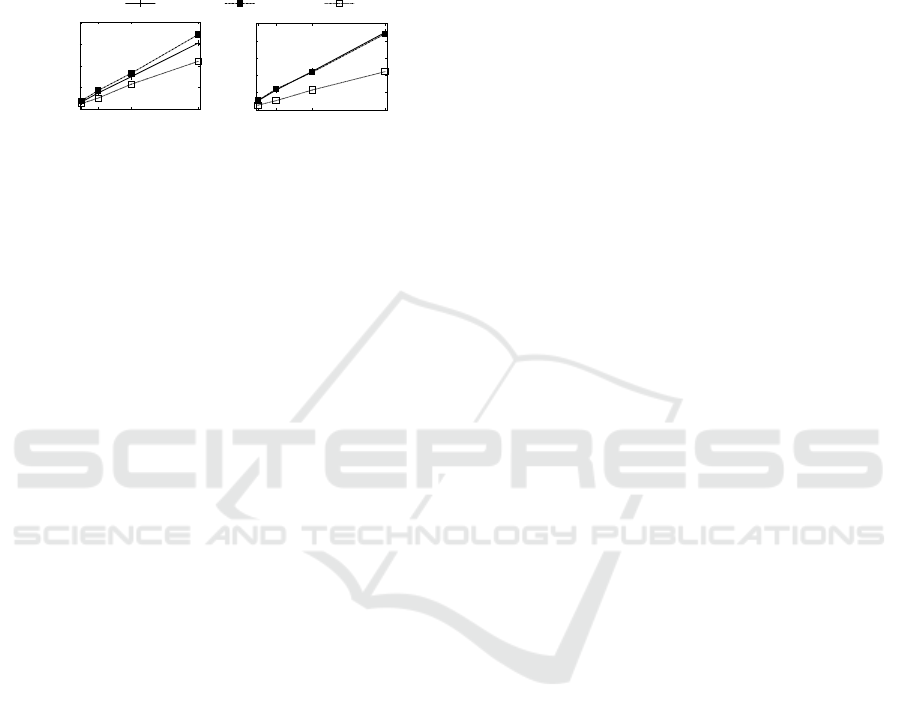

Figure 7: Processing time of high-dimensional queries.

7 CONCLUSIONS

In this paper, we analyze three physical DW designs,

called CNSSB, SameCF, and FactDate. We consider

two different enterprise scenarios, determining OLAP

queries with different numbers of dimensions. We ob-

serve how the attribute arrangement over CFs accord-

ing to these designs inﬂuences OLAP query perfor-

mance. The results of our experiments showed that

storing all data in one CF provided better performance

for high-dimensional queries. In this scenario, the

SameCF was the most appropriated to be deployed.

On the other hand, storing dimensions in different

CFs beneﬁted low-dimensional queries. In this sce-

nario, the FactDate and the CNSSB were more appro-

priated. Further, when processing one-dimensional

queries that required data from the dimension Date,

the FactDate design provided the best performance

results. Since data warehousing is characterized by

mostly read-only operations, this organization in CFs

is an important issue to take into account when com-

paring NoSQL column-oriented databases.

By using this guideline, the company is able to

provide a schema physical design that best suits the

most frequent OLAP queries issued against its data

warehousing application. Regarding benchmarks, we

can conclude that their workload must model different

physical designs in order to provide a more accurate

evaluation focused on the company interests.

ACKNOWLEDGEMENTS

This work has been supported by the follow-

ing Brazilian research agencies: FAPESP (Grant:

2014/12233-2), FINEP, CAPES and CNPq.

REFERENCES

Abadi, D. J., Madden, S. R., and Hachem, N. (2008).

Column-stores vs. row-stores: How different are they

really? In ACM SIGMOD, pages 967–980, NY, USA.

Bog, A. (2013). Benchmarking Transaction and Analytical

Processing Systems: The Creation of a Mixed Work-

load Benchmark and Its Application. Springer Pub-

lishing Company, Incorporated, 1 edition.

Cai, L., Huang, S., Chen, L., and Zheng, Y. (2013). Perfor-

mance analysis and testing of hbase based on its ar-

chitecture. In 12th IEEE/ACIS ICIS, pages 353–358.

Chevalier, M., El Malki, M., Kopliku, A., Teste, O., and

Tournier, R. (2015). Implementing Multidimensional

Data Warehouses into NoSQL. In ICEIS.

Ciferri, C., Ciferri, R., Gómez, L., Schneider, M., Vaisman,

A., and Zimányi, E. (2013). Cube algebra: A generic

user-centric model and query language for olap cubes.

IJDWM, 9(2):39–65.

Dehdouh, K., Bentayeb, F., Boussaid, O., and Kabachi, N.

(2015). Using the column oriented NoSQL model for

implementing big data warehouses. PDPTA’15, pages

469–475.

Dehdouh, K., Boussaid, O., and Bentayeb, F. (2014).

Columnar NoSQL star schema benchmark. In MEDI

2014, pages 281–288.

Doulkeridis, C. and Nørvåg, K. (2014). A survey of large-

scale analytical query processing in mapreduce. The

VLDB Journal, 23(3):355–380.

Floratou, A., Özcan, F., and Schiefer, B. (2014). Bench-

marking sql-on-hadoop systems: TPC or not tpc? In

5th WBDB, pages 63–72.

Folkerts, E., Alexandrov, A., Sachs, K., Iosup, A., Markl,

V., and Tosun, C. (2012). Benchmarking in the cloud:

What it should, can, and cannot be. In 4th TPCTC,

pages 173–188.

George, L. (2011). HBase: The Deﬁnitive Guide. O’Reilly

Media, 1rd edition.

Kimball, R. and Ross, M. (2013). The Data Warehouse

Toolkit: The Deﬁnitive Guide to Dimensional Model-

ing. Wiley Publishing, 3rd edition.

Moussa, R. (2012). Tpc-h benchmark analytics scenarios

and performances on hadoop data clouds. In NDT,

volume 293, pages 220–234.

O’Neil, P., O’Neil, E., Chen, X., and Revilak, S. (2009).

The star schema benchmark and augmented fact table

indexing. In TPCTC, pages 237–252.

Poess, M. and Floyd, C. (2000). New TPC benchmarks

for decision support and web commerce. SIGMOD

Record, 29(4):64–71.

Poess, M., Smith, B., Kollar, L., and Larson, P. (2002).

TPC-DS, taking decision support benchmarking to the

next level. In SIGMOD Conference, pages 582–587.

Thusoo, A., Sarma, J. S., Jain, N., Shao, Z., Chakka, P.,

Zhang, N., Anthony, S., Liu, H., and Murthy, R.

(2010). Hive - a petabyte scale data warehouse using

hadoop. In 26th ICDE, pages 996–1005.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

118
