Automated Analysis and Evaluation of Web Applications Design:

The CMS-based Web Applications Case Study

Vassiliki Gkantouna

, Athanasios Tsakalidis

and Giannis Tzimas

Department of Computer Engineering and Informatics, University of Patras, Rio Patras, 26500, Greece

Department of Computer and Informatics Engineering, Technological Educational Institute of Western Greece,

M. Alexandrou 1, Koukouli Patras 26334, Greece

Keywords: Design Reuse, Design Pattern, Design Evaluation, CMS, WebML, Web Application, Web Mining.

Abstract: This paper addresses the automated design quality evaluation of Web applications built on a CMS platform

by inspecting their conceptual model under the viewpoint of consistent design reuse. We have utilized

WebML as the design platform of the proposed methodology and we attempt to capture design reuse by

detecting all the recurrent patterns within the WebML hypertext model of an application. A pattern consists

of a core specification, i.e., an invariant composition of WebML elements that characterizes the pattern and

by a number of pattern variants which extend the core specification with all the valid modalities in which the

pattern composition can start (starting variants) or terminate (termination variants). We have developed a

methodology that automatically extracts the hypertext model of a web application which is subsequently

submitted to a pattern-based analysis in order to identify the occurrences of all the incorporated recurrent

patterns implying design reuse. Then, we calculate evaluation metrics revealing whether the identified

patterns variants are used consistently throughout the application. By using the methodology, designers can

detect either effective reusable design solutions consistently used throughout the application model for

obtaining certain functionality within the application’s context or recurrent design constructs causing design

inconsistencies and lowering the quality of the final application.

1 INTRODUCTION

Nowadays, the ever increasing complexity of modern

web applications has led to serious problems of

usability and has raised the need for new methods

enhancing the quality of both the web development

process and the final application.

In response to this need, a plethora of Model-

Driven Web Engineering approaches (Aragón et al,

2013) has been proposed in the literature along with

a number of web design patterns (Bernstein, 1998).

They rely on conceptual models and provide

developers with formal techniques for an effective

design and development process. In an effort to

promote design reuse, design patterns support

developers with proven solutions that can be reused

in different contexts where the correspondence

problem arise. This way, reuse based on design

patterns allows facing the complexity of Web

application development and improving the

development process. At the same time, the adoption

of design patterns can also increase the application’s

quality since the use of successful solutions implies a

major reliability of the final application. In addition,

if design patterns are used consistently in the design

of an application, they enhance its usability, on the

grounds that it is easier for users to identify reliable

expectations about the application’s structure and

behavior.

Despite the fact that there are catalogues of design

patterns ready for use (Welie, 2008; Website patterns,

2015), developers have found it difficult to properly

use them. The main reason is due to the fact that there

is only a very limited number of experienced web

designers who can distinguish which is the

appropriate design pattern for solving effectively a

particular instantiation of a design problem (Díaz et

al, 2009). Another reason is the difficulties that

developers encounter to apply the patterns

consistently throughout the design model of an

application. Especially when they try to apply past

experiences and reuse a previously successful design

pattern, it is common, due to lack of time, that they

do not properly adapt it to the requirements of the new

130

Gkantouna, V., Tsakalidis, A. and Tzimas, G.

Automated Analysis and Evaluation of Web Applications Design: The CMS-based Web Applications Case Study.

In Proceedings of the 12th International Conference on Web Information Systems and Technologies (WEBIST 2016) - Volume 1, pages 130-139

ISBN: 978-989-758-186-1

project at hand, resulting in pattern variants which

cause serious design inconsistencies. All the above

highlight the need for tools supporting developers

inspect and evaluate the consistency of web

applications design, even at the conceptual level, in

order to discover potential design problems at the

early stages of development and facilitate the fast

recovery with the less possible effort.

This paper therefore addresses the automated

analysis and evaluation of web applications design by

inspecting their conceptual model under the

viewpoint of consistent design reuse. At the

conceptual level, we attempt to capture reuse by

detecting the recurrent patterns lying within the

model of an application. We have utilized WebML

(Ceri et al, 2000) as the design platform of our

methodology mainly due to the fact that it supports a

concrete framework for the formal definition of data-

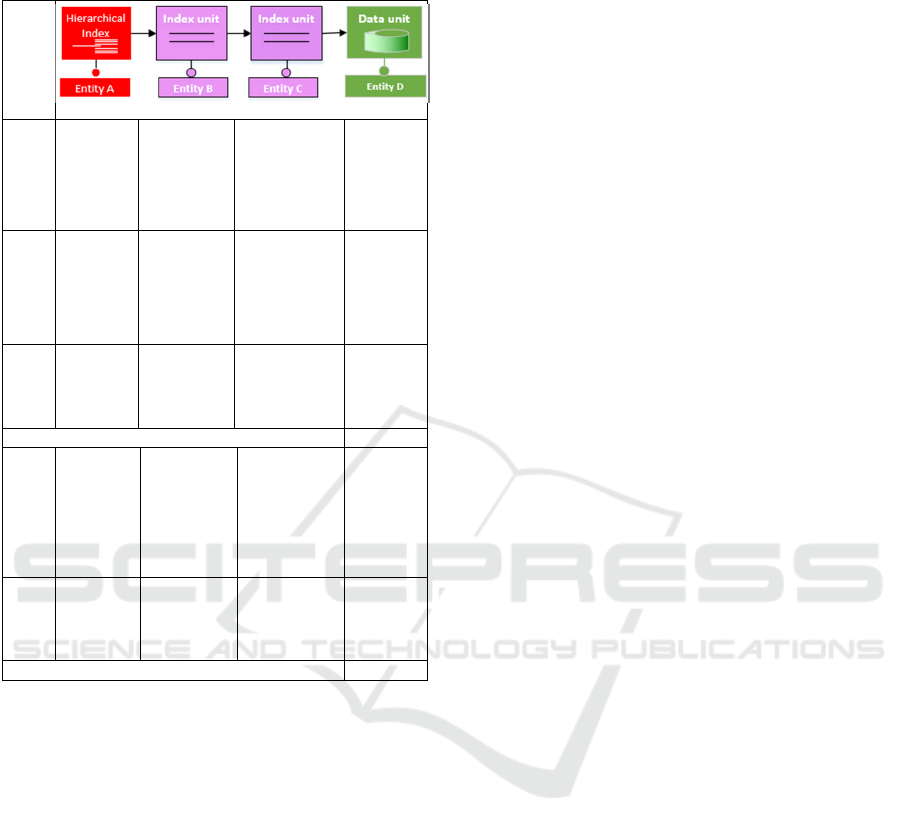

intensive web applications. We consider that a pattern

consists of a core specification, i.e., an invariant

composition of WebML elements that characterizes

the pattern and by a number of pattern variants which

extend the core specification with all the valid

modalities in which the pattern composition can start

(starting variants) or terminate (termination variants).

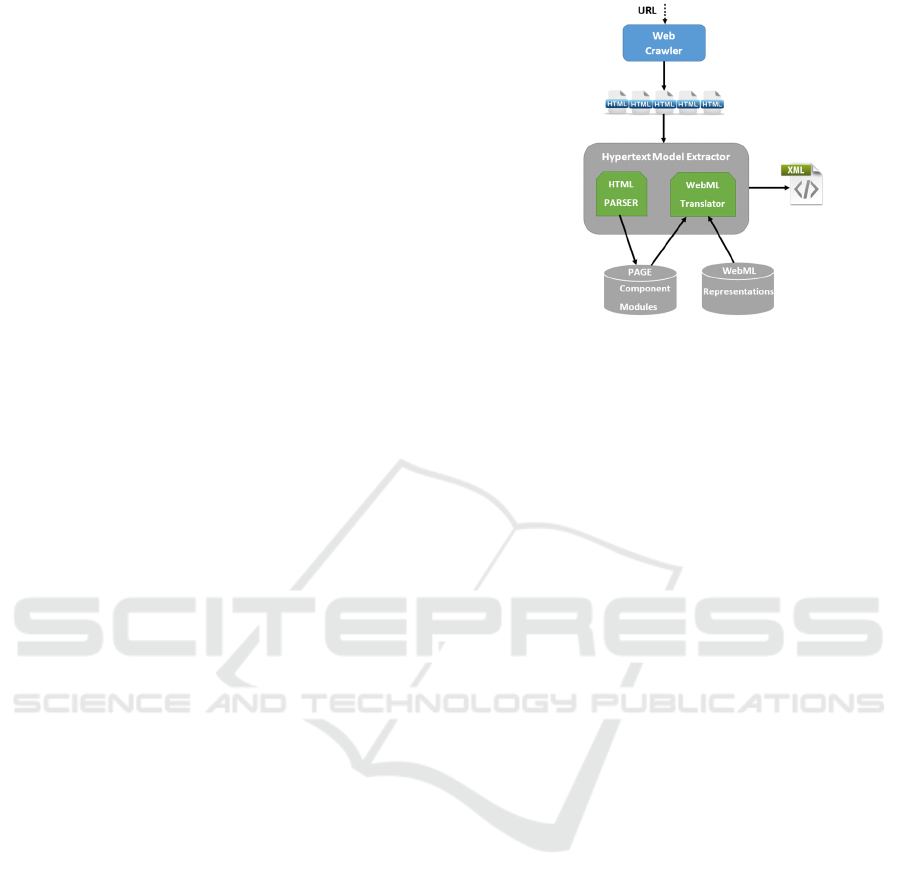

We have developed a methodology that automatically

extracts the hypertext model of a web application and

subsequently performs a pattern-based analysis of the

model in order to identify the occurrences of all the

incorporated recurrent patterns implying design

reuse. Then, we calculate evaluation metrics

revealing whether the identified patterns are used

consistently throughout the application design.

In order to automate the process of evaluating the

design of a Web application, we have narrowed down

the methodology’s scope to the domain of CMS-

based Web applications. The main reason for this is

that CMSs (Content Management Systems) provide a

common base of source code which can be

systematically processed for obtaining the automated

extraction of the application’s hypertext model. The

proposed methodology is accompanied by a tool

support available in (CMS Modeling, 2015), allowing

developers to apply the methodology on websites

developed by using the Joomla! (Joomla! CMS,

2015) and Drupal (Drupal CMS, 2015) CMS

platforms. Due to space limitations, in this work we

present the methodology for the case of Joomla!.

The remaining of this paper is organized as

follows: Section 2 provides an overview of the related

work and discusses the contibution of this work.

Section 3 describes a brief overview of WebML.

Section 4 presents in detail the proposed

methodology, while section 5 discusses conclusions

and future work.

2 RELATED WORK AND

CONTRIBUTION

Our primary goal is to address the design quality of

web applications by focusing on design reuse within

their conceptual model. We consider two main types

of reuse: (i) the one which is due to the application of

well-known design patterns empirically devised by

experienced web designers and (ii) the other which

has emerged as a result of the design decisions made

by developers for adopting specific reusable design

structures to meet the particular needs of an

application. The latter type can result in either

effective reusable solutions consistently used into the

application model for implementing a certain task, or

in problematic cases of reuse causing inconsistencies

and lowering the application’s usability and quality.

To the best of our knowledge, the proposed

approach has no counterpart in the field of conceptual

modeling. Only the work in (Rigou et al, 2006) can

be considered to have a similar point of view, as it

examines both of the aforementioned types of reuse

in the conceptual schemas of web applications. The

authors propose a methodology for detecting and

evaluating model clones implying design reuse in the

application model. However, this methodology

cannot be applied to any web application, since it

does not support the automated creation of their

model, which is a key point of the methodology.

The other studies in the literature when referring

to design reuse in the conceptual model of an

application, they consider merely the first type of

reuse. These studies are divided into two main

categories: (i) the first one focuses on patterns

specification after analyzing and reviewing a large

number of successful web applications and (ii) the

second one focuses on the detection and evaluation of

the instances of predefined design patterns within the

conceptual model of an application. Regarding the

first category, in (Ivory, 2005) the author has

examined the characteristics of the design of highly

rated websites and present a study about the evolution

of web design patterns. In (Fraternali et al, 2008)

authors address the design of community-based Web

applications by proposing a set of WebML design

patterns, identified by reviewing a number of top-

rank Web 2.0 applications. Regarding the second

category, although the research on detecting software

design patterns is mature, the research on the

Automated Analysis and Evaluation of Web Applications Design: The CMS-based Web Applications Case Study

131

automated detection of web design patterns in the

application model is very limited. In (Fraternali et al,

2002) authors present the Web Quality Analyzer

(WQA) which automatically analyzes the conceptual

schemas of Web applications and identifies the

occurrences of a predefined set of WebML design

patterns. By calculating metrics about their coherent

use throughout the application schema, the WQA

allows designers to automatically monitor the design

consistency of WebML-based applications. In

(Aminzadeh et al; 2010), the authors propose a

method for detecting the occurrences of Human-

Computer Interaction (HCI) design patterns within

the design of a web application and visualize them by

using UML class diagrams.

The key difference of our approach is that there is

not any limitation to focus strictly on the detection of

predefined design patterns (known a priori) in the

conceptual model of an application. On the contrary,

we provide a methodology for supporting the

automated detection of all the recurrent design

structures occurring within the conceptual model due

to design reuse. Such structures may be a well-known

design pattern or they can also be reusable design

compositions (effective or not) used by the

developers to accomplish certain behavior in a

specific application context. These patterns can

probably lead to: (i) the identification of new design

patterns for handling common design problems in the

CMS domain which can be used as building blocks in

future designs, or (ii) they can even stand as anti-

patterns in case they are evaluated to cause serious

design inconsistencies. This is a promising initiative

for a mechanism supporting the automated

identification of design patterns and anti-patterns for

the CMS domain and promoting the pattern-based

CMS design and development.

3 WebML OVERVIEW

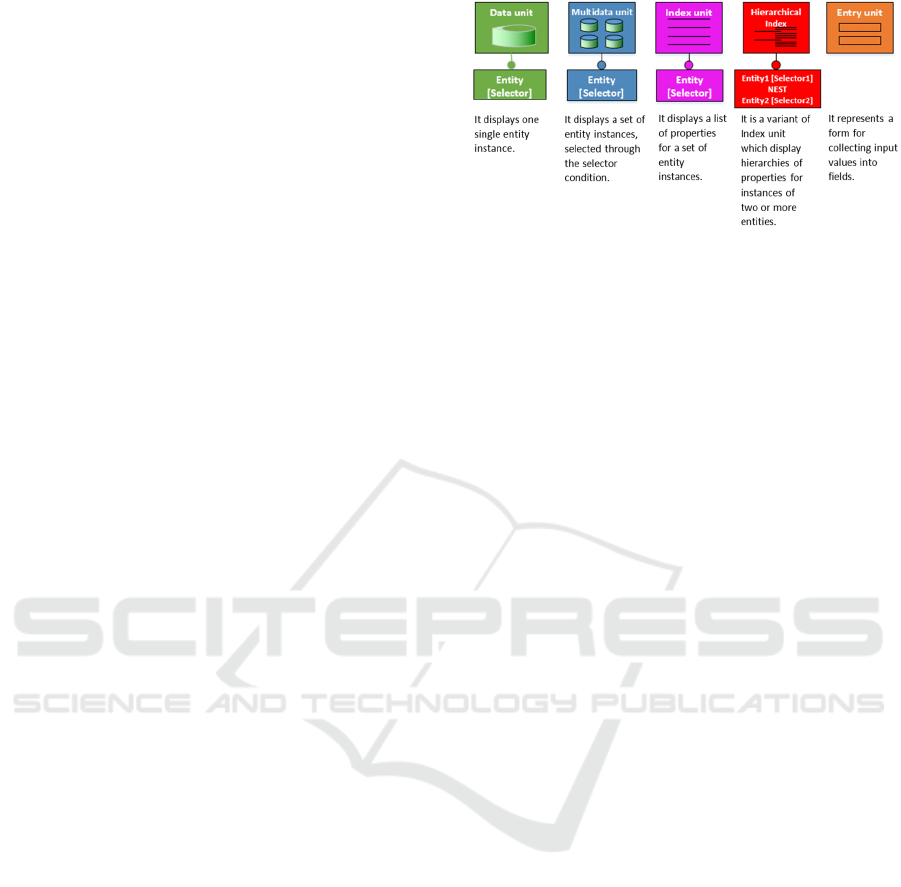

WebML (Ceri et al, 2000) is a language for modeling

data-intensive Web applications by providing a set of

visual primitives for defining the conceptual models

that represent the organization of their contents and

hypertext interfaces. The organization of the

hypertext interfaces is specified by exploiting the

Hypertext model which allow designers to describe

the application’s hypertexts for publishing and

managing content as siteviews. A siteview is a

specific hypertext which can be browsed by a

particular group of users. Siteviews are composed of

pages, which in turn include containers of elementary

Figure 1: The WebML content units.

pieces of content called content units. The data

published by a content unit are retrieved from a table

of the database, which is specified by the source

entity property of the unit. WebML offers a set of

predefined content units such as the DataUnit,

IndexUnit, MultidataUnit, ScrollerUnit,

MultichoiceIndexUnit, and HierarchicalIndexUnit

(some of them are presented in Figure 1) that express

different ways of selecting entity instances and

publishing them in a hypertext interface. Pages and

units are connected with links having a twofold aim:

permitting navigation and enabling the passing of

parameters from the source to the destination

page/unit.

By default, every WebML element has both a

visual representation and an XML-based textual

specification which allows specifying additional

detailed properties that cannot be conveniently

expressed in terms of visual notation.

4 THE METHODOLOGY

In this section, we present the methodology for

automatically extracting the WebML hypertext

model of a Web application (in the form of its XML

specification) and its subsequent analysis with the

aim of (i) identifying and evaluating by using

semantic similarity techniques the occurrences of all

the recurrent patterns lying within it and (ii)

calculating evaluation metrics to assess if they are

used consistently throughout the application model.

In order to explain the concepts of our

methodology, we refer to various instances of a real

web application, called the AtticaBank, which has

been developed on the Joomla! platform and can be

accessed at http://www.atticabank.gr/en/. This

website provides information for the activities of the

Attica bank which is a financial service company. In

what follows, the AtticaBank website will be used to

illustrate the potential of the proposed methodology.

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

132

4.1 Hypertext Model Extractor

The WebML Hypertext Model specifies the

organisation of the front-end interfaces of a Web

application as a set of WebML elements i.e. siteview,

pages, units and links. Based on this, there are two

main tasks for automatically extracting the hypertext

model of a Joomla! website: (i) identify the

organization of the Joomla! design elements that

compose the hypertext of its HTML pages and (ii)

translate them in WebML notation by producing their

appropriate WebML representations.

In the context of a Joomla! website, the

organization of its front-end interfaces is specified by

a set of predefined structural and navigational design

elements which are the components and modules. A

page is composed by one component specifying the

organization of its main part, and by a set of modules

specifying the organization of its peripheral positions.

There is a variety of components and modules

categories, each one containing various types for

supporting different ways of content delivery to users.

In the HTML code of a page, components and

modules can be found as <div> elements. The HTML

class attribute value of such a <div> element (i.e. <div

class="value">) specifies its style i.e. characterizes

the exact type of component-module it represents.

Thus, by parsing the HTML code of a page and

locating the occurrences of these characteristic values

within it, we can recover the page’s organization as a

set of Joomla! design elements. Then, the next step is

to translate these design elements in WebML

notation. We represent the entire website as a

siteview, containing a set of WebML pages, each one

corresponding to the HTML pages of the website. For

the translation of the Joomla! design elements into

WebML elements, we have defined appropriate

WebML representations (combination of units and

links) for all the types of components and modules.

The complete list of the charasteristic values and

WebML representations for each type of components

and modules is available in (CMS Modeling, 2015).

By mapping every type of components and modules

found within the HTML code of a page to its

corresponding WebML representation, we manage to

represent the organization of the website’s pages as a

set of WebML elements i.e. to extract its hypertext

model. The hypertext model extraction process

described above is supported by a set of tools as

depicted in Figure 2.

By given the URL of a website as an input, the

Web Crawler crawls all the pages of the website

which are then passed as an input to the Hypertext

Model Extractor which parses them one-by-one in

Figure 2: The hypertext model extraction process.

order to identify their organization as a set of

components and modules. As we mentioned earlier,

this is achieved by parsing the HTML code of a page

and locating the occurrences of all the characteristic

values for the components and modules. For example,

Figure 3(a) presents the Joomla! design elements that

have been identified for the "Deposits" page of the

AtticaBank website. As we can see, the page consists

of the "Article Category List" component which

displays a list of the articles of the "Deposits"

category and a set of modules such as menus,

breadcrumbs etc. Once this is done for all the pages

of the website, the tool translates the identified

Joomla! design elements of every page into the XML

textual specification of their corresponding WebML

representations. Figure 3(b) presents the

corresponding WebML translation of the Joomla!

elements found in Figure 3(a). Finally, the tool

produces an XML file as an output, containing the

XML textual representations of the Joomla! elements

found in all the pages of the website. This way, we

can obtain the XML specification of the application’s

hypertext model.

4.2 Identification of the Recurrent

Patterns

After the extraction of the application’s model, the

next step is to inspect and analyze it in order to detect

the potential cases of design reuse. At the hypertext

level of an application, we consider as design reuse

the recurrent patterns (i.e. configuration of WebML

elements) within its hypertext model performing a

similar functionality. Therefore, we perform a

pattern-based analysis of the recovered model aiming

to identify the occurrences of all the incorporated

recurrent patterns and evaluate the possibility of

implying design reuse. Given that the WebML

Hypertext

Model

Automated Analysis and Evaluation of Web Applications Design: The CMS-based Web Applications Case Study

133

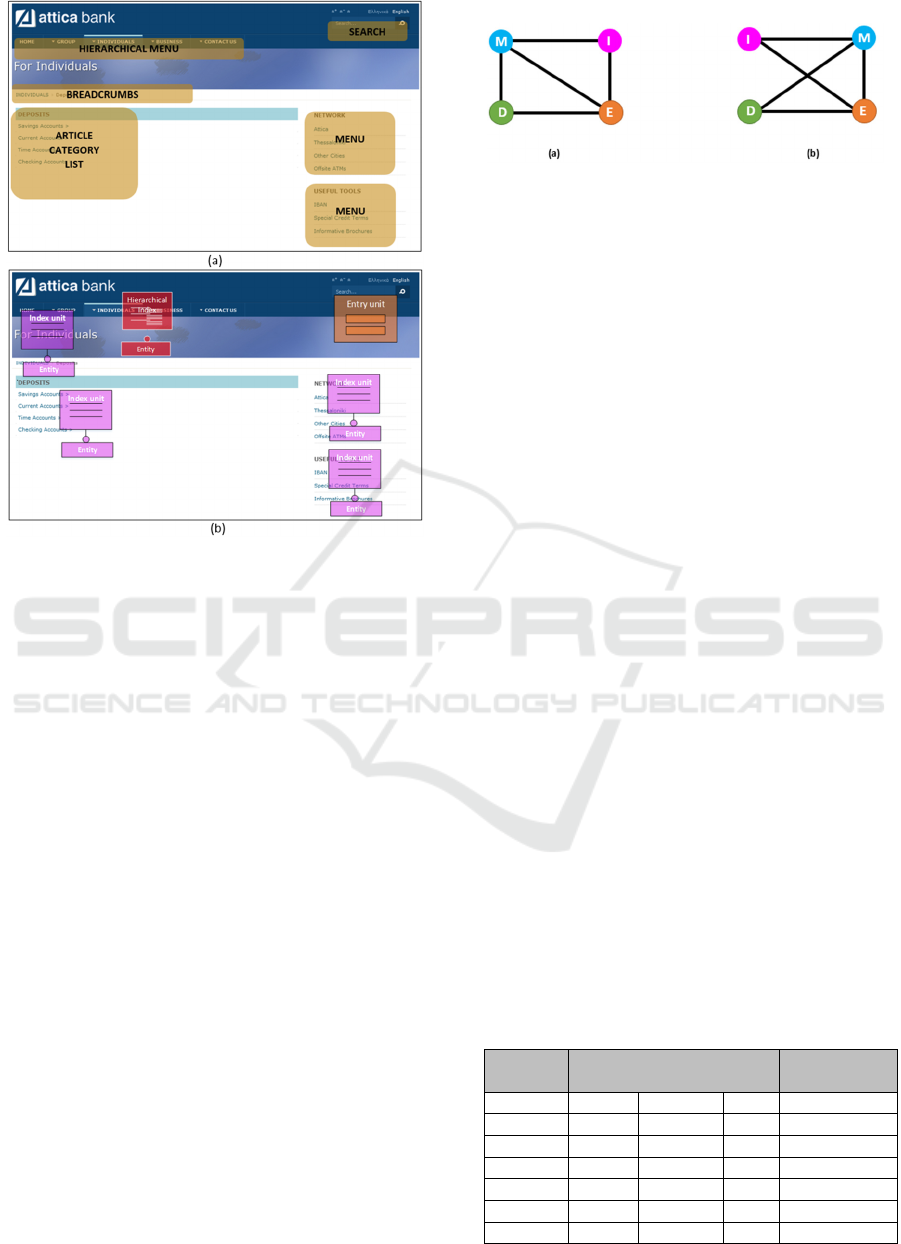

Figure 3: (a) The organization of a page in terms of Joomla!

design elements. (b) The organization of a page in terms of

WebML elements. HierarchicalIndexUnit is colored in red,

IndexUnit is colored in fuchsia and EntryUnit is colored in

orange.

elements constituting a pattern represent Joomla!

components and modules, the identified patterns

actually correspond to configurations of Joomla!

front-end design elements which when located in a

particular layout may serve a certain application

purpose.

The identification of patterns (their core

specifications along with their starting and

termination variants) within a large collection of

WebML elements, such as the application’s siteview,

can be reduced into the domain of graph mining and

particularly to the subgraph isomorphism problem.

The latter is synopsized in its general form to finding

whether the isomorphic image of a subgraph exists in

a larger graph, an example of which is depicted in

Figure 4 (the subgraph has WebML elements on its

nodes). The subgraph in Figure 4(b) is isomorphic to

the subgraph in Figure 4(a). Despite the different

configuration of the nodes in the two subgraphs, the

edges connecting the nodes of the same colour remain

the same. Table 1 contains some sequences of the

nodes that are connected in the subgraphs in Figure 4.

For example, a sequence can start from node M,

from which one can navigates to node I and then to

node E, and so on. By observing the node sequences,

Figure 4: An example of two isomorphic WebML

subgraphs. M stands for the MultidataUnit, I for the

IndexUnit, D for the DataUnit and E for the EntryUnit.

one can notice that they can reveal the recurrent

patterns within a graph, both their core specifications

and their variants. In Table 1, there are two patterns.

For example, the core specification of the first one

consists of a MultidataUnit (M) which is connected to

an IndexUnit (I) which in turn is connected to an

EntryUnit (E). There is also a starting variant

consisting of a DataUnit (D) passing content to the

core specification and a termination variant

consisting of a MultidataUnit (M) receiving content

from the core specification. Clearly, the identification

of the isomorphic subgraphs within a graph is an

alternative way to obtain the identification of the

incorporated recurrent patterns. Based on this, we can

consider the siteview of the previously extracted

hypertext model as a graph of WebML elements and

attempt to identify the recurrent patterns by locating

all the isomorphic subgraphs within the graph. To

achieve this, we first transform the XML

specification of the hypertext model into a directed

graph (WebML Hypertext graph). Then, by applying

a graph mining algorithm, we identify the

occurrences of all the recurrent isomorphic

subgraphs-patterns within this graph. The following

subsections present these two tasks in detail.

4.2.1 Hypertext Model Transformation into

Graph

We define the siteview of the hypertext model as a

directed graph of the form G (V, E, f

, f

), comprising

a set of nodes V, a set of edges E, a node labelling

Table 1: The sequences of the connected nodes.

Starting

Variant

Pattern’s Core

Specification

Termination

Variant

M I E

M I E M

D M I E

I M D

E I M D

I M D E

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

134

Figure 5: Transformation of a WebML hypertext

composition to its graph equivalent.

function f

: V → Σ

and an edge labelling function

: E → Σ

. The function f

assigns labels to the nodes

in V from the alphabet Σ

= {Siteview (S), Page (P),

DataUnit (D), MultidataUnit (M), IndexUnit (I),

HierarchicalIndexUnit (H), MultichoiceIndexUnit

(MI), EntryUnit (E), ScrollerUnit (S)} which includes

all the different types of WebML elements. Similarly,

function f

assign labels to the edges in E from the

alphabet Σ

= {S_P, P_U, U_P, U_U}. The label S_P

denotes the containment of a page in a siteview, the

label P_U denotes the containment of a content unit

within a page, the label U_P denotes the link from a

content unit to a page and finally the label U_U

denotes the link between content units.

To transform the XML specification of the

hypertext model into a directed graph, we parse the

previously created XML file and create the graph as

follows: we assign a node to every page and content

unit of the siteview. Starting from the root node, the

S node representing the siteview, we introduce edges

labeled as S_P to the nodes corresponding to its

WebML pages. Then, we locate edges labeled as P_U

from the P (Page) nodes to the nodes corresponding

to the WebML units they contain. Similarly, we

locate edges with the labels U_P and U_U. An

example of transforming an instance of a siteview

consisting of two pages into its graph equivalent is

depicted in Figure 5.

4.2.2 Mining the Recurrent Patterns

In order to identify the recurrent patterns lying within

the WebML Hypertext graph, based on the approach

of the subgraph isomorphic problem, we need to

apply a graph mining algorithm for detecting the

isomorphic subgraphs images. This problem has

proven to be NP-complete. However, quite a few

heuristics have been proposed to solve it, among

which we have selected the most prominent one, the

gSpan algorithm (Yan et al, 2002). More specifically,

gSpan addresses the problem of frequent subgraph

mining. Intuitively, gSpan traverses the WebML

Hypertext graph G and finds all the smaller subgraphs

g in G that occur frequently. A subgraph g is frequent,

if its occurrence frequency in G, denoted as

support(g), is no less than a minimum support

threshold (minSup). In a more formal definition, the

problem of frequent subgraph mining is to find any

subgraph g into G so that support(g) ≥ minSup. When

looking for the occurrences of a subgraph in G, the

algorithm encounters except for its identical

occurrences, its isomorphic images too. In this way,

the graph G is analyzed in terms of its frequent

subgraphs (representing recurrent patterns). To apply

the gSpan on the graph, we use the Parsemis project

(Philippsen, 2011) which supports an implementation

of the gSpan algorithm within a graphical

environment for visualizing the identified frequent

subgraphs. An example can be found in Figure 6

which presents a case in which gSpan has identified a

set of frequent subgraphs within the hypertext model

of the AtticaBank website.

The Parsemis tool provides the identified

subgraphs in a TXT file containing the configuration

of the WebML elements that compose each subgraph

as well as their occurrences in the graph. Then, we

process this file in a way similar with the one

presented in the example of Table 1 (based on the

sequences of the connected nodes in the subgraphs)

and identify the core specifications and the starting

and ending variants of each identified pattern.

In order to examine whether the identified

recurrent patterns perform similar functionality (so

that we can consider them as design reuse), it is

necessary to additionally inspect them by means of

the content displayed by their constituent WebML

units and particularly their semantic closeness. This

means that if we have identified a pattern of Joomla!

Figure 6: An instance of the Parsemis Project while

detecting the frequent subgraphs in the WebML hypertext

graph of the AtticaBank website.

Automated Analysis and Evaluation of Web Applications Design: The CMS-based Web Applications Case Study

135

Table 2: Average semantic similarity computation for the

occurrences of an identified pattern.

PATTERN

Module Component Component Component

Occ.1

Individu

als

Top

Individuals

Deposits

Categories

Page

Individuals

Deposits

Time

Accounts

Category

Page

Individu

als

Single

Term

Deposits

Details

Occ.2

Business

Top

Business

Deposits

Categories

Page

Business

Deposits

Time

Accounts

Category

Page

Business

Single

Term

Deposits

Details

Sem

Sim

Score

Occ1.

Occ.2

80% 90% 100%

AverageSemSimScore Occ1.-Occ.2 90%

Occ.

Individua

Top

Individuals

Loans

Categories

Page

Individuals

Mortgage

Loans

Category

Page

Individu

als

Attica

Housing

Mortgag

e Loan

Details

Sem

Sim

Score

Occ1.

Occ.3

30% 30% 20%

AverageSemSimScore Occ1.-Occ.3 27%

front-end elements, we also have to examine the

content displayed by them, for every occurrence of

the pattern, in order to verify if there is any kind of

common functionality performed by them. An

example would be to capture a pattern used for

displaying information about products of a specific

product category in an e-commerce website.

The content displayed by a WebML unit is

specified by its source entity property which refers to

the table of the underlying database that provides

content to it. In this work, we assume that we do not

have access to the database of the website under

study, due to the fact that this is the common scenario

in real-life websites. To capture the semantic

closeness of the content displayed by the pattern’s

WebML units (i.e. the Joomla component-module

they represent) among the occurrences of the

identified patterns, we have defined two metrics, the

"SemSimScore" and the "AverageSemSimScore".

On the grounds that the main content of a page,

published by components, is indicative of the page’s

semantics, the "SemSimScore" metric addresses the

semantic similarity measurement of the content

published by the pattern’s WebML units which

represent Joomla! components. This is why there are

empty cells for the"SemSimScore" computations in

Table 2, when it comes to measure semantic

similarity among modules. Then, the

"AverageSemSimScore" computes the average value

of the individual "SemSimScore" values between the

pattern occurences. The rationale behind this is that

the content of the pages that derive from the same

database’s table usually has a very close semantic

relation. In Table 2, we can see an example of an

identified pattern performing the following behavior:

from a starting point e.g. a menu link

(HierarchicalIndexUnit), the user navigates to a page

displaying a list of the categories of a subject such as

a speficic information object type (IndexUnit), then

after selecting a category, he navigates to a page

displaying a list of the subcategories (IndexUnit) of

the selected category and finally after selecting a

subcategory, he navigates to a page displaying the

details of that subcategory (DataUnit). This pattern

occurs frequently in the AtticaBank website. In Table

2, we can see three occurrences of the pattern. In

Occ.1, all the categories and the subcategories of the

deposits for Individuals customers are displayed. In

Occ.2 the same happens except for the fact that it is

intended for Business customers. By comparing the

semantic similarity of the content displayed by the

pattern’s WebML units for these two occurrences,

they have an AverageSemSimScore of 90% which

means that they are semantically very close. Occ.3

refers to the case of displaying all the categories and

the subcategories of the loans for Individuals

customers. In the same way, we can compute the

AverageSemSimScore for Occ.1 and Occ.3 which is

27%, implying that these occurrences are not

semantically close. This is actually expected, since

their only common base is that they refer to the

customer of type Individuals. The rest of the content

displayed on them is irrelevant.

By using the AverageSemSimScore metric, we

can obtain a safe estimation of the content semantic

closeness among the occurrences of the identified

patterns. In Figure 7(b), we can see the real tables of

the AtticaBank database schema while in Figure 7(a),

we can see the source entities of the pattern’s WebML

units for the occurrences Occ.1 and Occ.2. Obviously,

the high semantic similarity score that we have

computed for Occ.1 and Occ.2 is justified by the fact

that supposing we have access to the database, the

WebML units for these occurrences would have

displayed content from the same database tables. We

consider that these two occurrences perform similar

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

136

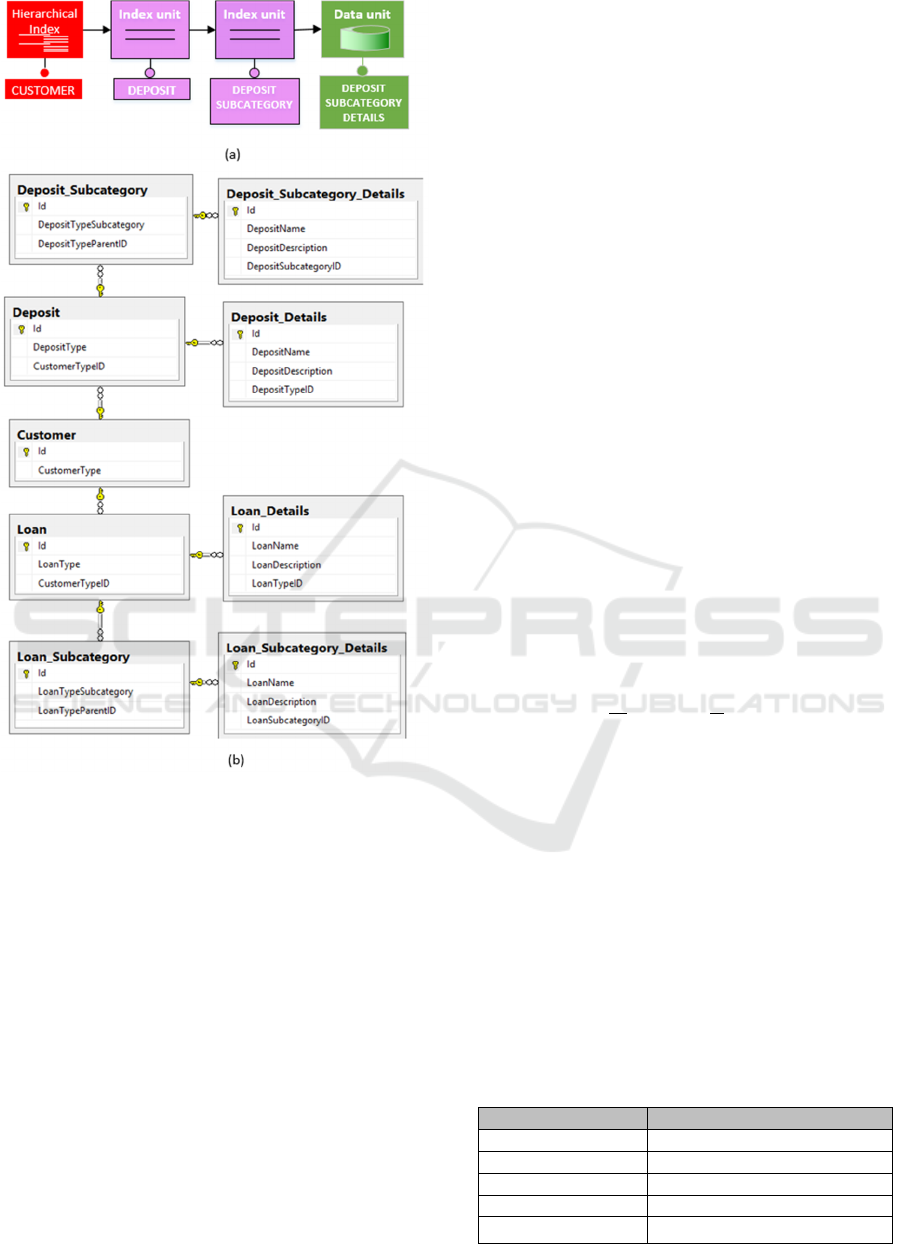

Figure 7: (a) The entities of the WebML units and (b) the

AtticaBank website’s database.

functionality which is to display the details of a

specific type of deposits.

We compute the AverageSemSimScore metric

for all the occurrences of the identified patterns (core

specification and variants) and we select and store in

a "Patterns Repository" only the ones having an

AverageSemSimScore over 70%. The reason for this

is to detect cases having a high possibility of

performing a kind of similar functionality. To

compute the "SemSimScore" metric, we have used

the methodology proposed in (Simpson et al, 2010)

for WordNet-based semantic similarity measurement.

Detailed information can be found in (Simpson et al,

2010).

4.3 Evaluation of Pattern Variants

Consistent Use

In this final step, we focus on evaluating the

consistent design reuse. More specifically, we

calculate some metrics to evaluate whether the

patterns stored in the "Patterns Repository" are used

consistently throughout the hypertext model.

Fraternali et al. (2002) have introduced a

methodology for the evaluation of the consistent

application of predefined WebML design patterns

within the conceptual schema of an application. We

utilize this methodology and extend it in order to

introduce metrics computing the consistent

application of a pattern’s variants throughout the

hypertext model of the application. Assuming that a

pattern can have N starting and M termination

variants, we have defined two metrics that compute

the statistical variance of the occurrences of the N

starting and the M termination variants of the pattern,

normalized according to the best-case variance. These

metrics are called Start-Point Metric (SPM) and End-

Point Metric (EPM) respectively. SPM is defined as

(EPM is defined in an analogous way)

  









⁄



(1)





is the statistical variance of the N starting variants

occurrences which is calculated according to the

formula (2):



























(2)

where 



is the percentage of occurrences for the i-th

pattern variant. 





is instead the best case variance

and it is calculated by the formula (2) assuming that

only one variant has been coherently used throughout

the application.

The last step in the metrics definition is the

creation of a measurement scale to define a mapping

between the numerical results obtained through the

calculus method and a set of (predefined) meaningful

and discrete values. According to the scale types

defined in the measurement theory, the SPM metric

adopts an ordinal nominal scale; each no minal value

in the scale expresses a consistency level,

Table 3: The measurement scale for the SPM metric.

SPM range Measurement scale value

0 ≤ SPM < 0.2 Insufficient

0.2 ≤ SPM < 0.4 Weak

0.4 ≤ SPM < 0.6 Discrete

0.6 ≤ SPM < 0.8 Good

0.8 ≤ SPM ≤ 1 Optimum

Automated Analysis and Evaluation of Web Applications Design: The CMS-based Web Applications Case Study

137

corresponding to a range of numerical values of the

metrics as defined in Table 3. The same scale covers

the EPM metric as well.

We compute the SPM and EPM metrics for all the

occurrences of all the patterns variants and store the

results in the "Results Repository". This repository

contains the ranking of the pattern variants stored in

the "Patterns Repository" according to their SPM and

EPM values. The results are also provided in a TXT

file ("Results"). An example can be found in Table 4.

We consider that the core specification of the pattern

consists of an IndexUnit which navigates to another

IndexUnix which in turn results to a DataUnit. This is

a pattern for browsing a hierarchy of categories and

subcategories related to a specific information object

(i.e. the Deposit object type). In Table 4, there are two

starting variants of this pattern. The first one, Occ.1,

consists of an HierarchicalIndexUnit passing content

to the core specification, some occurrences of which

we have seen in Table 2 (Occ.1, Occ.2, Occ.3). The

second variant consists of a DataUnit instead of a

HierarchicalIndexUnit. One occurrence of this

variant can be found in Occ.4 (Table 4) in which from

a starting point e.g. a banner on the Home page of the

AtticaBank website, the user can have access to all

the categories and the subcategories of the deposits

for Individuals customers. In fact, the occurrence

Occ.4 of the second variant performs the same

functionality with the occurrence Occ.1 of the first

variant, except for the fact that they differ on the

starting point they provide to users for browsing the

hierarchy of categories and subcategories. The value

of the SPM metric for the first variant is about 0.68

(‘Good’) whereas the value for the second variant is

0.39 (‘Weak’). The ranking of the first variant as

‘Good’ is expected since it occurs frequently on the

AtticaBank website. On the other hand, the low value

of the second variant is due to the fact that it has a

very limited number of occurrences. By observing the

low value of the second variant on the "Results" file,

developers can inspect its identified occurrences on

the AtticaBank website in order to verify if it actually

a design inconsistency. It is worth noting that in some

cases it could happen that detected inconsistencies

can be caused by conscious design choices in order to

respond to specific application constraints. In the case

of the AtticaBank website, despite its low SPM value,

the second variant is indeed an explicit choice of the

designers in order to provide a quick link to the

Individuals Deposits Page for increasing its

popularity. In the case of another website though, it

could indicate a design mistake. Furthermore,

developers can consider adding similar banners for

direct navigation to other types of deposits pages, so

that to enhance the application’s usability.

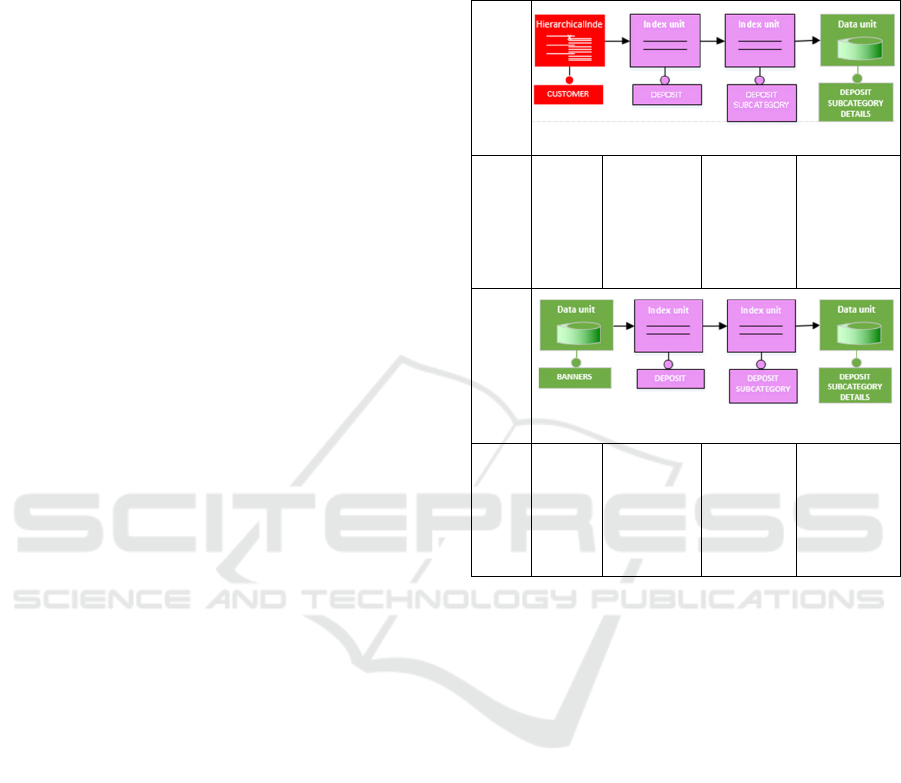

Table 4: Pattern variants.

VARIANT 1

Module Component Component Component

Occ.1 Individ

uals

Top

Individuals

Deposits

Categories

Page

Individuals

Deposits

Time

Accounts

Category

Page

Individuals

Single Term

Deposits

Details

VARIANT 2

Module Component Component Component

Occ.4 Home

Page

Banner

Individuals

Deposits

Categories

Page

Individuals

Deposits

Time

Accounts

Category

Page

Individuals

Single Term

Deposits

Details

This is just a simple example showing how the

proposed methodology can work as a black box

analysis of the application’s model able to highlight

potential design problems to designers. We are now

developing a graphical environment for visualizing

the results for each pattern’s variants.

5 CONCLUSIONS AND FUTURE

WORK

In this paper, we have illustrated a model-driven

approach for the automated design analysis and

evaluation of CMS-based Web applications. To

achieve this, we focused on evaluating the

consistency of design reuse within the hypertext

model of a website. We provide an automated way for

extracting the hypertext model of a website which is

then submitted to a pattern-based analysis for the

identification of all the occurrences of the recurrent

patterns lying within it. Finally, the identified patterns

variants are evaluated towards their consistent use

throughout the application. Most of the work

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

138

presented here can be generalized also to web

applications built on other CMS platforms with slight

straightforward modifications.

By applying the methodology on a website,

developers can gain important information regarding

its design quality. On one side, the methodology can

detect effective reusable design solutions which are

consistenlty used throughout an application model for

solving a frequently occuring problem. Such reusable

solutions can be used as building blocks for

implementing certain behavior in future designs.

They also facilitate the discovery of new design

patterns for the CMS domain. On the other side, the

methodology can also detect recurrent design

constructs indicating ad-hoc forms of reuse, causing

design inconsistencies and implying the need for

refactoring, in order to improve the application’s

consistency. Developers can inspect the occurrences

of such fragments on the website, as they are

highlighted by the proposed methodology.

In the future, we plan to apply the methodology to

a very large number of domain-specific websites for

two main reasons. The first one is to better refine the

methodology itself and fine-tune the currently used

evaluation metrics, or even explore new ones. The

second reason is to populate a central patterns

repository, containing all patterns that we can

possibly identify within the various websites designs.

In this way, it is possible to come up with useful

design guidelines for Joomla!-based websites. Our

vision is to create a knowledge base of navigation and

interface patterns for the CMS domain in order to

form a common vocabulary among designers for

solving common CMS design problems and

producing quality CMS designs.

REFERENCES

Aminzadeh, N., Salim, S.S., 2010. Detecting and

visualizing web design patterns, In the Proceedings of

the 2nd International Conference on Computer and

Automation Engineering (ICCAE), Vol. 2, pp. 100-103.

Aragón, G., Escalona, M. J., Lang, M., Hilera, J. R., 2013.

An Analysis of Model-Driven Web Engineering

Methodologies, In International Journal of Innovative

Computing, Information and Control, Vol. 9, no. 1, pp.

413-436.

Bernstein, M., 1998. Patterns of Hypertext. In Hypertext 98

- Proceedings of the Ninth ACM Conference on

Hypertext and Hypermedia, Pittsburgh, PA, USA, June

20-24, 1998, pp. 21-29.

Ceri S., Fraternali P., Bongio A., 2000. Web Modeling

Language (WebML): a Modeling Language for

Designing Web Sites. In the Proceedings of WWW

Conference. Amsterdam, NL, May 2000, pp. 137-157.

CMS Modeling, (2015) Available at: http://

alkistis.ceid.upatras.gr/research/modeling/CMSModel

Extractor/ (Accessed: 10 November 2015).

Díaz, P., Rosson, M.B., Aedo, I., Carroll, J.M., 2009. Web

design patterns: Investigating user goals and browsing

strategies. In: Pipek, V., Rosson, M.B., de Ruyter, B.,

Wulf, V. (eds.) IS-EUD 2009. LNCS, vol. 5435, pp.

186–204. Springer, Heidelberg.

Drupal CMS (2015). Available at: https://www.drupal.org/

(Accessed: 10 November 2015).

Fraternali, P., Matera, M., Maurino A., 2002. WQA: an

XSL Framework for Analyzing the Quality of Web

Applications. In the Proceedings of the 2nd

International Workshop on Web-Oriented Software

Technologies – IWWOST’02. Malaga, Spain, June 10–

14, 2002, pp. 46–61.

Fraternali, P., Tisi, M., 2008. Building community-based

Web applications with a Model-Driven approach and

design patterns. In Murugesan, S. (ed.) Handbook of

Research on Web 2.0, 3.0, and X.0: Technologies,

Business, and Social Applications, IGI Global.

Ivory, M. Y., Megraw, R., 2005. Evolution of web site

design patterns. In ACM Trans. Inf. Syst., 23(4):463–

497.

Joomla! CMS (2015). Available at: http://www.joomla.org/

(Accessed: 10 November 2015).

Philippsen, M., 2011. ParSeMiS - the Parallel and

Sequential Mining Suite. Available at:

https://www2.cs.fau.de/EN/research/zold/ParSeMiS/in

dex.html (Accessed: 10 November 2015).

Rigou, M., Sirmakessis, S., Tzimas G., 2006. Model

Cloning: A Push to Reuse or a Disaster? In Adaptive

and Personalized Semantic Web - Proceedings of the

16th ACM Hypertext, Springer, Studies in

Computational Intelligence (SCI) Vol. 14, pp. 37-55.

Simpson, T., Dao, T., 2010. WordNet-based semantic

similarity measurement. Available at: http://

www.codeproject.com/Articles/11835/WordNet-

based-semantic-similarity-measurement (Accessed: 10

November 2015).

Website patterns (2015). Available at: http://c2.com/cgi/

wiki?HypermediaDesignPatternsRepository

(Accessed: 10 November 2015).

Welie, M. v. (2008): Interaction Design Patterns. Available

at http://www.welie.com/patterns/ (Accessed: 10

November 2015).

Yan, X., Han, J., 2002. gSpan: Graph-based substructure

pattern mining. In ICDM '02, page 721,

Washington,DC, USA, 2002. IEEE Computer Society.

Automated Analysis and Evaluation of Web Applications Design: The CMS-based Web Applications Case Study

139
