Visualising Formula Structures to Support Exploratory Modelling

Chris Roast, Roxanne Leitão and Michael Gunning

Culture, Communication and Computing Research Institute, Sheffield Hallam University,

Sheffield, SW1 1WB, U.K.

Keywords: Spreadsheets, Visualisation, Science Technology Engineering and Maths (STEM).

Abstract: Visualisation is often presented as a means of simplifying information and helping people understand

complex data. In this paper we describe a project designing interactive visualisations to support learner

competencies in the broad area of numeracy. The work builds upon: (i) the observation that while

spreadsheets are traditional ICT tools, their familiarity means that they are used for exploratory

mathematical modelling; (ii) a research theme examining the human factors that influence the ease with

which formal notations can be understood and applied appropriately. Our paper describes the iterative

design and evaluation of a tool to visualise spreadsheets, with the aim of supporting mid-teen learners based

on the premise that spreadsheets serve as a gateway tool for supporting learner experimentation and

confidence within numerate subjects. This iterative process is informed by background research into

notational design, graphic design as well as learner and tutor feedback.

1 INTRODUCTION

Visualisation is often presented as a means of

simplifying information and helping people

understand complex data. In this paper we describe a

project designing interactive visualisations to

support core learner competencies in the broad area

of numeracy. Our premise is that, spreadsheets are a

traditional, common and accessible ICT tool that

supports learner confidence and experimentation of

mathematical modelling. We describe the iterative

design and evaluation of a tool to visualise

spreadsheets, with an aim of supporting mid-teen

learners in work-based education and/or prior to

entering higher education. This process combines

research, graphic design and learner and tutor

feedback to develop a spreadsheet 'plug-in'.

2 BACKGROUND

2.1 Why Spreadsheets?

The relevance of numeracy as a foundation for

educational, academic and professional skills is

widely recognised. This is evidenced by the value

placed on the development of numeracy skills within

science, technology, engineering and maths (STEM)

education. In the UK there are various programmes

to develop maths skills and skills for employment in

engineering and IT. One common accessible tool for

powerful numeric computations is the spreadsheet.

Widely used in work and education (Chambers and

Scaffidi 2010), at school level and in higher

education, the spreadsheet is a core generic tool for

understanding in many numerate subjects. From an

employment and employability perspective, the

spreadsheet is a widely used tool in most businesses.

Despite the spreadsheet being a familiar tool for

general purpose computation, with significant

longevity, Panko (2008) and Hendry and Green

(1993) argue that up to 44% of them contain errors.

In addition, they are not being used to their full

potential - for example 95% of IT related skills gaps

in England being spreadsheet skills (Technology

Insights 2012, e-skills UK).

Research into addressing issues of spreadsheet

quality has motivated many enhancements. This

includes additional features to ensure they are more

transparent as well as to encourage more discipline

in their use. (Burnett et al. Burnett 2002, Hendry and

Green 1994, Hermans and Dig 2014, Panko and

Sprague 1998, Sajaniemi 2000).

We propose that this desire to enhance

spreadsheets arises from their initial ease of use and

Roast, C., Leitão, R. and Gunning, M.

Visualising Formula Structures to Support Exploratory Modelling.

In Proceedings of the 8th International Conference on Computer Supported Education (CSEDU 2016) - Volume 1, pages 383-390

ISBN: 978-989-758-179-3

Copyright

c

2016 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

383

responsiveness being in natural opposition to their

subsequent poor information infra-structure that

does not support self-documentation and

modifications. Their responsiveness means their

users quickly become embedded in 'solutions' that

are subsequently hard to manage. Specifically with

regard to the complexity of inter-cell referencing,

the understanding of formulae has been found to be

particularly demanding, with evidence that business

and governmental spreadsheets tend to avoid the use

of many functions and function nesting (Sajaniemi

and Pekkanen 1988). Research into complex

interactive systems and user empowerment

(Blackwell, et al. 2001) has provided a range of

descriptive dimensions that capture some of these

core characteristics. The notion of 'premature

commitment' describes systems that introduce

constraints before users know how to work with

them, or if they want to work with them. Hence, for

traditional spreadsheets simple numeric models are

easy but well-structured models benefit from

planning up-front. Complementing this is the notion

of 'viscosity' (a resistance to change). Once used

substantively, a sheet's information structure is one

that allows input values to be changed, but more

extensive changes are complex. The premature

commitment and viscosity combined, result in users

becoming locked-in to early solutions and the

subsequent attempt to refine/improve them. These

points are evident anecdotally from businesses and

professionals who have working spreadsheets. In

many cases they are rarely refined or modified

because of the risk of 'breaking' a working, but

opaque, 'solution'.

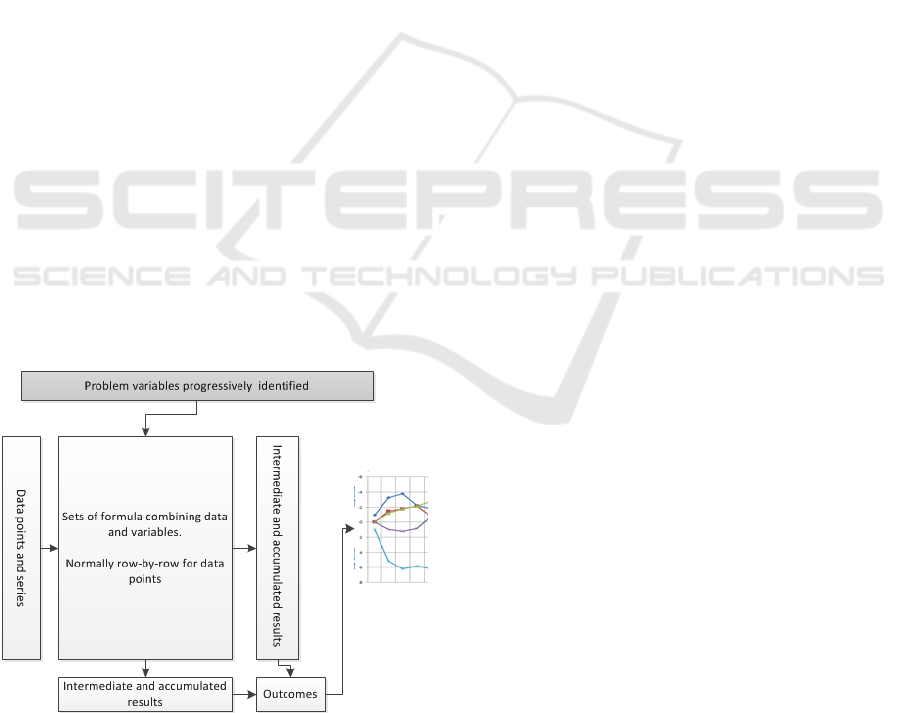

Figure 1: Schematic of spreadsheet base modelling.

2.2 Educational Uses

Similar factors are addressed in the early educational

use of spreadsheets keeping to rigid solution styles.

As part of our preliminary research, teaching and

assessment materials related to spreadsheet skills

were reviewed. This, in combination with

conversations with tutors, showed that spreadsheet

skills were focused largely upon following a given

model, structure and layout. This focus upon

prescribed solutions leaves little opportunity for

exploratory modelling or problem solving that could

depart from given examples.

2.3 Exploration and Development

When used in model development, the 'locking-in'

effect of spreadsheets is a powerful influence. In

simple terms we can outline a spreadsheet model as

being equivalent to the structure in figure 1.There

are variables (at the top) used in formula (central

rectangle) applied to input data (on the left). Model

outputs are accumulated in rows and/or columns

feed into summary statistics, results, reports or

graphs (on the right hand side). We believe these

structural features are common to spread modelling,

even though this specific layout many not be

followed.

The iterative process of development of a model

is one of introducing variables identified as

necessary to examine and capture emergent features.

In terms of our figure, reification tends to add more

subtle variables (at the top) and associated

computations (in the central rectangle). However,

structurally, the model output is already present (on

the right hand side). Hence, as opposed to re-

designing a sheet's structure with each new variable

introduced, the formulas used rise in complexity to

accommodate new variables.

Note that this account of use is the antithesis of

skills based training where the variables, layout and

requirements are all prescribed beforehand.

2.4 Example

We illustrate our account of iterative modelling with

a work based training example set in the domain of

construction. It concerns the cost of tiling an

irregular floor shape - in this case an "L" shaped

room. The floor area can be treated as three adjoined

rectangles (2m x 3m, 3m x 3m and 3m x 1m). So,

assuming the price per 1m x 1m tile is given as, say,

4.99 euros the total cost of the tiles would be:

=4.99*(2*3+3*3+3*1)

CSEDU 2016 - 8th International Conference on Computer Supported Education

384

Educationally, progressive modelling could include

recognising that the price of a tile is a variable that

can be kept in cell for that purpose (say, A2). In

which case the formula would become:

=A2*(2*3+3*3+3*1)

Similarly, these tiles are a specific size. Other tiles

may be of a different size. In that case another

variable, the area of a tile may be kept in, say, A3

and formula updated to:

=A2*(2*3+3*3+3*1)/A3

A delivery charge can be modelled too as a fixed

amount added to the total:

=A4+A2*(2*3+3*3+3*1)/A3

While this is clearly a simple numeric problem it

illustrates the rise in complexity. If the model goes

on to account for, say, free delivery with orders over

a certain amount, then the formula becomes more

complex.

= (A2*(2*3+3*3+3*1)/A3) +

IF((A2*(2*3+3*3+3*1)/A3) > A5, 0, A4)

Other factors as they are recognised will add further

complexity to what was at first a very simple model.

This incremental model development will not

necessarily be well designed or structured because of

the factors emerging during its development. What

is more, hand-in-hand with this growing formula

complexity is the difficulty of seeing formula errors

and errors in the resulting outputs.

3 VISUALISATION

Graphical representations, such as flowcharts, and

pictorial representations of data structures have long

been used to support the understanding of programs

and their underlying processes (Myers 1986).

However, it is of interest to note that in visual

computational language the empirical evidence of

their compelling and appealing character is limited,

as is their educational utility (Sorva, et al. 2013).

Previous work has proposed ways of presenting

and visualizing spreadsheets, see: Saariluoma and

Sajaniemi (1991), Igarashi, et al. (1998), Ballinger,

et al. (2003) and Burnett, et al. (2001). However

these works only consider the wider structure of

spreadsheets, and the dependencies between cells.

None appear to have addressed the fact that the

formulas language is computationally powerful but

contracted onto a single line. It is this complexity of

language presentation that can complicate its

effective use. Our enhanced spreadsheet tool

employs a visual language that graphically

represents spreadsheet formulae.

A visualisation offers a ‘scaffold’ of geometric

forms, colours and connectors that take advantage of

human perceptual ability to recognise patterns and

associations - and support “visual thinking”. We aim

to make the relationship and sequence of formulae

elements more evident and immediate using such

techniques. Examples of how this might reveal itself

include: learners recognising when a formula result

is not fit for its intended purpose; identifying where

an error is in a formula, or; identifying what

modifications are necessary to ensure a formula does

work. For example, if a cell is computing an

unexpected result, the learner will need to closely

inspect the formula and essentially ‘debug’ it. With

good visual 'scaffolding', any problem in the formula

should be more easily identified.

3.1 The Designing a Visual Language

The visualisations were developed on paper to allow

the authors, tutors and learners to explore and

provide rapid feedback on which visual

characteristics are appropriate and of value. Initially

good visual design practice was followed, informed

by learning scenarios and educational uses of

spreadhseets (e.g. see: Gretton and Challis, 2008).

The principles for the initial design phase where:

– Evidencing structure. Within a given formula,

the syntactic structure is core to comprehending

meaning.

– Visual mapping. The ease of mapping between

the formula and visualisation. Clearly, if this

mapping is complex for a learner, the

visualisation may be of little value.

– Evidencing categories. Within a given formula,

being able to recognise the different categories

of tokens and structures.

– Evidencing abstractions. There are various

abstractions apparent in the way formulae are

used. For example, the same sub-expression

appearing in a number of places in a single

formula. A simple example would be the

formula for a quadratic, such as,

=A1*X1*X1+B1*X1+C1. The repeated use of

X1 is important for understanding what is

expressed. A more complex abstraction is the

repeated use of the expression (2*3+3*3+3*1),

in the simple example above.

– Evidencing computation. In contrast to

abstractions, there is the value of evidencing the

specific values used in determining the resulting

value of a formula. Hence, when a formula such

Visualising Formula Structures to Support Exploratory Modelling

385

as, =2+3*4 produces the result 14, it is important

to understand that arises form 2+12 and the 12

arises from 3*4.

– Visual simplicity and scalability. Although not

easily defined, this principle discourages

apparently empty space, redundant arcs or

overlapping lines or structures. In view of our

motivation, this point is most relevant for

complex formulae.

Two visualisation approaches were identified:

‘Explicit Visualisation’ (EV), and; ‘Dataflow

Visualisation’ (DV). Both were based on a data flow

metaphor with components interconnected by flows

that represented results passing between operations

within a formula. Both also presumed a top-down

reading with the starting expression at the top and

the outcome at the bottom. Categories of node

included: numeric values, cell references, strings,

operators and built-in spreadsheet functions, with all

such types being given a distinct visual identity.

Figure 2: An initial tokenised visualisation of a formula

=A2xB2/(A1/A2+A1)-C2 as graphical tokens.

3.2 Dataflow Visualisations

The Dataflow Visualisation (DV) focuses an abstract

view based upon the rationale that the formula

structure is key to assessing its correctness.

Specifically DV was based upon the following rules:

– Cell references are not replaced by their numeric

values, as the presence of a value (and not the

literal amount) which is important to the model.

– The outputs from functions and operations

consistently flow down any functions that use

them as inputs.

– Brackets are not used, as operator scoping can be

inferred by the order of operations represented

by the visualisation. The reduced number of

visual elements supports visual simplicity and

scalability.

DV emphasises formula structure, and minimises

numeric details. The rationale behind this is that a

'wrong' formula is because of it not linking its

components correctly. Hence, displaying the

structure in this way will help identify important

errors or slips. It captures what is being proposed as

a solution and not the details of any specific instance

of the solution. For an example of DV see figure 3.

In terms of our initial principles, evidencing

visual mapping is weak since the formula as typed in

the spreadsheet cannot be immediately obvious in

the visualisation. In addition, the evidencing of

computation is relatively weak since the flow is

shown but not the effect of individual operations or

functions.

Figure 3: A DV visualisation of the expression in figure 2.

3.3 Explicit Visualisation

Unlike DV, the Explicit Visualisation (EV) approach

graphically represented each computation step in

processing a formula:

– The visualised formula is a direct match to the

original spreadsheet formula. Thus supporting

the concept of visual mapping.

– Cell references include the numeric values in

those cells. While this detracts from the visual

mapping it does support evidencing of basic

computations.

– Values, functions and operators flow down into

additional nodes ("monitors") which themselves

show the result of the associated operator or

function applied to its arguments. This further

supports evidencing computation.

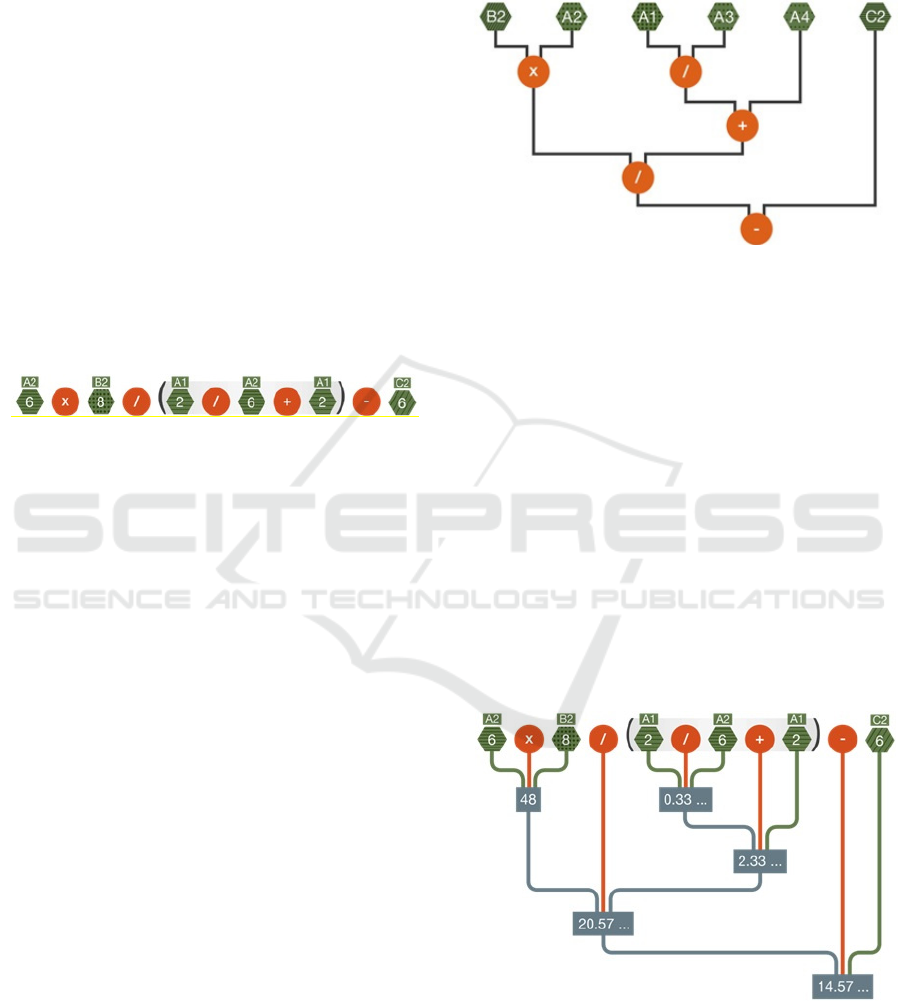

Figure 4: EV visualisation of the expression in figure 2.

3.4 Conditionals

One of the issues with complexity, illustrated

withour simple example, is the use of conditional

CSEDU 2016 - 8th International Conference on Computer Supported Education

386

functions (such as "IF"). Interestingly, conditionals

highlight basic tensions between the proposed

visualisation rules.

The most common conditional is the "IF"

function: "IF" takes three arguments, and behaves as

follows: if the first argument (the CONDITION) is

evaluated to TRUE, then the second argument (the

THEN-PART) is evaluated and the result is returned

as the value of the "IF" expression. Otherwise, the

third argument (the ELSE-PART) is evaluated and

that value is returned. Hence, they embody two

computational behaviours, when one is only ever

used. This poses an inherent problem when we

consider visualising computation behaviours.

This exposes the difficulties of visualising

conditionals in EV and DV. In the case of EV, a

non-computed ELSE-PART would need to be

shown and it would be necessary to indicate that its

value is not computed. However, the same formula

in the contrary case would show the THEN-PART

not computed (see figure 5). This dynamism is at

odds with the idea of a single representation for a

formula not itself changing.

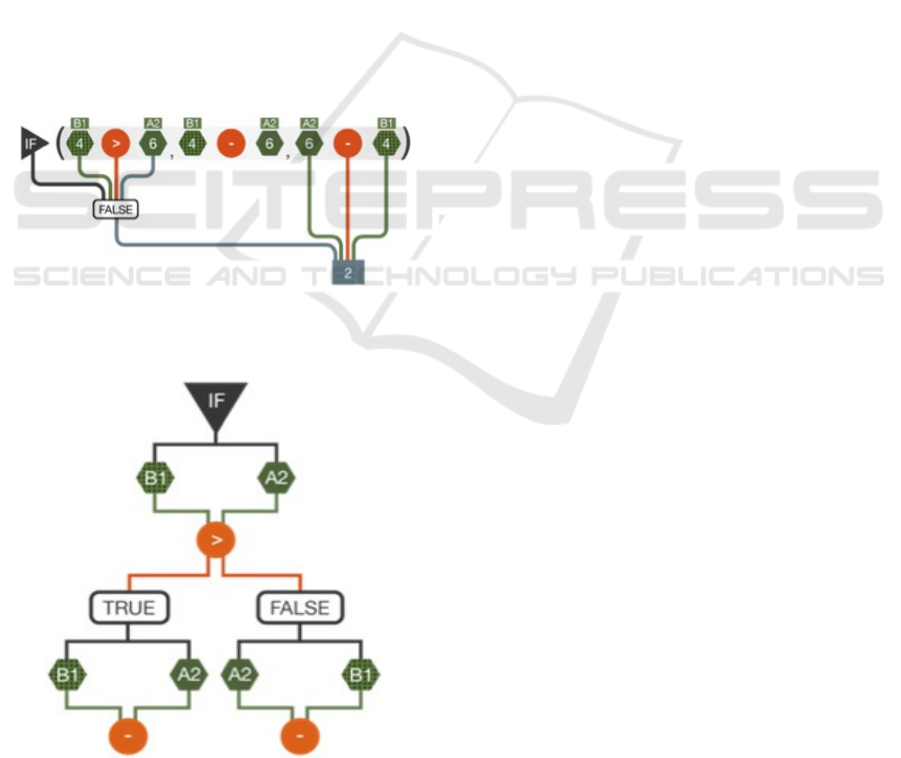

Figure 5: A simplistic EV visualisation of a conditional

expression, in which the THEN-PART is present but not

used.

Figure 6: A DV visualisation of a conditional expression,

illustrating the separation of flow into two alternate

computations.

4 EVALUATION

We conducted a variety of user studies. In keeping

with iterative design principles each study

considered both assessing the appropriateness of the

visualisations and also gathering formative

feedback. The primary target users were college

based learners developing skills for higher education

entry and improved employability.

In general, these evaluations faced

methodological challenges which limited the

scientific assessment of the visualisations. Firstly,

our target users despite using and learning about

spreadsheets had widely differing levels of

familiarity. This was partly due to: the stage and

structure of differing colleges; the differing

examination boards being used, and; the level of

staff engagement with the topic. In fact, the account

of modelling that we discussed earlier in this paper

was rarely apparent since teaching materials did not

encourage exploratory modelling per-se. A second

issue that limited controlled comparable assessment

of visualisations was that differing subjects had

differing approaches to using spreadsheets. For the

majority the default response was that spreadsheets

were "ICT" and as such were not readily used in

maths or science. In these cases consultation with

individual tutors was necessary to identify how to

harness spreadsheets as numeracy tools relevant to

specific topics.

4.1 Initial Evaluations

Initial evaluations were directed at assessing the

comprehension of the visualised formula with the

aim of comparing textual formula, DV and EV

(Leitão and Roast 2014).

Initially the two styles of visualisation DV and

EV were assessed with between groups with task

completion being observed and along with some

post task interviews. For individual classes, the

approach to user engagement varied in response to

the readiness of technology, users' academic levels,

and support of their tutor. This included:

– Paper based materials with multiple choice

formulae comprehensions tasks. This included:

(i) a formula and a number of possible results;

(ii) a mini-problem statement and a number of

formulae (one of which is correct for the

problem).

– Prototype implementations of DV and EV were

developed as extensions to an existing

spreadsheet package. With the prototype the

tasks were to construct or modify a formula in

Visualising Formula Structures to Support Exploratory Modelling

387

the spreadsheet to solve a set of mini-problems.

An example mini-problem is:

"Does =A1*(A1*A1) calculate cell A1 to the

power of 4? If not, correct the formula."

Performance was measured assessed by the number

of answers. Subjects varied in age profile, familiarity

with spreadsheets and readiness to engage with the

tasks. Quantitative results from these studies

(summarised in table 1) suffered from challenges

described above. However, the fact that learners

engaged with the tasks set and worked effectively

with the visualisations did show some positive

benefits and in no cases was there evidence of them

impairing the tasks set.

During the same period educational experts were

consulted regarding the tool and the visualisations

and encouraged to critic the approach takes.

Feedback from this process and interviews with

subjects were valuable in helping distinguish

between DV and EV.

Table 1: Summary of initial evaluation studies and

outcomes.

Study Population and

context

Outcome

Paper based

study with 8

spreadsheet

comprehension

questions.

44 work-based

learners studying

Electrical

engineering,

Engineering and

Maths at NVQ

level 3.

Visualisation

showed a

positive effect.

Average score

was 55% with a

visualisation,

and 51%

without.

(Not

significant)

Interactive

prototype

based study

and qualitative

inter-views

14 full-time

learners were

given a

spreadsheet

"refresher" and

then completed

37 spreadsheet

formula questions

Visualisation

conditions

showed a

positive effect

over the no-

visualisation

condition.

Average score

73% with a

visualisation,

and 67%

without

Interviews and

demonstration

with experts.

Three STEM

educators, three

STEM education

researchers and

five support staff

Initial evaluation stage outcomes were that the

explicit EV style was of more value. The support for

evidence of computation and mapping back to the

spreadsheet formula counted highly for educational

experts, tutors and learners.

Feedback on visualisation of conditionals was

not so straight forward partly due to learners and

tutors being less familiar with using conditionals.

Hence the outcome was to review the visualisation

taking into account the general points arising from

the evaluation of DV and EV.

4.2 Design, Development and

Evaluation

Following the initial development and evaluation we

developed a more robust prototype tool suitable for

broader scale trialling and assessment. This also

involved integrating with the most widely used

spreadsheet, specifically MS Excel (Campbell-

Kelly, 2007).

The visualisation developments focused upon

developing an EV-based visualisation of

conditionals that aimed to ensure a good mapping

with the formula while indicating the dynamic

character of conditional behaviour. The resulting

visualisation is illustrated in figure 7. In this design

the THEN-PART and the ELSE-PART are shown,

but in addition, the un-used part is faded to indicate

it is not in use and the conditional expression is

shown to be "selecting" the relevant part.

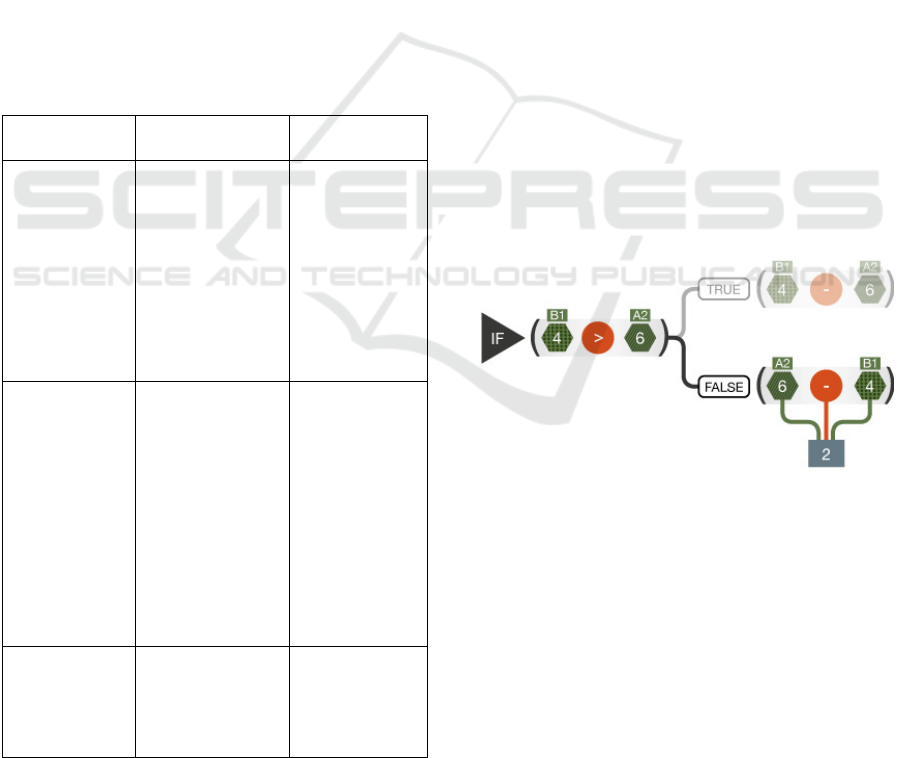

Figure 7: The revised EV style visualisation of

conditionals.

The value of having the prototype tool working

with the most common spreadsheet benefited the

next evaluation activity. In this case cohorts of

learners studying functional skills in various areas

were approached and introduced to the tool. Where

possible, this introduction mapped to their existing

use of spreadsheets, such as their current topics of

study or tutorial work.

The initial evaluation was taken to have

demonstrated that our general approach visualisation

was valid. However, evidencing performance

improvements attributable to the visualisation was

CSEDU 2016 - 8th International Conference on Computer Supported Education

388

judged to be too methodologically complex, for the

reasons described earlier. As a consequence the

second phase of evaluation focused upon whether

the prototype technology was recognised by users to

be of potential value. It was assumed that this

judgement could be made by users, even if the tool

was not used comprehensively in the sessions when

it was introduced to them. For this reason the

Technology Adoption Model (Davis, et al. 1989)

was used to develop a series of questions for both

learners and tutors.

Over 15 learners were introduced to the tool

during a taught element of work related courses.

They subsequently attempted specified spreadsheet

tasks at a level matching their normal class. The

tasks lasted for between 30 and 60 minutes, during

which they worked with the tool running with MS

Excel. Responses were gathered on a Likert scale

questions (1 to 7). The most positive responses were

with respect to the visualisation (6.17) and

responsiveness of the system (6.00). The least

positive response (3.92) was just below the median

of 4.00, and concerned whether learners perceived

the tool as helping them work more efficiently.

As with the initial evaluation, the results are on

the whole positive for a small number of subjects.

Qualitative feedback supports this view:: "It would

help me a lot with other formulas", "You can see the

values and how they are worked out, that's great."

and "It would help anyone willing to learn about

spreadsheets".

In addition supportive qualitative evidence came

from tutors engaged during the sessions: "I am sure

that it could add value to the teaching of

mathematics."; "I think it would be very helpful";

"Absolutely brilliant when it comes to more

complicated formulas for our learners. With

regards to the IF statement, I particularly like the

way it checks the condition and identifies whether it

is TRUE or FALSE. Additionally really good for

formulas of non-adjacent cells."

Both tutor and learner feedback also supported

identifying additional visualisation details. One

example of this was the need in complex cases to

indicate the flow of data more explicitly, as well as

the final result node. Features such as these were

introduced to the next iteration of the tools which

currently under going evaluation.

5 DISCUSSION

Despite the lack of familiarity with the

visualisations, their presence and use did not impair

learner performance. In follow-on interviews all

agreed that the visualisation approach had merit.

Overall feedback was positive, with those

interviewed seeing the potential to help "de-mystify"

spreadsheets for learner population we are targeting.

For example, trainee tutor commented:

"I struggle a lot with spreadsheets and find it

hard to understand them. Seeing the spreadsheet

visualisation prototype made it clearer to

understand the formulas and feel that if I had chance

to use a programme of that kind I would have a

greater understanding and be able to pick up the

skills I require much quicker. I feel that this product

could help people like myself that struggle with

spreadsheets."

An expert in maths education research

commented:

“It will be very useful to many students to have a

product that enables a better conceptual

understanding of the equation format. There is a

clear need for such a tool to be suitable for the many

students who do not have high levels of

mathematical skills and yet use mathematical

symbolism every day in their studies. This will

include students from Chemistry, Business,

Economics, Psychology, Geography and many

more."

6 FUTURE WORK AND

CONCLUSIONS

We have reported the iterative development of the

visualisation tool in terms of: preliminary design,

initial development and evaluation and then the

evaluation of prototype operating with MS Excel.

This is part of an on going process of evaluation and

refinement, with learner and tutor feedback

informing future enhancements.

The widespread use of spreadsheets in work and

education (Chambers and Scaffidi, 2010) may pose

significant barriers to learners. This limits their

potential benefit as a tool for exploring STEM

related topics is limited. Our approach to visualising

formulae, offers a means of helping learners work

more effectively with spreadsheets. Evidence of the

benefit of this approach is positive but it requires

further investigation. Similarity the principles that

underpin the effectiveness of the visualisation

language require further development, specifically to

address some of the more complex structures found

in spreadsheet formula.

The long-term b enefit of making spreadsheets

Visualising Formula Structures to Support Exploratory Modelling

389

more usable is one that could impact upon academic

progress for individuals as well as general numeracy

skills. The value of the resulting improved ability

aligns to national and international educational

objectives regarding skills and employability.

ACKNOWLEDGEMENTS

We are indebted to local colleges' staff and students

that were willing to support and participate in the

studies reported. The technical development of the

tool benefited significantly from the technical

contribution of Tony Day. This work is supported in

part by: UK Higher Education Academy and The

Small Business Research Initiative (part of Innovate

UK).

REFERENCES

Ballinger, D., Biddle, R. and Noble, J., 2003. Spreadsheet

structure inspection using low level access and

visualisation. In Proc. Fourth Australasian User

Interface Conference (AUIC2003). Biddle, R. and

Thomas, B., Eds. ACS. 91-94.

Blackwell, A.F., Britton, C., Cox, A. Green, T.R.G., Gurr,

C.A., Kadoda, G.F., Kutar, M., Loomes, M., Nehaniv,

C.L., Petre, M., Roast, C., Roes, C., Wong, A. and

Young, R.M., 2001. Cognitive Dimensions of

Notations: Design tools for cognitive technology. In

M. Beynon, C.L. Nehaniv, and K. Dautenhahn (Eds.)

Cognitive Technology 2001 (LNAI 2117). Springer-

Verlag, pp. 325-341.

Burnett, M., Atwood, J., Djang, R., Gottfried, H.,

Reichwein, J. and Yang, S., 2001. Forms/3: A first-

order visual language to explore the boundaries of the

spreadsheet paradigm. Journal of functional

programming 11(2): 155-206.

Burnett, M., Sheretov, A., Ren, A. and Rothermel, G.,

2002. Testing homogeneous spreadsheet grids with the

"what you see is what you test" methodology," IEEE

Trans. Softw. Eng., 28(6) pp. 576-594.

http://dx.doi.org/10.1109/TSE.2002.1010060.

Campbell-Kelly, M.,2007. Number crunching without

programming: The evolution of spreadsheet usability.

IEEE Annals Of The History Of Computing, 29(3),

pp.6-19, ISSN: 1058-6180.

Chambers, C. and C. Scaffidi (2010). Struggling to excel:

A field study of challenges faced by spreadsheet users.

Visual Languages and Human-Centric Computing

(VL/HCC), 2010 IEEE Symposium on, IEEE.

Davis, F.D., Bagozzi, R.P. and Warshaw P.R., 1989. User

acceptance of computer technology: A comparison of

two theoretical models. Management Science, 35 (8)

pp. 982–1003.

Gretton, H. and Challis, N., 2008. "Fundamental

Engineering Mathematics; A Student Friendly

Workbook" Woodhead Publishing, 2008, ISBN-13:

978-1898563655.

Hendry, D.G. and Green, T.R.G., 1994. "Creating,

comprehending and explaining spreadsheets: a

cognitive interpretation of what discretionary users

think of the spreadsheet model." in International

Journal of Human-Computer Studies, 40(6), 1033-

1065, DOI=10.1006/ijhc.1994.1047.

Igarashi, T., Mackinlay, J.D., Chang, B-W and Zellweger,

P.T., 1998. Fluid Visualization of Spreadsheet

Structures, Proceedings of the IEEE Symposium on

Visual Languages, p.118.

Leitão,R. and Roast, C., 2014. Developing visualisations

for spreadsheet formulae: towards increasing the

accessibility of science, technology, engineering and

maths subjects. In: 9th Workshop on Mathematical

User Interfaces, Coimbra, Portugal, 10 July 2014.

Myers, B. A. (1986). Visual programming, programming

by example, and program visualization: a taxonomy.

ACM SIGCHI Bulletin 17(4): 59-66.Panko, R. R.,

2008. What We Know About Spreadsheet Errors.

Journal of End User Computing's Special issue on

Scaling Up End User Development

10, 15-21.

Panko, R. R. and Sprague Jr., R. H., 1998. "Hitting the

wall: errors in developing and code inspecting a

simple spreadsheet model" Decision Support Systems

22(4): 337-353.

Peyton Jones, S., Blackwell, A. and Burnett, M., 2003. A

user-centred approach to functions in Excel. In

Proceedings of the eighth ACM SIGPLAN

international conference on Functional programming

(ICFP '03). ACM, New York, NY, USA, 165-176.

DOI=10.1145/944705.944721.

Rello, L., Kanvinde, G. and Baeza-Yates, R., 2012.

Layout guidelines for web text and a web service to

improve accessibility for dyslexics. Proceedings of the

International Cross-Disciplinary Conference on Web

Accessibility, ACM.

Saariluoma, P., Sajaniemi, J.,1991. Extracting Implicit

Tree Structures in Spreadsheet Calculation.

Ergonomics 34(8), 1027-1046.

Sajaniemi, J., 2000. Modeling Spreadsheet Audit: A

Rigorous Approach to Automatic Visualization,

Journal of Visual Languages and Computing. 11, 49-

82. doi:10.1006/jvlc.1999.0142.

Sorva, J., Karavirta, V. and Malmi, L., 2013. A Review of

Generic Program Visualization Systems for

Introductory Programming Education. Trans. Comput.

Educ. 13, 4. DOI=http://dx.doi.org/10.1145/2490822.

Stein, J. and V. Walsh, 1997. "To see but not to read; the

magnocellular theory of dyslexia." Trends in

neurosciences 20(4): 147-152.

Technology Insights 2012, e-skills UK (Available at

http://www.e-skills.com).

CSEDU 2016 - 8th International Conference on Computer Supported Education

390
