Feedback Authoring for Exploratory Learning Objects: AuthELO

Sokratis Karkalas and Manolis Mavrikis

UCL Knowledge Lab, UCL Institute of Education, London, WC1N 3QS, U.K.

Keywords:

Feedback Authoring, Exploratory Learning Environments.

Abstract:

This paper presents a tool for the conﬁguration of logging and authoring of automated feedback for exploratory

learning objects (ELOs). This tool has been developed in the context of a larger project that is developing a

platform for authoring interactive educational e-books. This platform comprises an extendable set of diverse

widgets that can be used to generate instances of exploratory activities that can be employed in various learn-

ing scenarios. AuthELO was designed and developed to provide a simple, common and efﬁcient authoring

interface that can normalise the heterogeneity of these widgets and give the ability to non-experts to easily

modify — if not program themselves — the feedback that is provided to students based on their interaction.

We describe the architecture and design characteristics of AuthELO and present a small-scale evaluation of

the prototype that shows promising results.

1 INTRODUCTION

Authoring educational interactive tasks is a challeng-

ing and time consuming endeavour particularly if they

include some form of adaptive or intelligent support

to the learner. While there is an abundance of tools

that allow non-expert developers, such as educational

designers or teachers, to author their preferred ac-

tivities, these are limited to static content or to pre-

deﬁned question-answer activities. As we review in

Section 2, researchers in the ﬁeld of Intelligent Tu-

toring Systems are looking into the development of

tools that ease the authoring process for ITS but have

largely remained in the realm of structured interac-

tion. We are interested in highly interactive, ex-

ploratory activities that take place within open learn-

ing environments, also known as microworlds. Al-

though such environments can be effective in support-

ing learners’ development of conceptual knowledge,

they require signiﬁcant amount of intelligent support.

Despite the fact that research in the area has demon-

strated that it is possible to delegate part of this sup-

port to intelligent components (e.g. Bunt et al. 2001;

Mavrikis et al. 2013), there have been little attempts

to reduce the entry threshold for both programmers

and end-users (Blessing et al., 2007).

This paper presents AuthELO, a tool for author-

ing exploratory learning objects (ELOs), conﬁguring

the logging and programming the automated feedback

they provide. This tool has been developed in the

context of the Mathematical Creativity Squared (MC-

Squared) EU-funded project (http://mc2-project.eu/)

that is developing a platform for authoring interactive

educational e-books. This platform comprises an ex-

tendable set of diverse widgets that can be used to

generate instances of exploratory learning activities

that can be employed in various learning scenarios.

In this project we designed and developed a tool that

is able to provide a simple, common and efﬁcient au-

thoring interface that can normalise the heterogeneity

of these widgets and reduces the time it takes and the

skills required to program the feedback that can be

provided to students based on their interaction.

Section 3 presents the development methodology

that underpins the design of AuthELO. Sections 4 and

5 present the architecture and the tool in detail. Sec-

tion 6 presents an evaluation of the current prototype

with three real scenarios and Section 7 concludes the

paper.

2 RELATED WORK

The development of learning material that is inter-

active and provides automated intelligent feedback

to the students falls naturally into the category of

ITS authoring systems. There have been many such

systems developed in the past. Database-related tu-

tors like SQL-Tutor, EER-Tutor and Normit (Mitro-

vic, 2012) are cases that follow the constraint-based

modelling approach. To author web- and constraint-

144

Karkalas, S. and Mavrikis, M.

Feedback Authoring for Exploratory Learning Objects: AuthELO.

In Proceedings of the 8th International Conference on Computer Supported Education (CSEDU 2016) - Volume 1, pages 144-153

ISBN: 978-989-758-179-3

based tutors Mitrovic et al. (2009) developed AS-

PIRE. The use of simulation-based authoring is pre-

sented in Munro (2003). An approach that is used

for the development of adaptive hypermedia is pre-

sented in Brusilovsky (2003). An attempt to lower

signiﬁcantly the skill threshold required is the model-

tracing approach (Blessing et al., 2007). Most of these

approaches, although different, they converge in that

they all presuppose the use of low level technical ex-

pertise for the authoring. Systems that require no pro-

gramming include the ASSISTment Builder (Razzaq

et al., 2009) and Redeem (Ainsworth et al., 2003).

The latter is an approach that combines existing ma-

terial with teaching expertise to develop simple intel-

ligent ITSs. A mixed system that supports the devel-

opment of two types of ITSs is CTAT (Aleven et al.,

2009; Koedinger et al., 2004). It supports the develop-

ment of cognitive tutors and example-tracing tutors.

The latter case requires no programming at all.

All of these systems are typically domain-speciﬁc

solutions that may require low level technical exper-

tise and usually offer fairly limited and not easily

generalisable output. That seriously limits the appli-

cability of these tools to a wider range of learning

scenarios. One of the most recent developments in

the ﬁeld is the Generalized Intelligent Framework for

Tutoring (GIFT) (Sottilare et al., 2012) that provides

tools to support various elements of the authoring pro-

cess. Although GIFT targets domain experts with lit-

tle or no knowledge of computer programming or in-

structional design, at the moment it mostly enables

rapid development of expert models and other domain

knowledge. This results in a fully-ﬂedged ITS that

depends on the services provided by GIFT. That may

limit the re-usability of the authoring tool with other

learning platforms or may be beyond what is needed

or what is possible with limited resources (e.g. of a

teacher wanting to adapt a simple activity). At a con-

ceptual and architectural level our system resembles

SEPIA (Ginon et al., 2014). SEPIA is designed so

that automated support can be added in the form of an

epiphytic application that is external to the learning

environment. Integration does not require changes in

the target environment and interoperation is not based

on domain speciﬁc models and tools.

From an end-user pespective, the most relevant so-

lution to our approach, and the one that seems to re-

quire the least amount of cognitive load for the au-

thor, is the example-tracing approach (Aleven et al.,

2009). The author develops feedback by executing

the activity like a student. This provides the author

with a tree-like view that is representative of the cur-

rent state of the student. The author can then annotate

the diagram and determine the behaviour of the tutor.

The disadvantage of this approach is that it is domain-

speciﬁc and not generalisable beyond structured tasks

that have a relatively limited range of possible alter-

native paths. In an exploratory learning environment

these paths are potentially inﬁnite.

In our system we follow the example-tracing ap-

proach but we are not using the visualisation part sim-

ply because it is impossible to represent visually all

the possible states in such diverse domains and open

environments. Our tool must be generic enough so

that it can be used with exploratory learning environ-

ments. Support is expected to be task-dependent but

tasks may not be structured. Authoring must be based

on data that becomes available as the student inter-

acts with the environment. The author generates data

and utilises this information in order to form sensi-

ble rules for the generation of feedback. These rules

are currently expressed through programming but our

intention is to provide a service that can be accessi-

ble through different levels of speciﬁcity. That will

make the system usable by authors with different lev-

els of expertise without compromising the ability to

intervene at the lowest level if necessary. A high

level language that is specialised in feedback author-

ing and a visual programming shell will be the high

level constructs that will make it easily accessible to

non-technical users.

3 METHODOLOGY

In this project the main objective is to design and de-

velop an authoring tool for the engineering of auto-

mated (intelligent) support for online learning activi-

ties. As mentioned, we are interested in highly inter-

active ’widgets’ that can either be standalone activi-

ties or live in the context of an e-book. Such widgets

offer learning opportunities through exploration and

discovery of knowledge in an unstructured manner.

The methodology we have followed for the de-

sign and development of AuthELO is based on previ-

ous work presented in (Gutierrez-Santos et al., 2012).

This approach is based on the premise that the com-

plexity of the task can be reduced and made man-

ageable through the compartmentalisation of different

concerns regarding the different aspects of the prob-

lem. In practice this can be done by focusing on the

three most important questions related to support:

• What is the situation now? (evidence)

• Which aspect needs support? (reasoning)

• How should the support be presented for maxi-

mum efﬁcacy? (presentation)

Feedback Authoring for Exploratory Learning Objects: AuthELO

145

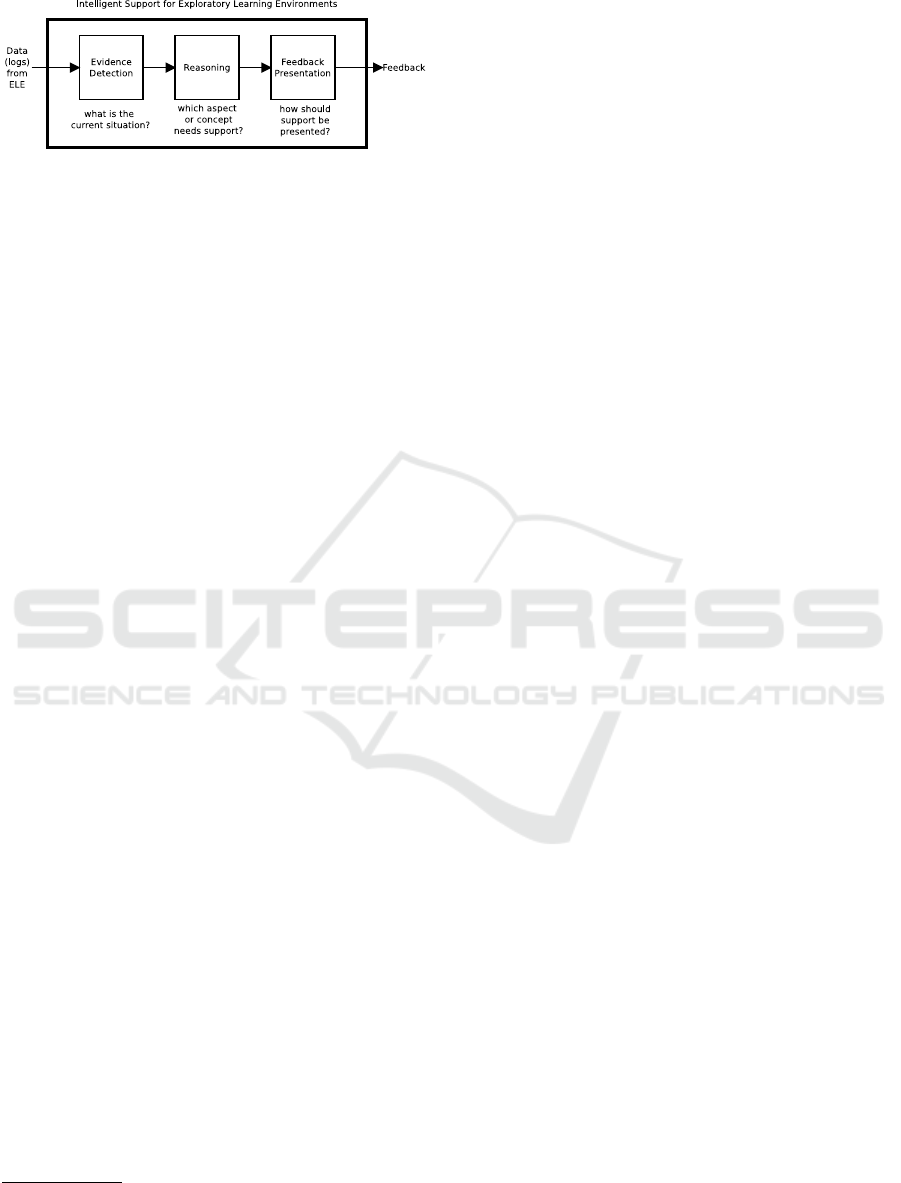

Figure 1: Conceptual data ﬂow of support for exploratory

learning. From Gutierrez-Santos et al. (2012).

Each one of these questions corresponds to different

aspects of the problem and thus may require differ-

ent approaches and expertise. Considering these as-

pects separately reduces the skill threshold required

to deal with the problem in its entirety. Typically, in

this scheme, the development of support moves to-

wards the opposite direction of the data ﬂow. Design-

ers would start from the presentation and the process

would gradually move towards the development of

components that produce evidence. In this project the

presentation is designed based on the assumption that

an exploratory learning system should not intervene

in the process in an intrusive manner (Mavrikis et al.,

2013). Support should not be provided in order to ma-

nipulate the students and control their behaviour. The

system should be discreet and inform the users for po-

tential issues but not interrupt the learning process.

On the other hand support should always be available

on demand. Students may not be able to exploit the

full potential of such learning environments if there is

not enough support available to direct them (Mayer,

2004; Klahr and Nigam, 2004; Kirschner et al., 2006).

In this tool support is provided after the student initi-

ates the process. We also provide the learning plat-

form the ability to use the same functionality in order

to display informative messages to the users regarding

the current state of the activity.

The focus of this work is on reasoning and the ac-

quisition of evidence that can support it. For the for-

mer we collected a number of use cases of speciﬁc

learning activities developed in GeoGebra

, Malt+

and FractionsLab

. Expert designers and educators

provided us with complete usage scenarios for each

activity that include potential student misconceptions,

landmarks that can indicate important states of the

constructions and the respective feedback that the sys-

tem is expected to provide to students. This informa-

tion helped us form the initial requirements for the

reasoning part and they have also been transformed

into batteries of tests for the technical evaluation of

the software.

https://www.geogebra.org/

http://etl.ppp.uoa.gr/malt2/

http://fractionslab.lkl.ac.uk/

The data acquisition part comes after because it

depends on the reasoning part. Having all the infor-

mation about the needs of the reasoning part enables

us to identify the requirements for the evidence part.

The challenges we identiﬁed for that part follow:

• need for methods to make the widgets generate

the required data

• need for methods to transfer this data between

tiers

• need for methods to efﬁciently store that data in

the tool and make it processable so that it can be

used for answering queries to the reasoning part

4 ARCHITECTURE

The tool is a native HTML5 application with no

external dependencies and is physically decoupled

from learning platforms. It does not implement

any platform-speciﬁc or proprietary functionality and

therefore its service is not limited to an existing plat-

form. It has been designed in a way so that its func-

tionality can be provided in a service oriented ap-

proach using standardised communication protocols

and data formats. After the tool is virtually integrated

with a learning platform from the users’ perspective

the whole system looks uniﬁed and homogeneous. In-

tegration is seamless and requires nothing more that

setting up a url along with the parameters that provide

information on how to instantiate the learning object

to be conﬁgured and where to store the conﬁguration

data. This information is stored in the learning plat-

form and is used whenever an author wants to con-

ﬁgure logging and automated feedback for a learning

object.

The author initiates this process in the learning

platform and implicitly gets redirected to AuthELO.

From that point on the tool takes over. It creates an

instance of the widget that lives in its own private

and secure space (sandbox). The two software com-

ponents operate as independent applications in par-

allel (asynchronously) within the same browser in-

stance. The glue between them is another compo-

nent that is called Web Integration & Interoperabil-

ity Layer (WIIL). WIIL as the name suggests, is a

web component that can be used to integrate other

web components with a platform. It can also provide

a simple yet efﬁcient communication mechanism so

that the integrated components can be interoperable.

This is described in (Karkalas et al., 2015b). An ear-

lier version of the WIIL and its potential usage was

presented in (Karkalas et al., 2015a).

CSEDU 2016 - 8th International Conference on Computer Supported Education

146

Upon instantiation, the widget sends to AuthELO

its widget-speciﬁc metadata. That is information

about the types of elements that can exist in the wid-

get environment and the types of events that these el-

ements can generate. This data is maintained in lo-

cal in-memory databases

at the AuthELO side of

the browser. AuthELO uses this information to con-

struct dynamically a graphical user interface for the

conﬁguration of logging. Something that needs to

be noted here is the dynamic nature of this process.

There are no presumptions about the information that

is received from the widgets. Different widgets may

provide different metadata and that, in turn, may re-

sult in the formation of different interfaces.

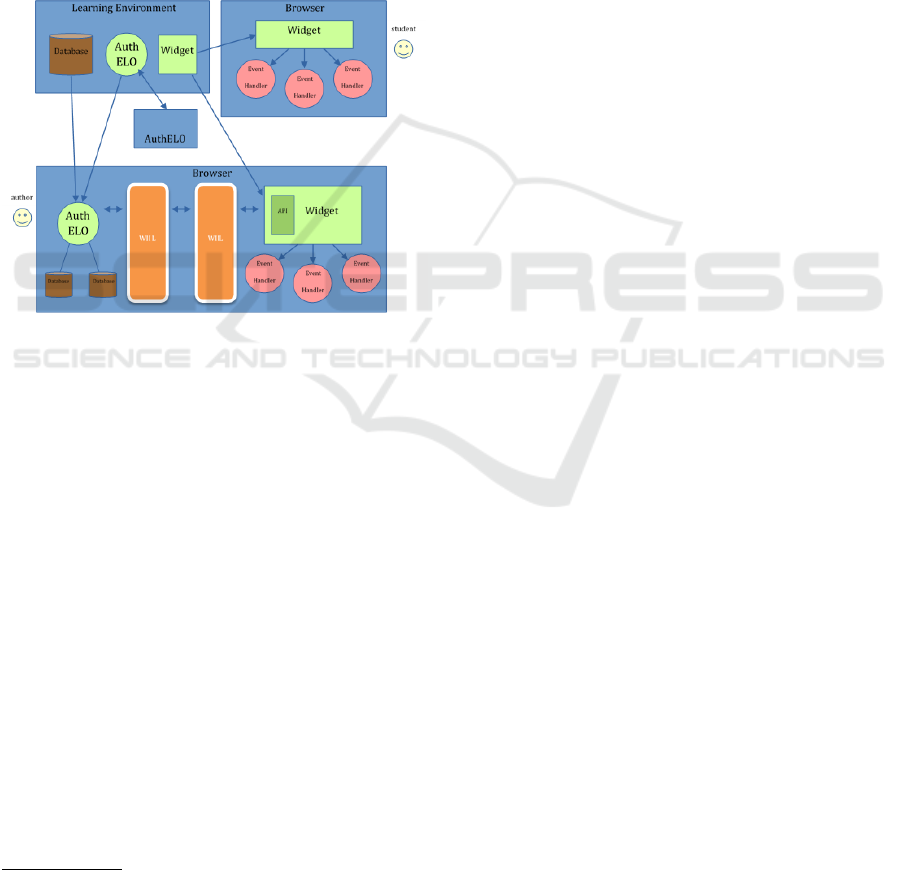

Figure 2: AuthELO’s architecture.

This GUI is immediately usable by the author.

The author can set up data logging rules that have

immediate effect on how the instance behaves. The

rules are stored in local databases in AuthELO and

they are also sent to the widget so that the respective

event handlers can be registered. After registration,

the widget is able to generate data according to what

the author prescribed in the conﬁguration interface.

This data becomes directly available to the author for

inspection through the WIIL (see activity log in ﬁg.

2). The author uses this information to make deci-

sions about what feedback needs to be provided to the

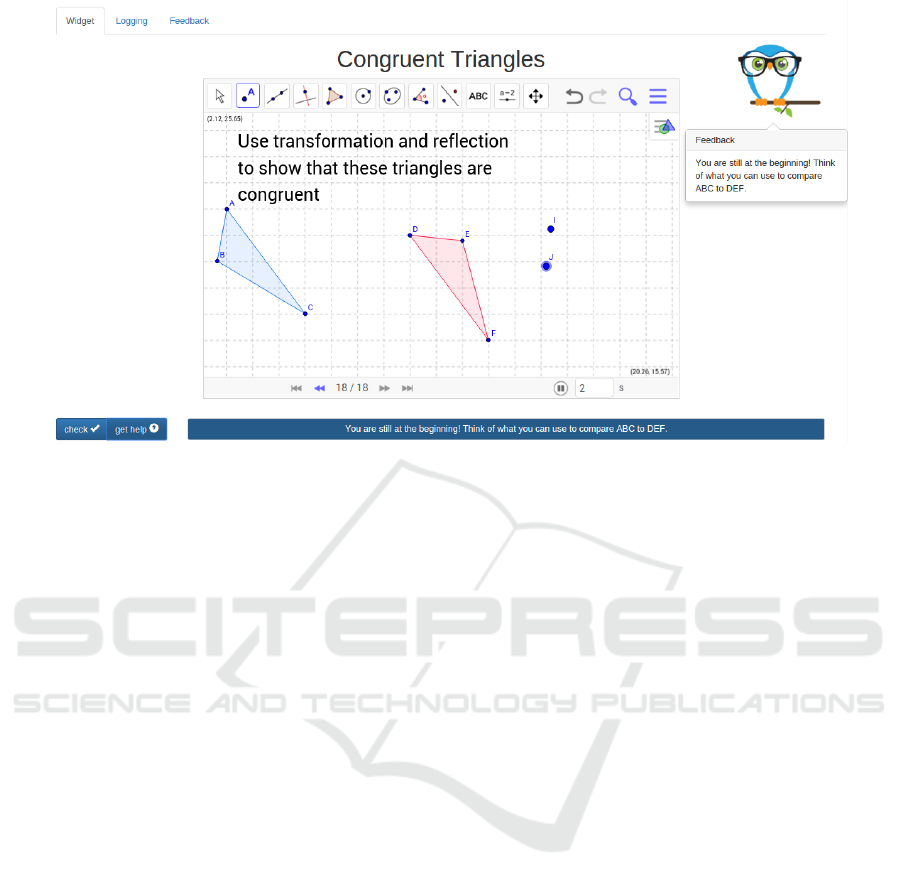

students (ﬁg. 8). This part of the conﬁguration is also

stored in local databases.

The logging and feedback conﬁguration is then

passed by the tool to the learning platform, so that

these settings can become available to the actual wid-

get instances that are going to be used by students.

The learning platform sends these settings as part of

the initialisation parameters during the widget launch

process.

We used TaffyDB (http://www.taffydb.com/) — an

open source, lightweight and efﬁcient NoSQL database

5 THE AUTHELO TOOL

AuthELO is designed to provide a generic interface

between web-based learning objects, learning plat-

forms and authors that want to synthesise exploratory

learning activities with them. The design is based on

the following ﬁve main requirements:

• Authors must be able to dynamically conﬁgure

what data will be logged by a learning object dur-

ing a session with a user. This can be data gen-

erated from interactions between the user and the

widget and derivative data that gets generated by

the widget itself as a result of some event.

• Authors must be able to specify rules about real-

time feedback that should be provided to the stu-

dents. These rules should be based on log data

that is dynamically generated as the student en-

gages with the activity.

• It should be possible for authors to conﬁgure all

the available widgets through a common interface.

This interface should be able to hide the diversity

of potentially heterogeneous learning components

that might be offered in the system.

• The tool must not impose barriers in terms of

skills and technological expertise. Teachers with a

certain degree of IT literacy should be able to use

it for authoring of interactive learning material.

• The tool must be able to offer opportunities for

exploratory authoring of feedback reducing the

cognitive load that is expected for non-structured

tasks of exploratory activities.

The general aim of this project is to provide a tool that

offers the following:

• It is simple to use

• It can be used with diverse learning components

• It can be used effectively to conﬁgure feedback for

non-structured tasks in exploratory learning envi-

ronments

5.1 The Authoring Interface

When the tool gets instantiated it looks like Figure 3.

The authoring interface is provided as a triplet of tabs

named ’widget’, ’logging’ and ’feedback’. The ﬁrst

page (widget) provides a visual of the activity along

with a basic toolset that can be used for testing and

debugging. In the middle of the page there is a live

instance of the widget that represents the activity that

is going to be presented to the student through the

learning platform. The author can interact with it in

the same way that a student would and experiment

Feedback Authoring for Exploratory Learning Objects: AuthELO

147

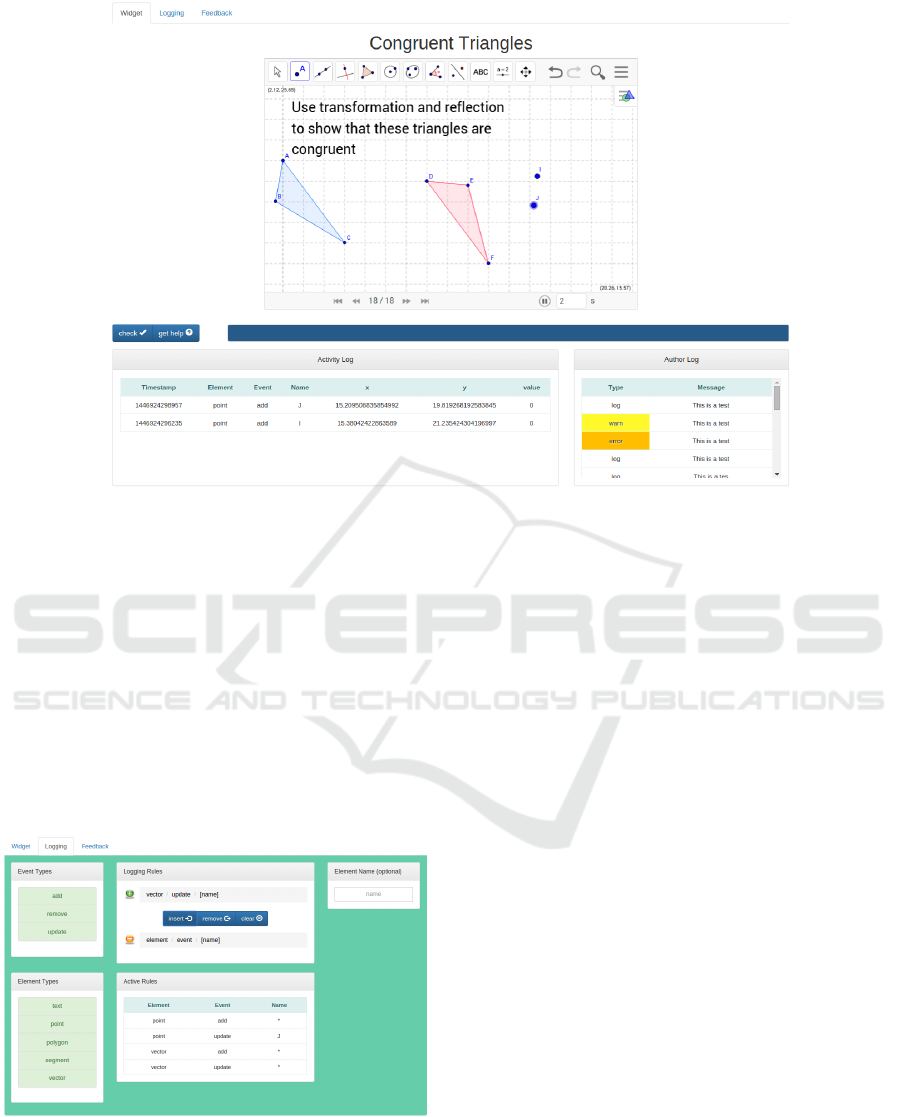

Figure 3: The authoring interface provides a live instance of the activity along with a toolset for testing and debugging.

with different conﬁgurations until the result satisﬁes

the learning objectives that have been set. During this

interaction the author can see what data gets gener-

ated and display messages useful for debugging.

5.2 Authoring Logging

Conﬁguration options for logging are given in the

homonymous tab-page. This page is dynamically

constructed by the application using information re-

trieved from the live widget instance that represents

the activity.

Figure 4: Logging Conﬁguration.

That means that this part of the tool dynamically

changes for different widgets or widgets that contain

different constructions. The aim is to for the tool to

work with different widget ‘instances’ i.e. different

conﬁgurations of the same widget but for different

activities. The challenge is that these instances con-

tain different types of elements able to generate dif-

ferent types of events. The tool is able to dynamically

query the instance and obtain all the information that

is necessary to reconstruct itself and adapt to the in-

dividual characteristics and needs of the activity. But

how can that be possible? Widgets may be third party

components that do not provide standard communica-

tion interfaces and data formats. So how do we deal

with diversity? There is no magic behind this wonder-

ful feature. Communication and interoperability be-

tween the tool and widget instances go through WIIL

(Karkalas et al., 2015b). In that layer we can reshape

APIs and semantically enhance the metadata that is

received from instances whenever that is deemed nec-

essary. That takes care of diversity but what happens

if the initial construction that is given for the activ-

ity does not contain all the necessary elements and

events? The assumption is that the tool queries the

live instance and retrieves information about what is

currently present in the construction. For that part

there is no easy answer. You either get the widget

implementers to expose a method that provides infor-

mation about all the possible elements and events for

that particular widget or you get the activity author

to create extra elements that may need to be recorded

in the log ﬁles and hide them from the user. In this

particular implementation we followed the second ap-

proach simply because it would be impossible to force

widget vendors to change their implementations and

CSEDU 2016 - 8th International Conference on Computer Supported Education

148

it would be impractical to visualise endless lists of el-

ement and event types that would not be used in the

activity. Cluttering the authoring interface with un-

necessary information would compromise the usabil-

ity of the tool.

In this page the author can see a list of the el-

ement types that are supported by the widget along

with the types of events that these elements can gener-

ate. These lists are presented as sequences of buttons.

The author can press a button and select an element

or an event type. When that happens the name of the

selected entity appears in the ’logging rules’ section

next to the plus sign.

The rules have immediate effect on how the in-

stance behaves. They are stored in local databases in

AuthELO and they are also sent to the widget so that

the respective event handlers can be registered. WIIL

takes care of the underlying operations for that. After

registration, the widget is able to generate data ac-

cording to what the author prescribed. In Figure 5 we

can see where new rules are formed. A combination

of an element type with an event type gives us a valid

rule. The author can optionally provide a name for a

speciﬁc element if needed. If the rule is ready, it can

be inserted by pressing the button ’insert’. The rule in

Figure 5 instructs the system to generate events when

the value of the point element ’A’ changes.

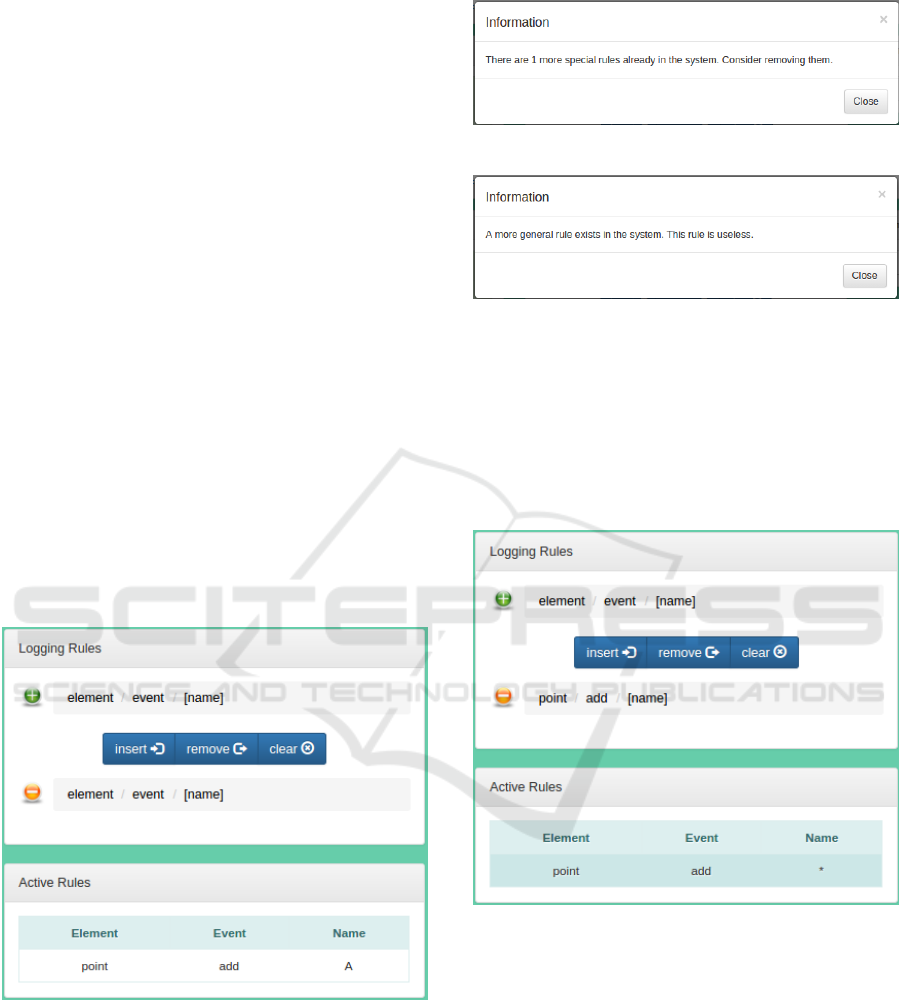

Figure 5: Rule insertion.

If we want to generate update events for any ele-

ment of a point type then we can omit the name. If

we attempt to insert a more generic rule than one that

already exists then the system will give us a warning

message but it will allow the operation.

The opposite is not true. If we attempt to insert

a more speciﬁc rule than one that already exists then

the system will not perform the operation because it

will not have any effect at all.

Figure 6: More general rule.

Figure 7: More special rule.

If the rule is exactly the same as an already existing

one the system will reject it. If a rule needs to be

removed then the author can select it by clicking on

the list in the ’Active Rules’ section. The selected

rule will then appear in the ’Logging Rules’ section

next to the minus sign. The rule can be deleted by

pressing the ’remove’ button.

Figure 8: Rule removal.

When a rule is inserted it gets immediately acti-

vated. That means that the author can go back to the

’Widget’ tab and start generating data by interacting

with the widget. The data appears at the bottom of the

page.

5.3 Authoring Feedback

The conﬁguration or authoring of feedback can be

done through the editor that is provided in the ’Feed-

back’ tab-page (see Figure 9). In this part the author

can utilise the data generated and displayed in the

’Widget’ tab-page and specify rules that state what

Feedback Authoring for Exploratory Learning Objects: AuthELO

149

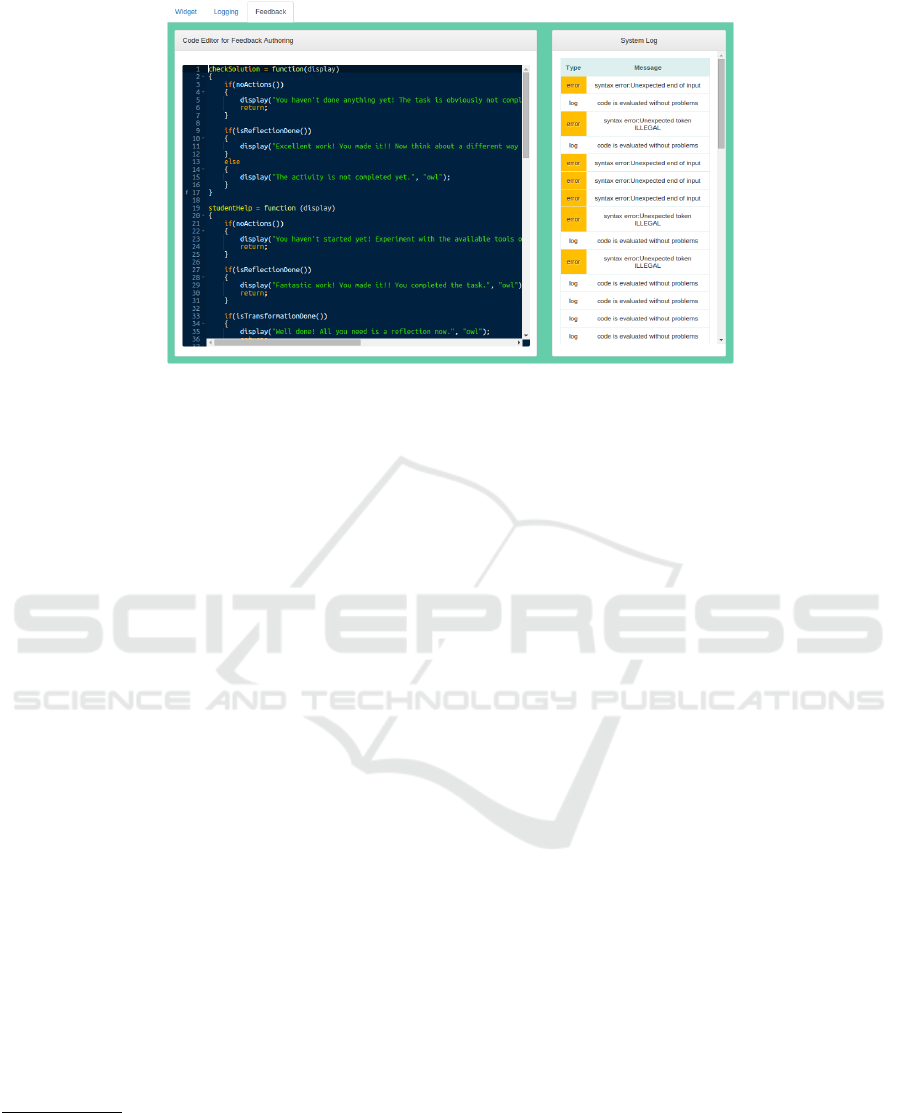

Figure 9: Feedback authoring through a specialised editor and system log.

needs to be done if certain conditions are satisﬁed. In

this version of the tool these rules must be expressed

in JavaScript. This is done through a specialised edi-

tor that provides support to the author and basic error

checking

. This way the author can dynamically in-

ject new functionality into the system.

Feedback is presented either through an area un-

der the widget instance or through an intelligent assis-

tant that looks like an owl and displays the message

in a bubble (see Figure 10). Authors simply have to

change a parameter when they call the function to dis-

play the message in order to select one or the other.

After the implementation of feedback rules, the

author can go back to the ’Widget’ tab and test the

feedback. If the author makes a mistake the system

displays an error notiﬁcation under the column named

’System Log’ indicating the problem. In this case the

changes are not saved and the new functionality is not

applied.

Something that needs to be noted here is that this

part of the tool is work in progress. We are work-

ing towards an intuitive and simple user interface that

would not require high-level of programming exper-

tise from an author (particularly a teacher). In the

meantime, both in order to test the system but also

to ensure that it can be immediately used in the con-

text of the project, we exposed a part of the actual

JavaScript code that is used to provide the feedback.

This does not affect the usability of the system at

We incorporated the ace editor (http://ace.c9.io) which

is a high performance web-based JavaScript tool. The tool

is parameterized to process JavaScript code and display it

accordingly. It is equipped with syntax highlighters, auto-

matic code indentation, and code quality control and syn-

tax checking that is based on the well-known tool JSHint

(http://jshint.com/)

this stage, only requires a level of expertise from

the author that should be able to at least understand

JavaScript syntax.

6 PROTOTYPE EVALUATION

In order to evaluate the current state of our prototype,

we employed the use case scenarios that informed the

methodology for the design and implementation, as

authoring scenarios during an evaluation study. Three

representative learning activities, one for each wid-

get, were selected and used in this process. Three de-

velopers, all experts on their respective widgets were

asked to develop code to address the needs of the

learning scenario without the use of AuthELO. We

asked developers (and not teachers) as at this stage

of the project the code part of the tool is targeted to

JavaScript developers. To facilitate the process and

have a meaningful comparison, we followed three dif-

ferent approaches based on the particularities of the

widget:

1. Geogebra widget: To our knowledge, there is no

standard way of authoring feedback on dynamic

geometry activities like GeoGebra. We followed

our previous work (Karkalas et al., 2015a,b) and

provided an experimental platform that takes ad-

vantage of Geogebra’s API and allows quick in-

tegration of widgets and event handling capabili-

ties to ease the work of the programmers. A wid-

get was preconﬁgured to generate every possible

event for every element present in the construction

and the data was collected in the central repository

of the learning platform.

2. FractionsLab widget: FractionsLab was devel-

oped in C# in Unity (see Hansen et al. 2015). For

CSEDU 2016 - 8th International Conference on Computer Supported Education

150

Figure 10: Help messages.

authoring feedback the developer wrote code for a

particular task, after a framework for support had

been developed in the Unity Development Envi-

ronments.

3. MALT+ widget: This is an HTML-based widget

developed in JavaScript. For authoring feedback

the corresponding developer ﬁrst established an

approach to handle key events from the environ-

ment and then wrote code in JavaScript.

We allowed this way the strength of each platform,

programming language and developer expertise to

manifest itself rather than setting up the three devel-

opers to fail. After the task, we interviewed them to

identify key phases in the process, which we sum-

marise below.

1. ﬁnd the item(s) of interest in the construction

2. consult the documentation of the widget to see

how they are represented in the data

3. go to the back-end database server or intercept

data locally (e.g. consulting the browser console)

to determine how events from the system can pro-

vide evidence for determining the feedback

4. write the code that uses this evidence to generate

the message

5. reset (e.g. reload or in some cases re-compile) the

system and start again the activity

6. perform all the actions needed to form the state

that generates the feedback

7. check whether the feedback is correct and either

move on or repeat the process

This cycle requires a signiﬁcant amount of time if

the author needs to move back and forth between the

server and the client part of the application multiple

times. This is the case even if both the client and

server components reside in the same physical tier.

Conﬁguration for the data logging may not be needed

but the fact that the database may be ﬁlled with irrel-

evant data makes retrieval and processing more difﬁ-

cult. The fact that new code cannot have immediate

effect and the author has to reset the system and go

through the activity steps again is possibly the biggest

obstacle in this process. Things become even more

complicated if the author makes a mistake. This te-

dious process can be an exhaustive experience for the

author. It is pretty obvious that the process as a whole

imposes a high cognitive load and reduces the effec-

tiveness of the authoring task.

The second part of the experiment was to ask the

authors to repeat the task but this time using Auth-

ELO. After a short demonstration of the tool using a

toy problem, the authors were allocated to a different

widget than the one they were familiar with and were

asked to review the scenario. The results are given on

Table 1.

It is evident that there are substantial time saving

possibilities with AuthELO. Especially if we take into

account the fact that in the ﬁrst experiment the authors

did not have to conﬁgure data logging at all and they

could start directly with authoring the feedback, we

can see that in all cases, in line with our expectations

and our design decisions, the task was completed by a

different developer in a shorter time than the original

expert in this tool.

Feedback Authoring for Exploratory Learning Objects: AuthELO

151

Table 1: Time (in minutes) to develop feedback per sce-

nario. Numbers in brackets indicate familiarisation time

with the particular activity and the key events that had be

used to author the required feedback.

Native AuthELO %

GeoGebra 245 (45) 135 (50) 55.1

FractionsLab 330 (25) 250 (45) 75.7

MALT+ 103 (10) 82 (20) 79.6

Observing the developers using AuthELO we con-

ﬁrmed that, despite the short familiarisation session,

developers were able to select the items of interest and

check directly whether the widget generates the data

required. The data gets displayed dynamically as the

author interacts with the widget. There is no need to

consult the widget documentation for anything or to

switch context and query the back-end database. We

think that this is a really important point, contributing

signiﬁcantly to reducing the overall time, particularly

because otherwise one needs to spend a signiﬁcant

amount of time going through the events that generate

data — especially in the context of exploratory learn-

ing objects. This is not something we can expect the

average teacher to have the training or time to do.

The feedback code has immediate effect and mes-

sages can be generated on the spot. There is no need

to reset the system and repeat the activity. Testing the

changes is a matter of pressing a button. Mistakes can

easily be ﬁxed. Syntax problems appear dynamically

as the author is typing the code. Author messages that

display values for debugging are presented in the front

page when the logic for the feedback is checked. In

conclusion the whole cycle is performed at one place

and the available utilities simplify and speed up the

process.

7 CONCLUSIONS

In this paper we presented the AuthELO tool that pro-

vides a simple yet effective environment for the con-

ﬁguration of logging and the authoring of feedback

on exploratory learning objects. The system is a web-

based stand-alone application that offers its function-

ality as a service and can be integrated seamlessly

with any learning platform without much develop-

ment or administrative overhead. AuthELO has been

thoroughly tested for usability and robustness and its

ﬁnal version works ﬂawlessly with key web-based

interactive widgets of the M C Squared project and

particularly GeoGebra for dynamic geometry, the 3D

Logo environment MALT+, and the virtual manipula-

tive FractionsLab. In addition, it is straightforward to

incorporate other web-based interactive widgets. We

have also measured the tool’s potential in enhancing

author performance and productivity and the prelimi-

nary results have been more than promising.

We have so far aimed at reducing the skill thresh-

old of the developers involved in relation to the partic-

ular programming language used for the widget, and

the time it would take to put a framework in place

that captures and processes events. The system was

tested by programmers and although we consider the

outcome a valid indication of the system’s ability to

increase the efﬁciency and effectiveness of the au-

thoring process, further work is needed to simplify

authoring. In the next version we envisage providing

the same service through a mixed environment that

will be a combination of visual programming and a

high level language especially designed for that type

of authoring. We expect these changes to lower the

threshold of programming skills even further and en-

able teachers or other educational designers with lim-

ited or no programming expertise no programming

skills to at least conﬁgure or tweak the pre-deﬁned

feedback if not author parts of it.

ACKNOWLEDGEMENTS

The research leading to these results has re-

ceived funding from the European Union Seventh

Framework Programme (FP7/2007-2013) under grant

agreement N

◦

610467 - project ‘M C Squared’. This

publication reﬂects only the authors’ views and the

European Union is not liable for any use that may be

made of the information contained therein.

REFERENCES

Ainsworth, S., Major, N., Grimshaw, S., Hayes, M., Un-

derwood, J., Williams, B., and Wood, D. (2003). Re-

deem: Simple intelligent tutoring systems from usable

tools. In Authoring Tools for Advanced Technology

Learning Environments, pages 205–232. Springer.

Aleven, V., Mclaren, B. M., Sewall, J., and Koedinger, K. R.

(2009). A new paradigm for intelligent tutoring sys-

tems: Example-tracing tutors. International Journal

of Artiﬁcial Intelligence in Education, 19(2):105–154.

Blessing, S., Gilbert, S., Ourada, S., and Ritter, S. (2007).

Lowering the bar for creating model-tracing intelli-

gent tutoring systems. Frontiers in Artiﬁcial Intelli-

gence and Applications, 158:443.

Brusilovsky, P. (2003). Developing adaptive educational

hypermedia systems: From design models to author-

ing tools. In Authoring tools for advanced technology

Learning Environments, pages 377–409. Springer.

CSEDU 2016 - 8th International Conference on Computer Supported Education

152

Bunt, A., Conati, C., Huggett, M., and Muldner, K. (2001).

On improving the effectiveness of open learning envi-

ronments through tailored support for exploration. In

10th World Conference of Artiﬁcial Intelligence and

Education, AIED 2001.

Ginon, B., Jean-Daubias, S., Lefevre, M., Champin, P.-A.,

et al. (2014). Adding epiphytic assistance systems in

learning applications using the sepia system. In Open

Learning and Teaching in Educational Communities,

pages 138–151. Springer.

Gutierrez-Santos, S., Mavrikis, M., Magoulas, G. D., et al.

(2012). A separation of concerns for engineering

intelligent support for exploratory learning environ-

ments. Journal of Research and Practice in Informa-

tion Technology, 44(3):347.

Hansen, A., Mavrikis, M., Holmes, W., and Geraniou,

E. (2015). Designing interactive representations for

learning fraction equivalence. In Proceedings of

the 12th International Conference on Technology in

Mathematics Teaching, Faro, Portugal.

Karkalas, S., Bokhove, C., Charlton, P., and Mavrikis, M.

(2015a). Towards conﬁgurable learning analytics for

constructionist mathematical e-books. Intelligent Sup-

port in Exploratory and Open-ended Learning Envi-

ronments Learning Analytics for Project Based and

Experiential Learning Scenarios, page 17.

Karkalas, S., Mavrikis, M., and Charlton, P. (2015b).

The web integration & interoperability layer (wiil).

turning web content into learning content using a

lightweight integration and interoperability technique.

In Knowledge Engineering and Ontology Develop-

ment (KEOD), 7th International Conference on.

Kirschner, P. A., Sweller, J., and Clark, R. E. (2006). Why

minimal guidance during instruction does not work:

An analysis of the failure of constructivist, discovery,

problem-based, experiential, and inquiry-based teach-

ing. Educational psychologist, 41(2):75–86.

Klahr, D. and Nigam, M. (2004). The equivalence of learn-

ing paths in early science instruction effects of direct

instruction and discovery learning. Psychological Sci-

ence, 15(10):661–667.

Koedinger, K. R., Aleven, V., Heffernan, N., McLaren, B.,

and Hockenberry, M. (2004). Opening the door to

non-programmers: Authoring intelligent tutor behav-

ior by demonstration. In Intelligent Tutoring Systems,

pages 162–174. Springer.

Mavrikis, M., Gutierrez-Santos, S., Geraniou, E., and Noss,

R. (2013). Design requirements, student perception

indicators and validation metrics for intelligent ex-

ploratory learning environments. Personal and Ubiq-

uitous Computing, 17(8).

Mayer, R. E. (2004). Should there be a three-strikes rule

against pure discovery learning? American Psycholo-

gist, 59(1):14.

Mitrovic, A. (2012). Fifteen years of constraint-based tu-

tors: what we have achieved and where we are going.

User Modeling and User-Adapted Interaction, 22(1-

2):39–72.

Mitrovic, A., Martin, B., Suraweera, P., Zakharov, K., Mi-

lik, N., Holland, J., and McGuigan, N. (2009). Aspire:

an authoring system and deployment environment for

constraint-based tutors.

Munro, A. (2003). Authoring simulation-centered learn-

ing environments with rides and vivids. In Author-

ing Tools for Advanced Technology Learning Environ-

ments, pages 61–91. Springer.

Razzaq, L., Patvarczki, J., Almeida, S. F., Vartak, M., Feng,

M., Heffernan, N. T., and Koedinger, K. R. (2009).

The assistment builder: Supporting the life cycle of

tutoring system content creation. Learning Technolo-

gies, IEEE Transactions on, 2(2):157–166.

Sottilare, R. A., Goldberg, B. S., Brawner, K. W., and

Holden, H. K. (2012). A modular framework to

support the authoring and assessment of adaptive

computer-based tutoring systems (cbts). In Proceed-

ings of the Interservice/Industry Training, Simulation,

and Education Conference.

Feedback Authoring for Exploratory Learning Objects: AuthELO

153
