A Scalable Architecture for Distributed OSGi in the Cloud

Hendrik Kuijs

, Christoph Reich

, Martin Knahl

and Nathan Clarke

Institute for Cloud Computing and IT Security, Furtwangen University, Furtwangen, Germany

Centre for Security, Communications and Network Research, Plymouth University, Plymouth, U.K.

Keywords:

OSGi Service Architecture, Load Balancing, Distributed OSGi, PaaS Management, SaaS.

Abstract:

Elasticity is one of the essential characteristics for cloud computing. The presented use case is a Software as

a Service for Ambient Assisted Living that is conﬁgurable and extensible by the user. By adding or deleting

functionality to the application, the environment has to support the increase or decrease of computational

demand by scaling. This is achieved by customizing the auto scaling components of a PaaS management

platform and introducing new components to scale a distributed OSGi environment across virtual machines.

We present different scaling and load balancing scenarios to show the mechanics of the involved components.

1 INTRODUCTION

The average life expectancy in developed coun-

tries world-wide is increasing continuously while the

birth-rate at the same time is declining (United Na-

tions, 2001). This leads to a decreasing proportion

of the young working population: Families are get-

ting smaller in general and are no longer able to care

for their elderly relatives, like extended families once

used to do. On the other hand, the traditional concept

of extended families gets replaced by welfare models

and pension systems. Politics try to support this trend

by introducing programs for new nursing or day-care

facilities, but there is a still a lack of trained personnel

and the progress of expansion is still slow.

With the goal to reduce the workload upon profes-

sional care personnel and facilities, Ambient Assisted

Living (AAL) is seen as a possible solution. AAL

is deﬁned as transformation of the known living en-

vironment of the elderly people and people in need

of help by new technological concepts to assist both

the caring person and the person needing care. This

means that people are enabled to live at home longer,

which is an often desired effect (Grauel and Speller-

berg, 2007).

Existing AAL platforms extend the concepts of

smart-home environments combining input-devices

like sensors, user-interfaces or cameras and output-

devices like alarms, emergency call functionality,

databases or graphical user interfaces. All devices

are connected by a conﬁgurable middleware and all

components including the compute-power have to be

installed in the user’s living environment. This ex-

isting computing equipment has to be renewed or ex-

tended, if new demanding services are introduced into

the AAL environment.

Therefore we are focusing on delivering cloud

based services for AAL. Service providers (e.g., care

givers or day care facilities) should be able to deliver

services without the need for investing in expensive

technical equipment in advance. With cloud com-

puting, the high start-up costs can be reduced signiﬁ-

cantly for service providers and it will be feasible for

users to try out new or innovative services without

the need of a high investment. Giving AAL service

providers a dynamic load balanced, managed, easy

provisioned and easy to use AAL service platform

hosted in the cloud to be deployed on demand is a

highly desirable goal.

This ﬂexibility can be provided by a customizable

Platform as a Service (PaaS) that is run by the AAL

platform provider for the AAL service provider and

used as Software as a Service (SaaS) by the end user.

The security and privacy enhanced cloud infras-

tructure for AAL (speciAAL) focuses on deliver-

ing personalised and adapted services for informa-

tion, communication and learning. It is based on the

project Person Centered Environment for Information

Communication and Learning (PCEICL) (Kuijs et al.,

2015) which is developed in the Collaborative Cen-

tre for Applied Research on Ambient Assisted Living

(ZAFH-AAL, 2014). The PaaS is considered to run

in a private cloud, as adaptation of the system to the

user’s need is heavily based on personal user data.

Kuijs, H., Reich, C., Knahl, M. and Clarke, N.

A Scalable Architecture for Distributed OSGi in the Cloud.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 2, pages 109-117

ISBN: 978-989-758-182-3

109

SpeciAAL is based on OSGi (OSGi Alliance, b):

OSGi supports installing, starting and stopping soft-

ware bundles during runtime. By introducing tools

for managing and resolving of dependencies between

bundles, the application can be extended or updated

during runtime without the need to restart the whole

environment. OSGi has also been chosen, since it is a

seen as a standard technology for Smart Home envi-

ronments and AAL platforms (OSGi Alliance, a).

With this paper we are focusing on the scaling and

load balancing process in the PaaS layer for speci-

AAL. As speciAAL is a customizable and extensible

application, we present a way of horizontal scaling

of an OSGi environment based on distributed OSGi

(DOSGi). New mechanics and modules in the PaaS

layer are introduced to support the scaling process for

the SaaS layer.

In Section 2 we describe different concepts of

scaling in cloud environments and the basis of dis-

tributed OSGi. Related Work in the ﬁeld of AAL and

scaling OSGi applications in cloud environments is

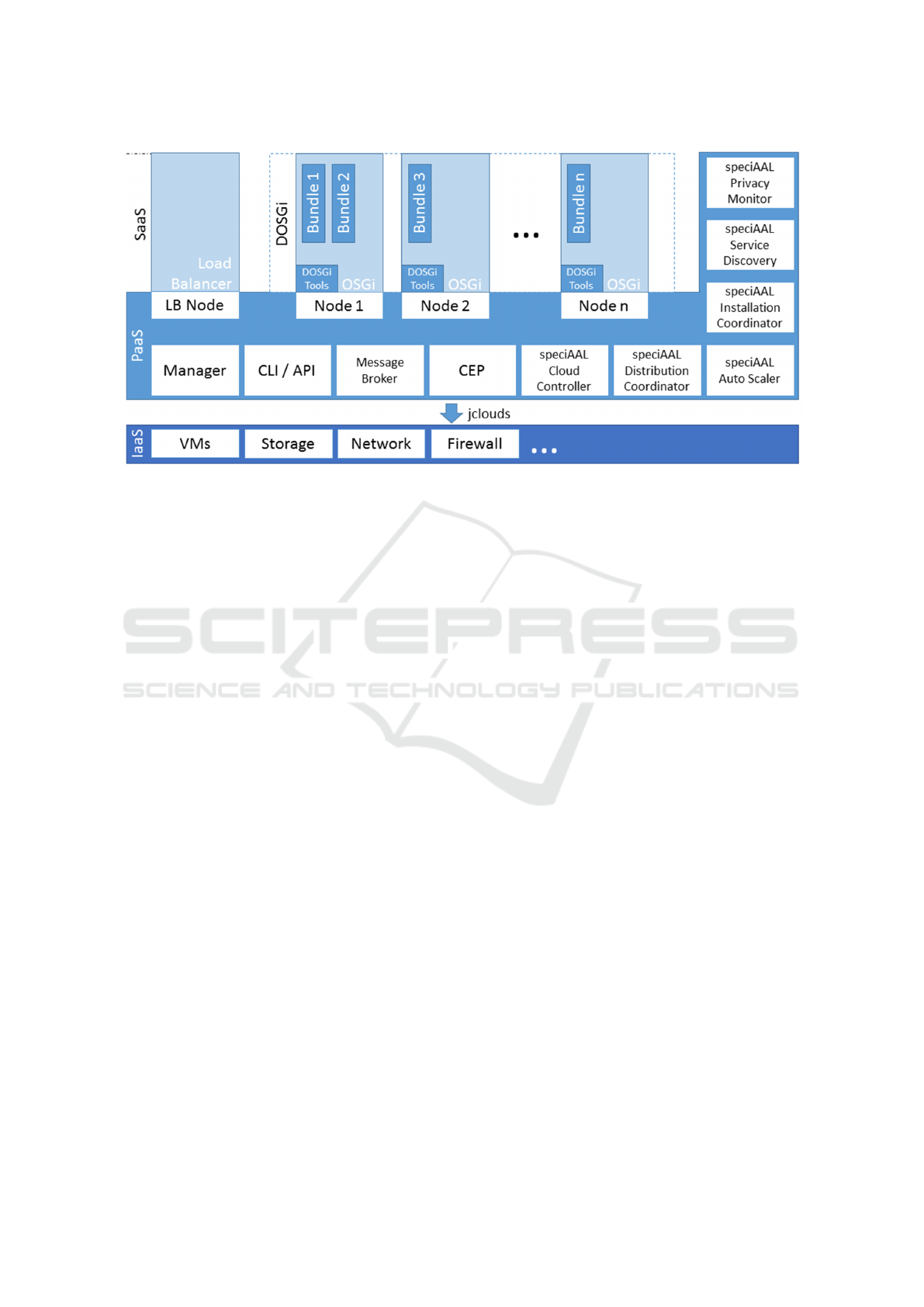

presented in Section 3. Section 4 gives an overview

of the architecture for speciAAL and its main con-

cepts. Components that have to be adopted to sup-

port the load balancing approach for speciAAL are

described in Section 5. To show the main function-

ality of load balancing in speciAAL we present four

common scenarios in Section 6, followed by the con-

clusion in Section 7.

2 SCALING AT IaaS, PaaS AND

SaaS

The main idea of the presented architectural approach

is to provide a platform for OSGi applications in the

cloud. When leveraging services to the cloud it is of-

ten required to have the ability to scale resources ac-

cording to the computational demand.

At an Infrastructure as a Service (IaaS) provider

scaling can be achieved by providing bigger or

smaller virtual machines (VMs) in terms of computa-

tional power or memory resources, by providing big-

ger or smaller storage nodes or by load balancing net-

work trafﬁc among different VMs or with different

priority.

At the SaaS level scaling is often achieved by load

balancing requests between more or fewer nodes of

the same application. For this the application has to

be either stateless, has to provide synchronized states

among all instances of the application or has to store

its current state on client side (which is often done in

web-application sessions).

PaaS management organizes scaling on the IaaS

(vertically) and SaaS level (horizontally) and is often

used to automate the scaling process. The AAL ser-

vice developer wants to use the scaling service from

the PaaS to develop and provide an AAL service to

the customer.

Strictly speaking PaaS just provides platforms for

development or deployment (Mell and Grance, 2011).

One scaling scenario would be to request a bigger

platform to test or run an application. This would

translate to a bigger VM on the IaaS level. To ad-

dress user load, a scaling scenario would be to start

new nodes of the same application behind a load bal-

ancing infrastructure on high demand or to stop the

nodes when there is a decline of demand for the ap-

plication. This would trigger the SaaS scaling like

explained before and also be coordinated by the PaaS

management environment.

The focus of this approach lies on the demand

of a growing modular application on the computa-

tional resources itself. By adding more functionality

to the modular application, the provided environment

on one platform node can get too small with respect

to memory or CPU power. The presented research

supports this scenario by scaling out horizontally to

being able to put the new module on a new node in a

distributed OSGi platform (see Fig. 1).

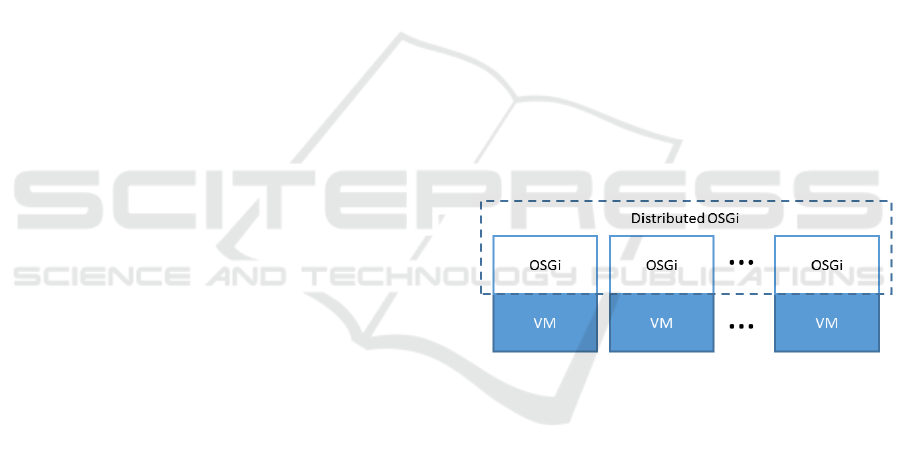

Figure 1: Horizontal Scaling with Distributed OSGi.

In a distributed OSGi environment, different

OSGi VMs and their running bundles are connected

to each other to compose one big OSGi environment

by imports and exports of endpoints. Communication

between the different nodes is usually done by call-

ing HTTP interfaces. The OSGi Core Speciﬁcation

4.3 (OSGI Alliance, 2011) introduces the main con-

cept of distributed OSGi but does not recommend a

speciﬁc way of implementation for the required com-

ponents and functionality.

As shown in ﬁgure 2, a Provider Bundle in Node

1 exports an OSGi service as an interface by us-

ing additional service properties (e.g., which interface

is accessible remotely). This interface is registered

at the Distribution Provider within the node and an

Endpoint for a remote call of the service is created.

Through a Discovery Service this existing Endpoint

is announced at the Distribution Provider of the re-

mote node, where the Distribution Provider creates a

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

110

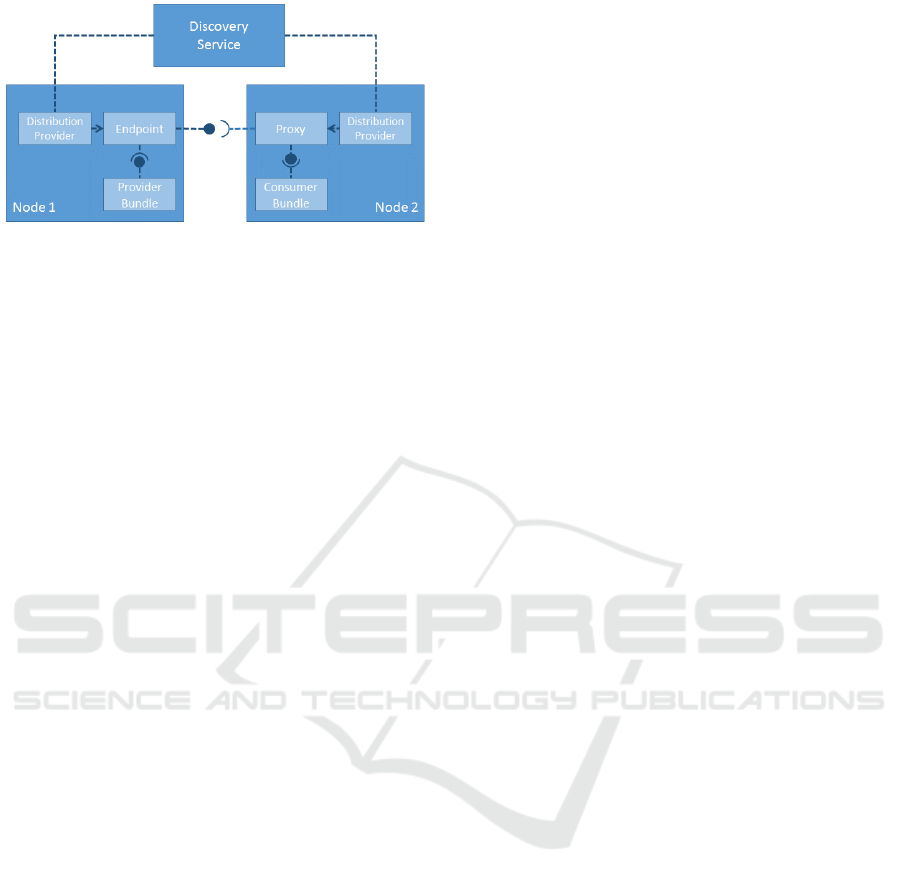

Figure 2: Basic Functionality of Distributed OSGi (based

on (Apache Software Foundation, 2015b)).

Proxy for the remote service. This Proxy can be im-

ported by a Consumer Bundle like a locally deployed

bundle. The Proxy and Endpoint provide the imple-

mentation for remote message exchange.

The OSGi Compendium Speciﬁcation 4.3 (OSGi

Alliance, 2012) splits the Distribution Provider into

several modules, to make it possible to enhance or ex-

change parts of the Distribution Provider. The Dis-

covery module notiﬁes Endpoint Listeners upon de-

tection of available Remote Endpoints. The Topology

Manager uses also an Endpoint Listener to monitor

remote OSGi services and is able to monitor locally

available OSGi services. The creation and destruction

of Endpoints and Proxies is delegated to the Remote

Service Admin module.

The project Apache CXF (Apache Software Foun-

dation, 2015b) has implemented these components

in a framework to support distributed OSGi in sev-

eral speciﬁcation compliant OSGi platforms (e.g.,

Equinox, FELIX or Knopﬂerﬁsh). The Discovery

module is implemented with an Apache Zookeeper

server ( Apache Software Foundation, 2015), to dis-

cover and announce endpoints in a highly dynamic

environment.

3 RELATED WORK

Existing platforms in the ﬁeld of AAL are mainly

focused on delivering customizable middleware for

smart home environments and the whole comput-

ing power has to be installed in the living environ-

ment of the end-user himself. Example projects are

SOPRANO (Balfanz et al., 2008), AMIGO (Janse,

2008), ProSyst (Petzold et al., 2013) and universAAL

(Sadat et al., 2013) that are providing middleware

based on OSGi. They introduce techniques (e.g., soft-

ware agent platforms) to gather user data, do reason-

ing based on ontologies and recognize events or inci-

dents that lead to corresponding system reactions.

The projects that introduce cloud functionality are

few and use the cloud-services for speciﬁc problems:

A platform approach to share health data in the cloud

in a secure way is presented by Kim et al. (Kim et al.,

2012). The patient-centric solution is entirely gov-

erned by the patient and provides strong security and

privacy characteristics. Health data can be shared be-

tween hospitals, trained care-personnel or relatives to

indicate changes in the health conditions amongst the

different support groups of the user.

The extensible OSGi-based architecture of

Ekonomou et al. (Ekonomou et al., 2011) is fo-

cused on the integration of new devices by using a

cloud-based service for discovering drivers for highly

heterogeneous smart home systems in a manual,

semi-automatic and automatic way.

The project Cloud-oriented Context-aware Mid-

dleware in Ambient Assisted Living (CoCaMAAL)

(Forkana et al., 2014) uses cloud services for the con-

text generation and classiﬁcation of incidents. Data of

installed sensors and devices in the smart living envi-

ronment is gathered by a Data Collector on-site and

transferred to a context aggregator in the cloud that

sends back appropriate actions which are performed

inside the users environment.

AIOLOS (Verbelen et al., 2012), a framework

for scalable component-based cloud applications, fo-

cuses on ofﬂoading demanding tasks from mobile de-

vices to remote VMs. The middleware based on OSGi

uses Remote Endpoints to achieve this functionality.

However, automatic scaling of the provided environ-

ment is so far not discussed in this approach.

Paul Bakker and Bert Ertman describe a way how

to build a modular cloud app with OSGi (Bakker and

Ertman, 2013). They use Amdatu (Amdatu, 2015) as

a tool to provide the needed functionality for enabling

OSGi applications to work on the SaaS layer (e.g.,

RESTful webservices, support for NoSQL-DBs) by

being able to scale horizontally across nodes. To man-

age this scalability they use Apache ACE (Apache

Software Foundation, 2015a) as a deployment-tool

in conjunction with the auto scaling (Amazon Web

Services, 2015a) and elastic load balancing (Amazon

Web Services, 2015c) provided by Amazon AWS in

the IaaS layer. This setup is used by PulseOn (Lumi-

nis, 2015), an e-learning application that is deployed

with different compositions of functionality to differ-

ent schools in the Netherlands and worldwide. The

scaling is done by adding more nodes of the same

application during periods where there is higher load

(e.g., during school hours).

Although many concepts for OSGi applications in

the cloud and programming guidelines of Bakker and

Ertman can be applied to the SaaS layer of speciAAL,

their concept differs from the presented approach of

A Scalable Architecture for Distributed OSGi in the Cloud

111

scaling the environment by adding nodes to a single

combined distributed environment.

4 ARCHITECTURE OF speciAAL

Figure 3 shows an overview of the speciAAL archi-

tecture. The architecture is divided into three lay-

ers: The IaaS layer, the PaaS layer including the Paas

Manager and the SaaS layer. To explain the details of

each layer, the different components are described in

the following subsections.

4.1 IaaS Layer

The IaaS layer is considered to be an Private Cloud

infrastructure provider (e.g., an OpenStack installa-

tion hosted at the institution) or a Public Cloud infras-

tructure provider (e.g., Amazon AWS, Rackspace).

IaaS providers support starting and stopping virtual

machines based on speciﬁed VM templates (com-

pute power and storage services), network routing ser-

vices, database and persistent datastore services, ac-

counting services and monitoring.

The IaaS layer is controllable through command

line tools (Amazon Web Services, 2015b) or API

calls (The OpenStack project, 2015) to manage nodes

based on decisions made in the PaaS layer. To be able

to control different APIs of different IaaS providers

there are tools, that wrap the system speciﬁc or ven-

dor speciﬁc API for being able to exchange the IaaS

infrastructure based on different service requirements.

jClouds (Apache Software Foundation, 2015d) or

BOSH (Cloud Foundry, 2015) try to standardize the

usage of Cloud infrastructure APIs.

4.2 PaaS Layer

Open PaaS management systems simplify the provi-

sioning of developed applications (Apache Software

Foundation, 2015c; Linux Foundation Collaborative

Projects, 2015). It reduces deployment time of a plat-

form or a framework needed to run an application.

For this the PaaS management systems can be conﬁg-

ured to certain environments (e.g., PHP, JVM, Ruby,

OSGi) that are ready to be started and used by appli-

cation developers. This can reduce deployment time

for the developer or the system operator and therefore

also cost for the company they work in. Open PaaS

management should be IaaS provider independent to

enable provisioning of platforms on different IaaS en-

vironments like OpenStack, Open Nebula or Ama-

zon AWS. The presented PaaS layer architecture is

based on Apache Stratos (Apache Software Founda-

tion, 2015c) and customized with components needed

to provide horizontal scaling of distributed OSGi.

The Manager (see Fig. 3) is the central compo-

nent for interacting with the PaaS environment. The

Manager provides a UI or console line interface (CLI)

for registered PaaS users. It holds information for

available platform environments, scaling and deploy-

ment policies and is the central component to deploy

environments or load balancers. The Manager pro-

vides tools for multi-tenancy: virtual computing re-

sources and platform environments can be adminis-

tered and shared among PaaS users, for deploying the

applications, but also divided to provide specialized

platforms or set different resource limits to various

developer groups.

The Cloud Controller component communicates

with the IaaS infrastructure and holds all the topol-

ogy information of the PaaS system. The communi-

cation with the IaaS layer is done through an imple-

mentation layer and can be provided by the aforemen-

tioned jClouds. This makes the API of the IaaS layer

accessible to the PaaS layer and allows management

of different VMs or other service functionality (e.g.,

network routing) of the IaaS provider. All informa-

tion retrieved from the IaaS is stored in the topology

conﬁguration at the Cloud Controller and can be pub-

lished to other components that need to be aware of

changes in the topology of the PaaS system. Exam-

ples for components where topology data is crucial

information to work properly are the Load Balancer

or the Distribution Coordinator component.

The Distribution Coordinator holds a set of de-

ployable artifacts to update the deployed platforms.

This component can also be used to automate the de-

ployment process for the complete application on all

subscribed running nodes. The artifacts are usually

received from a connected repository service and de-

ployed based on deployment policies, by events trig-

gering the deployment or by manual commands to the

Manager component. The Distribution Coordinator

is triggered on start-up of a new node and is consid-

ered to hold all nodes of the same type at the same

deployment state by the concept of deployment syn-

chronization.

To take advantage of the possibility to add and re-

move computational resources to or from an applica-

tion or distributed environment, the Auto Scaler com-

ponent evaluates load and health information of the

Complex Event Processor based upon policies (e.g.,

deployment policies or scaling policies). This eval-

uation is executed by a rule engine and applied ac-

cording to the current topology retrieved from the

Cloud Controller component. The information ex-

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

112

Figure 3: Distributed OSGi PaaS for speciAAL.

change between components is realized by a Mes-

sage Broker component and a message bus based on

a publish/subscribe pattern. This pattern enables the

PaaS system to add or remove components (e.g., load

balancers) dynamically by preserving the information

exchange between components.

The Nodes (or Cartridges) are the actual envi-

ronment in which the application is running. They

are started, stopped and registered by the Cloud Con-

troller module. In modern PaaS Management systems

the focus lies on fast deployment of a completed ap-

plication to a cloud node. For this purpose the Dis-

tribution Coordinator is able to provision the whole

application out of its repository into an new node and

to keep existing nodes up to date. In the presented

approach this task is reduced to deploying just the

environment and the minimum required components

for setting up the initial bundles of the application in

a distributed OSGi environment. The deployment of

new functionalities is later triggered by functionality

in the SaaS layer. This leads to a ﬂexible and ex-

tendible application that is able to interact with the

PaaS layer.

The Service Discovery is integrated in the PaaS

layer but directly connected to the SaaS layer to trans-

late the currently active application topology to co-

ordinated actions in the PaaS layer. It is further de-

scribed in section 5.

The Installation Coordinator is a new concept for

the speciAAL architecture. It is able to receive in-

stallation requests out of the SaaS layer and evaluate

the best place for installing a new functionality in the

distributed environment of the application. Its main

characteristics are detailed in section 5 and the pro-

cess of installation is explained in section 6.

The Privacy Monitoring Module is able to collect

log-data of actions within the SaaS layer and gener-

ating reports according to privacy policies and data

access policies. The detailed architecture of this com-

ponent is still work in progress and at this point it is

shown for completeness.

4.3 SaaS Layer

In the presented approach the SaaS layer provides ser-

vices for the platform speciAAL in a distributed OSGi

environment. All running bundles are added up to one

adapted application for the user with the functionali-

ties conﬁgured to his needs. It consists of system bun-

dles, core bundles and conﬁgurable application bun-

dles.

The system bundles are part of the environment

and provide general services for distribution (e.g.,

DOSGi bundles for Apache CXF), discovery (e.g.,

bundles for communication with Apache Zookeeper)

and monitoring.

The core bundles are part of the application and

provide core functionalities, like an Web-Interface,

an Address Book, Communication bundles for Smart-

Home Control and Sensors or a Customizing bundle.

The conﬁgurable application bundles are individ-

ually chosen by the user and installed via a Bundle

Store. These bundles can be installed and conﬁgured

during runtime and also have the ability to adapt to

user behavior (Fredrich et al., 2014). They can be

compared to apps on a smart phone, that can be in-

stalled, tested and also deleted if they do not provide

a desired functionality.

A Scalable Architecture for Distributed OSGi in the Cloud

113

5 LOAD BALANCING IN

speciAAL

In ﬁgure 3 some components are marked as “speci-

AAL” components: The Cloud Controller, Distribu-

tion Coordinator, Auto Scaler, Installation Coordina-

tor and Service Discovery. These components have to

be adopted to provide the required functionality in or-

der to provide the distributed load balancing approach

for speciAAL as described in section 4.

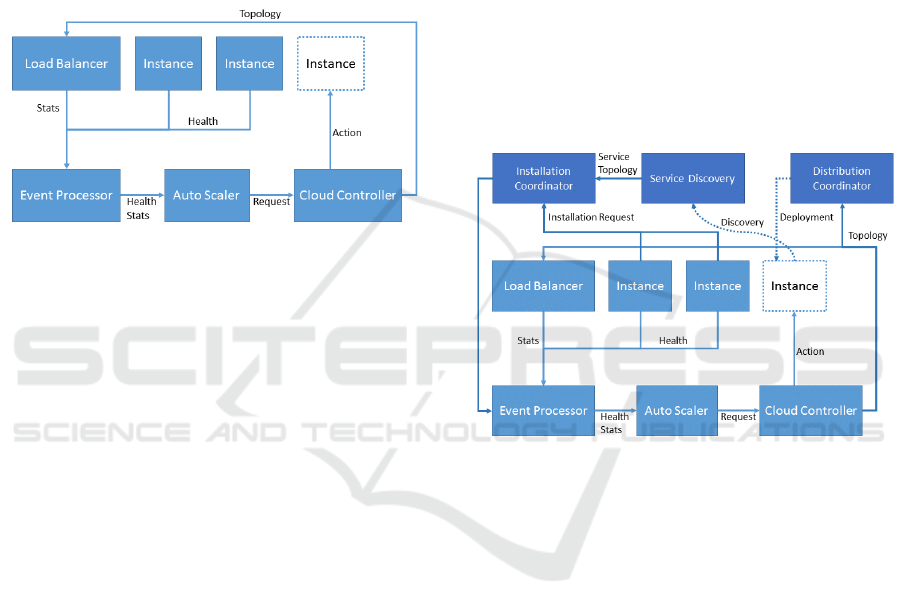

Figure 4: Auto Scaling in Apache Stratos.

In Apache Stratos scaling is achieved by creating

or destroying instances (so called cartridge instances)

of an application (Fig. 4): A real time event pro-

cessor receives statistical information (e.g., requests

or failed requests) of the Load Balancer component

and the health status (e.g., load average, memory

consumption or request count) of the running car-

tridge instances. This data is evaluated, summarized

and published to a Health Stats topic in the Message

Broker. The Auto Scaler receives this information

and decides, backed by a Rule Engine, whether new

nodes are needed or existing nodes are expendable.

The Auto Scaler then sends a request to the Cloud

Controller to create or destroy instances. After the

performed action the altered topology information is

published to the Message Broker and the Load Bal-

ancer is updated with the new topology.

One simple solution to provide horizontal scaling

for a distributed OSGi environment would be, to work

with small nodes and put each new part of the ap-

plication on a single node. On installation of a new

functionality the environment would be extended by

a node and the corresponding bundles would be de-

ployed on the started node. It would then be easy

to delete the functionality by simply destroying the

node. However, this would lead to a fragmented en-

vironment and unbalanced resource use across the

application. The presented approach is focusing on

making use of the available computational resources

of one node before extending the environment by

adding another node.

For speciAAL the Distribution Coordinator, Ser-

vice Discovery and Installation Coordinator have to

be added to the work ﬂow of auto scaling (see Fig. 5):

Analogous to the Cloud Controller holding the

topology of VMs and network interfaces on the PaaS

and IaaS layer, the Service Discovery holds the topol-

ogy for all of the distributed services in the SaaS layer.

On creation of a new node for the distributed OSGi

environment, it is getting contacted by a previously

conﬁgured startup script and the new node and fur-

ther installed services will be updated in the topology

and service registry.

Furthermore, the Service Discovery is also mon-

itoring the availability of the registered remote ser-

vices on the node: If the node is deleted it will also

de-register the node and all formerly running remote

services on this missing node.

Figure 5: Auto Scaling in speciAAL.

The Distribution Coordinator has to conﬁgure and

setup a new node after starting to provide the required

services to integrate the node in the distributed envi-

ronment. As described before it has the capability to

keep the nodes on the same patch-level (distribution

synchronization) and is able to push conﬁguration up-

dates as well (e.g., on what address or port a node is

able to contact the Service Discovery). For speciAAL

the Distribution Coordinator is used to set up the ini-

tial environment with all services that are needed for

the application for conﬁguration by the end user (e.g.

authentication bundle, database access agent bundle,

web interface bundle and a installation wizard bun-

dle). Later the Distribution Coordinator provides ad-

ditional nodes that are stripped down to only provide

the minimal conﬁguration for extending the platform

as a distributed OSGi environment.

The Installation Coordinator plays a central role

in this setup as it enables for detailed decisions where

to install a new service. Before the bundle installa-

tion is performed, load information on the nodes is

evaluated and based on this different actions are ex-

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

114

ecuted: If the nodes are able to run another service,

it receives the information where (on which node) to

install the new bundle in the distributed environment.

If the nodes are on a load limit, it triggers the exten-

sion of the environment by a new node and receives

the information to install the bundle on the newly pro-

visioned node.

To further broaden the basis for these decisions,

the Complex Event Processor has to be extended

to collect information from inside the distributed

OSGi environment (e.g., request/response time be-

tween servers and services) as well as from the Ser-

vice Discovery component (e.g., registration or de-

registration of services and nodes).

6 SCENARIO-BASED

EVALUATION

The auto scaling during operation is inﬂuenced by

two main aspects: User triggered events or monitor-

ing events. If a user adds a new functionality to the

platform or deletes an existing functionality from the

platform, the Auto Scaler component has to decide

whether a rebalancing of nodes has to be performed.

Besides this, monitoring events, like high load, low

load or health issues, are gathered at the Complex

Event Processor and can lead to a reevaluation at the

Auto Scaler component. In addition, there is load bal-

ancing during deployment time as well.

To show the systems ﬂexibility, we describe the

starting situation, occurring events and the involved

components of the system.

6.1 Setting up the Application

If a new end-user wants to use speciAAL, a new PaaS

environment is created. This means, that the basis

template is deployed by the Deployment Coordinator

to a newly created VM by the Cloud Controller. This

action is triggered by the Manager and the node will

be already enabled for the distributed environment.

Although there is just one node in the beginning, the

Service Discovery has to be active and the node has

to be registered for being able to access remote ser-

vices later on. The new environment is created with

the goal to give each user (e.g., an elderly person) an

isolated, customizable and adoptable environment.

6.2 Installing a New Service

When the user wants to add a new service to the ap-

plication, the installation request is sent to the Instal-

lation Coordinator. The Installation Coordinator in-

forms the Complex Events Processor which combines

the request with the current health and load informa-

tion of the nodes and triggers the evaluation process

of the Auto Scaler. Based on the rules engine, the

decision-making can lead to one of the two results:

• There are still resources available on a speciﬁc

node. This information is sent back to the Instal-

lation Coordinator and the bundle installation is

performed on the speciﬁed node. On start of the

new bundle, exported services are registered by

the Service Discovery and can be used by other

services or the end-user.

• All nodes are exceeding a deﬁned threshold and

the new functionality is likely to exceed the com-

putational resources of a node. The Auto Scaler

requests an additional node (VM) at the Cloud

Controller. After the node is started, the Deploy-

ment Coordinator gets an updated topology infor-

mation and deploys the extension template to the

new node. After the new node is registered at the

Service Discovery, the Installation Coordinator is

updated to install the requested bundle on the new

node. After deploying and starting the bundle,

the exported services are registered by the Service

Discovery and can be used by other services or the

end-user.

6.3 Removing an Existing Service

If an end-user decides to remove a certain functional-

ity out of his application, the associated bundles that

are no longer needed by other services are stopped

and removed. This triggers the de-registration in the

Service Discovery and the exported remote services

are no longer present in the system.

One special case to this scenario is when the last

exported remote service on a node is deleted. This

may indicate an orphaned node that might as well be

deleted. To verify this sufﬁcient condition, the current

set of bundles on the node has to be compared to the

set of bundles of a node extension template with only

the vital services for distribution.

• If the set is the same, the node is removed from

the distributed environment by simply deleting the

VM on the IaaS level by the Cloud Controller.

• Otherwise, no further actions are required at this

phase and the node will be re-evaluated in the sce-

nario “Low Load” (see Section 6.5).

6.4 High Load

At ﬁrst this scenario does not differ from the auto scal-

ing mechanism of Apache Stratos (see section speci-

aal). One node is monitored as having high cpu load,

A Scalable Architecture for Distributed OSGi in the Cloud

115

memory swapping or long running requests. The Auto

Scaler triggers the creation of a new node at the Cloud

Controller and it is deployed as extension node by

the Deployment Coordinator. As Apache CXF has

the ability to monitor request/response times on a ser-

vice level inside the OSGi environment, this is used in

a second step to get an estimation, what bundles are

causing the overload this time.

As the new node is started up and registered bun-

dles are “moved” to the new node. This is realized by

duplicating bundles at ﬁrst on the new node and delet-

ing the bundles on the busy node afterwards to make

sure, that a remote service to handle the requests is

always available in the environment.

There are two conceivable strategies to move ser-

vices from a node with high load:

• Moving the service that is detected as causing the

high load. This can mean that the long running

requests are prohibiting the service from stopping

and the moving scenario will take longer than ex-

pected.

• Freeing up resources on the node by moving other

services that are not causing the high load. This

will leave the problematic service untouched and

running but is not helpful if the service is crashed

and producing the high load (e.g., by continuously

looping).

6.5 Low Load

The opposite situation is too much idle time for one

node in the environment. The environment can then

be consolidated to fewer nodes. But before a node

is ready to be deleted we have to provide a way for

reassuring that all needed services are migrated: As

the Service Discovery knows what remote services are

running on a speciﬁc node, the according OSGi bun-

dles have to be started on a different node prior to

stopping the services on the node that is to be deleted.

The other information that is crucial is, from

which node to which other node the migration of ser-

vices is applied. There are different requirements that

have to be considered for the migration of services:

• For the migration scenario there have to be at

least two nodes with low load. If it is just one

node and the services are consolidated on another

node with medium load, this can lead to a higher

than expected load on the target. In this case, the

“High Load” scenario would be triggered, and this

would lead to another migration in the opposite

direction.

• The deﬁnition of threshold for low load should be

set low enough, that it is viable to consolidate the

two nodes into one.

If the Complex Event Processor gets notice of two

nodes with low load, it triggers the consolidation pro-

cess on the Installation Coordinator. This is applied

the same way like in the High Load scenario: The

corresponding bundles have to be started on the tar-

get node, before the bundles can be stopped and dein-

stalled on the source node. After the last remote ser-

vice is de-registered from the Service Discovery the

node is ready for deletion and can be shut down and

removed by the Cloud Coordinator.

7 CONCLUSIONS

We presented an architecture of a PaaS Management

platform for speciAAL, a SaaS scenario based on dis-

tributed OSGi. The main focus of the architecture

lies on simpliﬁed deployment of the application and

on elasticity of the distributed OSGi environment by

utilizing the IaaS layer functionalities and monitoring

the SaaS layer events.

These events and collected statistics can be used

to do load-balancing during deployment and opera-

tion of the application. This paper presented the main

functionality and the components that are involved in

the load-balancing and auto scaling process and de-

ﬁned the differences that have to be considered when

scaling an application in a distributed environment.

In the scaling process, there are still particulari-

ties that have to be further examined: Should there

be a migration of services based on a mobility strat-

egy (e.g., are there sets of services that have to remain

on the same node?) or policy (e.g., some services are

not allowed to leave a node, because it is the primary

conﬁguration node or the ﬁrst/last of the application).

Another challenge will be if it is viable to com-

bine load balancing during deployment (applied to

the IaaS layer) with load balancing of requests by

multiplying the involved bundles on the platform and

redirecting requests between exported services. A

mechanism for failover-handling backed by the Ser-

vice Discovery and common OSGi mechanics is an-

other interesting topic for future research.

REFERENCES

Apache Software Foundation (2015). ZooKeeper: Be-

cause Coordinating Distributed Systems is a Zoo.

https://zookeeper.apache.org/doc/r3.5.1-alpha/.

Amazon Web Services (2015a). Auto Scaling.

https://aws.amazon.com/de/autoscaling/.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

116

Amazon Web Services (2015b). AWS Com-

mand Line Tools. http://docs.aws.amazon.

com/general/latest/gr/GetTheTools.html.

Amazon Web Services (2015c). Elastic Load Bal-

ancing - Cloud-Load Balancer. https://aws. ama-

zon.com/de/elasticloadbalancing/.

Amdatu (2015). Amdatu – Philosophy.

http://www.amdatu.org/philosophy.html.

Apache Software Foundation (2015a). Apache ACE.

https://ace.apache.org/.

Apache Software Foundation (2015b). Apache CXF –

Distributed OSGi. https://cxf.apache.org/distributed-

osgi.html.

Apache Software Foundation (2015c). Apache Stratos -

Open Enterprise PaaS. http://stratos.apache.org/.

Apache Software Foundation (2015d). jclouds - The Java

Multi-Cloud Toolkit. https://jclouds.apache.org/.

Bakker, P. and Ertman, B. (2013). Building Modular Cloud

Apps with OSGi. O’Reilly Media, 1 edition.

Balfanz, D., Klein, M., Schmidt, A., and Santi, M. (2008).

Partizipative Entwicklung einer Middleware f

AAL-L

osungen: Anforderungen und Konzept am

Beispiel SOPRANO. In GMS Medizinische Infor-

matik, Biometrie und Epidemiologie, volume 4(3),

http://www.egms.de/static/de/journals/mibe/2008-4/

mibe000078.shtml.

Cloud Foundry (2015). bosh. https://bosh.cloud

foundry.org/.

Ekonomou, E., Fan, L., Buchanan, W., and Th

uemmler,

C. (2011). An Integrated Cloud-based Healthcare In-

frastructure. In Third IEEE International Conference

on Cloud Computing Technology and Science, pages

532–536. IEEE Computer Society.

Forkana, A., Khalil, I., and Tari, Z. (2014). CoCaMAAL:

A cloud-oriented context-aware middleware in ambi-

ent assisted living. In Fortino, G. and Pathan, M.,

editors, Future Generation Computer Systems, vol-

ume 35, pages 114–127.

Fredrich, C., Kuijs, H., and Reich, C. (2014). An ontol-

ogy for user proﬁle modeling in the ﬁeld of ambient

assisted living. In Koschel, A. and Zimmermann, A.,

editors, SERVICE COMPUTATION 2014, The Sixth

International Conferences on Advanced Service Com-

puting, volume 5, pages 24–31. IARIA.

Grauel, J. and Spellerberg, A. (2007). Akzeptanz neuer

Wohntechniken f

ur ein selbstst

andiges Leben im Al-

ter. In Zeitschrift f

ur Sozialreform, volume Heft 2 Jg.

53, pages 191–215.

Janse, M. D. (2008). AMIGO - Ambient Intelligence for the

networked home environment. Final activity report.

Kim, J. E., Boulos, G., Yackovich, J., Barth, T., Beckel,

C., and Mosse, D. (2012). Seamless Integration of

Heterogeneous Devices and Access Control in Smart

Homes. In Eighth International Conference on Intel-

ligent Environments.

Kuijs, H., Rosencrantz, C., and Reich, C. (2015). A

Context-aware, Intelligent and Flexible Ambient As-

sisted Living Platform Architecture. In Cloud Com-

puting 2015: The Sixth International Conference on

Cloud Computing, GRIDs and Virtualization. IARIA.

Linux Foundation Collaborative Projects (2015). Cloud

Foundry — The Industry Standard For Cloud Appli-

cations. https://www.cloudfoundry.org/.

Luminis (2015). PulseOn - Personalized Learning — Max-

imizing human potential through personalized learn-

ing. http://www.pulseon.nl/en/.

Mell, P. and Grance, T. (2011). The NIST Deﬁnition of

Cloud Computing. Special Publication 800-145, Na-

tional Institute of Standards and Technology.

OSGi Alliance. Smart home market. http://www.osgi.org/

Markets/SmartHome.

OSGi Alliance. The OSGi Architecture. http://www.

osgi.org/Technology/WhatIsOSGi.

OSGI Alliance (2011). OSGi Service Platform Core Speci-

ﬁcation. Technical Report Release 4, Version 4.3, The

OSGi Alliance.

OSGi Alliance (2012). OSGi Service Platform Service

Compendium. Technical Report Release 4, Version

4.3, The OSGi Alliance.

Petzold, M., Kersten, K., and Arnaudov, V.

(2013). OSGi-based E-Health / Assisted Liv-

ing. Whitepaper, ProSyst, http://www.prosyst.

com/ﬁleadmin/ProSyst

Uploads/pdf dateien/

ProSyst M2M Healthcare Whitepaper.pdf.

Sadat, R., Koster, P., Mosmondor, M., Salvi, D., Girolami,

M., Arnaudov, V., and Sala, P. (2013). Part III: The

universAAL Reference Architecture for AAL. In Sa-

dat, R., editor, Universal Open Architecture and Plat-

form for Ambient Assisted Living. SINTEF.

The OpenStack project (2015). Application Programming

Interfaces. http://developer.openstack.org/.

United Nations (2001). World Population Ageing:

1950-2050. Report, UN: Department of Eco-

nomics and Social Affairs - Population Division,

http://www.un.org/esa/population/publications/wolda

geing19502050/.

Verbelen, T., Simoens, P., Turck, F. D., and Dhoedt, B.

(2012). Aiolos: Middleware for improving mobile ap-

plication performance through cyber foraging. Jour-

nal of Systems and Software, 85(11):2629 – 2639.

ZAFH-AAL (2014). ZAFH-AAL - Zentrum f

ur ange-

wandte Forschung an Hochschulen f

ur Ambient As-

sisted Living. http://www.zafh-aal.de.

A Scalable Architecture for Distributed OSGi in the Cloud

117
