Exploring the Potential of Global Types for Adding a Choreography

Perspective to the jABC Framework

Paola Giannini

1∗

, Anna-Lena Lamprecht

and Tiziana Margaria

2†

Computer Science Institute, DiSIT, University of Piemonte Orientale, Alessandria, Italy

Lero - The Irish Software Research Centre, University of Limerick, Limerick, Ireland

Keywords:

Choreography, Global Types, Orchestration, jABC, Workﬂow, Extreme Modeling Framework.

Abstract:

We discuss how global types, aka multiparty session types, provide a complementary perspective on workﬂow

models within the jABC modeling framework. On a reference example from the Semantic Web Services

Challenge we show how the service orchestrations of jABC workﬂow applications can be expressed as service

choreographies based on global types. Roles, identiﬁed with sets of logically related Service-Independent

Building Blocks (SIBs), bridge between the two ways of looking at the behavior of systems. We compare the

degree of declarativity and robustness in the face of changes of the reference example modeled with the jABC

framework with as a global types speciﬁcation.

1 INTRODUCTION

The eXtreme Model-Driven Design (XMDD)

paradigm (Margaria and Steffen, 2009) is a software

development methodology that supports automatic or

semi-automatic software evolution and management

of change by rigorous use of user-level models and

reﬁnement throughout the software development

process and software life cycle. The current reference

implementation of XMDD, the jABC (Steffen et al.,

2007), is a framework for service-oriented design and

development. With jABC, users develop services and

applications by composing reusable building blocks

into hierarchical control-ﬂow graph structures that

are formally sound yet easy to read and build. From

an end-user point of view, all the user interaction

happens within an intuitive graphical environment,

hardly requiring any classical programming skills for

the service orchestration.

Choreography is the other principal mechanism

for service composition. Choreography-based pro-

gramming is a powerful paradigm for designing com-

municating systems where the ﬂow of communication

is deﬁned abstractly and from a global point of view,

instead of separately specifying the behaviour of each

participant. A formalization of this paradigm as a

∗

Partly funded by “Progetto MIUR PRIN CINA Prot.

2010LHT4KM” and Torino University/Compagnia San

Paolo Project SALT

†

Partly supported by Science Foundation Ireland grant

13/RC/2094 and co-funded under ERDF to Lero - the Irish

Software Research Centre (www.lero.ie).

type system for a dialect of Robin Milner’s π-calculus

(Milner et al., 1992) is given in a series of papers by

Kohei Honda and others (Honda et al., 1998; Yoshida

and Vasconcelos, 2007). The formalization is cen-

tered on the notion of session, which speciﬁes a se-

quence of messages exchanged among participants,

called roles. In (Honda et al., 2008), sessions are

described at a global level as the available services,

whose types are multiparty session types, or global

types, and at a local level as the protocols seen from

the participant perspective whose types are session

types. These two levels are related: the global pro-

cesses (thought of as choreographies) and the global

types should project to the local ones, producing the

actual implementations of the speciﬁed system.

Service mediation is a typical application domain

for both orchestration and choreography. The Se-

mantic Web Service Challenge mediation scenario

(SWSC) (Petrie et al., 2009) has been used as a case

study for orchestration by many research groups.

In this paper, we refer to this service mediator, in-

troduced in Section 2, and compare its XMDD mod-

eling style with the jABC framework (Section 3) with

a global/session types speciﬁcation (Section 4). We

discuss the two approaches in Section 5 and in Sec-

tion 6 we draw some conclusions, in the context of

related work.

368

Giannini, P., Lamprecht, A-L. and Margaria, T.

Exploring the Potential of Global Types for Adding a Choreography Perspective to the jABC Framework.

DOI: 10.5220/0005799303680376

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 368-376

ISBN: 978-989-758-168-7

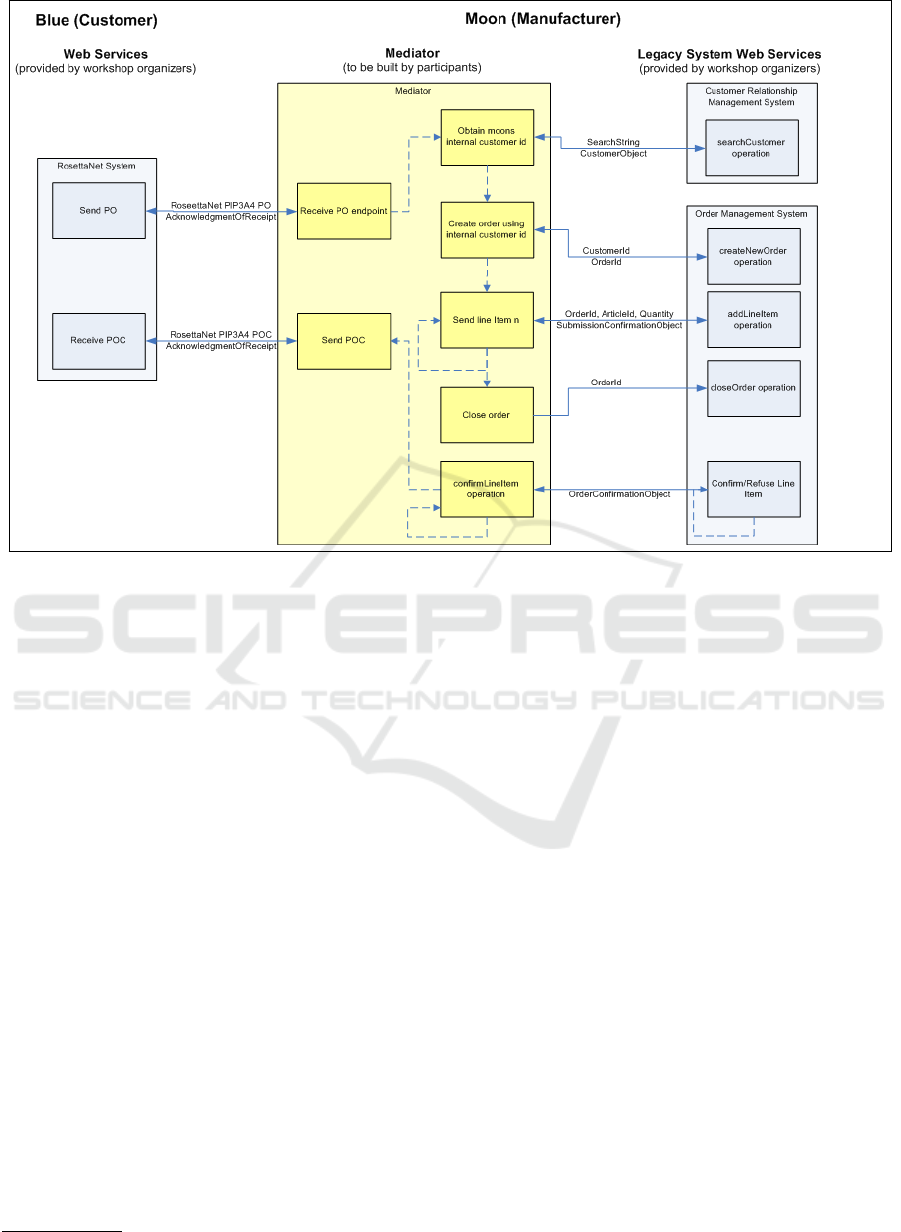

Figure 1: The SWS Mediation Scenario (original picture from the SWS Challenge).

2 THE SWSC MEDIATION

SCENARIO

The basic SWSC mediation scenario aims at mak-

ing a legacy order management system interoperable

with external systems that use a simpliﬁed version of

the RosettaNet PIP3A4 speciﬁcations

. It requires

ﬁnding an adequate service composition that adapts

two conversation partners where both the interaction

protocol and the granularity and format of data mis-

match. It consists of the three components in Fig. 1:

the Company Blue is a customer (service requester)

that purchases goods following the RosettaNet speci-

ﬁcation; the Legacy System of the Moon Company

instead uses a proprietary system that differs from

RosettaNet in data model and message exchange pat-

terns, and the Mediator, the sought-for piece of tech-

nology providing automatic or semi-automatic medi-

ation between the Blue and the Moon companies. The

Mediator must implement the Purchase Order receiv-

ing role part of the interaction described in the Roset-

taNet PIP 3A4. In terms of choreography, we have a

system consisting of at least three roles (Blue, Moon,

and Mediator) that need to interoperate via a global

protocol. This protocol is abstract, in the sense that it

http://www.rosettanet.org/PIP3A4

deﬁnes the ”shape” of the conversation and messages,

but does not prescribe the implementation details (e.g.

the concrete steps the software will perform). It de-

scribes what the business process community calls a

“reference process”, to be later reﬁned towards spe-

ciﬁc executable solutions, but embodying the global

compliance reference. In terms of orchestration, we

look for a concrete implemented solution for the Me-

diator component that satisﬁes the interface require-

ments with Blue and Moon and manages the internal

computations needed to process orders correctly, for

any correct shape of the orders. Given the abstraction

in terms of shapes, we see here how natural it is in

both perspectives to resort to types as a semantically

precise abstraction: order types, service types, inter-

action types, conversation types (e.g. Blue/Mediator

and Mediator/Moon).

In the SWS Challenge, both the Moon legacy sys-

tem and the customer Web services (Blue) were pro-

vided by the organizers and accessible on the SWSC

testbed through public Web services described us-

ing WSDL. The services themselves could not be al-

tered by the participants, although their description

could be semantically enriched. From a global types

point of view, these are two independent roles whose

(web)services are, however, physically co-located at

one site. In terms of structures amenable to roles, we

Exploring the Potential of Global Types for Adding a Choreography Perspective to the jABC Framework

369

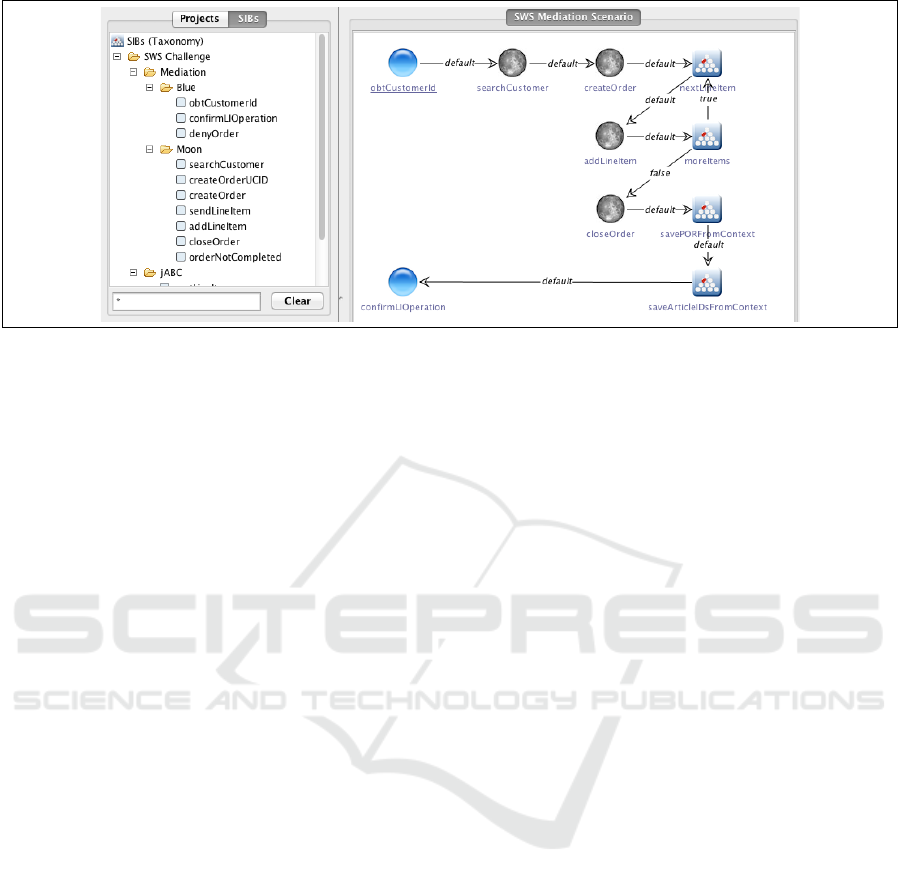

Figure 2: The original mediator scenario in the jABC.

can further observe that the mediator sketch of Fig. 1

requires two services: one from the RosettaNet re-

quest to the CloseOrder (called Part 1 in the SWS so-

lutions) and one for the order conﬁrmation (Part 2).

They were indeed implemented as two distinct ser-

vices in our original solutions (Margaria et al., 2008;

Margaria et al., 2012). Additionally, to manage its

order processing, Moon uses two back-end systems:a

Customer Relationship Management system (CRM)

and an Order Management System (OMS), that are

additional candidates for role reﬁnement.

The Challenge participants were requested to use

Semantic Web technologies of their choice to address:

the Data mediation to map the Blue RosettaNet PIP

3A4 message to the messages of the Moon back-end

systems; the Process mediation to map message ex-

changes deﬁned by the RosettaNet PIP 3A4 process

to those deﬁned in the WSDL of the Moon back-end

systems; the Conversations between the systems in-

cluding data and process mediation on semantic de-

scriptions of messages, thus requiring the transforma-

tion from messages used by existing systems to the

ontological level.

The following generic structure was applied in-

dependently by all solutions: (1) Extract the relevant

information from the PurchaseOrderRequest and call

Moon’s Customer Relation Management (CRM) to

ﬁnd the customer data inside the database (if she al-

ready has an account). (2) Use the CustomerID to cre-

ate an order using Moon’s Order Management System

(OMS). (3) Add LineItems as needed and then close

the order. (4) Finally the middle layer receives an Or-

derConﬁrmationObject and sends a PurchaseOrder-

Conﬁrmation back to Blue.

This common reference structure, identiﬁed inde-

pendently of the current work, plays an important role

in the global types solution of Sect. 4.

3 ORCHESTRATING THE

MEDIATOR IN jABC

In the three years of the SWS Challenge we pro-

vided a large set of jABC-based solutions to the me-

diation scenario problem, with increasing levels of

automation and dynamism, discussed in (Margaria

et al., 2012). While the ﬁrst mediators were mod-

eled manually using the jABC’s facilities for model-

driven design (Margaria et al., 2008), later these mod-

els were automatically generated from semantically

enhanced abstract speciﬁcations with a synthesis al-

gorithm (Margaria et al., 2012).

In XMDD, applications are service compositions

(called Service Logic Graphs, or SLGs) that or-

chestrate along the ﬂow of control basic services

in the form of SIBs - Service-Independent Building

Blocks). Applications are constructed within an in-

tuitive graphical SDK environment, hardly requiring

any classical programming skills.

XMDD is largely coding-free: Fig. 2 shows the

original solution to the mediator scenario (Part1) in

the jABC and the corresponding SIB palette. This

SLG orchestrates different roles and respects the

generic solution structure previously described. The

SIBs are parameterizable service types: they are in-

stantiated by dragging them onto the drawing area,

where the SLG assembly takes place. This model is

compiled to running code via Genesys, jABC’s code

generation plugin.

The domain-speciﬁc model includes the deﬁnition

of taxonomies for the types and the services (SIBs).

These taxonomies often group services and types ac-

cording to particular roles in the application domain:

as shown in Fig. 2, Blue’s and Moon’s SIBs are

grouped together and display a suggestive blue/moon

icon in the SLG. Therefore, these taxonomies provide

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

370

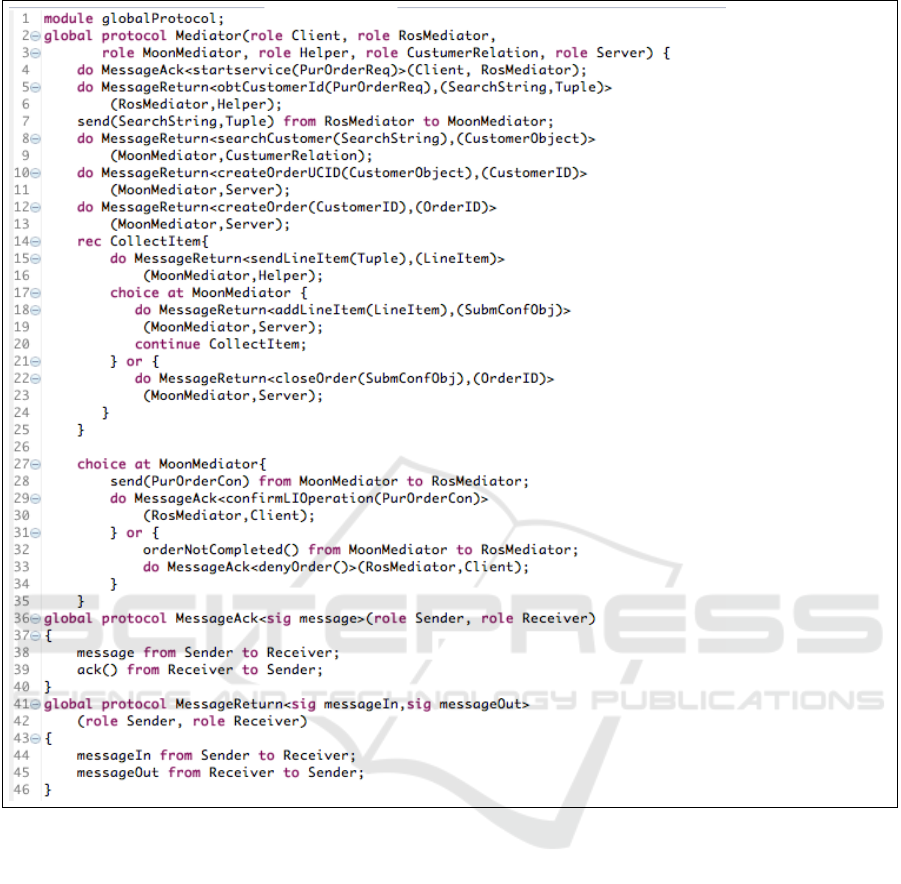

Figure 3: The mediator protocol using global types.

through the identiﬁed and recognizable roles a useful

bridge towards the connection with global types.

In XMDD, these domain models are additionally

used by application designers to incrementally ex-

press their business knowledge about the models and

domain-speciﬁc knowledge on the taxonomies. Such

information/constraints in CTL are used by the model

checker to verify correctness/compliance, and in LTL

are used by the synthesis of correct/compliant by con-

struction application SLGs.

4 CHOREOGRAPHING THE

MEDIATOR WITH GLOBAL

TYPES

Using global types, we provide a choreography that

describes the generic structure introduced at the end

of Section 2. To write the mediator protocol of Fig. 3,

we adopt (a subset of) the syntax of Scribble, intro-

duced in (Honda et al., 2011).

We introduce the syntax of Scribble by comment-

ing the protocol in Fig. 3. A protocol is deﬁned by

a name, a non-empty set of role parameters, a pos-

sibly empty sequence of message signature parame-

ters, and a global type specifying how messages are

exchanged between the roles involved.

Exploring the Potential of Global Types for Adding a Choreography Perspective to the jABC Framework

371

The basic action of a global type is communica-

tion, i.e., sending a message from one role to an-

other role, msg(par

, . . . , par

) from role

to role

A message has a name and may have parameters.

Message sending is not blocking, and messages sent

from one role to another are assumed to arrive in the

order they were sent.

The deﬁnition of a protocol is preceded by the

declaration of the types of the data that are sent with

messages, which in our case are the types of the jABC

domain platform deﬁned for the mediation scenario.

(In Fig. 3 we omitted the deﬁnition of these types.)

Here, messages correspond mostly to single SIBs, but

in more complex examples they could correspond to

entire subworkﬂows that reﬁne the implementation

towards an operational executability. Lines 2 ÷ 35

deﬁne the Mediator protocol. The participants in-

volved are declared as roles in lines 2 and 3 (the

parameters of the protocol). The roles Client and

Server represent the services provided by the chal-

lenge organizers, whereas the roles RosMediator

and MoonMediator correspond to Blue and Moon of

the jABC service taxonomy. Role Customer provides

the communication with the data base of users, and

Helper is an interface to some general data manipu-

lation services.

In the deﬁnition of the Mediator protocol

we use two communication patterns, speciﬁed by

the protocols: MessageAck (lines 36 ÷ 40) and

MessageReturn (lines 41 ÷ 46). Both protocols are

generic in the messages speciﬁed by the identiﬁers in

the triangular parentheses following the keyword sig.

MessageAck speciﬁes a message send followed by

waiting for an acknowledgment from the receiver, and

MessageReturn speciﬁes a message send followed

by waiting for a message back from the sender. This

second protocol can be used to return values to the

sender, as we will see when it will be instantiated in

the body of the Mediator.

The Mediator protocol starts when the Client

sends a request with the PurOrderReq data and

waits for acknowledgement that RosMediator has

received the message. This is done (line 4) by in-

stantiating the generic protocol MessageAck with

the message startService(PurOrderReq) and as-

sociating the formal role parameters with the two

roles involved. Then, the role RosMediator sends

a message to the Helper role in order to obtain

from the SearchString in the PurOrderReq the

Tuple representing the lines of the order that are

sent one by one, with the recursion construct, from

the MoonMediator to the Server (lines 14 ÷ 25).

The body of the rec construct is executed and if the

continue statement is found (line 20), the execu-

tion of the body is started again. Inside the body

of rec, after obtaining a single line of order from

the Helper role, there is a choice construct (lines

17 ÷ 24) specifying that MoonMediator is the role

making the choice, and that the interaction continues

following either one of the branches, which are sep-

arated by or. The ﬁrst branch of the choice (lines

18 ÷ 20) says that MoonMediator is sending another

line of the order to the Server and then restarts the

body of the rec. The other branch (line 22 and 23)

speciﬁes that MoonMediator closes the order (there

are no more lines to be sent). The rest of the protocol

description should be obvious.

Global types are projected onto the individual

roles producing an implementation of the system. In

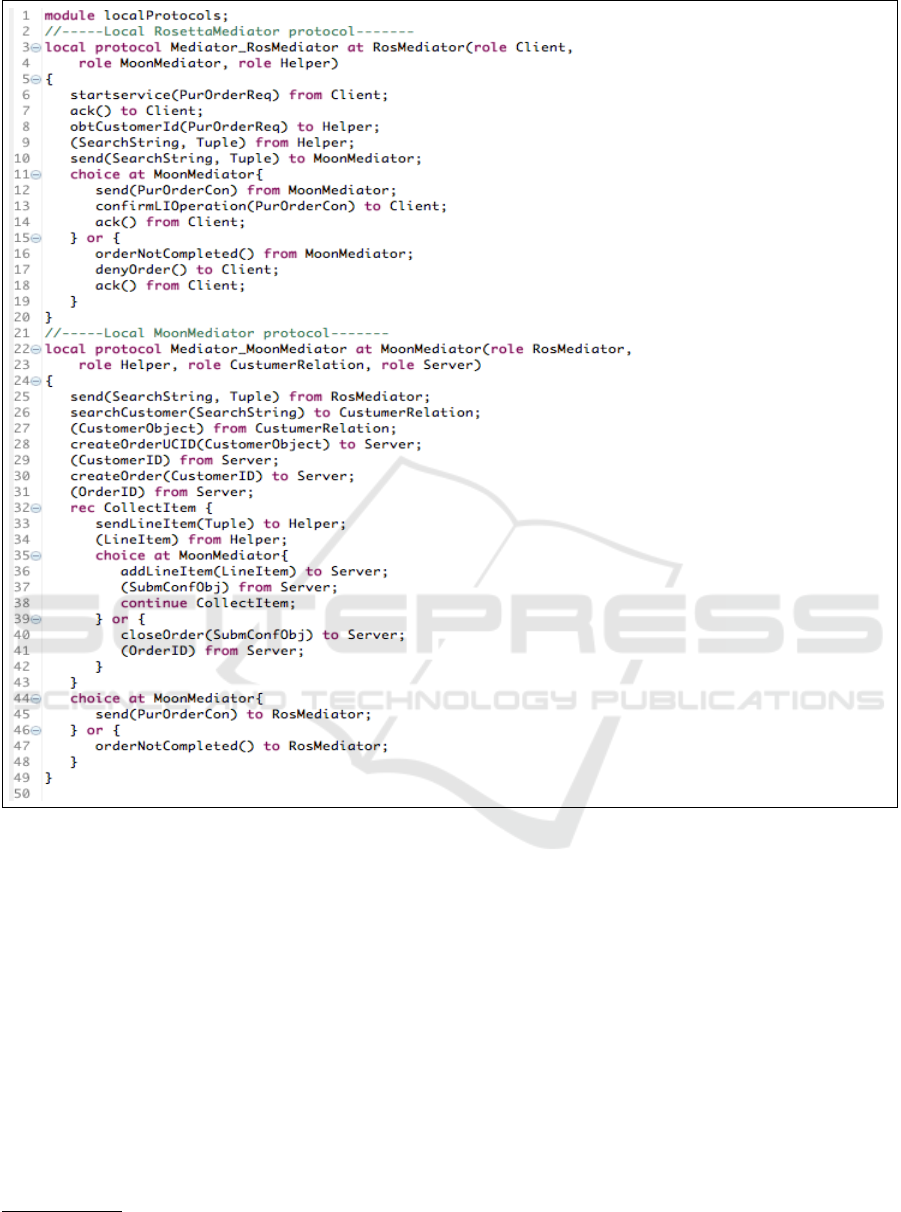

Fig. 4, we show the projection of the global protocol

on MoonMediator and RosMediator, the most in-

teresting roles. To show the exchanged messages, in

the global protocol of Fig. 3, we instantiated all the

MessageAck and MessageReturn subprotocols be-

fore doing the projection.

Local protocols see communications from the

point of view of a single role. The basic actions are

sending a message: msg(par

, . . . , par

) to role, and

receiving a message: msg(par

, . . . , par

) from role.

The projection of the global protocol on a

given role is obtained by maintaining only the

communications that have this role as either the

sender or the receiver of the message. Then

msg(par

, . . . , par

) from role

to role

pro-

duces msg(par

, . . . , par

) to role

in role

and

msg(par

, . . . , par

) from role

in role

. The pro-

jection of line 7 of the global protocol of Fig. 3 on

RosMediator and MoonMediator produces line 10

and line 25 of local protocols of Fig. 4.

For a choice construct to be projectable, the

ﬁrst action of each branch must be sending a mes-

sage from the role making the choice to some other

role, moreover, the messages at the beginning of

the branches must be distinct. In our global proto-

col there are two choices: lines 17 ÷ 24 and lines

27 ÷ 34. Both choices are made by MoonMediator.

These choices are projected on the local protocol

for MoonMediator producing the internal choices of

lines 35 ÷ 42 and lines 44 ÷ 48. An internal choice

means that MoonMediator chooses which message

to send to whom. The choices are also projected

on the roles that are receiving the messages from

MoonMediator, which are the role Server for the

choice in lines 17 ÷ 24, and the role RosMediator

for the one in lines 35 ÷ 42. In the receiving roles

these are external choices whose branches start with

a receive action from MoonMediator. The receiving

role must provide a branch for each possible message

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

372

received from MoonMediator. The projection of the

second choice of the global protocol (lines 44 ÷ 48 of

Fig. 4) on RosMediator produces the internal choice

of lines 11 ÷ 19 of the local protocols of Fig. 3). Note

that, the choice of lines 17÷ 34 of the global protocol

does not produce actions in RosMediator.

5 DISCUSSION

The native SLGs of the jABC and the complementary

approach based on global types embody two different

views of the same speciﬁcation of the system’s be-

haviour as implemented on the jABC platform for the

SWSC service mediator.

The SWSC organizers actually intended to test

the robustness of the semantic methods in view of

changes and system evolution: a set of successive

modiﬁcations built upon this initial mediation prob-

lem foresaw changes in some aspects of the prob-

lem. The evaluation criteria concerned the degree

of declarativity of the speciﬁcation (ideally, using

semantics the middle layer should be able to au-

tonomously react to changed process speciﬁcation),

and the robustness of the solutions: how little needed

to be changed manually to satisfy the amended sce-

narios. Accordingly, the three central dimensions we

discuss here are the ﬁtness for change management in

light of variability and evolution, the role played to

this aim by roles and projections, and how they foot

on the domain modelling underlying the description

styles. We brieﬂy discuss them in a bottom-up order.

Domain Modelling. Both speciﬁcations require

an initial domain model: specifying the services

needed for the system and organizing data and ser-

vices in domain-speciﬁc taxonomies. The data taxon-

omy is common to both methods, whereas the service

taxonomy differs for the two views. Both descrip-

tions of the behaviour of systems rely on the level of

granularity of services offered by the SIBs, and use

aggregations of SIBs to compose the required compu-

tational abstractions. In jABC, the SIBs are organized

in multifaceted taxonomies where facets reﬂect inde-

pendent description criteria like functional proximity,

provenance (e.g., the providers, here Blue, Moon, or

the Mediator - with jABC icon), or SLA-relevant cri-

teria like efﬁciency or cost. In the case of global types,

SIBs are primarily aggregated according to the roles,

i.e. according to the participants in the interaction that

should enjoy some kind of location proximity. In this

sense, we can see a potential correspondence between

the provenance facet of the SIB taxonomies and the

roles within the global types.

Roles and Projections. The SLGs are workﬂows

organized in hierarchical graph structures, and SLGs

express with graphical models the orchestration of

services (SIBs). SLGs primarily focus on the control

ﬂow, which is directly depicted in the models and di-

rectly executable by means of the Tracer, making the

data ﬂow less immediately evident in these models.

Both manual SLG design based on the SIB universe,

and automatic SLG synthesis from SLTL constraints

and taxonomies address problem-speciﬁc knowledge

and speciﬁcations. In a sense, the underlying philos-

ophy is“solving my speciﬁc problem” using existing

suitable SIBs: a decidedly customer-oriented view.

In contrast, global types specify a choreography

where the focus is the collaboration shape. The or-

der of the service execution is only implicitly given

by this description, but not ﬁxed. Additionally, it ex-

plicitly shows the ﬂow of data. Global type speciﬁ-

cations require a suitable identiﬁcation of sets of log-

ically related services that constitute the roles of the

interaction. The messages exchanged can be associ-

ated with simple SIBs or with sub-workﬂows com-

posed of SIBs belonging to the same role. From the

global type description, the individual behaviour of

roles can be generates by projection, as also more

generally (correct) traces of executions. Especially

this projection capability onto the roles is here of in-

terest: such projections yield localized speciﬁcations

of suitable service provider behaviours. This is a dif-

ferent and provider-centric point of view: given the

projections, service providers can check and decide

whether they are able to be suitable partners for a spe-

ciﬁc role in a complex, global choreography, even not

knowing what the other partners do or contribute.

This localization capability is interesting for a fu-

ture enhancement of XMDD’s high-level description

capabilities, especially with regard to adding change

management in long-lived, evolving, collaborative

workﬂows.

Change Management: Variability, Evolution.

In both cases, expressing variability and changes is

easier than for the typical native web services: since

in both our description styles there are no composi-

tions of operations following a predeﬁned protocol of

execution, one does not need to deﬁne here the kind

of low-level adaptation that is needed at the level of

the web services.

Variability is expressed in SLGs by means of vari-

ation point-SIBs that deﬁne the set of possible vari-

ants of the workﬂow. Case by case they are linked

to the sub-workﬂow implementing the chosen variant,

in a sort of lightweight discovery of the variant, often

also guided by constraints. The taxonomies and the

constraint languages are also used to describe such

variation points and the choices. In global types, an

Exploring the Potential of Global Types for Adding a Choreography Perspective to the jABC Framework

373

Figure 4: The local protocols for RosMediator and MoonMediator.

explicit choice operator speciﬁes on one side that the

role at which the choice is made will contain the selec-

tion of one possible branch, identiﬁed by a message

name, and on the other side that whatever expected

message arrives, there are roles offering adequate be-

haviours for all the possible alternatives.

Concerning evolution, the scenario changes of the

SWS challenge were relatively simple, not adding

much to the current insights. A more elaborate appli-

cation scenario including variability and evolution in

complex scientiﬁc workﬂows

is currently being in-

vestigated. Preliminary results so far seem to con-

ﬁrm that these three dimensions are the key to use

the viewpoints’ differences in a proﬁtable way. They

The case study concerns sea level rise consequences in

climate change scenarios (Al-Areqi et al., 2014).

seem also to be a good basis for being able to use the

one or the other viewpoint at need, with a good map-

ping of the correspondence in both directions.

6 CONCLUSIONS AND RELATED

WORK

We showed the use of global types to provide a

complementary, choreography-oriented perspective

on workﬂow models within the XMDD paradigm

and illustrated it along a benchmark service media-

tion scenario from the SWSC. The ability to adopt

an orchestration-like or a choreography-like point of

view at need is important in light of increasingly com-

plex service-oriented workﬂows, that require a tight

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

374

and formally well-deﬁned correspondence between

the customer-oriented view underlying orchestration

and the provider-friendly view of a choreography. We

also showed how the underlying domain abstraction

of the jABC platform provides a bridge between the

different ways of looking at a system behaviour.

The case study illustrates the feasibility in princi-

ple of this well-deﬁned correspondence, that we are

going to investigate on a larger case study from the

climate research domain. While plenty of related

work is present on several aspects of formal meth-

ods for service-orientation, we see our contribution

as demonstrating the practical feasibility of a ﬁelded

case study within a general-purpose software engi-

neering development framework.

We consider several extensions to our current set-

ting. The ultimate goal of declarative models and

speciﬁcations like those we described is to support

ease of a system’s change management in terms of

variation, dynamics, and evolution. Interesting ap-

proaches with which we are confronting ourselves

address both software product lines and software

ecosystems like (Seidl et al., 2014), or concern differ-

ent kinds of architectural and service provision evo-

lution as in (Inzinger et al., 2013), which align well

with our approach (Margaria et al., 2010).

The role of distribution and consistent behaviour

of distributed actors in a remote collaboration context

is central to cloud computing, Internet of Things, Sci-

entiﬁc Computations and Big Data. Context Model

Ontologies that support multiple facets and aid in

the rule-based expression of consistency and com-

patibility in dynamic settings have been studied in

Lero (Bandara et al., 2015). Even if at the moment

we support less than full OWL, such richer ontolo-

gies can be used equally well in both approaches and

thus are of signiﬁcant interest to us.

On the description language side, Chor (Montesi,

2013), the choreographic language based on global

types designed for the Sensoria platform

, includes

more advanced constructs, such as delegation and the

possibility of deﬁning partial choreographies that are

interesting in a volatile system. However, in Chor

there is no separation between the language in which

the roles are written (Jolie) and the choreography

speciﬁcation, which could make a practical separation

of layers difﬁcult.

Our ongoing efforts concern the study of speciﬁc

challenges posed by real life case studies, and the in-

tegration of richer description and projection mecha-

nism into the XMDD platform.

http://www.sensoria-ist.eu

REFERENCES

Al-Areqi, S., Kriewald, S., Lamprecht, A.-L., Reusser, D.,

Wrobel, M., and Margaria, T. (2014). Towards a ﬂexi-

ble assessment of climate impacts: The example of ag-

ile workﬂows for the ci:grasp platform. In ISoLA2014,

LNCS 8803, pp. 420–435. Springer.

Bakera, M., Margaria, T., Renner, C., and Steffen, B.

(2009). Tool-supported enhancement of diagnosis in

model-driven veriﬁcation. Innovations in Systems and

Software Engineering, 5:211–228.

Bandara, K. Y., Wang, M., Pahl, C. (2015). An extended

ontology-based context model and manipulation cal-

culus for dynamic web service processes. Service Ori-

ented Computing and Applications, 9(2):87–106.

Honda, K., Mukhamedov, A., Brown, G., Chen, T., and

Yoshida, N. (2011). Scribbling interactions with a for-

mal foundation. In ICDCIT 2011, LNCS 6536, pp.

55–75. Springer.

Honda, K., Vasconcelos, V., and Kubo, M. (1998). Lan-

guage Primitives and Type Disciplines for Structured

Communication-based Programming. In ESOP’98,

volume 1381 of LNCS, pages 22–138. Springer.

Honda, K., Yoshida, N., and Carbone, M. (2008). Mul-

tiparty Asynchronous Session Types. In POPL’08,

pages 273–284. ACM.

Inzinger, C., Hummer, W., Lytra, I., et al. (2013). Decisions,

models, and monitoring - A lifecycle model for the

evolution of service-based systems. In EDOC 2013,

pp. 185–194. IEEE Computer Society.

Margaria, T., Kubczak, C., and Steffen, B. (2012). The

xmdd approach to the semantic web services chal-

lenge. In Semantic Web Services, pp. 233–248.

Springer.

Margaria, T. and Steffen, B. (2007). LTL-Guided Planning:

Revisiting Automatic Tool Composition in ETI. In

SEW 2007, pages 214––226. IEEE Computer Society.

Margaria, T. and Steffen, B. (2009). Agile IT: Thinking in

User-Centric Models. In ISoLA 2008, Vol.17 of CCIS,

pp. 490–502. Springer.

Margaria, T., Steffen, B., and Kubczak, C. (2010). Evo-

lution support in heterogeneous service-oriented land-

scapes. J. Braz. Comp. Soc., 16(1):35–47.

Margaria, T., Bakera, M., Kubczak, C., Naujokat, S., Stef-

fen, B. (2008). Automatic Generation of the SWS-

Challenge Mediator with jABC/ABC Semantic Web

Services Challenge. Results from the First Year, pp.

119-138, Springer, 2008.

Milner, R., Parrow, J., and Walker, D. (1992). A calculus of

mobile processes, I and II. Information and Computa-

tion, 100(1):1–40, 41–77.

Montesi, F. (2013). Choreographic Programming. Ph.D.

thesis, IT University of Copenhagen.

Petrie, C., Margaria, T., Lausen, H., and Zaremba, M., ed-

itors (2009). Semantic Web Services Challenge. Re-

sults from the First Year, vol. 8 of Semantic Web and

Beyond. Springer.

Seidl, C., Schaefer, I., and Aßmann, U. (2014). Integrated

management of variability in space and time in soft-

ware families. In SPLC ’14, pages 22–31. ACM.

Exploring the Potential of Global Types for Adding a Choreography Perspective to the jABC Framework

375

Steffen, B., Margaria, T., Nagel, R., J

orges, S., and

Kubczak, C. (2007). Model-Driven Development with

the jABC. In Hardware and Software, Veriﬁcation and

Testing, LNCS 4383, pp. 92–108. Springer.

Yoshida, N. and Vasconcelos, V. (2007). Language

Primitives and Type Disciplines for Structured

Communication-based Programming Revisited. In Se-

cReT’06, ENTCS 171, pp. 73–93. Elsevier.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

376
