Behavior Analysis based DNS Tunneling Detection and Classification
with Big Data Technologies
Bin Yu, Les Smith, Mark Threefoot and Femi Olumofin
CTO Office, Infoblox Inc., 3111 Coronado Dr, Santa Clara, California 95054, U.S.A.
Keywords: Behaviour Analysis, Time Series, Big Data Analytics, DNS Security, Data Exfiltration, Anomaly Detection,
Classification.
Abstract: Domain Name System (DNS) is ubiquitous in any network. DNS tunnelling is a technique to transfer data,
convey messages or conduct TCP activities over DNS protocol that is typically not blocked or watched by
security enforcement such as firewalls. As a technique, it can be utilized in many malicious ways which can
compromise the security of a network by the activities of data exfiltration, cyber-espionage, and command
and control. On the other side, it can also be used by legitimate users. The traditional methods may not be
able to distinguish between legitimate and malicious uses even if they can detect the DNS tunnelling
activities. We propose a behaviour analysis based method that can not only detect the DNS tunnelling, but
also classify the activities in order to catch and block the malicious tunnelling traffic. The proposed method
can achieve the scale of real-time detection on fast and large DNS data with the use of big data technologies
in offline training and online detection systems.
1 INTRODUCTION
Domain Name System (DNS) that mainly services a
domain name resolution to IP addresses on UDP is a
service ubiquitous in every network. Because DNS
is not intended for data transfer, people can overlook
it as a threat for malicious communications or for
data exfiltration. Most networks, public or private,
do not firewall DNS traffic which creates security
vulnerability. Tunnelling data over DNS or TCP
over DNS is a technique that can be used as a way to
circumvent access and security policies in firewalled
networks. A typical example is to illegally browse
the web through public hotspot while free service is
not provided. There are many free software tools
available for people of interest to setup a DNS
tunnelling system quickly. One of the most popular
tools is Iodine (Iodine). The fact that information
bypasses a network first line security mechanism
makes DNS tunnelling very attractive also in
contexts other than free web browsing. Such
examples include command and control and data
exfiltration in cyber-espionage attacks in which it is
fundamental for an attacker to have an available but
inconspicuous communication channel.
DNS tunnelling works by encapsulating data into
DNS packets. Typically, the tunnel client
encapsulates the data to be sent in a query for a
specific domain name. The DNS resolver treats the
tunnel traffic as a regular request by starting the
lookup process for the requested domain name,
possibly recursively consulting other DNS resolvers,
as shown in Figure 1. At the end of this operation,
the request is processed by the tunnel server. The
server retrieves the encapsulated data and responds
to DNS queries by enclosing tunnel data in the
answer section of the DNS response message.

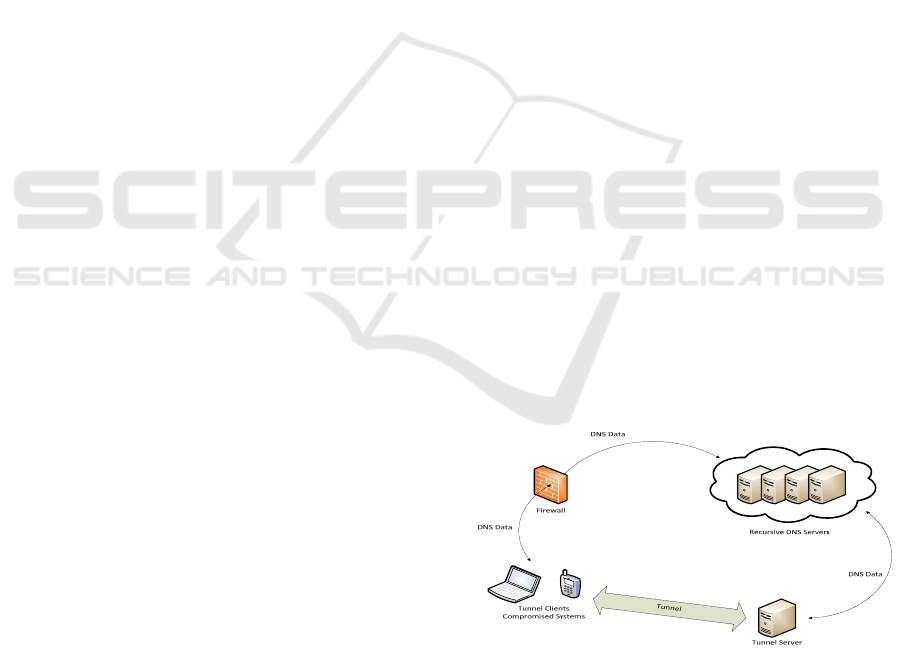

Figure 1: DNS tunnelling setup.
Although most DNS tunnelling techniques use
TXT type queries in DNS that can maximize the
payload in response packets, there are
implementations that make use of DNS query types
other than TXT such as A, AAAA, CNAME, NS,
284
Yu, B., Smith, L., Threefoot, M. and Olumofin, F.
Behavior Analysis based DNS Tunneling Detection and Classification with Big Data Technologies.
DOI: 10.5220/0005795002840290
In Proceedings of the International Conference on Internet of Things and Big Data (IoTBD 2016), pages 284-290
ISBN: 978-989-758-183-0
Copyright
c
2016 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
MX and so on. Our research shows that unlike
legitimate users that often use TXT, malicious users
tend to use other query types that are more difficult
in detection.
DNS tunnelling poses a significant threat and
there are methods to detect it. DNS tunnels can be
detected by analysing a single DNS payload based
on its fundament that the tunnel is used to convey
information. However, as a simple technique, DNS
tunnels are often used by legitimate users to transfer
short messages frequently. Single payload based
methods have less latency in detection but cannot
make an accurate classification between legitimate
and malicious activities. This paper describes a
novel approach based on behaviour analysis of DNS
traffic. In order to get this approach practical for a
real world deployment, it needs to overcome the
scalability problems brought up by behaviour
analysis or time series modelling. We will explain
the big data technologies used in the proposed
method in this paper.
2 DNS BASICS
DNS is a critical protocol and service used on the
internet. The most common use of DNS is to map
domain names to IP addresses. Users can enter a
domain name in the web browser. DNS is used to
perform a forward lookup to find one or more IP
addresses for that domain name. The user’s network
stack can then send http traffic to the destination IP
address. DNS is constantly being enhanced to
provide new capabilities.
DNS has over 30 record types with many of the
common ones being critical to core internet services.
The A record type maps a domain name to an IPv4
address. The AAAA record is used to map a domain
to an IPv6 address. The CNAME record type is used
to map a domain name to the canonical name. The
MX record type is used to define mail servers for a
domain. The NS record type is used to define
authoritative name servers for a domain. The PTR or
pointer record is commonly used to map an IP
address to its domain name. This is commonly
referred to as reverse lookup. The TXT record type
is used to return text data. This record type has been
leveraged for specific purposes such as Sender
Policy Framework (SPF) for anti-spam (Wong,
2006). The most commonly used types A and
AAAA have a population of 85% (Yu, 2014). One
of the special DNS types is TXT that is commonly
used in tunnelling applications. Its response contains
a larger payload of text messages.
DNS uses both UDP server port 53 and TCP
server port 53 for communications. Typically, UDP
is used, but TCP will be used for zone transfers or
with payloads over 512 bytes. There is also the
Extension Mechanisms for DNS (EDNS) (Vixie,
1999). If EDNS is supported by both hosts in a DNS
communication, then UDP payloads greater than 512
bytes can be used. EDNS is a feature that can be
leveraged to improve bandwidth for DNS tunnelling.
DNS is a hierarchical system in which each level
can be provided by another server with different
ownership. For the internet, there are 13 root DNS
servers labelled A through M. These are represented
by many more than 13 physical servers. With this
hierarchical system, a given domain owner can
define the authoritative servers for their domain.
This means that they are in control of the ultimate
destination host for DNS queries for their domain. In
a typical enterprise, endpoints do not make DNS
requests directly to the internet. They have internal
DNS servers that provide DNS services to an
endpoint. However, given that DNS will forward
their requests until the authoritative name server is
contacted, an attacker with access on an internal
endpoint can leverage the enterprise’s DNS
infrastructure for DNS tunnelling to a domain that
they control.
DNS performs caching. When DNS answers are
provided a time to live (TTL) is included. The
receiving intermediate server can use that value for
the amount of time to cache the results. Then if an
identical request comes in, the cached result can be
provided instead of performing another lookup.
A domain name consists of multiple sections
each is referred to be a label with the higher ones on
the right side and lower ones on the left side. The
whole string is called Fully Qualified Domain Name
(FQDN). Removing labels one by one from left to
right will yield a Nth level domain name, where N is
number of labels for most cases. When N=1, it’s
called Top Level Domain name (TLD) and N=2,
Second Level Domain name (SLD) and so on.
3 RELATED WORK
Some statistical approaches for detecting TCP-over-
DNS tunnels have been proposed. Web Tap
(Borders, 2004) detects anomalies by looking at
HTTP request regularity, inter-request delay,
bandwidth usage, and transaction size. In legitimate
DNS queries, those attributes have a wide
distribution. Crotti et al. approaches the problem
from the IP layer by finding inconsistencies in inter-
Behavior Analysis based DNS Tunneling Detection and Classification with Big Data Technologies
285
arrival time, order, and size of the packets (Crotti,
2007, Crotti, 2008, Dusi, 2008). An artificial neural
network is used to detect tunnels with features: the
domain name, how many packets are sent to a
particular domain, the average length of packets to
that domain, the average number of distinct
characters in the sub-domain labels, and the distance
between sub-domain labels (Hind, 2009). Born and
Gustafson take the approach of detecting tunnels by
analysing unigram, bigram and trigram character
frequencies of domains in DNS queries and
responses based on some existing tunnelling
applications (Bom, 2010). It’s possible to be
bypassed by newly developed tunnelling tools.
Ellens et al. detect tunnels with use of net flow size
analysis (Ellens, 2013). While this method can
detect tunnels, it doesn’t distinguish legitimate and
malicious uses of tunnel.
Most traditional methods are based on single
payload detection. DNS traffic has very small
footprint which makes single payload based
detection difficult and even harder to distinguish
between legitimate and malicious tunnels.
4 DATA SOURCE
It’s important to get real world data for building a
high quality detection system. In this project, we
utilize DNS data collected from Internet Systems
Consortium/Security Information Exchange channel
202 (ISC). It is now spun off as part of Farsight
Security (Farsight). This data is collected through its
passive DNS technology from more than 100
contributors distributed worldwide. On average, it
receives more than 1.8 billion DNS queries per day
(It has increased to 17 billion per day when this
paper is finished). We have collected more than nine
month worth of data for this project. One caveat of
using Farsight data is that it doesn’t provide end user
IP addresses in addition to the DNS server IP due to
the sake of privacy protection. Therefore, the
detected tunnels are identified by DNS server IP
rather than the client IP that is behind the DNS
server. Figure 2 shows the percentage of each DNS
query type among the data collection. Among
various DNS query types, type A and AAAA
dominate by 85% while TXT is about 0.8% (Yu,
2014). For tunnelling detection, we will analyse
query names for outbound payload and resource
records for inbound payload. Except for TXT and
ANY query types that contain text resource records,
the inbound payloads for all the other query types
are extracted from FQDNs.
Figure 2: DNS query distribution by query type.
5 FEATURE EXTRACTION AND
SELECTION
The legitimate DNS traffic typically has very small
payload. That’s the reason many approaches detect
tunnels based on payload size (Farnham, 2013,
Ellens, 2013). However, when space and bandwidth
get cheaper, more and more legitimate users are
using longer domain names. Since the main
objective of the tunnelling technique is to convey
information via the tunnel in a way as efficient as
possible, the entropy metrics become good features.
On the other side, human readability of domain names
is a good indicator in tunnel detection (Bom, 2010).
5.1 Effective Payload
There are many types of DNS queries. A tunnel will
use query name to carry outbound payloads. The
inbound payloads are carried in many different ways
depending on the DNS resource record type. For
example, in TXT type, the payload is encoded in the
text. For many other types, such as A, AAAA, or
CNAME, the payload is carried in one or more
FQDNs. Unlike legitimate DNS queries that have
consistency in query and response, a malicious
tunnel tends to change the payload from message to
message. An effective payload is a string that is
extracted from its original with common prefix,
suffix and aligned middle segments removed so that
the real signal can stand out.
5.2 Common Features for Inbound and
Outbound
Several payload features common for both inbound

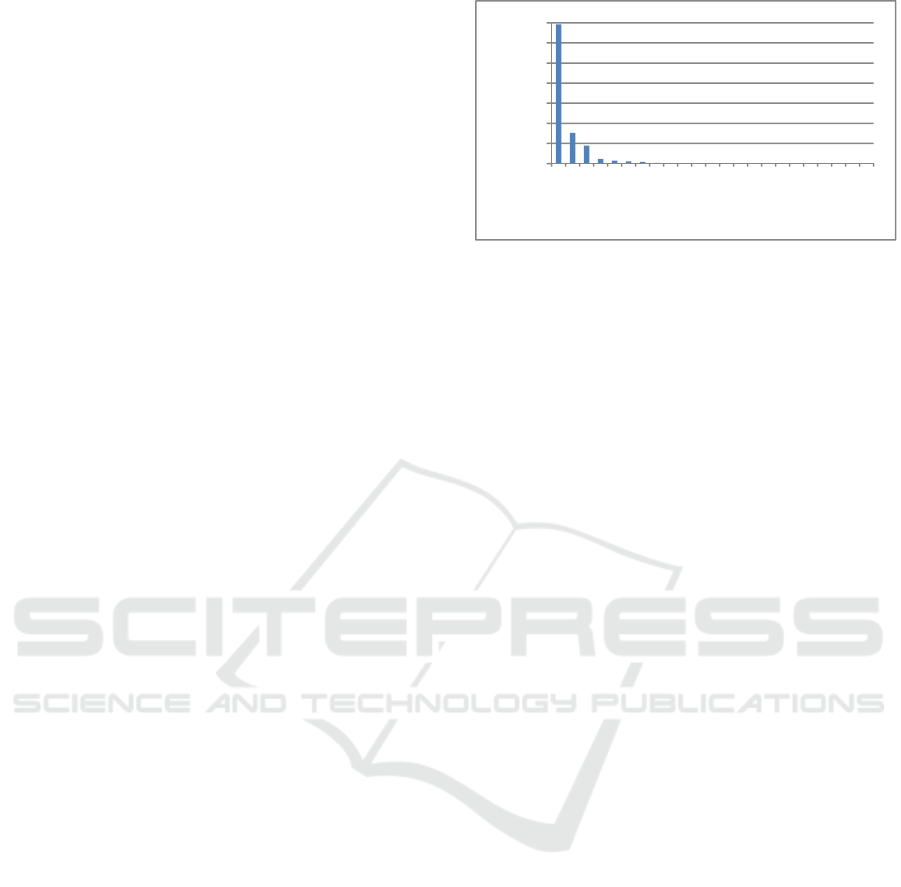

and outbound traffics are extracted. Figure 3
provides the feature analysis results for inbound
provides the feature analysis results for outbound
0,00%
10,00%
20,00%
30,00%
40,00%
50,00%
60,00%
70,00%
A
AAAA
PTR
SOA
SRV
MX
TXT
DS
ANY
NS
SPF
CNAME
A6
DLV
DNSKEY
NAPTR
NSEC3PARAM
<UNKNOWN>
RRSIG
X25
AFSDB
KEY
HINFO
IoTBD 2016 - International Conference on Internet of Things and Big Data
286
traffic as example where red and green curves are
for positive and negative samples, respectively.
Their details are described in following sections.
5.2.1 Entropy
According to information theory (Shannon, 1948),
entropy is a measurement to quantify the amount of
information on a payload. The major objective of a
tunnel is to convey as much information as possible
over a limited payload size. For single payloads, the
entropy features are calculated based on the
character distribution of the effective payload.
Given the distribution  of a character set
within a text string, its entropy is defined as
 log.
A tunnel is assumed to maximize its bandwidth by
increasing the entropy of the data being tunnelled.
5.2.2 N-gram Features
In natural English words, the distributions of N-
grams are not uniformed that can be used to
distinguish them from non-natural English terms.
This feature is defined as the value in the
th
percentile of the N-gram score distribution
|
from a text string, or

|
.


P can be empirically set to be between 40 to 55.
In order to generate N-gram scores, we built a lookup
table of N-gram and their frequencies from a set of N-
gram English words Google collected from large
amount of historical publications (Google). Based on
the experiments, we choose to use 2 and 3 grams to
have features named nl2 and nl3, respectively.
5.2.3 Lexical Features
In order to pass non text or binary data, a tunnel
tends to use some coding methods such as base 64
that introduces many non-human readable characters
that can be measured by the lexical features. For a
given text string , the lexical feature is defined as
 1
|
|
|
|
,
∈

,
.
5.2.4 Payload Size
There are two features for payload size. One is the
size of the effective payload len and the other is the
ratio between effective and original payloads reo.
5.2.5 Gini Index
Similar to entropy feature, Gini index is another way
to measure impurity of the data that is defined as
 1∑
.
However, unlike the entropy feature, Gini index
is a feature whose value is bounded within a range
between zero and one.
5.2.6 Classification Error
Another feature to measure the diversity of a data set
is called classification error. Like the Gini index
feature, the value of this feature is also bounded
between zero and one. The definition is as follows.
 1max.
5.2.7 Number of Labels
The last but not least feature is the number of
domain labels in an FQDN payload named as nlb to
differentiate legitimate and malicious payloads.
5.2.8 Encoding
The encoding feature enc is the output of a neural
network that takes all of the above features as input.
The classifiers are described in the next section.
(a)
(b)
(c)
(d)
Behavior Analysis based DNS Tunneling Detection and Classification with Big Data Technologies
287
(e)
(f)
(g)
(h)
(i)

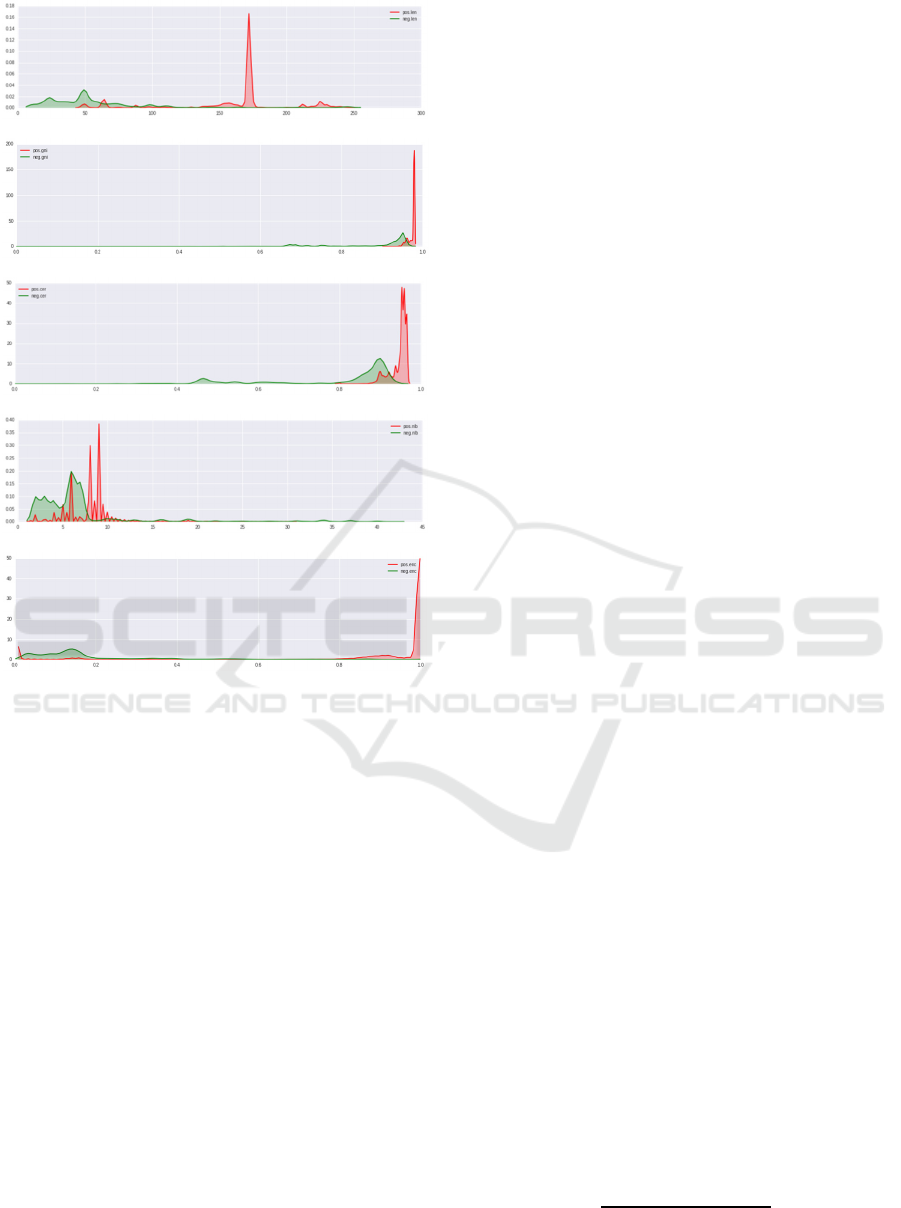

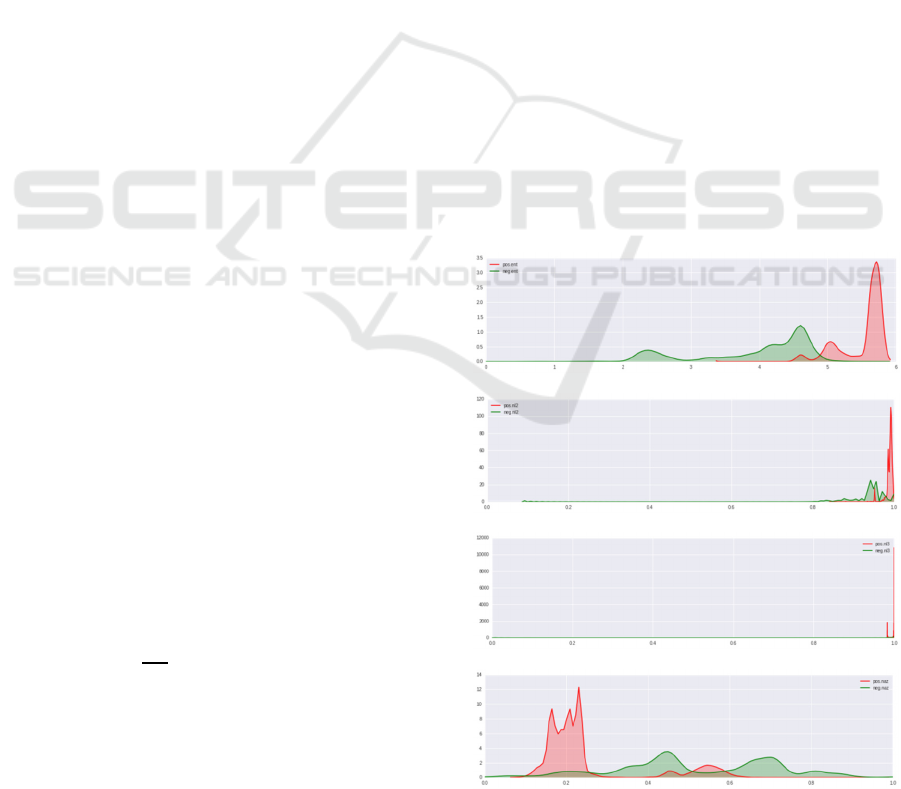

Figure 3: Feature analysis for outbound traffic. (a)
Entropy. (b) Bigram. (c) Trigram. (d) Lexical feature. (e)
Payload size. (f) Gini index. (g) Classification error. (h)
Number of domain labels. (i) Encoding classification.
5.3 Additional Inbound Features
For inbound messages that come from DNS
response, the TTL ttl of resource records and the
response delay delay are used as features based on
the rational that most of the legitimate DNS queries
tend to have longer TTL for reducing number of
queries by use of cache. On the other side, tunnelling
DNS messages involve extra process such as
encoding and decoding, encryption and decryption,
proxy and so on. That implies longer response time
than normal DNS traffic.
5.4 Time Series Features
The time series data is defined by tunnel ID. Since a
tunnel is defined by the requester IP address on one
end and the SLD on the other end, the tunnel ID is
composed of query IP address and SLD. The
requester IP address can be a resolver or DNS server
IP address and the internal client IP address
combined depending on the information availability.
The data points are inserted into an observation
cache (Yu, 2014) that has a TTL pre-set to remove
old data points from the series. It also has a capacity
pre-set for each series to remove old data points
when the number of points hit the capacity though
they haven’t passed the TTL criterion. This is to
guarantee the data freshness and reserve the storage
space so that it can be recycled. Applying the
payload features on to each of the messages within
the time series, a feature set that is denoted as a 2-
dimensional matrix

,
,
can be derived, where
,
is the
th
feature on the
th
message for outbound or inbound payloads. The
time series based behavior features are the basic
statistics of individual features on the series that can
be denoted as
stat

,
where the  is the collection
,,,, to represent the
distribution of individual features across the time
series. In addition, the entropy values on effective
inbound and outbound payloads are calculated,
respectively, because of the fact that the payload of
legitimate traffic doesn’t change as much as the
malicious ones over the time series.
6 CLASSIFICATION
There are two tiers of classification. In the first tier,
the classification is targeted on identifying encoded
payload while the second tier is for tunnel detection.
6.1 Encoding Classification
Two neural network classifiers are designed and
trained to provide a score indicating if a payload is
full of encoded text for inbound and outbound
payloads, respectively. Each of the classifiers is
trained on millions of samples with truth labelled by
security experts and tested on independent sets of
samples, respectively. The classifiers have a single
hidden layer with four neurons and each uses a
logistic activation function defined as follows.
1
1



IoTBD 2016 - International Conference on Internet of Things and Big Data
288
where
are inputs,
are weights, and
is the
bias for each neuron. To measure the accuracy of the
classifier training, the ROC curves are generated on
the independent test datasets. Figure 4 is the ROC
curve for outbound classifier.

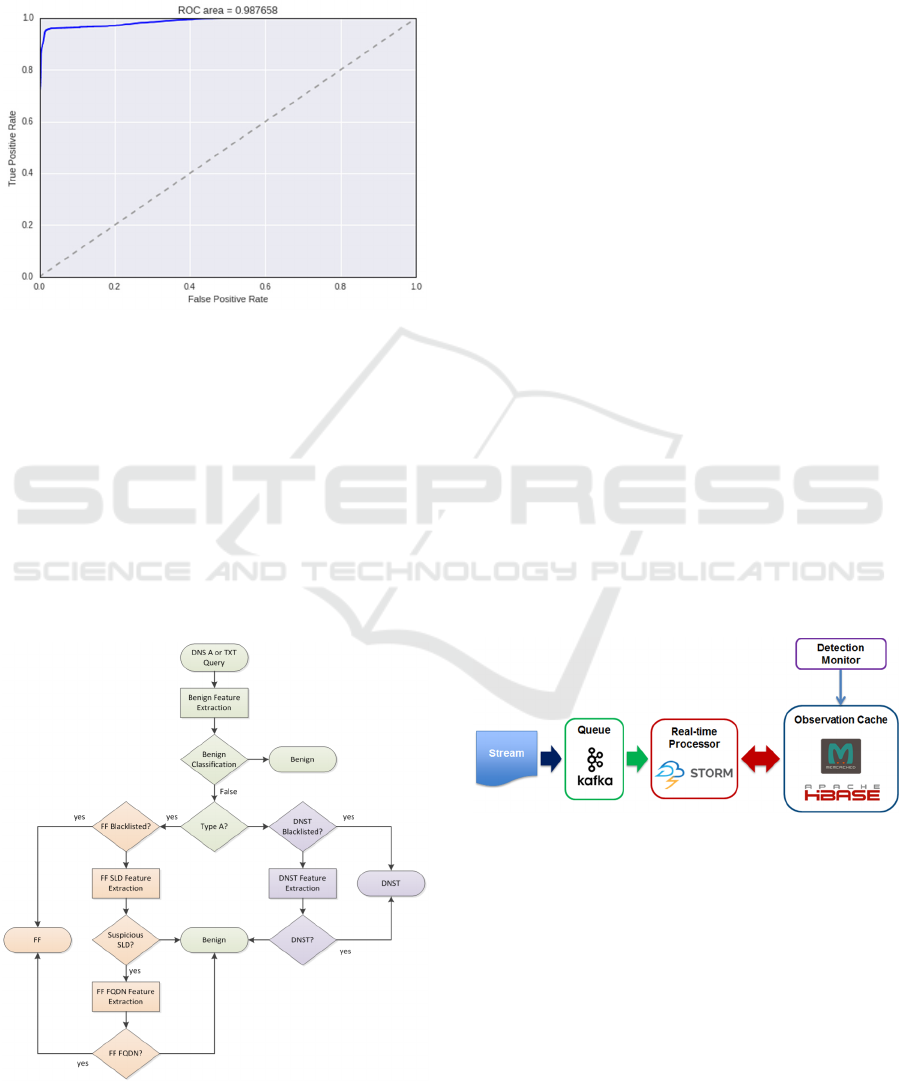

Figure 4: ROC curve for outbound classifier.
6.2 DNS Tunnelling Behaviour
Classification
Among various advanced persistent threats, DNS
tunnelling is one of the most active and harmful
attacks that utilize DNS traffics, therefore, its
detection is included in the proposed online
detection system. The comprehensive detection
workflow is given in Figure 5 where the details of
the benign detection and fast flux detection modules
are discussed in (Yu, 2014).
Figure 5: DNS malware online detection workflow.
Data used in this paper is collected from Farsight
(Farsight) that receives passive DNS from a large
number of contributors worldwide, mainly in the US.
With some simple filtering logics such as DNS type,
payload size, series length, and whitelisting, a set of
candidates is extracted and reviewed by security
experts for truth labelling. About 2000 samples are
selected for training and testing a tree classifier that is
carefully tuned to minimize the false positive rate.
7 REAL-TIME DETECTION
SYSTEM
The classifiers that were trained in offline system
will be deployed in an online real-time detection
system (Yu, 2014) that is designated to deal with
fast and large streaming data. In an enterprise
deployment, the throughput can be up to 1-3 million
DNS queries per second. The throughput can reach
billion per second in a cloud based deployment.
Therefore, the horizontal scalability is one of the
most important factors in design.
As shown in Figure 6, the incoming stream is
processed in real-time with Storm or Spark
framework and inserted into the observation cache
along with the extracted features that are indexed by
requester IP address and SLD. The observation
cache has an in-memory layer and an on-disk layer
of which the use is dependent on the data size. The
detection can be triggered by event or scheduled by
interval to be cost effective.
Figure 6: Real-time detection system architecture.
8 RESULTS AND CONCLUSION
Nearly nine month DNS data collected from Farsight
from 2012 to 2013 at a rate of 1.8B/day is used in
the evaluation process. In total, 126K tunnels are
detected where a tunnel is defined as from one
unique source IP address to one unique destination
domain name. Table 1 shows the summery of the
tunnels detected. About 70% detected tunnels are
Behavior Analysis based DNS Tunneling Detection and Classification with Big Data Technologies
289
classified into legitimate with review and cross
reference check that include many anti-virus
companies or CDN vendors. A tunnel with
significant payloads in query or response only is
categorized into outbound or inbound tunnel and
otherwise two-way tunnel. As illustrated in Figure 7,
majority falls into one-way tunnel and malicious
tunnels have a higher outbound to inbound ratio than
legitimate ones due to their data exfiltration nature.
Table 1: Detected tunnels.
Malicious Legitimate All
Two-way 356 869 1225
Outbound 35478 65820 101298
Inbound 2845 20504 23349
Total 38678 87193 125871

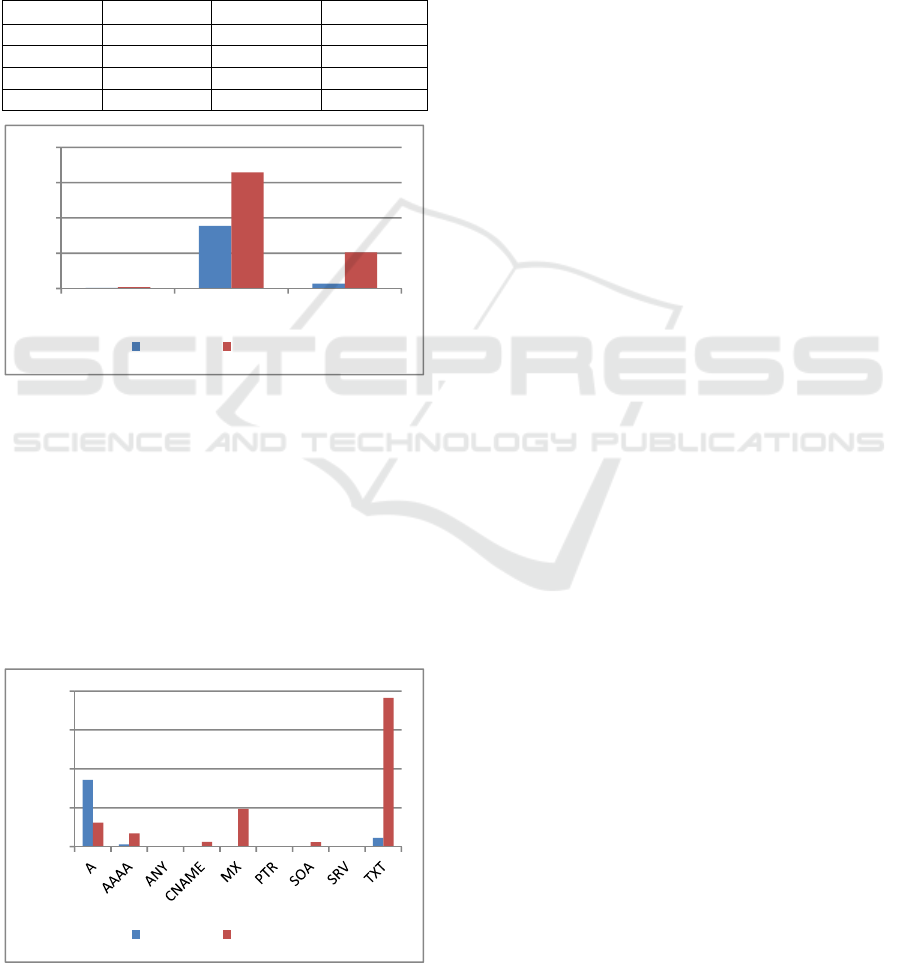

Figure 7: Tunnel distribution.
We also analysed the tunnel transaction activity
distribution over DNS query type and the result is
plotted in Figure 8, where a tunnel transition is
simply a DNS message. It shows malicious activities
tend to use type A while legitimate ones have higher
transaction rate on type TXT. This is understandable
that malicious tunnels want to hide their activities
from using TXT type that is designated for large
payload transactions and may be exanimated by
many traditional DNS tunnelling detection methods.
Figure 8: Tunnel transaction activities by DNS query type.
New data shows more and more malicious
tunnels are using small payloads. This makes
detection even harder and will be a future research
work.
REFERENCES
Iodine, http://code.kryo.se/iodine/.
Farnham, G., Atlasis, A., 2013. Detecting DNS tunneling,
SANS Institute InfoSec Reading Room.
Wong, M., 2006. Sender policy framework (SPF) for
authorizing use of domains in e-mail, version 1,
Retrieved from http://tools.ietf.org/html/rfc4408.
Yu, B., Smith, L., Threefoot, M., 2014. Semi-supervised
time series modeling for real-time flux domain
detection on passive DNS traffic, in the 10
th
International Conference on Data Mining and Machine
Learning, St. Petersburg, Russia, pp. 258-271.
Vixie, P., 1999. Extension mechanisms for DNS (EDNS0),
Retrieved from http://www.ietf.org/rfc/rfc2 671.txt.
Borders, K., Prakash, A., 2004. Web Tap: detecting covert
web traffic, in Proceedings of the 11
th
ACM
conference on Conputer and Communications
Security, New York, pp. 110-120.
Crotti, M., Dusi, M., Gringoli, F., Salgarelli, L., 2007.
Detecting HTTP tunnels with statistical mechanisms,
in IEEE International Conference on
Communications, pp. 6162-6168.
Crotti, M., Dusi, M., Gringoli, F., Salgarelli, L., 2008.
Detection of encrypted tunnels across network
boundaries, in Proceedings of the 43
rd
IEEE
International Conference on Communications, Beijing
China, pp. 19-23.
Dusi, M., Gringoli, F., Salgarelli, L., 2008. A preliminary
look at the privacy of SSH tunnels, in Proceedings of
the 17
th
IEEE International Conference on Computer
Communications and Networks, St. Thomas, U.S.
Virgin Islands.
Hind, J., 2009. Catching DNS tunnels with AI, in
Proceedings of DefCon 17, Las Vegas, Nevada.
Born, K., Gustafson, D., 2010. Detecting DNS tunnels
using character frequency analysis, in Proceedings of
the 9
th
Annual Security Conference, Las Vegas, NV.
Ellens, W., Zuraniewski, P., Sperotto, A., Schotanus, H.,
Mandjes, M., Meeuwissen, E., 2013. Flow-based
detection of DNS tunnels, in Emerging Management
Mechanisms for the Future Internet, Lecture Notes in
Computer Science, Volume 7943, pp 124-135.
ISC, ISC Security Information Exchange: http://www.isc.
org/
Farsight, Farsight Security, Inc.: https://www.farsightsecu
rity.com/
Shannon, C., 1948. A Mathematical Theory of
Communication, Bell System Technical Journal, Vol.
27, pp. 379–423, 623–656.
Google, http://storage.googleapis.com/books/ngrams/book
s/datasetsv2.html.
0 K
20 K
40 K
60 K
80 K
Two-way Outbound Inbound
Malicious Legitimate
0 M
50 M
100 M
150 M
200 M
Malicious Legitimate
IoTBD 2016 - International Conference on Internet of Things and Big Data
290
