Programming for the Humanities

Logic and Adaptable Languages

Jerzy Karczmarczuk

Dept. of Computer Science, University of Caen, Caen, France

Keywords:

Logic, Prolog, Abstraction, Constraint programming, Non-determinism.

Abstract:

We argue in favour of teaching modern programming to students of “non-scientiﬁc” undergraduate disciplines

(humanities), considering that computer-assisted learning should not be reduced to the usage of tools, but

provides some answers to the question: how the knowledge is built. The computer science should be treated as

an inherent part of their culture. We advocate the teaching of Logic Programming languages: Prolog, and of the

Constraint Programming languages, such as CHR. Logic programming permits to formulate the computational

problems and their solutions in a form more close to human reasoning than several other languages, and

adaptable to the domains of interest of the learners.

1 INTRODUCTION

The necessity to use computing techniques in Hu-

manities (Human and Social Sciences) is visible since

the beginning of the ﬁfties, and the related teach-

ing progresses steadily. The plethora of applications:

databases for historians, visual recognition for archae-

ologists, analytic tools for linguists, etc., need no ad-

vertising, see (Schreibman et al., 2004; Arthur and

Bode, 2014). The Association for Computers and Hu-

manities has 38 years. Stanford and the University

of Geneva offer such combined specialization to their

students, the King’s College has a PhD program in

digital Humanities, etc. But, the integration of these

two worlds, analogous to the “strong coupling” be-

tween computer specialists and physicists, is less easy

than in a formalized discipline, operating on numeri-

cal data which are “naturally” processed by comput-

ing devices.

But in our opinion, the major difference between

the humanities and the “hard” sciences, in relation

with the information technologies, is that in the lat-

ter case, for the last 60 years students learn how to

develop and modify their speciﬁc tools, while in the

former – just how to use them. The word “program-

ming” became almost a taboo. . . The Digital Human-

ities Quarterly (Quarterly, 2015) had no title including

this word for almost ten years. In the section Q&A of

the ACH site, the number of questions in the cate-

gory “Programming” is of 3%: 13/392. There are 166

questions about tools and formats. . .

Christian Koch (Koch, 1991) underlines that to

survive, the domain cannot remain a loose amalga-

mation of the two ﬁelds. Teachers in human sci-

ences should develop their understanding of com-

puter science, and the computing specialists should

acquire some feeling for more cultural, less techni-

cal approaches to their work in contact with the other

side. We believe that we should teach more pro-

gramming for the ﬁrst, and adapt ourselves to their

methodologic needs. This is not a question of pro-

ﬁling the taught topics: to teach formalized music to

musicologists, computer grammars to linguists, etc.

The idea that programming is a universal cultural tool,

is more important. The reasoning with abstractions

is fundamental, and often better adapted to students

in human sciences, than to “technologists”. There is

nothing wrong with using simple arithmetic, or ba-

sic data processing examples in teaching computing

to humanities.

20 years after the article of Koch, in “Program or

be Programmed” (Rushkoff, 2010), the author draws

the picture of the society, where we still teach how to

become the consumer of tools made and controlled

by somebody else. Shall humanities’ teachers and

students remain eternal consumers?

This reminds the allegory of Asimov: “Profession”,

about a society where all knowledge is registered directly

into the brain, only a tiny minority of “ retarded” learn ev-

erything the hard way, by reading, calculating. . . We dis-

cover that these “handicapped” are the true intellectual elite,

only they are able to create new knowledge.

298

Karczmarczuk, J.

Programming for the Humanities - Logic and Adaptable Languages.

In Proceedings of the 8th International Conference on Computer Supported Education (CSEDU 2016) - Volume 1, pages 298-305

ISBN: 978-989-758-179-3

2 SOME DIFFICULTIES

In 2015 the Soci

e Informatique de France organized

a panel session on the teaching of computing in hu-

man sciences. The participants concentrated on the

universality of the ‘informatized’ culture, on the data

search, etc. The coding, and the construction of tools

used to analyze and structure the information were

barely mentioned. The tools were considered given.

We tried to analyze why.

• The Humanities people need not accept the afﬁrma-

tion that in order to use computers efﬁciently, they

should know how they function, as a harpsichordist

doesn’t need to know how his instrument works,

and researchers, also in physics, will not waste their

time on technicalities

. Bread, airplanes, and com-

puters, including the software, are made by special-

ists. It is too easy to disperse the effort on technical

details, and neglect the essence.

• Computer science: algorithmics, optimization, etc.,

are formal, mathematically oriented, and the word

“numerics” inﬂuence negatively the interest of stu-

dents. They would agree that some elements of the

theory of coding and data structuring, etc., are parts

of the human culture, useful in general, but it is a

different culture, in Humanities the researchers are

reluctant to code.

But Steve Jobs said that “everybody should learn how

to program a computer, because it teaches you how

to think. Computer science is a liberal art”. Writing

in a disciplined way about anything, conditions the

mind, and it should be taught early. Musical compo-

sition and choreography are programming. The world

needs new specialists, and it is a historian, and not an

engineer, who will design a new schema establishing

the chain of events leading to some historical context

(Cameron and Richardson, 2005).

The words such as numeric or digital lost their

immediate meaning, the bulk of the information pro-

cessed by computers is symbolic in its essence. This

“different culture” might not be easy to accept by

teachers formed 40 years ago, but it is natural for

children, not knowing any mathematics. If instead

of providing a modern education to the Humanities

students, we train them how to use some obsolescent

software products, we fail.

The question of teaching to code in High Schools,

has an old tradition, and is constantly rekindled.

There were successes and failures, and thousands of

errors. Some statistics says that a serious percentage

This is manifestly false, both for musicians and for No-

bel prize winners in physics; M. Veltman built a universal

computer algebra package with his hands.

of students simply cannot learn to program. Then, we

read that the authors began with such programming

languages as Java. . . In our opinion, the most harm-

ful teaching errors comes from such myths as : “learn

to reason as the computers do”, or “learn to think as

a computer scientist”. We should adapt the program-

ming paradigms to human reasoning.

3 LOGIC PROGRAMMING

3.1 Language Choice Criteria

Stephen Ramsay (Ramsay, 2012), admitting that the

choice of programming language is arbitrary and con-

tentious, enumerates his choice criteria, whose ﬁrst

is: low entrance barrier – simple, consistent syntax,

no low-level manipulations in typical programs, but

a reasonably large base of third-party librairies, and

decent interfacing (APIs). Also, that the language

should support multiple programming paradigms /

styles. We complete this with the following:

• Extensibility. The language should provide a gen-

eral basis for the DSL extensions (Domain-Speciﬁc

Languages), permitting to operate with concepts

and entities which are relevant to the domain of

interest of the user: linguistical analysis, real-time

communication, game-making, design of circuits,

etc. This requirement cannot be universally satis-

ﬁed, e.g., the number-crunching needs are too far

from symbolic communication. We assume that

here the speed of the language processors is not the

ﬁrst criterion, but the possibility to operate within

the problem space of immediate interest – is, and

the facility of operating with symbolic data is pri-

mordial.

• Interactivity. The language implementation should

be conversational, permitting to add incrementally,

and test small pieces, to debug interactively a faulty

program, and in general, to see what is the context,

when the program fails. This is relevant to teaching

of programming in general.

• “Web awareness”. Taking into account that the

bulk of data is stored in shared databases (linguis-

tical corpora, maps, etc.), the access to the Web re-

sources should be easy and natural. It should be

easy, see: (Karczmarczuk, 2015), not only to oper-

ate a browser, but also to install a small applicative

server, which might facilitate the pedagogical com-

munication.

We think that more attention should be given to the

language Prolog and its descendants, and to the logic

paradigms in programming in general. This is not

Programming for the Humanities - Logic and Adaptable Languages

299

new, Prolog was invented in 1972, see (Kowalski,

2014). It was a project meant as a tool for processing

natural languages (French), a noble pedigree for the

Humanities. . . It has already been extensively used

for teaching, and has been designed as the program-

ming basis for the Japanese 5-th generation project,

1982 – 1992. The teaching didn’t “fail”, but it lost

the popularity war with such languages as Java or

Python, for different reasons. One of them was the

“academic essence” of this domain, while the over-

whelming trend was to have the computing for the

“masses”. Another one was the spreading of the opin-

ion that the entry barrier was too high, since average

users don’t care about formal logic. Finally, the evolu-

tion of Constraint Programming helped to spread the

opinion that Prolog became obsolete, a “dead” lan-

guage, which should not be taught (it was similar to

the abandon of Pascal in favour of “C”).

Such arguments are discutable, but the teaching

modes, are living, evolving entities, which kill weaker

species. Thus, the popular and prestigious (almost

100 countries participate, UNESCO and IFIP patron-

age) International Olympiad in Informatics (Informat-

ics, 2015) for secondary school pupils, permits to use

Pascal, C, C++ and Java only, which contributes to

this deplorable polarization

. The ACM International

Collegiate Programming Contest is no more tolerant.

This seems analogous to the organization of universal

musical competitions, and forbidding all but two or

three instruments.

As mentioned, linguists use Prolog intensely, but

they teach it rarely. H. Christiansen (Christiansen,

2002) shares his experience with teaching Prolog used

as a meta-language permitting to understand better

other languages. (He advocates Logic Programming

as a second language, after, say, Java, but this has

some sense mainly for computer science students).

We return to this teaching vehicle, because in view

of its potentialities, it simply hasn’t been adequately

exploited in the discussed context. We taught Prolog

in Engineering Schools and at the University: com-

puter science, and formerly some courses for physi-

cists, and for philosophers (mostly humanists), and

we have some experience with teaching Prolog to sec-

ondary school pupils, where the imposed constraint

was: no serious mathematics. Remarkably, we could

use similar

presentation strategies in all those cases,

because of the universality of the language.

Recently we used the popular implementation

SWI-Prolog of Jan Wielemaker, see (Wielemaker,

Paradoxically, many contests problems in IOI and sev-

eral national Olympiads are logical puzzles, well adapted to

relational or functional programming.

Not identical ; examples were chosen speciﬁcally.

2012), and their Web site. While installing the sys-

tem is easy, in order to start programming, the stu-

dents don’t need to, it sufﬁces to connect their Web

browser to the Prolog server (SWI, 2015), remote, or

installed locally, write or load some deﬁnitions, and

launch some query in another frame, open in the same

browser window. The ﬁrst contact is established in

one minute.

The usage of the Web interface to teach program-

ming is progressing slowly, but steadily. This is par-

ticularly easy for languages implemented through vir-

tual machines with internal compilers: Java, Ruby,

Scheme/Racket, Python, and of course Prolog. The

authors of (Stutterheim et al., 2012) installed their

own “nano-Prolog” server, and taught how to make

it, as an example of the transmitted techniques. We

used a micro-server to test on line some students’ DC

Grammars in Prolog.

3.2 A Way to Program in Prolog

We assume that the Reader can read Prolog, and can

understand its basic structures. We sketch here the

presentation strategy during some of the ﬁrst hours of

the course. We wanted at the beginning to underline

the speciﬁc nature of the language, although we did

not discourage the students of searching some paral-

lels with the techniques they knew.

The basic syntax can be exposed in less than 20

minutes, and there is some time to warn the students

that the language is inﬁnitely extensible through user-

deﬁned operators. A program rule P:-Q1,Q2;Q3.

says that P is true, if both Q1 and Q2 are true, or

if Q3 is true. It may be also an elementary fact,

e.g.: rains(today). Essentially, all program is

a sequence of combinations of such elements. The

passage of parameters, atomic and composite is in-

tuitive. From the procedural point of view, what

is a function of N parameters in other languages:

f (X

, X

, . . . , X

), becomes a predicate with N + 1 pa-

rameters, one (or more) of them is the answer, e.g.,

f(X1,X2,...,XN,R).

We often worked the concrete details by showing

ﬁrst a small (but complete) example, and then elab-

orating the sense of its components and their rela-

tionships. When the students knew already about the

AND/OR syntax and the lists patterns, they grasped

the idea of non-instantiated variables, and they mas-

tered the primitive arithmetic (X is 7+2*X, etc.), we

surprised them with the following single query pro-

gram:

length(L,4),member(a,L),member(b,L),

member(c,L),member(d,L).

CSEDU 2016 - 8th International Conference on Computer Supported Education

300

which generates incrementally all the 24 permutations

of 4 symbols.

L = [a,b,c,d] ;

L = [a,b,d,c] ;

...

L = [d,c,b,a]

The program trying to establish the truth value of

some statements about the properties of the processed

data (the list must contain a, etc.), is able to gener-

ate some complex answers. It happens when some

parts of input data are unknown/arbitrary, they are

responses, not input, like the list L above, and the

program provided a model which “made dream come

true”. It was far from the the (still. . . ) standard

teacher’s reproach: “come on, what is L, do you think

that computer will invent it itself?”. . .

We had to explain the concept of backtracking, of

the automatic search for alternative solutions, which

was not difﬁcult to accept. Among students with sim-

ilar background, we had more problems with those

having some former experience with other languages

(Basic, Pascal, Fortran. . . ), since they wanted to know

how it could be done in languages they knew. Some

of our students knew the concept of Ariadne’s thread,

but it was initially easier to work with the youngest,

who accepted the code without being surprised. The

introduction to the logical non-determinism in pro-

gramming demands a certain discipline, it is possible

to confound it with the trial-and-error strategy, and

all had to be explained. But this example shows that

the the claim that computers “need” from the user de-

tailed algorithms showing how to solve a problem, is

ıve. The declarative features of Prolog are practical

concepts. We could then unveil the internal proce-

dures driving the process, namely

member(X,[A|Q]):-X=A ; member(X,Q).

length([],0).

length([X|R],N):-

length(R,N1),N is N1+1.

. . . which suggested a way to generalize the strategy

to any number of elements, with a easy layer of arith-

metic. We talked about recursion (linear), which we

tried to present as the most fundamental way in the

world to repeat actions: a snail building its shell, ap-

plies recursion; a 14-month child learning to walk, is

tail-recursive; they don’t know how to “iterate”, they

have no counters, nor the built-in mechanisms to con-

trol the loop. They make one step, and proceed with

the same action. They stop, because something “goes

wrong”, and the procedure breaks. Here, the head pat-

tern recognition cannot be fulﬁlled (an empty list is

not compatible with a list possessing at least one ele-

ment), and we choose an alternative clause. (The tod-

dler sits down. . . ) Simultaneously, the students recog-

nized that they had already two answers to the ques-

tion: “how to make a loop, to write all elements of

the sequence at once, without having to demand them

one by one”, one using the forgetting backtracking,

and another, progressive/recursive:

bkloop(L):-member(X,L),writeln(X),fail.

rcloop([X|Q]):-writeln(X),rcloop(Q).

The ﬁrst one shows that the “failure”, the negative an-

swer to a logical query may be used as a generating,

constructive control structure. The backtrack-driven

loops were easier to assimilate by freshmen than by

the engineering students. The failure-driven loops

could be used to iterate some imperative side-effects,

e.g., to generate graphical elements, which could not

be forgotten; a picture could not be “undrawn”.

A Prolog course introduces at the beginning

the notion of predicate, the yes/no function of

any parameters (some of which may be unknown,

they are instantiated answers). They may be facts,

which state some relations between the arguments,

or rules, which permit to assemble a deductive

database. The standard examples include often

the “family” collection, which begins with facts

(plain truths), such as father(adam,abel).

father(adam,cain). father(cain,enoch).

father(enoch,irad)., etc., if one likes biblical

references. . . This permits to deduce:

brother(X,Y):-

father(Z,X),father(Z,Y),X\=Y.

ancestor(X,Y):-father(X,Y) ;

ancestor(X,Z),father(Z,Y).

and, with some generalization, to play with

real, complex hierarchical links. Here the stu-

dents were already able to launch two-way

queries, such as ancestor(Who,enoch)., or

ancestor(cain,Who).. One important conceptual

point here, is the existential binding of the variable

Z. The facility to generate auxiliary data in Prolog:

“something unknown, but which helps to continue

the search” is incomparable with other languages. A

good percentage of our exercises led to errors, not to

trivial bugs, but to inspiring failures, which exposed

important misunderstanding of the problem or of its

solution strategies, or the incoherence of data, which

had to be localized and corrected (e.g., two different

“family members” porting the same name).

The second point, was related to the ultimate crash

of the program ancestor above, triggered by the

inﬁnite left recursion (ancestor may invoke ancestor,

which invokes ancestor. . . but doesn’t change the rel-

evant argument. The reasonable impression that the

order of clauses in a logical conjunction is irrelevant,

like in elementary propositional calculus, is danger-

ous. The logic may exist without time sequencing, but

Programming for the Humanities - Logic and Adaptable Languages

301

human minds don’t. Logic programs have their log-

ical, declarative, often “timeless” meaning, but also

some operational sense, like programs in other lan-

guages. The students have to grasp the difference

between: “father of ancestor” and “ancestor of fa-

ther”. . . From the pedagogical perspective this in-

troduces some additional conceptual problems, takes

time to explain, and potential teaching difﬁculties are

serious, but inspiring.

When one works with graphs more elaborate than

simple trees, including graphs with cycles (e.g., the

collections of linked references in Web pages; social

exchanges in groups of people, etc.), and the prob-

lem needs to ﬁnd paths between nodes, or to construct

closures, it is necessary to avoid dead loops, which

could crash the algorithm. This is taught everywhere

in computer science, and in this context all program-

ming languages are equal, but Prolog is nice, because

of its facility to construct auxiliary data structures for

tracing the possible paths.

A functional term: the construction “father(A,B)”

or similar, is more rich in properties than one may

think. First examples in Prolog usually have a some-

what procedural sense, such construct (predicate) is

a “function” from two objects to a Boolean (im-

plicit: success or failure), which provides answers

to an appropriate question, here: is A father of B?.

But at the same time, this is a composite data struc-

ture, and the program can analyse the data item:

...,somePred(father(seth,X),...),.... We

have speciﬁed a deductive database!

The concept of databases is related to composite

data structures, historians need them often (Thaller,

1993), but M. Thaller argues that standard DB are

of limited use, because of the non-determinism, and

fuzziness of data, pertinent to historical thinking.

The users should know how to analyse abstract func-

tional relations, e.g., to operate logically on symbolic

constructions such as brother(ancestor(noah)),

without precising who exactly is (are) this person(s).

A Logic Programming system can be used as

an abstraction builder. It facilitates e.g., the hypo-

static abstraction, the passage from brother(X,Y)

to relative(X,Y,brother) where we speak about

generic properties, relations between concepts, not

only between individuals. In general, the term “ab-

straction” means different concepts for a philosopher,

for an artist, and for a computer scientist. But one

property in common is the information hiding, op-

erating only with properties and entities which are

meaningful in a given context. This information hid-

ing and generality is a known good feature of Logic

Programming.

4 ABSTRACTIONS AND

EXTENSIONS

We used logical programming to teach language pro-

cessing and to create some non-trivial graphics. We

didn’t want to present just tools, applications for lan-

guages/arts students, and of restricted interest for the

others, but to show how this abstraction layer can be

easily and intuitively implemented.

4.1 DCG Grammars

Prolog was created with linguistic objectives in mind,

and its facility to process symbolic data is good (com-

pact, readable, and functionally rich) by design. The

Direct Clause Grammar formalism (Pereira and War-

ren, 1980) addresses this ﬁeld, despite the warning

that this subject is for advanced students, already

knowing Prolog, we taught it in second-year (a course

on automatic treatment of languages), where knowl-

edge of programming was weak. It was easier and

more instructive than using such pre-cooked tools as

parsers in the Python NLTK package. As a bonus,

we could speak about the ways to extend/adapt a pro-

gramming language for the speciﬁc domain-oriented

needs.

Below is an executable program which recog-

nizes simple English phrases, such as [a, mouse,

scares, the, cat, which, loves, the,

mouse].

phrase --> noun_phr,verb_phr.

noun_phr --> det,noun.

verb_phr --> verb,noun_phr,

([which],verb_phr | []).

det --> [the]|[a].

noun --> [cat]|[mouse].

verb --> [scares]|[loves].

It has the traditional form of a context-free grammar,

known to all who learn linguistics or compilation, of-

ten shown as one of the ﬁrst examples, whose aim is

to show the recognition decision: correct/bad. The

words in brackets are literals (constants), and others

are non-terminals (variables). The context-free gram-

mars are too weak for natural languages, but they are

the initial examples.

A query phrase([a,mouse,loves,...],R),

accepts the phrase or not, and yields the tail of the

parsed list, which may undergo further treatment. The

deﬁnitions of phrase or noun, simple words, may

become “procedures” which take two parameters be-

cause of the power of abstraction-building extension.

The operator (-->) is a converter which turns a DCG

clause into a parameterized predicate, but this is in-

visible when designing a grammar, unless we want to

show the details.

CSEDU 2016 - 8th International Conference on Computer Supported Education

302

Such extensions may be built by the learners, and

if they need more, e.g., the construction of the syn-

tax tree corresponding to the phrase containing verbs

v(X), nouns n(X), etc., they need only to parametrise

the clauses with structures yielding the answers, e.g.:

verb(v(X)) --> [X],{X=scares; X=loves}.

A result, say s(np(det(a), n(mouse)),

vp(v(scares), ...) may be automatically

drawn in a suggestive form shown on Fig. 1.

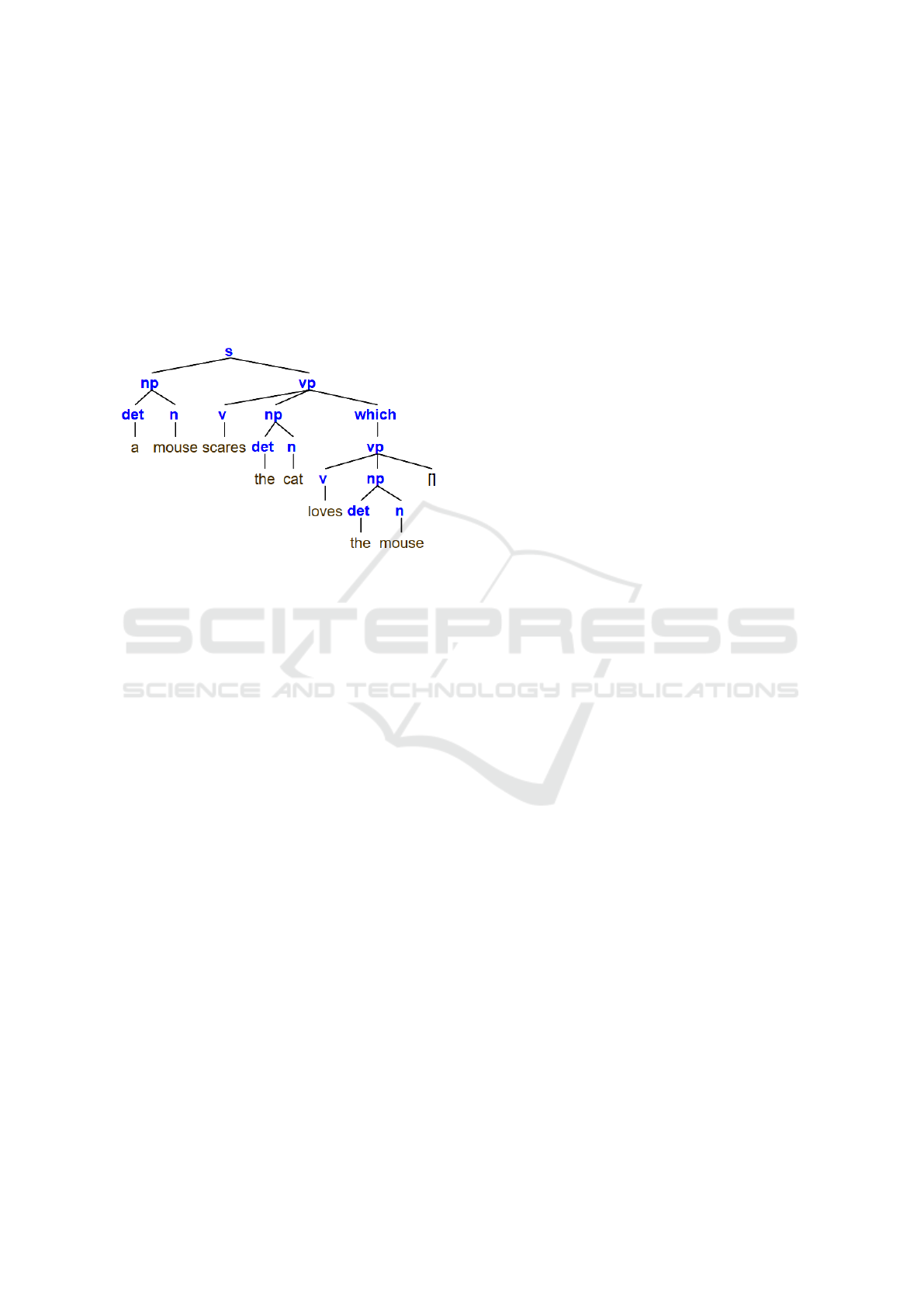

Figure 1: Syntax Tree

We got all in one place: the abstract grammar,

which deﬁnes the phrase structure, the executable

parser, and plenty of tools to introduce meta-rules,

such as sequencing: a word is a letter followed by a

word, etc. The students could see directly the relation

between the abstraction and the implementation.

4.2 Higher-order Graphics

This topic has been presented to low grade students,

where we couldn’t rely on the knowledge of compli-

cated graphics. The high-level paradigm meant, as

always: abstraction, operating with opaque entities :

“pictures”, which could be added, rotated, embedded,

etc., and such actions may be implemented in any lan-

guage; Prolog offers simply intuitive, and very com-

pact meta-tools, accessible to beginners. If P, Q are

pictures, it sufﬁces to operate with P+Q, where

show(P+Q,Frame):-

show(P,Frame),show(Q,Frame).

speciﬁes the drawing composite, which remains ab-

stract, “+” is just a symbol. Frame is the coordi-

nate system, specifying the origin, and axes. The

students appreciated the “allegory”: the Frame is the

observer, and moving a picture is equivalent to mov-

ing its observer, so deﬁning picture transformations

was remarkably easy, we needed just simple vector

operations, known to everybody; transforming the

frame permitted to transform any picture. The stu-

dents were able to implement easily such construc-

tions as: putting one picture above another one, iter-

ate scaling, rotating and translating recursively some

picture in order to generate some fractals, etc. It was

easier, and more powerful than the known Logo “tur-

tle” operations. The primitive pictures such as lines

and points were pre-deﬁned.

In order to ensure the principle of data hiding,

while designing a picture, the Frame should be invisi-

ble. The user program introduces thus a new operator,

say, (=>>), and after having deﬁned, say:

(P =>> Q,R):-assert(show(P,Fr):-

show(Q,Fr),show(R,Fr)).

the composition reduces to a surprisingly short spec-

iﬁcation A+B =>> A,B: a composite of two pictures

means that we draw both, no data manipulation us-

ing lists or arrays. The program size matters for stu-

dents without much experience not only for psycho-

logical reasons, but shorter programs offer less occa-

sions to make errors. Such abstract programming en-

courages the students to exploit their intuition, their

human reasoning, and this increases their coding efﬁ-

ciency. Thus, although language extension is usually

an advanced issue, adapting the software to the user,

could have been introduced to beginners.

5 CONSTRAINT

PROGRAMMING

Here, the relation between data are expressed as con-

strains, e.g., “the painting X belongs to the ’XVII,

but is later than Y”. This is declarative, the user asks

the system to combine this constraint with some oth-

ers, and, eventually, to deduce the creator. Prolog it-

self contains several elements permitting to code in

this style, but some patterns are so frequent, e.g. be-

ing member of an ordered interval, that it was judi-

cious to augment the logic systems with speciﬁc li-

braries and comfortable syntax, and ﬁnally to man-

ufacture special languages. For us, two such pack-

ages were particularly interesting, the Finite Domain

constraint module CLP(FD) (Triska, 2012), and CHR

(Constraint Handling Rules). This approach liberates

the users, even more than Prolog, from the low level

chores. To solve some simple equations within inte-

ger intervals, we load the library clpfd included in

SWI, and we write

X#=3*(Y+1), Y+6#=X+1, (L+7)^2#=L*L+189,

L in 0 .. 447, X in -22 .. 44.

which yields: X = 6, Y = 1, L = 10, and the

students learn that there is no miraculous equa-

Programming for the Humanities - Logic and Adaptable Languages

303

tion solver inside, but the system seeing A#=B

equality, without knowing the values of the vari-

ables, stores this relation, which will be used when

needed. The program: X in 0 .. 12, X

in -2 .. 4, X#<3. produces a “fuzzy” an-

swer: X in 0..2. A relatively complex Sudoku

solver can be coded in about 10 lines, the puzzle

“SEND+MORE=MONEY”, even less. The students

learned how to deal with such concepts as redundancy

of information, contradictions, and conventions, not

always explicit, but current (here: the ﬁrst digit of a

natural integer is non-zero). The specials operators,

such as #=<, enable the coexistence between standard

mathematical relations in Prolog (=<), and the set-

valued constraints. The students could invent them-

selves the CLP variant of the permutation program,

with arbitrary number N of integer constants:

length(L,N),L ins 1 .. N,

all_different(L),label(L).

where label assigns concrete values to members of

a constrained data set. The constraint systems are

used for scheduling, optimization and fault diagno-

sis, etc. Some graphical constraint applications as

the drawing package Asymptote permit to state such

commands as “put the box A in the middle of the line

B, and orient it orthogonally to it”, without speciﬁng

the coordinates, and not even knowing where lies the

line B, given only as a “vertical line of length 10, end-

ing on the intersection ef curves C and D”. Constraint

(visual) tools are used to teach geometry in school.

But geometry is not just for mathematical problems,

historians of visual arts, and archaeologists need it ev-

ery day.

5.1 Just Logic. . .

There are many categories of constraints. Temporal

intervals are different from binary logic. While teach-

ing elements of Artiﬁcial Intelligence, we proposed

some logic puzzles published by R. Smullyan, e.g., in

(Smullyan, 1978). We didn’t ask to solve such prob-

lems using Prolog, but the constraint package CLP(B)

turned out to be excellent for formalizing problems,

and for testing the solution. Here are two easy prob-

lems, belonging to the world of Knights, who told

only the truth, and Knaves, constant liars. The ﬁrst

problem is: two individuals approach, the ﬁrst says,

“Neither of us is a knight.” What are they? The

boolean constraint solution is a one-liner:

sat(A =:= ~A * ~B),labeling([A,B]).

The form sat(...) takes an expression, and ﬁnds

its satisﬁability, with * being the conjuction, +: dis-

junction, =:=: equality, and ~: negation. The form

labeling constructs a model of the represented uni-

verse, with the variables being assigned some values

from the allowed set. The argument of sat is a literal

translation of the verbal statement. The expression is

manifestly false, nobody can say that he is a Knave,

and the solution is here: A=Knave, B=Knight.

The second problem is more complicated. Three

people, Black, White and Red approach, Black says:

“all of us are Knaves”, and White: “exactly one of us

is a Knight.” Which is which? The solution [Knave,

Knight, Knave] is given by another one-liner:

L=[Black,White,Red],sat((Black # +L) *

(White=:=card([1],L))),labeling(L).

where # is the inequality, “+” computes the n-ary dis-

junction, and card ﬁnds the number of truths in a

list. This is not a domain speciﬁc strategy, but a pro-

gramming methodology. Already school pupils learn

how to transform equations and inequalities with un-

knowns, yet later some teachers and textbooks of-

fer them a restricted meaning of the concept of algo-

rithm, and convince them that computers may operate

only with concrete, known data, through sequences

of statements. Kuhn in “The Structure of Scientiﬁc

Revolutions” (Kuhn, 1962) observes that “a student

in the humanities has constantly before him a num-

ber of competing and incommensurable solutions to

his problems, solutions that he must ultimately exam-

ine for himself”. It is more natural for him to operate

with unknowns, while for an engineer, an unknown

often reduces to a placeholder awaiting the derivation

of its value from the data, and untouched before.

5.2 Constraint Handling Rules

The CHR formalism (Fr

uhwirth, 2009), is an ad-

vanced topic, designed to assemble speciﬁc, domain-

oriented algorithms efﬁciently, and easy to embed

into existing languages. The basic implementation

platform remains Prolog. CHR is able to propagate

and simplify constraints, and eliminate the redundan-

cies. Its teaching helps to understand how the con-

straint systems work.

The example below is an arithmetic exercise. The

standard recursive formulation of maxl(L,X), which

computes X, the maximum of numbers in L, say,

maxl([2,9,7,1],X) is shown ﬁrst:

maxl([X],X). % What else?...

maxl([Y|Q],X):-maxl(Q,Z),(Y>Z,X=Y;X=Z).

This reduces the set of eligible values by

rejecting those known to be smaller than

some other. The equivalent CHR program:

max(X) \ max(Y) <=> X>=Y | true., which

may be called: max(2), max(9), max(7),

CSEDU 2016 - 8th International Conference on Computer Supported Education

304

max(1)., is shorter. max(X) means that X is a

potential maximum of an unknown set of values,

which gets precised when we throw in new candi-

dates. If there is just one, it IS. But a rule: H1 \ H2

<=> Body, called “simpagation” (propagation and

simpliﬁcation), veriﬁes whether the constraint pool

contains relations compatible with both H1 and H2,

and if yes, then H2 is eliminated. At the end there can

be only one.

The user need not always to assemble her

items in a composite data structures. The

code ..., f(X,Y), ..., max(Y), g(Y,P,Q),

... max(P), ... does what the user wants, the

constraint store is built while processing other data,

and at the end the program yields also the informa-

tion about the maximum. The user has less code to

write, and there is no recursion.

Our “family” database can be also based on a con-

straint pool. It may then automatically propagate and

add new relationships: uncle, cousin, etc., if the ade-

quate rules are deﬁned.

6 FINAL REMARKS

Our privileged audience are teachers in other domains

than Computer Science. Transmitting the basics of

logic programming to students without the “classical”

algorithmic background is inspiring. It shows how

the automated reasoning helps us to derive new in-

formation, permitting not only to conﬁrm some hy-

potheses, but to formulate new ones. It unveils on

simple examples the power and the sense of com-

puting abstractions, and of such concepts as the non-

determinism, facilitating the work with intricate sets

of unknowns. They are modern tools, extensible and

non-mechanical, useful not only technically, but for

the development of the students’ culture.

This methodology has been thoroughly tested dur-

ing the last 40 years, it belongs already to the hard

core of computer science, but our pedagogical world

doesn’t proﬁt from it as it should.

A. J.Perlis, the developer of Algol60, said (Perlis,

1982): “A language that doesn’t affect the way you

think about programming is not worth knowing”.

This might not be a plain truth, but a language which

does affect the thinking, is certainly worth teaching.

REFERENCES

Arthur, P. L. and Bode, K., editors (2014). Advancing Dig-

ital Humanities: Research, Methods, Theories. Pal-

grave Macmillan.

Cameron, S. and Richardson, S. (2005). Using Computers

in History. Palgrave Macmillan.

Christiansen, H. (2002). Using prolog as metalanguage

for teaching programming language concepts. In

Kacprzyk, J., Krawczak, M., and Zadro

zny, S., edi-

tors, Issues in Inf. Technology. Warszawa.

uhwirth, T. (2009). Welcome to constraint handling rules.

In Schrijvers, T. and Fr

uhwirth, T., editors, Constraint

Handling Rules, Current Research Topics, Lecture

Notes in Artiﬁcial Intelligence 5388. Springer.

Informatics, Intl. Olympiad in (2015). URL:

www.ioinformatics.org/index.shtml.

Karczmarczuk, J. (2015). Teaching with dynamic docu-

ments – web applications and local resources. In Proc.

of the 7th Int. Conf. on Comp. Supported Education,

pages 315–322, Lisbon, Portugal.

Koch, C. (1991). On the beneﬁts of interrelating computer

science and the humanities: The case of metaphor.

Computers and the Humanities, (25):289–295.

Kowalski, R. (2014). History of logic programming. In

Siekmann, J., editor, Computational Logic, Vol. 9,

pages 523–569. Elsevier.

Kuhn, T. (1962). The Structure of Scientiﬁc Revolutions.

University of Chicago Press.

Pereira, F. and Warren, D. (1980). Deﬁnite clause gram-

mars for language analysis – a survey of the formal-

ism and a comparison with atn. Artiﬁcial Intelligence,

13(3):231–278.

Perlis, A. J. (1982). Epigrams on programming. ACM SIG-

PLAN Notices, 17(9):7–13.

Quarterly, Digital Humanities (2015). URL:

www.digitalhumanities.org/dhq/.

Ramsay, S. (2012). Programming with humanists: Reﬂec-

tions on raising an army of hackers-scholars in the

digital humanities. In Digital Humanities Pedagogy:

Practices, Principles and Politics. OpenBook.

Rushkoff, D. (2010). Program or be Programmed Ten Com-

mands for a Digital Age. O/R Books, New York.

Schreibman, S., Siemens, R., and Unsworth, J., editors

(2004). A Companion to Digital Humanities. Wiley.

Smullyan, R. (1978). What is the Name of this Book?

Prentice-Hall.

Stutterheim, J., Swierstra, W., and Swierstra, D. (2012).

Forty hours of declarative programming: Teaching

prolog at the junior college utrecht. In Moraz

an,

M. and Achten, P., editors, Proc., Trends in Func-

tional Programming in Education, pages 50–62, St.

Andrews.

SWI (2015). URL: swish.swi-prolog.org/.

Thaller, M. (1993). Kleio. a database system. In Halbgraue

Reihe zur historischen Fachinformatik, volume B11.

St. Katharinen.

Triska, M. (2012). The ﬁnite domain constraint solver of

SWI-Prolog. volume 7294 of LNCS, pages 307–316.

Wielemaker, J. (2012). Swi prolog. Theory and Practice of

Logic Programming, (12):67–96.

Programming for the Humanities - Logic and Adaptable Languages

305
