Knowledge Base System for Risk Analysis of the Multi-step
Computer Attacks
Gulnara Yakhyaeva and Aleksey Ershov
Novosibirsk State University, Department of Information Technology, Pirogova st. 2, Novosibirsk, Russian Federation
Keywords: Information Security, Cyber Threats, Multi-step Attack, Knowledge Base, Description Logic, Interpretation,
Case-based Model, Fuzzy Model, Generalized Fuzzy Model.
Abstract: This work describes the module of the "RiskPanel" software system, performing risk analysis of multi-step
computer attacks. The module is based on statistical analysis of actual computer attack precedents. At the
user's request the system calculates objective probability of information security risks, taking into account
all possible multi-step attacks (i.e. possible combinations of known attacks). The estimation of probability is
presented as an interval because we don't always have a full description of real attacks.
The task of this work is described using the model-theoretic formalism. The first step is to build a
knowledge base of computer attacks. The formal description of the knowledge base structure is made with
the Description Logic. Formalization of estimated (fuzzy) judgments is made in the language of the Fuzzy
Model Theory. The article contains algorithms for calculation of probabilistic risk intervals and describes
program implementation of the developed methods.
1 INTRODUCTION
The information risk management is currently one of
the most important and dynamically developing
directions of strategic and operational management
in the field of information security. Computer
networks play an important role in many areas.
Successful cyber attacks lead to considerable
financial, image and other losses and provoke the
increase in the number of potential attackers. Rising
demands lead to complexity of structure and
increasing size of the networks, which in its turn
leads to increased complexity of security analysis
and delay in application of protective
countermeasures.
The main task of computer security specialists is
rapid response to changes of the current security
status of all the components of the corporate
information system. For this purpose it is useful to
have a software system that allows quickly
determining the type of an attack without any special
skills, learning the latest information about possible
consequences of the attack and how to prevent them.
Computer attacks can be divided into two
classes: single-step and multi-step attacks (Dawkins
and Hale, 2004). In a single-step attack, the attacker
exploits a vulnerability, commits an attack, and
reaches his ultimate goal. Multi-step attacks are
more complicated. The attacker can exploit the
vulnerability not to immediately achieve the goal,
but to open a new vulnerability, which can be used
for carrying out another attack. In this case, the
ultimate objective is achieved at the end of the chain
of multiple attacks.
There are two peculiar properties of multi-step
attacks: random relationship between multiple attack
steps and uncertainty in the description of the attack
steps of a multi-step attack (Zhang, et al., 2014; Zhai
and Zhou, 2011). Therefore, it is impossible to
manually analyze all possible combinations of the
attacks.
One of the possible approaches to the analysis of
network security includes attack modeling and
impact assessment based on attack graphs (Xinming
Ou, 2006). The concept of "attack graph" is quite
simple. An attack graph is a graph that represents all
possible sequences of attacks that allow the attacker
to reach his goals through multi-step exploitation of
vulnerabilities.
Attack graphs can be a useful tool in different
areas of computer security. A system administrator
can use attack graphs for:
− building a list of attacks to which the system is
vulnerable in the current configuration;
Yakhyaeva, G. and Ershov, A.
Knowledge Base System for Risk Analysis of the Multi-step Computer Attacks.
In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 2, pages 143-150
ISBN: 978-989-758-187-8
Copyright
c
2016 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
143
− search for ways how an attacker can achieve a
specific purpose;
− determination of the countermeasures which
should be taken to ensure the security of the
system.
This paper examines the precedent approach to
building attack graphs. This approach is based on the
model-theoretic formalization of domain ontologies
(Palchunov, 2006; Palchunov, 2008). The formal
description of the structure of the knowledge base is
made with the Description Logic (Baader, et al.,
2007). Formalization of estimated (fuzzy) judgments
is made in the language of the Fuzzy Model Theory
(Pal'chunov and Yakhyaeva, 2015). Software
implementation of the knowledge base is made with
the Neo4j
1
graph DBMS.
2 RELATED WORK
At present there are more than a hundred software
systems for information risk management. All of
them can be divided into two groups (Alhomidi and
Reed, 2014):
• basic software systems for qualitative risk
analysis;
• full analysis software systems for quantitative
risk analysis.
Basic software systems are commonly used by
the companies of the 3rd CMM maturity level
(Carcary, 2013).
Software systems for full risk analysis include
systems with more advanced tools of risk analysis
and management. Such tools are in demand among
the organizations of the 4th and 5th CMM maturity
levels. The fourth-level organizations address the
measurement of parameters, characterizing the
information security policy. Technology of
information security management remains the same,
but the risk analysis phase includes quantitative
methods of estimation of the residual risk parameters
and effectiveness of various countermeasures in risk
management. Different kinds of optimization
problems in the field of information security are
solved on the fifth level. The most famous software
systems of this class are CRAMM
2
, RiskWatch
3
,
Digital Security
4
and OCTAVE
5
.
1
neo4j.com
2
www.cramm.com
3
www.riskwatch.com
4
www.dsec.ru
5
www.cert.org/octave
There is currently no commonly used definition
of the "attack graph" concept, and various research
groups often mean different things by this word
combination.
One of the approaches (Sheyner, et al., 2002) is
to define the attack model, which is a finite state
machine with multiple states and possible transitions
between them, where each element of the set of
states describes the state of the entire computer
network at the current stage of the computer attack.
The attack graph of the specified model is the set of
finite sequences of transitions from the initial state
of the system in such states that violate specified
security property. This approach has one major
drawback. With the growth of the number of nodes
in a computer network, the number of possible states
of the network increases exponentially, making the
creation of such attack graph practically useful only
for small networks with a small number of
vulnerabilities.
Another approach is based on building a logical
attack graph (Wayne and Boyer, 2006). In this
approach the graph node is a logical expression. It
describes not the state of the network as a whole, but
only one aspect of this state. Graph edges represent
causal connections between the network
configuration and the potential privileges that an
attacker can get.
This logical approach has two certain advantages
over the "attack scenario" approach. Firstly, logical
attack graph clearly defines the causal relationship
between the system configuration and potential
attacker's privileges. In the case of "scenario"
approach it would be necessary to take into account
the full description of the system state on one or
several of the preceding steps to determine the
causes of dangerous situation. While logical graph
represents that causal relationship with the edges of
the graph. It is possible to restore all possible attack
scenarios by performing a simple depth-first
traversal of the logical graph. Secondly, the size of
the logical graph always depends polynomially on
the size of the network, and the size of the scenario
graph in the worst case has an exponential
dependence on the size of the network.
This paper introduces one more semantics of the
"attack graph" concept. In the proposed approach a
graph node is a precedent of a computer attack with
several properties. The edges of the graph are based
on the values of two properties of an attack
precedent: necessary preconditions to commit this
attack, and the consequences that the attack has for
the system. The oriented edge from graph vertex A
to vertex B is built if the consequences of
ICEIS 2016 - 18th International Conference on Enterprise Information Systems
144
committing attack A open the possibility of carrying
out the attack B. The multi-step attack is a path
through this oriented graph, each vertex of which is
reachable from the previous one by a single step
over a directed edge.
3 THE KNOWLEDGE BASE ON
COMPUTER SECURITY
3.1 Knowledge Base Structure
Let’s consider the domain Δ= "computer attacks".
All atomic concepts of the subject area are divided
into six classes:
1) ℙ
: “Symptoms”;
2) ℙ
: “Threats”;
3) ℙ
: “Vulnerabilities”;
4) ℙ
: “Consequences”;
5) ℙ
: “Losses”;
6) ℙ
: “Countermeasures”.
Each of these concept classes is represented in
the database as a treelike structure, and each attack
case is characterized by concepts from these classes
(Yakhyaeva and Yasinskaya, 2014). A set of
concepts for each class is composed by parsing the
database of computer security precedents, the
National Vulnerability Database (the NIST
6
agency).
The NVD is a USA state project, a regularly
updated database of computer vulnerabilities with
the descriptions (or references to the descriptions in
the other Internet resources) of vulnerabilities
discovered in various software systems and
components. The descriptions of these
vulnerabilities contain information on which version
of the product is affected by this vulnerability, how
it could be exploited, what measures can be taken to
remedy this vulnerability, and other information.
Table 1 shows some examples of atomic
concepts for each of the classes.
Hereafter let’s denote the atomic concepts by
()
, where the top index means that
()
∈ℙ
. For
formalization of knowledge in the domain Δ the
binary relation ⊆ℙ
×ℙ
is introduced. The
semantics of this relation is the following:
〈
(
)
;
()
〉
∈ iff the consequence (of some attack)
(
)
opens vulnerability
()
.
6
http://www.nist.gov/
Table 1: Examples of concepts for each of the above
classes.
Concept class Example of atomic concept
Symptoms Outgoing traffic increase
Threats Trojan Win32 Antavmu
Vulnerabilities Buffer overflow
Consequences Denial of service
Losses Loss of availability
Countermeasures Antivirus software
On the basis of this relation the atomic role is
defined.
Therefore, in the domain Δ we will examine a
finite set ℙ=ℙ
∪ℙ
∪ℙ
∪ℙ
∪ℙ
∪ℙ
of
atomic concepts and one atomic role . The set of all
concepts
of the domain Δ is composed
according to the standard syntax of the Description
Logic. All the concepts from
are divided into
role concepts (i.e. using an atomic role ) and non-
role concepts.
Terminology of the object domain or
(i.e. intensional knowledge about the domain)
consists of the set of all the specialization axioms,
representing the hierarchical structure of concept
classes.
The second component of a knowledge base is
the World Description or
(i.e. extensional
knowledge about the domain). In the
,
individuals are firstly introduced by giving them
names, and then the asserts properties of these
individuals (Baader, et al., 2007).
In the domain Δ lets define individuals as the
precedents of computer attacks. The main sources of
information about computer attacks for RiskPanel
system are corporate databases, NIST and MITRE
7
.
Each attack is characterized by the
presence/absence of certain concepts from each class
of concepts ℙ
. Thus, for each attack we build a
finite set of concept assertions of the following two
kinds:
(
)
() or ¬
(
)
().
The concept assertion of the kind (
,
) is
defined in the following way. There is concept
assertion
,
iff there are such concept
assertions
(
)
(
) and
(
)
(
) that
〈
(
)
,
(
)
〉
∈
7
http://www.mitre.org/
Knowledge Base System for Risk Analysis of the Multi-step Computer Attacks
145
(where
is the transitive closure of the relation
).
Here the composition of the World Description
for object domain or
is finished. The pair
〈
,
〉
is the Knowledge Base of the
domain Δ. As new concepts of this domain (i.e. New
threats, vulnerabilities, etc.) or new precedents of
computer attacks appear, the Knowledge base is
expanded. However, the structure of the knowledge
base remains unchanged.
3.2 Model-theoretic Formalization of
Estimated Judgements
To perform statistical analysis of the data we need
the precedent model and the fuzzy model of the
domain (Pulchunov and Yakhyaeva, 2005;
Yakhyaeva, 2007).. These models are composed,
based on the interpretation set of the Knowledge
Base
.
Consider a finite set of the computer attacks
=
,…,
which was used for describing
. Let be a
domain of quantification. Then is a binary relation
over this domain, and ℙ is a collection of unary
relations as well. Denote
=ℙ∪
. Then
Definition 1. Algebraic system
=
〈
,
〉
is
called interpretation of
if
⊨
(i.e.
for each concept assertion ∈
we have
⊨).
Definition 2. An ordered triple (
)⇋
〈
,
,
〉
is called a precedent model of the
domain , generated by the interpretation
=
〈
,
〉
, provided that for every concept () ∈
we have
τ
(
()
)
=
∈|
⊨()
.
In the precedent model each concept is associated
with the set of computer attack precedents which
have this concept as a characteristic. Note that from
the model-theoretical point of view, the model
(
) is a Boolean-valued model. In this
Boolean-valued model each proposition of the
signature
∪
is associated with an element of
Boolean algebra ().
Most methods of statistical processing of data
use objective and/or subjective probability. The
objective probability refers to the relative frequency
of occurrence of any event in the set of observations
or the ratio of the number of desired events to the
total number of observations. The subjective
probability refers to the degree of confidence of
some expert or group of experts that this event will
actually happen.
In the proposed approach the concept of fuzzy
model is used to describe objective probabilities.
Definition 3. An ordered triple (
)⇋
〈
,
,
〉
is called a fuzzy model of the domain ,
generated by the interpretation
=
〈
,
〉
,
provided that for every concept () ∈
we
have
μ
(
)
=
‖
∈|
⊨()
‖
‖
‖
.
In the fuzzy model, the truth values of the
statements (concepts) are the numbers from the
interval [0,1], which represent the objective
probability of concept belonging to a random attack
precedent. A more detailed description of the
properties of the precedent and fuzzy models can be
found in the works of (Yakhyaeva, 2009; Pal'chunov
and Yakhyaeva, 2015).
Note that the information about precedents from
the Internet can be not complete. Then (according to
the “open-world semantics” paradigm) we have a set
of different interpretations of the
. From the
perspective of the model theories, it is a class of
models generated by the set of sentences
.
Denote the class of all the interpretations of
as
=
|
⊨
.
Definition 4. An ordered triple
⇋
〈
,
,
〉
is called the generalized fuzzy model of
the domain , generated by the class of
interpretations
, provided that for every concept
() ∈
we have
(
)
=μ
(
)
|
(
)
=
〈
,
,
〉
∈
.
Consider the concept
(
)
∈
. Let
=
‖
∈|∀
∈
:
⊨()
‖
and
=1−
‖
∈|∀
∈
:
⊭()
‖
.
In paper ( (Yakhyaeva & Yasinskaya, 2015)) it was
proven that
inf
(
)
=
‖
‖
and
sup
(
)
=
‖
‖
.
Note that if () ∈
is not a role concept than
(
)
=
‖
‖
,
‖
‖
,…,
‖
‖
.
ICEIS 2016 - 18th International Conference on Enterprise Information Systems
146
And if () is a role concept than
(
)
⊆
‖
‖
,
‖
‖
,…,
‖
‖
.
4 ALGORITHMS OF RISK
ANALYSIS
Risk analysis is the systematic use of available
information to determine how often specified events
may occur and the magnitude of their
consequences
8
. In our case, risk analysis is
determining the probability of threats,
vulnerabilities, consequences and losses which may
happen as a result of a computer attack on a
corporate information system. In other words, the
problem of risk analysis is finding the infimum and
the supremum of truth values of concepts from
on the generalized fuzzy model
.
Note that if () ∈
is a non-role concept,
then it describes the state which the system will have
after a single-step computer attack. The article
(Yakhyaeva and Yasinskaya, 2015) describes the
algorithm
getPDNFVerityOnCase, computing
truth values for such concepts. The algorithm is
proven to be correct. The work (Yakhyaeva, et al.,
2014) describes the module of the RiskPanel system,
implementing risk analysis for single-step attacks in
the question-answer mode.
On the other hand, role concepts describe
properties of multi-step attacks. This work proposes
algorithms for answering the following questions:
(Q1) What is the probability that after some multi-
step attack the system will have the state,
matching the description of non-role concept
()?
(Q2) What is the probability that after any multi-step
attack the system, sooner or later, will
definitely have the state, matching the
description of non-role concept
(
)
?
Questions (Q1) and (Q2) can be formalized with
concepts
=
(
∨∃.
)
и
=∨∀.
(
∃.
)
,
where is any non-role concept.
Our task is to find the infimum (denoted by
inf(
)) and the supremum (denoted by sup(
)) of
truth values of these concepts on the generalized
fuzzy model
. Let us consider the graph =
〈
,
〉
defined on the set of attack precedents. We
8
http://www.palisade.com/risk/risk_analysis.asp
perform postfix traversal of . As a result, every
graph vertex is assigned with one of the three values:
TRUE, UNKNOWN or FALSE. Therefore
inf
(
)
=
(
)
,
sup(
)=
1−()
,
where () is the number of vertices in the
graph labeled , () is the number of
vertices in labeled and – total amount of
vertices in .
Here we provide pseudocode of the two
algorithms, FuzGLEMP (Fuzzy graph labeling for
the extended modality of possibility) and
FuzGLEMN (Fuzzy graph labeling for the extended
modality of necessity), for labeling graph with
concepts
and
respectively (see Table 2 and
Table 3).
Table 2: Algorithm FuzGLEMP.
PG; // precedent graph
E; // expression from CONΔ
// queue for labeling
Q = {leafs of PG};
while (Q ≠ Ø) {
// the first vertice in the Q
V = Q.take();
if (V is leaf of PG) {
// label V with the result of
// evaluation of E on V
label(V, eval(E, V));
Q.add({all immediate ancestors of V that are not in
Q yet});
} else {
if (all immediate successors of V are labeled) {
D = {labels of all immediate successors of V};
if (D contains TRUE) {
label(V, TRUE);
} else if (D contains only UNKNOWN and FALSE)
{
if (eval(E, V) == TRUE) {
label(V, TRUE);
} else {
label(V, UNKNOWN);
}
} else if (D contains only FALSE) {
label(V, eval(E, V));
}
} else {
Q.add(V);
}
}
}
Knowledge Base System for Risk Analysis of the Multi-step Computer Attacks
147

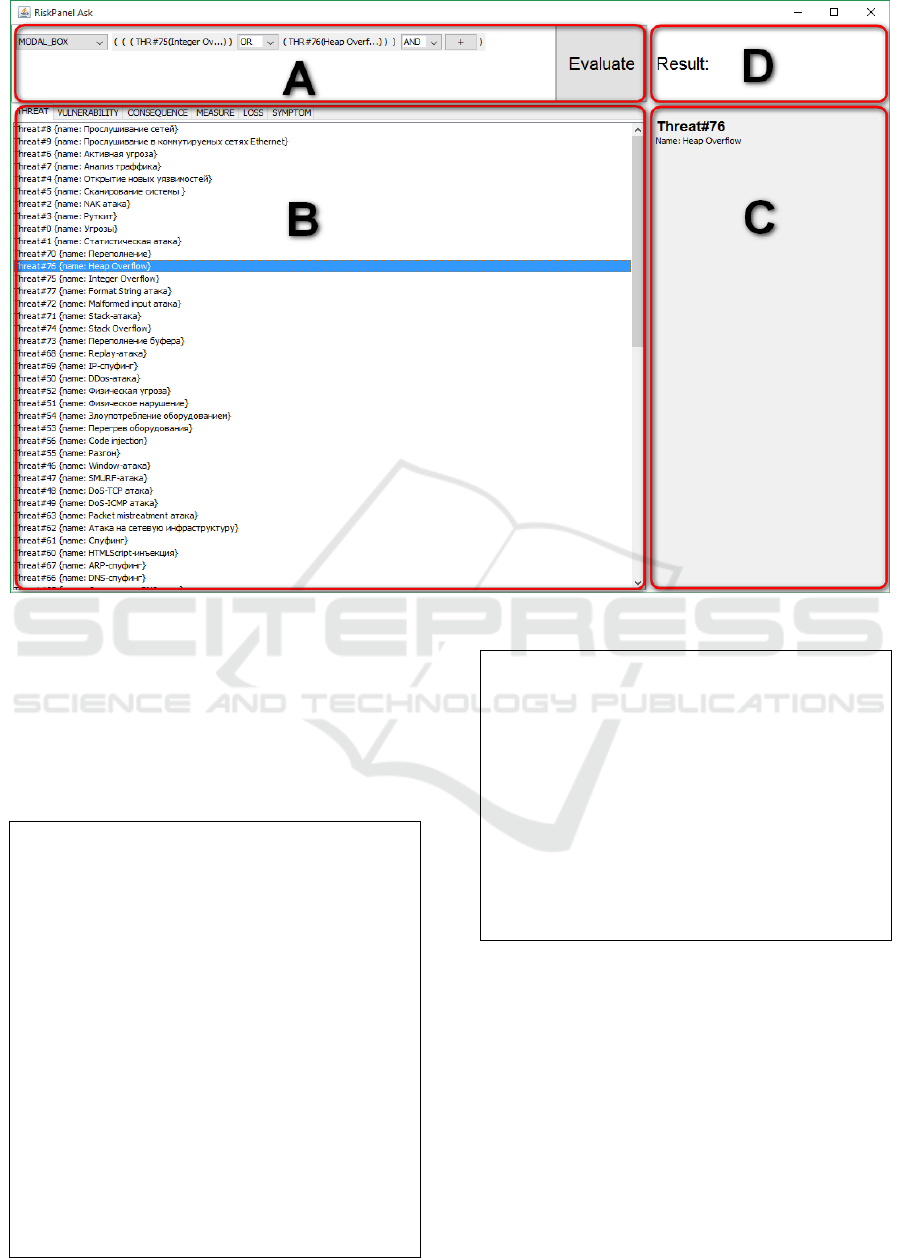

Figure 1: The main window.
Both algorithms are based on the bottom-up
graph labeling algorithm from ((Blackburn, et al.,
2007), which was modified to work with non-
complete knowledge about computer attack
precedents.
Table 3: Algorithm FuzGLEMN.
PG; // precedent graph
E; // expression from CONΔ
// queue for labeling
Q = {leafs of PG};
while (Q ≠ Ø) {
// the first vertice in the Q
V = Q.take();
if (V is leaf of PG) {
// label V with the result of
// evaluation of E on V
label(V, eval(E, V));
Q.add({all immediate ancestors of V that are not in
Q yet});
} else {
if (all immediate successors of V are labeled) {
D = {labels of all immediate successors of V};
if (D contains FALSE) {
label(V, FALSE);
} else if (D contains only UNKNOWN and
TRUE) {
if (eval(E, V) == FALSE) {
label(V, FALSE);
} else {
label(V, UNKNOWN);
}
} else if (D contains only TRUE) {
label(V, eval(E, V));
}
} else {
Q.add(V);
}
}
}
5 SOFTWARE INTERFACE
DESCRIPTION
We developed a software system called RiskPanel
asessentially a workplace for experts to ensure the
security of corporate information, based on the
methodology of generalized fuzzy models
(Pulchunov, et al., 2011). RiskPanel has a module
for analysis of the various multi-step computer
attacks. Consider the module interface.
ICEIS 2016 - 18th International Conference on Enterprise Information Systems
148

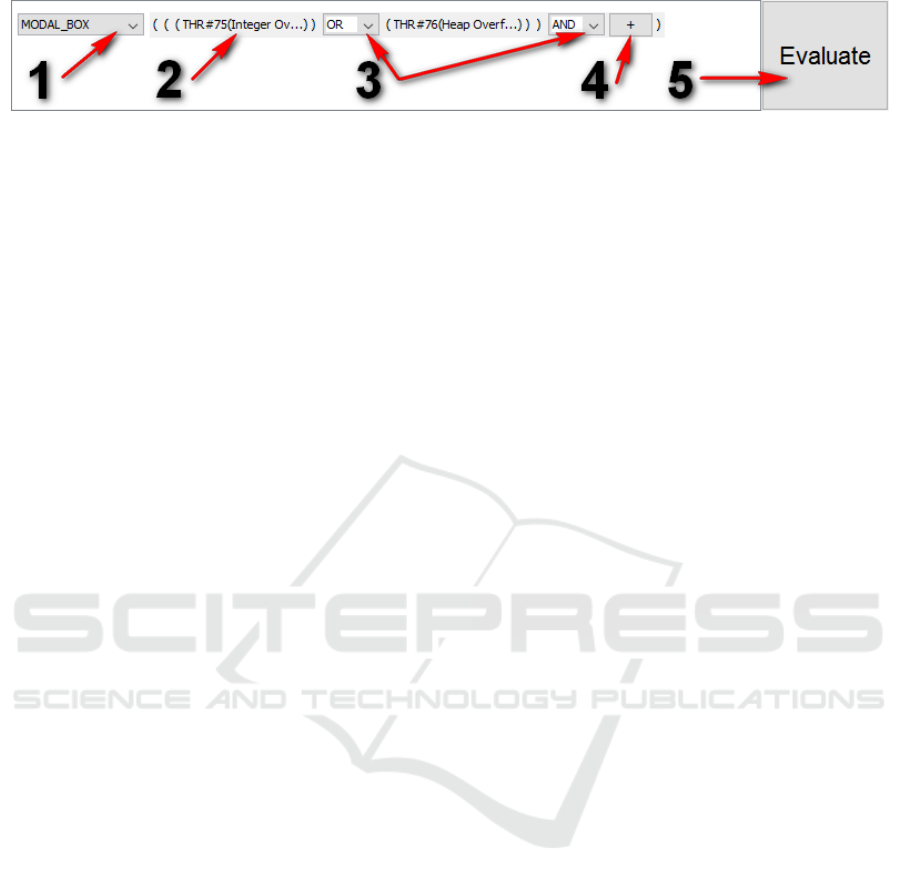

Figure 2: Input area.
The main window (Fig. 1) has four main areas:
− A — the input area
− B — the area for selection of atomic concepts
− C — the area with detailed information about
atomic concepts
− D — the output area
Input area A allows user to enter the specific
question (Fig. 2).
First of all, the user selects the type of his
question (drop-down list (1)). Currently there are
only two types: MODAL_BOX and
MODAL_DIAMOND (implementing the concepts
and
respectively).
Secondly the user composes non-role concept
(), which is what the question is related to.
Atomic concepts (2), necessary for composition of
the concept () can be selected in the main
window area B. Clicking with the left mouse button
on the concept shows all the available information
related to this concept in the area C. Logical
operators, connecting atomic concepts, can be set
with drop-down selectors (3). The new operator or
an atomic concept can be added by pressing the
button (4). If the newly added item is an operator,
then its operands will be empty, and buttons like (4)
are displayed instead of them.
When the statement is composed, the user can
press the button (5) to start computation of the truth
value of the statement. If the statement is not
complete (e.g. there are still some empty operands
left), the user will be warned about this. The truth
value cannot be calculated until the user composes
the complete statement.
If the computation is successful, the area D will
contain the truth probability interval of the
composed statement.
6 CONCLUSIONS
This article proposes methods of quantitative risk
analysis of multi-step computer attacks. These
methods are based on the combination of the
precedent approach to knowledge representation and
description logic.
Domain knowledge is represented as a finite set
of real attack precedents, i.e. a set of semi-structured
natural language texts.
Based on these precedents, in TBox and ABox
terms of the Discription Logic the Knowledge Base
is built. For each interpretation of the Knowledge
Base the precedent and the fuzzy model of the
domain is generated. The class of fuzzy models,
generated by the set of all possible interpretations is
a generalized fuzzy model. This model is used for
evaluation of truth values of formula descriptions of
information risks.
Developed methods are implemented in one of
the modules of the “RiskPanel” software system.
ACKNOWLEDGMENT
The reported study was partially supported by
RFBR, research project No. 14-07-00903-a.
REFERENCES
Alhomidi, M. & Reed, M., 2014. Attack graph-based risk
assessment and optimization approach. International
Journal of Network Security & Its Applications
(IJNSA), 6(3), pp. 31-43.
Baader, F., McGuinness, D., Nardi, D. & Patel-Schneider,
P., 2007. The description logic handbook: Theory,
implementation, and applications. 2-d ред. Cambridge
: Cambridge University Press.
Blackburn, P., Van Benthem, J. & Wolter, F., 2007.
Handbook of Modal Logic. Amsterdam: Elsevier.
Carcary, M., 2013. IT Risk Management: A Capability
Maturity Model. The Electronic Journal Information
Systems Evaluation, 16(1), pp. 3-13.
Dawkins, J. & Hale, J., 2004. A Systematic Approach to
Multi-Stage Network Attack Analysis. Washington,
Proceedings ofthe Second IEEE International
Information Assurance Workshop (IWIA '04), IEEE
Computer Society.
Palchunov, D., 2006. Simulation of thinking and
formalization of reflection: I. Model-theoretic
formalization of the ontology and reflection.
Filosofiya nauki, 31(4), pp. 86-114.
Palchunov, D., 2008. Simulation of thinking and
formalization of reflection: II. Ontologies and
Knowledge Base System for Risk Analysis of the Multi-step Computer Attacks
149
formalization of concepts. Filosofiya nauki, 37(2), pp.
62-99.
Pal'chunov, D. & Yakhyaeva, G., 2015. Fuzzy logics and
fuzzy model theory. Algebra and Logic, 54(1), pp. 74-
80.
Pulchunov, D. & Yakhyaeva, G., 2005. Interval fuzzy
algebraic systems. Proceedings of the Asian Logic
Conference , pp. 23-37.
Pulchunov, D., Yakhyaeva, G. & Hamutskya, A., 2011.
Software system for information risk manadgement
"RiskPanel". Programmnaya ingeneriya, Том 7, pp.
29-36.
Sheyner, O. и др., 2002. Automated Generation and
Analysis of Attack Graphs. Oakland, California, IEEE
Symposium on Security and Privacy.
Wayne, F. & Boyer, M. A. M. X. O. A., 2006. A Scalable
Approach to Attack Graph Generation. New York,
CCS '06 Proceedings of the 13th ACM conference on
Computer and communications security.
Xinming Ou, W. F. B. M. A. M., 2006. A Scalable
Approach to Attack Graph Generation. New York,
б.н., pp. 336-345.
Yakhyaeva, G., 2007. Fuzzy model truth values.
Bratislava, Slovak Republic, Proceedings of the 6-th
International Conference Aplimat, pp. 423-431.
Yakhyaeva, G., 2009. Logic of Fuzzifications. Tumkur,
Proceedings of the 4th Indian International Conference
on Artificial Intelligence (IICAI-09), pp. 222-239.
Yakhyaeva, G. & Yasinskaya, O., 2014. Application of
Case-based Methodology for Early Diagnosis of
Computer Attacks. Journal of Computing and
Information Technology, 22(3), p. 145–150.
Yakhyaeva, G. & Yasinskaya, O., 2015. An Algorithm to
Compare Computer-Security Knowledge from
Different Sources. Barcelona, Spain, Proceedings of
the 17th International Conference on Enterprise
Information Systems, pp. 565-572.
Yakhyaeva, G., Yasinskaya, O. & Karmanova, A., 2014.
Probabilistic question-answering system in the field of
computer security. Vestn. Novosib. gos. un-ta. Seriya:
Informacionnye tehnologii, 12(3), pp. 132-145.
Zhai, G. & Zhou, S., 2011. Construction and
implementation of multistep attacks alert correlation
model. Journal of Computer Applications, 31(5), p.
1276–1279.
Zhang, Y., Z. D. & Liu, J., 2014. The Application of
Baum-Welch Algorithm in Multistep Attack Hindawi
Publishing Corporate Scientific World Journal
Volume 2014. Scientific World Journal, Том 2014, p.
7.
ICEIS 2016 - 18th International Conference on Enterprise Information Systems
150
