Towards a Proof-based SLA Management Framework

The SPECS Approach

Miha Stopar

, Jolanda Modic

, Dana Petcu

and Massimiliano Rak

XLAB d.o.o., Pot za Brdom 100, Ljubljana, Slovenia

Institute e-Austria Timisoara and West University of Timisoara, Timisoara, Romania

Department of Information Engineering, Second University of Naples, Aversa, Italy

Keywords: Cloud Storage, Cloud Security, Security SLA, SLA Management.

Abstract: We present a framework that allows monitoring of the cloud-based applications and environments to verify

fulfilment of Service Level Agreements (SLAs), to analyse and remediate detectable security breaches that

compromise the validity of SLAs related to storage services. In particular, we describe a system to facilitate

identification of the root cause of each violation of integrity, write-serializability and read-freshness

properties. Such a system enables executing remediation actions specifically planned for detectable security

incidents. The system is activated in an automated way on top of storage services, according to an SLA,

which can be negotiated with customers.

1 INTRODUCTION

Most of the Cloud Service Providers (CSPs) today

offer their services through a Service Level

Agreement (SLA) and the importance of it is

undisputed. However, most of the SLAs are

relatively simple and usually cover at most

availability, support, and disaster recovery. While

having these properties defined in SLAs is

absolutely crucial, there are numerous incidents

which are not covered. Imagine, for example, the

scenario where for some reason the Cloud Service

Customer’s (CSC’s) data on the cloud server gets

corrupted. In this case, the service is still available

and thus no recovery of service is needed, the

support is available, too, but most probably the CSP

does not have a mechanism to restore the corrupted

file. Moreover, it is most likely that the data

corruption would be detected, by the CSC, only

when trying to access the file for the next time

(which might be months after the corruption date).

Thus, there is a need to introduce new properties

in SLAs. In this paper, we focus on security

properties that are the most critical in the cloud

storage SLAs, i.e., confidentiality (C), integrity (I),

write-serializability (i.e., consistency among up-

dates; denoted as WS), and read-freshness (i.e.,

assurance that the requested data is always fresh as

of the last update; denoted as RF). Apart from

providing C, I, WS, and RF guarantees to CSCs,

there are also other needs: i) to continuously monitor

the system in order to assure that the CSP’s

commitments with respect to these features are

fulfilled, and ii) to automatically react in case of

detected violations in order to guarantee business

continuity. Moreover, in order to enable the CSCs to

prove a violation of some commitment to the CSP

and to enable the CSP to disprove any potential false

accusations from the CSC, developing a proof-based

system is of utmost importance when it comes to

assuring and enforcing security in cloud storage

environment. We firmly believe that no SLA should

be signed without an assurance of the existence of

such a proof-based system (as without it the CSC

has no mechanism to claim the compensations). As

oppose to availability violations, which are usually

quickly noticed and reported in news, the violations

of integrity could be noticed only by the affected

CSC. Thus, the CSC should have an undisputable

proof of the SLA violation and should be notified

about it immediately when the violation occurs.

The authors of this paper are involved in a FP7-

ICT project SPECS (SPECS, 2013) whose objective

is to address the issue related to cloud SLAs as far as

security is concerned. To provide a solution to all

these issues, we adopt the SPECS SLA management

framework, enriching it with a proof system for the

security properties that the CSP guarantees for

240

Stopar, M., Modic, J., Petcu, D. and Rak, M.

Towards a Proof-based SLA Management Framework - The SPECS Approach.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 2, pages 240-248

ISBN: 978-989-758-182-3

storage services. The SLA management framework

can be put on top of any cloud storage provider to

enhance it with the above mentioned security

features. The framework supports continuous

monitoring and automatic responses to violations of

assured security properties specified in SLAs. In the

following we focus on the innovative features

related to storage services, while we suggest (Rak et

al., 2015) for more details on the SPECS framework.

Some of the above discussed concerns have

already been tackled. How to enforce the above

mentioned security features with SLAs and how to

detect violations related to them has been discussed

earlier. For example, Popa et al. (2011) provided a

proof-based system (named CloudProof) for

enforcing and monitoring each of the properties C, I,

WS, and RF. We go one step further and provide an

extension of the system that is able to distinguish

among different types of attacks in case of their

violations (CloudProof only detects that some

security property is violated and it does not try to

determine the root cause). Root cause analysis is

important not only because it gives an insight into

what is going on in the system, but also because with

that kind of additional information CSPs can choose

and apply optimal reactive measures to recover from

the incident.

This paper gives the following contributions.

Auditor Extension. Our first novelty is the

extension of the CloudProof’s Auditor in order to

facilitate identification of the root cause of each

violation of I, WS and RF properties. Such an

extension enables us to develop and automatically

apply specific remediation actions.

Proof-based SLA Management Framework. In

addition to the extended design of the Auditor, we

provide a proof-based SLA management framework

that monitors the system to verify fulfilment of

SLAs, and analyses and remediates all detectable

eventualities that compromise validity of SLAs. The

proof-based system also assures proofs of violations

which are valuable not only to the CSC which can

prove CSP's misbehaviour, but also to the CSP

which can disprove any false accusation.

The paper is organized as follows. The current

state of the art is discussed Section 2. Further details

about SLAs and the introduced SLA management

framework are presented in Section 3. The initial

CloudProof’s Auditor is briefly discussed in Section

4 and its proposed extension is presented in Section

5. The proposed techniques for monitoring SLAs

and automatically remediating SLA violations

related to I, WS, and RF are elaborated in Section 6.

Implementation details are discussed in Section 7,

and the conclusions are discussed in Section 8.

2 RELATED WORK

An SLA is essential in formalizing a relationship

between a CSC and a CSP. It specifies the way both

parties share responsibilities and risks that are

attached to them. Security breaches and system

failures are just a few of the incidents that can occur.

In all of these cases the consequences can include

contractual termination and loss of customers,

financial penalties and lawsuits, severe damage to

CSP's business reputation and CSC's loss of

sensitive data. Therefore, a number of SLA

standardisation initiatives are working on defining a

standard format for cloud SLAs. For example, the

European Commission has developed

standardisation guidelines for cloud SLAs (European

Commission, 2014), Cloud Standards Customer

Council published a practical guide to understanding

cloud SLAs (Cloud Standards Customer Council,

2015), and ISO/IEC JTC1/SC38 standardisation

committee is actively working on defining a

standard for cloud SLA framework and terminology

(ISO/IEC, 2014).

Every CSC should negotiate the desired and

required cloud service and its security level in the

form of an SLA, and each CSP should continuously

monitor the provisioned service to assure the

fulfilment of all commitments specified in the SLA.

We consider every CSP to be untrusted, thus even

something better than just an SLA management

framework is needed, i.e., a proof-based system that

guarantees transparency of CSP's operations and

thus assures CSP's trustworthiness. For example,

SLA management frameworks like SLA@SOI

(SLA@SOI, 2009) and mOSAIC (mOSAIC, 2010)

can detect SLA violations and are even able to

recover from them, but no proof-based system is

integrated that would provide proofs of violations.

Thus nothing assures CSCs that they will be notified

about any SLA violation and, most importantly, they

will not be able to prove it and claim compensation.

Some solutions exist that cover these issues for

some specific security properties. For example,

direct anonymous attestation scheme (Brickell et al.,

2004) is a privacy enhancing scheme that enables

assertion of a physical or a virtual component by a

trusted source while preserving confidentiality and

privacy. The proof of data possession (see (Ateniese

et al., 2007); (Erway et al., 2015); (Kaaniche et al.,

2014)) and proof of retrievability (see (Juels et al.,

Towards a Proof-based SLA Management Framework - The SPECS Approach

241

2007); (Shacham and Waters, 2013); (Bowers et al.,

2009)) notions enable the detection of tampering of

the stored data. The first scheme allows the CSC to

verify the integrity of its data stored in the cloud and

the later scheme enables the CSC to verify that the

CSP possesses the originally stored data without

retrieving it.

Similarly, the concept of proof of data ownership

(Halevi et al., 2011) has been introduced to alleviate

the CSP from storing multiple copies of the same

data, and the transparency logging scheme (Pulls et

al., 2013) has been introduced to enable data

processors to inform users about the actual data

processing that takes place on their personal data.

Due to various laws and regulations requiring

data to be stored and processed in specific

geographic location, it is becoming very important

to enable the CSC to have a proof of data location

(see (Katz-Bassett et al., 2006); (Albeshri et al.,

2014); (Ateniese et al., 2011); (Watson et al., 2012)).

CloudProof (Popa et al., 2011) addresses the

issue of provable violations related to C, I, WS, and

RF. The authors designed a cloud storage mechan-

ism that enables detection (with a specific

monitoring system, namely the Auditor) and proofs

of SLA violations related to these properties.

The Auditor in CloudProof is based on

attestations which are signed messages that

accompany each CSC's request and each CSP's

response. The CSP stores CSC's attestations for

potential cases when the CSC would trigger false

accusations. Similarly, the CSC saves all attestations

received from the CSP. Additionally, the CSC sends

all attestations to the Auditor, which then checks

them in order to verify validity of I, WS, and RF

commitments. Once attestations are sent to the

Auditor, the Client can delete them.

CloudProof attestations enable detection of I,

WS, and RF violations. However, no work has yet

been done to either identify root causes or to

automatize the remediation actions. Note that once a

violation is detected either due to a security breach

or a system failure, more of them will most likely

follow. So it is crucial to first identify the root cause

of the event and then restore the system to the

normal state accordingly.

The Auditor can be used as a monitoring

component of an SLA management framework.

However, as opposed to many SLA management

frameworks (e.g., SLA@SOI (SLA@SOI, 2009),

mOSAIC (mOSAIC, 2010), SPECS (SPECS, 2013))

that have monitoring component tightly integrated

with the rest of the components of the framework

that is operated by the CSP, we claim that the

monitoring and auditing components need to be

independent and not operated by the service

provider.

To the best of our knowledge, none of the

existing SLA management frameworks deal with

automatic remediation of provable SLA violations.

The majority of proposed solutions either focus on

automatic deployment of cloud services (e.g.,

(Bonvin et al., 2011); (Addis et al., 2010); (Badidi,

2013); (SLA@SOI, 2009)), SLA monitoring (Sahai

et al., 2002), or prediction and detection of SLA

violations (like (Emeakaroha et al., 2012); (Leitner

et al., 2010)). Some SLA management solutions are

focused on detection and remediation of

performance related SLA violations (see

(SLA@SOI, 2009), (Brandic et al., 2010)).

However, a framework that would automatically

negotiate, enforce, and monitor security SLAs, and

remediate detectable security incidents through a

proof-based system does not yet exists.

To this end, the rest of the paper presents a new

approach to solving the above discussed issues that

was also adopted in SPECS (see (SPECS, 2013) and

(Rak et al. 2015)). We present an enhancement of

the CloudProof scheme and its integration into a

new proof-based SLA management framework that

not only detects and analyses security incidents and

system failures, but also reacts to them in an

automated way.

3 SLA MANAGEMENT

FRAMEWORK

An SLA specifies all aspects of the service being

provisioned by the CSP to the CSC. The agreement

details not only the infrastructure and resources to be

provisioned, but also the level of security to be

assured for the acquired service, along with

remedies for the failure to meet those levels. All

these aspects are formalised with Service Level

Objectives (SLOs) that represent CSP’s commit-

ments for a specific security property (i.e., for a

specific security metric, e.g., WS or RF).

Each SLA management framework and each

CSP that offers SLAs are in need of the followings

items: i) a system to negotiate CSP's services and

their security properties in terms of SLOs; ii) a

system that automatically deploys negotiated

services in a secure manner; iii) a system that

monitors negotiated commitments; and iv) a system

that manages detected incidents or system failures

that compromise validity of negotiated SLOs.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

242

The SLA management framework that we

propose aims at providing monitoring and remedia-

tion functionalities in the secure cloud storage

domain. We assume that negotiation and deployment

activities are managed by the CSP and are out of the

scope of this paper.

The framework comprises eight components and

involves three entities, as depicted in Figure 1.

The Client component handles all uploads and

downloads of data and provides client-side encrypt-

ion (enforcing confidentiality). It operates directly

on the CSC’s side independently from the CSP.

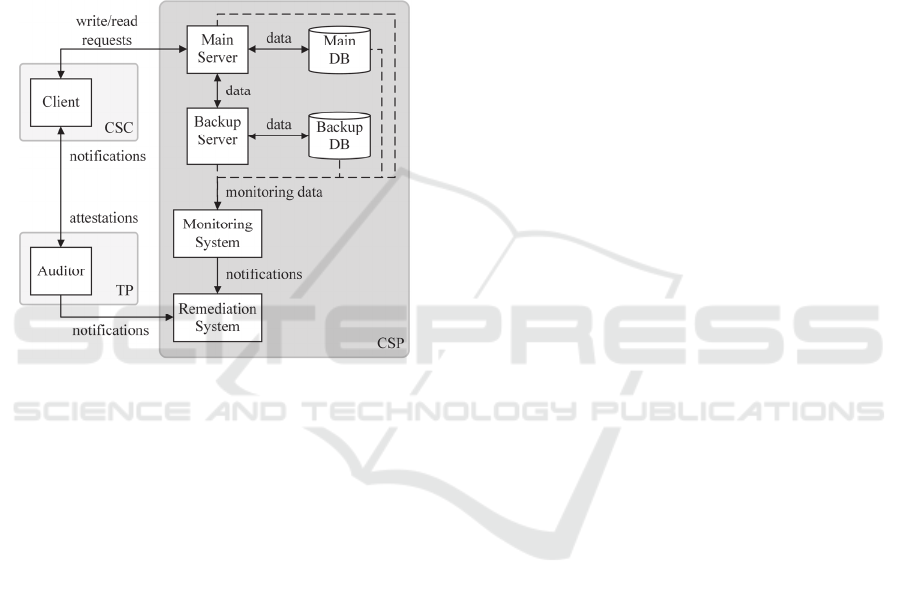

Figure 1: Proof-based SLA management framework.

The Main Server orchestrates all upload and

download requests from the Client and handles all

associated operations (i.e., writes and reads to the

Main DB, performs backups). Similarly, the Backup

Server and the Backup DB components manage and

store, respectively, a copy of all CSC's data that can

be retrieved in case of incidents or failures.

The Monitoring System component monitors

availability of both servers to guarantee business

continuity and thus the fulfilment of all undertaken

SLAs. In case of any SLA violation, either notified

by the Monitoring System or the Auditor, the

Remediation System component manages entire

remediation process. These components reside on

CSP's infrastructure.

Note that in the proposed architecture, in order to

increase security, both servers should be separated

from database components; they should all reside on

different VMs. In order to ensure the disaster-proof

system, the CSCs’ data, the Backup Server and

Backup DB should be physically separated from the

main components. Additionally, all four components

should be separated from the Monitoring and

Remediation Systems.

The functionalities of the Monitoring System and

Remediation System are further elaborated in

Section 6.

The last entity involved in secure storage chain is

a trusted Third Party (TP) that hosts the Auditor. I,

WS, and RF are continuously evaluated by the

Auditor. If any violations are detected, both CSP and

CSC are notified. It is up to the CSP's Remediation

System component to identify and apply the optimal

corrective measures. Note that violation of I is

evaluated and confirmed by the Auditor, but only the

Client can detect it.

Some might argue that a CSP cannot be trusted

and that there is no guarantee for the CSC that the

CSP will handle SLA violations in the CSC's best

interest. But since the Auditor is and independent

entity, there is no way for the CSP to not react to

detected violations and hide it. If I, WS, and RF

violations are not handled, the Auditor will keep

detecting violations and keep notifying the CSC

which might result in a termination of an SLA.

When the CSC signs an SLA with C, I, WS

and/or RF guarantees, the CSC is provided with the

Client component and an URL of the Auditor.

Confidentiality is enforced with the client-side

encryption. But since the Client component which

orchestrates encryption resides on the CSC’s infra-

structure, the CSP has no way of monitoring the

code and ensuring its correctness. Thus confidentia-

lity is enforced by the CSP in terms of providing the

CSC with the right Client code when the SLA is

signed, but it is up to the CSC to maintain the code

and assure its validity.

Details about how the Auditor detects I, WS, and

RF violations are presented in Section 4.

4 AUDITOR IN CLOUDPROOF

As mentioned in Section 2, the core objects of the

auditing process are attestations. Each time the CSC

wants to upload a file to the cloud, the Client

performs a

put request which contains the CSC’s

data to be stored and a client put attestation. The

CSP (i.e., the Main Server component) stores the

data in the Main DB and returns the cloud put

attestation. The Client has to provide the client put

attestation in order to authorize the overwriting of a

certain existing data with a new content. The CSP

must respond to the request with the cloud put

attestation which affirms that CSP received the data

unchanged and successfully stored it.

Similarly, every time the CSC wants to down-

load data from the cloud, the Client performs a

get

Towards a Proof-based SLA Management Framework - The SPECS Approach

243

request which contains the block ID of the desired

data. The CSP (i.e., the Main Server component)

returns the requested data along with the cloud get

attestation. With this attestation the CSP certifies

that the returned data is the right one.

The Client automatically sends all cloud attesta-

tions to the Auditor. After each epoch (i.e., a prede-

fined fixed period of time) the Auditor checks the

chain of attestations for the current epoch. The chain

of attestations is correct if for each two consecutive

attestations A1 and A2 the chain hash in A2 is equal

to the hash of A2’s data and A1’s hash.

For more details about the initial CloudProof

system see (Popa et al., 2011). Details about the

extension of the initial idea are discussed in the next

sections.

5 AUDITOR’S EXTENSION

As mentioned Section 4, the CloudProof's Auditor is

able to detect when CSC's commits have not been

handled consistently by the CSP (violation of WS or

modified illegitimately for some other reason;

however, it does not distinguish between the two)

and when the CSC has not received data when

executing

put request (violation of RF).

The CloudProof’s Auditor can detect violations

of I, but only after each epoch, when it checks all

attestations (some

get request attestation would not

have the same data as the

put request attestation for

this data and this version). However, the Client can

detect such a violation immediately and can trigger

the auditing process right away to verify it (sends a

notification to the Auditor). The Client can detect

violation of I because it can calculate the hash of the

encrypted data and compare it with the value in the

attestation – also, authenticated encryption should be

used which means that decryption handled by the

Client would report an error when the data is

changed illegitimately.

An additional limit of the existing CloudProof’s

Auditor is that it is unable to determine what the root

cause of violations of WS and RF might be. It

cannot determine whether a violation is an attack or

a system error. But distinguishing between root

causes of violations is crucial because entirely

different incident responses are required for a system

error and an actual attack. While detection of an

attacker requires significant changes like restoring

the service on another virtual machine, the detection

of a database error might require only switching

from a primary database to the backup.

It has to be noted that CloudProof’s Auditor does

not take into account violations of I detected by

CSCs. The Auditor can by itself detect violation of I,

but not in real-time. The Client can detect in real-

time with a

get request that a block has been

illegitimately changed and send a notification to the

Auditor immediately. When the Client sends the

get

request to the server, the cloud get attestation is

returned and contains chain hash and block hash of

the requested data. With received chain hash the

Client can calculate the block hash itself and

compare it with the received block hash. If they do

not match, the Client detects a violation of I.

Moreover, not only integrity violations can be

detected by the Client, a chain hash incorrectness

can be discovered as well by checking whether the

chain hash returned by the server in the

put request

is correct. The Client has a chain hash from the last

get request for a block and can calculate the chain

hash that is to be returned by the

put request for the

block (the chain hash that is to be contained in the

returned cloud put attestation) using the hash of a

block and other block metadata. If the Client’s

calculated chain hash and the one returned from the

Main Server are not equal, the Client detected hash

incorrectness. Chain hash incorrectness means a WS

violation. It can be detected by the CloudProof’s

Auditor only at the end of an epoch.

Since all this information detected by the Client

is crucial for sustaining the security level specified

in an SLA, with our approach all integrity violations

and any detected chain hash incorrectness are imme-

diately notified to the Auditor for further analysis.

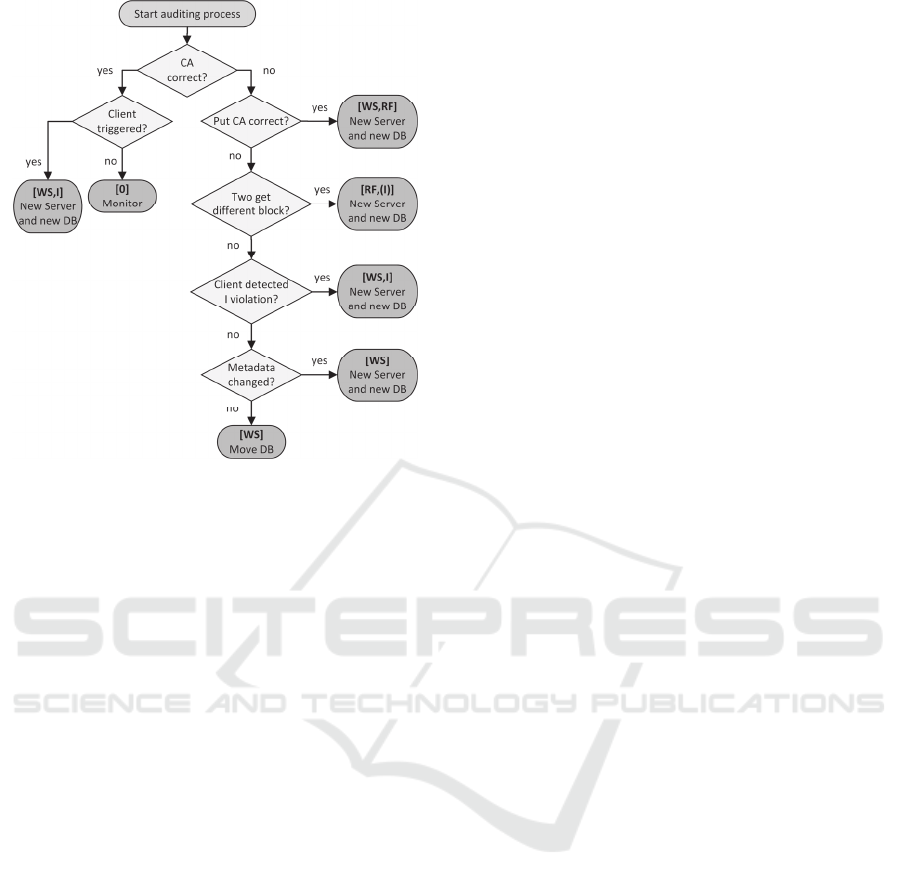

In the following we describe an algorithm

executed by the Auditor at the end of each epoch

and when (if) the Client detects integrity violations

or a chain hash incorrectness. The auditing process

is also depicted in Figure 2 where each end node

outlines metrics that have been affected by the

detected violation (in bold), and remediation actions

to be taken to recover from it.

When the auditing process starts (either after an

epoch or after a notification from the Client), the

Auditor first checks if the chain of attestations (CA)

is correct. If the chain of attestations is correct, the

Auditor has to consider possible system failures

notified by the Client. If the auditing process has not

been triggered by the Client, then there is no viola-

tion of any SLA and the monitoring process can

continue. If the auditing process has been Client trig-

gered due to a detected integrity violation, then the

result is a violation of I and WS. In this case, a new

Main Server and a new Main DB should be set up.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

244

Figure 2: Auditing process.

If the chain of attestations is not correct, the

Auditor has to check for the occurrence of the fork

attack, where the cloud maintains two copies of the

data and conducting some writes and reads on the

original data and others on its copy. In order to

confirm or rule out the fork attack, the Auditor

checks whether each

put request has a correct chain

of attestations behind it.

If all put attestations have a correct chain behind

them, then at some point the fork attack occurred

which is a violation of WS. This is also a violation

of RF since the CSC did not get the latest changes

made by some other CSC. The Auditor can deter-

mine with which request the data has been forked.

This information can later be used to set the system

back to the time before the fork attack took place. In

this case, a new Main Server and a new Main DB

should be set up and the data should be restored

from the backup to the version before the attack.

In the case where some

put request does not

have a correct chain of attestations behind it, the

Auditor has to check whether there exist two

get

requests for the same block that received the same

version number but different block content.

If such a pair of

get requests exists, an attack

might have happened. Two different CSCs received

different block data accompanied by the same

version and block number (violation of RF). This is

with high certainty due to a deliberate attack thus the

Main Server and the Main DB should be replaced.

Note that also I might be violated in both of these

get requests. If I is not violated in neither, it means

that either keys have been stolen or some old version

of the block (with old hash) has been returned – this

has to be checked and a special warning has to be

sent to the Client if keys are stolen. If I is violated in

either of the two

get requests, this might be due to a

system error (e.g., failure of a disk where database

resides between the two requests). Regardless, it is

better to go with a stricter remediation action

(replacing Main server and Main DB).

When such a pair of

get requests (for the same

block that received the same version but different

block content) does not exist, this means that some

put request was not executed correctly and this

represents a violation of the WS. In this case, the

further process depends on whether the Client

detected integrity violation.

If the Client triggered the auditing process after

detecting a violation of integrity (which the Auditor

now confirms), both the Main Server and the Main

DB have to be replaced. On the contrary, if the

Client did not detect any issues, the Auditor checks

whether the block meta-data (e.g., version number,

block number) has been changed in a way that

indicates a deliberate attack.

If some element of the block metadata has been

changed, e.g., the returned chain hash contains the

previous version number and previous block hash,

this might indicate a rollback attack. In this case, a

new Main Server and Main DB have to be set up.

On the contrary, if no metadata has been changed,

then there are no indications for an attack. And since

the assumption is that all issues are due to a system

error, the Main Server should be switched to the

Backup DB, which would then take the role of the

Main DB, and a new DB should be set up which

would take the role of the Backup DB.

Whenever the Auditor detects or confirms a

violation of any of the properties I, WS, and RF,

both CSP and affected CSCs are notified about the

violated property and the required remediation

action. It is up to the CSP’s Remediation System

component to execute remediation actions and it is

up to the affected CSCs to claim compensations for

the violation of the SLA. Of course, not all detected

violations affect all CSCs. For example, a violation

of WS only affects CSCs that have this property

guaranteed in their SLA.

In the next section we focus on the remediation.

6 SLA REMEDIATION

As described in Section 3, each SLA specifies CSC's

security requirements in the form of SLOs that are

Towards a Proof-based SLA Management Framework - The SPECS Approach

245

built on top of security metrics that the CSP can

enforce and monitor. In this paper our focus is on

secure storage metrics C, I, WS, and RF.

In the SLA negotiation phase, CSCs have the

opportunity to choose which of these properties

should be enforced and monitored by the CSP. Once

the SLA is signed, and all components are deployed

and configured, the CSC can start using the acquired

service. In order to fulfil all commitments in the

undertaken SLAs, the CSP not only considers and

manages notifications from the Auditor, but also

uses its own Monitoring System component, which

oversees availability of servers and databases.

In case when the Monitoring System detects that

one of the servers or databases is unresponsive or

unavailable, it has to react since this may not only

cause delays in the service but also errors that can

affect I, WS, or RF.

Monitoring system continuously checks

responsiveness of both servers and databases. If at

any moment any of them is unresponsive, the

occurrence is notified to the Remediation System

component which first tries to restart it. If that solves

the issue, monitoring continues. If restarting the

unresponsive component does not help, the

Remediation System tries to deploy another instance

of the unresponsive component. When there is a

need to deploy a new database, the Remediation

System also triggers backup or restoration of data. If

any of these steps fail to recover the system to a

normal state, this may threaten the success of future

put and get requests (i.e., validity of SLOs related

to I, WS, and RF metrics), thus the CSCs should be

notified about the event.

CSP’s Remediation System component has to

manage notifications of incidents and failures that

are sent not only from the Monitoring System, but

also the ones sent from the Auditor. As seen

previous section, the Auditor not only detects vio-

lation of secure storage metrics, but also performs

root cause analysis and identifies the proper

remediation action. When a notification of a viola-

tion is sent to the Remediation System, the Auditor

reports about which metrics are violated (so that the

CSP can determine the damage with respect to the

affected SLAs), what the remediation plan is (to

execute it), and which version of the data is the last

correct one (to restore the data to the right version).

Remediation actions considered by the Auditor

consist of either switching the Main DB to the

Backup DB and setting up a new DB to take the role

of the new Backup (case 1), or setting up a new pair

of Main Server and Main DB components and

restoring the data to a certain state (case 2).

In the first case, the Main Server is connected to

the Backup DB which takes the role of the new

Main DB. A new database is set up which takes the

role of the Backup DB. Backup of the entire

database is executed immediately.

When there is a need to set up a new Main

Server and a new Main DB, all data also have to be

restored from the backup DB to a certain version as

suggested by the Auditor.

7 IMPLEMENTATION

As seen from the remediation plans discussed above,

all activities orchestrated by the Remediation

System component (and also those managed by the

Monitoring System component) can be easily

automatized with one of the existing management

and orchestration tools like Chef (Chef, 2008).

In SPECS, remediation process is handled by

two components, namely Remediation Decision

System which identifies remediation actions needed

to recover from SLA violations and Implementation

component integrated with Chef which executes

remediation plans. Code and further details are

provided at (SPECS Team, 2015)).

Other components of the framework described in

Section 3 have also been implemented and are

available on Bitbucket (SPECS Team, 2015).

8 CONCLUSIONS

The main concerns in today’s cloud environment for

CSCs and CSPs are security and trustworthiness,

respectively. To this end, we have presented a

solution that assures security to CSCs in a

transparent way and consequently increases trust in

cloud providers. We have introduced an SLA

management framework that supports a proof-

system for security properties particularly related to

cloud storage providers, namely confidentiality,

integrity, write-serializability, and read-freshness.

The proposed framework is based on the existing

CloudProof solution which is able to detect

violations of the above mentioned security proper-

ties, but has been extended to enable root cause

analysis and remediation of detected violations.

In our future work, we aim to extend our root

cause analysis approach to include more

information. Currently, the root cause analysis is

conducted on the basis of the information provided

for one single event, whereas in our future research

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

246

we intend to include historical monitoring and

remediation data to perform broader threat analysis.

ACKNOWLEDGEMENTS

The research was partially supported by the grant

FP7-ICT-2013-11-610795 (SPECS).

REFERENCES

Addis, B., Ardagna, D., Panicucci, B., Zhang, L., 2010.

Autonomic management of cloud service centers with

availability guarantees. In CLOUD'10, Proceedings of

the 2010 IEEE 3

International Conference on Cloud

Computing, IEEE.

Albeshri, A., Boyd, C., Gonzáles Nieto, J., 2014.

Enhanced GeoProof: Improved geographic assurance

for data in the cloud. International Journal of

Information Security 13(2):191-198.

Arcieri T., 2013. What's wrong with in-browser

cryptography. http://tonyarcieri.com/whats-wrong-

with-webcrypto.

Ateniese, G., Burns, R., Curtmola, R., Herring, J., 2007.

Provable data possession at untrusted stores. In

CCS'07, Proceedings of the 14

ACM Conference on

Computer and Communications Security, ACM.

Ateniese, G., Burns, R., Curtmola, R., Herring, J., Khan,

O., Kissner, L., Peterson, Z., Song, D., 2011. Remote

data checking using provable data possessions.

Transactions in Information and System Security

14(1):1-34, ACM.

Badidi, E., 2013. A cloud service broker for SLA-based

SaaS provisioning. In Proceedings of the 2013

International Conference on Information Society,

IEEE.

Bonvin, N., Papaioannou, T. G., Aberer, K., 2011.

Autonomic SLA-driven provisioning for cloud

applications. In CCGRID'11, Proceedings of the 2011

IEEE/ACM International Symposium on Cluster,

Cloud and Grid Computing, IEEE.

Bowers, K. D., Juels, A., Oprea, A., 2009. Proofs of

Retrievability: Theory and implementation. In

CCSW'09, Proceedings of the 2009 ACM Workshop on

Cloud Computing Security, ACM.

Brandic, I., Emeakaroha, V. C., Maurer, M., Dustard, S.,

Acs, S., Kertesz, A., Kecskemeti, G., 2010. LAYSI: A

layered approach for SLA-violation propagation in

self-manageable cloud infrastructures. In

COMPSACW'10, Proceedings of the 2010 IEEE 34

Annual Computer Software and Applications

Conference Workshop, IEEE.

Brickell, E. F., Camenisch, J., Chen, L., 2004. Direct

anonymous attestation. In CCS'04, Proceedings of the

ACM Conference on Computer and

Communications Security, ACM.

Chef, 2008. Chef Software web site. https://www.chef.io/.

Cloud Standards Customer Council, 2015. Practical guide

to cloud service agreement version 2.0.

Emeakaroha, V. C., Netto, M. A. S., Calheiros, R. N.,

Brandic, I., Buyya, R., De Rose, C. A. F., 2012.

Towards autonomic detection of SLA violations in

cloud infrastructure. Future Generation Computer

Systems 28(7):1017-1029.

Erway, C. C., Küpcü, A., Papamanthou, C., Tamassia, R.,

2015. Dynamic provable data possession.

Transactions on Information and System Security,

17(4):1-29, ACM.

European Commission, 2014. Cloud service level

agreement standardisation guidelines, C-SIG SLA

2014.

Feng, J., Chen, Y., Summerville, D., Ku, W. S., Su, Z.,

2011. Enhancing cloud storage security against roll-

back attacks with a new fair multiparty non-

repudiation protocol. In CCNC’11, Proceedings of the

IEEE Consumer Communications and Networking

Conference, IEEE.

Halevi, S., Harnik, D., Pinkas, B., Shulman-Peleg, A.,

2011. Proofs of ownership in remote storage systems.

In CCS'11, Proceedings of the 18

ACM Conference

on Computer and Communications Security, ACM.

ISO/IEC, 2014. Information technology -- Cloud

computing -- Service level agreement (SLA)

framework and technology (Draft), ISO/IEC 19086.

Juels, A., Kaliski Jr., B. S., 2007. PORs: Proofs of

retrievability for large files. In CCS'07, Proceedings of

the 14

ACM Conference on Computer and

Communications Security, ACM.

Kaaniche, N., El Moustaine, E., Laurent, M., 2014. A

Novel zero-knowledge scheme for proof of data

possession in cloud storage applications. In

CCGrid'14, Proceedings of 14

IEEE/ACM

International Symposium on Cluster, Cloud and Grid

Computing, IEEE/AMC.

Katz-Bassett, E., John, P. J., Ksishnamurthy, A.,

Wetherall, D., Anderson, T., Chawathe, Y., 2006.

Towards IP geoolocation using delay and topology

measurements. In IMC'06, Proceedings of the 6

ACM

SIGCOMM Conference on Internet Measurement,

ACM.

Leitner, P., Michlmayr, A., Rosenberg, F., Dustard, S.,

2010. Monitoring, prediction and pevention of SLA

violations in composite services. In ICWS'10,

Proceedings of the 2010 IEEE International

Conference on Web Services, IEEE.

mOSAIC, 2010. The mOSAIC project web site.

http://www.mosaic-cloud.eu.

Popa, R. A., Lorch, J. R., Molnar, D., Wang, H. J.,

Zhuang, L., 2011. Enabling security in cloud storage

SLAs with CloudProof. In USENIX ATC’11, 2011

USENIX Annual Technical Conference.

Pulls, T., Peeters, R., Wouters, K., 2013. Distributed

Privacy-Preserving Transparency Logging. In

WPES’13, Proceedings of the 12

ACM workshop on

privacy in the electronic society, ACM.

Rak, M., Villano, U., Casola, V., De Benedictis, A., 2015.

SLA-based secure Cloud Application Development:

Towards a Proof-based SLA Management Framework - The SPECS Approach

247

the SPECS Framework, In Proceedings of the 17

International Symposium on Symbolic and Numeric

Algorithms for Scientific Computing.

Sahai, A., Machiraju, V., Sayal, M., van Moorsel, A. P.

A., Casati, F., 2002. Automated SLA monitoring for

web services. In DSOM'02, Proceedings of the 13

IFIP/IEEE International Workshop on Distributed

Systems: Operations and Management: Management

Technologies for E-Commerce and E-Business

Applications, Springer-Verlag.

Shacham, H., Waters, B., 2013. Compact Proofs of

Retrievability. Journal of Cryptology, 26(3):42-483.

SLA@SOI, 2009. The SLA@SOI project web site.

http://sla-at-soi.eu.

SPECS, 2013 The SPECS project web site.

http://www.specs-project.eu/.

SPECS Team, 2015. SPECS Team Bitbucket account.

https://bitbucket.org/specs-team/.

Watson, G. J., Safavi-Naini, R., Locasto, M. E., Narayan,

S., 2012. LoSt: Location based storage. In CCSW'12,

Proceedings of the 2012 ACM Workshop on Cloud

Computing and Security Workshop, ACM.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

248
